Original Research ARTICLE
Two Receptors, Two Isoforms, Two Cancers: Comprehensive Analysis of KIT and TrkA Expression in Neuroblastoma and Acute Myeloid Leukemia
- Department of Cancer Cell Biology, Engelhardt Institute of Molecular Biology, RAS, Moscow, Russia
Pediatric cancers represent a wide variety of different tumors, though they have unique features that distinguish them from adult cancers. Receptor tyrosine kinases KIT and TrkA functions in AML and NB, respectively, are well-characterized. Though expression of these receptors is found in both tumors, little is known about KIT function in NB and TrkA in AML. By combining gene enrichment analysis with multidimensional scaling we showed that pediatric AMLs with t(8;21) or inv16 and high KIT expression levels stand out from other AML subtypes as they share prominent transcriptomic features exclusively with KIT-overexpressing NBs. We showed that AML cell lines had a predominant expression of an alternative TrkAIII isoform, which reportedly has oncogenic features, while NB cell lines had dominating TrkAI-II isoforms. NB cells, on the other hand, had an abnormal ratio of KIT isoforms as opposed to AML cells. Both SCF and NGF exerted protective action against doxorubicin and cytarabine for t(8;21) AML and NB cells. We identified several gene sets both unique and common for pediatric AML and NB, and this expression is associated with KIT or TrkA levels. NMU, DUSP4, RET, SUSD5, NOS1, and GABRA5 genes are differentially expressed in NBs with high KIT expression and are associated with poor survival in NB. We identified HOXA10, BAG3, and MARCKS genes that are connected with TrkA expression and are marker genes of poor outcome in AML. We also report that SLC18A2, PLXNC1, and MRPL33 gene expression is associated with TrkA or KIT expression levels in both AML and NB, and these genes have a prognostic value for both cancers. Thus, we have provided a comprehensive characterization of TrkA and KIT expression along with the oncogenic signatures of these genes across two pediatric tumors.
Leukemia and neuroblastoma (NB) are the most common extracranial childhood cancers, constituting around 25 and 7% of all pediatric cancers, respectively (1, 2). NBs are responsible for 15% of cancer-related pediatric deaths and high-grade NB patients have a long-term survival rate of <40%. Although AML is generally considered a geriatric disease, it makes up 15–20% of all acute pediatric leukemias (2). Compared to the most common pediatric leukemia—acute lymphoblastic leukemia (ALL)—patients with AML have lower survival rates. Receptor tyrosine kinases and their respective ligands are one of the major drivers of tumor cells proliferation, survival, and possible differentiation. Here we explored the role of two such kinases—receptor tyrosine kinase KIT and tropomyosin receptor kinase A (TrkA)—for both leukemic and NB cells.
Receptor tyrosine kinase KIT, which binds the stem cell factor (SCF), is mainly considered as a myeloid cell receptor since it is predominantly expressed by myeloid progenitor cells and is essential for normal hematopoiesis (3). High KIT expression is a hallmark of AML and most AML cells are KIT-positive (4). CBF-AML patients have elevated KIT expression and a higher mutation rate in the gene compared to other subtypes of AML. Mutations in the KIT gene are associated with poor prognoses in patients with t(8;21)(q22;q22) and inv(16)(p13;q22) CBF-AML (5). The clinical significance of KIT overexpression is still unclear. In AML cells several KIT isoforms, which are the result of alternative splicing, are detected. Two isoforms differ by tetrapeptide sequence–GNNK presence in the juxtamembrane region of the extracellular domain (6, 7).
KIT is expressed in a significant amount of NB tumors and cell lines (8–14). According to histological studies, up to 30% of all NBs are KIT-positive, and KIT mRNA is detected in up to 80% of tumors. About half of KIT-positive NBs also co-express SCF (9, 11). Normally, in embryos, KIT is expressed by neural crest cell, from which NB originates. In neural crest cells SCF/KIT signaling drives their migration, survival, and proliferation and KIT expression is generally lost by these cells during their differentiation (15–21). Recent meta-analysis showed that high KIT expression in NBs correlates with worse prognoses independently from a tumor stage (8, 9, 11, 13, 22). KIT-positive NB cells give rise to more aggressive tumors, and KIT is currently considered as a potential therapeutic target for NB treatment. There are several FDA-approved KIT inhibitors, such as imatinib and dasatinib (8, 9, 13, 23, 24).
TrkA is a high-affinity receptor of neural growth factor (NGF) and its expression patterns and function are best characterized for cells and tissues of neural origin. TrkA is usually expressed in low-risk NBs prone to spontaneous regression (25–27). High TrkA expression and lack of MYCN gene amplification are associated with a favorable prognosis, whereas TrkA expression is either absent or strongly reduced in aggressive NB (28, 29). Although the expression of TrkA is generally a favorable factor, the alternatively spliced TrkAIII isoform is expressed predominantly in aggressive NBs (30). This isoform is formed as a result of alternative splicing and lacks exons 6, 7, and 9, which leads to the loss of one of two extracellular immunoglobulin-like domains and a glycosylation site. As a result of the deletion of one of the immunoglobulin-like domains, the TrkAIII isoform is constitutively active and does not respond to NGF. TrkAIII is considered to be potentially oncogenic because NB cells with TrkAIII overexpression give rise to more aggressive tumors in mice, and TrkAIII promotes angiogenesis in tumors, reduces the sensitivity of NB cells to doxorubicin, and helps cells adapt to stress (30, 31). However, this isoform is expressed not only by NB cells, but also by neural stem cells and nerve crest progenitor cells.
Expression of Trk-receptor family members was observed in several non-neural cell types and tissues. Elevated expression of TrkA is associated with a more favorable outcome and longer overall survival among breast cancer patients (32). Cutaneous melanoma cells overexpress TrkA and this is associated with poor outcomes and shorter survival (33, 34). TrkA expression is observed in lymphoid and hematopoietic cells, and its signaling is essential for immune cells (35, 36). Ectopic expression of the RUNX1-RUNX1T fusion gene, formed as a result of t(8;21) translocation common in pediatric AML, in CD34+ hematopoietic cells induces TrkA expression (37). Recently it was shown that an oncogenic TrkAIII splice isoform was expressed in the thymus and cutaneous melanomas, as well as in the Jurkat T-ALL cell line (38, 39).
In this study, we aimed to identify KIT and NTRK1 (which encodes TrkA protein) gene expression patterns in pediatric patients with NB and AML (from publicly available datasets) and reveal the hallmarks of the high and low expressions of those genes. We hypothesized that in some cases the examination of the expression level of KIT and TrkA receptors is insufficient for understanding leukemia and NB cell behavior in the presence of exogenous proteins, NGF, and SCF. We characterized KIT and TrkA alternatively spliced isoform expression in NB and AML cells, as well as gene expression signatures associated with their expression, both unique and mutual for NBs and AMLs, to uncover new aspects of their signaling in pediatric tumors.
NB and AML Have Distinct Pattern of KIT and NTRK1 Genes Expression
We examined KIT and NTRK1 gene expression using the publicly available R2: Genomics analysis and visualization platform (http://r2.amc.nl) in patients with cancers of neurological [NB, glioma, pheochromocytoma (PCC), and paraganglioma (PGL)] or hematological origins (AML, ALL, CLL, lymphoma, and myeloma). NBs, along with PCC/PGL and AML datasets, form distinct groups, as shown on the plot of KIT and NTRK1 gene expression (Figure 1A). Expressions of KIT and NTRK1 genes for each used data set are provided in Supplementary Table 1. Next, we compared KIT and NTRK1 expression for NB and AML subtypes with other tumors of similar origin and normal tissue. For NB we used the Versteeg data set (40), and for pediatric AML we used the denBoer-237 data set (41) as transcriptomic data in these two data sets was obtained and normalized by the same methods. In acute myeloid tumors, KIT is overexpressed in most pediatric AML karyotypes (excluding AML with KMT2A-rearrangement) compared to CML or normal bone marrow (Figure 1B). Pediatric AMLs have the same level of NTRK1 expression as normal bone marrow, expect for AMLs with t(8;21) translocation or chromosomal inversion inv16 (Figure 1B). KIT expression in NB or PCC/PGL (where all three tumors originate from neural crest cells) seems to be higher than in benign neurofibromas or a normal adrenal gland (the most common site of NB localization), but lower than in the embryonic neural tube (Figure 1C). Interestingly, even though high NTRK1 expression is strongly associated with a favorable prognosis, NB and PCC/PGL have dramatically higher NTRK1 expression than neurofibroma, adrenal gland, or neural tube (Figure 1C).

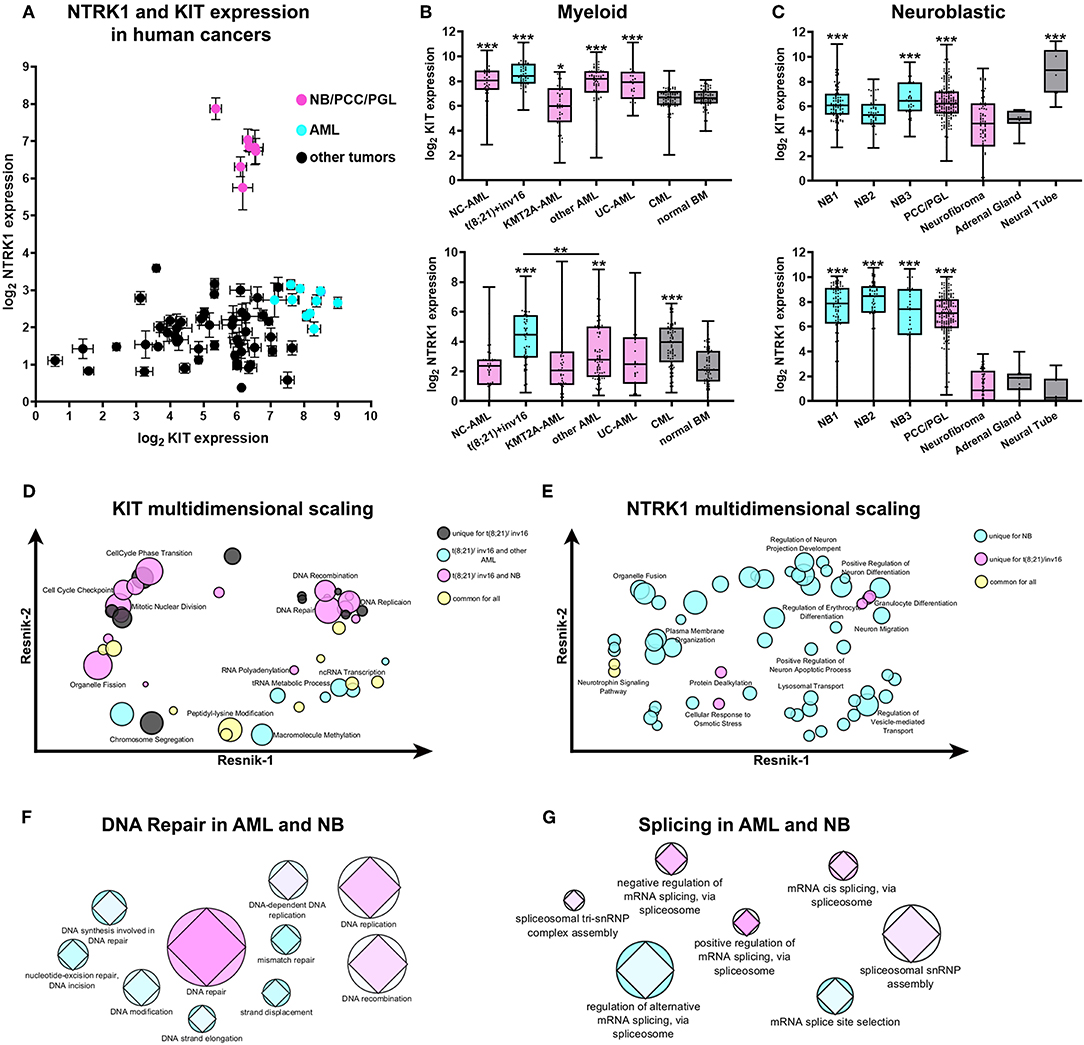

Figure 1. Expression and transcriptomic signature of KIT and NTRK1 genes in AML and NB. (A) Expression of KIT and NTRK1 expression across different data sets of human cancers of neurological and hematopoietic origin from R2: Genomics analysis and visualization platform (http://r2.amc.nl). Data presented as mean expression within each data set and standard errors. (B) Expression of KIT (top) and NTRK1 (bottom) genes in pediatric AML, CML, and normal bone marrow (BM). Data on pediatric AML was taken from the denBoer data set. NC- normal cytogenetics (n = 39); t(8;21)/inv16- AML with translocation t(8;21) or inversion inv16 (n = 55); KMT2A -AML- AML with KMT2A rearrangement (n = 47); other AML- AML with other karyotypes (n = 71); UC- unknown cytogenetics (n = 25); CML- chronic myeloid leukemia (n = 69). Data on CML and normal BM (n = 71) were obtained from the leukemia Mile-2004 data set from the R2 platform. (C) Expression of KIT (top) and NTRK1 (bottom) genes in NB data sets, pheochromocytomas, and paragangliomas (PCC/PGL), neurofibroma, adrenal gland, and neural tube. Data sets used for analysis: NB1- Versteeg NB data set (n = 88); NB2- Hiyama NB data set (n = 51); NB3- DeLattre NB data set (n = 34); PCC/PGL- Favier data set (n = 188), neurofibroma- Miller data set (n = 88), adrenal gland- from GSE3526, GSE7307, GSE8514 data sets (n = 13), neural tube- Nagy data set (n = 9). All AML and CML datasets were compared to normal BM, and NB datasets were compared to the adrenal gland. *p < 0.05, **p < 0.01, ***p < 0.001 as calculated by Mann-Whitney test. (D) Multidimensional scaling of enriched GO gene sets identified in t(8;21)/inv16 AML with high KIT expression. (E) Multidimensional scaling of enriched GO gene sets identified in t(8;21)/inv16 AML and NB with high NTRK1 expression Semantic distance was analyzed by REVIGO using Resnik scores for depth of GO gene annotations. (F) Graphical representation of involvement of DNA damage repair or splicing (G) pathways in the progression of AML and NB. Colors from cyan to pink represent the prognostic value of each gene set/ Prognostic value was calculated as a normalized percentage of genes in a set correlating with prognosis. The AML data set is presented by circles and NB by diamonds. Size is proportional to the number of genes in each GO gene sets.
To compare possible cellular processes associated with KIT and TrkA in AMLs and NB we used the GSEA approach to find enriched Gene Ontology (GO) gene sets in patients with high KIT or NTRK1 expression (all enriched gene sets are presented in Supplementary Tables 2, 3). Since AMLs with t(8;21)/inv16 have significantly higher NTRK1 expression than other AML karyotypes and are associated with KIT overexpression we decided to analyze this group separately from other AML karyotypes (including AMLs with unknown and normal cytogenetic). GSEA analysis revealed that 44 GO gene sets were enriched in t(8;21)/inv16 AMLs with high KIT expression. Unexpectedly, a substantial fraction of these gene sets (17/44) was also enriched in NBs with high KIT expression, and only 7/44 were enriched in other AML karyotypes, while another 10 gene sets were enriched in all three groups. To better elucidate biological processes shared by t(8;21)/inv16 AML and NB we performed multidimensional scaling using REVIGO (42). Multidimensional scaling of GO gene sets enriched in t(8;21)/inv16 AMLs with high KIT expression showed that KIT expression in this AML subgroup as well as in NB is associated with increased activity in DNA damage repair and cell cycle regulation pathways (Figure 1D). Surprisingly, these pathways were not enriched in other AML karyotypes, suggesting that KIT has more similar functions in t(8;21)/inv16 AML and NB, rather than in t(8;21)/inv16 and other AML karyotypes.
Next, we compared enriched GO gene sets for high NTRK1 expression in NB, t(8;21)/inv16, and other AML karyotypes data sets. Fifty six gene sets were enriched in the NB data set, 7 in t(8;21)/inv16, and no enrichment was observed for other AML karyotypes (Figure 1E). High NTRK1 expression in NBs was associated mainly with normal neural functions such as dendrite and neurite extension and the control of protein transport and localization in different cell compartments. In t(8;21)/inv16 AMLs, high NTRK1 expression was mainly associated with erythrocyte and granulocyte differentiation.
To investigate if DNA damage repair processes shared for t(8;21)/inv16 AML and NB (as was revealed by multidimensional scaling) have any impact on disease outcome we analyzed how many genes from each GO gene set were associated with patient survival. We used the Kaplan Meier scan from the R2: Genomics analysis and visualization platform to find genes associated with a prognosis in two data sets: Bohlander (n = 422) (43) for AML and Versteeg (n = 88) (40) for NB. The DNA repair GO gene set was enriched in genes associated with prognosis both for AML and NB (Figure 1F). Since KIT and TrkA both have well-described alternatively spliced isoforms we also examined the relevance of different splicing pathways to prognosis for NB and AML. We chose seven GO gene sets associated with splicing and found that mRNA cis-splicing via spliceosome had the biggest amount of genes; these expressions were connected with prognoses in NB and AML (Figure 1G). These results indicate that certain DNA damage repair and splicing pathways may be relevant to prognoses in the case of both AML and NB.
KIT Isoforms Have Different Expression Ratios in AML and NB Cells
First, we measured the mRNA expression of two KIT isoforms (GNNK+ and GNNK-) in three myeloid leukemia (Kasumi-1, K562, and HL-60) and three NB (SH-SY5Y, SK-N-BE, and SK-N-AS) cell lines. All tested AML and NB cell lines had detectable mRNA expression of both KIT isoforms. GNNK- was the predominant isoform in all leukemic cell lines, but in the HL-60 cell line the differences between GNNK- and GNNK+ transcripts were the smallest (Figure 2A). We then stained three myeloid leukemia cell lines with an anti-KIT (conjugated with FITC) antibody to determine the expression of KIT on protein level. Direct flow cytometry analysis of alive leukemia cells confirmed that 100% of Kasumi-1 cells had surface KIT expression (44), and K562 cells had a sizeable KIT-positive population. In agreement with previous research, HL-60 had a very low level of surface KIT (45), and only intracellular KIT protein was detected in this cell line after fixation and permeabilization prior staining (Figure 2B). ICC confirmed that Kasumi-1 cells have the highest KIT expression level as cytoplasm was stained intensively. Only part of the K562 and HL-60 population of K562 and HL-60 cells had considerable KIT staining.

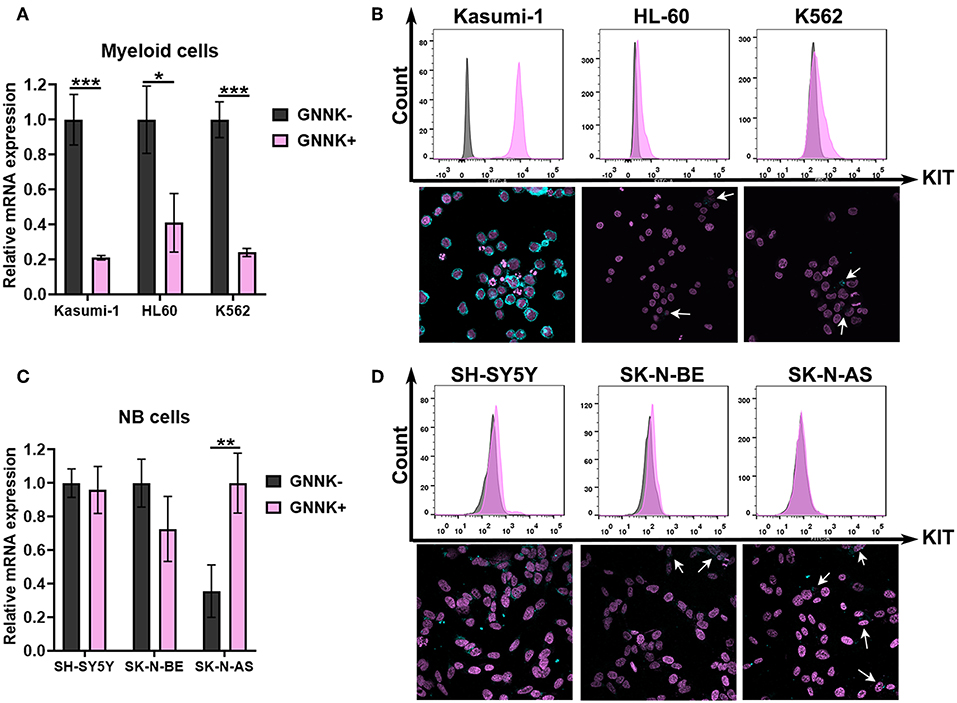

Figure 2. KIT expression in AML and NB cells. (A) Relative mRNA expression of KIT splice isoforms (GNNK- and GNNK+) in myeloid leukemic cell lines Kasumi-1, HL-60, and K562. (B) TrkA protein expression by direct flow cytometry and sub-cellular distribution of TrkA in leukemia cell lines using ICC. (C) Relative mRNA expression of KIT splice isoforms (GNNK- and GNNK+) in NB cell lines SH-SY5Y, SK-N-BE, and SK-N-AS. (D) TrkA protein expression by direct flow cytometry and sub-cellular distribution of TrkA in NB cell lines using ICC. *p < 0.05, **p < 0.01, ***p < 0.001 as calculated by the Mann-Whitney test.
Notably, we found that two NB cell lines, SH-SY5Y and SK-N-BE, had roughly the same ratio of GNNK- and GNNK+ KIT isoform expression, while SK-N-AS have a predominant GNNK+ isoform expression (Figure 2C). Direct flow cytometry and ICC confirmed that all NB cells expressed the KIT receptor but at different levels (Figure 2D). The highest staining intensity with anti-KIT antibodies was detected in SH-SY5Y cells, while SK-N-BE and SK-N-AS apparently had a very small population of cells with noticeable staining.
TrkAIII Isoform Is Highly Expressed in AML Cells
Further, we examined NTRK1 isoform expression in myeloid and neuroblastoma cell lines. Kasumi-1 and HL-60, which represent the M2 subtype of AML, highly express TrkAIII isoforms (Figure 3A). We then stained three myeloid leukemia cell lines with anti-TrkA antibodies. For flow cytometry and ICC examination of TrkA protein expression, we used FITC-conjugated antibodies that targeted the tyrosine kinase domain of the receptor, shared by all three isoforms. Cells were pre-fixed and permeabilized, and in all leukemic cells we detected a significant amount of intracellular receptors. We used an ICC approach to determine TrkA distribution within the cells (Figure 3B). The pattern of TrkA distribution in Kasumi-1 and HL-60 cells differed dramatically from that observed in K562 cells. In K562 cells a lot of protein localized all over the cellular cytoplasm, while in Kasumi-1 and HL-60 cells TrkA protein localized to circular-shaped, spike-like compartments, near the nuclei (Figure 3E). The size of the TrkA-spikes was notably smaller in HL-60 cells than in Kasumi-1.

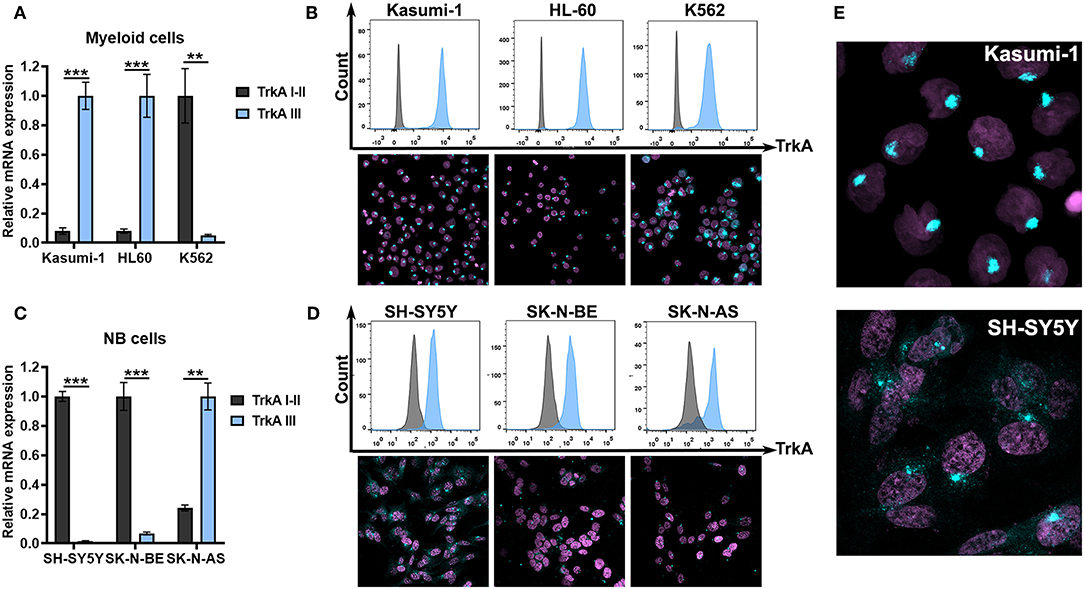

Figure 3. TrkA expression in AML and NB cells. (A) Relative mRNA expression of TrkA splice isoforms (TrkAI-II and TrkAIII) in myeloid leukemia cell lines Kasumi-1, HL-60, and K562. (B) TrkA protein expression by direct flow cytometry and sub-cellular distribution of TrkA in leukemic cell lines using ICC. (C) Relative mRNA expression of TrkA splice isoforms (TrkAI-II and TrkAIII) in NB cell lines SH-SY5Y, SK-N-BE, and SK-N-AS. (D) TrkA protein expression by direct flow cytometry and sub-cellular distribution of TrkA in NB cell lines using ICC. (E) Larger images of TrkA sub-cellular distribution of Kasumi-1 and SH-SY5Y cells. **p < 0.01, ***p < 0.001 as calculated by the Mann-Whitney test.
SH-SY5Y and SK-N-BE cells have a dramatically higher expression of TrkAI-II isoforms than TrkAIII isoforms (Figure 3C). SK-N-AS cells, on the contrary, have higher TrkAIII expression. All NB cells seem to express TrkA proteins as detected by flow cytometry. ICC showed a more complicated TrkA expression pattern in the NB cell. SH-SY5Y had the brightest staining and a significant amount of the receptor was localized to the cytoplasm or membrane (Figures 3D,E). In leukemic cells we also detected spikes that were close to the nuclei. SK-N-BE and SK-N-AS had little amounts of staining in the cytoplasm with the majority of cells having only spikes.
SCF and NGF Promote Survival of Both AML and NB Cells
To explore the role of TrkA and KIT isoforms in NB and AML cells, we first tested whether receptor activation by SCF or NGF affects the proliferation of cells with different ratios of receptor isoforms. NB and leukemic cell lines were treated with different concentrations of SCF or NGF (25–100 ng/ml) alone and with 100 ng/ml of both SCF and NGF, with an addition of even low concentrations (25 ng/ml) of SCF stimulated growth of Kasumi-1 cells that had the highest level of KIT expression (Figure 4A). None of the analyzed myeloid cell lines responded to NGF treatment by elevated growth rate. Consistent with previous reports, NGF did not drive K562 cell line growth despite the high expression of full-length TrkA receptor isoforms. Surprisingly, the addition of NGF to SCF-treated Kasumi-1 cells resulted in the abolishment of SCF-induced growth. As it was shown on cytokine-dependent cell line TF-1, NGF/TrkA signaling is not preferred in hematopoietic cells and even trace amounts of GM-CSF could nullify NGF effects (46).

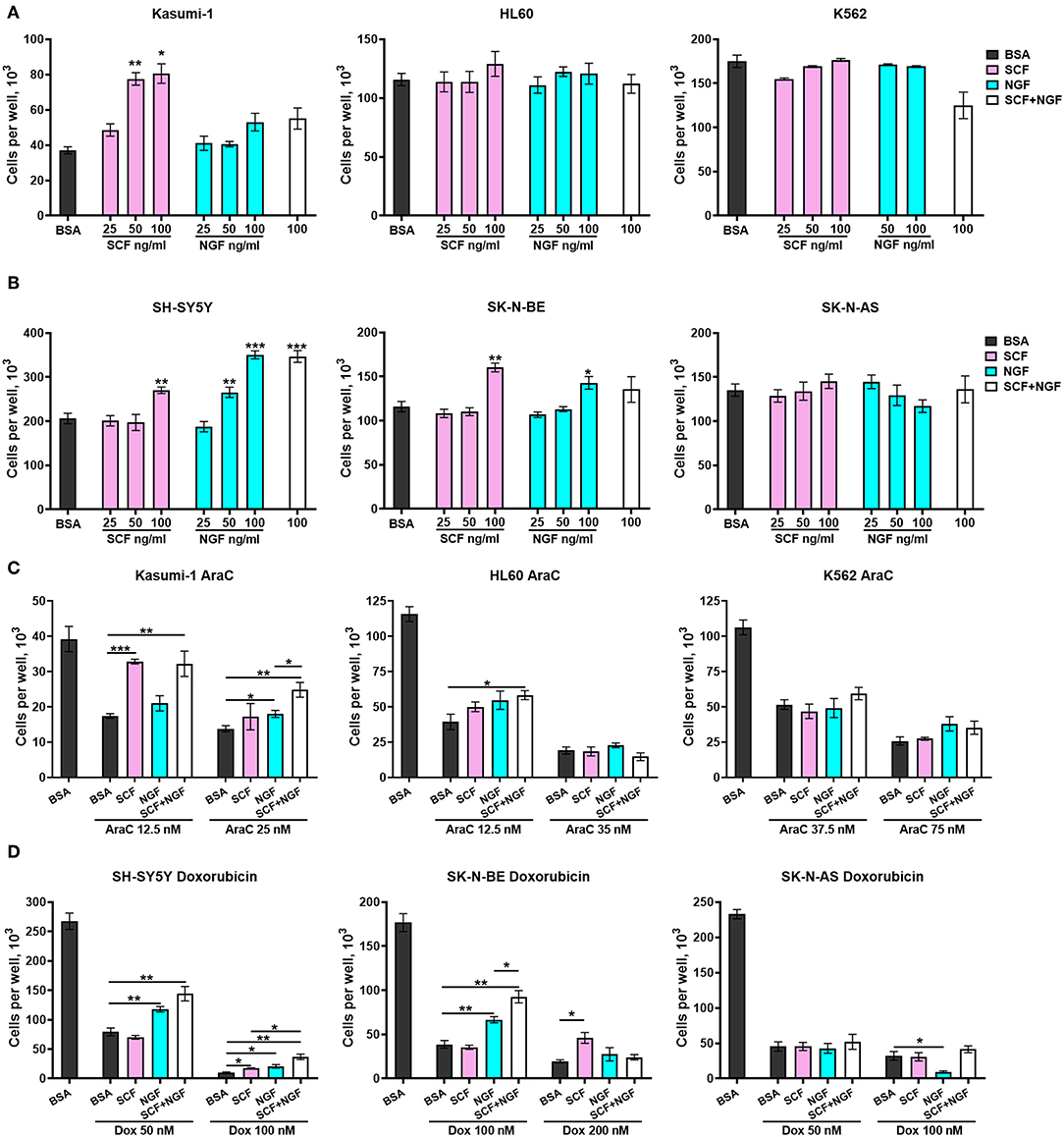

Figure 4. Growth and survival of AML an NB cells in the presence of NGF and SCF. Number of viable (A) leukemic cells and (B) NB cells in response to treatment with recombinant proteins—SCF (25–100 ng/ml), NGF (25–100 ng/ml) or their combination (100 + 100 ng/ml). (C) Number of viable leukemic cells in response to treatment with cytarabine (AraC) in the presence of recombinant proteins. (D) Number of viable leukemic cells in response to treatment with doxorubicin (Dox) in the presence of recombinant proteins. Leukemic and NB cells were pretreated with recombinant SCF (100 ng/ml), NGF (100 ng/ml), or their combination (100 + 100 ng/ml). Two concentrations of AraC or doxorubicin were used for each cell line. Data presented as mean number of viable cells per well with SD. *p < 0.05, **p < 0.01, ***p < 0.001 as calculated by the Mann-Whitney test.
Both NGF and SCF were able to stimulate the proliferation of NB cell lines. SCF (at 100 ng/ml) stimulated only SH-SY5Y and SK-N-BE cell proliferation (Figure 4B). NGF promoted growth of SH-SY5Y cells (at 50 and 100 ng/ml) and increased the proliferation of SK-N-BE cells only at 100 ng/ml. Both SCF and NGF failed to promote the growth of SK-N-AS cells. These results are in agreement with previous publications stating that TrKAIII isoforms (dominant in SK-N-AS) cannot interact with NGF (30). The absence of SCF stimulating effects on SK-N-AS cells may be connected to SK-N-AS having a higher expression of KIT GNNK+ isoforms over canonical GNNK-, since GNNK+ isoforms show weaker responses to SCF in other studies (6, 7). NGF and SCF showed no synergic action on the proliferation of NB cell lines.
To investigate what role SCF/KIT and NGF/TrkA signaling might play in NB and AML progression we studied how SCF and NGF protect cells against commonly used chemotherapeutic drugs (cytarabine-AraC and doxorubicin). Cells were pretreated with recombinant proteins SCF and NGF either individually (100 ng/ml) or in combination (100 ng/ml each) and then treated by AraC (for leukemic cells) or doxorubicin (for NBs) for 6 days. For each cell line, we used two toxic concentrations of the respective drug, representing mildly and highly toxic concentrations. A combination of NGF and SCF protects leukemic cells Kasumi-1 and HL-60 from AraC-induced cell death (Figure 4C). Interestingly, when Kasumi-1 cells are treated with a lower concentration of AraC (12.5 nM), SCF alone is sufficient, but only NGF in combination with SCF can stimulate the survival of those cells treated with high AraC concentrations. The effect of NGF and SCF combination is reproduced in HL-60 cells under slightly toxic AraC concentrations (12.5 nM). Unexpectedly, neither SCF nor NGF affected K562 cells treated with AraC.
In a similar manner to proliferation stimulation, NGF protected NB cells with dominant TrkAI-II isoforms (SH-SY5Y and SK-N-BE) from doxorubicin, especially from lower doxorubicin concentrations (Figure 4D). NGF promoted the death of SK-N-AS cells (doxorubicin 100 nM) that had a dominant TrkAIII isoform. While SCF failed to protect NBs from lower doxorubicin concentrations it was able to protect cells from high doxorubicin concentrations (100 nM for SH-S5Y5 and 200 nM for SK-N-BE). SCF and NGF showed synergic protective action from doxorubicin (100 nM) for SH-SY5Y and SK-N-BE cells. As is consistent with our previous results, SCF alone or together with NGF did not affect the survival of SK-N-AS cells.
These results reveal that both SCF and NGF can promote survival of AML and NB cells, but still have distinct action on the cells dependent on the dominating isoform of KIT or TrkA receptors. Importantly, SCF and NGF showed combined promotion in the survival of both AML and NB cells.
Novel Prognostic Factors in AML and NB Patients Are Associated With KIT and NTRK1 Expression
To determine what novel prognostic factors are associated with KIT or NTRK1 expression in AML and NB we identified differentially expressed genes (DEGs) in patient groups with high KIT or NTRK1 expression (Figures 5A,B). Complete lists of identified DEGs are presented in Supplementary Tables 4, 5. We then examined the correlation of identified DEGs expression with prognoses in AML (Bohlander-422 data set) and NB (Versteeg-88 data set) by Kaplan Meier scan in R2: Genomics analysis and visualization platform (Figure 5C).

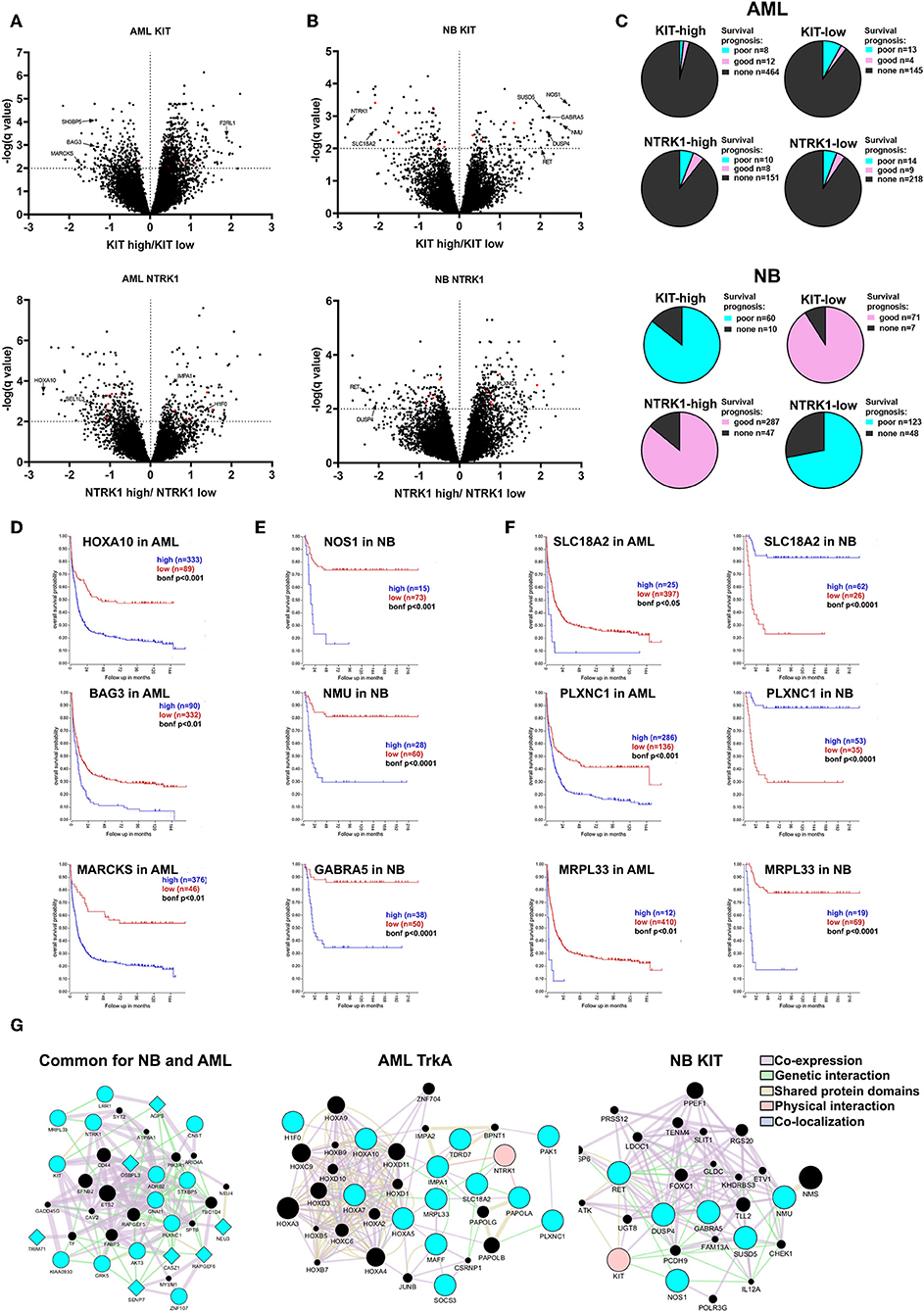

Figure 5. Evaluation of prognostic markers in AML and NB patients depending on KIT or NTRK1 expression level. Volcano plots for differentially expressed genes (DEGs) in AML (A) and NB (B) groups with KIT high/low and NTRK1 high/low expression. DEGs common for both AML and NB are marked red. (C) Distribution of DEGs in AML (top) and NB (bottom) groups based on correlation with prognosis. (D) Kaplan Meier survival analysis for HOXA10, BAG3, and MARCKS genes expression in AML data set (Bohlander n = 422). (E) Kaplan Meier survival analysis for NOS1, NMU, and GABRA5 genes expression in NB data set (Versteeg n = 88). (F) Kaplan Meier survival analysis for SLC18A2, PLXNC1, and MRPL33 genes expressed in AML and NB data sets. (G) Gene and protein interaction networks generated for identified gene sets using GeneMANIA. Blue nodes are input genes from identified gene sets. Black nodes are result genes identified by GeneMANIA that may participate in gene/protein interactions. Genes identified as associated with NTRK1 expression are presented as circles and genes associated with KIT expression as diamonds.
In the KIT-high group we detected 689 DEGS, and among them 20 were associated with a prognosis in AML (Bohlander data set). Two hundred sixty-four genes were found in the KIT-low group and 17 were associated with a prognosis. Two hundred twenty-two DEGs were found associated with NTRK1 high expression and 18 were linked with a prognosis. Three hundred thirty-six DEGs were in NTRK1-low group and 23 connected with prognosis. Among identified DEGs we found several novel prognostic genes, those expressions strongly correlate with a poor prognosis. In the KIT-low group we marked BAG3, SH3BP5, and MARCKS genes as their high expression is associated with a poor prognosis (Figure 5D). BAG3 (BCL2-associated athanogene 3) knockdown is known to affect proliferation, migration, and invasion of EGFR-positive triple-negative breast cancer cell lines via AKT and FAK kinases (47). MARCKS (Myristoylated alanine-rich C kinase substrate) is involved in the tumorigenesis of different types of malignant diseases, but its role in myeloid malignances has not been described. F2RL2 (coagulation factor II (thrombin) receptor-like 1) is a gene encoding G-protein coupled receptor and it is differentially expressed in the KIT-high group. It is involved in inflammatory processes, but its function in myeloid hematopoiesis is not described. We found three HOX genes (HOXA5, HOXA7, HOXA10) among DEGs in the NTRK1-low group. HOX genes encode transcription factors of the homeobox family, implicated in normal hematopoiesis and several malignancies including ALL and AML (48). Even so, it is known that the HOXA10 gene has oncogenic potential in developing leukemia; specific roles of HOXA5, HOXA7, and HOXA10 in myeloid leukemias are poorly described. Among genes associated with NTRK1 expression we identified several novel genes connected with poor prognosis in AML that were not previously described: H1F0, SEL1L3, and IMPA1. Here, we, for the first time, found that H1F0 (coding linker histone H1.0) is linked to high NTRK1 expression. In contrast to AML, low expression of H1F0 in glioblastoma, melanoma, and other types of cancer is a marker for poor clinical outcomes (49). A clear description of SEL1L3 [SEL1L3 sel-1 suppressor of lin-12-like 3 (C. elegans)] function in cancer cells does not exist, but we observed that its high expression is also associated with a poor prognosis in AML. High expressions of IMPA1 that encode inositol(myo)-1(or 4)-monophosphatase 1 are also markers of poor outcomes in AML. Previously, its role was described only in neural cell behavior but not in leukemic cells (50).
Seventy-six and Seventy-eight DEGs were identified in NB with KIT-high and low expression, respectively (Figure 5B). The majority of DEGs from KIT-high and NTRK1-low populations are associated with a poor prognosis, while genes identified in KIT-low and NTRK1-high populations are associated with a favorable prognosis (Figure 5C). Several genes, like RET, HIF1a, and DUSP4 were detected both in KIT-high and NTRK1-low groups. Both receptor tyrosine kinase RET and dual-specificity kinase DUSP4 are implicated in ALK oncogenic action via ERK-ETV5-RET signaling, and their high expression is associated with a poor prognosis in NBs (51, 52). In patients with high KIT expression we also identified NOS1, NMU, and GARBA5 genes, and these expressions are specific to neural tissue and are also associated with poor disease outcome (Figure 5E). NOS1 encodes neuronal nitric oxide synthase, and it is reported that high NOS1 expression may be responsible for PC12 pheochromocytoma cell resistance to NO-induced toxicity (53). The possible role of neuromedin U (NMU) or GABA type A receptor subunit alpha-5 (GABRA5) in NB progression was not previously described, but there are reports that NMU is overexpressed and involved in the progression of pancreatic, breast, and endometrial cancers (54–56). We also identified several differentially expressed genes that are associated with KIT or NTRK1 expression in both NB and AML datasets. Several of these genes were associated with prognoses, most notably MRPL33, SLC18A2, and PLXNC1 (Figure 5F). To determine possible connections between identified DEGs, we employed GeneMANIA analysis. We analyzed three gene sets: DEGs mutual to NB and AML, subset of genes associated with NTRK1 expression level in AML, and DEGs associated with poor prognosis and high KIT expression in NB. This analysis revealed that genes in all three sets formed interconnected networks, suggesting that there are multiple possible interactions between identified genes.
To verify gene expression patterns associated with TrkA and KIT, we measured MRPL33, SLC18A2, PLXNC1, HOXA10, BAG3, MARCKS, NMU, NOS1, and GABRA5 in myeloid and NB cells (Figure 6A). MRPL33 expression is a prognostic marker mutual to NB and AML and is highly expressed in all AML and NB cell lines. The total TrkA and KIT expression level is similar in K562 and Kasumi-1 cells, being rather distinct from that observed in HL-60 (Figure 6A).

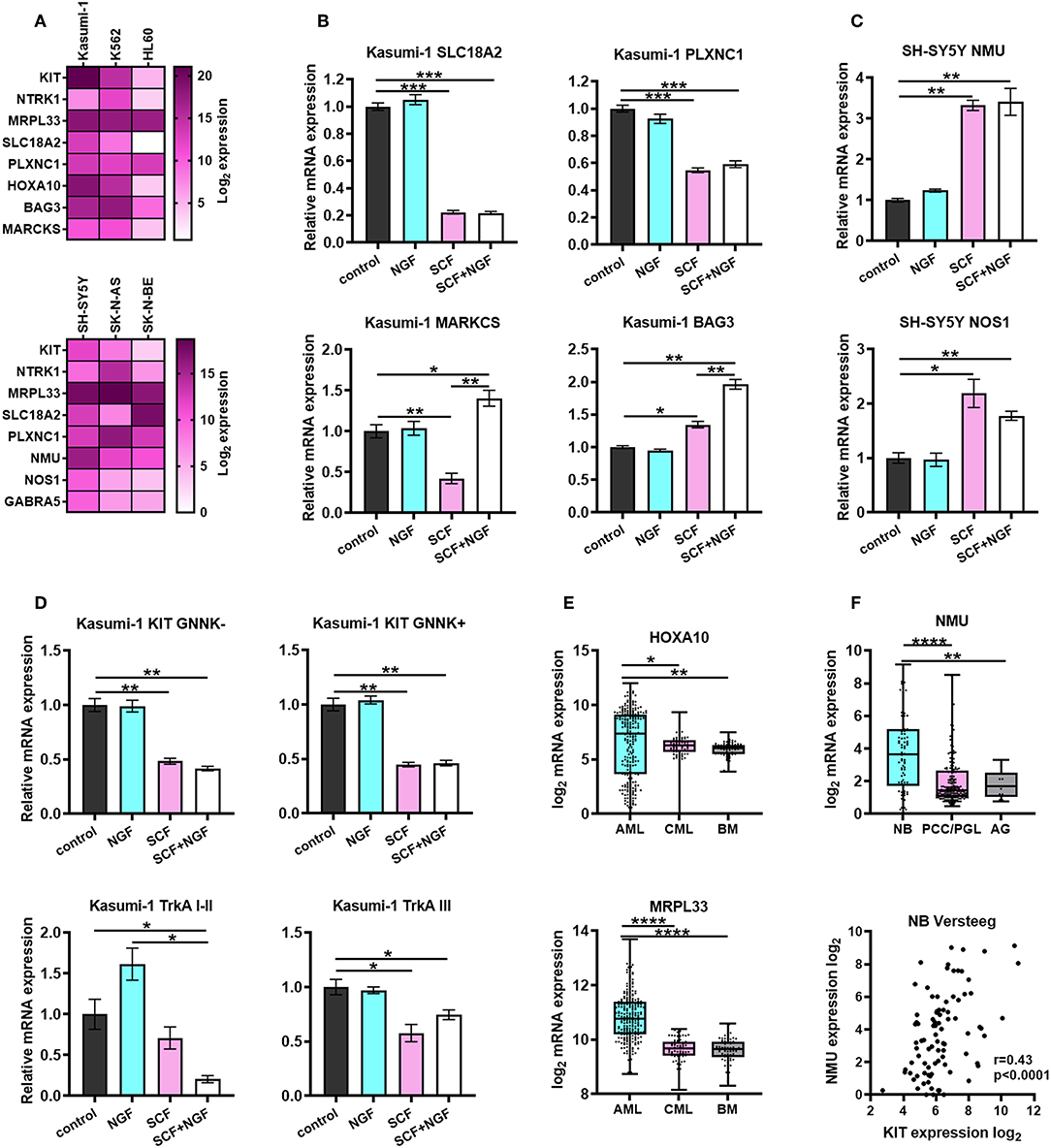

Figure 6. Characterization of prognostic marker genes expression in leukemic and NB cells. (A) Heatmap of normalized expression of KIT, NTRK1, MRPL33, PLXNC1, SLC18A2, HOXA10, BAG3, MARCKS, NMU, NOS1, and GABRA5 genes in leukemic and NB cell lines. Expression of each gene was normalized to GAPDH expression in the respective cell line. KIT and NTRK1 expression is presented as a summarized expression of all mRNA isoforms. (B) Expression of PLXNC1, SLC18A2, BAG3, and MARCKS in Kasumi-1 cells treated with SCF, NGF or both. (C) Expression of NMU and NOS1 in SH-SY5Y cells treated with SCF, NGF, or both. (D) Expression of KIT and TrkA isoforms in Kasumi-1 cells treated with SCF, NGF, or both. (E) Expression of HOXA10 and MRPL33 genes in pediatric AML patients (denBoer dataset), CML and normal bone marrow (BM) from Mile-2004 data set. (F) Expression of NMU gene (top graph) in NB patients (Versteeg dataset), pheochromocytomas and paragangliomas (PCC/PGL), and the adrenal gland (AG). Spearmen correlation of NMU and KIT expression in NB patients (Versteeg dataset). *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001 as calculated by the Mann-Whitney test.
To determine if the expression of identified DEGs is dependent on the activation of KIT or TrkA we treated Kasumi-1 and SH-SY5Y cells with SCF (100 ng/ml), NGF (100 ng/ml), or both (Figures 6B–D). Proteins were added to cell cultures for 72 h, followed by a second treatment for 6 h to measure both possible long-term and short-term effects of SCF and NGF on the expression of identified DEGs. We identified that HOXA10 and MRPL33 expression is elevated in AML patients compared to CML or normal BM, together with the highest level in Kasumi-1 among three studied cell lines (Figures 6A,E). However, its expression changes were not detected upon stimulation with recombinant proteins (data not shown). Interestingly, NGF+SCF and SCF alone had distinct effects on MARCKS mRNA levels, as its expression fell down after SCF treatment and was restored by the presence of NGF (Figure 6B). NGF strengthened effect caused by SCF regarding BAG3 expression. As for SLC18A2 and PLXNC1 (identified DEGs common for NB and AML), their expression changed similarly upon SCF or NGF+SCF stimulation, which suggested a major contribution of KIT in their regulation (Figure 6B).
Treatment of TrkAIII-dominant Kasumi-1 cells with NGF alone made no significant changes in KIT and TrkA isoform expression along with the expression of identified DEGs (Figures 6B,D). Although, neither NGF nor SCF significantly affected TrkAI-II expression statistically, their combination significantly decreased TrkAI-II expression (Figure 6D). Conversely, only SCF was able to affect TrkAIII expression. These data suggest an existence of KIT-TrkA regulatory crosstalk in AML cells. Stimulation of Kasumi-1 cells with only SCF resulted in a decrease in both GNNK-/+ isoforms, and the combination did not exhibit any additional effects (Figure 6D).
We observed that NMU, NOS1, and GABRA5 expression is highest in SH-SY5Y cells, which have the highest KIT expression among NB cell lines (Figure 6A). These results are in an agreement with all these genes being associated with high KIT expression in NB patients. More importantly, the expression of NMU and NOS1 was elevated after the treatment of SH-SY5Y with SCF (Figure 6C). We did not observe any significant changes in expression of other genes after treatment of SH-SY5Y with SCF, NGF, or both (data not shown). NMU expression is also elevated in NB tumors compared to PCC/PGL or normal adrenal glands and correlates with KIT expression in NB patients (Figure 6F).
The role of TrkA and KIT signaling in AML and NB is poorly understood. KIT and TrkA staining of leukemic and NB cells showed similar results with the regard to the expression of alternative receptor isoforms. NB cells have either an equal ratio of KIT GNNK– and GNNK+ isoforms or a predominant expression of GNNK+, while leukemic cells express substantially more GNNK– than GNNK+ isoforms. The significance of the GNNK+/– ratio in normal and malignant cells is still not precisely described in published data. It is stated that GNNK- isoforms are predominant in normal KIT-positive tissues. We have identified that GNNK+ isoforms are expressed at the same or higher level as GNNK- in NB cells. Since KIT is associated with a poor prognosis in NB but not in AML, we speculate that the ratio of splice isoform can be responsible for the oncogenic potential of the non-mutant KIT. According to several reports, KIT-positive cells in NB tumors (as opposed to AML) have cancer stem-like properties (57–60). Considering that both AML and NB cells express GNNK+, and that the GNNK-/GNNK+ expression ratio is much lower in NB cells, we speculate that GNNK+ isoform expression may be specific to cancer stem cells in NB and even possibly in AML.
Consistent with previous reports, in AML and CML cells we saw different levels of TrkA expression, both on mRNA and at protein level. Also, we demonstrate that TrkA isoform ratios are different between AML and CML cells. It was shown that the K562 (as well as TF-1) cell line has detectable surface TrkA expression as well as its mRNA transcript, while AML cells KG1, MOLM13, and MV4-11 expressed TrkA only at the mRNA level (46). In all studied AML cell lines, we detected intracellular TrkA (by flow cytometry) and observed that cells with a predominance of TrkAIII showed distinct distribution of TrkA within the cells. Interestingly, the TrkA in AML and NB cells was mostly localized in the vesicle compartment near the nucleus. Only SH-SY5Y and K562 cells, which have the highest ratio of TrkAI-II/TrkAIII expression among NB and leukemic cells, respectively, showed notable cytoplasm localization of the TrkA protein. The TrkAIII isoform is localized mostly to ER/Golgi compartments, and this isoform is considered oncogenic. When localized to ER/Golgi it can activate different pro-survival signaling (61, 62).
One of the hallmarks of pediatric tumors is a high prevalence of chromosomal aberrations and low incidence of point mutations. Still, the abnormal expression of different RTKs, such as TrkA and KIT, can have a substantial impact on tumor formation and progression. Unexpectedly, we found that t(8;21)/inv16 bearing AML with a high KIT expression phenotype shares more features with high KIT-expressing NB tumors than with other AML karyotypes. In both t(8;21)/inv16 AML and NB, tumors high KIT expression is strongly associated with DNA repair mechanisms and processes of cell cycle regulation. In NB tumors, high activity of DNA damage repair is associated with a worse prognosis for overall patient survival, and there are some reports that argue that targeting DNA damage repair may be beneficial for a subset of AMLs (63, 64). It is possible that high activity of DNA damage repair and NGF signaling pathways can be a transcriptomic signature of MYCN-amplified NB (65, 66). Moreover, NGF and SCF had similar effects on the survival of NB cells and Kasumi-1 cells with t(8;21) translocation. In both cases, NGF and SCF showed a combined protective effect against doxorubicin or cytarabine.
NGF/TrkA signaling is implicated in normal hematopoiesis, and bone marrow stromal cells produce NGF (46, 67, 68). Differentiation by retinoic acid induces the expression of TrkA receptors in myeloid cell lines (69, 70). NGF can influence the differentiation of hematopoietic cells - basophils, acting synergistically with the granulocyte-macrophage colony-stimulatory factor (GM-CSF) (71). Moreover, NGF promotes megakaryocytic differentiation but blocks erythroid differentiation (72). The role of NGF/TrkA signaling in the development or progression of myeloid malignancies is unclear. It was shown that TrkA signaling in CML cells is activated in response to a blockade of BCR-ABL1 by imatinib (73). RUNX1-RUNX1T1 knockdown in the Kasumi-1 cells leads to the upregulation of cytokine-pathways including NGF (44). The co-expression of TrkA and its ligand NGF in murine hematopoietic progenitor cells induces leukemia (74). Notably, TrkA is a common off-target for FLT3 and JAK2 inhibitors used in myeloid leukemia treatment, so leukemia patients may benefit from non-intentional TrkA inhibition along with FLT3 or JAK2 (75). Since TrkA inhibitors also block FLT3 and JAK2, the simultaneous blocking of these receptors may be considered as a prospective therapeutic approach.
Although high TrkA expression in NB is associated with a favorable prognosis, the expression of NGF may play a different role in NBs with low or moderate TrkA expression (76). In general, NBs with a favorable prognosis and high level of TrkA expression poorly express NGF. In cells obtained from patients with late-stage NBs, TrkA expression is significantly reduced, and the addition of NGF does not lead to differentiation of these cells. High NGF expression in NB is associated with a poor prognosis and it is reported that NGF stimulates NB survival under conditions of nutrient deprivation (77, 78). The protective effect of SCF on NB cells against chemotherapy drugs was not previously described, although there is much evidence to suggest that KIT inhibition leads to increased apoptosis and NB cell death. These findings highlight a possible important role of SCF and NGF co-expression in acquired drug resistance in NB and AML.
We described several gene sets, and those expressions may represent a molecular signature of KIT and TrkA expression levels in NB and AML. PLXNC1, MRPL33, and SLC18A2 genes are strongly implicated in gene interaction networks common for NB and AML, and they are also associated with NTRK1 expression levels in AML (Figure 5G). The MRPL33 gene that encodes large mitoribosomal sub-units regulates growth and apoptosis in cancer and may also be implicated in chemoresistance (79). Notably, MRPL33 expression correlates with a poor prognosis both in NBs and AML. The PLXCN1 gene encoding Plexin C1-type I transmembrane receptor is a target of the Runx1 transcriptional factor that is involved in chromosomal rearrangements in AML (80). PLXCN1 expression is associated with low NTRK1 expression in AML and high NTRK1 expression in NB. Also, Plexin C1 is involved in melanoma progression, its expression is absent in the early stages of the melanoma but occurs in late stages as a pro-survival and anti-apoptotic factor marker and acts via the activation of AKT pathway (81). Interestingly TrkA is considered to be a potential oncogene in malignant melanoma (33), and predominant TrkAIII expression has been detected in metastatic melanoma (39). That may point to the existence of the connection between NTRK1 and PLXCN1 expression in malignant diseases. SLC18A2 protein is involved in vesicular transportation of monoamines; mRNA was found in basophilic and mast cells (82). HOX proteins are involved in the regulation of myeloid cell development during embryogenesis and adult hematopoiesis. HOXA5 expression is crucial for erythroid and myeloid commitment (83). Overexpression of the HOXC6 gene induces gene expression programs similar to acute myeloid leukemia. DEGs for HOXC6-overexpressing cells include SLC18A2 (84). We found that the high expression of PLXNC1 and SLC18A2 genes is associated with poor prognosis in AML and favorable prognosis in NB, and also their expression is elevated in Kasumi-1 cell lines. Obtained results give evidence that the expression of these genes is responsive to SCF treatment, suggesting their dependence on KIT-signaling. Hence, Kasumi-1 cells could be used to study PLXNC1 and SLC18A2 oncogenic potential in AML. Moreover, our study revealed the responsiveness of AML cells to NGF treatment as a combination of NGF and SCF was not only able to protect TrkAIII-high cells from cytarabine-induced cell death but also resulted in down-regulation of the main TrkA isoform. The treatment of Kasumi-1 cells with SCF had a distinct effect on KIT-correlated genes BAG3 and MARCKS; MARCKS was down-regulated while BAG3 was up-regulated. NGF addition enhanced SCF-induced effects regarding BAG3 while MARCKS expression was restored by it. Overall, these data slightly clarify possible mechanisms of the contribution of TrkA signaling to AML cell survival.
For NB we identified a gene/protein interaction network of six genes associated with a poor prognosis and high KIT expression in NB (Figure 5G). Although the functions of NOS1, GABRA5, and NMU genes in NB are unknown, there is some evidence of how they might affect NB progression. Neuromedin U (NMU) is implicated in the development of ALK inhibitor resistance in non-small cell lung cancer (85). Since RET and DUSP4 are also involved in the development of ALK inhibitor resistance and share a gene interaction network with Neuromedin U, it may play a similar role in NB development. Interestingly, Neuromedin U, along with its receptor NMU1R, is expressed by AML cells and probably stimulates the growth of primary AML cells through autocrine loop (86). Nitric oxide (NO) is reported to be an important negative regulator of MYCN expression during NB and neuronal differentiation (87). Loss of sensitivity to NO due to constant NOS1 overexpression can be one of the mechanisms that block NB differentiation (53). NOS1 expression can be increased by the stimulation of NB cells with GABA-containing liposomes, although the particular role of GABA type A receptor subunit alpha 5 (GABRA5) in this process is unknown (88). There are reports that GABA-A receptor agonists induce apoptosis in NB cells, although the high expression of some GABA receptor subunits correlates a with poor prognosis in NB (89, 90). We showed that NMU and NOS1 expression can be upregulated by KIT activation by SCF. NMU expression in NB is significantly higher than in pheochromocytomas, paragangliomas, or normal adrenal glands; it correlates with KIT expression and is associated with a poor outcome, which suggests that it is a novel prognostic factor associated with KIT expression in NB.
Our findings should be valued within at least two technical aspects. First, we could not investigate the prognostic value of KIT and TrkA isoforms. The reason for this there is that no AML or NB data sets have transcriptomic or proteomic data on alternatively spliced KIT and TrkA expression as well as survival data. Secondly, we do not show whether identified DEGs expression is dependent on the expression of specific receptor isoforms. Although, this is a limitation, we first studied how DEGs expression changed in response to stimulation with SCF or NGF. In conclusion, this study determined the pattern of KIT and TrkA isoform expression in NB and AML cell lines. Nonetheless, we identified several novel transcriptomic signatures for AML and NB patients connected with KIT and TrkA expression. Our data elucidated new prognostic markers that may be involved in the progression of pediatric tumors.
Materials and Methods
Human AML cells HL-60, CML cells K562 (harbors BCR/ABL translocation), NB cells SH-SY5Y, SN-K-AS (without MYCN amplification), and SK-N-BE (MYCN amplified) were cultured at 37°C and 5% CO2 in a RPMI-1640 growth medium supplemented with 10% fetal bovine serum. Kasumi-1 cells [harbors t(8;21) translocation] were cultured in RPMI-1640 growth medium supplemented with 20% fetal bovine serum. All growth media were also supplemented with 2 mM L-glutamine, 100 units/ml penicillin, 100 μg/ml streptomycin, and 1 mM sodium pyruvate. All cell lines were gifted by the Heinrich-Pette Institute at the Leibniz Institute for Experimental Virology. RPMI-1640, penicillin/ streptomycin, sodium pyruvate, and L-glutamine were purchased from Gibco (ThermoFisher Scientific, USA).
Direct Flow Cytometry
2*105 cells were stained in round-bottom tubes. Cells were washed in (1% sodium azide, 1% FBS in PBS) and resuspended in 20 ul of staining buffer (3% BSA in PBS). For intracellular staining, cells were fixed in 100 ul 4% PFA for 10 min and washed with 400 ul of PBS prior to staining. Cells were permeabilized by the addition of 1% Triton X-100 to the staining buffer. Conjugated antibodies, anti-KIT antibodies conjugated with FITC (ab119107, Abcam, USA) and anti-TrkA with Alexa Fluor 488 antibody (ab194321, Abcam, USA), were diluted in staining buffer. Amounts of antibodies were added in accordance with the manufacture's protocol: 1:20 dilution in staining buffer. Cells were incubated for 30 min in the dark at room temperature and washed with ice-cold PBS once. Measurements were performed on a LSRFortessa flow cytometer (BD Biosciences) and analyzed with FlowJo software.
Quantitative Real-Time PCR
RNA extraction from myeloid and NB cells was performed using TRIzol reagent (Invitrogen, ThermoFisher Scientific, USA) in accordance with manufacturer's protocol. The yield and purity of RNA was determined by a spectrophotometer NanoDrop ND-1000 (Thermo Scientific, USA). An amount of 2 μg of RNA were used for the synthesis of cDNA by RevertAid Reverse Transcriptase kit (Thermo Scientific, USA). Real-time PCR was performed in three replicates using the Maxima SYBR Green Supermix (Thermo Scientific, USA) and CFX96 Real-Time System (Bio-Rad, USA). The expression levels of studied genes were normalized to that of the human GAPDH. Ct values and relative expression was determined by CFX Manager 3.1 software (Bio-Rad, USA). Primer sequences used in this study are provided in Supplementary Table 6.
Analysis of Cell Growth
Kasumi-1 (5*103 per well), HL-60 (3*103 per well), K562 (5*103 per well), SH-SY5Y (15*103 per well), SK-N-AS (10*103 per well), and SK-N-BE (2*103 per well) cells were seeded in triplicates in 48 well plate prior drug or recombinant proteins treatment. Six days after treatment, cells were counted on the Neubauer chamber by the trypan blue exclusion method. Doxorubicin hydrochloride (D1515) and cytosine β-D-arabinofuranoside (AraC, C1768) were purchased from Sigma-Aldrich (USA). Recombinant SCF (ab9717) and NGF (ab179616) were purchased from Abcam (USA). SCF and NGF were reconstituted in 0.1% BSA, and 0.1% BSA was used as a negative control in experiments with recombinant protein treatments. Each experiment was performed several times.
Immunocytochemistry (ICC) and Confocal Imaging
The cells were fixed with 4% PFA in a 0.1 M phosphate buffer (pH 7.3) for 15 min, washed with PBS (3 × 10 min), treated with 0.2% Triton X-100 in PBS (10 min at room temperature), washed with PBS (10 min), and incubated overnight at 4°C with anti-KIT antibody conjugated with FITC (ab119107, Abcam, USA) or with anti-TrkA-Alexa Fluor 488 antibody (ab194321, Abcam, USA) diluted 1:50 in PBS containing 1% BSA. After three washes with PBS, the cells were mounted in Slowfade gold medium (Invitrogen, USA, cat. s36936) containing 1 μg/ml DAPI (Sigma-Aldrich, USA) and sealed with nail polish. Confocal 8-bit digital images were obtained using a Leica TCS SP5 laser-scanning microscope (Leica, Germany) equipped with an HCX PLAPO CS 63 × 1.4 oil immersion lens. The image acquisition parameters were as follows: DAPI fluorescence (DNA staining) with excitation at 405 nm and emission at 420–480 nm; FITC and Alexa Fluor 488 fluorescence, excitation at 488 nm, emission at 505–550 nm. Images were processed using the same parameters on LAS AF Lite software (Leica).
Gene Set Enrichment Analysis (GSEA) and Multidimensional Scaling
We used GSEA v3.0 (http://software.broadinstitute.org/gsea/downloads.jsp) to identify enriched gene sets associated with KIT or NTRK1 gene expression in NB and AML patients. KIT and NTRK1 expression was used as phenotype label and GO biological processes gene sets were analyzed. The Pearson correlation was used for the gene ranking metric, and the number of permutations was set at 100. Enrichment results satisfying a nominal p < 0.05 with a false discovery rate (FDR) < 0.25 were considered statistically significant. For the multidimensional scaling of enriched GO gene sets we used a web interface: REVIGO (42). The Resnik score for depth of GO gene annotation was used for multidimensional scaling and the obtained results were then plotted in Cytoscape software (91).
Identification of Differentially Expressed Genes (DEGs), Survival, and GeneMANIA Analysis
Multiple t-tests for genes in NB and AML datasets were performed in GraphPad Prism 8 software. For each data set we divided patients into two groups based on KIT or NTRK1 gene expression. Groups with high KIT or NTRK1 expression for each data set were selected starting from 10 with 5% increments until a considerable number of DEGs were identified. Groups of the NB data set (Versteeg n = 88) were 30% (KIT-high) and 25% (NTRK1-high). Groups of the AML data set (denBoer n = 237) were 15% for both KIT-high and NTRK1-high. Genes with a false discovery rate (FDR q-value) < 0.01% were considered as differentially expressed. The Kaplan Meier scan from R2: Genomics analysis and visualization platform was used for overall survival analysis. Differences in overall survival probability with p < 0.05 after Bonferroni correction were considered significant. Patients were separated into high and low groups based on gene expression, groups with lowest Bonferroni p-value were presented in results. To predict potential interactions between identified genes, we employed the GeneMANIA (http://www.genemania.org/), a Cytoscape (91) application tool used for the functional prediction of gene and protein interactions (92).
All the data are expressed as mean ± SD from at least three individual experiments. The statistical significance of differences observed in cell count experiments was determined by the Mann-Whitney non-parametric test. The statistical significance of real-time PCR experiments was determined by an unpaired two-sided Student t-test. A p < 0.05 marks significance. All statistical calculations were performed in GraphPad Prism 8 software.
Data Availability Statement
The datasets generated for this study are available on request to the corresponding author.
EV and TL designed and performed the research, analyzed the data, and wrote the original manuscript. ICC was performed by VIP and OL. GSEA, multidimensional scaling, and statistical analysis was performed by TL. EV developed experimental methodology and supervised the resources. PS and VSP supervised the study and corrected the manuscript.
This reported study was funded by RFBR according to the research project No. 18-29-09151.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors wish to thank Ioanna Triviai and Carol Stocking from UKE Hamburg for kindly providing the cell lines used in this study.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2019.01046/full#supplementary-material
