Clinical Case Study ARTICLE

Front. Pediatr., 20 November 2014 | https://doi.org/10.3389/fped.2014.00126

Incidental histological diagnosis of acute rheumatic myocarditis: case report and review of the literature

  • Valvular Heart Disease Department, Heart Institute (InCor), University of São Paulo Medical School, São Paulo, Brazil

Rheumatic fever (RF) remains endemic in many countries and frequently causes heart failure due to severe chronic rheumatic valvular heart disease, which requires surgical treatment. Here, we report on a patient who underwent an elective surgical correction for mitral and aortic valvular heart disease and had a post-operative diagnosis of acute rheumatic carditis. The incidental finding of Aschoff bodies in myocardial biopsies is frequently reported in the nineteenth-century literature, with prevalences as high as 35%, but no clinical or prognostic data on the patients is included. The high frequency of this finding after cardiac surgery in classical reports suggests that these patients were not using secondary prophylaxis for RF. We discuss the clinical diagnosis of acute rheumatic myocarditis in asymptomatic patients and the laboratorial and imaging methods for the diagnosis of acute rheumatic carditis. We also discuss the prognostic implications of this finding and review the related literature.

Background

Rheumatic fever (RF) remains endemic in many countries and frequently causes heart failure due to severe chronic rheumatic valvular heart disease, which requires surgical treatment. Another mechanism of heart failure in rheumatic patients is acute rheumatic myocarditis (1). Acute rheumatic myocarditis is a difficult and misleading diagnosis that is often forgotten in patients with severe combined valvular heart disease. Here, we report on a patient who underwent an elective surgical correction for mitral and aortic valvular disease and had a post-operative diagnosis of acute rheumatic carditis.

Case Report

Case report: a 45-year-old female patient with previous diagnoses of hypertension, diabetes, hypothyroidism, and chronic rheumatic valve disease was seen as an outpatient; she reported a 3-year history of progressive exertional dyspnea and chest pain. She also reported orthopnea and paroxysmal nocturnal dyspnea and was taking 25 mg/day of atenolol.

A physical examination revealed a blood pressure of 140 over 80 mmHg and a regular heart rate of 80 bpm, which was typically parvus et tardus. Her cardiac auscultation presented a +++/6+ (according to the Levine classification) mid-systolic ejection murmur in the aortic area and a ++/6+ diastolic rumble in the mitral area. The pulmonary and abdominal examinations revealed no abnormalities.

A 12-lead electrocardiogram revealed left atrial and left ventricular (LV) hypertrophy. A chest X-ray showed left atrial enlargement, a normal LV size, and signs of pulmonary congestion evidenced by Kerley B lines. Transthoracic echocardiography showed that the LV diastolic diameter was 49 mm, the LV systolic diameter was 32 mm, the interventricular septum was 11 mm, the posterior wall was 12 mm, the LV ejection fraction was 72% and there were diagnoses of aortic stenosis with a peak systolic gradient of 82 mmHg, and mitral stenosis with a mitral valve area of 1.1 cm2.

The patient was referred to surgery for her chronic rheumatic heart disease with mitral and aortic stenosis and NYHA functional class III. Preoperative coronary angiotomography revealed a calcium score of 0 and no coronary disease.

Surgery was performed, and the patient underwent mitral and aortic replacement with mechanical prostheses. Her recovery from the surgery was uneventful.

The histopathological report of the surgical specimens revealed the presence of Aschoff bodies in the proliferative phase, which is suggestive of acute RF (Figure 1). In addition, an examination of the valves showed characteristics of chronic rheumatic heart disease involvement and the presence of Anitschkow cells (Figure 1), valvular fibrosis, calcification, and neovascularization.

FIGURE 1
www.frontiersin.org

Figure 1. Histopathological findings – Aschoff nodules (arrows) in samples of myocardium from the papillary muscles of the excised mitral valve (A). The arrows in sample (B) indicate Anitschkow cells. Photo courtesy of Dr. Lea M. M. F. Demarchi from the Laboratory of Pathology, Heart Institute (InCor), University of São Paulo Medical School.

The histopathological findings led to the unexpected diagnosis of acute RF with myocarditis. Before histopathologic results were available, symptoms such as tachycardia and worsening of heart failure symptoms were thought to be due only to the underlying valvular heart disease. The diagnosis of rheumatic myocarditis allowed for a more complete treatment of the patient, with introduction of prednisone (60 mg daily) and resuming of secondary prophylaxis for RF with benzathine penicillin G 1.200.000 UI intramuscularly every 3 weeks. Even after cardiac surgery, she still presented tachycardia and exertional dyspnea, symptoms that may be suggestive of myocarditis because other causes were excluded.

The combined treatment of the valvular heart disease and the myocarditis led to a complete resolution of symptoms, with resolution of the heart failure and tachycardia symptoms within 2 weeks after surgery and glucocorticoid treatment. Then, 60 mg of prednisone a day was maintained for 6 weeks, with a progressive dose reduction of 20%/week until discontinuation. This patient is still undergoing secondary prophylaxis for RF with benzathine penicillin G every 3 weeks for an indefinite time. She is presently asymptomatic.

Discussion

Rheumatic fever remains a leading cause of acquired cardiopathy in many regions, such as South America (1), Africa (2), and India (3). Acute RF is frequently asymptomatic, particularly rheumatic myocarditis. The most common clinical manifestations are arthritis and fever (3). RF and acute rheumatic myocarditis, in particular, are underrepresented in the medical literature because RF is rare in Europe and the United States; most of the literature on this subject date to the 1950s. Recently, some quality studies from Australia and the World Heart Federation have drawn attention to this important and intriguing disease (4). Many patients who were included in register-based programs were symptomatic. However, there are a number of silent or undetected attacks of ARF, and those patients with asymptomatic RHD can receive a huge benefit from secondary prophylaxis. Therefore, creating screening programs to detect asymptomatic cases is an effective strategy (5).

Still, ARF is a frequently underdiagnosed condition even in patients with valvular heart disease in RHD endemic countries.

The histological finding of Aschoff bodies is the most characteristic finding of rheumatic inflammation in the heart (6) and effectively makes the diagnosis of acute rheumatic myocarditis. Rheumatic myocarditis is a particular feature of acute rheumatic carditis, which also encompasses rheumatic pericarditis and rheumatic valvulitis. The incidental finding of Aschoff nodules diagnoses acute rheumatic myocarditis, as was observed in our patient.

In acute RHD, histological analyses have shown the presence of dense valvular inflammatory infiltrates and Aschoff nodules in the myocardium of 21% of patients. Infiltrating T-cells were mainly CD4+ cells in heart tissue biopsies of patients with rheumatic activity. In addition, CD4+ and CD8+ infiltrating T-cell clones recognized streptococcal M peptides and cardiac tissue proteins. These findings may open new possibilities of immunotherapy. In addition, it was demonstrated that the surgical procedure during the acute phase of the disease improved the quality of life of young RHD patients (7).

The prevalence of Aschoff bodies in left atrial appendages collected after elective surgery for valvular heart disease is well documented in the twentieth-century literature. The mean frequency of atrial specimens with Aschoff bodies is approximately 35% (Table 1). Even in more recent studies, the prevalence of Aschoff bodies after elective surgery remained as high as 30% (8). Most of these reports had no information on the clinical data of those patients or whether they were using secondary prophylaxis with benzathine penicillin G. A report by Virmani et al. (9) mentioned that only 1 of their 45 patients with Aschoff bodies in their myocardial biopsies had symptoms compatible with acute RF, and none of the patients had laboratorial evidence of rheumatic activity. The only clinical data that can be drawn from these studies is that the finding of Aschoff bodies was more frequent in young patients.

TABLE 1
www.frontiersin.org

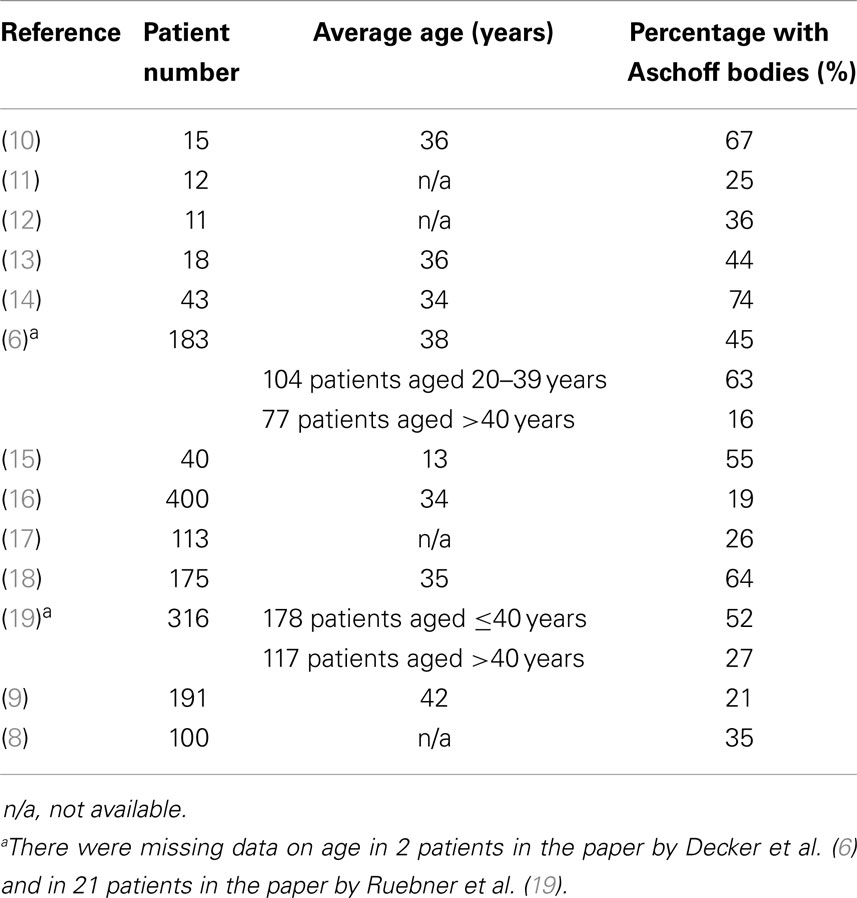

Table 1. Frequency of Aschoff bodies in specimens obtained after elective cardiac surgery in various reports.

Acute rheumatic myocarditis has a different pathophysiology from myocarditis of other etiologies. First, there is no massive myocardial necrosis in rheumatic myocarditis – the elevation of cardiac troponins, for instance, is detected only with highly sensitive troponin measurements (20), and histopathology reveals no necrosis. This mild elevation of troponin found in rheumatic patients may be the result of an inflammatory process with minimal damage to the myocardial cell. Additionally, acute rheumatic myocarditis does not lead to long-term ventricular dysfunction, which is different from other etiologies of myocarditis such as viral myocarditis, in which myocardial necrosis is evident on histology and high-plasma levels of troponins are found. Myocardial dysfunction in acute rheumatic myocarditis may be related to local inflammation and the local secretion of proinflammatory cytokines (21) with no permanent myocardial damage.

There are authors who do not consider rheumatic myocarditis to exist because there is no evidence of necrosis or high levels of troponins in its diagnosis (22, 23). Nonetheless, there is histopathological evidence of inflammatory findings in the myocardium (such as Aschoff nodules and mononuclear infiltrates). Moreover, current guidelines recommend that glucocorticoids may be considered for patients with heart failure in whom acute cardiac surgery is not indicated (24), although this recommendation was not tested in recent randomized trials, it is supported by clinical experience. It should be noted that clinical trials of glucocorticoids for rheumatic carditis treatment have been conducted for over 50 years (25). Finally, there are reports of patients with the diagnosis of acute RF that have dilatation and worsening of ventricular function independently of the presence of valvular regurgitation (26), suggesting that a primary myocardial inflammation is the origin of the ventricular dysfunction.

None of these histopathological studies have included any mention on the prognosis of the patients or whether they were given corticosteroids or secondary prophylaxis for RF. Crucially, none of these reports mentioned if the patient was undergoing secondary prophylaxis for RF before cardiac surgery; the findings of almost a third of the biopsies with Aschoff nodules suggested that none of these patients were using prophylaxis for RF. Our experience suggests that in a setup in which all patients below 40 years of age are using secondary prophylaxis for RF, Aschoff bodies occur much less frequently than reported in the literature.

Because acute rheumatic myocarditis is frequently asymptomatic (27), its diagnosis is difficult and requires a high-suspicion rate. Rheumatic patients with acute myocarditis often present mild symptoms such as tachycardia or mild worsening of heart failure symptoms. These symptoms are frequently attributed to worsening of the valvular heart disease or another cause of decompensation, such as volume or salt overload. In this case report, the patient experienced tachycardia and exertional dyspnea that include symptoms that may be observed in many conditions after cardiac surgery, such as pericarditis, reduced left ventricle ejection fraction, and infection. However, those symptoms may also be suggestive of myocarditis, provided that other causes have been excluded.

Even though most symptoms of myocarditis are mild, in patients with severe LV end-diastolic pressure or volume overload due to valvular heart disease, acute rheumatic myocarditis can be fatal (28).

Rheumatic heart disease patients have a degree of chronic low-level inflammation (29) that must not be mistaken for acute myocarditis: in acute rheumatic myocarditis, there is frequently mild elevation of the inflammatory markers, which are within the normal range in chronic RHD, and symptoms of worsening symptoms or LV function may also occur. Additionally, in acute rheumatic myocarditis, there is imaging evidence of myocardial inflammation, as discussed below.

The diagnosis of acute rheumatic myocarditis is difficult and frequently requires the use of multiple imaging techniques. An echocardiography can reveal mild to moderate pericardial effusion (rarely pericardial effusion or even pericardial tamponade). Transesophageal echocardiography can sometimes show small multiple vegetations on the edge of native valves, representing the rheumatic verrucae that characterize the acute phase of the disease. Laboratorial exams show high-inflammatory markers, such as the erythrocyte sedimentation rate and the C-reactive protein (3). The highly sensitive C-reactive protein may increase in chronic rheumatic heart disease, indicating that an inflammatory response still persists in the chronic phase (30).

The 12-lead electrocardiogram might be helpful because the first degree of an atrioventricular heart block is a sign of myocarditis, but this is not very sensitive in identifying rheumatic myocarditis.

Imaging techniques that highlight inflammation in the heart are particularly useful for the diagnosis of acute rheumatic myocarditis. Gallium-67 myocardium scintigraphy can be used to demonstrate myocarditis and has been studied in the diagnosis of acute rheumatic patients (31). A good correlation has been shown between a positive scintigraphy and a myocardial biopsy for the diagnosis of active myocarditis. Positron-emission scintigraphy associated with tomography (PET-CT) is currently being evaluated and appears to have a better sensitivity than the Gallium scan in addition to a much better spatial resolution, which may prove it to be an important diagnostic tool for the detection of rheumatic myocarditis.

The real clinical and prognostic significance of Aschoff bodies in myocardial biopsies of patients undergoing elective surgery for valvular heart diseases is still unknown. However, if we consider that these patients have active rheumatic myocarditis, glucocorticoid treatment is indicated and can shorten the evolution of the disease and the clinical symptoms of heart failure (32). Additionally, an extension of the secondary prophylaxis regimen is warranted in these patients to prevent subsequent recurrences of asymptomatic active RF.

In conclusion, acute rheumatic myocarditis is a difficult diagnosis that should be considered in any patient, including patients who have just undergone valve surgery, with rheumatic valvular heart disease who present with a sudden worsening of heart failure symptoms or rapid-onset ventricular dysfunction, particularly if the patient is not on secondary prophylaxis for RF.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Bocchi EA, Guimarães G, Tarasoutschi F, Spina G, Mangini S, Bacal F. Cardiomyopathy, adult valve disease and heart failure in South America. Heart (2009) 95(3):181–9. doi: 10.1136/hrt.2008.151225

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

2. Mayosi BM, Gamra H, Dangou JM, Kasonde J. Rheumatic heart disease in Africa: the Mosi-o-Tunya call to action. Lancet Glob Health (2014) 2(8):e438–9. doi:10.1016/S2214-109X(14)70234-7

CrossRef Full Text | Google Scholar

3. Joseph N, Madi D, Kumar GS, Nelliyanil M, Saralaya V, Rai S. Clinical spectrum of rheumatic fever and rheumatic heart disease: a 10 year experience in an urban area of South India. N Am J Med Sci (2013) 5(11):647–52. doi:10.4103/1947-2714.122307

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

4. Noonan S, Zurynski YA, Currie BJ, McDonald M, Wheaton G, Nissen M, et al. A national prospective surveillance study of acute rheumatic fever in Australian children. Pediatr Infect Dis J (2013) 32(1):e26–32. doi:10.1097/INF.0b013e31826faeb3

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

5. Reménvi B, Wilson N, Andrew S, Ferreira B, Kado J, Kumar K, et al. World heart federation criteria for echocardiographic diagnosis of rheumatic heart disease – an evidence-based guideline. Nat Rev Cardiol (2012) 9:297–309. doi:10.1038/nrcardio.2012.7

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

6. Decker JP, Van Z, Hawn C, Robbins SL. Rheumatic “activity” as judged by the presence of Aschoff bodies in auricular appendages of patients with mitral stenosis. I anatomic aspects. Circulation (1953) 8:161. doi:10.1161/01.CIR.8.2.161

CrossRef Full Text | Google Scholar

7. Sampaio RO, Fae KC, Demarchi LM, Pomerantzeff PM, Aiello VD, Spina GS, et al. Rheumatic heart disease: 15 years of clinical and immunological follow-up. Vasc Health Risk Manag (2007) 3(6):1007–17.

Pubmed Abstract | Pubmed Full Text | Google Scholar

8. Chopra P, Wanniang J, Sampath Kumar A. Immunohistochemical and histochemical profile of Aschoff bodies in rheumatic carditis in excised left atria1 appendages: an immunoperoxidase study in fresh and paraffin-embedded tissue. Int J Cardiol (1992) 34:199–207. doi:10.1016/0167-5273(92)90156-W

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

9. Virmani R, Roberts WC. Aschoff bodies in operativey excides atrial appendages and papillary muscles: frequency and clinical significance. Circulation (1977) 55(4):559. doi:10.1161/01.CIR.55.4.559

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

10. Pinniger JL. The left auricular appendage in mitral stenosis. A study of 15 cases submitted to valvotomy. St Thomas Hosp Rep (1951) 7:54.

Google Scholar

11. Waaler E. Study of auricular appendage in mitral stenosis. Acta Pathol Micro Scand Suppl (1952) 93:211.

Google Scholar

12. Kuschner M, Ferrer MI, Harvey RM, Wylie RH. Rheumatic carditis in surgically removed auricular appendages. Am Heart J (1952) 43:286. doi:10.1016/0002-8703(52)90219-6

CrossRef Full Text | Google Scholar

13. Biorek G, Winblad W, Wulff HB. Studies on mitral stenosis. II. Observations on incidence of active rheumatic carditis in left auricular appendages resected at operation for mitral stenosis. Am Heart J (1952) 44:325. doi:10.1016/0002-8703(52)90253-6

CrossRef Full Text | Google Scholar

14. Sabiston DC, Follis RH Jr. Lesions in auricular appendages removed at operations for mitral stenosis of presumed rheumatic origin. Bull Johns Hopkins Hosp (1952) 91:178–87.

Google Scholar

15. Thomas WA, Averill JH, Castleman B, Bland EF. The significance of Aschoff bodies in the left atrial appendage. A comparison of 40 biopsies removed during mitral commissurotomy with autopsy material from 40 patients dying with fulminating rheumatic fever. N Engl J Med (1953) 249:761. doi:10.1056/NEJM195311052491903

CrossRef Full Text | Google Scholar

16. Tedeschi CG, Wagner BM, Pani KC. Studies in rheumatic fever. AMA Arch Pathol (1955) 60:408.

Google Scholar

17. Papadopol PS, Idachim H. Les aspects histopathologiques de 113 biopsies auriculaires effetuees au cours de la commissurotomie mitrale: considerations sur les formes latentes de la maladie rhumatismale. Arch Mal Coeur (1957) 50:205.

Google Scholar

18. Lannigan R. The rheumatic process in the left auricular appendage. J Pathol Bacteriol (1959) 77:49. doi:10.1002/path.1700770105

CrossRef Full Text | Google Scholar

19. Ruebner BH, Boitnoit JK. The frequency of Aschoff bodies in atrial appendages of patients with mitral stenosis; relationship to age, atrial thrombosis and season. Circulation (1961) 23:550. doi:10.1161/01.CIR.23.4.550

CrossRef Full Text | Google Scholar

20. Ozdemir O, Oguz D, Atmaca E, Sanli C, Yildirim A, Olgunturk R. Cardiac troponin T in children with acute rheumatic carditis. Pediatr Cardiol (2011) 32:55–8. doi:10.1007/s00246-010-9814-6

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

21. Fraser WJ, Haffejee Z, Jankelow D, Wadee A, Cooper K. Rheumatic Aschoff nodules revisited. II: cytokine expression corroborates recently proposed sequential stages. Histopathology (1997) 31:460–4. doi:10.1046/j.1365-2559.1997.2990883.x

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

22. Gupta M, Lent RW, Kaplan EL, Zabriskie JB. Serum cardiac troponin I in acute rheumatic fever. Am J Cardiol (2002) 89:779–82. doi:10.1016/S0002-9149(01)02358-X

CrossRef Full Text | Google Scholar

23. Williams RV, Minich LL, Shaddy RE, Veasy LG, Tani LY. Evidence for lack of myocardial injury in children with acute rheumatic fever. Cardiol Young (2002) 12:519–23. doi:10.1017/S104795110200094X

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

24. RHDAustralia (ARF/RHD writing group), National Heart Foundation of Australia, Cardiac Society of Australia and New Zealand. Australian Guideline for Prevention, Diagnosis and Management of Acute Rheumatic Fever and Rheumatic Heart Disease. 2nd ed. Casuarina: RHDAustralia (2012). 134 p.

Google Scholar

25. Cilliers A, Manyemba J, Adler AJ, Saloojee H. Anti-inflammatory treatment for carditis in acute rheumatic fever. Cochrane Database Syst Rev (2012) 3:6. doi:10.1002/14651858.CD003176.pub2

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

26. Xavier L Jr, Soeiro AM, Lopes ASSA, Spina GS, Oliveira MT Jr. Clinically manifested myocarditis in acute rheumatic fever. Arq Bras Cardiol (2014) 102(2):e17–20. doi:10.5935/abc.20140017

CrossRef Full Text | Google Scholar

27. Tubridy-Clark M, Carapetis JR. Subclinical carditis in rheumatic fever: a systematic review. Int J Cardiol (2007) 119(1):54–8. doi:10.1016/j.ijcard.2006.07.046

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

28. Velloso LG, Mansur AJ, Grinberg M, de Assis RV. Fatal active rheumatic disease. Study of 13 necropsy cases. Arq Bras Cardiol (1991) 56(4):269–73.

Pubmed Abstract | Pubmed Full Text | Google Scholar

29. Yetkin E, Erbay AR, Ileri M, Turhan H, Balci M, Cehreli S, et al. Levels of circulating adhesion molecules in rheumatic mitral stenosis. Am J Cardiol (2001) 88:1209. doi:10.1016/S0002-9149(01)02067-7

CrossRef Full Text | Google Scholar

30. Gölbasi Z, Uçar O, Keles T, Sahin A, Cagli K, Camsari A, et al. Increased levels of c-reactive protein in patients with chronic rheumatic valve disease: evidence of ongoing inflammation. Eur J. Heart Fail (2002) 4:593–5. doi:10.1016/S1388-9842(02)00102-2

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

31. Buchpiguel CA, Soares Júnior J. Value of Gallium-67 myocardium scintigraphy in the work up of patients with rheumatic fever. Rev Soc Cardiol (2005) 15(1):47–52.

Google Scholar

32. Herdy GV, Pinto CA, Olivaes MC, Carvalho EA, Tchou H, Cosendey R, et al. Rheumatic carditis treated with high doses of pulsetherapy methylprednisolone results in 70 children over 12 years. Arq Bras Cardiol (1999) 72(5):601–6. doi:10.1590/S0066-782X1999000500007

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

Keywords: acute rheumatic fever, Aschoff’s body, rheumatic myocarditis, rheumatic fever, diagnosis of myocarditis, valvular heart disease, cardiac surgery for valvular heart disease

Citation: Spina GS, Sampaio RO, Branco CE, Miranda GB, Rosa VEE and Tarasoutchi F (2014) Incidental histological diagnosis of acute rheumatic myocarditis: case report and review of the literature. Front. Pediatr. 2:126. doi: 10.3389/fped.2014.00126

Received: 24 August 2014; Paper pending published: 17 September 2014;
Accepted: 30 October 2014; Published online: 20 November 2014.

Edited by:

Antonio Francesco Corno, University Sains Malaysia, Malaysia

Reviewed by:

Yves Durandy, Centre Chirurgical Marie Lannelongue, France
Ertan Yetkin, Private Mersin Middle East Hospital, Turkey

Copyright: © 2014 Spina, Sampaio, Branco, Miranda, Rosa and Tarasoutchi. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Roney O. Sampaio, Heart Institute (InCor), University of São Paulo Medical School, Av Dr Enéas de Carvalho Aguiar 44, CEP 05402-000, São Paulo, Brazil e-mail: sampaioroney@yahoo.com.br
