Research Snapshot ARTICLE

Front. Pharmacol., 11 October 2018 |

A Cell Model Suitable for a High-Throughput Screening of Inhibitors of the Wnt/β-Catenin Pathway

Marina Grimaldi1,2,3,4, Abdelhay Boulahtouf1,2,3,4, Corinne Prévostel1,2,3,4, Alain Thierry1,2,3,4, Patrick Balaguer1,2,3,4 and Philippe Blache1,2,3,4*
  • 1Institut de Recherche en Cancérologie de Montpellier, Montpellier, France
  • 2INSERM, U1194, Montpellier, France
  • 3Université de Montpellier, Montpellier, France
  • 4Institut Régional du Cancer de Montpellier, Montpellier, France

A constitutive activation of the Wnt/β-catenin pathway is an initiating event in colon carcinogenesis. We developed colon cancer cells models that highlight the non-selectivity of previously described inhibitors of the Wnt pathway and we propose our model as a suitable screening system for inhibitors of the pathway.


A constitutive activation of the Wnt/β-catenin signaling pathway is admitted as an initiating event of carcinogenesis in at least 90% of colorectal cancers (Giles et al., 2003). This constitutive activity is mostly due to mutations of the APC tumor suppressor that result in the accumulation of β-catenin in the nucleus where β-catenin interacts with TCFs transcription factors to activate the transcription of target genes like c-myc (Sansom et al., 2007). To date, very few molecules targeting the Wnt pathway have been discovered and none has been yet approved for clinical practice (Kahn, 2014). Therefore, there is a great interest in identifying new inhibitors of Wnt signaling for clinical use.

Luciferase-based reporter assays are widely used for studying gene expression at the transcriptional level. Here, we use such a system to set up a high-throughput screening assay for inhibitors of the Wnt/β-catenin signaling pathway by using DLD-1 cells stably transfected with a luciferase TCF reporter plasmid (Veeman et al., 2003). The choice of a good control was critical given that a previous work dedicated to screen new Wnt inhibitors had recently been retracted due to a non-selective inhibition of the firefly luciferase activity (Li et al., 2017). Besides, a reporter system based on mutated TCF binding sites is available, but has a very low basal luciferase activity and is rather a control for a non-specific activation of the Wnt pathway. Here, we developed a genetically modified DLD-1 cell line model expressing the firefly luciferase under the control of the E2F1 promoter, an independent promoter of the WNT pathway.

Two types of available Wnt inhibitors were used in order to validate the model: the tankyrase (TNKS) inhibitors XAV939 (Huang et al., 2009), IWR-1 (Chen et al., 2009) and WIKI4 (James et al., 2012), and the destabilizers of the TCF/β-catenin complex ICRT14 (Gonsalves et al., 2011) and PNU-74654 (Trosset et al., 2006). TNKS acts as an activator of the Wnt/β-catenin signaling by mediating poly-adenosine diphosphate (ADP) ribosylation of AXIN-1 and -2, two key components of the β-catenin destruction complex whose inhibition enhances β-catenin degradation and consequently inhibits the Wnt/β-catenin signaling (Yamada and Masuda, 2017).

XAV939 (Figure 1A), IWR-1 (Figure 1B), and WIKI4 (Figure 1C) specifically inhibited the activity of the Wnt/β-catenin signaling, with and IC50 of 0.13, 0.21 and 0.28 μM, respectively. However, a side activating effect was observed at doses higher than 1 μM as evidenced by the increase of the luciferase activity observed in the control conditions. Besides, both ICRT14 (Figure 1D) and PNU-74654 (Figure 1E) behaved as non-selective inhibitors as evidenced by the inhibition of both Wnt dependent and independent luciferase activities. In addition, PNU-74654 was poorly efficient. To further determine whether the apparent inhibitory effect of ICRT14 on the Wnt independent luciferase activity was due to a toxicity, or not, we evaluated the impact of ICRT14 on cells viability by using the MTT system in parallel with measurement of the luciferase activity. As shown in Figure 1F, ICRT14 again decreased both Wnt dependent and independent luciferase activities in a dose dependent manner but had no significant effect on cells viability.

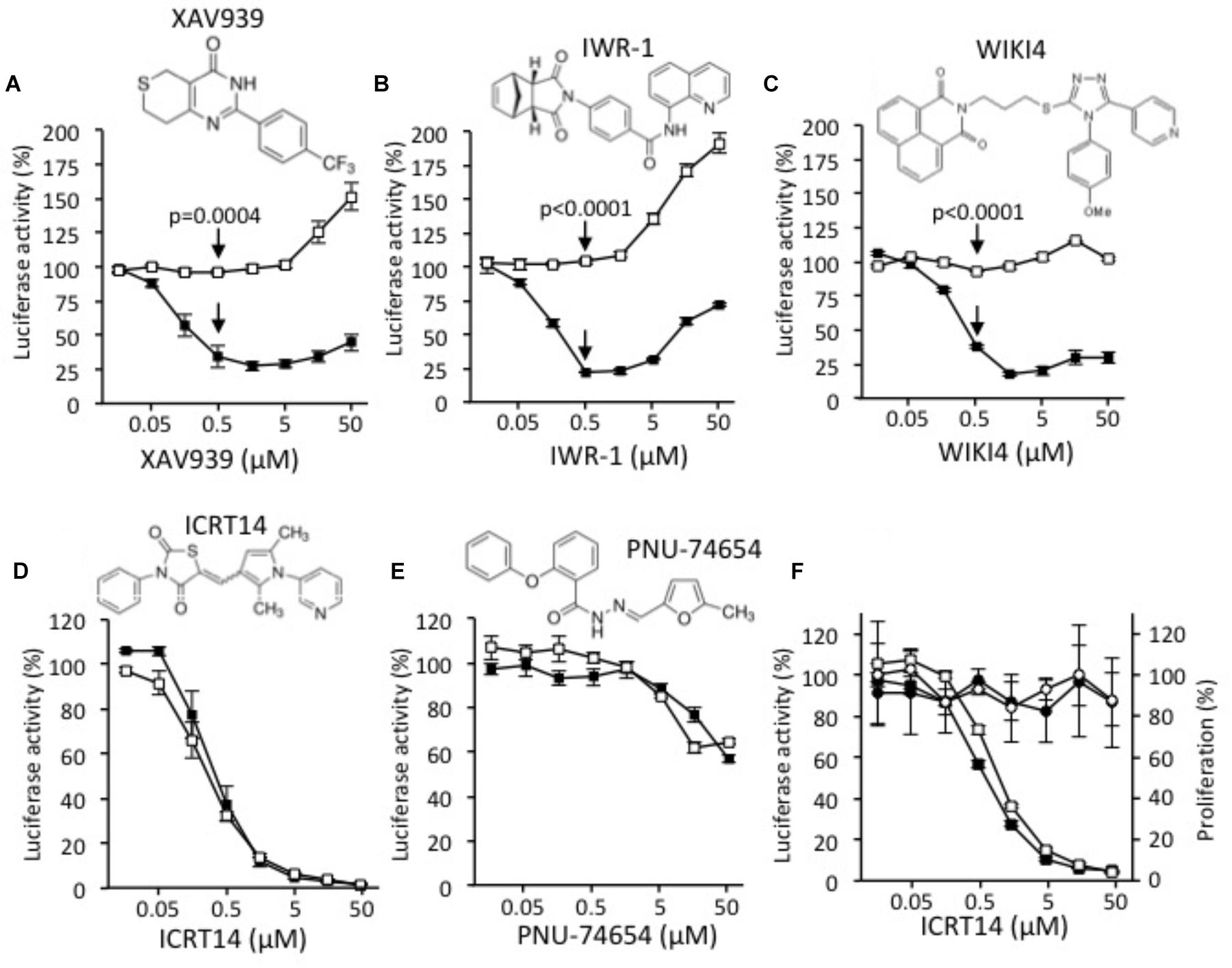

FIGURE 1. Effects of XAV939 (A), IWR-1 (B), WIKI4 (C), ICRT14 (D), and PNU-74654 (E) on luciferase activity of DLD1-Wnt-luc cells (black squares) and of DLD1-luc control cells (white squares). (F) MTT assay was performed in presence of ICRT14 on DLD1-Wnt-luc cells (black circles) and on DLD1-luc control cells (white circles). In parallel, luciferase activity of DLD1-Wnt-luc cells (black squares) and of DLD1-luc control cells (white squares) was measured. The Student’s t-test was performed for doses of 0.5 μM and the probability of error (p-value) is indicated by arrows.

Materials and Methods

Luciferase and MTT assays were done as we previously described (Molina-Molina et al., 2008). More details about the methods are available in the Supplementary Material.


With respects to the use of inhibitors previously reported as specific, studies have concluded that biological activities were regulated by the Wnt/β-catenin pathway. In the present study, we demonstrate that the destabilizers of the TCF/β-catenin complex ICRT14 and PNU-74654 are unspecific inhibitors of the Wnt/β-catenin pathway. Therefore, to test the implication of the Wnt pathway in a biological mechanism, it seems more rationable to use at least one of the specific inhibitors confirmed here. Compared with the original reference system dedicated to test the impact of compounds on the activity of the Wnt/β-catenin signaling pathway, our method was set-up with an adequate control that lowers the number of false positives resulting from a non-specific inhibition of the luciferase enzymatic activity. For example, using our method points out ICRT14 as a non-specific inhibitor of the Wnt/β-catenin signaling pathway. Besides, true positives will have to be dose-dependent tested, and their ability to decrease the proliferation of colon cancer cells will have to be evaluated for further potential therapeutic purposes.

Author Contributions

CP, PhB, and PaB designed the study. CP, PhB, and AT drafted the manuscript. MG, AB, and PhB performed the experimental work.


INSERM, the Institut du Cancer de Montpellier, and Lilly France financially supported this work.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer ZD and handling Editor declared their shared affiliation.

Supplementary Material

The Supplementary Material for this article can be found online at:


Chen, B., Dodge, M. E., Tang, W., Lu, J., Ma, Z., Fan, C.-W., et al. (2009). Small molecule-mediated disruption of Wnt-dependent signaling in tissue regeneration and cancer. Nat. Chem. Biol. 5, 100–107. doi: 10.1038/nchembio.137

PubMed Abstract | CrossRef Full Text | Google Scholar

Giles, R. H., van Es, J. H., and Clevers, H. (2003). Caught up in a Wnt storm: Wnt signaling in cancer. Biochem. Biophys. Acta 1653, 1–24.

PubMed Abstract | Google Scholar

Gonsalves, F. C., Klein, K., Carson, B. B., Katz, S., Ekas, L. A., Evans, S., et al. (2011). An RNAi-based chemical genetic screen identifies three small-molecule inhibitors of the Wnt/wingless signaling pathway. Proc. Natl. Acad. Sci. U.S.A. 108, 5954–5963. doi: 10.1073/pnas.1017496108

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, S.-M. A., Mishina, Y. M., Liu, S., Cheung, A., Stegmeier, F., Michaud, G. A., et al. (2009). Tankyrase inhibition stabilizes axin and antagonizes Wnt signalling. Nature 461, 614–620. doi: 10.1038/nature08356

PubMed Abstract | CrossRef Full Text | Google Scholar

James, R. G., Davidson, K. C., Bosch, K. A., Biechele, T. L., Robin, N. C., Taylor, R. J., et al. (2012). WIKI4, a novel inhibitor of tankyrase and Wnt/ß-catenin signaling. PLoS One 7:e50457. doi: 10.1371/journal.pone.0050457

PubMed Abstract | CrossRef Full Text | Google Scholar

Kahn, M. (2014). Can we safely target the WNT pathway? Nat. Rev. Drug Discov. 13, 513–532. doi: 10.1038/nrd4233

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Y., Oliver, P. G., Lu, W., Pathak, V., Sridharan, S., Augelli-Szafran, C. E., et al. (2017). SRI36160 is a specific inhibitor of Wnt/β-catenin signaling in human pancreatic and colorectal cancer cells. Cancer Lett. 389, 41–48. doi: 10.1016/j.canlet.2016.12.030

PubMed Abstract | CrossRef Full Text | Google Scholar

Molina-Molina, J.-M., Escande, A., Pillon, A., Gomez, E., Pakdel, F., Cavaillès, V., et al. (2008). Profiling of benzophenone derivatives using fish and human estrogen receptor-specific in vitro bioassays. Toxicol. Appl. Pharmacol. 232, 384–395. doi: 10.1016/j.taap.2008.07.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Sansom, O. J., Meniel, V. S., Muncan, V., Phesse, T. J., Wilkins, J. A., Reed, K. R., et al. (2007). Myc deletion rescues Apc deficiency in the small intestine. Nature 446, 676–679. doi: 10.1038/nature05674

PubMed Abstract | CrossRef Full Text | Google Scholar

Trosset, J.-Y., Dalvit, C., Knapp, S., Fasolini, M., Veronesi, M., Mantegani, S., et al. (2006). Inhibition of protein-protein interactions: the discovery of druglike beta-catenin inhibitors by combining virtual and biophysical screening. Proteins 64, 60–67. doi: 10.1002/prot.20955

PubMed Abstract | CrossRef Full Text | Google Scholar

Veeman, M. T., Slusarski, D. C., Kaykas, A., Louie, S. H., and Moon, R. T. (2003). Zebrafish prickle, a modulator of noncanonical Wnt/Fz signaling, regulates gastrulation movements. Curr. Biol. 13, 680–685. doi: 10.1016/S0960-9822(03)00240-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Yamada, T., and Masuda, M. (2017). Emergence of TNIK inhibitors in cancer therapeutics. Cancer Sci. 108, 818–823. doi: 10.1111/cas.13203

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: cell models, Wnt/β-catenin pathway, inhibitors, high-throughput screening, colorectal cancer

Citation: Grimaldi M, Boulahtouf A, Prévostel C, Thierry A, Balaguer P and Blache P (2018) A Cell Model Suitable for a High-Throughput Screening of Inhibitors of the Wnt/β-Catenin Pathway. Front. Pharmacol. 9:1160. doi: 10.3389/fphar.2018.01160
