The New Application of UHPLC-DAD-TOF/MS in Identification of Inhibitors on β-Amyloid Fibrillation From Scutellaria baicalensis
- 1State Key Laboratory of Quality Research in Chinese Medicine, Macau University of Science and Technology, Taipa, Macau
- 2Laboratory of Medical Chemistry, Department of Chemistry, School of Basic Medical Sciences, Southwest Medical University, Luzhou, China
- 3Sino-Portugal Traditional Chinese Medicine International Cooperation Center, Southwest Medical University, Luzhou, China
- 4Sichuan Key Laboratory of New Drug Discovery and Drugability Evaluation, Southwest Medical University, Luzhou, China
- 5Luzhou Key Laboratory of Bioactivity Screening in Traditional Chinese Medicine and Drugability Evaluation, Southwest Medical University, Luzhou, China
- 6Affiliated Traditional Chinese Medicine Hospital, Southwest Medical University, Luzhou, China
- 7School of Pharmacy, Southwest Medical University, Luzhou, China
Literary evidence depicts that aggregated β-amyloid (Aβ) leads to the pathogenesis of Alzheimer’s disease (AD). Although many traditional Chinese medicines (TCMs) are effective in treating neurodegenerative diseases, there is no effective way for identifying active compounds from their complicated chemical compositions. Instead of using a traditional herbal separation method with low efficiency, we herein apply UHPLC-DAD-TOF/MS for the accurate identification of the active compounds that inhibit the fibrillation of Aβ (1-42), via an evaluation of the peak area of individual chemical components in chromatogram, after incubation with an Aβ peptide. Using the neuroprotective herbal plant Scutellaria baicalensis (SB) as a study model, the inhibitory effect on Aβ by its individual compounds, were validated using the thioflavin-T (ThT) fluorescence assay, biolayer interferometry analysis, dot immunoblotting and native gel electrophoresis after UHPLC-DAD-TOF/MS analysis. The viability of cells after Aβ (1-42) incubation was further evaluated using both the tetrazolium dye (MTT) assay and flow cytometry analysis. Thirteen major chemical components in SB were identified by UHPLC-DAD-TOF/MS after incubation with Aβ (1–42). The peak areas of two components from SB, baicalein and baicalin, were significantly reduced after incubation with Aβ (1–42), compared to compounds alone, without incubation with Aβ (1–42). Consistently, both compounds inhibited the formation of Aβ (1–42) fibrils and increased the viability of cells after Aβ (1–42) incubation. Based on the hypothesis that active chemical components have to possess binding affinity to Aβ (1–42) to inhibit its fibrillation, a new application using UHPLC-DAD-TOF/MS for accurate identification of inhibitors from herbal plants on Aβ (1–42) fibrillation was developed.
Population aging is becoming a major demographical and health issue in the 21st century. Consistently, the number of people with aged-related neurodegenerative diseases, including Alzheimer’s disease (AD), Parkinson’s disease (PD), and Huntington’s disease (HD) are accelerating rapidly (Sheikh et al., 2013). The number of people with AD, the most common type of dementia (Fang et al., 2017), is expected to reach 74.7 and 131.5 million globally by 2030 and 2050, respectively (Alzheimer’s Disease International, 2018). The extracellular plaque of the Aβ peptide, and the neurofibrillary tangles (NFTs) composed of the microtubule associated filamentous tau protein in the brain, are two important pathological hallmarks of AD (Bloom, 2014). The accumulation of Aβ in neurons is recognized as the initiation step of AD progression, with the induction of oxidative stress, inflammation, and cell death (Di Bona et al., 2010). Although it remains controversial, Aβ is considered as one of the key targets for the treatment of AD (Yoshiike et al., 2003). Considering the fact that many natural small molecules have been proven to inhibit Aβ fibrillation and reduce the cytotoxicity of neurons, recent studies have focused on the screening of natural compounds with anti-AD effects in TCMs. For example, natural polyphenols such as curcumin can bind Aβ (1–42) and block its fibril formation and aggregation (Yang et al., 2005); resveratrol is capable of changing the oligomeric conformation and attenuate the cytotoxicity of Aβ (Feng et al., 2009); epigallocatechin-3-gallate is able to reduce the level of Aβ in brain and protect the mitochondrial function of neurons in the amyloid precursor protein (APP) and presenilin-1 (PS1) double transgenic AD mice (Dragicevic et al., 2011).
Scutellaria baicalensis (SB) (Huangqin) is a widely used TCM (Mehlhorn et al., 2014), which was firstly described in “Shen Nong Ben Cao Jing” (Yuan et al., 2015). Modern pharmacological studies have depicted its positive effects in neuroprotection (Yune et al., 2009; Miao et al., 2014), anti-cancer (Ye et al., 2002; Sato et al., 2013), anti-inflammation (Huang et al., 2006; Kim et al., 2009; Yoon et al., 2009), anti-oxidation (Gabrielska et al., 1997; Huang et al., 2006; Wang et al., 2014), anti-bacteria, and anti-virus (Zandi et al., 2013; Shi et al., 2016). Flavonoids including baicalin, baicalein, wogonin, oroxylin A-7-O-glucuronopyranoside, and oroxylin A are the major chemical components in SB (Lee et al., 2014). While baicalin, baicalein and wogonin were reported to inhibit fibrillation of Aβ (Heo et al., 2004; Zhu and Wang, 2015), total flavonoids from the stem and leaf of SB might improve learning or memory impairment and attenuate neuronal loss induced by the Aβ peptide in rats (Wang et al., 2013). However, the traditional bioactivity guided separation of active compounds from TCMs, requires repeated rounds of isolation and bioactivity validation before a single active fraction or chemical component can be identified. Due to the disadvantages of being time-consuming and laborious, the traditional way of identifying novel inhibitors on fibrillation of Aβ from TCMs is ineffective with slow progress (Gerardo Castillo et al., 2007; Liu et al., 2011; Kandasamy et al., 2012).
With the recent advances in the development of chemical analysis technologies, such as HPLC coupled with ultraviolet (UV) or florescence detector, mass spectrometry (MS) and nuclear magnetic resonance (NMR), identification of the bioactive component through the analysis of chromatograms, has become more prevalent (Li and Lurie, 2014; Wu et al., 2015; Bertini et al., 2017). Recent literature has reported a novel method on the structure-based discovery of fiber-binding compounds using computational docking, which was then validated by NMR for their binding affinity to both Aβ (16–21) and Aβ (1–42). The results confirmed that compounds with a binding affinity to Aβ, decreased toxicity of fiber by increasing its stability (Jiang et al., 2013). Consistently, a model using NMR for the validation of the binding affinity of non-natural peptides to tau fibers, showed a diminished1H NMR spectrum of the effective peptides (Sievers et al., 2011). Based on these observations, we hypothesized that chemical components would show a reduction in the UHPLC-DAD-TOF/MS chromatogram peak area upon effective Aβ binding. To validate the hypothesis, SB was selected as the study subject for the evaluation of method accuracy. Our results confirmed that 13 major chemical components were identified from the total ethanol extract of SB (SB-TEE). Among them, two of the chemical components, baicalin and baicalein showed a significant decrease of the peak area in the extracted-ion chromatogram (EIC) as evaluated by UHPLC-DAD-TOF/MS. Consistently, SB-TEE, baicalin and baicalein possess an inhibitory effect on the Aβ (1–42) fibril formation as validated by biolayer interferometry analysis, ThT fluorescence detection assay, native gel and dot blot analysis. The anti-fibrillation effect on Aβ was further confirmed by the decrease in its cytotoxicity after treatment with baicalin and baicalein. The current study presents a new approach using the UHPLC-DAD-TOF/MS system for the accurate screening or the quality control of anti-fibrillation compounds from TCMs, which may facilitate the drug discovery of potential anti-AD agents in the future.
Materials and Methods
Chemicals and Reagents
Baicalin, wogonoside and baicalein (≥98% purity, HPLC) were obtained from Chengdu MUST Bio-technology Company Ltd. (Chengdu, China). SB with the place of origin in Ji Lin province of China was purchased from Beijing Tong Ren Tang Zhuhai Pharmacy Co., Ltd. (Guangdong, China). 3-(4,5-dimethylthiazol-2-yl)-2,5-dimethyltetrazolium bromide (MTT) and ThT were purchased from Sigma (St. Louis, MO, United States). Milli-Q water was prepared by the Milli-Q integral water purification system (Millipore, Billerica, MA, United States) in our laboratory. Acetonitrile was purchased from Anaqua Chemicals Supply (Houston, TX, United States). Aβ (1–42) was obtained from the China Peptides Co., Ltd. (Shanghai, China). EZ-Link NHS-LC-LC-Biotin was obtained from Thermo Scientific Waltham (MA, United States). Super Streptavindin (SSA) biosensors were purchased from FortéBIO, PALL Life Sciences (Port Washington, NY, United States). The Annexin V staining kit was purchased from BD Biosciences (San Jose, CA, United States). The native PAGE Bis-Tris Gel (4–16%), running buffer (20X) and the native PAGE sample buffer were obtained from Invitrogen (Carlsbad, CA, United States). The PVDF membrane was obtained from PALL Life Sciences (Port Washington, NY, United States).
Preparation of SB-TEE
25 gram of the SB plant was smashed into powder and extracted with 10 times its volume of 75% ethanol for 2 h, by refluxing two times. The extracted solution was then filtered, concentrated and dried with a rotary evaporator under reduced pressure to produce the final SB-TEE. The dried ethanol extracts were re-dissolved in DMSO at a suitable concentration for further use.
Instrument and Chromatographic Conditions
UHPLC (Agilent Technologies 1290 Series), equipped with the time of flight (TOF) MS (Agilent Technologies 6230) with a jet stream ion source, was operated in negative and positive ion modes during the UHPLC analysis. All samples were analyzed using the Agilent Eclipse Plus C-18 column (100 × 2.1 mm) with a particle size of 1.8 μm at a flow rate of 0.35 mL/min. The separation was conducted in accordance with the gradient elution program, comprised of mobile phase A (0.1% formic acid in water) and mobile phase B (0.1% formic acid in ACN): 0–2 min, 2% B; 2–5 min, 2–10% B; 5–15 min, 10–50% B; 15–18 min, 50–80% B; 18–20 min, 80–100% B; 20–22 min, 100% B; 22.1–25 min, 2% B. For UHPLC-DAD-TOF-MS analysis, the data was acquired using the UV detector with the detection wavelength at 254 nm and in the scan mode with a m/z value from 100 to 1700 Da by 2.0 spectra/s. Data were analyzed using Agilent MassHunter Workstation software B.01.03.
Aβ (1–42) Peptide Preparation
1 mg of Aβ peptide (1–42) was dissolved in 400 μL of hexafluoroisopropanol (HFIP; Sigma) and subjected to ultrasonic for 15 min. Aβ peptide solution was aliquoted into a 1.5 mL tube (100 μL/tube) and dried under a stream of nitrogen gas to produce a peptide film which was stored at -80°C. Aβ (1–42) was re-dissolved in 10 μL of DMSO (Sigma, United States) and an appropriate volume of PBS (pH = 7.4) to acquire the final concentration before use. The Aβ (1–42) peptide was then incubated at 37°C for 5 days to form the aggregated form of Aβ for all biological and chemical assays.
Biolayer Interferometry Analysis
200 μL of solution containing 100 μg of the Aβ peptide was incubated at 37°C for 5 days. EZ-Link NHS-LC-LC-Biotin (Thermo Scientific, United States) was dissolved in DMSO to a concentration of 10 mM. Aβ (1–42) was biotinylated in a 1:0.5 molar ratio of biotin reagent and incubated for 30 min at room temperature before being added into a 96-well plate (Greiner Bio-One, PN:655209). Biotinylation was ascertained by loading the mixture onto super streptavidin (SSA) capacity tips (ForteìBIO, Menlo Park, CA, United States) and detected by the FortéBIO Octet Red instrument. Additionally, SSA biosensors were pre-wetted with PBS for the recording of baselines. Successful biotinylated Aβ (1–42) solution was collected and immobilized onto SSA tips overnight at 4°C. Compounds (baicalin and baicalein) dissolved in DMSO were diluted to an appropriate concentration with PBS to a final volume of 200 μL/well. Control wells were added with an equal amount of DMSO. All experiments consisted of repeated cycles of four major steps: wash (300 s), baseline (120 s), association (120 s), and dissociation (120 s). The results including the association and dissociation plot and kinetic constants were analyzed with ForteìBIO data analysis software.
Thioflavin-T (ThT) Fluorescence Assay
20 μL of Aβ (1–42) (100 μM) was diluted with PBS or the tested SB compounds, to a final volume of 100 μL with 5 days of incubation at 37°C. A ThT fluorescence assay was performed as described in the previous report (Lu et al., 2011). Briefly, ThT was dissolved with PBS (pH = 7.4) at a final concentration of 20 μM and was kept away from light. 10 μL of aggregated Aβ with or without the tested compounds and 190 μL of ThT solutions were added into a black 96-well-plate and incubated for 1 h. Fluorescence measurements were carried out using the microtiter plate reader (SpectraMax Paradigm, Molecular Devices, United States) with excitation at 450 nm and emission at 490 nm. Background fluorescence was measured in the control sample containing PBS and 0.02% of DMSO.
Dot Blot Assay
20 μM of Aβ (1–42) was incubated with SB-TEE or SB single compounds for 5 days at 37°C. 4 μL of each incubated solution was spotted onto the methanol pre-activated PVDF membrane, which was then blocked with 5% non-fat dried milk in Tris-buffered saline and Tween 20 (TBST) for 1 h. The membrane was incubated with primary anti-amyloid fibril antibody [mOC87] (1:1000) (Abcam, Cambridge, MA, United States) overnight at 4°C, followed by an incubation with HRP-conjugated secondary antibody. Protein bands were detected using ultra signal sensitive ECL Western Blotting detection reagent (4A Biotech Co., Ltd, Beijing, China) and visualized using gel imaging equipment (Amersham Imager 600, GE, Tokyo, Japan). Band intensity was quantified using the software ImageJ (National Institutes of Health, Bethesda, MD, United States).
Native Gel Electrophoresis
After the incubation of Aβ (1–42) with SB-TEE or SB single compounds at 37°C for 5 days, with Aβ (1–42) alone set as the control group, the incubated solutions were centrifuged at 10,000 g for 10 min. The supernatant was collected for the detection of soluble Aβ (1–42) oligomers by native gel electrophoresis. In brief, samples in the Novex native PAGE sample buffer were loaded into the pre-casted native PAGE gels for electrophoresis in 1X of Novex Native PAGE running buffer. The proteins on the gel were then transferred to a PVDF membrane. The membrane was blocked with 5% non-fat milk in TBST and then immunoblotted with an antibody against amyloid fibril [mOC87] (1:1000) (Abcam, Cambridge, MA, United States) overnight at 4°C. After an incubation with HRP-conjugated secondary antibody, protein bands were detected and visualized as described in the previous “Dot Blot Assay” section.
PC-12 cells were cultured with DMEM (Gibco, Grand Island, NY, United States) containing 10% horse serum (Gibco, Grand Island, NY, United States), 5% fetal bovine serum (FBS, PAN Biotech, Germany) and 1% penicillin and streptomycin, in a humidified incubator with 5% CO2 at 37°C. Cell viability of PC-12 cells was measured using MTT method (Wong et al., 2005). In brief, PC-12 cells plated on 96-well plates were incubated with Aβ (1–42) alone, Aβ (1–42) with SB-TEE or Aβ (1–42) with single compounds from SB, respectively. After 48 h of treatment, 10 μL of MTT solution (Sigma, United States) was added to cells in each well and further incubated for 4 h at 37°C. The incubation medium was then removed and 150 μL of DMSO was added to cells to dissolve the formazan. Absorbance (OD) of each well was then detected by spectrophotometer at the wavelength of 490 nm. The percentage of cell viability was calculated using the formula: cell viability (%) = cells number(treated)/cells number (DMSOcontrol) × 100 %. Data were obtained from 3 independent experiments.
Flow Cytometry Analysis
Cell viability of PC-12 cells was further evaluated by flow cytometry using the annexin V staining kit (BD Biosciences, San Jose, CA, United States). In brief, PC-12 cells seeded in a 6-well-plate were treated with Aβ (1–42) with or without the addition of SB-TEE or its single compounds, for 48 h. After treatments, the cells were trypsinized and centrifuged. The cells pellets were re-suspended with 250 μL of PBS and then stained with 2 μL of propidium iodide and 1 μL of FITC (BD Biosciences, San Jose, CA, United States) for 15 min. The cells were then analyzed using a FACSCalibur flow cytometer (BD Biosciences, San Jose, CA, United States). Data acquisition and analysis were performed using the Flowjo 7.6.1 (TreeStar, San Carlos, CA, United States).
All analyses were performed using the GraphPad Prism 6.0 (GraphPad Software, Inc., San Diego, CA, United States). All data were presented as means ± SEM. The difference was considered to have statistical significance if p < 0.05. Student’s t-test or one-way ANOVA was applied for statistical analysis to compare all the different groups in the current study.
Characterization of the Chemical Components in the Total Ethanol Extract of Scutellaria baicalensis
SB is a rich source of polyphenols, especially flavonoids, which are a major class of bioactive components in SB (Zhou et al., 2015). Up to now, more than 100 polyphenols were identified from the genus Scutellaria (Sripathi and Ravi, 2017). Recent studies have reported the neuroprotective effects of SB and its flavonoids in anti-Aβ fibrillation and improvement of cognitive function (Heo et al., 2004; Yune et al., 2009; Wang et al., 2013). With its well-known neuroprotective effects, SB was selected as the subject of our study. To begin, the chemical components of SB were characterized using UHPLC-DAD-TOF/MS in negative or positive ion mode and UV at 254 nm. As shown in the total ion chromatogram (TIC) and UV chromatogram of SB-TEE in Figure 1A, a total of 13 peaks were observed and marked. Among them, the identities of 7 flavonoids including scutellarin (#2), baicalin (#5), oroxyloside (#7), wogonoside (#9), baicalein (#10), wogonin, (#11) and oroxylin A (#13) from SB-TEE, were confirmed with reference to the chromatograms of their corresponding standard pure compounds analyzed under the same chromatographic conditions. The identities of the remaining six components (#1, #3, #4, #6, #8, and #12) were confirmed by comparing their accurate mass and retention features on the C18 column, to the reported literature. With their common nuclear structure labeled in red, 13 major peaks were identified, with their chemical structures shown in Figure 1B. The retention time, formula, chemical name and the accurate MS in negative mode or positive mode are listed in Table 1. All the characterizations of the major chemical components in SB were confirmed before being further subjected to biological evaluation.
Figure 1. The identification of the chemical components in SB using Agilent 6230 UHPLC-DAD-TOF/MS. (A) TIC (total ion chromatogram) and the corresponding UV chromatogram of SB-TEE and its main components (scutellarin, baicalin, oroxyloside, wogonoside, baicalein, wogonin and oroxylin A). (B) The chemical structures of the identified components in SB.
Table 1. The retention time, formula, chemical name and the mass of the chemical components in negative and positive ion modes.
Prediction of Aβ (1–42) Peptide-Binding Propensity of Selected SB Chemical Components by UHPLC-DAD-TOF-MS
The Aβ peptide, which constitutes the amyloid plaques in the brains of AD patients, has long been identified as the major cause of AD. Upon sequential cleavage by the γ-secretase and β-secretase, Aβ can be produced from the APP with the major cleavage sites of γ-secretase at the positions 40 and 42 of the Aβ peptide. With its soluble toxic nature and high propensity to fibrillate and form amyloid plaques (Yiannopoulou and Papageorgiou, 2013; Xiao et al., 2015; Walti et al., 2016), accumulation of Aβ (1–42) is highly correlated with the pathogenesis of AD, with a cascade of cellular responses such as inflammation, oxidative damage and neurotoxicity (Graham et al., 2017). Therefore, therapeutic approaches that target the accumulated aggregation and fibrillation of Aβ with antibodies, peptides, or chemical molecules has intensively been investigated (Cho and Kim, 2011). To predict the peptide-binding propensity of the above 13 identified chemical components in SB, SB-TEE was incubated with 20 and 200 μM of Aβ (1–42), respectively. With a blank solution and SB-TEE without Aβ (1–42) incubation working as the control, all reaction product mixture was analyzed using UHPLC-DAD-TOF/MS under the same chromatographic conditions. Figure 2A shows the TIC of SB alone (S1), and SB-TEE incubated with 20 μM (S2) or 200 μM (S3) of Aβ (1–42), respectively. With the peak area of all the identified components calculated and analyzed, Figure 2B and Table 2 show the percentage (%) of decrease in the peak area of all the identified chemical components in TIC. Among them, baicalin (peak #5) and baicalein (peak #10) showed the highest reduction in peak area (34.38 and 53.03%) after incubation with Aβ (1–42) (200 μM).
Figure 2. The prediction of Aβ-binding propensity of chemical components in SB using Agilent 6230 UHPLC-DAD-TOF/MS. (A) The TIC of SB-TEE with or without the incubation with 20 and 200 μM Aβ (1–42). S1: SB-TEE; S2: The incubation of SB-TEE with 20 μM Aβ (1–42); S3: The incubation of SB-TEE with 200 μM Aβ (1–42). (B) The bar chart shows the percentage of reduction (%) in the peak area of each SB component in TIC after their incubation with 20 or 200 μM Aβ (1–42). Columns means of 3 independent experiments; bars, SEM. ∗p < 0.05, ∗∗p < 0.01 and ∗∗∗p < 0.001 vs. 0 μM Aβ (1–42) group.
Table 2. Quantitative reduction (%) of peak area of each SB component in TIC after their incubation with 20 or 200 μM Aβ (1–42).
Validation of Aβ (1–42) Peptide-Binding Propensity of Selected SB Chemical Components by ThT Assay
To further validate the peptide-binding propensity of selected SB compounds, baicalin (peak #5) and baicalein (peak #10), which showed the highest percentage of peak area reduction in TIC, were subjected to further validation with the negative control, wogonoside (peak #9), which showed no significant change in the peak area (Table 3). As shown in Figures 3A,B, the peak areas of baicalin and baicalein in TIC were negatively correlated to the concentrations of Aβ. Upon binding to amyloid fibrils, benzothiazole fluorescent dye (ThT) can produce a strong fluorescence signal at the wavelength of 482 nm (Xue et al., 2017), therefore, the widely used ThT is applied to further monitor and confirm the inhibition of Aβ fibril formation in vitro. As shown in Figure 3C, fluorescence intensity indicated that the concentration of Aβ fibril was decreased upon treatment with baicalin and baicalein, suggesting the positive role of baicalin and baicalein in anti- Aβ fibril formation.
Table 3. The percentage (%) of reduction in the peak areas of baicalin, baicalein and wogonoside in TIC after incubation with 20 or 200 μM Aβ (1–42).
Figure 3. The validation of the Aβ-binding propensity of chemical components by ThT fluorescence assay. (A) The extracted-ion chromatogram (EIC) of the selected SB components (baicalin, baicalein, and wogonoside) after incubation with 20 and 200 μM Aβ (1–42). (B) The bar chart shows the quantitative reduction (%) in the peak area of baicalin, baicalein, and wogonoside in TIC after incubation with 20 and 200 μM Aβ (1–42). The data was expressed as the mean ± SEM. ∗p < 0.05 and ∗∗p < 0.01 vs. 0 μM Aβ (1–42). (C) The inhibitory effect of representative compounds on Aβ (1–42) fiber formation measured by ThT fluorescence intensity detection. The data was expressed as the mean ± SEM. ∗p < 0.05 and ∗∗∗p < 0.001 vs. 20 μM Aβ (1–42) alone group.
Direct Binding Measurement of Baicalin and Baicalein to Aβ (1–42) by Biolayer Interferometry Analysis
To determine the binding affinity of the selected SB chemical components to Aβ (1–42) fibril, the label-free biolayer interferometry assay which measures the biomolecular interaction was used. It is performed by monitoring the binding of a ligand immobilized on the tip surface of a biosensor to a specific analyte in the tested solution. Upon the association, the optical thickness at the biosensor tip will be increased, leading to a real time shift in wavelength (Δλ) due to a change in the thickness of the biological layer. These Interactions will then be quantitated to provide accurate data on binding specificity and the association or dissociation rates. To begin, increasing concentrations of baicalin (25, 50, 100, 200, 400, 800 μM) and baicalein (12.5, 25, 50, 100, 200, 400 μM) were applied for the real-time monitoring of their direct association with the biotinylated Aβ (1–42). As shown by the association/dissociation binding curves of the 2 compounds in Figures 4A,B, there is a dose dependent increase in the optical thickness (nm) of the sensor layer, suggesting the direct binding of baicalin and baicalein to Aβ. Table 4 showed the kinetic constants calculated using the ForteìBIO data analysis software. The results showed that the KD value of baicalin and baicalein were 242 and 170 μM, respectively, suggesting the direct and reversible interaction of baicalin and baicalein with Aβ (1–42).
Figure 4. Kinetic measurement of the binding affinity of baicalin and baicalein to Aβ (1–42) fibril by BLI assay. (A) Kinetic binding sensorgrams of increasing concentrations of baicalin from 25 to 800 μM were showed with real-time data acquisition for each step of the kinetic assay. (B) Kinetic binding sensorgrams of increasing concentrations of baicalein from 12.5 to 400 μM. Response/binding (nm) represents the optical thickness of the sensor layer reflected by the spectral shift (Δλ) upon the interaction of baicalin or baicalein with Aβ (1–42). The response at steady state where the rate of association equal to the dissociation, the equilibrium binding signal (Req) indicated by flattened curve is reached.
Table 4. The binding affinity (KD), association rate constant (Kon) and dissociation rate constant (Kdis) of baicalin and baicalein to Aβ (1–42).
In vitro Inhibitory Effect of SB-TEE, Baicalin, Baicalein and Wogonoside on Aβ (1–42) Fibrillation
Dot immunoblot, utilizing the strong Aβ-binding capacity of PVDF membrane, was used for further validation of the in vitro anti-Aβ (1–42) fibrillation effect of SB-TEE, baicalin, baicalein and wogonoside. To begin, incubation of 20 μM Aβ (1–42) with or without SB-TEE, baicalin, baicalein or wogonoside for 5 days at 37°C was performed. Equal amount of each incubated sample spotted onto the PVDF membrane was then subjected to immunoblotting with antibodies specific for detection and quantitation of amyloid fibrillation (Gong et al., 2003). As shown in Figures 5A,B, while baicalein possesses the highest potency in anti-fibrillation of Aβ, wogonoside was not effective in inhibiting the fibrillation of Aβ. To further confirm the anti-fibrillation effect of the selected compounds, non-denaturing native gel electrophoresis was applied for the effective detection of fibrillary Aβ. Consistently, baicalein showed the highest potency in anti-fibrillation of Aβ, as shown in Figure 5C. These data have confirmed the feasibility of our proposed new application of using a UHPLC-DAD-TOF/MS based detection system for precise identification of β-amyloid fibrillation inhibitors from TCMs that contain multiple chemical components.
Figure 5. Inhibitory effect of SB-TEE and selected compounds on Aβ (1–42) fibrillation by dot blot assay and native gel electrophoresis analysis. (A) The dot blot image of Aβ (1–42) with or without the incubation with SB-TEE (100 μg/mL), baicalin (50 μM), baicalein (50 μM), or wogonoside (50 μM). (B) The dot blot images were analyzed and quantitated with the software Image J. Columns, means of 3 independent experiments; bars, SEM. ∗p < 0.05, ∗∗p < 0.01 vs. 20 μM Aβ (1–42) alone group. (C) The native gel electrophoresis analysis was performed by analyzing Aβ (1–42) solution (50 μg) with or without incubation of SB-TEE, baicalin, baicalein or wogonoside at 37°C for 5 days using the 4–16% gradient native gel under non-denatured condition. The full-length images of dot blot and native gel electrophoresis are displayed in Supplementary Figure S1.
SB-TEE Alleviates the Cytotoxicity of Aβ (1–42) in PC-12 Cells
To further validate the correlation between the anti-fibrillation effect and the functional role of SB, the effect of SB-TEE on Aβ (1–42)-induced cell death was evaluated. To begin, the viability of PC-12 cells upon SB-TEE treatment, from 0 to 1000 μg/mL, was evaluated by MTT assay. As shown in Figure 6A, no obvious cellular toxicity was observed within the tested concentration range. Furthermore, fibrillation of Aβ (1–42) was performed in the presence of PBS or SB-TEE with 5 days of incubation at 37°C. A ThT fluorescence assay confirmed that the fibrillation of Aβ decreased with an increasing concentration of SB-TEE from 1 and 100 μg/mL, as shown in Figure 6B. To further elucidate the anti-Aβ fibrillation effect of SB-TEE in cells, viability of PC-12 cells incubated with an increasing concentration of Aβ (1–42), from 10 to 30 μM, was evaluated by MTT assay as shown in Figure 6C. With an incubation concentration of 20 μM Aβ (1–42), Figure 6D confirmed that an increasing concentration of SB-TEE decreased the toxicity of Aβ (1–42), which is correlated with the anti-Aβ fibrillation effect of SB-TEE. Our results have confirmed the protective role of SB-TEE on Aβ-induced toxicity in cells, which further validated the accuracy and precision of applying the UHPLC-DAD-TOF/MS detection system for the identification of Aβ fibrillation inhibitors, from analytical chemistry to cellular functional level.
Figure 6. Cytotoxicity of SB-TEE and Aβ (1–42) fibril on PC-12 cells. (A) Cytotoxicity of SB-TEE on PC-12 was examined by MTT assay at 48 h after treatment. (B) The anti- Aβ fibrillation effect of SB-TEE (1–100 μg/mL) was measured by ThT fluorescence assay. ∗∗∗p < 0.001 vs. 20 μM Aβ (1–42) group. (C) Cellular toxicity induced by 10–30 μM of Aβ (1–42) on PC-12 cells was evaluated by MTT assay at 48 h after treatment. ∗p < 0.05 and ∗∗p < 0.01 vs. 0 μM Aβ (1–42) group. (D) Cellular toxicity induced by 20 μM of Aβ (1-42) on PC-12 cells was evaluated by MTT assay at 48 h after SB-TEE (1, 10, and 100 μg/mL) treatments. Column, means of 3 independent experiments; bars, SEM. ∗p < 0.05, ∗∗p < 0.01 and ∗∗∗p < 0.001 vs. 20 μM Aβ (1–42) alone group.
Protective Role of Baicalin, Baicalein and Wogonoside in the Cytotoxicity of Aβ (1–42) in PC-12 Cells
Aβ (1–42)-induced oxidative stress and neurotoxicity have been implicated in the pathogenesis of AD (Butterfield, 2002). With the protective effect of SB-TEE in alleviating the cytotoxicity of Aβ (1–42) in PC-12 cells, the role of the selected potential anti-Aβ fibrillation herbal compounds, baicalin and baicalein, identified by UHPLC-DAD-TOF/MS were further evaluated by MTT and flow cytometry analysis. As shown by the MTT results in Figure 7A, baicalin, baicalein and wogonoside possess very low or no cytotoxicity in PC-12 cells at concentrations ranging from 0 to 100 μM. Viability of PC-12 cells incubated with Aβ (1–42) (20 μM) with or without the presence of baicalin (50 μM), baicalein (50 μM) or wogonoside (50 μM) were evaluated by MTT assay. As shown in Figure 7B, while both baicalin and baicalein were able to rescue cells from Aβ (1–42)-induced cell death, wogonoside showed no effect in the restoration of cell viability. The MTT result was further confirmed by flow cytometry analysis using annexin V staining. As shown by the increased percentage of viable cells in Figures 7C,D, quantitated flow cytometry results confirmed the protective role of baicalin and baicalein in Aβ (1–42)-induced cell death. All these data have further supported the notion of applying UHPLC-DAD-TOF/MS as a system for accurate and rapid detection of anti- Aβ fibrillation inhibitors from TCMs.

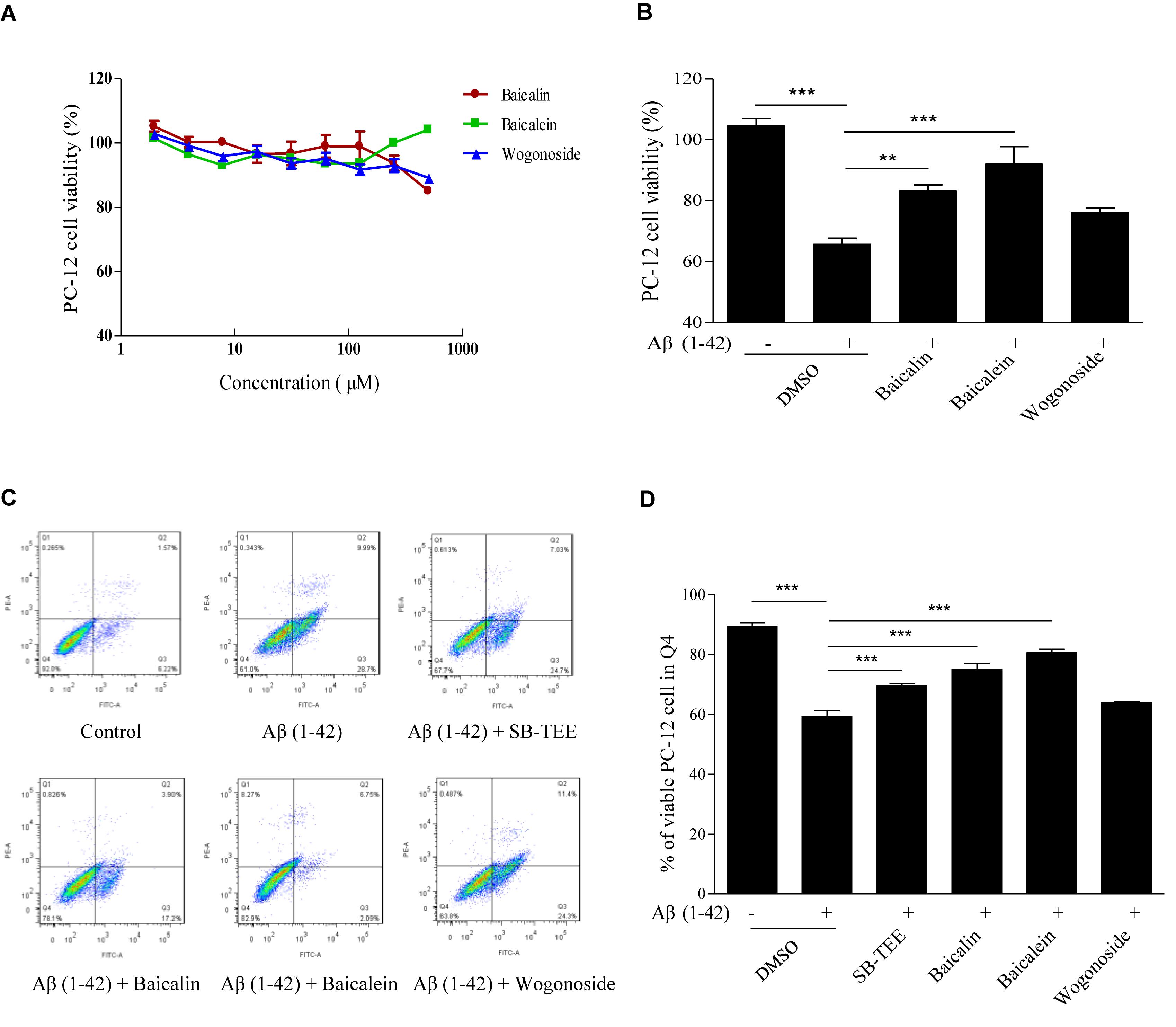

Figure 7. Aβ (1–42) fibril-induced cytotoxicity on PC-12 cells after baicalin, baicalein and wogonoside treatments. (A) Cytotoxicity of baicalin, baicalein and wogonoside (0–500 μM) on PC-12 were examined by MTT assay at 48 h after treatment. (B) Cellular toxicity induced by 20 μM of Aβ (1–42) on PC-12 cells was evaluated by MTT assay at 48 h after baicalin (50 μM), baicalein (50 μM), and wogonoside (50 μM) treatments. Columns means of 3 independent experiments; bars, SEM. ∗∗p < 0.01 and ∗∗∗p < 0.001 vs. 20 μM Aβ (1–42) group. (C) Cellular toxicity induced by 20 μM of Aβ (1–42) with or without the co-treatment of baicalin, baicalein and wogonoside on PC-12 cells was evaluated by flow cytometry at 48 h after treatment. (D) Quantitative results on the percentage of viable cells after SB-TEE, baicalin and baicalein treatments with the presence of Aβ (1–42) in PC-12 cells. Columns, means of 3 independent experiments; bars, SEM. ∗∗∗p < 0.001 vs. 20 μM Aβ (1–42) alone group.
Accumulation of Aβ in senile plaques and hyperphosphorylated tau in NFTs are the two main pathological characteristics in the brain of AD patients. Experimental evidence has suggested that Aβ is an important biomarker for diagnosis and drug target of AD, based on the amyloid hypothesis of AD (Thakur et al., 2009; Selkoe and Hardy, 2016; Tamagno et al., 2017). The Aβ (1–42) peptide derived from APP through the cleavage of γ-secretases and β-secretases, is the predominant aggregated and neurotoxic form of Aβ found in the brain of AD patients due to its two additional hydrophobic amino acids (Butterfield et al., 2013; Xiao et al., 2015). The excessive formation and failure on the clearance of Aβ, can lead to the formation of self-aggregated Aβ in different forms such as oligomers and neuritic plaques, which possess neurotoxicity and can affect axon function via oxidative stress (Lecanu et al., 2006), altered electrochemical signaling (Walsh et al., 2002) or N-methyl-D-aspartate (NMDA) receptor-mediated excitotoxicity (You et al., 2012), which can lead to impaired cognitive and memory functions (Palop and Mucke, 2010). Current pharmacological interventions to AD include the use of cholinesterase inhibitors, NMDA receptor antagonists and neurotrophic factors (Masters et al., 2015). In addition, inhibitors targeting the different structures of Aβ have also been widely studied (Kepp, 2012; Doig and Derreumaux, 2015). For example, carnosine (β-alanyl-L-histidine) can interact with Aβ (1–42) monomer and inhibit Aβ aggregation (Attanasio et al., 2013). As an inhibitor of Aβ oligomers, both curcumin and resveratrol can bind to the N-terminus (residues 5–20) of Aβ 42 monomers (Fu et al., 2014), while BAN2401 (humanized version of mAb158) decreases the level of soluble Aβ protofibrils (Lannfelt et al., 2014). A recent report has suggested that the human innate immune peptide LL-37 can bind to Aβ and modulate the formation of the Aβ fibril (De Lorenzi et al., 2017). However, current available drugs or treatments are only symptomatic which mainly target the modulation of cognitive ability or neuropsychiatric symptoms.
As amyloid deposition starts early, before the onset of dementia symptoms (Lannfelt et al., 2014), preventive drugs are particularly important in AD treatment. With the advantages of multi-targets and high drug safety, TCMs are commonly used as a preventive prescription for aged-related degenerative diseases, therefore, identifying potential active compounds from TCMs has become an important strategy for AD therapy (Pan et al., 2013). TCMs have been used for the treatment of AD for a long time in China. For example, huperzine A, a lycopodium alkaloid isolated from huperzia serrata, could improve AD symptoms through inhibiting acetylcholinesterase (AChE) activity (Zhu et al., 2010). The leaf extract of Ginkgo biloba (EGb 761) could protect hippocampal neurons against cytotoxicity induced by Aβ fragments (Bastianetto et al., 2000; Wu et al., 2011). However, potential drug discoveries from TCMs still encounters challenges in the quick and precise identification of bioactive components from its complex herbal formulation (Liu et al., 2017).
SB has been reported for its protective roles in the improvement of learning ability (Heo et al., 2009) and brain injury (Hwang et al., 2011; Lin et al., 2011) possibly via its anti-oxidation, -inflammation (Yune et al., 2009) and -apoptosis properties (Jeong et al., 2011). Although a previous study has reported only the moderate neuroprotectivity of SB extract for Aβ insult (Kim et al., 2007), possibly due to the low testing concentration, other studies have confirmed that flavonoids from SB play a protective role in the recovery of neurological functions and in the prevention of AD (Gasiorowski et al., 2011; Gao et al., 2013; Vauzour, 2014). For example, total flavonoids from SB can protect neuronal damage and improve memory deficits induced by cerebral ischemia in rats (Shang et al., 2006; Cao et al., 2016). Additionally, a flavonoid composition (UP326) containing baicalin can help to maintain memorizing and processing abilities of aged animals (Yimam et al., 2016). As the major type of flavonoids in SB, baicalein and baicalin ameliorated cognitive impairment in AD animal models (Wei et al., 2014; Chen et al., 2015). In fact, the recent development of plant-derived drugs has received considerable attention in the treatment of AD (Kumar and Nisha, 2014), therefore, based on the previous literature on SB, the development of accurate detection methods of active components from herbal plants is performed in this study by choosing baicalein and baicalin as the study subjects.
It is noteworthy that traditional bioactivity guided purification of single active compounds from TCMs is time-consuming, laborious, costly and has low sensitivity. Although ThT fluorescence dye is a commonly used fluorescent probes for Aβ fibril detection, it possesses the disadvantages of low specificity and sensitivity (Roberti et al., 2009; Kitts et al., 2011; Li et al., 2013). Cell-based detection methods have been developed by expressing the GFP-Aβ 42 fusion protein in E. coli, which allows the rapid high throughput screening of inhibitors on Aβ aggregation (Kim et al., 2006). Furthermore, the advances in the use of affinity chromatography in conjunction with highly sensitive detection technology has also facilitated the detection of bioactive compounds from TCMs. For example, biolayer interferometry accurately measures the real-time biomolecular interactions in the cells-free system, which has been used to identify D-enantiomeric peptide D3 and its derivatives as Aβ oligomers inhibitors (Concepcion et al., 2009; Klein et al., 2016). Nuclear magnetic resonance spectroscopy (NMR), was used to identify inhibitors on Aβ fibrillation from a compound library with high sensitivity and speed (Sievers et al., 2011). Furthermore, mass spectroscopy coupled with liquid chromatography (LC) was used for rapid detection of small molecules such as epigallocatechin gallate (EGCG), hemin and tramiprosate that could bind to Aβ precursors (Young et al., 2015). Although some of the current detection methods show high sensitivity and analytical speed, these methods work best only in targeting single compounds, but not to extract of TCMs that contain multiple chemical components.
UHPLC-DAD-TOF-MS is a common analytical equipment that provides accurate mass analysis including profiling, characterization, identification and quantification of a mixture of chemical molecules, based on their molecular weights, with highly sensitive. Therefore, it serves as a useful tool for the identification of single components from complicated chemical compositions like the extract of TCMs (Hossain et al., 2010). We have previously reported the successful identification of the natural methylglyoxal (MGO) scavenger from Polygonum cuspidatum and the autophagy inducer from Radix polygalae using UHPLC-DAD-MS and UHPLC-DAD-TOF-MS, respectively (Tang et al., 2013; Wu et al., 2013). According to the published reports, the peak area of the bioactive inhibitors including small molecule and peptide in the NMR spectrum decreased significantly upon their binding to the Aβ or tau fiber (Sievers et al., 2011; Jiang et al., 2013). Based on the above observation, we have therefore hypothesized and confirmed that the components in TCMs, with an inhibition effect on Aβ fibrillation, must possess binding affinity to the Aβ fibril, and these bioactive components can be successfully detected using UHPLC-DAD-TOF-MS via chromatogram analysis. In the present study, although the method was successfully applied on SB-TEE and its major known chemical components, further verification on different TCMs along with a biological evaluation is required to further validate accuracy. In additional to MS, which provides information on the possible potency and accurate identifies of the herbal chemicals, combinational use of column chromatography and NMR technology, for the analytical isolation and identification of novel or low abundance active compounds presented in SB or other herbs, are required.
In conclusion, up to now, there are still no effective and reliable detection methods for the inhibitors of β-amyloid fibrillation from complicated chemical composition such as TCMs. As shown in Figure 8, based on the fact that the peak area of the compounds on the chromatogram are reduced upon their binding with Aβ fibril, we hypothesized that the components in TCMs, that have binding propensity for Aβ, can be identified using UHPLC-DAD-TOF/MS. Through the effective and accurate isolation of the active compounds from TCMs, UHPLC-DAD-TOF-MS has therefore proved to be a useful method for identifying the bioactive compounds in TCMs with anti-Aβ fibrillation effects. In the near future, the method proposed in this study may also be applied for the precise screening of inhibitors on other AD-related proteins such as tau, which may facilitate AD drug discovery from TCMs.
Figure 8. Schematic diagram for the rationale, design and characterization of Aβ fibril inhibitors from herbal medicines. The incubation of Aβ (1–42) solution with TCMs extract. Analysis of the pre-incubated Aβ (1–42)-TCM extract mixture using Agilent 6230 UHPLC-DAD-TOF/MS instrument. Chemical analytical prediction on the binding propensity of the compounds by UHPLC-DAD-TOF/MS. Identification of the Aβ (1–42) binding chemical components from TCMs with their accurate mass identified and confirmed from literatures. Bioassay-validation of the Aβ (1–42) peptide-binding propensity of the identified compounds.
LY and A-GW conducted the experiments and drafted the manuscript. A-GW and WZ conducted the chemical analysis experiments. LY, L-QQ, BT, NZ, and H-MW conducted the bioassay experiments. V-WW and D-LQ conceived and designed the experiments. BL revised the whole manuscript. QW and BL conceived the idea and designed the experimental plan. All authors reviewed the above manuscript.
This work was supported by grants from the Macao Science and Technology Development Fund (Project Code: 0006/2018/A, 0060/2018/A2 and 0036/2018/AFJ), the National Key Research and Development Program (No. 2016YFE0131800), the Fund of the State Administration of Traditional Chinese Medicine, China (GZYYGJ2018039), the Fund of Sichuan provincial Science and Technology Department (2019YFH0023), and the Science and Technology Planning Project of Sichuan Province, China (Grant Nos. 2018JY0474 and 2019YFSY0014).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We would like to thank the Macao Science and Technology Development Fund for grant support.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2019.00194/full#supplementary-material
Attanasio, F., Convertino, M., Magno, A., Caflisch, A., Corazza, A., Haridas, H., et al. (2013). Carnosine inhibits A beta 42 aggregation by perturbing the H-bond network in and around the central hydrophobic cluster. Chembiochem 14, 583–592. doi: 10.1002/cbic.201200704
Bastianetto, S., Ramassamy, C., Dore, S., Christen, Y., Poirier, J., and Quirion, R. (2000). The Ginkgo biloba extract (EGb 761) protects hippocampal neurons against cell death induced by beta-amyloid. Eur. J. Neurosci. 12, 1882–1890. doi: 10.1046/j.1460-9568.2000.00069.x
Bertini, S., Saccomanni, G., Carlo, S. D., Digiacomo, M., Gargini, C., Piano, I., et al. (2017). Application of an improved HPLC-FL method to screen serine palmitoyl transferase inhibitors. Molecules 22:E1198. doi: 10.3390/molecules22071198
Butterfield, D. A. (2002). Amyloid beta-peptide (1-42)-induced oxidative stress and neurotoxicity: implications for neurodegeneration in Alzheimer’s disease brain. A review. Free Radic. Res. 36, 1307–1313. doi: 10.1080/1071576021000049890
Butterfield, D. A., Swomley, A. M., and Sultana, R. (2013). Amyloid beta-peptide (1-42)-induced oxidative stress in Alzheimer disease: importance in disease pathogenesis and progression. Antioxid. Redox Signal. 19, 823–835. doi: 10.1089/ars.2012.5027
Cao, Y., Liang, L., Xu, J., Wu, J., Yan, Y., Lin, P., et al. (2016). The effect of Scutellaria baicalensis stem-leaf flavonoids on spatial learning and memory in chronic cerebral ischemia-induced vascular dementia of rats. Acta Biochim. Biophys. Sin. 48, 437–446. doi: 10.1093/abbs/gmw024
Castillo, G., Paula, Y., Beth Nguyen, C., and Snow, A. D. (2007). Methods of isolating amyloid-inhibiting compounds and use of compounds isolated from Uncaria tomentosa and related plants. U.S. Patent No 7,314,642.
Chen, C., Li, X., Gao, P., Tu, Y., Zhao, M., Li, J., et al. (2015). Baicalin attenuates alzheimer-like pathological changes and memory deficits induced by amyloid beta1-42 protein. Metab. Brain Dis. 30, 537–544. doi: 10.1007/s11011-014-9601-9
Cho, J. E., and Kim, J. R. (2011). Recent approaches targeting beta-amyloid for therapeutic intervention of Alzheimer’s disease. Recent Pat. CNS Drug Discov. 6, 222–233. doi: 10.2174/157488911796958002
Concepcion, J., Witte, K., Wartchow, C., Choo, S., Yao, D. F., Persson, H., et al. (2009). Label-free detection of biomolecular interactions using biolayer interferometry for kinetic characterization. Comb. Chem. High Throughput Screen. 12, 791–800. doi: 10.2174/138620709789104915
De Lorenzi, E., Chiari, M., Colombo, R., Cretich, M., Sola, L., Vanna, R., et al. (2017). Evidence that the human innate immune peptide LL-37 may be a binding partner of amyloid-beta and inhibitor of fibril assembly. J. Alzheimers Dis. 59, 1213–1226. doi: 10.3233/Jad-170223
Di Bona, D., Scapagnini, G., Candore, G., Castiglia, L., Colonna-Romano, G., Duro, G., et al. (2010). Immune-inflammatory responses and oxidative stress in Alzheimer’s disease: therapeutic implications. Curr. Pharm. Des. 16, 684–691. doi: 10.2174/138161210790883769
Dragicevic, N., Smith, A., Lin, X. Y., Yuan, F., Copes, N., Delic, V., et al. (2011). Green tea Epigallocatechin-3-gallate (EGCG) and other flavonoids reduce Alzheimer’s amyloid-induced mitochondrial dysfunction. J. Alzheimers Dis. 26, 507–521. doi: 10.3233/Jad-2011-101629
Fang, R., Ye, S., Huangfu, J., and Calimag, D. P. (2017). Music therapy is a potential intervention for cognition of Alzheimer’s disease: a mini-review. Transl. Neurodegener. 6:2. doi: 10.1186/s40035-017-0073-9
Feng, Y., Wang, X. P., Yang, S. G., Wang, Y. J., Zhang, X., Du, X. T., et al. (2009). Resveratrol inhibits beta-amyloid oligomeric cytotoxicity but does not prevent oligomer formation. Neurotoxicology 30, 986–995. doi: 10.1016/j.neuro.2009.08.013
Gabrielska, J., Oszmianski, J., Zylka, R., and Komorowska, M. (1997). Antioxidant activity of flavones from Scutellaria baicalensis in lecithin liposomes. Z. Naturforsch. C 52, 817–823. doi: 10.1515/znc-1997-11-1215
Gao, J., Inagaki, Y., and Liu, Y. (2013). Research progress on flavonoids isolated from traditional Chinese medicine in treatment of Alzheimer’s disease. Intractable Rare Dis. Res. 2, 3–10. doi: 10.5582/irdr.2013.v2.1.3
Gasiorowski, K., Lamer-Zarawska, E., Leszek, J., Parvathaneni, K., Yendluri, B. B., Blach-Olszewska, Z., et al. (2011). Flavones from root of Scutellaria baicalensis Georgi: drugs of the future in neurodegeneration? CNS Neurol. Disord. Drug Targets 10, 184–191. doi: 10.2174/187152711794480384
Gong, Y., Chang, L., Viola, K. L., Lacor, P. N., Lambert, M. P., Finch, C. E., et al. (2003). Alzheimer’s disease-affected brain: presence of oligomeric A beta ligands (ADDLs) suggests a molecular basis for reversible memory loss. Proc. Natl. Acad. Sci. U.S.A. 100, 10417–10422. doi: 10.1073/pnas.1834302100
Heo, H., Shin, Y., Cho, W., Choi, Y., Kim, H., and Kwon, Y. K. (2009). Memory improvement in ibotenic acid induced model rats by extracts of Scutellaria baicalensis. J. Ethnopharmacol. 122, 20–27. doi: 10.1016/j.jep.2008.11.026
Heo, H. J., Kim, D. O., Choi, S. J., Shin, D. H., and Lee, C. Y. (2004). Potent Inhibitory effect of flavonoids in Scutellaria baicalensis on amyloid beta protein-induced neurotoxicity. J. Agric. Food Chem. 52, 4128–4132. doi: 10.1021/jf049953x
Hossain, M. B., Rai, D. K., Brunton, N. P., Martin-Diana, A. B., and Barry-Ryan, C. (2010). Characterization of phenolic composition in Lamiaceae spices by LC-ESI-MS/MS. J. Agric. Food Chem. 58, 10576–10581. doi: 10.1021/jf102042g
Huang, W. H., Lee, A. R., and Yang, C. H. (2006). Antioxidative and anti-inflammatory activities of polyhydroxyflavonoids of Scutellaria baicalensis GEORGI. Biosci. Biotechnol. Biochem. 70, 2371–2380. doi: 10.1271/bbb.50698
Hwang, Y. K., Jinhua, M., Choi, B. R., Cui, C. A., Jeon, W. K., Kim, H., et al. (2011). Effects of Scutellaria baicalensis on chronic cerebral hypoperfusion-induced memory impairments and chronic lipopolysaccharide infusion-induced memory impairments. J. Ethnopharmacol. 137, 681–689. doi: 10.1016/j.jep.2011.06.025
Jeong, K., Shin, Y. C., Park, S., Park, J. S., Kim, N., Um, J. Y., et al. (2011). Ethanol extract of Scutellaria baicalensis Georgi prevents oxidative damage and neuroinflammation and memorial impairments in artificial senescense mice. J. Biomed. Sci. 18:14. doi: 10.1186/1423-0127-18-14
Jiang, L., Liu, C., Leibly, D., Landau, M., Zhao, M., Hughes, M. P., et al. (2013). Structure-based discovery of fiber-binding compounds that reduce the cytotoxicity of amyloid beta. eLife 2:e00857. doi: 10.7554/eLife.00857
Kandasamy, N., Ira, S., Surendra Kumar, S., Ramesh, B. B., Anjali, M., Aanchal, R., et al. (2012). Isolation of mangiferin and amyloid β-protein from n-hexane extract of roots of Wrightia tomentosa. J. Med. Plants Res. 6, 5311–5316. doi: 10.5897/JMPR11.1352
Kim, D. S., Kim, J. Y., and Han, Y. S. (2007). Alzheimer’s disease drug discovery from herbs: neuroprotectivity from beta-amyloid (1-42) insult. J. Altern. Complement. Med. 13, 333–340. doi: 10.1089/acm.2006.6107
Kim, E. H., Shim, B., Kang, S., Jeong, G., Lee, J. S., Yu, Y. B., et al. (2009). Anti-inflammatory effects of Scutellaria baicalensis extract via suppression of immune modulators and MAP kinase signaling molecules. J. Ethnopharmacol. 126, 320–331. doi: 10.1016/j.jep.2009.08.027
Kim, W., Kim, Y., Min, J., Kim, D., Chang, Y., and Hecht, M. (2006). A high-throughput screen for compounds that inhibit aggregation of the Alzheimer’s peptide. ACS Chem. Biol. 1, 461–469. doi: 10.1021/cb600135w
Klein, A. N., Ziehm, T., Tusche, M., Buitenhuis, J., Bartnik, D., Boeddrich, A., et al. (2016). Optimization of the All-D peptide D3 for abeta oligomer elimination. PLoS One 11:e0153035. doi: 10.1371/journal.pone.0153035
Kumar, N. S., and Nisha, N. (2014). Phytomedicines as potential inhibitors of β amyloid aggregation: significance to Alzheimer’s disease. Chin. J. Nat. Med. 12, 801–818. doi: 10.1016/S1875-5364(14)60122-9
Lecanu, L., Greeson, J., and Papadopoulos, V. (2006). Beta-amyloid and oxidative stress jointly induce neuronal death, amyloid deposits, gliosis, and memory impairment in the rat brain. Pharmacology 76, 19–33. doi: 10.1159/000088929
Lee, K. J., Jung, P. M., Oh, Y. C., Song, N. Y., Kim, T., and Ma, J. Y. (2014). Extraction and bioactivity analysis of major flavones compounds from Scutellaria baicalensis using in vitro assay and online screening HPLC-ABTS system. J. Anal. Methods Chem. 2014:563702. doi: 10.1155/2014/563702
Li, L., and Lurie, I. S. (2014). Screening of seized emerging drugs by ultra-high performance liquid chromatography with photodiode array ultraviolet and mass spectrometric detection. Forensic Sci. Int. 237, 100–111. doi: 10.1016/j.forsciint.2014.01.018
Li, M., Zhao, C. Q., Yang, X. J., Ren, J. S., Xu, C., and Qu, X. G. (2013). In situ monitoring Alzheimer’s disease ss-amyloid aggregation and screening of a ss inhibitors using a perylene probe. Small 9, 52–55. doi: 10.1002/smll.201201543
Lin, A. M., Ping, Y. H., Chang, G. F., Wang, J. Y., Chiu, J. H., Kuo, C. D., et al. (2011). Neuroprotective effect of oral S/B remedy (Scutellaria baicalensis Georgi and Bupleurum scorzonerifolfium Willd) on iron-induced neurodegeneration in the nigrostriatal dopaminergic system of rat brain. J. Ethnopharmacol. 134, 884–891. doi: 10.1016/j.jep.2011.01.056
Liu, Q., Wang, S. C., and Ding, K. (2017). Research advances in the treatment of Alzheimer’s disease with polysaccharides from traditional Chinese medicine. Chin. J. Nat. Med. 15, 641–652. doi: 10.1016/S1875-5364(17)30093-6
Liu, R., Meng, F., Zhang, L., Liu, A., Qin, H., Lan, X., et al. (2011). Luteolin isolated from the medicinal plant Elsholtzia rugulosa (Labiatae) prevents copper-mediated toxicity in beta-amyloid precursor protein Swedish mutation overexpressing SH-SY5Y cells. Molecules 16, 2084–2096. doi: 10.3390/molecules16032084
Lu, J. H., Ardah, M. T., Durairajan, S. S., Liu, L. F., Xie, L. X., Fong, W. F., et al. (2011). Baicalein inhibits formation of alpha-synuclein oligomers within living cells and prevents Abeta peptide fibrillation and oligomerisation. Chembiochem 12, 615–624. doi: 10.1002/cbic.201000604
Mehlhorn, H., Wu, Z. D., and Ye, B. (2014). “Treatment of human parasitosis in traditional Chinese medicine preface,” in Treatment of Human Parasitosis in Traditional Chinese Medicine, Vol. 6, eds H. Mehlhorn, W. Zhongdao, and B. Ye (Berlin: Springer), V–Vi. doi: 10.1007/978-3-642-39824-7
Miao, G., Zhao, H., Guo, K., Cheng, J., Zhang, S., Zhang, X., et al. (2014). Mechanisms underlying attenuation of apoptosis of cortical neurons in the hypoxic brain by flavonoids from the stems and leaves of Scutellaria baicalensis Georgi. Neural Regen. Res. 9, 1592–1598. doi: 10.4103/1673-5374.141784
Pan, S. Y., Zhou, S. F., Gao, S. H., Yu, Z. L., Zhang, S. F., Tang, M. K., et al. (2013). New perspectives on how to discover drugs from herbal medicines: CAM’s outstanding contribution to modern therapeutics. Evid. Based Complement. Alternat. Med. 2013:627375. doi: 10.1155/2013/627375
Roberti, M. J., Morgan, M., Menendez, G., Pietrasanta, L. I., Jovin, T. M., and Jares-Erijman, E. A. (2009). Quantum dots as ultrasensitive nanoactuators and sensors of amyloid aggregation in live cells. J. Am. Chem. Soc. 131, 8102–8107. doi: 10.1021/ja900225w
Sato, D., Kondo, S., Yazawa, K., Mukudai, Y., Li, C., Kamatani, T., et al. (2013). The potential anticancer activity of extracts derived from the roots of Scutellaria baicalensis on human oral squamous cell carcinoma cells. Mol. Clin. Oncol. 1, 105–111. doi: 10.3892/mco.2012.14
Shang, Y. Z., Miao, H., Cheng, J. J., and Qi, J. M. (2006). Effects of amelioration of total flavonoids from stems and leaves of Scutellaria baicalensis Georgi on cognitive deficits, neuronal damage and free radicals disorder induced by cerebral ischemia in rats. Biol. Pharm. Bull. 29, 805–810. doi: 10.1248/bpb.29.805
Sheikh, S., Haque, E., and Mir, S. S. (2013). Neurodegenerative diseases: multifactorial conformational diseases and their therapeutic interventions. J. Neurodegener. Dis. 2013:563481. doi: 10.1155/2013/563481
Shi, H., Ren, K., Lv, B., Zhang, W., Zhao, Y., Tan, R. X., et al. (2016). Baicalin from Scutellaria baicalensis blocks respiratory syncytial virus (RSV) infection and reduces inflammatory cell infiltration and lung injury in mice. Sci. Rep. 6:35851. doi: 10.1038/srep35851
Sievers, S. A., Karanicolas, J., Chang, H. W., Zhao, A., Jiang, L., Zirafi, O., et al. (2011). Structure-based design of non-natural amino-acid inhibitors of amyloid fibril formation. Nature 475, 96–117. doi: 10.1038/nature10154
Tamagno, E., Guglielmotto, M., Monteleone, D., Manassero, G., Vasciaveo, V., and Tabaton, M. (2017). The unexpected role of Abeta1-42 monomers in the pathogenesis of Alzheimer’s disease. J. Alzheimers Dis. 62, 1241–1245. doi: 10.3233/JAD-170581
Tang, D., Zhu, J. X., Wu, A. G., Xu, Y. H., Duan, T. T., Zheng, Z. G., et al. (2013). Pre-column incubation followed by fast liquid chromatography analysis for rapid screening of natural methylglyoxal scavengers directly from herbal medicines: case study of Polygonum cuspidatum. J. Chromatogr. A 1286, 102–110. doi: 10.1016/j.chroma.2013.02.058
Thakur, G., Micic, M., and Leblanc, R. M. (2009). Surface chemistry of Alzheimer’s disease: a Langmuir monolayer approach. Colloids Surf. B Biointerfaces 74, 436–456. doi: 10.1016/j.colsurfb.2009.07.043
Vauzour, D. (2014). Effect of flavonoids on learning, memory and neurocognitive performance: relevance and potential implications for Alzheimer’s disease pathophysiology. J. Sci. Food Agric. 94, 1042–1056. doi: 10.1002/jsfa.6473
Walsh, D. M., Klyubin, I., Fadeeva, J. V., Rowan, M. J., and Selkoe, D. J. (2002). Amyloid-beta oligomers: their production, toxicity and therapeutic inhibition. Biochem. Soc. Trans. 30, 552–557. doi: 10.1042/bst0300552
Walti, M. A., Ravotti, F., Arai, H., Glabe, C. G., Wall, J. S., Bockmann, A., et al. (2016). Atomic-resolution structure of a disease-relevant Abeta(1-42) amyloid fibril. Proc. Natl. Acad. Sci. U.S.A. 113, E4976–E4984. doi: 10.1073/pnas.1600749113
Wang, M. H., Li, L. Z., Sun, J. B., Wu, F. H., and Liang, J. Y. (2014). A new antioxidant flavone glycoside from Scutellaria baicalensis Georgi. Nat. Prod. Res. 28, 1772–1776. doi: 10.1080/14786419.2014.931391
Wang, R., Shen, X., Xing, E., Guan, L., and Xin, L. (2013). Scutellaria baicalensis stem-leaf total flavonoid reduces neuronal apoptosis induced by amyloid beta-peptide (25-35). Neural Regen. Res. 8, 1081–1090. doi: 10.3969/j.issn.1673-5374.2013.12.003
Wei, D., Tang, J., Bai, W., Wang, Y., and Zhang, Z. (2014). Ameliorative effects of baicalein on an amyloid-beta induced Alzheimer’s disease rat model: a proteomics study. Curr. Alzheimer Res. 11, 869–881. doi: 10.2174/1567205011666141001113619
Wong, V. K., Chiu, P., Chung, S. S., Chow, L. M., Zhao, Y. Z., Yang, B. B., et al. (2005). Pseudolaric acid B, a novel microtubule-destabilizing agent that circumvents multidrug resistance phenotype and exhibits antitumor activity in vivo. Clin. Cancer Res. 11, 6002–6011. doi: 10.1158/1078-0432.CCR-05-0209
Wu, A. G., Wong, V. K., Zeng, W., Liu, L., and Law, B. Y. (2015). Identification of novel autophagic Radix Polygalae fraction by cell membrane chromatography and UHPLC-(Q)TOF-MS for degradation of neurodegenerative disease proteins. Sci. Rep. 5:17199. doi: 10.1038/srep17199
Wu, A. G., Wong, V. K. W., Xu, S. W., Chan, W. K., Ng, C. I., Liu, L., et al. (2013). Onjisaponin B derived from radix polygalae enhances autophagy and accelerates the degradation of mutant alpha-synuclein and huntingtin in PC-12 cells. Int. J. Mol. Sci. 14, 22618–22641. doi: 10.3390/ijms141122618
Xiao, Y., Ma, B., McElheny, D., Parthasarathy, S., Long, F., Hoshi, M., et al. (2015). Abeta(1-42) fibril structure illuminates self-recognition and replication of amyloid in Alzheimer’s disease. Nat. Struct. Mol. Biol. 22, 499–505. doi: 10.1038/nsmb.2991
Xue, C., Lin, T. Y., Chang, D., and Guo, Z. (2017). Thioflavin T as an amyloid dye: fibril quantification, optimal concentration and effect on aggregation. R. Soc. Open Sci. 4:160696. doi: 10.1098/rsos.160696
Yang, F. S., Lim, G. P., Begum, A. N., Ubeda, O. J., Simmons, M. R., Ambegaokar, S. S., et al. (2005). Curcumin inhibits formation of amyloid beta oligomers and fibrils, binds plaques, and reduces amyloid in vivo. J. Biol. Chem. 280, 5892–5901. doi: 10.1074/jbc.M404751200
Ye, F., Xui, L., Yi, J., Zhang, W., and Zhang, D. Y. (2002). Anticancer activity of Scutellaria baicalensis and its potential mechanism. J. Altern. Complement. Med. 8, 567–572. doi: 10.1089/107555302320825075
Yimam, M., Burnett, B. P., Brownell, L., and Jia, Q. (2016). Clinical and preclinical cognitive function improvement after oral treatment of a botanical composition composed of extracts from Scutellaria baicalensis and Acacia catechu. Behav. Neurol. 2016:7240802. doi: 10.1155/2016/7240802
Yoon, S. B., Lee, Y. J., Park, S. K., Kim, H. C., Bae, H., Kim, H. M., et al. (2009). Anti-inflammatory effects of Scutellaria baicalensis water extract on LPS-activated RAW 264.7 macrophages. J. Ethnopharmacol. 125, 286–290. doi: 10.1016/j.jep.2009.06.027
Yoshiike, Y., Chui, D. H., Akagi, T., Tanaka, N., and Takashima, A. (2003). Specific compositions of amyloid-beta peptides as the determinant of toxic beta-aggregation. J. Biol. Chem. 278, 23648–23655. doi: 10.1074/jbc.M212785200
You, H. T., Tsutsui, S., Hameed, S., Kannanayakal, T. J., Chen, L. N., Xia, P., et al. (2012). A beta neurotoxicity depends on interactions between copper ions, prion protein, and N-methyl-D-aspartate receptors. Proc. Natl. Acad. Sci. U.S.A. 109, 1737–1742. doi: 10.1073/pnas.1110789109
Young, L. M., Saunders, J. C., Mahood, R. A., Revill, C. H., Foster, R. J., Tu, L. H., et al. (2015). Screening and classifying small-molecule inhibitors of amyloid formation using ion mobility spectrometry-mass spectrometry. Nat. Chem. 7, 73–81. doi: 10.1038/nchem.2129
Yuan, Y., Long, P., Jiang, C., Li, M., and Huang, L. (2015). Development and characterization of simple sequence repeat (SSR) markers based on a full-length cDNA library of Scutellaria baicalensis. Genomics 105, 61–67. doi: 10.1016/j.ygeno.2014.10.009
Yune, T. Y., Lee, J. Y., Cui, C. M., Kim, H. C., and Oh, T. H. (2009). Neuroprotective effect of Scutellaria baicalensis on spinal cord injury in rats. J. Neurochem. 110, 1276–1287. doi: 10.1111/j.1471-4159.2009.06214.x
Zandi, K., Lim, T. H., Rahim, N. A., Shu, M. H., Teoh, B. T., Sam, S. S., et al. (2013). Extract of Scutellaria baicalensis inhibits dengue virus replication. BMC Complement. Altern. Med. 13:91. doi: 10.1186/1472-6882-13-91
Zhu, D., Wang, J., Zeng, Q., Zhang, Z., and Yan, R. (2010). A novel endophytic Huperzine A-producing fungus, Shiraia sp. Slf14, isolated from Huperzia serrata. J. Appl. Microbiol. 109, 1469–1478. doi: 10.1111/j.1365-2672.2010.04777.x
Zhu, Y., and Wang, J. (2015). Wogonin increases beta-amyloid clearance and inhibits tau phosphorylation via inhibition of mammalian target of rapamycin: potential drug to treat Alzheimer’s disease. Neurol. Sci. 36, 1181–1188. doi: 10.1007/s10072-015-2070-z
