ORIGINAL RESEARCH article

Front. Pharmacol., 11 September 2020 | https://doi.org/10.3389/fphar.2020.01315

Hydroxysafflor Yellow A Exerts Anti-Inflammatory Effects Mediated by SIRT1 in Lipopolysaccharide-Induced Microglia Activation

Xiude Qin1, Juanjuan Chen1, Guowei Zhang2, Chuanpeng Li3, Jinqiang Zhu4, Hong Xue1, Jinfang Li1, Tianxiang Guan1, Haotao Zheng1, Yu Liu1* and Haobin Cai1*
  • 1Encephalopathy Department, Shenzhen Traditional Chinese Medicine Hospital, The Fourth Clinical Medical College of Guangzhou University of Chinese Medicine, Shenzhen, China
  • 2Department of Traditional Chinese Medicine, College of Traditional Chinese Medicine, Hebei University, Baoding, China
  • 3The 1st Clinical Medical College, Dongzhimen Hospital, Beijing University of Chinese Medicine, Beijing, China
  • 4Institute of Traditional Chinese Medicine, Tianjin University of Traditional Chinese Medicine, Tianjin, China

Abnormal microglia activation causes sever neuroinflammation, contributing to the development of many diseases, yet the mechanism remains incompletely unknown. In current study, we identified that Hydroxysafflor yellow A (HYA), a chalcone glycoside derived from Carthamus tinctorius L effectively attenuates LPS-induced inflammation response in primary microglia via regulating the expression of inflammatory genes and remodeling the polarization of microglia. We also reported the effects of HYA on improving lipopolysaccharide (LPS)-stimulated mitochondrial dysfunction and oxidative stress for the first time. Interestingly, we found that HYA could serves as an effective SIRT1 activator. Deficiency of SIRT1 abrogates the protective effects of HYA against LPS-induced response. Overall, our data suggest HYA, a novel SIRT1 activator, could serve as an effective approach to treat LPS-induced neurodegenerative diseases.

Introduction

Previous studies indicated that abnormal activation of microglia leads to neuroinflammation and contributes to the development of some several diseases, including Parkinson’s disease, Alzheimer’s disease, and other diseases sclerosis and encephalitis (Nolan et al., 2013; Heppner et al., 2015; Borjini et al., 2016; Schwartz and Deczkowska, 2016). Neuroinflammation homeostasis is mainly contributed by the microglia cells, which actively survey the brain micro-environment dependent on its activation. In mature CNS, microglia keeps in apparently dormant state, yet performs its effects to monitoring micro-environment, which benefits for the neurovascular integrity to defend to the potentially damage to the immune systems (Demir et al., 2016). During inflammation exposure, the microglias are over-activated and secrets pro-inflammatory cytokines to neighboring neurons, which is considered as a deleterious risk for the microenvironment health (Hirsch and Hunot, 2009). Thus, several studies indicated that genetic or no-genetic factors which inhibits its activation, have been recognized as main approaches to delay or therapy neuroinflammatory diseases.

SIRT1, which is classed as a nicotinamide adenine dinucleotide (NAD+)-dependent enzyme, belongs to the sirtuin protein family and functions as a crucial enzyme for deacetylating the proteins involved in cellular regulation (Melhem et al., 2016). Accumulating evidence suggested that SIRT1 plays crucial roles in the DNA damage response, carcinogenesis, and regulation of lifespan. Recent studies suggested that AMPK-SIRT1 axis inhibits NF-κB activation and pro-inflammatory cytokines secretion upon its deacetylation activity to protect mice against neuroinflammatory diseases (Parodi et al., 2015). And this process may also attributed by the improvement of redox imbalance, which is dependent on the activation of SIRT1-Nrf2 (Parodi et al., 2015). Moreover, increasing studies demonstrated series chemicals, which acts as SIRT1 modulator, defends against LPS-Induced Inflammatory Responses in mice partly relying on the reduction of reactive oxygen species (ROS), implying the possibility of SIRT1 activator to treat neuroinflammatory diseases (Ullah et al., 2018; Wang S. et al., 2019).

HYA, derived from Carthamus tinctorius L, is a chalcone glycoside and previously reported to therapy liver injury dependent on its antioxidant property. More recently, HYA was validated to improve mitochondrial permeability transition pores in rat brain (Tian et al., 2008; Wang et al., 2013; He et al., 2015). Administration with HYA ameliorates myocardial ischemia-reperfusion injury via activation of Akt/Nrf2/HO-1 pathway (Hu et al., 2016). In vitro, HYA treatment suppressed oxygen-glucose deprivation induced-inflammatory responses (Li et al., 2013). Previous studies indicated that HYA also exerts anti-inflammatory effects on other tissues and cells, including lung, mesencephalic primary cells, BV2 cells, co-cultured microglia and neurons or macrophages (Zhang et al., 2014; Lv et al., 2016; Wang et al., 2018; Wang et al., 2020). However, whether and how HYA scavenges and attenuates LPS-induced ROS and inflammatory stress remains incompletely unknown.

In present study, we hypothesized that SIRT1 mediates HYA induced protective effects against LPS induced cell injury. An LPS-induced microglial cell models and pharmacological blockade or small interfering RNA (siRNA) of SIRT1 were used to elucidate these hypotheses.

Methods

Experimental Materials

LPS (derived from Escherichia coli) obtained from Sigma (St. Louis, MO, United States) at 100 ng/ml for 6 h were used to activate microglia. HYA (purity > 99%) E (HY-N056) at different dosage were used after LPS treatment and Ex-527 (HY-15452) purchased from MCE at 100 nM were used to inhibit SIRT1. Rabbit polyclonal antibodies against SIRT1 (ab220807), Nrf2 (ab62352), SOD (ab80946), Homox 1 (ab133057), and β-actin (ab179467) were purchased from Abcam (Cambridge, United Kingdom). Secondary antibodies of rabbit-goat lgG-horseradish peroxidase (HRP, sc-2054) were purchased from Santa Cruz Biotechnology, Inc (Santa Cruz, CA, United States). Ad-shSIRT1 was purchased from DongBio. Co. Ltd, Shenzhen, China. All the primary antibodies were diluted at 1:1000.

Cell Culture

Primary rat ventral mesencephalic microglia were isolated and cultured as previously described (Panicker et al., 2015). Briefly, Wistar rats at day 1 to day 2 were used to isolate the cortices of postnatal, containing mixed glial cultures. Cortices were dissociated by 0.25% trypsin followed by trituration. Dissociated cells were seeded into the cell cultured bottles (125 cm2) precoated with poly-D-lysine (20 mg/ml). Cells were maintained in DMEM with 10% fetal bovine serum (FBS) and 1% penicillin, streptomycin. After 14-day incubation, the flasks were shaken to separate microglia from astrocytes. The purity of primary microglia was about 98.5%. The BV2 cells were maintained in DMEM medium maintained in DMEM with 10% fetal bovine serum (FBS) and 1% penicillin, streptomycin. The cell viability was measured using a CCK8 assays kit according to the manufacturer’s instructions (CA1210-100 (Solarbio Science&Technology Co, Beijing, China)).

Ethics Statement

For animal experiments, all animal care and experiments were carried out in strict accordance with the recommendations of the Guide for the Care and Use of Laboratory Animals of the Ministry of Health (China), and approved by the Ethics Committee of Guangzhou University of Chinese Medicine.

Mitochondrial DNA Copy Number

The mitochondrial DNA (mtDNA) copy number of microglia from indicated groups was used as a marker for mitochondrial density using qPCR (Liu et al., 2015; Cheng et al., 2020). Briefly, total DNA was isolated from microglia cells using a Universal Genomic DNA Extraction kit (Tiangen) according to the manufacturer’s instructions. The ratio of COXII (mitochondrial-encoded gene)/Rps18 was used to show the mitochondrial DNA copy number. The primer sequences of COX II and Rps18 are presented in Supplemental Table 1.

ROS Detection

ROS detection of microglia under different conditions was conducted using ROS assay kit according to the manufacturer’s instructions (KGAF019; KeyGen BioTECH, Jiangsu, China). Briefly, indicated cells were incubated with DCFH-DA with a final concentration of 10 μm for a 0.5-h incubation at 37°C, protected from light. Finally, cells were washed three times with PBS, and then, the emission of fluorescence was detected by fluorescence microscopy and flow cytometry (Shen et al., 2020).

Molecular Docking

The structure of HYA was obtained from the ChemSpider database of the Royal Society of Chemistry (ChemSpider ID 9797) and drawn using ChemDraw Std 14. The three-dimensional crystal structure of hSIRT1 was obtained from the RCSB Protein Data Bank (PDB code: 3HC5). The cocrystallized structure and docking complex were prepared using SYBYL2.1.1 to correct structural errors, such as broken bonds and missing loops. Docking results were analyzed, and figures were created in Discovery Studio Visualizer.

RNA Extraction and Quantitative (q) Real-Time PCR

Total RNA was extracted from pulverized cells with TRIzol (Takara), and then reverse-transcribed to cDNA with a high-capacity cDNA reverse transcription kit (Applied Biological Materials Inc, Vancouver, Canada). qPCR (PowerUp™ SYBR™ Green Master Mix) was performed by using gene-specific primers and SYBR Green. mRNA levels for specific genes were normalized by β-actin mRNA levels. The mRNA transcription levels of the target gene in each group of experiments were expressed as a multiple relative to the control groups. All primers are listed in electronic Supplementary Material Table 1.

Western Blot Analysis

Proteins were extracted from cell lysis buffer, and the concentrations of total protein were measured by BSA method. 50 to 80 µg of proteins were loaded into the 10% SDS polyacrylamide gel, and then separated proteins were electrotransferred to polyvinylidene difluoride membranes. Western blot assays were performed using indicated antibodies.

SIRT1 Deacetylase Activity Assay

Having been divided into 4 groups (in the presence or absence of 10 mM drug HYA, the BV2 cells were, respectively, exposed to PBS, LPS, LPS+M or LPS+H), the total protein of BV2 cells was extracted by using a Protein Extraction Kit (Solarbio, HAOMA BioTECH, Guangzhou, China) as recommended by the manufacturer. Then the deacetylase activity of SIRT1 in total protein of BV2 cells was detected with a SIRT1 activity assay kit (Abcam, ab156065, UK) based on instructions of the manufacturer. Measurements of fluorescence intensity was carried out at 340 nm excitation and 460 nm emission using a microtiter plate fluorometer.

RNA Interference

shRNA-encoding DNA sequences were synthesized by Invitrogen and constructed into adenovirus plasmids (pAdTrack-U6 vectors), and adenoviruses were generated according to previously described procedures (Luo et al., 2007). A protocol for rapid generation of recombinant adenoviruses using the AdEasy system. Nat Protoc 2:1236–1247). The sequence of small interfering (si)RNA against luciferase was 5′-CTTACGCTGAGTACTTCGA-3′, and the sequence of siRNA against SIRT1 was 5′- TGATTGGCACCGATCCTCG -3’.

Statistical Analysis

All data are presented as means ± standard error of means (SEM) of more than three independent experiments. Statistical Analysis was performed using PRISM (Version 7.00, GraphPad Software, Inc.). Differences between two groups was performed for statistical significance using the Student’s t test. Differences for multiple comparisons were compared using one-way analysis of variance (ANOVA) (Tukey test or LSD test). (*p < 0.05, **p < 0.01, ***p < 0.001).

Results

HYA Supplement Inhibits LPS-Induced NO Generation and Proinflammatory Genes in Primary Microglia

To determine the direct effects of HYA on anti-neuroinflammation, a different dosage of HYA (0, 1, 2.5, 5, 7.5, 10 µM) were used to test the potential cytotoxicity on primary rat microglial cells. Interestingly, HYA showed a relatively weak cellular toxicity with a comparable safe dosage at 5 µM (Figure 1A). Previous studies have shown that activated microglial cells were characterized by the release of various proinflammatory cytokines, NO, and superoxide (Shao et al., 2013). Thus, we test the anti-inflammatory effects of HYA on LPS-activated primary rat microglial cells. Our data indicated that HYA at dosage of 5 µM effectively reduced the LPS-stimulated generation of NO, while a 2.5-µM slight but not significantly affects NO production (Figure 1B). We further test the effects of HYA on the inflammatory genes on the LPS treatment. Consistent with our hypothesis, a dose-dependently decreased mRNA expression of iNOS, TNFα, IL-1β, and IL-6 were observed in LPS stimulated primary rat microglial cells (Figures 1B, C), implying a strong anti-inflammatory effects of HYA against LPS treatment. As shown in Figure 1, a dosage of 5 µM HYA showed most effective inhibition, Therefore, we selected 5 µM in the following experiments.

FIGURE 1
www.frontiersin.org

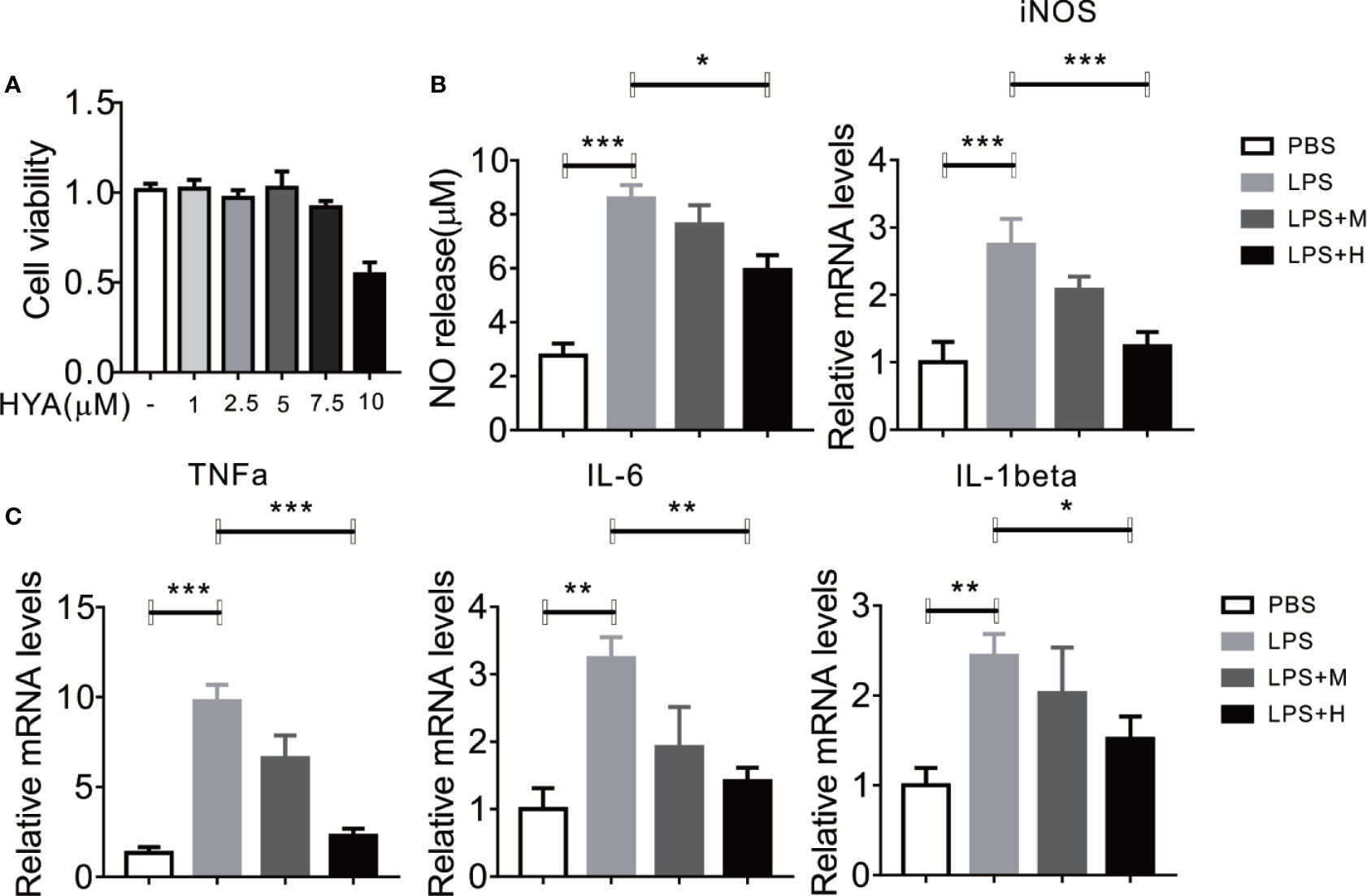

Figure 1 HYA supplement inhibits LPS-induced NO generation and proinflammatory genes in primary microglia. (A) Effects of different concentration of HYA on BV2 microglial cell viability. (B) Supplement of HYA inhibits LPS-induced NO release and iNOS expression in primary microglial cells. (C) The mRNA levels of TNFα, IL-6 and IL-1β were measured by RT-qPCR with different concentration of HYA treatment. M:0.25μM, H:5.0 µM. Student’s t test was used to analyze in figure (A). ANOVA was used to analyze in figure (B, C). Data are represented as means ± SEM. n = 6 per group. (*P < 0.05, **P < 0.01, ***P < 0.001 compared with the control group).

HYA Suppressed LPS-Induced M1 Activation and Promoted M2 Polarization in Primary Microglia

LPS has been shown to activate microglia cells and drives M0 to M1 dynamic switch, this will lead to the synthesis and release of pro-inflammation cytokines (Yang et al., 2017). Thus, we test whether HYA affects microglia polarization. Consistent with previous studies, LPS treatment stimulated the expression of CD16 and CD32 (M1 markers) in primary microglia, yet HYA supplement significantly rescue these changes, as shown by the down-regulation of M1 markers in a dosage dependent manner (Figure 2A). Conversely, LPS treatment markedly inhibits the expression of Arg-1 and CD206 (M2 markers), and HYA treatment effectively reversed LPS induced suppression of M2 markers, suggesting a potential roles of HYA in regulating microglia polarization (Figure 2B).

FIGURE 2
www.frontiersin.org

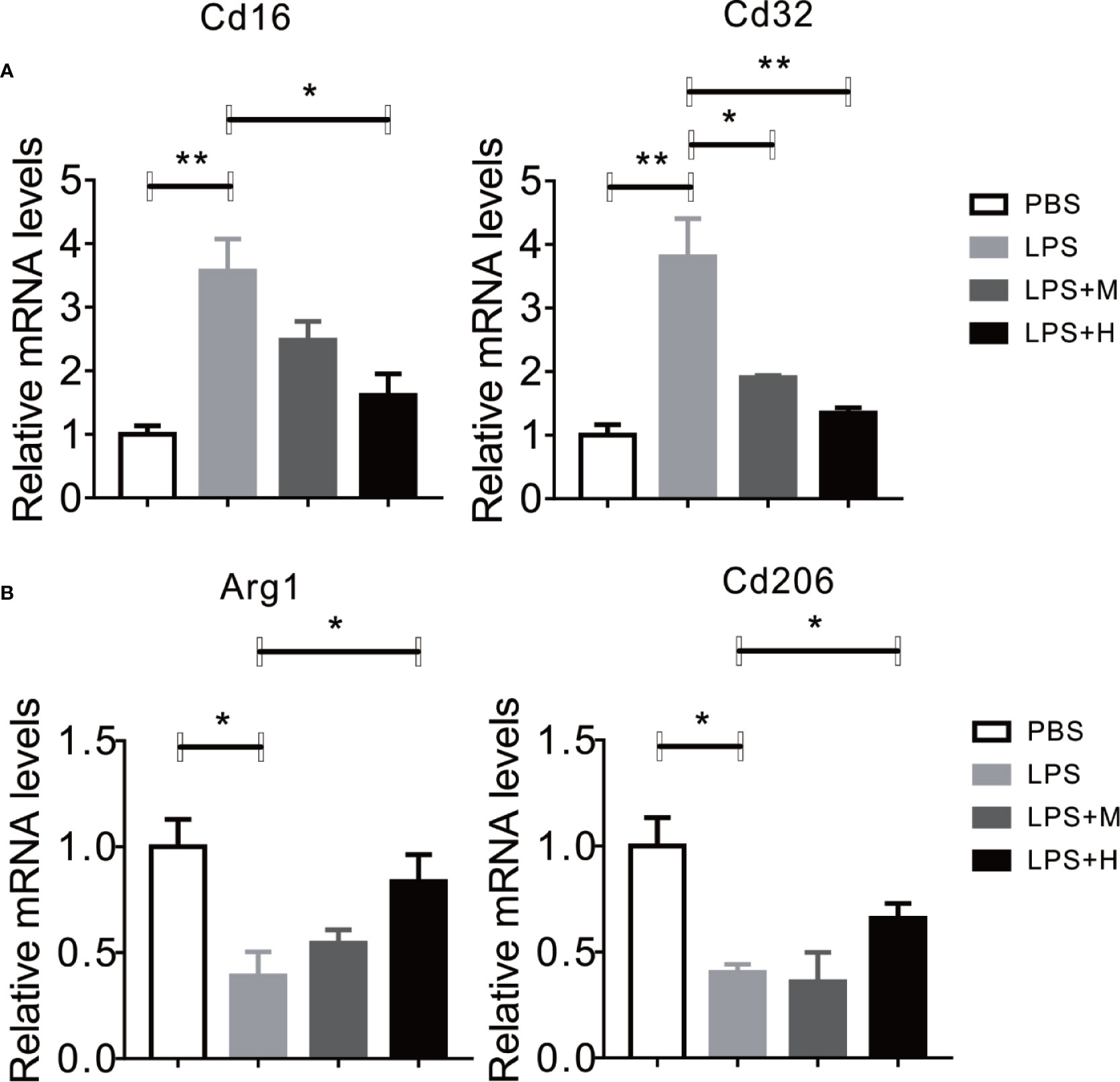

Figure 2 HYA suppressed LPS-induced M1 activation and promoted M2 polarization in primary microglia. (A) The expression of M1 markers (CD16 and CD32) were determined by RT-qPCR in different groups. (B) HYA treatment significantly promotes the expression of M2 markers (Arg-1 and CD206) in different groups. M: 0.25 µM, H: 5.0 µM. ANOVA was used to analyse. Data are represented as means ± SEM. n= 6 per group. (*P < 0.05, **P < 0.01, compared with the control group).

HYA Treatment Improves LPS-Induced Mitochondrial Dysfunction and Oxidative Stress

Previous studies indicated that mitochondrial dysfunction and accumulation of excessive peroxides play an important role in LPS induced inflammation of microglia. And mitochondrial transfer effectively ameliorates LPS- induced depression-like behaviors in mice (Wang Y. et al., 2019). Therefore, we hypothesized that HYA treatment could affects LPS-induced mitochondrial dysfunction and ease oxidative stress. To test our hypothesis, mitochondrial numbers and genes involved in anti-oxidative stress, along with ROS production were measured. As expected, our data indicated that HYA significantly rescued the LPS-induced loss of mitochondria of microglia in a dosage dependent manner (Figure 3A). Meanwhile, LPS-induced suppression of genes involved in anti-oxidative stress, including Nrf2 and SOD were effectively reversed by HYA both in mRNA and protein levels (Figures 3B–D). Of note, HYA (5 µM) markedly decreased the LPS-stimulated ROS generation, suggesting the potential protective effects of HYA on LPS-induced mitochondrial dysfunction and oxidative stress (Figures 3E and S1).

FIGURE 3
www.frontiersin.org

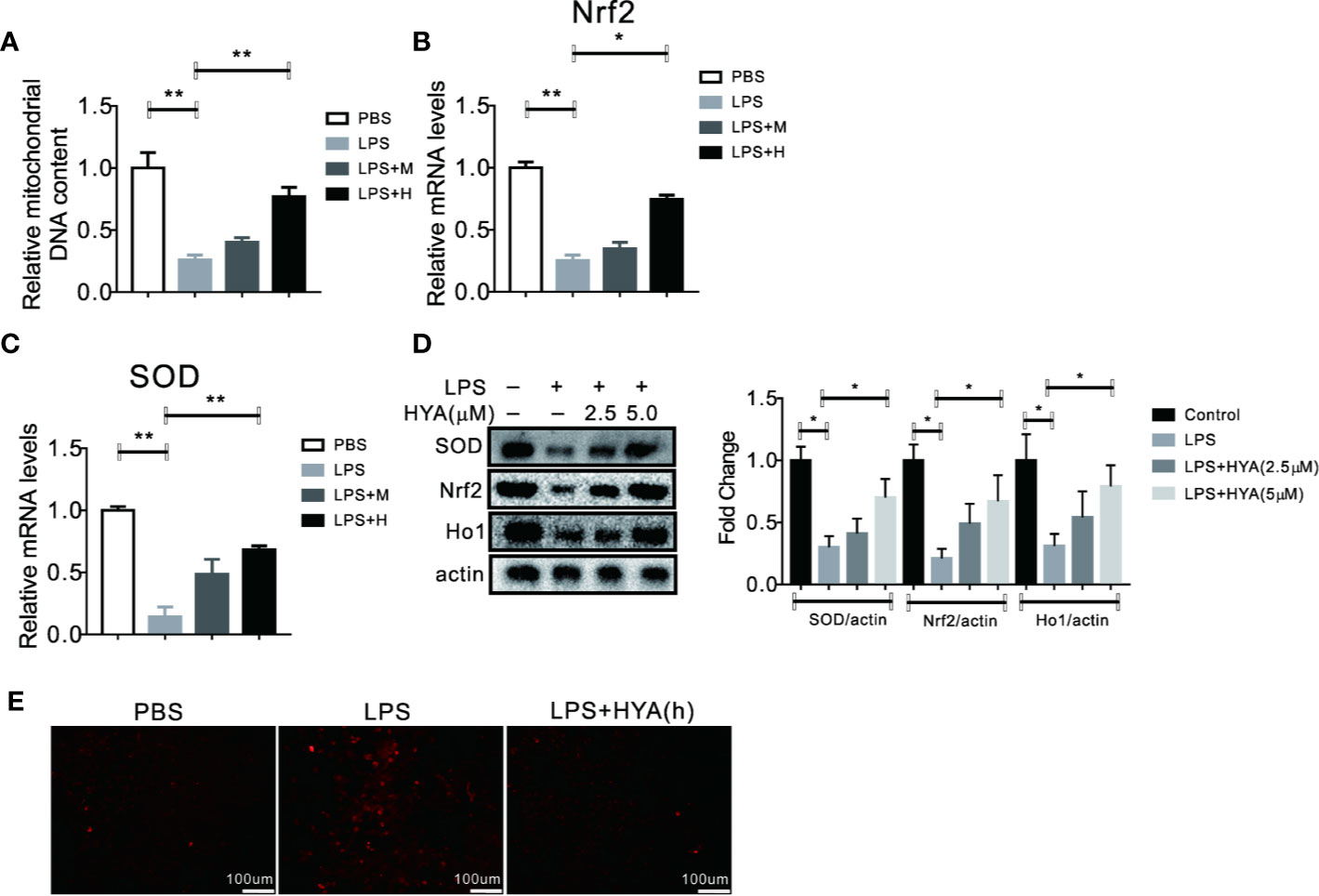

Figure 3 HYA treatment improves LPS induced mitochondrial dysfunction and oxidative stress. (A) HYA reversed LPS-stimulated mitochondria loss of primary microglia in a dosage dependent manner. (B–D) Genes involved in anti-oxidative stress were measured by RT-qPCR and Western blotting in different groups. (E) ROS productions were determined using a ROS assay kit in different groups.M:0.25 µM, H:5.0 µM. ANOVA was used to analyse. Data are represented as means ± SEM. n = 6 per group. (*P < 0.05, **P < 0.01, compared with the control group).

HYA Serves as a SIRT1 Activator in Primary Microglia

Accumulating evidences showed that sirtuin proteins manipulates the polarization of microglia, especially SIRT1, a crucial enzyme for deacetylation (Chen et al., 2018). Here, we also test the effects of HYA on SIRT1. Interestingly, our docking analysis between HYA and SIRT1 showed a good binding affinity mainly through stable hydrogen-bond interactions with residues of TYP194, GLN98, SER190, ALA22, ASP32, PHE33, and ASP101 (Figures 4A and S2). Moreover, this tight binding of HYA could effectively rescued the LPS-induced reduction of SIRT1 deacetylase activity (Figure 4B). Additionally, HYA treatment recovers the expression of SIRT1 in primary microglia, even on LPS stimulation state (Figures 4C, D), suggesting that HYA could serve as an effective SIRT1 activator.

FIGURE 4
www.frontiersin.org

Figure 4 HYA serves as a SIRT1 activator in primary microglia. (A) Docking analysis the binding affinity between HYA and SIRT1. (B) HYA treatment rescued LPS-stimulated inhibition of SIRT1 enzymes activity. (C, D) The effects of HYA on SIRT1 expression both in mRNA and protein levels was measured by RT-qPCR and Western blotting. M: 0.25 µM, H: 5.0 µM. ANOVA was used to analyse. Data are represented as means ± SEM. n = 6 per group. (*P < 0.05, **P < 0.01, compared with the control group).

Deficiency of SIRT1 Abrogates the Anti-Inflammation Effects of HYA Against LPS Treatment

Given the perfect binding affinity between HYA and SIRT1, we hypothesized that SIRT1 may mediates the protective effects of HYA against LPS treatment in primary microglia. As expected, pretreatment with EX-527, an effective SIRT1 blockade, obviously diminished HYA induced recovery of LPS-stimulated NO production (Figure 5A). Genes involved in proinflammation cytokines including iNOS, TNFα, IL-1β, and IL-6 were failed to alter by HYA after LPS treatment due to the silence of SIRT1 by ad-shSIRT1 (Figures 5B–E), implying a crucial role of SIRT1 in mediating the anti-inflammation effects of HYA against LPS treatment. We further test the requirement of SIRT1 for HYA to regulate microglia polarization. And our data indicated that HYA failed to affect the expression of CD16 and CD32 (M1 markers) and Arg-1 and CD206 (M2 markers) in microglia, even on LPS stimulation status (Figures 6A, B).

FIGURE 5
www.frontiersin.org

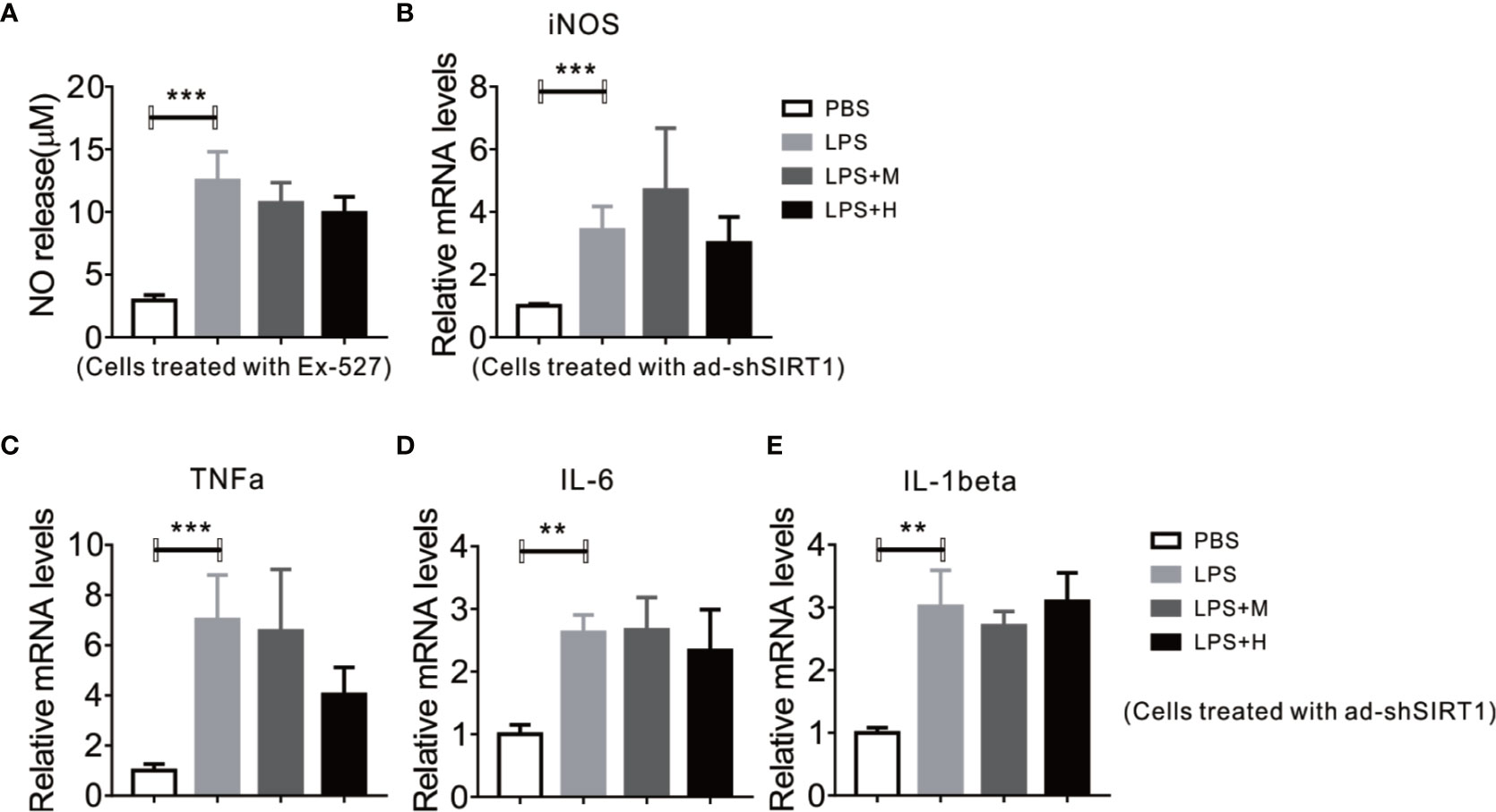

Figure 5 Deficiency of SIRT1 abrogates the anti-inflammation effects of HYA against LPS treatment. (A) Ex-527 pretreatment blocks HYA-induced inhibition of NO generation after LPS exposure. (B, C) Ad-shSIRT1–mediated deficiency of SIRT1 abrogates HYA-induced suppression of inflammatory genes, including iNOS, TNFα, IL-6, and IL-1β. (D, E) The expression of effects M1 markers (CD16 and CD32) and M2 markers (Arg-1 and CD206) were measured by RT-qPCR after ad-SIRT1 infection followed by different concentration of HYA treatment. M: 0.25 µM, H: 5.0 µM. ANOVA was used to analyse. Data are represented as means ± SEM. n= 6 per group. (**P < 0.01, ***P < 0.001 compared with the control group).

FIGURE 6
www.frontiersin.org

Figure 6 Knockdown of SIRT1 abrogates the effects of HYA on microglia polarization. (A, B) The expression of M1 markers (CD16 and CD32) and M2 markers (Arg-1 and CD206) were measured by RT-qPCR after ad-SIRT1 infection followed by different concentration of HYA treatment. M: 0.25 µM, H: 5.0 µM. ANOVA was used to analyze. Data are represented as means ± SEM. n = 6 per group. (*P < 0.05, ***P < 0.001 compared with the control group).

Knockdown of SIRT1 Abolished the Recovery of LPS-induced Mitochondrial Dysfunction and Oxidative Stress by HYA

SIRT1 has been previously validate to regulates mitochondria homeostasis and defend LPS induced mitophagy via affecting Pink1 and Parkin (Mannam et al., 2014). Here, we also test the role of SIRT1 on HYA induced resistance to LPS-derived mitochondrial dysfunction and oxidative stress. Our data demonstrated that HYA failed to reverse the LPS-induced reduction of mitochondrial number (Figure 7A). Meanwhile, LPS-induced inhibition of genes involved in anti-oxidative stress, including Nrf2 and SOD does not alter by HYA both in mRNA and protein levels due to SIRT1 deficiency (Figures 7B–D). Interestingly, knockdown of SIRT1 predisposes microglia more sensitive to LPS treatment, as shown by the dramatically increased ROS production. However, HYA treatment failed to rescue the ROS accumulation after LPS exposure, even at a high dosage of 5 µM, suggesting the necessity of SIRT1 for HYA to improve mitochondrial dysfunction and ease oxidative stress in primary microglia (Figure 7E).

FIGURE 7
www.frontiersin.org

Figure 7 Knockdown of SIRT1 abolished the recovery of LPS-induced mitochondrial dysfunction and oxidative stress by HYA. (A) Ad-shSIRT1–mediated knockdown of SIRT1 abolished HYA-induced protection against LPS-stimulated mitochondria loss. (B–D) Genes involved in anti-oxidative stress were not altered by HYA due to the deficiency of SIRT1. (E) SIRT1 deficiency blocks the protective effects of HYA against LPS-stimulated ROS accumulation, M: 0.25 µM, H: 5.0 µM. ANOVA was used to analyze. Data are represented as means ± SEM. n = 6 per group. (*P < 0.05, **P < 0.01, compared with the control group).

Discussion

In the current study, we identified HYA as a novel SIRT1 activator, affecting its transcription levels and enzyme activity. HYA supplement significantly suppressed the LPS-induced activation of microglia and the secretion of pro-inflammatory cytokines. Yet, the anti-inflammatory effects of HYA could be effectively abolished by the SIRT1 antagonist, EX-527, even on LPS-induced state. Further study confirmed that HYA treatment significantly eased the LPS-induced oxidative stress and mitochondrial dysfunction, suggesting a potential mechanism that links anti-oxidative effects to HYA mediated protective effects against LPS-induced cell injury. Of note, the pharmacological blockade and adenovirus-mediated siRNA knockdown of SIRT1 significantly inhibited the protective effects of HYA against LPS-induced excessive generation of ROS, which destroys mitochondrial permeability and structure and aggravates LPS-induced apoptosis and inflammation pressures ultimately. Overall, our findings indicated that HYA could serves as an new SIRT1 activator to defend LPS-induced cell injury in microglia.

Consistent with previous studies, LPS-induced models were used in the present study to activate microglial (Meng et al., 2019). Previous studies have confirmed that LPS, derived from gram-negative bacteria, as its major components of cell wall, could effectively fires cellular inflammatory signaling pathways in microglia cells rather than neighboring neurons and derives inflammatory mediators secretion and release dependent on the toll-like receptors (TLR) (Liu and Bing, 2011; Erny et al., 2015; Woller et al., 2016). This makes LPS suitable to study neuroinflammatory diseases. At same time, multiple studies have confirmed that LPS treatment significantly impaired mitochondria functions in microglia cells and induced ROS over-production, leading to the apoptosis and inflammation eruption (Kim et al., 2015). Evidences have shown that LPS induced oxidative stress plays crucial roles in activating microglia cells (Foresti et al., 2013). In present study, LPS treatment induced microglia over-activation, illustrated by the increased inflammatory genes and proteins, such as TNFα, IL-1β, and iNOS. Meantime, the oxidative burden becomes server, as shown by the accumulation of ROS and reduced mitochondria numbers. Genes involved in the anti-oxidative stress were significantly decreased. These changes were more pronounced in primary cultured microglial cells than BV2 cells, suggesting that cultured microglial cells are more sensitive to LPS stimulation and suitable to use for neuroinflammatory diseases investigation (Henn et al., 2009).

Previous studies indicated that the occurrence of excessive oxidative stress in microglia is closely related to central nervous system injury and infection (O’Leary et al., 2013). Once exposure to the LPS or inflammatory cytokines, microglia was activated in a fast manner, while the mechanism is complex. One acceptable hypothesis is that the LPS treatment could destroy mitochondrial permeability and structure, leading to ROS overproduction and mitophagy (Ashktorab et al., 2004). These will start the inflammation response quickly. When exposure mouse primary microglial cells to cocaine, mitophagy markers were dramatically increased, while the mitochondrial oxygen consumption rate was decreased (Thangaraj et al., 2019). Recent studies confirmed that one reactive oxygen species (ROS)-responsive polymeric micelle system (Ab-PEG-LysB/curcumin (APLB/CUR)) could effectively inhibits microglia over-activation and normalized inflammatory microenvironment and reeducate microglia from an early phase of AD (Lu et al., 2018). SIRT1 belongs to nicotinamide adenine dinucleotide (NAD+)-dependent enzymes and is rich expressed in microglial cells. Evidences confirmed that SIRT1 plays crucial roles in the deacetylating of p65, while SIRT1 deficiency increased the acetylation levels of p65 and NF-κB signaling activity, leading to micoglial M1 activation (Li et al., 2019). Conversely, pharmacological or genetic activation of SIRT1 effectively attenuating inflammation after spinal cord injury and promotes neuronal survival (Chen et al., 2017). Yet, whether and how SIRT1 regulates LPS induced mitophagy remains unknown. In current study, we reported that LPS treatment significantly reduced the expression of SIRT1 and mitochondrial numbers. Consistent with our hypothesis, HYA administration obviously stimulates SIRT1 expression, suggesting a negative effects of HYA on LPS induced cellular mitophagy, mediated by SIRT1.

HYA (HYA) is the major component of Carthamus tinctorius L and has previously reported to inhibit adipogenesis via stimulating HSL signaling pathways (Zhu et al., 2014). HYA was also confirmed to protect liver from long-term alcohol injury upon enhancing antioxidant capacity and inhibiting the expression of TGF-β (He et al., 2015). Meanwhile, it also defends steroid-induced avascular necrosis of femoral head by suppressing mesenchymal stromal cells activity (Liu et al., 2018) Additionally, previous studies indicated that HYA administration could effectively attenuates Aβ1-42 induced inflammation by modulating the JAK2/STAT3/NF-κB pathway (Zhang et al., 2014). Whole brain analysis revealed that HYA treatment attenuates LPS induced neuron damage via inhibiting the TLR4 pathway in activated microglial cells (Lv et al., 2016). However, whether and how HYA directly protects microglial cells against LPS treatment remains incompletely unknown. In this study, a direct LPS induced mouse primary microglial cells and BV2 models were used to test the effects of HYA. And we identified HYA as an effective SIRT1 activator both in transcription levels and enzymes levels for the first time. Of note, we found that HYA effectively attenuates mitophagy process in microglial cells to defend LPS-induced inflammation response and oxidative stress in a SIRT1-dependent manner. Overall, our data indicated that HYA could serve as an SIRT1 activator and may be an effective approach to therapy neuroinflammatory diseases in the future.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding authors.

Ethics Statement

The animal study was reviewed and approved by Ethics Committee of Shenzhen Traditional Chinese Medicine Hospital, Guangzhou University of Chinese Medicine.

Author Contributions

XQ conceptualized, planned, and designed the study. JZ, CL, JL, TG, and HX carried out the experiments. XQ and HC drafted and finalized the manuscript. YL assisted in the analysis of data. All authors contributed to the article and approved the submitted version.

Funding

This study was financially sponsored by the Science and Innovation Commission of Shenzhen (JCYJ20180302173504891, JCYJ20190812161807600); the National Natural Science Foundation of China (No. 81904103).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2020.01315/full#supplementary-material

References

Ashktorab, H., Frank, S., Khaled, A. R., Durum, S. K., Kifle, B., Smoot, D. T. (2004). Bax translocation and mitochondrial fragmentation induced by Helicobacter pylori. Gut 53 (6), 805–813. doi: 10.1136/gut.2003.024372

PubMed Abstract | CrossRef Full Text | Google Scholar

Borjini, N., Fernández, M., Giardino, L., Calzà, L. (2016). Cytokine and chemokine alterations in tissue, CSF, and plasma in early presymptomatic phase of experimental allergic encephalomyelitis (EAE), in a rat model of multiple sclerosis. J. Neuroinflamm. 13, 291. doi: 10.1186/s12974-016-0757-6

CrossRef Full Text | Google Scholar

Chen, H., Ji, H., Zhang, M., Liu, Z., Lao, L., Deng, C., et al. (2017). An Agonist of the Protective Factor SIRT1 Improves Functional Recovery and Promotes NeuronalSurvival by Attenuating Inflammation after Spinal Cord Injury. J. Neurosci. 37, 2916–2930. doi: 10.1523/JNEUROSCI.3046-16.2017

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, X., Chen, C., Fan, S., Wu, S., Yang, F., Fang, Z., et al. (2018). Omega-3 polyunsaturated fatty acid attenuates the inflammatory response by modulatingmicroglia polarization through SIRT1-mediated deacetylation of the HMGB1/NF-κB pathwayfollowing experimental traumatic brain injury. J. Neuroinflamm. 15, 116. doi: 10.1186/s12974-018-1151-3

CrossRef Full Text | Google Scholar

Cheng, B., Gao, W., Wu, X., Zheng, M., Yu, Y., Song, C., et al. (2020). Ginsenoside Rg2 Ameliorates High-Fat Diet-Induced Metabolic Disease through SIRT1. J. Agric. Food Chem. 68 (14), 4215–4226. doi: 10.1021/acs.jafc.0c00833

PubMed Abstract | CrossRef Full Text | Google Scholar

Demir, I. E., Tieftrunk, E., Schorn, S., Saricaoglu, O. C., Pfitzinger, P. L., Teller, S., et al. (2016). Activated Schwann cells in pancreatic cancer are linked to analgesia via suppression of spinal astroglia and microglia. Gut 65 (6), 1001–1014. doi: 10.1136/gutjnl-2015-309784

PubMed Abstract | CrossRef Full Text | Google Scholar

Erny, D., Hrabě de Angelis, A. L., Jaitin, D., Wieghofer, P., Staszewski, O., David, E., et al. (2015). Host microbiota constantly control maturation and function of microglia in the CNS. Nat. Neurosci. 18, 965–977. doi: 10.1038/nn.4030

PubMed Abstract | CrossRef Full Text | Google Scholar

Foresti, R., Bains, S. K., Pitchumony, T. S., de Castro Brás, L. E., Drago, F., Dubois-Randé, J. L., et al. (2013). Small molecule activators of the Nrf2-HO-1 antioxidant axis modulate heme metabolism and inflammation in BV2 microglia cells. Pharmacol. Res. 76, 132–148. doi: 10.1016/j.phrs.2013.07.010

PubMed Abstract | CrossRef Full Text | Google Scholar

He, Y., Liu, Q., Li, Y., Yang, X., Wang, W., Li, T., et al. (2015). Protective effects of hydroxysafflor yellow A (HSYA) on alcohol-induced liver injury in rats. J. Physiol. Biochem. 71, 69–78. doi: 10.1007/s13105-015-0382-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Henn, A., Lund, S., Hedtjärn, M., Schrattenholz, A., Pörzgen, P., Leist, M. (2009). The suitability of BV2 cells as alternative model system for primary microglia cultures or for animal experiments examining brain inflammation. ALTEX 26 (2), 83–94. doi: 10.14573/altex.2009.2.83

PubMed Abstract | CrossRef Full Text | Google Scholar

Heppner, F. L., Ransohoff, R. M., Becher, B. (2015). Immune attack: the role of inflammation in Alzheimer disease. Nat. Rev. Neurosci. 16, 358–372. doi: 10.1038/nrn3880

PubMed Abstract | CrossRef Full Text | Google Scholar

Hirsch, E. C., Hunot, S. (2009). Neuroinflammation in Parkinson’s disease: a target for neuroprotection? Lancet Neurol. 8, 382–397. doi: 10.1016/S1474-4422(09)70062-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, T., Wei, G., Xi, M., Yan, J., Wu, X., Wang, Y., et al. (2016). Synergistic cardioprotective effects of Danshensu and hydroxysafflor yellow A against myocardial ischemia-reperfusion injury are mediated through the Akt/Nrf2/HO-1 pathway. Int. J. Mol. Med. 38 (1), 83–94. doi: 10.3892/ijmm.2016.2584

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, M. J., Park, M., Kim, D. W., Shin, M. J., Son, O., Jo, H. S., et al. (2015). Transduced PEP-1-PON1 proteins regulate microglial activation and dopaminergic neuronal deathin a Parkinson’s disease model. Biomaterials 64, 45–56. doi: 10.1016/j.biomaterials.2015.06.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, J., Zhang, S., Lu, M., Chen, Z., Chen, C., Han, L., et al. (2013). Hydroxysafflor yellow A suppresses inflammatory responses of BV2 microglia after oxygen-glucose deprivation. Neurosci. Lett. 535, 51–56. doi: 10.1016/j.neulet.2012.12.056

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, B., Dasgupta, C., Huang, L., Meng, X., Zhang, L. (2019). MiRNA-210 induces microglial activation and regulates microglia-mediated neuroinflammation in neonatal hypoxic-ischemic encephalopathy. Cell Mol. Immunol. 2019. doi: 10.1038/s41423-019-0257-6

CrossRef Full Text | Google Scholar

Liu, M., Bing, G. (2011). Lipopolysaccharide animal models for Parkinson’s disease. Parkinsons Dis. 2011, 327089. doi: 10.4061/2011/327089

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Gao, Y., Li, M., Geng, C. H., Xu, H. F., Yang, Y. G., et al. (2015). Sirt1 mediates the effect of the heme oxygenase inducer, cobalt protoporphyrin, on ameliorating liver metabolic damage caused by a high-fat diet. J. Hepatol. 63 (3), 713–721. doi: 10.1016/j.jhep.2015.05.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, L., Tao, W., Pan, W., Li, L., Yu, Q., Zhang, D., et al. (2018). Hydroxysafflor Yellow A Promoted Bone Mineralization and Inhibited Bone Resorption Which Reversed Glucocorticoids-Induced Osteoporosis. BioMed. Res. Int. 2018, 6762146. doi: 10.1155/2018/6762146

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, Y., Guo, Z., Zhang, Y., Li, C., Zhang, Y., Guo, Q., et al. (2018). Microenvironment Remodeling Micelles for Alzheimer’s Disease Therapy by Early Modulation of Activated Microglia. Adv. Sci. (Weinh) 6, 1801586. doi: 10.1002/advs.201801586

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, J., Deng, Z. L., Luo, X., Tang, N., Song, W. X., Chen, J., et al. (2007). A protocol for rapid generation of recombinant adenoviruses using the AdEasy system. Nat. Protoc. 2, 1236–1247. doi: 10.1038/nprot.2007.135

PubMed Abstract | CrossRef Full Text | Google Scholar

Lv, Y., Qian, Y., Ou-Yang, A., Fu, L. (2016). Hydroxysafflor Yellow A Attenuates Neuron Damage by Suppressing the Lipopolysaccharide-Induced TLR4 Pathway in Activated Microglial Cells. Cell Mol. Neurobiol. 36, 1241–1256. doi: 10.1007/s10571-015-0322-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Mannam, P., Shinn, A. S., Srivastava, A., Neamu, R. F., Walker, W. E., Bohanon, M., et al. (2014). MKK3 regulates mitochondrial biogenesis and mitophagy in sepsis-induced lung injury. Am. J. Physiol. Lung Cell Mol. Physiol. 306, L604–L619. doi: 10.1152/ajplung.00272.2013

PubMed Abstract | CrossRef Full Text | Google Scholar

Melhem, H., Hansmannel, F., Bressenot, A., Battaglia-Hsu, S. F., Billioud, V., Marc Alberto, J., et al. (2016). Methyl-deficient diet promotes colitis and SIRT1-mediated endoplasmic reticulum stress. Gut 65 (4), 595–606. doi: 10.1136/gutjnl-2014-307030

PubMed Abstract | CrossRef Full Text | Google Scholar

Meng, F., Guo, Z., Hu, Y., Mai, W., Zhang, Z., Zhang, B., et al. (2019). CD73-derived adenosine controls inflammation and neurodegeneration by modulating dopaminesignalling. Brain 142, 700–718. doi: 10.1093/brain/awy351

PubMed Abstract | CrossRef Full Text | Google Scholar

Nolan, Y. M., Sullivan, A. M., Toulouse, A. (2013). Parkinson’s disease in the nuclear age of neuroinflammation. Trends Mol. Med. 19, 187–196. doi: 10.1016/j.molmed.2012.12.003

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Leary, D. P., Wang, J. H., Cotter, T. G., Redmond, H. P. (2013). Less stress, more success? Oncological implications of surgery-induced oxidative stress. Gut 62 (3), 461–470. doi: 10.1136/gutjnl-2011-300948

PubMed Abstract | CrossRef Full Text | Google Scholar

Panicker, N., Saminathan, H., Jin, H., Neal, M., Harischandra, D. S., Gordon, R., et al. (2015). Fyn kinase regulates microglial neuroinfammatory responses in cell culture and animal models of Parkinson’s disease. J. Neurosci. 35 (27), 10058–10077. doi: 10.1523/JNEUROSCI.0302-15.2015

PubMed Abstract | CrossRef Full Text | Google Scholar

Parodi, B., Rossi, S., Morando, S., Cordano, C., Bragoni, A., Motta, C., et al. (2015). Fumarates modulate microglia Activation through a novel HCAR2 signaling pathway and rescuesynaptic dysregulation in inflamed CNS. Acta Neuropathol. 130, 279–295. doi: 10.1007/s00401-015-1422-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Schwartz, M., Deczkowska, A. (2016). Neurological Disease as a Failure of Brain-Immune Crosstalk: The Multiple Faces of Neuroinflammation. Trends Immunol. 37, 668–679. doi: 10.1016/j.it.2016.08.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Shao, J., Liu, T., Xie, Q. R., Zhang, T., Yu, H., Wang, B., et al. (2013). Adjudin attenuates lipopolysaccharide (LPS)- and ischemia-induced microglial activation. J. Neuroimmunol. 254, 83–90. doi: 10.1016/j.jneuroim.2012.09.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Shen, J., Chen, M., Lee, D., Law, C. T., Wei, L., Tsang, F. H., et al. (2020). Histone chaperone FACT complex mediates oxidative stress response to promote liver cancer progression. Gut 69 (2), 329–342. doi: 10.1136/gutjnl-2019-318668

PubMed Abstract | CrossRef Full Text | Google Scholar

Thangaraj, A., Periyasamy, P., Guo, M. L., Chivero, E. T., Callen, S., Buch, S. (2019). Mitigation of cocaine-mediated mitochondrial damage, defective mitophagy and microglial activation by superoxide dismutase mimetics. Autophagy 16, 1–24. doi: 10.1080/15548627.2019.1607686

PubMed Abstract | CrossRef Full Text | Google Scholar

Tian, J., Li, G., Liu, Z., Fu, F. (2008). Hydroxysafflor yellow A inhibits rat brain mitochondrial permeability transition pores by a free radical scavenging action. Pharmacology 82, 121–126. doi: 10.1159/000141653

PubMed Abstract | CrossRef Full Text | Google Scholar

Ullah, I., Choe, Y. H., Khan, M., Bharti, D., Shivakumar, S. B., Lee, H. J., et al. (2018). Dental pulp-derived stem cells can counterbalance peripheral nerve injury-induced oxidativestress and supraspinal neuro-inflammation in rat brain. Sci. Rep. 8, 15795. doi: 10.1038/s41598-018-34151-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, C. Y., Liu, Q., Huang, Q. X., Liu, J. T., He, Y. H., Lu, J. J., et al. (2013). Activation of PPARγ is required for hydroxysafflor yellow A of Carthamus tinctorius to attenuate hepatic fibrosis induced by oxidative stress. Phytomedicine 20, 592–599. doi: 10.1016/j.phymed.2013.02.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, T., Ding, Y. X., He, J., Ma, C. J., Zhao, Y., Wang, Z. H., et al. (2018). Hydroxysafflor Yellow A Attenuates Lipopolysaccharide-Induced Neurotoxicity and Neuroinflammation in Primary Mesencephalic Cultures. Molecules 23 (5), 1210. doi: 10.3390/molecules23051210

CrossRef Full Text | Google Scholar

Wang, S., Luo, Q., Fan, P. (2019). Cannabisin F from Hemp (Cannabis sativa) Seed Suppresses Lipopolysaccharide-Induced Inflammatory Responses in BV2 Microglia as SIRT1 Modulator. Int. J. Mol. Sci. 20 (3), E507. doi: 10.3390/ijms20030507

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Ni, J., Gao, C., Xie, L., Zhai, L., Cui, G., et al. (2019). Mitochondrial transplantation attenuates lipopolysaccharide-induced depression-like behaviors. Prog. Neuropsychopharmacol. Biol. Psychiatry 93, 240–249. doi: 10.1016/j.pnpbp.2019.04.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y. P., Guo, Y., Wen, P. S., Zhao, Z. H., Xie, J., Yang, K., et al. (2020). Three Ingredients of Safflower Alleviate Acute Lung Injury and Inhibit NET Release Induced by Lipopolysaccharide. Mediators Inflammation 2020, 2720369. doi: 10.1155/2020/2720369

CrossRef Full Text | Google Scholar

Woller, S. A., Ravula, S. B., Tucci, F. C., Beaton, G., Corr, M., Isseroff, R. R., et al. (2016). Systemic TAK-242 prevents intrathecal LPS evoked hyperalgesia in male, but not female mice and prevents delayed allodynia following intraplantar formalin in both male and female mice: The role of TLR4 in the evolution of a persistent pain state. Brain Behav. Immun. 56, 271–280. doi: 10.1016/j.bbi.2016.03.026

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, H. M., Yang, S., Huang, S. S., Tang, B. S., Guo, J. F. (2017). Microglial Activation in the Pathogenesis of Huntington’s Disease. Front. Aging Neurosci. 9 (193). doi: 10.3389/fnagi.2017.00193

CrossRef Full Text | Google Scholar

Zhang, Z. H., Yu, L. J., Hui, X. C., Wu, Z. Z., Yin, K. L., Yang, H., et al. (2014). Hydroxy-safflor yellow A attenuates Aβ1-4 2-induced inflammation by modulating the JAK2/STAT3/NF-κB pathway. Brain Res. 1563, 72–80. doi: 10.1016/j.brainres.2014.03.036

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, H. J., Wang, L. J., Wang, X. Q., Pan, H., Li, N. S., Yang, H. B., et al. (2014). Hormone-sensitive lipase is involved in the action of hydroxysafflor yellow A (HYSA) inhibitingadipogenesis of 3T3-L1 cells. Fitoterapia 93, 182–188. doi: 10.1016/j.fitote.2014.01.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: hydroxysafflor yellow A, anti-inflammatory, lipopolysaccharide, SIRT1, microglia

Citation: Qin X, Chen J, Zhang G, Li C, Zhu J, Xue H, Li J, Guan T, Zheng H, Liu Y and Cai H (2020) Hydroxysafflor Yellow A Exerts Anti-Inflammatory Effects Mediated by SIRT1 in Lipopolysaccharide-Induced Microglia Activation. Front. Pharmacol. 11:1315. doi: 10.3389/fphar.2020.01315

Received: 04 January 2020; Accepted: 07 August 2020;
Published: 11 September 2020.

Edited by:

Javier Echeverria, University of Santiago, Chile

Reviewed by:

Marta Llansola, Principe Felipe Research Center (CIPF), Spain
Rocío Martínez De Pablos, Sevilla University, Spain
Tiziano Balzano, Principe Felipe Research Center (CIPF), Spain

Copyright © 2020 Qin, Chen, Zhang, Li, Zhu, Xue, Li, Guan, Zheng, Liu and Cai. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Yu Liu, liuyutcm@qq.com; Haobin Cai, dmeraven@yahoo.com
