REVIEW article

Front. Pharmacol., 15 April 2021 | https://doi.org/10.3389/fphar.2021.638993

Pharmacokinetics of Anthraquinones from Medicinal Plants

www.frontiersin.orgDongpeng Wang1,2#, www.frontiersin.orgXian-He Wang1#, www.frontiersin.orgXiongjie Yu1, www.frontiersin.orgFengjun Cao1, www.frontiersin.orgXiaojun Cai1, www.frontiersin.orgPing Chen1, www.frontiersin.orgMinglun Li3, www.frontiersin.orgYibin Feng4, www.frontiersin.orgHongliang Li1,2* and www.frontiersin.orgXuanbin Wang1,2,3*
  • 1Laboratory of Chinese Herbal Pharmacology, Oncology Center, Renmin Hospital, Hubei University of Medicine, Shiyan, China
  • 2Biomedical Research Institute, Hubei Key Laboratory of Wudang Local Chinese Medicine Research and School of Pharmacy, Hubei University of Medicine, Shiyan, China
  • 3Department of Radiation Oncology, University Hospital, LMU Munich, Munich, Germany
  • 4School of Chinese Medicine, The University of Hong Kong, Hong Kong, China

Anthraquinones are bioactive natural products, some of which are active components in medicinal medicines, especially Chinese medicines. These compounds exert actions including purgation, anti-inflammation, immunoregulation, antihyperlipidemia, and anticancer effects. This study aimed to review the pharmacokinetics (PKs) of anthraquinones, which are importantly associated with their pharmacological and toxicological effects. Anthraquinones are absorbed mainly in intestines. The absorption rates of free anthraquinones are faster than those of their conjugated glycosides because of the higher liposolubility. A fluctuation in blood concentration and two absorption peaks of anthraquinones may result from the hepato-intestinal circulation, reabsorption, and transformation. Anthraquinones are widely distributed throughout the body, mainly in blood-flow rich organs and tissues, such as blood, intestines, stomach, liver, lung, kidney, and fat. The metabolic pathways of anthraquinones are hydrolysis, glycuronidation, sulfation, methylation/demethylation, hydroxylation/dehydroxylation, oxidation/reduction (hydrogenation), acetylation and esterification by intestinal flora and liver metabolic enzymes, among which hydrolysis, glycuronidation and sulfation are dominant. Of note, anthraquinones can be transformed into each other. The main excretion routes for anthraquinones are the kidney, recta, and gallbladder. Conclusion: Some anthraquinones and their glycosides, such as aloe-emodin, chrysophanol, emodin, physcion, rhein and sennosides, have attracted the most PK research interest due to their more biological activities and/or detectability. Anthraquinones are mainly absorbed in the intestines and are mostly distributed in blood flow-rich tissues and organs. Transformation into another anthraquinone may increase the blood concentration of the latter, leading to an increased pharmacological and/or toxicological effect. Drug-drug interactions influencing PK may provide insights into drug compatibility theory to enhance or reduce pharmacological/toxicological effects in Chinese medicine formulae and deserve deep investigation.

Introduction

Anthraquinones naturally exist in plant families, such as, Polygonaceae, Leguminosae, Rubiaceae (Chen et al., 2020), Rhamnaceae, Scrophulariaceae, Liliaceae, Verbenaceae and Valerianaceae (Zhao et al., 2011), e.g., Rheum palmatum L., Rheum tanguticum Maxim, ex Balf., Rheum officinale Baill., Cassia obtusifolia L., Cassia tora L., Verbena officinalis L., Polygonum multiflorum Thunb., Aloe barbadmsis Miller., Aloe ferox Miller, Rubia cordifolia L., Cassia angustifolia Vahl, Cassia acutifolia Delile, and Morinda angustifolia Roxb (Chen et al., 2020). Anthraquinones are also found in the secondary metabolites of lower-order plants, such as, lichens (Solárová et al., 2020). Some plants have been used for Chinese medicines (Yang et al., 2016; Li H. et al., 2018; Yang et al., 2018) (Figures 1AF).

FIGURE 1
www.frontiersin.org

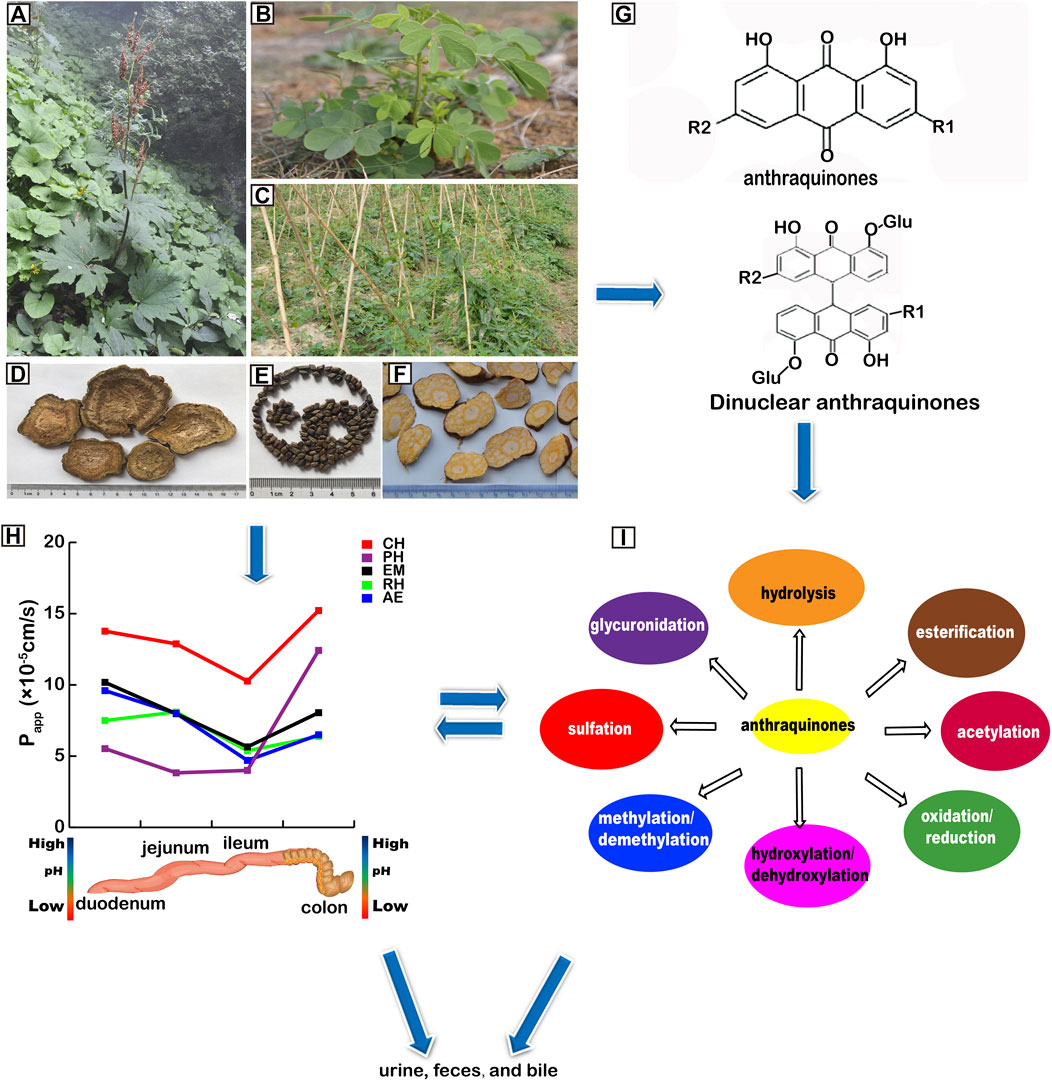

FIGURE 1. Pharmacokinetics (PK) of anthraquinones. (A)Rheum officinale Baill. (B)Cassia tora L. (C)Polygonum multiflorum Thunb. (D) Rhei Radix et Rhizoma. (E) Cassiae Semen. (F) Polygoni Multiflori Radix. (G) structures of anthraquinones and dinuclear anthraquinone glycosides. R1 and R2 represent different groups including glucoses. (H) absorption of anthraquinones. Papp: apparent absorption coefficient. CH: chrysophanol; PH: physcion; EM: emodin; RH: rhein; AE: aleo-emodin. (I) metabolism of anthraquinones.

Pharmacological studies have shown that anthraquinones exert purgative (Gong et al., 2015), anti-inflammatory (Li D. et al., 2013), immunoregulation (Abu et al., 2018), antihyperlipidemia (Wang et al., 2014), and anticancer effects (Lin et al., 2015; Cui et al., 2016; Yang N. et al., 2019). Thus, pharmacokinetics (PKs) has attracted increasing attention and in-depth research for scholars, especially in the field of Chinese medicines.

Anthraquinones are structurally divided into two classes, mononuclear and dinuclear. Their names and CAS numbers are listed in Supplementary Table S1. The parent rings of anthraquinones are illustrated in Figure 1G.

Thanks to advanced technologies and methodologies, the pharmacological and/or toxicological effects of anthraquinones have been gradually uncovered. However, there has been no overall review of their PKs untill now, which are closely associated with their bioactions. Thus, this study summarized the PKs of anthraquinones, aiming to provide basic knowledge for further research on the pharmacological and toxicological effects and mechanisms of anthraquinones.

Absorption

Absorption Sites and Rate

The absorption of anthraquinones depends on their physical and chemical properties, especially quinone structure and liposolubility under the normal conditions. The dominant absorption sites for anthraquinones are the intestines rather than the stomach (Wang J. et al., 2011; Liu X. et al., 2011; Wang P. et al., 2011), although emodin is absorbed more quickly in the stomach than in the intestines (Kong et al., 2011). This may result from anthraquinones having more retention time in the intestines than in the stomach (Kong et al., 2011).

Regarding the intestines, the accumulated absorption rates of total anthraquinones in the small intestines and colons of male SD rats at 2 h are 66.99 and 23.54%, respectively (Liu X. et al., 2011). Anthraquinones can easily enter small intestinal villi epithelial cells through passive diffusion (Li et al., 2012). This can be calculated via their absorption rate constant (Ka) and apparent absorption coefficient (Papp) (Table 1) (Figure 1H). A larger Ka means a shorter Tmax, i.e., faster drug absorption. A larger Papp means a larger area under the curve (AUC). Actually, the Papp of anthraquinones is the greatest in the duodenum and then decreased in the jejunum and are minimum in the ileum (Qiu et al., 2011; Wang J. et al., 2011; Wang P. et al., 2011). However, the Ka and Papp of anthraquinones increased in the colon than that in the ileum (Figure 1H). This may be associated with the weak acidity of anthraquinones and the pH conditions in the intestines. Since the upper small intestines are a weakly acidic environment (Wang J. et al., 2011; Wang P. et al., 2011), given that most anthraquinones are weakly acidic, this may lead to lower ionization and higher liposolubility of anthraquinones. In contrast, with a higher pH value, the ileum is an alkaline environment (pH = 7–8), where the ionization degree of anthraquinones is increased leading to little anthraquinone absorption. However, compaired with the ileum, the Ka and Papp of anthraquinones increase in colons because the acidity increases slightly and the retention time is prolonged (Table 1).

TABLE 1
www.frontiersin.org

TABLE 1. Ka and Papp values of some anthraquinone compounds absorbed in different intestines and colons of rats.

Generally, anthraquinones are absorbed with over a wide range in vivo. This may be due to differences in drug dosages, detection instruments, and protocols. As described in Table 2, the greater the body weight of the subjects is, the greater the Cmax and AUC are. Among anthraquinones, rhein has the lowest Tmax, and the highest Cmax and AUC in dogs (Zhu et al., 2006) (Table 2).

TABLE 2
www.frontiersin.org

TABLE 2. The pharmacokinetic parameters of anthraquinones in rats and dogs.

Affecting Factors

Physiological Conditions

Experimental Animal Species The absolute bioavailability (F) of rhein in beagle dogs is higher than that in rats (49.7 vs. 23.8%, p < 0.01) (Zhang et al., 2010) (Table 1).

Sex The AUC values of emodin (Liu W. et al., 2011) and aloe-emodin (Yang et al., 2010) in male rats are higher than those in female rats. In contrast, the AUC of rhein in healthy women is higher than that in men. Furthermore, the Tmax of rhein is shorter in women than that in men (Zhu et al., 2006), indicating a faster absorption of rhein in female (Yang et al., 2010). These findings may result from the difference in the body fat ratio between females and males (Zhu et al., 2006).

Hepato-Intestinal Circulation and Reabsorbing The blood levels of aloe-emodin, chrysophanol, emodin, chrysoobtusin, physcion-8-O-β-D-glucoside, chrysophanol-8-O-β-D-glucoside, obtusin, aurantio-obtusin, obtusifolin, physcion and rhein fluctuate dramatically due to the hepato-intestinal circulation (and glycoside hydrolysis in the intestines) (Ullah et al., 2018; Yang B. et al., 2019). Another factor is that anthraquinones are rapidly distributed to other organs and re-absorbed into the blood. Thus, aurantio-obtusin, obtusin, chrysoobtusin, emodin, chrysophanol, rhein and aloe-emodin form second absorption peaks. For example, the second absorption peaks for emodin from different studies range from approximately 3–10 h (Wu W. J. et al., 2017; Wang L. et al., 2017; Ullah et al., 2018; Yang B. et al., 2019; Zhang et al., 2019).

Food Compared with the fasted rats, the Cmax and AUC of rhein and emodin increase in the fed group (Gong et al., 2011). However, the mechanism is currently unknown.

Disorders

The AUC values of rhein, aloe-emodin, chrysophanol, emodin and physcion increase significantly in the rats with microcirculation disturbance compaired with the normal group (Zhu et al., 2017). The Cmax and Tmax of chrysophanol are increased in acute pancreatitis in dogs compaired with the normal group (Yang et al., 2012). Conversely, rhein had a lower AUC in liver-injured male rats. The potential mechanism may result from changes in the expression and activation of metabolic enzymes in the injured liver (Zhang et al., 2015). For constipated rats, oral administration of rhubarb extract (anthraquinone-rich containing plant) resulted in a the Cmax and AUC of emodin that were approximately ten times those of normal rats, while the AUC values for aloe-emodin and rhein were decreased. The mechanisms may be attributed to the direct action of aloe-emodin and rhein on intestinal cell membranes and the indirect action of emodin on bowel movement through adjustment by the nervous system (Gong et al., 2015). This may synergistically enhance the purgative effect on constipation.

Drug–Drug Interactions

Drug–drug interactions always alter the single herb pharmacological effects. Since natural products especially Chinese medicines are always used as formulae that consist of two or more herbs, they play a critical role in investigating the influencing factors of drug-drug interactions in PKs. Generally, the combination of anthraquinones with other drugs has three types, pure compounds of anthraquinones, anthraquinone-containing single herbs (including their extracts and fractions), and anthraquinone-containing herbs in formulae.

Anthraquinone-containing single herbs combined with other drugs or single-herbs (herb pairs) are a basic building block for Chinese medicine use. For example, a rhubarb-gardenia herb pair consisting of Rhei Radix et Rhizoma (Dahuang containing anthraquinones) (Figures 1A,D) and Gardeniae Flos (Zhizihua, containing genipin) is used for treating cholestasis diseases. A study showed that Gardeniae Flos increased the Cmax and AUC of aloe-emodin, chrysophanol, emodin and rhein in rats, indicating a synergistic effect of the rhubarb-gardenia herb pair on hepatoprotection (Dong et al., 2015).

Compared with pure compounds and single herbs, interactions between herbs in a formula are the most common to assess drug compatibility for traditional Chinese medicines.

Da-Cheng-Qi decoction (DCQD), a classic formula including Rhei Radix et Rhizoma (“monarch” herb), Magnoliae Officinalis Cortex (Houpo), Aurantii Fructus Immaturus (Zhishi), and Natrii Sulfas (Mangxiao, Na2SO4·10H2O), has been used for treating acute pancreatitis and intestinal obstruction. Combining DCQD with ranitidine (an H2 receptor inhibitor) is a Chinese-Western integrative strategy for such diseases. Thus, it is necessary to investigate the drug-drug interactions between ranitidine and DCQD. Ren et al. reported that ranitidine reduces the Cmax and AUC of rhein in DCQD. Therefore, the bioavailability of DCQD may be decreased, indicating the dosage of DCQD should be increase when combined with ranitidine. This may result from ranitidine changing gastrointestinal motility and inhibiting the absorption of rhein. (Ren et al., 2009).

San-Huang tablets, consisting of Rhei Radix et Rhizoma, extracts of Scutellariae Radix (Huangqin) and berberine hydrochloride, are used for multiple diseases, such as constipation, inflammation, pathogenic microbes, and spasm. Rhei Radix et Rhizoma is the main component for constipation because of its active compound, emodin. Studies have shown that Scutellariae Radix and/or berberine hydrochloride increased the AUC and Cmax of emodin, indicating a potentiation role of Scutellariae Radix and/or berberine hydrochloride in the efficacy of emodin (Zhou et al., 2010). Moreover, Xin et al. reported that San-Huang-Xie-Xin decoction (SHXXD), including Rhei Radix et Rhizoma, Scutellariae Radix and Coptidis Rhizoma (containing berberine), increases the Cmax and AUC of rhein compared with a single herb of Rhei Radix et Rhizoma (Xin et al., 2009). The mechanisms may be due to the inhibited glucuronidation activity of UDP-glucuronyltransferases (UGTs) by other ingredients in SHXXD, leading to the increased bioavailability of rhein (Hou et al., 2014).

Dahuang-mudan decoction (DMD) consists of Rhei Radix et Rhizoma, Moutan Cortex (Mudanpi), Persicae Semen (Taoren), Benincasae Semen (Dongguaren), and Natrii Sulfas. DMD has been used for treating intestinal carbuncles for approximately 1,700 years since the Han Dynasty. Pharmacological effects on appendicitis, inflammatory bowel disease, pelvic inflammatory disease and acute pancreatitis have been found with the identification of active compounds, emodin, aloe-emodin, rhein, paeoniflorin and amygdalin. Nong et al. reported that Natrii Sulfas decreases the Cmax and AUC of emodin and rhein while increasing the absorption of aloe-emodin, indicating novel insight into the role of Natrii Sulfas in DMD in addition to a stool softener treatment of archenteric inflammatory disease (Zhang Y. X. et al., 2013; Nong et al., 2019).

Tao-He-Cheng-Qi-Tang (THCQT), including Persicae Semen (Taoren), Rhei Radix et Rhizoma, Natrii Sulfas, Cinnamomi Ramulus (Guizhi), and Glycyrrhizae Radix et Rhizoma (Gancao), has been used to treat platelet aggregation, hyperlipidemia, diabetes, inflammation, and related conditions. Xie et al. reported that compared with the oral administration of Rhei Radix et Rhizoma alone, the Cmax and AUC of rhein in THCQT increased in rabbits. However, the mechanisms for the alternation of rhein absorption are unknown (Xie et al., 2005).

An eight-herb formula, Niu-Huang-Jie-Du tablets (NHJDT), including Bovis Calculus (Niuhuang), Rhei Radix et Rhizoma, Realgar (As2S2, Xionghuang), Gypsum Fibrosum (CaSO4·2H2O, Shigao), Platycodonis Radix (Jiegeng), and Borneolum Syntheticum (D-borneoland, Bingpian), exerts heat clearance and detoxification in Chinese medicine. Compaired with oral adminstraton of Rhei Radix et Rhizoma alone in rats, the AUC and Cmax of rhein increased in NHJDT, while the Tmax of the chrysophanol isomer decreased. The mechanism requires further study (Liu Y. et al., 2018).

Distribution

Tissues and Organs

Since the bioavailability of anthraquinones is low, to date, only a few distribution studies of the anthraquinones aloe-emodin, chrysophanol, emodin, rhein, and physcion have been reported, as listed in Table 3. These anthraquinones are widely distributed and are more abundant in blood-rich tissues and organs, such as the intestines, stomach, plasma, lung, liver, heart, and kidney. More intestine and stomach distribution may facilitate anthraquinone treatment of digestive gut disorders. They are also detected in fat, possibly due to their good liposolubility. However, few anthraquinones have been discovered in the brain since they have difficulty passing through the blood-brain barrier (Ding et al., 2003; Shia et al., 2011b; Tan et al., 2013; Chen et al., 2014; Du et al., 2014), although chrysophanol easily enters the brain when it is prepared in liposomes (Zhu et al., 2012).

TABLE 3
www.frontiersin.org

TABLE 3. Distribution of anthraquinones in various tissues and organs.

Affecting Factors

Physiological Condition

Sex After oral administration of 4.5 mg/kg of 14C-aloe-emodin to rats, the concentration of aloe-emodin in rat ovaries is higher than that in testes (Lang, 1993). The amounts of emodin and rhein in the liver of female rats are greater than those in male rats (Chen et al., 2017). The different distribution between males and females suggests that sex should be taken into consideration before clinical drug use.

Disorders

The distribution of anthraquinones in tissues and organs is associated with therapeutic target sites, effects and storage. More tissue distribution may involve stronger efficacy on tissues and organs. Regarding gastrointestinal diseases, aloe-emodin, rhein, rhein-8-O-β-D-glycoside and sennoside A are distributed at higher levels in the liver and colon in the constipation model mice than in the normal group when they are treated with a Chinese formula, Dahuang-Gancao decoction. The greater distribution in the colon may benefit the treatment of constipation (Chen et al., 2019). For acute pancreatitis, rhein in Da-Cheng-Qi decoction is distributed more in the pancreas than in normal rats, indicating a promising effect of Da-Cheng-Qi decoction on acute pancreatitis (Zhao et al., 2015). To investigate the potential change in the distribution of rhubarb anthraquinones, the total extract of Rhei Radix et Rhizoma was orally administered to normal and CCl4-induced liver injury rats. Data have shown that the distribution of aloe-emodin, emodin and rhein in the rat spleen, liver and kidney is decreased under liver injury (Fang et al., 2011), which deserves further study. The distribution of anthraquinones is listed in Table 3.

Metabolism

Biotransformation is an important process for anthraquinones to be changed into inactive or more active metabolites and cleared from the body. The transformation occurs mainly in the liver. However, since most Chinese medicines are orally administered, biotransformation of anthraquinones has already begun in the early phase of absorption in the gut based on the actions of enzymes in the intestinal flora, including Bifidobacterium sp. (Wang et al., 2010), Peptostreptococcus, Clostridium spp., and Eubacteria (Rong et al., 2016). (Table 4 and Figure 1I).

TABLE 4
www.frontiersin.org

TABLE 4. Metabolic pathways and metabolites of anthraquinones.

Hydrolysis

Anthraquinone glycosides can be hydrolyzed by both intestinal bacteria and liver enzymes. Song et al. incubated processed rhubarb aqueous extracts with rat intestinal bacteria and found that 12 anthraquinone glycosides were hydrolyzed into anthraquinone aglycones, aloe-emodin, chrysophanol, emodin, and physcion respectively (Song et al., 2012) (Table 4). For anthraquinone glycoside-containing formulae, Liu and colleagues incubated Xiao-Cheng-Qi decoction (XCQD) with human intestinal bacteria in vitro and found that sennoside A and seven other anthraquinone glycosides were hydrolyzed (Liu X. Y. et al., 2018). It is worth noting that anthraquinone glycosides, such as aloe-emodin-8-O-β-D-glucopyranoside, emodin-8-O-β-D-glucopyranoside, and rhein-8-O-β-D glucopyranoside can also be transformed into their aglycones by the enzymes in the liver (Xu et al., 2018).

Glucuronidation

Glucuronidation in the intestines and liver is one of the main phase II metabolic reactions of anthraquinones. UGTs play a pivotal role in the glucuronidation of anthraquinones (Wu et al., 2014; Meng and Ding, 2019). When oral administered with Zhi-Zi-Da-Huang decoction (ZZDHD), which consists of Gardenia jasminoides Ellis (Zhizi), Rheum palmatum L. (Dahuang), Citrus aurantium L. (Zhishi) and Sojae Semen Praeparatum (Dandouchi), emodin and rhein can be transformed to rhein-8-O-glucuronide, rhein-1-O-glucuronide, emodin-1-O-glucuronide, and emodin-3-O-glucuronide (Zhu et al., 2015). Aloe-emodin is transformed to glucuronidation forms by β-glucuronidase and sulfatase/β-glucuronidase following intravenous and oral administration in rats (Yu et al., 2016).

Da-Huang-Xiao-Shi decoction (DHXSD) is another formula for treating jaundice. It is composed of four crude drugs: Rheum officinale Baill (Dahuang), Gardenia jasminoides Ellis (Zhizi), Phellodendron amurense Rupr. (Huangbo), and Natrii Sulfas. When DHXSD was orally administered to rats, six anthraquinone glucuronidation, aloeemodin-O-glucuronide, chrysophanol-O-glucoside-O-glucuronide, rhein-O-glucuronide, physcion-O-glucoside-O-glucuronide, chrysophanol-O-glucuronide, and emodin-O-glucuronide were transformed to glucuronidation forms (Wang D. et al., 2017) (Table 4).

Sulfonation

Sulfonation in the intestines and liver is the other main phase II metabolic reaction of anthraquinones by sulfotransferase (SULT) (Song, et al., 2010). Like glucuronidation, the sulfonation is another detoxification process. Additionally, sulfonated anthraquinones can be used as a remedy strategy for free radical-related diseases such as AAPH (2,2′-azobis (2-amidinopropane hydrochloride))-induced hemolysis (Shia et al., 2009; Shia et al., 2010).

Aloe-emodin, chrysophanol, emodin, physcion, and rhein are metabolized to sulfonation forms (Song, et al., 2010; Zhu et al., 2015; Zhang, et al., 2018a; Huang et al., 2018). This can lead to a decline in the oral bioavailability of anthraquinones (Teng et al., 2007; Shia et al., 2009) (Table 4).

Methylation/Demethylation

Methylation is another metabolic reaction for anthraquinones in both the intestines and the liver (Song Z. et al., 2009). Aloe-emodin (Song R. et al., 2009), chrysophanol (Huang et al., 2019), emodin (Tian et al., 2012), rhein (Song R. et al., 2009; Huang et al., 2019) and rheinanthrone (Huang et al., 2019) are methylated to O-methyl-aloe-emodin, O-methyl-chrysophanol, 8-O-methyl-emodin, O-methyl-rhein, and O-methyl-rheinanthrone, respectively. O-methyltransferase may be involved in the methylation process (Koyama et al., 2009; Huang et al., 2019). Conversely, demethylation is an opposite reaction in anthraquinone metabolic processes. The demethylation of chrysophanol is transformed to dihydroxy-chrysophanol, while physcion is transformed to emodin/isomer (Xu et al., 2018). Of note, the rapid demethylation of physcion to emodin may be the reason why the bioavailability of physcion is low (Song R. et al., 2009).

Hydroxylation/Dehydroxylation

The hydroxylation of emodin is hydroxy-emodin and dihydroxy-emodin. Chrysophanol can also be transformed to hydroxylation forms as hydroxy-chrysophanol and dihydroxy-chrysophanol (Xu et al., 2018). Hydroxylation is also the synthesis pathway to form anthraquinone glycosides. Additionally, aleo-emodin is transformed to aloe-emodin-8-O-glucoside-1-O-glucuronide or aloe-emodin-1-O-glucoside-8-O-glucuronide, 2-hydroxyaloe-emodin-ω-O-glucuronide through hydroxylation, glucuronidation, hydrogenation, and oxidation (Song et al., 2010). Cytochromosome P450s, including CYP1A2, CYP2C19, CYP2B6, and CYP3A4, play major roles in the hydroxylation of anthraquinones (He et al., 2015; Qin et al., 2018). In contrast, emodin (Xu et al., 2018) and rheinanthrone (Huang et al., 2019) are dehydroxylated to chrysophanol isomers, and dehydroxy-rheinanthrone, respectively. Other hydroxylation and dehydroxylation are listed in Table 4.

Oxidation/Reduction (Hydrogenation)

For oxidation, chrysophanol (Xu et al., 2018), emodin (Zhang J. et al., 2018), physcion (Song R. et al., 2009), rheinanthrone (Huang et al., 2019) and aloe-emodin anthrone (Huang et al., 2019) are oxidized to ω-hydroxy-emodin, rhein and aloe-emodin in the intestines and liver. Aloe-emodin (Song R. et al., 2009; Song et al., 2010; Xu et al., 2018) is oxidized to rhein. The oxidation reaction can decrease the bioavailability of anthraquinones. The order of bioavailability of some anthraquinones is: rhein > emodin > chrysophanol > aloe-emodin. This may result from that sennosides A and B, aloe-emodin and chrysophanol all being oxidized to rhein (Shia et al., 2011a). CYP1A2, CYP2B6 and CYP3A4 are the major enzymes for oxidation (Sun et al., 2018).

For reduction, aloe-emodin, chrysophanol, emodin, physcion, rhein and rhein-8-O-glycopyranoside are hydrogenated (Xu et al., 2018; Yu et al., 2018; Huang et al., 2019). (Table 4).

Acetylation

Chrysophanol, emodin, physcion and rhein can be acetylated into acetyl-1,8-dihydroxy-anthraquinone, acetyl-1,3,8-trihydroxy-6-methyl-9-oxanthranol and 1,8-dihydroxy-2-(acetoxy) methyl-3-methoxyanthraquinone, respectively (Song et al., 2011; Xu et al., 2018; Huang et al., 2019).

Esterification

Rhein is Esterified to Rhein Methyl Ester by intestinal Flora (Fan et al., 2016).

Affecting Factors

Physiological Condition

Sex The glucuronidation of emodin shares the same rate in human males and females, while the rates in females are faster than the rates in male rats, guinea pigs, and dogs. However, at an emodin concentration of 2.5 μM, male mice have a higher rate of glucuronidation than females (Liu et al., 2010). In addition, danthron and chrysophanol produced from emodin metabolism are only present in male rats (Tian et al., 2012). The bioavailability of rhein in female rats is higher than that in males. The mechanism may be the different activation of UGTs between the male and female (Zhang et al., 2015).

Disorders

The glucuronidation and hydrolysis of anthraquinones and their glycosides are reduced in rats with ulcerative colitis. The mechanism may be that colitis reduces the activities of β-glucosidases and β-glucuronidases in the intestinal flora (Wu W. J. et al., 2017). In alcohol-induced liver injury, the metabolism of aloe-emodin, chrysophanol, physcion, aurantio-obtusin, chrysoobtusin, emodin, obtusin and rhein increase. This may result from that alcohol induces P450 (e.g., CTP2E1, CYP3A and CYP1A) (Shao and Feng, 2015; Li P. et al., 2017). Furthermore, the metabolism of rhein decreases under acute liver injury because of the lower expression and activity of CYP450, especially in males (Zhang et al., 2015).

Drugs

Drug–Drug Interactions Preparations with wine are very common for Chinese medicines. Thus the role of wine (ethanol) in Chinese medicines has attracted more research interest. Studies have shown that Rhei Radix et Rhizoma steamed with wine can accelerate the hydrolysis of anthraquinone glycosides in rats. This results in higher bioavailability of emodin, physcion and chrysophanol (Zhang et al., 2019). Additionally, wine reduces the T1/2 of aloe-emodin and emodin in Rhei Radix et Rhizoma (Wu Y. et al., 2017). This may be consistent with the traditional Chinese medicine theory of drug processing (known as Paozhi): wine promotes blood circulation. It is very common for ethanol to be used for drug processing of Chinese medicine to induce bioavailability, enhance efficacy and/or decrease adverse drug reactions.

For anthraquinone compounds, piperine increases the AUC and Cmax of emodin by inhibiting UGTs (Di et al., 2015). Synergism can also occur between different anthraquinones. Sennoside A is an active anthraquinone glucoside in rhubarb (Rhei Radix et Rhizoma) for treating constipation. Rhein 8-O-β-D-glucopyranoside, emodin, aloe-emodin and rhein can enhance the purgative action of sennoside A by accelerating its hydrolysis by inducing intestinal bacteria (Takayama et al., 2012).

Furthermore, the different classes of compounds in the same herb may influence the PKs of anthraquinones. 2,3,5,4-Tetrahydroxy-stilbene-2-O-β-D-glycoside (TSG), a compound in Polygini Multiflori Radix (Heshouwu) (Li et al., 2016; Li H. et al., 2017) inhibits the mRNA expression of the UGT isoforms, UGT1A8, UGT1A10, and UGT12B7, leading to a decrease in glucuronidation of emodin (Ma et al., 2013; Yu et al., 2017). Inhibiting emodin glucuronidation will increase the bioavailability of emodin; however, it also leads to an accumulation of emodin to induce liver damage (Ma et al., 2015). Interestingly, TSG also accelerates metabolism to clear emodin by enhancing the activity of CYP1A2 (Xing et al., 2019), indicating that the interaction role of TSG in emodin pharmacological and toxicological actions is complex and needs to be further studied.

Rhei Radix et Rhizoma exerts purgative action for constipation. However, hepatotoxicity and abdominal pain limit its clinical application. When using Rhei Radix et Rhizoma combination with Glycyrrhizae Radix et Rhizoma (Gancao) (Da-Huang-Gancao Decoction in Chinese, Daiokanzoto in Japanese), hepatotoxicity and abdominal pain were reduced. The underlying mechanisms may be due to Glycyrrhizae Radix et Rhizoma inducing P450 to accelerate the transformation of emodin (Han et al., 2010). Furthermore, liquiritin and liquiritin apioside in Glycyrrhizae Radix et Rhizoma can induce intestinal bacteria to intensify the metabolism of sennoside A and enhance purgative action (Matsui et al., 2011). Increasing research on the intestinal flora may provide more insights into the novel role of intestinal bacteria in the PKs of anthraquinones.

Dahuang Fuzi decoction is the combination of Rhei Radix et Rhizoma, Aconiti Lateralis Radix Praeparata (Fuzi) and Asari Radix et Rhizoma (Xixin). Drug extrusion by intestinal P-gp can both reduce drug absorption and modulate the effects of inhibitors and inducers of CYP3A/CYP3A4-mediated metabolism. The study has shown that the compounds from Aconiti Lateralis Radix Praeparata or Asari Radix et Rhizoma may induce P-gp and CYP3A/CYP3A4, leading to a decrease in AUC and Cmax for anthraquinones (Liu et al., 2015).

Xin et al. reported that San-Huang-Xie-Xin decoction (SHXXD), including Rhei Radix et Rhizoma, Scutellariae Radix and Coptidis Rhizoma (containing berberine), showed increases in the Cmax and AUC of rhein compared with the single herb Rhei Radix et Rhizoma (Xin et al., 2009). The mechanisms may be due to the inhibited glucuronidation activity of UGTs for rhein by other ingredients in SHXXD (Hou et al., 2014).

The metabolic pathways and metabolites of anthraquinones are listed in Table 4.

Excretion

Excretion Routes and Form

Generally, anthraquinones are mainly excreted via the kidney (Chen et al., 2014), recta (Zhang M. et al., 2018), and/or gallbladder (Ma et al., 2005) via prototypes and/or metabolites. They are excreted with urine (Ma et al., 2005), feces (Zhang J. et al., 2018), and/or bile (Ma et al., 2005).

Anthraquinones excreted through bile may be reabsorbed and utilized in the intestines to form a hepatointestinal circulation, so they can be excreted for a long time (Yang B. et al., 2019). The amount of chrysophanol excreted through urine is significantly greater than that excreted through bile (Ma et al., 2005). The urinary excretion of emodin is 1.5-folds that of feces (Sun et al., 1986; Wu et al., 2008; Du et al., 2014). Regarding metabolite elimination of anthraquinones, e.g., rhein, the metabolite of emodin, exists in the plasma for a short time because of the rapid excretion (Tian et al., 2012).

Glucuronic acid and sulfuric acid conjugates of rhein are dominant in urine and fecal excreta. Only 20% of the prototype rhein is excreted in urine and feces (Wan et al., 2013).

Affecting Factors

Physiological Condition

Species Physcion can be detectable in the urine of humans rather than in that of rats. However, there is an opposite result for rhein between humans and rats. In addition to differences in dosage and detection instruments, this species diversity may result from apparent distribution volume (Li et al., 2003).

Sex The excretion of danthron and rhein in male rats is faster than that in female (Tian et al., 2012). The excretion of emodin glucuronide is slower in male rats than that in female rats (Liu W. et al., 2011).

Food Feeding increases the half times of elimination (T1/2) of emodin and rhein, possibly because feeding stimulates an increase in bile secretion to form hepato-intestinal circulation. Additionally, feeding inhibits the activity and the saturation of the related metabolic enzymes and consequently increases the T1/2 of emodin and rhein (Gong et al., 2011).

Disorders

The mean residence times (MRTs) of anthraquinones, e.g., aloe-emodin, chrysophanol, emodin, physcion, and rhein are prolonged in microcirculation disorder (Dai et al., 2014; Yan and Dai, 2014; Zhu et al., 2017). For ischemic cerebrovascular disease, the elimination s of aloe-emodin, emodin, and rhein are significantly decreased in thrombotic cerebral ischemia compared with normal condition in rats (Feng et al., 2013). The T1/2 values of chrysophanol and rhein are increased in acute pancreatitis, and the plasma clearance rates (CL) are decreased (Gong et al., 2009; Yang et al., 2012). Regarding liver disorders, the MRT of rhein is shortened and elimination is accelerated in acute liver injury rats (Zhang et al., 2015). However, in the other reports, the T1/2 values of aloe-emodin, chrysophanol, emodin and rhein increase (Li P. et al., 2017; Yang N. et al., 2019). The contradict results may result from the different animal models. For alcoholic liver injury, the T1/2 and MRT of emodin in rats are prolonged, and CL is decreased (Zhu et al., 2016). In addition, studies have reported that gastrointestinal disorders caused by alcoholic liver injury may affect the excretion of drugs (Burkard et al., 2005; Luo et al., 2014). The T1/2 of chrysophanol and rhein increases in rats with ulcerative colitis (Wu W. J. et al., 2017). Under chronic renal failure conditions, the elimination of rhein is accelerated in rats due to urine alkalization and an increase in urine output (Wang et al., 2009).

The T1/2 values of chrysophanol and rhein in Rhei Radix et Rhizoma are increased in lipopolysacchoride (LPS)-induced inflammation. However, the underlying mechanisms are unkown (Li et al., 2013c).

Drugs

Drug–Drug Interactions For drug compatibility, combination with Scutellariae Radix increases the urinary excretion of emodin in Rhei Radix et Rhizoma compared with oral administration of Rhei Radix et Rhizoma alone in rats (Wu et al., 2010; Li J. et al., 2018). Glycyrrhizae Radix et Rhizoma increases the elimination rate of rhein in Rhei Radix et Rhizoma. This may attenuate the hepatotoxicity of rhein in Rhei Radix et Rhizoma (Han et al., 2010).

The compatibility of Rhei Radix et Rhizoma and Aconiti Lateralis Radix Praeparata (Fuzi) is the basic herb pair applied in many traditional Chinese prescriptions. Studies have shown that Aconiti Lateralis Radix Praeparata decreases the clearance of aloe-emodin, chrysophanol and rhein. Therefore, the safety of the herb pair Rhei Radix et Rhizoma and Aconiti Lateralis Radix Praeparata should be given more attention (Li et al., 2015).

For the formula Dahuang-mudan decoction (DMD), in which Rhei Radix et Rhizoma is combined with Magnoliae Officinalis Cortex, Aurantii Fructus Immaturus, and Natrii Sulfas, Zhang reported that the prolonged elimination of aloe-emodin and emodin, indicating a lower toxicity in this formula. The underlying mechanisms may be due to competitive inhibition between the chemical compounds in DMD and need to be further investigated (Nong et al., 2019). An eight-herb formula Niu-Huang-Jie-Du tablets (NHJDT), including Bovis Calculus (Niuhuang), Rhei Radix et Rhizoma, Realgar (As2S2, Xionghuang), Gypsum Fibrosum (CaSO4·2H2O, Shigao), Platycodonis Radix (Jiegeng), and Borneolum Syntheticum (D-borneoland, Bingpian), exerts heat-clearance and detoxicification in Chinese medicine. The data showed that the clearance of chrysophanol isomers in NHJDT increased in rats, indicating that drug-drug interaction for excretion occured between the ingredients in NHJDT. However, the mechanism is still unknown (Liu Y. et al., 2018).

The elimination of anthraquinones is listed in Table 5.

TABLE 5
www.frontiersin.org

TABLE 5. The elimination of anthraquinones.

Discussion

Anthraquinones are naturally present in medicinal plants, especially Chinese medicines. They have attracted increasing research attention because of their pharmacological and toxicological effects. Thus, the approach to determining their PK plays a key role in exploring their actions and mechanisms. In this study, 33 out of 217 free anthraquinones and glycosides were studied for their PK (Tables 15 and Supplementary Table S1; Figure 1). This may result from well-investigated actions and/or detectable concentrations either in plants or in vivo for the 33 compounds. The other compounds without PK studies may be difficult to isolate from natural plants, undetectable and/or weak bioactions.

Regarding the factors influencing the PK of anthraquinones, it is suggested to consider all in vivo processes instead of absorption, distribution, metabolism or elimination alone. For example, there are multiple factors influencing the bioavailability of rhein. The differences Tmax and AUC difference of rhein between females and males always invole complex factors, including different body weights, apparent distribution volumes and fat ratios (which are associated with absorption and distribution), phase Ⅰ and phase Ⅱ metabolism (other anthraquinone glycosides, sennoside A/B, aloe-emodin, can all be transformed into rhein and subsequently form a blood accumulation of rhein when multiple anthraquinone-containing medicinal herbs are administered) (Shia et al., 2011a; Zhang et al., 2015), and live and kidney blood flow and glomerular filtration rates (which link with the process of elimination) (Zhu et al., 2006).

In addition, with the increasing use of Chinese medicines, drug-drug interactions for anthraquinones in Chinese formulae affect all processes of PK. Even in a single herb, e.g., Polygoni Multiflori Radix (Heshouwu) (Figures 1C,F), the drug-drug interactions between the components are complicated. On the one hand, TSG inhibits UGTs and decreases the elimination of emodin to enhance the effects and toxicity of emodin (Ma et al., 2013; Yu et al., 2017). On the other hand, TSG induces the activity of CYPs and accelerates the elimination of emodin (Xing et al., 2019), which may attenuate the effects or toxicity of emodin. Our previous studies found that the anticancer efficacy of 400 μg/mL of ethanol extract of Polygoni Multiflori Radix (containing approximately 1.48 μM of emodin) (Li H. et al., 2018) was similar to that of 100 μM emodin alone (Yang N. et al., 2019). Given the different anticancer effects of anthraquinones (Yang et al., 2018), it is strongly suggested that there would be drug interactions between ingredients in Polygoni Multiflori Radix in vivo. Actually, they are transformed each other in vivo via intestinal flora, and/or liver enzymes (Li P. et al., 2017; Xu et al., 2018; Huang et al., 2019). This may increase their efficacy and/or toxicity. Therefore, it would be very important to rationally investigate the in vivo processes of anthraquinone-containing Chinese medicines in clinical settings.

Traditoinel Chiense medicine theory facilitates preparation and formulae using drug interactions for rational drug use. These methods are very commonly used for drug processing of Chinese medicine (known as Paozhi) to induce bioavailability, enhance efficacy and/or decrease adverse drug reactions. For example, ethanol can accelerate metabolism including hydrolysis of anthraquinones glycosides in Rhei Radix et Rhizoma. Thus emodin, physcion and chrysophanol have higher bioavailability in Rhei Radix et Rhizoma steamed with wine (Zhang et al., 2019). Another interesting example of drug interactions is the ancient classic formula Rhubarb Peony decoction (Da Huang Mu dan Tang) from the Han Dynasty of China. The formula consists of five components, Rhei Radix et Rhizoma, Moutan Radix Cortex, Persicae Semen, Benincasae Semen (Dongguazi) and Natrii Sulfas, among which Natrii Sulfas can decrease the Cmax of rhein during absorption and metabolism. This results in the diminished toxicity of rhubarb in Rhubarb Peony decoction (Zhang Y. X. et al., 2013).

It is worth noting that the metabolism of anthraquinones extends to multiple processes and is transformed into multiple products. For example, processed rhubarb aqueous extracts with rat intestinal bacteria lead to the hydrolysis of 12 anthraquinone glycosides to anthraquinone aglycones. Then, the latter are subsequently transformed to reduction and acetoxyl derivatives (Song et al., 2012). For the anthraquinone glycoside-containing formula, Xiao-Cheng-Qi decoction (XCQD) incubated with human intestinal bacteria in vitro leads to the hydrolysis of six anthraquinone glycosides to aglycones. The latter are transformed to rhein, which is further hydrolyzed to rheinanthrones (Liu X. Y. et al., 2018) (Figure 1 and Table 4).

The PK of anthraquinones may be illustrated in Figure 1.

Conclusion

Some anthraquinones and their glycosides, such as aloe-emodin, chrysophanol, emodin, physcion, rhein and sennosides, have attracted the most PK research interest due to their greater biological activities and/or detectability. Anthraquinones are mainly absorbed in the intestines and are mostly distributed in blood flow-rich tissues and organs. They may have two absorption peaks because of the hepato-intestinal circle, reabsorption in organs/tissues and glycoside hydrolysis. Drug-drug interactions influencing PK may provide insights into drug compatibility theory to enhance or reduce pharmacological/toxicological effects in Chinese medicine formulae and deserve deep investigation.

Data Availability Materials

The datasets supporting the conclusions of this article are included within the article and its additional files.

Author Contributions

XW, ML, YF and Hongliang Li designed the study; DW, XY, FC, XC and PC collected the data; DW and X-H. W wrote the manuscript; XW, YF and ML revised the manuscript.

Funding

The study was financially supported by the National Natural Science Foundation of China (8174356), the Open Project of Hubei Key Laboratory of Wudang Local Chinese Medicine Research (Hubei University of Medicine) (WDCM2018002, WDCM201917 and WDCM201918), the Chinese Medicine Project of Health Commission of Hubei Province (ZY2021010), and the Foundation for Innovative Research Team of Hubei University of Medicine (2018YHKT01). The funders played no role in the design of this study or in the collection, analysis, and interpretation of data and the writing of the manuscript, which are completely the responsibilities of the authors.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank Mrs. Ming Liu, Mrs. Xiaoyan Zhang and Mr. Xuming Yu for their technical supports.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2021.638993/full#supplementary-material.
