SYSTEMATIC REVIEW article
Sec. Pharmacology of Infectious Diseases
Volume 13 - 2022 | https://doi.org/10.3389/fphar.2022.953982
Terpenes as bacterial efflux pump inhibitors: A systematic review
- 1Laboratory of Genetics and Translational Hematology, Oswaldo Cruz Foundation (FIOCRUZ), Salvador, Bahia, Brazil
- 2Institute of Psychology, Federal University of Bahia (UFBA), Salvador, Bahia, Brazil
- 3Laboratory of Microbiology and Molecular Biology, Department of Biological Sciences, Regional University of Cariri, Crato, Ceará, Brazil
- 4Fiocruz Ceará, Oswaldo Cruz Foundation (FIOCRUZ), Eusébio, Ceará, Brazil
Managing antibiotic resistance is a significant challenge in modern pharmacotherapy. While molecular analyses have identified efflux pump expression as an essential mechanism underlying multidrug resistance, the targeted drug development has occurred slower. Thus, considering the verification that terpenes can enhance the activity of antibiotics against resistant bacteria, the present study gathered evidence pointing to these natural compounds as bacterial efflux pump inhibitors. A systematic search for manuscripts published between January 2007 and January 2022 was carried out using the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) protocol and the following search terms: “Terpene”; AND “Efflux pump”; and “Bacteria.” From a total of 101 articles found in the initial search, 41 were included in this review. Seventy-five different terpenes, 63 bacterial strains, and 22 different efflux pumps were reported, with carvacrol, Staphylococcus aureus SA-1199B, and NorA appearing most frequently mentioned terpene, bacterial strain, and efflux pump (EP), respectively. The Chi-Squared analysis indicated that terpenes are significantly effective EP inhibitors in Gram-positive and Gram-negative strains, with the inhibitory frequency significantly higher in Gram-positive strains. The results of the present review suggest that terpenes are significant efflux pump inhibitors and, as such, can be used in drug development targeting the combat of antibacterial resistance.
The introduction of antibiotics in the medical scenario in the 1940s dramatically reduced mortality rates due to bacterial infections. It revolutionized the treatment of diseases requiring surgical procedures, significantly improving life expectancy worldwide (Habboush and Guzman, 2022). On the other hand, the increased access without proper sanitary control has resulted in irrational antibiotic use, significantly contributing to the development of antibiotic resistance (Laxminarayan et al., 2016). Epidemiological studies have revealed that the number of deaths yearly from antibiotic resistance worldwide is approximately 700,000. Additionally, it is estimated that this number could rise to 10 million by 2050 if significant improvements in antibiotic drug development are not achieved (Willyard, 2017). Consequently, the management of antimicrobial resistance, as well as the reduction in the associated morbidity and mortality rates, currently represent a significant challenge in public health care (Reygaert, 2018; Sharma et al., 2020).
Antibiotic resistance can be defined as the process by which bacteria evolve, causing antibiotics to become less effective against infections they were developed to treat (Murray et al., 2022). As a significantly complex phenomenon, antibiotic resistance can arise from and be affected by various factors, among which bacteria-antibiotic interaction, mutation, and transmission rates in the population, are highlighted (Holmes et al., 2016). Accordingly, bacterial resistance may be due to Intrinsic Resistance, Acquired Resistance, Genetic Change, or DNA Transfer (Habboush and Guzman, 2022).
Despite the increasing variety of molecular mechanisms allowing bacteria to overcome the action of an antibiotic, the expression of efflux proteins stands out for its widespread occurrence among resistant pathogens (Munita and Arias, 2016; Chatterjee et al., 2018). The antibacterial resistance mediated by efflux pumps (EPs) consists of the lack of effectiveness of antibiotics due to their inability to reach the molecular target at an inhibitory concentration (Tortora., 2012; Blanco et al., 2016). While some efflux pumps are substrate-specific, others can mediate the active transport of several compounds, contributing to the development of multidrug resistance (Van Bambeke et al., 2000; Piddock., 2006). These proteins are classified according to their composition, energy source, and the number of transmembrane regions (Sun et al., 2014) and can be grouped into five major families: ATP binding cassette (ABC), small multidrug resistance (SMR), multidrug and toxin extrusion (MATE), major facilitator superfamily (MFS), and resistance nodulation cell division (RND). Except for RND, which is found only in Gram-negative bacteria, all others are present in Gram-positive and Gram-negative bacteria (Pathania et al., 2019).
Cell wall biosynthesis inhibitors (CBIs), such as β-lactams and glycopeptide antibiotics, and cell membrane inhibitors, such as polymyxins and daptomycin, stand out as the most extensively used antibiotic classes (Epand et al., 2016; Sarkar et al., 2017). However, an increasing number of bacterial strains have developed resistance against these drugs (Schwarz et al., 2017; Singh et al., 2017). Therefore, drug research and development targeting resistance mechanisms are highly prioritized (Shrivastava et al., 2018). In this context, consistent evidence has demonstrated that natural products represent promising sources of new bioactive compounds (Huang et al., 2021), among which terpenes stand out for their promising antibacterial properties (Swamy et al., 2016; Mahizan et al., 2019).
A large body of research conducted by scientists all over the world, among which our group is included, has demonstrated that terpenes such as safrole, α-pinene, thymol, carvacrol, limonene, and eugenol are intensely active against Multiple Drug Resistance (MDR) strains (Barbieri et al., 2017; Limaverde et al., 2017; Oliveira-Tintino et al., 2018; de Figueiredo et al., 2019; Almeida et al., 2020; Araújo et al., 2020; Freitas et al., 2020; Muniz et al., 2021). In addition, it has been demonstrated that these compounds can enhance the activity of antibiotics, which is partially due to their ability to inhibit the activity of efflux pumps in resistant bacteria (Barbosa et al., 2021).
Therefore, the present systematic review gathered evidence of terpenes as bacterial efflux pump inhibitors, discussing their potential impact on antibiotic resistance-targeted drug development.
The present review was conducted from a systematic search of manuscripts in four scientific databases (Pubmed, Medline, Scopus, and EMBASE) using the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) protocol (Page et al., 2021) and the following search terms: “Terpene”; and “Efflux pump”; and “Bacteria.”
This work included original articles published between January 2007 and January 2022 addressing the potential of fully characterized terpenes as potential bacterial efflux pump inhibitors through in vivo, in vitro, and in silico research. Articles randomly found during the theoretical reference search which met the inclusion criteria were also included. The exclusion criteria were the following: 1) studies demonstrating the effects of terpenes as components of essential oils, extracts, or other complex formulations; 2) articles investigating the participation of efflux pumps in the mechanism of resistance to terpenes.
Following these eligibility criteria, the search was conducted by KJSOD and ACJA. Further, JRF and JRC analyzed and filtered the eligible studies based on their abstracts. This procedure was executed using the Rayyan—Intelligent Systematic Review tool (Ouzzani et al., 2016).

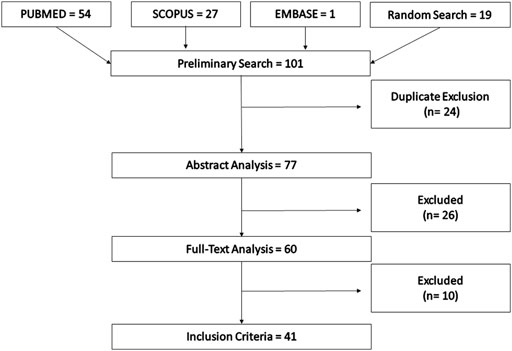

The initial search found 101 articles, among which 24 were duplicated. Following the title and abstract analysis, 60 articles were considered eligible for the study. These manuscripts were then double-checked by full-text reading, and 41 articles were included in the final version of this review (Figure 1). The primary data of each study was organized into a table describing the reference, terpene, bacterial strain, efflux pump, and main findings (Table 1).
Additionally, IBM SPSS Statistics for Windows, Version 24.0 (IBM Corp. Released, 2016), and Jeffrey Amazing Statistic Program—JASP Team. (2022) were used to carry out a descriptive analysis and its plots of the frequency of the following variables: Year of publication, type of terpene, bacterial strain, and type of efflux pump. Finally, a binary logistic regression was computed in which the effect of the efflux pumps inhibition was the dependent variable, and the Gram classification, i.e., Gram-negative and Gram-positive was the independent variable.
Results and discussion
Several proteins have been targeted in studies evaluating the activity of new antibacterial compounds, among which the following are highlighted: 1) In the SMR family, the Smr/QacC and EmrE proteins, identified in Staphylococcus aureus and Escherichia coli, respectively; 2) In the MFS family, the NorA and TetK proteins, expressed by Staphylococcus aureus; 3) In the RND family, the AcrB protein, found in Escherichia coli; 4) In the MATE family, the NorM protein, expressed by Neisseria meningitidis, and 5) In the ABC family, the MacB and MsbA efflux proteins, both identified in Escherichia coli (Borges-Walmsley et al., 2003).
The search for efflux pump inhibitors has identified a variety of natural products with the potential to be used in antibacterial drug development, among which terpenes, flavonoids, tannins, and alkaloids stand out for their notable pharmacological activity. However, the clinical development of many of these compounds is limited mainly due to their significant toxicity (Stavri et al., 2007; Prasch and Bucar, 2015). Nevertheless, studies conducted by ours and other groups have highlighted the therapeutic potential of terpenes in the context of antibiotic resistance, emphasizing their role as efflux pump inhibitors (Stavri et al., 2007). Additionally, studies have proven that monoterpenes can affect the structure and function of the bacterial membrane by interacting with membrane components, including polysaccharides, fatty acids, phospholipids, and proteins, facilitating the intracellular action of antibiotics (Sikkema et al., 1994).
In order to guide future research targeting antibacterial drug development, the present review systematically analyzed the inhibitory effects of terpenes against bacterial efflux pumps, reporting the frequency of terpenes, bacterial strains, and efflux pumps (Figure 2). In addition, the results obtained by these studies are described in Table 1. Considering the 41 articles selected for the present review, carvacrol (11,7%), thymol (7.8%), and estragole (5.2%) were the most frequently studied compounds (Figure 2A, Figure 3), demonstrating a prevalence of monoterpenes in the search for natural products as efflux pump inhibitors (the complete analysis of these results is expressed in Supplementary Materials). Staphylococcus aureus was the most frequently examined bacterial species in studies of the EPI activities of terpenes (Figure 2B), with emphasis on the following strains: Staphylococcus aureus SA-1199B (13.1%), Staphylococcus aureus RN-4220 (7.1%), and Staphylococcus aureus IS-58 (7.1%) (Supplementary Material).

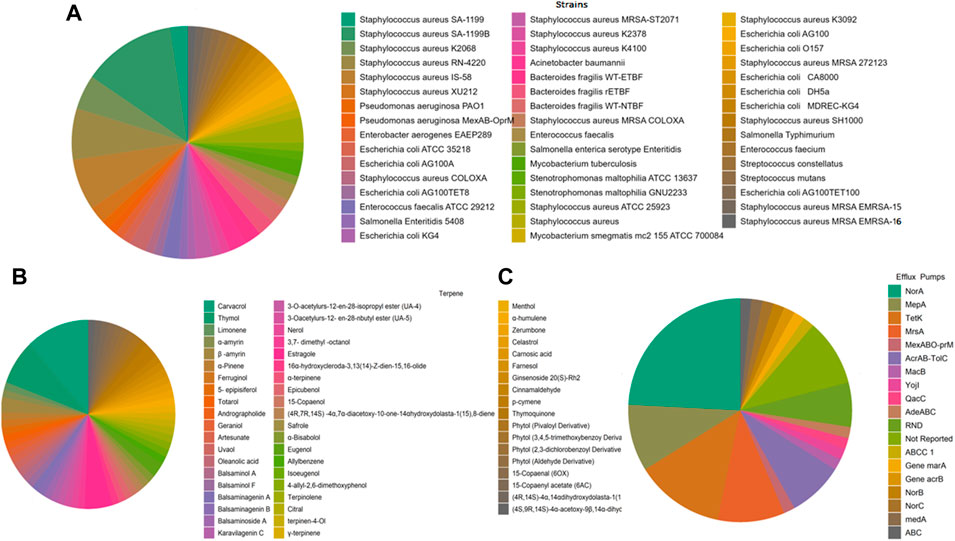

FIGURE 2. Pie chart plots of frequency analysis. (A) Strains; (B) terpenes; and (C) efflux pumps. These data were analyzed using the Jeffrey Amazing Statistic Program—JASP Team (2022).
Concerning the bacterial efflux pumps, the most frequently reported proteins were NorA (24.2%), TetK (12.9%), and MepA (9.7%), corroborating the above-described data on the frequency of bacterial strains. However, it is noteworthy that many studies did not report the type of efflux pump expressed by the tested bacterial strains, which impaired the establishment of a more precise analysis. Most of these studies were published in the last 3 years (Supplementary Material), demonstrating an increasing interest in this topic. It is worth mentioning that a significant number of studies reported the MsrA protein as a target for terpenes. However, strong evidence shows that as a member of the ABC-F family, MsrA proteins are not EP. Instead, they mediate resistance to ribosome targeting antibiotics via ribosomal protection (Sharkey et al., 2016; Su et al., 2018; Murina et al., 2019; Wilson et al., 2020). Therefore, although we have maintained these articles in the review, we emphasize the importance of critically interpreting their conclusions.
Following the binary logistic regression analysis, the results showed an association between Gram classification and terpenes (X2(gl=1)= 9.13; p = 0.03), indicating that these compounds are significantly effective EP inhibitors in both Gram-positive and Gram-negative strains. Notably, the odds ratio (OR) value of 3.03 (95% CI = 1.47–6.23) indicates that Gram-negative bacteria have less chance of being inhibited by a given terpene, i.e., Gram-positive bacteria are probably better targets for further research targeting EP inhibition by terpenes (Table 2).

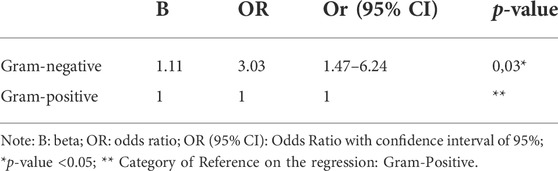

TABLE 2. Binary logistic regression correlating efflux pumps inhibition and the gram classification.
In this study, 75 different terpenes, 63 bacterial strains, and 21 different efflux pumps were reported, with carvacrol, Staphylococcus aureus SA-1199B, and NorA appearing as the most frequently mentioned terpene, bacterial strain, and efflux pump, respectively. An analysis of the selected articles revealed that the most common method used to investigate the effectiveness of terpenes as efflux inhibitors is the evaluation of the modification of the Minimum Inhibitory Concentration (MIC) of Ethidium Bromide (EtBr) and Carbonyl Cyanide m-Chlorophenylhydrazine (CCCP). Both these compounds can reduce the efflux of another EP substrate. In this case, a reduction in the MIC EtBr or CCCP resulting from their association with a given terpene indicates that this terpene may be acting as an efflux pump inhibitor. Accordingly, several studies have shown that these terpenes synergize when associated with conventional antibiotics against efflux pump-overexpressing bacterial strains. The MIC determination is the primary method used to analyze in vitro the susceptibility to antibiotics and, therefore, is a reliable tool in the evaluation of bacterial resistance, as well as in the identification of potential new therapies (Gunes et al., 2013; Van de Vel et al., 2019; Kowalska-Krochmal and Dudek-Wicher, 2021).
This approach has been adopted to investigate the activity of many compounds reported in this study. Barbosa et al. (2021) investigated the antibacterial activity of thymol and carvacrol against Staphylococcus aureus strains 1199 and 1199B, demonstrating that their association with norfloxacin and EtBr resulted in a decreased MIC. Cirino et al. (2014) demonstrated that the same terpenes presented inhibitory effects in association with tetracycline against S. aureus strains that overexpress the TetK, NorA, and MsrA proteins; Montagu et al., 2016 showed that both carvacrol and its lipid nanocapsule incorporated formulation presented a synergistic effect with the efflux inhibitor CCCP, indicating interference with the efflux mechanisms of A. baumannii. On the other hand, Silveira et al. (2020) found no evidence of EP inhibition in the IS-58 strain of S aureus following the association of thymol or carvacrol with EtBr.
Regarding other frequently tested terpenes, a study by Almeida et al. (2020) showed that safrole significantly reduced the MIC of EtBr norfloxacin and ciprofloxacin against the 1199B and K2068 strains of S. aureus. Nerol was found to enhance the activity of norfloxacin against the S. aureus strain 1199B (Coêlho et al., 2016), while α-terpinene showed synergistic effects with tetracycline and EtBr against the strain IS-58 of the same species (Limaverde et al., 2017). Da costa et al. (2021) showed that the association between estragole and EtBr resulted in synergism against S. aureus 1199B and S. aureus K2068. On the other hand, Bezerra et al. (2020) verified that the association between estragole and EtBr resulted in antagonism against the strain RN-4220. Using the same bacterial species, Freitas et al. (2021) observed a decrease in the MIC of EtBr and ciprofloxacin following their combination with limonene, while Muniz et al. (2021) reported that eugenol and its derivatives enhanced the effectiveness of norfloxacin and reduced the MIC of EtBr. Additionally, according to Oliveira et al. (2021), the compound α, β-amyrin showed synergistic effects with the efflux inhibitor CCCP against this species. A study by Freitas et al. (2020) demonstrated that α-pinene enhanced the activity of tetracycline against the Staphylococcus aureus IS-58 strain, which mainly expresses the TetK EP, suggesting that this compound could be interacting with this protein.
In sílico modeling was applied by many studies to verify their interaction with these proteins, which was mainly investigated through molecular docking to confirm the interference of monoterpenes with the efflux systems. This approach is commonly used to model the interaction between a small molecule and the binding site of target proteins by predicting the ligand conformation and assessing the binding affinity (Meng et al., 2011). In the previously reported study (Freitas et al., 2020), docking analysis indicated favorable interaction of α-pinene with the active site of the MepA pump. Later, the same group found comparable results when simulating the interaction of limonene and the same protein. Almeida et al. (2020) showed that safrole had favorable interaction with the NorA and MepA efflux pumps, corroborating the in vitro results obtained in experiments with S. aureus strains. In silico analysis by Barbosa et al. (2021) suggested that carvacrol and thymol act as competitive NorA inhibitors, as well as the terpene 4-allyl1-2,6-dimethoxyphenol, investigated by Muniz et al. (2021).
A considerable number of studies reviewed by this work have suggested that terpenes can inhibit the NorA-mediated efflux of antibiotics based mainly on the decrease in antibiotic MIC and consequent synergism resulting from the association of terpenes and conventional antibacterial drugs. Although many of these works have concluded that terpenes act as inhibitors of specific efflux pumps based on their higher expression by the strains investigated, it is essential to note that most of them did not perform molecular tests capable of confirming such conclusions. Therefore, in our opinion, additional tests are needed to ensure that the inhibition of specific efflux pumps corresponds to the mechanism by which terpenes promote synergism when associated with conventional antibiotics or efflux inhibitors such as EtBr and CCCP.
The interference of terpenes in the gene expression of efflux pump components is an important mechanism, in addition to the interference with the activity (as demonstrated in the EtBr test) and interaction with the active site of these proteins (through in silico analysis), as demonstrated in several studies included in the present systematic review. In this context, Gupta et al. (2016) demonstrated through Real-Time Quantitative Reverse Transcription PCR (qRT-PCR) that the diterpene clerodane diterpene downregulated the gene expression of efflux pump components, corroborating the findings of Mahmoudi et al. (2020) and Jang and Eom. (2019). On the other hand, Wu et al. (2008) showed that andrographolide alone or combined with standard drugs induced no change in gene expression. The mechanism of action of the monoterpene thymol (Al-Kandari et al., 2019) was associated with the alteration of the membrane permeability and induction of genetic and morphological changes that lead to inhibition of the expression of AcrAB-TolC efflux pump in Escherichia coli. Accordingly, Lorenzi et al. (2009) showed that the terpene geraniol inhibited chloramphenicol’s efflux, which was mediated by the AcrAB-TolC system. The inhibition of this efflux system was also observed for ursolic acid against Escherichia coli KG4. In addition to inhibiting gene expression of the components of this efflux pump, including AcrAB-TolC, MacB, and Yojl, the terpene was found to reduce the EtBr efflux, as verified through the fluorescence emission intensity method (Dwivedi et al., 2015). This method is based on the principle that EtBr accumulates in cells with low efflux activity, emitting thus higher fluorescence. Of note, this method was used in many studies to analyze terpenes’ interference on different bacterial efflux systems (Jin et al., 2010; Gupta et al., 2017; Freitas et al., 2021); Ramalhete et al., 2011).
In addition to the evidence that terpenes can act as efflux pump inhibitors, it has been demonstrated that these compounds have intrinsic antibacterial activity. Research by Almeida et al. (2020) showed that safrole has significant antibacterial activity against Staphylococcus aureus 1199B and K2068, which expresses the NorA and MepA pumps, respectively. Similar findings were obtained by Oliveira-Tintino et al. (2018), who tested the compound α-terpinene against Staphylococcus aureus strains 1199 and 1199B. Smith et al. (2007a) and Smith et al. (2007b) analyzed the effectiveness of some terpenes against several strains of S. aureus overexpressing different efflux proteins. The authors demonstrated that ferruginol and 5-epipisiferol potentiated the activity of standard antibiotics against these strains, reversing the degree of the observed antibiotic resistance. Moreover, ferruginol inhibited EtBr efflux in the 1199B strain while totarol potentiated the activity of standard antibiotics, in addition to inhibiting the efflux of EtBr in the Staphylococcus aureus K3902 strain, which indicates that terpenes may act as inhibitors of different efflux proteins expressed by S. aureus strains, such as NorA, MsrA, and TetK. This finding corroborates the work of Cruz et al. (2020). They demonstrated that the antibacterial activity of the sesquiterpene α-bisabolol against the IS-58 strain of Staphylococcus aureus is associated with the inhibition of the TetK efflux pump.
Finally, it is essential to emphasize that terpenes can also function as structural models for the obtention of derivatives with improved pharmacological properties, which may significantly contribute to the discovery of new antibacterial drugs (Daouda et al., 2014; Melo-Coutinho et al., 2015).
Terpenes are compounds with significant antibacterial activity against both Gram-positive and Gram-negative strains. While some compounds showed no clinically relevant intrinsic antibacterial effects, their association with conventional antibiotics frequently resulted in synergistic effects, indicating enhanced antibiotic activity.
The investigation of terpenes as efflux pump inhibitors in S. aureus strains is the most analyzed, with NorA and carvacrol being the most investigated terpene and efflux pump, respectively. Importantly, Efflux pumps of Gram-positive bacterial strains are probably more susceptible to the action of terpenes, which involve either gene expression inhibition or the interaction with the binding site of membrane-associated efflux proteins, although the molecular mechanisms underlying the action of terpenes as EP inhibitors remain to be better elucidated (Figure 4).

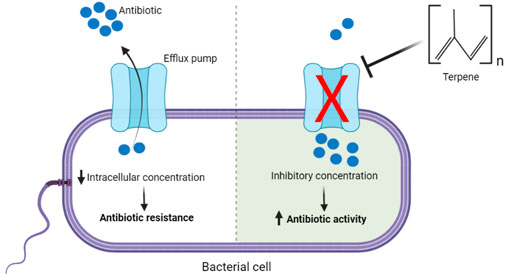

FIGURE 4. Illustration of the inhibition of bacterial efflux pumps by terpenes and its impact on antibiotic resistance.
In conclusion, terpenes are significant efflux pump inhibitors in a wide variety of bacterial strains and can potentially be used in drug development to combat antibiotic resistance.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Conceptualization—JR-F; search, selection, and analysis—KD, GM, JB, and JR-F; writing of the manuscript, AA, PF, RA, CP, and JN, critical review, JR-F and HC. All authors have read and agreed to the published version of the manuscript.
The authors would like to thank the Oswaldo Cruz Foundation (Fiocruz), CNPq, and CAPES for the support of this publication.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2022.953982/full#supplementary-material
Al-Kandari, F., Al-Temaimi, R., van Vliet, A., and Woodward, M. (2019). Thymol tolerance in Escherichia coli induces morphological, metabolic and genetic changes. BMC Microbiol. 19, 294. doi:10.1186/s12866-019-1663-8
Almeida, R., Freitas, P., Araújo, A., Alencar Menezes, I., Santos, E., Tintino, S., et al. (2020). GC-MS profile and enhancement of antibiotic activity by the essential oil of Ocotea odorífera and safrole: Inhibition of Staphylococcus aureus efflux pumps. Antibiotics 9, 247. doi:10.3390/antibiotics9050247
Araújo, A., Freitas, P., Rodrigues dos Santos Barbosa, C., Muniz, D., Rocha, J., Albuquerque da Silva, A., et al. (2020). GC-MS-FID characterization and antibacterial activity of the Mikania cordifolia essential oil and limonene against MDR strains. Food Chem. Toxicol. 136, 111023. doi:10.1016/j.fct.2019.111023
Barbieri, R., Coppo, E., Marchese, A., Daglia, M., Sobarzo-Sánchez, E., Nabavi, S., et al. (2017). Phytochemicals for human disease: An update on plant-derived compounds antibacterial activity. Microbiol. Res. 196, 44–68. doi:10.1016/j.micres.2016.12.003
Barbosa, C., Scherf, J., de Freitas, T., de Menezes, I., Pereira, R., dos Santos, J., et al. (2021). Effect of Carvacrol and Thymol on NorA efflux pump inhibition in multidrug-resistant (MDR) Staphylococcus aureus strains. J. Bioenerg. Biomembr. 53, 489–498. doi:10.1007/s10863-021-09906-3
Bezerra, A., Bezerra, S., Macêdo, N., de Sousa Silveira, Z., dos Santos Barbosa, C., de Freitas, T., et al. (2020). Effect of estragole over the RN4220 Staphylococcus aureus strain and its toxicity in Drosophila melanogaster. Life Sci. 264, 118675. doi:10.1016/j.lfs.2020.118675
Blanco, P., Hernando-Amado, S., Reales-Calderon, J., Corona, F., Lira, F., Alcalde-Rico, M., et al. (2016). Bacterial multidrug efflux pumps: Much more than antibiotic resistance determinants. Microorganisms 4, 14. doi:10.3390/microorganisms4010014
Chatterjee, A., Modarai, M., Naylor, N., Boyd, S., Atun, R., Barlow, J., et al. (2018). Quantifying drivers of antibiotic resistance in humans: A systematic review. Lancet. Infect. Dis. 18, e368–e378. doi:10.1016/s1473-3099(18)30296-2
Cirino, I., Menezes-Silva, S., Silva, H., de Souza, E., and Siqueira-Júnior, J. (2014). The essential oil from origanum vulgare L. And its individual constituents carvacrol and thymol enhance the effect of tetracycline against Staphylococcus aureus. Chemotherapy 60, 290–293. doi:10.1159/000381175
Coêlho, M., Ferreira, J., Siqueira-Júnior, J., Kaatz, G., Barreto, H., and Cavalcante, A. (2016). Inhibition of the NorA multidrug transporter by oxygenated monoterpenes. Microb. Pathog. 99, 173–177. doi:10.1016/j.micpath.2016.08.026
Cruz, R., Freitas, T., Costa, M., Santos, A., Campina, F., Pereira, R., et al. (2020). Effect of α-bisabolol and its β-cyclodextrin complex as TetK and NorA efflux pump inhibitors in Staphylococcus aureus strains. Antibiotics 9, 28. doi:10.3390/antibiotics9010028
Cuaron, J., Dulal, S., Song, Y., Singh, A., Montelongo, C., Yu, W., et al. (2013). Tea tree oil-induced transcriptional alterations in Staphylococcus aureus. Phytother. Res. 27, 390–396. doi:10.1002/ptr.4738
de Figueiredo, C., Menezes Silva, S., Abreu, L., da Silva, E., da Silva, M., Cavalcanti de Miranda, G., et al. (2019). Dolastane diterpenes from Canistrocarpus cervicornis and their effects in modulation of drug resistance in Staphylococcus aureus. Nat. Prod. Res. 33, 3231–3239. doi:10.1080/14786419.2018.1470512
Da Costa, R., Rocha, J., de Freitas, T., Pereira, R., Junior, F., de Oliveira, M., et al. (2021). Evaluation of antibacterial activity and reversal of the NorA and MepA efflux pump of estragole against Staphylococcus aureus bacteria. Arch. Microbiol. 203, 3551–3555. doi:10.1007/s00203-021-02347-x
Daouda, T., Prevost, K., Gustave, B., Joseph, D., Nathalie, G., Raphaël, O., et al. (2014). Terpenes, antibacterial and modulatory antibiotic activity of essential oils from Croton hirtus L’ hér. (Euphorbiaceae) from ivory coast. J. Essent. Oil Bear. Plants 17, 607–616. doi:10.1080/0972060x.2014.958550
Dwivedi, G., Maurya, A., Yadav, D., Khan, F., Darokar, M., and Srivastava, S. (2015). Drug resistance reversal potential of ursolic acid derivatives against nalidixic acid- and multidrug-resistant Escherichia coli. Chem. Biol. Drug Des. 86, 272–283. doi:10.1111/cbdd.12491
Espinoza, J., Urzúa, A., Sanhueza, L., Walter, M., Fincheira, P., Muñoz, P., et al. (2019). Essential oil, extracts, and sesquiterpenes obtained from the heartwood of Pilgerodendron uviferum act as potential inhibitors of the Staphylococcus aureus NorA multidrug efflux pump. Front. Microbiol. 10, 337. doi:10.3389/fmicb.2019.00337
Fadli, M., Chevalier, J., Hassani, L., Mezrioui, N., and Pagès, J. (2014). Natural extracts stimulate membrane-associated mechanisms of resistance in Gram-negative bacteria. Lett. Appl. Microbiol. 58, 472–477. doi:10.1111/lam.12216
Freitas, P., de Araújo, A., dos Santos Barbosa, C., Muniz, D., da Silva, A., Rocha, J., et al. (2020). GC-MS-FID and potentiation of the antibiotic activity of the essential oil of Baccharis reticulata (ruiz & pav.) pers. and α-pinene. Industrial Crops Prod. 145, 112106. doi:10.1016/j.indcrop.2020.112106
Freitas, P., de Araújo, A., dos Santos Barbosa, C., Muniz, D., de Almeida, R., de Menezes, I., et al. (2021). Inhibition of the MepA efflux pump by limonene demonstrated by in vitro and in silico methods. Folia Microbiol. 67, 15–20. doi:10.1007/s12223-021-00909-6
Gunes, H., Gulen, D., Mutlu, R., Gumus, A., Tas, T., and Topkaya, A. (2013). Antibacterial effects of curcumin: An in vitro minimum inhibitory concentration study. Toxicol. Ind. Health 32, 246–250. doi:10.1177/0748233713498458
Gupta, P., Patel, D., Gupta, V., Pal, A., Tandon, S., and Darokar, M. (2017). Citral, a monoterpenoid aldehyde interacts synergistically with norfloxacin against methicillin resistant Staphylococcus aureus. Phytomedicine 34, 85–96. doi:10.1016/j.phymed.2017.08.016
Gupta, V., Tiwari, N., Gupta, P., Verma, S., Pal, A., Srivastava, S., et al. (2016). A clerodane diterpene from Polyalthia longifolia as a modifying agent of the resistance of methicillin resistant Staphylococcus aureus. Phytomedicine 23, 654–661. doi:10.1016/j.phymed.2016.03.001
Habboush, Y., and Guzman, N. (2022). Antibiotic resistance. Available at: https://www.ncbi.nlm.nih.gov/books/NBK513277/(Accessed April 2, 2022).
Holmes, A., Moore, L., Sundsfjord, A., Steinbakk, M., Regmi, S., Karkey, A., et al. (2016). Understanding the mechanisms and drivers of antimicrobial resistance. Lancet 387, 176–187. doi:10.1016/s0140-6736(15)00473-0
Huang, L., Ahmed, S., Gu, Y., Huang, J., An, B., Wu, C., et al. (2021). The effects of natural products and environmental conditions on antimicrobial resistance. Molecules 26, 4277. doi:10.3390/molecules26144277
Jin, J., Zhang, J., Guo, N., Sheng, H., Li, L., Liang, J., et al. (2010). Farnesol, a potential efflux pump inhibitor in Mycobacterium smegmatis. Molecules 15, 7750–7762. doi:10.3390/molecules15117750
Li, B., Yao, Q., Pan, X., Wang, N., Zhang, R., Li, J., et al. (2011). Artesunate enhances the antibacterial effect of β-lactam antibiotics against Escherichia coli by increasing antibiotic accumulation via inhibition of the multidrug efflux pump system AcrAB-TolC. J. Antimicrob. Chemother. 66, 769–777. doi:10.1093/jac/dkr017
Limaverde, P., Campina, F., da Cunha, F., Crispim, F., Figueredo, F., Lima, L., et al. (2017). Inhibition of the TetK efflux-pump by the essential oil of Chenopodium ambrosioides L. and α-terpinene against Staphylococcus aureus IS-58. Food Chem. Toxicol. 109, 957–961. doi:10.1016/j.fct.2017.02.031
Lorenzi, V., Muselli, A., Bernardini, A., Berti, L., Pagès, J., Amaral, L., et al. (2009). Geraniol restores antibiotic activities against multidrug-resistant isolates from gram-negative species. Antimicrob. Agents Chemother. 53, 2209–2211. doi:10.1128/aac.00919-08
Mahizan, N., Yang, S., Moo, C., Song, A., Chong, C., Chong, C., et al. (2019). Terpene derivatives as a potential agent against antimicrobial resistance (AMR) pathogens. Molecules 24, 2631. doi:10.3390/molecules24142631
Mahmoudi, H., Shokoohizadeh, L., Zare Fahim, N., Mohamadi Bardebari, A., Moradkhani, S., and Alikhani, M. (2020). Detection of adeABC efllux pump encoding genes and antimicrobial effect of Mentha longifolia and Menthol on MICs of imipenem and ciprofloxacin in clinical isolates of Acinetobacter baumannii. BMC Complement. Med. Ther. 20, 92. doi:10.1186/s12906-020-02887-7
Martins, A., Vasas, A., Viveiros, M., Molnár, J., Hohmann, J., and Amaral, L. (2011). Antibacterial properties of compounds isolated from Carpobrotus edulis. Int. J. Antimicrob. Agents 37, 438–444. doi:10.1016/j.ijantimicag.2011.01.016
Melo-Coutinho, H. D., Freitas, M. A., Gondim, C. N., Albuquerque, R. S., Ferreira, J. V. A., and Andrade, J. C. (2015). In vitro antimicrobial activity of Geraniol and Cariophyllene against Staphylococcus aureus. Rev. Cubana Plantas Med. 20, 98–105.
Meng, X. Y., Zhang, H. X., Mezei, M., and Cui, M. (2011). Molecular docking: A powerful approach for structure-based drug discovery. Curr. Comput. Aided. Drug Des. 7 (2), 146–157. doi:10.2174/157340911795677602
Miladi, H., Zmantar, T., Kouidhi, B., Al Qurashi, Y., Bakhrouf, A., Chaabouni, Y., et al. (2017). Synergistic effect of eugenol, carvacrol, thymol, p-cymene and γ-terpinene on inhibition of drug resistance and biofilm formation of oral bacteria. Microb. Pathog. 112, 156–163. doi:10.1016/j.micpath.2017.09.057
Montagu, A., Joly-Guillou, M., Guillet, C., Bejaud, J., Rossines, E., and Saulnier, P. (2016). Demonstration of the interactions between aromatic compound-loaded lipid nanocapsules and Acinetobacter baumannii bacterial membrane. Int. J. Pharm. 506, 280–288. doi:10.1016/j.ijpharm.2016.03.033
Mouwakeh, A., Kincses, A., Nové, M., Mosolygó, T., Mohácsi‐Farkas, C., Kiskó, G., et al. (2019). Nigella sativa essential oil and its bioactive compounds as resistance modifiers against Staphylococcus aureus. Phytother. Res. 33, 1010–1018. doi:10.1002/ptr.6294
Muniz, D., dos Santos Barbosa, C., de Menezes, I., de Sousa, E., Pereira, R., Júnior, J., et al. (2021). In vitro and in silico inhibitory effects of synthetic and natural eugenol derivatives against the NorA efflux pump in Staphylococcus aureus. Food Chem. 337, 127776. doi:10.1016/j.foodchem.2020.127776
Murina, V., Kasari, M., Takada, H., Hinnu, M., Saha, C. K., Grimshaw, J. W., et al. (2019). ABCF ATPases involved in protein synthesis, ribosome assembly and antibiotic resistance: Structural and functional diversification across the tree of life. J. Mol. Biol. 431 (18), 3568–3590. doi:10.1016/j.jmb.2018.12.013
Murray, C., Ikuta, K., Sharara, F., Swetschinski, L., Robles Aguilar, G., Gray, A., et al. (2022). Global burden of bacterial antimicrobial resistance in 2019: A systematic analysis. Lancet 399, 629–655. doi:10.1016/s0140-6736(21)02724-0
Ojeda-Sana, A., Repetto, V., and Moreno, S. (2013). Carnosic acid is an efflux pumps modulator by dissipation of the membrane potential in Enterococcus faecalis and Staphylococcus aureus. World J. Microbiol. Biotechnol. 29, 137–144. doi:10.1007/s11274-012-1166-3
Oliveira, R., Bandeira, P., Lemos, T., dos Santos, H., Scherf, J., Rocha, J., et al. (2021). In silico and in vitro evaluation of efflux pumps inhibition of α, β-amyrin. J. Biomol. Struct. Dyn. 2021, 1–15. doi:10.1080/07391102.2021.1976277
Oliveira-Tintino, C., Tintino, S., Limaverde, P., Figueredo, F., Campina, F., da Cunha, F., et al. (2018). Inhibition of the essential oil from Chenopodium ambrosioides L. and α-terpinene on the NorA efflux-pump of Staphylococcus aureus. Food Chem. 262, 72–77. doi:10.1016/j.foodchem.2018.04.040
Page, M., McKenzie, J., Bossuyt, P., Boutron, I., Hoffmann, T., Mulrow, C., et al. (2021). The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 372, n71. doi:10.1136/bmj.n71
Ramalhete, C., Spengler, G., Martins, A., Martins, M., Viveiros, M., Mulhovo, S., et al. (2011). Inhibition of efflux pumps in meticillin-resistant Staphylococcus aureus and Enterococcus faecalis resistant strains by triterpenoids from Momordica balsamina. Int. J. Antimicrob. Agents 37, 70–74. doi:10.1016/j.ijantimicag.2010.09.011
Sarkar, P., Yarlagadda, V., Ghosh, C., and Haldar, J. (2017). A review on cell wall synthesis inhibitors with an emphasis on glycopeptide antibiotics. Medchemcomm 8 (3), 516–533. doi:10.1039/c6md00585c
Scherf, J., Santos, C., Freitas, T., Rocha, J., Macêdo, N., Lima, J., et al. (2020). Effect of terpinolene against the resistant Staphylococcus aureus strain, carrier of the efflux pump QacC and β-lactamase gene, and its toxicity in the Drosophila melanogaster model. Microb. Pathog. 149, 104528. doi:10.1016/j.micpath.2020.104528
Sharma, A., Biharee, A., Kumar, A., and Jaitak, V. (2020). Antimicrobial terpenoids as a potential substitute in overcoming antimicrobial resistance. Curr. Drug Targets 21, 1476–1494. doi:10.2174/1389450121666200520103427
Shrivastava, S., Shrivastava, P., and Ramasamy, J. (2018). World health organization releases global priority list of antibiotic-resistant bacteria to guide research, discovery, and development of new antibiotics. J. Med. Soc. 32, 76. doi:10.4103/jms.jms_25_17
Silveira, Z., Macêdo, N., Santos, J., Freitas, T., Barbosa, C., Sousa-Júnior, D., et al. (2020). Evaluation of the antibacterial activity and efflux pump reversal of thymol and carvacrol against Staphylococcus aureus and their toxicity in Drosophila melanogaster. Molecules 25, 2103. doi:10.3390/molecules25092103
Singh, S., Singh, S., Chowdhury, I., and Singh, R. (2017). Understanding the mechanism of bacterial biofilms resistance to antimicrobial agents. Open Microbiol. J. 11, 53–62. doi:10.2174/1874285801711010053
Smith, E., Kaatz, G., Seo, S., Wareham, N., Williamson, E., and Gibbons, S. (2007b). The phenolic diterpene totarol inhibits multidrug efflux pump activity in Staphylococcus aureus. Antimicrob. Agents Chemother. 51, 4480–4483. doi:10.1128/aac.00216-07
Smith, E., Williamson, E., Wareham, N., Kaatz, G., and Gibbons, S. (2007a). Antibacterials and modulators of bacterial resistance from the immature cones of Chamaecyparis lawsoniana. Phytochemistry 68, 210–217. doi:10.1016/j.phytochem.2006.10.001
Su, W., Kumar, V., Ding, Y., Ero, R., Serra, A., Lee, B. S. T., et al. (2018). Ribosome protection by antibiotic resistance ATP-binding cassette protein. Proc. Natl. Acad. Sci. U. S. A. 115 (20), 5157–5162. doi:10.1073/pnas.1803313115
Sun, J., Deng, Z., and Yan, A. (2014). Bacterial multidrug efflux pumps: Mechanisms, physiology and pharmacological exploitations. Biochem. Biophys. Res. Commun. 453, 254–267. doi:10.1016/j.bbrc.2014.05.090
Swamy, M., Akhtar, M., and Sinniah, U. (2016). Antimicrobial properties of plant essential oils against human pathogens and their mode of action: An updated review. Evid. Based. Complement. Altern. Med. 2016, 3012462–3012521. doi:10.1155/2016/3012462
Van de Vel, E., Sampers, I., and Raes, K. (2019). A review on influencing factors on the minimum inhibitory concentration of essential oils. Crit. Rev. Food Sci. Nutr. 59, 357–378. doi:10.1080/10408398.2017.1371112
Vasconcelos, S., Caleffi-Ferracioli, K., Hegeto, L., Baldin, V., Nakamura, C., Stefanello, T., et al. (2018). Carvacrol activity & morphological changes in Mycobacterium tuberculosis. Future Microbiol. 13, 877–888. doi:10.2217/fmb-2017-0232
Wilson, D. N., Hauryliuk, V., Atkinson, G. C., and O’Neill, A. J. (2020). Target protection as a key antibiotic resistance mechanism. Nat. Rev. Microbiol. 18 (11), 637–648. doi:10.1038/s41579-020-0386-z
Wu, C., Cao, J., Zheng, M., Ou, Y., Zhang, L., Zhu, X., et al. (2008). Effect and mechanism of andrographolide on the recovery of Pseudomonas aeruginosa susceptibility to several antibiotics. J. Int. Med. Res. 36, 178–186. doi:10.1177/147323000803600123
Yuan, W., and Yuk, H. (2019). Effects of sublethal thymol, carvacrol, and trans-cinnamaldehyde adaptation on virulence properties of Escherichia coli O157:H7. Appl. Environ. Microbiol. 85, 002711–e319. doi:10.1128/aem.00271-19
Zhang, J., Sun, Y., Wang, Y., Lu, M., He, J., Liu, J., et al. (2014). Non-antibiotic agent ginsenoside 20(S)-Rh2 enhanced the antibacterial effects of ciprofloxacin in vitro and in vivo as a potential NorA inhibitor. Eur. J. Pharmacol. 740, 277–284. doi:10.1016/j.ejphar.2014.07.020
