Original Research ARTICLE
Toward a Needs-Based Architecture for ‘Intelligent’ Communicative Agents: Speaking with Intention
- Speech and Hearing Research Group, Department of Computer Science, University of Sheffield, Sheffield, United Kingdom
The past few years have seen considerable progress in the deployment of voice-enabled personal assistants, first on smartphones (such as Apple’s Siri) and most recently as standalone devices in people’s homes (such as Amazon’s Alexa). Such ‘intelligent’ communicative agents are distinguished from the previous generation of speech-based systems in that they claim to offer access to services and information via conversational interaction (rather than simple voice commands). In reality, conversations with such agents have limited depth and, after initial enthusiasm, users typically revert to more traditional ways of getting things done. It is argued here that one source of the problem is that the standard architecture for a contemporary spoken language interface fails to capture the fundamental teleological properties of human spoken language. As a consequence, users have difficulty engaging with such systems, primarily due to a gross mismatch in intentional priors. This paper presents an alternative needs-driven cognitive architecture which models speech-based interaction as an emergent property of coupled hierarchical feedback-control processes in which a speaker has in mind the needs of a listener and a listener has in mind the intentions of a speaker. The implications of this architecture for future spoken language systems are illustrated using results from a new type of ‘intentional speech synthesiser’ that is capable of optimising its pronunciation in unpredictable acoustic environments as a function of its perceived communicative success. It is concluded that such purposeful behavior is essential to the facilitation of meaningful and productive spoken language interaction between human beings and autonomous social agents (such as robots). However, it is also noted that persistent mismatched priors may ultimately impose a fundamental limit on the effectiveness of speech-based human–robot interaction.
Recent years have seen tremendous progress in the deployment of practical spoken language systems (see Figure 1). Commencing in the 1980s with the appearance of specialised isolated-word recognition (IWR) systems for military command-and-control equipment, spoken language technology has evolved from large-vocabulary continuous speech recognition (LVCSR) for dictating documents (such as Dragon’s Naturally Speaking and IBM’s Via Voice) released in the late 1990s, through telephone-based interactive voice response (IVR) systems, to the surprise launch in 2011 of Siri (Apple’s voice-enabled personal assistant for the iPhone). Siri was quickly followed by Google Now and Microsoft’s Cortana, and these contemporary systems not only represent the successful culmination of over 50 years of laboratory-based speech technology research (Pieraccini, 2012) but also signify that speech technology has finally become “mainstream” (Huang, 2002) and has entered into general public awareness.
Figure 1. The evolution of spoken language technology applications from specialised military ‘command-and-control’ systems of the 1980/90s to contemporary ‘voice-enabled personal assistants’ (such as Siri) and future ‘autonomous social agents’ (such as robots).
Research is now focused on verbal interaction with embodied conversational agents (such as on-screen avatars) or physical devices (such as Amazon Echo, Google Home, and, most recently, Apple HomePod) based on the assumption that spoken language will provide a ‘natural’ interface between human beings and future (so-called) intelligent systems. As Figure 1 shows, the ultimate goal is seen as conversational interaction between users and autonomous social agents (such as robots), and first-generation devices (such as Jibo1 and Olly2) are now beginning to enter the commercial marketplace.
1.1. Limitations of Current Systems
However, while the raw technical performance of contemporary spoken language systems has improved significantly in recent years [as evidenced by corporate giants such as Microsoft and IBM continuing to issue claim and counter-claim as to whose system has the lowest word error rates (Xiong et al., 2016; Saon et al., 2017)], in reality, users’ experiences with such systems are often less than satisfactory. Not only can real-world conditions (such as noisy environments, strong accents, older/younger users or non-native speakers) lead to very poor speech recognition accuracy, but the ‘understanding’ exhibited by contemporary systems is rather shallow. As a result, after initial enthusiasm, users often lose interest in talking to Siri or Alexa, and they revert to more traditional interface technologies for completing their tasks (Moore et al., 2016).
One possible explanation for this state of affairs is that, while component technologies such as automatic speech recognition and text-to-speech synthesis are subject to continuous ongoing improvements, the overall architecture of a spoken language system has not changed for quite some time. Indeed, there is a W3C ‘standard’ architecture to which most systems conform (W3C-SIF, 2000) (see Figure 2). Of course, standardisation is helpful because it promotes interoperability and expands markets. However, it can also stifle innovation by prescribing sub-optimal solutions.
Figure 2. Structure of the W3C ‘standard’ Speech Interface Framework (W3C-SIF, 2000).
In the context of spoken language, there are a number of issues with the standard architecture depicted in Figure 2.
1. The standard architecture reflects a traditional open-loop stimulus–response (‘behaviorist’) view of interaction; the user utters a request, the system replies. This is known as the ‘tennis match’ metaphor for language, where discrete messages are passed back and forth between interlocutors—a stance that is nowadays regarded as somewhat restrictive and old-fashioned (Bickhard, 2007; Fusaroli et al., 2014). Contemporary ‘enactive’ perspectives regard spoken language interaction as being analogous to the continuous coordinated synchronous behavior exhibited by coupled dynamical systems: that is, more like a three-legged race than a tennis match (Cummins, 2011).
2. The standard architecture suggests complete independence between the input and output components, whereas there is growing evidence of the importance of ‘sensorimotor overlap’ between perception and production in living systems (Wilson and Knoblich, 2005; Sebanz et al., 2006; Pickering and Garrod, 2007).
3. The standard architecture fails to emphasise the importance of ‘user modeling’ in managing an interactive dialog: that is, successful interaction is not only conditioned on knowledge about users’ directly observable characteristics and habits but it also depends on inferring their internal beliefs, desires, and intentions (Friston and Frith, 2015; Scott-Phillips, 2015).
4. The standard architecture neglects the crucial teleological/compensatory nature of behavior in living systems (Powers, 1973). In particular, it fails to acknowledge that speakers and listeners continuously balance the effectiveness of communication against the effort required to communicate effectively (Lombard, 1911)—behavior that leads to a ‘contrastive’ (as opposed to signal-based) form of communication (Lindblom, 1990).
As an example of the latter, Hawkins (2003) provides an informative illustration of such regulatory behavior in everyday conversational interaction. On hearing a verbal enquiry from a family member as to the whereabouts of some mislaid object, the listener might reply with any of the following utterances:
“I! … DO! … NOT! … KNOW!”
“I do not know”
“I don’t know”
… where the last utterance is barely more than a series of nasal grunts! Which utterance is spoken would depend on the communicative context; the first might be necessary if the TV was playing loudly, whereas the last would be normal behavior for familiar interlocutors in a quiet environment. Such responses would be both inappropriate and ineffective if the situations were reversed; shouting in a quiet environment is unnecessary (and would be regarded as socially unacceptable), and a soft grunt in a noisy environment would not be heard (and might be regarded as an indication of lazyness).
Such adaptive behavior is the basis of Lindblom’s ‘H&H’ (Hypo-and-Hyper) theory of speech production (Lindblom, 1990), and it provides a key motivation for what follows.
1.2. A Potential Solution
Many of the limitations identified above are linked, and closing the loops between speaking-and-listening and speaker-and-listener appears to be key. Therefore, what seems to be required going forward is an architecture for spoken language interaction that replaces the traditional open-loop stimulus–response arrangement with a closed-loop dynamical framework; a framework in which intentions lead to actions, actions lead to consequences, and perceived consequences are compared to intentions (in a continuous cycle of synchronous regulatory behavior). This paper presents such a framework; speech-based interaction is modeled as an emergent property of coupled hierarchical feedback-control processes in which a speaker has in mind the needs of a listener and a listener has in mind the intentions of a speaker, and in which information is shared across sensorimotor channels.
Section 2 introduces the theoretical basis for the proposed new architecture, and Section 3 presents a practical instantiation in the form of a new type of intentional speech synthesiser which is capable of adapting its pronunciation in unpredictable acoustic environments. Section 4 then discusses the wider implications of the new architecture in the context of human–machine interaction, and Section 5 draws conclusions on the potential effectiveness of future spoken language systems.
2. An Architecture for Intentional Communicative Interaction
Motivated by the arguments outlined above, an architecture for intentional communicative interaction was originally proposed by Moore (2007b). Known variously as ‘PRESENCE’ (PREdictive SENsorimotor Control and Emulation) (Moore, 2007a) and ‘MBDIAC’ (Mutual Beliefs Desires Intentions, and Consequences) (Moore, 2014), the core principle is the notion of closed-loop hierarchical feedback-control. As a result, it has many parallels with ‘Perceptual Control Theory’ (PCT) (Moore, 2018; Powers et al., 1960; Powers, 1973; Mansell and Carey, 2015).
The core principles of the architecture are reprised here in order to contextualise the design of the intentional speech synthesiser presented in Section 3.
2.1. Actions and Consequences
First, consider a ‘world’ that obeys the ordinary Laws of Physics. The world W has a set of possible states S, and its state s[t] at time t is some function of its previous states from s[–∞] to s[t–1]. The world can thus be viewed as a form of dynamical system that evolves from state to state over time. These state transitions can be expressed as a transform …
where fW is some function that transforms the states of the world up to time t–1 to the state of the world at time t.
This means that the evolution of events in the world constitutes a continuous cycle of ‘cause-and-effect.’ Events follows a time course in which it can be said that actions (i.e., the sequence of events in the past) lead to consequences (i.e., events in the future) which constitute further actions, leading to further consequences, and so on (see Figure 3) …
Figure 3. Illustration of the continuous cycle of cause-and-effect in a world that obeys the ordinary Laws of Physics.
Of course, the state-space S of possible actions and consequences would be immense due to the complexity of the world W. This means that it is impossible to model. In practice, some parts of the world might have very little influence on other parts. So it is appropriate to consider a subset of the world w that has a minimal dependency on the rest.
2.2. An Agent Manipulating the World
Now consider the presence of an intentional agent a (natural or artificial) that seeks to effect a change in the world (the reason why the agent wishes to change the state of the world is addressed in Section 2.7). In this case, the agent’s intentions are converted into actions which are, in turn, transformed into consequences …
where g is some function that transforms agent a’s intentions into actions (a process known in robotics as ‘action selection’).
This situation corresponds to an open-loop stimulus–response configuration, hence the accuracy with which an agent can achieve its intended consequences is critically dependent on it having precise information about both f and g. In this situation, the best method for achieving the required consequences is for the agent to employ an inverse transform in which g is replaced by f−1 (commonly referred to as ‘inverse kinematics’).
It is possible to discuss at length how information about the transforms g, f, or f−1 could be acquired; for example, using machine learning techniques on extensive quantities of training data. However, regardless of the approach taken, the final outcome would not only be sensitive to any inaccuracies in calibrating the relevant model parameters, but it would also be unable to tolerate unforeseen noise and/or disturbances present in the agent or in the world. This is a fundamental limitation on any ‘open-loop’ approach.
Control theory (and thus Perceptual Control Theory) provides an alternative closed-loop solution that is not dependent on knowing f or f−1. An agent simply needs to be able to judge whether the consequences of its actions match its intentions (and adjust its behavior accordingly). An agent thus needs to be able to choose actions that minimise the difference between its intentions and the perceived consequences of its actions (a process known as ‘negative feedback control’) (see Figure 4). In practice, it takes time to minimise the difference (since physical actions cannot take place instantaneously). So the process typically iterates toward a solution. This means that, although closed-loop control does not require information about f or f−1, it does need to know about g—the mapping between the error (the difference between intentions and consequences in perceptual space) and the appropriate control action.3 This is either known in advance, or it has to be discovered (learnt) by active exploration; for example, using ‘reinforcement learning’ (Sutton and Barto, 1998) or the process referred to in Perceptual Control Theory as ‘reorganisation’ (Powers, 1973).
Figure 4. Illustration of an intentional agent manipulating the world in a closed-loop negative-feedback configuration.
In many situations, negative feedback-control is able to employ an optimisation technique known as gradient descent in which the difference between the intentions and the perceived consequences is a continuous variable that can be reduced monotonically to zero. Hence, in the general case, negative feedback-control can be viewed as an iterative search over possible actions to find those which give rise to the best match between intentions and perceived consequences …
where represents an estimate of the actions required to minimise the difference between intentions and perceived consequences.
However, this configuration will only function correctly if two conditions are met: (i) the agent can observe the consequences of its actions, and (ii) the search space contains only one global minimum. If the consequences of an agent’s actions are hidden (for example, the internal states of another agent), then the loop can still function, but only if the agent is able to estimate the consequences of possible actions. Likewise, if the search space has many local minima, then an iterative search can avoid getting stuck by exploring the space in advance.4 In other words, in both of these cases, an agent would benefit from an ability to predict the consequences of possible actions.
This means that an intentional agent needs to be able to (i) estimate the relationship between available actions and potential consequences (fw), (ii) perform a search over hypothetical actions, and then (iii) execute those actions that are found to minimise the estimated error. In this case …
where is the estimate of fw and is the set of available actions (see Figure 5).
Figure 5. Illustration of an intentional agent manipulating the world in a closed-loop configuration in the situation where the agent is unable to directly observe the consequences of its actions (in space or time).
What is interesting in this arrangement is that the estimated transform can be interpreted as a form of mental simulation (or predictor) that emulates the consequences of possible actions prior to action selection (Hesslow, 2002; Grush, 2004). In other words, searching over is equivalent to planning in the field of Artificial Intelligence and to ‘imagination mode’ in Perceptual Control Theory (Powers, 1973). Another insight to emerge from this approach is that the depth of the search can be regarded as analogous to effort, i.e., the amount of energy devoted to finding a solution.
2.3. An Agent Interpreting the World
Now, consider the complementary situation in which an agent a is attempting to interpret the world w. In this case, interpretation is defined as an agent deriving potentially hidden actions/causes of events by observing their visible effects/consequences
where h is some perceptual function that transforms observed effects (i.e., the evolution of states resulting from Actions in the world w) into estimated causes.
Given that consequences are caused by actions via the transform fw, it is possible, in principle, to compute the actions directly from the observed consequences using the inverse transform . However, in practice, is not known and very hard to estimate. A more tractable solution is to construct an estimate of fw (known as a ‘forward/generative model’) and to compare its output with the observed signals. Such a configuration (based on a generative model) is known as a ‘maximum likelihood’ or ‘Bayesian’ classifier, and mathematically it is the optimum way to estimate hidden variables given uncertainty in both the observations and the underlying process. It is also a standard result in the field of statistical estimation that the parameters of forward/generative models are much easier to derive using maximum likelihood (ML) or maximum a posteriori (MAP) estimation techniques.
The agent thus interprets the world by searching over possible actions/causes to find the best match between the predicted and the observed consequences …
This process is illustrated in Figure 6, and what is immediately apparent is that, like manipulation, the process of interpretation is also construed as a negative feedback-control loop; in this case, it is a search over possible causes (rather than effects). In fact, the architecture illustrated in Figure 6 is a standard model-based recognition framework in which the recognition/interpretation/inference of the (hidden) cause of observed behavior is viewed as a search over possible outputs from a forward model that is capable of generating that behavior (Wilson and Knoblich, 2005; Pickering and Garrod, 2013): an approach known more generally as analysis-by-synthesis. Again, the depth of the search is analogous to effort.
Figure 6. Illustration of an agent a attempting to infer the hidden causes/actions from their observable effects/consequences by using a negative feedback-control loop to search the outputs from (a forward estimate of ).
2.4. One Agent Communicating Its Intentions to Another Agent
The foregoing establishes a remarkably symmetric framework for agents manipulating and interpreting the world in the presence of uncertainty and unknown disturbances. The processes of both manipulation and interpretation employ negative feedback-control loops that perform a search over the potential outputs of a forward model. We now consider the case where the world contains more than one agent: a world in which a sending agent s is attempting to change the mental state of a receiving agent r (that is, communicating its intentions without being able to directly observe whether those intentions have been perceived).
For the sending agent s …
where gs is the transform from intentions to behavior, and for the receiving agent r …
where hr is the transform from observed behavior to interpretations.
Hence, for agent s attempting to communicate its intentions to agent r, the arguments put forward in Section 2.2 suggest that, if there is no direct feedback from agent r, then agent s needs to compute appropriate behavior (actions) based on
which is a negative feedback-control loop performing a search over possible behaviors by agent s and their interpretations5 by agent r as estimated by agent s. This process can be regarded as synthesis-by-analysis.
2.5. One Agent Interpreting the Behavior of Another Agent
For agent r attempting to interpret the intentions of agent s, the arguments put forward in Section 2.3 suggest that agent r needs to compare the observed actions of agent s with the output of a forward model of agent s …
which is a negative feedback-control loop performing a search over the possible intentions of agent s and their realisations by agent s as estimated by agent r. As in Figure 6, this process is analysis-by-synthesis.
In fact, this particular configuration is exactly how the previous generation of algorithms for automatic speech recognition were formulated using ‘hidden Markov models’ (HMMs) (Gales and Young, 2007) as an appropriate forward/generative model for speech. Interestingly, such an approach to speech recognition is not only reminiscent of the ‘Motor Theory’ of speech perception (Liberman et al., 1967), but it is also supported by neuroimaging data (Kuhl et al., 2014; Skipper, 2014).
2.6. Using ‘Self’ to Model ‘Other’
The configurations outlined in Sections 2.4 and 2.5 lead to an important observation; both require one agent to have a model of some aspect of the other agent. The sending agent s selects its actions by searching over possible interpretations by the receiving agent r using an estimate of the receiving agent’s transform from observations to interpretation (). The receiving agent r infers the intentions of the sending agent s by searching over possible interpretations using as estimate of the sending agent’s transform from intentions to actions ().
So this leads to an important question: where do the transforms and come from? More precisely, how might their parameters be estimated? Obviously they could be derived using a variety of different learning procedures. However, one intriguing possibility is that, if the agents are very similar to each other (for example, conspecifics), then each agent could approximate these functions using information recruited from their own structures—exactly as proposed by Friston and Frith (2015). In other words, (which can be searched using gs rather than ) and (which can be searched using hr rather than ) (see Figure 7).
Figure 7. Illustration of a world containing one agent (a sender s) communicating with another (a receiver r) where each makes use of a model of the other by exploiting knowledge of themselves.
This arrangement, in which both agents exploit sensorimotor knowledge of themselves to model each other, can be thought of as synthesis-by-analysis-by-synthesis for the sending agent and analysis-by-synthesis-by-analysis for the receiving agent. Combining both into a single communicative agent gives rise to a structure where perception and production are construed as parallel recursive control-feedback processes (both of which employ search as the underlying mechanism for optimisation), and in which the intentions of ‘self’ and the intentions of ‘other’ are linked to the behavior of ‘self’ and the observations of ‘other,’ respectively (see Figure 8).
Figure 8. Illustration of a communicative agent that is capable of optimising the signaling of its own intentions (PRODUCTION) and inferring the intentions of others (PERCEPTION).
2.7. A Needs-Driven Communicative Agent
The preceding arguments provide novel answers to two key questions: how can an agent (i) optimise its behavior in order to communicate its intentions and (ii) infer the intentions of another agent by observing their behavior? However, thus far, it has been assumed that intentionality is a key driver of communicative interaction—but whither the intentions? Perceptual Control Theory suggests that purposeful behavior exists at every level in a hierarchy of control systems. So, by invoking intentionality as a manifestation of purposeful goal-driven behavior, it is possible to make a direct link with established aged-based modeling approaches such as ‘BDI’ (Beliefs-Desires-Intentions) (Rao and Georgoff, 1995; Wooldridge, 2000) and ‘DAC’ (Distributed Adaptive Control) (Pfeifer and Verschure, 1992; Verschure, 2012). In particular, the DAC architecture emphasises that behaviors are ultimately driven by a motivational system based on an agent’s fundamental needs (Maslow, 1943). Likewise, intrinsic motivations are thought to play a crucial role in driving learning (Oudeyer and Kaplan, 2007; Baldassarre et al., 2014).
Putting all this together, it is possible to formulate a generic and remarkably symmetric architecture for a needs-driven communicative agent that is both a sender and a receiver. In this framework, it is proposed that a communicative agent’s behavior is conditioned on appropriate motivational and deliberative belief states: motivation ⇒ expression ⇒ production. Likewise, the intentions, desires, and needs of another agent are inferred via a parallel interpretive structure: perception ⇒ interpretation ⇒ comprehension. At each level, optimisation involves search and, thereby, a mechanism for managing ‘effort.’ This canonic configuration is illustrated in Figure 9.
Figure 9. Illustration of the derived architecture for a needs-driven communicative agent (Moore, 2018).
Such a needs-driven architecture is founded on a model of interaction in which each speaker/listener has in mind the needs and intentions of the other speaker/listener(s). As such, the proposed solution is entirely neutral with respect to the nature of the speaking/listening agents; that is, it applies whether they are living or artificial systems. Hence, the derived architecture not only captures important features of human speech but also provides a potential blueprint for a new type of spoken language system.
For example, the proposed architecture suggests an approach to automatic speech recognition which incorporates a generative model of speech whose output is compared with incoming speech data. Of course, this is exactly how HMM-based automatic speech recognition systems are constructed (Gales and Young, 2007)—the difference is that the architecture derived above not only suggest a richer generative model [in line with the ‘Motor Theory’ of speech perception (Liberman and Mattingly, 1985) and previous attempts to implement ‘recognition-by-synthesis’ (Bridle and Ralls, 1985)] but also that such an embedded model of speech generation should be derived not from the voice of the speaker but from the voice of the listener (which, in this case, is a machine!). Thus far, no-one has attempted such a radical approach to automatic speech recognition.
The proposed architecture also provides a framework for a new type of intentional speech synthesiser which listens to its own output and modifies its behavior as a function of how well it thinks it is achieving its communicative goals: for example, talking louder in a noisy environment and actively altering its pronunciation to maximise intelligibility and minimise potential confusion. In particular, the architecture makes an analogy between the depth of each search process and ‘motivation/effort,’ thereby reflecting the behavior illustrated by the “I do not know” example presented in Section 1.1 where a speaker trades effort against intelligibility. The key insight here is that the behavioral ‘target’ is not a signal but a perception (Powers, 1973). Hence, the solution maps very nicely into a hierarchical control-feedback process which aims to maintain sufficient contrast at the highest pragmatic level of communication by means of suitable regulatory compensations at the lower semantic, syntactic, lexical, phonemic, phonetic, and acoustic levels balanced against the effort of doing so. Such an innovative approach to speech synthesis has been implemented by the authors and is described below.
3. A Next-Generation Intentional Speech Synthesiser
The ideas outlined above have been used to construct a new type of intentional speech synthesiser known as ‘C2H’ (Computational model for H&H theory), which is capable of adapting its pronunciation in unpredictable acoustic environments as a function of its perceived communicative success (Moore and Nicolao, 2011; Nicolao et al., 2012). The ‘synthesis-by-analysis’ model (based on the principles outlined in Section 2.4) consists of a speech production system [inspired by Levelt (1989) and Hartsuiker and Kolk (2001)] and a negative feedback loop which, respectively, generates utterances and measures the environment effects on the outcome such that adjustments based on articulatory effort can be made dynamically according to the results of the analysis (see Figure 10). The perceptual feedback consists of an emulation of a listener’s auditory perceptual apparatus that measures the environmental state and returns information that is used to control the degree of modification to speech production.
Figure 10. Illustration of the C2H model of speech production (speech synthesiser on the left, auditory feedback loop on the right, adaptive control in the center).
The C2H model was implemented using ‘HTS’: the state-of-the-art parametric speech synthesiser developed by Tokuda et al. (2007, 2013). HTS is based on hidden Markov modeling, and a recursive search algorithm was added to adapt the model statistics at the frame (rather than whole utterance) level (Tokuda et al., 1995). This allowed the energy distribution and organisation in automatic speech production to be obtained through active manipulation of the synthesis parameters. An adaptation transform covering both the acoustic and durational statistics was trained using ‘maximum likelihood linear regression’ (MLLR); only the mean vectors were transformed. An implementation of the standard ANSI ‘Speech Intelligibility Index’ (SII) (American National Standards Institute, 1997) was used to estimate the intelligibility of the resulting synthesised speech (i.e., the artificial speaker’s model of the human listener).
3.2. Actively Managing Phonetic Contrast
Inspired by the ‘H&H’ principles espoused by Lindblom (1990), the adaptation of the synthesiser output was motivated by both articulatory and energetic manifestations of phonetic contrast. In particular, we introduce the notion of low-energy attractors: minimally contrastive acoustic realisations toward which at least two competing phones tend to converge. For example, in the utterances “This is my pet” versus “This is my pot,” the ease with which a listener can distinguish between “pet” and “pot” depends on the effort put in to the pronunciation of the vowel by the speaker. With poor contextual support (including the history of the interaction) and/or environmental noise, a speaker is likely to produce very clear high-effort hyper-articulated output:  or . However, if the context is strong and/or the environment is quiet, then a speaker is likely to produce a much less clear low-effort hypo-articulated output: close to  (the neutral schwa vowel) for both “pet” and “pot.”
In HMM-based speech synthesis, the acoustic realisation of any particular phone can be altered continuously (using a reasonably simple adaptation) in any direction in the high-dimensional space that is defined by their parametric representation. Therefore, once identified, a low-energy attractor in the acoustic space defines a specific direction along which each phone parametric representation should be possible to move in order to decrease or increase the degree of articulation. The hypothesis is thus that by manipulating the acoustic distance between the realisation of different phones, it is possible to vary the output from hypo-articulated speech (i.e., by moving toward the attractor) to hyper-articulated speech (i.e., by moving in the opposite direction away from the attractor) with appropriate consequences for the intelligibility of the resulting output.
It is well established that hyper-articulated speech corresponds to an expansion of a speaker’s vowel space and, conversely, hypo-articulated speech corresponds to a contraction of their vowel space (van Bergem, 1995). Hence, in the work reported here, the mid-central schwa vowel  was defined as the low-energy attractor for all vowels (see Figure 11A). However, for consonants it is not possible to define such a single low-energy attractor (van Son and Pols, 1999). In this case, each consonant was considered to have a particular competitor that is acoustically very close, and hence potentially confusable. Therefore, the minimum-contrastive point for each confusable pair of consonants was defined to be half-way between their citation realisations (see Figure 11B).
Figure 11. Graphical representation of the transformations required to achieve hyper-articulated (red arrows, THYP) or hypo-articulated (blue arrows, THYO) output for (A) a vowel midway between  and  and (B) a pair of contrastive consonants  and  (LC signifies the minimum-contrastive configurations).
3.3. MLLR Transforms
The MLLR transformations were estimated using a corpus of synthetic hypo-articulated speech. This consisted of speech generated using the HTS system trained on the CMU-ARCTIC SLT corpus6 and forcing its input control sequences to have only low-energy attractors. All vowels were substituted with schwa , while consonants were changed into their specific competitors. Using decision-tree-based clustering, HTS found the most likely acoustic model according to the phonetic and prosodic context for all of the phones, even those unseen in its original training corpus.
Adaptations of both the acoustic and duration models were trained to match the characteristics of the hypo-articulation reference, and a set of transformations was obtained which modified the mean vectors in the relevant HMMs. The covariance vector was not considered. The linear transform can be written as …
where is a P × P matrix, is a P × 1 bias vector for the i-th model, and P is the size of the parametric representation.
In practice, the MLLR transformations are scaled with different strengths. So, given the full-strength transform toward the low-energy attractor , the scaled mean vector is computed as …
where α is a weighting factor (α ≥ 0).
The transformation toward hyper-articulated speech is defined as the inverse of the trained transformation, which simply means that α ≤ 0.
The net result, given that the MLLR transform is part of a synthesis-by-analysis closed loop (as proposed in Section 2.4 and illustrated in Figure 10), is that the strength of the modification (controlled by α) can be adjusted continuously as a function of the perceived intelligibility of the speech7 in the environment where the communication takes place. The adjustment of α thus controls the dynamic expansion/compression of the acoustic space in order to achieve the communicative intentions of the synthesiser.
3.4. System Evaluation
In order to test the effectiveness of the intentional speech synthesiser, the C2H model was used to synthesise speech in the presence of various interfering noises at a range of signal-to-noise ratios. Experiments were conducted with different-strength MLLR adaptations (different values of α), and objective SII speech intelligibility measurements (American National Standards Institute, 1997) were made for each condition. SII was selected as not only is it a standard protocol for objective intelligibility assessment [and has been shown to have a good correlation with human perception (Tang et al., 2016)] but it also formed the basis of the system’s model of the listener. Phonetic analysis was provided by the standard Festival toolkit,8 and the duration control was left to the statistical model and its adaptations. 200 sentences from the 2010 Blizzard Challenge9 evaluation test were used to generate the full-strength forward transformation (α = max α) and full-strength inverse transformation (α = min α) samples. A standard speech synthesis (α = 0) was generated as reference.
It turns out that the range of values for α is not easily defined, and there is a significant risk that the transformation could produce unnatural speech phenomena (particularly as there is no lower limit for the value of α). In practice, the boundary values for α were determined experimentally, and an acceptable range of values was found to be α = [–0.8, 1] for vowels and α = [–0.7, 0.6] for consonants.
As an example of the effectiveness of these transformations, Figure 12 illustrates the consequences for the distribution of formant resonance frequencies for a range of different vowel sounds. As can be seen, the vowel space is severely reduced for hypo-articulated speech and somewhat expanded for hyper-articulated speech. This pattern successfully replicates established results obtained by comparing natural spontaneous speech with read speech (cf. Figure 2 in van Son and Pols (1999)).
Figure 12. Illustration of the effect of hyper/hypo transformations on the F1–F2 distribution of vowel formant resonance frequencies (in hertz). The distribution for untransformed vowels are shown with black lines. The distribution for hypo vowels are shown with blue-dashed lines (A), and the distribution for hyper vowels are shown with red-dashed lines (B). Formant frequencies were extracted using ‘Praat’ (http://www.fon.hum.uva.nl/praat/) and phone labels are displayed using the ‘CMU Pronouncing Phoneme Set’ (http://www.speech.cs.cmu.edu/cgi-bin/cmudict).
In terms of speech intelligibility, Figure 13 shows the consequences of varying between hypo- and hyper-articulation for synthesised speech competing with speech-babble noise at a challenging signal-to-noise ratio of 0 dB. The figure plots the difference in performance for hypo-articulated (HYO) speech or hyper-articulated (HYP) speech normalised with respect to the standard synthesiser settings (STD). The results clearly show a reduction in intelligibility for hypo-articulated speech and an increase in intelligibility for hyper-articulated speech. On average, the results indicate that the intelligibility of the synthesised speech can be reduced by 25% in hypo-articulated speech10 and increased by 25% in hyper-articulated speech.

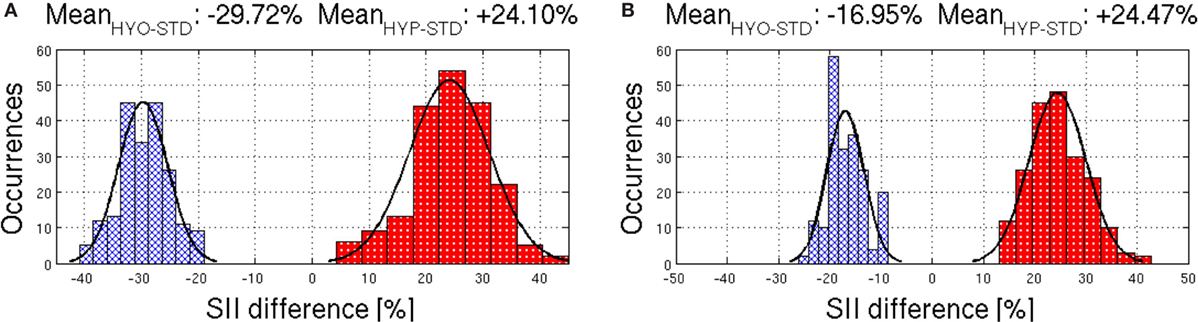

Figure 13. Distribution of the SII differences (in percentage) between hypo and standard speech (HYO-STD blue-crossed histograms), and between hyper and standard speech (HYP-STDred-dotted histograms) for (A) vowels and (B) consonants.
Overall, the results of the evaluation show that we were able to successfully implement the core components of a new form of intentional speech synthesiser based on the derived needs-driven architecture that is capable of dynamically adapting its output as a function of its perceived communicative success modulated by articulatory effort.
The needs-driven cognitive architecture described in Section 2 does appear to capture several important elements of communicative interaction that are missing from the ‘standard’ W3C-style model shown in Figure 2. Not only does the new architecture suggest a more structured approach to advanced forms of both automatic speech recognition and speech synthesis (the latter being demonstrated in Section 3) but it also applies to all forms of teleological/communicative interaction. That is, the derived architecture is not specific to speech-based interactivity, but also relevant to sign language and any other mode of communicative behavior—by mind or machine. In particular, two of the key concepts embedded in the architecture illustrated in Figure 9 are (i) an agent’s ability to ‘infer’ (using search) the consequences of their actions when they cannot be observed directly and (ii) the use of a forward model of ‘self’ to model ‘other.’ Both of these features align well with the contemporary view of language as “ostensive inferential recursive mind-reading” (Scott-Phillips, 2015), so this is a very positive outcome.
On the other hand, the intentional speech synthesiser described in Section 3 represents only one facet of the full needs-driven architecture. For example, while the implications of the framework for other aspects (such as automatic speech recognition) are discussed in Section 2.7, they have not yet been validated experimentally. Hence, while the derived architecture may be an appropriate model of communicative interaction between conspecifics (in this case, human beings), no artificial agent yet has such an advanced structure. This means that there is currently a gross mismatch in priors between humans and artificial agents, which is probably one explanation as to why users have difficulty engaging with contemporary speech-based systems. Following the analogy cited in Section 1.1, language-based interaction between users and current speech-based systems is more like a three-legged race where one partner has fallen over and is being dragged along the ground!
Indeed, the richness of the derived architecture makes it clear that successful language-based interaction between human beings is founded on substantial shared priors (see Figure 14A). However, for human–machine interaction, the fundamentally different situated and embodied real-world experiences of the interlocutors may mean that it may not be possible to simply ‘upgrade’ from one to the other (see Figure 14B. In other words, there may be a fundamental limit to the complexity of the interaction that can take place between mismatched partners such as a human being and an autonomous social agent (Moore, 2016b). Although it is certainly possible to instantiate a speech-based communicative interface11 between humans and machines …
“The assumption of continuity between a fully coded communication system at one end, and language at the other, is simply not justified.” (Scott-Phillips, 2015)
Figure 14. Pictographic representation (Moore, 2016a) of language-based coupling (dialog) between interlocutors. In (A), communicative interaction between human beings is founded on two-way ostensive recursive mind-reading (including mutual Theory-of-Mind). In (B), the artificial agent lacks the capability of ostensive recursive mind-reading (it has no Theory-of-Mind), so the interaction is inevitably constrained.
This notion of a potential discontinuity between simple command-based interaction and ‘natural’ human language has been a concern of the spoken language dialog systems (SLDS) community for some time. For example, Phillips (2006) speculated about a non-linear relationship between flexibility and usability of an SLDS; as flexibility increases with advancing technology, so usability increases until users no longer know what they can and cannot say, at which point usability tumbles and interaction falls apart (see Figure 15). Interestingly, the shape of the curve illustrated in Figure 15 is virtually identical to the famous ‘uncanny valley effect’ (Mori, 1970) in which a near human-looking artifact (such as a humanoid robot) can trigger feelings of eeriness and repulsion in an observer; as human likeness increases, so affinity increases until a point where artifacts start to appear creepy and affinity goes negative.
Figure 15. Illustration of the consequences of increasing the flexibility of spoken language dialog systems; increasing flexibility can lead to a habitability gap where usability drops catastrophically (reproduced, with permission, from Phillips (2006)). This means that it is surprisingly difficult to deliver a technology corresponding to the point marked ‘??’. (Contemporary systems such as Siri or Alexa correspond to the point marked ‘Add NL/Dialog.’)
Evidence for this unintended consequence of mismatched priors was already referred to in Section 1.1 in terms of its manifestation in low usage statistics for contemporary voice-enabled systems. This perspective is also supported by early experience with Jibo for which it has been reported that “Users had trouble discovering what Jibo could do”.12 Clearly, understanding how to bridge this ‘habitability gap’ (Moore, 2016b) is a critical aspect of ongoing research into the development of effective spoken language-based interaction between human beings and autonomous social agents (such as robots).
Finally, it is worth noting that there is an important difference between mismatched priors/beliefs and misaligned needs/intentions. The former leads to the habitability issues discussed above, but the latter can give rise to conflict rather than cooperation. Based on an earlier version of the architecture presented herein, Moore (2007a,b) concludes that, in order to facilitate cooperative interaction, an agent’s needs and intentions must be subservient to its user’s needs and intentions.
This paper has presented an alternative needs-driven cognitive architecture which models speech-based interaction as an emergent property of coupled hierarchical feedback-control processes in which a speaker has in mind the needs of a listener and a listener has in mind the intentions of a speaker. The architecture has been derived from basic principles underpinning agent–world and agent–agent interaction and, as a consequence, it goes beyond the standard behaviorist stimulus–response model of interactive dialog currently deployed in contemporary spoken language systems. The derived architecture reflects contemporary views on the nature of spoken language interaction, including sensorimotor overlap and the power of exploiting models of ‘self’ to understand/influence the behavior of ‘other.’
The implications of this architecture for future spoken language systems have been illustrated through the development of a new type of intentional speech synthesiser that is capable of adapting its pronunciation in unpredictable acoustic environments as a function of its perceived communicative success. Results have confirmed that, by actively managing phonetic contrast, the synthesiser is able to increase/decrease intelligibility by up to 25%.
The research presented herein confirms that intentional behavior is essential to the facilitation of meaningful and productive communicative interaction between human beings and autonomous social agents (such as robots). However, it is also pointed out that there is currently a gross mismatch in intentional priors between humans and artificial agents, and that this may ultimately impose a fundamental limit on the effectiveness of speech-based human–robot interaction.
RM developed the overall architecture, MN implemented and tested the speech synthesiser, and both authors contributed to the written manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer, TB, and handling editor declared their shared affiliation.
This work was supported by the European Commission [EU-FP6-507422, EU-FP6-034434, EU-FP7-213850, EU-FP7-231868, and EU-FP7-611971] and the UK Engineering and Physical Sciences Research Council [EP/I013512/1].
- ^For example, the ‘wrong’ sign for g would lead to positive feedback and an unstable system.
- ^Also, it might be safer and/or less costly to avoid physical exploration in favour of virtual exploration.
- ^Note that this assumes ‘honest’ communication in which intentions and interpretations are the same. Relaxing this assumption is an interesting topic, but is beyond the scope of the work reported herein.
- ^As measured by the SII-based simulated ‘listener.’
- ^It might appear strange that an artificial talker would seek to minimise communicative effort—why not speak maximally clearly all the time? However, not only is hypo-articulated speech often used in human communication as a strategy to overcome social and formal barriers but there is a correlation between α and effort for both the speaker and the listener. In particular, hyper-articulation means that there is an increase in the length and amplitude of an utterance, and speech that is too loud or takes too long is tiring for a listener (i.e. it requires additional perceptual effort).
- ^Essentially a voice button pressing system.
Baldassarre, G., Stafford, T., Mirolli, M., Redgrave, P., Ryan, R. M., and Barto, A. (2014). Intrinsic motivations and open-ended development in animals, humans, and robots: an overview. Front. Psychol. 5:985. doi: 10.3389/fpsyg.2014.00985
Kuhl, P. K., Ramirez, R. R., Bosseler, A., Lin, J.-F. L., and Imada, T. (2014). Infants’ brain responses to speech suggest analysis by synthesis. Proc. Natl. Acad. Sci. U.S.A. 111, 11238–11245. doi:10.1073/pnas.1410963111
Lindblom, B. (1990). “Explaining phonetic variation: a sketch of the H&H theory,” in Speech Production and Speech Modelling, eds W. J. Hardcastle and A. Marchal (Berlin: Kluwer Academic Publishers), 403–439.
Moore, R. K. (2018). “PCT and beyond: towards a computational framework for ‘intelligent’ systems,” in Living Control Systems IV: Perceptual Control Theory and the Future of the Life and Social Sciences, eds A. McElhone and W. Mansell (Benchmark Publications Inc). Available at: https://arxiv.org/abs/1611.05379.
Moore, R. K. (2014). “Spoken language processing: time to look outside?” in 2nd International Conference on Statistical Language and Speech Processing (SLSP 2014), Lecture Notes in Computer Science, Vol. 8791, eds L. Besacier, A.-H. Dediu, and C. Martín-Vide (Grenoble: Springer), 21–36.
Moore, R. K. (2016a). Introducing a pictographic language for envisioning a rich variety of enactive systems with different degrees of complexity. Int. J. Adv. Robot. Syst. 13. Available at: https://wwws.sagepub.com/doi/pdf/10.5772/62244
Moore, R. K. (2016b). “Is spoken language all-or-nothing? Implications for future speech-based human-machine interaction,” in Dialogues with Social Robots – Enablements, Analyses, and Evaluation, eds K. Jokinen and G. Wilcock (Springer Lecture Notes in Electrical Engineering (LNEE)), 281–291. Available at: http://arxiv.org/abs/1607.05174
Moore, R. K., and Nicolao, M. (2011). “Reactive speech synthesis: actively managing phonetic contrast along an H&H continuum,” in 17th International Congress of Phonetics Sciences (ICPhS) (Hong Kong), 1422–1425.
Pfeifer, R., and Verschure, P. (1992). “Distributed adaptive control: a paradigm for designing autonomous agents,” in First European Conference on Artificial Life, eds F. J. Varela and P. Bourgine (Cambridge, MA), 21–30.
Saon, G., Kurata, G., Sercu, T., Audhkhasi, K., Thomas, S., Dimitriadis, D., et al. (2017). English Conversational Telephone Speech Recognition by Humans and Machines. Available at: https://arxiv.org/abs/1703.02136
Tang, Y., Cooke, M., and Valentini-Botinhao, C. (2016). Evaluating the predictions of objective intelligibility metrics for modified and synthetic speech. Comput. Speech Lang. 35, 73–92. doi:10.1016/j.csl.2015.06.002
Tokuda, K., Masuko, T., Yamada, T., Kobayashi, T., and Imai, S. (1995). “An algorithm for speech parameter generation from continuous mixture HMMs with dynamic features,” in EUROSPEECH 1995 (Madrid, Spain), 757–760.
W3C-SIF. (2000). Introduction and Overview of W3C Speech Interface Framework. Available at: http://www.w3.org/TR/voice-intro/
