Random vector functional link networks for function approximation on manifolds

Abstract

The learning speed of feed-forward neural networks is notoriously slow and has presented a bottleneck in deep learning applications for several decades. For instance, gradient-based learning algorithms, which are used extensively to train neural networks, tend to work slowly when all of the network parameters must be iteratively tuned. To counter this, both researchers and practitioners have tried introducing randomness to reduce the learning requirement. Based on the original construction of Igelnik and Pao, single layer neural-networks with random input-to-hidden layer weights and biases have seen success in practice, but the necessary theoretical justification is lacking. In this study, we begin to fill this theoretical gap. We then extend this result to the non-asymptotic setting using a concentration inequality for Monte-Carlo integral approximations. We provide a (corrected) rigorous proof that the Igelnik and Pao construction is a universal approximator for continuous functions on compact domains, with approximation error squared decaying asymptotically like O(1/n) for the number n of network nodes. We then extend this result to the non-asymptotic setting, proving that one can achieve any desired approximation error with high probability provided n is sufficiently large. We further adapt this randomized neural network architecture to approximate functions on smooth, compact submanifolds of Euclidean space, providing theoretical guarantees in both the asymptotic and non-asymptotic forms. Finally, we illustrate our results on manifolds with numerical experiments.

1 Introduction

In recent years, neural networks have once again triggered an increased interest among researchers in the machine learning community. So-called deep neural networks model functions using a composition of multiple hidden layers, each transforming (possibly non-linearly) the previous layer before building a final output representation [1–5]. In machine learning parlance, these layers are determined by sets of weights and biases that can be tuned so that the network mimics the action of a complex function. In particular, a single layer feed-forward neural network (SLFN) with n nodes may be regarded as a parametric function of the form

Here, the function ρ:ℝ → ℝ is called an activation function and is potentially non-linear. Some typical examples include the sigmoid function , ReLU ρ(z) = max{0, z}, and sign functions, among many others. The parameters of the SLFN are the number of nodes n ∈ ℕ in the the hidden layer, the input-to-hidden layer weights and biases and (resp.), and the hidden-to-output layer weights . In this way, neural networks are fundamentally parametric families of functions whose parameters may be chosen to approximate a given function.

It has been shown that any compactly supported continuous function can be approximated with any given precision by a single layer neural network with a suitably chosen number of nodes [6], and harmonic analysis techniques have been used to study stability of such approximations [7]. Other recent results that take a different approach directly analyze the capacity of neural networks from a combinatorial point of view [8, 9].

While these results ensure existence of a neural network approximating a function, practical applications require construction of such an approximation. The parameters of the neural network can be chosen using optimization techniques to minimize the difference between the network and the function f:ℝ^N → ℝ it is intended to model. In practice, the function f is usually not known, and we only have access to a set of values of the function at finitely many points sampled from its domain, called a training set. The approximation error can be measured by comparing the training data to the corresponding network outputs when evaluated on the same set of points, and the parameters of the neural network f_n can be learned by minimizing a given loss function ; a typical loss function is the sum-of-squares error

The SLFN which approximates f is then determined using an optimization algorithm, such as back-propagation, to find the network parameters which minimize . It is known that there exist weights and biases which make the loss function vanish when the number of nodes n is at least m, provided the activation function is bounded, non-linear, and has at least one finite limit at either ±∞ [10].

Unfortunately, optimizing the parameters in SLFNs can be difficult. For instance, any non-linearity in the activation function can cause back-propagation to be very time-consuming or get caught in local minima of the loss function [11]. Moreover, deep neural networks can require massive amounts of training data, and so are typically unreliable for applications with very limited data availability, such as agriculture, healthcare, and ecology [12].

To address some of the difficulties associated with training deep neural networks, both researchers and practitioners have attempted to incorporate randomness in some way. Indeed, randomization-based neural networks that yield closed form solutions typically require less time to train and avoid some of the pitfalls of traditional neural networks trained using back-propagation [11, 13, 14]. One of the popular randomization-based neural network architectures is the Random Vector Functional Link (RVFL) network [15, 16], which is a single layer feed-forward neural network in which the input-to-hidden layer weights and biases are selected randomly and independently from a suitable domain and the remaining hidden-to-output layer weights are learned using training data.

By eliminating the need to optimize the input-to-hidden layer weights and biases, RVFL networks turn supervised learning into a purely linear problem. To see this, define ρ(X) ∈ ℝ^n×m to be the matrix whose jth column is and f(X) ∈ ℝ^m the vector whose jth entry is f(x_j). Then, the vector v ∈ ℝⁿ of hidden-to-output layer weights is the solution to the matrix-vector equation f(X) = ρ(X)^Tv, which can be solved by computing the Moore-Penrose pseudoinverse of ρ(X)^T. In fact, there exist weights and biases that make the loss function vanish when the number of nodes n is at least m, provided the activation function is smooth [17].

Although originally considered in the early- to mid-1990s [15, 16, 18, 19], RVFL networks have had much more recent success in several modern applications, including time-series data prediction [20], handwritten word recognition [21], visual tracking [22], signal classification [23, 24], regression [25], and forecasting [26, 27]. Deep neural network architectures based on RVFL networks have also made their way into more recent literature [28, 29], although traditional, single layer RVFL networks tend to perform just as well as, and with lower training costs than, their multi-layer counterparts [29].

Even though RVFL networks are proving their usefulness in practice, the supporting theoretical framework is currently lacking [see 30]. Most theoretical research into the approximation capabilities of deep neural networks centers around two main concepts: universal approximation of functions on compact domains and point-wise approximation on finite training sets [17]. For instance, in the early 1990s, it was shown that multi-layer feed-forward neural networks having activation functions that are continuous, bounded, and non-constant are universal approximators (in the L^p sense for 1 ≤ p < ∞) of continuous functions on compact domains [31, 32]. The most notable result in the existing literature regarding the universal approximation capability of RVFL networks is due to Igelnik and Pao [16] in the mid-1990s, who showed that such neural networks can universally approximate continuous functions on compact sets; the noticeable lack of results since has left a sizable gap between theory and practice. In this study, we begin to bridge this gap by further improving the Igelnik and Pao result, and bringing the mathematical theory behind RFVL networks into the modern spotlight. Below, we introduce the notation that will be used throughout this study, and describe our main contributions.

1.1 Notation

For a function f:ℝ^N → ℝ, the set supp(f)⊂ℝ^N denotes the support of f. We denote by and the classes of continuous functions mapping ℝ^N to ℝ whose support sets are compact and vanish at infinity, respectively. Given a set S⊂ℝ^N, we define its radius to be ; moreover, if dμ denotes the uniform volume measure on S, then we write to represent the volume of S. For any probability distribution P:ℝ^N → [0, 1], a random variable X distributed according to P is denoted by X~P, and we write its expectation as . The open ℓ_p ball of radius r > 0 centered at x ∈ ℝ^N is denoted by for all 1 ≤ p ≤ ∞; the ℓ_p unit-ball centered at the origin is abbreviated . Given a fixed δ > 0 and a set S⊂ℝ^N, a minimal δ-net for S, which we denote , is the smallest subset of S satisfying ; the δ-covering number of S is the cardinality of a minimal δ-net for S and is denoted .

1.2 Main results

In this study, we analyze the uniform approximation capabilities of RVFL networks. More specifically, we consider the problem of using RVFL networks to estimate a continuous, compactly supported function on N-dimensional Euclidean space.

The first theoretical result on approximating properties of RVFL networks, due to Igelnik and Pao [16], guarantees that continuous functions may be universally approximated on compact sets using RVFL networks, provided the number of nodes n ∈ ℕ in the network goes to infinity. Moreover, it shows that the mean square error of the approximation vanishes at a rate proportional to 1/n. At the time, this result was state-of-the-art and justified how RVFL networks were used in practice. However, the original theorem is not technically correct. In fact, several aspects of the proof technique are flawed. Some of the minor flaws are mentioned in Li et al. [33], but the subsequent revisions do not address the more significant issues which would make the statement of the result technically correct. We address these issues in this study, see Remark 1. Thus, our first contribution to the theory of RVFL networks is a corrected version of the original Igelnik and Pao theorem:

Theorem 1 ([16]). Let with K: = supp(f) and fix any activation function ρ, such that either ρ ∈ L¹(ℝ)∩L^∞(ℝ) with or ρ is differentiable with ρ′ ∈ L¹(ℝ)∩L^∞(ℝ) and . For any ε > 0, there exist distributions from which input weights and biases are drawn, and there exist hidden-to-output layer weights that depend on the realization of weights and biases, such that the sequence of RVFL networks is defined by

satisfies

as n → ∞.

For a more precise formulation of Theorem 1 and its proof, we refer the reader to Theorem 5 and Section 3.1.

Remark 1.

• 1. Even though in Theorem 1 we only claim existence of the distribution for input weights and biases , such a distribution is actually constructed in the proof. Namely, for any ε > 0, there exist constants α, Ω > 0 such that the random variables

are independently drawn from their associated distributions, and b_k: = −〈w_k, y_k〉 −αu_k.

• 2. We note that, unlike the original theorem statement in Igelnik and Pao [16], Theorem 1 does not show exact convergence of the sequence of constructed RVFL networks f_n to the original function f. Indeed, it only ensures that the limit f_n is ε-close to f. This should still be sufficient for practical applications since, given a desired accuracy level ε > 0, one can find values of α, Ω, andn such that this accuracy level is achieved on average. Exact convergence can be proved if one replaces α and Ω in the distribution described above by sequences and of positive numbers, both tending to infinity with n. In this setting, however, there is no guaranteed rate of convergence; moreover, as n increases, the ranges of the random variables and become increasingly larger, which may cause problems in practical applications.

• 3. The approach we take to construct the RVFL network approximating a function f allows one to compute the output weights exactly (once the realization of random parameters is fixed), in the case where the function f is known. For the details, we refer the reader to Equations 6, 8 in the proof of Theorem 1. If we only have access to a training set that is sufficiently large and uniformly distributed over the support of f, these formulas can be used to compute the output weights approximately, instead of solving the least squares problem.

• 4. Note that the normalization of the activation function can be replaced by the condition . Indeed, in the case when ρ ∈ L¹(ℝ)∩L^∞(ℝ) and one can simply use Theorem 1 to approximate by a sequence of RVFL network with the activation function . Mutatis mutandis in the case when More generally, this trick allows any of our theorems to be applied in the case

One of the drawbacks of Theorem 1 is that the mean square error guarantee is asymptotic in the number of nodes used in the neural network. This is clearly impractical for applications, and so it is desirable to have a more explicit error bound for each fixed number n of nodes used. To this end, we provide a new, non-asymptotic version of Theorem 1, which provides an error guarantee with high probability whenever the number of network nodes is large enough, albeit at the price of an additional Lipschitz requirement on the activation function:

Theorem 2 Let with K: = supp(f) and fix any activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ) with Suppose further that ρ is κ-Lipschitz on ℝ for some κ > 0. For any ε > 0 and η ∈ (0, 1), suppose that n ≥ C(N, f, ρ)ε⁻¹log(η⁻¹/ε), where C(N, f, ρ) is independent of ε and η and depends on f, ρ, and superexponentially on N. Then, there exist distributions from which input weights and biases are drawn, and there exist hidden-to-output layer weights that depend on the realization of weights and biases, such that the RVFL network defined by

satisfies

with probability at least 1−η.

For simplicity, the bound on the number n of the nodes on the hidden layer here is rough. For a more precise formulation of this result that contains a bound with explicit constant, we refer the reader to Theorem 6 in Section 3.2. We also note that the distribution of the input weight and bias here can be selected as described in Remark 1.

The constructions of RVFL networks presented in Theorems 1, 2 depend heavily on the dimension of the ambient space ℝ^N. If N is small, this dependence does not present much of a problem. However, many modern applications require the ambient dimension to be large. Fortunately, a common assumption in practice is the support of the signals of interest lies on a lower-dimensional manifold embedded in ℝ^N. For instance, the landscape of cancer cell states can be modeled using non-linear, locally continuous “cellular manifolds;” indeed, while the ambient dimension of this state space is typically high (e.g., single-cell RNA sequencing must account for approximately 20,000 gene dimensions), cellular data actually occupies an intrinsically lower dimensional space [34]. Similarly, while the pattern space of neural population activity in the brain is described by an exponential number of parameters, the spatiotemporal dynamics of brain activity lie on a lower-dimensional subspace or “neural manifold” [35]. In this study, we propose a new RVFL network architecture for approximating continuous functions defined on smooth compact manifolds that allows to replace the dependence on the ambient dimension N with dependence on the manifold intrinsic dimension. We show that RVFL approximation results can be extended to this setting. More precisely, we prove the following analog of Theorem 2.

Theorem 3 Let be a smooth, compact d-dimensional manifold with finite atlas {(_{Uj, ϕj)}j ∈ J} and . Fix any activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ) with such that ρ is κ-Lipschitz on ℝ for some κ > 0. For any ε > 0 and η ∈ (0, 1), suppose n ≥ C(d, f, ρ)ε⁻¹log(η⁻¹/ε), where C(d, f, ρ) is independent of ε and η and depends on f, ρ, and superexponentially on d. Then, there exists an RVFL-like approximation f_n of the function f with a parameter selection similar to the Theorem 1 construction that satisfies

with probability at least 1−η.

For a the construction of the RVFL-like approximation f_n and a more precise formulation of this result and an analog of Theorem 1 applied to manifolds, we refer the reader to Section 3.3.1 and Theorems 7, 8. We note that the approximation f_n here is not obtained as a single RVFL network construction, but rather as a combination of several RVFL networks in local manifold coordinates.

1.3 Organization

The remaining part of the article is organized as follows. In Section 2, we discuss some theoretical preliminaries on concentration bounds for Monte-Carlo integration and on smooth compact manifolds. Monte-Carlo integration is an essential ingredient in our construction of RVFL networks approximating a given function, and we use the results listed in this section to establish approximation error bounds. Theorem 1 is proven in Section 3.1, where we break down the proof into four main steps, constructing a limit-integral representation of the function to be approximated in Lemmas 3, 4, then using Monte-Carlo approximation of the obtained integral to construct an RVFL network in Lemma 5, and, finally, establishing approximation guarantees for the constructed RVFL network. The proofs of Lemmas 3, 4, and 5 can be found in Sections 3.5.1, 3.5.2, and 3.5.3, respectively. We further study properties of the constructed RVFL networks and prove the non-asymptotic approximation result of Theorem 2 in Section 3.2. In Section 3.3, we generalize our results and propose a new RVFL network architecture for approximating continuous functions defined on smooth compact manifolds. We show that RVFL approximation results can be extended to this setting by proving an analog of Theorem 1 in Section 3.3.2 and Theorem 3 in Section 3.5.5. Finally, in Section 3.4, we provide numerical evidence to illustrate the result of Theorem 3.

2 Materials and methods

In this section, we briefly introduce supporting material and theoretical results which we will need in later sections. This material is far from exhaustive, and is meant to be a survey of definitions, concepts, and key results.

2.1 A concentration bound for classic Monte-Carlo integration

A crucial piece of the proof technique employed in Igelnik and Pao [16], which we will use repeatedly, is the use of the Monte-Carlo method to approximate high-dimensional integrals. As such, we start with the background on Monte-Carlo integration. The following introduction is adapted from the material in Dick et al. [36].

Let f:ℝ^N → ℝ and S⊂ℝ^N a compact set. Suppose we want to estimate the integral , where μ is the uniform measure on S. The classic Monte Carlo method does this by an equal-weight cubature rule,

where are independent identically distributed uniform random samples from S and is the volume of S. In particular, note that 𝔼I_n(f, S) = I(f, S) and

Let us define the quantity

It follows that the random variable I_n(f) has mean I(f, S) and variance vol²(S)σ(f, S)²/n. Hence, by the Central Limit Theorem, provided that 0 < vol²(S)σ(f, S)² < ∞, we have

for any constant C > 0, where ε(f, S): = vol(S)σ(f, S). This yields the following well-known result:

Theorem 4 For any f ∈ L²(S, μ), the mean-square error of the Monte Carlo approximation I_n(f, S) satisfies

where the expectation is taken with respect to the random variables and σ(f, S) is defined in Equation 1.

In particular, Theorem 4 implies as n → ∞.

In the non-asymptotic setting, we are interested in obtaining a useful bound on the probability ℙ(|I_n(f, S)−I(f, S)| ≥ t) for all t > 0. The following lemma follows from a generalization of Bennett's inequality (Theorem 7.6 in [37]; see also [38, 39]).

Lemma 1 For any f ∈ L²(S) and n ∈ ℕ, we have

for all t > 0 and a universal constant C > 0, provided |vol(S)f(x)| ≤ K for almost every x ∈ S.

2.2 Smooth, compact manifolds in Euclidean space

In this section, we review several concepts of smooth manifolds that will be useful to us later. Many of the definitions and results that follow can be found, for instance, in Shaham et al. [40]. Let be a smooth, compact d-dimensional manifold. A chart for is a pair (U, ϕ) such that is an open set and ϕ:U → ℝ^d is a homeomorphism. One way to interpret a chart is as a tangent space at some point x ∈ U; in this way, a chart defines a Euclidean coordinate system on U via the map ϕ. A collection {(_{Uj, ϕj)}j ∈ J} of charts defines an atlas for if . We now define a special collection of functions on called a partition of unity.

Definition 1 Let be a smooth manifold. A partition of unity of with respect to an open cover {_{Uj}j ∈ J} of is a family of non-negative smooth functions {_{ηj}j ∈ J} such that for every , we have and, for every j ∈ J, supp(η_j)⊂U_j.

It is known that if is compact, there exists a partition of unity of such that supp(η_j) is compact for all j ∈ J [see 41]. In particular, such a partition of unity exists for any open cover of corresponding to an atlas.

Fix an atlas {(_{Uj, ϕj)}j ∈ J} for , as well as the corresponding, compactly supported partition of unity {_{ηj}j ∈ J}. Then, we have the following useful result [see 40, Lemma 4.8].

Lemma 2 Let be a smooth, compact manifold with atlas {(_{Uj, ϕj)}j ∈ J} and compactly supported partition of unity {_{ηj}j ∈ J}. For any , we have

for all , where

In later sections, we use the representation of Lemma 2 to integrate functions over . To this end, for each j ∈ J, let Dϕ_j(y) denote the differential of ϕ_j at y ∈ U_j, which is a map from the tangent space into ℝ^d. One may interpret Dϕ_j(y) as the matrix representation of a basis for the cotangent space at y ∈ U_j. As a result, Dϕ_j(y) is necessarily invertible for each y ∈ U_j, and so we know that |det(Dϕ_j(y))| > 0 for each y ∈ U_j. Hence, it follows by the change of variables theorem that

3 Results

In this section, we prove our main results formulated in Section 1.2 and also use numerical simulations to illustrate the RVFL approximation performance in a low-dimensional submanifold setup. To improve readability of this section, we postpone the proofs of technical lemmas till Section 3.5.

3.1 Proof of Theorem 1

We split the proof of the theorem into two parts, first handling the case ρ ∈ L¹(ℝ)∩L^∞(ℝ) and second, addressing the case ρ′ ∈ L¹(ℝ)∩L^∞(ℝ).

3.1.1 Proof of Theorem 1 when ρ ∈ L¹(ℝ)∩L^∞(ℝ)

We begin by restating the theorem in a form that explicitly includes the distributions that we draw our random variables from.

Theorem 5 ([16]) Let with K: = supp(f) and fix any activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ) with . For any ε > 0, there exist constants α, Ω > 0 such that the following holds: If, for k ∈ ℕ, the random variables

are independently drawn from their associated distributions, and

then there exist hidden-to-output layer weights (that depend on the realization of the weights and biases ) such that the sequence of RVFL networks defined by

satisfies

as n → ∞.

Proof. Our proof technique is based on that introduced by Igelnik and Pao and can be divided into four steps. The first three steps essentially consist of Lemma 3, Lemma 4, and Lemma 5, and the final step combines them to obtain the desired result. First, the function f is approximated by a convolution, given in Lemma 3. The proof of this result can be found in Section 3.5.1.

Lemma 3 Let and h ∈ L¹(ℝ^N) with For Ω > 0, define

Then, we have

uniformly for all x ∈ ℝ^N.

Next, we represent f as the limiting value of a multidimensional integral over the parameter space. In particular, we replace (f*h_Ω)(x) in the convolution identity (Equation 4) with a function of the form , as this will introduce the RVFL structure we require. To achieve this, we first use a truncated cosine function in place of the activation function ρ and then switch back to a general activation function.

To that end, for each fixed Ω > 0, let and define cos_Ω:ℝ → [−1, 1] by

Moreover, introduce the functions

where y, w ∈ ℝ^N, u ∈ ℝ, and ϕ = A*A for any even function A ∈ C^∞(ℝ) supported on s.t. ∥A∥₂ = 1. Then, we have the following lemma, a detailed proof of which can be found in Section 3.5.2.

Lemma 4 Let and ρ ∈ L¹(ℝ) with K: = supp(f) and . Define F_{α, Ω} and b_α as in Equation 6 for all α > 0. Then, for , we have

uniformly for every x ∈ K, where .

The next step in the proof of Theorem 5 is to approximate the integral in Equation 7 using the Monte-Carlo method. Define for k = 1, …, n, and the random variables by

Then, we have the following lemma that is proven in Section 3.5.3.

Lemma 5 Let and ρ ∈ L¹(ℝ)∩L^∞(ℝ) with K: = supp(f) and . Then, as n → ∞, we have

where and .

To complete the proof of Theorem 5, we combine the limit representation (Equation 7) with the Monte-Carlo error guarantee (Equation 9) and show that, given any ε > 0, there exist α, Ω > 0 such that

as n → ∞. To this end, let ε′ > 0 be arbitrary and consider the integral I(x; p) given by

for x ∈ K and p ∈ ℕ. By Equation 7, there exist α, Ω > 0 such that |f(x)−I(x; 1)| < ε′ holds for every x ∈ K, and so it follows that

for every x ∈ K. Jensen's inequality now yields that

By Equation 9, we know that the second term on the right-hand side of Equation 11 is O(1/n). Therefore, we have

and so the proof is completed by taking and choosing α, Ω > 0 accordingly.

3.1.2 Proof of Theorem 1 when ρ′ ∈ L¹(ℝ)∩L^∞(ℝ)

The full statement of the theorem is identical to that of Theorem 5 albeit now with ρ′ ∈ L¹(ℝ)∩L^∞(ℝ), so we omit it for brevity. Its proof is also similar to the proof of the case where ρ ∈ L¹(ℝ)∩L^∞(ℝ) with some key modifications. Namely, one uses an integration by parts argument to modify the part of the proof corresponding to Lemma 4. The details of this argument are presented in Section 3.5.4.

3.2 Proof of Theorem 2

In this section, we prove the non-asymptotic result for RVFL networks in ℝ^N, and we begin with a more precise statement of the theorem that makes all the dimensional dependencies explicit.

Theorem 6 Consider the hypotheses of Theorem 5 and suppose further that ρ is κ-Lipschitz on ℝ for some κ > 0. For any

suppose

where , c > 0 is a numerical constant, and Σ is a constant depending on f and ρ, and let parameters , , and be as in Theorem 5. Then, the RVFL network defined by

satisfies

with probability at least 1−η.

Proof. Let with K: = supp(f) and suppose ε > 0, η ∈ (0, 1) are fixed. Take an arbitrarily κ-Lipschitz activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ). We wish to show that there exists an RVFL network defined on K that satisfies the

with probability at least 1−η when n is chosen sufficiently large. The proof is obtained by modifying the proof of Theorem 5 for the asymptotic case.

We begin by repeating the first two steps in the proof of Theorem 5 from Sections 3.5.1, 3.5.2. In particular, by Lemma 4 we have the representation given by Equation 4, namely,

holds uniformly for all x ∈ K. Hence, if we define the random variables f_n and I_n from Section 3.5.3 as in Equations 8, 29, respectively, we seek a uniform bound on the quantity

over the compact set K, where I(x; 1) is given by Equation 10 for all x ∈ K. Since Equation 7 allows us to fix α, Ω > 0 such that

holds for every x ∈ K simultaneously, the result would follow if we show that, with high probability, uniformly for all x ∈ K. Indeed, this would yield

with high probability. To this end, for δ > 0, let denote a minimal δ-net for K, with cardinality . Now, fix x ∈ K and consider the inequality

where is such that ∥x−z∥₂ < δ. We will obtain the desired bound on Equation 12 by bounding each of the terms (*), (**), and (***) separately.

First, we consider the term (*). Recalling the definition of I_n, observe that we have

where and we define

Now, since ρ is assumed to be κ-Lipschitz, we have

for any y ∈ K, w ∈ [−Ω, Ω]^N, and Hence, an application of the Cauchy–Schwarz inequality yields for all x ∈ K, from which it follows that

holds for all x ∈ K.

Next, we bound (***) using a similar approach. Indeed, by the definition of I(·;1), we have

Using the fact that for al x ∈ K, it follows that

holds for all x ∈ K, just like Equation 13.

Notice that the Equations 13, 14 are deterministic. In fact, both can be controlled by choosing an appropriate value for δ in the net . To see this, fix ε′ > 0 arbitrarily and recall that vol(K(Ω)) = (2Ω)^Nπ(2L + 1)vol(K). A simple computation then shows that (*) + (***) < ε′ whenever

We now bound (**) uniformly for x ∈ K. Unlike (*) and (***), we cannot bound this term deterministically. In this case, however, we may apply Lemma 1 to

for any . Indeed, because and ρ ∈ L^∞(ℝ). Then, Lemma 1 yields the tail bound

for all t > 0, where c > 0 is a numerical constant and

By taking

we obtain B = Cα(Ω/π)^N(π+2Nrad(K)Ω) and

If we choose the number of nodes such that

then a union bound yields (**) < t simultaneously for all with probability at least 1−η. Combined with the bounds from Equations 13, 14, it follows from Equation 12 that

simultaneously for all x ∈ K with probability at least 1−η, provided δ and n satisfy Equations 15, 16, respectively. Since we require , the proof is then completed by setting and choosing δ and n accordingly. In particular, it suffices to choose so that Equations 15, 16 become

as desired.

Remark 2 The implication of Theorem 6 is that, given a desired accuracy level ε > 0, one can construct a RVFL network f_n that is ε-close to f with high probability, provided the number of nodes n in the neural network is sufficiently large. In fact, if we assume that the ambient dimension N is fixed here, then δ and n depend on the accuracy ε and probability η as

Using that log(1+x) = x+O(x²) for small values of x, the requirement on the number of nodes behaves like

whenever ε is sufficiently small. Using a simple bound on the covering number, this yields a coarse estimate of n≳ε⁻¹log(η⁻¹/ε).

Remark 3 If we instead assume that N is variable, then, under the assumption that f is Hölder continuous with exponent β, one should expect that n = ω(N^2βN) as N → ∞ (in light of Remark 10 and in conjunction with Theorem 6 with log(1+1/x)≈1/x for large x). In other words, the number of nodes required in the hidden layer is superexponential in the dimension. This dependence of n on N may be improved by means of more refined proof techniques. As for α, if follows from Remark 12 that α = Θ(1) as N → ∞ provided

Remark 4 The κ-Lipschitz assumption on the activation function ρ may likely be removed. Indeed, since (***) in Equation 12 can be bounded instead by leveraging continuity of the L¹ norm with respect to translation, the only term whose bound depends on the Lipschitz property of ρ is (*). However, the randomness in I_n (that we did not use to obtain the bound in Equation 13) may be enough to control (*) in most cases. Indeed, to bound (*), we require control over quantities of the form ρα〈w_k, x−y_k〉 −u_k−ρα〈w_k, z−y_k〉−u_k. For most practical realizations of ρ, this difference will be small with high probability (on the draws of y_k, w_k, u_k), whenever ∥x−z∥₂ is sufficiently small.

3.3 Results on sub-manifolds of Euclidean space

The constructions of RVFL networks presented in Theorems 5, 6 depend heavily on the dimension of the ambient space ℝ^N. Indeed, the random variables used to construct the input-to-hidden layer weights and biases for these neural networks are N-dimensional objects; moreover, it follows from Equations 15, 16 that the lower bound on the number n of nodes in the hidden layer depends superexponentially on the ambient dimension N. If the ambient dimension is small, these dependencies do not present much of a problem. However, many modern applications require the ambient dimension to be large. Fortunately, a common assumption in practice is that signals of interest have (e.g., manifold) structure that effectively reduces their complexity. Good theoretical results and algorithms in a number of settings typically depend on this induced smaller dimension rather than the ambient dimension. For this reason, it is desirable to obtain approximation results for RVFL networks that leverage the underlying structure of the signal class of interest, namely, the domain of .

One way to introduce lower-dimensional structure in the context of RVFL networks is to assume that supp(f) lies on a subspace of ℝ^N. More generally, and motivated by applications, we may consider the case where supp(f) is actually a submanifold of ℝ^N. To this end, for the remainder of this section, we assume to be a smooth, compact d-dimensional manifold and consider the problem of approximating functions using RVFL networks. As we are going to see, RVFL networks in this setting yield theoretical guarantees that replace the dependencies of Theorems 5, 6 on the ambient dimension N with dependencies on the manifold dimension d. Indeed, one should expect that the random variables , are essentially d-dimensional objects (rather than N-dimensional) and that the lower bound on the number of network nodes in Theorem 6 scales as a (superexponential) function of d rather than N.

3.3.1 Adapting RVFL networks to d-manifolds

As in Section 2.2, let {(_{Uj, ϕj)}j ∈ J} be an atlas for the smooth, compact d-dimensional manifold with the corresponding compactly supported partition of unity {_{ηj}j ∈ J}. Since is compact, we assume without loss of generality that |J| < ∞. Indeed, if we additionally assume that satisfies the property that there exists an r > 0 such that, for each , is diffeomorphic to an ℓ₂ ball in ℝ^d with diffeomorphism close to the identity, then one can choose an atlas {(_{Uj, ϕj)}j ∈ J} with by intersecting with ℓ₂ balls in ℝ^N of radii r/2 [40]. Here, T_d is the so-called thickness of the covering and there exist coverings such that T_d≲dlog(d).

Now, for , Lemma 2 implies that

for all , where

As we will see, the fact that is smooth and compact implies for each j ∈ J, and so we may approximate each using RVFL networks on ℝ^d as in Theorems 5, 6. In this way, it is reasonable to expect that f can be approximated on using a linear combination of these low-dimensional RVFL networks. More precisely, we propose approximating f on via the following process:

• For each j ∈ J, approximate uniformly on using a RVFL network as in Theorems 5, 6;

• Approximate f uniformly on by summing these RVFL networks over J, i.e.,

for all .

3.3.2 Main results on d-manifolds

We now prove approximation results for the manifold RVFL network architecture described in Section 3.3.1. For notational clarity, from here onward, we use to denote the limit as each n_j tends to infinity simultaneously. The first theorem that we prove is an asymptotic approximation result for continuous functions on manifolds using the RVFL network construction presented in Section 3.3.1. This theorem is the manifold-equivalent of Theorem 5.

Theorem 7 Let be a smooth, compact d-dimensional manifold with finite atlas {(_{Uj, ϕj)}j ∈ J} and . Fix any activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ) with . For any ε > 0, there exist constants α_j, Ω_j > 0 for each j ∈ J such that the following holds. If, for each j ∈ J and for k ∈ ℕ, the random variables

are independently drawn from their associated distributions, and

then there exist hidden-to-output layer weights such that the sequences of RVFL networks defined by

satisfy

as {_{nj}j ∈ J} → ∞.

Proof. We wish to show that there exist sequences of RVFL networks defined on ϕ_j(U_j) for each j ∈ J, which together satisfy the asymptotic error bound

as {_{nj}j ∈ J} → ∞. We will do so by leveraging the result of Theorem 5 on each .

To begin, recall that we may apply the representation given by Equation 17 for f on each chart (U_j, ϕ_j); the RVFL networks we seek are approximations of the functions in this expansion. Now, as supp(η_j)⊂U_j is compact for each j ∈ J, it follows that each set ϕ_j(supp(η_j)) is a compact subset of ℝ^d. Moreover, because if and only if z ∈ ϕ_j(U_j) and , we have that is supported on a compact set. Hence, for each j ∈ J, and so we may apply Lemma 4 to obtain the uniform limit representation given by Equation 7 on ϕ_j(U_j), that is,

where we define

In this way, the asymptotic error bound that is the final result of Theorem 5, namely

holds. With these results in hand, we may now continue with the main body of the proof.

Since the representation given by Equation 17 for f on each chart (U_j, ϕ_j) yields

for all , Jensen's inequality allows us to bound the mean square error of our RVFL approximation by

To bound (*), note that the change of variables given by Equation 2 implies

for each j ∈ J. Defining , which is necessarily bounded away from zero for each j ∈ J by compactness of , we therefore have

Hence, applying Equation 18 for each j ∈ J yields

because With the bound given by Equation 20 in hand, Equation 19 becomes

as {_{nj}j ∈ J} → ∞, and so the proof is completed by taking each ε_j > 0 in such a way that

and choosing α_j, Ω_j > 0 accordingly for each j ∈ J.

Remark 5 Note that the neural-network architecture obtained in Theorem 7 has the following form in the case of a generic atlas. To obtain the estimate of f(x), the input x is first “pre-processed” by computing ϕ_j(x) for each j ∈ J such that x ∈ U_j, and then put through the corresponding RVFL network. However, using the Geometric Multi-Resolution Analysis approach from Allard et al. [42] (as we do in Section 3.4), one can construct an approximation (in an appropriate sense) of the atlas, with maps ϕ_j being linear. In this way, the pre-processing step can be replaced by the layer computing ϕ_j(x), followed by the RVFL layer f_j. We refer the reader to Section 3.4 for the details.

The biggest takeaway from Theorem 7 is that the same asymptotic mean-square error behavior we saw in the RVFL network architecture of Theorem 5 holds for our RVFL-like construction on manifolds, with the added benefit that the input-to-hidden layer weights and biases are now d-dimensional random variables rather than N-dimensional. Provided the size of the atlas |J| is not too large, this significantly reduces the number of random variables that must be generated to produce a uniform approximation of .

One might expect to see a similar reduction in dimension dependence for the non-asymptotic case if the RVFL network construction of Section 3.3.1 is used. Indeed, our next theorem, which is the manifold-equivalent of Theorem 6, makes this explicit:

Theorem 8 Let be a smooth, compact d-dimensional manifold with finite atlas {(_{Uj, ϕj)}j ∈ J} and . Fix any activation function ρ ∈ L¹(ℝ)∩L^∞(ℝ) such that ρ is κ-Lipschitz on ℝ for some κ > 0 and . For any ε > 0, there exist constants α_j, Ω_j > 0 for each j ∈ J such that the following holds. Suppose, for each j ∈ J and for k = 1, ..., n_j, the random variables

are independently drawn from their associated distributions, and

Then, there exist hidden-to-output layer weights such that, for any

and

where , c > 0 is a numerical constant, and the sequences of RVFL networks defined by

satisfy

with probability at least 1−η.

Proof. See Section 3.5.5.

As alluded to earlier, an important implication of Theorems 7, 8 is that the random variables and are d-dimensional objects for each j ∈ J. Moreover, bounds for δ_j and n_j now have superexponential dependence on the manifold dimension d instead of the ambient dimension N. Thus, introducing the manifold structure removes the dependencies on the ambient dimension, replacing them instead with the intrinsic dimension of and the complexity of the atlas {(_{Uj, ϕj)}j ∈ J}.

Remark 6 The bounds on the covering radii δ_j and hidden layer nodes n_j needed for each chart in Theorem 8 are not optimal. Indeed, these bounds may be further improved if one uses the local structure of the manifold, through quantities such as its curvature and reach. In particular, the appearance of |J| in both bounds may be significantly improved upon if the manifold is locally well-behaved.

3.4 Numerical simulations

In this section, we provide numerical evidence to support the result of Theorem 8. Let be a smooth, compact d-dimensional manifold. Since having access to an atlas for is not necessarily practical, we assume instead that we have a suitable approximation to . For our purposes, we will use a Geometric Multi-Resolution Analysis (GMRA) approximation of (see [42]; and also, e.g., [43] for a complete definition).

A GMRA approximation of provides a collection of centers and affine projections on ℝ^N such that, for each j ∈ {1, …, J}, the pairs define d-dimensional affine spaces that approximate with increasing accuracy in the following sense. For every , there exists and such that

holds whenever is sufficiently small.

In this way, a GMRA approximation of essentially provides a collection of approximate tangent spaces to . Hence, a GMRA approximation having fine enough resolution (i.e., large enough j) is a good substitution for an atlas. In practice, one must often first construct a GMRA from empirical data, assumed to be sampled from appropriate distributions on the manifold. Indeed, this is possible, and yields the so-called empirical GMRA, studied in Maggioni et al. [44], where finite-sample error bounds are provided. The main point is that given enough samples on the manifold, one can construct a good GMRA approximation of the manifold.

Let be a GMRA approximation of for refinement level j. Since the affine spaces defined by (c_j,k, P_j,k) for each k ∈ {1, …, K_j} are d-dimensional, we will approximate f on by projecting it (in an appropriate sense) onto these affine spaces and approximating each projection using an RVFL network on ℝ^d. To make this more precise, observe that, since each affine projection acts on as P_j,kx = c_j,k+Φ_j,k(x−c_j,k) for some othogonal projection , for each k ∈ {1, …K_j}, we have

where is the compact singular value decomposition (SVD) of Φ_j,k (i.e., only the left and right singular vectors corresponding to non-zero singular values are computed). In particular, the matrix of right-singular vectors enables us to define a function , given by

which satisfies for all . By continuity of f and Equation 21, this means that for any ε > 0, there exists j ∈ ℕ such that for some k ∈ {1, …, K_j}. For such k ∈ {1, …, K_j}, we may therefore approximate f on the affine space associated with (c_j,k, P_j,k) by approximating using a RFVL network of the form

where and are random input-to-hidden layer weights and biases (resp.) and the hidden-to-output layer weights are learned. Choosing the activation function ρ and random input-to-hidden layer weights and biases as in Theorem 8 then guarantees that is small with high probability whenever n_j,k is sufficiently large.

In light of the above discussion, we propose the following RVFL network construction for approximating functions : Given a GMRA approximation of with sufficiently high resolution j, construct and train RVFL networks of the form given by Equation 22 for each k ∈ {1, …, K_j}. Then, given and ε > 0, choose such that

and evaluate to approximate f(x). We summarize this algorithm in Algorithm 1. Since the structure of the GMRA approximation implies holds for our choice of [see 43], continuity of f and Lemma 5 imply that, for any ε > 0 and j large enough,

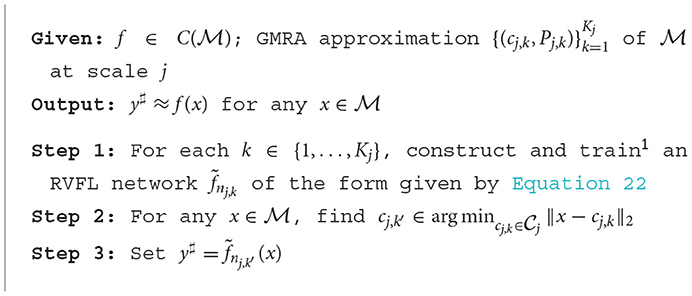

Algorithm 1

Approximation algorithm.

holds with high probability, provided satisfies the requirements of Theorem 8.

Remark 7 In the RVFL network construction proposed above, we require that the function f be defined in a sufficiently large region around the manifold. Essentially, we need to ensure that f is continuously defined on the set , where is the scale-j GMRA approximation

This ensures that f can be evaluated on the affine subspaces given by the GMRA.

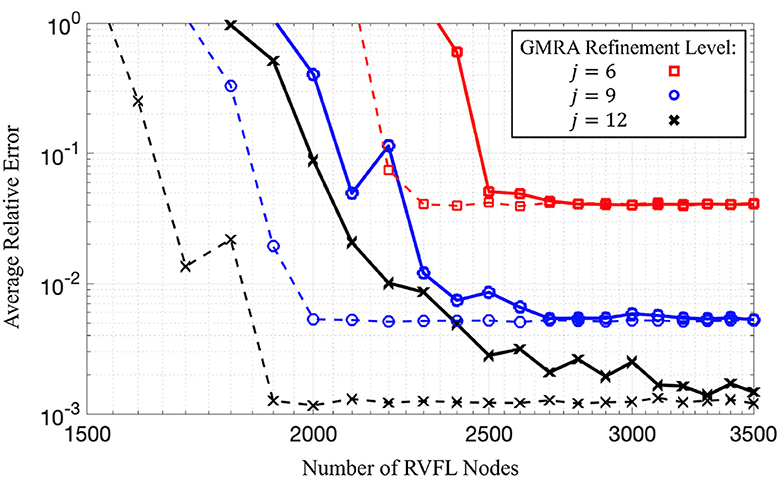

To simulate Algorithm 1, we take embedded in ℝ²⁰ and construct a GMRA up to level j_max = 15 using 20,000 data points sampled uniformly from . Given j ≤ j_max, we generate RVFL networks as in Equation 22 and train them on using the training pairs , where T_k,j is the affine space generated by (c_j,k, P_j,k). For simplicity, we fix n_j,k = n to be constant for all k ∈ {1, …, K_j} and use a single, fixed pair of parameters α, Ω > 0 when constructing all RVFL networks. We then randomly select a test set of 200 points for use throughout all experiments. In each experiment (i.e., point in Figure 1), we use Algorithm 1 to produce an approximation of f(x). Figure 1 displays the mean relative error in these approximations for varying numbers of nodes n; to construct this plot, f is taken to be the exponential and ρ the hyperbolic secant function. Notice that for small numbers of nodes, the RVFL networks are not very good at approximating f, regardless of the choice of α, Ω > 0. However, the error decays as the number of nodes increases until reaching a floor due to error inherent in the GMRA approximation. Hence, as suggested by Theorem 3, to achieve a desired error bound of ε > 0, one needs to only choose a GMRA scale j such that the inherent error in the GMRA (which scales like 2^−j) is less than ε, then adjust the parameters α_j, Ω_j, and n_j,k accordingly.

Figure 1

Remark 8 As we just mentioned, the error can only decay so far due to the resolution of the GMRA approximation. However, that is not the only floor in our simulation; indeed, the ε in Theorem 3 is determined by the α_j's and Ω_j's, which we kept fixed (see the caption of Figure 1). Consequently, the stagnating accuracy as n increases, as seen in Figure 1, is also predicted by Theorem 3. Since the solid and dashed lines seem to reach the same floor, the floor due to error inherent in the GMRA approximation seems to be the limiting error term for RVFL networks with large numbers of nodes.

Remark 9 Utilizing random inner weights and biases resulted in us needing to approximate the atlas to the manifold. To this end, knowing the computational complexity of the GMRA approximation would be useful in practice. As it turns out in Liao and Maggioni [45], calculating the GMRA approximation has computational complexity O(C^dNmlog(m)), where m is the number of training data points and C > 0 is a numerical constant.

3.5 Proofs of technical lemmas

3.5.1 Proof of Lemma 3

Observe that h_Ω defined in Equation 3 may be viewed as a multidimensional bump function; indeed, the parameter Ω > 0 controls the width of the bump. In particular, if Ω is allowed to grow very large, then h_Ω becomes very localized near the origin. Objects that behave in this way are known in the functional analysis literature as approximate δ-functions:

Definition 2 A sequence of functions are called approximate (or nascent) δ-functions if

for all . For such functions, we write for all x ∈ ℝ^N, where δ₀ denotes the N-dimensional Dirac δ-function centered at the origin.

Given φ ∈ L¹(ℝ^N) with , one may construct approximate δ-functions for t > 0 by defining for all x ∈ ℝ^N [46]. Such sequences of approximate δ-functions are also called approximate identity sequences [47] since they satisfy a particularly nice identity with respect to convolution, namely, for all [see 47, Theorem 6.32]. In fact, such an identity holds much more generally.

Lemma 6 [46, Theorem 1.18] Let φ ∈ L¹(ℝ^N) with and for t > 0 define for all x ∈ ℝ^N. If f ∈ L^p(ℝ^N) for 1 ≤ p < ∞ (or for p = ∞), then .

To prove Equation 4, it would suffice to have which is really just Lemma 6 in case p = ∞. Nonetheless, we present a proof by mimicking [46] for completeness. Moreover, we will use a part of proof in Remark 10 below.

Lemma 7 Let h ∈ L¹(ℝⁿ) with and define as in Equation 3 for all Ω > 0. Then, for all , we have

Proof. By symmetry of the convolution operator in its arguments, we have

Since a simple substitution yields it follows that

Finally, expanding the function h_Ω, we obtain

where we have used the substitution z = Ωy. Taking limits on both sides of this expression and observing that

using the Dominated Convergence Theorem, we obtain

So, it suffices to show that, for all z ∈ ℝ^N,

To this end, let ε > 0 and z ∈ ℝ^N be arbitrary. Since , there exists r > 0 sufficiently large such that |f(x)| < ε/2 for all , where is the closed ball of radius r centered at the origin. Let so that for each we have both x and x−z/Ω in . Thus, both |f(x)| < ε/2 and |f(x−z/Ω)| < ε/2, implying that

Hence, we obtain

Now, as is a compact subset of ℝ^N, the continuous function f is uniformly continuous on , and so the remaining limit and supremum may be freely interchanged, whereby continuity of f yields

Since ε > 0 may be taken arbitrarily small, we have proved the result.

Remark 10 While Lemma 7 does the approximation we aim for, it gives no indication of how fast

decays in terms of Ω or the dimension N. Assuming h(z) = g(z(1))⋯g(z(N)) for some non-negative g (which is how we will choose h in Section 3.5.2) and f to be β-Hölder continuous for some fixed β ∈ (0, 1) yields that

where the third inequality follows from Jensen's inequality.

3.5.2 Proof of Lemma 4: the limit-integral representation

Let A ∈ C^∞(ℝ) be any even function supported on s.t. ∥A∥₂ = 1. Then, ϕ = A*A ∈ C^∞(ℝ) is an even function supported on [−1, 1] s.t. ϕ(0) = 1. Lemma 3 implies that

uniformly in x ∈ K for anyh ∈ L¹(ℝ^N) satisfying We choose

which the reader may recognize as the (inverse) Fourier transform of . As we announced in Remark 10, h(z) = g(z(1))⋯g(z(N)), where (using the convolution theorem)

Moreover, since g is the Fourier transform of an even function, h is real-valued and also even. In addition, since ϕ is smooth, h decays faster than the reciprocal of any polynomial (as follows from repeated integration by parts and the Riemann–Lebesgue lemma), so h ∈ L¹(ℝ^N). Thus, Fourier inversion yields

which justifies our application of Lemma 3. Expanding the right-hand side of Equation 23 (using the scaling property of the Fourier transform) yields that

because ϕ is even and supported on [−1, 1]. Since Equation 24 is an iterated integral of a continuous function over a compact set, Fubini's theorem readily applies, yielding

Since it follows that

where cos_Ω is defined in Equation 5.

With the representation given by Equation 25 in hand, we now seek to reintroduce the general activation function ρ. To this end, since cos_Ω ∈ C_c(ℝ)⊂C₀(ℝ) we may apply the convolution identity given by Equation 4 with f replaced by cos_Ω to obtain uniformly for all z ∈ ℝ, where h_α(z) = αρ(αz). Using this representation of cos_Ω in Equation 25, it follows that

holds uniformly for all x ∈ K. Since f is continuous and the convolution cos_Ω*h_α is uniformly continuous and uniformly bounded in α by ∥ρ∥₁ (see below), the fact that the domain K×[−Ω, Ω]^N is compact then allows us to bring the limit as α tends to infinity outside the integral in this expression via the Dominated Convergence Theorem, which gives us

uniformly for every x ∈ K. The uniform boundedness of the convolution follows from the fact that

where v = αu.

Remark 11 It should be noted that we are unable to swap the order of the limits in Equation 26, since cos_Ω is not in C₀(ℝ) when Ω is allowed to be infinite.

Remark 12 Complementing Remark 10, we will now elucidate how fast

decays in terms of α. Using the fact that Equation 27 and the triangle inequality allows us to bound the absolute difference above by

Since cos_Ω is 1-Lipschitz, it follows that the above integral is bounded by

To complete this step of the proof, observe that the definition of cos_Ω allows us to write

By substituting Equation 28 into Equation 26, we then obtain

uniformly for all x ∈ K, where . In this way, recalling that and b_α(y, w, u): = −α(〈w, y〉+u) for y, w ∈ ℝ^N and u ∈ ℝ, we conclude the proof.

3.5.3 Proof of Lemma 5: Monte-Carlo integral approximation

The next step in the proof of Theorem 5 is to approximate the integral in Equation 7 using the Monte-Carlo method. To this end, let , , and be independent samples drawn uniformly from K, [−Ω, Ω]^N, and , respectively, and consider the sequence of random variables defined by

for each x ∈ K, where we note that vol(K(Ω)) = (2Ω)^Nπ(2L + 1)vol(K). If we also define

for x ∈ K and p ∈ ℕ, then we want to show that

as n → ∞, where the expectation is taken with respect to the joint distribution of the random samples , , and . For this, it suffices to find a constant C(f, ρ, α, Ω, N) < ∞ independent of n satisfying

Indeed, an application of Fubini's theorem would then yield

which implies Equation 30. To determine such a constant, we first observe by Theorem 4 that

where we define the variance term

for x ∈ K. Since ∥ϕ∥_∞ = 1 (see Lemma 8 below), it follows that

for all y, w ∈ ℝ^N and u ∈ ℝ, where , we obtain the following simple bound on the variance term

Since we assume ρ ∈ L^∞(ℝ), we then have

Substituting the value of vol(K(Ω)), we obtain

is a suitable choice for the desired constant.

Now that we have established Equation 30, we may rewrite the random variables I_n(x) in a more convenient form. To this end, we change the domain of the random samples to [−αΩ, αΩ]^N and define the new random variables by b_k: = −(〈w_k, y_k〉+αu_k) for each k = 1, …, n. In this way, if we denote

for each k = 1, …, n, the random variables defined by

satisfy f_n(x) = I_n(x) for every x ∈ K. Combining this with Equation 30, we have proved Lemma 5.

Lemma 8 ∥ϕ∥_∞ = 1.

Proof. It suffices to prove that |ϕ(z)| ≤ 1 for all z ∈ ℝ because ϕ(0) = 1. By Cauchy–Schwarz,

because A is even.

3.5.4 Proof of Theorem 1 when ρ′ ∈ L¹(ℝ)∩L^∞(ℝ)

Let with K: = supp(f) and suppose ε > 0 is fixed. Take the activation function ρ:ℝ → ℝ to be differentiable with ρ′ ∈ L¹(ℝ)∩L^∞(ℝ). We wish to show that there exists a sequence of RVFL networks defined on K which satisfy the asymptotic error bound

as n → ∞. The proof of this result is a minor modification of second step in the proof of Theorem 5.

If we redefine h_α(z) as αρ′(αz), then Equation 26 plainly still holds and Equation 28 reads

Recalling the definition of cos_Ω in Equation 5 and integrating by parts, we obtain

for all z ∈ ℝ, where and sin_Ω:ℝ → [−1, 1] is defined analogously to Equation 5. Substituting this representation of (cos_Ω*h_α)(z) into Equation 26 then yields

uniformly for every x ∈ K. Thus, if we replace the definition of F_{α, Ω} in Equation 6 by

for y, w ∈ ℝ^N and u ∈ ℝ, we again obtain the uniform representation given by Equation 7 for all x ∈ K. The remainder of the proof proceeds from this point exactly as in the proof of Theorem 5.

3.5.5 Proof of Theorem 8

We wish to show that there exist sequences of RVFL networks defined on ϕ_j(U_j) for each j ∈ J, which together satisfy the error bound

with probability at least 1−η for {_{nj}j ∈ J} sufficiently large. The proof is obtained by showing that

holds uniformly for with high probability.

We begin as in the proof of Theorem 7 by applying the representation given by Equation 17 for (f on each chart (U_j, ϕ_j), which gives us

for all . Now, since we have already seen that for each j ∈ J, Theorem 6 implies that for any ε_j > 0, there exist constants α_j, Ω_j > 0 and hidden-to-output layer weights for each j ∈ J such that for any

we have

uniformly for all z ∈ ϕ_j(U_j) with probability at least 1−η_j, provided the number of nodes n_j satisfies

where c > 0 is a numerical constant and Indeed, it suffices to choose

for each k = 1, …, n_j, where

for each j ∈ J. Combined with Equation 32, choosing δ_j and n_j satisfying Equations 33, 34, respectively, then yields

for all with probability at least . Since we require that Equation 31 holds for all with probability at least 1−η, the proof is then completed by choosing {_{εj}j ∈ J} and {_{ηj}j ∈ J}, such that

In particular, it suffices to choose

and η_j = η/|J| for each j ∈ J, so that Equations 33, 34 become

as desired.

4 Discussion

The central topic of this study is the study of the approximation properties of a randomized variation of shallow neural networks known as RVFL. In contrast with the classical single-layer neural networks, training of an RVFL involves only learning the output weights, while the input weights and biases of all the nodes are selected at random from an appropriate distribution and stay fixed throughout the training. The main motivation for studying the properties of such networks is as follows:

• Random weights are often utilized as an initialization for a NN training procedure. Thus, establishing the properties of the RVFL networks is an important first step toward understanding how random weights are transformed during training.

• Due to their much more computationally efficient training process, the RVFL networks proved to be a valuable alternative to the classical SLFNs. They were successfully used in several modern applications, especially those that require frequent re-training of a neural network [20, 26, 27].

Despite their practical and theoretical importance, results providing rigorous mathematical analysis of the properties of RVFLs are rare. The work of Igelnik and Pao [16] showed that RVFL networks are universal approximators for the class of continuous, compactly supported functions and established the asymptotic convergence rate of the expected approximation error as a function of the number of nodes in the hidden layer. While this result served as a theoretical justification for using RVFL networks in practice, a close examination led us to the conclusion that the proofs in Igelnik and Pao [16] contained several technical errors.

In this study, we offer a revision and a modification of the proof methods from Igelnik and Pao [16] that allow us to prove a corrected, slightly weaker version of the result announced by Igelnik and Pao. We further build upon their work and show a non-asymptotic probabilistic (instead of on average) approximation result, which gives an explicit bound on the number of hidden layer nodes that are required to achieve the desired approximation accuracy with the desired level of certainty (that is, with high enough probability). In addition to that, we extend the obtained result to the case when the function is supported on a compact, low-dimensional sub-manifold of the ambient space.

While our study closes some of the gaps in the study of the approximation properties of RVFL, we believe that it just starts the discussion and opens many directions for further research. We briefly outline some of them here.

In our results, the dependence of the required number n of the nodes in the hidden layer on the dimension N of the domain is superexponential, which is likely an artifact of the proof methods we use. We believe this dependence can be improved to be exponential by using a different, more refined approach to the construction of the limit-integral representation of a function. A related interesting direction for future research is to study how the bound on n changes for more restricted classes of (e.g., smooth) functions.

Another important direction that we did not discuss in this study is learning the output weights and studying the robustness of the RVFL approximation to the noise in the training data. Obtaining provable robustness guarantees for an RVFL training procedure would be a step toward the robustness analysis of neural networks.

References

• 1.

  KrizhevskyASutskeverIHintonGE. Imagenet classification with deep convolutional neural networks. In: Advances in Neural Information Processing Systems. (2012). p. 1097–105.

  • Google Scholar

• 2.

  SzegedyCLiuWJiaYSermanetPReedSAnguelovDet al. Going deeper with convolutions. In: Proceedings of the IEEE conference on computer vision and pattern recognition. (2015). p. 1–9. 10.1109/CVPR.2015.7298594

  • CrossRef
  • Google Scholar

• 3.

  HeKZhangXRenSSunJ. Deep residual learning for image recognition. In: Proceedings of the IEEE Conference on Computer Vision And Pattern Recognition. (2016). p. 770–778. 10.1109/CVPR.2016.90

  • CrossRef
  • Google Scholar

• 4.

  HuangGLiuZVan Der MaatenLWeinbergerKQ. Densely connected convolutional networks. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2017). p. 4700–4708. 10.1109/CVPR.2017.243

  • CrossRef
  • Google Scholar

• 5.

  YangYZhongZShenTLinZ. Convolutional neural networks with alternately updated clique. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2018). p. 2413–2422. 10.1109/CVPR.2018.00256

  • CrossRef
  • Google Scholar

• 6.

  BarronAR. Universal approximation bounds for superpositions of a sigmoidal function. IEEE Trans Inf Theory. (1993) 39:930–45. 10.1109/18.256500

  • CrossRef
  • Google Scholar

• 7.

  CandésEJ. Harmonic analysis of neural networks. Appl Comput Harm Analysis. (1999) 6:197–218. 10.1006/acha.1998.0248

  • CrossRef
  • Google Scholar

• 8.

  VershyninR. Memory capacity of neural networks with threshold and ReLU activations. arXiv preprint arXiv:200106938. (2020).

  • Google Scholar

• 9.

  BaldiPVershyninR. The capacity of feedforward neural networks. Neural Netw. (2019) 116:288–311. 10.1016/j.neunet.2019.04.009

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 10.

  HuangGBBabriHA. Upper bounds on the number of hidden neurons in feedforward networks with arbitrary bounded nonlinear activation functions. IEEE Trans Neural Netw. (1998) 9:224–9. 10.1109/72.655045

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 11.

  SuganthanPN. Letter: On non-iterative learning algorithms with closed-form solution. Appl Soft Comput. (2018) 70:1078–82. 10.1016/j.asoc.2018.07.013

  • CrossRef
  • Google Scholar

• 12.

  OlsonMWynerAJBerkR. Modern Neural Networks Generalize on Small Data Sets. In: Proceedings of the 32Nd International Conference on Neural Information Processing Systems. NIPS'18. Curran Associates Inc. (2018). p. 3623–3632.

  • Google Scholar

• 13.

  SchmidtWFKraaijveldMADuinRPW. Feedforward neural networks with random weights. In: Proceedings 11th IAPR International Conference on Pattern Recognition. Vol. II. Conference B: Pattern Recognition Methodology and Systems. (1992). p. 1–4.

  • Google Scholar

• 14.

  Te BraakeHABVan StratenG. Random activation weight neural net (RAWN) for fast non-iterative training. Eng Appl Artif Intell. (1995) 8:71–80. 10.1016/0952-1976(94)00056-S

  • CrossRef
  • Google Scholar

• 15.

  PaoYHTakefujiY. Functional-link net computing: theory, system architecture, and functionalities. Computer. (1992) 25:76–9. 10.1109/2.144401

  • CrossRef
  • Google Scholar

• 16.

  IgelnikBPaoYH. Stochastic choice of basis functions in adaptive function approximation and the functional-link net. IEEE Trans Neur Netw. (1995) 6:1320–9. 10.1109/72.471375

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 17.

  HuangGBZhuQYSiewCK. Extreme learning machine: theory and applications. Neurocomputing. (2006) 70:489–501. 10.1016/j.neucom.2005.12.126

  • CrossRef
  • Google Scholar

• 18.

  PaoYHParkGHSobajicDJ. Learning and generalization characteristics of the random vector functional-link net. Neurocomputing. (1994) 6:163–80. 10.1016/0925-2312(94)90053-1

  • CrossRef
  • Google Scholar

• 19.

  PaoYHPhillipsSM. The functional link net and learning optimal control. Neurocomputing. (1995) 9:149–64. 10.1016/0925-2312(95)00066-F

  • CrossRef
  • Google Scholar

• 20.

  ChenCPWanJZA. rapid learning and dynamic stepwise updating algorithm for flat neural networks and the application to time-series prediction. IEEE Trans Syst Man Cybern B. (1999) 29:62–72. 10.1109/3477.740166

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 21.

  ParkGHPaoYH. Unconstrained word-based approach for off-line script recognition using density-based random-vector functional-link net. Neurocomputing. (2000) 31:45–65. 10.1016/S0925-2312(99)00149-6

  • CrossRef
  • Google Scholar

• 22.

  ZhangLSuganthanPN. Visual tracking with convolutional random vector functional link network. IEEE Trans Cybern. (2017) 47:3243–53. 10.1109/TCYB.2016.2588526

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 23.

  ZhangLSuganthanPN. Benchmarking ensemble classifiers with novel co-trained kernel ridge regression and random vector functional link ensembles [research frontier]. IEEE Comput Intell Mag. (2017) 12:61–72. 10.1109/MCI.2017.2742867

  • CrossRef
  • Google Scholar

• 24.

  KatuwalRSuganthanPNZhangL. An ensemble of decision trees with random vector functional link networks for multi-class classification. Appl Soft Comput. (2018) 70:1146–53. 10.1016/j.asoc.2017.09.020

  • CrossRef
  • Google Scholar

• 25.

  VukovićNPetrovićMMiljkovićZ. A comprehensive experimental evaluation of orthogonal polynomial expanded random vector functional link neural networks for regression. Appl Soft Comput. (2018) 70:1083–1096. 10.1016/j.asoc.2017.10.010

  • CrossRef
  • Google Scholar

• 26.

  TangLWuYYuLA. non-iterative decomposition-ensemble learning paradigm using RVFL network for crude oil price forecasting. Appl Soft Comput. (2018) 70:1097–108. 10.1016/j.asoc.2017.02.013

  • CrossRef
  • Google Scholar

• 27.

  DashYMishraSKSahanySPanigrahiBK. Indian summer monsoon rainfall prediction: A comparison of iterative and non-iterative approaches. Appl Soft Comput. (2018) 70:1122–34. 10.1016/j.asoc.2017.08.055

  • CrossRef
  • Google Scholar

• 28.

  HenríquezPARuzG. Twitter sentiment classification based on deep random vector functional link. In: 2018 International Joint Conference on Neural Networks (IJCNN). IEEE (2018). p. 1–6. 10.1109/IJCNN.2018.8489703

  • CrossRef
  • Google Scholar

• 29.

  KatuwalRSuganthanPNTanveerM. Random vector functional link neural network based ensemble deep learning. arXiv preprint arXiv:190700350. (2019).

  • Pubmed Abstract
  • Google Scholar

• 30.

  ZhangYWuJCaiZDuBYuPS. An unsupervised parameter learning model for RVFL neural network. Neural Netw. (2019) 112:85–97. 10.1016/j.neunet.2019.01.007

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 31.

  HornikK. Approximation capabilities of multilayer feedforward networks. Neural Netw. (1991) 4:251–7. 10.1016/0893-6080(91)90009-T

  • CrossRef
  • Google Scholar

• 32.

  LeshnoMLinVYPinkusASchockenS. Multilayer feedforward networks with a nonpolynomial activation function can approximate any function. Neural Netw. (1993) 6:861–7. 10.1016/S0893-6080(05)80131-5

  • CrossRef
  • Google Scholar

• 33.

  LiJYChowWSIgelnikBPaoYH. Comments on “Stochastic choice of basis functions in adaptive function approximation and the functional-link net” [with reply]. IEEE Trans Neur Netw. (1997) 8:452–4. 10.1109/72.557702

  • CrossRef
  • Google Scholar

• 34.

  BurkhardtDBSan JuanBPLockJGKrishnaswamySChafferCL. Mapping phenotypic plasticity upon the cancer cell state landscape using manifold learning. Cancer Discov. (2022) 12:1847–59. 10.1158/2159-8290.CD-21-0282

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 35.

  Mitchell-HeggsRPradoSGavaGPGoMASchultzSR. Neural manifold analysis of brain circuit dynamics in health and disease. J Comput Neurosci. (2023) 51:1–21. 10.1007/s10827-022-00839-3

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 36.

  DickJKuoFYSloanIH. High-dimensional integration: the quasi-Monte Carlo way. Acta Numerica. (2013) 22:133–288. 10.1017/S0962492913000044

  • CrossRef
  • Google Scholar

• 37.

  LedouxM. The Concentration of Measure Phenomenon. Providence, RI: American Mathematical Soc. (2001).

  • Google Scholar

• 38.

  MassartP. About the constants in Talagrand's deviation inequalities for empirical processes. Technical Report, Laboratoire de statistiques, Universite Paris Sud. (1998).

  • Google Scholar

• 39.

  TalagrandM. New concentration inequalities in product spaces. Invent Mathem. (1996) 126:505–63. 10.1007/s002220050108

  • CrossRef
  • Google Scholar

• 40.

  ShahamUCloningerACoifmanRR. Provable approximation properties for deep neural networks. Appl Comput Harmon Anal. (2018) 44:537–57. 10.1016/j.acha.2016.04.003

  • CrossRef
  • Google Scholar

• 41.

  TuLW. An Introduction to Manifolds. New York: Springer. (2010). 10.1007/978-1-4419-7400-6_3

  • CrossRef
  • Google Scholar

• 42.

  AllardWKChenGMaggioniM. Multi-scale geometric methods for data sets II: geometric multi-resolution analysis. Appl Comput Harmon Anal. (2012) 32:435–62. 10.1016/j.acha.2011.08.001

  • CrossRef
  • Google Scholar

• 43.

  IwenMAKrahmerFKrause-SolbergSMalyJ. On recovery guarantees for one-bit compressed sensing on manifolds. Discr Comput Geom. (2018) 65:953–998. 10.1109/SAMPTA.2017.8024465

  • CrossRef
  • Google Scholar

• 44.

  MaggioniMMinskerSStrawnN. Multiscale dictionary learning: non-asymptotic bounds and robustness. J Mach Learn Res. (2016) 17:43–93.

  • Google Scholar

• 45.

  LiaoWMaggioniM. Adaptive Geometric Multiscale Approximations for Intrinsically Low-dimensional Data. J Mach Learn Res. (2019) 20:1–63.

  • Google Scholar

• 46.

  SteinEMWeissG. Introduction to Fourier Analysis on Euclidean Spaces. London: Princeton University Press (1971). 10.1515/9781400883899

  • CrossRef
  • Google Scholar

• 47.

  RudinW. Functional Analysis. New York: McGraw-Hill (1991).

  • Google Scholar
