Abstract
The increasing demands on stretchable power supply for wearable electronics accelerate the development of stretchable batteries. Zn-based batteries are promising to be applied in wearable electronics due to their outstanding performance, intrinsic safety, low cost, and environmental friendliness. Recently, stretchable Zn-based batteries are designed to demonstrate the capability of delivering excellent electrochemical performance, meanwhile maintaining their mechanical stability. This review provides an overview of different strategies and designs to realize stretchability in different Zn-based battery components. The general strategies to realize stretchability are first introduced, followed by the specific designs on the cathode, anode, and electrolytes of Zn batteries. Moreover, current issues and possible strategies are also highlighted.
Introduction
With the rapid development of wearable smart devices, such as wearable displays, health-monitoring devices, and active radio-frequency identification tags, many researchers have carried out in-depth research on stretchable batteries for their use as compatible power supplies (; Rogers et al., 2019; ). As for the stretchable batteries, they are required to continuously output stable electrochemical performance, even under a large level of mechanical deformation (Song et al., 2014; ). The performance under stretchability should be reliable, where the as-fabricated device should be capable of enduring mechanical strain and meanwhile maintaining stable functionality. Such stretchability is challenging to achieve in conventionally layer-stacked battery configurations, where multiple component layers are intrinsically made into a grid (Zhang et al., 2015; Song et al., 2019). However, even a slight deformation can cause structural damages to active materials and consequential battery failures (Zhou et al., 2018; ). Thus, the first target to realize stretchable batteries is design stretchable frameworks to support the stable functionality of each battery component.
Until now, stretchable batteries based on many different chemistries have been developed, where safety is of paramount importance for human wearable electronics (; Song et al., 2019). Generally, mature battery chemistries have been explored, especially based on aprotic Li-ion batteries, while some corresponding severe safety issues of electrolytes, such as fire-catching and flammable property (; ), resulted in safety concerns especially subjected to different mechanical manipulations. As alternative and promising systems, significant developments in aqueous chemistries have been achieved for stretchable batteries, due to the intrinsic safety of aqueous electrolytes (Zhang H. et al., 2021; ). The representative Zn-ion batteries are the most promising systems due to the outstanding electrochemical performance of Zn-metal anodes with a lower reaction potential (−0.76 V versus standard hydrogen reaction) and high theoretical gravimetric capacity (820 mA h g−1). Battery reaction chemistries regarding cathode materials are widely studied, such as ion-insertion–type cathodes like MnO2 (; ; Zhang T. et al., 2020), V2O5 (; Xu et al., 2020), conversion-type cathodes (Ag2O) (; ), and air cathodes (O2) (Stock et al., 2019; Zhang Y. et al., 2021), where some detailed reviews have recently summarized these cathode/anode chemistries of Zn battery (; Zhang W. et al., 2020; ). On the contrary, the Zn-anode reactions can be classified into mild/neutral electrolytes and alkaline electrolytes, where reactions can be elaborated as Zn ⇌ Zn2+ + 2e− for the mild/neutral electrolytes and they can be elaborated as Zn + 4OH−⇌ Zn(OH)42− + 2e− for alkaline cases (Zhou et al., 2021). Considering all these Zn-based battery systems can deliver outstanding energy density and power density, combining the structural/configurational designs with the aqueous Zn–based chemistry is necessary to develop safe and stretchable batteries with stable performance.
In this review, we suddenly shift from the reaction chemistry of the battery and first focus on the general designing strategies of different components and integrated devices and then move to discussing the specific designing strategies to enable stretchability of Zn-based battery chemistries. To make battery components stretchable, there are two general designing strategies as material designs and structural designs. According to these two points, the representative examples are subsequently showcased from different components in the Zn-based battery, i.e., electrodes and electrolytes. Finally, we provide commentaries and perspectives on the outstanding challenges that must be overcome to make deformable batteries a reality.
General Material and Structural Designing Strategies for Stretchable Batteries
Material and structural designs are employed to impart robust mechanical durability and conformity of stretchable batteries to nonplanar surfaces (; ). Targets at realizing stretchable batteries would add mechanical difficulties, since the stretchability must be the zoomed-in area on a millimeter scale once subjected to different force forms and directions (; Yin et al., 2020). Generally, two methods are applied to enable stretchability as 1) material innovations and 2) structural designs. Specifically, material designs for stretchability focus on synthesizing novel stretchable active materials and/or combining active materials with stretchable hosting materials. On the contrary, structural designing strategies focus on combining specially designed stretchable shapes/structures to host rigid battery components.
Typical battery configurations are composed of four main components, anode, cathode, separator, electrolyte, and current collectors, as shown in Figure 1A. However, all of these components are generally rigid, which cannot preserve their structural integrity once subjected to forces exceeding their plastic deformation limits (Say et al., 2020). When targeted at endowing stretchability to these battery components, they are generally divided into three layers by integrating the cathode materials with their corresponding current collectors, the anode materials with their corresponding current collectors, and the electrolyte with the separator. Finally, stretchable batteries can be integrated and fabricated at the device level (). In other words, there would be three different layers of active materials to build up the stretchable battery devices (Figure 1B). Considering the electrode materials are generally inorganic materials without intrinsic deformability, stretchable polymer networks are generally introduced to endow stretchability, by building up percolating networks composed of conductive nanomaterials, electrochemical active materials, and stretchable supporting polymers, taking the polymeric cathode composite as an example in Figure 1C. Such strategy generally correlates the reengineering to obtain a composite electrode, where the polymeric ingredients are responsible for the mechanical stretchability and other materials are responsible for the conductive/electrochemical performance. A typical example is shown as embedding the silver nanowires into the stretchable polydimethylsiloxane (PDMS) substrate to obtain stretchability (Figure 1D) (Yan et al., 2014). Regarding the combination of the electrolyte and separator, stretchable hydrogel-based polymers are applied with intrinsic stretchability to act as the ion conductors, with more detailed discussions elaborated in the following.

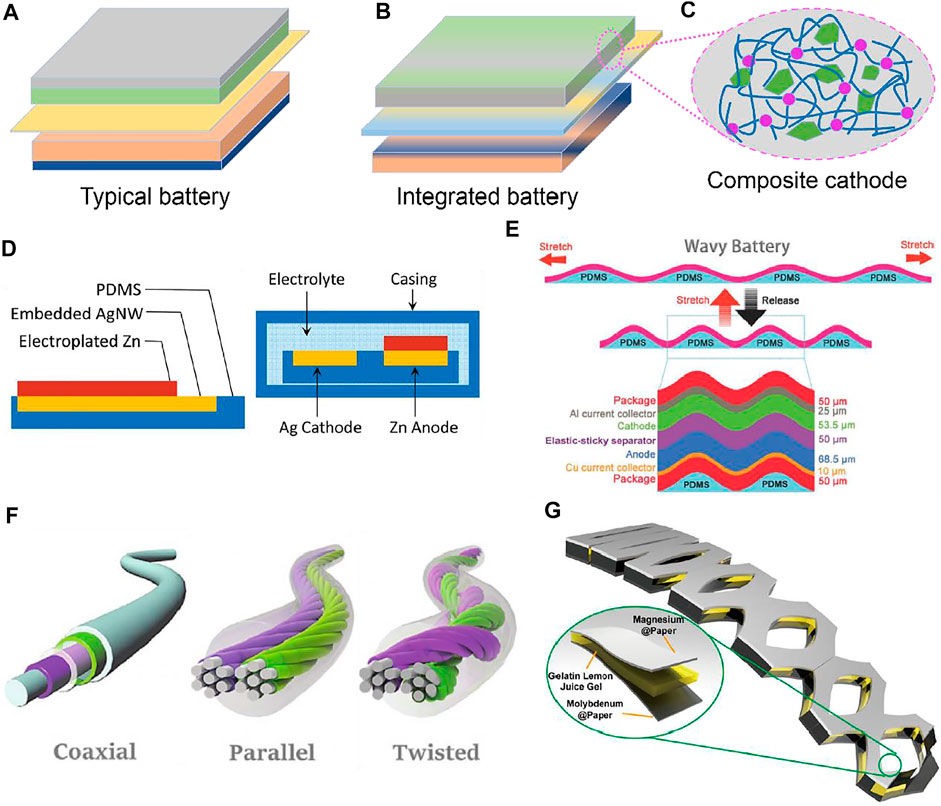

FIGURE 1
Despite endowing stretchability to individual battery components, structural designs are also capable of enabling stretchability of rigid battery components by transforming them into stretchable configurations after adapting wavy (Figure 1E) (), fiber-shaped (Figure 1F) (), or kirigami structures (Figure 1G) (Wang et al., 2021), to redistribute the external forces on the specific component unit. Of note, by applying these promising battery configurations, stretchable batteries could be realized based on the stretchability of supporting elastomers to redistribute force, without strict requirements on the stretchability of the battery components. One representative example is the stretchable batteries built on island-bridge configurations (Yin et al., 2018) with the battery components being rigid and connected by stress-tolerant conductive networks. Not all the workable structural designs schemed in Figure 1, such as the wavy structure, are explored and demonstrated in stretchable Zn-based battery systems, but these structures might be promising to be applied in growing research. Strategies from material and structural designing aspects to realize stretchable Zn-based battery configurations are discussed in the following.
Material Designs for Stretchable Zn-Based Batteries
In general, one representative strategy to obtain intrinsically stretchable battery components is to mix the active material with the precursor of the elastomer and then cure it. First, it is necessary to first obtain a stretchable current collector and the electrochemical active materials can be coated simultaneously with the conductive materials and/or subsequently electrodeposited in situ onto the current collector. For example, Yan et al. (2014) have designed stretchable rechargeable Zn–Ag batteries and then embedded conductive AgNWs into stretchable PDMS. They could simultaneously act as a stretchable composite current collector and cathode materials. In addition, the Zn anode can also be electrodeposited onto the stretchable AgNWs–based electrode to gain stretchability. The as-obtained Ag–Zn battery could endure stretchability up to 80% deformation and deliver a decent output voltage of ∼1.63 V at a current density of 1 mA cm−2 under 80% deformation with an energy density of 0.44 mW h cm−2.
Printing technologies can be applied by one-spot mixing of all the active materials as ink (), including conductive materials, electrochemical active materials, and the elastomer precursors, together (Figure 2A). Wang et al. have used Ag2O and Zn as cathode and anode materials (), respectively, which can deliver excellent capacity at a rate of 2.5 mA h cm−2 and preserving their structure can maintain structural integrity after being subjected to 100% deformation (Figures 2B–E). Such outstanding structural stability can be assigned to the excellent resiliency of the applied elastomer against severe battery stretching (; Song et al., 2020). It should be emphasized that in a stretchable device, the structure resiliency is an important performance parameter to evaluate the structural stability of the stretchable device, which should rely on the selected suitable elastomers to support active materials. In addition, have also applied the analogous strategy with screen printing to embed the conductive circuit into the elastomer and conformally deposited the electrochemical active materials onto the stretchable substrate, building the zinc-ion microbattery. Despite embedding the active material into the stretchable substrate, Zhu et al. (2018) have also developed more facile strategy by a dip-coating strategy to design a stretchable substrate that is modified from commercial polyurethane sponge, to host the cathode and anode materials. The bonding force between the conductive AgNWs and the stretchable substrates can be further enhanced by introducing interfacial chemical anchoring ().

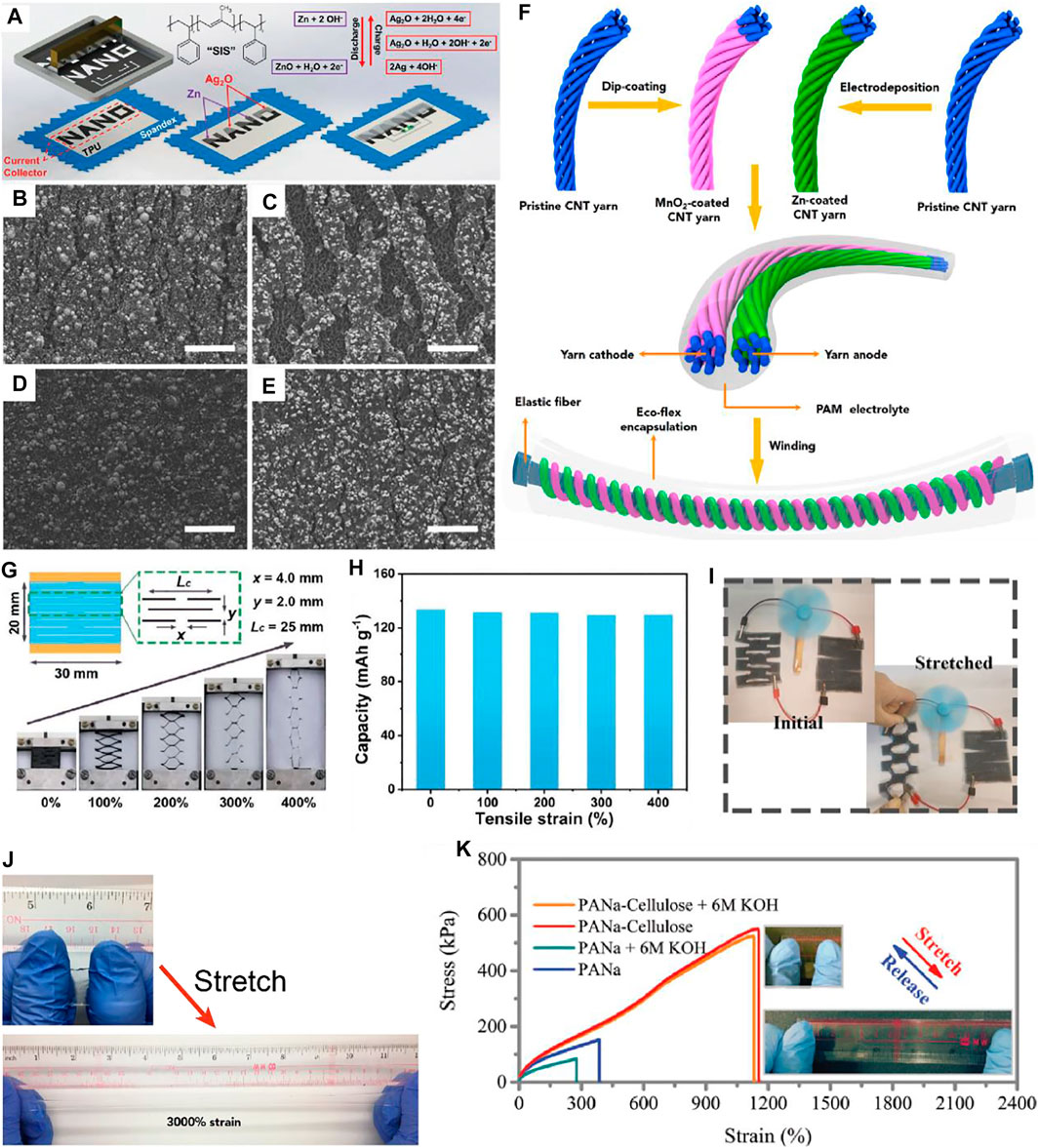

FIGURE 2
Structural Designs for Stretchable Zn-Based Batteries
There are two types of structural designs applied in stretchable Zn-based batteries, namely, fiber-shaped batteries and kirigami structure–modified batteries. Generally, these devices in planar configurations are not intrinsically stretchable by themselves, but stretchability was realized when the battery was built up into a serpentine fiber shape or kirigami shape.
As for the fiber-shaped batteries, one representative example in Zn-based batteries is as follows: have first utilized facile methods to coat/deposit the active cathode and anode materials on two separate conductive yarns and then wrapped them around an elastic fiber, finally obtaining stretchable yarn–Zn–MnO2 batteries (Figure 2F). The as-fabricated battery demonstrated an outstanding mechanical stretchability of up to 300% deformation. The fiber-shaped batteries also deliver good tailorability and outstanding energy density (53.8 mW h cm−3). In addition, the fiber-shaped Zn–Ag2O battery was also designed by sequentially depositing the zinc anode, gel electrolyte, and Ag cathode onto a spring-like copper current collector with remarkable rate 3.5 mA h cm−2, where the battery could be stretched to 100% and could maintain its capacity after 500 times of deformation (Zamarayeva et al., 2017; ). Another example of the fiber-shaped Zn-ion battery is fabricated by inserting the cathode (Mg0.23V2O5) and anode (Zn wire) into a curled spring to obtain stretchability (Xu et al., 2020). The prospect of the fiber-shaped battery is promising that, despite being capable of withstanding large stretching stresses, another important application scenario is to be integrated into the energy fabric to realize a large area of integrated energy storage cloth (; Wang L. et al., 2020).
Another workable approach was applying kirigami strategies by cutting and folding planar batteries for strain-tolerant configurations, while the strain was redistributed relying on performing out-of-plane deformation at local positions and reduced by the blank area. Kirigami-derived configurations (e.g., cellular, pyramid, and basket patterns) have already been explored for stretchable Li-ion batteries and supercapacitors (; ), while such configuration designs have recently been demonstrated for stretchable Zn-based batteries. One advantage of kirigami-shaped batteries is their capability of maintaining planar geometries, which make them ready to be integrated with other wearable electronics compared to other mountainous structures. For example, Yao et al. (2021) have demonstrated editable and cuttable polyaniline–Zn batteries through different editing programs as a stretchable honeycomb-like structure, which could deliver stable electrochemical performance even enduring the tensile strain of up to 400% (Figures 2G,H). In addition, the stretchable Zn–air battery was also demonstrated by the kirigami-cutting strategy, obtaining a 160% stretchable serpentine-shaped battery () (Figure 2I), where stretchable Zn–air battery can deliver 11.5 Wh L−1 and the performance was stable even subjected to 100% deformation with slight variation of the output voltage compared to the initial state.
Stretchable Electrolytes for Stretchable Zn-Based Batteries
After discussing the material and structural design, the main strategy to realize stretchability of electrode materials is to combine them with elastic substrates. Regarding aqueous electrolytes as another significant component, polymer-based electrolytes were designed and applied, which not only act as ion conductors but also as separators (; ; Wang Z. et al., 2020). The most attractive is the designated properties from these polymer networks, such as stretchability, antifreezing, and self-healing properties (). Specifically, to enhance the mechanical stretchability of polymeric electrolytes, a dual-network strategy can be applied by introducing two sorts of polymer networks to disperse the external force (). In addition, to endow the functionality, modifications of foreign functional molecules, such as antifreezing molecules (), can be introduced into polymeric networks to endow the whole electrolyte with the antifreezing properties. Very recently, there are some detailed reviews on the designing strategies on polymer networks for aqueous batteries for specific hydrogel designing chemistries (Wang Z. et al., 2020; ).
For Zn-based batteries, there are generally two types of aqueous electrolytes, namely, mild electrolytes and alkaline electrolytes, which have different requirements on stretchable electrolytes. First, regarding the mild electrolytes, the highly cross-linked polyacrylamide (PAM) hydrogel was demonstrated with a high ionic conductivity of up to 17.3 × 10−3 S cm−1 and remarkable stretchability of up to 3,000% deformation (Figure 2J) (), which has successfully been applied to different Zn-ion battery systems in mild electrolytes, where the battery performance can accommodate a high specific capacity of 302.1 mA h g−1 and a volumetric energy density of 53.8 mWh cm−3. In addition, these delivered a high capacity retention of 94.8% after cycling 100 times when subjected to a strain of 300%.
On the other hand, regarding the alkaline electrolytes, the sodium polyacrylate (PANa) hydrogel was applied for nickel–cobalt–based cathodes as well as air cathodes. However, the stretchability of PANa polymer networks is not satisfying, showing even decrease in the alkaline environment. Improving strategies have been applied by introducing cellulose to build dual-network hydrogel that can be stretched over 1,100% (). The as-obtained Zn–air batteries can be stretched up to 800% deformation (Figure 2K). Apart from the realization of stretchability, the as-fabricated Zn–air battery exhibits a high power density of 108.6 mW cm−2, increasing to 210.5 mW cm−2 upon being 800% stretched, because of the increased contact areas between active materials and the hydrogel electrolyte. It should be noted that the adhesion is one of the most significant factor to determine the stability of flexible/stretchable batteries with multiple layers, especially for the hydrogel electrolyte layer and electrode layers. Introducing effective adhesives can solve this issue, but it needs more delicate material designs to guarantee the adhesion and resilience at the wet interface.
Improving Directions for Future Stretchable Zn-Based Batteries
Through material and structural designs, stretchable zinc batteries can be realized with remarkable stretchability and good performance retention after cycled stretching. However, there are still some aspects, from our point of view, that need to be further strengthened from scientific and technical points.
The first is the low utilization of active materials. Generally, high stretchability and high electrochemical performance trade off with each other, because the system definitely needs the introduction of extra dispersing materials to enable stretchability and redundancy in volume to release strain in batteries. Thus, careful calculations are needed to decrease the gravimetric and volumetric capacity to improve corresponding energy densities (Wang D. et al., 2020). The second is the poor contacting and adhering forces at the interface of different layers. Considering batteries are always layered structures with layer-by-layer stacking of different materials based on weak physical bonding, they are easy to delaminate under external stresses. Thus, it is necessary to introduce chemical bonds at the interface and simultaneously attempt to reduce the shearing force at the interface of each specific spot. In addition, the configurational designs to dilute the external applied forces are another type of strategies to maintain the structural and performance stability (; ; ). The third is that more number of functionalities should be added into the stretchability to realize the final application as wearable power supplies. Material properties through the material design, such as antifreeze, self-healing, waterproof, and degradable features, can be introduced, especially through the applied electrolytes. The fourth is that the stretchable batteries should be integrated into the wearable electronic system (), and there would be some derivative requirements on such stretchable batteries, such as softness and skin conformability. Thus, a more in-depth understanding of compatible integration of as-fabricated stretchable Zn batteries is needed. The fifth is the evaluation parameters on stretchability. Considering different battery designs and that their performances are evaluated under different variable parameters, such as the stretching strain and thickness of the device, it would be informative and helpful to compare the battery performance once the evaluating parameters are unified. The sixth is the scalability of stretchable batteries. Scalability is the final target to developing the stretchable batteries. Developing suitable materials compatible with the current fabrication equipment is the primary issue, where the corresponding scientific challenges correlate with the addition of stretchable components into the battery configurations and meanwhile guarantee the battery performance. Some successful attempts for scalability have been demonstrated, such as screen printing for Ag–Zn alkaline batteries (), which can be applied for large-scale preparation based on other battery material systems.
Conclusion
The field of stretchable Zn-based batteries has witnessed rapid development in the past few years, showing huge potential for practical wearable applications. We summarize the state-of-the-art stretchable aqueous Zn-based batteries from aspects of material designs and structural designs. It should be emphasized that, even though batteries in rigid configurations have received more attentions than stretchable/flexible batteries, the developments of stretchable devices is beginning to catch up. Continuous efforts will be devoted to pursuing higher energy density, mechanical stability under stretched state, low-cost fabrication strategies. We hope that this review can attract more attentions on the rational designs on battery materials and structures for stretchable aqueous Zn batteries to be well-integrated into human’s daily life.
