Abstract
Smart windows that regulate solar energy by changing optical characteristics have recently gained tremendous interest for energy-saving and indoor-comfort applications. Among them, thermochromic smart windows are promising because of their simplicity for industrial production and ease of implementation. Although significant advancements have been reported on thermochromic materials, both optical and transition properties remain unsatisfactory. This review focuses on the recent advancement of thermochromic materials for smart windows in terms of operation, performance, and potential for commercialization. It discusses the parameters typically used for gauging performance and provides a summary and comparison of various promising thermochromic materials, including vanadium dioxide, hydrogels, and perovskites. The article also points the challenges in the practical implementation of these materials and provides an outlook for future development.
Introduction
With population growth and climate change, the rise in energy consumption has become a critical global issue. A significant portion of the energy consumption in buildings is due to heating, ventilation, and air conditioning (HVAC). Numerous studies have focused on materials with tunable optical properties to regulate and convert solar energy for different applications (Li et al., 2020a, Li et al., 2020b; Wang et al., 2020a; Wang et al., 2020b; Wang et al., 2020c). Since windows are substantial sources of heat to the building envelopes, recent investigations on smart windows aim to reduce energy consumption while maintaining thermal comfort for the indoor environment (Khandelwal et al., 2017; Rezaei et al., 2017).
Smart windows are glazed units coated with unique materials to have dynamic control of the transmittance of solar irradiation into buildings under different ambient environments. Typically, based on the glazing characteristics and operation, smart windows can be categorized under actively dynamic or passively dynamic systems. Active dynamic systems change the optical characteristics with an external stimulus, including electricity, mechanical strain, and chemicals (Baetens et al., 2010; Casini, 2018). Passive dynamic systems, on the contrary, respond to a natural stimulus without the input of an artificial external stimulus. Due to the automatic tunability of optical properties without active intervention, smart windows with passive dynamic systems are gaining traction in various applications.
Passive dynamic smart windows can be further categorized according to the respective natural stimulus, including heat, light, and humidity, resulting in thermochromic, photochromic, and humidity-chromic systems. For photochromic windows, a change in the color of constituent materials, including organic and hybrid organic-inorganic dyes, is activated by sunlight (Wu et al., 2017). On the other hand, humidity-chromic windows are activated by changes in ambient humidity resulting in the variation of optical properties (Nandakumar et al., 2018). A temperature variation in the environment naturally triggers the optical properties of thermochromic devices. Lately, significant advancements have been reported on thermochromic smart windows due to their operational simplicity, scalable production, and ease of implementation (Ke et al., 2018; Aburas et al., 2019). While previous reviews on thermochromic thin films provide an insightful discussion on different coating technologies and how they compare with commercial smart windows (Kamalisarvestani et al., 2013; Tällberg et al., 2019), this article focuses mainly on recent advances in thermochromic materials, such as vanadium dioxide (VO2), hydrogels, and perovskites.
The optical and transition properties of thermochromic materials are critical to achieving energy savings in large-scale applications. The crucial properties include the transition temperature (), luminous transmittance (), solar modulation ability (), color, and durability. The luminous transmittance, and solar transmittance, are calculated as shown below (Cui et al., 2018).
The solar modulation ability could be calculated as
Here is the wavelength, is the spectral transmittance of the material, is the photopic luminous efficiency of the human eye, is the spectral irradiance of the incoming solar radiation, and are solar transmittance at cold and hot temperatures, respectively (Cui et al., 2018).
The following sections summarize and compare the state-of-art thermochromic smart window materials in terms of operation, performance, and future potential. We focus on three groups of thermochromic materials, which include VO2, hydrogels, and perovskites. The fundamental mechanisms and recent performance improvement strategies for thermochromic smart windows are also summarized, along with a future outlook for further development.
Vanadium Dioxide
Vanadium dioxide (VO2) has been widely investigated as a thermochromic material for smart windows due to the reversible metal-to-insulator transition (MIT) at the critical temperature () of 68°C (Goodenough, 1971). At lower temperatures, the monoclinic (M) insulating phase VO2 is infrared-transparent, while at higher temperatures, the rutile (R) metallic VO2 phase is infrared-translucent. The reversible phase transition is related to the atomic structure, charge, spin, and orbital dynamics (Gao et al., 2012; Zhou et al., 2013; Cui et al., 2018). The thermochromic behavior in near-infrared wavelengths makes VO2 an attractive candidate for smart window applications, as shown in Figure 1A. However, several challenges have to be addressed for large-scale applications. As the intrinsic absorption band lies in the visible region, VO2 has a low luminous transmittance in semiconducting and metallic states. In addition, the modulation is typically limited to the near-infrared region, leading to a low . Besides, a relatively high transition temperature of VO2 (around 68°C) might require heating, which imposes practical limitations for use in buildings.
FIGURE 1
Many attempts have been made to enhance the thermochromic properties of VO2. Elemental doping with high valence cations (such as W6+, Mo6+ and Nb5+) is a common way to decrease by increasing the carrier concentration (Shen et al., 2021). Zhang et al. prepared W-doped VO2 by a hydrothermal recrystallization method (Zhang et al., 2020). A 0.7 at.% W-doping film shows a suitable of 42.7°C, average of 61.7%, and of 11.7%. Besides, some dopants (such as Mg and Ti) can increase the due to the widened optical bandgap. As single doping can only improve one of the properties, co-doping with two elements has also been studied. By co-doping Hf and W into VO2, Wang et al. modified the thermochromic properties of VO2 alloy films with a as low as 38.9°C, and a of 41.1% (Wang et al., 2021).
Other strategies to improve the performance of VO2 include nano- and microscale morphology engineering (Qian et al., 2014; Kim et al., 2019; Schläefer et al., 2019; Wen et al., 2021), the use of anti-reflection coating (Zhou et al., 2016; Liu et al., 2018), porosity tuning (Kang et al., 2011), and multilayered structuring (Long et al., 2016; Sun et al., 2016; Sun et al., 2017). Fabrication complexities and costs associated with the strategies mentioned above may hinder the broader application.
Figure 1A Illustration of thermochromic wood film for smart windows. Adapted with permission from (Liu et al., 2021b), Copyright 2021 American Chemical Society. (B) Schematic of the interaction between hydroxypropyl cellulose, water, and glycerol. Adapted with permission from (Nakamura et al., 2019), Copyright 2019 American Chemical Society. (C) Schematic of switching process of PV smart windows. Adapted with permission from (Wheeler et al., 2017), Copyright 2017 Springer Nature.
Hydrogel
Hydrogels are cross-linked hydrophilic polymer chains that swell in water but maintain defined structures. Thermochromic hydrogel undergoes a drastic transmittance change between hydrophilic and hydrophobic states around the lower critical solution temperature (LCST). At temperatures below the LCST, the intermolecular hydrogen bonds connect the polymer chains and water molecules, leading to a hydrophilic property with high transmittance. For temperatures higher than LCST, the polymer collapses due to the breakdown of hydrogen bonds and scatters light, resulting in a hydrophobic state with low transmittance.
The hydrogel is easily fabricated for smart windows with excellent solar modulation. Zhou et al. presented a thermochromic smart window using poly(N-iso-propylacrylmide) (PNIPAm) hydrogel as the active material and investigated the effect of the film thickness (Zhou et al., 2014). For a 52 µm thick film, the hydrogel shows a of 87.9 and 59.9% at low and high temperatures, respectively, with of 20.4%. The scattering behavior of PNIPAm hydrogel can be tuned by modifying the particle size, internal structure, and volume fraction of water. However, size limitations in emulsion polymerization of PNIPAm particles lead to inefficient scattering in the infrared region. To increase the hydrogel particle size and extend the transmittance modulation spectrum in the infrared region, Li et al. synthesized poly(N-isopropylacrylamide)-2-aminoethylmethacrylate hydrochloride (PNIPAm-AEMA) microparticles as a thermochromic material, which achieved a of 87.2% with of 81.3% at ∼32°C (Li et al., 2019). The transmittance spectra of a 240 µm thick PNIPAm-AEMA varies dramatically when the temperature increases from 31°C to 34°C, indicating a temperature-responsive phase transition. Furthermore, device-level tests show excellent stability with less than a 4% decrease in infrared transmittance after 1,000 cycles of heating-cooling. In order to adapt thermochromism in cold weather, Nakamura et al. tuned the transition temperature of hydroxypropyl cellulose (HPC) by changing the glycerol concentration, as shown in Figure 1B (Nakamura et al., 2019). Note that, in this case, a rigorous encapsulation strategy is required for practical applications due to the liquid-like characteristics of the hydrogel.
Hydrogel particles with tunable scattering behavior have a promising outlook for further development. Besides, several composites can be created to form multifunctional hybrid hydrogel materials, providing better solar modulation, faster response to stimuli, and enhanced mechanical stability (Zhou et al., 2015a; Zhou et al., 2020).
Perovskite
Perovskites are materials with a general chemical formula of ABX3, where cations A and B are bonded with anion X. Perovskites have been widely applied in solar cells due to their excellent photoelectric properties (Green et al., 2014). Recently, the thermochromic properties of perovskite materials have attracted considerable attention in the smart windows field. It has been found that some halide perovskite materials, with the larger cation A usually the methylammonium ion, the smaller cation B being Pb, and the anion X being a halogen ion, exhibit a reversible phase and color change upon a natural thermal stimulus. The thermoresponsive behavior is based on the unique properties of perovskite, including crystallization, gas-induced reaction, and humidity-based hydration/dehydration.
The inverse temperature crystallization (ITC) process in hybrid perovskites was investigated by Saidaminov et al., where the solubility of perovskites in certain solvents decreases with the increase of temperature (Saidaminov et al., 2015). With a careful choice of solvent, temperature, and other parameters, single crystals of CH3NH3PbBr3 and CH3NH3PbI3 can be rapidly grown with controlled sizes and shapes. Following this pioneering work, De Bastiani et al. utilized the ITC process and tunable optical properties of perovskites to design thermochromic inks for smart window applications (De Bastiani et al., 2017). As the temperature rises from 25 to 120°C, the inks undergo a color change from yellow to black. However, the solvent needs to be sealed with the ink to achieve the reversible behavior, hindering wider application.
In addition, the gas-induced thermochromic behavior of perovskite has been explored. Zhou et al. reported a reversible phase and color change of perovskite thin films from solid to liquid phase during the perovskite-gas interaction with methylamine (CH3NH2) gas (Zhou et al., 2015b). Wheeler et al. further demonstrated a switchable solar cell device using the low formation/dissociation energy of the methylammonium lead iodide-methylamine complex (CH3NH3PbI3•xCH3NH2), as shown in Figure 1C (Wheeler et al., 2017). In this case, the device switches from a transparent state of 68% to an absorbing-colored state of 3%. Note that the safety issues of methylamine, including flammability and toxicity, need consideration for commercialization.
Humidity-stimulated thermochromic perovskites have also attracted interest. Halder et al. reported a hydrated lead halide hybrid perovskite CH3NH3PbI3 with thermochromic behavior under the hydration and dehydration process (Halder et al., 2015). Zhang et al. developed a hydrated CH3NH3PbI3 thermochromic window with a of 25.5% and of 34.3 and 85% at the hot state (80°C) and cold state (25°C), respectively, after optimizing the mixing ratio and spin-coating speed during the fabrication process (Zhang et al., 2019). However, the challenges of relatively high transition temperature and large transition hysteresis need to be overcome. Liu et al. reported a hydrated CH3NH3PbI3-xClx thermochromic perovskite smart window, achieving a of 85.2 and 30.3% at the cold (room temperature) and hot (60°C) states, respectively, with a of 23.7% (Liu et al., 2021a).
Further research has shown the potential of integrating both photoactivity and thermochromic features for smart photovoltaic windows applications. Lin et al. demonstrated a smart photovoltaic window using an inorganic halide perovskite, cesium lead iodide/bromide (CsPbI3-xBrx) (Lin et al., 2018). At roomtemperature, the transparent non-perovskite phase shows a of 81.7%, while at elevated temperature (150°C), the deeply colored perovskite phase exhibits low visible transparency of 35.4% with high power output. The two switchable phases of perovskite have different optical and photovoltaic efficiencies, making them promising candidates for energy savings.
Conclusion and Outlook
In recent years, smart windows have been intensely studied for energy-saving and indoor comfort. This mini-review focuses on the recent advancements of thermochromic materials for smart windows in terms of operation, performance, and potential for commercialization. The performances of promising thermochromic materials, including vanadium dioxide, hydrogels, and perovskites, have been summarized and compared, as listed in Table 1. Reference source not found. Understanding the fundamental mechanisms affecting optical properties and transition and leveraging state-of-art advancements can accelerate the development of energy-saving smart windows.

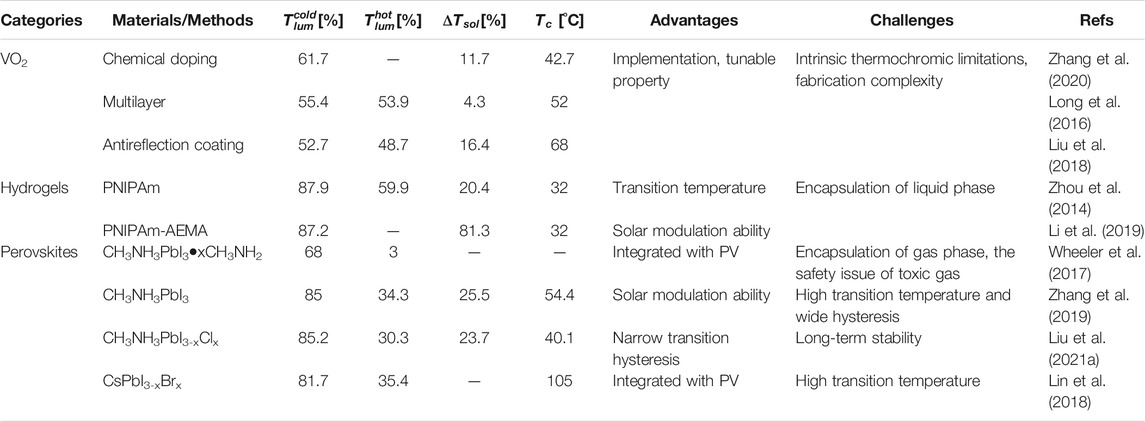

TABLE 1
| Categories | Materials/Methods | [%] | [%] | [%] | [˚C] | Advantages | Challenges | Refs |
|---|---|---|---|---|---|---|---|---|
| VO2 | Chemical doping | 61.7 | — | 11.7 | 42.7 | Implementation, tunable property | Intrinsic thermochromic limitations, fabrication complexity | Zhang et al. (2020) |
| Multilayer | 55.4 | 53.9 | 4.3 | 52 | Long et al. (2016) | |||
| Antireflection coating | 52.7 | 48.7 | 16.4 | 68 | Liu et al. (2018) | |||
| Hydrogels | PNIPAm | 87.9 | 59.9 | 20.4 | 32 | Transition temperature | Encapsulation of liquid phase | Zhou et al. (2014) |
| PNIPAm-AEMA | 87.2 | — | 81.3 | 32 | Solar modulation ability | Li et al. (2019) | ||
| Perovskites | CH3NH3PbI3•xCH3NH2 | 68 | 3 | — | — | Integrated with PV | Encapsulation of gas phase, the safety issue of toxic gas | Wheeler et al. (2017) |
| CH3NH3PbI3 | 85 | 34.3 | 25.5 | 54.4 | Solar modulation ability | High transition temperature and wide hysteresis | Zhang et al. (2019) | |
| CH3NH3PbI3-xClx | 85.2 | 30.3 | 23.7 | 40.1 | Narrow transition hysteresis | Long-term stability | Liu et al. (2021a) | |
| CsPbI3-xBrx | 81.7 | 35.4 | — | 105 | Integrated with PV | High transition temperature | Lin et al. (2018) |
Summary of various thermochromic materials.
In order to fill the gap between lab-scale demonstrations and practical applications, further research is needed. This paper suggests further research along three lines: 1) Relative to conventional VO2 materials, emerging materials like hydrogel and perovskite have shown better thermochromic performance. Further research could focus on various strategies for integration, especially for perovskites, which have shown potential for demonstrating several features beyond thermochromism; 2) Besides the three major thermochromic materials discussed in the review, exploring new materials with novel thermochromic mechanisms will help expand the range of potential candidates. For example, ionic liquids, liquid crystals (Jiang et al., 2021), and metamaterials have shown promising thermochromic properties; 3) Finally, the durability and safety of materials should be considered, especially for materials requiring encapsulation of gas or liquid. The leakage of thermo-responsive materials may lead to a dramatic decline in performance.
Statements
Author contributions
All authors listed have made substantial, direct, and intellectual contribution to the work and approved it for publication.
Funding
This material is based upon work supported by the National Aeronautics and Space Administration under Grant No. 80NSSC21K0072 issued through the Space Technology Research Grants Program.
Acknowledgments
The authors acknowledge the support of the National Aeronautics and Space Administration under Grant No. 80NSSC21K0072 issued through the Space Technology Research Grants Program.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AburasM.SoebartoV.WilliamsonT.LiangR.Ebendorff-HeidepriemH.WuY. (2019). Thermochromic Smart Window Technologies for Building Application: A Review. Appl. Energ.255, 113522. 10.1016/j.apenergy.2019.113522
2
BaetensR.JelleB. P.GustavsenA. (2010). Properties, Requirements and Possibilities of Smart Windows for Dynamic Daylight and Solar Energy Control in Buildings: A State-Of-The-Art Review. Solar Energ. Mater. Solar Cells94, 87–105. 10.1016/j.solmat.2009.08.021
3
CasiniM. (2018). Active Dynamic Windows for Buildings: A Review. Renew. Energ.119, 923–934. 10.1016/j.renene.2017.12.049
4
CuiY.KeY.LiuC.ChenZ.WangN.ZhangL.et al (2018). Thermochromic VO2 for Energy-Efficient Smart Windows. Joule2, 1707–1746. 10.1016/j.joule.2018.06.018
5
De BastianiM.SaidaminovM. I.DursunI.SinatraL.PengW.ButtnerU.et al (2017). Thermochromic Perovskite Inks for Reversible Smart Window Applications. Chem. Mater.29, 3367–3370. 10.1021/acs.chemmater.6b05112
6
GaoY.WangS.KangL.ChenZ.DuJ.LiuX.et al (2012). VO2-Sb:SnO2 Composite Thermochromic Smart Glass Foil. Energy Environ. Sci.5, 8234–8237. 10.1039/c2ee21119j
7
GoodenoughJ. B. (1971). The Two Components of the Crystallographic Transition in VO2. J. Solid State. Chem.3, 490–500. 10.1016/0022-4596(71)90091-0
8
GreenM. A.Ho-BaillieA.SnaithH. J. (2014). The Emergence of Perovskite Solar Cells. Nat. Photon8, 506–514. 10.1038/nphoton.2014.134
9
HalderA.ChoudhuryD.GhoshS.SubbiahA. S.SarkarS. K. (2015). Exploring Thermochromic Behavior of Hydrated Hybrid Perovskites in Solar Cells. J. Phys. Chem. Lett.6, 3180–3184. 10.1021/acs.jpclett.5b01426
10
JiangY.ZhouY.WangM.YangD.-K. (2021). Smart Thermally Switchable Liquid Crystal Window. Adv. Photo Res.2, 2000156. 10.1002/adpr.202000156
11
KamalisarvestaniM.SaidurR.MekhilefS.JavadiF. S. (2013). Performance, Materials and Coating Technologies of Thermochromic Thin Films on Smart Windows. Renew. Sustainable Energ. Rev.26, 353–364. 10.1016/j.rser.2013.05.038
12
KangL.GaoY.LuoH.ChenZ.DuJ.ZhangZ. (2011). Nanoporous Thermochromic VO2 Films with Low Optical Constants, Enhanced Luminous Transmittance and Thermochromic Properties. ACS Appl. Mater. Inter.3, 135–138. 10.1021/am1011172
13
KeY.ZhouC.ZhouY.WangS.ChanS. H.LongY. (2018). Emerging Thermal-Responsive Materials and Integrated Techniques Targeting the Energy-Efficient Smart Window Application. Adv. Funct. Mater.28, 1800113–1800118. 10.1002/adfm.201800113
14
KhandelwalH.SchenningA. P. H. J.DebijeM. G. (2017). Infrared Regulating Smart Window Based on Organic Materials. Adv. Energ. Mater.7, 1602209. 10.1002/aenm.201602209
15
KimK.-S.SonE.-W.YounJ. W.KimD. U. (2019). Intense Pulsed Light Sintering of Vanadium Dioxide Nanoparticle Films and Their Optical Properties for Thermochromic Smart Window. Mater. Des.176, 107838. 10.1016/j.matdes.2019.107838
16
LiX.-H.LiuC.FengS.-P.FangN. X. (2019). Broadband Light Management with Thermochromic Hydrogel Microparticles for Smart Windows. Joule3, 290–302. 10.1016/j.joule.2018.10.019
17
LiX.SunB.SuiC.NandiA.FangH.PengY.et al (2020a). Integration of Daytime Radiative Cooling and Solar Heating for Year-Round Energy Saving in Buildings. Nat. Commun.11, 1–9. 10.1038/s41467-020-19790-x
18
LiY.LinC.HuangJ.ChiC.HuangB. (2020b). Spectrally Selective Absorbers/Emitters for Solar Steam Generation and Radiative Cooling‐Enabled Atmospheric Water Harvesting. Glob. Challenges5, 2000058. 10.1002/gch2.202000058
19
LinJ.LaiM.DouL.KleyC. S.ChenH.PengF.et al (2018). Thermochromic Halide Perovskite Solar Cells. Nat. Mater17, 261–267. 10.1038/s41563-017-0006-0
20
LiuC.WangS.ZhouY.YangH.LuQ.MandlerD.et al (2018). Index-tunable Anti-reflection Coatings: Maximizing Solar Modulation Ability for Vanadium Dioxide-Based Smart Thermochromic Glazing. J. Alloys Compounds731, 1197–1207. 10.1016/j.jallcom.2017.10.045
21
LiuS.DuY. W.TsoC. Y.LeeH. H.ChengR.FengS. P.et al (2021a. Adv. Funct. Mater.31, 2010426. 10.1002/adfm.202010426
22
LiuS.TsoC. Y.LeeH. H.DuY. W.YuK. M.FengS.-P.et al (2021b). Self-Densified Optically Transparent VO2 Thermochromic Wood Film for Smart Windows. ACS Appl. Mater. Inter.13, 22495–22504. 10.1021/acsami.1c03803
23
LongS.ZhouH.BaoS.XinY.CaoX.JinP. (2016). Thermochromic Multilayer Films of WO3/VO2/WO3 sandwich Structure with Enhanced Luminous Transmittance and Durability. RSC Adv.6, 106435–106442. 10.1039/c6ra23504b
24
NakamuraC.YamamotoT.ManabeK.NakamuraT.EinagaY.ShiratoriS. (2019). Thermoresponsive, Freezing-Resistant Smart Windows with Adjustable Transition Temperature Made from Hydroxypropyl Cellulose and Glycerol. Ind. Eng. Chem. Res.58, 6424–6428. 10.1021/acs.iecr.9b00407
25
NandakumarD. K.RaviS. K.ZhangY.GuoN.ZhangC.TanS. C. (2018). A Super Hygroscopic Hydrogel for Harnessing Ambient Humidity for Energy Conservation and Harvesting. Energ. Environ. Sci.11, 2179–2187. 10.1039/c8ee00902c
26
QianX.WangN.LiY.ZhangJ.XuZ.LongY. (2014). Bioinspired Multifunctional Vanadium Dioxide: Improved Thermochromism and Hydrophobicity. Langmuir30, 10766–10771. 10.1021/la502787q
27
RezaeiS. D.ShannigrahiS.RamakrishnaS. (2017). A Review of Conventional, Advanced, and Smart Glazing Technologies and Materials for Improving Indoor Environment. Solar Energ. Mater. Solar Cells159, 26–51. 10.1016/j.solmat.2016.08.026
28
SaidaminovM. I.AbdelhadyA. L.MuraliB.AlarousuE.BurlakovV. M.PengW.et al (2015). High-quality Bulk Hybrid Perovskite Single Crystals within Minutes by Inverse Temperature Crystallization. Nat. Commun.6, 1–6. 10.1038/ncomms8586
29
SchläeferJ.SolC.LiT.MalardeD.PortnoiM.MacdonaldT. J.et al (2019). Thermochromic VO2−SiO2 Nanocomposite Smart Window Coatings with Narrow Phase Transition Hysteresis and Transition Gradient Width. Solar Energ. Mater. Solar Cells200, 109944. 10.1016/j.solmat.2019.109944
30
ShenN.ChenS.HuangR.HuangJ.LiJ.ShiR.et al (2021). Vanadium Dioxide for Thermochromic Smart Windows in Ambient Conditions. Mater. Today Energ.21, 100827. 10.1016/j.mtener.2021.100827
31
SunG.CaoX.ZhouH.BaoS.JinP. (2017). A Novel Multifunctional Thermochromic Structure with Skin comfort Design for Smart Window Application. Solar Energ. Mater. Solar Cells159, 553–559. 10.1016/j.solmat.2016.09.045
32
SunG.ZhouH.CaoX.LiR.TazawaM.OkadaM.et al (2016). Self-Assembled Multilayer Structure and Enhanced Thermochromic Performance of Spinodally Decomposed TiO2-VO2 Thin Film. ACS Appl. Mater. Inter.8, 7054–7059. 10.1021/acsami.5b12476
33
TällbergR.JelleB. P.LoonenR.GaoT.HamdyM. (2019). Comparison of the Energy Saving Potential of Adaptive and Controllable Smart Windows: A State-Of-The-Art Review and Simulation Studies of Thermochromic, Photochromic and Electrochromic Technologies. Solar Energ. Mater. Solar Cells200, 109828. 10.1016/j.solmat.2019.02.041
34
WangX.ChenL.LuH.FangW.LiH.YinW.et al (2021). Enhancing Visible-Light Transmittance while Reducing Phase Transition Temperature of VO2 by Hf-W Co-doping. Appl. Phys. Lett.118, 192102. 10.1063/5.0044516
35
WangX.HsiehM.-L.BurJ. A.LinS.-Y.NarayananS. (2020a). Capillary-driven Solar-thermal Water Desalination Using a Porous Selective Absorber. Mater. Today Energ.17, 100453. 10.1016/j.mtener.2020.100453
36
WangX.HsiehM.-L.BurJ. A.LinS.-Y.NarayananS. (2020b). The Role of Nanostructure Morphology of Nickel-Infused Alumina on Solar-Thermal Energy Conversion. J. Opt.23, 015101. 10.1088/2040-8986/abcc53
37
WangX.YangH.HsiehM.-L.BurJ. A.LinS.-Y.NarayananS. (2020c). Nickel-Infused Nanoporous Alumina as Tunable Solar Absorber. MRS Adv.5, 2575–2583. 10.1557/adv.2020.300
38
WenZ.KeY.FengC.FangS.SunM.LiuX.et al (2021). Mg‐Doped VO 2 @ZrO 2 Core−Shell Nanoflakes for Thermochromic Smart Windows with Enhanced Performance. Adv. Mater. Inter.8, 2001606–2001609. 10.1002/admi.202001606
39
WheelerL. M.MooreD. T.IhlyR.StantonN. J.MillerE. M.TenentR. C.et al (2017). Switchable Photovoltaic Windows Enabled by Reversible Photothermal Complex Dissociation from Methylammonium lead Iodide. Nat. Commun.8. 10.1038/s41467-017-01842-4
40
WuL. Y. L.ZhaoQ.HuangH.LimR. J. (2017). Sol-gel Based Photochromic Coating for Solar Responsive Smart Window. Surf. Coat. Technology320, 601–607. 10.1016/j.surfcoat.2016.10.074
41
ZhangL.XiaF.YaoJ.ZhuT.XiaH.YangG.et al (2020). Facile Synthesis, Formation Mechanism and Thermochromic Properties of W-Doped VO2(M) Nanoparticles for Smart Window Applications. J. Mater. Chem. C8, 13396–13404. 10.1039/d0tc03436c
42
ZhangY.TsoC. Y.IñigoJ. S.LiuS.MiyazakiH.ChaoC. Y. H.et al (2019). Perovskite Thermochromic Smart Window: Advanced Optical Properties and Low Transition Temperature. Appl. Energ.254, 113690. 10.1016/j.apenergy.2019.113690
43
ZhouH.LiJ.BaoS.LiJ.LiuX.JinP. (2016). Use of ZnO as Antireflective, Protective, Antibacterial, and Biocompatible Multifunction Nanolayer of Thermochromic VO2 Nanofilm for Intelligent Windows. Appl. Surf. Sci.363, 532–542. 10.1016/j.apsusc.2015.12.045
44
ZhouJ.GaoY.ZhangZ.LuoH.CaoC.ChenZ.et al (2013). VO2 Thermochromic Smart Window for Energy Savings and Generation. Sci. Rep.3, 1–5. 10.1038/srep03029
45
ZhouY.CaiY.HuX.LongY. (2014). Temperature-responsive Hydrogel with Ultra-large Solar Modulation and High Luminous Transmission for "smart Window" Applications. J. Mater. Chem. A.2, 13550–13555. 10.1039/c4ta02287d
46
ZhouY.CaiY.HuX.LongY. (2015a). VO2/hydrogel Hybrid Nanothermochromic Material with Ultra-high Solar Modulation and Luminous Transmission. J. Mater. Chem. A.3, 1121–1126. 10.1039/c4ta05035e
47
ZhouY.DongX.MiY.FanF.XuQ.ZhaoH.et al (2020). Hydrogel Smart Windows. J. Mater. Chem. A.8, 10007–10025. 10.1039/d0ta00849d
48
ZhouZ.WangZ.ZhouY.PangS.WangD.XuH.et al (2015b). Methylamine-Gas-Induced Defect-Healing Behavior of CH3NH3PbI3Thin Films for Perovskite Solar Cells. Angew. Chem. Int. Ed.54, 9705–9709. 10.1002/anie.201504379
Summary
Keywords
thermochromism, vanadium dioxide, hydrogels, perovskite, optics, smart window
Citation
Wang X and Narayan S (2021) Thermochromic Materials for Smart Windows: A State-of-Art Review. Front. Energy Res. 9:800382. doi: 10.3389/fenrg.2021.800382
