Energy Efficient Photovoltaic-Electric Spring for Real and Reactive Power Control in Demand-Side Management

Keerthi Deepika Kollipara
Keerthi Deepika Kollipara1*J. Vijay KumarJ. Vijay Kumar2Prasanthi RPrasanthi R3Srinivasa Rao SuraSrinivasa Rao Sura3M. S. Pradeep Kumar PatnaikM. S. Pradeep Kumar Patnaik3R. S. Ravi SankarR. S. Ravi Sankar1
  • 1Vignan’s Institute of Information Technology (VIIT), Visakhapatnam, India
  • 2Anil Neerukonda Institute of Technology and Sciences (ANITS), Visakhapatnam, India
  • 3Department of Electronics and Communication Engineering, Gandhi Institute of Technology and Management (GITAM), Visakhapatnam, India

Photovoltaic-electric spring (PV-ES) is a promising topology to utilize widespread residential roof-top photovoltaic systems in demand-side management. Power control for an integrated configuration of photovoltaic-electric spring system to achieve dynamic supply-demand balance in power distribution networks is presented. Extraction of maximum power from PV panel using Perturb and Observe algorithm along with boost converter are designed. This power is given as input to the DC link of the Electric Spring. The modeling and design of the integrated system are detailed. Extensive simulations are carried out in MATLAB/Simulink to observe the performance of the PV-ES system. The effectiveness of the proposed topology was verified for changes in line voltage, PV irradiation, and reference power. It was confirmed that the proposed PV-ES precisely controls the active power consumption of the critical load, rigidly regulates the voltage at the point of common coupling (PCC), and follows the variations in reference power available for the smart load. Finally, the expansive performance of ES fed with a PV source was confirmed to be superior over an ES system fed with a DC source.

1 Introduction

With the unpredictable renewables inhabiting a major stake in the energy market, there is a shift from “power generation following the load demand” to “load demand to follow the generation,” termed demand-side management (DSM) (Westermann and John, 2007). In smart grids, DSM plays an effective operational role in optimizing cost, power system reliability, and stability, profiting both consumers and utility operators (Nolan and O’Malley, 2015). Therefore, to handle the irregularity at both the supply and demand ends, DSM provides feasible solutions by making necessary changes in load consumption. The power consumption of some loads is adaptively varied to match the fluctuating renewable power (Palensky and Dietrich, 2011). These loads that can withstand large variations of voltage/frequency for a short duration without interruption to consumer load operation are called non-critical loads, mainly heating and cooling loads (Lee et al., 2011). On the contrary, some loads require to be operated at almost constant voltage and power supply. These are referred to as critical loads, mainly the military, computer, and hospital loads.

In this regard, it is crucial to modulate the power of the non-critical load. At the same time, there must be an effective method to regulate mains voltage and provide grid support. Both these objectives are met with an Electric Spring (ES), a demand response technology embedded in non-critical load implemented by Hui et al. (2012), Shuo et al. (2014), Tan et al. (2013), and Shuo et al. (2014). For practical applications of ES in a distribution system, ES must be capable of controlling active and reactive power independently and effectively, as demonstrated by Wang et al. (2018).

Widespread domestic roof-top photovoltaic (PV) systems in smart grids emphasize that the future power generation systems adopt power electronic-based converters to accomplish the grid integration function. Khamis et al. (2019) presented a control technique for regulating point of common coupling (PCC) voltage by ES and injecting locally available PV power into the grid via the same power electronic converter. The system analysis and mathematical modeling of the proposed control scheme were demonstrated in detail. Yang et al. (2019) proposed a new configuration of the PV-ES system in which the PV power was maximally collected and the active power consumption of the system was precisely controlled by an electric spring operated with the Radial-Chordal Decomposition control technique proposed by Mok et al. (2016). In this work, a decoupled dual functionality of the ES as a bus voltage mitigation device and a renewable energy interactive converter for locally generated renewable power is accomplished through a Photovoltaic-Electric Spring (PV-ES). The modeling and design of the integrated system are detailed in Section 2. Extensive simulations are carried out in MATLAB/Simulink to observe the performance of the PV-ES system. The effectiveness of the proposed topology was verified for various operating conditions. Comparative analysis is reported between PVES and ES fed with a DC source.

2 Overview of the Proposed Methodological Approach

Total real power absorbed by the Electric Spring system is the sum of powers absorbed by the critical and non-critical load. Net power absorbed by the smart load will be regulated by controlling voltage across ES to follow the varying profile of the input power. This is the control strategy in Demand-Side Management.

The proposed PV-ES consists of an ES system and a photovoltaic system. The power extracted from the PV system is supplied as input to the DC link of ES. The ES system comprises a PV source, critical load, and non-critical load, and an electric spring is controlled with the PQ power control technique. The photovoltaic system constitutes the PV array and DC-DC converter with Maximum Power Point Tracking (MPPT) control circuit. Its main function is to regulate the DC link voltage and convert maximum power from the PV array to DC power, as shown in Figure 1.

FIGURE 1
www.frontiersin.org

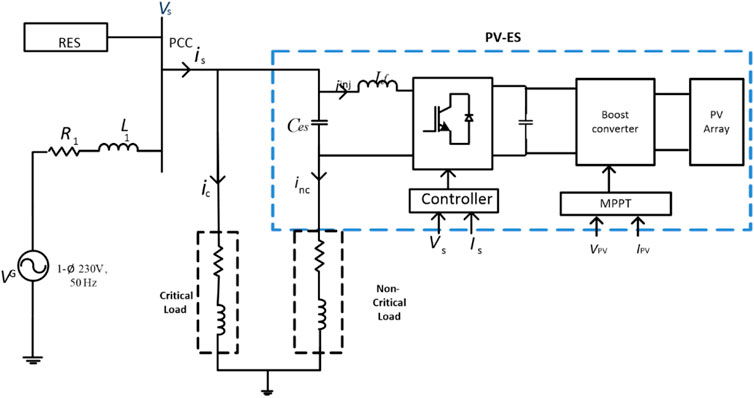

FIGURE 1. Schematic diagram of the PV-ES system.

2.1 Modeling of the PQ Controller

This section explores a novel active and reactive power control for ES by a local signal manipulation. A control loop is designed to achieve two objectives. One is to maintain constant real power to the critical load, regardless of the fluctuations in available power from renewable energy sources. Another is to regulate critical load voltage during voltage fluctuations. These objectives are accomplished by designing two control loops for real power control and voltage control to inject the ES voltage at the required phase angle.

The combined operation of the PI controllers is used to estimate the voltage (vsd) to be injected in phase with the non-critical load branch current, corresponding to the amount of active power available and PCC voltage. Another main function is to determine the phase angle of the injected voltage. Reference data-PCC voltage Vs* and real power available P* are taken, and the current data of the same quantities are calculated. The supplementary information about angular frequency and phase angle of voltage vector is determined using enhanced phase-locked loop (EPLL). EPLL is chosen due to its simplicity, accuracy, and fast outputs for changing load conditions. These are given as inputs to the controller to generate a reference signal for pulse width modulation (PWM) generator. A full-bridge inverter is employed to generate the essential ES voltage. Bipolar pulse width modulation (Wu et al., 2014) is implemented to produce the vital gate signals to the four switches per the reference signal generated by the designed PQ controller.

PCC voltage has two components. PCC voltage and currents with peak values Vs, Is are, respectively,

vs(t)=Vscos(ωt+),(1)
is(t)=Iscos(ωt+φ),(2)

where ϕ and φ are the initial phases of PCC voltage and current, ω is the angular frequency, and the apparent power consumed by the electric spring system is

S˜=vsis,(3)
S˜=(vsd+ jvsq)(isd jisq).(4)

vsd,vsq are the components of PCC voltage, vs in the d-q rotating frame. Similarly, isd, isq are the components of the PCC current, is in the d-q rotating frame:

Pin=vsdisd+ vsqisq,(5)
Qin=vsqisdvsdisq.(6)

If the d-axis of the rotating frame is aligned along the PCC voltage vector, then it can be rewritten as

Pin=vsdisd,(7)
Qin=vsdisq.(8)

Pin,Qin are calculated where Fourier Transforms are used to extract the peak values and phase angles from the detected quantities of vs, is as given by Munoz et al. (2012). After calculating the real and imaginary ES voltage terms vsd,vsq using the innermost control loops, a dq/αβ transformation (Golestan and Guerrero, 2015) is applied to generate the sinusoidal inverter reference voltage to be injected into the grid as given by the following equations:

Vsdq(t)=Vsαβ(t)ej,(9)
or,Vsαβ(t)=Vsdq(t)ej,(10)
Vsαβ(t)=Vsdq(t) (cos+jsin),(11)
or,Vsαβ(t)=(Vsd+jVsq)(cos+jsin),(12)
Vsα+jVsβ=(Vsd+jVsq)(cos+jsin),(13)

where

Vsα=VsdcosVsqsin.(14)

Since the proposed ES is applied to a single-phase system, the reference voltage is the calculated α reference command, whereas the β reference command is discarded. This is adopted because the β component can be emulated with a 900 phase shift of the α component. This power control method has the following features:

• Eliminates the need to identify the data of grid voltage.

• Decouples the control input active power and PCC voltage.

• Is simple to implement and has less computational burden compared to other techniques.

RMS value and the instantaneous phase of the critical load voltage are detected by the RMS and EPLL blocks, respectively. The powers Pin,Qin are controlled by separate proportional-integral (PI) regulators. Specifically, the regulator in the d-axis controls Pin and that one in the q-axis controls Qin. The output signals of the PI regulators in both the loops are processed through the inverse dq-to- transformation to get the modulation signal, vα. A bipolar pulse width modulation scheme is implemented to obtain drive signals for the VSI just after a limiter.

With reference to Eqs. 1, 2, the total apparent power consumed by the ES system is

S˜=Pin+jQin.(15)

For implementation in modeling, actual powers consumed are calculated as detailed in Figure 2:

Pin=VsIs(cos(φ)t),(16)
Qin=VsIs(sin(φ)t).(17)

Pin,Qin are calculated with PCC voltage and currents considered in the d-q rotating frame.

FIGURE 2
www.frontiersin.org

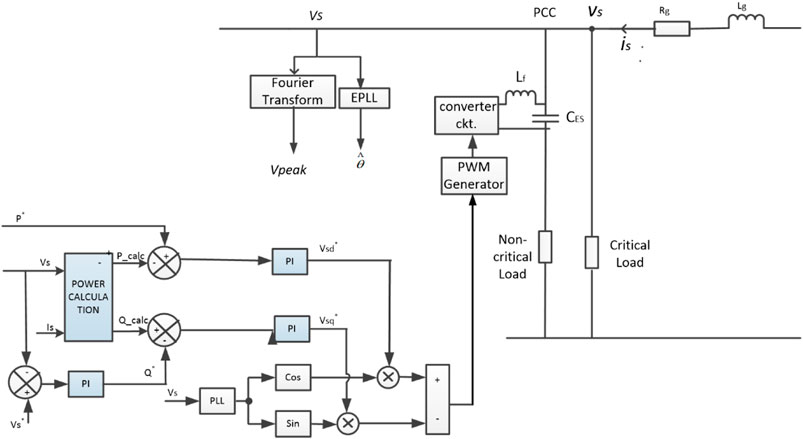

FIGURE 2. Block diagram representation of PQ control to ES.

If VCrit,RCrit,XCrit are the RMS voltage, resistance, and reactance parameters of critical load, then powers of the critical and non-critical loads are determined from the load impedance values, RMS, then powers of the critical and non-critical loads are determined as:

Real power of critical load:

PCrit=Vcrit2RCrit.(18)

Reactive power of critical load:

QCrit=Vcrit2XCrit.(19)

2.2 Modeling of Photo-Voltaic System

The PV array is the combination of the PV modules. The primary element is the PV cell, which converts solar power to electrical power. Alrahim Shannan et al. (2013) detailed the different modeling of the PV cell as single diode model, two diode models, and multiple diode model. In this work single diode model of a PV cell is considered. Ipv is the photocurrent. D1 is an anti-parallel diode, Rp is leakage resistance, and Rs is contact resistance. V is the output voltage of the single cell, and the output current of cell I is given in Eq. 20:

I=IpvID1(V+IRsRp),(20)
ID1=Io1[exp(q(V+IRS)A1KT)1],(21)
Ipv=[Iscr+Ki(TkTrefk)]×λ1000.(22)

Here, λ is the irradiation of solar, Iscr is cell shorted current, and Tk and Trefk are the actual and standard temperature. K is the temperature coefficient of short-circuit current (A/K), A1 is the ideality factors of the diodes. q is the charge of the electron, and Io1 are the reverse saturation currents of diodes. Eq. 21is modified for the PV module as given in Eq. 22.

I=NpIPVNpID1(V+IRsRp),(23)
I=NpIPVNpI01[exp{q(V+IRs)NsA1KT}1](V+IRsRp).(24)

Here, Ns and Np are the numbers of cells cascaded and shunted in the module. The PV module current is given in Eq. 24. These modules are connected in cascaded and shunted to meet the voltage and power rating. They form a PV array. The PV array current is given as follows:

I=NppIPVNppI01[exp{q(V+IRs(NssNpp))NsA1KT}1][V+IRs(NssNpp)Rp(NssNpp)],(25)

where Nss and Npp are the numbers of series-connected and parallel-connected modules. The standard KC200GT data sheet parameters used to do the PV array simulation are given in Table 1.

TABLE 1
www.frontiersin.org

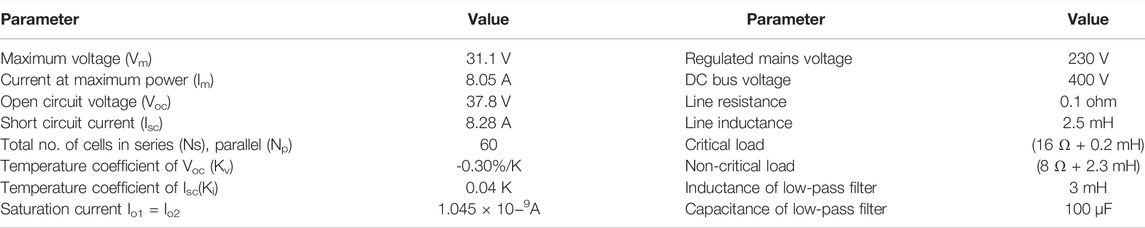

TABLE 1. System specifications.

Generally, a DC–DC boost converter is employed to increase the output voltage. It is shown in Figure 3. The inductor stores energy when the switch is ON, the stored energy is released to the load when it is OFF. MPPT controller generates reference voltage. The error voltage is given as input to the PI controller to generate a reference voltage signal for PWM control. It generates pulses to the boost converter and enables the boost converter to obtain the maximum power from the PV panel and maintain fixed DC link voltage. The ripple in DC link voltage is reduced by a capacitor filter given by Sano and Fujita (2008).

FIGURE 3
www.frontiersin.org

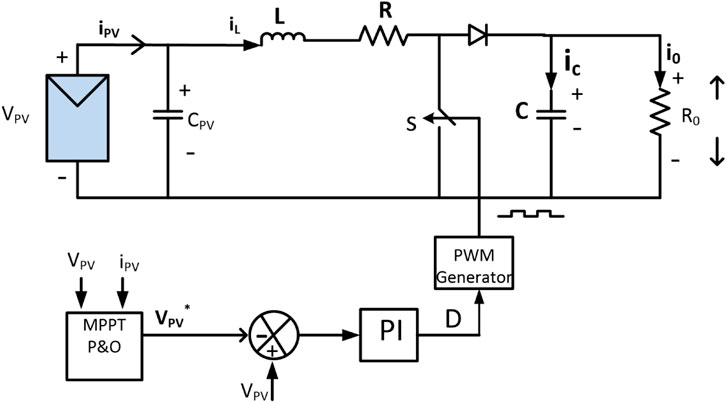

FIGURE 3. PV array with DC-DC boost converter and MPPT.

3 Performance of PV-ES System

The ES system with the parameters given in Table 1 is considered. The design of the parameters of the boost converter is given as follows (Veerachary and Sekhar, 2011):

DutyCycleD=1VsVo;L=VsDΔIf;CapacitanceC=I0DΔVf.(26)

Vs = source voltage, Vo = output voltage, D = duty cycle, ΔI = ripples in current, and ΔV = ripples in output voltage. Gains of the PI controller are tuned manually and their values are Kp = 0.0025, Ki = 0.5.

The PV array is designed for 480 V, 25 kW. The control circuit of the boost converter is designed for two purposes: maximum power extraction and maintaining DC link voltage constant. The solar panel is considered to operate at a temperature of 25° and insolation of 1,000 W/m2. In order to demonstrate the operation of PV-ES under the collective effect of changes in solar irradiation levels and PCC voltage, the irradiation level is maintained at 900 W/m2 from 0 to 2.5 s and then reduced to 600 W/m2 for the remaining period. The total simulation time is 4 s. PCC voltage change is studied for voltage sag of 184 V and swell of 276 V.

PV current and voltage before and after MPPT are given in Figures 4A,B, 5, respectively. These values are subjected to changes in solar irradiation at t = 3 s. These simulations indicate that PV voltage and current values are controlled to maintain an almost constant DC power of 700 W supplied to ES. Sag in PCC voltage occurs at t = 2 s. Instant radiation changes result in a discontinuity in the PV current from 2.5 to 2.75 s. A transient operation occurs for 0.25 s. For the first 2 s, the line voltage is maintained at the rated value of 230 V. At t = 3 s, its value is decreased to 184 V. However, due to the absorption of reactive power by ES, the PCC voltage is regulated to a rated value within 0.42 s as presented in Figure 6A.

FIGURE 4
www.frontiersin.org

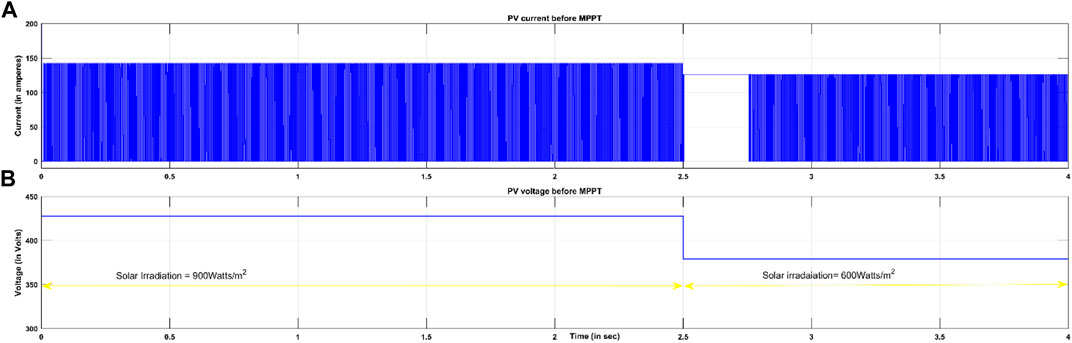

FIGURE 4. PV current and voltage before MPPT.

FIGURE 5
www.frontiersin.org

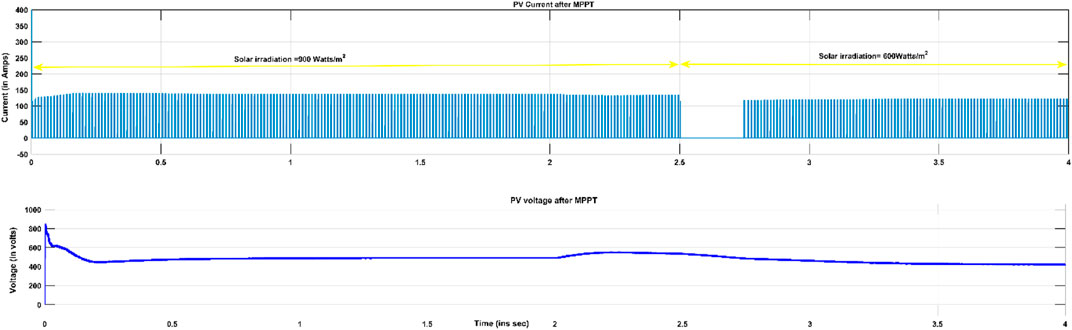

FIGURE 5. PV current and voltage after MPPT.

FIGURE 6
www.frontiersin.org

FIGURE 6. PV-ES for voltage sag.

Reference power of 6 kW is given, and it is observed from Figure 6B that the net real power absorbed by the smart load is maintained at the reference value of 6 kW very accurately with the transient operation of 0.25 s. It is observed from Figure 6C that the power flow from PV to ES is also maintained almost at a constant value of 700 W. Effective operation was achieved due to the control action of the DC value of PV-ES irrespective of change in solar irradiation. Voltage regulation for variation in PCC voltage is achieved due to the novel PQ control of the ES system.

Investigation of PV-ES for voltage swell and irradiation change is carried out in this section. Swell of 276 V in PCC voltage is simulated at 2 s. It is inferred that the PCC voltage is regulated to 230 V. Smart load is maintained at a reference of 6 kW. Though voltage swell occurs, active power consumption of the critical load is maintained constant at 3,300 W. These phenomena are detailed through the simulation results from Figures 7A–C. PV-ES regulates the build-up of the voltage potential across ES from 10 to 60 V. Subsequently, ES absorbs 75 VAr from the system. Controller action of PV-ES thus regulates PCC voltage to 230 V.

FIGURE 7
www.frontiersin.org

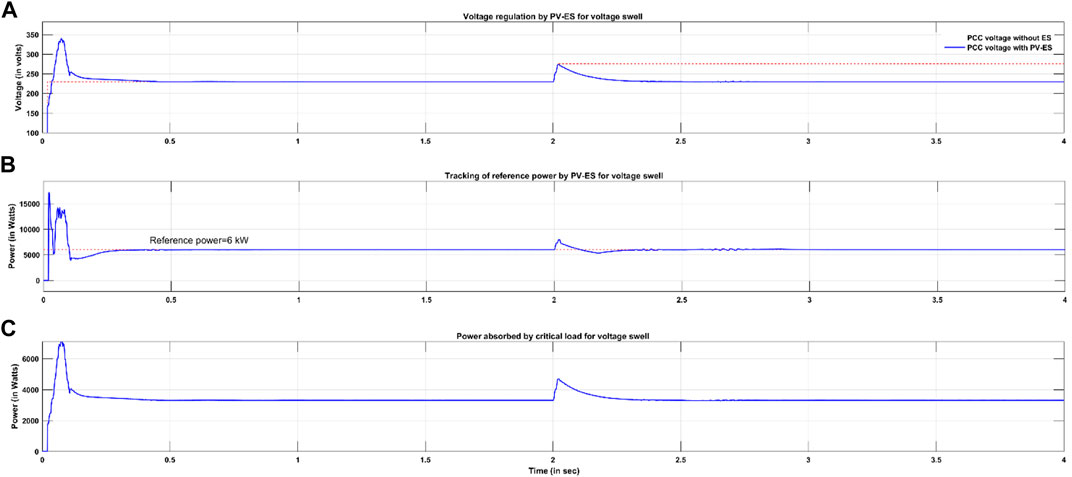

FIGURE 7. PV-ES for voltage swell.

3.1 Change in Reference Power at Fixed PCC Voltage and Varying Solar Irradiation

The performance of PV-ES is examined for changes in solar irradiation levels and reference power. Throughout the simulation time, the PCC voltage is maintained at a rated value of 230 V, whereas the reference power is decreased from 8 to 4 kW at t = 2 s. It is correlated with the change in solar irradiation from 900 to 600 W/m2. The output of the boost converter is also reduced from 600 to 380 V. Subsequently, power flow between ES and PV is affected by the value of reference power. When reference power is 8 kW, the power flow from PV to ES is 1.1 kW. When reference power is reduced to 4 kW, power flow from PV to ES is also reduced to 600 W. This is illustrated in Figure 8A.

FIGURE 8
www.frontiersin.org

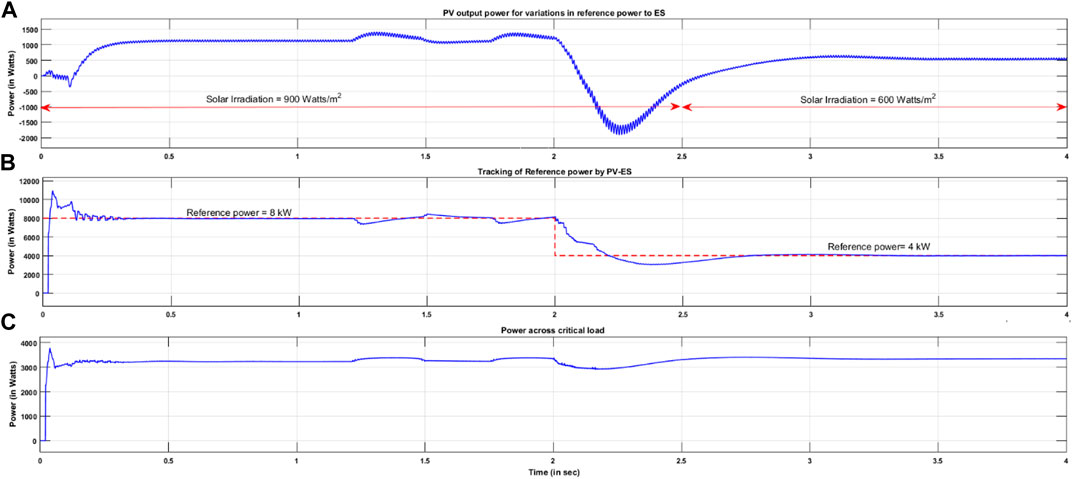

FIGURE 8. Performance of PV-ES under varying solar irradiations.

It is observed that, with the controller action, net real power absorbed by the smart load seamlessly tracks the reference power very accurately, as shown in Figure 8B. There is a steady-state error in tracking the reference power between the time intervals of 1.25–1.5 s due to the dynamics in the PV system. When the reference power changes, there is a transient time of 1 s. A peak overshoot of 1 kW from the steady-state value (4 kW) occurs at t = 2 s due to the large change in the reference power. The power absorbed by the critical load is maintained constant at 3.3 kW with a small transient operation at 2 s, as shown in Figure 8C. Steady-state errors during 1.25–1.5 s and from 1.75 to 2 s are cause by the transients in the PV power.

3.2 Comparison of ES Fed by DC Source and ES Fed by PV Source

This section investigates a comparison of the performance of the electric springs when fed by DC and PV sources. Tracking of reference power and voltage regulation is investigated under sag and swell conditions in the PCC voltage. The key points are transient time and peak overshoot.

Comparative analysis between the operations of ES when fed from the PV source and a DC source is numerically tabulated in Table 2. From Figure 9, it is observed that during voltage regulation, the time taken to track reference power is the same as that for both configurations. However, their performances for tracking reference power differ slightly under changes in voltage, as illustrated in Figure 10. In contrast, their performance is noticeably different to track variations in reference power as illustrated in Figure 11. Tracking reference power by PV- ES is better than DC-ES by 0.14 s.

TABLE 2
www.frontiersin.org

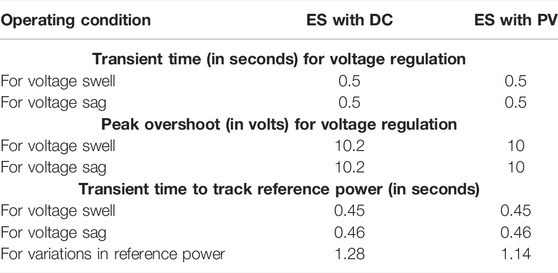

TABLE 2. Comparison of ES performance when fed with different sources.

FIGURE 9
www.frontiersin.org

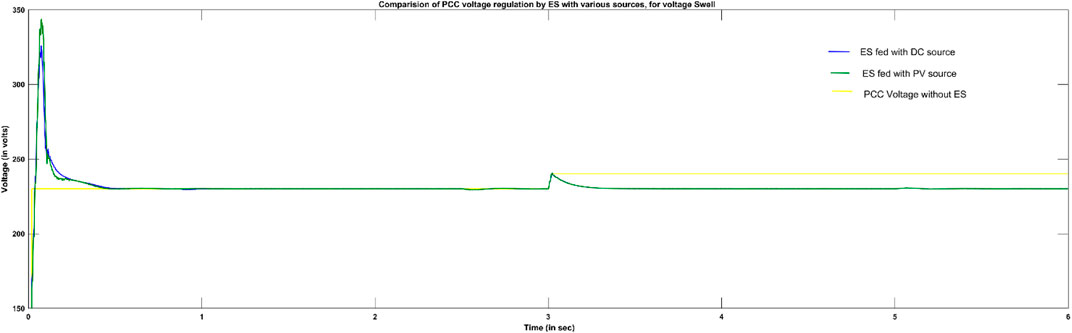

FIGURE 9. Comparison of voltage regulation for voltage swell.

FIGURE 10
www.frontiersin.org

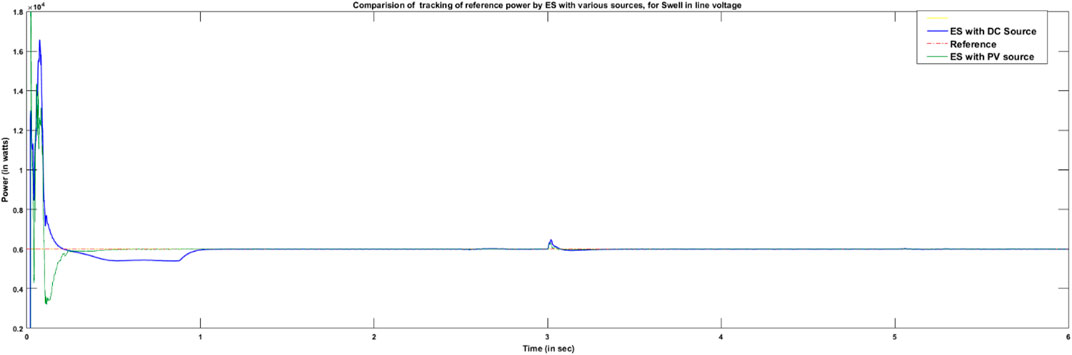

FIGURE 10. Comparison to track reference power for voltage swell.

FIGURE 11
www.frontiersin.org

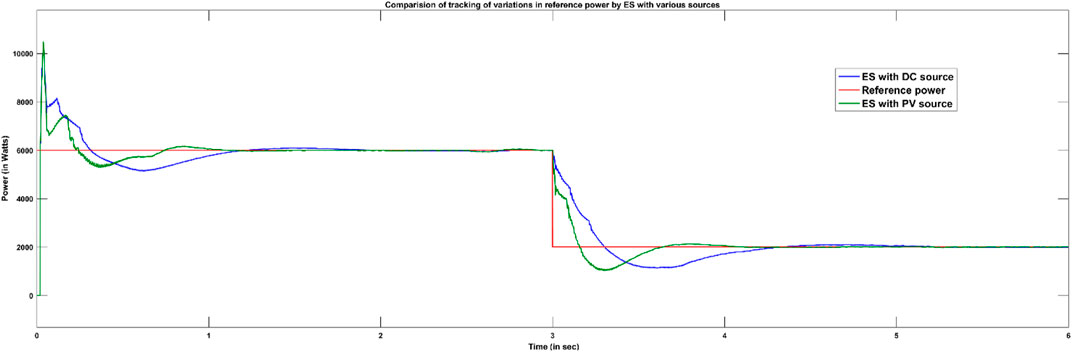

FIGURE 11. Comparison of tracking variations in reference power.

Table 2 also compares these two configurations in terms of peak overshoot and settling time during the voltage regulation. Transient time is controlled alike with both sources, whereas peak overshoot differs by 0.2 V during voltage sag.

4 Conclusion

The extensive analysis concludes that the overall performance of PV-ES is better when compared to DC-ES. Moreover, with the widespread roof-top PV sources in the distribution network, it is economical to employ PV as a source to the ES compared to a battery source (DC) to follow demand-side management (DSM). The voltage across the critical load is regulated to the pre-set value of 230 V by PV-ES, irrespective of variations in power available. With the PV-ES control, critical load power is maintained constant at 3.3 kW regardless of any change in the PCC voltage. For voltage variations of 20%, voltage regulation was restored at the same time of 0.5 s by both PV-ES and DC-ES. Peak overshoots are almost limited to 4% rated voltage with both configurations. Peak overshoot was 10.2 V with DC-ES that is 0.2 V more than PV-ES. Variations in reference power are quickly tracked by PV-ES in 0.14 s faster than DC-ES.

It is concluded that PV-ES demonstrates similar phenomena as ES fed with a DC source. Thus, it is more economical to operate smart loads by integrating with a renewable energy source of PV rather than a fixed DC source such as a battery. The capability of the proposed system is demonstrated to effectively mitigate changes in any practical operating factors such as PCC voltage, available power, and solar irradiation without violating voltage regulation and critical load requirements.
