ORIGINAL RESEARCH article

Front. Energy Res., 28 January 2022
Sec. Advanced Clean Fuel Technologies
This article is part of the Research Topic Advanced Combustion Technologies for Low Carbon Emissions View all 10 articles

Exploring NH3 and NOx Interaction Chemistry With CH4 and C2H4 at Moderate Temperatures and Various Pressures

  • 1School of Mechanical Engineering, Shanghai Jiao Tong University, Shanghai, China
  • 2National Synchrotron Radiation Laboratory, University of Science and Technology of China, Hefei, China

The oxidation of CH4/C2H4/NH3/NO/NO2 gas mixtures was studied aiming to explore the homogenous chemistry of exhaust gas from lean-operated natural gas engine. With respect to this goal, experiments were carried out with a laminar flow reactor under engine-relevant (diluted and lean) conditions over the temperature range of 600–1400 K. Four gas mixtures were designed to evaluate the effects of NO/NO2 ratio (1, 4) and pressure (0.04 and 1.0 atm) on the interaction chemistry of NH3/NOx with CH4 and C2H4. By using synchrotron vacuum ultraviolet photoionization mass spectrometry, fingerprint products for revealing interaction chemistry were identified and quantified, e.g., nitrogenous and oxygenated intermediates. The experimental results show that the NO concentrations are significantly affected by adding CH4/C2H4, changing NO/NO2 ratio and pressure. Besides, the promotion of DeNOx reactions and narrower temperature windows of NO reduction are unexpectedly observed in the presence of CH4/C2H4. To interpret the experimental observations, a detailed kinetic model was developed by integrating hydrocarbons/NH3/NOx interaction chemistry. Rate of production and sensitivity analyses indicate that the active radical pool is enriched and additional chain-branching pathways regarding NO/NO2 interconversion are activated with the addition of hydrocarbons. In the presence of both CH4 and C2H4, reaction C2H3 + O2 = CH2CHO + O was demonstrated as a crucial reaction that drives the reactivity of CH4/C2H4/NH3/NO/NO2 mixture. This is explained by the production of CH2CHO, whose dissociation generates CH2O and ultimately leads to the abundant production of active OH via the reaction sequence CH2O → HCO → HO2 → OH. The conversion kinetics of hydrocarbons, NO and NH3 under different NO/NO2 ratios and pressure, as well as the formation kinetics of oxygenated and nitrogenous intermediates was also analyzed in this work.

1 Introduction

Modern combustion engine technologies have increasingly focused on the reduction of carbon dioxide emissions owing to the globally tightening legislation (Johnson, 2015; Börnhorst and Deutschmann, 2021), whereas the highly optimized engine structures and emission control measures render it extremely difficult to further make a breakthrough on decreasing raw emissions. Meanwhile, lean-operated natural gas engines are considered as a promising technology because of their high thermo-efficiency and comparably low pollutant emissions (Lott and Deutschmann, 2021). Alternative concepts like biomethane and power-to-gas technologies will endow gas engines with outstanding potential on the way towards carbon neutrality (Schmitt et al., 2021). Nevertheless, the excessive engine-out emissions of methane, known with potent greenhouse potential and liable to produce carcinogenic formaldehyde by partial oxidation, bring new challenges to natural gas engines (Hutter et al., 2018). Also, the presence of nitrogen oxides (NOx) in exhaust gas deserves special attention given its particular environmental hazard in engendering photochemical smog and acid rain (Gasnot et al., 2012; Piumetti et al., 2016). Hence, a highly efficient and durable exhaust gas abatement system, commonly containing both catalytic oxidation of unburned hydrocarbons (UHC) and NOx reduction sections, was considered imperative (Lott and Deutschmann, 2021). The ammonia-based selective catalytic reduction (SCR) technology is currently widely applied for NOx removal from gas engines benefiting from its higher DeNOx efficiency and relatively moderate cost. However, it must be pointed out that despite the whole DeNOx process integrating simultaneously complex gas-phase and surface chemistry (Vassallo et al., 1995; Tamm et al., 2009), the probability of the gas-phase reactions between hydrocarbons, NOx and NH3 in SCR was exclusively ignored among most of the studies regarding exhaust gas abatement (Mejía-Centeno et al., 2013; Wang et al., 2019; Lee et al., 2020; Jia et al., 2021; Savva et al., 2021), especially given the recently proposed post-treatment measures allowing the catalytic converters to be positioned closer to the engine thus featuring much higher pressure and temperatures (Lott and Deutschmann, 2021).

To the best of our knowledge, only limited studies have been reported to date in terms of the homogeneous reactivities of NH3 and NOx in the presence of multiple other typical exhaust gas constituents, mainly C1-C2 hydrocarbons like methane and ethylene, etc. Hemberger et al. (Hemberger et al., 1994) investigated the selective non-catalytic reduction (SNCR) of NO by ammonia with the addition of methane and ethane in a flow reactor over the temperature range 800–1300 K. Gasnot et al. (Gasnot et al., 2012) performed an experimental and kinetic study of the effect of several additives such as CH4, C2H4, C2H6, C2H2, CH3OH, C2H5OH and CO on ammonia-based SNCR process at temperatures of 900–1200 K. Torkashvand et al. (Torkashvand et al., 2019) investigated hydrocarbon abatement from the exhaust of lean-burn gas engines under ambient pressure and pre-turbine conditions. Most recently, Schmitt et al. (Schmitt et al., 2021) conducted flow reactor experiments in the temperature range of 700–1200 K at atmospheric pressure to reveal influences of individual components by adding NO2, CH4, CO, and C2H4 sequentially to a highly argon-diluted NO/NH3 base mixture.

The aim of the present work is to explore the impact of methane and ethylene on the homogeneous conversion chemistry of NOx and NH3 under near-real exhaust conditions. With respect to this goal, the oxidation experiments of CH4/C2H4/NH3/NO/NO2 gas mixtures were firstly carried out in a laminar flow reactor at lean conditions, at temperatures of 600–1400 K and pressures of 0.04–1.0 atm. Different gas mixtures were designed to investigate the impact of NO/NO2 ratio and pressure on the conversion kinetics of NH3, NO and hydrocarbons. Mole fraction profiles of reactants, products, hydrocarbon, nitrogenous and oxygenated intermediates were evaluated by using synchrotron vacuum ultraviolet photoionization mass spectrometry (SVUV-PIMS). On the basis of these experiments, a detailed kinetic model was developed to interpret the experimental results and reveal the conversion kinetics of NH3 and NOx in the presence of CH4 and C2H4 under different conditions.

2 Experimental Methods

The experimental work was conducted at the National Synchrotron Radiation Laboratory, China. Details about the experimental setup have been introduced in our previous work (Qi, 2013; Zhou et al., 2016). Four experimental conditions were selected to cover the pressure ranges from 0.04 to 1 atm, the temperature ranges from 600 to 1400 K, and different NO/NO2 ratios. Detailed experimental conditions are listed in Table 1. Furthermore, two gas mixture conditions in the absence and presence of methane (Sun et al., 2021), which were reported previously, are also summarized in Table 1 and will be discussed in the following sections to clarify the impact of individual gas additives on the conversion chemistry of NH3/NOx. The gas mixtures were highly diluted in carrier gas argon with a total flow rate of 250 standard cubic centimeters per minute (sccm) and an average residence time of 0.6–1.4 s. Gas mixtures were fed into a quartz flow reactor with 0.7 cm inner diameter and 40 cm heating length. The identification and quantification of intermediate species were achieved by using SVUV-PIMS. The calculated uncertainties of mole fractions for species with known photoionization cross sections (PICSs) were estimated to be ±25% and a factor of 2 for those with estimated PICSs.

TABLE 1
www.frontiersin.org

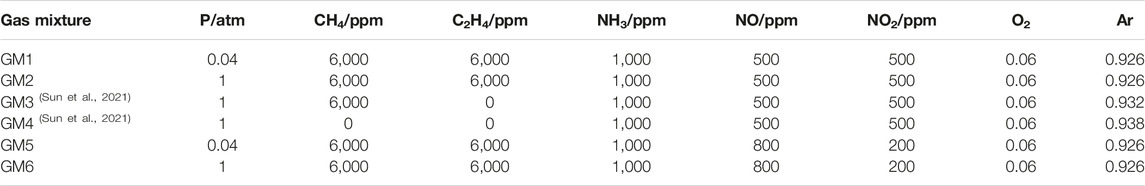

TABLE 1. Experimental conditions.

3 Kinetic Modeling

The kinetic model used for the simulation was developed based on AramcoMech 3.0 (Zhou et al., 2018), which contains a well-established C0-C2 base mechanism. The sub-mechanism describing NH3 oxidation as well as interaction kinetics between C0-C2 species and NOx was taken from the work of Glarborg et al. (Glarborg et al., 2018). In addition, rate constants of several key reactions in the sub-mechanism of NH3, which are mainly related to the production of NH2 and NO, have been updated from the theoretical studies of Stagni et al. (Stagni et al., 2020). These reactions include the dissociation of HNO and H-abstraction reactions of NH3 by H, O, OH and HO2 radicals. The newly proposed reactions pathways of NH radicals by Duynslaegher et al. (Duynslaegher et al., 2012), namely the reactions of NH with O or N2O to produce N + OH or N2 + HNO, and the reaction of NH2 with NO yielding N2O + H2, etc., were also implemented in the present kinetic model. The rate constant of NH2 + O = HNO + H calculated by Sumathi et al. (Sumathi et al., 1998) was also adopted to improve the prediction results of NOx. The detailed updating list of the rate constants involved in the C1-C2/NOx/NH3 sub-mechanism has been summarized in our recent work on CH4/NH3/NOx (Sun et al., 2021), thus not outlined here.

Meanwhile, the C1-C2/NOx/NH3 sub-mechanism has also been further improved in the present work to describe the interaction kinetics among hydrocarbon species, NH species and NOx. The reaction pathways of carbonyl species such as acrolein, acetaldehyde and ketene with NOx, and the C2H4 + NO2 channel laid out by Deng et al. (Deng et al., 2019) were included in the present model. Also, the recombination reactions of CH3 and NH2, together with C2H3 and NO/NO2/CN, are implemented from the calculation results of Deng et al. (Deng et al., 2019) or by analogy with similar reactions when available. The reaction pathways describing the interaction chemistry between C2H2 and NOx were taken from the recent studies of Marshall et al. (Marshall et al., 2019). Thermodynamic parameters of newly added species such as CH3NH2CH3NO2, C2H3NO2 and C2H3CN, etc. in the present model were taken from Glarborg et al. (Glarborg et al., 2018) and the theoretical calculations of Deng et al. (Deng et al., 2019). The simulation of flow reactor was carried out by using the Plug Flow Reactor module in Chemkin-Pro software (ReactionDesign, 2009) with the measured centerline temperatures of flow reactor as input parameters.

4 Results and Discussion

Dozens of species were detected in the oxidation of CH4/C2H4/NH3/NO/NO2 gas mixtures and their mole fractions were evaluated as functions of temperatures. Specifically, major nitrogenous intermediates detected and identified in this work include nitromethane (CH3NO2), nitroethylene (C2H3NO2), methylamine (CH3NH2), nitrous acid (HONO) and cyanides (HCNO). Major oxygenated intermediates detected include formaldehyde (CH2O), methanol (CH3OH) and acetaldehyde (CH3CHO). In the following sections, effect of CH4/C2H4 on the NOx/NH3 homogeneous conversion chemistry will be discussed first. Subsequently, the impacts of pressure and NO/NO2 ratio on the kinetics of HCs/NOx/NH3 mixture will be analyzed. Finally, the formation kinetics of nitrogenous and oxygenated intermediates will be analyzed to reveal the unique interactive reactions among hydrocarbons, NH3 and NOx.

4.1 Effect of CH4 and C2H4 Addition on NOx/NH3 Conversion

Figure 1 shows the experimental and predicted mole fraction profiles of reactants (NH3, NO, NO2 and O2) in the oxidation of gas mixtures 1–6 (GM1-6), Figure 2 shows the experimental and simulated mole fraction profiles of major products (N2O, N2, H2O, CO and CO2) in the oxidation of GM1-3 and GM5-6. For all the investigated gas mixtures, the model is capable of predicting the temperature-dependent decomposition profiles of reactants except for the discrepancy observed for NO in GM1 and GM4. Regarding the major products, the model is able to reproduce the formation of most products except that the under-estimation of equilibrium concentration of N2 at 0.04 atm. Rate of production (ROP) analyses have been carried out to reveal the conversion kinetics of NOx and NH3 under different conditions. The selected temperatures for the ROP analyses, i.e., 1239 K (GM1), 886 K (GM2), 911 K (GM3), 1060 K (GM4) and 1239 K (GM5), correspond to the temperature at which the conversion rate of ammonia reaches about 50%.

FIGURE 1
www.frontiersin.org

FIGURE 1. Experimental (symbols) and simulated (lines) mole fraction profiles of ammonia (NH3), nitric oxide (NO), nitrogen dioxide (NO2) and oxygen (O2) from the oxidation of GM1-6. Experimental data of GM3-4 are taken from the work of Sun et al. (Sun et al., 2021).

FIGURE 2
www.frontiersin.org

FIGURE 2. Experimental (symbols) and simulated (lines) mole fraction profiles of nitrous oxide (N2O), nitrogen (N2), water (H2O), carbon monoxide (CO) and carbon dioxide (CO2) from the oxidation of GM1-3, GM5 and GM6. Experimental data of GM3 are taken from the work of Sun et al. (Sun et al., 2021).

Numerous previous studies (Miller and Bowman, 1989; Glarborg et al., 2018; Okafor et al., 2018; Schmitt et al., 2021) have concluded that reactions R1-R5 are the major reactions in the oxidation of NH3/NOx. Figure 3 summarizes the reaction pathways of NH3 in the oxidation of GM1-5. The results show that regardless of whether there is the addition of hydrocarbons, over 90% of NH3 is converted to NH2 via H-abstraction reaction by OH. In the oxidation of NH3/NOx (GM4), reactions R2 and R4 contribute to a major part of NH2 consumption, producing N2 and nitroxide (H2NO), respectively. The remaining two reactions R1 and R5 produce NNH and N2O, respectively. NNH and N2O are eventually converted to N2 through single-step collision reactions. H2NO produced from R4 is eventually converted to NO via nitroxyl (HNO) through stepwise dehydrogenation reactions.

NH2+NO=NNH+OH(R1)
NH2+NO=N2+H2O(R2)
NO+HO2=NO2+OH(R3)
NH2+NO2=H2NO+NO(R4)
NH2+NO2=N2O+H2O(R5)

FIGURE 3
www.frontiersin.org

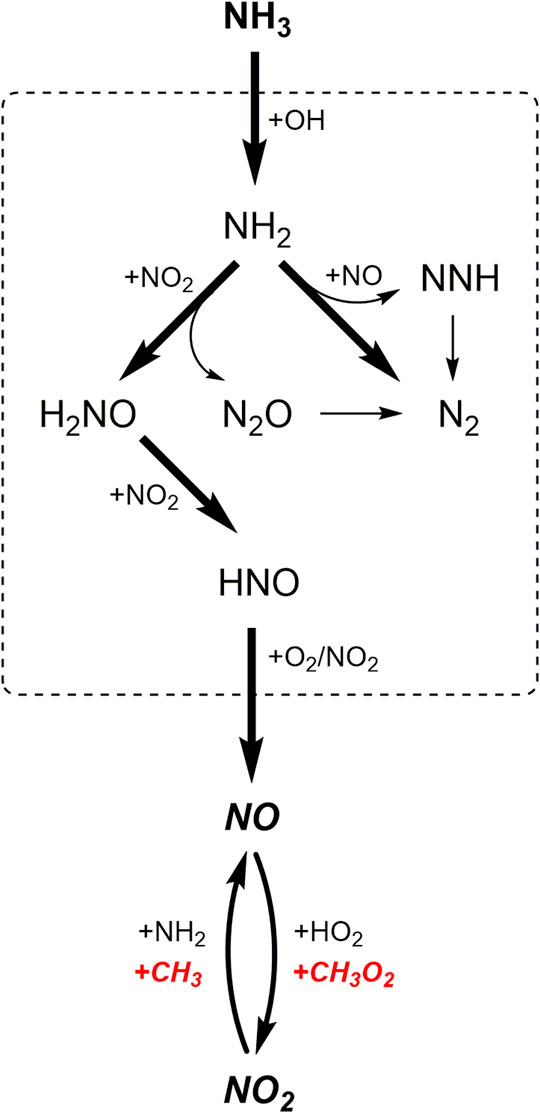

FIGURE 3. Major reaction paths of NH3 in the oxidation of GM1, GM2, GM3, GM4, GM5 and GM6.

By examining Figure 3 one can see that the profile of NO with temperature in GM4 has a distinct difference from that in other mixtures, and is also different from the result observed in the work of Schmitt et al. (Schmitt et al., 2021). To clarify the kinetics behind it, ROP analyses were performed at low- to high-temperatures (860, 1,162 and 1316 K). The results indicate that the initial increase of NO at the temperature of 863 K is mainly caused by the decomposition of nitrous acid (HONO), followed by the interconversion reaction R4. HONO is produced through the reaction sequence NH2 → H2NO → HNO (+NO2) → HONO. Over the temperature range of 900–1100 K, the concentration of NO has only a slight change, generally because the thermal DeNOx reactions R1 and R2 proceed rather slow over this temperature range. When the temperature increases above 1100 K, NO is quickly consumed via the thermal DeNOx reactions R1 and R2. As the temperature increases up to 1300 K, a second rise of NO concentration with temperature is observed. ROP analysis results show that reaction R6 is the dominant reaction that contributes to the formation of NO at temperatures above 1300 K.

NO2+H=NO+OH(R6)

In comparison with the oxidation of NH3/NOx (GM4), no noticeable change was observed for the initial conversion temperatures of NH3 and NOx in the oxidation of CH4/NH3/NOx (GM3). However, in the presence of both CH4 and C2H4 (GM2), the initial conversion temperatures of NH3 and NOx are found around 50 K lower than those in the oxidation of NH3/NOx, as seen in GM2, 3, 4 in Figure 1. By comparing GM2, GM3, GM4 and GM6, it can be also concluded that the addition of hydrocarbons promotes the consumption rate of NH3, NO2 and O2, i.e., for GM2, GM3 and GM6, NH3, NO2 and O2 are quickly consumed over a narrow temperature range, while for GM4, the temperature regime is much wider.

The comparison of experimental and simulated mole fraction profiles of CH4 and C2H4 in GM1-3 and GM5-6 is illustrated in Figure 4. As expected, the initial conversion temperatures, as well as reaction temperature regime of CH4 and C2H4 are noticeably affected by the NO/NO2 ratio and the pressure. To elucidate the effect of CH4/C2H4 addition on NO reduction, sensitivity analysis on NO was also performed for GM1-4 and the results are summarized in Figure 5, a negative sensitivity coefficient indicates the promoting effect on NO consumption. As seen in Figure 5D, the competing reactions R1 and R2 show considerable sensitivity to NO consumption in GM4. Other sensitive reactions include chain-branching reactions promoting the formation of active radical pool along with those related to NO/NO2 interconversion.

FIGURE 4
www.frontiersin.org

FIGURE 4. Experimental (symbols) and simulated (lines) mole fraction profiles of methane (CH4) and ethylene (C2H4) in the oxidation GM1, GM2, GM5 and GM6.

FIGURE 5
www.frontiersin.org

FIGURE 5. Sensitivity analysis of NO during the flow reactor oxidation of GM1, GM2, GM3 and GM4 at 1213, 860, 911, and 1188 K, respectively. Negative sensitivity coefficients indicate promotion to NO consumption.

In the oxidation of CH4/NH3/NOx mixture (GM3), the concentration of NO has a first rise at a lower temperature ( ∼ 860 K), and then it quickly decreases at the temperature around 911 K (Figure 1J). As the temperature increases to 1080 K, the concentration of NO has a second rise. According to the ROP analyses, the first rise of NO concentration is attributed by the reaction of CH3 and NO2 (R7). The reduction of NO between 911–1080 K is attributed by the thermal DeNOx reactions (R1 and R2), the interaction between NO and HO2 (R3), and the reaction of CH3O with NO (R8). The second rise of NO at higher temperatures is attributed by the reaction R6, which is the same as that in the oxidation of GM4. The sensitivity analyses shown in Figure 5C again illustrate the crucial role of reactions R7 and R8, i.e., converting the relatively inactive CH3 and CH3O2 into highly active and unstable CH3O radicals. The decomposition of CH3O radical initiates the chain-branching reaction by replenishing the active radical pool to a major extent via the reactions CH3O(+M) = CH2O + H(+M) and H + O2 = OH + O. In addition, another consumption pathway of CH3O, i.e., CH3O + O2 = CH2O + HO2, produces HO2 of lower reactivity and competes with the above-mentioned direct dehydrogenation channel, thus exhibiting negative sensitivity to the reduction of NO.

CH3+NO2=CH3O+NO(R7)
CH3O2+NO=CH3O+NO2(R8)

In the presence of both CH4 and C2H4 (GM1-2, GM5-6), the reaction network becomes more complex. Base on the ROP analysis, the reaction scheme is summarized in Figure 6. It should be noted that for all the four gas mixtures the major reaction pathways are similar, while the reaction flux is different. In the case of CH4/C2H4 addition, the mole fraction profiles of NO in GM2 also show multiple extreme points. ROP analyses at 835, 860, 911, and 985 K suggests that the occurrence of the first maximum and minimum points of NO mole fraction is the same as GM3 in terms of the kinetic interpretation, while the following attenuation of NO is dominated by the oxidation reaction with HO2 (R3), while other reactions have little impacts on it. Additionally, for the low pressure case of GM1 (0.04 atm), the reduction of NO is not sensitive to the recombination of methyl or vinyl group with NO2, which is in clear contrast to GM2.

FIGURE 6
www.frontiersin.org

FIGURE 6. Major reaction paths of CH4 and C2H4 in the oxidation of GM1, GM2, GM5 and GM6 at 1239, 886, 1239, and 886 K, respectively.

According to the ROP analyses, CH4 mainly proceeds the H-abstraction reaction initiated by OH to produce CH3, which is further oxidized by NO2 or HO2 producing methoxyl, or undergoes the recombination reactions with NO2, O2 and CH3. Particularly, the recombination reaction of CH3 and NO2 (R9) is a major reaction that inhibits the reduction of NO, as can be seen in Figure 5B, while the competing oxidizing reaction R7 is the dominant reaction that promotes the consumption of NO. CH3O subsequently decomposes to CO through CH2O and HCO via the stepwise H-elimination process, CO is mainly converted to CO2 via the reaction CO + OH = CO2+H.

CH3NO2(+M)=CH3+NO2(+M)(R9)

At low pressure, the consumption of C2H4 mainly undergoes the H-abstraction reaction by OH, giving vinyl radical (C2H3). At atmospheric pressure, OH-addition reaction producing 2-hydroxyethyl (PC2H4OH) also becomes important. PC2H4OH prefers to add O2 to form O2C2H4OH, which further dissociates into two formaldehyde molecules via the C-C bond fission reaction. The consumption pathways of C2H3 are more complex than those of PC2H4OH. On one hand, C2H3 can add O2 or NO, followed by β-C-C scission reaction and finally produce formaldehyde. On the other hand, it can take an O atom from O2 (R10) or NO2 (R11) to form vinoxy (CH2CHO). Besides, part of C2H3 undergoes recombination reaction with NO2 (R12) and this reaction is the most sensitive reaction that promotes the reduction of NO at 1 atm, as shown in Figure 5B. Reaction R12 is a typical competitive reaction of R7 (CH3 + NO2 = CH3O + NO), which is the most sensitive reaction that inhibits the reduction of NO. Therefore, in the presence of both CH4 and C2H4, the role of CH4 and C2H4 on the reduction of NO is opposite. This can be also proved by the extremely slight change of NO reduction ratios as well as the DeNOx temperature windows of GM2 and GM3 shown in Figure 1. Although the subsequent reaction of ethylene also involves interaction reactions with NOx, the proportion of this interaction is not appreciable (mostly less than 5%).

C2H3+O2=CH2CHO+O(R10)
C2H3+NO2=CH2CHO+NO(R11)
C2H3NO2=C2H3+NO2(R12)

As a key intermediate produced from the interaction between C2H4 and NOx, CH2CHO can either react with O2 to produce CH2O, or produce ketene (CH2CO) via H-abstraction reaction by NO2. It is noteworthy that CH2O is also a major decomposition product of CH3O. As a result, CH2O is an abundant product in the oxidation of CH4/C2H4/NOx/NH3 mixtures at atmospheric pressure The decomposition of CH2O eventually produces active OH via the reaction sequence CH2O (+OH/H/O) → HCO (+O2) → HO2 (+NO) → OH and thereby promote the reactivity. The ketenyl (HCCO) radical produced by CH2CO can either be directly converted to CO and CO2, or proceed the reactions with NO/NO2 leading to the formation of HCNO. A majority of HCNO undergoes the reaction with OH yielding CO, the remaining part decomposes to CO via the HCO as intermediate.

In general, the addition of CH4/C2H4 at lean conditions promotes the formation of reactive radicals, thereby enhancing the global reaction reactivity. In addition, additional chain-branching pathways that consume NO are introduced due to the formation of CH- or CHO- type radicals such as CH3O. As a result, in the presence of CH4/C2H4, the NO conversion temperature regime is narrower than that in the oxidation of NH3/NOx, which is in agreement with the conclusions of Glarborg et al. (Glarborg et al., 2018).

4.2 Effects of NO/NO2 Ratio and Pressure on HCs/NOx/NH3 Kinetics

4.2.1 CH4 and C2H4

As can be observed in Figure 4, when NO/NO2 ratio increases from 1 to 4, the initial decomposition temperature of C2H4 is only slightly changed, while the initial decomposition temperature of CH4 is decreased by around 50 K. As pressure increases from 0.04 to 1 atm, the initial decomposition temperatures of CH4 and C2H4 are decreased by around 150–400 K. ROP and sensitivity analyses have been performed to clarify the influence of NO/NO2 ratio and pressure on the conversion kinetics of CH4 and C2H4. Figure 7 displays the sensitivity analysis results of CH4 and C2H4 in the flow reactor oxidation of GM1, GM2, GM5 and GM6 at 1239, 886, 1239, and 886 K, respectively. It can be seen that the dominant reactions have not changed significantly as the NO/NO2 ratio increases from 1 to 4, indicating that the NO/NO2 ratio has little effect on the conversion kinetics of CH4 and C2H4.

FIGURE 7
www.frontiersin.org

FIGURE 7. Sensitivity analysis on CH4 and C2H4 consumption during the flow reactor oxidation of GM1, GM2, GM5 and GM6 at 1239, 886, 1239, and 886 K, respectively.

In contrast to NO/NO2 ratio, the change of pressure has significant effect on the dominant reactions of CH4 and C2H4 consumption. As seen in Figure 7, at low pressure, the typical chain-branching reaction H + O2 = OH + O is the most sensitive reaction promoting the consumption of CH4 and C2H4. The reaction CH3+NO2 = CH3O + NO is also identified as a sensitive promoting reaction. This does not seem surprising since this reaction and the following decomposition reactions of CH3O have been already identified as one of the most important reactions that initiate the production of radical pool. At atmospheric pressure, H-abstraction reaction of C2H4 by OH is identified as the dominant reaction responsible for the consumption of both CH4 and C2H4. H-abstraction reaction of CH4 by OH is observed as a promoting reaction for CH4 consumption but an inhibiting reaction for C2H4 consumption. This indicates that OH plays a key role in controlling the global reactivity. The O2-addition reaction of C2H3 is also a sensitive promoting reaction for CH4 and C2H4 consumption. As discussed above, the decomposition of CH2CHO produced from this reaction readily generates CH2O, whose further decomposition reaction produces HCO as major products.

4.2.2 NH3 and NO

Figure 8 depicts the sensitivity analysis results of NH3 during the flow reactor oxidation of GM1, GM2, GM5, and GM6 at 1239, 886, 1239, and 886 K, respectively. Similar to CH4 and C2H4, the dominant reactions for NH3 consumption are almost identical at different NO/NO2 ratios. At low pressure (0.04 atm), the most sensitive reaction for NH3 conversion is H + O2 = O + OH owing to the relatively higher temperatures. At atmospheric pressure, H-abstraction reaction by OH controls the decomposition of NH3. Reaction C2H4 + OH = C2H3 + H2O and reaction C2H3 + O2 = CH2CHO also play a key role in the conversion of NH3 regardless of low and atmospheric pressure, the latter reaction is closely related to the abundant production of CH2O which ultimately dominates the yield of OH. Under both low and atmospheric pressure, the H-abstraction reaction of CH4 by OH always plays the role that inhibits the conversion of NH3, since CH4 and its decomposition products strongly compete for the active radical pool (OH/O/H).

FIGURE 8
www.frontiersin.org

FIGURE 8. Sensitivity analysis on NH3 consumption during the flow reactor oxidation of GM1, GM2, GM5and GM6 at 1239, 886, 1239, and 886 K, respectively.

As can be observed in Figure 1, the maximum conversion ratio of NO increases as NO/NO2 ratio increases. Besides, the impact of pressure on the conversion of NO is also significant. At atmospheric pressure the conversion ratio of NO increases (from 9% in GM2 increased to 45% in GM6) as NO/NO2 ratio increases from 1 to 4. However, at low pressure (0.04 atm) the concentration of NO is found to go up with increasing temperature, i.e., at the same NO/NO2 ratio, the fall of pressure directly inhibits the reduction of NO. In the oxidation experiment on CH4/NO/NO2 carried out by Sahu et al. (Sahu et al., 2021), it is also found that the initial NO fraction needs to approach a certain level to enhance the reactivity of the mixture, or else the low level of NO would act as an inhibitor. This non-monotonous sensitization impact of NO is attributed to the antagonism between chain-terminating reaction CH3 + NO2 (+M) = CH3NO2 (+M) and chain-branching process CH2O + HO2 = HCO + H2O2, H2O2(+M) = OH + OH(+M). Sahu et al. pointed out that when the initial concentration of NO is high, more CH2O and HO2 are produced, thus leading to the transition to chain-branching process.

4.3 Formation of Major Products and Intermediates

N2 and N2O are two major nitrogenous products observed in the present work. As seen in Figure 2, the present model can capture the profiles of N2 at atmospheric pressure, while highly under-predicts its formation at low pressure. Base on the sensitivity analysis, the formation of N2 is controlled by reaction R7 (CH3 + NO2 = CH3O + NO). However, the kinetics of CH3 + NO2 under low pressure remains controversial despite certain studies available in the literature (Yamaguchi et al., 1999; Srinivasan et al., 2005; Glarborg et al., 2018). Therefore, the under-estimation of N2 at low-pressure may be attributed to the under-estimation of the rate constant of R7 at higher temperatures.

Glarborg et al. (Glarborg et al., 2018) mentioned that one of the disadvantages of SNCR with urea lies in the formation and possible emission of N2O, which is a harmful gas destroying ozone layer. In the present experiments, N2O has been observed to form in the order of tens of ppm on average over a wide temperature range. ROP analysis shows that almost all of N2O is produced from reaction R5 (NH2 + NO2 = N2O + H2O) at atmospheric pressure, while at low pressure the reaction NH + NO = N2O + H controls the formation of N2O. In the work of Alzueta et al. (Alzueta et al., 2021), few ppm of N2O formation was also detected in the flow reactor oxidation experiment of NH3/NO, and the reaction N2H2 + NO = NH2 + N2O was considered as dominant reaction for N2O formation. However, in the present work the contribution of this pathway is found almost negligible (<1%) for N2O formation.

Figure 9 illustrates the experimental and simulated mole fraction profiles of CH3OH, CH2O and CH3CHO in the oxidation of GM1, GM2, GM5 and GM6. Among them, CH2O is the most abundantly produced. ROP analysis shows that the reaction CH3O(+M) = CH2O + H(+M) dominates CH2O formation independent of pressure and NO/NO2 ratio. The production of CH2O is derived from either methane- or ethylene-related oxidation steps. At atmospheric pressure, these two parts account for almost half of each, while at low pressure due to the activation of the additional formaldehyde generation path, CH3 + O = CH2O + H, the part derived from methane occupies about 70%. The concentration of CH2O at low pressure peaks at a relatively high temperature of 1200 K, demonstrating that at this temperature it is sufficient to overcome the energy barrier of the reaction between CH3 and O.

FIGURE 9
www.frontiersin.org

FIGURE 9. Experimental (symbols) and simulated (lines) mole fraction profiles of methanol (CH3OH), formaldehyde (CH2O) and acetaldehyde (CH3CHO) in the oxidation of GM1, GM2, GM5 and GM6.

In regard to acetaldehyde (CH3CHO), its production is closely related to ethenol (C2H3OH). At atmospheric pressure a majority of CH3CHO is produced via the reaction C2H3OH + NO/NO2 = CH3CHO + NO/NO2. At low pressure, most of CH3CHO is formed from the isomerization of ethenol. As an unstable reactive intermediates, C2H3OH is primarily generated from the reaction C2H4 + OH = C2H3OH + H, and partly from the reaction C2H4 + OH = CH3CHO + H. As for methanol, the yield observed in the experiment is not notable, mainly deriving from the H-abstraction of CH3O from HO2 or CH2O, or through the recombination of CH3 and OH.

Figure 10 displays the experimental and simulated mole fraction profiles of HCNO and HONO in gas mixtures of GM1, GM2, GM5 and GM6. HCNO is a key nitrogenous intermediate produced from the interaction of hydrocarbons and NOx under high temperature and reducing conditions in reburning chemistry, where nitric oxides are converted into cyanides and isocyanides by reactions with multiple hydrocarbon-derived radicals such as CH3, 3CH2, and HCCO. Under the excess oxygen condition investigated in this work, part of the contribution of hydrocarbon derivatives to NO reduction is found mainly through the reactions R13-R15.

C2H3+NO=HCN+CH2O(R13)
CHCHO+NO=HCNO+CO+H(R14)
HCCO+NO=HCNO+CO(R15)

The above reactions contribute less than 1% to NO reduction at atmospheric pressure, but at low pressure, it approaches around 9%. Consequently, although the addition of CH4/C2H4 enriches the free radical pool and promotes the reactivity of the NH3/NO/NO2 mixture, its direct contribution to NO reduction is still negligible compared to the thermal DeNOx reactions (R1-R5). Furthermore, R13-R15 mostly feed into the cyanide pool (HCN, HCNO), while the subsequent consumption of HCNO through R16 and R17 recycle NO with the dissociation of H2NO/HNO, which complicates the process of HCNO kinetics on NO reduction.

HCNO+OH=H2NO+CO(R16)
HCNO+OH=HNO+HCO(R17)

FIGURE 10
www.frontiersin.org

FIGURE 10. Experimental (symbols) and simulated (lines) mole fraction profiles of HCNO and nitrous acid (HONO) in the oxidation of GM1, GM2, GM5 and GM6.

Apart from HCNO, nitrous acid (HONO) was also detected in the experiment, as seen in Figure 10. HONO is mainly produced from the H-abstraction reactions of CH2CHO and H2NO by NO2. HONO majorly undergoes N-O bond fission to yield NO and OH, thus the HONO participated reactions belong to sensitivity reactions for the consumption of NH3, NO, CH4 and C2H4.

Figure 11 shows the measured mole fractions of CH3NH2, CH3NO2, C2H3CN, C2H3NO and C2H3NO2 in the oxidation of GM1, GM2, GM5 and GM6. The identification of these species provides key evidence for the direct recombination reactions of CH3, C2H3 with NH2, NOx, CN, i.e., CH3NO2 is the product from the reaction of CH3 with NO2, while C2H3CN is produced from the reaction of C2H3 with CN. Nevertheless, these species are beyond the focus of the present study, thus only a brief description is given herein.

FIGURE 11
www.frontiersin.org

FIGURE 11. Experimental mole fraction profiles of methylamine (CH3NH2), nitromethane (CH3NO2), vinyl cyanide (C2H3CN)nitrosoethylene (C2H3NO) and nitroethylene (C2H3NO2) in the oxidation of GM1, GM2, GM5 and GM6.

As can be observed in Figure 11B, CH3NO2 is the most abundantly produced nitrogenous intermediates at 1 atm. CH3NO2 mainly decomposes to CH2O and NO via CH2NO2 as intermediate. CH3NH2 can be observed at both 0.04 and 1 atm and it is mainly formed from the recombination of CH3 with NH2. The decomposition of CH3NH2 finally gives HCN via sequential dehydrogenation reactions CH3NH2 →CH2NH2 → CH2NH → HCNH/H2CN → HCN. The oxidation of HCN produces NO, N2 and CO as major products under fuel-lean conditions. The decomposition of species produced from the reactions of C2H3, such as C2H3CN, C2H3NO and C2H3NO2, also proceed through the stepwise H-elimination reaction, leading to the production of C2H2, CN and NO. C2H2 and CN are finally converted into CO and NO through sequential oxidation reactions. Because the consumption pathways of these nitrogenous intermediates are still not well understood, the present model is not able to reproduce their mole fraction profiles. More experimental and theoretical studies are deserved to achieve a better interpretation of the interaction kinetics between hydrocarbon radicals with NH, CN radicals and NOx.

5 Conclusion

The present work has focused on two aspects with the aim to reveal the NH3 and NOx interaction chemistry with CH4 and C2H4 at moderate temperatures and various pressures. First, speciation profiles of reactants, products, nitrogenous and oxygenated intermediates were obtained by using synchrotron vacuum ultraviolet photoionization mass spectrometry. Second, a detailed kinetic model integrating HCs/NH3/NOx interaction chemistry was developed and applied to interpret the experimental observations. Rate of production and sensitivity analyses were performed to analyze the conversion chemistry of NOx and NH3 in the presence of hydrocarbons.

The experimental results show that the addition of CH4 and C2H4 promotes the conversion of NO and NH3 at atmospheric pressure in terms of decreasing the initial conversion temperature and narrowing the reaction temperature range. The analysis results indicate that CH4/C2H4 addition at atmospheric pressure promotes DeNOx-related reactions mainly by enriching the radical pool. Besides, additional chain-branching pathways that convert NO2 to NO are introduced due to the production of CH3O radical. Reaction C2H3 + O2 = CH2CHO + O is found to play a key role in driving the reactivity of CH4/C2H4/NH3/NO/NO2 mixture at all the investigated conditions, generally because the further decomposition of CH2CHO generates CH2O, which eventually produce OH abundantly via the reaction sequence CH2O → HCO → HO2 → OH.

The NO/NO2 ratio is found to have only a slight impact on the conversion of CH4, C2H4, NH3 and NO from the experimental observations, while the change of pressure has significant impacts. Regarding the oxygenated and nitrogenous intermediates, formaldehyde and nitromethane are observed as the most abundantly produced oxygenated and nitrogenous intermediates, respectively. The identification of nitrogenous intermediates such as methylamine, nitromethane, vinyl cyanide, nitrosoethylene and nitroethylene provides key evidence for the direct recombination reactions of hydrocarbon or hydrocarbon radicals with NOx, NH2 or CN. The new data and corresponding analyses are expected to provide valuable information for understanding the complex gas phase reactions in the exhaust gas as well as an extension of the kinetic model of HCs/NH3/NOx reaction systems.
