Abstract
In the era of globalization, industries of critical metals are organized through the global supply chain. However, the global supply chains have been disrupted since 2020 by the outbreak of COVID-19 and a series of geopolitical crises. To better address the supply chain challenges of critical metals, a review is needed about the sources, propagation, and responses of the supply chain risks. Firstly, this review provides an overview about the research progress in identifying the risk sources and assessing the risks and then proposes a new supply chain framework, categorizing relevant risk factors into upstream risks, middle-stream risks, downstream risks, and general risks, for risk analysis of critical metals. Secondly, this review offers a comprehensive understanding about how the risks propagate horizontally and vertically. Finally, responses such as supply diversification, stockpiling, material substitution, recycling and circular economy strategy, price volatility hedging, and supply chain traceability are reviewed. This survey features the supply chain perspective, overviews on network-based studies, and affirms the urgency and need for further studies on supply chain risks and resilience, which may contribute to a smooth clean energy transition.
Introduction
Critical metals usually refer to rare metals, rare disperse elements, and rare earth elements that play irreplaceable and significant roles in new energy industries—from solar photovoltaic and wind turbines to electric vehicles and battery storage (Zhai et al., 2019; ). Gallium, tungsten, rare earths, bismuth, antimony, magnesium, germanium, vanadium, molybdenum, indium, tin, silver, lithium, niobium, beryllium, nickel, cobalt, chromium, platinum, and copper are recognized as the critical metals for low-carbon technologies (Wang et al., 2021a; Zuo et al., 2021). With the massive and increasing deployment of low-carbon technologies for a net zero emission society, demands for these metals have been increasing significantly and the world is moving from fuel-intensive systems to more material-intensive systems (). Against this background, it is important to review the research progress related to these metals.
Nowadays mining, refining, manufacturing, use, and waste management of critical metals are sliced and located across the world, forming various global supply chains of critical metals, as shown in Figure 1. In the supply chain environment, productions are interconnected, and the effective operation of one production stage depends increasingly on the normal operation of the other stages which may be located differently (Ponomarov and Holcomb, 2009). Under this circumstance, disruptions of any stage can be propagated either upstream or downstream. A resilient supply chain of critical metals is therefore of high importance to the global energy transition, which, however, experiences more and more unexpected disruptions.

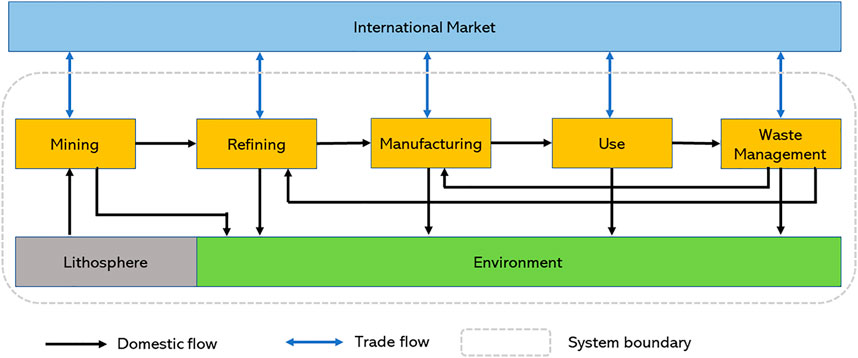

FIGURE 1
Since 2020, the global pandemic has pushed governments to adopt various lockdown policies, which seriously affect the operations of global supply chains (), which include those of critical metals. It has been reported that South Africa’s lockdown disrupted 75% of the global output of platinum, and Peru’s copper-mining activities ground to a halt due to its anti-pandemic policy (). Besides the pandemic crisis, the global supply chains of critical metals were hit unexpectedly by the Russia–Ukraine event in 2022. Russia is responsible for 10.69% of global production of nickel and 4.4% of global production of cobalt (USGS, 2021), this geopolitical crisis made the market worry about the supply availability from Russia, and prices of nickel and cobalt have undergone high volatilities accordingly. Crises that occurred in the mining stage of the supply chain have disturbed downstream significantly. It is reported that prices of power lithium-ion batteries and electric vehicles have spiked (IEA, 2022). The pandemic crisis and frequent geopolitical events highlight that maintaining resilient supply chains of critical metals is an urgent issue to be addressed, and its related studies have become the global frontiers and hot topics (). This review aims to provide an overview on the research progress achieved in identifying and assessing supply chain risks, analyses of the propagation of risks, and responses to supply chain risks of critical metals.
Many reviews have been carried out on critical metals. and Schrijvers et al. (2020) reviewed the methods to determine raw material criticality. Watari et al. (2020) emphasized the research progresses on the long-term outlook and sustainability of 48 metals. Wang et al. (2021a) did a review on the nexus between low-carbon energy and critical metals. Swain and Mishra (2019) summarized the various processes developed for the separation of rare earths and transition metals from secondary resources. provided an overview on the critical metal recycling associated with global power lithium-ion batteries. Using CiteSpace, an increasingly applied tool for scientometrics reviews, Zuo et al. (2021) and Wang et al. (2019) analyzed the research clusters, cooperation networks, and burstiness for strategic mineral resource security and resource recycling industry. Nevertheless, we currently lack a picture of the progress on the supply chain risks of critical metals. The absence of such review impedes our comprehensive understanding of supply chain resilience of critical metals, which in turn could possibly mislead the policy-decision makings for clean energy transitions. This review is related to the review by who emphasized various interactions in the industrial chains at the macro and micro levels. This review, different from theirs, focuses on the supply chain risk sources, propagation of the risks, and responses to the risks and thus makes a contribution to building a resilient supply chain of critical metals.
The remainder of this review is organized as follows: Section 2 introduces risks identification and assessment; Section 3 presents the propagation of risks in the global supply chain networks of critical metals; Section 4 discusses responses to the supply chain risks, followed by the last section of conclusion.
2 Identifying risk sources and assessing risks
2.1 Supply risks in criticality assessment
In the field of criticality assessments of metals, supply risk is a key component, as shown in Eq. 1 (; ). Identifying and assessing the supply risks thus become the starting points to assess the criticality ().
In an overview of the raw material supply risks, summarized that there are 20 indicators to evaluate the supply risks, namely, country concentration, country risk (social and political factors), depletion time, by-product dependency, company concentration in mining corporations, demand growth, recycling potential, substitutability, import dependence, commodity prices, exploration degree, production costs in extraction, stock keeping, market balance, mine/refinery capacity, future market capacity, investment in mining, climate change vulnerability, temporary scarcity, risk of strategic use, and abundance in the Earth’s crust. Besides these conventional risks, trade risk, natural disasters, logistic restrictions, resource competition, and ore concentration are newly added indicators (; ; Schrijvers et al., 2020; ). Some scholars also propose the thermodynamic rarity dimension of raw materials. That is, if a material is obtained in energy-intensive ways and is scarce in nature, it is thermodynamically rare (). Relevant studies using these indicators are listed in Supplementary Table S1.
Due to the various economic structures and resource endowments, different economies have adopted differentiated methods to assess supply risks. For example, in the European Commission (EC)’s supply risk assessment, the supply risk is measured as a product of supply concentration, import reliance, governance performance, trade adjusted parameter, and substitution index (; ), as expressed by Eq. 2:where SR denotes the supply risk, HHI is the Herfindahl–Hirschman Index to proxy for country concentration, WGI is the scaled World Governance Index to proxy for country governance, t is the trade adjusted parameter, GS is the global supplier countries mix, is the actual sourcing of the supply to the European Union, IR is the import reliance, is the recycling rate, and is the substitution index related to supply risk.
In the supply risk evaluation framework of the United States, the National Research Council identified five supply risk sources, namely, demand growth, thin markets, production concentration, by-product production, and recycling. Based on this research, the United States Department of Energy (DOE) developed a weighted index for evaluating supply risk, in which 40% is given to basic availability of metals, 20% to political, social, and regulatory factors, 20% to producer diversity, 10% to competing technology demand, and 10% to codependence to other markets. The United States framework was later developed by , which differs medium-term risks from long-term risks.
Low-carbon technologies have been massively deployed in China, and some of them have the largest market size in the world (e.g., electric vehicles). To develop a criticality assessment for the Chinese context, Yan et al. (2021) analyzed three types of supply risks, i.e., sustainability risk, reliance risk, and tolerance risk, in identifying the critical metals for China, as given in Eq. 3:
The illustrated cases show that not all these indicators are utilized in each assessment of the supply risks. The selection of indicators depends on the goal and scope of the relevant research; accordingly, there is no unified assessment of supply risks and the lists on critical metals are varying (). It is noteworthy, however, that among the 26 used indicators for supply risks, country/company concentration, country risk, depletion time, by-product dependency, and demand growth are the most frequently chosen indicators for evaluating supply risks (; Schrijvers et al., 2020). It has been pointed out by Watari et al. (2020) that demand-related risks, social and environmental risks induced by the growing demand for metals, spatial divergence, and circular economy strategies should be further studied. They also held that life cycle assessment and the input–output model are the potential tools that better monitor the supply risks, which is closely related to the supply chain concept. Therefore, it has been suggested that a supply chain perspective be adopted for analyzing the supply risks in later criticality assessments.
2.2 From supply risks of single stage to supply chain risks
From the perspective of a supply chain, the supply risks can be categorized into four groups, namely, upstream risks, middle-stream risks, downstream risks, and general risks, as shown in Figure 2. The general risks are the disruptions that could occur at any stage of the supply chain. This perspective could provide a more holistic view about the supply chain risks of critical metals and a better understanding of the existing supply risk studies. Most existing studies on the supply risks of critical metals focus on the upstream risks, and only a few analyze the potential bottlenecks in middle-stream, downstream (Schrijvers et al., 2020), and the whole supply chain.

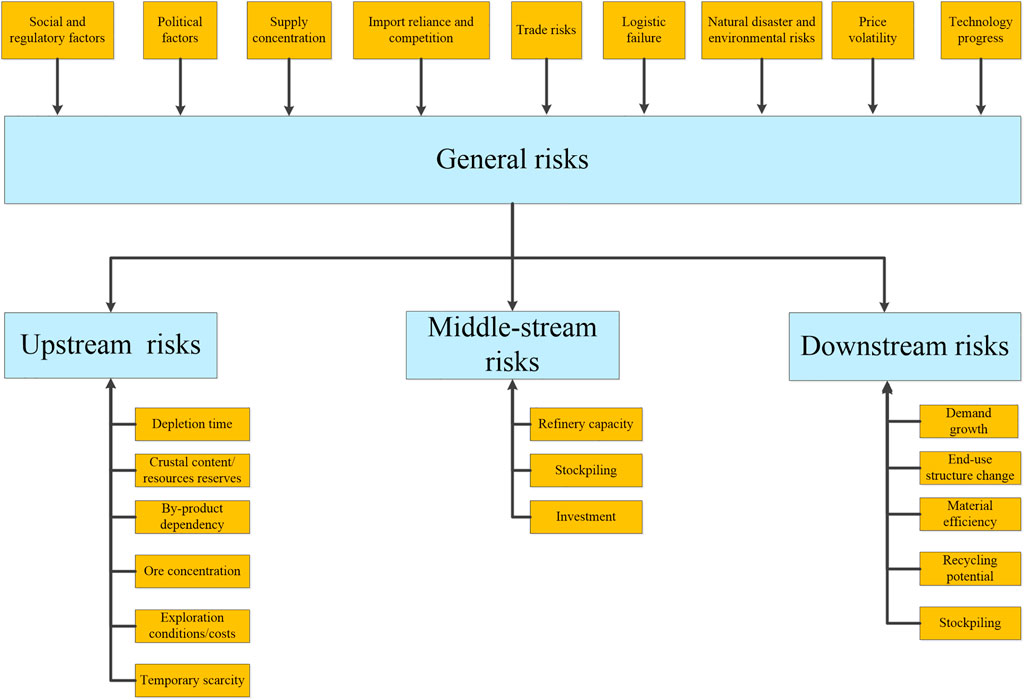

FIGURE 2
Shocks in the middle-stream and downstream, however, should be fully acknowledged. For the shocks to the middle-stream, the supply chain of metals is seriously affected due to China’s processing role in the global production network (). Disruption to the downstream could be positive or negative. For example, the end-use structure change could significantly affect the supply–demand balance of materials and cause supply risks in the upstream (Zeng and Li, 2015). Recycling from the end-of-life products also deserves attention (; Rasmussen et al., 2019). In addition, evidence shows that there are a few countries that participate in the whole chain and own global influences (Shi et al., 2022). Ignoring the potential disruptions in the key countries impedes the effective management of supply chain risks. Acknowledging these shortcomings, the European Commission exercised a double-stage supply risk assessment for the first time (), and van den Brink et al. (2020) examined the supply chain risks for cobalt. Yan et al. (2020) developed a supply resilience assessment framework that includes upstream and downstream factors for the Chinese lithium-ion battery industry.
There are four theoretical tools to analyze the supply chain risks. The first is the material flow analysis (MFA), which is widely used in analyzing the material cycles of metals in the anthroposphere (). Since MFA can trace the flow volume along the whole supply chain of metals, the derived results can be used as parameter inputs (especially the trade-related factors) to the supply risk analysis and better monitor the risks. Nuss and Blengini (2018) developed a model combining criticality assessment and MFA for the European Union. Sun et al. (2020) discussed the supply chain risks for manganese. The second is the multiregional input–output (MRIO) model, which can reveal indirect risks through the input–output linkages between sectors across the world. In this context, proposed a global mining risk footprint of critical metals, and highlighted the role of primary processing in the supply risks of critical metals. The third one is system dynamics proposed and developed by and has been adopted for the rare earth supply chain disturbance (Sprecher et al., 2015) and tantalum supply chain risk (). The last tool is complex network analysis, which is an effective and widely used tool for analyzing the interactions between the actors and structures of the resultant complex systems (; ). developed network-based indicators for trade risks. Based on the global copper trade network, innovatively introduced betweenness, an indicator for reflecting the position and resource control capability of one country in the trade network, into the supply chain risk analysis.
3 Propagation of risks in global supply chain networks of critical metals
There are several terminologies for the propagation of risks in the academic literature, which include risk diffusion (), cascading failures, ripple/domino effect (), supply chain disruption propagation (Scheibe and Blackhurst, 2018), and risk contagion (Paltalidis et al., 2015). These terms may be applied in different fields. For example, risk diffusion is closely related to the epidemiological models (Zhao et al., 2018); cascading failures and ripple/domino effects are often used by scholars in complex network studies (; Xia et al., 2010); and risk contagion is a widely used term related to the systemic risk studies in the financial literature (; ; ). Nonetheless, the essence of these terminologies is the same, i.e., referring to the propagation of both endogenous and exogenous risks from one node to the other nodes () and generating an amplified impact in the system (Ojha et al., 2018). Failure nodes, propagation links, and amplified impact are three core elements for the definition of the propagation of risks. The risk/shock propagation, therefore, can be defined as the process that failure nodes amplify their impact through various channels. Trade links, input–output linkages/supply–customer relations, and price correlations are the most common propagation channels.
The global supply chains of critical metals are complex systems that contain various economic and financial connections. These connections provide various channels for shock/disruption of one node to propagate to its directly connected nodes, which then propagate their crises to the other connected nodes. This process continues until the disruption effects are absorbed totally by the chain or all the nodes in the supply chain are jeopardized. The propagation process in the global supply chain of critical metals is essentially the same as the virus-spreading phenomenon, which has been widely analyzed by network-based models (; Pastor-Satorras et al., 2015). Due to trade links and price correlations being the most studied channels, this review mainly summarizes the current status of these two fields.
3.1 Propagation of shocks in single-layer trade network
Systemic trade-related risks have been widely acknowledged (). The resource trade network consists of nodes and links (; Zhong et al., 2014). In the context of international trade, for example, if country A imports cobalt minerals from country B, then there is a link between A and B. The trade links thus provide a channel for crisis contagion (). By constructing a trade network of critical metals and applying the network metrics, Wang et al. (2018) and Sun et al. (2022) firstly identified the systemic importance of economies for the graphite trade network and cobalt trade network, respectively. Then they established cascading failure models and analyzed the propagation processes caused by the failures of systemic importance economies. It is found that GDP and export volume affect the scope of the influence (Wang et al., 2018), and indirect links play a key role in the propagation process (Sun et al., 2022). The main contribution of these studies is that they provide a model framework to identify the propagation paths and understand the systemic impacts of epicenter economies. There are many cases where more than two materials are required to produce one good. For example, cobalt, lithium, and nickel are the necessary materials to produce lithium-ion battery and are called joint consumption products (Shammugam et al., 2019). To analyze the shock of technology progress affecting the trade of joint consumption products, Shao et al. (2022) constructed a cobalt–lithium trade network and simulated the structural changes under trade weight preference and trade country preference scenarios.
Besides the disruptions that happened in the upstream, Wu et al. (2021) designed a non-dominated sorting genetic (NSGA-II) algorithm to identify the key countries and trade relations in the stability of the lithium carbonate trade network, which enriches the understanding of potential supply risk propagation paths in the trade network of middle-stream products. As for the risk propagations in the downstream of the supply chain, disruptions spreading caused by node failure and link interruption in the lithium-ion battery trade network () and pandemic-related disruption contagion in the solar panel trade network (Wang et al., 2021b) have been studied and both are based on single-layer networks. All these studies only focus on the geographic disruption propagations, ignoring the propagation along the whole global supply chain.
3.2 Propagation of disruptions in multiplex trade network
From the perspective of a multiplex network, mining, refining, manufacturing, consumption of end-use products, and waste management of the supply chain are different layers (Shi et al., 2022), as illustrated in Figure 3. In each layer, countries exchange goods through international trade, forming a single-layer network. Single-layer networks connect via global input–output linkages, forming an interdependent multiplex network. In this interdependent multiplex network, the failure of nodes in the mining stage leads to failure of the dependent nodes in middle-stream or downstream layers, which in turn may cause further damage to the first network, leading to cascading failures and possibly catastrophic consequences (). To design resilient supply chains of critical metals, we should understand how vulnerability is affected by such interdependences.

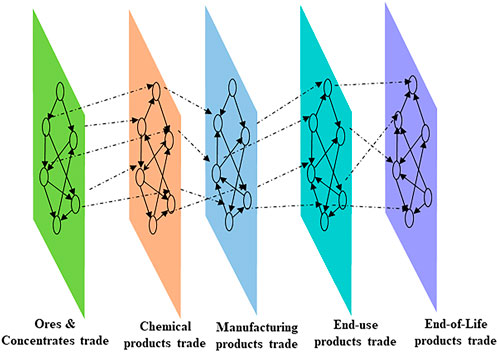

FIGURE 3
Through investigating the interdependencies between the copper raw materials–trading network and its waste-trading network, analyzed the direct and indirect impacts of China’s restrictive scrap imports on the global copper multiplex network. It should be noted that their multiplex shocks model only contains two stages of the supply chain and implies research gaps for future studies. With the development of lithium-ion batteries containing high nickel elements, more attention is being paid to the supply chain of nickel. Wang et al. (2022) developed a multilayer network crisis propagation model to simulate the disruption spreading in the global nickel industry chain.
3.3 Price volatility spillover/transmission
Price volatility is also recognized as an important risk, which significantly affects the supply–demand balance, trade dependence structure (Zhao et al., 2022), investment decisions, and other sectors of the economic system (Sun et al., 2018; Sun et al., 2019). Understanding the price volatility spillovers is helpful in hedging the price risks. From the perspective of a single-layer network, price volatility spillovers are transmitted horizontally and occur at different levels, from firms, commodities, markets, sectors, countries, to time, which have been studied intensively. examined simultaneously the price transmissions across countries and cross products in the middle-stream of the steel industrial chain. constructed a network model and analyzed the dynamic volatility spillovers among bulk mineral commodities, such as cobalt, nickel, and copper. analyzed the dynamic joint impacts of gold and oil prices on the copper price. These studies feature the combination of econometric modeling and network analysis. Using a firm’s high-frequency data, Zheng et al. (2021) studied the asymmetric connectedness and dynamic spillovers between renewable energy and rare earth markets in China. Zhou et al. (2022) investigated the spillovers from China’s rare earths stock prices to its trading partners. Considering the substitute effect of clean energy, a series of studies have been conducted to examine the spillover effects of fossil energy prices on clean energy metal prices (Shao and Zhang, 2020; ; ; Shao et al., 2021; ). There are also studies examining the price volatility links between the rare earth market and financial market (Reboredo and Ugolini, 2020; ; Song et al., 2021).
From the perspective of the supply chain, price volatility is transmitted vertically. The vertical transmission can be further categorized into forward vertical transmission, backward vertical transmission, and bidirectional transmission. In a study on the dynamic relationship between primary and scrap prices, Xiarchos and Fletcher (2009) found that scrap prices do not improve the long-run interpretation of primary prices of copper, lead, and zinc, which, however, exist in the short run. In recent years, network-based transmission models are developed to reveal the sources, receptors, hubs, media, paths, and motifs of price spillovers. Related studies have been examined in the steel supply chain (; Qi et al., 2020) and rare earth supply chain ().
4 Responses to supply chain risks
The responses to the supply chain risks are essential to improve supply chain resilience, which is defined as “the capacity to supply enough of a given material to satisfy the demands of society, and to provide suitable alternatives if insufficient supply is available” (Sprecher et al., 2015). On the supply side, the diversity of supply and increasing stockpiling are proposed to improve supply chain resilience of critical metals; on the demand side, improving material efficiency and developing material substitution are advocated (Sprecher et al., 2015; Sprecher et al., 2017; ). Recycling and circular economy strategies are also widely promoted (; Zeng and Li, 2021).
4.1 Responses on supply side
Supply diversification. More sources of raw materials are helpful in reducing damages caused by disruptions. Using rare earths as an illustrated case, with increasing alternative supplies from Australia and the United States, the HHI of rare earths has decreased from 0.68 in 2017 to 0.43 in 2019, which could potentially decrease to 0.34 (). This result highlights that diversifying supply could substantially reduce the risks from supply concentration. Besides expanding sources, increasing domestic mineral extraction could also effectively alleviate the supply risk of raw materials (Yan et al., 2020). Currently, the mostly advocated diversity of supply is about the diversified ores supply. It should be noted, however, that the availability of domestic mining and extraction technologies is the prerequisite for domestic production. In addition, supply diversification comes at the cost of regulatory limits, high social and environmental risks, high economic costs, etc. (). Furthermore, from the supply chain perspective, the supply diversification in the upstream is not enough. It is argued that investment in all stages of the chain can realize true resilience, which is unfortunately against the basic law of comparative advantages that drives globalization.
Increasing stockpiling. Stockpiling is a short term and effective tool to hedge supply disruption and price hikes (Sun et al., 2022) and can be applied to any stage of the supply chain. A critical issue of stockpiling is the feedback loop through the price mechanism (Sprecher et al., 2015). When a supply disruption occurs, emergency stockpiling by actual needs and speculation activities will drive up the demand and price, which in turn lead to pessimistic expectations about supply and more stockpiling. On the contrary, releasing inventories will increase the supply and ease the market, which in turn negatively influences the price. How does this price mechanism interact with the stockpiling behavior in the field of critical metals? There are few studies in this regard to date.
Recycling and circular economy strategy. Supply diversification and stockpiling cannot sufficiently mitigate the supply chain's risks. The supply chain is a closed loop, and in the reverse supply chain/circular value chain, old scrap/waste can be redesigned, reused, remanufactured, and recycled/urban-mined, therefore, recycling and circular economy strategy are treated as a sustainable solution to reduce the supply chain risks (Zeng and Li, 2015; ; ; Zeng and Li, 2021; ). It is estimated that there are 0.21–0.52 million tons (Mt) of lithium, 0.10–0.52 Mt of cobalt, and 0.49–2.52 Mt of nickel contained in the global end-of-life batteries (Xu et al., 2020). Using dynamic material flow analysis, Wang and Ge (2020) estimated China’s urban cobalt mines could reach 78,800–186,500 tons. At the city level, the urban mines are estimated to be in the range of 300–500 kilotons from 2015 to 2050 in Hong Kong SAR of China, and the economic potential will be 2 billion US dollar each year (). Taking full advantage of these recycling potentials requires clear recycling targets, public education, a comprehensive recycling system at the national scale, abundant treatment capacities, mature recycling technologies, recycling-oriented design strategies, cost competitiveness, and effective fiscal incentives (; Wang and Ge, 2020; Tang et al., 2021; ; Shahjalal et al., 2022). However, these are still at a very early stage in the context of the global battery industry (Tang et al., 2021; ). Global efforts are called for studying these aspects to promote the economic and sustainable recycling strategies.
Supply chain traceability. Social and environmental risks draw more and more attention, for example, the artisanal mining in the Democratic Republic of the Congo (Nkulu et al., 2018). To reduce related risks, it is suggested to establish a supply chain traceability system (Shi, 2022). Due to the advantages of decentralized control, security, traceability, and auditable time-stamped transactions (Shi and Sun, 2020; Omar et al., 2022), blockchain is proposed as a tool for supply chain traceability in the mineral industry and critical success factor for this type of tracing system are discussed (). Despite the benefit of high traceability, blockchain applications are energy intensive, which is against the development trend of sustainability (; ). This trade-off needs more studies in the future for promoting a traceable supply chain for the metal industry.
4.2 Responses on demand side
Material substitution. Price hikes of critical metals have determining influence on material substitution (). With the increasing prices of raw materials, many studies have suggested developing alternative technologies as substitutions to cope with the supply chain disruptions (Olivetti et al., 2017; ; ). For example, the nickel manganese cobalt (NMC) chemistry has evolved from cobalt intensive to less cobalt intensive, and the annual cobalt demand in the medium and low cobalt scenarios are 21.46 and 54.15%, respectively, lower than that in the cobalt intensive chemistry (Shi, 2022). This case shows that material substitution can reduce the supply chain risks to some extent. However, the decrease of cobalt use accompanies the increase of nickel, which in turn drives up nickel supply risks. In addition, due to the expected massive deployment of low-carbon technologies, supply strains are still there even with material substitution ().
Hedging price volatility. Buyers and sellers can use long-term contracts to negotiate a stable price for a specific period and stabilize profits/costs (). Besides the long-term contracts, the market players are suggested to make full use of modern financial tools, such as futures and options. Establishing long-term cooperation between suppliers and customers along the supply chains and adopting integrated operation strategies are also effective ways to hedge price volatility.
5 Conclusion
To better address the supply chain challenges of critical metals in the era of frequent disturbance, this article reviews the studies on the sources, propagation, and responses of supply chain risks of critical metals. Based on the literature review on these three aspects, the following issues are proposed to be further studied in the future.
Firstly, to better identify and assess the risks in the criticality assessment of metals, there are more studies to be conducted in a new holistic framework of supply chain risks. This new framework should not only focus on the specific risks in the upstream, middle-stream, and downstream but also on general risks along the whole supply chain. Besides this conceptual framework, building a comprehensive database is required for this type of risk assessment. As for the potential direction of empirical studies, scholars could perform a holistic risk assessment for a particular metal, cobalt, for example, or they could carry out a holistic assessment for joint-metals, cobalt–lithium–nickel, for instance, or do comparison studies of risk assessments and thus better understand the criticality of the corresponding metals. The material flow analysis, multiregional input–output model, systemic dynamics, and complex network theory are potential tools to address these issues.
Secondly, the propagation of trade-related risks and price volatility are intensively examined, and we have a comprehensive understanding of how the risks propagate in a single-layer network. Nonetheless, there is still a lack of enough understanding about the supply chain vulnerability caused by the interdependences between different stages of the supply chain. In addition, the vertical transmissions of price risk, which include forward vertical transmission, backward transmission, and bidirectional transmission, should be further explored. Multiplex network could be a useful tool for these explorations. Interdisciplinary studies that combine the multiplex network, econometric modeling, multiregional analysis, etc., also deserve a try since they may provide flexible and comprehensive solutions to these issues in the future.
Thirdly, to respond effectively to the supply chain challenges, there are short-term measures like stockpiling and price hedging and long-term approaches like recycling and circular strategy. In the future, more studies should be done to investigate supply chain diversification rather than diversification of one stage. In addition, more quantitative models those include the price factor, recycling, and technological breakthrough are worthy of attention due to rapid clean energy transition and the nature of metal scarcity. As for the recycling of critical metals, studies on the cost of recycling and its influencing factors are few but deserve academic investigations. Supply chain traceability supported by blockchain has also become an emerging frontier topic. It should be noted that there are trade-offs in every response approach, which deserves more studies in the future.
Statements
Author contributions
XS: conceptualization, methodology, formal analysis, writing—original draft and revision.
Funding
I’m thankful for the financial support from the National Natural Science Foundation of China (Grants No. 41901246).
Acknowledgments
The author is thankful to Prof. Xiangyun Gao at China University of Geosciences (Beijing) for his opinions and suggestions on the topics reviewed, to FZ for his handling of the article, and to the reviewers for their constructive comments that improved this article substantially.
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenrg.2022.957884/full#supplementary-material
