A state-of-the-art review of N self-doped biochar development in supercapacitor applications

  • 1. School of Mines, China University of Mining and Technology, Xuzhou, China

  • 2. State Key Laboratory of Coal Combustion, School of Energy and Power Engineering, Huazhong University of Science and Technology, Wuhan, China

Abstract

Due to its renewability, eco-friendliness, and cost-effectiveness, biochar is a promising alternative to fossil fuel-based carbon for electrode material application in supercapacitors. However, pristine biochar often exhibits poor structure and low activity, which strongly inhibit its commercial utilization. N-doping is an efficient way to improve the electrochemical performance of biochar by enhancing the conductivity and surface wettability that further induce a pseudo-capacitance effect. Compared with external doping, the synthesis of N self-doped biochar from natural N-rich biomass without using external N precursors, which are harmful and costly, has attracted increasing attention. Few reviews of N-doped biochar applications in supercapacitors are available, and studies of N self-doped biochar are still scarce. This paper reviews the developments over the past 10 years on the preparation, activation, and application of N self-doped biochar in supercapacitors. Notably, the evolution of N-functionalities during N self-doped biochar production with or without activating agents was analyzed. The relationships between N content and the specific capacitance and the contribution of N self-doping-induced pseudo-capacitance to the total specific capacitance are also discussed. Finally, the challenges and the prospects of N self-doped biochar applications in supercapacitors are proposed.

1 Introduction

The excessive consumption of fossil fuels (coal, gas, and oil) gives rise to energy crisis, environmental pollution, and global warming (Parsimehr et al., 2022; Zhang et al., 2022). According to a statistical report (IPCC, 2022), the average annual emission levels of the last decade (2010–2019) were higher than in any previous decade for each group of greenhouse gases (GHGs). Compared to 1990, CO2, CH4, and N2O from fossil fuel and industry in 2019 grew by 67%, 29%, and 33%, respectively. Due to this, renewable energy, such as solar energy, wind energy, and hydropower, developed rapidly in the past decades. However, in comparison to fossil fuels, these renewable energies have the main disadvantage of intermittency (Li et al., 2021) because they fluctuate with seasons, circadian cycles, and weather, leading to the fluctuation of generating capacity. Therefore, to ensure the security of the power grid, energy storage facilities are required when using solar and wind energy for power generation.

Supercapacitors are a promising energy storage technique because of their high power density, rapid charging/discharging rate, long cycle life, excellent reversibility, etc. (Yan et al., 2014). However, lower energy density greatly limits their large-scale utilization. The electrode material is the critical factor affecting the energy density of supercapacitors (Bo et al., 2019; Huang et al., 2019). Thus, improving the electrochemical properties of electrode materials is the most convenient and effective way to increase energy density. To date, carbon-based materials, such as graphene, activated carbon, carbon nanotube, and carbon aerogel, are widely used as electrode materials in supercapacitors because of their high conductivity, large surface area, tunable porosity, superior stability, and enriched electroactive sites (Zhu and Xu, 2020; Wesley et al., 2022). However, these carbon materials are mainly derived from fossil materials using complex and costly procedures that are greatly harmful to the environment and human health (Zhu and Xu, 2020). Thus, there is an urgent need to explore an eco-friendly, sustainable, and cost-efficient resource for carbon material production.

As the only carbon-based renewable energy resource, biomass is considered an alternative to fossil fuels because it can not only be used for power generation and heat supply but can also be converted into syngas, bio-oil, and biochar products by thermochemical and biochemical techniques. Because biomass is derived from the photosynthetic process of CO2 and H2O in nature, almost zero or even negative CO2 emissions can be achieved during its cycle life. Due to the renewability, abundance, and accessibility of biomass feedstock, biochar is considered an effective electrode material for supercapacitors (Liang et al., 2018; Cuong et al., 2021). There are also other advantages for biochar application as electrode material, such as its physical and chemical stability, large surface area, and developed porous structure, which are beneficial to ion transport (Tang et al., 2017), the abundant surface functional groups (e.g., N-, O-, S-, and P-containing functional groups), and the ability to deal with solid waste in large quantities (Cuong et al., 2021). Moreover, biochar is low cost because it is often the main product from biomass or a by-product when biomass is used to produce bio-oil or syngas (Zhu and Xu, 2020). Meyer et al. also reported that the cost of biochar production is far less than that of activated carbon and graphitic carbon (Meyer et al., 2011).

Various techniques have been developed for biochar production, such as pyrolysis, hydrothermal carbonation, torrefaction, and microwave-assisted pyrolysis. However, biochar in its raw form often exhibits poor porous structure and low activity that is adverse to its utilization in supercapacitors (Cuong et al., 2021). To further improve the electrochemical performance, modification of biochar is essential. To date, two methods are commonly used: 1) activation by physical and chemical activators to defuse the porous structure of biochar (Hu et al., 2022). The physical activators refer to CO2, H2O, and air, while the frequently used chemical activators include KOH (Qin et al., 2022), H3PO4 (Li et al., 2022), and ZnCl2 (Lima et al., 2022); 2) doping of heteroatoms such as N, P, and S to enrich surface functional groups (Li et al., 2022; Xia et al., 2022). Among these heteroatoms, N-doping is most implemented due to easily available and low-cost N sources such as NH3, urea, and melamine (Bai et al., 2021; Mehdi et al., 2022; Yuan et al., 2022). Doping of N heteroatoms can enhance conductivity and surface wettability, and induce a pseudo-capacitance effect of the carbon material, thereby improving its energy/power density with versatile properties (Gopalakrishnan and Badhulika, 2020). Thus, the specific capacitance of N-doped biochar is the sum of the electrical double-layer capacitance and the pseudo-capacitance, significantly improving the performance of supercapacitors. More importantly, doping of N atoms can reduce lattice mismatching and increase electronic conductivity because N is the neighboring element of carbon in the periodic table (Gopalakrishnan and Badhulika, 2020). Usually, to achieve a better modification effect, these two methods are often implemented in combination with each other.

All kinds of biomass can be employed as the feedstock for biochar production, including agricultural waste (Lang et al., 2021; Jiang et al., 2022), tea waste (Wesley et al., 2022), woody biomass (Ma et al., 2021; Chen et al., 2022), seeds (Liang et al., 2021), animal waste (Qin et al., 2022; Wang et al., 2022), fungal waste (Li et al., 2021), vegetables (Li et al., 2022; Xue et al., 2022), and starch (Li et al., 2020; Yuan et al., 2021. Among the various types of biomass, it is worth noting that some naturally have a higher N content, for example, algae (Yuan et al., 2022), mushrooms (Xue et al., 2022), spent coffee ground (Sangprasert et al., 2022), bean pulp (Ding et al., 2021), pharmaceutical drug residues (Zhang et al., 2021; Chen et al., 2022), amino acids (Guo et al., 2021), etc. The bio-oil and syngas production from these N-rich biomasses usually contain high levels of N-containing components, leading to the molecular oligomerization, viscosity, and emission of NOx during subsequent combustion (Jiang et al., 2022). Therefore, N self-doped biochar is a preferentially expected product for N-rich biomass utilization. Compared with the co-pyrolysis of biomass and extra N precursors, the self-doping strategy via pyrolyzing N-rich biomass is eco-friendly and cost-effective because the use of extra N sources is avoided (Wang et al., 2020; Liu et al., 2022). By comparing the environmental performance of a biochar aerogel-based electrode (BA-electrode) and a graphene oxide aerogel-based electrode (GOA-electrode) using the life cycle assessment method, Jiang et al. (2021) found that the life cycle global warming potential for the BA electrode was lower than that of GOA electrode, with a reduction of 53.1–68.1%. Compared to a GOA electrode, the environmental damages of a BA electrode were greatly decreased by 35.8–56.4%, 44.9–62.6%, and 87.0–91.2% for human health, ecosystems, and resources, respectively. Due to these advantages, producing N self-doped biochar using N-rich biomass feedstocks is attracting increasing attention. Various strategies for N self-doped biochar production have been reported. Understanding the existing strategies and the performance of supercapacitors using N self-doped biochar as the electrode material is of great significance to future research. In this study, the latest developments in the preparation, activation, and application of N self-doped biochar in supercapacitors are reviewed. Notably, the evolution of N-functionalities during N self-doped biochar production with or without activating agents and the impact of N self-doping on the electrochemical performance are discussed. Although numerous reports with respect to biochar utilization in supercapacitors are available, reviews on N self-doped biochar for supercapacitor application are still scarce.

2 Preparation of N self-doped biochar

The preparation of N self-doped biochar usually involves some or all of the following steps: 1) pretreatment of the raw biomass, 2) pre-carbonization or pre-activation in mild conditions, 3) pyrolysis/carbonization or activation with one or more step(s), 4) post-treatment of the solid product. Because the activation is often implemented simultaneously with pre-carbonization or pyrolysis, the activation is introduced together with the preparation procedures in this review.

2.1 Pretreatment methods

The inorganic elements naturally occurring in biomass are considered to be unfavorable to the electrochemical performance of biochar. Zhu et al. reported that excessive residual metal content in algal biomass plays the role of ā€œdead mass,ā€ resulting in a less-developed porous structure (Zhu et al., 2018). Therefore, raw material is often pretreated to remove the impurities before carbonization. Washing with acetone (Fu et al., 2018), ethanol (Yan, 2020), deionized water (Sinha et al., 2020), distilled water (Yan et al., 2020), or ultrapure water (Liu et al., 2017) or washing/soaking in acid solutions such as HCl (Wen et al., 2019), H2SO4 (Sattayarut et al., 2019), HNO3, and acetic acid/H2O2/HF/NaClO2 (Wang et al., 2019), or the combination of them, are most frequently performed. It was reported that washing with water (H2O-CC), formic acid (FA-CC), acetic acid (AA-CC), oxalic acid (OA-CC), and propionic acid (PA-CC) showed significant effects on the pyrolysis characteristic of corn cob (CC) (Figure 1) (Liu et al., 2022). When acid washing is employed, water washing is required to remove the residual acids. Then, the washed biomass is dried in an oven at 60–110 °C or freeze-dried (Li et al., 2019; Zhu et al., 2019) to remove the extra moisture. The washed and dried biomass is cut into small pieces or ground into powders with the desired sizes manually in a mortar or by an automatic mill. However, the washing of biomass is still under debate because some researchers (Gao et al., 2021; Qin et al., 2022) have found that the presence of the inorganics in the raw biomass actually promoted the development of pores. This might be attributed to the diversity of biomass feedstock and types of inorganics. Thus, the impact of pretreatment on the performance of biochar is still unclear. It is necessary to clarify the effects of inorganics on the physiochemical properties of biochar so that the pretreatment of the feedstock can be rationally performed.

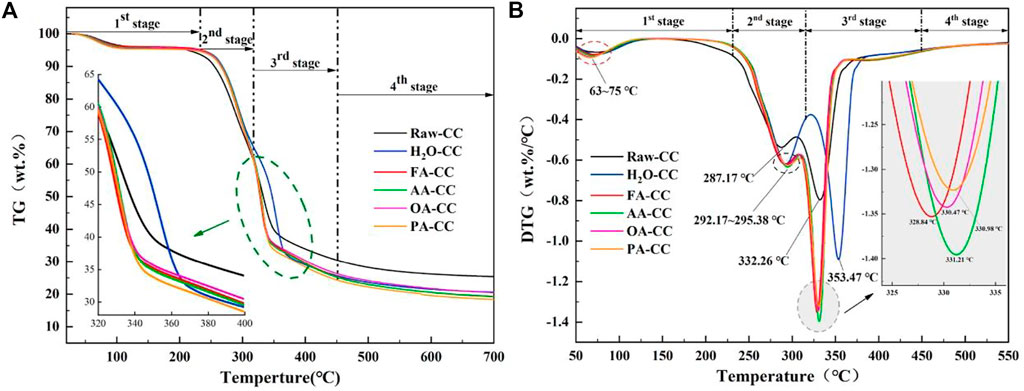

FIGURE 1

2.2 Pre-carbonization/pre-activation

Hydrothermal carbonization is a mild thermochemical conversion process requiring a liquid environment under autogenous pressures (2–10Ā MPa) at 150–300°C. It is mainly explored to deal with wetland plants and biomass with high moisture content to produce bio-oil and hydrochar (Soroush et al., 2022). It consumes less energy than pyrolysis because it does not require a pretreatment step (MacDermid-Watts et al., 2020; Stobernack et al., 2020). Generally, the hydrochar exhibits low surface area and poor porous structure. For example, the hydrochar derived from cow manure obtained its largest surface area and pore volume of only 6.114Ā m2/g and 0.021Ā cm3/g, respectively (Liu et al., 2019). However, due to the high hydrochar yield of 40–70Ā wt% (Zhu and Xu, 2020), hydrothermal treatment is sometimes employed as a pre-carbonization or pre-activation strategy before pyrolysis to yield carbon precursors for N self-doped biochar production, as shown in Figure 2 (Si et al., 2013; Rong et al., 2019; Wen et al., 2019; Hu et al., 2022). A hydrothermal process also has the ability to insert or stabilize foreign atoms into the carbon matrix (Yu et al., 2021; Sangprasert et al., 2022) and etch pores to a certain extent due to the hydrolyzation of hemicellulose and cellulose (Lei et al., 2021; Hu et al., 2022). Thus, modification of functional groups and the porous structure can be achieved by changing the solvent medium (Rawat et al., 2022). The formation of a pore structure and carbon skeleton is more beneficial to subsequent carbonization/activation compared to the parent biomass (Lei et al., 2021). Figure 3 displays the comparison of the morphologies of the peanut shell-derived biochar products prepared by Na2CO3–K2CO3 activation with/without hydrothermal pre-treatment. The surface structure of biochar was significantly enhanced by hydrothermal pre-treatment.

FIGURE 2

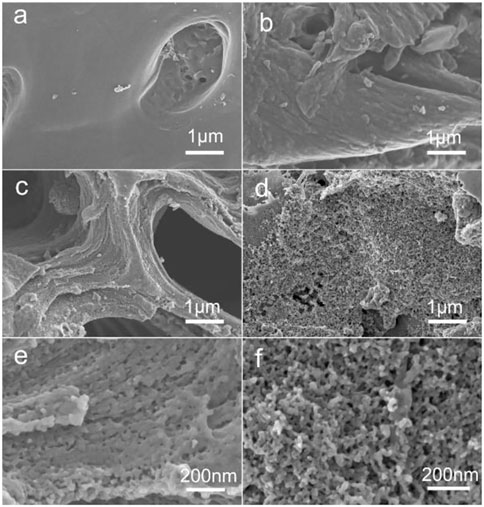

FIGURE 3

2.3 Stepwise pyrolysis

Pyrolysis, which is performed in an oxygen-limited atmosphere at elevated temperatures, is a well-developed and widely used thermochemical conversion technique for biochar production due to its advantages of flexibility, speed, economy, eco-friendliness, and large capacity (Yuan et al., 2021). Pyrolysis is traditionally divided into slow, fast, and flash pyrolysis according to the temperature, residence time, and heating rate (Li et al., 2020; Zhou et al., 2021). Slow pyrolysis refers to the pyrolysis process performed at temperatures lower than 500 °C with a heating rate <10 °C/min and a residence time of several hours to days. Fast pyrolysis is often conducted at a temperature ranging from 500 °C to 900 °C, with a heating rate of 10–100 °C/min. The residence time assigned to fast pyrolysis is less than 10Ā s; however, it often varies from a few minutes to hours for biochar production. Flash pyrolysis, which is performed at a temperature of around 1,000 °C, with a heating rate >1,000 °C/min and a residence time <2 s, is explored, in particular for bio-oil production. For biochar preparation, slow pyrolysis is preferred due to the higher biochar yield of >30Ā wt%, followed by fast pyrolysis with a biochar yield of 10–12Ā wt%.

Considering the preparation of N self-doped biochar, one-step and two-step pyrolysis procedures are frequently used. During one-step pyrolysis (Figure 4), the pretreated biomass (Gao et al., 2015; Liu et al., 2017; He et al., 2019; Yu et al., 2019; Zhang et al., 2019; Sun et al., 2020) or the mixture of biomass and activating reagents (Chen et al., 2019; Lian et al., 2019; Zhao et al., 2020) is directly pyrolyzed in a furnace. For the two-step method, the pretreated biomass is first pre-carbonized and then activated with reagents (Figure 5A) (Zou et al., 2019; Biegun et al., 2020; Yan, 2020), carbonized after pre-activation (Figure 5B) (Wen et al., 2019), or successively pyrolyzed without an activator (Figure 5C) (Huang et al., 2018; Ma et al., 2019). Generally, the first step of the successive pyrolysis is also considered a pre-carbonization process (Wang and Liu, 2015). Pre-carbonization is reported to have the ability to remove impurities effectively and improve activation efficiency with reduced consumption of the activator (Jiao et al., 2022). In addition to these methods, a three-step strategy involving pre-carbonization, hydrothermal treatment, and activation was also implemented for N self-dope biochar production from walnut shells (Wang et al., 2018) and Enteromorpha prolifera (Ren et al., 2018).

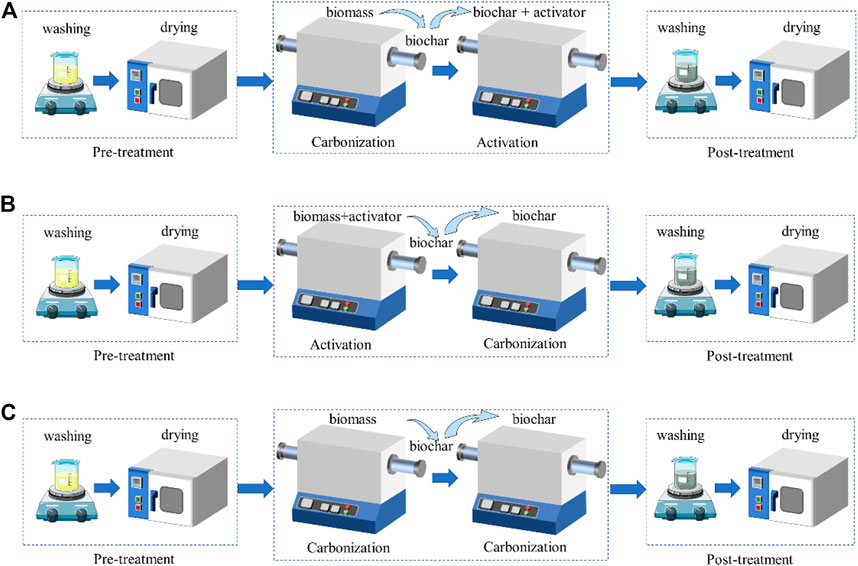

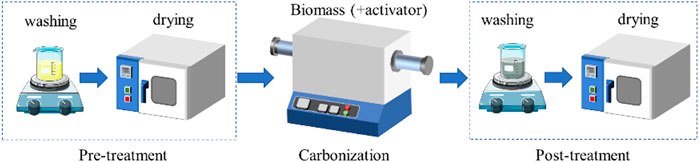

FIGURE 4

FIGURE 5

Microwave-assisted pyrolysis is conducted using a microwave furnace with an electromagnetic spectrum frequency that ranges from 0.3 to 300 GHz and a wavelength that ranges from 1,000 to 1 mm (Sun et al., 2022). Microwave pyrolysis heats the samples uniformly based on the resonation of the microwave radiation frequency and that of water molecule vibration in the target samples. Therefore, microwave pyrolysis is typically appropriate to process biomass with a high moisture content. Microwave heating also has the advantages of energy efficiency and fast response (Zhang et al., 2022). A two-step pyrolysis procedure involving carbonization and microwave-assisted activation was employed by Foo and Hameed (2013) to prepare biochar from oil palm shells. As shown in Figure 6, the oil palm shell was first carbonized at 700 °C, and the produced char was then activated with KOH in a microwave oven.

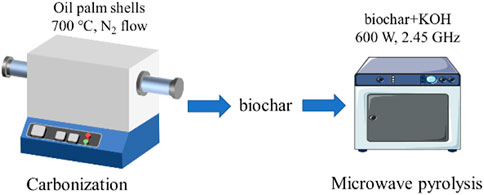

FIGURE 6

Plasma is another effective technology to process material under mild conditions, with the advantages of being chemical-free and simple. For example, non-thermal plasma processing was applied to modify the biochar derived from bamboo shoot shells before it was used in contaminant removal and supercapacitor applications (Zhou et al., 2022). The biochar after plasma treatment exhibited enhanced hydrophilicity, larger surface area, and higher N/O content, leading to higher absorption capacity and the improvement of electrochemical performance.

Conventional pyrolysis, microwave-assisted pyrolysis, and plasma treatment are all effective techniques for N self-doped biochar preparation. Conventional pyrolysis in a heating furnace with a one-step or two-step strategy is still the mainstream method, while microwave-assisted and plasma pyrolysis are rarely reported.

2.4 Posttreatment

After these steps, the obtained N self-doped biochar is washed with dilute acid (HCl, H2SO4, HNO3, etc.) solution to remove the inorganic impurities and subsequently washed by deionized/distilled/ultrapure water until neutral (Raj et al., 2018; Xu et al., 2018). Finally, the purified biochar is dried for further investigation of its electrochemical performance.

3 N self-doped biochar applications in supercapacitors

N self-doped biochar is produced from naturally N-rich biomass, including plants, animals, foods, algae, organic wastes, protein/amino acids, and fungus, as shown in Figure 7. Among these types, N-rich plant-based biomass is the most commonly used for N self-doped biochar production. Alkali hydroxides, especially KOH, are the favorite activating reagents due to their excellent pore etching ability, the mechanism of which is described as follows. First, KOH reacts with carbon to generate H2 and CO2 and simultaneously forms K2CO3 (R1). As the temperature reaches 700 °C, K2CO3 decomposes into K2O and CO2 (R2). Then, CO2 reacts with carbon to form CO (R3). With the continuous increase of temperature, both K2CO3 and K2O are reduced, accompanied by the release of CO and K vapor (R4 and R5). Finally, the gases and K vapor pass through the carbon matrix to activate the pore formation.

FIGURE 7

3.1 Plant-based N self-doped biochar

The N-rich plant-based biomass involves leaves, flowers, stems, barks, fruits, seeds, and roots of plants, as well as the derived straws that contain enriched protein or vitamins. For example, N-doping porous carbon fabricated from quinoa with KOH activation exhibited a special capacitance of 330Ā F/g at a density of 1 A/g (Sun et al., 2020). N, S co-doped hierarchical porous carbon was fabricated from ginkgo leaves via carbonization, followed by NaOH/KOH activation (Zhang et al., 2020). Due to the high specific surface area SSA (975Ā m2/g) and higher heteroatom content (1.88% N and 1.87% S), the derived carbon exhibited a high specific capacitance of 333.4Ā F/g at 0.1 A/g. Jiao et al. reported a hierarchical porous biochar (1.7% N) from soybean straw produced by carbonization and mild activation with KOH (Jiao et al., 2022). The optimal sample exhibited a specific capacitance of 380.5Ā F/g at 0.5A/g. Protein-rich soybeans were also converted into a heteroatom self-doped biochar with KOH activation (Lin et al., 2018; Yan et al., 2020; Yu et al., 2021). Other plants used to prepare N self-doped biochar involving KOH activation for supercapacitor application include corn silk (Zhou et al., 2020), Broussonetia papyrifera stem bark (Wei et al., 2015), Moringa oleifera branches (Cai et al., 2016), walnut shells (Wang et al., 2018), longan shell (Yan, 2020), broad bean shells (Xu et al., 2015), longan pulp (Wang et al., 2020), lotus leaves (Liu et al., 2020), Viburnum sargentii leaves (Zhang et al., 2019), Samanea saman leaves (Sattayarut et al., 2019), willow catkins (Wang et al., 2015), tobacco rods (Zhao et al., 2016), fallen Camellia flowers (Guo et al., 2017), rose multiflora (Chen et al., 2018), pomelo peel (Fu et al., 2018), mung bean husk (Song et al., 2019), cotton seed husks (Chen et al., 2018), bamboo shoot shells (Han et al., 2018), metasequoia fruit (Jia et al., 2019), and soybean root (Guo et al., 2016), as shown in Table 1.

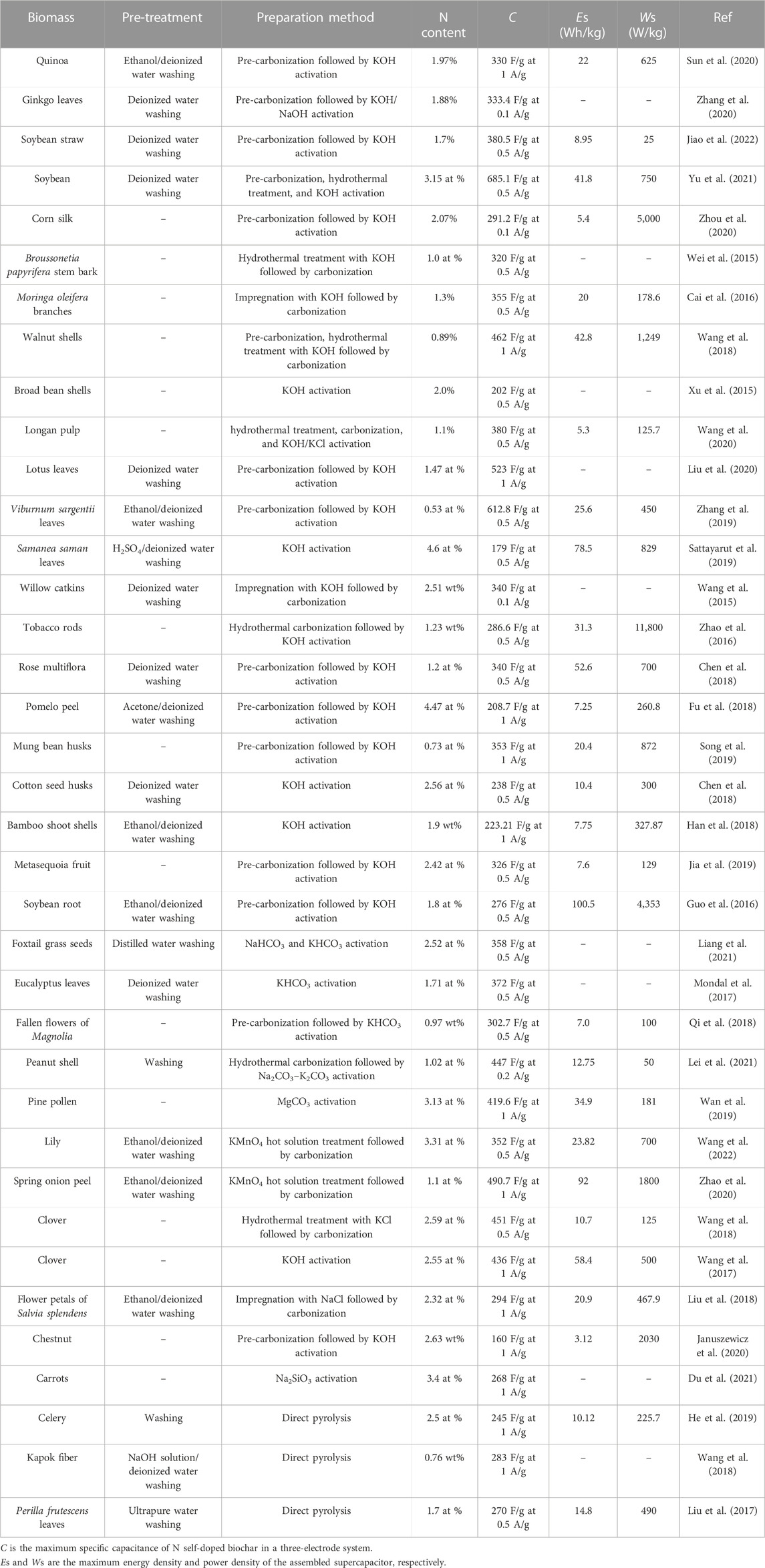

TABLE 1

BiomassPre-treatmentPreparation methodN contentCEs (Wh/kg)Ws (W/kg)Ref
QuinoaEthanol/deionized water washingPre-carbonization followed by KOH activation1.97%330Ā F/g at 1 A/g22625Sun et al. (2020)
Ginkgo leavesDeionized water washingPre-carbonization followed by KOH/NaOH activation1.88%333.4Ā F/g at 0.1 A/g––Zhang et al. (2020)
Soybean strawDeionized water washingPre-carbonization followed by KOH activation1.7%380.5Ā F/g at 0.5 A/g8.9525Jiao et al. (2022)
SoybeanDeionized water washingPre-carbonization, hydrothermal treatment, and KOH activation3.15Ā at %685.1Ā F/g at 0.5 A/g41.8750Yu et al. (2021)
Corn silk–Pre-carbonization followed by KOH activation2.07%291.2Ā F/g at 0.1 A/g5.45,000Zhou et al. (2020)
Broussonetia papyrifera stem bark–Hydrothermal treatment with KOH followed by carbonization1.0Ā at %320Ā F/g at 0.5 A/g––Wei et al. (2015)
Moringa oleifera branches–Impregnation with KOH followed by carbonization1.3%355Ā F/g at 0.5 A/g20178.6Cai et al. (2016)
Walnut shells–Pre-carbonization, hydrothermal treatment with KOH followed by carbonization0.89%462Ā F/g at 1 A/g42.81,249Wang et al. (2018)
Broad bean shells–KOH activation2.0%202Ā F/g at 0.5 A/g––Xu et al. (2015)
Longan pulp–hydrothermal treatment, carbonization, and KOH/KCl activation1.1%380Ā F/g at 0.5 A/g5.3125.7Wang et al. (2020)
Lotus leavesDeionized water washingPre-carbonization followed by KOH activation1.47Ā at %523Ā F/g at 1 A/g––Liu et al. (2020)
Viburnum sargentii leavesEthanol/deionized water washingPre-carbonization followed by KOH activation0.53Ā at %612.8Ā F/g at 0.5 A/g25.6450Zhang et al. (2019)
Samanea saman leavesH2SO4/deionized water washingKOH activation4.6Ā at %179Ā F/g at 0.5 A/g78.5829Sattayarut et al. (2019)
Willow catkinsDeionized water washingImpregnation with KOH followed by carbonization2.51Ā wt%340Ā F/g at 0.1 A/g––Wang et al. (2015)
Tobacco rods–Hydrothermal carbonization followed by KOH activation1.23Ā wt%286.6Ā F/g at 0.5 A/g31.311,800Zhao et al. (2016)
Rose multifloraDeionized water washingPre-carbonization followed by KOH activation1.2Ā at %340Ā F/g at 0.5 A/g52.6700Chen et al. (2018)
Pomelo peelAcetone/deionized water washingPre-carbonization followed by KOH activation4.47Ā at %208.7Ā F/g at 1 A/g7.25260.8Fu et al. (2018)
Mung bean husks–Pre-carbonization followed by KOH activation0.73Ā at %353Ā F/g at 1 A/g20.4872Song et al. (2019)
Cotton seed husksDeionized water washingKOH activation2.56Ā at %238Ā F/g at 0.5 A/g10.4300Chen et al. (2018)
Bamboo shoot shellsEthanol/deionized water washingKOH activation1.9Ā wt%223.21Ā F/g at 1 A/g7.75327.87Han et al. (2018)
Metasequoia fruit–Pre-carbonization followed by KOH activation2.42Ā at %326Ā F/g at 0.5 A/g7.6129Jia et al. (2019)
Soybean rootEthanol/deionized water washingPre-carbonization followed by KOH activation1.8Ā at %276Ā F/g at 0.5 A/g100.54,353Guo et al. (2016)
Foxtail grass seedsDistilled water washingNaHCO3 and KHCO3 activation2.52Ā at %358Ā F/g at 0.5 A/g––Liang et al. (2021)
Eucalyptus leavesDeionized water washingKHCO3 activation1.71Ā at %372Ā F/g at 0.5 A/g––Mondal et al. (2017)
Fallen flowers of Magnolia–Pre-carbonization followed by KHCO3 activation0.97Ā wt%302.7Ā F/g at 0.5 A/g7.0100Qi et al. (2018)
Peanut shellWashingHydrothermal carbonization followed by Na2CO3–K2CO3 activation1.02Ā at %447Ā F/g at 0.2 A/g12.7550Lei et al. (2021)
Pine pollen–MgCO3 activation3.13Ā at %419.6Ā F/g at 1 A/g34.9181Wan et al. (2019)
LilyEthanol/deionized water washingKMnO4 hot solution treatment followed by carbonization3.31Ā at %352Ā F/g at 0.5 A/g23.82700Wang et al. (2022)
Spring onion peelEthanol/deionized water washingKMnO4 hot solution treatment followed by carbonization1.1Ā at %490.7Ā F/g at 1 A/g921800Zhao et al. (2020)
Clover–Hydrothermal treatment with KCl followed by carbonization2.59Ā at %451Ā F/g at 0.5 A/g10.7125Wang et al. (2018)
Clover–KOH activation2.55Ā at %436Ā F/g at 1 A/g58.4500Wang et al. (2017)
Flower petals of Salvia splendensEthanol/deionized water washingImpregnation with NaCl followed by carbonization2.32Ā at %294Ā F/g at 1 A/g20.9467.9Liu et al. (2018)
Chestnut–Pre-carbonization followed by KOH activation2.63Ā wt%160Ā F/g at 1 A/g3.122030Januszewicz et al. (2020)
Carrots–Na2SiO3 activation3.4Ā at %268Ā F/g at 1 A/g––Du et al. (2021)
CeleryWashingDirect pyrolysis2.5Ā at %245Ā F/g at 1 A/g10.12225.7He et al. (2019)
Kapok fiberNaOH solution/deionized water washingDirect pyrolysis0.76Ā wt%283Ā F/g at 1 A/g––Wang et al. (2018)
Perilla frutescens leavesUltrapure water washingDirect pyrolysis1.7Ā at %270Ā F/g at 0.5 A/g14.8490Liu et al. (2017)

Plant-based N self-doped biochar applications in supercapacitors.

C is the maximum specific capacitance of N self-doped biochar in a three-electrode system.

Es and Ws are the maximum energy density and power density of the assembled supercapacitor, respectively.

On account of the strong corrosivity of KOH, moderate activating reagents such as carbonates and chlorides are considered to be the alternatives. Foxtail grass seeds were carbonized at 550–750 °C with NaHCO3/KHCO3 to prepare a self-doped biochar (Liang et al., 2021). Benefiting from the large SSA of 819Ā m2/g and a high N content of 2.52Ā at.%, the as-prepared biochar displayed a high gravimetric capacitance of 358.0Ā F/g at 0.5 A/g. N self-doped carbon materials were also prepared from eucalyptus leaves (Mondal et al., 2017) and fallen flowers of Magnolia denudata (Qi et al., 2018) with KHCO3 activation. A heteroatom self-doped porous biochar (1.02Ā at% N) from peanut shells was prepared via hydrothermal carbonization, followed by Na2CO3–K2CO3 activation (Lei et al., 2021), showing a specific capacitance of 447Ā F/g at 0.2 A/g. Pine pollen was pyrolyzed with MgCO3, and the derived carbon possessed a high specific capacitance of 419.6Ā F/g at 1A/g (Wan et al., 2019). Lily was foamed and activated in KMnO4 hot solution, obtaining an N, O co-doped porous carbon material with a specific capacitance of 352Ā F/g at 0.5 A/g (Wang et al., 2022). KMnO4 was also employed as the activating reagent for spring onion peel-derived biochar (Zhao et al., 2020), the specific capacitance of which was 490.7Ā F/g at 1.0 A/g and the energy density was 92.0Ā Wh/kg at a power density of 1800Ā W/kg in supercapacitors. KCl and NaCl were utilized as activators when producing N self-doped biochar from clover (Wang et al., 2017; Wang et al., 2018) and flower petals of Salvia splendens (Liu et al., 2018).

A comparison of KOH and other activating reagents was also performed. For example, chemically and physically activated pyrolysis of chestnut was compared using KOH and CO2 as activators, respectively (Januszewicz et al., 2020). The KOH-activated sample exhibited much better electrochemical performance due to the higher SSA and well-developed porosity. N self-doped porous carbons were synthesized using vitamin-enriched carrots and an Na2SiO3 activator (Du et al., 2021). Na2SiO3 showed a better activation performance than KOH, leading to a high capacitance of 268Ā F/g at 1 A/g for the derived biochar.

Without using any activating reagents, He et al. reported an N self-doped biochar obtained from the direct calcination of celery, the capacitance of which reached 245Ā F/g (He et al., 2019). Kapok fiber (Wang et al., 2018) and Perilla frutescens (Liu et al., 2017) were also directly pyrolyzed to synthesize an N self-doped biochar for supercapacitors.

3.2 Animal-based N self-doped biochar

The preparation and application of animal-based N self-doped biochar in supercapacitors are summarized in Table 2. Waste shrimp shells that contain N-rich poly-b (1/4)-N-acetyl-D-glucosamine were expected to be an excellent precursor for N self-doped carbon. For example, shrimp shell-derived carbon using hydrothermal treatment with KOH and carbonization obtained a specific capacitance of 239 F/g at 0.5 A/g (Mondal et al., 2017). Mantis shrimp shells were directly carbonized at different temperatures, and the biochar derived at 750 °C demonstrated a high specific capacitance of 201 F/g at a current density of 1 A/g due to the large SSA of 401 m2/g and high N content (8.2 wt%) (Huang et al., 2021).

TABLE 2

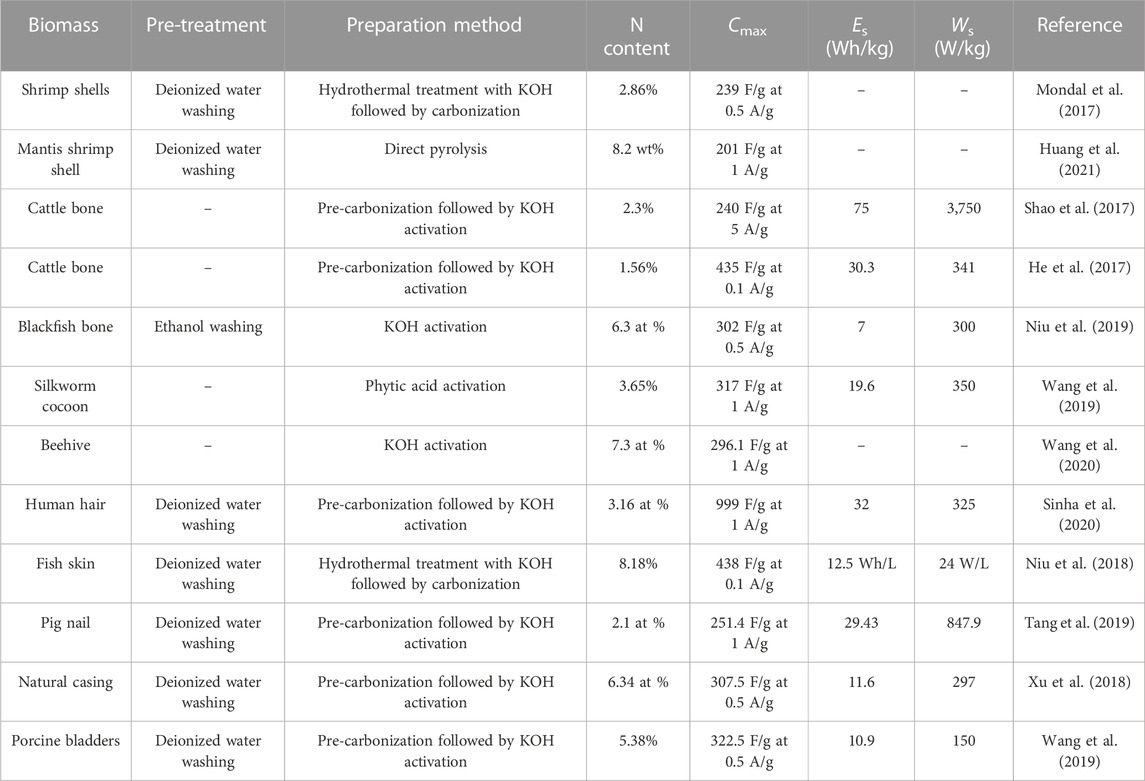

BiomassPre-treatmentPreparation methodN contentCmaxEs (Wh/kg)Ws (W/kg)Reference
Shrimp shellsDeionized water washingHydrothermal treatment with KOH followed by carbonization2.86%239Ā F/g at 0.5 A/g––Mondal et al. (2017)
Mantis shrimp shellDeionized water washingDirect pyrolysis8.2Ā wt%201Ā F/g at 1 A/g––Huang et al. (2021)
Cattle bone–Pre-carbonization followed by KOH activation2.3%240Ā F/g at 5 A/g753,750Shao et al. (2017)
Cattle bone–Pre-carbonization followed by KOH activation1.56%435Ā F/g at 0.1 A/g30.3341He et al. (2017)
Blackfish boneEthanol washingKOH activation6.3Ā at %302Ā F/g at 0.5 A/g7300Niu et al. (2019)
Silkworm cocoon–Phytic acid activation3.65%317Ā F/g at 1 A/g19.6350Wang et al. (2019)
Beehive–KOH activation7.3Ā at %296.1Ā F/g at 1 A/g––Wang et al. (2020)
Human hairDeionized water washingPre-carbonization followed by KOH activation3.16Ā at %999Ā F/g at 1 A/g32325Sinha et al. (2020)
Fish skinDeionized water washingHydrothermal treatment with KOH followed by carbonization8.18%438Ā F/g at 0.1 A/g12.5Ā Wh/L24Ā W/LNiu et al. (2018)
Pig nailDeionized water washingPre-carbonization followed by KOH activation2.1Ā at %251.4Ā F/g at 1 A/g29.43847.9Tang et al. (2019)
Natural casingDeionized water washingPre-carbonization followed by KOH activation6.34Ā at %307.5Ā F/g at 0.5 A/g11.6297Xu et al. (2018)
Porcine bladdersDeionized water washingPre-carbonization followed by KOH activation5.38%322.5Ā F/g at 0.5 A/g10.9150Wang et al. (2019)

Animal-based N self-doped biochar applications in supercapacitors.

Animal bone is a natural composite composed of organic collagen. It is rich in C/N elements and can be used as the C/N source to form N self-doped carbons. It is also a source of inorganic hydroxyapatite that disperses homogeneously within the bone as a natural template (Shao et al., 2017). The cattle bone-derived carbon possessed an ultrahigh SSA (2,203Ā m2/g) with meso- and macropores, a high N content (2.3%), and a good specific capacitance (Shao et al., 2017). He et al. reported an N/O co-doped carbon from cattle bones with a large SSA (2,520Ā m2/g), a high content of N (1.56%) and O (10.2%), and a large specific capacity (435Ā F/g at 0.1 A/g) (He et al., 2017). By simultaneous pyrolysis and activation, pork bone, blackfish bone, and eel bone-derived carbon, which had a higher ratio of micropore surface area and N content, exhibited enhanced specific capacitance (Niu et al., 2019).

N/P co-doped porous carbon was prepared from silkworm cocoons and phytic acid by the self-activation approach, achieving a gravimetric capacitance of 317Ā F/g at 1 A/g (Wang et al., 2019). After sufficient soaking with KOH solution, the beehive was then calcined to produce a multilevel gradient structural N/S co-doped carbon (Wang et al., 2020). The obtained carbon materials exhibited a best capacitive capability of 296.1Ā F/g at a current density of 1 A/g. Human hair, rich in keratin, was carbonized with KOH, ZnCl2, and H3PO4. The KOH-activated biochar showed the best electrochemical performance with an outstanding specific capacitance of 999Ā F/g at a current density of 1 A/g (Sinha et al., 2020). After treatment with KOH, fish skin, primarily composed of collagen, such as glycine, proline, alanine, and methionine, was converted into ternary-doped carbon nanosheets (Niu et al., 2018), with a gravimetric capacitance of 438Ā F/g at 0.1 A/g. Using pig nail as N-rich biomass, a porous carbon was fabricated by carbonization and KOH activation. The supercapacitor derived from this product exhibited a remarkable energy density of 29.43Ā Wh/kg (Tang et al., 2019). An N-enriched biochar was fabricated from the natural casing, an inherently tough translucent film consisting of fat and protein, and exhibited a desirable SSA (3,100Ā m2/g), high N content (6.34Ā at.%), and high specific capacitance (307.5Ā F/g at 0.5 A/g) (Xu et al., 2018). Porcine bladders were also processed with the same strategy (Wang et al., 2019). The derived carbon material exhibited large SSA (1881.7Ā m2/g), high N content (5.38%), and, consequently, high specific capacitance (322.5Ā F/g at 0.5 A/g).

3.3 Food-based N self-doped biochar

Eggs, beancurd, and milk, which are rich in protein and can be used as human food, are assigned to N-rich food-based biomass. Table 3 shows the details of the preparation and application of food-based N self-doped biochar in supercapacitors. A two-step method involving carbonization and KOH activation was employed to synthesize carbon materials from egg white (Zhu et al., 2019). The derived carbon showed a high SSA of 2,918Ā m2/g and a high specific capacitance of 335Ā F/g at 0.5 A/g. Egg white was also carbonized with a ZnO template to fabricate a carbon material with a capacitance of 205Ā F/g at 0.5 A/g (Chen et al., 2015). Ma et al. reported an N self-doped carbon from the mixture of fresh chicken eggs and graphene oxide via hydrothermal carbonization and KOH activation (Ma et al., 2017).

TABLE 3

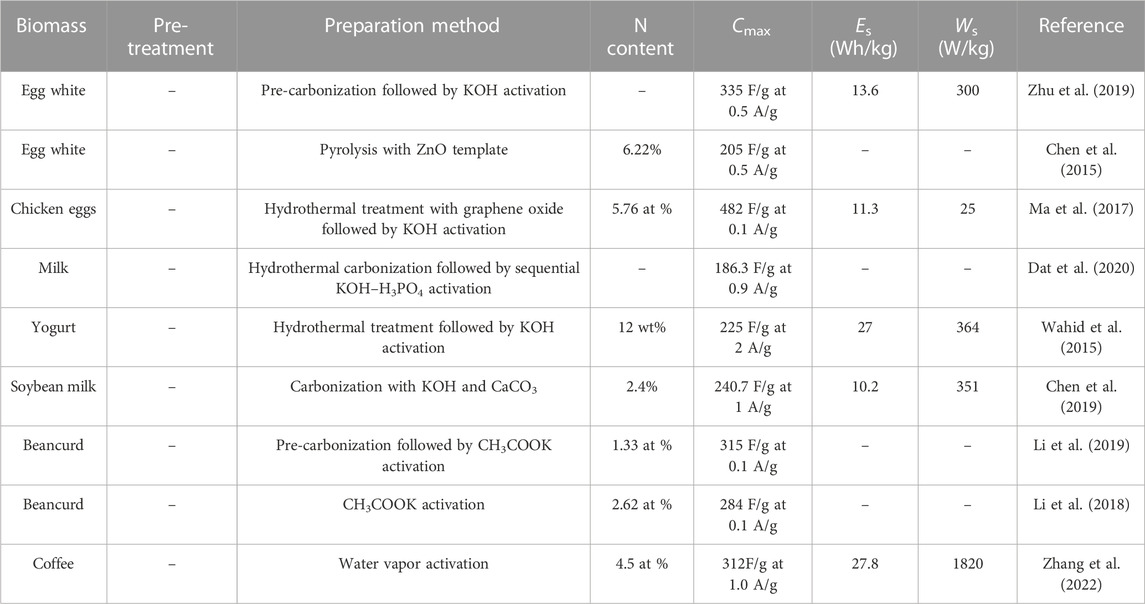

BiomassPre-treatmentPreparation methodN contentCmaxEs (Wh/kg)Ws (W/kg)Reference
Egg white–Pre-carbonization followed by KOH activation–335Ā F/g at 0.5 A/g13.6300Zhu et al. (2019)
Egg white–Pyrolysis with ZnO template6.22%205Ā F/g at 0.5 A/g––Chen et al. (2015)
Chicken eggs–Hydrothermal treatment with graphene oxide followed by KOH activation5.76Ā at %482Ā F/g at 0.1 A/g11.325Ma et al. (2017)
Milk–Hydrothermal carbonization followed by sequential KOH–H3PO4 activation–186.3Ā F/g at 0.9 A/g––Dat et al. (2020)
Yogurt–Hydrothermal treatment followed by KOH activation12Ā wt%225Ā F/g at 2 A/g27364Wahid et al. (2015)
Soybean milk–Carbonization with KOH and CaCO32.4%240.7Ā F/g at 1 A/g10.2351Chen et al. (2019)
Beancurd–Pre-carbonization followed by CH3COOK activation1.33Ā at %315Ā F/g at 0.1 A/g––Li et al. (2019)
Beancurd–CH3COOK activation2.62Ā at %284Ā F/g at 0.1 A/g––Li et al. (2018)
Coffee–Water vapor activation4.5Ā at %312F/g at 1.0 A/g27.81820Zhang et al. (2022)

Food-based N self-doped biochar applications in supercapacitors.

Dat et al. (2020) prepared an N self-doped carbon from expired fresh milk via hydrothermal carbonization and sequential KOH–H3PO4 activation. The derived biochar achieved a specific capacitance of 186.3Ā F/g. Yogurt was also used to synthesize highly N self-doped biochar for supercapacitor application via hydrothermal treatment and activation (Wahid et al., 2015). A strategy of simultaneous CaCO3 template and KOH activation was explored for N self-doped biochar production from soybean milk (Chen et al., 2019). The obtained carbons exhibited a specific capacitance of 240.7Ā F/g at 1 A/g.

A one-step impregnation activation method (Li et al., 2018) and a two-step method with the CH3COOK activator (Li et al., 2019) were reported for N self-doped biochar synthesis from beancurd. CH3COOK was decomposed into K2CO3 at about 303 °C and then as-formed K2CO3 reacted with carbon to generate many micropores, following R2-R5. The derived carbon materials delivered capacitances of 284 F/g and 245 F/g, respectively, at 0.1 A/g.

Zhang et al. reported an N, O-doped activated carbon from household expired coffee by direct water vapor activation, achieving a high gravimetric capacitance of 312 F/g at 1.0 A/g (Zhang et al., 2022).

3.4 Algae-based N self-doped biochar

Algae are autotrophic and embryoless plants capable of photosynthesis involving macroalgae and microalgae, which are mainly composed of lipids, proteins, and carbohydrates (Sun et al., 2022). It was reported that a hierarchically porous structure with a balanced distribution of mesopores and micropores is more effective in the capacitive performance of algae-derived carbon than the components of raw algae, such as proteins (Zhu et al., 2018). Therefore, the synthesis of N self-doped char with a well-developed pore structure is a promising pathway for algae utilization. The algae-based N self-doped biochar in supercapacitor results are presented in Table 4.

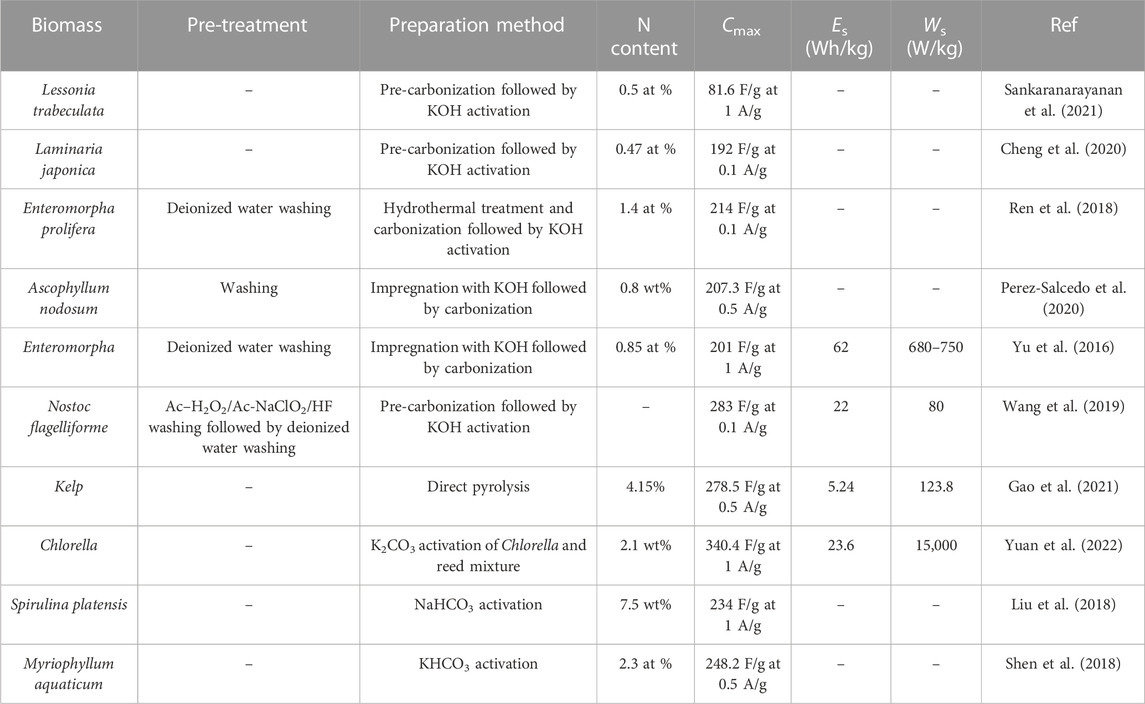

TABLE 4

BiomassPre-treatmentPreparation methodN contentCmaxEs (Wh/kg)Ws (W/kg)Ref
Lessonia trabeculata–Pre-carbonization followed by KOH activation0.5Ā at %81.6Ā F/g at 1 A/g––Sankaranarayanan et al. (2021)
Laminaria japonica–Pre-carbonization followed by KOH activation0.47Ā at %192Ā F/g at 0.1 A/g––Cheng et al. (2020)
Enteromorpha proliferaDeionized water washingHydrothermal treatment and carbonization followed by KOH activation1.4Ā at %214Ā F/g at 0.1 A/g––Ren et al. (2018)
Ascophyllum nodosumWashingImpregnation with KOH followed by carbonization0.8Ā wt%207.3Ā F/g at 0.5 A/g––Perez-Salcedo et al. (2020)
EnteromorphaDeionized water washingImpregnation with KOH followed by carbonization0.85Ā at %201Ā F/g at 1 A/g62680–750Yu et al. (2016)
Nostoc flagelliformeAc–H2O2/Ac-NaClO2/HF washing followed by deionized water washingPre-carbonization followed by KOH activation–283Ā F/g at 0.1 A/g2280Wang et al. (2019)
Kelp–Direct pyrolysis4.15%278.5Ā F/g at 0.5 A/g5.24123.8Gao et al. (2021)
Chlorella–K2CO3 activation of Chlorella and reed mixture2.1Ā wt%340.4Ā F/g at 1 A/g23.615,000Yuan et al. (2022)
Spirulina platensis–NaHCO3 activation7.5Ā wt%234Ā F/g at 1 A/g––Liu et al. (2018)
Myriophyllum aquaticum–KHCO3 activation2.3Ā at %248.2Ā F/g at 0.5 A/g––Shen et al. (2018)

Algae-based N self-doped biochar applications in supercapacitors.

A two-step procedure of carbonization and KOH activation was used for biocarbon preparation from Lessonia trabeculata (Sankaranarayanan et al., 2021) and Laminaria japonica (Cheng et al., 2020). The derived carbon materials exhibited good capacitances of 81.6Ā F/g at 1A/g and 192Ā F/g at 0.1 A/g, respectively. Chlorella-derived activated carbon was also prepared via the two-step procedure, exhibiting a gravimetric specific capacitance of 142Ā F/g at 1Ā mA/cm2 (Han et al., 2019). Ren et al. reported an N self-doped carbon from hydrothermal carbonization of Enteromorpha prolifera, followed by a mild KOH activation (Ren et al., 2018). Ascophyllum nodosum (Perez-Salcedo et al., 2020), Cladophora glomerata (Norouzi et al., 2021), and Enteromorpha (Yu et al., 2016) were also activated by KOH to fabricate N self-doped carbon material for supercapacitor application. Immersion with hydrofluoric acid increased the electrochemical performance of the biochar from Nostoc flagelliforme algae (Wang et al., 2019).

Three types of marine algae were carbonized at 800 °C with in situ salts as activating reagents (Gao et al., 2021). The derived biochar possessed high SSA (621–1,140Ā m2/g) and N content (4.15–5.19%) and exhibited good energy storage performance (190.0–278.5Ā F/g at 0.5 A/g) and cyclic stabilities (96%–98% after 5,000 cycles). Chlorella mixed with reed and K2CO3 was carbonized to produce 3D N-doped biochar (Yuan et al., 2022). Due to the high N content (2.1Ā wt%), large SSA (1794Ā m2/g), and pore volume (1.32Ā cm3/g), the capacitance of the biochar reached 340.4Ā F/g at 1 A/g. Liu et al. reported a sponge-like carbon material from Spirulina platensis with NaHCO3 activation, the largest specific capacitance of which was 234Ā F/g at 1 A/g (Liu et al., 2018). A comparison between KHCO3 and CO2 activation was conducted for Myriophyllum aquaticum-derived biochar production (Shen et al., 2018). The results showed that the KHCO3-activated carbon possessed a better electrochemical performance.

3.5 Organic waste-based N self-doped biochar

N-rich organic wastes are by-products with high N content generated during the industrial manufacturing process, such as antibiotic fermentation residue from antibiotic production, spent coffee ground from coffee brewing, bean pulp/oil cake from oil production, and composting leachate from biobased-waste composting. The application of organic waste-based N self-doped biochar in supercapacitors is summarized in Table 5.

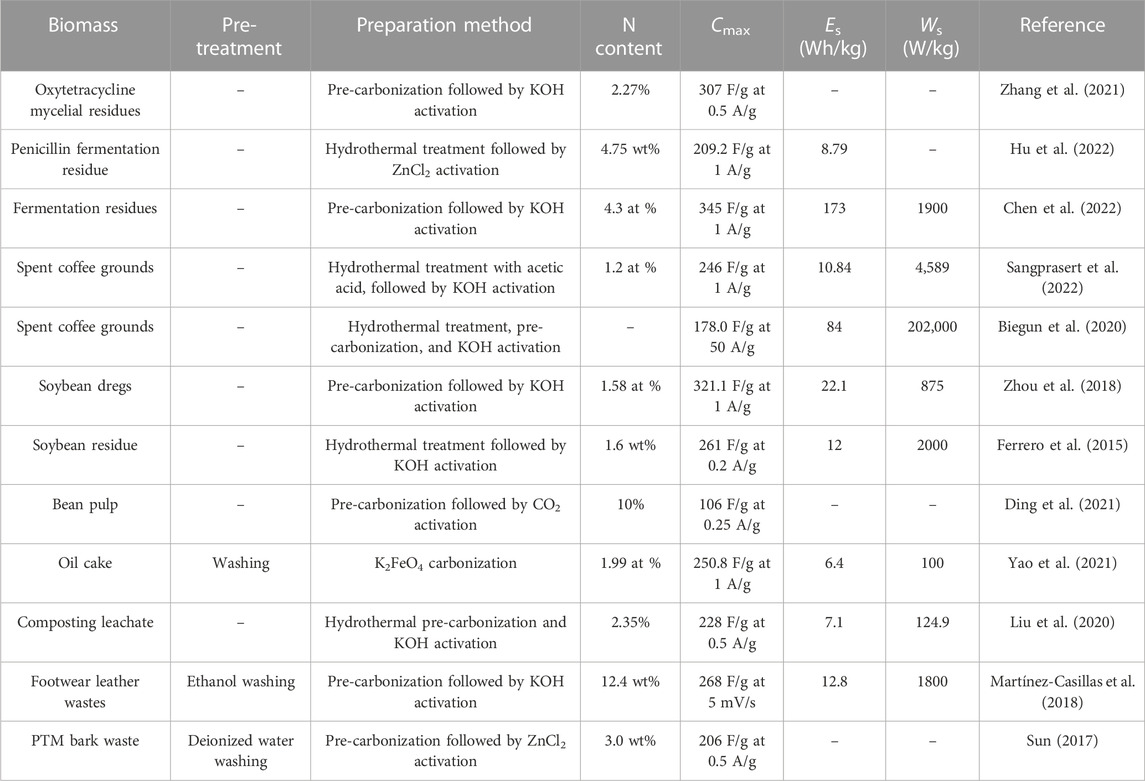

TABLE 5

BiomassPre-treatmentPreparation methodN contentCmaxEs (Wh/kg)Ws (W/kg)Reference
Oxytetracycline mycelial residues–Pre-carbonization followed by KOH activation2.27%307Ā F/g at 0.5 A/g––Zhang et al. (2021)
Penicillin fermentation residue–Hydrothermal treatment followed by ZnCl2 activation4.75Ā wt%209.2Ā F/g at 1 A/g8.79–Hu et al. (2022)
Fermentation residues–Pre-carbonization followed by KOH activation4.3Ā at %345Ā F/g at 1 A/g1731900Chen et al. (2022)
Spent coffee grounds–Hydrothermal treatment with acetic acid, followed by KOH activation1.2Ā at %246Ā F/g at 1 A/g10.844,589Sangprasert et al. (2022)
Spent coffee grounds–Hydrothermal treatment, pre-carbonization, and KOH activation–178.0Ā F/g at 50 A/g84202,000Biegun et al. (2020)
Soybean dregs–Pre-carbonization followed by KOH activation1.58Ā at %321.1Ā F/g at 1 A/g22.1875Zhou et al. (2018)
Soybean residue–Hydrothermal treatment followed by KOH activation1.6Ā wt%261Ā F/g at 0.2 A/g122000Ferrero et al. (2015)
Bean pulp–Pre-carbonization followed by CO2 activation10%106Ā F/g at 0.25 A/g––Ding et al. (2021)
Oil cakeWashingK2FeO4 carbonization1.99Ā at %250.8Ā F/g at 1 A/g6.4100Yao et al. (2021)
Composting leachate–Hydrothermal pre-carbonization and KOH activation2.35%228Ā F/g at 0.5 A/g7.1124.9Liu et al. (2020)
Footwear leather wastesEthanol washingPre-carbonization followed by KOH activation12.4Ā wt%268Ā F/g at 5Ā mV/s12.81800MartĆ­nez-Casillas et al. (2018)
PTM bark wasteDeionized water washingPre-carbonization followed by ZnCl2 activation3.0Ā wt%206Ā F/g at 0.5 A/g––Sun (2017)

Organic waste-based N self-doped biochar applications in supercapacitors.

Antibiotic fermentation residue, which is inevitably produced during the antibiotic fermentation process, can be used for N self-doped biochar production due to its high N content and large volume. The oxytetracycline mycelial residue-derived biochar via carbonization and KOH activation showed an ultrahigh SSA (2,574.9Ā m2/g), a higher N content (2.27%), and, consequently, a distinguished specific capacitance (307Ā F/g) (Zhang et al., 2021). Chen et al. (2022) fabricated self-doped porous carbon nanosheets from fermentation residues of lincomycin hydrochloride via high-temperature pyrolysis and subsequent KOH activation. The derived biochar exhibited an excellent gravimetric capacitance of 296Ā F/g at 1 A/g. Hu et al. (2022) reported an N self-doped porous carbon from penicillin fermentation residue via hydrothermal carbonization combined with KOH or ZnCl2 activation. The ZnCl2-activated biochar exhibited a larger SSA of 792.58Ā m2/g and a higher N content of 4.75%, resulting in a higher specific capacitance of 209.2Ā F/g at 1 A/g in a three-electrode system and an energy density of 8.79Ā Wh/kg for assembled supercapacitors.

N self-doped biochar was synthesized from spent coffee grounds via hydrothermal carbonization, followed by KOH activation (Sangprasert et al., 2022). The optimal biochar showed a high SSA of 1835Ā m2/g and 2.35Ā wt% N content, and, subsequently, a high energy density of 10.84Ā Wh/kg in a two-electrode system. A procedure of hydrothermal acidic hydrolysis, followed by KOH activation was also designed for spent coffee ground biochar production for use in supercapacitors (Biegun et al., 2020).

The high protein content in the defatted soybean, a solid residue generated from oil production, makes it highly suitable for the fabrication of N self-doped carbon materials. Zhou et al. reported an N/O co-doped porous carbon from soybean dregs through carbonization and KOH activation, possessing a high SSA (1837.26Ā m2/g) and a high N content (1.58Ā wt%), and then a superior specific capacitance (Zhou et al., 2018). Another procedure of hydrothermal carbonization and KOH activation was implemented to convert soybean residue into an N self-doped carbon with high specific capacitance (Ferrero et al., 2015). By carbonization and CO2 activation, bean pulp was converted into a carbon material with a maximum SSA of 558.2Ā m2/g, an N content of up to 10%, and a maximum specific capacitance of 106Ā F/g at 0.25 A/g (Ding et al., 2021). The introduction of CO2 retained more N atoms in biochar in the form of N-5, N-6, N-Q, and N-X. Oil cake, the main by-product of Idesia polycarpa oil production, also contributed to N self-doped porous biochar with K2FeO4 impregnation and activation (Yao et al., 2021). During the impregnation process, K2FeO4 was hydrolyzed into KOH and Fe(OH)3 (R6). The activation process of KOH is described in R1-R5, and that of Fe(OH)3 is shown in R7-R9. First, Fe(OH)3 was transformed into Fe2O3 and then further reduced to Fe3O4 by carbon or reductive gases (H2, CO). Then, Fe3O4 was further reduced into metallic Fe, which finally catalyzed the conversion of amorphous carbon into graphitized carbon.

Composting leachate, a type of organic wastewater produced during composting of biobased waste, mainly consists of oxidizable organics, ammonium, phosphorus, and pathogenic organisms. Due to its high moisture content, a hydrothermal pre-carbonization and KOH activation strategy was used to produce carbon materials for supercapacitors (Liu et al., 2020). The carbon material exhibited the highest SSA of 2,184.9Ā m2/g and an excellent capacitance of 228Ā F/g at 0.5 A/g.

Footwear leather waste generated from the cutting process of footwear manufacturing was also contributed to N self-doped biochar production. After carbonization and KOH activation, the leather-derived biochar obtained a specific capacitance of 268Ā F/g (MartĆ­nez-Casillas et al., 2018). N self-doped carbon materials (3.0Ā wt%) prepared from the waste of PTM bark generated from Xuan paper manufacturing exhibited a high specific capacitance of 206Ā F/g at 0.5 A/g (Sun, 2017).

3.6 Protein/amino acid-based N self-doped biochar

As green, highly accessible, and eco-friendly organic compounds, proteins and amino acids can not only be used as dopants of N atoms but also the precursor of both carbon and nitrogen directly to prepare N self-doped carbon materials. The application of protein/amino acid-based N self-doped biochar is shown in Table 6.

TABLE 6

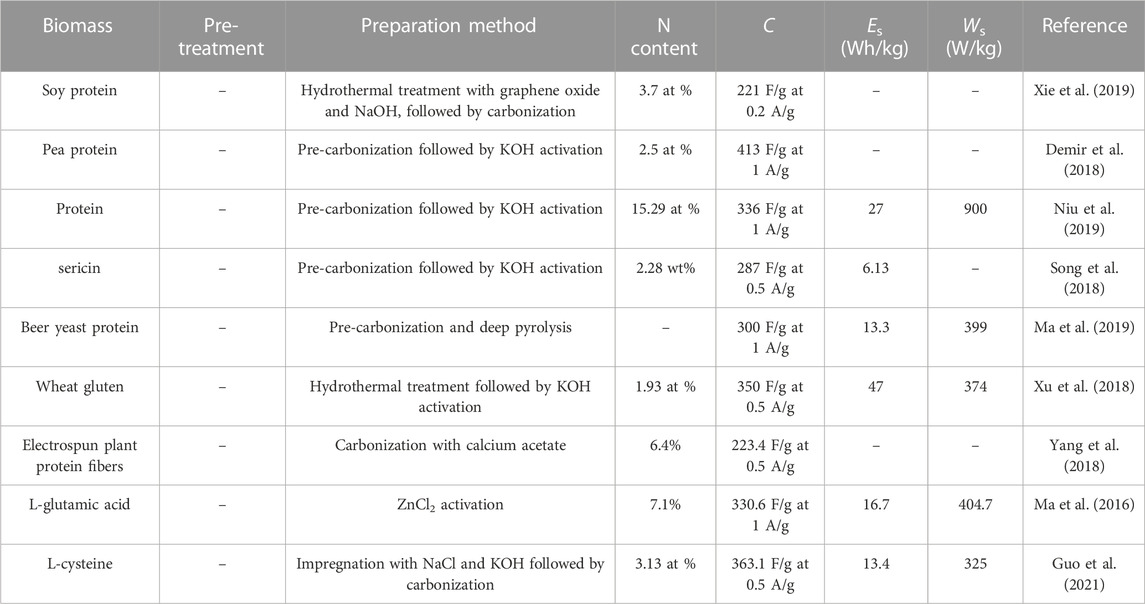

BiomassPre-treatmentPreparation methodN contentCEs (Wh/kg)Ws (W/kg)Reference
Soy protein–Hydrothermal treatment with graphene oxide and NaOH, followed by carbonization3.7Ā at %221Ā F/g at 0.2 A/g––Xie et al. (2019)
Pea protein–Pre-carbonization followed by KOH activation2.5Ā at %413Ā F/g at 1 A/g––Demir et al. (2018)
Protein–Pre-carbonization followed by KOH activation15.29Ā at %336Ā F/g at 1 A/g27900Niu et al. (2019)
sericin–Pre-carbonization followed by KOH activation2.28Ā wt%287Ā F/g at 0.5 A/g6.13–Song et al. (2018)
Beer yeast protein–Pre-carbonization and deep pyrolysis–300Ā F/g at 1 A/g13.3399Ma et al. (2019)
Wheat gluten–Hydrothermal treatment followed by KOH activation1.93Ā at %350Ā F/g at 0.5 A/g47374Xu et al. (2018)
Electrospun plant protein fibers–Carbonization with calcium acetate6.4%223.4Ā F/g at 0.5 A/g––Yang et al. (2018)
L-glutamic acid–ZnCl2 activation7.1%330.6Ā F/g at 1 A/g16.7404.7Ma et al. (2016)
L-cysteine–Impregnation with NaCl and KOH followed by carbonization3.13Ā at %363.1Ā F/g at 0.5 A/g13.4325Guo et al. (2021)

Protein/amino acid-based N self-doped biochar applications in supercapacitors.

Using soy protein as a C/N precursor, N/O co-doped carbon coated graphene was prepared by one-pot hydrothermal synthesis, followed by carbonization (Xie et al., 2019). The resultant material demonstrated a high volumetric capacitance of 221Ā F/g at 0.2 A/g. Another N/O co-doped carbon was fabricated from pea protein, the specific capacitance of which reached 413Ā F/g at 1 A/g (Demir et al., 2018). Microporous carbon obtained from protein by KOH activation (Niu et al., 2019) exhibited an SSA of 1,117Ā m2/g, a high N content of 15.29Ā at.%, and a specific capacitance up to 336Ā F/g at 1 A/g. N self-doped porous carbons were synthesized for supercapacitor application from sericin, a waste protein (Song et al., 2018). Ma et al. reported a beer yeast protein-derived carbon via stepwise pyrolysis without an activator (Ma et al., 2019). Wheat gluten, a complex mixture of hundreds of proteins found in wheat and related grains (Xu et al., 2018), and electrospun plant protein fibers (Yang et al., 2018) were also converted into N self-doped porous carbon for supercapacitor application.

There are many different kinds of amino acids with low price, abundance, accessibility, and low health use for N self-doped biochar fabrication. For example, the N self-doped carbon prepared from L-glutamic acid with ZnCl2 activation exhibited a specific capacitance of 330.6Ā F/g at 1 A/g (Ma et al., 2016). N/S co-doped carbons were prepared by KOH carbonization of the combination of L-cysteine and NaCl template at 600 °C–800 °C (Guo et al., 2021). Due to the highest N content, the 700 °C-derived biochar showed the largest gravimetric capacitance of 363.1Ā F/g.

3.7 Fungus-based N self-doped biochar

By pyrolyzing Flammulina velutipes pickled with Mg(CH3COO)2, a self-doped biochar with an SSA of 1,174.2 m2/g and an N content of 3.97 at% was obtained, showing a specific capacitance of 470.5 F/g at 0.5 A/g (Xue et al., 2022). The FeCl3-activated mushroom-derived biochar exhibited larger SSA, higher N content, and better electrochemical performance than those activated by KOH (Hou et al., 2019). With the activation of KOH or ZnCl2, the Bacillus subtilis-derived carbon exhibited superior performance in capacitors (Zhu et al., 2013). Bamboo fungus (Zou et al., 2019) and fresh Agaricus (Wang and Liu, 2015) were also converted into N-doped carbon using a two-step procedure of carbonization and KOH activation, offering good specific capacitances. The natural spores of Lycoperdon boavista were directly pyrolyzed at 800 °C, and the derived biochar showed a capacity of 260 F/g at 5 A/g (Sun et al., 2020). The details of the fungus-based N self-doped biochar application in a supercapacitor are presented in Table 7.

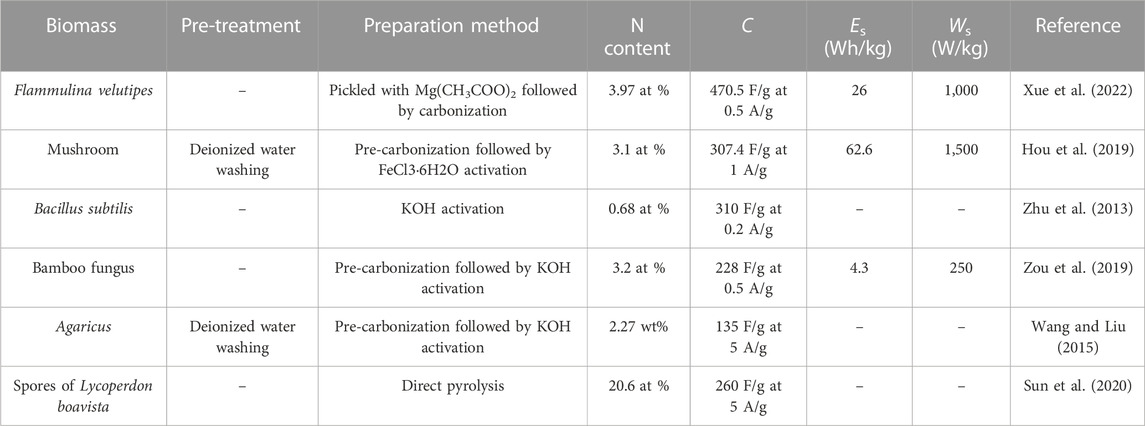

TABLE 7

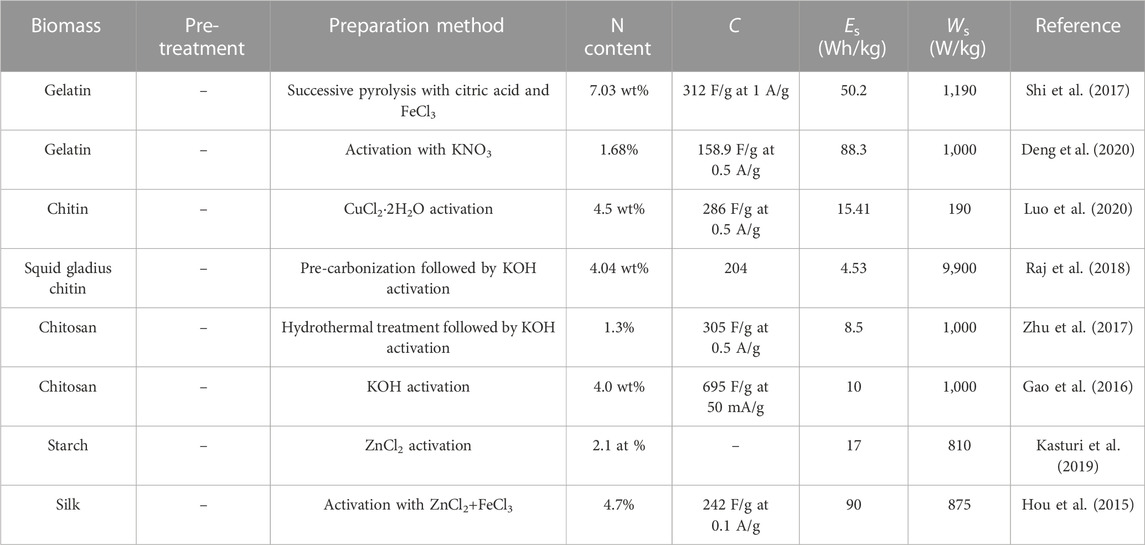

BiomassPre-treatmentPreparation methodN contentCEs (Wh/kg)Ws (W/kg)Reference
Flammulina velutipes–Pickled with Mg(CH3COO)2 followed by carbonization3.97Ā at %470.5Ā F/g at 0.5 A/g261,000Xue et al. (2022)
MushroomDeionized water washingPre-carbonization followed by FeCl3Ā·6H2O activation3.1Ā at %307.4Ā F/g at 1 A/g62.61,500Hou et al. (2019)
Bacillus subtilis–KOH activation0.68Ā at %310Ā F/g at 0.2 A/g––Zhu et al. (2013)
Bamboo fungus–Pre-carbonization followed by KOH activation3.2Ā at %228Ā F/g at 0.5 A/g4.3250Zou et al. (2019)
AgaricusDeionized water washingPre-carbonization followed by KOH activation2.27Ā wt%135Ā F/g at 5 A/g––Wang and Liu (2015)
Spores of Lycoperdon boavista–Direct pyrolysis20.6Ā at %260Ā F/g at 5 A/g––Sun et al. (2020)

Fungus-based N self-doped biochar applications in supercapacitors.

3.8 Other N self-doped biochars

Gelatin is an animal derivative composed of various proteins. It is produced by partial hydrolysis of collagen extracted from the skin, bones, and connective tissues of animals (Xu et al., 2014). By successive pyrolysis with citric acid and anhydrous iron (III) chloride, gelatin was converted into an N/O co-doped porous carbon with a specific capacitance of 312Ā F/g at 1 A/g (Shi et al., 2017). The mixture of gelatin and KNO3 was also annealed for the synthesis of the N self-doped carbon used in supercapacitors (Deng et al., 2020).

Chitin, a polysaccharide substance extracted from the shell of marine crustaceans, also contributes to N self-doping. For example, chitin was carbonized with CuCl2.2H2O to prepare a natural structure-maintained O/N-enriched biochar (Luo et al., 2020). Reactions between the chitin and CuCl2.2H2O were confirmed according to the evident differences that appeared in thermogravimetry/differential thermogravimetry (TG)/(DTG) curves ranging from 450 to 750°C between the mixture of chitin and CuCl2.2H2O (Figure 8A) and individual chitin (Figure 8B). The obtained biochar exhibited an SSA range of 1,635–2,381Ā m2/g, a tunable micropore volume ratio of 63.5–96.8%, and high O/N contents (N: 3.1–9.0Ā wt% and O: 10.5–12.8Ā wt%), resulting in a high specific capacitance of 286Ā F/g at 0.5 A/g. Raj et al. also reported an O/N co-doped carbon from squid gladius chitin, achieving a maximum specific capacitance of 204Ā F/g (Raj et al., 2018).

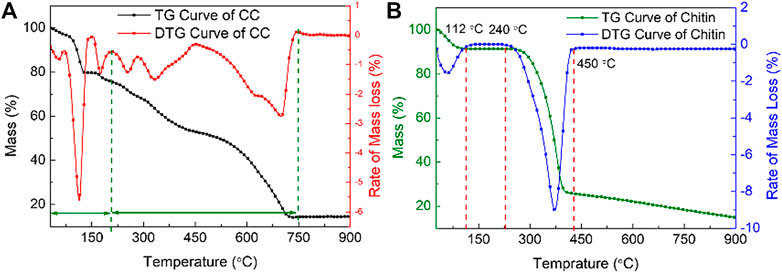

FIGURE 8

N self-doped carbon material was synthesized directly from chitosan using a hydrothermal treatment, followed by KOH activation for supercapacitor application (Zhu et al., 2017). The synthesized carbon exhibited high SSA (2,200Ā m2/g), large pore volume (1.36Ā cm3/g), and high N content (6.3%), resulting in a specific capacitance of 305Ā F/g at 0.5 A/g in 6Ā M KOH electrolytes. Simultaneous carbonization and KOH activation of chitosan regenerated from prawn shells also resulted in an N self-doped biochar with a high specific capacitance of 357Ā F/g at 50Ā mA/g (Gao et al., 2016).

Activated carbon with high SSA (1841Ā m2/g) and N self-inherited (2.1Ā at%) were obtained from Artocarpus heterophyllus seed-derived starch with ZnCl2 activation (Kasturi et al., 2019). N-doped carbon nanosheets were prepared via simultaneous activation and graphitization of biomass-derived natural silk (Hou et al., 2015). Due to the resulting product’s high SSA (2,494Ā m2/g), high volume of hierarchical pores (2.28Ā cm3/g), and rich N-doping (4.7%), the as-obtained carbon exhibited a capacitance of 242Ā F/g. The results of the other N self-doped biochars in a supercapacitor are given in Table 8.

TABLE 8

BiomassPre-treatmentPreparation methodN contentCEs (Wh/kg)Ws (W/kg)Reference
Gelatin–Successive pyrolysis with citric acid and FeCl37.03Ā wt%312Ā F/g at 1 A/g50.21,190Shi et al. (2017)
Gelatin–Activation with KNO31.68%158.9Ā F/g at 0.5 A/g88.31,000Deng et al. (2020)
Chitin–CuCl2Ā·2H2O activation4.5Ā wt%286Ā F/g at 0.5 A/g15.41190Luo et al. (2020)
Squid gladius chitin–Pre-carbonization followed by KOH activation4.04Ā wt%2044.539,900Raj et al. (2018)
Chitosan–Hydrothermal treatment followed by KOH activation1.3%305Ā F/g at 0.5 A/g8.51,000Zhu et al. (2017)
Chitosan–KOH activation4.0Ā wt%695Ā F/g at 50Ā mA/g101,000Gao et al. (2016)
Starch–ZnCl2 activation2.1Ā at %–17810Kasturi et al. (2019)
Silk–Activation with ZnCl2+FeCl34.7%242Ā F/g at 0.1 A/g90875Hou et al. (2015)

Other N self-doped biochar applications in supercapacitors.

4 Evolution of N-functionalities during N self-doped biochar production

The N in the raw biomass mainly occurs in the form of protein-N/amino acid (N-A, 399.9 ± 0.2Ā eV), which occupies 60%–100% of the total N. During pyrolysis, N-A is quite easily converted to incondensable gas (NH3, HCN, HNCO, NO, and N2), condensable organic components (amine-N, nitrile-N, and heterocyclic-N), and more stable N-functionalities in biochar (Zhu et al., 2016; Zhan et al., 2018; Liu et al., 2019). Four types of N-functionalities involving pyrrolic N (N-5, 400.5 ± 0.3Ā eV), pyridinic N (N-6, 398.8 ± 0.2Ā eV), quaternary-N (N-Q, 401.4 ± 0.2Ā eV), and oxidized N (N-X, 402–405Ā eV) are found to exist in biochar by XPS, as shown in Figure 9 (Zhang et al., 2021). For the carbons derived from most types of biomass, N-5 and N-6 are the dominant N-functionalities, contributing more than half of the total N content (Shen et al., 2018; Yang et al., 2018; Lian et al., 2019; Wan et al., 2019; Wang et al., 2019; Sun et al., 2020). Distinctively, N-Q was the most abundant N-functionality in cattle bone-derived biochar (Shao et al., 2017) and amino acid-derived biochar (Gao et al., 2016).

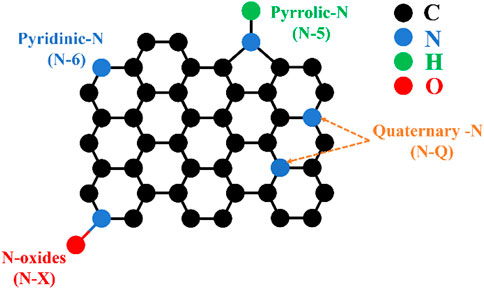

FIGURE 9

It was reported that the N content in the raw biomass and the pyrolysis temperature had a crucial effect on N distribution in biochar (Liu et al., 2019). The biochar produced from N-richer biomass also has a higher N content (Leng et al., 2020; Xu et al., 2021). Therefore, the N content of biochar can be expected to be regulated by the selection of raw material. However, biomass type shows a negligible influence on the distribution of N-functionalities in biochar (Zhan et al., 2018; Liu et al., 2019).

Pyrolysis temperature is most influential to N distribution in biochar. Generally, as temperature increased, the N content continuously decreased, accompanied by the variation of N-functionalities attributing to the decomposition of organic compounds such as proteins. More specifically, N-A was transformed into N-5 and N-6 easily via polymerization and rearrangement and completely vanished at lower temperatures (<500 °C), which would then partially convert to more stable N-Q and N-X via polycondensation and oxygen reactions as temperature continuously increased (Zhan et al., 2018; Liu et al., 2019). A decrease in N-5 and an increase in N-Q were observed for Spirulina platensis-derived N self-doped biochar as the carbonization temperature increased from 600 °C to 800 °C (Liu et al., 2018). Liu et al. (2020) also reported decreases of N-5 and N-6 with activation temperature rising accompanied by the increase of N-Q and N-X. The intensity of N-5 and N-X in beehive-derived biochar was notably reduced as the carbonization temperature increased from 600 °C to 1,000 °C, whereas reserves of N-6 and N-Q were observed (Wang et al., 2020). Moreover, the N content in biochar was found to increase at temperatures lower than 300 °C and then decrease at 400 °C–800 °C (Xu et al., 2021). The decrease of N-content at low temperatures was caused by the dehydration and decarbonization accompanied by the formation of more stable N-functionalities, such as N-5 and N-6, while the decrease is attributed to the escape of N in the form of un-condensable gas. such as NH3, HCN, and condensable organic N compounds into the liquid. Nevertheless, the N-5 and N-6 types are reported to be independent of temperature because their percentage was still high, up to 2.1Ā at.%, even after high-temperature carbonization (Kasturi et al., 2019). Thus, the influence of temperature on N-functionality evolution is still under debate and needs to be further investigated. The introduction of activating reagents would make the evolution pathways more complex. It can be deduced that the N distribution in N self-doped biochar is largely determined by the combined effects of biomass type, pyrolysis temperature, and activating reagent.

Few studies have reported the influences of activating reagents on N distribution in the N self-doped biochar. Generally, the N content of biochar decreased after activation with chemical activators, such as KOH (Ma et al., 2017; Lin et al., 2018; Han et al., 2020; Sankaranarayanan et al., 2021), KHCO3 (Qi et al., 2018), and Mg(CH3COO)2 (Xue et al., 2022). However, N was found to be more effectively fixed into a carbon skeleton by NaOH (Sattayarut et al., 2019), a eutectic mixture of NaOH/KOH (Zhang et al., 2020), Fe2O3 (Wang et al., 2022), or ZnCl2 (Sun, 2017; Han et al., 2018; Hu et al., 2022) activators. Considering the N-functionalities, the N-5 percentage significantly increased with the increasing KOH ratio (Sangprasert et al., 2022). After activation with NaOH, the proportion of N-5, N-6, and N-Q increased, while that of N-X decreased (Sattayarut et al., 2019). Two types of N-functionalities were found in water hyacinth-derived biochar involving N-6 and N-Q (Liang et al., 2018). The content of N-6 increased, while that of N-Q decreased with rising ZnCl2 proportion. NaCl could promote the formation of N-Q and inhibit that of N-5 (Liu et al., 2022). Ding et al. found that the use of CO2, a typical physical activator, led to more N maintained in biochar, with a decrease of N-6, an increase of N-X, and little influence on N-Q content (Ding et al., 2021). However, CO2-activated carbons derived from hypha (Lian et al., 2019) and Ganoderma lucidum spores (Lian et al., 2019) showed lower N content than the pristine biochar. Compared with KHCO3 activation, CO2-activated Myriophyllum aquaticum-derived biochar exhibited higher N content but fewer types of N-functionalities (Shen et al., 2018).

As an efficient pre-carbonization technique for N self-doped biochar production, hydrothermal treatment also affects the N distribution in the hydrochar. The N content in the hydrochar of Spirulina decreased from 17.12% to 0.20% as the temperature increased from 200 °C to 260 °C (Liu et al., 2022) in terms of four types of N-functionalities involving N-6, N-A, N-5, and N-Q. When the temperature was higher than 260 °C, the hydrochar contained almost no N, which was attributed to the extensive cleavage of N-containing macromolecules at a higher temperature into small molecular compounds in the aqueous phase. Nevertheless, as the temperature increased from 180 °C to 250 °C, the N content in seaweed-based hydrochar slightly increased due to the Maillard and Mannich reactions (Soroush et al., 2022). Because the hydrochar often acts as a carbon precursor for subsequent pyrolysis or activation to produce biochar, the variation of N-functionalities in hydrochar will further lead to corresponding changes in N self-doped biochar. For example, evenly mixing with H3PO4, pretreatment of durian peel by heating in an oven, and hydrothermal pre-carbonization at 200 °C were compared (Zhou et al., 2020). Hydrothermal pre-carbonization significantly improved the pore structures of the derived biochar (Figures 10A–C). With hydrothermal pre-carbonization, the N content in the biochar decreased, accompanied by N-Q vanishing (Figure 10D). However, the hydrothermal process of carbonized soybean sample showed enhanced N content in the final biochar (Yu et al., 2021).

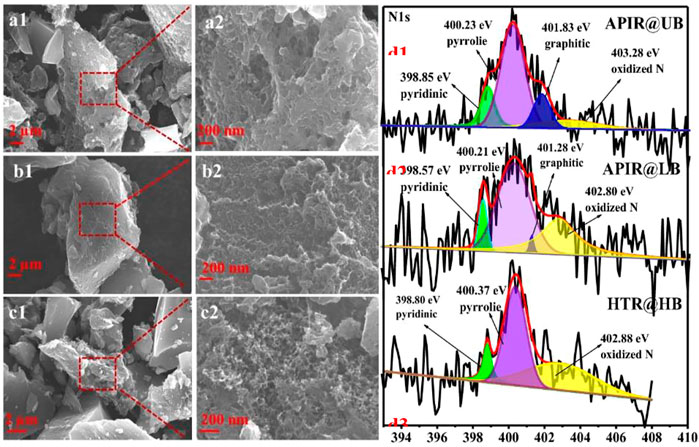

FIGURE 10

In addition to the aforementioned factors, pyrolysis pressure (Duan et al., 2017) and pyrolysis programs (Yang et al., 2023) also play effective roles in determining N distribution in biochar. However, to date, N self-doped biochar for supercapacitor application is mainly synthesized under atmospheric pressure with conventional procedures involving one- or two-step methods. Although the types of N-functionalities in N self-doped biochar have been extensively reported by the existing literature, the evolution of N-functionalities in biochar, especially the effects of various activating reagents, is still unclear. More efforts are needed to clarify the impact mechanism of these factors on N-functionality evolution to explore more efficient and novel strategies for N self-doped biochar production.

5 Contribution of N-functionalities on supercapacitor performance

There is a consensus that all the N-functionalities contribute to the improvement of supercapacitor performance. Specifically, N-5 and N-6 produce defects in the alkaline electrolyte to provide more open channels and active sites for redox reactions, with electrolyte ions benefitting the pseudo-capacitance (Jiao et al., 2022). R10∼R12 are the possible redox reactions of N-5 and N-6 in the KOH electrolyte (Liang et al., 2021). N-Q is the key factor facilitating the charge transfer across the electrode and electrolyte interface and improving the conductivity of carbonaceous materials (Yao et al., 2021). A higher N-X concentration indicates better wettability of the carbon materials (Sangprasert et al., 2022). Wang et al. suggested that N-Xs with high electron affinity and N-6s with less positive charge could generate redox pairs (R13) (Wang et al., 2012).

To quantify the contribution of N self-doping induced pseudo-capacitance to the overall specific capacitance, the N self-doped biochar samples (PFC) from Perilla frutescens (PF) leaves were heat-treated for a second time at 900 °C to remove the surface functionalities (Liu et al., 2017). Around 38.8%–46.3% of the specific capacitance was confirmed to be contributed by pseudo-capacitance, as shown in Figure 11. By dividing the corresponding charge by the potential window of CV curves, Xu et al. reported a considerable pseudo-capacitance contribution of 32–40% (Xu et al., 2018). A pseudo-capacitance contribution of 24.7%–41.7% was also estimated for the natural casing-derived carbons (Xu et al., 2018). For the penicillin fermentation residue-derived biochar, N-doping was responsible for 17.87–20.46% of the specific capacitance (Hu et al., 2022). Yao et al. found that the contribution of pseudo-capacitance varied with electrolytes, the values of which were 41.5–83.3%, 12.2–32.6%, and 25.2–45.0% in H2SO4, KOH, and Na2SO4 electrolytes, respectively (Yao et al., 2021). Deng et al. also reported different pseudo-capacitance contributions in KOH (∼28%) and EMIBF4 (16–47.3%) electrolytes (Deng et al., 2020).

FIGURE 11

However, note that biochar with higher N content is not equal to better electrochemical performance. For example, the Spirulina platensis biochar prepared at 600 °C had a higher N content than that prepared at 700 °C, whereas its electrochemical performance was weaker (Liu et al., 2018). Xu et al. also found that the casing-based biochar with the highest N content did not exhibit the best electrochemical performance (Xu et al., 2018). Yao et al. investigated the relationship between the specific capacitance (Cp) and N content of the biochar prepared from oil cake (Yao et al., 2021). As shown in Figure 12, the variations of the curves were extremely irregular, indicating a much more complex relationship between Cp and N content. However, they reported that the pseudo-capacitance contribution was much poorer than that from a sample with superior porosity due to high surface area and suitable pore size. Perez-Salcedo et al. found that the N influence is correlated with porosity (Perez-Salcedo et al., 2020). To date, the relationship between N content and the specific capacitance of N self-doped biochar is still unclear. Research on the interactions of the N functionalities with specific capacitance is unavailable.

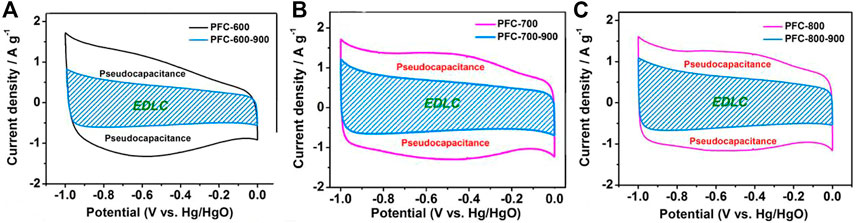

FIGURE 12

It is widely accepted that the electrochemical performance of N self-doped carbon material is mainly determined by the coupling effect of SSA, pore structure, N distribution, etc. Although many studies of N self-doped biochar production involving various N-rich biomass and fabrication strategies can be found, the relationship between N content and specific capacitance is still unclear. Due to this, enhancing the electrochemical performance of N self-doped biochar by regulating N content remains challenging. Meanwhile, although the N functionalities of N self-doped biochar have been analyzed in the literature, the connections between them and the specific capacitance are also undiscovered. In particular, the contribution of the N doping-induced pseudo-capacitance to the overall capacitance is rarely reported. Thus, more effort is needed to reveal the impact of N self-doping on the electrochemical performance to provide more information for the tunable fabrication of N self-doped biochar.

6 Conclusion and prospects

This review summarizes the development of N self-doped biochar applications as electrode materials for supercapacitors in the last 10Ā years. Compared with N-doping with external N precursors, the synthesis of N self-doped biochar from natural N-rich biomass is eco-friendly and cost-efficient. Numerous papers reporting on the preparation and characterization of N self-doped biochar are available, demonstrating the feasibility of N self-doping in improving the electrochemical performance. Some studies have also estimated the contribution of N self-doping-induced pseudo-capacitance to the total specific capacitance. However, it remains challenging to achieve controllable N self-doped biochar with the desired properties because the relationship between the specific capacitance and N self-doping is unclear. It is widely accepted that the electrochemical performance of N self-doped biochar is mainly determined by the combined action of the pore structure, specific surface area, and N distribution, which are primarily influenced by the raw material and the preparation procedures. Therefore, efforts should be devoted to exploring the effect mechanisms of N self-doping on electrochemical performance in the future to provide more fundamental information for regulable N self-doped biochar production.

Statements

Author contributions

YH and LX contributed to the conception and design of the review. LX wrote the first draft of the manuscript. YH contributed to the manuscript revision and read and approved the submitted version.

Funding

This review was funded by the Natural Science Foundation of Jiangsu Province (BK20210511) and the National Natural Science Foundation of China Outstanding Youth Program (52125601).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1

    BaiP.LiuW.YangC.WeiS.XuL. (2021). Boosting electrochemical performance of activated carbon by tuning effective pores and synergistic effects of active species. J. Colloid Interf. Sci.587, 290–301. 10.1016/j.jcis.2020.12.022

  • 2

    BiegunM.DymerskaA.ChenX.MijowskaE. (2020). Study of the active carbon from used coffee grounds as the active material for a high-temperature stable supercapacitor with ionic-liquid electrolyte. Materials13, 3919. 10.3390/ma13183919

  • 3

    BoX.XiangK.ZhangY.ShenY.ChenS.WangY.et al (2019). Microwave-assisted conversion of biomass wastes to pseudocapacitive mesoporous carbon for high-performance supercapacitor. J. Energy Chem.39, 1–7. 10.1016/j.jechem.2019.01.006

  • 4

    CaiY.LuoY.XiaoY.ZhaoX.LiangY.HuH.et al (2016). Facile synthesis of three-dimensional heteroatom-doped and hierarchical egg-box-like carbons derived from moringa oleifera branches for high-performance supercapacitors. ACS Appl. Mat. Inter.8, 33060–33071. 10.1021/acsami.6b10893

  • 5

    ChenC.XuY.ShaoJ.ZhangY.YuM.SunL.et al (2022). Waste-converted nitrogen and fluorine co-doped porous carbon nanosheets for high performance supercapacitor with ionic liquid electrolyte. J. Colloid Interf. Sci.616, 413–421. 10.1016/j.jcis.2022.02.087

  • 6

    ChenF.ZhangY.ZhengM.XiaoY.HuH.LiangY.et al (2022). Preparation of high-performance porous carbon materials by citric acid-assisted hydrothermal carbonization of bamboo and their application in electrode materials. Energy Fuel.36, 9303–9312. 10.1021/acs.energyfuels.2c01828

  • 7

    ChenH.WangG.ChenL.DaiB.YuF. (2018). Three-Dimensional honeycomb-like porous carbon with both interconnected hierarchical porosity and nitrogen self-doping from cotton seed husk for supercapacitor electrode. Nanomaterials8, 412. 10.3390/nano8060412

  • 8

    ChenJ.LiuY.LiW.YangH.XuL. (2015). The large electrochemical capacitance of nitrogen-doped mesoporous carbon derived from egg white by using a ZnO template. RSC Adv.5, 98177–98183. 10.1039/c5ra15967a

  • 9

    ChenM.YuD.ZhengX.DongX. (2019). Biomass based N-doped hierarchical porous carbon nanosheets for all-solid-state supercapacitors. J. Energy Storage21, 105–112. 10.1016/j.est.2018.11.017

  • 10

    ChenQ.SunJ.WangZ.ZhaoZ.ZhangY.LiuY.et al (2018). Sustainable rose multiflora derived nitrogen/oxygen-enriched micro-/mesoporous carbon as a low-cost competitive electrode towards high-performance electrochemical supercapacitors. RSC Adv.8, 9181–9191. 10.1039/C8RA00858B

  • 11

    ChengY.WuL.FangC.LiT.ChenJ.YangM.et al (2020). Synthesis of porous carbon materials derived from laminaria japonica via simple carbonization and activation for supercapacitors. J. Mater. Res. Technol.9, 3261–3271. 10.1016/j.jmrt.2020.01.022

  • 12

    CuongD. V.MatsagarB. M.LeeM.HossainM. S. A.YamauchiY.VithanageM.et al (2021). A critical review on biochar-based engineered hierarchical porous carbon for capacitive charge storage. Renew. Sustain. Energy Rev.145, 111029. 10.1016/j.rser.2021.111029

  • 13

    DatN. T.TranT. T. V.VanC. N.VoD. N.KongparakulS.ZhangH.et al (2020). Carbon sequestration through hydrothermal carbonization of expired fresh milk and its application in supercapacitor. Biomass Bioenergy143, 105836. 10.1016/j.biombioe.2020.105836

  • 14

    DemirM.AshouriradB.MugumyaJ. H.SaraswatS. K.El-KaderiH. M.GuptaR. B. (2018). Nitrogen and oxygen dual-doped porous carbons prepared from pea protein as electrode materials for high performance supercapacitors. Int. J. Hydrogen Energy43, 18549–18558. 10.1016/j.ijhydene.2018.03.220

  • 15

    DengJ.LiJ.SongS.ZhouY.LiL. (2020). Electrolyte-dependent supercapacitor performance on nitrogen-doped porous bio-carbon from gelatin. Nanomaterials10, 353. 10.3390/nano10020353

  • 16

    DingY.LiY.DaiY.HanX.XingB.ZhuL.et al (2021). A novel approach for preparing in-situ nitrogen doped carbon via pyrolysis of bean pulp for supercapacitors. Energy216, 119227. 10.1016/j.energy.2020.119227

  • 17

    DuJ.ZhangY.LvH.ChenA. (2021). Silicate-assisted activation of biomass towards N-doped porous carbon sheets for supercapacitors. J. Alloy. Compd.853, 157091. 10.1016/j.jallcom.2020.157091

  • 18

    DuanY.DuanL.AnthonyE. J.ZhaoC. (2017). Nitrogen and sulfur conversion during pressurized pyrolysis under CO2 atmosphere in fluidized bed. Fuel189, 98–106. 10.1016/j.fuel.2016.10.080

  • 19

    FerreroG. A.FuertesA. B.SevillaM. (2015). From Soybean residue to advanced supercapacitors. Sci. Rep.-UK5, 16618. 10.1038/srep16618

  • 20

    FooK. Y.HameedB. H. (2013). Utilization of oil palm biodiesel solid residue as renewable sources for preparation of granular activated carbon by microwave induced KOH activation. Bioresour. Technol.130, 696–702. 10.1016/j.biortech.2012.11.146

  • 21

    FuG.LiQ.YeJ.HanJ.WangJ.ZhaiL.et al (2018). Hierarchical porous carbon with high nitrogen content derived from plant waste (pomelo peel) for supercapacitor. J. Mater. Sci. Mater. Electron.29, 7707–7717. 10.1007/s10854-018-8766-0

  • 22

    GaoF.QuJ.ZhaoZ.WangZ.QiuJ. (2016). Nitrogen-doped activated carbon derived from prawn shells for high-performance supercapacitors. Electrochim. Acta190, 1134–1141. 10.1016/j.electacta.2016.01.005

  • 23

    GaoS.LiuH.GengK.WeiX. (2015). Honeysuckles-derived porous nitrogen, sulfur, dual-doped carbon as high-performance metal-free oxygen electroreduction catalyst. Nano Energy12, 785–793. 10.1016/j.nanoen.2015.02.004

  • 24

    GaoX.ChenZ.YaoY.ZhouM.LiuY.WangJ.et al (2016). Direct heating amino acids with silica: A universal solvent-free assembly approach to highly nitrogen-doped mesoporous carbon materials. Adv. Funct. Mat.26, 6649–6661. 10.1002/adfm.201601640

  • 25

    GaoY.SunR.LiA.JiG. (2021). In-situ self-activation strategy toward highly porous biochar for supercapacitors: Direct carbonization of marine algae. J. Electroanal. Chem.882, 114986. 10.1016/j.jelechem.2021.114986

  • 26

    GopalakrishnanA.BadhulikaS. (2020). Effect of self-doped heteroatoms on the performance of biomass-derived carbon for supercapacitor applications. J. Power Sources480, 228830. 10.1016/j.jpowsour.2020.228830

  • 27

    GuoD.ZhengC.DengW.ChenX. A.WeiH.LiuM.et al (2017). Nitrogen-doped porous carbon plates derived from fallen camellia flower for electrochemical energy storage. J. Solid State Electr.21, 1165–1174. 10.1007/s10008-016-3474-2

  • 28

    GuoN.LiM.WangY.SunX.WangF.YangR. (2016). Soybean root-derived hierarchical porous carbon as electrode material for high-performance supercapacitors in ionic liquids. ACS Appl. Mat. Inter.8, 33626–33634. 10.1021/acsami.6b11162

  • 29

    GuoY.WangT.WuD.TanY. (2021). One-step synthesis of in-situ N, S self-doped carbon nanosheets with hierarchical porous structure for high performance supercapacitor and oxygen reduction reaction electrocatalyst. Electrochim. Acta366, 137404. 10.1016/j.electacta.2020.137404

  • 30

    HanJ.LeeK.ChoiM. S.ParkH. S.KimW.RohK. C. (2019). Chlorella-derived activated carbon with hierarchical pore structure for energy storage materials and adsorbents. Carbon Lett.29, 167–175. 10.1007/s42823-019-00018-y

  • 31

    HanJ.LiQ.WangJ.YeJ.FuG.ZhaiL.et al (2018). Heteroatoms (O, N)-doped porous carbon derived from bamboo shoots shells for high performance supercapacitors. J. Mater. Sci. Mater. Electron.29, 20991–21001. 10.1007/s10854-018-0244-1

  • 32

    HanP.ChengM.LuoD.CuiW.LiuH.DuJ.et al (2020). Selective etching of C-N bonds for preparation of porous carbon with ultrahigh specific surface area and superior capacitive performance. Energy Storage Mater.24, 486–494. 10.1016/j.ensm.2019.07.009

  • 33

    HeD.NiuJ.DouM.JiJ.HuangY.WangF. (2017). Nitrogen and oxygen co-doped carbon networks with a mesopore-dominant hierarchical porosity for high energy and power density supercapacitors. Electrochim. Acta238, 310–318. 10.1016/j.electacta.2017.03.218

  • 34

    HeJ.ZhangD.HanM.LiuX.WangY.LiY.et al (2019). One-step large-scale fabrication of nitrogen doped microporous carbon by self-activation of biomass for supercapacitors application. J. Energy Storage21, 94.10.1016/j.est.2018.11.015

  • 35

    HouJ.CaoC.IdreesF.MaX. (2015). Hierarchical porous nitrogen-doped carbon nanosheets derived from silk for ultrahigh-capacity battery anodes and supercapacitors. ACS Nano9, 2556–2564. 10.1021/nn506394r

  • 36

    HouL.ChenZ.ZhaoZ.SunX.ZhangJ.YuanC. (2019). Universal FeCl3-activating strategy for green and scalable fabrication of sustainable biomass-derived hierarchical porous nitrogen-doped carbons for electrochemical supercapacitors. ACS Appl. Energy Mater.2, 548–557. 10.1021/acsaem.8b01589

  • 37

    HuJ.HongC.ZhaoC.SiY.XingY.LingW.et al (2022). Nitrogen self-doped hierarchical porous carbon via penicillin fermentation residue (PR) hydrothermal carbonization (HTC) and activation for supercapacitance. J. Alloy. Compd.918, 165452. 10.1016/j.jallcom.2022.165452

  • 38

    HuangG.WangY.ZhangT.WuX.CaiJ. (2019). High-performance hierarchical N-doped porous carbons from hydrothermally carbonized bamboo shoot shells for symmetric supercapacitors. J. Taiwan Inst. Chem. E.96, 672–680. 10.1016/j.jtice.2018.12.024

  • 39

    HuangS.DingY.LiY.HanX.XingB.WangS. (2021). Nitrogen and sulfur Co-doped hierarchical porous biochar derived from the pyrolysis of Mantis shrimp shell for supercapacitor electrodes. Energy Fuel.35, 1557–1566. 10.1021/acs.energyfuels.0c04042

  • 40

    HuangY.WuD.CaoD.ChengD. (2018). Facile preparation of biomass-derived bifunctional electrocatalysts for oxygen reduction and evolution reactions. Int. J. Hydrogen Energy43, 8611–8622. 10.1016/j.ijhydene.2018.03.136

  • 41

    IPCC (2022). "Climate change 2022: Impacts, adaptation and vulnerability." IPCC Sixth Assessment Report

  • 42

    JanuszewiczK.Cymann-SachajdakA.KazimierskiP.KleinM.ŁuczakJ.Wilamowska-ZawłockaM. (2020). Chestnut-derived activated carbon as a prospective material for energy storage. Materials13, 4658. 10.3390/ma13204658

  • 43

    JiaH.WangS.SunJ.YinK.XieX.SunL. (2019). Nitrogen-doped microporous carbon derived from a biomass waste-metasequoia cone for electrochemical capacitors. J. Alloy. Compd.794, 163–170. 10.1016/j.jallcom.2019.04.237

  • 44

    JiangB.CaoL.YuanQ.MaZ.HuangZ.LinZ.et al (2022). Biomass straw-derived porous carbon synthesized for supercapacitor by ball milling. Materials15, 924. 10.3390/ma15030924

  • 45

    JiangD.LiH.ChengX.WangS.AbomohraA.CaoB. (2022). Activation of nitrogen-doped carbon materials on the C–N bond and C–O bond: Modeling study toward enhanced pyrolysis products. ACS Sustain. Chem. Eng.10, 7473–7484. 10.1021/acssuschemeng.1c08704

  • 46

    JiangZ.ZouY.LiY.KongF.YangD. (2021). Environmental life cycle assessment of supercapacitor electrode production using algae derived biochar aerogel. Biochar3, 701–714. 10.1007/s42773-021-00122-1

  • 47

    JiaoS.ZhangL.LiC.ZhangH.ZhangJ.LiP.et al (2022). Efficient construction of a carbon-based symmetric supercapacitor from soybean straw by coupling multi-stage carbonization and mild activation. Ind. Crop. Prod.183, 114906. 10.1016/j.indcrop.2022.114906

  • 48

    KasturiP. R.RamasamyH.MeyrickD.Sung LeeY.Kalai SelvanR. (2019). Preparation of starch-based porous carbon electrode and biopolymer electrolyte for all solid-state electric double layer capacitor. J. Colloid Interf. Sci.554, 142–156. 10.1016/j.jcis.2019.06.081

  • 49

    LangJ.MatějovĆ”L.Cuentas-GallegosA. K.Lobato-PeraltaD. R.AinassaariK.GómezM. M.et al (2021). Evaluation and selection of biochars and hydrochars derived from agricultural wastes for the use as adsorbent and energy storage materials. J. Environ. Chem. Eng.9, 105979. 10.1016/j.jece.2021.105979

  • 50

    LeiW.YangB.SunY.XiaoL.TangD.ChenK.et al (2021). Self-sacrificial template synthesis of heteroatom doped porous biochar for enhanced electrochemical energy storage. J. Power Sources488, 229455. 10.1016/j.jpowsour.2021.229455

  • 51

    LengL.XuS.LiuR.YuT.ZhuoX.LengS.et al (2020). Nitrogen containing functional groups of biochar: An overview. Bioresour. Technol.298, 122286. 10.1016/j.biortech.2019.122286

  • 52

    LiD.GuoY.LiY.LiuZ.ChenZ. (2022). Waste-biomass tar functionalized carbon spheres with N/P Co-doping and hierarchical pores as sustainable low-cost energy storage materials. Renew. Energy188, 61–69. 10.1016/j.renene.2022.01.109

  • 53

    LiQ.ChenD.HuR.QiJ.SuiY.HeY.et al (2020). Formation of hierarchical 3D cross-linked porous carbon with small addition of graphene for supercapacitors. Int. J. Hydrogen Energy45, 27471–27481. 10.1016/j.ijhydene.2020.07.016

  • 54

    LiQ.MuJ.ZhouJ.ZhaoY.ZhuoS. (2019). Avoiding the use of corrosive activator to produce nitrogen-doped hierarchical porous carbon materials for high-performance supercapacitor electrode. J. Electroanal. Chem.832, 284–292. 10.1016/j.jelechem.2018.11.013

  • 55

    LiQ.WuX.ZhaoY.MiaoZ.XingL.ZhouJ.et al (2018). Nitrogen‐doped hierarchical porous carbon through one‐step activation of bean curd for high-performance supercapacitor electrode. ChemElectroChem5, 1606–1614. 10.1002/celc.201800230

  • 56

    LiW.ChenC.WangH.LiP.JiangX.YangJ.et al (2022). Hierarchical porous carbon induced by inherent structure of eggplant as sustainable electrode material for high performance supercapacitor. J. Mater. Res. Technol.17, 1540–1552. 10.1016/j.jmrt.2022.01.056

  • 57

    LiX.SuZ.LiangP.ZhangJ. (2021a). Construction of fungus waste-derived porous carbon as electrode materials for electrochemical supercapacitor. Biomass Convers. Biorefinery10.1007/s13399-021-01612-9

  • 58

    LiX.ZhangJ.LiuB.SuZ. (2021b). A critical review on the application and recent developments of post-modified biochar in supercapacitors. J. Clean. Prod.310, 127428. 10.1016/j.jclepro.2021.127428

  • 59

    LiZ.GuoD.LiuY.WangH.WangL. (2020). Recent advances and challenges in biomass-derived porous carbon nanomaterials for supercapacitors. Chem. Eng. J.397, 125418. 10.1016/j.cej.2020.125418

  • 60

    LianJ.ChengR.XiongL.PangD.TianX.LeiJ.et al (2019a). Supercapacitors with high nitrogen content by cage-like Ganoderma lucidum spore. Appl. Surf. Sci.494, 230–238. 10.1016/j.apsusc.2019.07.109

  • 61

    LianJ.XiongL.ChengR.PangD.TianX.LeiJ.et al (2019b). Ultra-high nitrogen content biomass carbon supercapacitors and nitrogen forms analysis. J. Alloy. Compd.809, 151664. 10.1016/j.jallcom.2019.151664

  • 62

    LiangJ.QuT.KunX.ZhangY.ChenS.CaoY.et al (2018a). Microwave assisted synthesis of camellia oleifera shell-derived porous carbon with rich oxygen functionalities and superior supercapacitor performance. Appl. Surf. Sci.436, 934–940. 10.1016/j.apsusc.2017.12.142

  • 63

    LiangJ.TangD.HuangL.ChenY.RenW.SunJ. (2018b). High oxygen reduction reaction performance nitrogen-doped biochar cathode: A strategy for comprehensive utilizing nitrogen and carbon in water hyacinth. Bioresour. Technol.267, 524–531. 10.1016/j.biortech.2018.07.085

  • 64

    LiangX.LiuR.WuX. (2021). Biomass waste derived functionalized hierarchical porous carbon with high gravimetric and volumetric capacitances for supercapacitors. Micropor. Mesopor. Mat.310, 110659. 10.1016/j.micromeso.2020.110659

  • 65

    LimaR. M. A. P.Dos ReisG. S.ThyrelM.Alcaraz-EspinozaJ. J.LarssonS. H.de OliveiraH. P. (2022). Facile synthesis of sustainable biomass-derived porous biochars as promising electrode materials for high-performance supercapacitor applications. Nanomaterials12, 866. 10.3390/nano12050866

  • 66

    LinG.MaR.ZhouY.LiuQ.DongX.WangJ. (2018). KOH activation of biomass-derived nitrogen-doped carbons for supercapacitor and electrocatalytic oxygen reduction. Electrochim. Acta261, 49–57. 10.1016/j.electacta.2017.12.107

  • 67

    LiuB.LiuY.ChenH.YangM.LiH. (2017). Oxygen and nitrogen co-doped porous carbon nanosheets derived from Perilla frutescens for high volumetric performance supercapacitors. J. Power Sources341, 309–317. 10.1016/j.jpowsour.2016.12.022

  • 68

    LiuB.YangM.ChenH.LiuY.YangD.LiH. (2018). Graphene-like porous carbon nanosheets derived from salvia splendens for high-rate performance supercapacitors. J. Power Sources397, 1–10. 10.1016/j.jpowsour.2018.06.100

  • 69

    LiuF.DingJ.ZhaoG.ZhaoQ.WangK.WangG.et al (2022). Catalytic pyrolysis of lotus leaves for producing nitrogen self-doping layered graphitic biochar: Performance and mechanism for peroxydisulfate activation. Chemosphere302, 134868. 10.1016/j.chemosphere.2022.134868

  • 70

    LiuH.ChenY.YangH.HuJ.WangX.ChenH. (2022). Evolution pathway of nitrogen in hydrothermal liquefaction polygeneration of Spirulina as the typical high-protein microalgae. Algal Res.66, 102759. 10.1016/j.algal.2022.102759

  • 71

    LiuH.LiuR.XuC.RenY.TangD.ZhangC.et al (2020). Oxygen–nitrogen–sulfur self-doping hierarchical porous carbon derived from lotus leaves for high-performance supercapacitor electrodes. J. Power Sources479, 228799. 10.1016/j.jpowsour.2020.228799

  • 72

    LiuS.HeZ.DongQ.ZhaoA.HuangF.BiD. (2022). Comparative assessment of water and organic acid washing pretreatment for nitrogen-rich pyrolysis: Characteristics and distribution of bio-oil and biochar. Biomass Bioenergy161, 106480. 10.1016/j.biombioe.2022.106480

  • 73

    LiuX.LuoZ.YuC.XieG. (2019). Conversion mechanism of fuel-N during pyrolysis of biomass wastes. Fuel246, 42–50. 10.1016/j.fuel.2019.02.042

  • 74

    LiuY.DaiG.ZhuL.WangS. (2018). Green conversion of microalgae into high-performance sponge-like nitrogen-enriched carbon. ChemElectroChem6, 646–652. 10.1002/celc.201801272

  • 75

    LiuZ.TianD.ShenF.NnannaP. C.HuJ.ZengY.et al (2020). Valorization of composting leachate for preparing carbon material to achieve high electrochemical performances for supercapacitor electrode. J. Power Sources458, 228057. 10.1016/j.jpowsour.2020.228057

  • 76

    LiuZ.ZhangY.LiuZ. (2019). Comparative production of biochars from corn stalk and cow manure. Bioresour. Technol.291, 121855. 10.1016/j.biortech.2019.121855

  • 77

    LuoM.ZhuZ.YangK.YangP.MiaoY.ChenM.et al (2020). Sustainable biomass-based hierarchical porous carbon for energy storage: A novel route to maintain electrochemically attractive natural structure of precursor. Sci. Total Environ.747, 141923. 10.1016/j.scitotenv.2020.141923

  • 78

    MaG.ZhangZ.PengH.SunK.RanF.LeiZ. (2016). Facile preparation of nitrogen-doped porous carbon for high performance symmetric supercapacitor. J. Solid State Electr.20, 1613–1623. 10.1007/s10008-016-3171-1

  • 79

    MaH.LiC.ZhangM.HongJ.ShiG. (2017). Graphene oxide induced hydrothermal carbonization of egg proteins for high-performance supercapacitors. J. Mat. Chem. A5, 17040–17047. 10.1039/C7TA04771A

  • 80

    MaY.YinJ.LiangH.YaoD.XiaY.ZuoK.et al (2021). A two step approach for making super capacitors from waste wood. J. Clean. Prod.279, 123786. 10.1016/j.jclepro.2020.123786

  • 81

    MaZ.ZhangZ.QuY.LaiF.LiQ.WuX.et al (2019). Yeast protein derived hierarchical mesoporous carbon for symmetrical capacitor with excellent electrochemical performances. Micropor. Mesopor. Mat.281, 50–56. 10.1016/j.micromeso.2019.02.013

  • 82

    MacDermid-WattsK.PradhanR.DuttaA. (2020). Catalytic hydrothermal carbonization treatment of biomass for enhanced activated carbon: A review. Waste biomass valorization12, 2171. 10.1007/s12649-020-01134-x

  • 83

    MartĆ­nez-CasillasD. C.Alonso-LemusI. L.Mascorro-GutiĆ©rrezI.Cuentas-GallegosA. K. (2018). Leather waste-derived biochar with high performance for supercapacitors. J. Electrochem. Soc.165, A2061–A2068. 10.1149/2.0421810jes

  • 84

    MehdiR.KhojaA. H.NaqviS. R.GaoN.AminN. A. S. (2022). A review on production and surface modifications of biochar materials via biomass pyrolysis process for supercapacitor applications. Catalysts12, 798. 10.3390/catal12070798

  • 85

    MeyerS.GlaserB.QuickerP. (2011). Technical, economical, and climate-related aspects of biochar production technologies: A literature review. Environ. Sci. Technol.45, 9473–9483. 10.1021/es201792c

  • 86

    MondalA. K.KretschmerK.ZhaoY.LiuH.FanH.WangG. (2017a). Naturally nitrogen doped porous carbon derived from waste shrimp shells for high-performance lithium ion batteries and supercapacitors. Micropor. Mesopor. Mat.246, 72–80. 10.1016/j.micromeso.2017.03.019

  • 87

    MondalA. K.KretschmerK.ZhaoY.LiuH.WangC.SunB.et al (2017b). Nitrogen-doped porous carbon nanosheets from eco-friendly Eucalyptus leaves as high performance electrode materials for supercapacitors and lithium ion batteries. Chem. - A Eur. J.23, 3683–3690. 10.1002/chem.201605019

  • 88

    NiuB.YuanM.JiangF.LiM. (2019b). Protein powder derived porous carbon materials as supercapacitor electrodes. Int. J. Electrochem. Sc.2019, 3253–3264. 10.20964/2019.04.33

  • 89

    NiuJ.LiuM.XuF.ZhangZ.DouM.WangF. (2018). Synchronously boosting gravimetric and volumetric performance: Biomass-derived ternary-doped microporous carbon nanosheet electrodes for supercapacitors. Carbon140, 664–672. 10.1016/j.carbon.2018.08.036

  • 90

    NiuL.ShenC.YanL.ZhangJ.LinY.GongY.et al (2019a). Waste bones derived nitrogen–doped carbon with high micropore ratio towards supercapacitor applications. J. Colloid Interf. Sci.547, 92–101. 10.1016/j.jcis.2019.03.097

  • 91

    NorouziO.PourhosseiniS. E. M.NaderiH. R.Di MariaF.DuttaA. (2021). Integrated hybrid architecture of metal and biochar for high performance asymmetric supercapacitors. Sci. Rep.-UK11, 5387. 10.1038/s41598-021-84979-z

  • 92

    ParsimehrH.EhsaniA.PayamS. A. (2022). Electrochemical energy storage electrodes from rice biochar. Biomass Convers. Biorefinery. 10.1007/s13399-021-02089-2

  • 93

    Perez-SalcedoK. Y.RuanS.SuJ.ShiX.KannanA. M.EscobarB. (2020). Seaweed-derived KOH activated biocarbon for electrocatalytic oxygen reduction and supercapacitor applications. J. Porous Mat.27, 959–969. 10.1007/s10934-020-00871-7

  • 94

    QiJ.ZhangW.XuL. (2018). Solvent‐free mechanochemical preparation of hierarchically porous carbon for supercapacitor and oxygen reduction reaction. Chem. – A Eur. J.24, 18097–18105. 10.1002/chem.201804302

  • 95

    QinL.WuY.JiangE. (2022). In situ template preparation of porous carbon materials that are derived from swine manure and have ordered hierarchical nanopore structures for energy storage. Energy242, 123040. 10.1016/j.energy.2021.123040

  • 96

    RajC. J.RajeshM.ManikandanR.YuK. H.AnushaJ. R.AhnJ. H.et al (2018). High electrochemical capacitor performance of oxygen and nitrogen enriched activated carbon derived from the pyrolysis and activation of squid gladius chitin. J. Power Sources386, 66–76. 10.1016/j.jpowsour.2018.03.038

  • 97

    RawatS.MishraR. K.BhaskarT. (2022). Biomass derived functional carbon materials for supercapacitor applications. Chemosphere286, 131961. 10.1016/j.chemosphere.2021.131961

  • 98

    RenM.JiaZ.TianZ.LopezD.CaiJ.TitiriciM. M.et al (2018). High performance N-doped carbon electrodes obtained via hydrothermal carbonization of macroalgae for supercapacitor applications. ChemElectroChem5, 2686–2693. 10.1002/celc.201800603

  • 99

    RongX.XieM.KongL.NatarajanV.MaL.ZhanJ. (2019). The magnetic biochar derived from banana peels as a persulfate activator for organic contaminants degradation. Chem. Eng. J.372, 294–303. 10.1016/j.cej.2019.04.135

  • 100

    SangprasertT.SattayarutV.RajrujithongC.KhanchaititP.KhemthongP.ChanthadC.et al (2022). Making use of the inherent nitrogen content of spent coffee grounds to create nanostructured activated carbon for supercapacitor and lithium-ion battery applications. Diam. Relat. Mat.127, 109164. 10.1016/j.diamond.2022.109164

  • 101

    SankaranarayananS.HariramM.VivekanandhanS.NaviaR. (2021). Sustainable biocarbon materials derived from Lessonia Trabeculata macroalgae biomass residue for supercapacitor applications. Energy storage3, n/a. 10.1002/est2.222

  • 102

    SattayarutV.WanchaemT.UkkakimapanP.YordsriV.DulyasereeP.PhonyiemM.et al (2019). Nitrogen self-doped activated carbonsvia the direct activation ofSamanea saman leaves for high energy density supercapacitors. RSC Adv.9, 21724–21732. 10.1039/C9RA03437D

  • 103

    ShaoR.NiuJ.LiangJ.LiuM.ZhangZ.DouM.et al (2017). Mesopore- and macropore-dominant nitrogen-doped hierarchically porous carbons for high-energy and ultrafast supercapacitors in non-aqueous electrolytes. ACS Appl. Mater Interfaces9, 42797–42805. 10.1021/acsami.7b14390

  • 104

    ShenF.ZhuL.QiX. (2018). Nitrogen self-doped hierarchical porous carbon from Myriophyllum aquaticum for supercapacitor electrode. ChemistrySelect3, 11350–11356. 10.1002/slct.201802400

  • 105

    ShiY.ZhangL.SchonT. B.LiH.FanC.LiX.et al (2017). Porous carbon with willow-leaf-shaped pores for high-performance supercapacitors. ACS Appl. Mat. Inter.9, 42699–42707. 10.1021/acsami.7b12776

  • 106

    SiW.ZhouJ.ZhangS.LiS.XingW.ZhuoS. (2013). Tunable N-doped or dual N, S-doped activated hydrothermal carbons derived from human hair and glucose for supercapacitor applications. Electrochim. Acta107, 397–405. 10.1016/j.electacta.2013.06.065

  • 107

    SinhaP.YadavA.TyagiA.PaikP.YokoiH.NaskarA. K.et al (2020). Keratin-derived functional carbon with superior charge storage and transport for high-performance supercapacitors. Carbon168, 419–438. 10.1016/j.carbon.2020.07.007

  • 108

    SongM.ZhouY.RenX.WanJ.DuY.WuG.et al (2019). Biowaste-based porous carbon for supercapacitor: The influence of preparation processes on structure and performance. J. Colloid Interf. Sci.535, 276–286. 10.1016/j.jcis.2018.09.055

  • 109

    SongP.ShenX.HeW.KongL.HeX.JiZ.et al (2018). Protein-derived nitrogen-doped hierarchically porous carbon as electrode material for supercapacitors. J. Mater. Sci. Mater. Electron.29, 12206–12215. 10.1007/s10854-018-9329-0

  • 110

    SoroushS.RonsseF.VerberckmoesA.VerpoortF.ParkJ.WuD.et al (2022). Production of solid hydrochar from waste seaweed by hydrothermal carbonization: Effect of process variables. Biomass Convers. Biorefinery10.1007/s13399-022-02365-9

  • 111

    StobernackN.MayerF.MalekC.BhandariR. (2020). Evaluation of the energetic and environmental potential of the hydrothermal carbonization of biowaste: Modeling of the entire process chain. Bioresour. Technol.318, 124038. 10.1016/j.biortech.2020.124038

  • 112

    SunJ.NorouziO.MaŔekO. (2022). A state-of-the-art review on algae pyrolysis for bioenergy and biochar production. Bioresour. Technol.346, 126258. 10.1016/j.biortech.2021.126258

  • 113

    SunQ.CaoZ.WangS.SunL.ZhouL.XueH.et al (2020). Bio-inspired heteroatom-doped hollow aurilave-like structured carbon for high-performance sodium-ion batteries and supercapacitors. J. Power Sources461, 228128. 10.1016/j.jpowsour.2020.228128

  • 114

    SunY.XueJ.DongS.ZhangY.AnY.DingB.et al (2020). Biomass-derived porous carbon electrodes for high-performance supercapacitors. J. Mat. Sci.55, 5166–5176. 10.1007/s10853-019-04343-5

  • 115

    SunZ. (2017). Nitrogen self-doped porous carbon materials derived from a new biomass source for highly stable supercapacitors. Int. J. Electrochem. Sc.2017, 12084–12097. 10.20964/2017.12.400

  • 116

    TangL.ZhouY.ZhouX.ChaiY.ZhengQ.LinD. (2019). Enhancement in electrochemical performance of nitrogen-doped hierarchical porous carbon-based supercapacitor by optimizing activation temperature. J. Mater. Sci. Mater. Electron.30, 2600–2609. 10.1007/s10854-018-0535-6

  • 117

    TangW.ZhangY.ZhongY.ShenT.WangX.XiaX.et al (2017). Natural biomass-derived carbons for electrochemical energy storage. Mat. Res. Bull.88, 234–241. 10.1016/j.materresbull.2016.12.025

  • 118

    WahidM.ParteG.PhaseD.OgaleS. (2015). Yogurt: A novel precursor for heavily nitrogen doped supercapacitor carbon. J. Mat. Chem. A3, 1208–1215. 10.1039/C4TA06068G

  • 119

    WanL.SongP.LiuJ.ChenD.XiaoR.ZhangY.et al (2019). Facile synthesis of nitrogen self-doped hierarchical porous carbon derived from pine pollen via MgCO3 activation for high-performance supercapacitors. J. Power Sources438, 227013. 10.1016/j.jpowsour.2019.227013

  • 120

    WangC.WangH.YangC.DangB.LiC.SunQ. (2020). A multilevel gradient structural carbon derived from naturally preprocessed biomass. Carbon168, 624–632. 10.1016/j.carbon.2020.07.020

  • 121

    WangC.WuD.WangH.GaoZ.XuF.JiangK. (2018). Biomass derived nitrogen-doped hierarchical porous carbon sheets for supercapacitors with high performance. J. Colloid Interf. Sci.523, 133–143. 10.1016/j.jcis.2018.03.009

  • 122

    WangC.WuD.WangH.GaoZ.XuF.JiangK. (2017). Nitrogen-doped two-dimensional porous carbon sheets derived from clover biomass for high performance supercapacitors. J. Power Sources363, 375–383. 10.1016/j.jpowsour.2017.07.097

  • 123

    WangD.LiF.YinL.LuX.ChenZ.GentleI. R.et al (2012). Nitrogen-doped carbon monolith for alkaline supercapacitors and understanding nitrogen-induced redox transitions. Chem. - A Eur. J.18, 5345–5351. 10.1002/chem.201102806

  • 124

    WangD.XuZ.LianY.BanC.ZhangH. (2019). Nitrogen self-doped porous carbon with layered structure derived from porcine bladders for high-performance supercapacitors. J. Colloid Interf. Sci.542, 400–409. 10.1016/j.jcis.2019.02.024

  • 125

    WangJ.LiZ.YanS.YuX.MaY.MaL. (2019). Modifying the microstructure of algae-based active carbon and modelling supercapacitors using artificial neural networks. RSC Adv.9, 14797–14808. 10.1039/C9RA01255A

  • 126

    WangJ.LiuQ. (2015). Fungi-derived hierarchically porous carbons for high-performance supercapacitors. RSC Adv.5, 4396–4403. 10.1039/C4RA13358G

  • 127

    WangJ.MaC.SuL.GongL.DongD.WuZ. (2020). Self-assembly/Sacrificial synthesis of highly capacitive hierarchical porous carbon from longan pulp biomass. ChemElectroChem7, 4606–4613. 10.1002/celc.202001129

  • 128

    WangJ.WanF.LüQ.ChenF.LinQ. (2018). Self-nitrogen-doped porous biochar derived from kapok (Ceiba insignis) fibers: Effect of pyrolysis temperature and high electrochemical performance. J. Mat. Sci. Technol.34, 1959–1968. 10.1016/j.jmst.2018.01.005

  • 129

    WangK.ZhaoN.LeiS.YanR.TianX.WangJ.et al (2015). Promising biomass-based activated carbons derived from willow catkins for high performance supercapacitors. Electrochim. Acta166, 1–11. 10.1016/j.electacta.2015.03.048

  • 130

    WangQ.XiongJ.SongQ.ShaheenS. M.SalemH. M. S.MohamedI.et al (2022). Preparation of nitrogen-enriched Fe-doped porous biochar using the catalytic pyrolysis of paper mill sludge. Biomass Convers. Biorefinery2022. 10.1007/s13399-022-03209-2

  • 131

    WangS.ShiY.XiangH.LiuR.SuL.ZhangL.et al (2022). Functional utilization of biochar derived fromTenebrio molitor feces for CO2 capture and supercapacitor applications. RSC Adv.12, 22760–22769. 10.1039/D2RA03575H

  • 132

    WangX.JiangT.NasserR.CaoQ.GongM.LiX.et al (2022). Preparation of in-situ N/O co-doped lily-derived porous carbon framework material and its application in supercapacitors. Biomass Bioenergy166, 106602. 10.1016/j.biombioe.2022.106602

  • 133

    WangY.JiangH.YeS.ZhouJ.ChenJ.ZengQ. (2018). N-doped porous carbon derived from walnut shells with enhanced electrochemical performance for supercapacitor. Funct. Mater. Lett.12, 1950042. 10.1142/S1793604719500425

  • 134

    WangY.ZhangM.DaiY.WangH.ZhangH.WangQ.et al (2019). Nitrogen and phosphorus co-doped silkworm-cocoon-based self-activated porous carbon for high performance supercapacitors. J. Power Sources438, 227045. 10.1016/j.jpowsour.2019.227045

  • 135

    WeiT.WeiX.GaoY.LiH. (2015). Large scale production of biomass-derived nitrogen-doped porous carbon materials for supercapacitors. Electrochim. Acta169, 186–194. 10.1016/j.electacta.2015.04.082

  • 136

    WenX.LuX.XiangK.XiaoL.LiaoH.ChenW.et al (2019). Nitrogen/sulfur co-doped ordered carbon nanoarrays for superior sulfur hosts in lithium-sulfur batteries. J. Colloid Interf. Sci.554, 711–721. 10.1016/j.jcis.2019.07.057

  • 137

    WesleyR. J.DurairajA.RamanathanS.AbrahamR. J.ObadiahA.RamasundaramS.et al (2022). Tea waste biochar composite with nickel phthalocyanine as a potential supercapacitor electrode material. Biomass Convers. Biorefinery2022. 10.1007/s13399-021-02206-1

  • 138

    XiaC.SurendranS.JiS.KimD.ChaeY.KimJ.et al (2022). A sulfur self‐doped multifunctional biochar catalyst for overall water splitting and a supercapacitor from Camellia japonica flowers. Carbon Energy4, 491–505. 10.1002/cey2.207

  • 139

    XieQ.QuS.ZhaoY.ZhangY.ZhaoP. (2019). N/O co-enriched amorphous carbon coated graphene with a sandwiched porous architecture as supercapacitor electrodes with high volumetric specific capacitance. J. Mater. Sci. Mater. Electron.30, 20265–20275. 10.1007/s10854-019-02411-9

  • 140

    XuB.HouS.ZhangF.CaoG.ChuM.YangY. (2014). Nitrogen-doped mesoporous carbon derived from biopolymer as electrode material for supercapacitors. J. Electroanal. Chem.712, 146–150. 10.1016/j.jelechem.2013.11.020

  • 141

    XuG.HanJ.DingB.NieP.PanJ.DouH.et al (2015). Biomass-derived porous carbon materials with sulfur and nitrogen dual-doping for energy storage. Green Chem.17, 1668–1674. 10.1039/C4GC02185A

  • 142

    XuS.ChenJ.PengH.LengS.LiH.QuW.et al (2021). Effect of biomass type and pyrolysis temperature on nitrogen in biochar, and the comparison with hydrochar. Fuel291, 120128. 10.1016/j.fuel.2021.120128

  • 143

    XuS.ZhaoY.XuY.ChenQ.ZhangG.XuQ.et al (2018). Heteroatom doped porous carbon sheets derived from protein-rich wheat gluten for supercapacitors: The synergistic effect of pore properties and heteroatom on the electrochemical performance in different electrolytes. J. Power Sources401, 375–385. 10.1016/j.jpowsour.2018.09.012

  • 144

    XuZ.LiY.LiD.WangD.ZhaoJ.WangZ.et al (2018). N-enriched multilayered porous carbon derived from natural casings for high-performance supercapacitors. Appl. Surf. Sci.444, 661–671. 10.1016/j.apsusc.2018.03.100

  • 145

    XueC.WeiY.HuangR.ZhaoW.WuT.LiX.et al (2022). Magnesium oxide scaffolded preparation of N, O self-doped biochar with super-hydrophilic surface for aqueous supercapacitor with desired energy density. J. Energy Storage53, 105193. 10.1016/j.est.2022.105193

  • 146

    YanJ.WangQ.WeiT.FanZ. (2014). Recent advances in design and fabrication of electrochemical supercapacitors with high energy densities. Adv. Energy Mat.4, 1300816. 10.1002/aenm.201300816

  • 147

    YanJ. (2020). Nitrogen-doped oxygen-rich activated carbon derived from longan shell for supercapacitors. Int. J. Electrochem. Sc.2020, 1982–1995. 10.20964/2020.03.18

  • 148

    YanW.MengZ.ZouM.MiaoH.MaF.YuR.et al (2020). Neutralization reaction in synthesis of carbon materials for supercapacitors. Chem. Eng. J.381, 122547. 10.1016/j.cej.2019.122547

  • 149

    YangJ.WangY.LuoJ.ChenL. (2018). Highly nitrogen-doped graphitic carbon fibers from sustainable plant protein for supercapacitor. Ind. Crop. Prod.121, 226–235. 10.1016/j.indcrop.2018.05.013

  • 150

    YangJ.YangH.WangS.WangK.SunY.YiW.et al (2023). Importance of pyrolysis programs in enhancing the application of microalgae-derived biochar in microbial fuel cells. Fuel333, 126244. 10.1016/j.fuel.2022.126244

  • 151

    YaoS.ZhangZ.WangY.LiuZ.LiZ. (2021). Simple one-pot strategy for converting biowaste into valuable graphitized hierarchically porous biochar for high-efficiency capacitive storage. J. Energy Storage44, 103259. 10.1016/j.est.2021.103259

  • 152

    YuJ.LiX.CuiZ.ChenD.PangX.ZhangQ.et al (2021). Tailoring in-situ N, O, P, S-doped soybean-derived porous carbon with ultrahigh capacitance in both acidic and alkaline media. Renew. Energy163, 375–385. 10.1016/j.renene.2020.08.066

  • 153

    YuJ.TangL.PangY.ZengG.WangJ.DengY.et al (2019). Magnetic nitrogen-doped sludge-derived biochar catalysts for persulfate activation: Internal electron transfer mechanism. Chem. Eng. J.364, 146–159. 10.1016/j.cej.2019.01.163

  • 154

    YuW.WangH.LiuS.MaoN.LiuX.ShiJ.et al (2016). N, O-codoped hierarchical porous carbons derived from algae for high-capacity supercapacitors and battery anodes. J. Mat. Chem. A4, 5973–5983. 10.1039/C6TA01821A

  • 155

    YuanC.ChenM.ZhuK.NiJ.WangS.CaoB.et al (2022). Facile synthesis of nitrogen-doped interconnected porous carbons derived from reed and chlorella for high-performance supercapacitors. Fuel Process Technol.238, 107466. 10.1016/j.fuproc.2022.107466

  • 156

    YuanG.GuanK.HuH.LeiB.XiaoY.DongH.et al (2021). Calcium-chloride-assisted approach towards green and sustainable synthesis of hierarchical porous carbon microspheres for high-performance supercapacitive energy storage. J. Colloid Interf. Sci.582, 159–166. 10.1016/j.jcis.2020.07.082

  • 157

    YuanX.DissanayakeP. D.GaoB.LiuW.LeeK. B.OkY. S. (2021). Review on upgrading organic waste to value-added carbon materials for energy and environmental applications. J. Environ. Manage.296, 113128. 10.1016/j.jenvman.2021.113128

  • 158

    YuanX.XiaoJ.YılmazM.ZhangT. C.YuanS. (2022). N, P Co-doped porous biochar derived from cornstalk for high performance CO2 adsorption and electrochemical energy storage. Sep. Purif. Technol.299, 121719. 10.1016/j.seppur.2022.121719

  • 159

    ZhanH.ZhuangX.SongY.YinX.WuC. (2018). Insights into the evolution of fuel-N to NO precursors during pyrolysis of N-rich nonlignocellulosic biomass. Appl. Energy219, 20–33. 10.1016/j.apenergy.2018.03.015

  • 160

    ZhangL.SongX.XiaoB.TanL.MaH.WangX.et al (2019). Highly graphitized and N, O co-doped porous carbon derived from leaves of viburnum sargenti with outstanding electrochemical performance for effective supercapacitors. Colloids Surfaces A Physicochem. Eng. Aspects580, 123721. 10.1016/j.colsurfa.2019.123721

  • 161

    ZhangP.LiY.CaoY.HanL. (2019). Characteristics of tetracycline adsorption by cow manure biochar prepared at different pyrolysis temperatures. Bioresour. Technol.285, 121348. 10.1016/j.biortech.2019.121348

  • 162

    ZhangW.TianH.ChengR.WangZ.MaY.RanS.et al (2020). A composite-hydroxide-activation strategy for the preparation of N/S dual-doped porous carbon materials as advanced supercapacitor electrodes. J. Mater. Sci. Mater. Electron.31, 22498–22511. 10.1007/s10854-020-04751-3

  • 163

    ZhangX.CaiW.ZhaoS.LiX.JiaF.MaF.et al (2021). Discarded antibiotic mycelial residues derived nitrogen-doped porous carbon for electrochemical energy storage and simultaneous reduction of antibiotic resistance genes(ARGs). Environ. Res.192, 110261. 10.1016/j.envres.2020.110261

  • 164

    ZhangX.MaX.YuZ.YiY.HuangZ.LuC. (2022). Preparation of high-value porous carbon by microwave treatment of chili straw pyrolysis residue. Bioresour. Technol.360, 127520. 10.1016/j.biortech.2022.127520

  • 165

    ZhaoG.YuD.ChenC.SunL.YangC.ZhangH.et al (2020). One-step production of carbon nanocages for supercapacitors and sodium-ion batteries. J. Electroanal. Chem.878, 114551. 10.1016/j.jelechem.2020.114551

  • 166

    ZhaoY.LuM.TaoP.ZhangY.GongX.YangZ.et al (2016). Hierarchically porous and heteroatom doped carbon derived from tobacco rods for supercapacitors. J. Power Sources307, 391–400. 10.1016/j.jpowsour.2016.01.020

  • 167

    ZhouJ.YuanS.LuC.YangM.SongY. (2020). Hierarchical porous carbon microtubes derived from corn silks for supercapacitors electrode materials. J. Electroanal. Chem.878, 114704. 10.1016/j.jelechem.2020.114704

  • 168

    ZhouN.ZuJ.XuF.WangY.LuoY.LiS.et al (2020). The preparation of N, S, P self-doped and oxygen functionalized porous carbon via aerophilic interface reaction for high-performance supercapacitors. J. Mater. Sci. Mater. Electron.31, 12961–12972. 10.1007/s10854-020-03849-y

  • 169

    ZhouR.WangX.ZhouR.WeerasingheJ.ZhangT.XinY.et al (2022). Non-thermal plasma enhances performances of biochar in wastewater treatment and energy storage applications. Front. Chem. Sci. Eng.16, 475–483. 10.1007/s11705-021-2070-x

  • 170

    ZhouY.QinS.VermaS.SarT.SarsaiyaS.RavindranB.et al (2021). Production and beneficial impact of biochar for environmental application: A comprehensive review. Bioresour. Technol.337, 125451. 10.1016/j.biortech.2021.125451

  • 171

    ZhouY.RenJ.XiaL.ZhengQ.LiaoJ.LongE.et al (2018). Waste soybean dreg-derived N/O co-doped hierarchical porous carbon for high performance supercapacitor. Electrochim. Acta284, 336–345. 10.1016/j.electacta.2018.07.134

  • 172

    ZhuB.LiuB.QuC.ZhangH.GuoW.LiangZ.et al (2018). Tailoring biomass-derived carbon for high-performance supercapacitors from controllably cultivated algae microspheres. J. Mat. Chem. A6, 1523–1530. 10.1039/C7TA09608A

  • 173

    ZhuH.YinJ.WangX.WangH.YangX. (2013). Microorganism-derived heteroatom-doped carbon materials for oxygen reduction and supercapacitors. Adv. Funct. Mat.23, 1305–1312. 10.1002/adfm.201201643

  • 174

    ZhuL.ShenF.SmithR. L.QiX. (2017). High-performance supercapacitor electrode materials from chitosan via hydrothermal carbonization and potassium hydroxide activation. Energy Technol.5, 452–460. 10.1002/ente.201600337

  • 175

    ZhuX.YangS.WangL.LiuY.QianF.YaoW.et al (2016). Tracking the conversion of nitrogen during pyrolysis of antibiotic mycelial fermentation residues using XPS and TG-FTIR-MS technology. Environ. Pollut.211, 20–27. 10.1016/j.envpol.2015.12.032

  • 176

    ZhuY.FangT.HuaJ.QiuS.ChuH.ZouY.et al (2019). Biomass‐derived porous carbon prepared from egg white for high‐performance supercapacitor electrode materials. ChemistrySelect4, 7358–7365. 10.1002/slct.201901632

  • 177

    ZhuZ.XuZ. (2020). The rational design of biomass-derived carbon materials towards next-generation energy storage: A review. Renew. Sustain. Energy Rev.134, 110308. 10.1016/j.rser.2020.110308

  • 178

    ZouZ.LeiY.LiY.ZhangY.XiaoW. (2019). Nitrogen-doped hierarchical meso/microporous carbon from bamboo fungus for symmetric supercapacitor applications. Molecules24, 3677. 10.3390/molecules24203677

Summary

Keywords

biomass, N self-doped biochar, N functionality, electrochemical performance, supercapacitor

Citation

Xiaorui L and Haiping Y (2023) A state-of-the-art review of N self-doped biochar development in supercapacitor applications. Front. Energy Res. 11:1135093. doi: 10.3389/fenrg.2023.1135093

Received

31 December 2022

Accepted

20 February 2023

Published

07 March 2023

Volume

11 - 2023

Edited by

Uwe Schrƶder, University of Greifswald, Germany

Reviewed by

Muslum Demir, Osmaniye Korkut Ata University, Türkiye

Mingjiang Xie, Huanggang Normal University, China

Updates

Copyright

*Correspondence: Yang Haiping,

This article was submitted to Bioenergy and Biofuels, a section of the journal Frontiers in Energy Research

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
