Multi-objective optimization of the organic Rankine cycle cascade refrigeration cycle driven by sugar mills waste heat

Zongrun WangZongrun Wang1Wei GuanWei Guan2Song ZhangSong Zhang3Hailang SangHailang Sang3Wenshuai QueWenshuai Que1Lu Liang
Lu Liang4*
  • 1Guangxi Key Laboratory of Manufacturing System and Advanced Manufacturing Technology, School of Mechanical Engineering, Guangxi University, Nanning, China
  • 2Guangxi Key Laboratory of Petrochemical Resource Processing and Process Intensification Technology, Guangxi University, Nanning, China
  • 3Advanced Technology Center, Research and Engineering Institute, Guangxi Yuchai Machinery Co., Ltd., Yulin, China
  • 4College of Electrical Engineering Guangxi University, Nanning, China

The research on the recovery of low-grade thermal energy carried away by boiler flue gas is significant for sugar mills. This paper designs a waste heat recovery system based on sugar plant flue gas, integrating absorption refrigeration cycle and the organic Rankine cycle, and the effects of nine working fluids on the system are investigated. The aim is to realize the multi-form conversion of energy. The performance of the system is evaluated in terms of energy, exergy, and economic metrics. Multi-objective optimization is performed with the method of the NSGA-II genetic algorithm. The results show that Butane is the most suitable working fluid for ORC. The exergy efficiency of the system is 32.125% before optimisation, with an increased space cooling capacity of 15820.56 MW per year for the sugar mill. The exergy destruction analysis of the system reveals that the generator accounts for the highest proportion of exergy destruction (50.8%). The entire system shows the LCOE is as low as 0.0406$/kWh under the optimized condition. The optimized system can obtain an estimated annual electricity sales revenue of $136,300, and the sugar mill can save $308,600 in cooling costs. In addition, the payback period can be shortened to 5.79 years.

1 Introduction

1.1 Background

Bioenergy is a large-scale renewable energy source, accounting for 10%–14% of the world’s primary energy and potentially reaching 30%–40% by 2050 (Rosillo-Calle, 2016). Currently, over 120 million tons of sugar are produced worldwide each year, with approximately 70% derived from sugarcane (USDA, 2018). The biomass potential of this crop can replace fossil fuels, leading to energy savings (de Matos et al., 2020) and transforming the sugar industry into a more versatile and competitive sector. The untapped waste heat resources in the global sugar industry show great potential. In the production process of sugar mills, a large amount of sugarcane residue, such as bagasse are produced while a substantial amount of recoverable low-temperature waste heat are generated (Birru et al., 2016), making the recovery of waste heat emissions from sugar mills becomes very essential. Mohammadi et al. (2020) investigated the potential of using bagasse as a substitute for natural gas in a sugar factory for the generation of thermal energy and electricity. Singh (2019) analyzed the thermodynamic performance of a 16-megawatt cogeneration system in a sugar mill and found that 6.342% of the fuel energy was lost in the boiler flue gas. The substantial amount of low-temperature flue gas emitted by sugar mill boilers represents the main portion of heat loss and contains a significant amount of unused low-temperature waste heat. This not only affects the thermal efficiency of the boilers but also imposes significant pressure on the environment, causing ecological damage and contributing to intensified greenhouse effects. Fujii et al. (2019) demonstrated that the high-temperature flue gases produced from sugarcane boilers at approximately 200°C during the combustion process has been wasted, which could reduce fuel consumption by 29.6% if this portion of energy was effectively utilized. The aforementioned studies indicate that the boiler flue gases from sugar mills have not only high economic benefits, but also considerable thermodynamic potential.

1.2 Waste heat recovery technology of sugar factories

Organic Rankine cycle (ORC) system is more prominent in recovering low-temperature waste heat (Mana et al., 2023). ORC system not only converts waste heat into high-grade energy (electricity), but also are widely used due to their simplicity of construction, lower material and sealing costs, and adaptability to heat sources of different temperature levels (Nemati et al., 2017). Zhang et al. (2016) investigated the system properties of organic Rankine cycle (ORC), steam-organic Rankine cycle (S-ORC) as well as steam Rankine cycle (SRC) within the range of 150°C–350 °C by comparing their performances. The results indicated that more prominent thermodynamic performance and power generation are obtained when ORC is employed in the heat source temperature range of 150°C–210°C. Waste heat can be used for refrigeration in addition to electricity generation. Uphade (2021) studied the heat recovery potential of flue gas in the sugar industry and used a vapor absorption cycle instead of the conventional vapor compression cycle, allowing a sugar mill with 2,500 Tons of cane crushed per day capacity to produce 293 Tons of refrigeration cooling, which is sufficient to meet the internal demand of the sugar mill. Singh (2020) recovered waste heat from the boiler flue gases of the sugar mill, resulting in an increase of 375.2135 kW in the net power generation and an increase in the energy efficiency of the sugar mill’s cogeneration by 0.3819%. Sugar mills need to consume huge financial and material resources in refrigeration every year (Du et al., 2014; Kapanji et al., 2021). In many heat-driven refrigeration systems, the absorption refrigeration technology is gradually becoming an effective alternative to the conventional vapor compression refrigeration system (Kumar et al., 2018) and is widely used in an increasing number of plants. This is due to its ability in fully utilizing low temperature heat sources to provide cooling capacity and the use of more eco-friendly refrigerants than chlorofluorocarbon refrigerants (CFCs) (Li et al., 2016). Bandgar al (Bandgar et al., 2018). utilized a vapor absorption system for waste heat recovery of excess water removed from the sugar mill for using as cooling in the factory office area. It saved 64,314 kWh per crushing season for the plant, which is equivalent to at least Rs. 529,304.22 per season. Chouhan and Chandrakar (2014) suggested the use of the absorption refrigeration system to recover heat sources, including flue gas and boiler emissions, which could save 1,870 tons of bagasse per year in terms of additional cooling capacity for sugar mills.

The separate utilization of ORC and absorption refrigeration has achieved excellent comprehensive benefits in various fields, but the energy generated by individual systems is relatively homogeneous in form and may not be as efficient as an integrated system. Therefore, some researchers have proposed cogeneration systems that integrate waste heat recovery technologies to upgrade the economic efficiency as well as the thermodynamic performance of the system and enrich forms of energy utilization. Dogbe et al. (2019) used absorption heat pump (AHP) technologies as well as organic Rankine cycle (ORC) to improve the energy efficiency in a sugar mill, resulting in a 1.7% improvement in exergy performance and a total bagasse value saving of 0.83%. Zhang et al. (2020) proposed a novel cogeneration system for coal-fired power plants based on ORC as well as AHP and evaluated the thermodynamic as well as economic efficiency of the system. The findings demonstrated that the power generation and heat production were increased by a factor of one, while the general exergy efficiency as well as thermal efficiency were increased by 9.38% and 1.71%, respectively, compared with the conventional CHP system. Wang et al. (2020) designed a new triple generation system consisting of an organic Rankine cycle, an absorption refrigeration cycle as well as a supercritical CO2 Brayton cycle for waste heat recovery from gas turbines in addition. The results showed that the new system could produce 6.02 MW of cooling capacity, 9.93 MW of heat load, as well as 40.65 MW of net power generation. Tian et al. (2018) used an integrated system to increase system efficiency with a newly proposed triple system of CO2 capture system, ammonia absorption cooler as well as organic Rankine cycle (ORC) integrated with SOFC. The calculation indicated that the exergy efficiency as well as net electrical efficiency of the comprehensive system can reach 59.96% and 52.83%, respectively.

1.3 Motivation and contribution

Currently, there is relatively little research on the construction and optimization of waste heat recovery systems in sugar factories, with most studies focused on cogeneration and single systems. In order to provide both electric and cooling power, and achieve efficient energy utilization, this study adopts the cascade Organic Rankine Cycle (ORC) and Absorption Refrigeration Cycle (ARC) waste heat recovery system. Sugar factories require a certain cooling system during sugar processing to control process temperatures, ensuring product quality and normal equipment operation, such as crystalline sugar particles and sugar storage. Therefore, using ORC-ARC to achieve combined cooling and power has significant significance. First, the ORC system is suitable for medium and low temperature waste heat recovery, with lower cost and simpler operation compared to other systems, such as reheating, reheat, and bypass. The ARC uses an absorbent to absorb and desorb the solute for cooling, and steam refrigeration cycles require compressors to compress steam, consuming more energy. At the same time, the absorbent used by ARC is more environmentally friendly than traditional refrigerants such as fluorine. Furthermore, both the ORC and ARC systems possess high flexibility, allowing for efficient energy conversion by adjusting system parameters according to the requirements of the heat source and environment. Finally, by cascading ORC and ARC systems, not only can a large amount of “green” electricity be generated, but also sufficient cooling capacity provided for sugar factories, achieving efficient energy utilization and comprehensive recycling. Therefore, adopting the ORC-ARC system provides a feasible solution for waste heat recovery in sugar factories with higher economic and environmental performance.

This study compares the performance and environmental friendliness of nine working fluids in the ORC system, and determines the best organic working fluid in the integrated system based on comprehensive performance comparison, which helps optimize the operation of the entire integrated system. The performance of the ORC and absorption refrigeration cycle after integration is evaluated through thermodynamics and economic analysis, and the influence of key operating parameters such as evaporator temperature and generator temperature on the entire waste heat recovery system is studied. The economic efficiency of the system is evaluated using LCOE. Finally, NSGA-II is used to determine the system’s optimal operating environment.

2 System description and assumptions

In this study, a new waste heat recovery system based on the flue gas of boilers in sugar mills is proposed. A specific analysis of the exergy in sugar mills has been carried out in the literature (Dogbe et al., 2018), and it was found that only 23.4% of the exergy in sugar mills leaves through the product during the whole production process, in which 3.5% of exergy is lost through waste and 73.1% is wasted during the production process due to various irreversible factors. The production process of a sugar mill is shown in Figure 1.

FIGURE 1
www.frontiersin.org

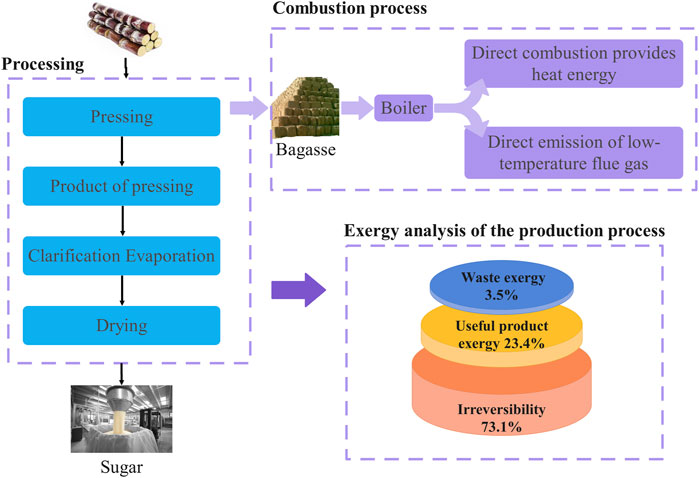

FIGURE 1. Process flow of sugar mill.

The significant energy loss caused by the waste heat from boiler flue gas during the production process can be effectively reduced by recovering this waste heat, thereby improving the economic performance and energy efficiency of the sugar factory. Considering that the recovered waste heat is around 190°C, an Organic Rankine Cycle (ORC) is used as the base cycle. Conventional steam refrigeration cycles require higher temperatures and pressures, making them less suitable for handling low-temperature waste heat (Li et al., 2014). ORC utilizes organic working fluids that can evaporate and condense at relatively low temperatures, making it particularly suitable for recovering low-temperature waste heat. Additionally, the Absorption Refrigeration Cycle (ARC) replaces traditional refrigerants with organic working fluids, which usually have minimal negative impact on the atmosphere. When the flue gas passes through the first round of energy recovery in the ORC, its temperature drops to a range suitable for capturing and utilizing by ARC, providing the sugar factory with additional refrigeration capacity. There are various areas in the sugar factory that require significant cooling, such as syrup cooling and crystallization cooling. By combining ORC with ARC, the waste heat from the boiler flue gas can be fully utilized. This not only converts waste heat into electrical energy but also provides additional refrigeration capacity, thereby improving the overall system performance and efficiency. The sugar factory can achieve efficient energy utilization, reduce energy consumption and emissions, and lower production costs. This is not only economically beneficial for the sugar factory itself but also aligns with environmental protection and sustainable development requirements. This research has achieved gradient utilization of boiler flue gas from sugar mills by integrating ORC and ARC, enabling multiform conversion of energy to cooling and electricity.

Figure 2 illustrates a schematic diagram of the complete waste heat recovery system. The principal components of the proposed system are the evaporator, condenser, turbine, absorber, pump, solution heat exchanger, and generator. The work process is: In the ORC system, the working fluid is pressurized by pump 1 to the heat exchanger (02–03) and absorbs heat from the energy source fed to the heat exchanger, which is heated to high-temperature high-pressure vapor, which enters the Turbine to expand and generate electricity (03–04). Afterwards, it flows into the condenser 1 (04-01) and is condensed into a liquid by the refrigeration water, which then circulates through the ORC system again by pump 1 (01–02). In the absorption refrigeration cycle, water is the absorbent and ammonia is the refrigerant. We utilize waste heat from the heat exchanger to drive the heat source for the ARC system into the generator, where a concentrated solution of ammonia-water mixture is heated to evaporation, leaving a high temperature dilute solution. The high-pressure vapor is then condensed into a low temperature saturated liquid as it passes through condenser 2 (10–11), which is depressurized by the throttle valve and proceeds to the evaporator, which provides cooling through evaporation (11–13). The low-pressure ammonia steam is fed to the absorber (13-07) where it is diluted and absorbed into a concentrated solution into a concentrated solution of ammonia saturated water, which is sent under pressure to SHE via pump 2 to reclaim the waste heat of the concentrated solution in the generator (07–08). The dilute ammonia-water mixture remaining in the generator after the ammonia evaporation passes through SHE and returns to the absorber through a reduced pressure throttle valve (15–16).

FIGURE 2
www.frontiersin.org

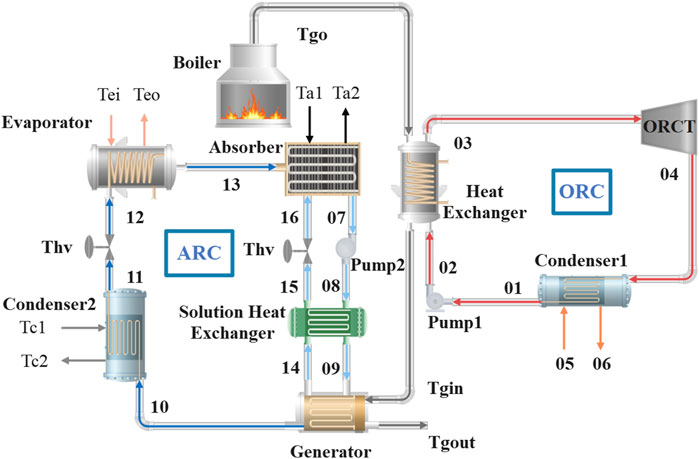

FIGURE 2. The flowchart of the proposed system.

3 Mathematical model

3.1 Thermodynamic model

The simulations of the waste heat recovery system in this study were implemented in MATLAB and all reactions were in thermodynamic equilibrium. The thermodynamic properties of the flue gas were calculated by REFPROP9.1 based on its basic composition: 58.14% N2, 10.42% H2O, 26.27% CO2 and 5.17% O2. The added system is composed of ORC and absorption refrigeration cycles, respectively, and the two subsystems are thermodynamically balanced for the new system by mass flow equilibrium on the generator and heat exchanger. Table 1 summarizes all the key input data of the system. In order to improve the effect of the system in practical application, the system parameters are rationalized. In order to ensure that the turbine can reach the target state in practical applications, the turbine efficiency is set to 70%, while the actual value is around 80% (Cai et al., 2016; Pethurajan et al., 2018). Men et al. (2021) compared the performance of different heat exchangers in practical applications, and the results showed the EW heat exchange efficiency was higher than 85%. In the theoretical design of this paper, the efficiency of the heat exchanger is set at 70%, lower than the actual value.

TABLE 1
www.frontiersin.org

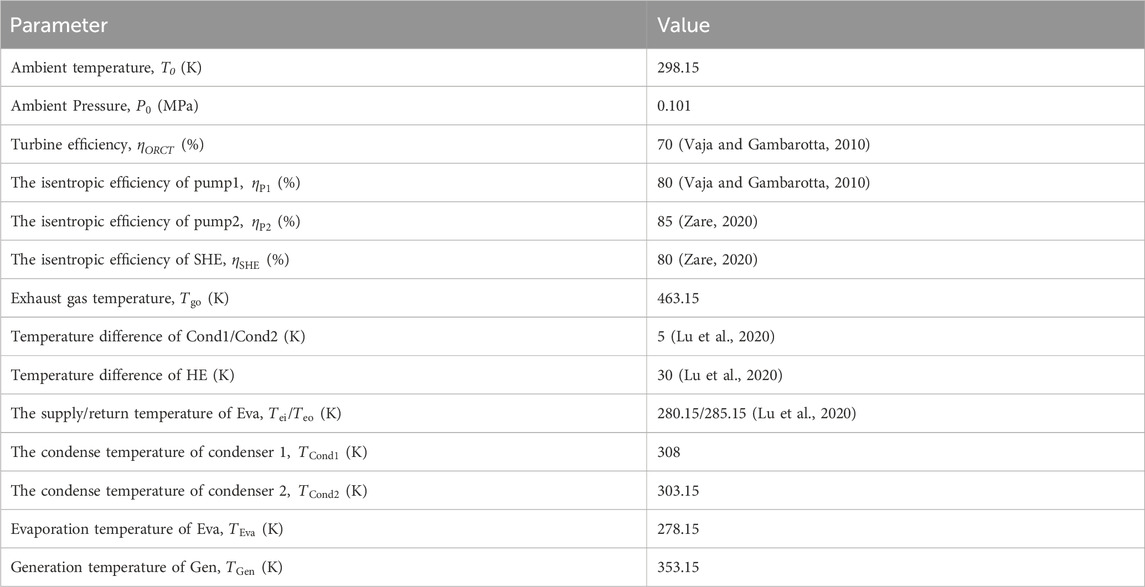

TABLE 1. Basic input parameters for ORC and ARC systems.

In the sub-section, a mathematical model based on thermodynamics as well as economics is established for the system. In order to streamline the model, some essential assumptions are defined:

(1) The subsystems operate at a steady state.

(2) The pumps and turbines operate at a specific isentropic efficiency.

(3) The pressure drop of piping is negligible.

(4) The low-temperature waste heat comes from the sugar mill exhaust gas at a temperature of about 190°C (Dogbe et al., 2018).

(5) The generator outlet refrigerant in ARC is superheated.

3.2 Energy analysis

On the basis of the mass balance equation (Eq. 1) and energy balance equation (Eq. 2) (Nami et al., 2019), the thermodynamic model of all parts of the subsystem was studied and the corresponding mass and energy equations were listed to easily analyze the system later, as shown in Table 2.

m˙in,k=m˙out,k(1)
Qk˙+m˙in,khin,kWk˙m˙out,khout,k=0(2)

TABLE 2
www.frontiersin.org

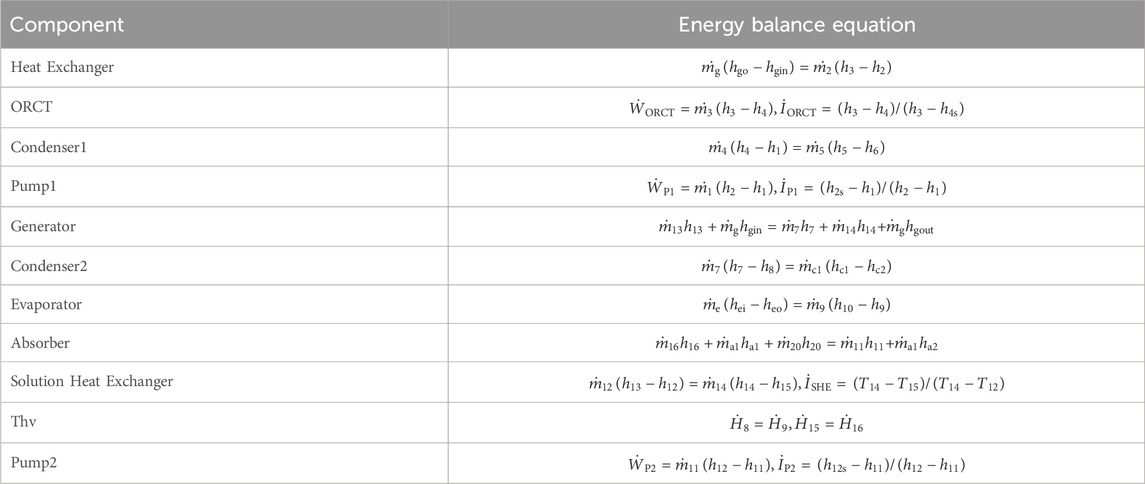

TABLE 2. Control equations for each component of ORC and ARC.

Where out and in represent the outlet and inlet of the component, respectively. W˙ as well as Q˙ denote the power and heat transfer rate, respectively.

3.3 Exergy analysis

Exergy analysis has been widely used in the economic analysis of thermal systems that reveals the location, as well as the extent of process inefficiencies to optimize their capabilities and complements traditional mass flow analysis (Ghannadzadeh and Sadeqzadeh, 2017). The thermodynamic model of each component can be identified from the energy balance equation.

The exergy balance equation for the individual component is represented as Eq. 3 (Pan et al., 2021b):

E˙Q,k+E˙in,k=E˙w,k+E˙out,k+E˙D,k(3)

The exergy value for each point is determined as Eq. 4 (Ebrahimi-Moghadam et al., 2021):

E˙in=m˙hinh0T0sins0(4)

The detailed exergy equations for each component are concluded in Table 3.

TABLE 3
www.frontiersin.org

TABLE 3. Exergy equations for each component of the system.

3.4 Economic analysis

Integrated sugar mill flue gas waste heat recovery system should consider not only thermodynamic aspects but also matters such as economic costs. The Levelized Cost Of Energy (LCOE) is one of the more extensively employed criteria in the feasibility analysis of evaluating new generation systems and power plants (Boukelia et al., 2016). The relationship between LCOE and annual system power generation and input costs is calculated using Eq. 5:

LCOE=CRF×Zinvestment+ZOM/8760×Wnet+Ecool(5)

Where Zinvestment is the overall investment cost of the system ($), ZOM is the operation and maintenance cost ($). To estimate the annual operation as well as maintenance cost, the maintenance factor was chosen as 0.04 (Bhattacharyya and Quoc Thang, 2004).

CRF indicates the capital recovery factor calculated by Eq. 6:

CRF=i1+in/1+in1(6)

Where i and n are the interest rate (i = 0.1) as well as the lifetime of the system (n = 20 years) (Zhang et al., 2018), respectively. Zinvestment is composed of the investment cost data for the whole system components. Some cost equations from references (Khaljani et al., 2015; Lu et al., 2020; Nami and Anvari-Moghaddam, 2020; Pan et al., 2021a; Pan et al., 2021b) are applied to the main equipment of this system: turbine, pump and Generator, etc. The investment cost of each component can be calculated by the cost function given in Table 4. It is worth mentioning that the value of the valves is small compared to the other components, so their investment cost is ignored for procurement.

TABLE 4
www.frontiersin.org

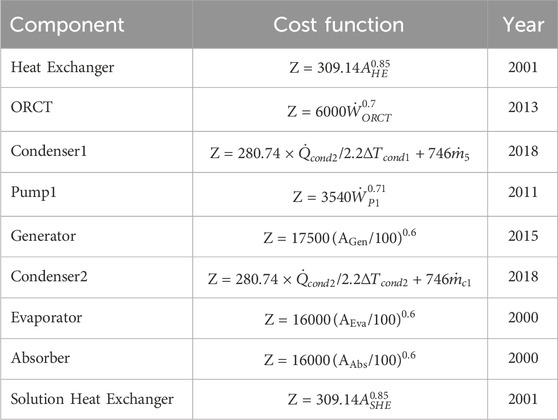

TABLE 4. The cost functions of each component.

Considering the Chemical Engineering Plant Cost Index (CEPCI) of 699.97 in 2021 (The Chemical Engineering Plant Cost Index, n.d.), the cost function in Table 4 was updated to the year 2021 according to Eq. 7.

Z˙k,2021=Z˙k×CEPCI2021/CEPCIref(7)

Based on the total investment cost and annual net income, the system’s investment payback cycle PP can be estimated as Eq. 8 (Wang et al., 2015):

PP=ZtotNE(8)

Where Ztot is the total cost, NE is the annual net income.

Ztot is composed of equipment investment cost (ZB) and maintenance cost (ZOM), which is calculated using Eq. 9:

Ztot=ZB+ZOM(9)

The annual net income (NE) is determined by the net output power, electricity price, refrigeration capacity, and cooling water price, which is calculated using Eq. 10:

NE=peWORCTWp1×8760+Ecool×pcw×8760(10)

Where pe is the price of electricity, with a value of 0.11 $/kWh, pcw is the price of cooling water, with a value of 0.35 $/GJ (Liu et al., 2020).

For the heat transfer area of each component, the calculation is performed by Eq. 11 (Li et al., 2019):

Ak=Q˙k/Uk×ΔTk,LMTD(11)

Q˙k is the heat transfer rate of each component, and Uk is given specifically in Table 5. ΔTLMTD is the logarithmic mean temperature difference (Eq. 12):

ΔTk,LMTD=ΔTk,AΔTk,B/lnΔTk,A/ΔTk,B(12)

TABLE 5
www.frontiersin.org

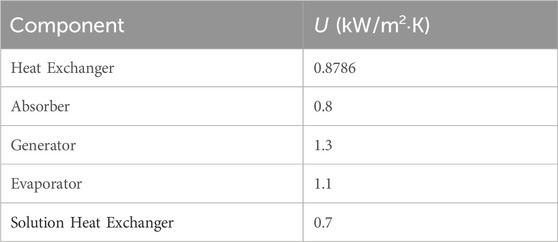

TABLE 5. Total heat transfer coefficient of each component.

Where ΔTk,A and ΔTk,B represent the temperature difference between the cooling and heating streams for each component, respectively.

3.5 Performance evaluation

To evaluate the capacity of the waste heat recovery system, some concepts is calcluated using Eqs 1315:

W˙net=W˙ORCTW˙P1W˙P2(13)
Q˙e=me˙heiheo(14)
Q˙g=mg˙hgohgin(15)

W˙net and Q˙e represent the net power output of the whole system and the heat transfer rate of the evaporator, respectively. W˙ORCT is the net power output of the turbine, W˙P1 and W˙P2 are the power consumption of pump1 and pump2, respectively. Q˙g is the heat transfer rate delivered to the ARC.

The cooling exergy of the system is defined as Eq. 16:

E˙cool=E˙eoE˙ei(16)

The equation for the thermal efficiency of the systemis defined as Eq. 17:

COP=Q˙eQ˙g(17)

The exergy efficiency formula for the system is defined as Eq. 18:

ηEx=W˙net+E˙cool/E˙goE˙gout(18)

E˙go is the input exergy of the system, which is the boiler flue gas exergy for the sugar mill. E˙gout is the output exergy of the whole system.

3.6 Multi-objective optimization

To resolve the conflict between economic factors and the thermodynamic performance of the cycle, a non-dominated ranking genetic algorithm II (NSGA-II) is adopted for the multi-objective optimization of the cascaded system (Tan et al., 2023). As in Figure 3, the objective function, decision variables and constraints are the three elements of the optimization problem, and ηEx and LCOE are taken as the objectives to achieve the lowest cost optimum exergy efficiency ηEx and to obtain the appropriate system operating conditions. The decision-making variables and the range of values are shown in Table 6. The parameters of the genetic algorithm are summarized in Table 7. The flow chart of NSGA-II is shown in Figure 4.

FIGURE 3
www.frontiersin.org

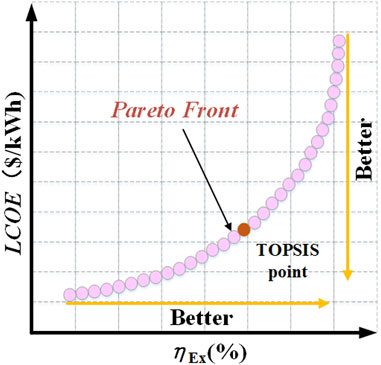

FIGURE 3. Graphical representation of the Pareto front of an objective optimization problem.

TABLE 6
www.frontiersin.org

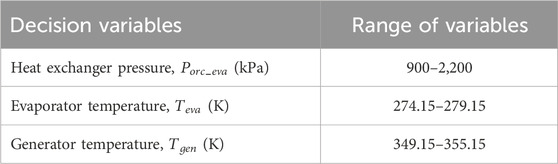

TABLE 6. Decision variables and their ranges.

TABLE 7
www.frontiersin.org

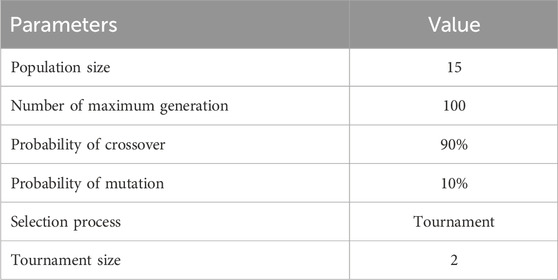

TABLE 7. Adjustable parameters used for the optimization.

FIGURE 4
www.frontiersin.org

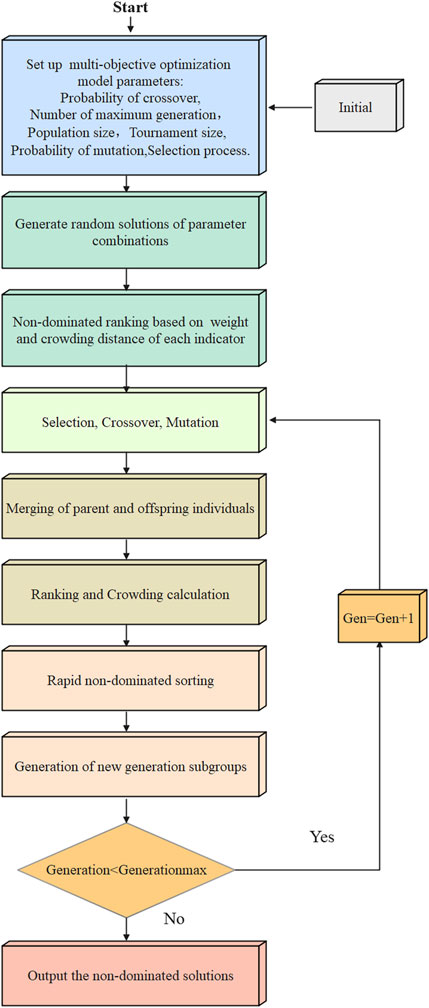

FIGURE 4. The flow chart of NSGA-II.

3.7 Validation

To confirm the accuracy of the system model, the key subsystems of the built system were verified. The key subsystems include the ORC and the absorption refrigeration cycle, and the modeling of each subsystem were validated individually using experimental data from the literature. To validate the ORC model, results from the literature (Vaja and Gambarotta, 2010) were used for comparison. The ARC model was also validated using the literature (Zare, 2020). As shown in Tables 8, 9, there is excellent concordance between the findings of the current study and the data presented in the literature (Vaja and Gambarotta, 2010; Zare, 2020). Therefore, the accuracy of the current study results was verified. As can be seen from Figure 5, the simulation results of this study are in excellent consistency with references.

TABLE 8
www.frontiersin.org

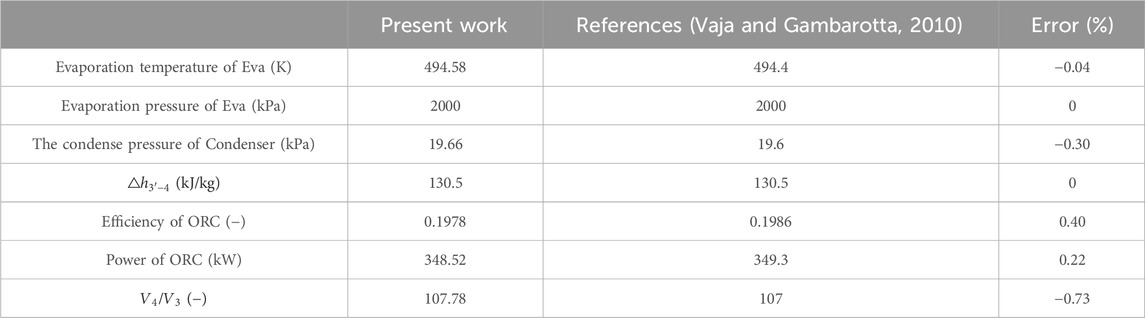

TABLE 8. The results of comparison between present work and Ref. (Vaja and Gambarotta, 2010).

TABLE 9
www.frontiersin.org

TABLE 9. The results of comparison between present work and Ref. (Zare, 2020).

FIGURE 5
www.frontiersin.org

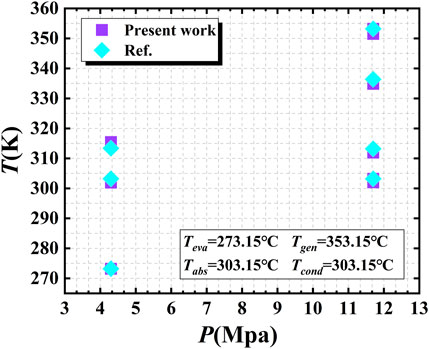

FIGURE 5. Model authentication between present study with Ref.

4 Results and discussion

This section discusses and analyzes a new system developed based on waste flue gas from sugar mills after bagasse combustion with ORC and absorption refrigeration system composition. The analysis is carried out for parameters such as evaporation temperature and generator temperature to summarize the conclusions. Bagasse is composed of 0.8% wax, 2.3% ash, 18.1% lignin, 33.8% hemicellulose, as well as 43.6% cellulose (Nemomsa et al., 2022). Bagasse is burned in the sugar mill to provide steam for the sugar mill process, however a significant quantity of low-temperature heat is still emitted to the atmosphere with the flue gas. The heat source in the ORC system is the flue gas from the sugar mill (190°C) (Dogbe et al., 2018), and has a high exergy content of 11.95 MW. This paper presents the system’s exergy, mass flow rate, distribution of fire loss of each component, and multi-objective optimization results.

4.1 The analysis of ORC working fluid

The operational performance of waste heat recovery systems is affected by the properties of the organic working fluid. Examples of ideal working fluid properties include suitable boiling point temperature, lower latent heat, higher critical temperature and pressure, appropriate specific volume, higher thermal conductivity, lower density and surface tension, non-corrosive, higher thermal stability, non-toxic, zero ODP, as well as low GWP (Hung et al., 1997; Luo et al., 2015). In addition, the closer the critical temperature of the working fluid is to the temperature of the heat source, the higher the performance of the system will be (Lu et al., 2020). Based on the aforementioned conditions, nine organic working fluids were screened, as shown in Table 10. By comparing the operation results under the same working conditions, the ORC working fluids with more ideal conditions were obtained.

TABLE 10
www.frontiersin.org

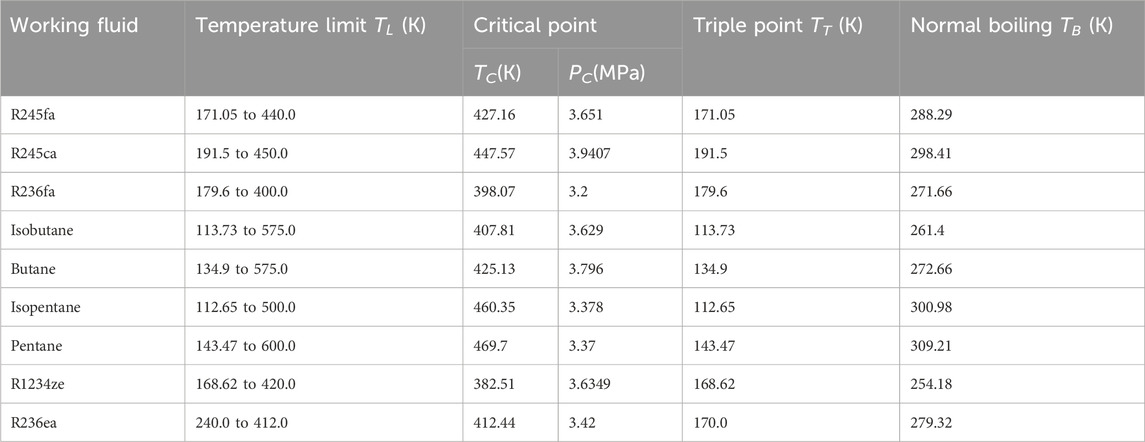

TABLE 10. The thermodynamic properties of selected organic fluids.

The net power output of ORC is reflective of the performance of the waste heat recovery system. Therefore, in the present research, the net power output was determined as the target value, and the net power output (W˙orc_net) was tested by varying the evaporator temperature of the ORC system (Porc_eva). The net power output of the ORC system (W˙orc_net) at nine organic working fluids was analyzed by setting the evaporator pressure in the organic Rankine cycle from 900 to 2,200 kPa. As shown in Figure 6, Pentane, Isopentane and R245ca can reach the highest point of W˙orc_net at the lowest pressure operating conditions, for example, when the working fluid is Pentane, Porc_eva = 900 kPa, W˙orc_net = 569.43 kW, as the evaporator pressure continues to increase, the performance of the three working fluids gradually decreases, indicating that the working fluids are not suitable for operation in this pressure region. The six organic working fluids except for Pentane, Isopentane and R245ca gradually increase with increasing evaporator pressure in the constrained region, and the net power gradually moves toward the highest point. The increase in evaporator pressure Porc_eva, although it raises W˙orc_net, also puts an additional burden on the system, which in return causes to an increase in cost, so a suitable value needs to be found between evaporator pressure and W˙orc_net. When considering the specific application of the working fluid, attention needs to be paid to its latent heat properties Pentane, Isopentane and R245ca have the highest net power upfront in the ORC system, but as Porc_eva increases, their latent heat decreases more rapidly than other working fluids, leading to a more rapid reduction in system efficiency and a decrease in heat transfer between the flue gas as well as the organic working fluid. Both Butane and R245fa have relatively close critical temperatures, but Butane has a slightly lower critical temperature, which is closer to the waste heat temperature. Additionally, Butane has a lower triple point temperature, which may contribute to better liquefaction performance. Selecting Butane as the working fluid in the ORC can reduce energy waste within the system and provide additional thermal energy for the ARC, potentially offering enhanced refrigeration effects. Furthermore, Butane exhibits better energy efficiency and has a lesser impact on the environment due to its lower ozone depletion potential (ODP) and global warming potential (GWP).

FIGURE 6
www.frontiersin.org

FIGURE 6. Net output power of ORC system by different organic working substances.

4.2 Parametric study

4.2.1 High pressure in ORC analysis

The outlet pressure of Pump1, as the highest pressure in the ORC system, affects many factors in the system, for example, the heat load of the heat exchanger. Therefore, it is an important object of study in this research. As shown in Figures 7A–F, this study analyzes the effect of Pump1 outlet pressure on W˙net for different TARC_Eva operating conditions. For the same Pump1 outlet pressure, the higher the evaporator temperature, the greater the variation in the values of W˙net and ηEx, For example, when the working fluid is R236ea and Pump1 outlet pressure = 1,400 kPa, W˙net = 419.62 KW (TARC_Eva = 1°C), W˙net = 420.15 KW (TARC_Eva = 3°C), W˙net = 420.65 KW (TARC_Eva = 5°C). After Pentane, Isopentane and R245ca reached the peak early relative to the other six working fluids, the increasing trend gradually disappeared with the increase of pressure. The remaining six organic working fluids show a slowly increasing trend in general. If the isentropic efficiency of the turbine is kept constant, W˙net can be increased by increasing the maximum pressure, but with the pressurization of Pump1, it is difficult to sustain the consistency of turbine efficiency, which eventually leads to increased destruction in other components.

FIGURE 7
www.frontiersin.org

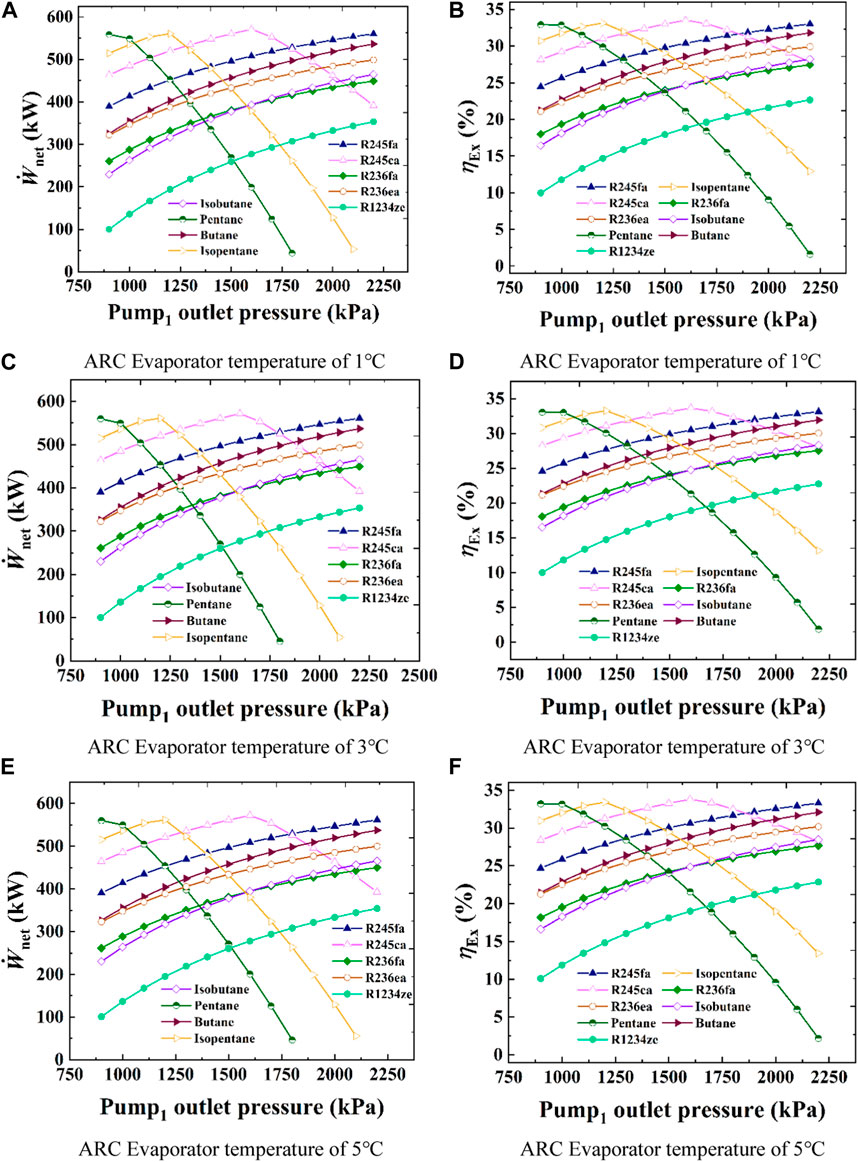

FIGURE 7. Effect of high pressure in ORC on W˙net. (A) ARC Evaporator temperature of 1°C. (B) ARC Evaporator temperature of 1°C. (C) ARC Evaporator temperature of 3°C. (D) ARC Evaporator temperature of 3°C. (E) ARC Evaporator temperature of 5°C. (F) ARC Evaporator temperature of 5°C.

As shown in Figure 7F, when Pump1 outlet pressure = 2,100 kPa and other working conditions are the same, the total exergy system efficiency ηEx from largest to smallest is R245fa, Butane, R236ea, R245ca, Isobutane, R236fa, R1234ze, Isopentane, and Pentane, moreover, the W˙net and ηEx of Butane showed an increasing trend with continuous pressurization, verifying the choice of Butane as the best working fluid.

4.2.2 The effect of evaporator temperature

Based on the comprehensive research on the performance impact of various organic working fluids on the ORC system, it was found that Butane provides superior benefits compared to other fluids. Therefore, in the subsequent analysis, we have chosen Butane as the working fluid for the ORC system. The evaporator temperature in the absorption refrigeration cycle is a key design parameter, and Figure 8 presents the impact of evaporator temperature on the exergy efficiency (ηEx) and the net system output power (W˙net) under the condition where the heat source temperature is set at 190°C and the ORC working fluid is Butane. It is evident that W˙net and ηEx improves with the increase of evaporator temperature. When the temperature of the evaporator falls within the range of 274.15°C–279.15°C, enhancing the evaporator temperature enhances the efficacy of the waste heat recovery system. This is because of the simultaneous rise in both evaporator pressure and temperature, resulting in a substantial augmentation in the absorption efficiency of the diluted solution, leading to a noteworthy enhancement in effectiveness.

FIGURE 8
www.frontiersin.org

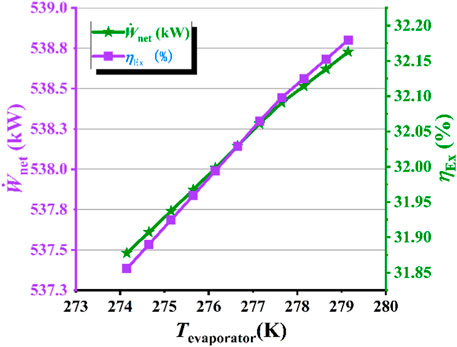

FIGURE 8. Effect of ARC evaporator temperature on the net system output power W˙net and the exergy efficiency ηEx.

4.2.3 The effect of generator temperature

The temperature of the generator is also an important parameter to study when designing the ARC system, heat transfer rate of condenser2 (Q˙cond2), and the total net output of the system W˙net as well as the exergy efficiency ηEx are plotted in Figure 9. The graph shows that the generator temperature changes from 349.15 K to 355.15 K, as the generator temperature increases, the exergy efficiency of the system ηEx gradually improves, while the net output power varies in the opposite trend. The reason is that as the temperature of the generator continues to rise, the solubility of the absorber is greater, the amount of solution circulation is reduced, the power consumption of the pump is lessened, and the evaporator absorbs more heat, resulting in a reduction in the thermal load of the component, ultimately increasing ηEx and reducing the net output power. For example, as shown in Figure 9, the variation trend of the heat transfer rate of the condenser is listed. As the temperature of the generator rises, Q˙cond2 gradually decreases, so the ηEx increases and the W˙net decreases.

FIGURE 9
www.frontiersin.org

FIGURE 9. Effects of generator temperature on Q˙cond2, W˙net and ηEx.

4.2.4 The effect of ORC evaporator pressure and condenser temperature

In an organic Rankine cycle (ORC) system, the maximum working pressure (Pmax) and condenser temperature (Tcond1) have a significant impact on several performance parameters of the whole system, as depicted in Figures 10A–D. The results indicate that increasing the maximum working pressure of the ORC system can markedly enhance the net power output and exergy efficiency (ηEx) of the system. When maintaining a constant condenser temperature, elevating the maximum pressure results in an increase in turbine efficiency, with the net turbine power growing at a rate faster than the energy consumption of the pumps, thereby augmenting the net output power of the system. This series of enhancements will exert a positive influence on the input costs and LCOE of the system, thereby enhancing the system’s economic viability. The input cost experiences a significant decrease when Tcond1 exceeds 304 K. The primary reason for this phenomenon is that the temperature of the Tcond1 leads to a greater temperature differential for the working fluid in ORC during the expansion process, consequently enhancing power generation performance. Furthermore, the higher condenser temperature signifies a reduction in the surface area of the heat exchanger, reducing the size and cost of the heat exchanger within the system, subsequently lowering the energy recovery costs, resulting in a reduction in the LCOE.

FIGURE 10
www.frontiersin.org

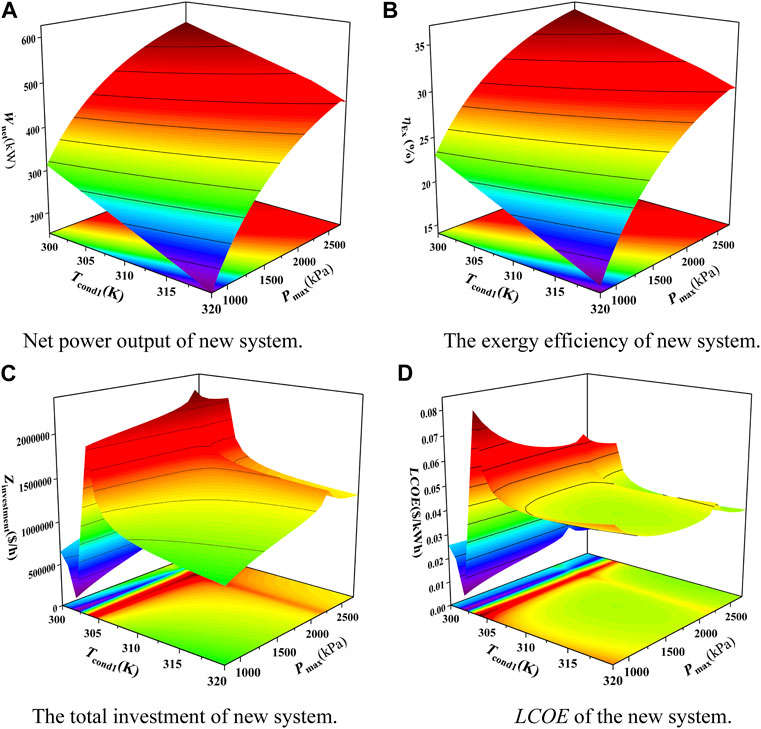

FIGURE 10. Effects of ORC evaporator pressure and condenser temperature on the system. (A) Net power output of new system. (B) The exergy efficiency of new system. (C) The total investment of new system. (D) LCOE of the new system.

4.2.5 The effect of ARC evaporator temperature and condenser temperature

The effects of ARC evaporator temperature and condenser temperature on the net output power, exergy efficiency, total investment, and LCOE of the system are shown in Figures 11A–D. The results indicate that decreasing the condenser temperature (Tcond2) and increasing the evaporator temperature (Tevaporator) in the ARC system enhance the net power output and exergy efficiency. As the ARC condenser temperature rises, the entry temperature of the working fluid must also increase to match the heat source, leading to increased operating costs for the system. Although investment generally shows a downward trend, the additional cost of increasing the temperature outweighs the benefits of heat recovery, resulting in an increase in LCOE. To ensure optimal system performance and economics, it is crucial to have an economically viable energy recovery solution available for the system and select the appropriate turning point of the LCOE versus input cost surface, for example, Tcond2 = 303.15.

FIGURE 11
www.frontiersin.org

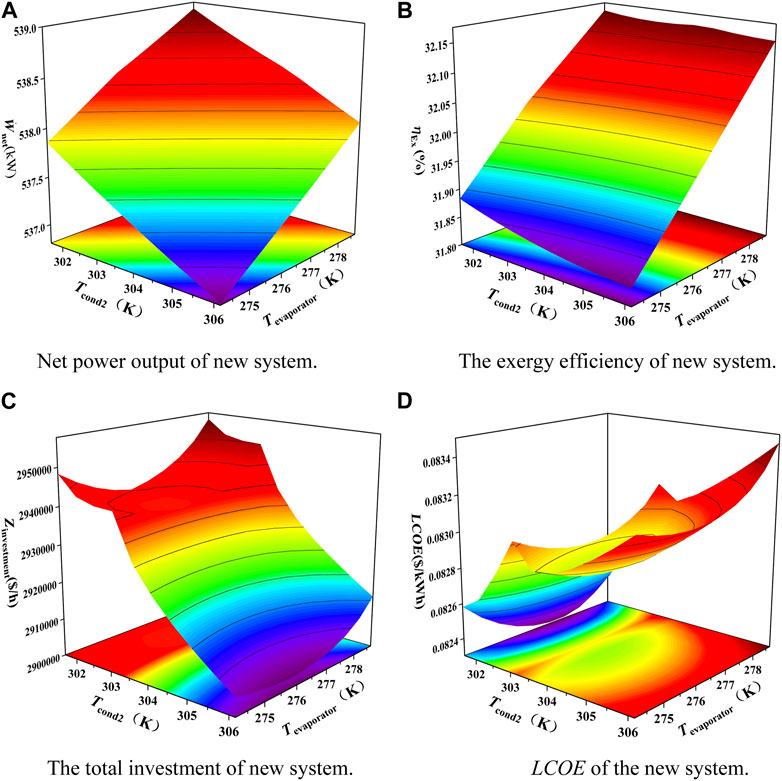

FIGURE 11. Effects of ARC evaporator pressure and condenser temperature on the system. (A) Net power output of new system. (B) The exergy efficiency of new system. (C) The total investment of new system. (D) LCOE of the new system.

4.2.6 The effect of generator temperature and condenser temperature

Figures 12A–D illustrates the impact of ARC generator temperature and condenser temperature on the net output power, exergy efficiency, total investment, and LCOE of the overall system. While keeping Tcond2 constant, the system’s exergy efficiency improves with an increase in generator temperature. As depicted in Figs. c–d, the rise in generator temperature necessitates the use of costlier materials to withstand the high-temperature environment, leading to a concomitant increase in both total investment and LCOE.

FIGURE 12
www.frontiersin.org

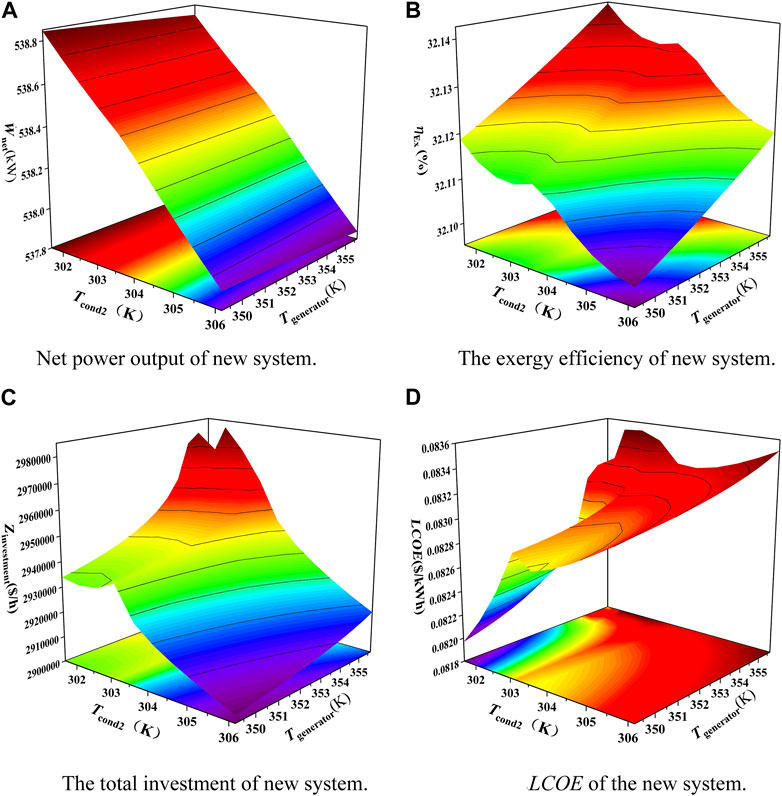

FIGURE 12. Effects of ARC Generator pressure and condenser temperature on the system. (A) Net power output of new system. (B) The exergy efficiency of new system. (C) The total investment of new system. (D) LCOE of the new system.

4.3 The analysis of exergy destruction in the component

Figure 13 presents the findings of the exergy analysis based on the design conditions for the waste heat recovery system. The primary function of Pump2 is to enhance heat transfer efficiency, rather than being the primary workload in the circulation system, hence the negligible impact of Pump2 can be neglected. 50.8% of exergy destruction in the system occurs in the generator, followed by the evaporator and absorber. This is because of the high-temperature ammonia mixture solution under isobaric conditions, which causes the generator to operate at elevated temperatures. As a result, it concentrated most exergy destruction in the generator and absorber. These irreversibilities are mainly due to mixing destruction in the generator and absorber as well as to concentration gradients, temperature gradients and external forces (Nami et al., 2017). The exergy destruction in the ORC system occurs mainly in the HE (6.79%), and the high value of energy destruction is primarily caused by the large temperature discrepancy that exists between the cold and hot flows in the component (Aman et al., 2014). This figure shows the need to consider the design of the generator, absorber and Heat Exchanger to reduce exergy destruction by them. The thermodynamic properties of the system are shown in Table 11.

FIGURE 13
www.frontiersin.org

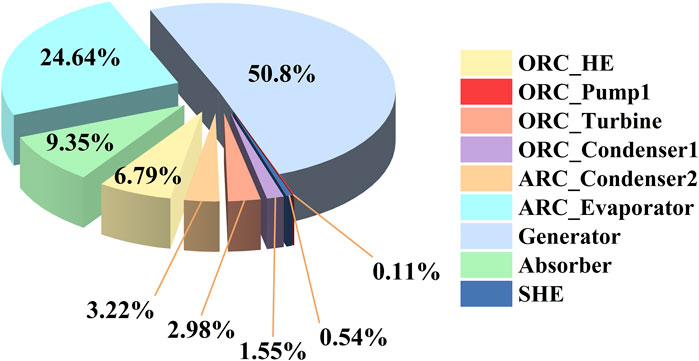

FIGURE 13. The exergy destruction rate of each component of the system.

TABLE 11
www.frontiersin.org

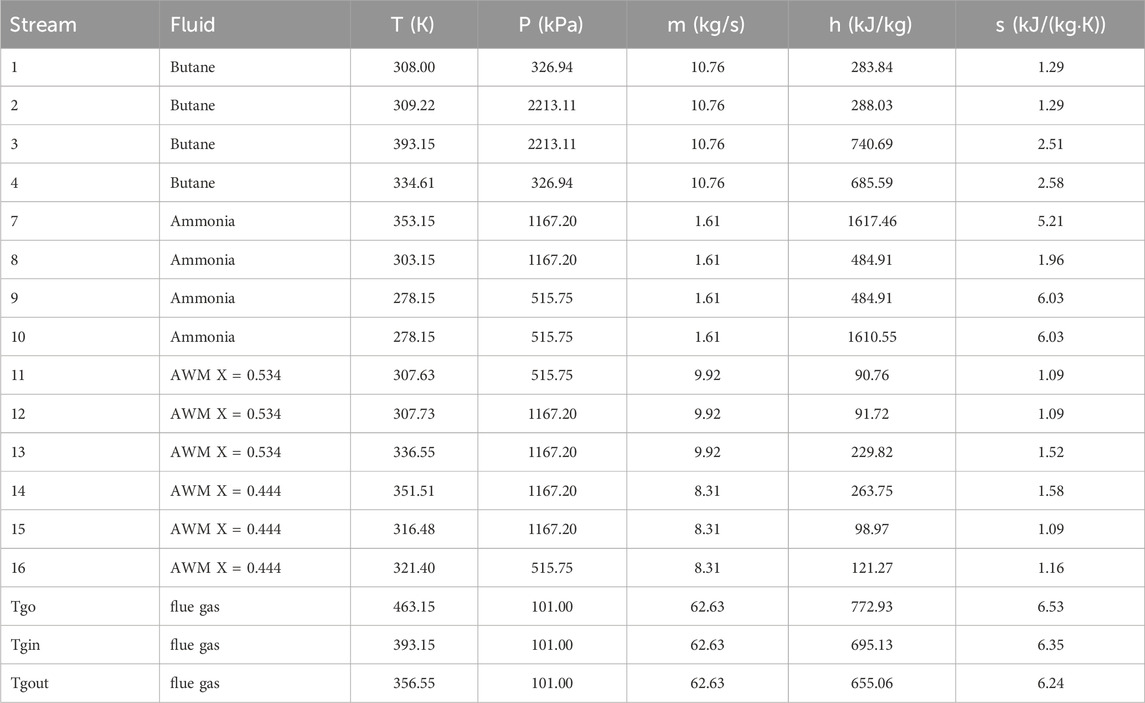

TABLE 11. The parameters of each stream.

4.4 The results of economic analysis

The economic efficiency is an effective factor to judge the sustainability of the system, which depends not only on the exergy efficiency of the system but also on the net output efficiency and the LCOE, as shown in Table 12 for the new sugar plant. The investment cost of the new system is 2.94 million dollars (M$). It can be concluded from Figure 14 that the overall cost of the ORC cycle is based higher than the cost of the ARC cycle. In addition, the ORC system has the highest heat exchanger cost. However, by recycling the system, the net power output is increased by 0.5385 MW, providing 4717.26 MW of renewable electricity and 15,820.56 MW of space cooling capacity for the sugar plant per year. The payback period of the system is 5.79 years. The economic performance of the system is highly dependent on the price of renewable electricity, and the higher the price, the more investment potential the project has. The results of the economic analysis of the system illustrate that the waste heat recovery system of the sugar mill has a great economic potential, and the project is economically feasible.

TABLE 12
www.frontiersin.org

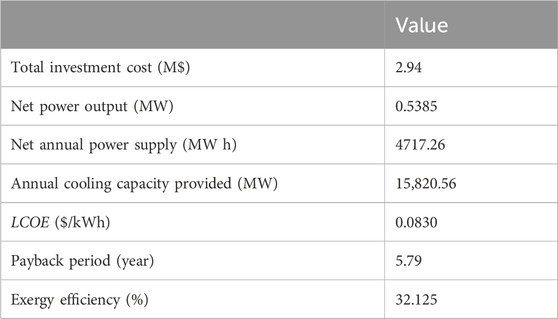

TABLE 12. The economic analysis of the new system.

FIGURE 14
www.frontiersin.org

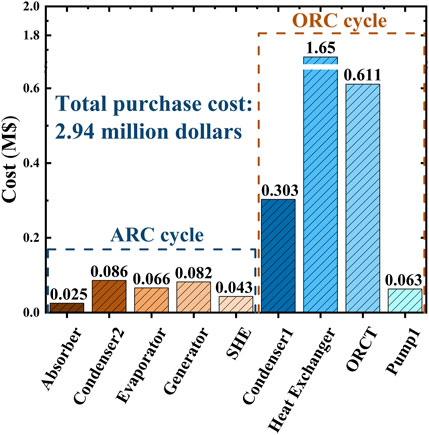

FIGURE 14. Cascade system component cost.

4.5 Multi-objective optimization results

In this study, we employ NSGA-II to identify optimal system operation parameters in order to address the trade-off between LCOE and exergy efficiency ηEx Figure 15 illustrates the Pareto front solutions for both the ORC and ARC systems. The Pareto Frontier represents potential executable plans at various points, typically selected based on the decision maker’s objectives. Points A and B correspond to two optimal solutions, one with the minimum LCOE and the other with the maximum ηEx, respectively. Point C represents an ideal scenario that satisfies both the minimum LCOE and the maximum ηEx. However, due to the inherent conflict between these two objectives, they cannot be simultaneously achieved. Therefore, we employ the results of the TOPSIS analysis to identify point D, which is closest to point C and thus considered the best available solution. This solution represents the optimal system operation parameters, as detailed in Table 12. The results after running are shown in Table 13. The optimized ηEx achieved a significant increase to 31.57%, demonstrating substantial improvement. Notably, in terms of economic indicators, the LCOE has effectively converged with the electricity price, reaching a reduced value of 0.0406$/kWh. This clearly indicates the waste heat recovery system’s slight but discernible economic advantage. In order to comprehensively assess the economic returns of the entire system, the purchase prices for electricity and cooling have been set at an average annual rate of €30 per MWh and €20 per MWh (Nami and Anvari-Moghaddam, 2020). Furthermore, the implementation of the optimized system is expected to yield an annual revenue of $136,300 from electricity sales, while also resulting in substantial savings of around $308,600 in cooling expenses. When considering the overall outcomes, these optimization results establish a viable solution characterized by both remarkable economic efficiency and notable technical advantages.

FIGURE 15
www.frontiersin.org

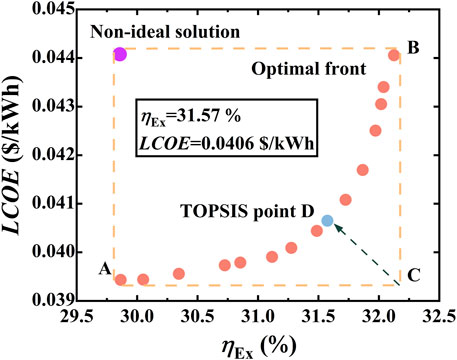

FIGURE 15. System Pareto front solution with LCOE and exergy efficiency ηEx as the objective function.

TABLE 13
www.frontiersin.org

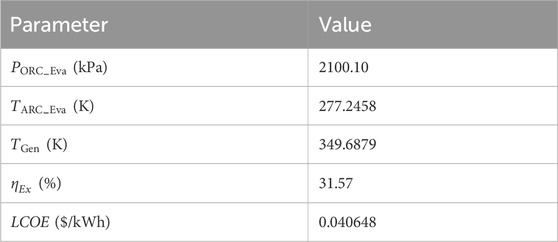

TABLE 13. Pareto-optimal solutions for the system operation.

4.6 Comparison of multiple systems and single system

Malwe et al. (2021) proposed a VCRS-ORC system aiming to achieve waste heat recovery, cooling, and electricity generation. The final exergy efficiency of this system was determined to be 17.95%, with a net output power of 0.296 kW. In this study, an ORC-ARC system was introduced to achieve higher energy utilization efficiency. Compared to the former, the exergy efficiency of this system increased by 14.175%, reaching a net output power of 5,385 kW. Significantly improved system efficiency and power output were achieved by studying the optimal working fluid in the ORC and analyzing key factors within the system.

4.7 Possible differences in real exploitation conditions

First, in the actual operation process, the heat exchanger may not reach the ideal pinch point designed, resulting in a large temperature difference and failure to achieve the desired performance. Second, the efficiency of pumps and turbines depends on variable operating conditions. The optimal working conditions of the pump and the turbine may be difficult to achieve, resulting in reduced system performance. The characteristics of the heat source affect the performance of ORC. In the actual operation process, heat source fluctuations will reduce the efficiency of the steam turbine and the effectiveness of the heat exchanger, so the performance may be reduced.

5 Conclusion

This research presents a novel waste heat recovery system composed of an absorption refrigeration cycle and an organic Rankine cycle, which is applied for the recovery of boiler flue gas in a sugar factory. By taking the utilization of flue gas, considerable power generation and refrigeration output are obtained, resulting in improvements in system irreversibility and exhaust emissions. An economic and thermodynamic analysis of the entire system are conducted. The main conclusions are summarized as:

(1) In this research, nine working fluids were adopted and among which Butane was identified as the most appropriate working fluid for ORC.

(2) With an investment of 2.94 million dollars (M$), the system has a high exergy efficiency of 32.125%, with an increased power output of 4717.26 MW h and an increased space cooling capacity of 15,820.56 MW per year for the sugar mill. Additionally, the payback period of the system can be shortened to 5.79 years.

(3) Through multi-objective optimization, the optimal operating parameters of the system are obtained. The LCOE at the optimum working condition is as low as 0.0406$/kWh, and the exergy efficiency is 31.57%. The annual revenue from electricity sales and the saving cost for cooling are $136,300 and $308,600, respectively.

(4) ORC and ARC were used for waste heat gradient utilization from boiler exhaust gas. The system has achieved multi-forms conversion of energy to cooling and generating electricity through cascade utilization of waste heat.

(5) The highest exergy destruction occurs in the generator, accounting for 50.8% of the overall system.

To expand this research in the future, it is necessary to evaluate the system by combining environmental factors. Second, it is crucial to consider the optimization of the heat exchanger model. There are various working fluids that can be used in absorption refrigeration cycles, and it is possible to conduct thermodynamic analysis by switching between them to optimize the system. In addition, it is essential to study different refrigeration systems and thus achieving a more efficient energy conversion system.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

ZW: Writing–original draft, Writing–review and editing. WG: Writing–review and editing. SZ: Methodology, Writing–review and editing. HS: Methodology, Writing–review and editing. WQ: Supervision, Writing–review and editing. LL: Project administration, Writing–review and editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was supported by Natural Science Foundation of China, (No. 22302044), Science and Technology Major Project of Guangxi under Grant, (AA23062041) and Supported by the Dean/Open Project of Guangxi Key Laboratory of Petrochemical Resource Processing and Process Intensification Technology, (No. 2022K010).

Conflict of interest

Authors SZ and HS were employed by Guangxi Yuchai Machinery Co., Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Aman, J., Ting, D. S.-K., and Henshaw, P. (2014). Residential solar air conditioning: energy and exergy analyses of an ammonia–water absorption cooling system. Appl. Therm. Eng. 62, 424–432. doi:10.1016/j.applthermaleng.2013.10.006

CrossRef Full Text | Google Scholar

Bandgar, R. S., Jagtap, K. M., Kokare, S. S., and Kshirsagar, A. S. (2018). Waste heat from sugar indusrty to drive vapour absorption acs. JournalNX 29 (7), 1039–1051.

Google Scholar

Bhattacharyya, S. C., and Quoc Thang, D. N. (2004). Economic buy-back rates for electricity from cogeneration: case of sugar industry in Vietnam. Energy 29, 1039–1051. doi:10.1016/j.energy.2003.04.001

CrossRef Full Text | Google Scholar

Birru, E., Erlich, C., Beyene, G. B., and Martin, A. (2016). Upgrading of a traditional sugar cane mill to a modern mill and assessing the potential of energy saving during steady state and transient conditions—part II: models for a modified cogeneration unit. Biomass Conv. bioref. 6, 233–245. doi:10.1007/s13399-015-0180-8

CrossRef Full Text | Google Scholar

Boukelia, T. E., Arslan, O., and Mecibah, M. S. (2016). ANN-based optimization of a parabolic trough solar thermal power plant. Appl. Therm. Eng. 107, 1210–1218. doi:10.1016/j.applthermaleng.2016.07.084

CrossRef Full Text | Google Scholar

Cai, D., Jiang, J., He, G., Li, K., Niu, L., and Xiao, R. (2016). Experimental evaluation on thermal performance of an air-cooled absorption refrigeration cycle with NH3–LiNO3 and NH3–NaSCN refrigerant solutions. Energy Convers. Manag. 120, 32–43. doi:10.1016/j.enconman.2016.04.089

CrossRef Full Text | Google Scholar

Chouhan, P., and Chandrakar, A. (2014). Performance enhancement of sugar mill by alternate cooling system for condenser. IOSR J. Mech. Civ. Eng. 11, 18–25. doi:10.9790/1684-11511825

CrossRef Full Text | Google Scholar

de Matos, M., Santos, F., and Eichler, P. (2020). “Chapter 1 - sugarcane world scenario,” in Sugarcane biorefinery, technology and perspectives. Editors F. Santos, S. C. Rabelo, M. De Matos, and P. Eichler (Academic Press), Cambridge, MA, USA, 1–19. doi:10.1016/B978-0-12-814236-3.00001-9

CrossRef Full Text | Google Scholar

Dogbe, E. S., Mandegari, M., and Görgens, J. F. (2019). Assessment of the thermodynamic performance improvement of a typical sugar mill through the integration of waste-heat recovery technologies. Appl. Therm. Eng. 158, 113768. doi:10.1016/j.applthermaleng.2019.113768

CrossRef Full Text | Google Scholar

Dogbe, E. S., Mandegari, M. A., and Görgens, J. F. (2018). Exergetic diagnosis and performance analysis of a typical sugar mill based on Aspen Plus® simulation of the process. Energy 145, 614–625. doi:10.1016/j.energy.2017.12.134

CrossRef Full Text | Google Scholar

Du, S., Wang, R. Z., and Xia, Z. Z. (2014). Optimal ammonia water absorption refrigeration cycle with maximum internal heat recovery derived from pinch technology. Energy 68, 862–869. doi:10.1016/j.energy.2014.02.065

CrossRef Full Text | Google Scholar

Ebrahimi-Moghadam, A., Farzaneh-Gord, M., Jabari Moghadam, A., Abu-Hamdeh, N. H., Lasemi, M. A., Arabkoohsar, A., et al. (2021). Design and multi-criteria optimisation of a trigeneration district energy system based on gas turbine, Kalina, and ejector cycles: exergoeconomic and exergoenvironmental evaluation. Energy Convers. Manag. 227, 113581. doi:10.1016/j.enconman.2020.113581

CrossRef Full Text | Google Scholar

Fujii, S., Horie, N., Nakaibayashi, K., Kanematsu, Y., Kikuchi, Y., and Nakagaki, T. (2019). Design of zeolite boiler in thermochemical energy storage and transport system utilizing unused heat from sugar mill. Appl. Energy 238, 561–571. doi:10.1016/j.apenergy.2019.01.104

CrossRef Full Text | Google Scholar

Ghannadzadeh, A., and Sadeqzadeh, M. (2017). Exergy aided pinch analysis to enhance energy integration towards environmental sustainability in a chlorine-caustic soda production process. Appl. Therm. Eng. 125, 1518–1529. doi:10.1016/j.applthermaleng.2017.07.052

CrossRef Full Text | Google Scholar

Hung, T. C., Shai, T. Y., and Wang, S. K. (1997). A review of organic rankine cycles (ORCs) for the recovery of low-grade waste heat. Energy 22, 661–667. doi:10.1016/S0360-5442(96)00165-X

CrossRef Full Text | Google Scholar

Kapanji, K. K., Haigh, K. F., and Görgens, J. F. (2021). Techno-economics of lignocellulose biorefineries at South African sugar mills using the biofine process to co-produce levulinic acid, furfural and electricity along with gamma valeractone. Biomass Bioenergy 146, 106008. doi:10.1016/j.biombioe.2021.106008

CrossRef Full Text | Google Scholar

Khaljani, M., Khoshbakhti Saray, R., and Bahlouli, K. (2015). Comprehensive analysis of energy, exergy and exergo-economic of cogeneration of heat and power in a combined gas turbine and organic Rankine cycle. Energy Convers. Manag. 97, 154–165. doi:10.1016/j.enconman.2015.02.067

CrossRef Full Text | Google Scholar

Kumar, B., Selvarasan, I., Annadurai, G., and Ramalingam, S. (2018). Thermodynamic analysis of a single effect lithium bromide water absorption system using waste heat in sugar industry. Therm. Sci. 22, 507–517. doi:10.2298/tsci151013285b

CrossRef Full Text | Google Scholar

Li, T. X., Wang, R. Z., Kiplagat, J. K., Wang, L. W., and Oliveira, R. G. (2009). Thermodynamic study of a combined double-way solid–gas thermochemical sorption refrigeration cycle. Int. J. Refrig. 32, 1570–1578. doi:10.1016/j.ijrefrig.2009.05.004

CrossRef Full Text | Google Scholar

Li, T. X., Wang, R. Z., and Li, H. (2014). Progress in the development of solid–gas sorption refrigeration thermodynamic cycle driven by low-grade thermal energy. Prog. Energy Combust. Sci. 40, 1–58. doi:10.1016/j.pecs.2013.09.002

CrossRef Full Text | Google Scholar

Li, T. X., Xu, J. X., Yan, T., and Wang, R. Z. (2016). Development of sorption thermal battery for low-grade waste heat recovery and combined cold and heat energy storage. Energy 107, 347–359. doi:10.1016/j.energy.2016.03.126

CrossRef Full Text | Google Scholar

Li, X., Song, J., Yu, G., Liang, Y., Tian, H., Shu, G., et al. (2019). Organic Rankine cycle systems for engine waste-heat recovery: heat exchanger design in space-constrained applications. Energy Convers. Manag. 199, 111968. doi:10.1016/j.enconman.2019.111968

CrossRef Full Text | Google Scholar

Liu, X., Yang, X., Yu, M., Zhang, W., Wang, Y., Cui, P., et al. (2020). Energy, exergy, economic and environmental (4E) analysis of an integrated process combining CO2 capture and storage, an organic Rankine cycle and an absorption refrigeration cycle. Energy Convers. Manag. 210, 112738. doi:10.1016/j.enconman.2020.112738

CrossRef Full Text | Google Scholar

Lu, F., Zhu, Y., Pan, M., Li, C., Yin, J., and Huang, F. (2020). Thermodynamic, economic, and environmental analysis of new combined power and space cooling system for waste heat recovery in waste-to-energy plant. Energy Convers. Manag. 226, 113511. doi:10.1016/j.enconman.2020.113511

CrossRef Full Text | Google Scholar

Luo, D., Mahmoud, A., and Cogswell, F. (2015). Evaluation of low-GWP fluids for power generation with organic rankine cycle. Energy 85, 481–488. doi:10.1016/j.energy.2015.03.109

CrossRef Full Text | Google Scholar

Malwe, P. D., Gawali, B. S., Choudhari, M. S., Dhalait, R. S., and Deshmukh, N. S. (2021). Energy and exergy analysis of an organic rankine cycle integrated with vapour compression refrigeration system. Adv. Appl. Math. Sci. 20.

Google Scholar

Mana, A. A., Kaitouni, S. I., Kousksou, T., and Jamil, A. (2023). Enhancing sustainable energy conversion: comparative study of superheated and recuperative ORC systems for waste heat recovery and geothermal applications, with focus on 4E performance. Energy 284, 128654. doi:10.1016/j.energy.2023.128654

CrossRef Full Text | Google Scholar

Men, Y., Liu, X., and Zhang, T. (2021). Performance comparison of different total heat exchangers applied for waste heat recovery. Appl. Therm. Eng. 182, 115715. doi:10.1016/j.applthermaleng.2020.115715

CrossRef Full Text | Google Scholar

Mohammadi, F., Roedl, A., Abdoli, M. A., Amidpour, M., and Vahidi, H. (2020). Life cycle assessment (LCA) of the energetic use of bagasse in Iranian sugar industry. Renew. Energy 145, 1870–1882. doi:10.1016/j.renene.2019.06.023

CrossRef Full Text | Google Scholar

Nami, H., and Anvari-Moghaddam, A. (2020). Small-scale CCHP systems for waste heat recovery from cement plants: thermodynamic, sustainability and economic implications. Energy 192, 116634. doi:10.1016/j.energy.2019.116634

CrossRef Full Text | Google Scholar

Nami, H., Arabkoohsar, A., and Anvari-Moghaddam, A. (2019). Thermodynamic and sustainability analysis of a municipal waste-driven combined cooling, heating and power (CCHP) plant. Energy Convers. Manag. 201, 112158. doi:10.1016/j.enconman.2019.112158

CrossRef Full Text | Google Scholar

Nami, H., Nemati, A., and Jabbari Fard, F. (2017). Conventional and advanced exergy analyses of a geothermal driven dual fluid organic Rankine cycle (ORC). Appl. Therm. Eng. 122, 59–70. doi:10.1016/j.applthermaleng.2017.05.011

CrossRef Full Text | Google Scholar

Nemati, A., Nami, H., Ranjbar, F., and Yari, M. (2017). A comparative thermodynamic analysis of ORC and Kalina cycles for waste heat recovery: a case study for CGAM cogeneration system. Case Stud. Therm. Eng. 9, 1–13. doi:10.1016/j.csite.2016.11.003

CrossRef Full Text | Google Scholar

Nemomsa, S., Tibba, G., Dejene, N., and Negeri, D. (2022). Design and simulation of combined flue gas and steam bagasse dryer to increase boiler efficiency of sugar factory. Rochester, NY, USA: Social Science Research Network. doi:10.2139/ssrn.4064539

CrossRef Full Text | Google Scholar

Pan, M., Lu, F., Zhu, Y., Li, H., Yin, J., Liao, Y., et al. (2021). 4E analysis and multiple objective optimizations of a cascade waste heat recovery system for waste-to-energy plant. Energy Convers. Manag. 230, 113765. doi:10.1016/j.enconman.2020.113765

CrossRef Full Text | Google Scholar

Pan, M., Zhu, Y., Liang, Y., Lu, F., Zhi, R., and Xiao, G. (2021). Performance assessment of a waste-heat driven CO2-based combined power and refrigeration cycle for dual-temperature refrigerated truck application. Energy Convers. Manag. 249, 114863. doi:10.1016/j.enconman.2021.114863

CrossRef Full Text | Google Scholar

Pethurajan, V., Sivan, S., and Joy, G. C. (2018). Issues, comparisons, turbine selections and applications – an overview in organic Rankine cycle. Energy Convers. Manag. 166, 474–488. doi:10.1016/j.enconman.2018.04.058

CrossRef Full Text | Google Scholar

Rosillo-Calle, F. (2016). A review of biomass energy – shortcomings and concerns. J. Chem. Technol. Biotechnol. 91, 1933–1945. doi:10.1002/jctb.4918

CrossRef Full Text | Google Scholar

Singh, O. K. (2019). Exergy analysis of a grid-connected bagasse-based cogeneration plant of sugar factory and exhaust heat utilization for running a cold storage. Renew. Energy 143, 149–163. doi:10.1016/j.renene.2019.05.012

CrossRef Full Text | Google Scholar

Singh, O. K. (2020). Application of Kalina cycle for augmenting performance of bagasse-fired cogeneration plant of sugar industry. Fuel 267, 117176. doi:10.1016/j.fuel.2020.117176

CrossRef Full Text | Google Scholar

Srikhirin, P., Aphornratana, S., and Chungpaibulpatana, S. (2001). A review of absorption refrigeration technologies. Renew. Sustain. Energy Rev. 5, 343–372. doi:10.1016/S1364-0321(01)00003-X

CrossRef Full Text | Google Scholar

Tan, D., Wu, Y., Lv, J., Li, J., Ou, X., Meng, Y., et al. (2023). Performance optimization of a diesel engine fueled with hydrogen/biodiesel with water addition based on the response surface methodology. Energy 263, 125869. doi:10.1016/j.energy.2022.125869

CrossRef Full Text | Google Scholar

The Chemical Engineering Plant Cost Index (n.d.), (2022). Chemical Engineering. Available at: https://www.chemengonline.com/pci-home/ (Accessed September 21, 2022).

Google Scholar

Tian, M., Yu, Z., Zhao, H., and Yin, J. (2018). Thermodynamic analysis of an integrated solid oxide fuel cell, Organic Rankine Cycle and absorption chiller trigeneration system with CO2 capture. Energy Convers. Manag. 171, 350–360. doi:10.1016/j.enconman.2018.05.108

CrossRef Full Text | Google Scholar

Uphade, D. B. (2021). The potential of heat recovery for air-conditioning in sugar industry. J. Inst. Eng. India Ser. C 102, 1299–1309. doi:10.1007/s40032-021-00741-4

CrossRef Full Text | Google Scholar

Usda, U. S. D. of A, (2018). Sugar: world markets and trade. USDA. Washington, DC, USA.

Google Scholar

Vaja, I., and Gambarotta, A. (2010). Internal combustion engine (ICE) bottoming with organic rankine cycles (ORCs). Energy 35, 1084–1093. doi:10.1016/j.energy.2009.06.001

CrossRef Full Text | Google Scholar

Wang, S., Liu, C., Li, J., Sun, Z., Chen, X., and Wang, X. (2020). Exergoeconomic analysis of a novel trigeneration system containing supercritical CO2 Brayton cycle, organic Rankine cycle and absorption refrigeration cycle for gas turbine waste heat recovery. Energy Convers. Manag. 221, 113064. doi:10.1016/j.enconman.2020.113064

CrossRef Full Text | Google Scholar

Wang, X.-Q., Li, X.-P., Li, Y.-R., and Wu, C.-M. (2015). Payback period estimation and parameter optimization of subcritical organic Rankine cycle system for waste heat recovery. Energy 88, 734–745. doi:10.1016/j.energy.2015.05.095

CrossRef Full Text | Google Scholar

Zare, V. (2020). Performance improvement of biomass-fueled closed cycle gas turbine via compressor inlet cooling using absorption refrigeration; thermoeconomic analysis and multi-objective optimization. Energy Convers. Manag. 215, 112946. doi:10.1016/j.enconman.2020.112946

CrossRef Full Text | Google Scholar

Zhang, H., Liu, Y., Liu, X., and Duan, C. (2020). Energy and exergy analysis of a new cogeneration system based on an organic Rankine cycle and absorption heat pump in the coal-fired power plant. Energy Convers. Manag. 223, 113293. doi:10.1016/j.enconman.2020.113293

CrossRef Full Text | Google Scholar

Zhang, X., Liu, X., Sun, X., Jiang, C., Li, H., Song, Q., et al. (2018). Thermodynamic and economic assessment of a novel CCHP integrated system taking biomass, natural gas and geothermal energy as co-feeds. Energy Convers. Manag. 172, 105–118. doi:10.1016/j.enconman.2018.07.002

CrossRef Full Text | Google Scholar

Zhang, X., Wu, L., Wang, X., and Ju, G. (2016). Comparative study of waste heat steam SRC, ORC and S-ORC power generation systems in medium-low temperature. Appl. Therm. Eng. 106, 1427–1439. doi:10.1016/j.applthermaleng.2016.06.108

CrossRef Full Text | Google Scholar

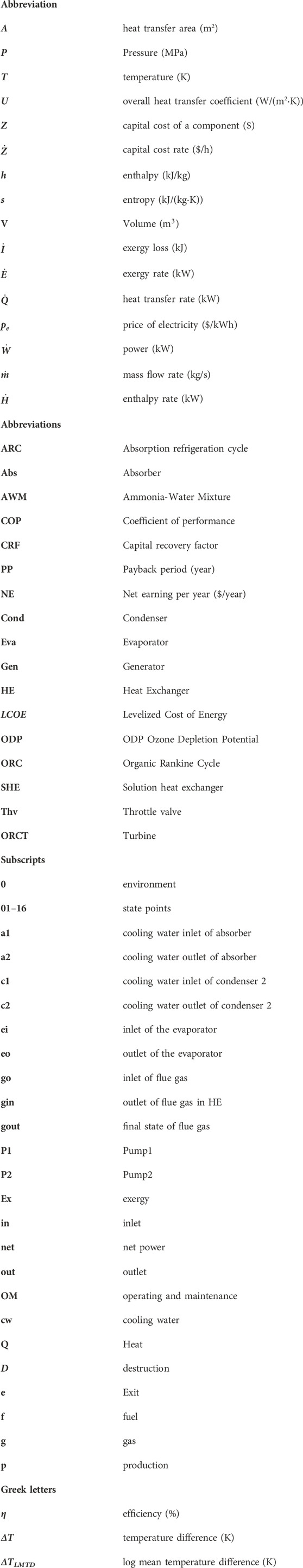

Nomenclature

Keywords: sugar mill, waste heat recovery, thermodynamic analysis, economic analysis, multi-objective optimization

Citation: Wang Z, Guan W, Zhang S, Sang H, Que W and Liang L (2024) Multi-objective optimization of the organic Rankine cycle cascade refrigeration cycle driven by sugar mills waste heat. Front. Energy Res. 12:1308519. doi: 10.3389/fenrg.2024.1308519

Received: 06 October 2023; Accepted: 01 February 2024;
Published: 07 March 2024.

Edited by:

Ellen B. Stechel, Arizona State University, United States

Reviewed by:

Vedran Mrzljak, University of Rijeka, Croatia
Zhiqing Zhang, Guangxi University of Technology, China

Copyright © 2024 Wang, Guan, Zhang, Sang, Que and Liang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Lu Liang, bGlhbmdsdUBzdC5neHUuZWR1LmNu

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
