Multi-time-scale voltage control of the distribution network with energy storage equipped soft open points

Abstract

The integration of distributed generation (DG) units into distribution networks (DNs) has brought about several operational challenges, including voltage issues and increased power loss. Energy storage equipped soft open points (E-SOPs) can accurately and flexibly control active and reactive power flows to address these problems. Additionally, the photovoltaic (PV) inverter and the network reconfiguration (NR) play a significant role in voltage control by adjusting the reactive power and the topology of the DN, respectively. However, due to differences in response times, there is a lack of systematic coordination between NR and the inverters of the E-SOP and PV. This paper proposes a multi-time-scale voltage control model that includes day-ahead NR scheduling, inter-day droop control optimization of the PV and E-SOP, and real-time local droop control. Considering the uncertainties of renewable DG outputs and loads, a robust optimization method is used in the day-ahead stage to obtain a reliable network structure. Then, with more accurate intra-day predictions, a stochastic optimization method is used to obtain the optimal state-of-charge interval, aiming to provide a flexible regulation range for battery energy storage to cope with the power fluctuations during the real-time stage. In addition, to address the intra-day voltage control model with bilinear constraints of the droop control function, a particle swarm optimization method is used. The results are verified on a 33-bus DN system through comparative analyses, showing effective performance.

1 Introduction

The proliferation of renewable distributed generation (DG) within distribution networks (DNs) is rapidly expanding. Due to the stochastic property and uncertainty of renewable DG output, the extensive collaboration of renewable DG may cause problems such as increased line overload and voltage fluctuations, which present significant operational challenges for the DN (Hua et al., 2019). Moreover, implementing infrastructure upgrades and curtailing renewable DG power are also not economically efficient.

To address this challenge, network reconfiguration (NR) is a common and effective measure. It can change the DN topology by operating the switches. Based on this, the power flow in lines and substations can be reallocated according to the reconfiguration results. Currently, extensive studies have been conducted on NR, and their objectives mainly focus on power loss deduction, voltage deviation reduction, and load balance function in the DN (Li et al., 2023). Azizi et al. (2023) proposed a DN reconfiguration approach that considers renewable DG, soft open points (SOPs), and protection devices, aiming to minimize the power loss while ensuring the correct operation of protection devices under normal and fault conditions. Meanwhile, the loop-closing situation during the NR process was considered by Jun et al. (2016) to obtain the optimum NR scheme without power interruption. Moreover, in order to obtain the optimal NR strategy, various modeling and optimization methods have been applied. A mixed-integer quadratic programming (MIQP) problem was constructed by Yang et al. (2021) with the consideration of NR and modified DistFlow, which can be efficiently solved using commercial solvers. Quang et al. (2023) applied a genetic algorithm to obtain the NR strategy and enhance the operational efficiency of the DN, aiming to address the impact on the solving time caused by a large number of binary variables. Additionally, in order to minimize the risk of falling into local optima, artificial intelligence algorithms such as reinforcement learning and Q-learning have been widely used (Dong et al., 2023; Gholizadeh et al., 2023). The literature above has considered comprehensive research on the involvement of NR in the DN and demonstrated favorable operational performance. However, due to the physical limitations of line switches, the NR method needs to be determined in advance and cannot effectively adapt to the frequent fluctuations in renewable DG output (Zhang et al., 2019).

To achieve fast tracking of power fluctuations in the DN, the installation of SOPs, which can achieve the precise control of power flow between feeders and achieve dynamic reactive power compensation (Wang et al., 2016), has drawn significant attention. In general, the existing literature on DN operation optimization based on SOPs mainly focuses on the economic or power quality aspects of the DN (Cao et al., 2021). Li et al. (2023) investigated the output characteristics of SOPs and developed a reactive power optimization model. Li et al. (2022) proposed an adaptive voltage control strategy for SOPs based on a deep deterministic policy gradient network and showed the high efficiency of the SOPs in maintaining the safe and stable operation of the DN. However, due to the high cost of SOPs, the number of SOPs installed in the DN may fall short of fulfilling the requirements for DN operation (Hu et al., 2022). Thus, it is important to investigate a collaborative optimization approach of SOPs and NR to enhance the regulatory capability of the DN (Dai, 2022).

Considering the difference in the responding time between SOPs and NR, the existing literature on DN operation optimization based on SOPs and NR mainly obtains optimal solutions through constructing multi-layer optimization models (Hu et al., 2023). Pamshetti and Singh (2022) and Wang X. et al. (2022) both constructed a two-stage collaborative optimization model integrating SOPs and a battery energy storage system (BESS), but they all ignore the collaboration of traditional voltage control methods such as NR. Furthermore, Nazir et al. (2019) presented a two-stage chance-constrained voltage control model to minimize the expected power loss, which involves determining the operational strategy for OLTC, CB, and voltage regulators in the first stage and optimizing the reactive power output of inverters in the second stage. A multi-time-scale model was constructed by Li et al. (2017) and Shi and Zheng (2018) based on the coordination of NR and SOPs to achieve the time-series voltage optimization of the DN. However, these articles primarily focus on optimizing the power set point of power electronic devices such as SOPs at different time intervals, without taking into account their real-time droop regulation performance. Given the inevitability of forecast errors in renewable DG prediction and the shorter time duration of voltage fluctuation caused by stochastic renewable DG output than the prediction duration (Sun et al., 2023), there is a need to construct a multi-time-scale optimization model considering real-time local voltage control.

Recently, the collaboration of real-time local voltage control and day-ahead intra-day control has drawn significant attention and mainly focused on optimizing the droop control function of a photovoltaic (PV) inverter and SOPs (Chu et al., 2021). Regarding PV droop control optimization, a real-time voltage/var droop control function was optimized by Wang B. et al. (2020). It segments the droop control function into multiple sections, and a maximum value comparison function is used. These will result in increased nonlinearity and complexity in solving the model. Zhang and Xu (2020) proposed a central and local voltage/var control strategy to reduce real-time voltage deviation by using a linear droop controller for PV inverters and showed its high efficiency in regulating the voltage quality of the DN. Considering the high performance of PV droop control function, it can be used in this paper. Regarding SOP droop control optimization, Li et al. (2019) and Hu et al. (2020) optimized the V-Q droop control function of SOPs based on the pre-determined reference set point; they divided the droop function into several pieces and optimized them separately. However, the nonlinear model and the large newly introduced binary variables increase the computation burdens. Moreover, considering that due to the large R/X value of the DN, the active power also significantly influences the voltage profiles during operation. It is necessary to consider the optimization of the V-P droop function of SOPs (Sun et al., 2021a). Based on this, Sun et al. (2021a) proposed a multi-time-scale energy management robust optimization model with multiple-terminal SOPs. In this model, the droop control function is formulated through V²-P and V²-Q models. However, given that the master port of SOPs needs to monitor the power fluctuations of other ports to ensure its steady operation, the implementation of V²-P droop control may limit the adjustability of its master port. The utilization of energy storage equipped soft open points (E-SOPs) may offer an effective solution to this issue. By integrating the BESS into the SOP DC line, internal power equilibrium can be achieved without the need to adjust the master port. Consequently, each port of the E-SOP can independently adjust the V-P droop control based on its port voltage level. Recently, existing literature considering E-SOP regulation is mainly based on prediction data to obtain an operating set point during the day (Chen et al., 2022; Sarantakos et al., 2022), and its local droop regulation characteristics of active and reactive power are often ignored. In addition, the limited capacity of the BESS and inadequate planning of its charging and discharging strategy may lead to insufficient operation range during real-time operation. Wang Y. et al. (2020) and Wang Y. et al. (2022) introduced an interval optimization model to allocate the optimal SOC interval for the BESS. This approach aims to ensure that the BESS can have sufficient adjustment capacity to cope with the uncertainty of renewable DG outputs and loads throughout the day. This can serve as a reference in the management of the BESS in E-SOPs.

2 Coordination framework of multi-time-scale DN voltage optimization

This paper introduces a multi-time-scale voltage control method to minimize the power loss and voltage fluctuation of the DN. The proposed method consists of three parts, namely, day-ahead optimization, intra-day optimization, and real-time adjustment, whose framework is shown in Figure 1.

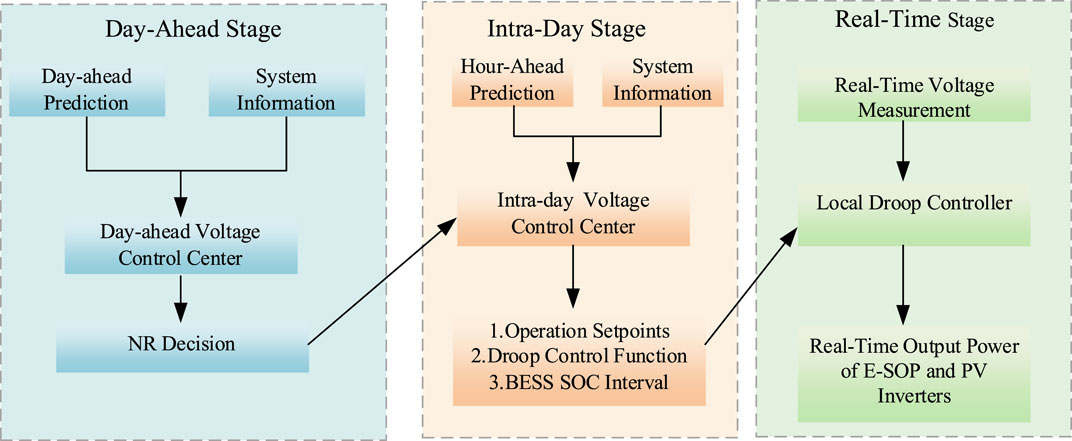

FIGURE 1

In the day-ahead stage, with the day-ahead renewable DG and load predictions, the NR strategy of the DN is determined to obtain the reliable DN topology, considering switch action limitation. Moreover, the optimal power dispatch of PV inverters and E-SOP ports is considered, but they will be re-optimized in the intra-day stage.

In the intra-day stage, based on the hour-ahead prediction, inverter operation set points and the parameters of the E-SOP V-P and V-Q droop control function and the PV V-Q droop control function are obtained. Moreover, considering the time coupling of the BESS and the uncertainties in renewable DG output and loads, the SOC interval of the BESS is optimized, and a rolling method is used to reduce prediction errors in the intra-day model (Wang B. et al., 2020). During the rolling process, only the results of the first hour are executed, and the remaining parts are discarded until the next horizon is updated.

In the real-time adjustment stage, the inverters of the PV and E-SOP regulate the active and reactive power according to their droop control function. Meanwhile, to ensure the stable operation of the E-SOP, the BESS will monitor the required change in the active power at E-SOP ports and compensate for the power imbalances that may arise between them.

3 Day-ahead coordinate voltage control model

3.1 E-SOP operating model

The E-SOP achieves the parallel connection of DC/AC inverters and BESS DC/DC inverters on a DC bus, with their AC side linked to the distribution grid feeder lines. Each inverter independently regulates the active and reactive power at its ports within its capacity, enabling flexible and interconnected operation of the distribution grid. Moreover, the collaboration of the BESS eliminates the requirement for real-time power balance between the E-SOP ports, thereby improving the adjustability of the E-SOP. The operation model of the E-SOP can be expressed as follows:where is the time interval, and are the capacity and the operating power of the BESS, respectively, and are the port active power and loss of the E-SOP, respectively, and is the reactive power of the port of the E-SOP.

Eqs 1, 2 construct the time coupling relationship of the E-SOP based on the time absolute continuity of the BESS. Eq. 3 ensures the real-time balance of active power within the E-SOP, thereby forming the space coupling relationship of energy power. Eq. 4 is the expression of power loss, and constraint (5) represents the capacity constraint of the E-SOP.

3.2 Distribution network reconfiguration model

The NR model of the DN can be expressed as follows:where and denote the branch active and reactive power of the DN, respectively. represents the voltage of node . , , and represent the injection power of the load, renewable DG [i.e., PV and wind turbine (WT) generator], and E-SOP in node , respectively. , , and denote the reactive power output of the load, E-SOP, and PV, respectively. is the total number of nodes of the DN, and is the number of substations in the DN. is a binary variable that represents the connection status of the line in the context. If the line is in a connected state, will be 1, and if in a disconnected state, it will be 0.

Constraints (6)–(10) set the limitations on the branch power and node voltage through the Big M method, ensuring that if , constraints (6)–(10) will be equal to the common power flow model. If , the branch power and will be limited to zero, and the voltage and will not be forced equality. Eq. 11 is the topology constraint of the DN, which ensures that the DN can remain radial after NR.

Through adjusting the value of the switch control variable , the DN can flexibly adjust its topology, thereby mitigating the power loss and voltage fluctuation. In addition, to prevent isolated nodes, adding a micro-amount of load power to nodes without load is an effective method for enhancing the radial structure of the distribution network, with negligible impact on the actual power flow. The detailed principle of adding micro load power is elaborated by Fang et al. (2023).

3.3 Day-ahead voltage control model

The day-ahead optimization model aims to simultaneously obtain the NR strategy of the DN and the dispatch of inverter reactive power in order to minimize the power loss and voltage fluctuation. The model can be formulated as follows:

s.t. (1)–(11),

Eqs 12, 13 represent the average bus voltage deviation and branch power loss, respectively, and the bus voltage and branch apparent power are restricted by constraints (14) and (15), respectively. Constraints (16)–(20) and constraints (1)–(2) collectively represent the operational limitations of the BESS in the E-SOP. Constraint (21) limits the reactive power output of the PV inverters. In addition, constraint (22) limits the action number of switches in the DN, where represents the maximum number of operations and is the initial stage of the switches in the DN. Moreover, constraint (22) can be effectively transformed into linear constraints through the Big M method (Sun et al., 2016). Meanwhile, the nonlinear constraint (4) can be relaxed into a quadratic circle constraint (Liu and Wang, 2022), and the quadratic circle constraints such as constraints (5) and (15) can be further relaxed into linear constraints through a polygonal inner approximation method (Zhang et al., 2020).

3.4 Robust optimization for uncertainties

To address the uncertainties of renewable DG outputs and loads, a RO method (Wang et al., 2021) is introduced. This method searches for the worst scenario based on the uncertainty set. Then, the most reliable solution can be obtained under the worst scenario of uncertainty realization. In this paper, the uncertainty set can be modeled as

In this uncertainty set, and are the upper and lower limits of renewable DG outputs and loads at time t, respectively. In addition, the robustness of the obtained results is determined by the value of and . If increases and decreases, the result will be more robust, and the objective will be more conservative.

Thus, the detailed expression of the proposed RO model is as follows:s.t. (1)–(22).

In model (24), represents the decision variables and of the day-ahead stage and represents other day-ahead operating variables, including , , , and other decision variables. This model is a typical two-stage robust optimization problem and can be divided into a single-layer master problem (MP) and a dual-layer subproblem (SP). Moreover, considering that the inner-layer problem of the SP is a convex optimization problem, it can be reformulated into a single-layer optimization problem through the Karush–Kuhn–Tucker (KKT) method and then be iteratively solved using the CC&G method (Zeng and Zhao, 2013; Wang et al., 2021).

Moreover, it is worth noting that after solving model (24), only is determined, while the value of , , , and will be further optimized in the intra-day stage.

4 Intra-day coordinate voltage control model

4.1 SOC interval optimization model for the BESS in the E-SOP

Based on obtained through the day-ahead stage, the output power of BESS will be recalibrated through the hourly predicted data. Moreover, considering the time coupling of operation constraints and prediction errors of uncertainties, the BESS state-of-charge (SOC) interval needs to be obtained based on multiple scenarios. This interval will restrict the SOC range based on the operational requirements of the following hours in each rolling cycle, aiming to prevent over-charging and over-discharging. It can also be used to ensure that the BESS can obtain the adjustable capacity in each time period of the day to address the impact of uncertain renewable DG outputs and loads. The SOC interval optimizing model of the BESS can be expressed as follows:

where is the maximal/minimal reserved capacity of the range. constructs the SOC interval at time t, and its value is limited by constraints (26) and (27). Constraints (1)–(2) and (16)–(20) represent that the intra-day charging/discharging power still needs to adhere to the operational constraints of the BESS. Constraint (27) ensures that the BESS maintains a certain reserved capacity throughout each time period, thereby providing a flexibility range for adjustments to the BESS. It is worth noting that a large interval width means more reserved capacity for the BESS to adjust at time t in the real-time stage but may reduce the regulation flexibility in subsequent time.

4.2 Droop control model of the E-SOP

Considering that the E-SOP inverters have a redundant capacity, adopting the traditional droop curve with deadband may waste the inverter capacity. To make full use of the inverter capacity, the no-middle-deadband droop control function is applied (Xu et al., 2022), which is shown in Figure 2. Moreover, given that the active power is also an important influencing factor in the voltage fluctuation of the DN, adopting the V-P droop control function is also a significant way to promote the real-time security of the DN (Sun et al., 2021a). Thus, the droop control function of the E-SOP can be summarized as follows:where and are the droop set power, the value of which is limited by constraint (32). and are the maximum output power of the E-SOP at time t. Constraints (30) and (31) define the range of droop slopes. It is worth noting that the BESS in the E-SOP only follows the active power difference in the E-SOP ports to maintain the stability of the DC bus voltage. Constraints (33)–(35) limited the maximum active power output of the droop control function. Constraint (33) ensures that the output power of the E-SOP will not exceed its port capacity. Constraint (34) ensures that the BESS SOC should satisfy the maximum energy discharge demand of multiple scenarios. Similarly, constraint (35) guarantees that the maximum energy charge demand scenario can be fulfilled within the BESS SOC interval.

FIGURE 2

It is worth noting that, in the real-time stage, the E-SOP control system will first calculate the SOC after regulation and port-required adjustment power based on local voltage measurement and the droop control curve. If the calculated SOC exceeds the interval, the BESS will reduce the adjustment power to maintain the SOC within the interval. At this point, the maximum power that the BESS can charge/discharge will be prioritized to support the port of the E-SOP with higher voltage deviation.

4.3 Droop control model of PV inverters

Given the redundant capacity of PV inverters and their potential as a voltage var control device, in this section, a Q-V droop control function of the PV inverter is also constructed with reference to the droop control curve discussed in Section 4.2.where is the slope of the droop control curve. represents the set point of the reactive power output of the PV inverter. denotes the reference maximum reactive power output of the PV inverter at time ; it can be obtained based on the output prediction of the PV inverter.

Eq. 36 denotes the actual reactive power output of the PV inverter. Eqs. (37)–(40) form the expression for the droop control function of PV inverters. Eq. 37 calculates the deviation of the node voltage, and Eq. 38 represents the reactive power adjustment considering the voltage change based on the slope of the droop function. The slope of the droop control curve is limited by constraint (39). Constraint (40) limits the range of reactive power output and set points.

4.4 Intra-day stochastic optimization model

In this research, it was considered that the NR strategy obtained from the RO method is sufficiently reliable, and the accuracy of intra-day rolling forecasts is high. Compared to obtaining an optimal droop curve that adapts to the worst-case scenario, acquiring the droop model that can achieve the expected optimal performance across multiple potential operational scenarios will be more efficient in reducing the voltage deviations caused by real-time stage power fluctuations. Thus, a stochastic optimization (SO) method is applied. In this method, the scenario sets are randomly generated based on intra-day forecast data to obtain the optimal expected control strategy. Moreover, considering that the probability distribution may not be known, a sample average approximate method is applied. Thus, the intra-day voltage optimization model can be expressed as follows:

s.t. (1)–(10) (12)–(20), (25)–(40),where is the set of the nodes of the DN. S is the scenario set of renewable DG outputs and loads. denotes the operating decision variables including , , and other decision variables in scenario s. Objective is used to acquire the optimal SOC interval width that fulfills the charging/discharging requirements in multiple scenarios. Constraint (41a) aims to minimize the charging/discharging power of the BESS to reduce the active power loss in the DN. By solving model (41), the inverter set power , , and ; the droop curve slopes , , and ; and the BESS SOC interval and are optimized under the generated scenarios. Moreover, constraints (28), (29), and (38) are bilinear constraints, which will increase the computing burden on the solver. Thus, this paper combines the PSO method (Zhang et al., 2023) and Gurobi to reduce the solving burden.

5 PSO-based intra-day solution method

The PSO algorithm is an evolutionary algorithm based on the observation and research of bird predatory behavior. It was proposed by Dr Eberhart and Kennedy in 1995. This algorithm was initially inspired by the regularity of bird clustering activities, and then, a simplified model was established by using swarm intelligence. In the PSO method, each bird is a particle, and the process of foraging based on the instinct of birds is the process of finding the optimal solution in the solution space (Swari et al., 2022). Compared with other modern stochastic intelligent optimization algorithms, PSO has been widely used due to its advantages of simple implementation and no need for gradient information (Liu et al., 2019), and it can also effectively solve nonlinear optimization problems.

The PSO method first initializes a group of random particles, and then, the optimal solution is found through iteration. In each iteration, the particles update the iteration by tracking the local optimal extremum and the global optimal extremum . The update formula for speed and position speed can be expressed as follows:where and are the position vector and velocity vector of each particle in the iteration, respectively. and are the random variabilities in range . and are learning factors of the PSO method. is the local optimal position vector of the particle in the iteration. represents the global optimal position vector after the iteration. is the inertia weight factor.

It is worth noting that the parameter regulates the impact of particle velocity in the previous iteration on the particle velocity in the current search process. A higher value of results in stronger global search capability, but it will diminish the local search ability. Therefore, maintaining as a constant value is not a rational choice. This paper uses a linearly decreasing inertia weight factor to improve the efficiency of the solution. The weight factor can be calculated as follows:where is the current number of iterations and is the maximum iteration number.

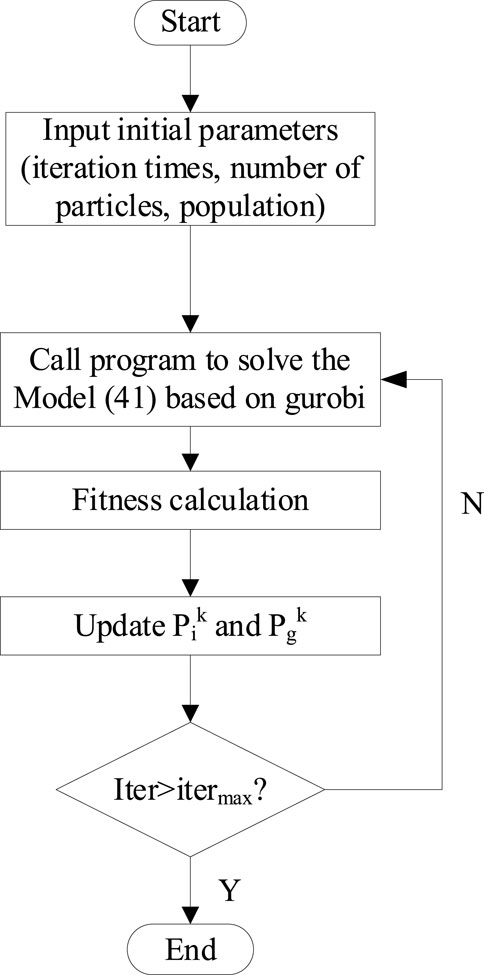

FIGURE 3

6 Case study

6.1 System setting

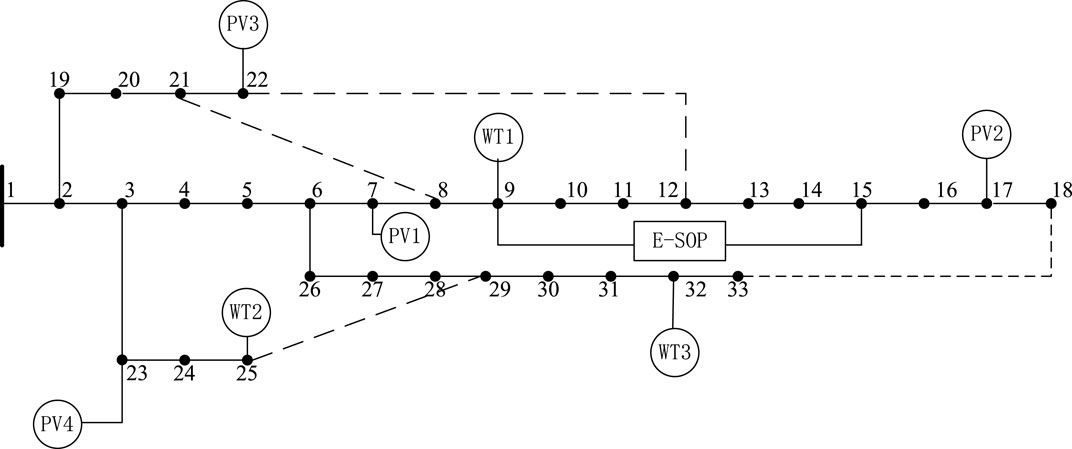

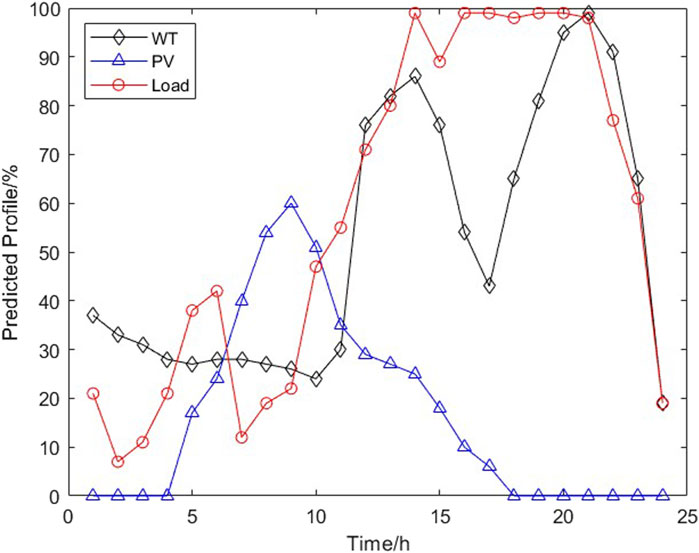

A 33-bus distribution network is applied to test the proposed method, and the topology is shown in Figure 4. This system has 33 nodes with 37 branches, and each branch is equipped with a switch to respond to the scheduling demands of NR (Li et al., 2023). The rated power of renewable DG, BESS, and E-SOP inverters is given in Table 1. In addition, the prediction profiles of renewable DG output and load are shown in Figure 5, regarded as the expected prediction. The prediction intervals are set as ±10% of the renewable DG output and ±10% of the load output. Then, 100 scenarios are generated to participate in the intra-day optimization. In addition, the rated maximum output power of the BESS is 400 kW, and the capacity of the BESS in the E-SOP is 600 kWh (Huang et al., 2022). Meanwhile, the allowed voltage range of the DN is set as 0.95 p.u–1.05 p.u., and the maximum action number of switches is 6. Additionally, in the PSO method, the maximum iteration number is 15, and the population size is set as 20.

FIGURE 4

FIGURE 5

The proposed optimization model is programmed on the MATLAB 2022b platform with the YALMIP toolbox and solved using Gurobi 10.0.

6.2 Day-ahead operating results

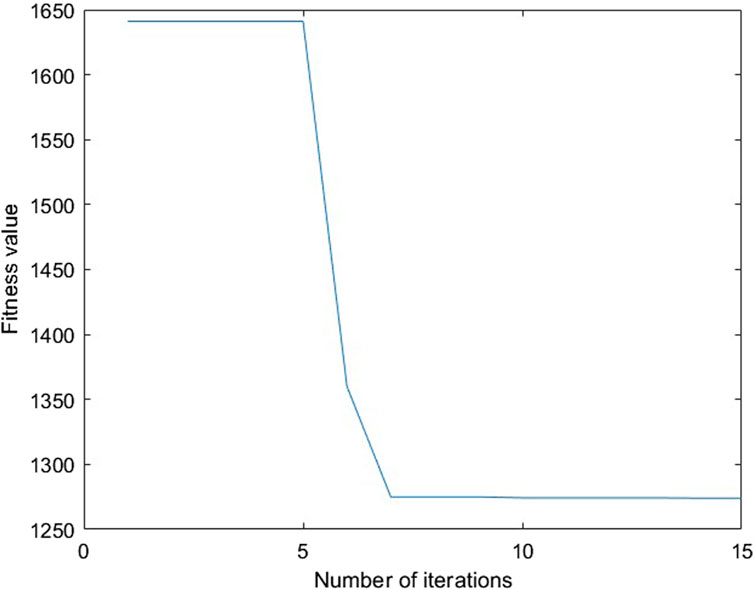

By solving the day-ahead voltage operating model considering NR, the optimal NR strategy is obtained, as shown in Figure 6. By controlling switches between nodes 7 and 8 and nodes 12 and 13 into a disconnected state and switches between nodes 21 and 8 and nodes 18 and 33 into a connected state, NR can adjust the distribution of renewable DG and load by altering the DN topology to promote the balanced distribution of the system source and loads, thereby promoting the safe operation of the DN. The calculated average power loss cost and voltage range throughout the entire day were determined to be 2.448 MW and 0.192 p.u., respectively.

FIGURE 6

In addition, without the NR and the inverter reactive power regulation, the voltage range under the expected condition is [0.948, 1.0017], which is out of the allowed voltage range. On the other hand, with the coordination of inverter voltage control and NR, the voltage range can be [0.965, 1.0011], indicating that the change in the voltage can be maintained in the acceptable range.

6.3 Intra-day operating results

In the intra-day stage, the N in the rolling procedure is set as four; based on this, the SOC interval of the BESS can be obtained by solving the proposed model (41), and the result is shown in Figure 7. The BESS will start discharging power before 4:00 because of the low renewable DG prediction power output. Then, with the increase in the PV output, the BESS will continue to charge from 4:00 to 11:00. Moreover, the operating range of the BESS is relatively flat due to the high WT output power between 12:00 and 19:00. Furthermore, with the increase in load demand and the decrease in renewable DG output, the BESS will be forced to discharge power to fulfill the peak loads.

FIGURE 7

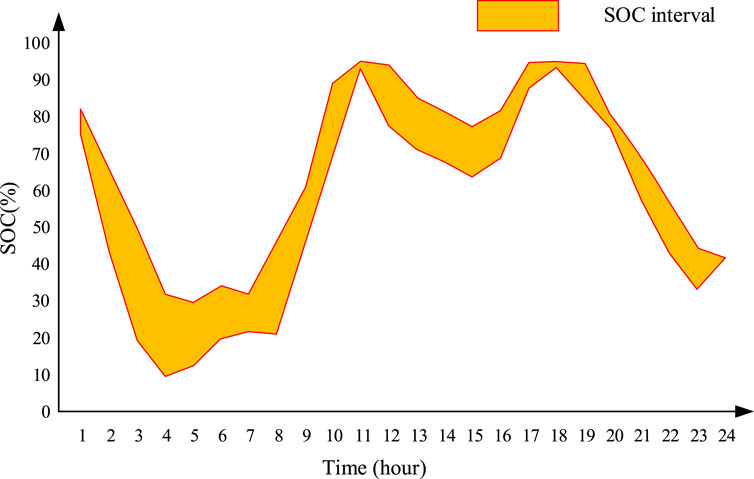

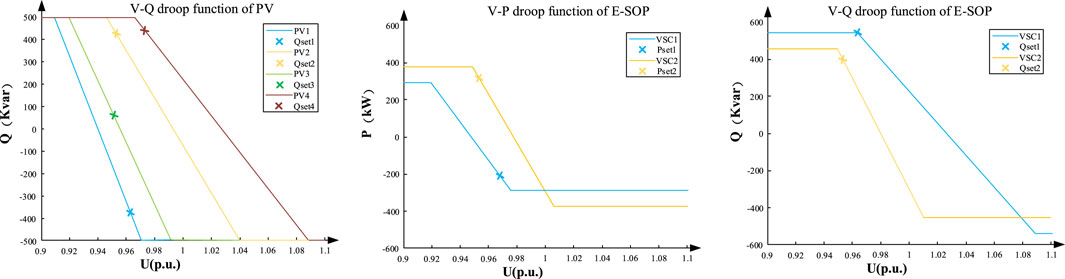

Then, taking the load peak period of 21:00 to 22:00 as an example, the total expected renewable DG generation and loads are 1.31 MW and 3.678 MW, respectively. Figure 8 shows the solving process of the proposed intra-day optimizing problem; it can be found that in the iteration, the convergence, as well as the minimal objective (fitness value), can be obtained. Through solving the proposed intra-day optimization model, the expected power loss is 0.11 MW, and the computing time in each rolling process is approximately 300 s, which is fully compatible with the online use of intra-day scheduling. Moreover, the results of reactive power set points , expected bus voltage , and the slope of droop control functions of the E-SOP and PV inverter are given in Figure 9. It can be found that due to the active power of the PV inverter being zero, the reactive output of the PV inverter can reach its maximum capacity of inverters. Moreover, some of the inverters such as VSC1 reach their maximum reactive power, and VSC1 and PV1 have negative active and reactive power set points, respectively, while other inverters have positive set points. On the other hand, the droop control curve during the peak PV output period 9:00 to 10:00 is also given in Figure 10 for comparison. In this case, the PV has the highest active power output during the day; thus, the maximum reactive output power of the PV inverter has a significant decrease. At this hour, the active power set points of E-SOP ports are both negative, which means that both ports of the E-SOP system are required to absorb power from the DN, thus requiring the BESS to have sufficient capacity to absorb them.

FIGURE 8

FIGURE 9

FIGURE 10

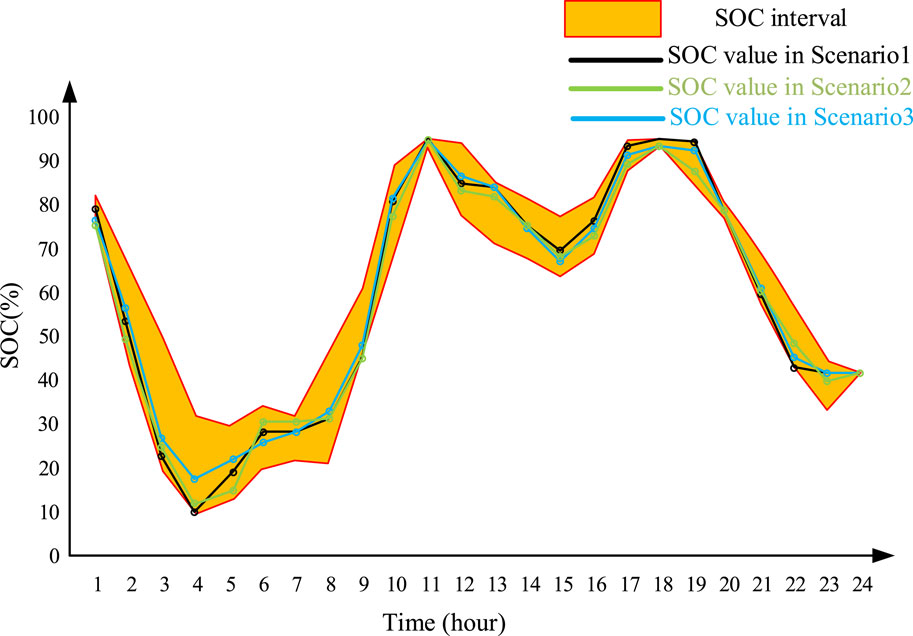

6.4 Operating performance in the real-time stage and comparison with other methods

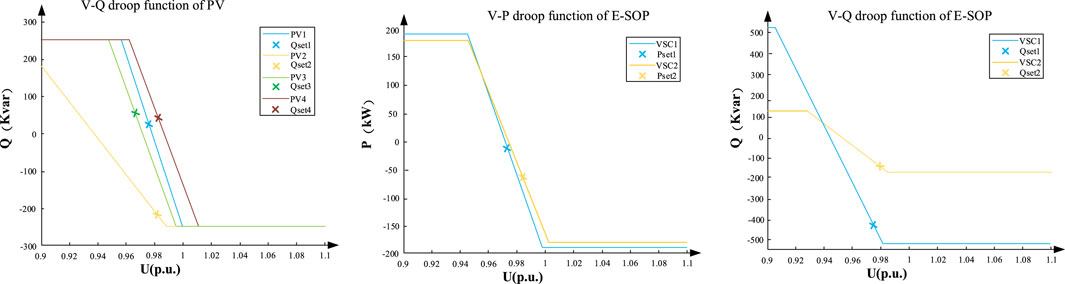

In the real-time stage, the inverters of PVs and E-SOP that operate under the droop control function can change the active and reactive output power in response to the measurement of local bus voltage based on the optimized droop control curve. Figure 11 shows the real-time stage BESS operating states in terms of SOC under some of the scenarios. It can be found that during the real-time stage, the BESS can achieve a flexible transfer of power on the time scale by adjusting its charging/discharging power, thereby enhancing the temporal flexibility of power distribution network operation. Moreover, during the periods of 6:00–8:00 and 17:00–19:00, the BESS exhibits minimal fluctuations due to the reduced load and increased renewable DG outputs. This indicates a relatively balanced active power within the DN, and the demand for active power adjustment of E-SOP ports during these times is low. Furthermore, in the tested scenarios, the BESS can maintain SOC within its intervals while addressing real-time fluctuations in the DN.

FIGURE 11

In addition, to analyze the real-time system operating security performance, the peak load period of 21:00–22:00 is taken as an example; another two voltage control methods are applied for comparison, given as follows:

Method A: A two-stage central voltage control method that optimizes the NR and inverter output power of the PV inverter and E-SOP without considering the droop control function. The inverter output power dispatch is re-optimized per hour and fixed.

Method B: A multi-time scale voltage control model considering PV and E-SOP Q-V control function. The active power output set points of the E-SOP are determined based on hourly forecast data and rolling optimization during the intra-day stage.

For each forecast error, 1,000 test scenarios are randomly generated in the uncertainty set to test the operating security of the two methods. The results are shown in Table 2. In this test, a reliable probability index (RPI) is defined to reflect the system security performance:where is the total number of testing scenarios and is the number of the scenarios that satisfy all the security constraints of the DN.

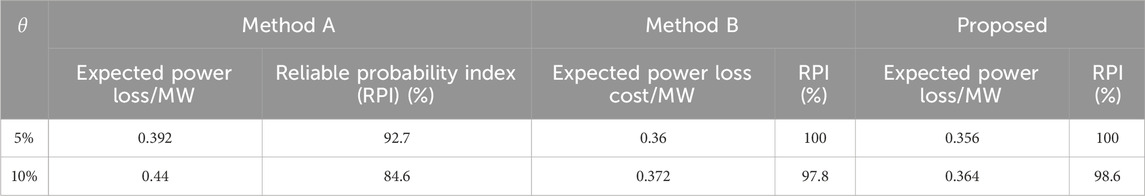

The RPI and the expected power loss cost are shown in Table 2, and represents the upper and lower limits of the interval for the production of testing scenarios. Table 2 shows that the implementation of the droop control strategy can effectively enhance the operational safety of the DN and reduce network losses. Furthermore, compared to method B, the proposed method demonstrates similar RPI values under varying prediction errors. However, using the proposed method can effectively reduce the power losses during the real-time operation. Therefore, the proposed method exhibits superior comprehensive performance in terms of the security and economy of the distribution grid.

Moreover, the probability distribution of voltage at bus 18 under the ±5% interval testing set is shown in Figure 12. In this figure, method A has the widest voltage range and largest voltage violation rate. The voltage profile in method B and the proposed method has significantly improved compared with method A. Meanwhile, compared with method B, the proposed method demonstrates a smaller voltage deviation and better voltage waveform during the real-time stage, attributed to the incorporation of the V-P droop control function.

FIGURE 12

7 Conclusion

This paper proposes a multi-time-scale voltage control method, aiming to minimize the power loss and voltage fluctuation of the DN. In this method, the reliable NR strategy is obtained via the RO method. Meanwhile, to tap the optimized potentials of the PV inverter and E-SOP, the SOC interval of the BESS and the droop control function of the PV inverter and E-SOP are fully modeled. In addition, to solve the bilinear constraints, a PSO method is applied to reduce the computing burden. The results indicate that the proposed method can minimize power loss and voltage fluctuation and improve the reliability of the DN under uncertainties.

This study mainly focuses on the coordination between the BESS and linear droop control function without deadband. Future work will focus on constructing a more universally applicable droop control function to facilitate the coordinated optimization of multiple regulating devices such as the E-SOP, BESS, PV inverters, and capacitors.
