Abstract
In recent years, electric vehicle (EV) battery-swapping technology has rapidly evolved and is expected to become widely prevalent shortly. Therefore, it is crucial to develop efficient battery-swapping scheduling algorithms to optimize the operations of battery-swapping systems. This paper proposes a non-cooperative game approach for the battery-swapping scheduling of EVs. To reduce the waiting time for battery swapping and improve the scheduling efficiency of EVs, a swapping process model inspired by the job-shop scheduling problem is proposed, and the cost function of each EV comprehensively considers the travel time, waiting time, and battery swapping price. To capture the competitive relationship among EVs, a non-cooperative game model for battery swapping scheduling is established considering the finite quantities of batteries and swapping grippers. To find the pure strategy Nash equilibrium, an iterative best response algorithm is developed, satisfying constraints including those couple decisions of different EVs. Case studies demonstrate the fairness and scheduling efficiency of the proposed approach.
1 Introduction
In recent years, the rapid growth of electric vehicles (EVs) has been considered an effective method to address environmental and energy crises (Kocer et al., 2022; Yu et al., 2024). Replacing internal combustion engine vehicles with EVs can reduce greenhouse gas emissions (Cui et al., 2023) and significantly improve air quality. As an industry encouraged by the government, EVs have been widely promoted in many cities (Zhao et al., 2024). In the logistics sector, given that the external costs of logistics are primarily associated with air pollution and noise, many logistics companies have already introduced electric trucks for operations (Jie et al., 2019). However, the widespread adoption of EVs is limited by-long charging times (Zhang et al., 2017; Zeng et al., 2023) as well as the increased peak-to-valley difference of the power grid caused by the simultaneous charging of a large number of EVs (Yong et al., 2023). To address these issues, battery swapping stations (BSSs) have been developed as a new method to provide energy to EVs. When EVs arrive at a swapping station, they can replace exhausted batteries with fully charged ones in several minutes (Yang et al., 2023). Moreover, swapping stations can centrally manage batteries that need recharging, thus avoiding adverse impacts on the grid (Ko et al., 2020).
Because of the immense potential of the battery-swapping model, research in this area has been rapidly expanding in recent years. Studies have focused on various aspects such as pricing and charging strategies (Liang and Zhang, 2018), operational models of swapping stations (Sarker et al., 2014), evaluation of the service capacity of a swapping station (Zhang et al., 2018), swapping demand forecasting (Wang et al., 2023), and construction planning for swapping stations (Zhang F. et al., 2024; Zhang Y. et al., 2024). With the widespread proliferation of EVs and swapping stations, allowing EVs to approach swapping stations without coordination may lead to congestion and queues at some stations while others remain underutilized (You et al., 2020). Therefore, the battery swapping scheduling for EVs plays a crucial role in enhancing the operational efficiency of swapping stations. Centralized (You et al., 2017a) and distributed (You et al., 2017b) swapping scheduling methods for electric vehicles were proposed, taking into account constraints related to EVs and power grid operations. An online station allocation algorithm was developed to reduce costs for EVs and alleviate congestion at swapping stations (You et al., 2020). Recently, a swapping station recommendation method based on game theory was presented (Ran et al., 2023).
Existing research on battery swapping scheduling has two main limitations. First, exiting swapping scheduling models ignored the waiting time of EVs caused by a finite number of swapping grippers. A similar issue of waiting time resulting from the occupation of charging equipment was studied in previous works on electric vehicle charging (Guo et al., 2017; Yang et al., 2018), where linear expressions of queue length were used to roughly estimate waiting times affected by variable charging times of vehicles. However, in the context of swapping processes, the swapping time is roughly constant, typically about 5 min (Yang et al., 2014). Furthermore, the approach in (Guo et al., 2017; Yang et al., 2018) overlooked the coupled relationship between waiting time and vehicle arrival time, and might thus lead to inaccurate scheduling results.
Second, few studies consider the complex competitive relationships among EVs in the context of swapping scheduling. EVs may belong to different entities, and battery swapping decisions of an EV not only impact its own swapping efficiency and costs but also potentially influence the decisions of others. Consequently, vehicle owners might not comply with centralized scheduling results. So far, only (Ran et al., 2023) utilized game theory to analyze this issue, where the swapping station with the lowest total cost was recommended for EVs with a pricing function designed to adjust swapping prices. In addition, it is difficult to directly apply game theory-based methods from the related electric vehicle charging scheduling problem (Guo et al., 2017; Yang et al., 2015; Chen and Leung, 2019; Wan et al., 2020) to battery swapping scheduling, since the availability of batteries was not considered. Therefore, it is necessary to develop a new game theory-based method specifically tailored to address the swapping scheduling problem to enhance overall operational efficiency at swapping stations and improve the swapping experience for vehicle owners.
To overcome the above limitations, this paper proposes a non-cooperative game approach for the battery swapping scheduling of EVs. The main contributions are threefold:
1) To reduce the waiting time for battery swapping and improve the scheduling efficiency of EVs, a swapping process model inspired by the job-shop scheduling problem is proposed, and the cost function of each EV comprehensively considers the travel time, waiting time, and battery swapping price.
2) To capture the competitive relationship among EVs, a non-cooperative game model for battery swapping scheduling is established considering the finite quantities of batteries and swapping grippers.
3) To find the pure strategy Nash equilibrium, an iterative best response algorithm is developed satisfying constraints including those couple decisions of different EVs.
The remainder of this paper is organized as follows. Section 2 formulates the problem. Section 3 develops the solution methodology. Section 4 presents the numerical results. Finally, Section 5 concludes the study.
2 Problem formulation

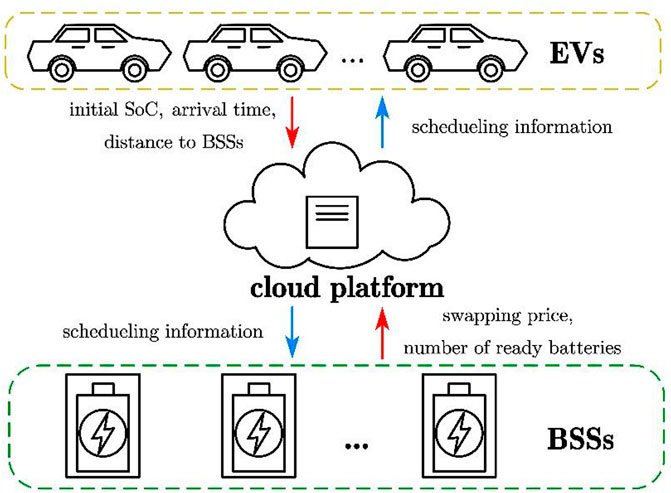

As illustrated in Figure 1, the battery-swapping system consists of EVs, a cloud platform, and BSSs. The cloud platform collects relevant information from BSSs and EVs, runs the scheduling algorithm, and then distributes the results to all EVs and BSSs.
FIGURE 1
2.1 Operation constraints
This paper focuses on a single scheduling period (
Ran et al., 2023;
Guo et al., 2017). Let
denote the set of EVs requesting battery swapping indexed by
i, and
represent the set of BSSs indexed by
k. Let
denote the set of minutes (sufficient) to complete battery swapping actions, indexed by
t, determined in this scheduling period. The number of minutes
Tshould be sufficiently large to ensure that all vehicles can complete the battery-swapping process within the time interval from 0 to
T. In the worst case,
Tcan be calculated as the latest arrival time among all EVs, plus the product of the average swapping time and the number of EVs. The swapping system administrator can also set the value of
Tbased on his/her experience. It is assumed that the total number of available batteries is greater than or equal to the number of EVs requesting swapping.
1) Decision variables: For each EV i, integer variables bi and ci represent the beginning time and completion time of the battery swapping process, respectively. Binary decision variables, ui,k, represent the assignment relationship between EVs and BSSs: If EV i is assigned to BSS k for battery swapping, then ui,k = 1; otherwise, ui,k = 0. The assignment vector of EV i is represented as ui = (ui,1, ui,2, … , ui,k, … , ui,K). To further capture the status of EV i at time t, binary decision variables, xi,k,t, are used: If EV i is engaged in battery swapping at BSS k at time t, then xi,k,t = 1; otherwise, xi,k,t = 0. The swapping matrix of EV i is represented as In addition, the decision variables of EV i are summarized as .
2) BSS selection constraints: Each EV i chooses one BSS for swapping, i.e.,
3) Travel distance constraints: The assigned BSS should be within the driving distance of the EV given its initial states of charge (SoC), i.e.,
where
denotes the distance between EV
iand BSS
k,
denotes the electric energy consumption per kilometer, and
denotes the initial SoC of EV
i.
4) Swapping process model: Inspired by the processing time model of the job shop scheduling problem (Yan et al., 2021), the swapping process is modeled as follows. The battery swapping time is roughly constant (typically about 5 min), and the average swapping time is denoted by . The swapping process is non-preemptive, meaning that the end time is equal to the start time plus the required swapping time (minus 1), i.e.,
If EV i is assigned to BSS k, the time interval [bi, ci] represents the duration when the swapping occurs. According to the definition of binary variables xi,k,t, the following constraint should be satisfied:
This logical relationship is linearized through the big-M method:where M is a big number.
Based on the distance from EV
ito BSS
k, the corresponding arrival time can be calculated and is denoted by
ai,k. The start time for the battery swap should not be earlier than this arrival time, i.e.,
5) Capacity constraints: Each BSS k has a finite number of swapping grippers (typically 1 or 2), denoted by , constraining the maximum number of swaps that can be conducted simultaneously at that BSS, i.e.,
Each BSS k, has a finite number of batteries available for swaps, denoted by , representing the maximum number of swapping services that BSS can support for the scheduling period, i.e.,
2.2 Game model
It is assumed that each EV acts selfishly, aiming to minimize its own cost. It is evident from
Equations 10,
11that the BSS selection strategies of individual EVs are interdependent. Therefore, the cost for each EV is not only determined by its own decisions but also influenced by the decisions of others. To describe the strategic interactions among EVs, a non-cooperative game model is proposed to ensure fairness in BSS matching. This game
Qis defined as follows:
• Player set : The EVs that request for battery swapping.
• Strategy set : The nonempty, compact, and discrete set of feasible decisions for each EV i.
• Cost function : For each EV i, the cost is a weighted sum of the swapping start time and the battery swapping price.
where
v-i= (
v1, … ,
vi-1,
vi+1, … ,
vI) is the strategies of all EVs except for that of
i,
is a coefficient to convert time into cost, and
pkdenotes the swapping price at BSS
k. According to
Equation 3, considering the swapping start time
biin
Equation 13is equivalent to considering the swapping end time
ci. Moreover, the travel time (counted in the arrival time
ai,k) and waiting time for battery swapping are considered in
bibased on the swapping process model
Equations 3–
9.
Definition 1Consider the game Q, a vector is called a generalized Nash equilibrium if no player can reduce its cost by unilaterally changing his decisions (Facchinei and Kanzow, 2010), i.e., holds for all .The existence of the Nash equilibrium in game Q is discussed in Theorem 1.
For the battery swapping scheduling game , the pure strategy Nash equilibrium always exists.
Similar to the proof of Theorem 1 in (Ran et al., 2023), Theorem 1 here can be proven based on Theorem 3.1 in (Tian 2015).
3 Solution methodology
To find the pure strategy Nash equilibrium, this section presents a best response algorithm that extends a Jacobi-type algorithm (Sagratella, 2016) to suit for the generalized Nash equilibrium game Q.
The difficulty is to preserve the satisfaction of constraints Equations 1–4 and Equations 6–11 during the iterative solution process, especially constraints Equations 10, 11 that couple different EVs. When updating the decisions of EV i, the original Jacobi-type method that fixes the strategies of all EVs except for EV i cannot be directly applied. To overcome this difficulty, our idea is that decisions of EVs arriving before i should still be kept unchanged, while those of EVs arriving after i should be adjusted properly.
Let represent the set of EVs that arrived before it, when EV i is updating its decisions. Constraints Equation 10 become Equation 14,where is fixed as input data, while are decision variables.
Similarly, Equation 11 becomes Equation 15,where is fixed as input data, while are decision variables.
For EV i, its response at an iteration is obtained by solving problem Pi as follows:
EV i selects its target BSS by solving problem Pi (Equation 16) in order to minimize its cost iteratively in Algorithm 1. EVs that were originally scheduled to arrive after EV i may need to adjust their schedules to reflect shifts in their timings in line 7. If EV i was scheduled to BSS k1 (in the previous iteration) and is updated to BSS k2, EVs that would arrive at k1 will be moved forward in time, while those that would arrive at k2 will be moved backward. As illustrated in Figure 2, if EV 3 was originally scheduled to BSS k1 in iteration m-1 and is then updated to BSS k2 (in line 5) in iteration m, the schedules of EVs 4, 6 and 7 will be adjusted. EV 4 will be moved forward in the queue at BSS k1, while EVs 6 and 7, will be moved backward in the queue at BSS k2. The algorithm iterates until no EV deviates from its decisions, i.e., a Nash equilibrium has been found.

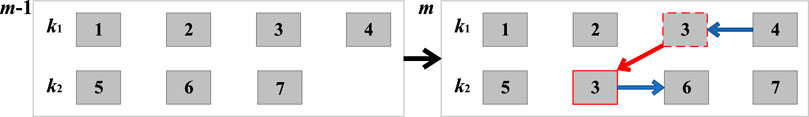

FIGURE 2
Algorithm 1
Input: Initial SoC, distance to BSS, arrival time at the BSS, swapping price;
Output: Scheduling results v
1: choose a starting point and set m: = 1, i: = 1;
2: while is not a solution of the Nash equilibrium do
3: fordo
4: set ;
5: compute a best response by solving Pi (Equation 16);
6: fordo
7: adjust ;
8: end
9: set, ;
10: if
11:
12: end if
13: end
4 Case studies
The proposed battery-swapping scheduling approach is tested in two cases. In Case 1, a smaller size example is tested to demonstrate the fairness and reduced waiting time of our approach. In Case 2, a larger size example is tested to demonstrate the advantages of our approach on the swapping success rate and average cost compared with the shortest arrival time approach. Both cases demonstrate the computational efficiency of the proposed algorithm.
Testing is conducted on a system with an Intel Core i5-13500H CPU, 32 GB of RAM, using Python 3.11 in PyCharm and Gurobi 10.0.1.
4.1 Case 1
In this example, we consider an area with 3 BSSs and 10 EVs requesting battery swapping. Each EV’s location and initial SoC are generated randomly, with an average driving speed of 24 km/h. All batteries are of the same specification, allowing a battery-swapped EV to travel up to 230 km. The swapping prices and the number of batteries at each BSS are also generated randomly. Input data of EVs and BSSs are presented in Tables 1, 2, respectively. The number of minutes T is set to 70.
TABLE 1

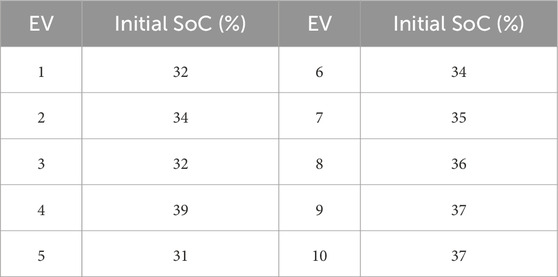

| EV | Initial SoC (%) | EV | Initial SoC (%) |
|---|---|---|---|
| 1 | 32 | 6 | 34 |
| 2 | 34 | 7 | 35 |
| 3 | 32 | 8 | 36 |
| 4 | 39 | 9 | 37 |
| 5 | 31 | 10 | 37 |
Initial SOCs of EVs in case 1.
TABLE 2

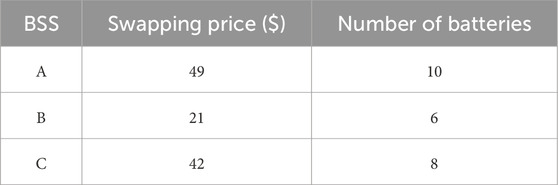

| BSS | Swapping price ($) | Number of batteries |
|---|---|---|
| A | 49 | 10 |
| B | 21 | 6 |
| C | 42 | 8 |
Input data of BSSs in Case 1.

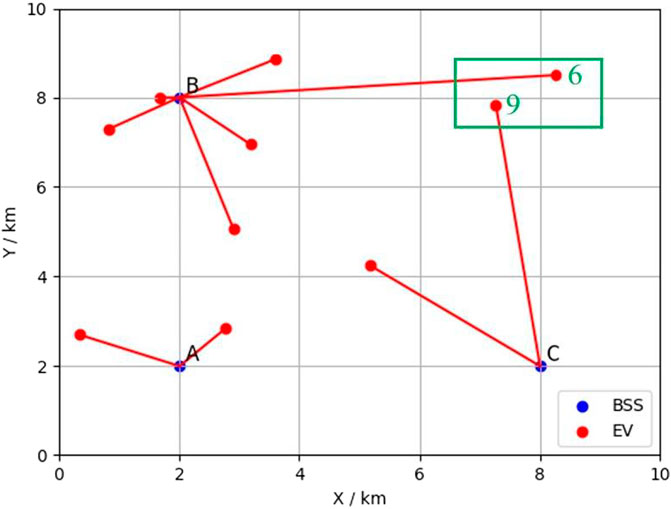

Figure 3 illustrates the results using a centralized optimization approach that minimizes the total cost of all EVs. In the scheduling results, two EVs highlighted in the green box have tendencies to change their target BSSs. EV 6 prefers to switch its target from BSS B to BSS C, reducing its cost from $54.4 to $49.8, and EV 9 prefers to switch from BSS C to BSS B, lowering its cost from $63.4 to $48.6. This indicates that the centralized optimization method lacks fairness.
FIGURE 3

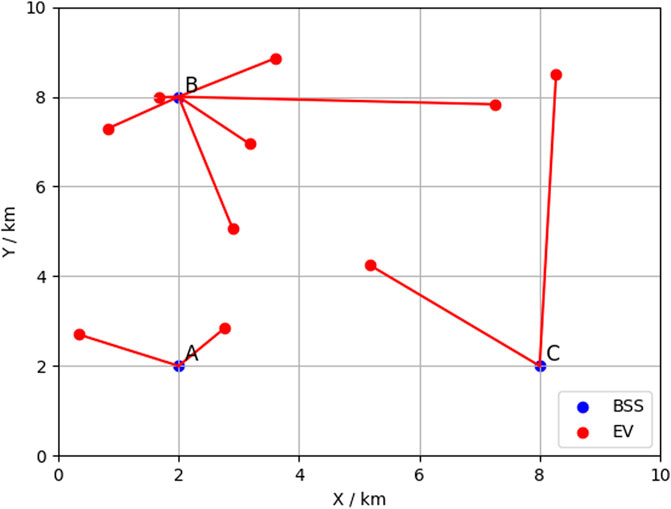

Figure 4 displays the results using the proposed non-cooperative game approach. The results compose a schedule where no EV can reduce its cost by unilaterally changing its decisions, i.e., a Nash equilibrium.
FIGURE 4

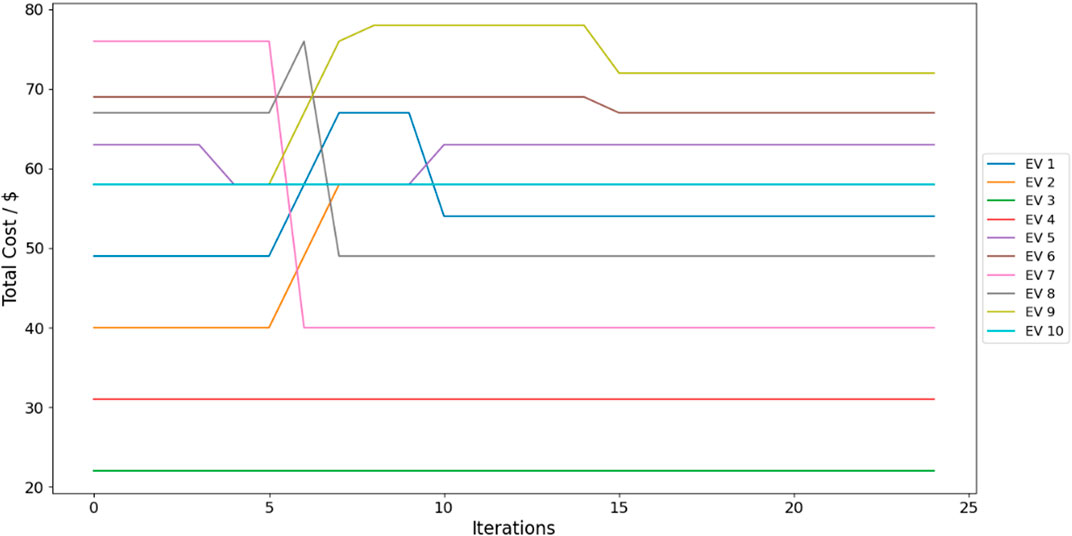

To demonstrate Algorithm 1’s performance, iteration results are illustrated in Figure 5. After 15 iterations, each EV’s cost becomes a stable value (and then examined in the last 9 iterations), confirming that the algorithm successfully converges to a pure strategy Nash equilibrium. The solution time of 24 iterations is 1.01 s.
FIGURE 5
To demonstrate the benefits of our swapping process model, the following battery swapping waiting time is calculated from the scheduling results, according to Equation 17
For comparison purposes, our non-cooperative game approach is also tested without considering the waiting time, i.e., the swapping process model is omitted and the swapping start time in Equation 13 is substituted by the arrival time. The average waiting times of all EVs with and without considering the waiting time are compared in Table 3. The results demonstrate that modeling the waiting time in the scheduling formulation can significantly reduce the average waiting time.
TABLE 3

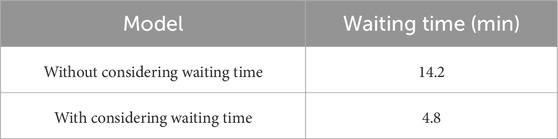

| Model | Waiting time (min) |
|---|---|
| Without considering waiting time | 14.2 |
| With considering waiting time | 4.8 |
Comparison of average waiting times between two models.
4.2 Case 2
In Case 2, we increase the number of BSSs to 5 and the number of EVs to 30. Input data of EVs and BSSs are presented in Tables 4, 5, respectively. The number of minutes T is set to 100.
TABLE 4

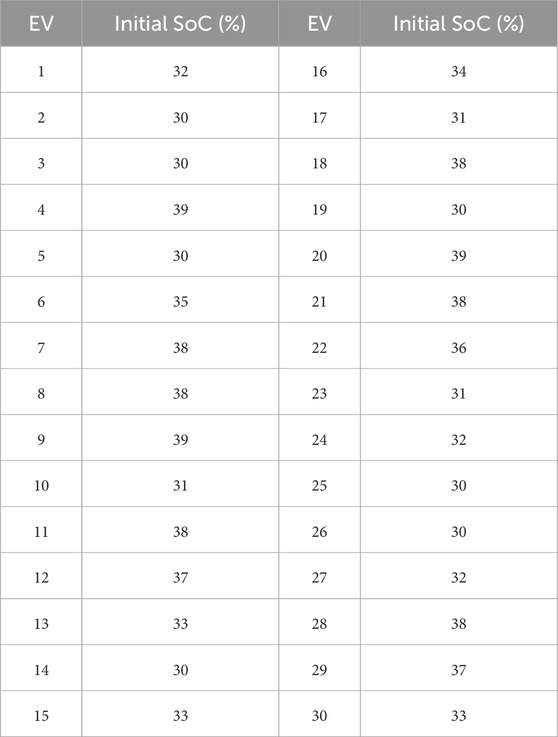

| EV | Initial SoC (%) | EV | Initial SoC (%) |
|---|---|---|---|
| 1 | 32 | 16 | 34 |
| 2 | 30 | 17 | 31 |
| 3 | 30 | 18 | 38 |
| 4 | 39 | 19 | 30 |
| 5 | 30 | 20 | 39 |
| 6 | 35 | 21 | 38 |
| 7 | 38 | 22 | 36 |
| 8 | 38 | 23 | 31 |
| 9 | 39 | 24 | 32 |
| 10 | 31 | 25 | 30 |
| 11 | 38 | 26 | 30 |
| 12 | 37 | 27 | 32 |
| 13 | 33 | 28 | 38 |
| 14 | 30 | 29 | 37 |
| 15 | 33 | 30 | 33 |
Initial SOCs of EVs in case 2.
TABLE 5

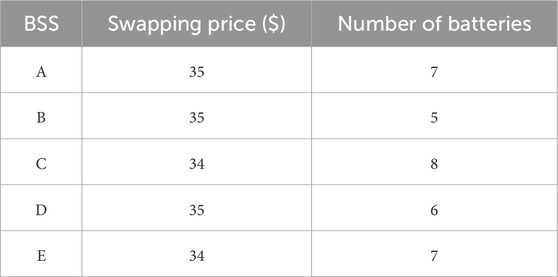

| BSS | Swapping price ($) | Number of batteries |
|---|---|---|
| A | 35 | 7 |
| B | 35 | 5 |
| C | 34 | 8 |
| D | 35 | 6 |
| E | 34 | 7 |
Input data of BSSs in Case 2.

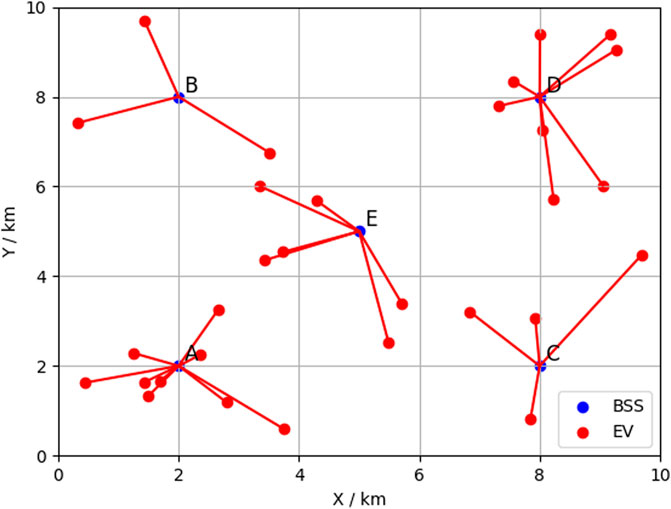

Figure 6 presents the scheduling results using the shortest arrival time approach. BSS A is assigned 9 EVs despite having only 7 batteries, and BSS D is assigned 8 EVs despite having only 6 batteries. Although each EV reaches the nearest BSS, 4 EVs failed to swap their batteries.
FIGURE 6

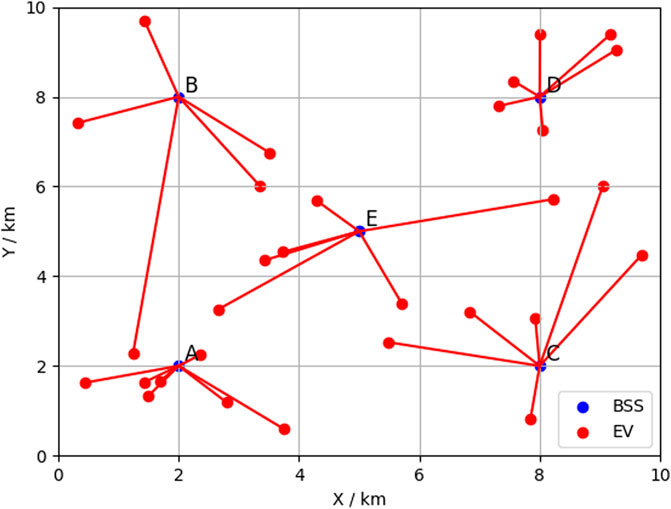

Figure 7 illustrates the scheduling results using our method. The iterative process of the algorithm is shown in Figure 8, where Algorithm 1 converges after 128 (= 99 + 29) iterations. The solution time is 8.24 s, demonstrating the computational efficiency of our method.
FIGURE 7

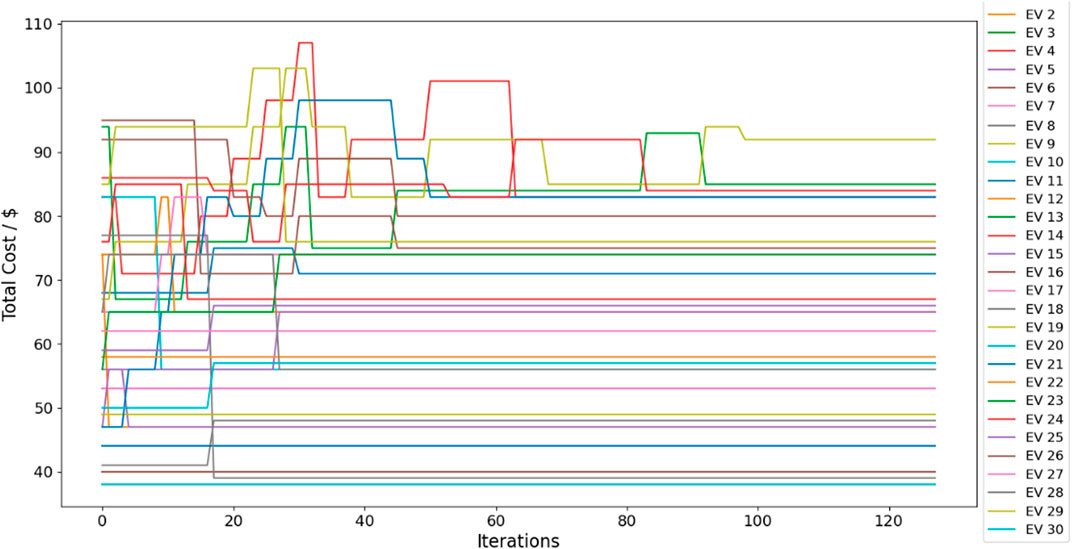

FIGURE 8
For better comparison, Table 6 summarizes the swapping success rates and average total costs using these two approaches. It appears that the swapping success rate of the shortest arrival approach is only 86.7%, while that of our approach is 100%. Furthermore, the average cost of all EVs is reduced from $81.7 using the shortest arrival time approach to $62.8 using our approach, by 23.1%. Note that for a convenient comparison of the average cost, the number of batteries in BSS A is increased to 9, and that in BSS D is increased to 8 to avoid EVs from unsuccessful battery swapping. These results demonstrate that the non-cooperative game approach increases the swapping success rate while reducing the average cost of EVs.

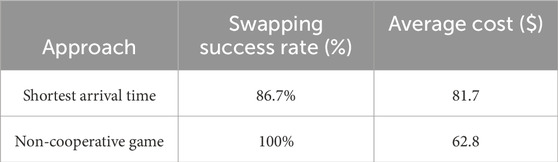

TABLE 6
Approach | Swapping success rate (%) | Average cost ($) |
|---|---|---|
| Shortest arrival time | 86.7% | 81.7 |
| Non-cooperative game | 100% | 62.8 |
Comparison of results.
5 Conclusion
This paper proposes a non-cooperative game approach for the battery-swapping scheduling of EVs. A swapping process model inspired by the job-shop scheduling problem is proposed, and the cost function of each EV comprehensively considers the travel time, waiting time, and battery swapping price. A non-cooperative game model for battery swapping scheduling is established considering the finite quantities of batteries and swapping grippers. An iterative best response algorithm is developed satisfying constraints including those couple decisions of different EVs. Two cases are tested. In Case 1, a smaller size example is tested to demonstrate the fairness and reduced waiting time of our approach. In Case 2, a larger size example is tested to demonstrate the advantages of our approach on the swapping success rate and average cost compared with the shortest arrival time approach. Both cases demonstrate the computational efficiency of the proposed algorithm.
