Abstract
Finding innovative, stable, and environmentally acceptable perovskite (PVK) sunlit absorber constituents has developed a major area of study in photovoltaics (PVs). As an alternative to lead-based organic-inorganic halide PVKs, these PVKs are being researched for use in cutting-edge PVK solar cells. While there has been progress in this field as of late, there are still several scientific and technical questions that have yet to be answered. Here, we offer insights into the big picture of PVK toxicity/instability research, and then we discuss methods for creating stable, non-toxic PVKs from scratch. It is also believed that the processing of the proposed PVKs, which occurs between materials design and actual devices, poses novel challenges. PVK PVs that are both stable and ecologically benign can be created if these topics receive more attention. It is interesting to note that although perovskite solar cells (PSCs) have impressive power conversion efficiency, their commercial adoption is hindered by lead toxicity. Lead is a hazardous material that can cause harm to humans and the environment. As a result, researchers worldwide are exploring non-toxic lead-free photovoltaics (PSCs) for a sustainable and safe environment. To achieve this goal, lead in PSCs is replaced by non-toxic or less harmful metals such as tin, germanium, titanium, silver, bismuth, and copper. A study has been conducted that provides information on the characteristics, sustainability, and obstacles of replacing lead with these metals in PSCs. The paper also explores solutions for stability and efficiency issues in lead-free, non-toxic PSC commercialization, including altering manufacturing techniques and adding additives. Lastly, it covers the latest developments/future perspectives in lead-free perovskite solar cells that can be implemented in lead-free PSCs.
1 Introduction
Despite being the most plentiful, free, and sustainable energy source, traditional photovoltaics (PVs) are still more expensive than fossil fuels in most places (; ). This highlights the critical need for the rapid advancement of PVs of the subsequent group that are both extremely competent and suitably priced. In this context, perovskite (PVK) solar cells (PSCs) have developed as a revolutionary thin-film PV technology, rapidly reigniting research into the development of PVs (Liu et al., 2013; Jeon et al., 2014; ). The power conversion efficiency (PCE) of PSCs has climbed recklessly now up to 23% which has been shown in (Kojima et al., 2009; National Center for Photovoltaics, 2024).
The major light absorbers in PSCs are PVK-type materials. Since the earliest days of PSC research, lead-based organic-inorganic halide PVKs (OIHPs) (Kim et al., 2012; Zhou et al., 2016), with a typical chemical formula of ABX3 (Kim et al., 2012; Zhou et al., 2016), have been the most explored PVKs. PVK absorber materials now include ālow-dimensionalā and chalcogenide PVKs (PCP) (Snaith, 2013; ; Tsai et al., 2016; Xiao et al., 2018). Perovskites are a class of extremely effective solar cells based on Pb halides. The most popular type is Pb-based organic-inorganic halide perovskites, which have the general formula ABX3. Here A can be CH3NH3 + (MA+) or HC(NH2)2 + (FA+); B is Pb2+; and X can be I, Br or Cl (shown in Figure 1). These perovskites are widely studied because of their high efficacy and low rate. They can be used in different forms, including thin films, quantum dots, and nanorods. However, the stability and degradation of perovskites are important issues that need.

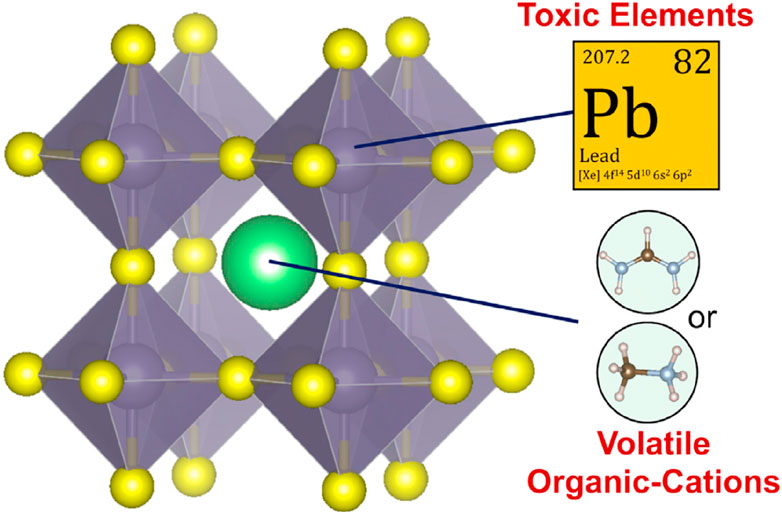

FIGURE 1
Despite current research into alternate PVK materials, the B-site positive ion in modern PSCs is still lead (). If all the electricity in the United States were to be generated by PSCs using the most well-deliberated OIHP, the annual consumption of lead would be 160 tons (). Eliminating Pb from PSCs is the only long-term solution to the Pb-toxicity problem, even though PSCs may be managed and regulated to decrease environmental Pb discharge. The quantity of harmful components permitted in consumer or domestic niche applications, such as portable PVs, is extremely low (Hailegnaw et al., 2015). The band alignment between the perovskite material and the selective materials of n-type and p-type is crucial for effective charge extraction. In particular, the electron transport layerās conduction band edge should be lower than the perovskites, while the hole transport layerās valence band edge should be higher. This relationship is illustrated in Figure 2.
FIGURE 2
United States, Occupational Safety and Health Administration (OSHA), for instance, classifies lead and its compounds as very dangerous and has established a legally acceptable exposure limit of 0.05Ā mg/L for general industry (Levin et al., 1997). Due to the high expense of creating Pb-based PSCs and the need to invest heavily in protecting workersā health from the metalās narcosis and eye/nose/throat irritation. The necessity for organic positive ions to cover the āA-siteā in the PVK assembly is another major issue with existing lead-based bulk OIHPs. These organic compounds have a mild interaction with the metal-halide octahedra at PSC circumstances when the inorganic cations are present ().
Although PVKs include ammonia functional groups in their crystal structure, the organic species inside them are more hygroscopic, making them more susceptible to deterioration when exposed to air (Leijtens et al., 2015; Rong et al., 2015). Lead and chemical instability of PSCs based on lead-containing bulk OIHPs are the key difficulties. To solve these issues, researchers must identify novel PVK options that are innocuous and firm while hitherto possessing sufficient PCE as an alternative to the currently employed lead-based PSCs. From this viewpoint, this paper primarily emphasizes the critical need to pinpoint the historical roots of the current PVK light-absorber materialsā inherent toxicity and instability, and then address approaches to designing new environmentally friendly, stable PVKs. Future synthesis of novel lead-free PVK compounds is discussed to round up the paper.
2 Evaluation of prospective new PVKsā effects on the environment and their durability over time is essential
Getting the basic stuff out, synthesis/processing of cells, cell assembly, utilization, and decommissioning of cells are the usual stages in the life span of a PSC panel (Volans, 1987; ), as illustrated in Figure 3A. Dangerous PVK-formed species will be released during all these phases, but it is too soon to do a full life cycle analysis of the PSC technology. Consequences like as land and water degradation are inevitable, as is the introduction of these toxins into the food chain, which ultimately reaches human people (). Possible catastrophic incidents during PSC production, transit, storage, and use, such as fire or floods, provide additional environmental concerns (). As a result, Pbās indirect toxicity has far-reaching effects on human health and the natural world. In addition, PVKs may be detrimental to ecosystems and people through a variety of different processes, such as acidification and nanotoxicity (see Figure 3B).

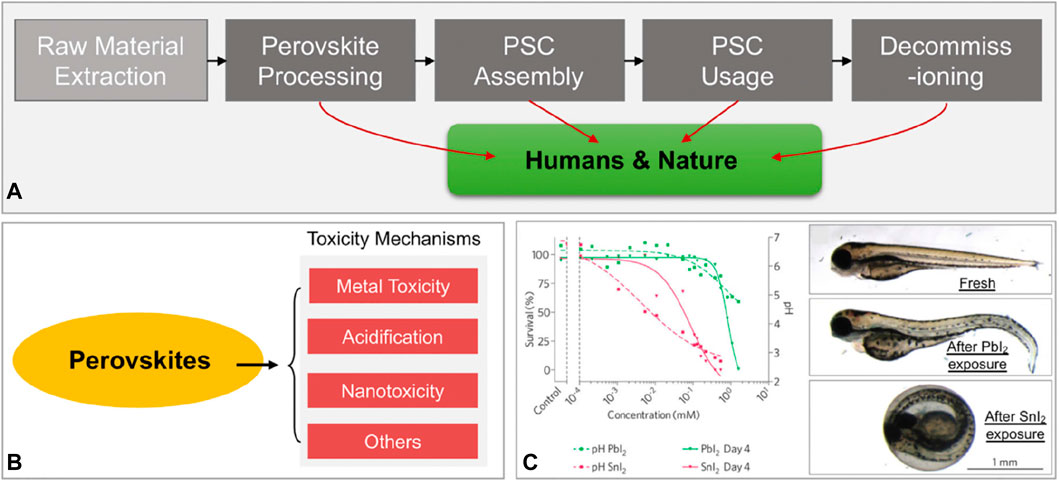

FIGURE 3
Sn-based PSCs, for instance, have been shown to attain PCEs of 10%, making them a promising green option for PSCs. Recent research (), however, shows that in Sn-based PVK materials, oxidation may proceed rapidly in ambient or aqueous settings, resulting in the creation of hydroiodic acid (; ).
Zebrafish study shows that Strontium Iodide is more intensely lethal when compared to Lead Iodide (Figure 2C). The greater acidification effects of Sn2+ compared to lead ions are largely to blame for this. Nanoscale lead-based and lead-free PVKs for PSCs and optoelectronics are expected (Im et al., 2014; Jellicoe et al., 2016). Nanoscale materials harm cells and biological systems, so, probably, nanoscale PVK materials are also dangerous.
The utilization of a mesoporous layer in the mesoporous architecture facilitates the expeditious extraction of photoinduced electrons from the perovskite material. This results in a reduction of the electron transport distance and eliminates the need for a high level of crystal quality to achieve effective light absorption (Tétreault et al., 2010). Nevertheless, in comparison to other arrangements, mesoporous perovskite solar cells often exhibit a reduced Voc (Kang et al., 2016) and diminished light absorption beyond 720 nm wavelengths (). The need for a perovskite overlayer to avoid mesoporous layer-HTL contact might cause short circuits (Yan et al., 2016). Moreover, there is an ongoing dispute over the role of the mesoporous layer, especially considering the remarkable efficiencies demonstrated by two-dimensional perovskite solar cell (PSC) devices. The highest recorded efficiency, as reported in reference (), is at 20.7%. Titanium dioxide (TiO2) is used as a mesoporous layer due to its broadband gap energy of 3.5 eV, chemical and thermal stability, photodegradation resistance, non-toxicity, and cost-effectiveness (Haruyama et al., 2015; Sabba et al., 2015). Figure 4 shows that mesoporous layer thickness affects perovskite polycrystal penetration into TiO2 pores.
FIGURE 4
In a study conducted by authors (Wang et al., 2016), it was observed that a mesoporous layer of TiO2 with a thickness ranging from 260Ā nm to 440Ā nm adequately filled the pores of mesoporous TiO2, as depicted in Figure 5. These results suggest that between these bounds lies the sweet spot for maximizing light absorption while minimizing recombination due to route length. When testing the solar efficiency of each component, it was discovered that the mesoporous TiO2 device, although thinner, performed well Figure 6. One possible explanation is that the higher electron density in TiO2 improves charge transfer and collecting efficiency (Wu et al., 2017).
FIGURE 5
FIGURE 6
Nanoscale PVKs may be harmful due to their fibrous structure (Xiao Z. et al., 2015; Ju et al., 2017a; Ju et al., 2018), and radical species group (Ming et al., 2016). A meaningful evaluation of the toxicity of PVK compounds, both those already in use and those that have yet to be discovered, necessitates the prompt construction and implementation of a systematic system of biological investigations. Despite the potential importance of this avenue for PSC research, nothing has been done thus far.

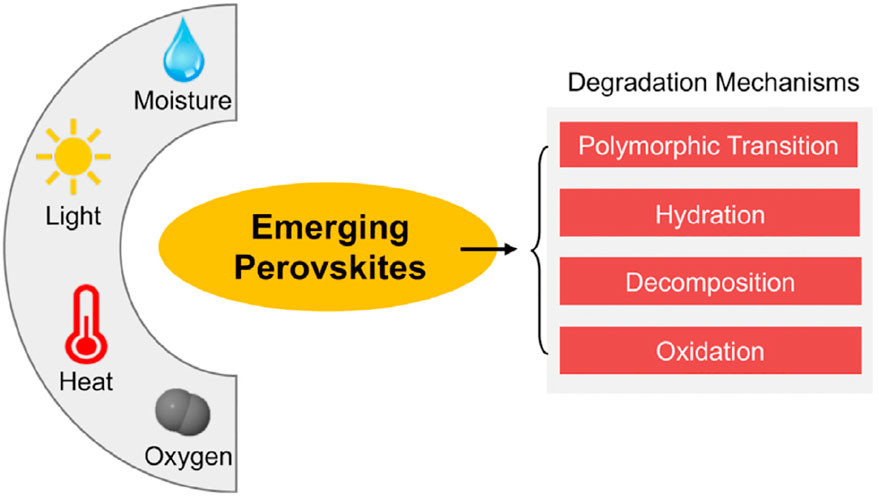

Figure 7 shows that water, light, heat, and oxygen are the most detrimental to the stability of a PVK material. A wide range of processes, including polymorphic transformation, hydration, ion transport (Ke et al., 2017a), breakdown, and oxidation, are responsible for the degradation of OIHPs by these agents. While Pb-based OIHP deterioration has been extensively investigated in recent years, our knowledge of Pb-free PVKs is still in its infancy. The stability problem of upcoming PVK materials may be much more complicated than that of Pb-based OIHPs, according to certain studies in the literature.
FIGURE 7
Many decay pathways may be active simultaneously. CsSnI3, a lead-free candidate PVK material with a 1.3Ā eV optical bandgap and decent carrier mobility, is one such example (Yin et al., 2017). CsSnI3 PVK is thermally stable because of its inorganic composition and robust covalent bonding for its lattice assembly (Volonakis et al., 2017). The āblackā phase of g-CsSnI3 rapidly undergoes a āyellowā polymorph transformation when exposed to air (Saparov et al., 2015; Slavney et al., 2016). Nevertheless, oxygen may quickly oxidize Sn (II) in CsSnI3 to Sn (IV), turning it into Cs2SnI6 ().
Moisture from the air may also penetrate CsSnI3 PVK thin films, where it can form hydrates and break down the material into metal halides. The PCE of PSCs based on CsSnI3 may drop precipitously due to a combination of these degrading processes. Due to their extreme instability in the ambient environment, they can decay in a matter of minutes if not enclosed.
It is difficult to examine these pathways in isolation, but doing so is essential if we are to solve the PSC instability problem once and for all. In addition, there are several other Pb-free PVK possibilities whose stability and deterioration have been poorly researched (Xiao et al., 2017a; Xiao et al., 2017b; Yang et al., 2017), including CsGeI3, CsSnxGe1-xI3, Cs2TiI6-xBrx, and Cs2AgBiBrI6. Research into their resistance to the major environmental variables (humidity, light, heat, oxygen) and possible breakdown mechanisms is promising. New, Pb-free, stable PVKs for PSCs can be designed using the information gleaned by studying the stability of these developing PVKs.
3 Theory and experiment required to find nontoxic, stable PVKs for PVs
Theoretical simulations screen the enormous number of PVK family compounds and derivatives to find safe and stable candidate PVKs. There are typically two phases to such materials screening processes. Finding potential elements to substitute for Pb in current Pb-based OIHPs is the first step in solving the toxicity problem. Substitutes for PVKs in PV applications must have many of the same fundamental electrical, conveyance, and ocular features. Group IV elements Sn2+ and Ge2+ are often cited in the literature as suitable lead ion substitutes. Lead-free Sn- and germanium-based PVKs for PV applications have emerged from this logic. Sn-based PSCs have PCE approaching 10% (Ju et al., 2017b), even though Sn2+ may be quickly oxidized to Sn4+, lowering performance. Potential Pb-free PVK candidates can also be identified using an electrical structure-based approach.
Pb-based OIHPs have high PCEs because the Pb lone-pair 6s orbital has a strong antibonding interaction with the I 5p orbital, allowing for longer carrier lifetimes and diffusion lengths (Zhang et al., 2017). Several researchers have focused on PVKs made from non-traditional metals because of the presence of lone-pair ns2 (McMeekin et al., 2016; Nakajima and Sawada, 2017; ). New compounds having antibonding contact between orbitals around the valence band maximum can likewise exhibit band-edge behaviour like lead-based PVKs. Skutterudite structure has been proposed, for instance (). Unlike lead-based PVKs, IrSb3 possesses a band-edge feature indicative of p-p* antibonding interaction. The crystal structure for PVK materials provides another angle from which to hunt for promising Pb-free PVK options.
Replace Pb2+ with an aliovalent metal cation and the resulting PVK structure will have a different chemical formula from the usual AB(II/III/V) X3/X6/X9 (Zhao et al., 2017a; Zhao et al., 2017b). The electrical structure of the compounds will be altered because of this structural alteration (Sakai et al., 2017). Figure 8A shows how crystal structure and chemical composition can be used to create novel PVK-type compounds with favourable electrical structures for PV applications.

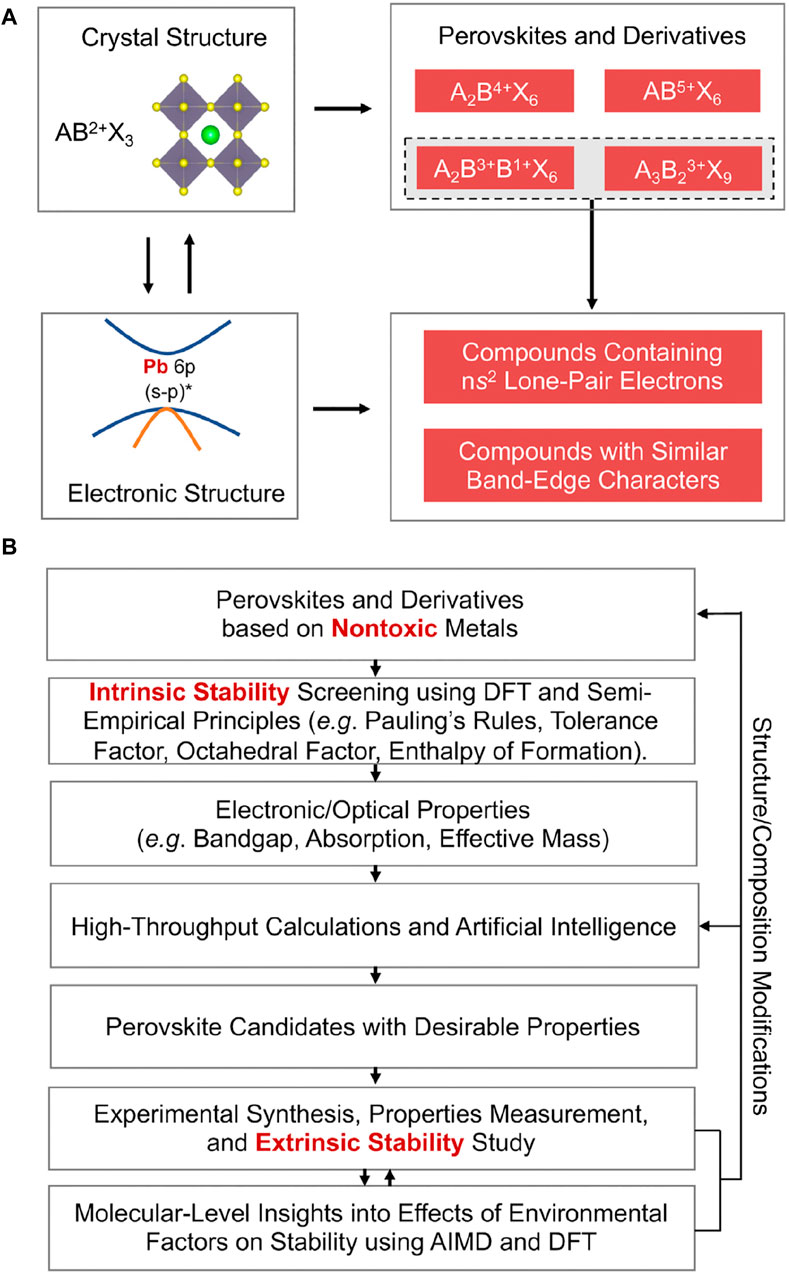

FIGURE 8
To accurately anticipate the stability of PVKs, a theory-experiment integrated method is required because of the complexity of the problem (Pang et al., 2016; Sun and Yin, 2017) To get a general idea of the stability of the PVK phase, a common empirical rule is to utilize Goldchmidtās tolerance factor (t). Cubic assemblies are suggested by fits in the 0.9% t% one range for PVKs, whereas orthorhombic assemblies are suggested by fits in the 0.71%ā0.9% t% one range. Other configurations include the hexagonal assembly, for t% 0.71 or tĀ R 1. Figure 8B displays a flow chart for showing non-hazardous metal-based PVK intrants with PV constancy. This technique logically combines theory and experiment. Figure 8A depicts the first step of the process, which involves identifying a suitable metal-free PVK that does not include lead. Although the organic A-site positive ion is intrinsically unstable, positive ions such as caesium ions (; Korbel et al., 2016) are employed as replacements (Schmidt et al., 2017; Takahashi et al., 2018) due to their sturdier ionic interaction through unknown negative ions.
The most promising PVK candidates may be identified by combining A with B-site replacement. This method has been used to effectively anticipate and synthesise compounds like CsSnI3, Cs2AgBiBr6, and Cs2TiBr6, although there may be additional PVK options that are less toxic and more stable (Lee et al., 2012; ; Pilania et al., 2016; Li Z. et al., 2018). Several alternatives to B-site ions in PVK structures, including monovalent metals and trivalent metals (Xiao et al., 2014; ; ; Xiao J. et al., 2015; ), have been proposed. Substituting a tetravalence metal for the B-site ion stabilizes vacancy-order double PVKs (Kalyanasundaram and GrƤtzel, 1998; Leijtens et al., 2013). The same atoms in various valence states can substitute the B-site ion in electronic double PVKs (Xin et al., 2011).
Using Figure 8Bās manufacturing cycle, first, validate new compoundsā intrinsic or thermodynamic stabilities using ādensity functional theory (DFT)ā based design to guarantee they have the requisite PV-related electronic/optical properties. As shown in Figure 3, when the PVKs have been synthesized, they are put through a series of experiments to determine how stable or degradable they are in the presence of various external environmental stimuli.
DFT-based mechanistic research complements experimental studies (; Leijtens et al., 2014). These parallel theory-experiment studies (Son et al., 2014; Zuo et al., 2015) show how to modify PVK crystal structure/composition to find more stable PVK candidates. As can be seen in Figure 4B, the entire stability-screening procedure considers the crucial electrical assembly and the PVKsā photovoltaic properties.
High amount simulated ingredients strategy can anticipate lead-free PVK ingredients for PV utilizing computational quantum-mechanical, thermodynamic, database development, and intelligent data-mining methods. Although useful, these calculations cannot replace a full material simulation, and they often only solve a portion of the design issue. The DFT-computed descriptors are useful for screening candidate materials and determining their important features ().
Paulingās principles (), are computational descriptors for intrinsic stability. Bandgap and effective mass can approximate light absorption and carrier mobility. The basic components of a material can provide an approximation of its cheap cost and nontoxicity. Descriptors screen candidates with a PVK structure and its modifications for materials with the right attributes ().
High-throughput computational design is computationally expensive due to the huge conformation space and the enormous number of acceptable descriptors for essential properties, many of which are derived by more precise functional modelling (Wojciechowski et al., 2014). In divergence, a good machine learning model may be taught using existing data or data derived through computations. To find novel candidate materials with desirable qualities, this approach may be applied to the periodic table, yielding insights, and guiding experimental design (Niu et al., 2015). PVK stability and bandgap have been estimated in previous works using a variety of techniques based on the identification of pertinent properties (; Qin et al., 2014; Jeon et al., 2015).
4 Advances in lead-free perovskites
4.1 Tin perovskites
Group 14 components Tinās 5s2 electrical configuration resembles leadās 6s2. With a similar outer electron shell structure to lead (Pb) but a smaller ionic radius, tin may be a preferable option (Zhang Q. et al., 2018). Tin can replace lead in PSCs (Wang X. et al., 2019). Tin is cheap, non-toxic, and electrically comparable to lead (Shanon, 1976; Ke et al., 2017b). The most researched lead-free perovskite alternative is tin-based (). Tin halide-based perovskites have low exciton binding energy, a tiny band gap, and excellent carrier mobility (Liu X. et al., 2020). Sn-based perovskites offer several advantages for solar cells, but their unstable divalent Sn states make them extremely conductive and inefficient (Song et al., 2017). Tin-based lead-free PSCs are ineffective because FASnI3 perovskites rapidly crystallise and oxidise, resulting in rough morphology and large defect concentrations (Liu X. et al., 2020). Table 1 lists current tin-based perovskites and ways to improve them.

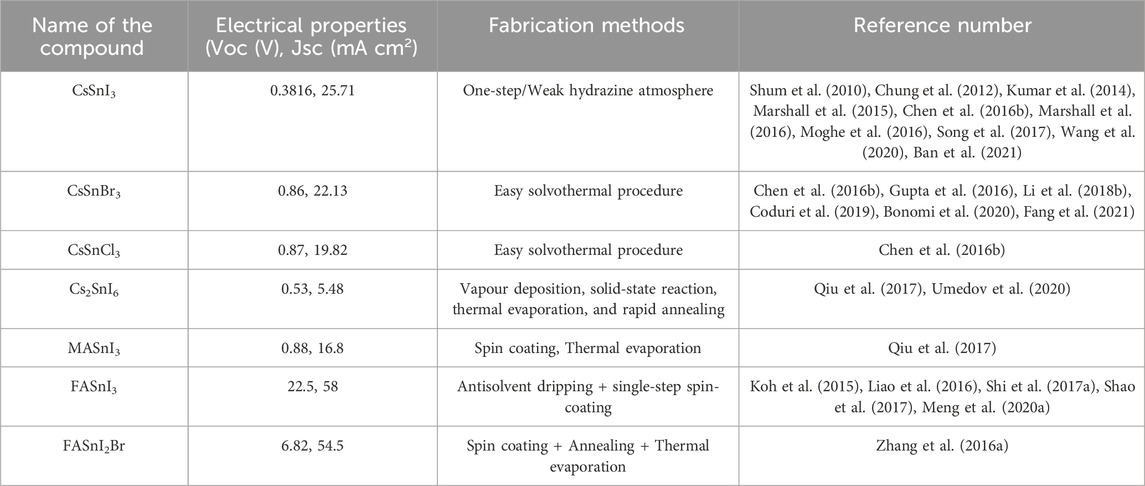

TABLE 1
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| CsSnI3 | 0.3816, 25.71 | One-step/Weak hydrazine atmosphere | Shum et al. (2010),Kumar et al. (2014),Marshall et al. (2015),Marshall et al. (2016),Moghe et al. (2016),Song et al. (2017),Wang et al. (2020), |
| CsSnBr3 | 0.86, 22.13 | Easy solvothermal procedure | Gupta et al. (2016),Li et al. (2018b), |
| CsSnCl3 | 0.87, 19.82 | Easy solvothermal procedure | |
| Cs2SnI6 | 0.53, 5.48 | Vapour deposition, solid-state reaction, thermal evaporation, and rapid annealing | Qiu et al. (2017),Umedov et al. (2020) |
| MASnI3 | 0.88, 16.8 | Spin coating, Thermal evaporation | Qiu et al. (2017) |
| FASnI3 | 22.5, 58 | Antisolvent dripping + single-step spin-coating | Koh et al. (2015),Liao et al. (2016),Shi et al. (2017a),Shao et al. (2017),Meng et al. (2020a) |
| FASnI2Br | 6.82, 54.5 | Spin coating + Annealing + Thermal evaporation | Zhang et al. (2016a) |
Current tin-based perovskites and their fabrication methods.
4.2 Perovskites with a composition based on bismuth
The electrical configuration of group 15 element bismuth is Bi3+ (6s2). Bismuth is less toxic than lead and has many dimensions due to its BiX63 octahedron structure (Shanon, 1976; Zhang et al., 2023). Subsalicylate and bismuth subcitrate are therapeutic (). Chronic bismuth use can induce encephalopathy and renal failure (). Bismuth perovskites are attractive because of their lead-like isoelectronic valence shell (Lozhkina et al., 2018). Like lead (1.21 A°), Bi3+ is stable and has an ionic radius of 1.05 A° (Wani et al., 2015; Liu et al., 2022). Bismuth-based perovskites can replace lead-based ones due to their optoelectronic properties, environmental friendliness, and light, heat, and moisture resistance (). Bismuth-based perovskites have the most stable optical and structural characteristics since optical parameters did not change after 3 months without surface passivation (Kim et al., 2016).
Table 2 lists bismuth-based perovskites and strategies for overcoming obstacles.

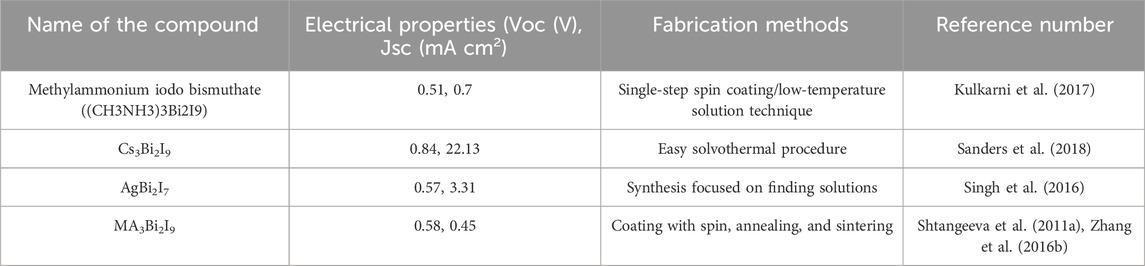

TABLE 2
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| Methylammonium iodo bismuthate ((CH3NH3)3Bi2I9) | 0.51, 0.7 | Single-step spin coating/low-temperature solution technique | Kulkarni et al. (2017) |
| Cs3Bi2I9 | 0.84, 22.13 | Easy solvothermal procedure | Sanders et al. (2018) |
| AgBi2I7 | 0.57, 3.31 | Synthesis focused on finding solutions | Singh et al. (2016) |
| MA3Bi2I9 | 0.58, 0.45 | Coating with spin, annealing, and sintering | Shtangeeva et al. (2011a),Zhang et al. (2016b) |
Current bismuth-based perovskites and their fabrication methods.
4.3 Perovskites with a composition based on Sb (antimony)
Group 15 element antimony (Sb3+) has an ionic radius of 0.75 A° and an electronic configuration of 5s2 (Wang X. et al., 2019). An alternative to lead, antimony is non-toxic and twice as affordable as Sn per kilogram (Lozhkina et al., 2018). Irina Shtangeeva et al. found that high amounts of antimony in growth media were very hazardous to plants, resulting in a significant decrease in leaf and root biomass output (Liu Y. et al., 2019). The alignment of Sbās 5s and 5p orbitals with p-block anions makes it a lone pair effect heavy hitter, and there are several advantages to being in the 3+ oxidation state (Lozhkina et al., 2018).
Trivalent Sb, which has one set of 5s2 electrons instead of lead, is an option. Therapeutics are the primary use of antimony compounds (Lozhkina et al., 2018). Liu et al. (2018) performed a theoretical evaluation of Cs3Sb2X9ās optoelectronic characteristics. The computed carrier mobilities of Cs3Sb2I9 indicate an appropriate band energy gap for hydrogen production and CO2 reduction due to enhanced electronic mobilities. Cs3Sb2I9ās photocatalytic activity is enhanced by the significant difference in hole and electron mobilities, which slows electron-hole recombination. The photovoltaic performance of Cs3Sb2I9 is superior to lead-based perovskites, making it a viable replacement (Singh et al., 2018). To manufacture solar cells efficiently, issues with antimony-based perovskites must be resolved. In terms of solar performance, solution-processed Sb-based perovskites are best suited for the dimer phase (Karuppuswamy et al., 2018). The amorphousness and pinholes in the surface form of the zero-dimensional dimer of methylammonium antimony iodide cause its poor PCE (Zuo and Ding, 2017). Table 3 lists antimony-based perovskites and strategies for overcoming obstacles.

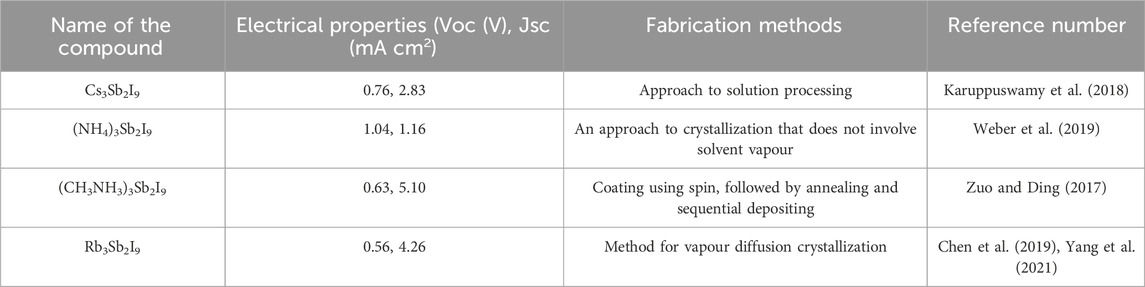

TABLE 3
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| Cs3Sb2I9 | 0.76, 2.83 | Approach to solution processing | Karuppuswamy et al. (2018) |
| (NH4)3Sb2I9 | 1.04, 1.16 | An approach to crystallization that does not involve solvent vapour | Weber et al. (2019) |
| (CH3NH3)3Sb2I9 | 0.63, 5.10 | Coating using spin, followed by annealing and sequential depositing | Zuo and Ding (2017) |
| Rb3Sb2I9 | 0.56, 4.26 | Method for vapour diffusion crystallization | Yang et al. (2021) |
Current antimony-based perovskites and their fabrication methods.
4.4 Perovskites with a composition based on germanium
The ionic radius of Ge2+ is 0.73Ā Ć , and its electronic configuration is 4s2 (Wang X. et al., 2019; Yang et al., 2021). It is a group of 14 elements. Germanium is easy to find in nature, and its pure organogermanium products are safe (Schauss, 1991; ). Germanium has little toxicity, except for tetrahydride germane (). The covalent character and higher electronegativity of Germanium make it a possible alternative to lead PSCs (Kopacic et al., 2018). Ping-Ping Sun et al. found that MAGeI3 is theoretically very comparable to MAPbI3 in terms of band gap, stability, outstanding optical properties, and hole and electron conductivity (Sun et al., 2016). The stability and effectiveness of Ge and Sn as lead mono substitution options have been demonstrated in lead-free perovskite studies (). It is thought that perovskites based on Ge, as opposed to tin or lead, have smaller bandgaps due to the higher orbital energy of Ge (4s) as compared to Sn (5s) and Pb (6s). Perovskites based on Ge, on the other hand, exhibit larger bandgaps compared to those based on tin and lead. The fact that the [GeI6] octahedral structure is structurally deformed is the primary cause of the unexpected finding (Liu et al., 2018). Germanium compounds may block mutagenic activity and prevent cancer formation under certain conditions, demonstrating they are neither carcinogenic nor mutagenic (). The tumour incidence was reduced in rats that were administered 5Ā parts per million of sodium germanate in their drinking water during their lives ().
While germanium perovskite has several benefits, it has some problems that must be addressed for increased efficiency. Commercial usage of germanium-based perovskites in photovoltaics has been hindered by poor performance (below 0.2%) and device instability (Kopacic et al., 2018). In germanium-based PSCs, Ge2+ oxidation is the main issue. In PSCs based on germanium, this results in poor performance (Wang X. et al., 2019). On the other hand, if future research can reach efficiencies beyond 10%, mixed Ge/Sn-based perovskites might be a promising material. The exorbitant price of Ge is one potential drawback of solar cells based on Ge (Ke and Kanatzidis, 2019). Table 4 lists antimony-based perovskites and strategies for overcoming obstacles.
TABLE 4
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| CsSn0.5Ge0.5I3 | 0.074, 5.7 | Solid-state reaction | Li et al. (2019),Meng et al. (2019) |
| MAGeI3 | 0.15, 4.0 | Spin coating + Annealing + Sequential deposition | Krishnamoorthy et al. (2015) |
| MAGeI2.7Br0.3 | 0.68, 0.460 | Combination of sonication, spin coating, and thermal evaporation | Krishnamoorthy et al. (2015) |
Current germanium-based perovskites and their fabrication methods.
4.5 Perovskites with a composition based on titanium
Titanium (IV), a non-toxic element, is abundant on Earth and has exceptional stability (Ju et al., 2018). Ti4+ has an electronic structure of 3p6 and an ionic radius of 0.53Ā Ć (Wang X. et al., 2019). Common reasons for gridlock in Pb-free perovskites include instability, undesirable defect states, and insufficient band gaps (). Table 5 displays the titanium-based perovskites that are currently used.
TABLE 5
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| Cs2TiBr6 | 0.88, 3.84 | A two-stage process for vapor deposition | |
| Cs2TiI2Br4 | 0.87, 3.80 | A two-stage process for vapor deposition | Liu et al. (2020b) |
| Rb2TiBr6 | 0.91, 3.91 | A two-stage process for vapor deposition | Liu et al. (2021) |
| Hybrid Ti-based PSCs | 1.02, 3.98 | A two-stage process for vapor deposition | Ju et al. (2018) |
Current titanium-based perovskites and their fabrication methods.
4.6 Perovskites with a composition based on copper
Non-toxic copper is abundant and has good charge mobility (Sani et al., 2018). Cu2+ has an ionic radius of 0.73Ā Ć and an electronic configuration of 3d9 (Ke et al., 2017b; Wang X. et al., 2019). The transition metal copper is stable. In aerobic environments, Cu2+ can form stable compounds with a high visible absorption coefficient (). While copperās (Cu2+) stable oxidation state makes it a viable alternative to lead, the halide octahedronās corner-sharing network is constrained by its smaller ionic radius. There are a lot of effective hole masses, a low intrinsic conductivity, and a low absorption coefficient in the perovskite layer (Okano and Suzuki, 2017). Perovskites made of copper that have been used so far are listed in Table 6.

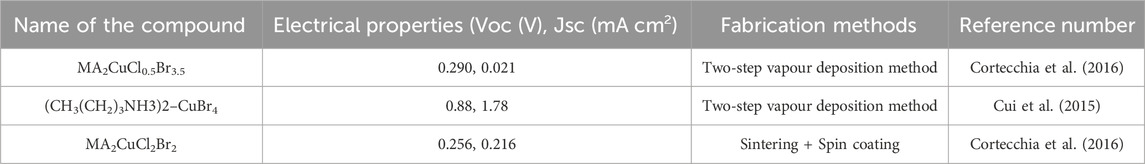

TABLE 6
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| MA2CuCl0.5Br3.5 | 0.290, 0.021 | Two-step vapour deposition method | |
| (CH3(CH2)3NH3)2āCuBr4 | 0.88, 1.78 | Two-step vapour deposition method | |
| MA2CuCl2Br2 | 0.256, 0.216 | Sintering + Spin coating |
Current copper-based perovskites and their fabrication methods.
4.7 Bimetallic or double perovskites
Substituting another Bā² cation for half of the B site cation in the general formula of the perovskite structure ABO3 results in A2B2O6 or A2BB'O6, two forms of double perovskites (Saha-Dasgupta, 2020). Due to the nanocrystal surface energy in metastable phases, nanoscale, double perovskite materials that were limited to single monolayers exhibited quantum size effects and enhanced stability. Stable nanocrystals include Cs2AgBiI6, which cannot be mass-produced. The combinatorial compositions and quaternary nature of double perovskite materials provide them with electronic structure engineering flexibility and bandgap tunability (Karuppuswamy et al., 2018; Khalfin and Bekenstein, 2019). Double perovskites made of lead are more environmentally friendly than other lead-free structures, and they have great chemical stability, electronic dimensions, and substitutional chemistry. LEDs, X-ray detectors, photocatalytic dye sensors, solar cells, and lead-free double perovskites are only a few examples of the many renewable energy and optoelectronic applications for these materials (; ; ). Recent lead-free perovskites Cs2SbAgCl6, Cs2InAgCl, Cs2BiAgCl6, and Cs2BiAgBr6 exhibit outstanding optoelectronic properties because of their low carrier effective masses and detectable bandgaps (Volonakis and Giustino, 2018). You may see a selection of the double perovskites that have been utilized thus far in Table 7.

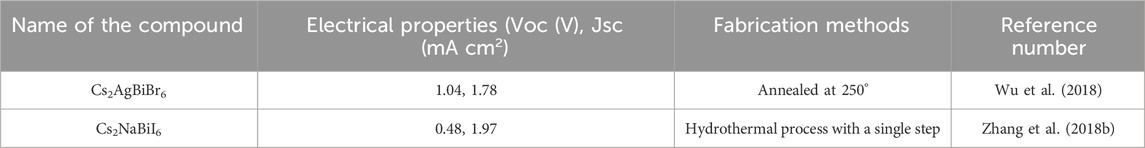

TABLE 7
| Name of the compound | Electrical properties (Voc (V), Jsc (mA cm2) | Fabrication methods | Reference number |
|---|---|---|---|
| Cs2AgBiBr6 | 1.04, 1.78 | Annealed at 250° | Wu et al. (2018) |
| Cs2NaBiI6 | 0.48, 1.97 | Hydrothermal process with a single step | Zhang et al. (2018b) |
Current bimetallic or double perovskites and their fabrication methods.
4.8 Perovskite oxide without lead
BiMnO3 is the sole transitional-metal perovskite oxide with unique properties including insulating and high ferromagnetism in bulk. According to a 2015 study by Diāeguez et al., solar applications might be possible using BiMnO3 films that have lower band gaps compared to ferroelectric oxides (). Researchers Yuji Okamoto et al. demonstrated that dye-sensitized solar cells using perovskite oxides (SrTiO3, CaTiO3, and BaTiO3) could achieve a high Voc in cells that were phase-pure (Okamoto and Suzuki, 2014).
5 Possible methods for enhancing performance in lead-free perovskites
Using additives and adjustments to the solar cell fabrication process, lead-free PSCs may be made more efficient and stable. One or more of the following goals can be accomplished with the introduction of additives: control of oxidation, reduction of vacancies, alteration of the optical bandgap, increase of the fill factor (FF), or improvement of efficiency. The utilisation of appropriate techniques in fabrication can successfully address issues such as inadequate crystallisation, unfavourable morphology, and undesirable defects. This is crucial in achieving uniform and defect-free perovskite films without any pinholes (Ke et al., 2017c).
5.1 Tin, bismuth, Sb, and Ge-based perovskites additives overcome obstacles
Data from (Ke et al., 2017c; Meng et al., 2019) suggests that additives play a crucial role in lead-free perovskites. Few research has examined the impact of additives on optical bandgap. The power conversion efficiency (PCE) grows when the optical bandgap narrows, as demonstrated in (Ke et al., 2017c; Meng et al., 2019). Tin-based perovskites had increased efficiency with additives, whereas Bismuth and antimony-based ones had lesser efficiency. This may be because Bismuth and antimony-based perovskites have greater optical bandgaps than tin-based ones. To increase PCE in bismuth and antimony-based perovskites, chemicals that lower the optical bandgap can be utilised. When additives raise the optical bandgap of tin-based perovskites, the PCE may decrease. In experiments (Ke et al., 2017c) adding ethylenediammonium (ED) enhanced optical bandgaps by 1.45 eV, 1.53 eV, and 1.92Ā eV at 0%, 10%, and 25% concentrations. PCE decreased with loading of 0, 8, and 23%, resulting in 1.42%, 6.98%, and 2.45%, respectively. This is because 28% loading results in a greater optical bandgap (Ke et al., 2017c). Optimising additive amounts leads to improved efficiency by maintaining or narrowing the optical bandgaps. Results in (Meng et al., 2019) found that adding poly (vinyl alcohol) PVA did not change the predicted optical bandgap of FASnI3 at 1.39Ā eV. The high PCE of 8.96% might be attributed to the PVA molecule being near the grain boundary of the perovskite layer. Optimising the selection and number of additives in perovskite compound production is crucial for producing highly efficient lead-free solar cells. Table 8 shows the various effects of adding additives to the above perovskites.

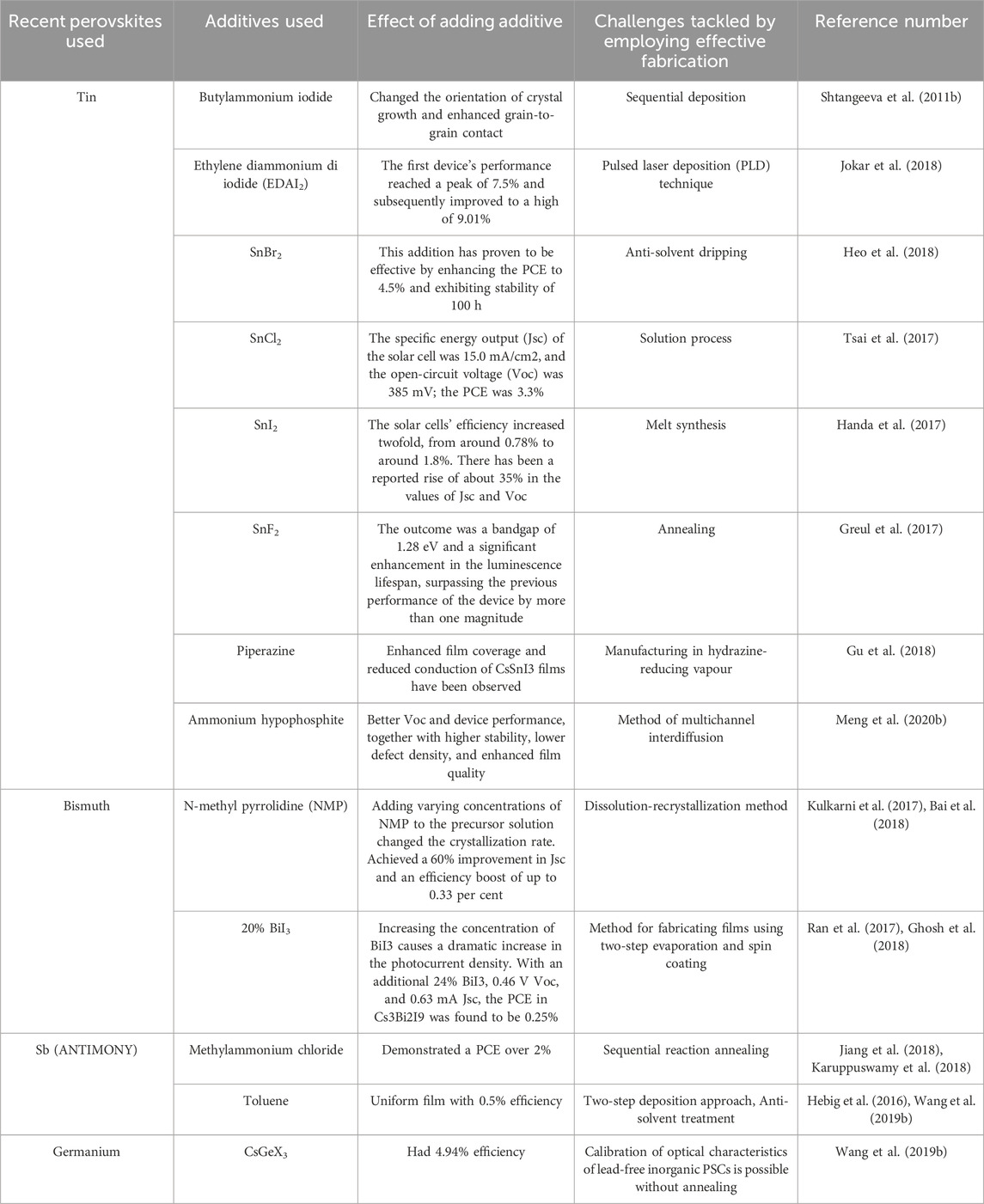

TABLE 8
| Recent perovskites used | Additives used | Effect of adding additive | Challenges tackled by employing effective fabrication | Reference number |
|---|---|---|---|---|
| Tin | Butylammonium iodide | Changed the orientation of crystal growth and enhanced grain-to-grain contact | Sequential deposition | Shtangeeva et al. (2011b) |
| Ethylene diammonium di iodide (EDAI2) | The first deviceās performance reached a peak of 7.5% and subsequently improved to a high of 9.01% | Pulsed laser deposition (PLD) technique | Jokar et al. (2018) | |
| SnBr2 | This addition has proven to be effective by enhancing the PCE to 4.5% and exhibiting stability of 100Ā h | Anti-solvent dripping | Heo et al. (2018) | |
| SnCl2 | The specific energy output (Jsc) of the solar cell was 15.0 mA/cm2, and the open-circuit voltage (Voc) was 385Ā mV; the PCE was 3.3% | Solution process | Tsai et al. (2017) | |
| SnI2 | The solar cellsā efficiency increased twofold, from around 0.78% to around 1.8%. There has been a reported rise of about 35% in the values of Jsc and Voc | Melt synthesis | Handa et al. (2017) | |
| SnF2 | The outcome was a bandgap of 1.28Ā eV and a significant enhancement in the luminescence lifespan, surpassing the previous performance of the device by more than one magnitude | Annealing | Greul et al. (2017) | |
| Piperazine | Enhanced film coverage and reduced conduction of CsSnI3 films have been observed | Manufacturing in hydrazine-reducing vapour | Gu et al. (2018) | |
| Ammonium hypophosphite | Better Voc and device performance, together with higher stability, lower defect density, and enhanced film quality | Method of multichannel interdiffusion | Meng et al. (2020b) | |
| Bismuth | N-methyl pyrrolidine (NMP) | Adding varying concentrations of NMP to the precursor solution changed the crystallization rate. Achieved a 60% improvement in Jsc and an efficiency boost of up to 0.33 per cent | Dissolution-recrystallization method | Kulkarni et al. (2017), |
| 20% BiI3 | Increasing the concentration of BiI3 causes a dramatic increase in the photocurrent density. With an additional 24% BiI3, 0.46Ā V Voc, and 0.63Ā mA Jsc, the PCE in Cs3Bi2I9 was found to be 0.25% | Method for fabricating films using two-step evaporation and spin coating | Ran et al. (2017), | |
| Sb (ANTIMONY) | Methylammonium chloride | Demonstrated a PCE over 2% | Sequential reaction annealing | Jiang et al. (2018),Karuppuswamy et al. (2018) |
| Toluene | Uniform film with 0.5% efficiency | Two-step deposition approach, Anti-solvent treatment | Hebig et al. (2016),Wang et al. (2019b) | |
| Germanium | CsGeX3 | Had 4.94% efficiency | Calibration of optical characteristics of lead-free inorganic PSCs is possible without annealing | Wang et al. (2019b) |
Challenges tackled by adding additives.
6 Recent breakthroughs/future perspectives in PSC
Recent advancements in the field of PSCs have focused on using different treatments, introducing hole transport materials, and including chiral compounds to enhance their efficiency and open-circuit voltage (Voc). These strategies will be further explored in the following discussion.
6.1 Using various hole transfer materials (HTM)
The data presented here emphasize the role that hole transport materials (HTMs) play in perovskite solar cell systemsā ability to increase efficiency and Voc. Using poly (3-hexylthiophene-2,5-diyl) (P3HT) as the hydrogen transfer material (HTM), Sagar. M. Jain et al. (2019) found that the fabrication efficiency of (CH3NH3)3Bi2I9 films was raised by 1.62%. When compared to the 1.12% efficiency attained with the conventional Spiro-OMeTAD HTL, this value is significantly greater. Min-Cherl Jung et al. (2015) used spiro-OMeTAD, C60, and P3HT, among other HTMs, to create MASnBr3 perovskite solar cell devices. In that order, the efficiencies were 0.002%, 0.221 per cent, and 0.35%. This shows that the efficiency of the solar cell devices was greatly affected by the HTM option, with P3HT showing the best efficiency out of the three HTMs that were evaluated. In addition, the lack of photocurrent and fill factor (FF) caused by spiro-OMeTADās high resistance is the reason for its poor efficiency. Different HTMs can cause changes in the open-circuit voltage of the solar cell devices; this is supported by the fact that devices, including C60, achieve a higher Voc than P3HT devices. Overall, these findings underscore the critical role of HTMs in achieving improved efficiency and Voc in PSC devices and highlight the potential for P3HT as an effective HTM in this context.
6.2 Antisolvent therapy
A study conducted by Jiewei Liu et al. discovered that using a hot Ph-Cl antisolvent treatment prevented the electric shunting of the Solar System and an increase in the number density of nucleation sites in the film. When the film was annealed in an atmosphere with a low concentration of dimethyl sulfoxide (DMSO) vapour, the average size of the crystal particles increased. Furthermore, according to the reference, adding DMSO vapour during annealing increased the film quality (Song et al., 2018).
In 2017, Priyadharsini Karuppuswamy and colleagues produced films of (CH3NH3)3Sb2I9 using antimony. They improved the filmās surface morphology and device performance by employing Hydroiodic acid (HI) as an additive and treating it with Chlorobenzene (CB) Antisolvent Treatment. The alignment of the energy levels was also improved. As can be observed from the UV absorbance spectra, the increased surface coverage brought about by the combination of HI and CB treatment led to a higher absorption intensity (Karuppuswamy et al., 2018).
6.3 Interfacing manufacturing
After adding a hydrophobic scaffold to (CH3NH3)3Sb2I9 films, several improvements were noticed. Grain size, crystallinity, crystallisation orientation, and quality all saw improvements. When compared to perovskites with a hydrophilic interlayer, those with a hydrophobic interlayer produced larger grain crystals with fewer grain boundaries, leading to better film coverage. Priyadarshini Karuppuswamy and colleagues used impedance spectroscopy to evaluate the effect of the pyrene layer on transport and recombination in PEDOT: PSS/(CH3NH3)3Sb2I9 and Pyrene/(CH3NH3)3Sb2I9 PSCs. Their discovery led them to the conclusion that pyrene prevented hysteresis in PSCs by reducing charge carrier recombination in (CH3NH3)3Sb2I9. Researchers have shown that adding pyrene to solar cell materials makes them more efficient by allowing larger grains of Sb-based crystals to grow on the material. As a result, recombination near grain boundaries is less likely to occur (Karuppuswamy et al., 2018).
6.4 Semiconducting molecule outline
While creating inverted tin-based FASnI3 perovskite in 2019, Cong Liu and colleagues added a semiconducting molecule known as poly [tetraphenylethene 3,3ā²-(((2,2-diphenylethene-1,1-diyl) bis(4,1-phenylene)) bis(oxy)) bis (N, N-diethylpropion-1amine) tetraphenylethene] (PTN-Br) into the perovskite precursor. A medium for transporting holes was established using the semiconducting molecule PTN-Br. It achieved this by filling the gaps between the grains at the grain borders. With a maximum occupied molecular orbital energy level of ā5.41 eV, this molecule was selected. Additionally, Lewis adducts were formed when the dimethylamino group of PTNBr interacted with unattached Sn atoms. By interacting with the perovskite material, the Ļ-conjugated polymer PTNBr was able to neutralize or deactivate trap states. Consequently, an efficiency of 7.14% was achieved. Integrating PTN-Br into the device increased its stability against UV radiation, thanks to the UV barrier and PTN-Brās passivating activity. It was able to preserve around 66% of its original efficiency even after being continuously exposed to UV light for 5Ā h (Liu C. et al., 2019). Therefore, the incorporation of semiconducting molecules enables the production of perovskite films with exceptional electrical properties.
6.5 Passivation surface
Bin Lyu et al. (2021) capped CsSnCl3 perovskite nanocrystals (NC) with oleic acid/oleylamine (OA/OAm) using the hot injection technique. After that, the structural stability, optical responsiveness, durability, and eco-friendliness of these nanocrystals were improved by treating them with gelatin, a natural biomass material. The nanocrystalsā performance was enhanced by the gelatin treatment, which enabled them to retain 77.4% of their photoluminescence intensity even after being distributed in water for 3Ā days. Polar solvents generate this effect by displacing the weaker amino-Sn coordination with the stronger carboxylate-Sn coordination. Nanocrystals bound to gelatin nevertheless exhibit mostly unaltered halogen-ammonium hydrogen bonding and carboxylate-Sn coordination. Additionally, gelatin has demonstrated anti-mildew properties that might find wider application (Lyu et al., 2021).
6.6 Alteration in the physical structure of the surface
The 2017 study by Biao Shi et al. utilized textured FTO substrates to create light-absorbing perovskites. The researchers were able to increase the amount of light that could be absorbed and create larger grain-sized perovskite films with better charge transfer. Compared to smooth FTO substrates, textured FTO substrates significantly improved efficiency, reaching 22%. The short circuit density also increased significantly by 14.5 per cent. It follows that the surface form has a major impact on the enhanced efficacy of perovskites (Shi B. et al., 2017).
6.7 Lacking lead, perovskite quantum dots
Research indicates that perovskite quantum dots (PVQDs) are very suitable for optoelectronic devices (Wang et al., 2019c). Yangyang Wang and colleagues synthesized inorganic lead-free perovskite quantum dots CsSnI3 using a one-pot synthesis using triphenyl phosphite (TPPi). This approach resulted in a remarkable efficiency of 5.03% for the quantum dots, and the devices made from them maintained a stable power conversion efficiency (PCE) for over 25 days (Shi B. et al., 2017). An improved hot-injection method was used by Hongzhe Xu et al. (2018) to create perovskite quantum dots with the composition MASnBr3-xIx (x = 0, 1, 2, 3). Utilized as light absorbers in mesoscopic solar cells, these quantum dots attained an efficiency of 8.79% (Xu et al., 2018).
6.8 An introduction to chiral compounds
Pioneering research by Weiyin Gao et al., in 2022 showed how FASnI3-based PSCs might be improved in hole transportation by utilizing chiral cations α-methylbenzylamine (S-/R-/rac-MBA). Aligning energy levels and facilitating effective charge transfer at the interface were both aided by the introduction of MBAs. To facilitate the targeted transfer of accumulated holes across interfaces, the chiral R-MBA cation set off the chiral-induced spin selectivity (CISS) phenomenon in R-MBA2SnI4. As a result, as mentioned in the reference, a power conversion efficiency (PCE) of 10.73% was achieved, along with improved device stability and reduced hysteresis ().
6.9 Dion-Jacobson halide perovskites with low dimensions
Reducing Sn vacancies, improving stability with organic spacers, and perhaps increasing photo carrier transfer with divalent organic spacers were the outcomes of the synthesis of low-dimensional Dion-Jacobson Sn (II)-based halide perovskites carried out by Min Chen et al. (2018) ().
7 Conclusion
For PSCs to be extensively employed, breakthrough PVK materials that are extremely effective in light of electrical change, non-hazardous, and firm must be researched. The quest for novel PVK materials is anticipated to receive significantly expanded R&D funding during the next few years. While ongoing research towards this objective appears to develop rather randomly, we propose a reasonable roadmap that may help speed up R&D in this field. This road map is the first step toward understanding existing and future PVK noxiousness/dilapidation processes and advocates for more standardized experimental methodologies. After a comprehensive understanding of the toxicity/degradation pathways is achieved, innovative eco-friendly PVKs may be created that are particularly resistant to environmental stresses (using complementing theory-experiment techniques). Significant challenges are predicted for the future of lead-free stable PVKs thin-film manufacturing experiments in this paper. The latter is an essential step toward efficient and timely manufacturing of useful products. There are also promising new avenues for research into synthesis and processing that this opens. We anticipate that in the future, efficient and environmentally friendly PSCs will be realized because of this type of integrated scientific and technical R&D.
