ORIGINAL RESEARCH article

Front. Mech. Eng.

Sec. Tribology

Volume 11 - 2025 | doi: 10.3389/fmech.2025.1584451

This article is part of the Research TopicAdvances in lubrication and damage preventionView all 5 articles

Fretting wear of lubricated DLC coating systems

Provisionally accepted
Samuel  James McMasterSamuel James McMaster1,2Shahriar  KosariehShahriar Kosarieh3Tomasz  W LiskiewiczTomasz W Liskiewicz4*Ben  D BeakeBen D Beake5
  • 1Coventry University, Coventry, United Kingdom
  • 2Pillarhouse International, Chelmsford, United Kingdom
  • 3GKN Automotive, Lohmar, Germany
  • 4Manchester Metropolitan University, Manchester, North West England, United Kingdom
  • 5Micro Materials (United Kingdom), Wrexham, United Kingdom

The final, formatted version of the article will be published soon.

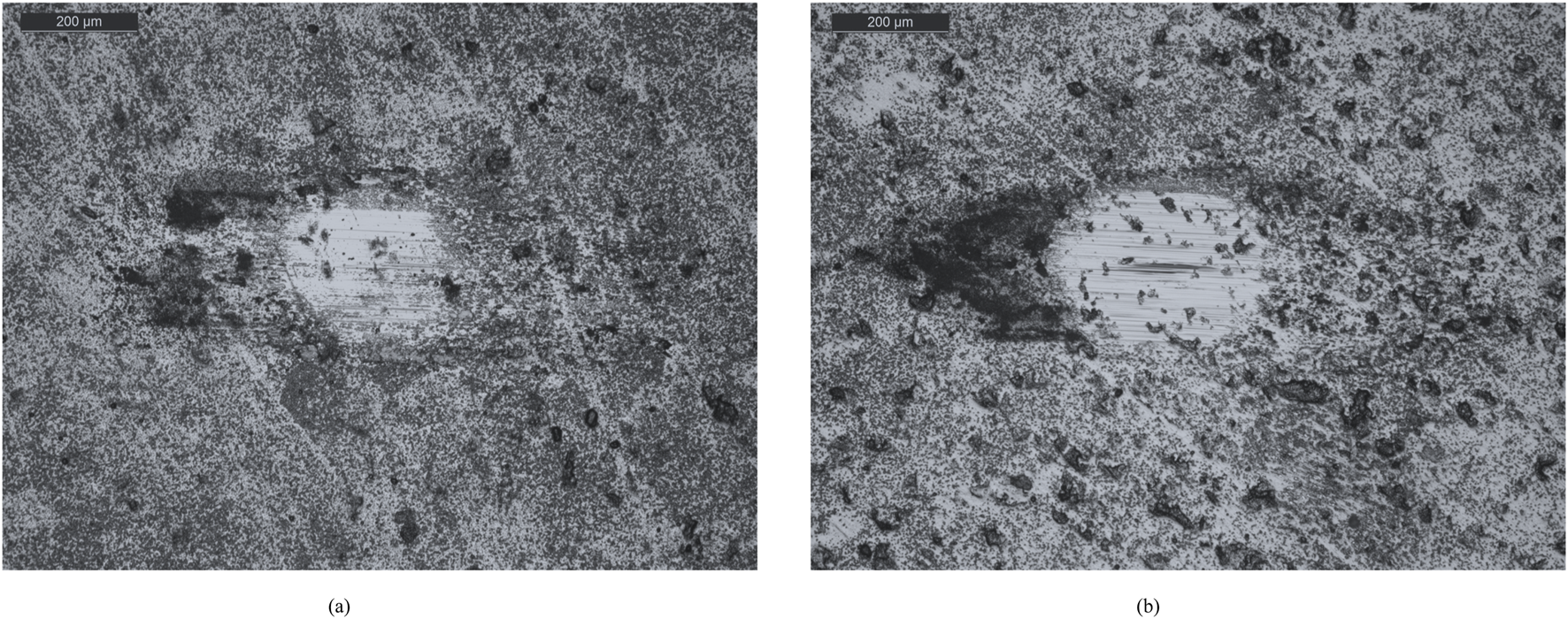

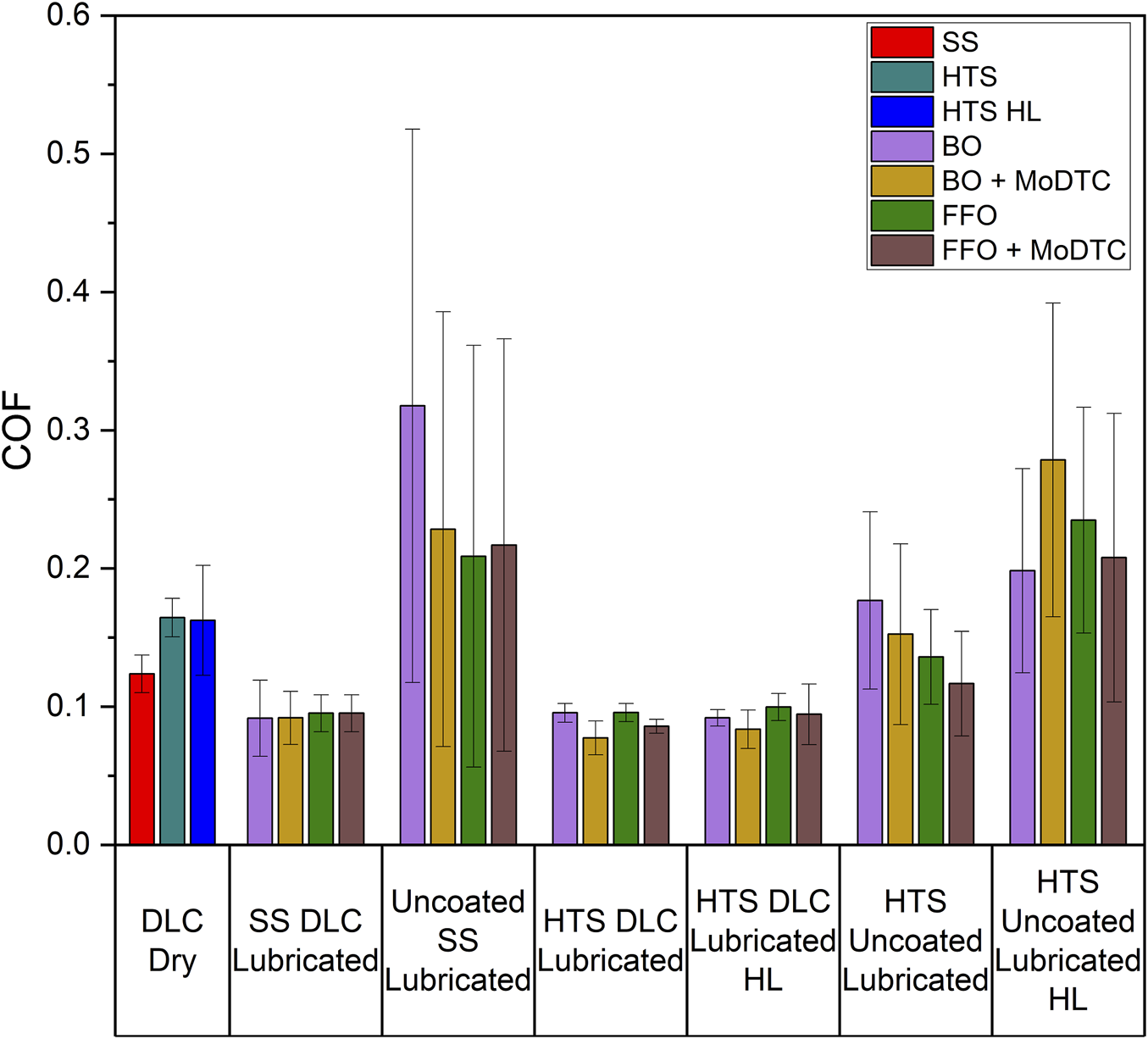

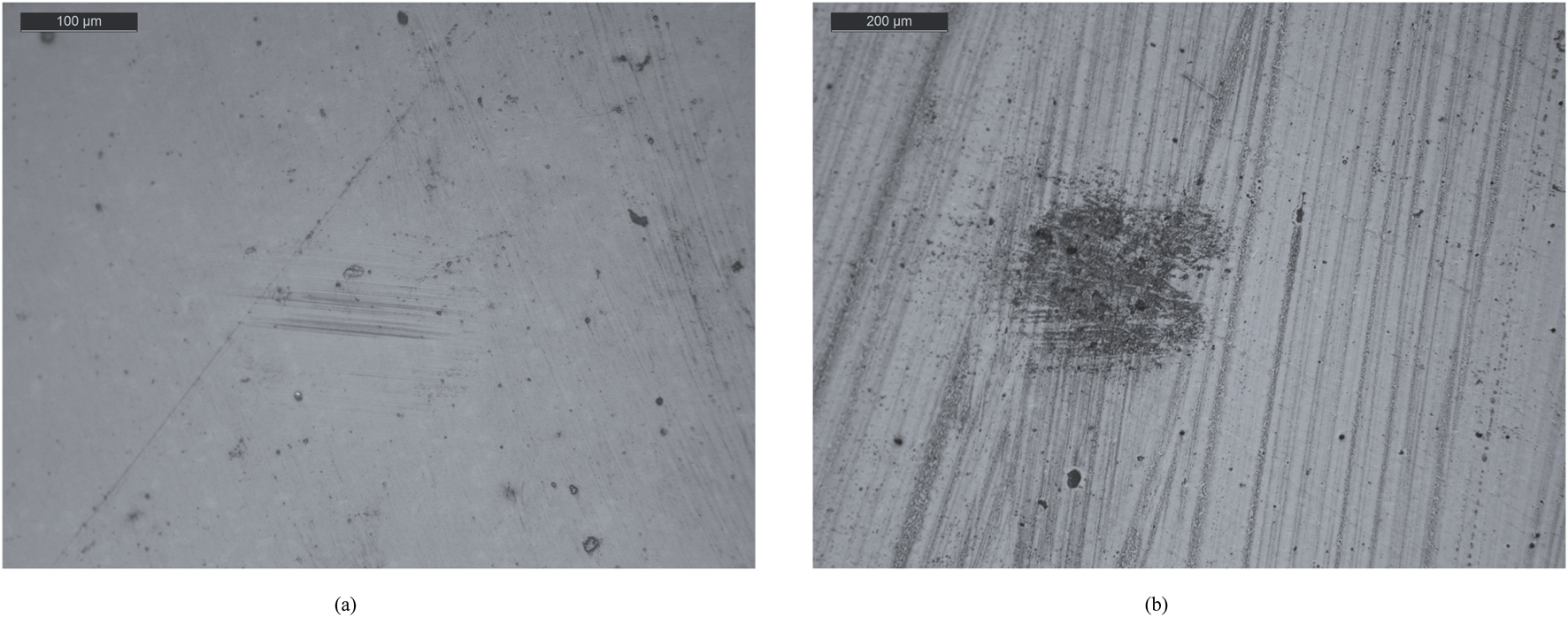

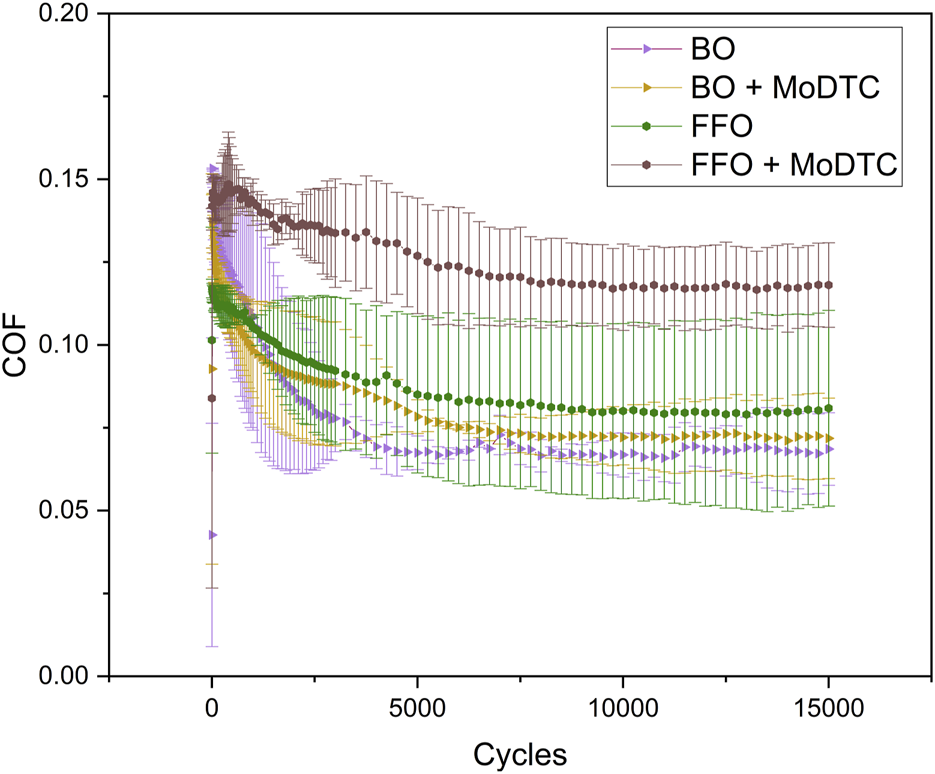

Diamond-like Carbon (DLC) coatings are well known for their use in protection against fretting wear due to their low friction and wear properties. DLCs are metastable, allowing them to graphitise under applied load to create a graphitic transfer layer which reduces friction. Their high intrinsic residual stresses also enable them to resist cracking effectively under fretting.Few studies have analysed the lubricated fretting performance of DLC coating systems. This work focuses on a series of lubricants with different additives and friction modifiers to explore their effects. This study analyses the performance of a DLC coating system (a-C:H) applied to hardened M2 tool steel and 316L stainless steel under loads of 20 and 40 N under dry fretting and lubricated fretting conditions. Lubricated uncoated substrates were also analysed for comparison. The counterfaces used were 10 mm diameter 52100 steel balls. The lubricants tested included a base oil and a fully formulated oil, with and without the addition of MoDTC.Gross slip fretting was achieved using a bespoke electrodynamic shaker unit. Nanoindentation was employed to measure the mechanical properties of the coatings and substrates. Contact pressure and lubricant type had significant effects on the running-in behaviour of the coatings.Increased contact pressure led to instability in the running-in period. Lubrication reduced the dissipated energy in the contact, thereby decreasing wear. However, fully formulated oils and those containing MoDTC performed worse due to their higher viscosity, which impacted oil entrainment in the contact area. This study provides insights into the lubricated fretting performance of DLC coatings showing that these coatings can perform well, with the potential for further improvements with optimisations to the lubricant to the system. Performance improvements can be gained in automotive components such as high pressure bearings and gears.

Keywords: DLC, fretting, Lubrication, Contact pressure, Lubricant additives

Received: 27 Feb 2025; Accepted: 01 Jul 2025.

Copyright: © 2025 McMaster, Kosarieh, Liskiewicz and Beake. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

* Correspondence: Tomasz W Liskiewicz, Manchester Metropolitan University, Manchester, M15 6BH, North West England, United Kingdom

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
