Tumor-associated macrophages contribute to tumor progression in ovarian cancer
- Bill Walsh Translational Cancer Research Laboratory, Kolling Institute of Medical Research, Royal North Shore Hospital, University of Sydney, St. Leonards, NSW, Australia
Ovarian cancer is the leading cause of death in women with gynecological malignancy and improvements in current treatments are needed. As with many other solid cancers, the ovarian tumor microenvironment is emerging as a key player in tumor progression and a potential therapeutic target. The tumor microenvironment contains several non-malignant cell types that are known to contribute to tumor progression and metastasis. Included in this population of non-malignant cells are several different types of immune cells, of which tumor-associated macrophages (TAMs) are the most abundant. An increasing amount of evidence is emerging to suggest that TAMs display a unique activation profile in ovarian tumors and are able to create an immunosuppressive microenvironment, allowing tumors to evade immune detection and promoting tumor progression. Therefore, an increased understanding of how these immune cells interact with tumor cells and the microenvironment will greatly benefit the development of more effective immunotherapies to treat ovarian cancer. This review focuses on the role of TAMs in the ovarian tumor microenvironment and how they promote tumor progression.
Epithelial ovarian cancer (EOC) represents the leading cause of cancer mortality in women with gynecological malignancy (1). The overall 5-year survival rate for EOC patients is approximately 40%, although in the majority of patients diagnosed with advanced disease, the survival rate is significantly less (2, 3). Current standard treatment for EOC involves surgical debulking followed by platinum-based chemotherapy. Although initial response to chemotherapy is high, recurrence of chemoresistant disease is common and is a major contributor to the poor prognosis of EOC.
While much effort has gone into uncovering the genetic drivers responsible for EOC initiation and progression, the tumor microenvironment is now increasingly recognized to play an important role in EOC. The tumor microenvironment consists of several different cell types that interact with tumor cells, and with each other, to influence tumor initiation, growth, and metastasis. Immune cells represent a major component of the tumor microenvironment and allow tumor cells to evade immune destruction.
Evidence suggests that ovarian tumors, like many solid tumors, are immunogenic, containing tumor infiltrating lymphocytes that indicate an interaction between tumor cells and the host’s immune system. In a seminal paper published by Zhang et al., the presence of CD3+ infiltrating T cells in tumors was shown to significantly increase long term survival in patients with advanced ovarian cancer (4). Five-year overall survival rates were 38% in patients that contained infiltrating T cells in their tumors compared to <5% in patients that contained no T cells. Furthermore, multivariate analysis showed that the presence of intratumoral T cells was an independent prognostic factor. Since then, several studies have confirmed the positive association between the presence of tumor infiltrating T cells and patient survival (5–8). The influence of intratumoral T cells on patient outcome indicates the immune system may play an antitumor role in ovarian cancer; however spontaneous regression of tumors through immune destruction is rare. In addition to cytotoxic T cells that display antitumor characteristics, ovarian tumors contain a plethora of other immune cell types that create an immunosuppressive tumor microenvironment. These include regulatory T cells (Tregs), dendritic cells, myeloid-derived suppressor cells, and tumor-associated macrophages (TAMs). TAMs represent the most abundant immune cell type in the ovarian tumor microenvironment and play several roles in promoting tumor progression. While all of these cell types have been shown to play an important role in ovarian cancer, some of which have been reviewed elsewhere (9, 10), this review focuses on the characteristics of ovarian TAMs and their role in ovarian cancer.
Macrophages are phagocytic cells of the immune system that are derived from circulating monocytic precursors, which extravasate into tissues and differentiate in response to local signals. They represent a heterogeneous population of cells that can function to stimulate the immune system or to suppress it. This heterogeneity has been simplified to group macrophages broadly as either “classically activated” or “alternatively activated” (11). Classically activated macrophages, also known as M1-polarized macrophages, are activated by cytokines such as interferon-γ (IFNγ) and produce pro-inflammatory and immunostimulatory cytokines (e.g., IL-12 and IL-23), and are involved in Th1 responses to infection. In contrast, alternatively activated, or M2-polarized macrophages, are activated by Th2 cytokines (e.g., IL-4, IL-10, and IL-13) are immunosuppressive, and are involved in scavenging cellular debris and tissue repair. In general, TAMs are thought to more closely resemble the M2-polarized phenotype (12). The function of TAMs has been extensively studied in many cancer types and in addition to playing an immunosuppressive role in the tumor microenvironment, TAMs have been shown to promote tumor invasion, growth, angiogenesis, and metastasis (13, 14). Given the variety of roles that TAMs play in tumor progression, it is not surprising that their presence in many tumor types is often associated with poor prognosis (15–17).
Recruitment and Characteristics of TAMs in Ovarian Cancer
Tumor-associated macrophages represent the most abundant infiltrating immune population in human ovarian tumors and ascites (18). Ovarian tumors recruit circulating monocytes and induce differentiation into TAMs via expression of factors such as CCL2, also known as monocyte chemotactic protein-1 (MCP-1), and macrophage colony stimulating factor-1 (M-CSF or CSF-1). CCL2 is overexpressed in ovarian tumor cells and cell lines, but not in TAMs (19). Interestingly, expression of its receptor, CCR2 is defective in TAMs derived from ovarian cancer patients (20). This may reflect a mechanism by which ovarian tumors retain recruited macrophages in the tumor microenvironment. CSF-1 is a cytokine considered to induce differentiation of macrophages to an M2 phenotype (12) and is overexpressed in human ovarian cancers (21, 22). Expression of CSF-1 is higher in malignant ovarian tumors compared to borderline and benign tumors (23).
Initial studies characterizing TAMs in ovarian cancer demonstrate that TAMs most closely resemble M2-polarized macrophages and express M2 markers such as CD163, CD204, CD206 (Mannose Receptor), and IL-10 (23–26). Ovarian TAMs also express the immunosuppressive chemokines CCL18, which is found in high levels in ascites from ovarian cancer patients (27) and CCL22 (28). More recently, genome-wide expression profiling has been used to investigate the polarization of TAMs in patients with high-grade serous ovarian cancer. The transcriptome of 17 human ovarian TAM samples was compared to non-polarized (M0) macrophages and identified differential expression of 1275 genes. Further analysis of these genes revealed that ovarian TAMs display a mixed-polarization phenotype. TAMs displayed upregulated expression of typical M2 markers such as CD163 and IL-10, while other M2 markers were downregulated. Similarly, some M1 markers were upregulated in ovarian TAMs, such as CD86 and TNF. This mixed-polarization phenotype has also been described in other tumor types (29–32), and suggests that TAMs most closely resemble macrophages involved in developmental processes.
TAMs and Prognosis in Ovarian Cancer
Studies investigating the presence of TAMs in ovarian cancer demonstrate a significant increase in the number of TAMs in malignant ovarian tumors compared to benign and borderline tumors (23, 33, 34). However, their presence as determined by staining for the macrophage marker CD68 does not influence patient outcome (33, 35–37). Expression of specific M2-associated markers in ovarian cancer indicates that certain subsets of ovarian cancer TAMs can indeed predict patient prognosis. In addition to CD68+ cells, Lan et al. also analyzed 110 advanced stage ovarian cancers for the M2 marker CD163 and demonstrated that both progression free survival and overall survival were significantly reduced in patients with high numbers of CD163+ cells (37). Serum levels of CD163 have also been shown to predict poor prognosis in patients with ovarian cancer (38). Similarly, another M2-associated marker was associated with poor prognosis in ovarian cancer. While absolute densities of CD206+ cells were not prognostic, a high CD206/CD68 ratio was strongly associated with worse progression free survival, and there was also a trend toward poorer overall survival (35). Recent studies examining markers of both M1 (HLA-DR, iNOS) and M2-polarization (CD163, VEGF) in ovarian cancer patients have demonstrated that an increased M1/M2 ratio was associated with improved patient survival (39, 40). One study quantified the M1/M2 ratio in the tumor and the stroma and found that only the M1/M2 ratio of overall tumor macrophages or macrophages present intratumorally were prognostic, the M1/M2 ratio in tumor stroma was not predictive of improved survival (39), indicating that macrophages infiltrating tumor cells may play a more important role in tumor progression. Finally, expression of B7-H4 on the surface of ovarian TAMs, but not expression in ovarian tumor cells, was associated with reduced survival and the number of B7-H4+ macrophages was significantly increased in advanced disease (41). These studies demonstrate that while total numbers of CD68+ macrophages present in ovarian tumors do not influence patient outcome, there is strong evidence for specific subsets of TAMs as prognostic factors in ovarian cancer.
In addition to surface markers present on TAMs, cytokines that are important in TAM function are also elevated in human ovarian cancers and associated with reduced survival. IL-6, which is present at high level in ovarian cancer ascites and associated with the generation of TAMs (42), is associated poor prognosis and chemoresistance (43–45). Similarly, IL-10, produced by TAMs, is increased in ovarian cancer and correlated with higher tumor grade and poor patient outcome (45–48). High levels of CSF-1 have also been shown to be a poor prognostic factor in ovarian cancer, when expressed in the tumor epithelium (21). Expression of specific markers of ovarian TAMs, as well as cytokines that are important in TAM function and recruitment acting as prognostic factors in human ovarian cancer provide strong support for the function of TAMs in ovarian cancer progression.
Interactions between TAMs and Ovarian Tumor Cells
Ovarian cancer cells produce a variety of factors that influence TAM function and vice versa. Co-culture experiments using ovarian cancer cell lines and macrophages have revealed much about the interactions between these two cell types. Ovarian cancer cells have been shown to recruit and induce differentiation of macrophages that have tumor-promoting functions. Figure 1 depicts some of the important interactions between TAMs and ovarian cancer cells.

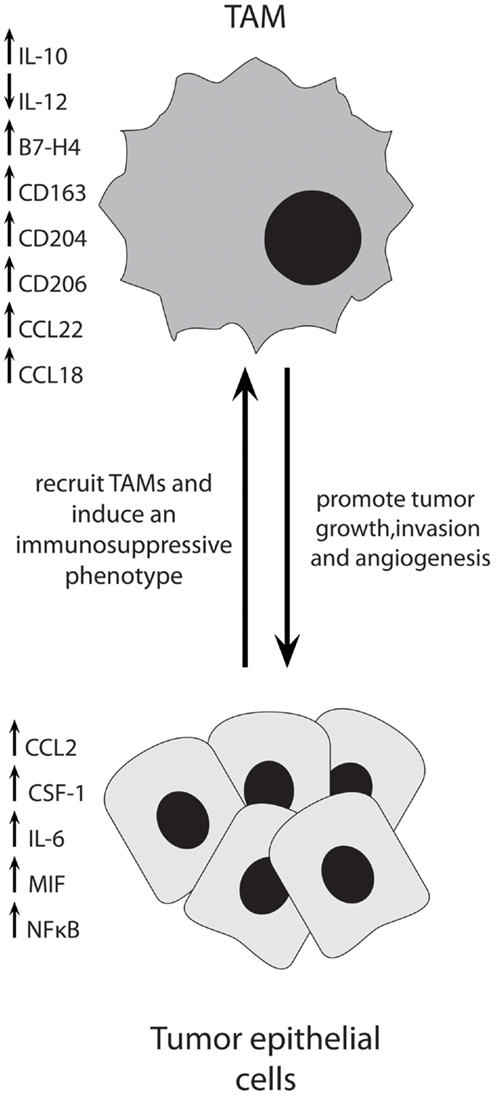

Figure 1. Ovarian cancer cells produce multiple factors to recruit immunosuppressive TAMs into the tumor, where they act to promote tumor progression through multiple mechanisms.
Following co-culture with ovarian cancer cells, macrophages develop a cell-surface phenotype similar to TAMs isolated from human ovarian tumors and a significant increase in genes such as CCL2, CCL22, TNFα, TGFβ1, and VEGF (49). In addition, co-culture with cancer cells upregulated the M2-associated Mannose Receptor (CD206) and Scavenger Receptor-A (SR-A, CD204), which was not seen when macrophages were co-cultured with normal ovarian surface epithelial cells (49). The induction of SR-A on macrophages was dependent on the presence of TNFα. Expression of macrophage migratory inhibitory factor (MIF) and extracellular matrix metalloprotease inhibitory factor (EMMPRIN) by ovarian cancer cells induces an increase of MMP secretion by macrophages (50), supporting a role for TAMs in tumor cell invasion and angiogenesis. Downregulation of MIF in ovarian cancer cells led to a decrease in the production of cytokines important in TAM recruitment such as CCL2 and CCL22 in vitro and an increase in survival and decrease in ascites in vivo (51). Furthermore, inhibition of MIF in ovarian tumor-bearing mice resulted in a decrease in proliferation, an increase in tumor cell apoptosis, and a decrease in the expression of angiogenic factors such as VEGF by tumors. Importantly, there was also a significant decrease in macrophage infiltration in the ascites, as well as a decrease in IL-6 and TNFα, and an increase in M1-associated IL-12 (51). Ovarian cancer cell lines and tumor biopsies have been shown to express elevated levels of IL-6, TNF, CXCL12, and its receptor CXCR4, and expression of these is co-regulated (52, 53). Decreasing the levels of all of these cytokines and chemokines in ovarian cancer cells was achieved by knocking down CXCR4 (52). When injected into mice, CXCR4 knock-down cells produced a decrease in tumor growth and an increase in survival. A significant decrease in the number of macrophages in tumors was also seen. Similar results were achieved when mice were treated with an anti-TNF antibody (52). These studies demonstrate that ovarian tumor cells employ several methods to recruit and induce TAMs to an immunosuppressive phenotype in the tumor microenvironment.
Due to the association between increased levels of IL-6 in ovarian cancer patients and the development of chemoresistance (44), Dijkgraaf et al. investigated the effect of platinum-based chemotherapy on the differentiation of macrophages in vitro. Treatment of ovarian cancer cell lines with cisplatin or carboplatin led to an increased ability of some cell lines to induce differentiation of monocytes to an M2-like phenotype (54). The underlying mechanism behind this was due to chemotherapy-induced activation of the NFκB pathway, which resulted in an increase in IL-6 and prostaglandin E2 by cancer cells that promoted M2-polarization of macrophages. These results indicate that therapeutically inhibiting this effect, for example, by blocking the IL-6 receptor may increase the antitumor effects of platinum-based chemotherapy.
Ovarian tumor cells are a heterogeneous population in which Alvero et al. have identified two distinct subpopulations that have different stemness, inflammatory, and cytokine profiles (55–57). Interestingly, these two populations of cells were found to have unique effects on the differentiation of macrophages (58). Monocytes cultured in Type I EOC cell (CD44+/MyD88+, cancer stem cells) conditioned media demonstrated increased levels of scavenger receptors and cytokines important in tissue repair such as CCL5, whereas those cultures in Type II cell conditioned media demonstrated increases in IL-10, IL-8, and G-CSF and are more likely to play an immunosuppressive role in the tumor microenvironment (58). Nonetheless, both tumor cell populations differentiated monocytes into macrophages with tumor supportive, rather than antitumor properties, and these results add another level of complexity to interactions between ovarian tumor cells and their microenvironment.
Tumor-associated macrophages have been found to promote the invasiveness of ovarian tumor cells through multiple mechanisms. Co-culture of macrophages with human ovarian cancer cell lines increases the invasiveness of tumor cells through TNFα-dependent activation of JNK and NFκB signaling pathways (50). Inhibition of IKKβ, a major activator of NFκB signaling, in ovarian TAMs prevented tumor cell invasion as well as decreased TAM production of M2 immunosuppressive cytokines and increased production of M1-associated IL-12 and NOS2 (59). Adoptive transfer of IKKβ-targeted TAMs into ovarian tumor-bearing mice resulted in a significant decrease in tumor burden and a switch to an antitumor TAM profile (59). The ability for TAMs to promote tumor cell invasion is also dependent on expression of SR-A. SR-A−/− macrophages displayed a reduced ability to promote invasion of ovarian cancer cells in vitro and slowed tumor progression in vivo (60). Importantly, this study also demonstrated that targeting SR-A therapeutically with a small molecule inhibitor can prevent tumor progression in vivo. Another study also demonstrated the important role macrophages play in ovarian tumor progression by chemically depleting macrophages in vivo with clodronate, which dramatically decreased tumor dissemination and the development of ascites in mice injected intraperitoneally with ovarian cancer cells, potentially due to a decrease in VEGF production (61). These studies demonstrate that TAMs promote ovarian tumor progression by employing several different strategies.
Tumor-associated macrophages foster an immunosuppressive microenvironment to promote the survival of tumor cells. Monocytes and macrophages derived from peripheral blood and ascites of ovarian cancer patients were found to be increased in number and to display a less differentiated phenotype compared to cells derived from healthy donors (62). They were also shown to have impaired antitumor activity due to defective cytotoxicity and phagocytic abilities. Another mechanism by which TAMs promote immunosuppression is via secretion of CCL22, which mediates Treg cell trafficking to the tumor (28). B7-H4, which is expressed on the surface of ovarian TAMs, also contributes to immunosuppression in the tumor microenvironment. B7-H4 expression is induced by IL-6 and IL-10 and selectively blocking B7-H4 in macrophages significantly increased T-cell proliferation, whereas ectopic expression of B7-H4 in macrophages inhibited T-cell proliferation (63). In addition, the mannose receptor (CD206), which is expressed on TAMs, has been shown to contribute to the immunosuppressive function of TAMs by binding tumor mucins such as CA125, which increases the levels of IL-10 and decreases levels of the T-cell chemo-attractant CCL3 (24). Treatment of ovarian TAMs with IFNγ is able to reduce TAM secretion of CCL18 and VEGF and switch TAMs from an immunosuppressive to an immunostimulatory phenotype (64). Inducing an M1 phenotype in ovarian TAMs, for example, via treatment with IFNγ or targeting B7-H4 may prove useful in encouraging immune destruction in patients with ovarian cancer.
As has been demonstrated in other cancers, TAMs are beginning to emerge as promoters of angiogenesis in ovarian cancer. Co-culturing of TAMs with ovarian cancer cell lines led to an increase in expression of the pro-angiogenic cytokine IL-8. The conditioned media from these co-cultures significantly increased the migration and tube formation of endothelial cells compared to conditioned media from tumor cells or TAMs alone (65), indicating interactions between tumor cells and TAMs are important for promoting angiogenesis rather than direct interactions between TAMs and endothelial cells. TAMs also promote lymphangiogenesis in ovarian cancer. An increased TAM density was found to be significantly associated with an increased lymphatic vessel density in ovarian cancer patients and TAMs were shown to promote lymphatic endothelial cell proliferation, migration, and tube formation in vitro (66). Further studies are required to identify the mechanisms employed by ovarian TAMs in inducing ovarian tumor angiogenesis.
Tumor-associated macrophages have been shown to play a key role in creating an immunosuppressive tumor microenvironment, as well as promote tumor growth, progression, metastasis, and angiogenesis. The studies mentioned in this review highlight several targets through which TAMs may be targeted therapeutically such as CSF-1, IL-6, NFκB and suggest that depletion of TAMs, or re-education to an immunostimulatory phenotype, may result in a decrease in tumor growth and spread as well as enhance response to chemotherapy. In ovarian cancer, much of the research into TAMs has so far been limited to immunohistochemical characterization in human patient samples and in vitro evaluation of their effects on ovarian tumor cells. Compared to other tumor types, a relatively limited number of in vivo studies have been performed using xenograft and syngeneic mouse models. Results from these models are potentially confounded by anti-tumorgraft reactions present in syngeneic models and biased immune interactions in xenograft models that use immunodeficient mice. The best assessment of anti-TAM treatment strategies in ovarian cancer would come from the use of spontaneous tumor models, however there are few spontaneous ovarian cancer models available (67, 68). Additionally, whether the role of TAMs varies between each of the histopathological subtypes has not been thoroughly investigated and requires further study. Nonetheless, the work summarized in this review demonstrate that TAMs represent an important component of the ovarian tumor microenvironment, and further studies will assist in evaluating this cell type as a potential therapeutic target.
Conflict of Interest Statement
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
3. Winter WE III, Maxwell GL, Tian C, Carlson JW, Ozols RF, Rose PG, et al. Prognostic factors for stage III epithelial ovarian cancer: a Gynecologic Oncology Group Study. J Clin Oncol (2007) 25(24):3621–7. doi:10.1200/JCO.2006.10.2517
4. Zhang L, Conejo-Garcia JR, Katsaros D, Gimotty PA, Massobrio M, Regnani G, et al. Intratumoral T cells, recurrence, and survival in epithelial ovarian cancer. N Engl J Med (2003) 348(3):203–13. doi:10.1056/NEJMoa020177
5. Clarke B, Tinker AV, Lee CH, Subramanian S, van de Rijn M, Turbin D, et al. Intraepithelial T cells and prognosis in ovarian carcinoma: novel associations with stage, tumor type, and BRCA1 loss. Mod Pathol (2009) 22(3):393–402. doi:10.1038/modpathol.2008.191
6. Raspollini MR, Castiglione F, Rossi Degl’Innocenti D, Amunni G, Villanucci A, Garbini F, et al. Tumour-infiltrating gamma/delta T-lymphocytes are correlated with a brief disease-free interval in advanced ovarian serous carcinoma. Ann Oncol (2005) 16(4):590–6. doi:10.1093/annonc/mdi112
7. Sato E, Olson SH, Ahn J, Bundy B, Nishikawa H, Qian F, et al. Intraepithelial CD8+ tumor-infiltrating lymphocytes and a high CD8+/regulatory T cell ratio are associated with favorable prognosis in ovarian cancer. Proc Natl Acad Sci U S A (2005) 102(51):18538–43. doi:10.1073/pnas.0509182102
8. Tomsova M, Melichar B, Sedlakova I, Steiner I. Prognostic significance of CD3+ tumor-infiltrating lymphocytes in ovarian carcinoma. Gynecol Oncol (2008) 108(2):415–20. doi:10.1016/j.ygyno.2007.10.016
12. Mantovani A, Sozzani S, Locati M, Allavena P, Sica A. Macrophage polarization: tumor-associated macrophages as a paradigm for polarized M2 mononuclear phagocytes. Trends Immunol (2002) 23(11):549–55. doi:10.1016/S1471-4906(02)02302-5
15. Farinha P, Masoudi H, Skinnider BF, Shumansky K, Spinelli JJ, Gill K, et al. Analysis of multiple biomarkers shows that lymphoma-associated macrophage (LAM) content is an independent predictor of survival in follicular lymphoma (FL). Blood (2005) 106(6):2169–74. doi:10.1182/blood-2005-04-1565
16. Lissbrant IF, Stattin P, Wikstrom P, Damber JE, Egevad L, Bergh A. Tumor associated macrophages in human prostate cancer: relation to clinicopathological variables and survival. Int J Oncol (2000) 17(3):445–51. doi:10.3892/ijo.17.3.445
17. Tsutsui S, Yasuda K, Suzuki K, Tahara K, Higashi H, Era S. Macrophage infiltration and its prognostic implications in breast cancer: the relationship with VEGF expression and microvessel density. Oncol Rep (2005) 14(2):425–31. doi:10.3892/or14.2.425
18. Takaishi K, Komohara Y, Tashiro H, Ohtake H, Nakagawa T, Katabuchi H, et al. Involvement of M2-polarized macrophages in the ascites from advanced epithelial ovarian carcinoma in tumor progression via Stat3 activation. Cancer Sci (2010) 101(10):2128–36. doi:10.1111/j.1349-7006.2010.01652.x
19. Negus RP, Stamp GW, Relf MG, Burke F, Malik ST, Bernasconi S, et al. The detection and localization of monocyte chemoattractant protein-1 (MCP-1) in human ovarian cancer. J Clin Invest (1995) 95(5):2391–6. doi:10.1172/JCI117933
20. Sica A, Saccani A, Bottazzi B, Bernasconi S, Allavena P, Gaetano B, et al. Defective expression of the monocyte chemotactic protein-1 receptor CCR2 in macrophages associated with human ovarian carcinoma. J Immunol (2000) 164(2):733–8. doi:10.4049/jimmunol.164.2.733
21. Chambers SK, Kacinski BM, Ivins CM, Carcangiu ML. Overexpression of epithelial macrophage colony-stimulating factor (CSF-1) and CSF-1 receptor: a poor prognostic factor in epithelial ovarian cancer, contrasted with a protective effect of stromal CSF-1. Clin Cancer Res (1997) 3(6):999–1007.
23. Kawamura K, Komohara Y, Takaishi K, Katabuchi H, Takeya M. Detection of M2 macrophages and colony-stimulating factor 1 expression in serous and mucinous ovarian epithelial tumors. Pathol Int (2009) 59(5):300–5. doi:10.1111/j.1440-1827.2009.02369.x
24. Allavena P, Chieppa M, Bianchi G, Solinas G, Fabbri M, Laskarin G, et al. Engagement of the mannose receptor by tumoral mucins activates an immune suppressive phenotype in human tumor-associated macrophages. Clin Dev Immunol (2010) 2010:547179. doi:10.1155/2010/547179
25. Bellora F, Castriconi R, Dondero A, Pessino A, Nencioni A, Liggieri G, et al. TLR activation of tumor-associated macrophages from ovarian cancer patients triggers cytolytic activity of NK cells. Eur J Immunol (2014). doi:10.1002/eji.201344130
26. Merogi AJ, Marrogi AJ, Ramesh R, Robinson WR, Fermin CD, Freeman SM. Tumor-host interaction: analysis of cytokines, growth factors, and tumor-infiltrating lymphocytes in ovarian carcinomas. Hum Pathol (1997) 28(3):321–31. doi:10.1016/S0046-8177(97)90131-3
27. Schutyser E, Struyf S, Proost P, Opdenakker G, Laureys G, Verhasselt B, et al. Identification of biologically active chemokine isoforms from ascitic fluid and elevated levels of CCL18/pulmonary and activation-regulated chemokine in ovarian carcinoma. J Biol Chem (2002) 277(27):24584–93. doi:10.1074/jbc.M112275200
28. Curiel TJ, Coukos G, Zou L, Alvarez X, Cheng P, Mottram P, et al. Specific recruitment of regulatory T cells in ovarian carcinoma fosters immune privilege and predicts reduced survival. Nat Med (2004) 10(9):942–9. doi:10.1038/nm1093
29. Biswas SK, Gangi L, Paul S, Schioppa T, Saccani A, Sironi M, et al. A distinct and unique transcriptional program expressed by tumor-associated macrophages (defective NF-kappaB and enhanced IRF-3/STAT1 activation). Blood (2006) 107(5):2112–22. doi:10.1182/blood-2005-01-0428
30. Torroella-Kouri M, Silvera R, Rodriguez D, Caso R, Shatry A, Opiela S, et al. Identification of a subpopulation of macrophages in mammary tumor-bearing mice that are neither M1 nor M2 and are less differentiated. Cancer Res (2009) 69(11):4800–9. doi:10.1158/0008-5472.CAN-08-3427
31. Ojalvo LS, King W, Cox D, Pollard JW. High-density gene expression analysis of tumor-associated macrophages from mouse mammary tumors. Am J Pathol (2009) 174(3):1048–64. doi:10.2353/ajpath.2009.080676
32. Ojalvo LS, Whittaker CA, Condeelis JS, Pollard JW. Gene expression analysis of macrophages that facilitate tumor invasion supports a role for Wnt-signaling in mediating their activity in primary mammary tumors. J Immunol (2010) 184(2):702–12. doi:10.4049/jimmunol.0902360
33. Klimp AH, Hollema H, Kempinga C, van der Zee AG, de Vries EG, Daemen T. Expression of cyclooxygenase-2 and inducible nitric oxide synthase in human ovarian tumors and tumor-associated macrophages. Cancer Res (2001) 61(19):7305–9.
34. Wang X, Deavers M, Patenia R, Bassett RL Jr, Mueller P, Ma Q, et al. Monocyte/macrophage and T-cell infiltrates in peritoneum of patients with ovarian cancer or benign pelvic disease. J Transl Med (2006) 4:30. doi:10.1186/1479-5876-4-18
35. Le Page C, Marineau A, Bonza PK, Rahimi K, Cyr L, Labouba I, et al. BTN3A2 expression in epithelial ovarian cancer is associated with higher tumor infiltrating T cells and a better prognosis. PLoS One (2012) 7(6):e38541. doi:10.1371/journal.pone.0038541
36. Milne K, Kobel M, Kalloger SE, Barnes RO, Gao D, Gilks CB, et al. Systematic analysis of immune infiltrates in high-grade serous ovarian cancer reveals CD20, FoxP3 and TIA-1 as positive prognostic factors. PLoS One (2009) 4(7):e6412. doi:10.1371/journal.pone.0006412
37. Lan C, Huang X, Lin S, Huang H, Cai Q, Wan T, et al. Expression of M2-polarized macrophages is associated with poor prognosis for advanced epithelial ovarian cancer. Technol Cancer Res Treat (2013) 12(3):259–67. doi:10.7785/tcrt.2012.500312
39. Zhang M, He Y, Sun X, Li Q, Wang W, Zhao A, et al. A high M1/M2 ratio of tumor-associated macrophages is associated with extended survival in ovarian cancer patients. J Ovarian Res (2014) 7(1):19. doi:10.1186/1757-2215-7-19
40. He YF, Zhang MY, Wu X, Sun XJ, Xu T, He QZ, et al. High MUC2 expression in ovarian cancer is inversely associated with the M1/M2 ratio of tumor-associated macrophages and patient survival time. PLoS One (2013) 8(12):e79769. doi:10.1371/journal.pone.0079769
41. Kryczek I, Wei S, Zhu G, Myers L, Mottram P, Cheng P, et al. Relationship between B7-H4, regulatory T cells, and patient outcome in human ovarian carcinoma. Cancer Res (2007) 67(18):8900–5. doi:10.1158/0008-5472.CAN-07-1866
42. Duluc D, Delneste Y, Tan F, Moles MP, Grimaud L, Lenoir J, et al. Tumor-associated leukemia inhibitory factor and IL-6 skew monocyte differentiation into tumor-associated macrophage-like cells. Blood (2007) 110(13):4319–30. doi:10.1182/blood-2007-02-072587
43. Berek JS, Chung C, Kaldi K, Watson JM, Knox RM, Martinez-Maza O. Serum interleukin-6 levels correlate with disease status in patients with epithelial ovarian cancer. Am J Obstet Gynecol (1991) 164(4):1038–42; discussion 42–3. doi:10.1016/0002-9378(91)90582-C
44. Gastl G, Plante M. Bioactive interleukin-6 levels in serum and ascites as a prognostic factor in patients with epithelial ovarian cancer. Methods Mol Med (2001) 39:121–3. doi:10.1385/1-59259-071-3:121
45. Reinartz S, Schumann T, Finkernagel F, Wortmann A, Jansen JM, Meissner W, et al. Mixed-polarization phenotype of ascites-associated macrophages in human ovarian carcinoma: correlation of CD163 expression, cytokine levels and early relapse. Int J Cancer (2014) 134(1):32–42. doi:10.1002/ijc.28335
47. Mustea A, Braicu EI, Koensgen D, Yuan S, Sun PM, Stamatian F, et al. Monitoring of IL-10 in the serum of patients with advanced ovarian cancer: results from a prospective pilot-study. Cytokine (2009) 45(1):8–11. doi:10.1016/j.cyto.2008.10.019
48. Nowak M, Glowacka E, Szpakowski M, Szyllo K, Malinowski A, Kulig A, et al. Proinflammatory and immunosuppressive serum, ascites and cyst fluid cytokines in patients with early and advanced ovarian cancer and benign ovarian tumors. Neuro Endocrinol Lett (2010) 31(3):375–83.
49. Hagemann T, Wilson J, Burke F, Kulbe H, Li NF, Pluddemann A, et al. Ovarian cancer cells polarize macrophages toward a tumor-associated phenotype. J Immunol (2006) 176(8):5023–32. doi:10.4049/jimmunol.176.8.5023
50. Hagemann T, Wilson J, Kulbe H, Li NF, Leinster DA, Charles K, et al. Macrophages induce invasiveness of epithelial cancer cells via NF-kappa B and JNK. J Immunol (2005) 175(2):1197–205. doi:10.4049/jimmunol.175.2.1197
51. Hagemann T, Robinson SC, Thompson RG, Charles K, Kulbe H, Balkwill FR. Ovarian cancer cell-derived migration inhibitory factor enhances tumor growth, progression, and angiogenesis. Mol Cancer Ther (2007) 6(7):1993–2002. doi:10.1158/1535-7163.MCT-07-0118
52. Kulbe H, Chakravarty P, Leinster DA, Charles KA, Kwong J, Thompson RG, et al. A dynamic inflammatory cytokine network in the human ovarian cancer microenvironment. Cancer Res (2012) 72(1):66–75. doi:10.1158/0008-5472.CAN-11-2178
53. Kulbe H, Thompson R, Wilson JL, Robinson S, Hagemann T, Fatah R, et al. The inflammatory cytokine tumor necrosis factor-alpha generates an autocrine tumor-promoting network in epithelial ovarian cancer cells. Cancer Res (2007) 67(2):585–92. doi:10.1158/0008-5472.CAN-06-2941
54. Dijkgraaf EM, Heusinkveld M, Tummers B, Vogelpoel LT, Goedemans R, Jha V, et al. Chemotherapy alters monocyte differentiation to favor generation of cancer-supporting M2 macrophages in the tumor microenvironment. Cancer Res (2013) 73(8):2480–92. doi:10.1158/0008-5472.CAN-12-3542
56. Chen R, Alvero AB, Silasi DA, Mor G. Inflammation, cancer and chemoresistance: taking advantage of the toll-like receptor signaling pathway. Am J Reprod Immunol (2007) 57(2):93–107. doi:10.1111/j.1600-0897.2006.00441.x
57. Alvero AB, Chen R, Fu HH, Montagna M, Schwartz PE, Rutherford T, et al. Molecular phenotyping of human ovarian cancer stem cells unravels the mechanisms for repair and chemoresistance. Cell Cycle (2009) 8(1):158–66. doi:10.4161/cc.8.1.7533
58. Alvero AB, Montagna MK, Craveiro V, Liu L, Mor G. Distinct subpopulations of epithelial ovarian cancer cells can differentially induce macrophages and T regulatory cells toward a pro-tumor phenotype. Am J Reprod Immunol (2012) 67(3):256–65. doi:10.1111/j.1600-0897.2011.01068.x
59. Hagemann T, Lawrence T, McNeish I, Charles KA, Kulbe H, Thompson RG, et al. “Re-educating” tumor-associated macrophages by targeting NF-kappaB. J Exp Med (2008) 205(6):1261–8. doi:10.1084/jem.20080108
60. Neyen C, Pluddemann A, Mukhopadhyay S, Maniati E, Bossard M, Gordon S, et al. Macrophage scavenger receptor a promotes tumor progression in murine models of ovarian and pancreatic cancer. J Immunol (2013) 190(7):3798–805. doi:10.4049/jimmunol.1203194
61. Robinson-Smith TM, Isaacsohn I, Mercer CA, Zhou M, Van Rooijen N, Husseinzadeh N, et al. Macrophages mediate inflammation-enhanced metastasis of ovarian tumors in mice. Cancer Res (2007) 67(12):5708–16. doi:10.1158/0008-5472.CAN-06-4375
62. Gordon IO, Freedman RS. Defective antitumor function of monocyte-derived macrophages from epithelial ovarian cancer patients. Clin Cancer Res (2006) 12(5):1515–24. doi:10.1158/1078-0432.CCR-05-2254
63. Kryczek I, Zou L, Rodriguez P, Zhu G, Wei S, Mottram P, et al. B7-H4 expression identifies a novel suppressive macrophage population in human ovarian carcinoma. J Exp Med (2006) 203(4):871–81. doi:10.1084/jem.20050930
64. Duluc D, Corvaisier M, Blanchard S, Catala L, Descamps P, Gamelin E, et al. Interferon-gamma reverses the immunosuppressive and protumoral properties and prevents the generation of human tumor-associated macrophages. Int J Cancer (2009) 125(2):367–73. doi:10.1002/ijc.24401
66. Zhang W, Tian J, Hao Q. HMGB1 combining with tumor-associated macrophages enhanced lymphangiogenesis in human epithelial ovarian cancer. Tumour Biol (2014) 35(3):2175–86. doi:10.1007/s13277-013-1288-8
