ORIGINAL RESEARCH article

Front. Oncol., 06 September 2019

Sec. Cancer Genetics

Volume 9 - 2019 | https://doi.org/10.3389/fonc.2019.00856

Development and External Validation of a Novel 12-Gene Signature for Prediction of Overall Survival in Muscle-Invasive Bladder Cancer

  • 1. Department of Urology, Fudan University Shanghai Cancer Center, Shanghai, China

  • 2. Department of Oncology, Shanghai Medical College, Fudan University, Shanghai, China

  • 3. Department of Urology, Affiliated Hospital of Nantong University, Nantong, China

  • 4. Department of Medical Oncology, Clinical Medical College of Yangzhou University, Northern Jiangsu People's Hospital, Yangzhou, China

Abstract

Purpose: We aimed to develop and validate a novel gene signature from published data and improve the prediction of survival in muscle-invasive bladder cancer (MIBC).

Methods: We searched the published gene signatures associated with the overall survival (OS) of MIBC and compiled all 274 genes to develop a novel gene signature. RNAseq data of TCGA (the Cancer Genome Atlas) bladder cohort were downloaded. All genes were included in a univariate Cox hazard ratio model. We then used a reduced multivariate Cox regression model, which included only genes achieving P < 0.05 in the univariate model. A total of 172 patients at Fudan University Shanghai Cancer Center (FUSCC) and 61 patients from GEO datasets were used as an external validation set.

Results: A total of 327 patients in the TCGA cohort were enrolled. We identified 274 genes from eight published papers on the OS of MIBC. Using the TCGA database, we identified 12 genes that correlated with OS (P < 0.05 in both univariate and multivariate analyses). By integrating these genes with the RT-qPCR data in our validation dataset and GEO datasets, we confirmed that the power for predicting OS of the 12-gene panel (AUC of 0.741 and 0.727, respectively) was higher than just clinical data (including gender, age, T stage, grade, and N stage) alone in the TCGA and FUSCC cohort (AUC of 0.667 and 0.631, respectively). Additionally, upon combining the clinical data and 12-gene panel together, the AUC increased to 0.768, 0.757, and 0.88 in the TCGA, FUSCC and GSE13507 cohorts, respectively.

Conclusions: Applying published gene signatures and TCGA data, we successfully built and externally validated a novel 12-gene signature for the survival of MIBC.

Brief Explanation:

We systemically reviewed all published prognostic gene signatures of muscle-invasive bladder cancer (MIBC) and integrated the genes in the TCGA MIBC cohort. This new gene panel was validated in a newly established MIBC cohort in GEO and FUSCC. This method can help update the previous established panels in a new way.

Introduction

Bladder cancer is the fourth most common cancer, with an incidence of ~7% among all male malignancies, and the eighth most common cause of mortality in men (1). In 2015, a total of 80,500 new bladder cancer cases were expected in China, with 32,900 estimated cancer-related deaths (2). Urothelial carcinoma is the dominant histological subtype of bladder cancer, except in certain parts of Africa and the Middle East (3). Despite the considerable progress in the treatment of bladder cancer, the prognosis of patients with muscle-invasive bladder cancer (MIBC) remains poor, which is partly attributable to the heterogeneity of disease characteristics (4). This indicates the need for an accurate prognostic assessment after radical cystectomy that is essential for treatment decision-making, patient counseling, and most importantly for defining the indication of adjuvant chemotherapy (5).

The American Joint Committee on Cancer (AJCC) TNM staging system, which has been appropriately validated, is the most widely used prognostic model to predict outcome in patients treated with radical cystectomy (6). Although these staging systems provide useful estimates of clinical outcome, their major limitation is the difficulty of incorporating novel clinical information, such as molecular markers or more complex bioinformatics. Furthermore, current staging systems have been shown to be less accurate than some prediction models that incorporate several sets of clinical data in the era of personalized medicine (7). A recently reported, comprehensive molecular analysis of urothelial bladder cancer from the Cancer Genome Atlas (TCGA) (http://cancergenome.nih.gov/) has provided novel insights into molecular subgroups and potential therapeutic targets for this disease (8). A few studies on gene signatures associated with tumor characteristics and outcomes for MIBC had already been reported before the release of the TCGA database. We searched the PubMed database and found eight papers that summarize the gene signature regarding the prediction of overall survival (OS). However, as indicated in the paper by Riester et al. (9), the performance of these eight gene signatures regarding the OS of MIBC was not so robust, as most of their C-indexes were <0.70. Additionally, as the management of MIBC and chemotherapy has changed in recent decades, all the gene signatures need to be updated. Therefore, we planned a study to integrate all of the published genes with TCGA RNAseq data to develop a novel gene panel and to validate the panel in our own cohort by qRT-PCR.

We established a novel 12-gene signature using TCGA data that was well-validated in our cohort and shown to be superior to TNM staging. This signature improved the prediction of survival of MIBC patients when combined with conventional clinical data including gender, age, tumor T and N stages, and tumor grade. Our study has refined the gene signature of MIBC integrated with the RNAseq data of TCGA. These results might reveal new therapeutic targets for bladder cancer and may be helpful during consultations with patients to predict prognosis.

Patients and Methods

Selection of Published Studies

We searched EMBASE (www.embase.com) and MEDLINE (www.ncbi.nlm.nih.gov/pubmed) from their inception to December 2017 and systematically identified gene signature studies predicting the OS of MIBC. No language restrictions were applied. The search terms used were as follows: (“bladder cancer” OR “bladder neoplasm” OR “bladder tumor” OR “bladder urothelial carcinoma”) AND (“gene signature” OR “gene profile” OR “gene model” OR “molecular profile” OR “genomic profile” OR “gene expression”). Irrelevant studies were identified and excluded by scanning their titles and abstracts. The full text of the remaining articles was carefully reviewed to determine whether the articles contained information on the topic of interest. We also scanned the cited references of the retrieved articles and reviews to identify any additional relevant studies. Finally, we retrieved all of the gene panels relevant to MIBC and OS (Figure 1).

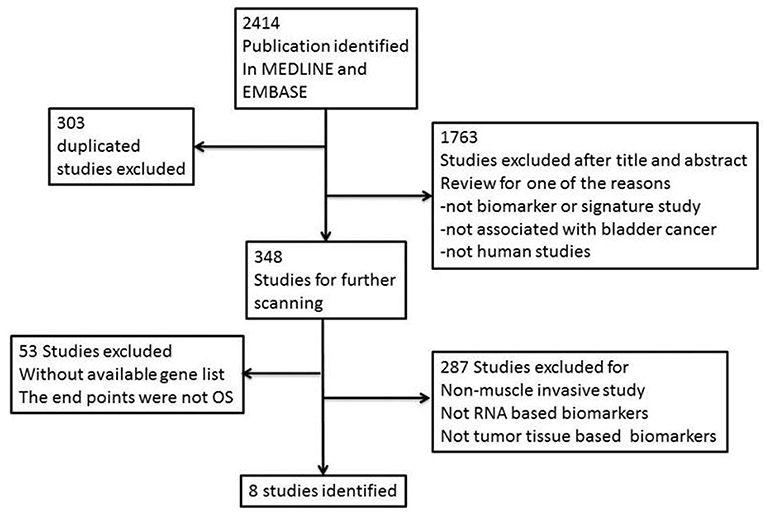

Figure 1

Patient Cohorts

Level 3 TCGA RNAseq data from bladder urothelial carcinoma (BLCA) samples were obtained from the TCGA data portal (https://genome-cancer.ucsc.edu/proj/site/hgHeatmap/). Tumor transcriptomic profiles of 20,534 genes were measured in 436 primary bladder cancer patients. Only the 327 patients with intact clinical information, especially follow-up data, were included in this study. The clinical information was retrieved from the “Clinical Biotab” section of the data matrix based on the Biospecimen Core Resource (BCR) identification numbers of the patients. Extended demographic parameters for these patients, characterized by TCGA consortium, are shown in Table 1.

Table 1

VariablesTCGA cohortGEO cohortFUSCC cohort
N = 327%N = 61%N = 172%
Age, median (range)6938–906638–876331–87
Gender
 Male23973.094878.6914785.47
 Female8826.911321.312514.53
Grade
 High31395.724268.8516394.77
 Low123.671931.1574.07
 Gx20.6121.16
pT
 T020.6100
 T120.6152.91
 T29529.053150.826336.63
 T315447.091931.154123.84
 T44914.981118.032916.86
 Tx257.653419.77
N
 N019058.14675.4110661.63
 N13510.7813.11126.98
 N26419.5769.841911.05
 N372.1400
 Nx319.4811.643520.35
M
 M015547.45590.1615590.12
 M172.1469.8474.07
 Mx16550.46105.81
Stage
 I20.6152.91
 II10231.192642.625431.4
 III10833.031321.313721.51
 IV11133.9469.845230.23
 X41.221626.232413.95

Clinical characteristics of bladder cancer patients in each cohort.

TCGA, the cancer genome atlas; FUSCC, Fudan University Shanghai Cancer Center.

The Fudan University Shanghai Cancer Center (FUSCC) validation cohort consisted of 172 patients with urothelial bladder cancer that was histologically confirmed by an experienced pathologist and treated by radical cystectomy without any pretreatment. These patients were consecutively enrolled from 2008 to 2015 (shown in Table 1). Once resected, tumor tissues were frozen and stored at −80°C. Written informed consent was obtained from all participants of this study. The study protocol was approved by the institutional review board of FUSCC and was carried out in accordance with the approved guidelines (approval ID: 050432-4-1805C).

The GEO dataset GSE13507 was downloaded from the website: www.ncbi.nlm.nih.gov/geo. RNA expression data and metadata of 61 patients were used for external validation of the gene signature. OS data were used for prognosis prediction.

RNA Preparation, cDNA Synthesis, and qRT-PCR Validation

Total RNA from frozen tissue specimens was extracted using TRIzol reagent (Invitrogen, Carlsbad, CA, USA), in accordance with the manufacturer's instructions. RNA quantity and quality were determined using a NanoDrop ND-1000 Spectrophotometer (NanoDrop Technologies, Wilmington, DE, USA). mRNA levels were measured using a RevertAid First Strand cDNA Synthesis Kit (K1622; Thermo Fisher Scientific, Waltham, MA, USA) and qRT-PCR Kit (Invitrogen, Carlsbad, CA, USA). ACTB (β-actin) served as an endogenous control. Primer sets are listed in Supplementary Table 1. qRT-PCR was performed on the Applied Biosystems 7,900 Real-Time PCR system using SYBR Green dye (Applied Biosystems, Foster City, CA, USA), as described by the manufacturer. All determinations were performed in triplicate and in at least three independent experiments. The mean Ct value of each gene minus the mean Ct value of ACTB was calculated as ΔCt. The –ΔCt value of each gene was applied for binary logistic regression and model construction. The details of this experiment are shown in our previous paper (10).

Statistical Analysis

All of the statistical analyses, including gene selection, classification model construction, and independent testing, were performed with R software and packages from the RMS and Bioconductor project (11, 12). For the data obtained by qRT-PCR, univariate and multivariate Cox regression models were used for the selection of genes for the predictive gene signature. All significance tests were two-sided, and a P < 0.05 was considered significant. Area under the ROC curve (AUC) was used as an accuracy index to identify the best combination of multiple markers.

Results

Acquiring Gene Signatures Associated With the OS of MIBC From Literature Analysis

Two reviewers (H.X. and F.W.) conducted the literature search independently. This resulted in the identification of eight studies (9, 1319) that met our requirements; all genes included in these studies are featured in our candidate signature gene list after de-replication. All eight studies and the 274 genes are shown in Supplementary Tables 2, 3, respectively.

Gene List Discovery Using TCGA Database

In the TCGA cohort, we included 239 male and 88 female patients with a median age of 69 years, ranging from 38 to 90 years. Two-thirds of patients were AJCC stage III and IV patients. Since the gene names in the gene models from the different reports were not consistent, we unified the IDs of all 274 genes into their official gene names to find the corresponding genes in the full TCGA gene list. OS data were retrieved from the TCGA cohort and univariate Cox regression was performed to identify the prognostic value of the 274 genes (Supplementary Table 4). In the univariate analysis, 70 genes reached significance at P < 0.05. We then performed a reduced model of multivariate Cox regression in the TCGA cohort. The results showed that 12 genes (ATIC, C6orf62, CPA4, CYFIP2, EGFR, EHBP1, GRK3, MARCH7, QPRT, SARDH, SUZ12, and YIF1A) were factors independently associated with OS (Tables 2, 3).

Table 2

Gene IDsOR95%CIP-value
ARFGEF10.953(0.441–2.061)0.902
ARID4B0.516(0.246–1.081)0.080
ATIC1.698(1.065–2.708)0.026
BIRC51.360(0.902–2.050)0.142
C15orf530.852(0.549–1.323)0.476
C6orf620.346(0.201–0.595)0.000
CALR1.052(0.554–1.998)0.878
CATSPERG0.868(0.707–1.066)0.176
CBX70.908(0.657–1.254)0.557
CDA0.857(0.703–1.044)0.125
CHD31.257(0.734–2.155)0.405
COL5A11.258(0.924–1.713)0.145
CORO1C1.205(0.635–2.289)0.568
CPA40.881(0.785–0.988)0.031
CYFIP21.279(1.011–1.618)0.041
DNASE2B0.826(0.627–1.087)0.173
DPP40.987(0.845–1.153)0.873
EGFR1.183(1.007–1.390)0.041
EHBP12.637(1.575–4.414)0.000
EHF1.044(0.869–1.255)0.645
ENDOD11.126(0.783–1.620)0.522
ERBB31.067(0.805–1.415)0.650
ERC11.264(0.771–2.074)0.353
ESR21.043(0.788–1.380)0.771
ESYT11.367(0.799–2.388)0.254
FADD1.369(0.956–1.961)0.086
FN10.912(0.688–1.208)0.520
FUCA11.402(0.994–1.977)0.054
FXYD30.854(0.693–1.053)0.139
GPC30.944(0.826–1.079)0.402
GRK30.752(0.591–0.957)0.021
HSD17B11.122(0.954–1.318)0.165
LGALS11.055(0.774–1.438)0.736
LIMCH10.839(0.681–1.035)0.101
MAP2K11.089(0.616–1.926)0.770
MARCH70.412(0.217–0.784)0.007
MECOM0.920(0.676–1.250)0.593
METTL21EP0.902(0.650–1.254)0.540
MMP140.988(0.663–1.472)0.953
MMP160.965(0.782–1.191)0.739
MPRIP1.045(0.657–1.661)0.853
NCAPG20.688(0.444–1.065)0.094
NCLN1.154(0.608–2.191)0.661
NOL120.928(0.552–1.648)0.798
NOTCH31.154(0.843–1.579)0.371
PCMTD21.564(0.941–2.600)0.085
PITX11.041(0.865–1.253)0.669
PPAPDC1B0.898(0.597–1.351)0.607
PTBP21.043(0.645–1.688)0.863
PTPN181.392(0.959–2.021)0.082
QPRT1.182(1.003–1.393)0.046
RAD10.725(0.421–1.249)0.246
RRBP11.037(0.591–1.821)0.900
RSU10.961(0.593–1.555)0.870
SARDH0.732(0.593–0.904)0.004
SFRS181.506(0.844–2.690)0.166
SHOX21.143(0.961–1.361)0.132
SLC16A10.968(0.776–1.206)0.769
SSRP10.854(0.435–1.675)0.646
STRAP1.562(0.839–2.907)0.160
SUZ121.792(1.030–1.361)0.039
TBXA2R0.961(0.679–1.361)0.823
TCF7L11.018(0.818–1.266)0.876
TNFAIP60.925(0.702–1.219)0.580
TOX30.999(0.895–1.114)0.978
TRAFD10.892(0.557–1.429)0.635
VCPIP10.996(0.402–2.469)0.994
YIF1A2.197(1.148–4.207)0.018
ZBTB7B1.143(0.732–1.784)0.558
ZCCHC70.695(0.415–1.164)0.167

Multivariate Cox hazard ratio regression model of integrated gene list in TCGA BLCA cohort.

*Parameters that were significant (p < 0.05) in univariate cox regression model entered the multivariate model. Backward Cox regression procedure was used to build the multivariate model; P < 0.05 were indicated as bold type.

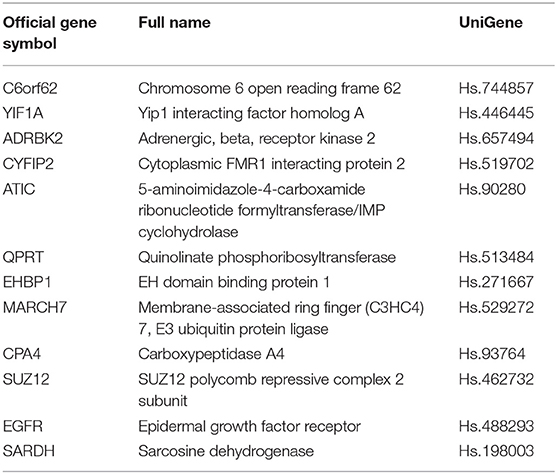

Table 3

Official gene symbolFull nameUniGene
C6orf62Chromosome 6 open reading frame 62Hs.744857
YIF1AYip1 interacting factor homolog AHs.446445
ADRBK2Adrenergic, beta, receptor kinase 2Hs.657494
CYFIP2Cytoplasmic FMR1 interacting protein 2Hs.519702
ATIC5-aminoimidazole-4-carboxamide ribonucleotide formyltransferase/IMP cyclohydrolaseHs.90280
QPRTQuinolinate phosphoribosyltransferaseHs.513484
EHBP1EH domain binding protein 1Hs.271667
MARCH7Membrane-associated ring finger (C3HC4) 7, E3 ubiquitin protein ligaseHs.529272
CPA4Carboxypeptidase A4Hs.93764
SUZ12SUZ12 polycomb repressive complex 2 subunitHs.462732
EGFREpidermal growth factor receptorHs.488293
SARDHSarcosine dehydrogenaseHs.198003

Gene IDs of 12-gene panel.

Validation of the Integrated Gene Signature in the FUSCC Cohort

The FUSCC cohort included 147 male and 25 female patients who underwent cystectomy. The patient age ranged from 31 to 87 years old, with a median of 63 years. We used qRT-PCR to validate all 12 genes in the FUSCC cohort using fresh frozen tissues obtained from cystectomy. The ΔCt value of each gene was normalized by the β-actin Ct value. All 12 genes were significant in the univariate model (all P < 0.05, Table 4). In the multivariate Cox regression model, EHBP1 and SARDH were independent prognostic factors.

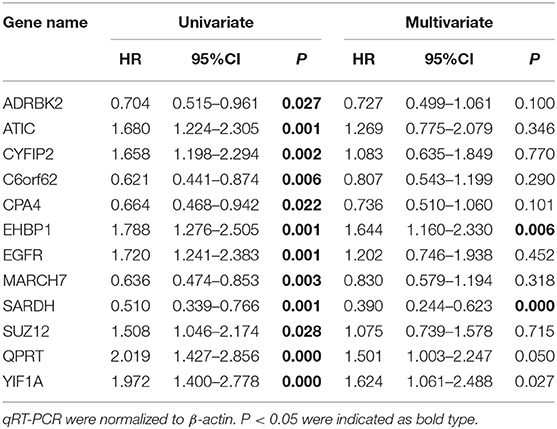

Table 4

Gene nameUnivariateMultivariate
HR95%CIPHR95%CIP
ADRBK20.7040.515–0.9610.0270.7270.499–1.0610.100
ATIC1.6801.224–2.3050.0011.2690.775–2.0790.346
CYFIP21.6581.198–2.2940.0021.0830.635–1.8490.770
C6orf620.6210.441–0.8740.0060.8070.543–1.1990.290
CPA40.6640.468–0.9420.0220.7360.510–1.0600.101
EHBP11.7881.276–2.5050.0011.6441.160–2.3300.006
EGFR1.7201.241–2.3830.0011.2020.746–1.9380.452
MARCH70.6360.474–0.8530.0030.8300.579–1.1940.318
SARDH0.5100.339–0.7660.0010.3900.244–0.6230.000
SUZ121.5081.046–2.1740.0281.0750.739–1.5780.715
QPRT2.0191.427–2.8560.0001.5011.003–2.2470.050
YIF1A1.9721.400–2.7780.0001.6241.061–2.4880.027

Cox hazard ratio analysis of 12-gene signature and OS in FUSCC cohort.

qRT-PCR were normalized to β-actin. P < 0.05 were indicated as bold type.

Integrated Gene Signature and Validation Using GEO Database

RNA expression data and metadata of 61 MIBC patients from GSE13507 were used for external validation of the gene signature. This cohort included 48 male patients and 13 female patients; the median age was 66 years old with a range from 38 to 87 years. All 12 genes were significant in univariate analysis. C6orf62 and ATIC were independent prognosis factors in the multivariate Cox regression model.

The 12-gene Signature in MIBC Improved the Predictive Value of the Clinical Model

To further assess the prognostic power of the 12-gene signature, we compared this model with a clinical model including gender, age, T stage, tumor grade, and N stage. We used “rms” package in R project to calculate the C-index values of the multivariate cox regression models. The results are shown in Table 5. In TCGA and FUSCC, the 12-gene signature was more accurate than the clinical model with a higher C-index. We then enrolled all the clinical and gene parameters together in a multivariate cox regression model for a combining model. The C-index reached 0.768, 0.757, and 0.88 in the TCGA, FUSCC and GSE13507 cohort, respectively. These results are shown in Table 5.

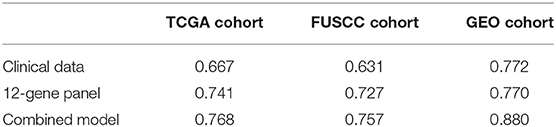

Table 5

TCGA cohortFUSCC cohortGEO cohort
Clinical data0.6670.6310.772
12-gene panel0.7410.7270.770
Combined model0.7680.7570.880

C-indexes of Clinical and 12-gene panel prognostic model.

Discussion

Once diagnosed, the survival of MIBC patients can range from 1 week to a few years. The disease progression is dependent on risk factors such as tobacco smoking history, exposure to chemicals, radiotherapy, chronic urinary infection, gender, and genetic differences. These clinical criteria may not reflect the entire biology of the disease. In this study, we investigated the efficacy of the 12-gene panel to predict the survival of MIBC patients. Although, previous studies have already developed several gene signatures for predicting OS of MIBC, the management of bladder cancer has improved over decades and the models need to be updated as well. An effective gene signature will improve patient counseling after cystectomy and can better identify candidates who need more aggressive management.

In our study, we performed a meta-analysis to systematically review the literature on gene models and attempted to integrate them together with a relatively newly established public cohort. The updated and integrated novel model should be more applicable to recently treated patients. This approach is relatively novel and has not yet been widely used. In this pilot study, gene expression data from the public TCGA cohort of patients with MIBC were analyzed and external validations were performed using the cohort at our center and GEO datasets. Additionally, we randomly selected 5 genes from the 274 genes, and found the predictive superiority of our 12-gene panel (Supplementary Table 5).

Leliveld et al. reported that pathological TNM stage and age were independent prognosis factors for patients with MIBC who underwent radical cystectomy (20). Jin S et al. analyzed lymph node-associated variables [pathological N stage (pN), lymph node ratio (LNR) and log odds (LODDDS)] in the patients with MIBC and found c-index that predicted the survival was 0.6769 (pN), 0.6794 (pN+ LNR), and 0.6855 (pN+LNR+LODDDS) (21). Mitra et al. established clinical and genomic classifiers and the c-index was up to 0.73 (18). However, the c-index of the combination model in our study was 0.88. Thus, our update improved the survival prediction. Compared with conventional clinical data, the genomic-clinicopathologic combination in our study had higher clinical benefit by decision curve analysis (Figure 2). These findings are particularly striking given the relative homogeneity of the population analyzed, as our cohort, in which all patients undergone the most aggressive surgical therapy, was strongly selected for being at high risk of death from disease.

Figure 2

Among the members of the novel gene panel, C6orf62 may participate in suppressing proliferation and inducing differentiation through regulating the cell cycle (22). YIF1A is involved in the pathway of the transport of proteins to the Golgi and their subsequent modification, as well as the unfolded protein response. Discrete sites in Yif1A that are necessary for the regulation of endoplasmic reticulum structure have also been identified (23). Moreover, in samples from clinical squamous cell cancer, six genes (GAL, GSTP1, MRPL11, MRPL21, SF3B2, and YIF1A) at 11q13.1–13.3 and one gene (GALR1) at 18q23 showed significant differences in expression between normal and tumor samples (24).

Another member of the gene panel is ADRBK2, which encodes the β-adrenergic receptor kinase, a direct target of CREB activation that regulates the neuroendocrine differentiation of prostate cancer cells (25). This kinase is essential for cell metastasis, promotes prostate tumor progression (26), and regulates breast cancer migration, invasion, and metastasis (27). Another gene panel member is CYFIP2, which is involved in T-cell adhesion and p53/TP53-dependent induction of apoptosis. IMP-1 displays cross-talk with K-Ras and modulates colon cancer cell survival through this novel proapoptotic protein (28).

Among the other members of the gene panel, ATIC promotes insulin receptor/INSR autophosphorylation and is involved in INSR internalization (29). The small-molecule inhibitor of ATIC has been shown to suppress the proliferation of breast cancer cells (30). QPRT, which encodes a key enzyme in the catabolism of quinolinate, an intermediate in the tryptophan-nicotinamide adenine dinucleotide pathway, is a potential marker for follicular thyroid carcinoma including the minimally invasive variant (31). EHBP1 encodes a protein that may play a role in endocytic trafficking. The single nucleotide polymorphism rs721048(A>G) in EHBP1 is associated with an aggressive form of prostate cancer (32). EHBP1 is also essential for the anti-invasive effect of atorvastatin in prostate cancer (33).

The panel also includes MARCH7, which is a member of the MARCH family of membrane-bound E3 ubiquitin ligases. E3 ubiquitin ligases accept ubiquitin from an E2 ubiquitin-conjugating enzyme in the form of a thioester and then directly transfer the ubiquitin to targeted substrates. MARCH7 promotes ovarian tumor growth and its expression is correlated with poor prognosis in epithelial ovarian cancer (34, 35). CPA4 is also included in the panel and may be involved in the histone hyperacetylation pathway. CPA4 is imprinted and may be a strong candidate gene for the aggressiveness of prostate cancer (36) as well as a promising diagnostic serum biomarker for both pancreatic cancer and non-small cell lung cancer (37, 38) and an adverse prognostic marker for gastric cancer, NSCLC, and colorectal cancer (37, 39, 40).

The gene panel member SARDH encodes an enzyme localized to the mitochondrial matrix that catalyzes the oxidative demethylation of sarcosine. TMEFF2 and SARDH cooperate to modulate one-carbon metabolism and the invasion of prostate cancer cells (41). Another gene in this list is SUZ12, which is associated with diseases including endometrial stromal sarcoma and endometrial stromal nodules. Among its related pathways are cellular senescence and chromatin organization. SUZ12 promotes proliferation and metastasis in many cancers, including gastric cancer (42), colorectal cancer (43), ovarian cancer (44), bladder cancer (45, 46), and NSCLC (47).

The gene encoding epidermal growth factor receptor (EGFR) is also included in the gene panel. EGFR is a receptor tyrosine kinase of the ErbB family. Several studies have shown that the EGFR family of RTKs is involved in urothelial carcinoma progression and chemoresistance. Many clinical trials using inhibitors of EGFR family RTKs have also been performed or are underway (48).

Although it is lack of novelty and function work in our study and our results require further investigation of the efficacy of the 12-gene signature panel in patients, this panel could be extremely beneficial to identify patients at elevated risk of death that may require adjuvant therapy.

Conclusion

By applying published gene signatures and TCGA data, we successfully built and externally validated a novel 12-gene signature for the survival of MIBC. This model was generated by integration and updating of the existing model. The model improved the prediction of disease progression or survival and may help facilitate doctor-patient consultations and eventually benefit patients.

Statements

Data availability statement

All datasets generated for this study are included in the manuscript and/or the Supplementary Files.

Ethics statement

This study protocol was approved by the Institutional Review Board of FUSCC and was carried out in accordance with the approved guidelines (approval ID: 050432-4-1805C). As the data (TCGA and GEO datasets) are publicly available, no ethical approval is required.

Author contributions

FW, YS, and DY had full access to all the data in the study and take responsibility for the integrity of the data and the accuracy of the data analysis, study concept, design, and supervision. MA and HX acquisition of data and drafting of the manuscript. ZJ, YaZ, and YiZ analysis and interpretation of data. GS, HZ, and BD critical revision of the manuscript for important intellectual content. FW and MA statistical analysis. FW and DY obtaining funding. YaZ and FW administrative, technical, or material support.

Acknowledgments

This study was sponsored by the National Natural Science Foundation of China (No. 81472377; No. 81502192; No. 81672544; No. 81872099; No. 81772706; No. 81572531). This article has been accepted as a moderate poster in AUA (American Urological Association) Congress 2017 in Boston in May 2017. We thank Liwen Bianji, Edanz Editing China (www.liwenbianji.cn/ac), for editing the English text of a draft of this manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2019.00856/full#supplementary-material
