MINI REVIEW article
Sec. Cancer Molecular Targets and Therapeutics
Volume 13 - 2023 | https://doi.org/10.3389/fonc.2023.1231420
Beyond liver cancer, more application scenarios for alpha-fetoprotein in clinical practice
- 1Department of Laboratory Medicine, The First Affiliated Hospital with Nanjing Medical University, Nanjing, China
- 2Center of Smart Laboratory and Molecular Medicine, School of Medicine, Chongqing University, Chongqing, China
Alpha-fetoprotein (AFP) is a commonly used clinical biomarker. Before 1970, the two-way agar diffusion method was mainly used, and the specificity of AFP in the diagnosis of primary liver cancer was satisfactory. However, its positivity rate was not very high. The diagnostic value of AFP is changing with the evolution of detection methods. Here, we performed a literature search to identify English-language publications. The search was performed from January 2015 to April 2023 using the PubMed database and the following terms in [Titles/Abstracts]: alpha-fetoprotein, clinical practice, detection, etc. The references of retrieved articles were also screened to broaden the search. Studies referring to liver cancer and AFP detection methods were excluded. In this review, several clinical application scenarios for AFP were systematically reviewed, and its potential detection value in the future was discussed.
Alpha-fetoprotein (AFP) is a glycoprotein and has a total of 591 amino acids (molecular weight: approximately 70 kDa). It belongs to the albumin family and was originally found in human fetuses, where it is produced by embryonic hepatocytes, yolk sac cells, and fetal gastrointestinal cells (1). Serum AFP levels rapidly decrease after birth, and its synthesis is virtually absent under normal physiological conditions. In clinical practice, serum AFP is widely acknowledged as a surveillance and diagnostic biomarker for hepatocellular carcinoma (HCC) (2).
Nevertheless, a portion of HCC patients (approximately 30%-40%) are diagnosed with AFP-negative HCC (AFPN-HCC) (3). Serum AFP levels are not always related to tumor burden which is characterized by an atypical fluctuation within its reference range in advanced HCC before proper clinical treatments (4). Liu et al. enrolled 597 patients with viral hepatitis B-associated liver disease as well as 201 healthy controls and established a nomogram model with outstanding significance consisting of multiple serum indexes and clinical parameters for the diagnosis of AFPN-HCC (5). It helps to release from the dilemma of relying solely on imaging examination in AFPN-HCC patients. It also raises the possibility that other candidates are expected to replace AFP as ideal surrogates for HCC (6).
The application of AFP is further limited by its inadequate specificity due to serum elevation in ALT flare in CHB and liver cirrhosis (7). Yu et al. analyzed serum markers of hepatocyte destruction and regeneration in 103 patients who diagnosed with chronic hepatitis type B (CHB) and described a model-based quantitative relationship between serum AST and AFP in distinguishing CHB patients with remission from those with progression (8). The so-called “host-dominating flare” characterized by substantial fluctuation of AFP accelerates hepatitis B virus DNA elimination, surface antigen decline, and favorable treatment response. Moreover, there are still some controversies, and several cases have been reported to describe the involvement of AFP in the occurrence or development of other diseases. In this review, we will summarize more application attempts of AFP in non-HCC diseases and discuss its clinical value from aspects of sensitivity, specificity, and clinical relevance.
Gastric cancer (GC)
GC is the fifth most common malignancy worldwide and the third leading cause of cancer-related deaths (9). The unsatisfactory prognosis is mainly due to the advanced stage at diagnosis (10). AFP-positive gastric cancer (AFPP-GC) is a rare entity, the incidence of which is reported to be 1-15% among GC patients (11). AFPP-GC presents an aggressive behavior, leading to high recurrence rates and short postoperative survival (12). Reim et al. conducted a study that included 3,034 GC patients who underwent curative surgery without any residual disease between 2002 and 2007 (11). A total of 97 patients were AFP-positive [a preoperative serum AFP level >10 μg/L or positive immunohistochemical (IHC) staining]. Propensity score matching (PSM) analysis and multivariate models were used to reduce bias, and 87 AFPP-GC patients were matched to the same number of AFP-negative GC (AFPN-GC) patients. They found that only serum AFP elevation, age, and pathological tumor stage were predictive for overall survival (OS) (p < 0.0001). Recurrence-free survival (RFS) was worse in AFPP-GC patients (p = 0.002). Compared to that in AFPN-GC patients, the recurrence rate was higher (34.5% vs. 16.9%, p = 0.003), the five-year survival rate was remarkably lower (57.9% vs. 76.1%, p = 0.014), and the five-year RFS rate was significantly lower (53% vs. 76%, p = 0.0029) in AFPP-GC patients. The author proposed that AFPP-GC should be considered a distinct clinical entity. Preoperative serum AFP elevation (>10 μg/L) is a poor independent prognostic predictor for GC. Frequent follow-up and active adjuvant therapy help to reduce the possibility of recurrence after radical gastrectomy.
Colorectal adenocarcinoma with enteroblastic differentiation (CAED)
CAED is a rare subtype of colonic adenocarcinoma, and it often appears in the sigmoid colon or rectum with metastasis in lymph nodes and distant organs (13). Murakami and colleagues identified five CAED patients (0.3%) from 1,666 patients with colorectal carcinomas whose clinical pathological features were analyzed followed by IHC staining with enteroblastic lineage markers: glypican-3 (GPC-3), spalt-like transcription factor 4 (SALL4), and AFP (14). Four patients were positive for SALL4 and GPC-3, and one patient had an AFP-positive hepatoid component, indicating that AFP, GPC-3 and SALL4 are characteristic of CAED. Abada et al. further confirmed the coexpression pattern of AFP, GPC-3, and SALL4 in liver metastatic lesions from a 26-year-old female diagnosed with CAED (15). However, the pathological value of intercellular AFP is still unclear because of the limited number of CAED patients.
Xp11 translocation renal cell carcinoma (RCC)
RCC is a mesoderm-originating malignant tumor, and AFP-producing RCC has been occasionally reported since 1988 (16). Recently, Zhang et al. reported a male patient with a renal mass in the lower pole of the left kidney and normal serum levels of carbohydrate antigen 199 and carcinoembryonic antigen (17). His serum AFP level was higher than 3,000 ng/mL and gradually decreased to 13.54 ng/mL two months after radical nephrectomy. Postsurgery fluorescence in situ hybridization (FISH) showed rearrangement of the transcription factor binding to the IGHM enhancer 3 (TFE3) gene, which is the specific marker of Xp11 translocation RCC. IHC examination of the resected lesion showed diffuse positivity for AFP, GPC-3, and TFE3. Another case of AFP-producing Xp11 translocation RCC was reported by Shim et al. in a 51-year-old woman (18). She had a multiseptated cystic mass in the right kidney, and her serum AFP level was 313.3 ng/mL. After right partial nephrectomy, the serum AFP level dropped to 13.5 ng/mL. The tumor cells were diffusely and strongly positive for AFP, and they exhibited hepatoid features with alveolar, acinar, or microcystic patterns. The two reports raise attention to the universality of AFP, which reflects progressed dedifferentiation or retrodifferentiation of RCC cells as a result of the complexity of genomic instability and tumor heterogeneity (19).
Urothelial carcinoma (UC)
UC is the most common type of bladder cancer with a significant risk of mortality and recurrence (20). The estimated lifetime morbidity of UC is reported as 1 of 25 in men and 1 of 80 in women in the United States (21). The five-year survival rate for patients with metastatic UC is less than 10% (22). UC can be treated effectively with immunotherapy because of its high rate of somatic mutations and high antigenicity (23). Programmed death-1 (PD-1) and programmed death ligand 1 (PD-L1) checkpoint inhibitors have emerged as new treatment options for metastatic UC. Pembrolizumab and nivolumab are PD-1 inhibitors. Atezolizumab, durvalumab, and avelumab are PD-L1 inhibitors that have been approved by the FDA for refractory metastatic UC (23). Melms et al. demonstrated a case of chemoresistant metastatic UC and chronic hepatitis B in a 62-year-old patient (24). The serum AFP level of the patient was 934.7 ng/mL, and it sharply declined after radical cystoprostatectomy and pelvic lymphadenectomy. IHC examination of the primary lesion showed strong staining for AFP and PD-L1. The patient experienced significant recurrence and progression with re-elevation of the serum AFP level to 3,800 ng/mL after three months. Considering the history of long-term chronic hepatitis, the patient was treated with pembrolizumab (an anti-PD-1 checkpoint inhibitor). The serum AFP level decreased to 42 ng/mL within six weeks, which coincided with the resolution of all palpable metastatic lesions. After 16 cycles of pembrolizumab, the patient showed complete clinical remission, and the serum AFP level was less than 5 ng/mL. The author highlighted the application of AFP as a marker for anti-PD-1 therapy response and proposed its value in UC progression surveillance.
Recurrent testicular germ cell tumor in adult
According to data from the UK and US Office for National Statistics on Cancer registries, approximately 60% of testicular tumors are seminoma germ cell tumors (SGCTs), and the rest are mainly nonseminoma germ cell tumors (NSGCTs) (25). Testicular cancer is curable, and the long-term survival rates are high for most patients (5-year survival rate > 95% in the US, 10-year survival rate > 98% in the UK) (25). The AFP decline rate is an important prognostic factor for NSGCT in adults (26). As European guidelines recommend, three biomarkers, β-human chorionic gonadotropin (β-hCG), lactate dehydrogenase (LDH), and AFP, should be measured on schedule according to treatment protocols and tumor stage (27).
Nicholson et al. systematically reviewed the data for the diagnostic accuracy of serum β-hCG, LDH, and AFP in monitoring testicular cancer recurrence in adults (25). The specificity of AFP alone is generally high (~100%) in the recurrence diagnosis of SGCTs and NSGCTs. However, the sensitivities of AFP were 36%, 100%, and 86% in two NSGCT studies and one study of both SGCTs and NSGCTs, respectively. When a combination of AFP and β-hCG was used, the estimated specificities were relatively stable (>95%), and the estimated sensitivities ranged from 36% to 100% according to different research teams’ reports. Nicholson considered that the recommendation of β-hCG, LDH, and AFP for monitoring testicular cancer recurrence during follow-up in international guidelines is lacking in supporting evidence. The involvement of LDH in recurrence is not yet clear. Upcoming cohort-based studies should explain the appropriateness of biomarkers, biomarker cut-points, and testing intervals to establish a follow-up strategy.
Fresneau et al. studied the prognostic value of serum AFP levels for childhood NSGCTs in a French TGM95 study (a prospective nonrandomized study conducted for patients aged ≤ 18 years with extracranial NSGCTs between January 1995 and December 2005) (28). A total of 239 patients were included [114 patients with high risk (serum AFP levels ≥ 15,000 ng/ml and/or metastatic tumors), 65 patients with medium risk (localized incompletely resected tumors, serum AFP levels < 15,000 ng/ml), and 60 patients with low risk (localized and completely resected tumors, serum AFP levels < 15,000 ng/ml)]. The main lesions were in the ovary (n = 77), testis (n = 66), and sacrococcygeal region (n = 57). The five-year OS and progression-free survival (PFS) rates were 93% [95% confidence interval (CI): 89-95%] and 85% (95% CI: 80-89%), respectively. The analysis of AFP decline indicated that AFP change (p = 0.10) and predicted time to normalization (p = 0.61) were not prognostic, in contrast to those in adult NSGCTs. The effect of differential observed and expected AFP decline area under the curves (O-E AUCs) was significant (HR = 2.1, 95% CI: 1.0-4.2, p = 0.05). A higher risk of progression/recurrence was observed in patients who showed slower serum AFP decline. PFS was significantly poorer when the difference between O-E AUCs increased.
Neonatal sacrococcygeal teratoma (SCT)
SCT is the most common congenital tumor, occurring in approximately 1 in 27,000 live births, and the proportion of female patients is higher than that of male patients (29, 30). SCT can be treated by complete resection and removal of the tailbone. Benign SCT can transform to malignant SCT with advanced age or surgical resection (31). Ultrasounds, MRI imaging studies and serum tumor markers are of value during postoperative follow-up (32). AFP is an important marker for SCT (33). A prolonged half-life (HL) and elevated levels of serum AFP are among the predictors of recurrence (34).
Nam et al. studied 55 neonates with nonrecurrent SCT and 10 neonates with recurrent SCT who underwent surgical treatment between 1997 and 2016 (35). Serum AFP levels were detected more than three times in each patient. In nonrecurrent SCT patients, serum AFP HL and age were positively correlated using the formula THL= 0.0597 × days + 6.1643 (p < 0.001). This correlation significantly differed (p < 0.05) from that in recurrent SCT patients (THL= 0.1196 × days −0.0633, p < 0.001). Of 55 neonates with SCT, 41 tumors were mature, and 14 tumors were immature. Serum AFP HLs were differently calculated in immature SCT (THL= 0.0433 × days +8.9339, p = 0.003) and mature SCT (THL= 0.0671 × days + 4.3912, p < 0.001). However, this study had some limitations. For instance, the comparison of AFP HLs between neonates with and without SCT was not included, and the measurement intervals of serum AFP were not controlled.
Nuclear protein in testis (NUT) midline carcinoma
NUT midline carcinoma is a rare type of squamous carcinoma and is one of the most aggressive solid tumors in humans (36, 37). NUT rearrangement is thought to initiate tumorigenesis (38). NUT fusion proteins are important in NUT midline carcinoma, as they cause growth arrest and irreversible squamous differentiation (39). Nevertheless, the detailed molecular mechanisms of NUT midline carcinoma remain elusive, and surveillance markers are being explored (40). D’Ambrosio et al. reported a case of a 22-year-old man who had a large mediastinal mass with lymph node and skeletal metastases (41). He had life-threatening superior vena cava syndrome, and his serum AFP level was 765 ng/mL. After chemotherapy with cisplatin and etoposide for two cycles, the serum AFP level dropped to 505 ng/mL, which was consistent with the attenuation of clinical symptoms. The serum AFP level rebounded to ~700 ng/mL after 1.5 months when the disease progressed. The author proposed the correlation of serum AFP with disease course.
Gynecological and obstetric diseases
Teratomas belongs to NSGCTs and can be classified into malignant immature solid lesions and benign mature cystic lesions (42). AFP is an important marker for the clinical differentiation between benign teratomas (within the normal range) and malignant teratomas (higher than the normal range) (43). Nevertheless, Caposole et al. described a case of metachronous bilateral recurrent ovarian and mediastinal teratomas with slightly increased serum AFP levels (12.3 μg/L) (44). After a multidisciplinary consultation, the patient underwent a right video-assisted thoracic resection, and the lesion was identified as a benign cystic teratomas. After follow-up for six months, the patient showed good recovery. However, her serum AFP level was still high (12.9 μg/L).
Pathological placentation is defined as an abnormal location of the placenta, abnormal invasion of the placenta into the uterine wall, or both (45). The incidence of placenta accreta has been increasing from 1 in 30,000 pregnancies in the 1960s to 1 in 300 pregnancies in more recent reports (46, 47). The incidence of placenta previa was estimated to be 1 in 200 pregnancies worldwide (48). In a retrospective case-control study at Helen Schneider Hospital for Women and Lis Maternity and Women’s Hospital conducted from 2007 to 2014, a total of 307 deliveries were divided into four groups: placenta accreta (64 patients), placenta previa (66 patients), both placenta accreta and placenta previa (17 patients), and normal placentation (153 patients) (49). Berezowsky et al. measured and compared serum biochemical markers between 16 + 0 and 19 + 6 weeks of gestation in all groups. The group with placenta accreta or placenta previa had a higher median AFP and β-hCG multiples of median (MoM) than the normal placentation group. The highest values of β-hCG (1.59 MoM) and AFP (1.19 MoM) were observed in the placenta accreta group, whereas the lowest values were observed in the control group. The results further showed that the AUC of AFP was 0.573 (95% CI: 0.515-0.630, p < 0.0274), and a cutoff value above 0.99 MoM for the prediction of pathological placentation demonstrated a specificity and sensitivity of 46% and 71%, respectively. The AUC of β-hCG was 0.662 (95% CI: 0.605-0.715, p < 0.0001), and a cutoff value of 1.25 MoM indicated a specificity and sensitivity of 68% and 53%, respectively. The AUC increased to 0.668 (95% CI: 0.611-0.721, p < 0.0001) with 64% specificity and 63% sensitivity when both markers were included. A high-risk group with a 2.27 odds ratio (OR) (95% CI: 1.42-3.63) for pathological placentation and a low-risk group with a 0.38 OR (95% CI: 0.24-0.60) for pathological placentation could be distinguished by the 75th percentile and 25th percentile MoM cutoff of AFP or β-hCG or both. The author suggested that serum AFP and β-hCG can be used as second trimester biomarkers to determine the risk of pathological placentation.
Yu et al. reported a young patient who had central placenta previa accompanied by intermittent bleeding (50, 51). A gradually enlarging hypoechoic area between the placenta and the uterine wall was confirmed by gynecological sonography. She presented with an extremely high AFP level (1,032 ng/ml) in her late pregnancy. Prenatal peripheral blood tests also showed high levels of serum C-reactive protein and neutrophils. During cesarean section, placental necrosis was confirmed by the naked eye. The serum AFP level returned to normal before the patient was discharged. Placental separation from the uterus led to barrier leakage, which increased the amount of AFP in the maternal serum. However, the relationship between the degree of placental damage and AFP has not yet been studied. The author suggested that the combination of AFP and ultrasound imaging may be a valuable tool to assess the status of the maternal-fetal interface.
Early pregnancy loss
AFP restrains maternal immune responses against the fetus to avoid pregnancy loss (52). It is well acknowledged as an important reference index for the early detection of chromosome malformations and monitoring fetal development (53, 54). Mor et al. investigated AFP as a candidate biomarker for intrauterine pregnancy (IUP) failure (55). There were 78 women in four groups: 1) missed/incomplete miscarriage; 2) threatened miscarriage; 3) cerclage; and 4) dilation and curettage. AFP concentrations in the evacuated products of conception (POC) of the dilation and curettage group, vaginal blood AFP concentrations of the other three groups, and maternal serum AFP (MS-AFP) concentrations of the four groups were evaluated. The median concentration ratio of AFP in vaginal blood to MS-AFP was 24.5 (5.1–8,620) for the missed/incomplete miscarriage group, whereas the ratio of AFP in POC to MS-AFP was 957 (4.6–24,216) for the dilation and curettage group. The AUC was 0.96 at a cutoff ratio of 4.3 with 100% sensitivity and approximately 87% specificity for distinguishing IUP failure from threatened miscarriage. A 73.3% sensitivity and 100% specificity were acquired if the cutoff ratio was 13.4. A [AFP]vaginal blood/[AFP]maternal serum ratio ≤ 4.3 indicated a threatened miscarriage. When the ratio was > 13.4, IUP failure occurred. The ratios for the threatened miscarriage group and the cerclage group were 1.2 (0.4–13.4) and 1.01 (0.7–1.5), respectively. However, in cases of severe maternal hemorrhage, AFP from fetal tissue may be greatly diluted, which can lead to false-negative results. The author suggested that the [AFP]vaginal blood/[AFP]maternal serum ratio is a novel and time-saving indicator for the diagnosis of a failed IUP.
Adverse pregnancy outcomes (APOs)
APOs are the major causes of fetal, neonatal, and maternal death and complications, which include preterm birth, preeclampsia, stillbirth, and small for gestational age (SGA) (56). Yefet et al. elaborated the predictive efficiencies of second-trimester MS-AFP and β-hCG for APOs. A total of 14,949 singleton deliveries from 2005 to 2012 were divided into three groups according to MoM ≥ 2: 0 elevated markers group, 1 elevated marker group, and 2 elevated markers group (57). The rate of APOs was 13% in women with elevated MS-AFP (OR: 1.6, 95% CI: 1.2-2.1) or β-hCG (OR: 1.2, 95% CI: 1.03-1.4). When both markers were elevated, the rate was significantly increased to 31% (compared to the “0 elevated markers” group, OR: 2.9, 95% CI: 2.0-4.3; compared to the “1 elevated marker” group, OR: 2.1, 95% CI: 1.4-3.1). The author further showed that MS-AFP ≥ 1.2 MoM or β-hCG ≥ 1.2 MoM could independently predict APOs via an established prediction model integrated with other maternal parameters. In another study conducted by Hu et al., pregnancy outcomes and MS-AFP levels in the first trimester were retrospectively reviewed (58). Among 3,325 singleton pregnant women, a total of 594 pregnancies experienced APOs, including 362 with SGA infants, 181 with preterm birth, 81 with preeclampsia, and 32 with stillbirth. When the cutoff value of MS-AFP 2.5 MoM was used, higher risks of SGA (OR: 1.90, 95% CI: 1.34-2.69), preterm birth (OR: 2.53, 95% CI: 1.65-3.88), and preeclampsia (OR: 3.05, 95% CI: 1.71-5.43) were observed in women with MS-AFP ≥ 2.5 MoM. Lower neonatal birth weights (p = 0.000) and earlier gestational weeks at delivery (p = 0.004) were highlighted in these women. However, the author found that first-trimester MS-AFP was not a candidate predictor for APOs indicated in this study due to low AUC performance.
Goto et al. performed a meta-analysis (39 cohort studies, 93,968 women and their neonates or fetuses) to investigate the relationship between higher MS-AFP levels and SGA risk (59). The relative risk (RR) of SGA was 2.021 (95% CI: 1.751–2.334) when comparing higher to lower MS-AFP levels. MS-AFP levels contributed to SGA risk in a dose-dependent manner. The RR was 2.962 (95% CI: 2.029–4.324) if an MS-AFP cutoff point ≥ 3 MoM was used, whereas the RR was 1.575 (95% CI: 1.245–1.993) if an MS-AFP cutoff point < 1 MoM was used. The author strongly recommended monitoring MS-AFP to identify women at high risk of SGA and to reduce mortality and morbidity.
Fetal hypospadias is a common congenital malformation of the male external genitalia that affects 0.4–8.2 of 1000 live male babies (60). In a pioneering multicenter case-control study, Chen et al. divided pregnant women with singleton gestations into two groups: 62 cases without fetal hypospadias and 69 cases with fetal hypospadias at gestational age between 15 and 20 + 6 weeks (61). The author found that the MS-AFP MoM was higher [1.14 (0.65-3.40)] in the study group than [0.96 (0.55-1.94)] in the control group (p = 0.005). The AUC of fetal hypospadias predicted by MS-AFP was 0.644 (95% CI: 0.550–0.737, p = 0.005), and the best cutoff value of MS-AFP for fetal hypospadias screening was 0.945 MoM, with a sensitivity of 73.9%, a specificity of 48.4%, and a Youden index of 0.223. The AUC of fetal hypospadias predicted by MS-AFP and β-hCG was 0.700 (95% CI: 0.610–0.789, p < 0.001), with a sensitivity of 55.1% and a specificity of 85.5%. The author suggested the optimal combination of MS-AFP and β-hCG, rather than each marker alone, for fetal hypospadias prediction during the mid-trimester.
Neural tube defects (NTDs)
NTDs are serious congenital malformations (62). The neuroepithelium is exposed to amniotic fluid if neural tube closure is incomplete, leading to neuron deficiency and degeneration (63). At present, at least two cost-effective parameters, AFP (MS-AFP and amniotic fluid AFP) and maternal age, are used in combination for risk estimates of NTDs (64, 65). However, detecting AFP in amniotic fluid requires invasive amniocentesis, which may cause intrauterine infection or spontaneous abortion (66). MS-AFP is relatively feasible for prenatal screening. Dong et al. investigated more optimal maternal serum biomarkers for noninvasive NTDs screening (67). Serum specimens from 38 pregnant women carrying healthy fetuses and 37 pregnant women carrying NTDs fetuses were collected. A support vector machine (SVM) classifier was used to analyze small samples to establish disease prediction models (68). The SVM model of the complement factors (identified by differential proteomic analysis) had an accuracy rate of 62.5%, a specificity of 67%, and a sensitivity of 60%. In this study, MS-AFP was approximately 400 ng/mL in the spina bifida aperta group. The accuracy rate, specificity, and sensitivity of the SVM model of MS-AFP were 62.5%, 50%, and 75%, respectively. The accuracy of the SVM model could be further increased to 75% by the combination of MS-AFP and the complement factors, and the specificity and sensitivity were also increased to 75%. Notably, MS-AFP is elevated during early embryonic development, and the process of closed NTDs does not release additional AFP. This may cause a missed diagnosis (69).

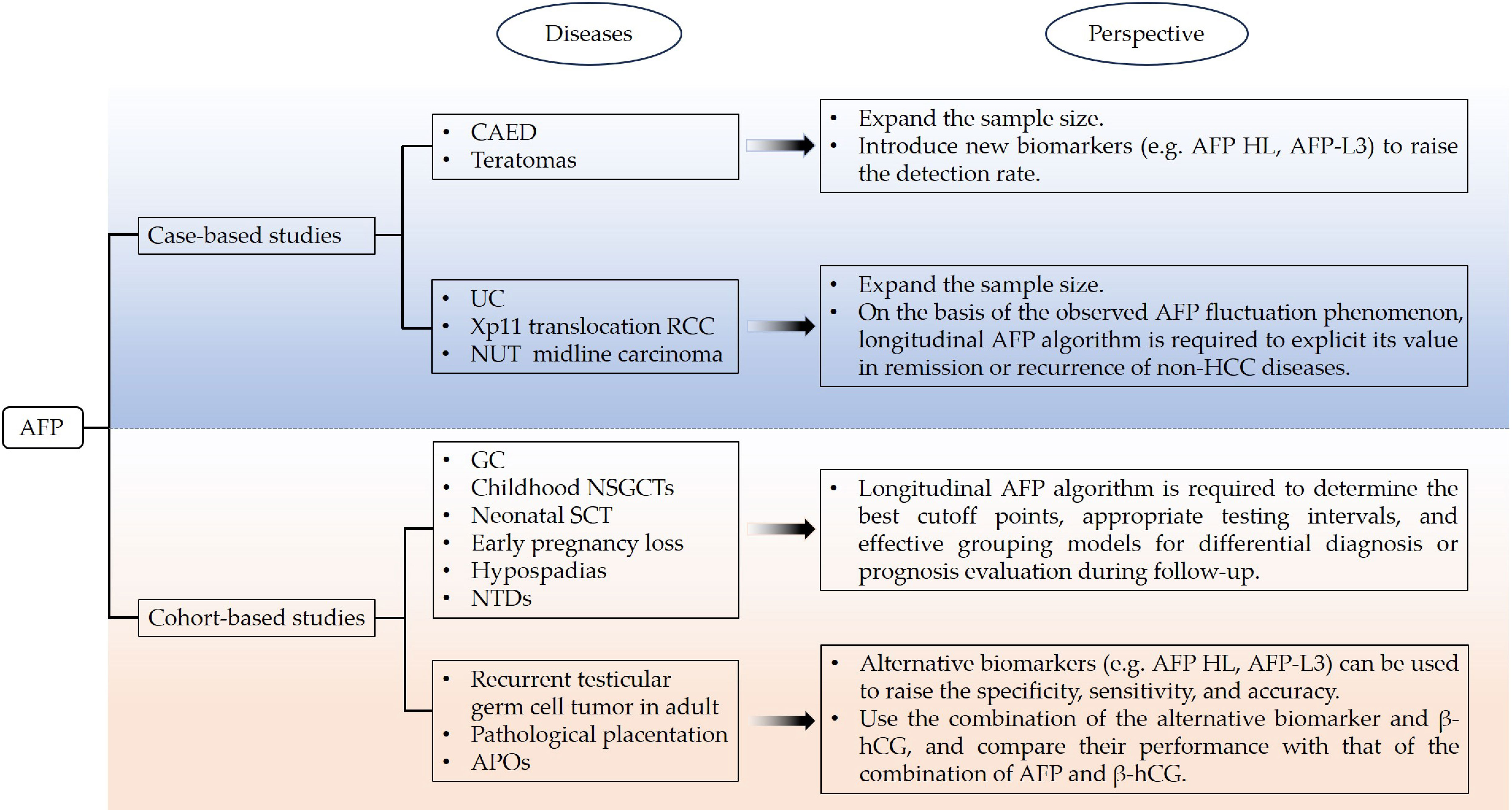

As mentioned above, AFP has alternative clinical applications that are not limited to HCC diagnosis (Table 1). With the deepening of research, the accuracy, sensitivity, and specificity of AFP as a guideline-recommended biomarker for HCC surveillance are being challenged (70). Likewise, diagnostic conclusions of non-HCC diseases might be drawn quite differently according to variables such as the usage of serum AFP cutoff levels, degree of tissue dedifferentiation, and capability of retrodifferentiation. Therefore, research should be continuously promoted according to different study categories as well as non-HCC diseases (Figure 1). It has been reported that malignant hepatocytes produce a subfraction of AFP, AFP-L3 (71). The ratio of AFP-L3 to total AFP was more sensitive for small HCC lesions, which could be overwhelmed by serum AFP detection alone or ultrasound imaging (72). It is worthwhile to investigate whether AFP-L3, if any, plays a role in CAED, teratomas, recurrent testicular germ cell tumor in adult, pathological placentation, or APOs to improve detection efficiency alone or in combination with established biomarkers (e.g., β-hCG) (Figure 1). In a follow-up study conducted by Choi et al., they found that the AUC of the serial AFP level-based algorithm for HCC diagnosis was higher than that of AFP alone at a fixed threshold (0.94 vs. 0.86, p <0.0005) (73). The performance and effectiveness of the longitudinal AFP algorithm in non-HCC diseases needs to undergo intensive validation in retrospective and prospective studies. For the observed AFP fluctuation in several case reports, the longitudinal AFP algorithm can be used to monitor disease progression in cohort studies of UC, Xp11 translocation RCC, and NUT midline carcinoma in the future. The longitudinal AFP algorithm will also favor differential diagnosis or prognosis evaluation in GC, childhood NSGCTs, neonatal SCT, early pregnancy loss, hypospadias, and NTDs in which serum AFP levels are only detected on admission or before treatment (Figure 1).
Notably, the reference interval (RI) of AFP needs to be determined in the pediatric population with a focus on data sources, child age, and the effects of gestational age, sex, and birth weight (74–76). The high variability of the currently available AFP RIs is a major limitation, particularly in infants under 6 months of age. New research with defined infant serum AFP RIs may improve the interpretation of laboratory results. Clinical models and algorithms based on absolute serum AFP HLs and concentrations will benefit pediatric diagnosis.
AFP is a characteristic biomarker of CAED, RCC, pathological placentation, early pregnancy loss, and NTDs. Serum AFP fluctuation can be used for monitoring the disease course, risk evaluation, and treatment response and can determine clinical outcomes in patients with GC, urothelial carcinoma, childhood NSGCTs, neonatal SCT, NUT midline carcinoma, and APOs. When combined with β-hCG, AFP has greater reference value in the diagnosis and risk prediction of APOs as well as in fetal hypospadias screening. It may underline a future direction to broad AFP utilization in combination with subfractions of AFP, other serum parameters, and imaging examination approaches in non-HCC diseases.
CM, YJ, and YW designed the mini review, drafted the work, and approved the content. HX and JZ revised it critically for important intellectual content and approved the content. All authors contributed to the article and approved the submitted version.
This work was supported by the “The Six Top Talent Project” of Jiangsu Province (no. WSW-004) and Jiangsu Province Capability Improvement Project through Science and Technology and Education (no. ZDXK202239).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
1. Chen E, Wei Y, Liu H, Tang C, Liu M, Peng K, et al. Hepatoid adenocarcinoma of stomach: Emphasis on the clinical relationship with alpha-fetoprotein-positive gastric cancer. BioMed Res Int (2019) 2019:6710428. doi: 10.1155/2019/6710428
2. Tayob N, Kanwal F, Alsarraj A, Hernaez R, El-Serag HB. The performance of afp, afp-3, dcp as biomarkers for detection of hepatocellular carcinoma (Hcc): A phase 3 biomarker study in the united states. Clin Gastroenterol Hepatol (2023) 21(2):415–23. doi: 10.1016/j.cgh.2022.01.047
3. Wang X, Mao M, He Z, Zhang L, Li H, Lin J, et al. Development and validation of a prognostic nomogram in afp-negative hepatocellular carcinoma. Int J Biol Sci (2019) 15(1):221–8. doi: 10.7150/ijbs.28720
4. Chen S, Chen H, Gao S, Qiu S, Zhou H, Yu M, et al. Differential expression of plasma microrna-125b in hepatitis b virus-related liver diseases and diagnostic potential for hepatitis b virus-induced hepatocellular carcinoma. Hepatol Res (2017) 47(4):312–20. doi: 10.1111/hepr.12739
5. Liu L, Wang Q, Zhao X, Huang Y, Feng Y, Zhang Y, et al. Establishment and validation of nomogram model for the diagnosis of afp-negative hepatocellular carcinoma. Front Oncol (2023) 13:1131892. doi: 10.3389/fonc.2023.1131892
6. Galle PR, Forner A, Llovet JM, Mazzaferro V, Piscaglia F, Raoul JL, et al. EASL clinical practice guidelines: Management of hepatocellular carcinoma. J Hepatol (2018) 69(1):182–236. doi: 10.1016/j.jhep.2018.03.019
7. Wu T, Fan R, Bai J, Yang Z, Qian YS, Du LT, et al. The development of a Csmart-based integrated model for hepatocellular carcinoma diagnosis. J Hematol Oncol (2023) 16(1):1. doi: 10.1186/s13045-022-01396-z
8. Yu M, Huang L, Zhang S, Jiang L, Jin Y, Gu M, et al. Follow-up value of serum AFP and aminotransferases in chronic hepatitis b progression. Front Cell Infect Microbiol (2023) 13:1082390. doi: 10.3389/fcimb.2023.1082390
10. Ajani JA, D'Amico TA, Bentrem DJ, Chao J, Cooke D, Corvera C, et al. Gastric cancer, version 2.2022, nccn clinical practice guidelines in oncology. J Natl Compr Canc Netw (2022) 20(2):167–92. doi: 10.6004/jnccn.2022.0008
11. Reim D, Choi YS, Yoon HM, Park B, Eom BW, Kook MC, et al. Alpha-fetoprotein is a significant prognostic factor for gastric cancer: Results from a propensity score matching analysis after curative resection. Eur J Surg Oncol (2017) 43(8):1542–9. doi: 10.1016/j.ejso.2017.04.005
12. Kono K, Amemiya H, Sekikawa T, Iizuka H, Takahashi A, Fujii H, et al. Clinicopathologic features of gastric cancers producing alpha-fetoprotein. Dig Surg (2002) 19(5):359–65. doi: 10.1159/000065838
13. Yamashiro Y, Saito T, Hayashi T, Murakami T, Yanai Y, Tsuyama S, et al. Molecular and clinicopathological features of colorectal adenocarcinoma with enteroblastic differentiation. Histopathology (2020) 77(3):492–502. doi: 10.1111/his.14158
14. Murakami T, Yao T, Yatagai N, Yamashiro Y, Saito T, Sakamoto N, et al. Colorectal adenocarcinoma with enteroblastic differentiation: a clinicopathological study of five cases. Histopathology (2020) 76(2):325–32. doi: 10.1111/his.13973
15. Abada E, Anaya IC, Abada O, Lebbos A, Beydoun R. Colorectal adenocarcinoma with enteroblastic differentiation: Diagnostic challenges of a rare case encountered in clinical practice. J Pathol Transl Med (2022) 56(2):97–102. doi: 10.4132/jptm.2021.10.28
16. Morimoto H, Tanigawa N, Inoue H, Muraoka R, Hosokawa Y, Hattori T. Alpha-fetoprotein-producing renal cell carcinoma. Cancer (1988) 61(1):84–8. doi: 10.1002/1097-0142(19880101)61:1<84::aid-cncr2820610114>3.0.co;2-i
18. Shim J, Go H, Lim YS, Moon KC, Ro JY, Cho YM. Hepatoid differentiation in renal cell carcinoma: a rare histologic pattern with clinical significance. Ann Diagn Pathol (2014) 18(6):363–8. doi: 10.1016/j.anndiagpath.2014.10.004
19. Li F, Aljahdali IAM, Zhang R, Nastiuk KL, Krolewski JJ, Ling X. Kidney cancer biomarkers and targets for therapeutics: Survivin (Birc5), xiap, mcl-1, Hif1α, Hif2α, Nrf2, Mdm2, Mdm4, P53, kras and akt in renal cell carcinoma. J Exp Clin Cancer Res (2021) 40(1):254. doi: 10.1186/s13046-021-02026-1
24. Melms JC, Thummalapalli R, Shaw K, Ye H, Tsai L, Bhatt RS, et al. Alpha-fetoprotein (AFP) as tumor marker in a patient with urothelial cancer with exceptional response to anti-PD-1 therapy and an escape lesion mimic. J Immunother Cancer (2018) 6(1):89. doi: 10.1186/s40425-018-0394-y
25. Nicholson BD, Jones NR, Protheroe A, Joseph J, Roberts NW, Van den Bruel A, et al. The diagnostic performance of current tumour markers in surveillance for recurrent testicular cancer: A diagnostic test accuracy systematic review. Cancer Epidemiol (2019) 59:15–21. doi: 10.1016/j.canep.2019.01.001
26. Fizazi K, Culine S, Kramar A, Amato RJ, Bouzy J, Chen I, et al. Early predicted time to normalization of tumor markers predicts outcome in poor-prognosis nonseminomatous germ cell tumors. J Clin Oncol (2004) 22(19):3868–76. doi: 10.1200/jco.2004.04.008
27. Albers P, Albrecht W, Algaba F, Bokemeyer C, Cohn-Cedermark G, Fizazi K, et al. Testicular cancer. Available at: http://uroweb.org/guideline/testicular-cancer (Accessed May 22, 2017).
28. Fresneau B, Orbach D, Faure-Conter C, Sudour-Bonnange H, Verite C, Gandemer V, et al. Is alpha-fetoprotein decline a prognostic factor of childhood non-seminomatous germ cell tumours? results of the french TGM95 study. Eur J Cancer (2018) 95:11–9. doi: 10.1016/j.ejca.2018.02.029
29. Yoon HM, Byeon SJ, Hwang JY, Kim JR, Jung AY, Lee JS, et al. Sacrococcygeal teratomas in newborns: A comprehensive review for the radiologists. Acta Radiol (2018) 59(2):236–46. doi: 10.1177/0284185117710680
30. Hambraeus M, Arnbjornsson E, Borjesson A, Salvesen K, Hagander L. Sacrococcygeal teratoma: A population-based study of incidence and prenatal prognostic factors. J Pediatr Surg (2016) 51(3):481–5. doi: 10.1016/j.jpedsurg.2015.09.007
31. De Backer A, Madern GC, Hakvoort-Cammel FG, Haentjens P, Oosterhuis JW, Hazebroek FW. Study of the factors associated with recurrence in children with sacrococcygeal teratoma. J Pediatr Surg (2006) 41(1):173–81. doi: 10.1016/j.jpedsurg.2005.10.022
32. Pauniaho SL, Tatti O, Lahdenne P, Lindahl H, Pakarinen M, Rintala R, et al. Tumor markers AFP, CA 125, and CA 19-9 in the long-term follow-up of sacrococcygeal teratomas in infancy and childhood. Tumour Biol (2010) 31(4):261–5. doi: 10.1007/s13277-010-0026-8
34. Keskin S, Ekenel M, Basaran M, Bavbek S. Predictive value of marker half-life in relapsed and nonrelapsed nonseminomatous germ cell testicular tumor patients undergoing chemotherapy. Am J Clin Oncol (2012) 35(4):369–72. doi: 10.1097/COC.0b013e3182155370
36. Bauer DE, Mitchell CM, Strait KM, Lathan CS, Stelow EB, Luer SC, et al. Clinicopathologic features and long-term outcomes of NUT midline carcinoma. Clin Cancer Res (2012) 18(20):5773–9. doi: 10.1158/1078-0432.CCR-12-1153
38. French CA, Rahman S, Walsh EM, Kuhnle S, Grayson AR, Lemieux ME, et al. NSD3-NUT fusion oncoprotein in NUT midline carcinoma: implications for a novel oncogenic mechanism. Cancer Discov (2014) 4(8):928–41. doi: 10.1158/2159-8290.CD-14-0014
41. D'Ambrosio L, Palesandro E, Moretti M, Pelosi G, Fabbri A, Carnevale Schianca F, et al. Alpha-fetoprotein elevation in NUT midline carcinoma: a case report. BMC Cancer (2017) 17(1):266. doi: 10.1186/s12885-017-3262-0
42. Pashankar F, Hanley K, Lockley M, Stoneham S, Nucci MR, Reyes-Mugica M, et al. Addressing the diagnostic and therapeutic dilemmas of ovarian immature teratoma: Report from a clinicopathologic consensus conference. Eur J Cancer (2022) 173:59–70. doi: 10.1016/j.ejca.2022.06.006
43. Nrgaard-Pedersen B, Albrechtsen R, Bagshawe KD, Buffe D, Endo Y, Heyderman E, et al. Clinical use of A.F.P. and H.C.G. in testicular tumours of germ-cell origin. Lancet (1978) 2(8098):1042. doi: 10.1016/S0140-6736(78)92355-3
44. Caposole MZ, Aruca-Bustillo V, Mitchell M, Nam B. Benign metachronous bilateral ovarian and mediastinal teratomas with an elevated alpha-fetoprotein. Ann Thorac Surg (2015) 99(3):1073–5. doi: 10.1016/j.athoracsur.2014.05.054
47. Morlando M, Sarno L, Napolitano R, Capone A, Tessitore G, Maruotti GM, et al. Placenta accreta: Incidence and risk factors in an area with a particularly high rate of cesarean section. Acta Obstet Gynecol Scand (2013) 92(4):457–60. doi: 10.1111/aogs.12080
48. Cresswell JA, Ronsmans C, Calvert C, Filippi V. Prevalence of placenta praevia by world region: A systematic review and meta-analysis. Trop Med Int Health (2013) 18(6):712–24. doi: 10.1111/tmi.12100
49. Berezowsky A, Pardo J, Ben-Zion M, Wiznitzer A, Aviram A. Second trimester biochemical markers as possible predictors of pathological placentation: A retrospective case-control study. Fetal Diagn Ther (2019) 46(3):187–92. doi: 10.1159/000492829
51. Yu M, Xi L, Zhang J, Zhang S. Possible connection between elevated serum alpha-fetoprotein and placental necrosis during pregnancy: A case report and review of literature. World J Clin cases (2018) 6(13):675–8. doi: 10.12998/wjcc.v6.i13.675
53. Merkatz IR, Nitowsky HM, Macri JN, Johnson WE. An association between low maternal serum alpha-fetoprotein and fetal chromosomal abnormalities. Am J Obstet Gynecol (1984) 148(7):886–94. doi: 10.1016/0002-9378(84)90530-1
54. Alldred SK, Takwoingi Y, Guo B, Pennant M, Deeks JJ, Neilson JP, et al. First trimester ultrasound tests alone or in combination with first trimester serum tests for down's syndrome screening. Cochrane Database Syst Rev (2017) 3(3):Cd012600. doi: 10.1002/14651858.Cd012600
55. Mor A, Tal R, Haberman S, Kalgi B, Nasab SH, Minkoff H. Same-day confirmation of intrauterine pregnancy failure in women with first- and early second-trimester bleeding. Fertil Steril (2018) 109(6):1060–4. doi: 10.1016/j.fertnstert.2018.02.006
57. Yefet E, Kuzmin O, Schwartz N, Basson F, Nachum Z. Predictive value of second-trimester biomarkers and maternal features for adverse pregnancy outcomes. Fetal Diagn Ther (2017) 42(4):285–93. doi: 10.1159/000458409
58. Hu J, Zhang J, He G, Zhu S, Tang X, Su J, et al. First-trimester maternal serum alpha-fetoprotein is not a good predictor for adverse pregnancy outcomes: a retrospective study of 3325 cases. BMC Pregnancy Childbirth (2020) 20(1):104. doi: 10.1186/s12884-020-2789-2
59. Goto E. Association of high maternal blood alpha-fetoprotein level with risk of delivering small for gestational age: a meta-analysis. Pediatr Res (2021) 89(7):1742–50. doi: 10.1038/s41390-020-01124-8
60. Li K, Zhang X, Yan G, Zheng W, Zou Y. Prenatal diagnosis and classification of fetal hypospadias: The role and value of magnetic resonance imaging. J Magn Reson Imaging (2021) 53(6):1862–70. doi: 10.1002/jmri.27519
62. Barutcuoglu M, Umur AS, Vatansever HS, Umur N, Ozbilgin K, Sayhan S, et al. TGF-betas and smads activities at the site of failed neural tube in the human embryos. Turk Neurosurg (2013) 23(6):693–9. doi: 10.5137/1019-5149.JTN.9428-13.0
65. Wallingford JB, Niswander LA, Shaw GM, Finnell RH. The continuing challenge of understanding, preventing, and treating neural tube defects. Science (2013) 339(6123):1222002. doi: 10.1126/science.1222002
66. Wilson RD, Sogc Genetics C, Special C. RETIRED: Prenatal screening, diagnosis, and pregnancy management of fetal neural tube defects. J Obstet Gynaecol Can (2014) 36(10):927–39. doi: 10.1016/S1701-2163(15)30444-8
67. Dong N, Gu H, Liu D, Wei X, Ma W, Ma L, et al. Complement factors and alpha-fetoprotein as biomarkers for noninvasive prenatal diagnosis of neural tube defects. Ann N Y Acad Sci (2020) 1478(1):75–91. doi: 10.1111/nyas.14443
69. Palomaki GE, Bupp C, Gregg AR, Norton ME, Oglesbee D, Best RG, et al. Laboratory screening and diagnosis of open neural tube defects, 2019 revision: a technical standard of the american college of medical genetics and genomics (ACMG). Genet Med (2020) 22(3):462–74. doi: 10.1038/s41436-019-0681-0
72. Force M, Park G, Chalikonda D, Roth C, Cohen M, Halegoua-DeMarzio D, et al. Alpha-fetoprotein (Afp) and afp-L3 is most useful in detection of recurrence of hepatocellular carcinoma in patients after tumor ablation and with low AFP level. Viruses (2022) 14(4):775. doi: 10.3390/v14040775
73. Choi J, Tayob N, Lim YS. Detecting early hepatocellular carcinoma in patients with chronic hepatitis b using longitudinal α-fetoprotein screening. Clin Gastroenterol Hepatol (2023) 21(6):1590–7. doi: 10.1016/j.cgh.2022.08.018
74. Mead GM, Stenning SP, Cook P, Fossa SD, Horwich A, Kaye SB, et al. International germ cell consensus classification: a prognostic factor-based staging system for metastatic germ cell cancers. Int Germ Cell Cancer Collab Group J Clin Oncol (1997) 15(2):594–603. doi: 10.1200/JCO.1922.214.171.1244
75. Frazier AL, Rumcheva P, Olson T, Giller R, Cushing B, Cullen J, et al. Application of the adult international germ cell classification system to pediatric malignant non-seminomatous germ cell tumors: a report from the children's oncology group. Pediatr Blood Cancer (2008) 50(4):746–51. doi: 10.1002/pbc.21304
Keywords: alpha-fetoprotein, clinical application, tumor, pregnancy, fetal diseases
Citation: Ma C, Jin Y, Wang Y, Xu H and Zhang J (2023) Beyond liver cancer, more application scenarios for alpha-fetoprotein in clinical practice. Front. Oncol. 13:1231420. doi: 10.3389/fonc.2023.1231420
Received: 30 May 2023; Accepted: 28 August 2023;
Published: 15 September 2023.
Edited by:Brian D. Adams, Brain Institute of America, United States
Copyright © 2023 Ma, Jin, Wang, Xu and Zhang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
†These authors have contributed equally to this work
