ORIGINAL RESEARCH article

Front. Pharmacol., 28 April 2021

Sec. Drugs Outcomes Research and Policies

Volume 12 - 2021 | https://doi.org/10.3389/fphar.2021.626766

A Review of the Dose Justification of Phase 3 Trials to Regulatory Authorities for Drugs Intended for the Treatment of Type 2 Diabetes in Europe

  • 1. Department of Clinical Pharmacy and Pharmacology, University of Groningen, University Medical Center Groningen, Groningen, Netherlands

  • 2. Dutch Medicines Evaluation Board (CBG-MEB), Utrecht, Netherlands

Abstract

Aims: Cardiovascular outcome trials with anti-diabetic drugs suggest that additional cardiovascular benefit can be achieved independent of improving glycaemic control. Nonetheless, dose selection of anti-diabetic drugs is typically based solely on glycaemic effects. We evaluated whether off-target drug effects are currently considered for dose justification to regulatory agencies.

Methods: In the European Union, anti-diabetic drugs are registered by the European Medicines Agency. We extracted available information regarding dose selection from public assessment reports and marketing application dossiers. Descriptive statistics were used to summarise the extracted information.

Results: In total, 14 drugs of three drug classes were included; sodium-glucose co-transporter-2 inhibitors (n = 4), dipeptidyl peptidase-4 inhibitors (n = 4) and glucagon-like peptide-1 receptor agonists (n = 6). For these drugs, 21 dose-finding trials were submitted including results of multiple off-target effects, of which body weight (n = 18) and low-density lipoprotein cholesterol (n = 14) were most frequently reported. Dose-response curves for off-target effects appeared to be different compared to the glycaemic dose-response curve. Glycated hemoglobin (100%) and fasting plasma glucose (42.9%), were used most frequently for the dose justification, but generally off-target effects (<25%) were not.

Conclusions: Dose justification to regulatory authorities was mainly based on glycaemic effects. The dose-response relationship for the off-target effects did not necessarily follow the dose-response relationship of the on-target effects suggesting that selection of the optimal anti-diabetic dose could benefit from including off-target effects in the dose selection process as well.

Introduction

Type 2 diabetes is characterised by hyperglycaemia, which is associated with several symptoms, such as an increased frequency of urination, thirst and fatigue. In addition, patients with type 2 diabetes have an increased risk of micro- and macrovascular complications resulting in increased risk of cardiovascular morbidity and mortality (; ). Therefore, management of patients is focused on improving quality of life and prevention or delay of complications associated with the disease (; ). A fundamental aspect in the current treatment strategy is to optimise glycaemic control. Management of patients, however, should not be limited to optimising glycaemic control, but should also focus on addressing other cardiovascular risk markers. For instance, improved cardiovascular outcomes, independent of glycaemic control, are achieved by addressing other cardiovascular risk markers, such as lowering of systolic blood pressure (SBP) and improving lipid levels ().

Results of cardiovascular outcome trials with new anti-diabetic therapies such as sodium-glucose co-transporter-2 (SGLT2) inhibitors and glucagon-like peptide-1 (GLP-1) receptor agonists demonstrate that these therapies decrease glycated hemoglobin (HbA1c), but also appear to confer cardiovascular and renal protection (; ; ; ; ; ; ; ; ). There is controversy in the scientific literature, whether the renal and cardiovascular benefits of these novel anti-diabetic agents can be expected to be independent, or at least in part, of their effects to improve glycaemic control (; ; ; ; ; ; ; ; ). Recent outcomes in non-diabetic populations with these drugs however appear to support that part of the renal and cardiovascular protection is independent of glycaemic control. Despite these additional cardiovascular and renal protective effects, the optimal dose of new anti-diabetic drugs is typically based solely on glycaemic risk markers and general tolerability considerations. For example, dose selection of SGLT2 inhibitors was based on the drug effects on urinary glucose excretion in combination with an overall safety assessment (; ; ; ). SGLT2 inhibitors exert however, multiple effects, so called off-target effects, which may contribute to the long-term renal and cardiovascular benefits. These off-target drug effects are, however, often monitored less rigorously than the on-target drug effect and usually interpreted as safety effects ().

Importantly, the dose-response relationship for off-target effects may be dissociated from the on-target effects as has been observed with renin-angiotensin-aldosterone system inhibitors where the blood pressure dose-response curve is different than the dose-response curve for albuminuria lowering (). This raises the question whether the current dose selection procedure should be exclusively based on the on-target effects of a drug or if, in contrast, off-target effects should also be considered for dose selection.

From a regulatory perspective, the European Medicines Agency’s draft Guideline on clinical investigation of medicinal products in the treatment or prevention of diabetes mellitus (CPMP/EWP/1080/00 Rev. 2) recommends using fasting plasma glucose (FPG) as primary evaluation criterion in short-term dose-finding trials and HbA1c in dose-finding trials with a duration of more than 12 weeks (). Justification of the selected dose range for phase 3 trials to regulatory authorities is therefore expected to focus mainly on glycaemic on-target effects, but it is currently unknown to what extent off-target effects are also considered in the dose justification of phase 3 trials to regulatory authorities.

This study aimed to evaluate which drug effects are currently included in the dose justification of phase 3 trials of drugs intended for the treatment of patients with type 2 diabetes. In addition, we evaluated whether the dose-response relationship of the off-target drug effects follows the dose-response relationship of the on-target glycaemic drug effects. Finally, we also evaluated whether there was any regulatory involvement that could have influenced the dose selection process.

Materials and Methods

Drugs Eligible for Inclusion

In the European Union, all drugs intended for the treatment or prevention of type 2 diabetes are registered centrally by the European Medicines Agency since 1995. Upon marketing application, a company submits a drug application dossier to the European Medicines Agency containing scientific evidence to support marketing approval. After review of the drug application dossier, the European Medicines Agency publishes full scientific assessment reports of authorised drugs, drugs refused from marketing authorisation or drugs suspended or withdrawn after approval, so called European Public Assessment Reports (EPAR). An EPAR summarises both the drug application dossier and the assessment of the marketing application dossier by regulatory authorities.

For this analysis, all anti-diabetic drugs with an EPAR and electronic drug application dossier were reviewed. The publicly available EPARs, were retrieved from the European Medicines Agency’s website (https://www.ema.europa.eu) up until December 2018. The non-publicly available drug application dossiers were accessed at the Dutch Medicines Evaluation Board. The focus of this analysis was on dose selection for drugs intended for the treatment of patients with type 2 diabetes, therefore only products with a registered indication for type 2 diabetes were included. Furthermore, fixed combination medicinal products (i.e. combination of two or more active substances), orphan drugs, insulins and generics were excluded.

Review Process and Data Extraction

Evaluation of the dose justification of phase 3 trials to regulatory authorities

During marketing authorisation application, a clinical overview is presented by a company in the drug application dossier. This clinical overview is intended to provide a critical analysis of all available data submitted to support marketing authorisation, including a justification of the selected phase 3 dose (). For each drug, this justification was extracted to identify the primary dose-finding trials and to evaluate which drug effects were reported in the dose justification of the phase 3 trials. Subsequently, trial reports of the primary dose-finding trials were extracted from the drug application dossiers to evaluate which drug effects were investigated in these primary dose-finding trials. Extraction of drug effects focused on all pre-defined efficacy variables, which were considered to be drug effects of interest for dose selection. In addition, drug effects were categorised in on- and off-target effects, in which all glycaemic drug effects were considered to be on-target effects and all non-glycaemic drug effects were considered to be off-target effects. Furthermore, we also extracted information regarding patient population, statistical analyses and trial design used in the primary dose-finding trials to exclude major differences between trials.

Evaluation of the Dose-Response Relationship

After evaluating which drug effects were investigated in the dose-finding trials, we extracted, if available, their corresponding average effect size from the trial reports to graphically evaluate the dose-response relationship. Evaluation of the dose-response relationship focused on the most frequently reported on-target drug effects and off-target drug effects. In order to compare the dose-response relationships, we normalised the dose range by the maximum registered dose.

Evaluation of Regulatory Involvement in Dose Selection Process

Finally, we evaluated the regulatory involvement on the selection of the phase 3 dose range. In Europe, the European Medicines Agency provides voluntary scientific advice to drug developers to support the development of high-quality, effective and safe medicines in a timely manner (; ). Selection of the phase 3 dose range could be influenced by advice received by the European Medicines Agency. Therefore, scientific advice procedures were identified from the initial marketing application forms, provided in the drug application dossier, and screened for questions related to selection of the phase 3 dose range. In addition, we evaluated regulatory involvement on dose selection during the review of the marketing application using the EPARs for any discussion around the phase 3 dose range at time of marketing authorisation application. Finally, we also evaluated whether there was agreement with the selected phase 3 dose by the regulatory authorities. Two independent reviewers screened all EPARs and extracted information regarding regulatory involvement at the time of marketing authorisation application. The results of the two reviewers were compared and checked for discrepancies. In case of a discrepancy, the results were based upon reaching consensus between the two reviewers.

Data Presentation

Descriptive statistics were used to summarise the extracted information from the drug application dossiers and EPARs using R version 3.2.4 (R Foundation for Statistical Computing, Vienna, Austria). Graphical evaluation of the average dose-response relationship for all on- and off-target drug effects were also constructed in R using the ggplot2 package (version 3.0.0).

Results

Included Drugs

From 1995 to 2018, the European Medicines Agency received 98 marketing application procedures related to anti-diabetic drugs (Figure 1). After removal of generics, orphan drugs, fixed combination medicinal products and insulins, 31 drugs were eligible for inclusion in this study. From these 31 eligible agents, 17 were removed as these procedures were based on a duplicate drug application dossier (i.e. same applicant, same clinical dossier), an informed consent application (i.e. different applicant but same clinical dossier as the medicinal product referred to) or were missing an electronic drug application dossier. As a consequence, a total of 14 drugs were included in the analysis, comprising the three most recently registered drug classes; SGLT-2 inhibitors (n = 4 drugs), dipeptidyl peptidase-4 (DPP4) inhibitors (n = 4 drugs) and GLP-1 receptor agonists (n = 6 drugs).

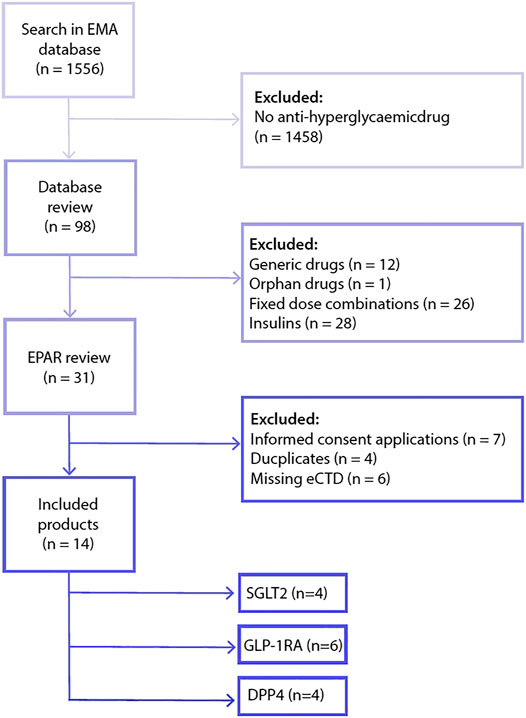

FIGURE 1

Evaluation of the Dose Justification of Phase 3 Trials to Regulatory Authorities

Trial Characteristics

A total of 21 primary dose-finding trials were used to justify the selected phase 3 dose. Characteristics of the included patient population, statistical analysis and design of these primary dose-finding trials are included in Table 1.

TABLE 1

SGLT2 (n = 8 trials)DPP4 (n = 6 trials)GLP-1RA (n = 7 trials)Total (n = 21 trials)
General characteristicsDrugs included in this analysis44614
Total number of patients2,9232,53618557,314
Number of patients per trial365423265348
Patient populationAgeYears56.6 (9.8)56.1 (9.7)55.2 (9.8)56.1 (9.8)
GenderFemale1,211 (41.4)1,152 (45.4)821 (44.3)3,184 (43.6)
Male1712 (58.6)1,384 (54.6)1,034 (55.7)4,130 (56.4)
EthnicityAfro-American82 (2.8)147 (5.8)66 (3.6)295 (4.0)
Asian1,072 (36.7)53 (2.1)301 (16.2)1,426 (19.5)
Caucasian1,674 (57.2)2076 (81.8)1,186 (63.9)4,936 (67.5)
Other95 (3.3)260 (10.3)302 (16.3)657 (9.0)
Body Mass Indexkg/m229.6 (5.2)31.3 (4.9)30.7 (5.0)30.5 (5.1)
Body weightKg82.6 (18.7)89.1 (17.2)86.6 (17.4)85.9 (18.1)
HbA1c%7.9 (0.9)8.0 (0.9)8.0 (0.8)7.9 (0.9)
FPGmg/dL165.2 (41.7)176.5 (43.3)170.3 (43.6)170.4 (42.3)
Duration of diabetesYears5.0 (4.9)4.6 (4.9)5.1 (5.4)5.0 (5.0)
Co-morbidity
Nephropathy3.81.81.72.4
Neuropathy6.88.27.77.5
Retinopathy4.14.02.63.5
Trial designNumber of dose levels4454
Trial durationWeeks11121613
RandomisationRandomised (yes)86721
BlindingDouble-blind (yes)86721
Control
Active controlled4127
Placebo controlled86721
Clinical trial Design
Parallel design86721
Adaptive design0011
Phase in clinical development program
Phase 23249
Phase 2a0101
Phase 2b53210
Phase 2/30011
Background medication
Diet and exercise alone3 (37.5)1 (16.7)0 (0.0)4 (19.0)
Metformin4 (50.0)1 (16.7)3 (42.9)8 (38.1)
Maximum of 1 oral anti-diabetes drug0 (0.0)2 (33.3)4 (57.1)6 (28.6)
Maximum of 2 oral anti-diabetes drug1 (12.5)2 (33.3)0 (0.0)3 (14.3)
AnalysesStatistical method
Descriptive statistics86721
Conventional statistics (Analysis of Covariance)86620
Dose-Response (non-linear regression)2013
Population Pharmacokinetic or Pharmacokinetic/Pharmacodynamic analysis2237
Imputation method
Last Observation Carried Forward86721
Pharmacokinetics
Plasma-concentrations measured85720
Type of samples taken
Trough concentrations3317
Sparse52512
Dense0011

Characteristics of the primary dose-finding trials used in justification in clinical overview.

Data are presented as pooled mean (SD) and number of trials/percentage of total number of trials.

Abbreviations dipeptidyl peptidase-4 (DPP4), fasting plasma glucose (FPG), glucagon-like peptide-1 receptor agonist (GLP-1RA), glycated hemoglobin (HbA1c), sodium-glucose co-transporters -2 (SGLT2).

In short, all dose-finding trials were randomised, double-blind, parallel-design and placebo-controlled clinical trials with a mean duration of 13 weeks. Four dose levels were typically included per dose-finding trial. Patients had a mean age of 56.1 years (±9.8 years), were predominantly Caucasian (67.5%), male (56.4%) and had a mean body mass index of 30.5 kg/m2 (±5.1 kg/m2). Furthermore, patients had a mean duration of disease of 5.0 years (±5.0 years), baseline HbA1c of 7.9% (±0.9%) and a FPG of 170.4 mg/dl (±42.3 mg/dl). No major differences in patient populations were present between dose-finding trials of the different drug classes, except for the SGLT2 inhibitors, where more patients of Asian descent were included compared to the other two classes.

Drug Effects Included in Dose-Finding Trials

The on-target drug effects, FPG (100%) and HbA1c (95.2%), were most frequently investigated in the dose-finding trials (Figure 2). Off-target drug effects measured in the dose-finding trials primarily focused on lipid markers, body weight-related markers and blood pressure-related markers. Of these off-target drug effects, body weight was reported most frequently (85.7%) followed by triglycerides (66.7%), low-density lipoprotein cholesterol (LDL-C, 66.7%), high-density lipoprotein cholesterol (HDL-C, 66.7%) and total cholesterol (61.9%). No major differences between drug classes were noted in the number of included on- and off-target effects measured.

FIGURE 2

Drug Effects Included in Dose Justification of Phase 3 Trials

A total of eight different risk markers were included in the dose justification of phase 3 trials for more than one drug (Figure 3).

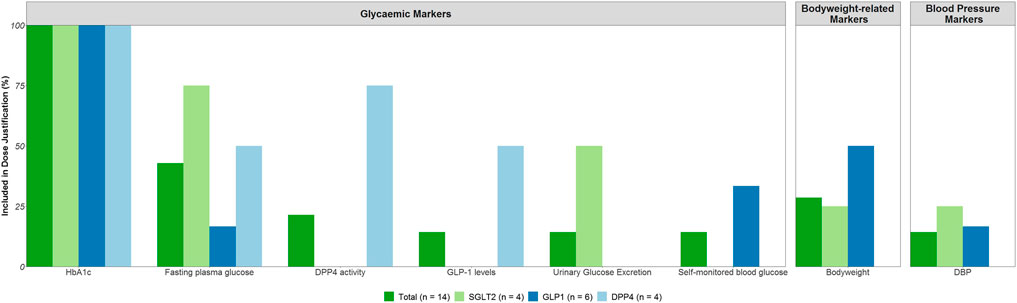

FIGURE 3

For the on-target drug effects, primarily HbA1c (n = 14) was used in the dose justification for all drugs, followed by FPG (n = 6). For two out of the four DPP4 inhibitors, DPP4 activity and GLP-1 levels were also included in the dose justification in addition to HbA1c and FPG. Further, for two out of the four SGLT2 inhibitors, urinary glucose excretion was included in the dose justification next to HbA1c and FPG.

For the off-target effects, body weight (n = 4) and diastolic blood pressure (DBP, n = 2) were reported in the dose justification. These effects were reported for the GLP-1 receptor agonists and the SGLT2 inhibitors, but a majority of drugs did not consider any off-target effects in the dose justification.

Evaluation of the Dose-Response Relationship

The dose-response relationships for the most frequently reported on-target and off-target effects stratified by drug class are displayed in Figure 4. Figures per drug effect and per drug class are provided in the Supplemental materials. Every line represents the dose-response relationship observed per dose-finding trial. The effects observed in the on-target and off-target effects are normalised by the highest registered dose (e.g. 10 mg dapagliflozin reflects the 100% dose level).

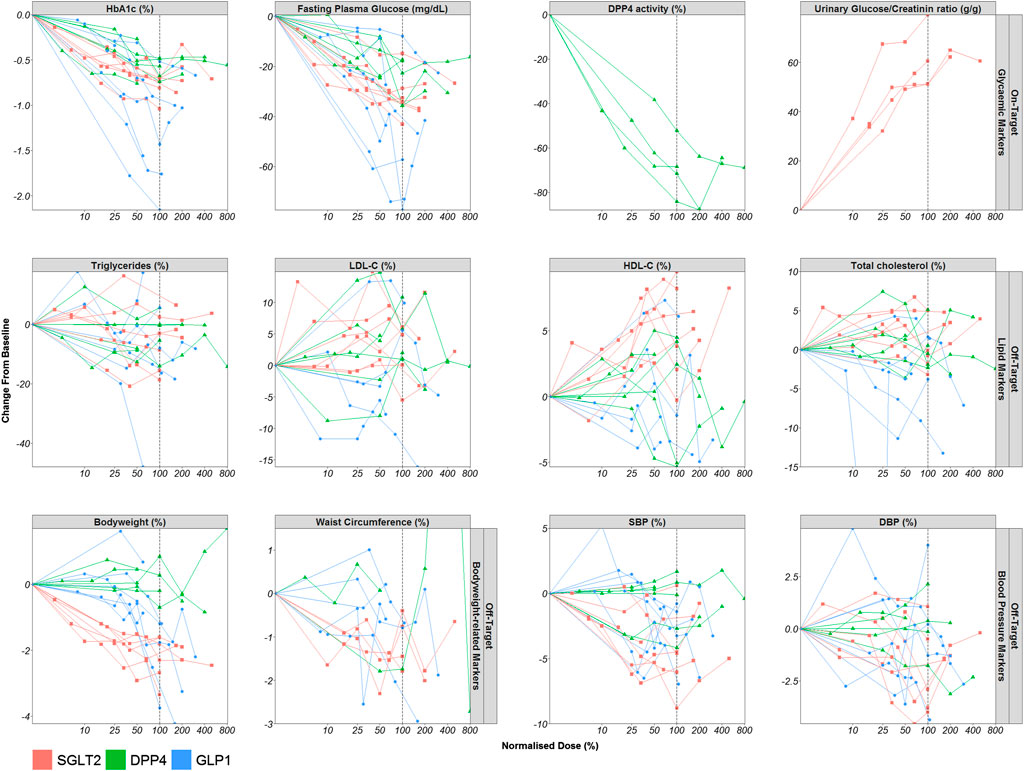

FIGURE 4

For all drug classes, upon visual inspection, clear dose-response relationships were observed for HbA1c and FPG. In addition, the effects of DPP4 inhibitors on DPP4 activity also showed a dose-dependent effect and the same held true for the effect of SGLT2 inhibitors on urinary glucose to creatinine ratio. SGLT2 inhibitors and GLP1 receptor agonists also displayed a dose-dependent effect on body weight, HDL-C and SBP.

For SGLT2 inhibitors, the dose-response relationship of body weight, HDL-C and SBP appears to follow a similar relationship as HbA1c with dose, although it is not completely clear whether maximum effects in HDL-C and SBP have already been reached with the evaluated dose levels. For GLP1 receptor agonists, the dose-response relationship of body weight and SBP seems to be shifted to the right compared to the dose-response relationship for HbA1c so that the effect became apparent only at higher doses. For DPP4 inhibitors, there are no clear dose-response relationships for the off-target parameters. In general, for all drug classes, the dose-response relationship of the other off-target effects appears to be more variable.

Evaluation of Regulatory Involvement in the Dose Selection Process

Regulatory involvement in the dose selection process is displayed in Table 2. The dosages included in the primary dose-finding trials are mainly based on the results of the earlier single- and multiple-ascending phase one dose trials. In general, a wide range of dosages is included in the primary dose-finding trials. Typically two dosages were proposed for the phase 3 trials and, in most cases, both dosages were also registered.

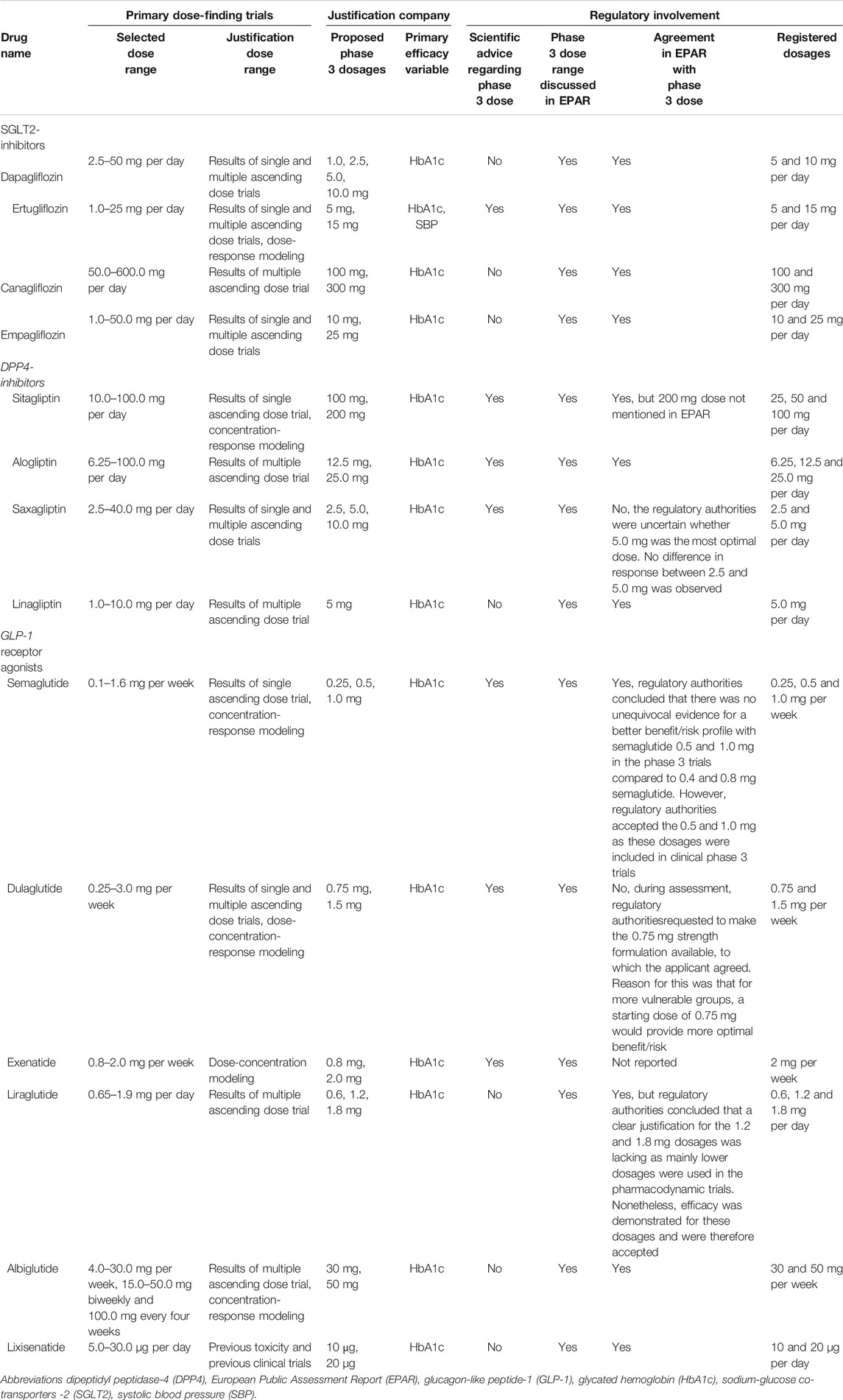

TABLE 2

Primary dose-finding trialsJustification companyRegulatory involvement
Drug nameSelected dose rangeJustification dose rangeProposed phase 3 dosagesPrimary efficacy variableScientific advice regarding phase 3 dosePhase 3 dose range discussed in EPARAgreement in EPAR with phase 3 doseRegistered dosages
SGLT2-inhibitors
 Dapagliflozin2.5–50 mg per dayResults of single and multiple ascending dose trials1.0, 2.5, 5.0, 10.0 mgHbA1cNoYesYes5 and 10 mg per day
 Ertugliflozin1.0–25 mg per dayResults of single and multiple ascending dose trials, dose-response modeling5 mg, 15 mgHbA1c, SBPYesYesYes5 and 15 mg per day
 Canagliflozin50.0–600.0 mg per dayResults of multiple ascending dose trial100 mg, 300 mgHbA1cNoYesYes100 and 300 mg per day
 Empagliflozin1.0–50.0 mg per dayResults of single and multiple ascending dose trials10 mg, 25 mgHbA1cNoYesYes10 and 25 mg per day
DPP4-inhibitors
 Sitagliptin10.0–100.0 mg per dayResults of single ascending dose trial, concentration-response modeling100 mg, 200 mgHbA1cYesYesYes, but 200 mg dose not mentioned in EPAR25, 50 and 100 mg per day
 Alogliptin6.25–100.0 mg per dayResults of multiple ascending dose trial12.5 mg, 25.0 mgHbA1cYesYesYes6.25, 12.5 and 25.0 mg per day
 Saxagliptin2.5–40.0 mg per dayResults of single and multiple ascending dose trials2.5, 5.0, 10.0 mgHbA1cYesYesNo, the regulatory authorities were uncertain whether 5.0 mg was the most optimal dose. No difference in response between 2.5 and 5.0 mg was observed2.5 and 5.0 mg per day
 Linagliptin1.0–10.0 mg per dayResults of multiple ascending dose trial5 mgHbA1cNoYesYes5.0 mg per day
GLP-1 receptor agonists
  Semaglutide0.1–1.6 mg per weekResults of single ascending dose trial, concentration-response modeling0.25, 0.5, 1.0 mgHbA1cYesYesYes, regulatory authorities concluded that there was no unequivocal evidence for a better benefit/risk profile with semaglutide 0.5 and 1.0 mg in the phase 3 trials compared to 0.4 and 0.8 mg semaglutide. However, regulatory authorities accepted the 0.5 and 1.0 mg as these dosages were included in clinical phase 3 trials0.25, 0.5 and 1.0 mg per week
  Dulaglutide0.25–3.0 mg per weekResults of single and multiple ascending dose trials, dose-concentration-response modeling0.75 mg, 1.5 mgHbA1cYesYesNo, during assessment, regulatory authoritiesrequested to make the 0.75 mg strength formulation available, to which the applicant agreed. Reason for this was that for more vulnerable groups, a starting dose of 0.75 mg would provide more optimal benefit/risk0.75 and 1.5 mg per week
  Exenatide0.8–2.0 mg per weekDose-concentration modeling0.8 mg, 2.0 mgHbA1cYesYesNot reported2 mg per week
  Liraglutide0.65–1.9 mg per dayResults of multiple ascending dose trial0.6, 1.2, 1.8 mgHbA1cNoYesYes, but regulatory authorities concluded that a clear justification for the 1.2 and 1.8 mg dosages was lacking as mainly lower dosages were used in the pharmacodynamic trials. Nonetheless, efficacy was demonstrated for these dosages and were therefore accepted0.6, 1.2 and 1.8 mg per day
  Albiglutide4.0–30.0 mg per week, 15.0–50.0 mg biweekly and 100.0 mg every four weeksResults of multiple ascending dose trial, concentration-response modeling30 mg, 50 mgHbA1cNoYesYes30 and 50 mg per week
  Lixisenatide5.0–30.0 µg per dayPrevious toxicity and previous clinical trials10 μg, 20 µgHbA1cNoYesYes10 and 20 µg per day

Review of regulatory process.

Abbreviations dipeptidyl peptidase-4 (DPP4), European Public Assessment Report (EPAR), glucagon-like peptide-1 (GLP-1), glycated hemoglobin (HbA1c), sodium-glucose co-transporters -2 (SGLT2), systolic blood pressure (SBP).

Scientific advice was requested for almost all drugs before submission of the marketing authorisation application, but the scientific advice was only for seven products related to the phase 3 dose. The justification of the phase 3 dose has been discussed in all EPARs, except for one drug. For nine drugs, regulatory authorities agreed with the selected dose without expressing uncertainties. For two drugs there was disagreement on the selected dose, and for one of these drugs this resulted in additional registration of a lower dose than originally applied for. Further, for one drug, no agreement or disagreement was reported. For another two drugs, uncertainty with respect to the selected dose was expressed by the regulatory authorities.

Discussion

In this study, we evaluated the dose justification of phase 3 trials of SGLT-2 inhibitors, DPP4 inhibitors and GLP-1 receptor agonists, three of the most recently registered anti-diabetic drug classes. The dose of these drug classes was determined based on results of several primary dose-finding trials, which typically investigated the on-target drug effects, FPG and HbA1c. In these dose-finding trials, off-target drug effects were however also frequently measured, which were predominantly related to body weight, lipid profile and blood pressure. Even though dose-finding trials measured off-target effects, the dose justification of phase 3 trials to regulatory agencies was, for a majority of drugs, solely based on the on-target effects. The dose-response relationship for the off-target effects did not necessarily follow the dose-response relationship of the on-target effects suggesting that selection of the optimal anti-diabetic dose could benefit from including off-target effects in the dose selection process as well.

The new draft Guideline on clinical investigation of medicinal products in the treatment or prevention of diabetes mellitus (CPMP/EWP/1080/00 Rev. 2) recommends using FPG and HbA1c as primary evaluation criterion in dose-finding trials (). For the assessment of efficacy trials, the Guideline states that it is also important to consider other cardiovascular risk markers (). In particular, serum lipids, body weight or body composition as well as blood pressure and heart rate are explicitly mentioned (). In line with the Guideline, these off-target drug effects were also most frequently investigated in dose-finding trials included in our analysis. They were, however, not considered explicitly in the dose justification of phase 3 trials to the regulatory authorities. This raises the question whether regulators should request evaluation of both on-target and off-target effects for the dose justification of phase 3 trials. Especially since cardiovascular and renal outcomes are influenced by multiple risk factors, not only glycaemic control, and anti-diabetic treatments have been shown to influence multiple cardiovascular risk markers (both positively and negatively).

We defined all glycaemic drug effects as on-target effects and non-glycaemic drug effects as off-target effects to align with the draft Guideline on clinical investigation of medicinal products in the treatment or prevention of diabetes mellitus (CPMP/EWP/1080/00 Rev. 2), which makes the distinction between glycaemic effects and other cardiovascular effects. It can be argued that changes in off-target effects are direct consequences of improvements in on-target effects. It can however not be excluded that other mechanisms, with potentially a different relationship between dose and response, also contribute to changes in the off-target effects of new anti-diabetic drugs.

It is acknowledged that assessment and inclusion of off-target drug effects in the dose decision making process is redundant when the dose-response relationship for the on-target drug effects is similar to the off-target dose-response relationship. No additional benefit can then be expected to be gained for including off-target effects in dose selection. It appears however that, for at least the GLP-1 receptor agonists and potentially also for SGLT-2 inhibitors, differences exist between the on-target and off-target dose-response relationship. For example, for GLP-1 receptor agonists approximately maximum effects on HbA1c are reached with the highest registered therapeutic dose, but this is not the case for the off-target drug effect on body weight. This ultimately has led to higher dose levels being approved for GLP-1 receptor agonists in the management of body weight after these products demonstrated adequate long-term efficacy and safety for this indication. Additionally, for the SGLT-2 inhibitor dapagliflozin, it was recently suggested that the dose-response relationship varies between glycaemic and non-glycaemic risk markers (). Thus, selecting a dose for phase 3 trials solely based on the on-target relationship seems inadequate to determine an optimal dose for cardiovascular and renal protection of patients with type 2 diabetes mellitus. Additional benefit for patients may be achieved by optimising the dose on a panel of on-target and off-target drug effects. Similar approaches have been described in the literature, in which short term changes in several on- and off-target drug effects are integrated to predict the long term cardiovascular or renal outcome (; ; ).

For one drug included in the analysis, dose selection was based on a panel of drug effects in the initial phase of the trial and subsequently confirmed in a long-term period (). The dose of dulaglutide was selected in a phase 2/3 trial, in which a Bayesian algorithm was used based on two efficacy measures, HbA1c and body weight, and two safety measures, pulse rate and diastolic blood pressure (). For each of these measures, pre-defined criteria were determined and incorporated in a clinical utility index to facilitate dose selection (). This resulted in selection of the 0.75 and 1.5 mg dosages for the long-term confirmatory period of the trial (). Advantages of this approach are the ability to include prior information in the dose selection process and also the ability to objectively quantify the benefit-risk profile in the dose selection process (). However, a major limitation to this approach, also raised by the investigators, is that other drug effects than those included in the algorithm, e.g., because they were not measured, could also be important for dose selection (). It is currently unclear which markers and how many markers would be necessary to determine the optimal dose for a new anti-diabetic therapy. Future research focusing on potential mechanisms for cardiovascular protection and harm will be essential to facilitate dose selection of new drugs using similar approaches. Nonetheless, we believe the approach used for the dose selection of dulaglutide is a step in the right direction as it reflects both on-target as well as the off-target drug effects of dulaglutide. The benefit/risk balance is therefore not only evaluated in the confirmatory part of the drug development program, but also in an earlier stage during dose selection.

Scientific advice related to the selection of the phase 3 dose was received in half of the drugs included in this analysis, which indicates that there could be a significant regulatory involvement in the dose selection process before marketing authorisation application. Nonetheless, for two drugs that received scientific advice, the regulatory authorities disagreed with the dose range applied for at the time of marketing authorisation application. Yet, only for dulaglutide, the regulatory authorities requested to make, in addition to the 1.5 mg strength applied for, the 0.75 mg strength available for more vulnerable patient groups as a starting dose. In general, it therefore appears that the regulatory authorities may have had a limited impact on the dose selection process.

This study has some limitations. First of all, we extracted all drug effects investigated in dose-finding trials that were reported as efficacy variables. Dose-finding trials are usually not powered to detect specific safety events and usually no specific safety events are defined in dose-finding trials. Therefore, the influence of safety on the dose selection process has not been taken into account in this analysis. Second, the trial duration of the dose-finding trials was not always comparable. Therefore, the effect size of the drug effects cannot be directly compared between drugs. Nonetheless, the trends in the normalised dose-response relationships can be compared as these are based on individual trial results, which are not influenced by external factors. Third, this analysis is based on short-term changes in on-target and off-target drug effects. Therefore, even though positive effects are observed in several off-target drug effects with non-registered dosages, these findings will need to be confirmed in long-term phase 3 trials. Finally, the assessment of regulatory involvement was limited to public available assessment reports due to data protection policies. Therefore, the regulatory influence on dose selection could have been underestimated.

In conclusion, for drugs intended for the treatment or prevention of type 2 diabetes mellitus, justification of the phase 3 dose was mainly based on the on-target drug effects and not on the off-target drug effects. Nonetheless, multiple off-target drug effects, such as lipids, blood pressure and body weight are measured in dose-finding trials. The dose-response relationship of the off-target effects does not necessarily follow the on-target drug effects. Since renal and cardiovascular risk is determined by multiple risk markers dose selection could benefit from including off-target risk markers in the dose selection process, in addition to the on-target effects of a drug, in case the dose-response relationship is different between risk markers. An integrated approach accounting for the on-target and off-target effects is necessary to select and justify the optimal dose for phase 3 trials and potentially marketing authorisation.

Statements

Data availability statement

The data contained in this article and as presented in the paper can be shared. These data are available upon request in the form of aggregated data per drug class or as partly de-identified data for individual drugs.

Author contributions

JK, JS, PM, and HH designed the study. JK and MM-S collected the data. JK analyzed the data. JK and PM interpreted the data and JK, JS, PM, MM-S, and HH wrote the manuscript. HH and JS had no access to company data.

Funding

HJL Heerspink is supported by a VIDI grant from the Netherlands Organisation for Scientific Research (917.15.306). J. Stevens is supported by the NovoNordisk Foundation (Grant No. NNF OC0013659).

Acknowledgments

HJL Heerspink is supported by a VIDI grant from the Netherlands Organisation for Scientific Research (917.15.306). JS is supported by the NovoNordisk Foundation (Grant Nos. NNF OC0013659).

Conflict of interest

HH is consultant to Abbvie, AstraZeneca, Boehringer Ingelheim, Fresenius, Gilead, Janssen, Merck, Mundipharma, Mitsubishi Tanabe. He received research support from AstraZeneca, Abbvie, Boehringer Ingelheim and Janssen.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2021.626766/full#supplementary-material

Abbreviations

BMI, Body Mass Index; DBP, Diastolic Blood Pressure; DPP4, Dipeptidyl Peptidase-4; eCTD, Electronic drug application dossier, EPAR, European Public Assessment Reports; FPG, Fasting Plasma Glucose; GLP1, Glucagon-Like Peptide one; HbA1c, Glycated hemoglobin; HDL-C, High-density Lipoprotein Cholesterol; LDL-C, Low-density Lipoprotein Cholesterol; SBP, Systolic Blood Pressure; SGLT2, Sodium-Glucose co-transporter-2.

Disclaimer

The views expressed in this article are the personal views of the author(s) and may not be understood nor quoted as being made on behalf of, or reflecting the position of, their organizations.

References

  • 1

    Committee for Medicinal Products for Human Use (CHMP) (2012), ed. European public assessment report - forxiga (London, United Kingdom: EMA).

  • 2

    Committee for Medicinal Products for Human Use (CHMP) (2013), ed. European public assessment report - invokana(EMA/374133/2013).

  • 3

    Committee for Medicinal Products for Human Use (CHMP) (2014), ed. European public assessment report - jardiance(EMA/CHMP/137741/2014).

  • 4

    Committee for Medicinal Products for Human Use (CHMP) (2018), ed. European public assessment report - steglatro(EMA/86938/2018).

  • 5

    DaviesM. J.D’AlessioD. A.FradkinJ.KernanW. N.MathieuC.MingroneG.et al (2018) Management of hyperglycaemia in type 2 diabetes, 2018. A consensus report by the american diabetes association (ADA) and the european association for the study of diabetes (EASD). Diabetologia61 (12). 24612498. 10.1007/s00125-018-4729-5

  • 6

    GersteinH. C.ColhounH. M.DagenaisG. R.DiazR.LakshmananM.PaisP.et al (2019) Dulaglutide and cardiovascular outcomes in type 2 diabetes (REWIND): a double-blind, randomised placebo-controlled trial. Lancet394 (10193), 121130. 10.1016/S0140-6736(19)31149-3

  • 7

    HeerspinkH. J. L.GrobbeeD. E.de ZeeuwD. (2014). A novel approach for establishing cardiovascular drug efficacy. Nat. Rev. Drug Discov.13 (12), 942Epub 2014 Nov 14. 10.1038/nrd4090-c2

  • 8

    HeerspinkH. L.de ZeeuwD. (2009). Defining the optimal dose of a new drug: a crucial decision. Nat. Rev. Nephrol.5 (9), 498500. 10.1038/nrneph.2009.111

  • 9

    HernandezA. F.GreenJ. B.JanmohamedS.D'AgostinoR. B.GrangerC. B.JonesN. P.et al (2018) Albiglutide and cardiovascular outcomes in patients with type 2 diabetes and cardiovascular disease (harmony outcomes): a double-blind, randomised placebo-controlled trial. Lancet392 (10157). 15191529. 10.1016/S0140-6736(18)32261-X

  • 10

    HoferM. P.JakobssonC.ZafiropoulosN.VamvakasS.VetterT.RegnstromJ.et al (2015) Impact of scientific advice from the European medicines agency. Nat. Rev. Drug Discov.14 (5), 302303. 10.1038/nrd4621

  • 11

    HolmanR. R.BethelM. A.MentzR. J.ThompsonV. P.LokhnyginaY.BuseJ. B.et al (2017) Effects of once-weekly exenatide on cardiovascular outcomes in type 2 diabetes. N. Engl. J. Med.377 (13), 12281239. 10.1056/nejmoa1612917

  • 12

    International Conference on Harmonisation of Technical Requirements for Registration of Pharmaceuticals for Human Use (2016), ed. Revision of M4E guideline on enhancing the Format and structure of benefit-risk information in ICH - efficacy - M4E(R2). London, United Kingdom: EMA.

  • 13

    KoomenJ. V.StevensJ.HeerspinkH. J. L. (2020). Exposure-response relationships of dapagliflozin on cardiorenal risk markers and adverse events: a pooled analysis of 13 phase II/III trials. Br. J. Clin. Pharmacol., 86, 2192-2203. 10.1111/bcp.14318

  • 14

    MarsoS. P.BainS. C.ConsoliA.EliaschewitzF. G.JódarE.LeiterL. A.et al (2016a) Semaglutide and cardiovascular outcomes in patients with type 2 diabetes. N. Engl. J. Med.375 (19), 18341844. 10.1056/nejmoa1607141

  • 15

    MarsoS. P.DanielsG. H.Brown-FrandsenK.KristensenP.MannJ. F. E.NauckM. A.et al (2016b) Liraglutide and cardiovascular outcomes in type 2 diabetes. N. Engl. J. Med.375 (4), 311322. 10.1056/nejmoa1603827

  • 16

    NealB.PerkovicV.MahaffeyK. W.de ZeeuwD.FulcherG.EronduN.et al (2017) Canagliflozin and cardiovascular and renal events in type 2 diabetes. N. Engl. J. Med.377 (7), 644657. 10.1056/nejmoa1611925

  • 17

    PfefferM. A.ClaggettB.DiazR.DicksteinK.GersteinH. C.KøberL. V.et al (2015) Lixisenatide in patients with type 2 diabetes and acute coronary syndrome. N. Engl. J. Med.373 (23), 22472257. 10.1056/nejmoa1509225

  • 18

    RegnstromJ.KoenigF.AronssonB.ReimerT.SvendsenK.TsigkosS.et al (2010) Factors associated with success of market authorisation applications for pharmaceutical drugs submitted to the european medicines agency. Eur. J. Clin. Pharmacol.66 (1), 3948. 10.1007/s00228-009-0756-y

  • 19

    SchievinkB.de ZeeuwD.SminkP. A.AndressD.BrennanJ. J.CollB.et al (2016) Prediction of the effect of atrasentan on renal and heart failure outcomes based on short-term changes in multiple risk markers. Eur. J. Prev. Cardiolog.23 (7), 758768. 10.1177/2047487315598709

  • 20

    SkrivanekZ.GaydosB. L.ChienJ. Y.GeigerM. J.HeathmanM. A.BerryS.et al (2014) Dose‐finding results in an adaptive, seamless, randomized trial of once‐weekly dulaglutide combined with metformin in type 2 diabetes patients ( AWARD ‐5). Diabetes Obes. Metab.16 (8), 748756. 10.1111/dom.12305

  • 21

    SminkP. A.MiaoY.EijkemansM. J. C.BakkerS. J. L.RazI.ParvingH.-H.et al (2014a) The importance of short-term off-target effects in estimating the long-term renal and cardiovascular protection of angiotensin receptor blockers. Clin. Pharmacol. Ther.95 (2), 208215. 10.1038/clpt.2013.191

  • 22

    SminkP.HoekmanJ.GrobbeeD.EijkemansM.ParvingH.-H.PerssonF.et al (2014b) A prediction of the renal and cardiovascular efficacy of aliskiren in ALTITUDE using short-term changes in multiple risk markers. Eur. J. Prev. Cardiolog.21 (4), 434441. 10.1177/2047487313481754

  • 23

    WiviottS. D.RazI.BonacaM. P.MosenzonO.KatoE. T.CahnA.et al (2019) Dapagliflozin and cardiovascular outcomes in type 2 diabetes. N. Engl. J. Med.380 (4), 347357. 10.1056/nejmoa1812389

  • 24

    ZinmanB.WannerC.LachinJ. M.FitchettD.BluhmkiE.HantelS.et al (2015) Empagliflozin, cardiovascular outcomes, and mortality in type 2 diabetes. N. Engl. J. Med.373 (22), 21172128. 10.1056/nejmoa1504720

Summary

Keywords

Type 2 diabetes, Dose-finding, dose-response relationship, Dose selection, regulatory evaluation, cardiovascular outcome trials

Citation

Koomen JV, Stevens J, Monster-Simons MH, Heerspink HJL and Mol PGM (2021) A Review of the Dose Justification of Phase 3 Trials to Regulatory Authorities for Drugs Intended for the Treatment of Type 2 Diabetes in Europe. Front. Pharmacol. 12:626766. doi: 10.3389/fphar.2021.626766
