REVIEW article

Front. Pharmacol., 09 February 2023

Sec. Cardiovascular and Smooth Muscle Pharmacology

Volume 14 - 2023 | https://doi.org/10.3389/fphar.2023.1092148

Mechanism of action of non-coding RNAs and traditional Chinese medicine in myocardial fibrosis: Focus on the TGF-β/Smad signaling pathway

  • 1. College of Traditional Chinese Medicine, Shandong University of Traditional Chinese Medicine, Jinan, China

  • 2. College of Marxism, Shandong University of Traditional Chinese Medicine, Jinan, China

  • 3. First College of Clinical Medical, Shandong University of Traditional Chinese Medicine, Jinan, China

  • 4. College of Health, Shandong University of Traditional Chinese Medicine, Jinan, China

Abstract

Cardiac fibrosis is a serious public health problem worldwide that is closely linked to progression of many cardiovascular diseases (CVDs) and adversely affects both the disease process and clinical prognosis. Numerous studies have shown that the TGF-β/Smad signaling pathway plays a key role in the progression of cardiac fibrosis. Therefore, targeted inhibition of the TGF-β/Smad signaling pathway may be a therapeutic measure for cardiac fibrosis. Currently, as the investigation on non-coding RNAs (ncRNAs) move forward, a variety of ncRNAs targeting TGF-β and its downstream Smad proteins have attracted high attention. Besides, Traditional Chinese Medicine (TCM) has been widely used in treating the cardiac fibrosis. As more and more molecular mechanisms of natural products, herbal formulas, and proprietary Chinese medicines are revealed, TCM has been proven to act on cardiac fibrosis by modulating multiple targets and signaling pathways, especially the TGF-β/Smad. Therefore, this work summarizes the roles of TGF-β/Smad classical and non-classical signaling pathways in the cardiac fibrosis, and discusses the recent research advances in ncRNAs targeting the TGF-β/Smad signaling pathway and TCM against cardiac fibrosis. It is hoped, in this way, to give new insights into the prevention and treatment of cardiac fibrosis.

1 Introduction

Cardiovascular disease (CVD) is one of the leading causes of death worldwide, causing approximately 32% death in 2019. It is estimated that about 23.6 million people will die from CVD by 2030, imposing a serious economic burden on the world (). In contrast, cardiac fibrosis is closely related to the pathological development of almost all CVDs and even can lead to heart failure (HF), seriously affect quality of life of the patient (Xue et al., 2022). Development of myocardial fibrosis is closely related to cardiac fibroblasts, which secrete collagen fibers to maintain the normal structure and function of the heart. Effector molecules of the renin-angiotensin-aldosterone system (RASS) system such as Angiotensin II (Ang II) and aldosterone (ALD) can promote the fibroblasts proliferation and enhance the collagen gene expression, thus developing the cardiac fibrosis (). In addition, cardiac fibroblasts can be transformed into myofibroblasts induced by various stimuli such as cytokines, pressure load, inflammatory mediators, and mechanical tension. Besides, they can secrete more collagen fibers to promote ventricular remodeling (Li et al., 2022a). Furthermore, cardiac fibroblasts maintain the extracellular matrix (ECM) homeostasis, which is essential for ventricular systolic and diastolic function. When the heart is injured, ECM homeostasis will be disrupted and deposited, causing structural disruption of myocardial tissue, increasing the ventricular stiffness and adverse remodeling, and developing the HF with preserved or reduced ejection fraction (Li et al., 2022a). Despite significant advances in myocardial fibrosis in recent decades, myocardial fibrosis cannot be cured with specific drugs and present an increasing morbidity and mortality of chronic heart failure (CHF) (López et al., 2021). Therefore, better understanding the molecular mechanisms of cardiac fibrosis after myocardial infarction (MI) is conducive to providing new therapeutic targets for inhibiting cardiac fibrosis.

The TGF-β/Smad signaling pathway involves in the initiation of fibrotic responses in several tissues, and is particularly associated with the development of fibrosis after MI (). TGF-β1 is a stimulator which can convert cardiac fibroblasts to myofibroblasts. While classical TGF-β pathway signaling is mediated by the binding of TGF-β1 to transforming growth factor beta receptors II (TGFBR2) (), which subsequently phosphorylates and activates the Smad2 and Smad3, thereby promoting myofibroblast proliferation and migration, and leading to cardiac fibrosis (Zhang et al., 2022a). Non-coding RNAs (ncRNAs) can be broadly classified into microRNAs (miRNAs), long-stranded non-coding RNAs (lncRNAs), and circular RNAs (circRNAs) according to their functions (). The ncRNAs can bind to multiple molecular targets, and form regulatory networks in many biological activities, including initiation of specific cellular biological responses, regulation of gene expression, intracellular signaling, and epigenetic genetic modifications (Statello et al., 2021). In recent years, an increasing number of researches have exhibited that ncRNAs are involved in the development and progression of cardiac fibrosis by regulating the TGF-β/smad signaling pathway (). Furthermore, with unique theoretical and rich resource for over 2,000 years, TCM has been proven to delay the progression of cardiac fibrosis by targeting and modulating the TGF-β/Smad signaling pathway. However, there are fewer systematic reviews on the intervention of ncRNAs and TCM in cardiac fibrosis by modulating the TGF-β/Smad signaling pathway. Therefore, this work focuses on the TGF-β/Smad signaling pathway, and summarizes the biological functions of miRNAs, lncRNAs, and circRNAs that regulating the progression of cardiac fibrosis, particularly in regulating the TGF-β/Smad signaling pathway. Besides, this work highlights the potential that TCM can target the TGF-β/Smad signaling pathway and resist the cardiac fibrosis, which may contribute to the clinical treatment.

1.1 Overview of the TGF-β/Smad signaling pathway

There are considerable evidences that the TGF-β/Smad signaling pathway plays a critical role in organ fibrosis, and that the TGF-β receptor and its mediators importantly regulate the organ fibrosis process (Figure 1). TGF-β was first identified as a multifunctional cytokine in the early 1980s, and it is deemed as the transforming growth factors β1 (TGF-β1), β2 (TGF-β2), and β3 (TGF-β3) in mammals. TGF-β1 is the fully-researched member of the transforming growth factor family and is an integral part in tissue fibrosis. This work focuses on the roles of TGF-β1 in the TGF-β/Smad signaling pathway (). TGF-β1 is mainly expressed in endothelial, haematopoietic, and connective tissue cells, where it activates fibroblasts and promotes the synthesis of ECM (Meng et al., 2016). TGF-β2 acts as an indispensable cytokine, similar to TGF-β1, to regulate the cell proliferation, differentiation, migration, and death. Meanwhile, it is a key growth factor in development of fibrogenesis in myofibroblasts (). In addition, TGF-β2 deficiency can affect the epithelial-mesenchymal interactions, cell growth, extracellular matrix production, and tissue remodeling, leading to multi-organ defects (Sanford et al., 1997). TGF-β3 exerts a key role in normal development of the maxilla and lung while involving in epithelial-mesenchymal transition (EMT), cell growth, apoptosis, differentiation, ECM production, and remodeling using an environment-dependent and tissue-specific manner (; ). In addition, TGF-β is secreted as an inactive ligand, which consists of a latency-associated peptide (LAP) and a maturation peptide. LAP is primarily to keep the TGF-β protein in an inactive state and to prevent it from interacting with its receptor. Binding between the TGF-β protein and the LAP can be disrupted by various stimuli such as reactive oxygen species (ROS), integrins, proteases, and metalloproteinases, thereby releasing mature TGF-β protein. Then, the active TGF-β can interact with the receptors of intracellular signaling pathways (Yu et al., 2022).

FIGURE 1

TGF-β receptors include transforming growth factor-β type I receptor (TGFβRI), transforming growth factor-β type II receptor (TGFβRII), and transforming growth factor-β type III receptor (TGFβRIII). TGF-β1 can bind directly to the TGFβRII receptor, and TGFβRII can recruit and activate the TGFβRI after binding of TGFβRII to TGF-β by phosphorylating the GS structural domain in the TGFβRI (). In addition, TGFβRIII increases the bioavailability of TGF-β signaling to TGF-β receptors by transferring TGF-β to its signaling receptor (Yu et al., 2022). In addition, Smad proteins have been extensively studied as key intracellular effectors of TGF-β, playing the role of transcription factors (Meng et al., 2016). The Smad classical signaling pathway is mediated by the Smad protein family of related receptors, which contains eight members in humans (Smads1-8). Besides, it can be divided into three subgroups, namely receptor-activated Smads for Smad2/3, and Smad1/5/8, co-mediator Smad for Smad4, and inhibitory Smads for Smad6 and Smad7 (Luo, 2022). Smad2/3 can be phosphorylated and activated by TGFβRI receptor, and then the phosphorylated Smad2/3 can combine with Smad4, forming a heterotrimer complex and transferring it to the nucleus to regulate the transcription of target genes (Wang et al., 2017). Smad7 is a repressive Smad, and is regulated by the level of phosphorylated Smad3. Moreover, Smad7 competes with Smad3 and Smad2 for the binding site of TGFBR1, thereby promoting TGF-β1/Smad signaling (Mallikarjuna et al., 2022). The Smad non-classical signaling pathways can be triggered by the binding of TGF-β1 and TGFBR2, including p38 mitogen-activated protein kinase (MAPK), c-Jun N-terminal kinase (JNK), extracellular signal-regulated kinase (ERK), and Nuclear factor of κB (NF-κB) signaling pathways (). The above non-classical signaling pathways will be discussed in Section 2.

2 The role of TGF-β/Smad signaling pathway in cardiac fibrosis

2.1 The roles of TGF-β in cardiac fibrosis

TGF-β is one of the drivers of fibrosis in most organs. As reported, members of the TGF-β family played important roles in many processes related to cardiac pathophysiology, including cardiac repair, hypertrophy, fibrotic remodelling, fibroblast activation, and ECM deposition (Lovelock et al., 2005; ; Shinde et al., 2017). Moreover, TGF-β, a key cytokine in fibrotic events, can stimulate the fibroblast activations, including fibroblast to myofibroblast differentiation, collagen synthesis, and ECM protein deposition (). Besides, it can induce the expression of a-SMA which is a marker of myofibroblast maturation (Shinde et al., 2017). In addition, TGF-β can inhibit the matrix metalloproteinase activity by producing more matrix metalloproteinase inhibitors, thus reducing the ECM degradation, aggravating deposition, and accelerating the development of fibrosis (Lovelock et al., 2005). Notably, pulmonary arterial hypertension (PAH) increases the endothelial-mesenchymal transition (EndMT) and collagen production, thus promoting the development of cardiac fibrosis. TGF-β family plays a major role in the development and progression of PAH, and is an important regulator in pulmonary vascular remodeling and inflammation, cardiac hypertrophy, and cardiac fibrosis (Ol et al., 2018). Therefore, it is reasonable to assume that TGF-β has an important role in the process of cardiac fibrosis.

TGF-β1, one of the isoforms of TGF-β, is most widely distributed in the mammalian tissues. TGF-β1 plays a vital role in pathological fibrosis and can trigger the development of tissue fibrosis, especially cardiac fibrosis, so it is upregulated in cardiac fibrosis patients and animal models (Nicin et al., 2022). As exhibited in the response to cardiac injury, TGF-β1 can activate the non-fibroblasts, including cardiomyocytes, endothelial cells, and immune cells, thereby conversing the activated fibroblasts and myofibroblasts (Nicin et al., 2022). Moreover, TGF-β1 binds to the TGFβR1 receptor and then activate the Smad2/3 protein, thus leading to collagen production (). Besides, TGF-β1 induces autophagy, and conversion of cardiac fibroblasts to myofibroblasts can be inhibited by inhibiting autophagy (). In addition, TGFβ2 has been shown to regulate the expression of ECM proteins through the classical and non-classical Smad signaling pathways (McDowell et al., 2013). In contrast, TGF-β3, an important factor in cardiovascular development, mediates the pathological process of CVDs such as cardiomyopathy. In addition, TGF-β3 together with ncRNAs regulate the development of renal cardiac fibrosis in mice (Liu et al., 2022a). Interestingly, not only are the three isoforms of TGF-β involved in the development of cardiac fibrosis, but TGFβR1 and TGFβR2 are integral in the progress of cardiac fibrosis. Conditional deletion of TGFBR1 from fibroblasts significantly attenuates the pressure overload-induced cardiac hypertrophy and enhanced the ventricular function (). In addition, deletion of TGFBR1 ameliorates the cardiac dysfunction, cardiac hypertrophy, and collagen deposition induced by MI (). The upregulation of TGFBR2 is closely associated with HG-induced cardiac fibrosis, while its downregulation improves the HG-induced proliferation, differentiation, and collagen accumulation of human cardiac fibroblast (HCF) (Li et al., 2016). It has been confirmed that specific ablation of TGFBR2 in myofibroblasts can block the TGFβ signaling in activated fibroblasts, thereby lowering the risks of cardiac fibrosis and cardiac hypertrophy (Meng et al., 2018). Therefore, TGF-β-related factors are closely associated with the cardiac fibrosis, and targeting and regulating the expressions of TGF-β-related factors may be important and effective to treat the cardiac fibrosis.

2.2 Roles of Smad2 and Smad3 in cardiac fibrosis

Smad2 and Smad3 are typical transcription factors downstream of the TGF-β signaling pathway, share a similar structure, possess highly homologous amino acid sequences, but exhibit different roles in tissue repair and fibrosis (Meng et al., 2016). Smad3 is a key mediator of TGF-β signaling in ECM production and tissue fibrosis, and Smad3 deficiency in downstream of the TGF-β signaling pathway alleviate the cardiac fibrosis, enhances the cardiac compliance, and insulates diabetic mice from cardiac fibrosis (; Tuleta and Frangogiannis, 2021). Moreover, Smad3 can specifically reduce myocardial collagen content by inducing fibroblasts, thus being conductive to maintaining the ECM synthesis in the heart (). Meanwhile, Smad3 deficiency may promote the progression of PAH and cardiac fibrosis (Li et al., 2021a). It has also been shown that Smad3-specific deficiency in fibroblasts, rather than Smad2-specific deficiency, can greatly inhibit the cardiac fibrosis in infarcted myocardium (). In contrast, Smad2 is activated in the TGF-β-stimulated fibroblasts and the infarcted myofibroblasts, whereas myofibroblast-specific Smad2 deficiency can temporarily attenuate the post-infarct remodelling (). Fibroblast-specific Smad2 deficiency exhibits no effects on myocardial collagen content, suggesting the little role of Smad2 signaling in activating the fibroblast repair program ().

2.3 Roles of Smad4 in cardiac fibrosis

Smad4, encoded by the Smad4 gene, is an intracellular transcriptional mediator of the TGFβ signaling pathway, so it can interact with Smad2/3 in cells and mediate the TGF-β signaling pathway (Li et al., 2022b). In addition, Smad4, as the only Co-Smad identified in mammals, mediates the signals from TGF-β and bone morphogenetic protein (BMP) signaling pathways and helps them shuttle into the nucleus (). Activated peroxisome proliferator-activated receptor ? (PPARγ) retards the development of cardiac fibrosis, which can be inhibited by TGF-β1 by enhancing the binding of Smad4 and histone deacetylase 1 (HDAC1) and weakening the binding of HDAC3 to the PPARγ promoter in cardiac fibroblasts (). Smad4 signaling can induce the apoptosis in cardiomyocytes and specific deletion of Smad4 in cardiomyocytes leads to cardiac hypertrophy, aggravating the myocardial fibrosis (Wang et al., 2005). Similar to the aforementioned contents, Smad4 is lowly expressed in CHF patients and CH model animals, while its upregulation can inhibit the progression of CHF and CH, which in turn can attenuate the progression of myocardial fibrosis (Wang et al., 2022). Thus, Smad4 plays a key role in cardiac fibrosis and inhibited Smad4 may alleviate the cardiac fibrosis by inhibiting the activity of Smad3-responsive promoter.

2.4 Roles of Smad7 in cardiac fibrosis

TGF-β1 can exert the biological effects through the activation of Smad2 and Smad3. While the activation is negatively regulated by Smad7, indicating that Smad7 acts as an antagonist in TGF-β signaling and thus exerts an anti-fibrotic effect (). According to the relevant researches, Smad7 expression is downregulated in cardiac fibrosis in diabetic cardiomyopathy (DCM) rats, and the high glucose-induced cardiac fibrosis could be alleviated by promoting the expression (Meng et al., 2019). Similarly, the elevated TGF-β1 expression and reduced Smad7 expression are observed in fibrotic tissues of hypertensive rats, whereas overexpressed Smad7 inhibits the HCFs being differentiated into myofibroblasts, thereby attenuating the cardiac fibrosis (Xiao et al., 2020). Moreover, Smad7 expression is upregulated in MI-induced fibroblasts, and its conversion to myofibroblasts is associated with the dependence on Smad3 signaling. Simultaneously, Smad7 over-expression can weaken myofibroblast transformation and reduce collagen type I (Col-I) and fibronectin synthesis, while not affecting the collagen type III (Col-III) levels (). Thus, it may be an important potential target to promote Smad7 expression for the treatment of cardiac fibrosis.

2.5 The role of other TGF-β-induced non-classical signaling pathways in cardiac fibrosis

TGF-β acts in cardiac fibrosis by activating the TGF-β/Smad classical signaling pathway and by regulating non-classical signaling pathways, such as p38MAPK, JNK, ERK, and NF-κB, thereby affecting the progression of cardiac fibrosis. MAPKs are a large family of kinases associated with important cellular functions, including extracellular signal-regulated kinases (ERK1/2), c-JunN-terminal kinases (JNK1, 2, and 3), and p38 MAPKs (p38α, β, γ, and δ) (Turner and Blythe, 2019). As reported, p38MAPK played a key role in the regulation of fibrosis. Moreover, inhibited p38MAPK can inhibit TGF-β-induced Smad2/3 phosphorylation and a-SMA expression, and reduce the pressure overload-induced cardiac hypertrophy and fibrosis in the left ventricle (Turner and Blythe, 2019). Besides, the role of the JNK signaling pathway in fibrosis is confirmed in numerous evidences. For example, interleukin 22 (IL-22) can further increase TGF-β1-induced collagen synthesis in vitro, which can be restricted by inhibitors of the JNK pathway. This work implies that IL-22 may promote fibrosis in vitro by activating the JNK signaling pathway. TGF-β1 also can increase the phosphorylation levels of ERK1/2 in fibroblasts, and the inhibition of ERK expression blocks collagen gene expression in cardiac fibroblasts (Yang et al., 2015). Thus, by inhibiting the factors involved in the MAPK signaling pathway, the progression of cardiac fibrosis can be delayed. Similar to the researches above, NF-κB activation plays a key role in the progression of cardiac fibrosis, for example, AngII induces the NF-κB activation and promotes the cardiac fibroblasts proliferation and collagen synthesis, while cardiac fibrosis can be alleviated effectively by inhibiting the NF-κB activation and nuclear translocation (; Zhou et al., 2021).

3 Regulation of TGF-β/Smad signaling pathway by ncRNAs in cardiac fibrosis

3.1 Overview of ncRNAs

The ncRNAs are a class of genes with limited or without protein-coding capacity, representing 60% of human transcripts. ncRNAs were previously considered to be the “dark matter” of the genome (). However, the important regulatory functions of ncRNAs in numerous biological processes, such as cell proliferation and adhesion, apoptosis, angiogenesis, and human migration, were gradually revealed in the last decade ().

The ncRNAs can be classified into small ncRNAs (sncRNAs, 18-200 nt), lncRNAs (>200 nt), and circRANs with a unique loop structure, based on the 200 nt cut-offs of their mature transcript length (). The small ncRNAs can be divided into small nuclear RNAs (snRNAs), small nucleolar RNAs (snoRNAs), miRNAs, and piRNAs (Pinho et al., 2022). In the following introduction, miRNAs, lncRNAs, and circRNAs are focused. The miRNAs are a broad family of sncRNAs with approximately 18–25 nucleotides in length, which are primarily involved in the gene regulation at the post-transcriptional level and target at the specific mRNAs by binding to the 3′UTR of mRNAs in full or partial complementarity (). LncRNAs are a group of ncRNAs with more than 200 nucleotides in length and multiple regulatory roles (Mercer et al., 2009), with biogenesis similar to mRNAs. lncRNAs are transcribed by RNA polymerase II, followed by the capping in the 5′region and the polyadenylation in the 3′region (Yang et al., 2022). In addition, lncRNAs are present in almost all organisms, represent a high proportion of RNAs in complex organisms, and are expressed at different levels in different tissues (Zhang and Wang, 2022). The circRNAs are a new type of ncRNAs widely existed in animals and other organisms, and a special closed loop can be formed by the reverse splicing between downstream splice donors and upstream splice acceptors (). As indicated by the researches, circRNAs played multiple roles in different subcellular compartments, such as transcriptional activation, post-transcriptional regulation, translation, and protein interactions (Li et al., 2018). Besides, circRNAs can further participate in protein mediation by regulating transcription via the competitive sponge-like miRNAs (Lin et al., 2022).

3.2 Regulation of TGF-β/Smad signaling pathway by miRNAs in cardiac fibrosis

Cardiac fibrosis is one of the major causes of poor remodelling in HF after MI, thus prevention and reversal of cardiac fibrosis are essential for the treatment of CVD (). Increasing studies on the structural domains of ncRNAs suggest that the important roles of various miRNAs in cardiac fibrosis after MI are realized by regulating the TGF-β/Smad signaling pathway. The miR-130a is downregulated in infarcted myocardium and hypoxia-induced cardiac fibroblasts, and its over-expression can reduce the size of the infarcted region and attenuate the cardiac impairment. This action mechanism may be related to the regulation of the activity of TGF-β/Smad signaling and the inhibition of the conversion of cardiac fibroblasts to myofibroblasts by the direct targeting of TGFβR1 (). Similarly, upregulation of miR-328 was evident in MI mouse hearts and cardiac fibroblasts, and knockdown of miR-328 inhibited cardiac fibrosis in mice after MI. Moreover, TGFβRIII serves as a direct target of miR-328, and miR-328 over-expression can target and inhibit TGFβRIII, thereby indirectly activating the TGF-β1 signaling pathway, and promoting the collagen production (). Similarly, miR-21 expression was upregulated in MI mouse myocardial tissue and AngII-treated cardiac fibroblasts, and knockdown of miR-21 partially inhibited the expression of TGF-β and Smad2/3. Furthermore, Spry1 is one of the target genes of miR-21, and inhibition of its expression reverses the effect of knockdown on TGF-β signaling and promoted the myofibroblast transformation (Li et al., 2020a). Therefore, by targeting and regulating the miR-21-Spry1 axis, new insights into the treatment of cardiac fibrosis after MI can be provided. As exhibited in recent clinical research, miR-205-3p expressions were greatly downregulated in the plasma of MI patients, and miR-205-3p over-expression obviously inhibited the TGF-β1-induced cardiac fibroblast fibrosis (Qiao et al., 2021).

Cardiac fibrosis plays an important role in progression of various CVDs, including MI, atrial fibrillation (AF), and pressure overload-induced cardiac hypertrophy. In addition, it may lead to the reduced cardiac diastolic and systolic function later, possibly developing into HF finally. Some miRNAs can perfect cardiac function by modulating the TGF-β/Smad signaling pathway, thereby improving pressure-load-induced cardiac fibrosis. According to Zhang et al. (Zhang et al., 2018a), miR-323a-3p was discovered to be upregulated in the transverse aortic constriction (TAC)-induced cardiac tissues and the Ang II-treated rat cardiac fibroblasts. Besides, over-expression greatly increased the expressions of Col-I, Col-III, TGF-β, matrix metallopeptidase (MMP) 2, and MMP9 and enhanced the cardiac fibrosis by targeting the induction of the TIMP3-TGF-β pathway. Moreover, miR-26a expression was reduced in plasma and myocardial tissue of hypertensive cardiac fibrosis rats. While, transfection of miR-26a mimics significantly attenuate the expressions of Col-I, Col-III, MMP2, and TGFβRI in the AngII-induced cardiac fibroblasts, indicating that miR-26a inhibited the proliferation of cardiac fibroblasts. Besides, enhancer of zeste homolog 2 (EZH2), connective tissue growth factor (CTGF), and Smad4 are proven to exist at binding sites to miR-26a. The miR-26a can directly target CTGF and Smad4, thereby reducing collagen production and ECM deposition, and inhibiting cardiac fibroblasts proliferation via the EZH2/p21 pathway as well (Zhang et al., 2020a). Similarly, miR-29b is lowly expressed in both AngII-induced fibrotic hearts and cardiac fibroblasts, while the over-expression of miR-29b can prevent AngII-induced cardiac fibrosis and cardiac dysfunction by blocking the TGF-β/Smad3 signaling pathway, with the therapeutic potential for hypertensive heart disease (Zhang et al., 2014).

EndMT is a cellular transdifferentiation program, in which endothelial cells partially lose their endothelial properties and acquire mesenchymal-like characteristics, thereby promoting the development of cardiac fibrosis. Partial miRNAs improve the endothelial dysfunction and inhibit EndMT by blocking the TGF-β/Smad signaling pathway, which makes for the inhibition of cardiac fibrosis development (). According to Ding et al., the miR-195-5p expression is upregulated in DCM rat myocardium and HG-induced human umbilical vein endothelial cells (HUVEC), and the inhibition of miR-195-5p reduces the EndMT in DCM rats and HG-induced EndMT in HUVEC. Moreover, Smad7, a negative regulator of TGF-β1 signaling, acts as a direct target of miR-195-5p, and can mediate the process of cardiac fibrosis in DCM. The silencing miR-195-5p and the promoting smad7 expression can inhibit the activation of TGF-β1/smad signaling pathway, thereby blocking EndMT and attenuating cardiac fibrosis in DCM (Meng et al., 2019; ). Similar to the researches above, miR-21 expression was upregulated in the myocardium of Type I diabetic (T1DM) mice, and the inhibition of miR-21 expression can suppress the expression of inhibitory fibrosis markers and alleviate the EndMT in the hearts of T1DM mice. Besides, as indicated by the Western blotting, Smad7 is obviously downregulated in T1DM mice, while p-Smad2 and p-Smad3 are greatly upregulated. Moreover, by inhibiting miR-21 and up-regulating Smad7 expression, the activation of p-Smad2 and p-Smad3 pathways in the hearts of T1DM mice could be blocked, thereby inhibiting EndMT activation and cardiac fibrosis (Li et al., 2020b).

AF is a common clinical arrhythmia. Cardiac fibrosis, as one of the pathogeneses of AF, seriously affects the progression of AF. Simultaneously, as prove by numerous evidences, miRNAs can activate and inhibit the development of cardiac fibrosis by blocking the TGF-β/Smad signaling pathway (). For example, miR-10a inhibits AF-induced cardiac fibrosis by blocking the TGF-β1/Smads signaling pathway, thereby reducing the proliferation of cardiac fibroblasts, inhibiting the collagen formation, and reducing the atrial structural remodelling (Li et al., 2019a). The miR-29b is lowly expressed in AF rat atrial tissues. By promoting its expression, atrial fibrosis and AF in rats can be attenuated, which may be related to miR-29b by targeting TGFβRI and inhibiting the activation of the Smad2/3 signaling pathway (). Furthermore, miR-135b is lowly expressed in AF patients, isoproterenol (ISO)-induced rat models, and in vitro rat cardiac fibroblasts (RCFs). Whereas, TGF-βR1, TGF-βR2, and Smad2 are upregulated as their target gene expression. By promoting miR-135b expression, it can inhibit TGF-βR1, TGF-βR2, and Smad2 expression. These findings indicated that miR-135b exerted antiatrial fibrosis effects in vitro and in vivo by the inhibition of the TGF-β/Smads signaling pathway, thus providing a potential approach for the prevention and treatment of human AF (Wang et al., 2021a).

TGF-β induces collagen deposition in the ECM, and some miRNAs inhibit collagen production by regulating the TGF-β/Smad signaling pathway, thereby inhibiting ECM deposition, and alleviating cardiac fibrosis. Xiao et al. (Xiao et al., 2021) discovered that miR-1202 promoted the proliferation, differentiation, and collagen synthesis of HCFs by activating the TGF-β1/Smad2/3 signaling pathway, and downregulated the nNOS by binding to target sites in its mRNA. While, nNOS protected HCFs from TGF-β1-induced differentiation and collagen synthesis via the TGF-β1/Smad2/3 pathway. Thus, transfection of miR-1202 significantly increased the Col-I, Col-III, and a-SMA expressions as well as the Smad2/3 phosphorylation levels, thereby increasing ECM deposition. Furthermore, miR-29a is closely associated with cardiac fibrosis in HCM patients. Activation of ET1 signaling in cardiomyocytes increases ROS production and stimulates TGFβ expression, while miR-29a inhibits TGFβ-induced elastin (ELN) and collagen expression in cardiac fibroblasts, thereby suppressing the process of cardiac fibrosis (Roncarati et al., 2014).

TGF-β1 is an important regulator in the development of tissue fibrosis, and some miRNAs can inhibit the development of cardiac fibrosis by suppressing the expression of TGF-β1 (Stawowy et al., 2004). The protein levels of αSMA, Col-I, and POSTN in mouse heart tissue and the secreted collagen levels in cell culture supernatants increase obviously in response to TGFβ1 stimulation. In contrast, over-expression of miR-675 could reverse the TGFβ1-induced remodelling and the proliferation of mouse cardiac fibroblasts by targeting TGFβR1 (Wang et al., 2019a). Similarly, there were negative correlation between miRNA-663 and TGF-β1 expression in endomyocardial myocardial biopsies from patients with cardiac fibrosis, while over-expression of miRNA-663 resulted in the decreased expression of the cardiac fibrosis markers plasminogen activator inhibitor-1 (PAI-1) and tissue inhibitor of metalloproteinase-1 (TIMP-1) (Wu et al., 2019). MiR-30c expression is downregulated in the atrial samples from AAC model rats and in the TGF-β1-stimulated RCFs, whereas miR-30c over-expression inhibited TGF-β1-induces proliferation, differentiation, migration, and ECM synthesis in cardiac fibroblasts, by directly targeting TGFβRII (Xu et al., 2018). Besides, a high NaCl diet can also induce cardiac fibrosis, low miR-210-5p expression was observed in NaCl-added rat cardiac fibroblasts (NRCFs), while over-expression miR-210-5p reversed the upregulated levels of collagen I, a-SMA, and TGF-β1 in NRCFs by targeting TGFβR1, thereby attenuating cardiac fibroblasts activation and ameliorating cardiac fibrosis (Zhao et al., 2021).

Some miRNAs promote the development of cardiac fibrosis, by activating the TGF-β/Smad signaling pathway. Zhang et al. (2022a) verified that there was a positive correlation between miR-208b and miR-21 and the expressions of TGF-β1 and Smad3. The miR-208b/miR-21 promoted the development of cardiac fibrosis by activating the TGF-β1/Smad3 signaling pathway. Furthermore, in HCFs, miR-216a was able to activate the TGF-βRI/Smad2 signaling pathway, thereby reducing the collagen production and the a-SMA protein expression in the activated HSC through negative regulation of Smad7 expression (Tao et al., 2019).

Cardiac fibrosis is one of the major pathological features of diabetic cardiomyopathy. Yang and Zhao, (2022) presented that miR-30a-5p expression was downregulated in myocardial tissue and HG-treated cardiac fibroblasts of diabetes mellitus (DM) rats. Moreover, miR-30a-5p over-expression reduced Smad2 levels, inhibited collagen formation in HG-stimulated cardiac fibroblasts and DM rats. In addition, decreased HG induced proliferation of cardiac fibroblasts, thereby lowering the collagen deposition and thus delaying the progression of cardiac fibrosis in diabetic cardiomyopathy.

PAH pathology involves ECM remodeling in cardiac tissue, which accelerates the progression of cardiac fibrosis. Connolly et al. reported that miR-1-5p and TGF-βR1 were inversely expressed in the RV of MCT-treated rats, and transfection with miR-1-5p mimics significantly lowered the TGF-βR1 in vitro, It suggests that miR-1 causes cardiac hypertrophy by targeting TGF-βR1 and reducing TGF-β signaling, thereby resulting in cardiac hypertrophy [ 86].

3.3 Roles of miRNAs in regulating other non-classical signaling pathways in cardiac fibrosis

In addition to regulating the classical signaling pathways such as TGF-β/Smad in cardiac fibrosis, miRNAs can also participate in the cardiac fibrosis by mediating some non-classical signaling pathways. For example, HG greatly increased the expression of TGFβ1, IL-1β factors, and phosphorylated NF-κB activity. Smad7, a target of miR-150-5p, whose expression is upregulated, inhibits the NF-κB activity and IL-1β production, and suppresses the progression of cardiac fibrosis by inhibiting the TGF-β1/Smad signaling pathway. Thus, it can inhibit TGF-β1/Smad-induced cardiac fibrosis and NF-κB-associated cardiac inflammation by silencing miR-150-5p and up-regulating Smad7 expression, thereby ameliorating the HG-induced cardiac fibroblasts injury ().

In addition, MAPK (ERK1/2, p38MAPK, and JNK) signaling pathways are activated during cardiac fibrosis. The miR-327 expression is investigated to be upregulated in TAC-induced cardiac fibrotic tissue and Ang II-induced cardiac fibroblasts, and the inhibition of miR-327 expression restrains the TAC-induced ERK1/2, p38MAPK, and JNK phosphorylation levels, thereby attenuating the cardiac fibrosis (). Similarly, miR-143-3p is highly expressed in human and animal myocardial infarcted hearts and in TGFβ1-induced human cardiac fibroblasts. SPRY3 is a target gene of miR-143-3p, its downstream ERK, JNK, and p38MAPK signaling pathways are involved in the process of cardiac fibrosis, and the silencing SPRY3 promotes ECM by regulating the MAPK pathway over-accumulation. Thus, miR-143-3p directly targets SPRY3 by activating the p38MAPK, ERK, and JNK signaling pathways, which in turn regulates the biological functions of HCFs such as proliferation, migration, and transformation (). The miR-223 is highly expressed in activated fibroblasts, and promotes their proliferation, migration, and differentiation. While the silencing miR-223 inhibits TGF- β1-induced expression of collagen I, collagen III, and a-SMA proteins, and the over-expression of miR-223 and downregulation of its target recombinant Ras GTPase activating protein 1 (RASA1) promote the phosphorylation of MEK1/2, ERK1/2, and AKT in cardiac fibroblasts, indicating that miR-223 can promote proliferation, migration, and differentiation of cardiac fibroblasts by down-regulating RASA1 expression and activating the renin-angiotensin system (RAS) signaling pathway, thereby aggravating cardiac fibrosis after MI (Liu et al., 2018a). Similarly, miR-378 over-expression inhibited cardiac fibrosis during the cardiac adaptation phase of pressure overload, and restrained the phosphorylation of p38MAPK and Smad2/3 activated by mechanical overload. Moreover, miR-378 inhibited the p38MAPK and Smad2/3 signaling pathways by directly targeting MAPK kinase 6 (MKK6), thereby suppressing the pressure overload-induced cardiac Fibrosis (Yuan et al., 2018). The miR-1468-3p increasing in both the senescent healthy hearts and the patients with sudden cardiac death suffering from primary cardiac fibrosis can enhance the cellular senescence and collagen deposition by promoting TGF-β1-p38 signaling and exerting a dual role (Lin et al., 2020).

Furthermore, the extent of fibrosis depends on the balance between pro-fibrotic and pro-inflammatory signaling. NF-κB is a major determinant of the inflammatory process, and it can promote the transcription of several pro-inflammatory genes, including TNF-α, IL-1β, and IL-6. Adriamycin induces ROS production, and triggers the TGF-β pathway, thereby activating the conversion of cardiac fibroblasts to myofibroblasts. While, using Ant34a (miR-34a inhibitor) in the treatment can greatly reduce NF-κB, IL-6, and TNF-α levels in the hearts of adriamycin-induced animals, and then decrease the Col-I expression and collagen deposition (Piegari et al., 2020) (Table 1).

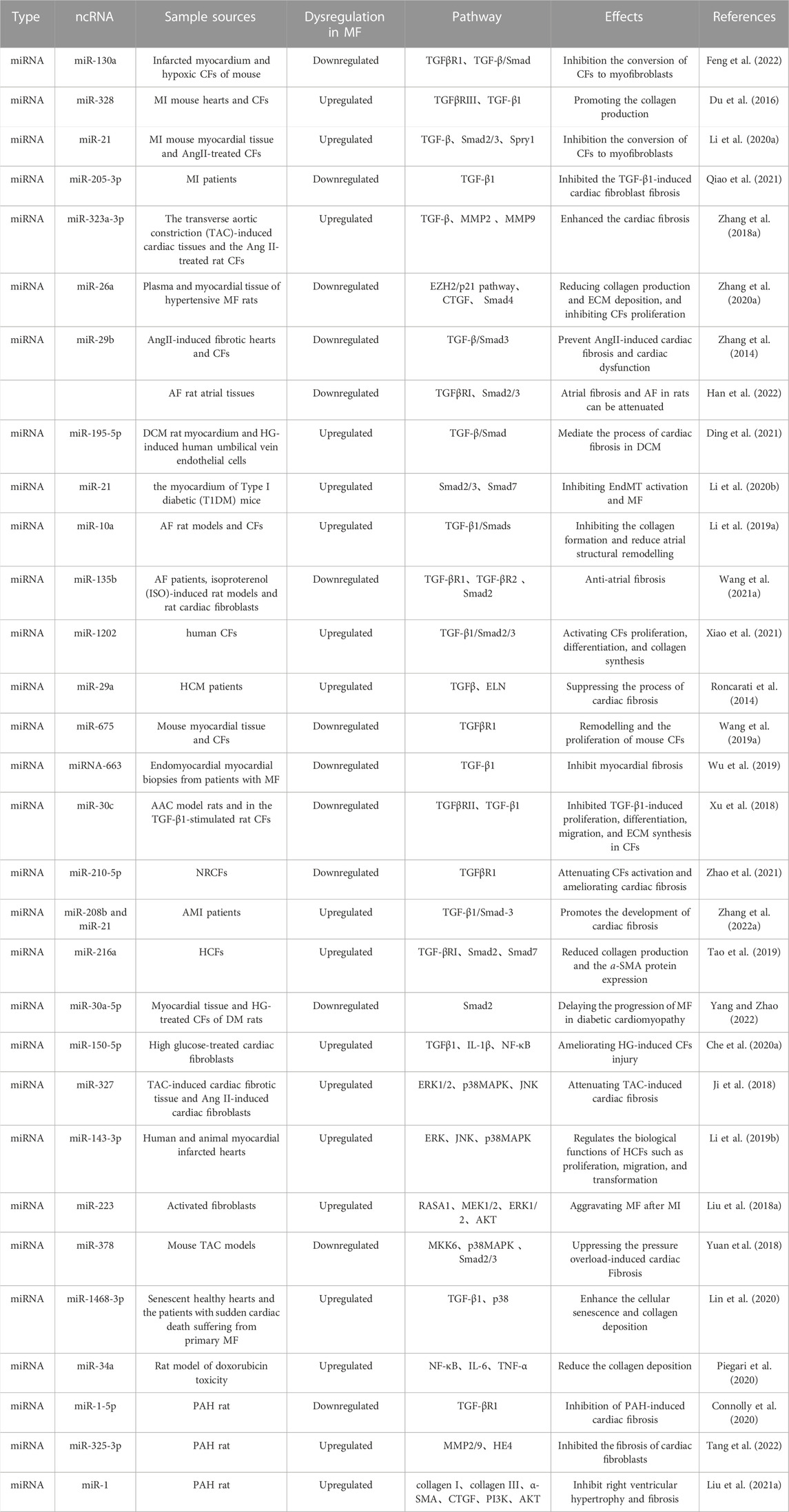

TABLE 1

TypencRNASample sourcesDysregulation in MFPathwayEffectsReferences
miRNAmiR-130aInfarcted myocardium and hypoxic CFs of mouseDownregulatedTGFβR1、TGF-β/SmadInhibition the conversion of CFs to myofibroblasts
miRNAmiR-328MI mouse hearts and CFsUpregulatedTGFβRIII、TGF-β1Promoting the collagen production
miRNAmiR-21MI mouse myocardial tissue and AngII-treated CFsUpregulatedTGF-β、Smad2/3、Spry1Inhibition the conversion of CFs to myofibroblastsLi et al. (2020a)
miRNAmiR-205-3pMI patientsDownregulatedTGF-β1Inhibited the TGF-β1-induced cardiac fibroblast fibrosisQiao et al. (2021)
miRNAmiR-323a-3pThe transverse aortic constriction (TAC)-induced cardiac tissues and the Ang II-treated rat CFsUpregulatedTGF-β、MMP2 、MMP9Enhanced the cardiac fibrosisZhang et al. (2018a)
miRNAmiR-26aPlasma and myocardial tissue of hypertensive MF ratsDownregulatedEZH2/p21 pathway、CTGF、 Smad4Reducing collagen production and ECM deposition, and inhibiting CFs proliferationZhang et al. (2020a)
miRNAmiR-29bAngII-induced fibrotic hearts and CFsDownregulatedTGF-β/Smad3Prevent AngII-induced cardiac fibrosis and cardiac dysfunctionZhang et al. (2014)
AF rat atrial tissuesDownregulatedTGFβRI、Smad2/3Atrial fibrosis and AF in rats can be attenuated
miRNAmiR-195-5pDCM rat myocardium and HG-induced human umbilical vein endothelial cellsUpregulatedTGF-β/SmadMediate the process of cardiac fibrosis in DCM
miRNAmiR-21the myocardium of Type I diabetic (T1DM) miceUpregulatedSmad2/3、Smad7Inhibiting EndMT activation and MFLi et al. (2020b)
miRNAmiR-10aAF rat models and CFsUpregulatedTGF-β1/SmadsInhibiting the collagen formation and reduce atrial structural remodellingLi et al. (2019a)
miRNAmiR-135bAF patients, isoproterenol (ISO)-induced rat models and rat cardiac fibroblastsDownregulatedTGF-βR1、TGF-βR2 、 Smad2Anti-atrial fibrosisWang et al. (2021a)
miRNAmiR-1202human CFsUpregulatedTGF-β1/Smad2/3Activating CFs proliferation, differentiation, and collagen synthesisXiao et al. (2021)
miRNAmiR-29aHCM patientsUpregulatedTGFβ、ELNSuppressing the process of cardiac fibrosisRoncarati et al. (2014)
miRNAmiR-675Mouse myocardial tissue and CFsDownregulatedTGFβR1Remodelling and the proliferation of mouse CFsWang et al. (2019a)
miRNAmiRNA-663Endomyocardial myocardial biopsies from patients with MFDownregulatedTGF-β1Inhibit myocardial fibrosisWu et al. (2019)
miRNAmiR-30cAAC model rats and in the TGF-β1-stimulated rat CFsDownregulatedTGFβRII、TGF-β1Inhibited TGF-β1-induced proliferation, differentiation, migration, and ECM synthesis in CFsXu et al. (2018)
miRNAmiR-210-5pNRCFsDownregulatedTGFβR1Attenuating CFs activation and ameliorating cardiac fibrosisZhao et al. (2021)
miRNAmiR-208b and miR-21AMI patientsUpregulatedTGF-β1/Smad-3Promotes the development of cardiac fibrosisZhang et al. (2022a)
miRNAmiR-216aHCFsUpregulatedTGF-βRI、Smad2、Smad7Reduced collagen production and the a-SMA protein expressionTao et al. (2019)
miRNAmiR-30a-5pMyocardial tissue and HG-treated CFs of DM ratsDownregulatedSmad2Delaying the progression of MF in diabetic cardiomyopathyYang and Zhao (2022)
miRNAmiR-150-5pHigh glucose-treated cardiac fibroblastsUpregulatedTGFβ1、IL-1β、NF-κBAmeliorating HG-induced CFs injury
miRNAmiR-327TAC-induced cardiac fibrotic tissue and Ang II-induced cardiac fibroblastsUpregulatedERK1/2、p38MAPK、JNKAttenuating TAC-induced cardiac fibrosis
miRNAmiR-143-3pHuman and animal myocardial infarcted heartsUpregulatedERK、JNK、p38MAPKRegulates the biological functions of HCFs such as proliferation, migration, and transformation
miRNAmiR-223Activated fibroblastsUpregulatedRASA1、MEK1/2、ERK1/2、AKTAggravating MF after MILiu et al. (2018a)
miRNAmiR-378Mouse TAC modelsDownregulatedMKK6、p38MAPK 、 Smad2/3Uppressing the pressure overload-induced cardiac FibrosisYuan et al. (2018)
miRNAmiR-1468-3pSenescent healthy hearts and the patients with sudden cardiac death suffering from primary MFUpregulatedTGF-β1、p38Enhance the cellular senescence and collagen depositionLin et al. (2020)
miRNAmiR-34aRat model of doxorubicin toxicityUpregulatedNF-κB、IL-6、TNF-αReduce the collagen depositionPiegari et al. (2020)
miRNAmiR-1-5pPAH ratDownregulatedTGF-βR1Inhibition of PAH-induced cardiac fibrosis
miRNAmiR-325-3pPAH ratUpregulatedMMP2/9、HE4Inhibited the fibrosis of cardiac fibroblastsTang et al. (2022)
miRNAmiR-1PAH ratUpregulatedcollagen I、collagen III、α-SMA、CTGF、PI3K、AKTInhibit right ventricular hypertrophy and fibrosisLiu et al. (2021a)

Mechanism of miRNA regulating TGF signaling pathway.

PAH usually causes right ventricular dysfunction, which is closely associated with cardiac fibrosis. Increased expression of type I and III collagen and MMP2/9 in the PAH group, as reported by Tang et al. (2022) suggested that PAH induced myocardial fibrosis in rats, whereas miR-325-3p overexpression attenuated myocardial fibrosis in PAH rats. In addition, dual-luciferase and bioinformatics reported that miR-325-3p exhibited binding sites to human epididymis protein 4 (HE4), and miR- 325-3p inhibited cardiac fibroblast fibrosis by targeting and regulating HE4. In addition, miR-1 was reported to exhibit an increased expression in the hypoxia-induced RV of PAH model rats, inhibiting the expressions of collagen I, collagen III, a-SMA, and CTGF, the further study revealed that expressions of p-phosphatidylinositol 3-kinase (PI3K) and p-AKT are upregulated in hypoxia-induced cardiac fibroblasts and are reversed by the transfected miR-1 antagomiR (Liu et al., 2021a). It means that miR-1 involves in the PAH-induced right ventricular hypertrophy and fibrosis by regulating the PI3K/AKT signaling pathway.

3.4 Regulation of TGF-β/Smad signaling pathway by lncRNAs in cardiac fibrosis

Dysregulation of LncRNAs and TGF-β is an important trigger of cardiac fibrosis. In recent decades, their link has been investigated and has exhibited that lncRNAs and TGF-β can interact in several mechanisms of cardiac fibrosis onset and progression. For example, as indicated by the research of , the over-expression of lncRNA H19 which was a competing endogenous RNA for miR-29a/b-3p, greatly promoting the cardiac fibroblasts proliferation and collagen production. In contrast, the over-expression of miR-29a/b-3p could reverse the effects of H19 on cardiac fibroblasts activity and collagen production by targeting vascular endothelial growth factor A (VEGFA) and TGF-β. Moreover, the over-expression of lncRNA HOXA11-AS promoted the expression of TGFβ1 signaling pathway and downstream proteins, and enhanced the proliferation and migration of cardiac fibroblasts by enhancing the TGFβ1 activity, thereby promoting the progression of cardiac fibrosis (Wang et al., 2019b). Besides, expression of lncRNA FAF was downregulated in both Ang-induced heart tissue and cardiac fibroblasts of rat, and elevating its expression can inhibit the phosphorylation levels of Smad2/3 (Sun et al., 2020). It suggests that the over-expression of FAF inhibited the proliferation and transformation of fibroblasts and then relieve the collagen production and cardiac fibrosis. In another study, expressions of lncRNA MHRT were found to be elevated in TGF-β1-treated mouse heart tissues and cardiac fibroblasts. Over-expression of MHRT promoted the collagen production and proliferation of cardiac fibroblasts and reduced the expression of miR-3185. In addition, siMHRT could reverse the inhibitory effect of TGF-β1 on miR- 3185 expression. Thus, MHRT aggravated the myocardial collagen deposition by regulating miR-3185 expression, thereby exacerbating the cardiac fibrosis after MI ().

TGF-β3 is a member of multifunctional peptide superfamily, regulates cell growth and differentiation, and exerts a special role in tissue fibrosis (Liu et al., 2022b). For example, Liu et al. reported that Vgll3 could positively regulate the expression of the key pro-fibrotic factor TGF-β3 and the downstream factor smad2/4. As demonstrated by dual luciferase reporter and Western blotting experiments, Vgll3 overexpression could promote the activation and proliferation of cardiac fibroblasts in mice. Such phenomenon was counteracted by TGF-β3, suggesting that Vgll3, a member of lncRNA, could promote the progression of cardiac fibrosis by activating the TGF-β3-related pathways (Stawowy et al., 2004). Being different from the above studies, lncRNA nuclear enriched abundant transcript 1 (NEAT1) is closely associated with the progression of lung, liver, and kidney fibrosis (Wang et al., 2019a; Wang et al., 2021b; Zhao et al., 2022). As reported, NEAT1 was significantly expressed in both HF patients and TAC-induced HF mouse models, inhibition of its expression attenuated the TGF-β1-induced cardiac fibrosis, GSK126 (an EZH2 inhibitor) weakened TGF-β1-induced downregulation of Smad7 expression and upregulation of p-Smad2/3, and upregulation of Smad7 reversed the cardiac fibrosis caused by NEAT1 over-expression (Zhang et al., 2020b). The lncRNA Cfast is highly expressed in heart tissue of MI mouse, and Cfast competitively interacts with COTL1 to prevent COTL1 from binding to TRAP1, thereby enhancing the formation of the TRAP1/Smad2/Smad4 complex and thus activating the TGF-β signaling pathway (Zhang et al., 2020c). Therefore, inhibiting the Cfast in the heart can prevent the pathological fibrotic remodelling and improve the cardiac function. LncRNA CRNDE is an RNA specifically expressed in heart tissues of human and mouse, and its over-expression inhibits the differentiation of cardiac fibroblasts to myofibroblasts, which may be related to the blocking of transcriptional activation of the TGF-β/Smad3 signaling pathway (Zheng et al., 2019). Moreover, LncRNA mannose-inhibitable adhesin-T7 receptor (MIAT) is upregulated in cardiac tissues of the MI mouse model, and knockdown of MIAT inhibits the collagen production and cardiac fibroblasts proliferation, thereby suppressing interstitial fibrosis by a mechanism related to MIAT sponging miR-24, and thus regulating Furin/TGF-β1 expression (Qu et al., 2017). Similarly, LncRNA MIAT attenuates its inhibitory effect on IL-17 by sponging miR-22-3p, thus leading to cardiac fibrosis (Qu et al., 2017). lncRNA MALAT1 expression is upregulated in diabetic mice and HG-induced fibroblasts, and acts as a sponge for miR-141, thereby promoting the upregulation of TGF-β1, p-Smad2, p Smad3, NLRP3, caspase-1, IL-18, and IL-1β. While over-expression of miR-141 can reduce the expressions of the above factors ().

MI can induce excessive secretion of ECM by cardiac fibroblasts, and activate and remodel myocardium, thus leading to cardiac fibrosis and cardiac dysfunction (Travers et al., 2016). According to Luo et al. (2020), lncRNA 554 was upregulated in both cytoplasm and nucleus of the MI-induced cardiac fibroblasts, while the silencing 554 significantly downregulated the expression of TGF-β1 and Smad3. Such findings suggest that the inhibition of lncRNA 554 expression attenuates the cardiac fibrosis and enhance the cardiac function in MI mice. Similarly, lncRNA Ang362 was highly expressed in MI-induced cardiac fibrosis rats and RCFs, and promoted the TGF-β1-induced collagen expression by suppressing Smad7 expression, thereby aggravating the cardiac fibrosis () (Table 2).

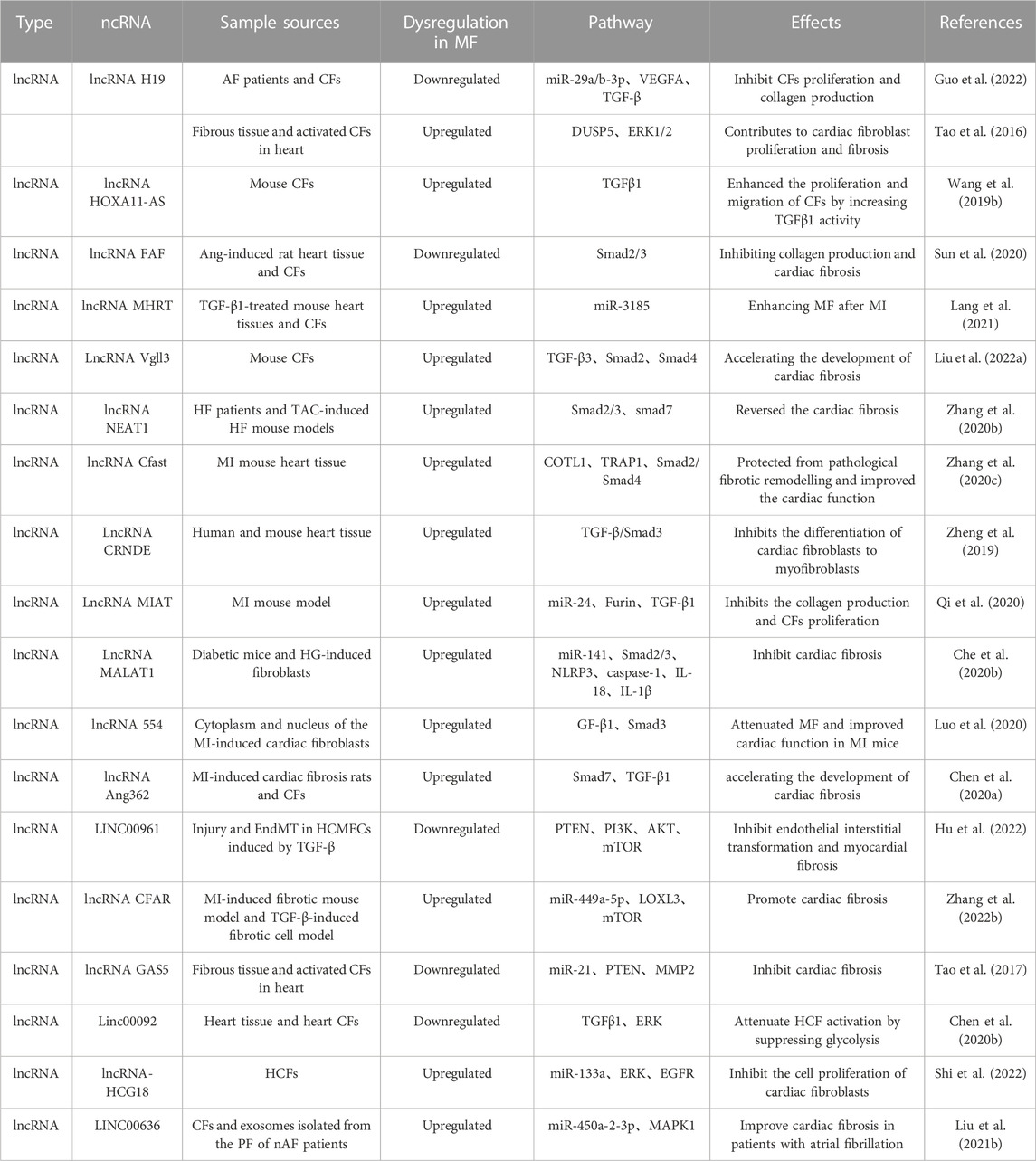

TABLE 2

TypencRNASample sourcesDysregulation in MFPathwayEffectsReferences
lncRNAlncRNA H19AF patients and CFsDownregulatedmiR-29a/b-3p、VEGFA、TGF-βInhibit CFs proliferation and collagen production
Fibrous tissue and activated CFs in heartUpregulatedDUSP5、ERK1/2Contributes to cardiac fibroblast proliferation and fibrosisTao et al. (2016)
lncRNAlncRNA HOXA11-ASMouse CFsUpregulatedTGFβ1Enhanced the proliferation and migration of CFs by increasing TGFβ1 activityWang et al. (2019b)
lncRNAlncRNA FAFAng-induced rat heart tissue and CFsDownregulatedSmad2/3Inhibiting collagen production and cardiac fibrosisSun et al. (2020)
lncRNAlncRNA MHRTTGF-β1-treated mouse heart tissues and CFsUpregulatedmiR-3185Enhancing MF after MI
lncRNALncRNA Vgll3Mouse CFsUpregulatedTGF-β3、Smad2、Smad4Accelerating the development of cardiac fibrosisLiu et al. (2022a)
lncRNAlncRNA NEAT1HF patients and TAC-induced HF mouse modelsUpregulatedSmad2/3、smad7Reversed the cardiac fibrosisZhang et al. (2020b)
lncRNAlncRNA CfastMI mouse heart tissueUpregulatedCOTL1、TRAP1、Smad2/Smad4Protected from pathological fibrotic remodelling and improved the cardiac functionZhang et al. (2020c)
lncRNALncRNA CRNDEHuman and mouse heart tissueUpregulatedTGF-β/Smad3Inhibits the differentiation of cardiac fibroblasts to myofibroblastsZheng et al. (2019)
lncRNALncRNA MIATMI mouse modelUpregulatedmiR-24、Furin、TGF-β1Inhibits the collagen production and CFs proliferationQi et al. (2020)
lncRNALncRNA MALAT1Diabetic mice and HG-induced fibroblastsUpregulatedmiR-141、Smad2/3、NLRP3、caspase-1、IL-18、IL-1βInhibit cardiac fibrosis
lncRNAlncRNA 554Cytoplasm and nucleus of the MI-induced cardiac fibroblastsUpregulatedGF-β1、Smad3Attenuated MF and improved cardiac function in MI miceLuo et al. (2020)
lncRNAlncRNA Ang362MI-induced cardiac fibrosis rats and CFsUpregulatedSmad7、TGF-β1accelerating the development of cardiac fibrosis
lncRNALINC00961Injury and EndMT in HCMECs induced by TGF-βDownregulatedPTEN、PI3K、AKT、mTORInhibit endothelial interstitial transformation and myocardial fibrosis
lncRNAlncRNA CFARMI-induced fibrotic mouse model and TGF-β-induced fibrotic cell modelUpregulatedmiR-449a-5p、LOXL3、mTORPromote cardiac fibrosisZhang et al. (2022b)
lncRNAlncRNA GAS5Fibrous tissue and activated CFs in heartDownregulatedmiR-21、PTEN、MMP2Inhibit cardiac fibrosisTao et al. (2017)
lncRNALinc00092Heart tissue and heart CFsDownregulatedTGFβ1、ERKAttenuate HCF activation by suppressing glycolysis
lncRNAlncRNA-HCG18HCFsUpregulatedmiR-133a、ERK、EGFRInhibit the cell proliferation of cardiac fibroblastsShi et al. (2022)
lncRNALINC00636CFs and exosomes isolated from the PF of nAF patientsUpregulatedmiR-450a-2-3p、MAPK1Improve cardiac fibrosis in patients with atrial fibrillationLiu et al. (2021b)

Mechanism of lncRNA regulating TGF signaling pathway.

3.5 LncRNA regulates other non-classical signaling pathways in cardiac fibrosis

Similar to the role of miRNAs, LncRNAs involves in the progression of cardiac fibrosis by regulating PI3K-Akt, MAPK, and other signaling pathways in addition to the classical signaling pathway of TGF-β. For example, EndMT plays an important role in pathophysiological processes such as myocardial ischemia-reperfusion, MI, diabetic cardiomyopathy, and fibrosis. There is an example: EndMT plays an important role in pathophysiological processes such as myocardial ischemia-reperfusion, myocardial infarction, diabetic cardiomyopathy, and fibrosis; and TGF-β-induced EndMT can be attenuated by knocking down the LINC00961 by a mechanism related to activation of phosphatase and tensin homolog (PTEN) expression and inhibition of PI3K, AKT, and mammalian target of rapamycin (mTOR) (). mTOR, as a PI3K- Akt downstream gene, mainly regulates the cardiac fibrosis by affecting the expressions of pro-fibrotic factors. A study revealed that lncRNA CFAR expression is upregulated in MI-induced fibrosis mouse models and TGF-β-induced fibrotic cell models. The mechanism analysis suggested that lncRNA CFAR, a ceRNA of miR-449a-5p, promotes the Lysyl oxidase-like protein 3 (LOXL3) expression, and overexpression of which may elevate the mTOR expression, aggravating the cardiac fibrosis (Zhang et al., 2022b). Additional evidence suggests that PTEN is a major regulator of the PI3K/Akt pathway, and inhibited PTEN promotes the ECM deposition and myocardial fibrosis in mice (Yuan et al., 2019). LncRNA GAS5 is lowly expressed in cardiac fibrotic tissues and activated cardiac fibroblasts, and its overexpression can inhibit the cardiac fibroblast proliferation. In addition, miR-21 can play a pro-fibrotic role in multiple organs, and lncRNA GAS5 can act as a sponge for miR-21 to inhibit the PTEN/MMP2 expression and the progression of cardiac fibrosis (Tao et al., 2017).

The ERK1/2 signaling pathway, a family member of MAPK and in the downstream of TGF-β1, can be activated during the progression of cardiac fibrosis (). Linc00092, a glycolysis-related lncRNA and expressed mainly in cardiac tissues and cardiac fibroblasts, inhibits the TGFβ1-induced HCF activation by suppressing glycolysis, and its overexpression significantly and consistently attenuates the phosphorylation of ERK and subsequently inhibits the ERK activation and HCF activation (). Shi et al. (2022) showed that silencing lncRNA-HCG18 in cardiac fibroblasts significantly promoted the hsa-miR-133a expression, inactivated the ERK1/2 pathway and inhibited the cell proliferation of cardiac fibroblasts by downregulating the EGFR expression. It suggests that lncRNA-HCG18 can exert an regulatory effect in progression of cardiac fibrosis through the hsa-miR-133a/ERK/EGFR axis. Similarly, lncRNA H19 expression is upregulated in cardiac fibrotic tissues and activated fibroblasts, while overexpression of DUSP5 abrogates the pro-proliferative effect of H19 in cardiac fibroblasts by a mechanism associated with inhibition of ERK1/2 phosphorylation (Tao et al., 2016). In addition, MAPK1 has been reported to involve in various biological processes including myocardial fibrosis, and can be inhibited by exosomes containing LINC00636 by elevating the miR-450a-2-3p expression, thus alleviating the cardiac fibrosis in patients with AF (Liu et al., 2021b).

3.6 Regulation of TGF-β/Smad signaling pathway by CircRNA in cardiac fibrosis

The main feature of cardiac fibrosis is the activation, proliferation, and transformation of cardiac fibroblasts. Some circRNAs can regulate the miRNAs expression and the TGF-β/Smad signaling pathway, thus playing a key role in the pathogenesis of cardiac fibrosis. According to Li et al. (2020c), circRNA heterogeneous nuclear ribonucleoprotein H1 (HNRNPH1) increased and mainly expressed in cardiac fibroblasts in heart after ischemia. Meanwhile, it limited the differentiation of cardiac fibroblasts into myofibroblasts by miR-216-5p-SMAD7-mediated degradation of TGF-β1, thus becoming a potential new target for the treatment of cardiac fibrosis after ischemia. In addition, CircRNA NFIB has been found to be lowly expressed in heart tissue of MI mouse and TGF-β-treated cardiac fibroblasts, and its expression inhibits the cardiac fibroblasts proliferation by a mechanism related to sponging miR-433 to upregulate the AZIN1 and JNK1 and inhibit the cardiac fibroblasts proliferation (Zhu et al., 2019).

Cardiac fibrosis leads to the expression of a-SMA by activated myofibroblasts, and promotes the formation of ECM proteins (COL1A1 and COL3A1). Some circRNAs can regulate TGF-β/Smad expression, and inhibit fibrotic proteins expression, thereby suppressing the onset and progression of cardiac fibrosis. For example, as presented by Ni et al. (2019), circRNA HIPK3 was highly expressed in AngII-treated cardiac fibroblasts and mouse heart tissue, and promoted cardiac fibroblasts proliferation, migration, and cardiac fibrosis by sponging miR-29b-3p and up-regulating a-SMA, COL1A1, and COL3A1 expressions. Similar to the above studies, circRNA HIPK3 expression is upregulated in hypoxia-induced cardiac fibroblasts, and silencing circHIPK3 inhibits the cell proliferation and migration. The bioinformatics and immunofluorescence reports indicate that circRNA HIPK3 can bind to miR-152-3p to inhibit the proliferation of cardiac fibroblasts and expressions of ColI, ColIII, and TGF-β2 after hypoxic stimulation. Therefore, circHIPK3 is a molecular regulator during the cardiac fibrosis through miR-152-3p/TGF-β2 signaling (Liu et al., 2020). Similarly, Zhou and Yu (2017) discovered that circRNA_010567 was greatly expressed in diabetic mouse myocardium and AngII-induced cardiac fibroblasts, and regulated the expression of TGF-β1 and fibrosis genes by acting as a sponge for miR-141.

Atrial fibrosis plays an important role in the progression of AF. The dysregulation of some circRNAs may promote AF, and thus becomes a potential regulator and biomarker of persistent AF. A clinical research indicated that circRNA_0004104 was significantly downregulated in the plasma of patients with persistent AF, and that it could negatively regulate the expression of MAPK and TGF-β1. This evidence suggests that circRNA_0004104 could promote cardiac fibrosis by targeting MAPK and TGF-β signaling pathways, and that elevating the circRNA_0004104 0004104 expressions can be a potential strategy to treat the f cardiac fibrosis and persistent AF (). In the above section, we summarized the mechanism of different non-coding RNA regulating TGF signaling pathways in cardiac fibrosis, and they played an important role in the process of cardiac fibrosis (Table 3; Figure 2).

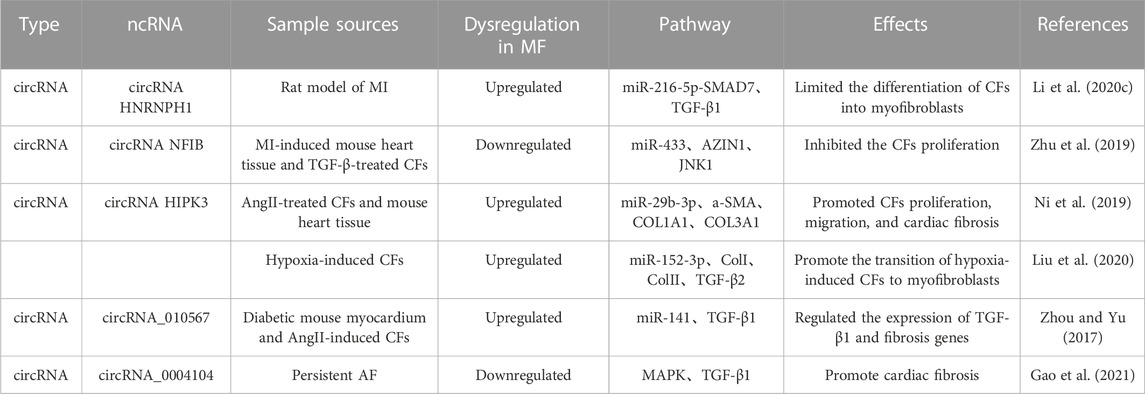

TABLE 3

TypencRNASample sourcesDysregulation in MFPathwayEffectsReferences
circRNAcircRNA HNRNPH1Rat model of MIUpregulatedmiR-216-5p-SMAD7、TGF-β1Limited the differentiation of CFs into myofibroblastsLi et al. (2020c)
circRNAcircRNA NFIBMI-induced mouse heart tissue and TGF-β-treated CFsDownregulatedmiR-433、AZIN1、JNK1Inhibited the CFs proliferationZhu et al. (2019)
circRNAcircRNA HIPK3AngII-treated CFs and mouse heart tissueUpregulatedmiR-29b-3p、a-SMA、COL1A1、COL3A1Promoted CFs proliferation, migration, and cardiac fibrosisNi et al. (2019)
Hypoxia-induced CFsUpregulatedmiR-152-3p、ColI、ColII、TGF-β2Promote the transition of hypoxia-induced CFs to myofibroblastsLiu et al. (2020)
circRNAcircRNA_010567Diabetic mouse myocardium and AngII-induced CFsUpregulatedmiR-141、TGF-β1Regulated the expression of TGF-β1 and fibrosis genesZhou and Yu (2017)
circRNAcircRNA_0004104Persistent AFDownregulatedMAPK、TGF-β1Promote cardiac fibrosis

Mechanism of lncRNA regulating TGF signaling pathway.

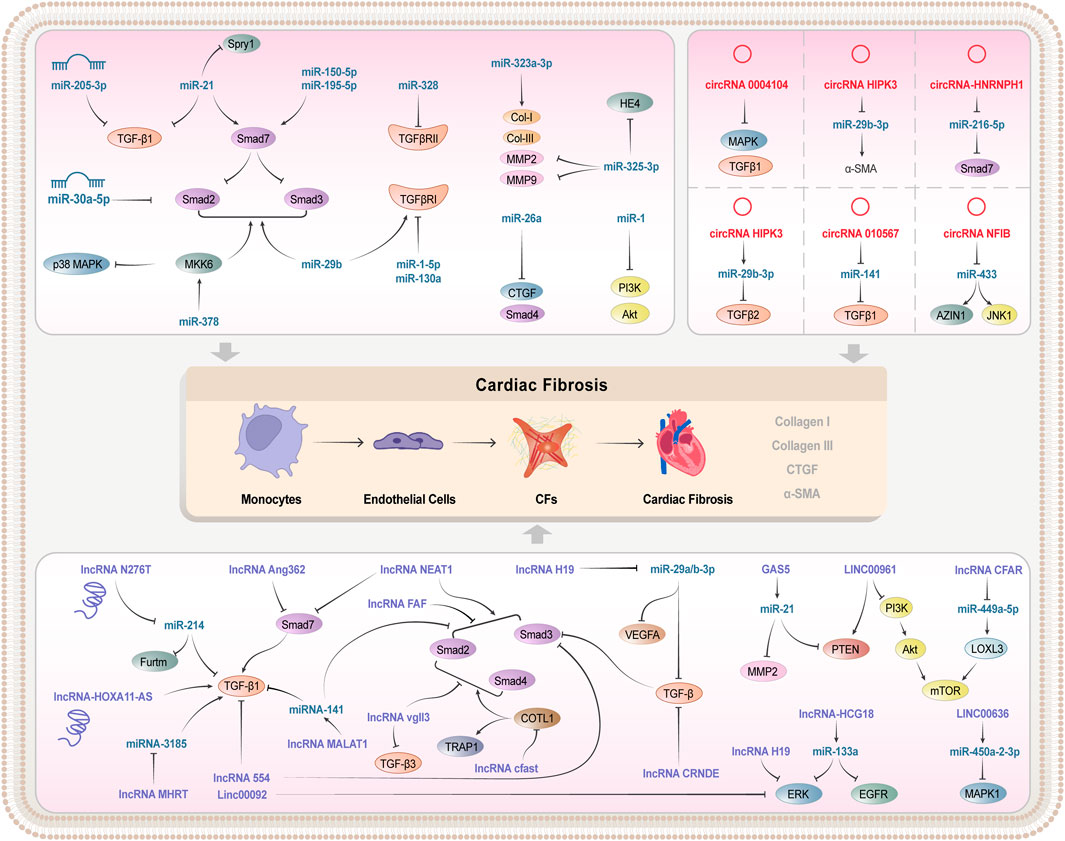

FIGURE 2

4 Alternative therapies for TGF-β/Smad signaling pathway modulation in TCM against cardiac fibrosis

Traditional Chinese medicine (TCM) has been practiced in China for thousands of years, with widespread clinical applications gained. It has unique clinical advantages due to its multi-component, multi-target, multi-pathway characteristics, low side effects, and good ability to reduce drug resistance (Yu et al., 2022). In recent years, more and more studies have focused on the great potential exhibited by TCM in the prevention and treatment of cardiac fibrosis. In this work, the single, compound, and proprietary Chinese medicines, that can prevent and treat cardiac fibrosis by targeting and modulating the TGF-β/Smad signaling pathway, are summarized, with a view to providing new ideas and research directions for the development of new anti-fibrotic drugs.

4.1 Anti-cardiac fibrosis natural products

4.1.1 Alkaloids

Neferine is a major bisbenzylisoquinoline alkaloid extracted from lotus seeds. It was found that Neferine can inhibit HG-induced expression of collagen I and III and TGF-β1, and restrain the migration of cardiac fibroblasts (Zhao et al., 2010). Moreover, Neferine can suppress the proliferation of cardiac fibroblasts and collagen synthesis by inhibiting TGF-β1-Smad, ERK, and p38MAPK signaling pathways, thus exerting the anti-fibrotic effects, and improving myocardial function in diabetic mice (Liu et al., 2016). Picrasidine, the main active ingredient extracted from bitter ginseng, was proven to be able to inhibit Smad2/3 phosphorylation levels and TGF-β1 expression in the diabetic and cardiomyopathic rats and cardiac fibroblasts cultured with high glucose. Therefore, it exerts the anti-fibrotic effects by restraining the activation of the TGF-β1/Smad signaling pathway, improving the cardiac compliance and cardiac function (Zhang et al., 2018b).

4.1.2 Terpenoids

Zerumbone, a scopoleene sesquiterpene isolated from Syringa pinnatifolia, has anti-inflammatory and antioxidant effects. It inhibits the conversion of cardiac fibroblasts to myofibroblasts by restraining TGF-β1, p-Smad2/3, and MMP-2/9 and upregulating the expression of Smad7, thus protecting the myocardium from injury and preserving cardiac function (Li et al., 2022c). Ginkgolide B, a natural terpenoid derived from Ginkgo biloba, has anti-inflammatory, antioxidant, and anti-apoptotic effects (Wu et al., 2013). According to Jiang et al. (), ginkgolide B significantly reduced the expression of TGF-β1 and the phosphorylation level of Smad2/3 in diabetic rats, and also inhibited the expressions of Col-I and Col-III by suppressing the activation of ERK1/2, JNK, and p38MAPK signaling pathways, thereby restraining the development of diabetic cardiac fibrosis. Centella asiatica is a triterpenoid extracted from Centella asiatica with anti-inflammatory, antioxidant, and anti-fibrotic effects. Centella asiatica maintains the collagen metabolic homeostasis, and inhibits the development of cardiac fibrosis by restraining the expressions of Col-I, Col-III, CTGF, and PAI-1 in the left ventricle and AngII-induced cardiac fibroblasts of spontaneously hypertensive (SHR) rats. Besides, centella asiatica effectively inhibits Smad2/3 phosphorylation and up-regulates Smad7 expression in the hearts of SHRs, thereby suppressing cardiac fibroblasts proliferation and maintaining collagen metabolic homeostasis, and finally alleviating the overburden pressure-induced cardiac fibrosis (Lu et al., 2018). Betulinic acid, a pentacyclic triterpenoid isolated from birch bark, inhibits the proliferation and differentiation of cardiac fibroblasts induced by high glucose, and suppresses the expression of Col-I, Col-III, and fibronectin by reducing the phosphorylation level of Smad2/3 and TGF-β1 expression in cardiac fibroblasts, thereby relieving the hyperglycaemia-induced cardiac fibrosis ().

4.1.3 Flavonoids

Soy glycosides and isoflavones exist in soy foods and soy oil, and have anti-inflammatory, antioxidant, and anti-apoptotic effects. They can inhibit the expressions of a-SMA, Col-I, and Col-III, thereby suppressing cardiac fibroblasts activation and ECM deposition. Moreover, they can restrain proliferation and migration of cardiac fibroblasts by reducing the phosphorylation levels of Smad2/3 and TGF-β1, suppressing the cardiac disease (Yu et al., 2020). Apigenin is a natural flavonoid compound existed in a variety of vegetables and plants in the form of glycosides, with anti-inflammatory, anti-tumour, and anti-fibrotic effects (Zhou et al., 2016). According to Wang et al. (), Apigenin inhibited TGF-β1-stimulated differentiation and collagen synthesis of cardiac fibroblasts by increasing miR-122-5p expression, and exerted antifibrotic effects by downregulating the Smad2/3 expression and targeting HIF-1α, thereby upregulating the Smad7 expression. Glycyrrhizin is a flavanone compound derived from the root of Glycyrrhiza glabra. According to the previous researches, TGF-β1 and Smad2 were highly expressed in ISO-induced mouse heart tissue and AngII-induced cardiomyocytes, and glycyrrhizin relieved fibrosis in mice and cardiomyocytes by suppressing the activation of TGF-β1/Smad2 signaling pathway (Li et al., 2021b). Silymarin is an active compound extracted from the silymarin plant, and it can reduce TGF-β1 expression and Smad2/3 phosphorylation levels and increase Smad7 expression, thereby decreasing cardiac fibrosis and collagen deposition (Meng et al., 2019). Baicalin, a natural flavonoid present in the roots of Scutellaria baicalensis, can inhibit the Ang II-induced fibrosis in RCFs and the cardiac fibrosis caused by AAC-induced pressure overload, with a mechanism related to the inhibition of TGF-β over-expression, Smad2/3 hyperphosphorylation, and Smad4 upregulation (Xiao et al., 2018).

4.1.4 Saponins

Astragaloside IV, one of the active components of Astragalus, inhibits the expression of a-SMA and ColI, thereby suppressing the proliferation of cardiac fibroblasts. Moreover, Astragaloside IV restrains the expression of TGF-β1 and Smad3, and upregulates Smad7 expression, indicating that ASG exerts antifibrotic effects by blocking the activation of the TGF-β/Smads signaling pathway (Wei et al., 2020). Saikosaponin A is a triterpene saponin isolated from Saikosaponin with anti-inflammatory, antioxidant, and anti-fibrotic effects (). According to Liu et al. (2018b), Saikosaponin A alleviated the stress load-induced cardiac fibrosis. Interestingly, high-does Saikosaponin A could reduce the phosphorylation levels of smad2 and smad3 and the nuclear expressions of smad4, while low doses of Saikosaponin A blocked the TGF-β-induced EndMT, indicating that different doses of Saikosaponin A can attenuate the cardiac fibrosis process by regulating the TGF-β/smad signaling pathway and inhibiting the EndMT.

4.1.5 Polyphenols

Resveratrol is a polyphenolic compound widely discovered in a variety of medicinal and edible plants, with anti-inflammatory, antioxidant, and anti-apoptotic pharmacological effects (). Zhu et al. (2022) found that TGF-β1, a-SMA, ColI, and Smad3 were significantly expressed in HG-induced H9c2 cells and were downregulated by resveratrol treatment. Such findings reveal that resveratrol reduces the ECM deposition by restraining the activation of TGF-β1/Smad3 signaling pathway, thereby alleviating the HG-induced cardiac fibrosis.

4.1.6 Others

Emodin is a derivative of anthraquinones, with a range of biological activities. According to the report, emodin can relieve the TGF-β1-induced activation of cardiac fibroblasts and the ECM accumulation in vitro. Moreover, emodin can inhibit the activation of several classical (Smad2/3) and non-classical (ERK1/2) signaling pathways. This indicates that emodin is an effective anti-cardiac fibrosis therapeutic agent that can intervene the development of cardiac fibrosis, by regulating different signaling pathways (). Higenamine is an active ingredient extracted from a variety of Chinese herbal medicines, such as aconite root, nandina bamboo, and scutellaria barbata. Higenamine can inhibit both TAC-induced and ISO-induced cardiac fibrosis in addition to blocking the cardiac fibroblasts conversing to myofibroblasts by suppressing the TGF-β1/Smad signaling pathway, thereby improving cardiac fibrosis and dysfunction (Zhu et al., 2021) (Table 4).

TABLE 4

ClassifyNatural productsTargets of researchEfficacyReferences
AlkaloidsNeferinecollagen I and III 、 TGF-β1Restrain the migration of CFsZhao et al. (2010)
TGF-β1-Smad、ERK、p38MAPKImproving myocardial function in diabetic miceLiu et al. (2016)
PicrasidineTGF-β1、Smad2/3Improving the cardiac compliance and cardiac functionZhang et al. (2018b)
TerpenoidsZerumboneTGF-β1、p-Smad2/3、MMP-2/9、Smad7Inhibits the conversion of cardiac fibroblasts to myofibroblastsLi et al. (2022c)
Ginkgolide BERK1/2、JNK、38MAPKRestraining the development of diabetic MFWu et al. (2013)
Centella asiaticaSmad2/3、Smad7Alleviating the overburden pressure-induced cardiac fibrosisLu et al. (2018)
Betulinic acidSmad2/3、TGF-β1Relieving the hyperglycaemia-induced cardiac fibrosis
FlavonoidsDaidzeinSmad2/3、TGF-β1Suppressing the development of cardiac diseaseYu et al. (2020)
ApigeninmiR-122-5p、TGF-β1、Smad2/3、HIF-1α、Smad7Anti-fibrosis effectZhou et al. (2016)
GlycyrrhizinTGF-β1、Smad2Relieved fibrosis in mice and cardiomyocytes by suppressingLi et al. (2021b)
SilymarinTGF-β1、Smad2/3、Smad7Decreasing MF and collagen depositionMeng et al. (2019)
BaicalinTGF-β、Smad2/3、Smad4Anti-fibrosis effectXiao et al. (2018)
SaponinsAstragaloside IVTGF-β1、Smad3、Smad7Anti-fibrosis effectWei et al. (2020)
Saikosaponin Asmad2、smad3、smad4Attenuate the cardiac fibrosis and inhibiting the EndMT process
Liu et al. (2018b)
PolyphenolsResveratrolTGF-β1、Smad2、Smad3Reducing ECM deposition and alleviating HG-induced cardiac fibrosis
Zhu et al. (2022)
OthersEmodinSMAD2/3、Erk1/2Anti-cardiac fibrosis
HigenamineTGF-β1、SmadImproving cardiac fibrosis and dysfunctionZhu et al. (2021)

Mechanism of Chinese herbal extracts or natural compounds interfering with cardiac fibrosis by regulating TGF-signaling pathway.

4.2 Anti-cardiac fibrosis herbal remedies

According to the previous studies, there are many herbal formulas for inhibiting the progression of cardiac fibrosis by regulating the TGF-β/Smad signaling pathway. As indicated by one research, Fu fang Zhen Zhu Tiao Zhi (FTZ) could greatly downregulate the expressions of a-SMA, Col1A2, Col-III, and CTGF, thereby inhibiting the ECM deposition and the cardiac fibrosis. Moreover, FTZ also attenuated the proliferation and migration of cardiac fibroblasts by restraining the activation of the TGFβ1-Smad2/3 signaling pathway and suppressing the collagen synthesis, indicating that FTZ possessed great therapeutic potential in the treatment of cardiac fibrosis (Zhang et al., 2022c). Similar to the researches above, the Heart-Protective Soup can inhibit the expressions of Col-Ⅰ and Col-Ⅲ in adriamycin-induced dilated cardiomyopathy, in addition to reducing the expressions of TGF-β1 and Smad3, thereby promoting cardiac function and reducing cardiac fibrosis (Sun et al., 2017). In another research, the Kangxian Formula (KXF) was found to inhibit the AngII-induced proliferation and migration of cardiac fibroblasts in addition to reducing the expression of TGFβRI, TGFβRII, Smad2, Smad3, and Smad4 in cardiac fibroblasts, suggesting that KXF exerted a protective effect against cardiac fibrosis by blocking the activation of the TGF-β signaling pathway (). According to Su et al. (2020), Si-Miao-Yong-An Decoction (SMYAD) could decrease the expressions of a-SMA, Col, and ColIII, thereby reducing the ECM deposition. Moreover, SMYAD could block TGF-β1/Smad7 expression by suppressing the expressions of TGF-β1, Smad2, and Smad3 and upregulating the Smad7 expression. Thereby, progression of cardiac fibrosis can be inhibited by blocking TGF-β1/Smad pathway activation. Besides, Tao Hong Si Wu Tang (THSWD), a traditional formula consisting of Tao Ren, Hong Hua, Shu Di, Bai Shao, Chuan Xiong, and Angelica sinensis, was found to inhibit cardiac fibroblasts proliferation and collagen expression by restraining the activation of TGFβR1/Smad signaling pathway in a dose-dependent manner in a post-MI mouse model. These data indicated that THSWD inhibited cardiac fibroblasts proliferation and collagen expression, alleviated cardiac fibrosis, and improved cardiac function in mice after MI, by blocking activation of the TGFβR1/Smad signaling pathway (Tan et al., 2021). Similarly, in a model of radiation cardiac injury constructed by local irradiation of the precordial region at 25 Gy, Huangqi Shengmai Yin (HSY) was discovered to inhibit the epithelial proliferation, cardiac fibroblasts proliferation, and collagen deposition in irradiated tissues by blocking the binding of TGFβ1 to its receptor. Besides, it can maintain the balance between collagen synthesis and degradation by reversing the effects of radiation on MMP14 and TIMP1 expression and the balance between collagen synthesis and degradation (; ) (Table 5).

TABLE 5

Herbal remediesTargets of researchEfficacyReferences
FTZTGFβ1、Smad2/3Inhibiting the ECM deposition and the cardiac fibrosisZhang et al. (2022c)
BXDTGF-β1、Smad3Cardiac function and reducing cardiac fibrosis
KXFTGFβRI、TGFβRII、Smad2、Smad3、Smad4Anti-fibrosis effect
SMYADTGF-β1、Smad2、Smad3、Smad7Anti-fibrosis effectSu et al. (2020)
THSWDTGFβR1、SmadAnti-fibrosis effectTan et al. (2021)
HSYMMP14、TIMP1Balance between collagen synthesis and degradation

Mechanism of Chinese herbal medicine regulating TGF-signaling pathway and intervening cardiac fibrosis.

4.3 Proprietary Chinese medicines against cardiac fibrosis

In recent years, under the guidance of the theoretical system of TCM, researchers have actively searched for the Chinese patent medicines that exert anti-cardiac fibrosis effects by regulating the TGF-β/Smad signaling pathway. For example, in a rat model of ascending aortic stenosis (AAS), Qi Shen Yi Qi Pill (QSYQP) was proven to be able to inhibit the expression of TGFβRII and Smad3, and up-regulate the expression of Smad7, thereby suppressing ECM deposition. Moreover, QSYQP also inhibited overburden pressure-induced cardiac fibrosis, with the mechanism associated with the inhibition of cardiomyocyte apoptosis and TGF-β1/Smad signaling pathway (). It was shown that upregulation of the TGF-β1/Smad3 pathway may increase the susceptibility to differentiation of cardiac fibroblasts in MI and TAC rats. Treatment with Danqi Soft Capsule (DQ) and Guanxin Shutong Capsule (GXST) could decrease the expressions a-SMA, TGF-β1, and p-Smad3 greatly. It clarifies that DQ and GXST reversed the myofibroblast formation by regulating the TGF-β/Smad3 signaling pathway, thereby improving cardiac fibrosis in MI and TAC rats (Pan et al., 2021; Ma et al., 2022). Huo Xin Pill not only inhibited the ISO-induced proliferation, migration, and differentiation of cardiac fibroblasts, but also restrained the proliferation and migration of cardiac fibroblasts by suppressing TGF-β1/smads signaling pathway activation, thus exerting an anti-cardiac fibrosis effect (Peng et al., 2021). Furthermore, the Chinese patent medicine Qingxuan Jiangya decoction (QDG) was first used for the treatment of hypertension. According to a recent in vivo research, a medium dose of QDG (0.9 g/kg/day) greatly reduced the left ventricular ejection fraction, improved the cardiac function in SHR rats by reducing α, and restrained the differentiation and proliferation of cardiac fibroblasts by reducing the SMA expression and proliferating the cell nuclear antigen (PCNA). However, in vitro experiments presented that 6.25 and 12.5 μg/mL of QDG could inhibit the AngII-induced activation of the TGF-β1/Smad2/3 signaling pathway, thereby effectively reducing collagen deposition and inhibiting interstitial fibrosis (; ). HF is the swollen stage of various CVDs, and cardiac fibrosis can accelerate the deterioration of cardiac function in HF patients. As demonstrated by a recent ex vivo research, QSG inhibited the proliferation and differentiation of cardiac fibroblasts, and reduced the collagen deposition in the infarct margins of HF rats, by inhibiting the expression of TGF-β1 and Smad3 and up-regulating the expression of Smad7 (; Zeng et al., 2019). Wu et al. (2021) observed 140 patients with IHF treated with Shexiang Tongxin Dropping Pills (STDP) )and found that the expressions of TGF-β1 and MMP2 were lower while the TIMP2 expression was higher when compared with the control group. The results revealed that STDP can not only regulate the dynamic balance of MMP2 and TIMP2 to maintain ECM homeostasis but also inhibit the TGF-β1 to impair the differentiation, migration, and proliferation of cardiac fibroblasts, which in turn hindered the cardiac fibrosis. Such results could be found in Table 6; Figure 3.

TABLE 6

Proprietary Chinese medicinesTargets of researchEfficacyReferences
QSYQTGFβRII、Smad3、Smad7Suppressing ECM deposition and anti-fibrosis effect
DQ and GXSTTGF-β、Smad3Improving cardiac fibrosis in MI and TAC ratsMa et al. (2022)
Pan et al. (2021)
HXPTGF-β1、smadsAnti-fibrosis effectPeng et al. (2021)
QDGTGF-β1、Smad2/3Educing collagen deposition, and inhibiting interstitial fibrosis
QSGTGF-β1、Smad3、Smad7Inhibited the proliferation and differentiation of CFs
Zeng et al. (2019)
SXTXDWTGF-β1、MMP2、TIMP2inhibit the progress of cardiac fibrosisWu et al. (2021)

Proprietary Chinese medicines regulating TGF-signaling pathway and intervening cardiac fibrosis.

FIGURE 3

4.4 Alternative therapies of TCM modulating ncRNAs and TGF-β/Smad signaling pathway against cardiac fibrosis

In the above sections, the research progress related to TCM and ncRNAs in cardiac fibrosis through modulation of TGF-β/Smad signaling pathways, respectively, is presented. These three aspects are not isolated but crosstalk each other, and TCM is also involved in the progression of cardiac fibrosis through modulation of ncRNAs and classical and non-classical TGF-β/Smad signaling pathways. A previous study reported that tanshinone IIA (TSN) protected the myocardium and inhibited cardiomyocyte hypertrophy. miR-205-3p and TGF-β1 were significantly downregulated after a two-week treatment with TSN. Transfecting miR-205-3p in cardiac fibroblasts could elevate the TGF-β1 expression and Col1a1 and Col3a1 were upregulated in TGF-β1-induced cardiac fibroblasts, which can be reversed by TSN treatment. It suggested that TSN enhances the cardiac function and attenuates the cardiac fibrosis after MI by upregulating miR-205-3p and thereby inhibiting TGF-β1 levels (Qiao et al., 2021). Furthermore, TGF- β1 is a key factor in progression of myocardial fibrosis, which promotes ECM deposition and thus plays an important role in cardiac remodeling. Zhang et al. found that resveratrol (RSV) inhibited the TGF-β1-induced cardiac fibroblasts proliferation and collagen secretion by a mechanism associated with silencing miR-17 or overexpression of Smad7, thus providing a new experimental basis for the efficacy of RSV in treating myocardial fibrosis (Zhang et al., 2018c). Another study showed that berberine can effectively inhibit left ventricle hypertrophy and cardiac fibrosis and improve the cardiac function (Liao et al., 2018). Zheng et al. (2020) investigated the effect of berberine on miR-29b expression in pressure-overloaded hypertrophic myocardium, and pre-applied it to treat the cardiac fibrosis. Finally, they confirmed that berberine (100 mg/kg/day) inhibited myocardial hypertrophy and fibrosis in stress overload models by up-regulating the expression of miR-29b and down-regulating the expression of its target genes. A study showed that Hong Hua (HH) improved cardiac function and ventricular remodeling and prevented the cardiac fibrosis in patients with ischemic cardiomyopathy., Ting Li Zi (TLZ) was proved to play an inhibitory effect on myocardial hypertrophy and fibrosis and corrected HF (; Yu et al., 2019). Wang et al. (2020) observed the inhibitory effect of HH-TLZ on cardiac fibrosis in CHF mice after MI, and revealed that compared to the model group, CTL-TLZ (2.0 mg/mL) could upregulate the miRNA-22 and TGFβ-1 in myocardial tissue. In addition, the CTL-TLZ presented a role of downregulating COL1A1, COL3A1, and TGFβ-1 and upregulating miRNA-22 in cardiac fibroblasts, thus inhibiting the proliferation and collagen synthesis of cardiac fibroblasts. It suggests that the CTL-TLZ has an inhibitory effect on cardiac fibrosis in CHF mice after MI, and the mechanism may be related to the activation of miRNA-22/TGFβ-1 signaling pathway in fibroblasts.

Furthermore, TCM can regulate ncRNAs involved in the progression of cardiac fibrosis through TGF-β non-classical signaling pathways, such as the MMP signaling pathway. reported that Long Sheng Zhi Capsule (LSZ) inhibited the AngII-induced cardiac hypertrophy and fibrosis and rescued the expression of miR-150-5p treated with AngII; While miR 150-5p overexpression ameliorated the AngII-induced cardiac hypertrophy and fibrosis by attenuating the cardiac hypertrophy and fibrosis through MMP14 (Table 7; Figure 3).

TABLE 7

TypeTraditional Chinese medicineTargets of researchEfficacyReferences
Natural productsTSNmiR-205-3p、TGF-β1Alleviates cardiac fibrosis and improves ventricular remodeling following MIQiao et al. (2021)
RSVmiR-17、Smad7Inhibits CFs proliferation and collagen secretionZhang et al. (2018c)
BerberinemiR-29bInhibits pressure overload-induced cardiac hypertrophy and myocardial fibrosisLiao et al. (2018)
Traditional Chinese medicine prescriptionHH-TLZCOL1A1、COL3A1、TGFβ-1、miRNA-22Inhibit the proliferation of CFs and collagen synthesisYu et al. (2019),Wang et al. (2020)
LSZmiR-150-5p、MMP14Reduce cardiac hypertrophy and fibrosis

Mechanism of TCM against myocardial fibrosis by targeting TGF-β/Smad signaling pathway and ncRNAs.

5 Discussion

Cardiac fibrosis is characterized by excessive proliferation of cardiac interstitial fibroblasts, excessive collagen deposition, and abnormal distribution, which can lead to structural changes and systolic dysfunction in the heart, and further cause the development of advanced CVDs such as ischaemic heart disease, hypertension, and HF. Therefore, the development of cardiac fibrosis can be restrained partially or completely during its early stages of onset and progression by inhibiting or eliminating causative factors and using anti-fibrotic drugs.

Along with the research into the pathogenesis of cardiac fibrotic disease progresses, there are increasing evidences that the crosstalk between TGF-β and Smad signaling pathways plays an important role in progression of cardiac fibrosis. TGF-β1 is the key pro-cardiac fibrotic factor, Smad2 and Smad3 are central to interstitial fibrosis in the heart, and Smad7 is an important factor in anti-cardiac fibrosis. In view of the important role of TGF-β/Smad pathway in cardiac fibrosis, it is an attractive therapeutic approach to target TGF-β1 and its receptor and its downstream Smad proteins. Furthermore, as previously mentioned, ncRNAs can act in cardiac fibrosis by regulating the TGF-β-induced Smad classical signaling pathway and other non-classical signaling pathways. Besides, it was found in this work that ncRNAs did not regulate the development of cardiac fibrosis through a single signaling pathway, but rather acted as competitive RNAs via the process that their miRNA response elements worked as miRNA sponges and regulated their expression. Thus, lncRNAs, miRNAs, circRNAs, and miRNAs together regulated the TGF-β/Smad signaling pathway, thereby involving in progression of cardiac fibrosis. Based on the summary above, there is evidence that ncRNAs could be used as novel therapies for cardiac fibrosis. However, considering the different expressions and roles of ncRNAs in different samples, it is difficult to relate ncRNAs to the actual situation of each cardiac fibrosis patient. In the future, basic researches need to be translated into clinical trials, and ncRNAs can be used in regulating the TGF-β/Smad signaling pathway, for the real clinical treatment of cardiac fibrosis patients. Furthermore, there are numerous researches focused on the role of miRNAs and lncRNAs in regulating the TGF-β/Smad signaling pathway in cardiac fibrosis. Meanwhile, there are relatively few researches on the roles of circRNAs in regulating the TGF-β/Smad signaling pathway in cardiac fibrosis, indicating that more researches are needed in the future to explore the role of circRNAs in the regulation above.

Statements

Author contributions

CL contributed to the conception and design of this manuscript. XD has critically revised the entire manuscript. XM and LW are responsible for manuscript structure and English grammar. All authors participated in manuscript revision, read, and approved the submitted version. All authors revised and approved the final manuscript. “The authors read and approved the final manuscript.”

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1

    AhmedT.MarmagkiolisK.PlochM.Irizarry-CaroJ. A.AmatullahA.DesaiS.et al (2023). The Year in Cardio-oncology 2022. Curr. Probl. Cardiol.48 (1), 101435. 10.1016/j.cpcardiol.2022.101435

  • 2

    AnwaierG.XieT. T.PanC. S.YanL.WangD.et al (2022). QiShenYiQi Pill ameliorates cardiac fibrosis after pressure overload-induced cardiac hypertrophy by regulating FHL2 and the Macrophage RP S19/TGF-β1 signaling pathway. Front. Pharmacol.13, 918335. 10.3389/fphar.2022.918335

  • 3

    BagchiR. A.LinJ.WangR.CzubrytM. P. (2016). Regulation of fibronectin gene expression in cardiac fibroblasts by scleraxis. Cell Tissue Res.366 (2), 381–391. 10.1007/s00441-016-2439-1

  • 4

    BeermannJ.PiccoliM. T.ViereckJ.ThumT. (2016). Non-coding RNAs in development and disease: Background, mechanisms, and therapeutic approaches. Physiol. Rev.96 (4), 1297–1325. 10.1152/physrev.00041.2015

  • 5

    BianZ.JiW.XuB.HuoZ.HuangH.HuangJ.et al (2021). Noncoding RNAs involved in the STAT3 pathway in glioma. Cancer Cell Int.21 (1), 445. 10.1186/s12935-021-02144-y

  • 6

    CarverW.FixE.FixC.FanD.ChakrabartiM.AzharM. (2021). Effects of emodin, a plant-derived anthraquinone, on TGF-β1-induced cardiac fibroblast activation and function. J. Cell Physiol.236 (11), 7440–7449. 10.1002/jcp.30416

  • 7

    CellaL.D'AvinoV.PalmaG.ConsonM.LiuzziR.PicardiM.et al (2015). Modeling the risk of radiation-induced lung fibrosis: Irradiated heart tissue is as important as irradiated lung. Radiother. Oncol.117 (1), 36–43. 10.1016/j.radonc.2015.07.051

  • 8

    ChakrabartiM.Al-SammarraieN.GebereM. G.BhattacharyaA.ChopraS.JohnsonJ.et al (2020). Transforming growth factor Beta3 is Required for cardiovascular development. J. Cardiovasc Dev. Dis.7 (2), 19. 10.3390/jcdd7020019

  • 9

    CheH.WangY.LiH.SahilA.LvJ.LiuY.et al (2020). Melatonin alleviates cardiac fibrosis via inhibiting lncRNA MALAT1/miR-141-mediated NLRP3 inflammasome and TGF-β1/Smads signaling in diabetic cardiomyopathy. FASEB J.34 (4), 5282–5298. 10.1096/fj.201902692R

  • 10

    CheH.WangY.LiY.LvJ.LiH.LiuY.et al (2020). Inhibition of microRNA-150-5p alleviates cardiac inflammation and fibrosis via targeting Smad7 in high glucose-treated cardiac fibroblasts. J. Cell Physiol.235 (11), 7769–7779. 10.1002/jcp.29386

  • 11

    ChenG.HuangS.SongF.ZhouY.HeX. (2020). Lnc-Ang362 is a pro-fibrotic long non-coding RNA promoting cardiac fibrosis after myocardial infarction by suppressing Smad7. Arch. Biochem. Biophys.685, 108354. 10.1016/j.abb.2020.108354

  • 12

    ChenG.XuH.XuT.DingW.ZhangG.HuaY.et al (2022). Calycosin reduces myocardial fibrosis and improves cardiac function in post-myocardial infarction mice by suppressing TGFBR1 signaling pathways. Phytomedicine104, 154277. 10.1016/j.phymed.2022.154277

  • 13

    ChenJ.ChangR. (2022). Association of TGF-β Canonical signaling-related Core genes with aortic Aneurysms and aortic Dissections. Front. Pharmacol.13, 888563. 10.3389/fphar.2022.888563

  • 14

    ChenK.GuanY.MaY.QuanD.ZhangJ.LiuX.et al (2021). Modulation of transforming growth factor-beta signaling pathway mediates the effects of Kangxian Formula on cardiac remodeling. J. Ethnopharmacol.272, 113922. 10.1016/j.jep.2021.113922

  • 15

    ChenX.LongL.ChengY.ChuJ.ShenZ.LiuL.et al (2021). Qingda granule attenuates cardiac fibrosis via suppression of the TGF-β1/Smad2/3 signaling pathway in vitro and in vivo. Biomed. Pharmacother.137, 111318. 10.1016/j.biopha.2021.111318

  • 16

    ChenX. L.ZhengD. G.XuQ. (2019). Effect of South Semen Lepidii extraction solution on myocardial autophagy and MAPK/ERK1/2 pathway in rats myocardial ischemia/reperfusion. Chin. J. Eme28 (08), 1349–1353.

  • 17

    ChenZ. T.ZhangH. F.WangM.WangS. H.WenZ. Z.GaoQ. Y.et al (2020). Long non-coding RNA Linc00092 inhibits cardiac fibroblast activation by altering glycolysis in an ERK-dependent manner. Cell Signal74, 109708. 10.1016/j.cellsig.2020.109708

  • 18

    ConnollyM.GarfieldB. E.CrosbyA.MorrellN. W.WortS. J.KempP. R. (2020). miR-1-5p targets TGF-βR1 and is suppressed in the hypertrophying hearts of rats with pulmonary arterial hypertension. PLoS One15 (2), e0229409. 10.1371/journal.pone.0229409

  • 19

    DavisJ.MolkentinJ. D. (2014). Myofibroblasts: Trust your heart and let fate decide. J. Mol. Cell Cardiol.70, 9–18. 10.1016/j.yjmcc.2013.10.019

  • 20

    De OliveiraR. C.TyeG.SampaioL. P.ShijuT. M.DeDreuJ.MenkoA. S.et al (2021). TGFβ1 and TGFβ2 proteins in corneas with and without stromal fibrosis: Delayed regeneration of apical epithelial growth factor barrier and the epithelial basement membrane in corneas with stromal fibrosis. Exp. Eye Res.202, 108325. 10.1016/j.exer.2020.108325

  • 21

    DingH.YaoJ.XieH.WangC.ChenJ.WeiK.et al (2021). MicroRNA-195-5p downregulation inhibits endothelial mesenchymal transition and myocardial fibrosis in diabetic cardiomyopathy by targeting Smad7 and inhibiting transforming growth factor beta 1-smads-Snail pathway. Front. Physiol.12, 709123. 10.3389/fphys.2021.709123

  • 22

    DongL.LiJ. C.HuZ. J.HuangX. R.WangL.WangH. L.et al (2021). Deletion of Smad3 protects against diabetic myocardiopathy in db/db mice. J. Cell Mol. Med.25 (10), 4860–4869. 10.1111/jcmm.16464

  • 23

    DuW.LiangH.GaoX.LiX.ZhangY.PanZ.et al (2016). MicroRNA-328, a potential anti-fibrotic target in cardiac interstitial fibrosis. Cell Physiol. Biochem.39 (3), 827–836. 10.1159/000447793

  • 24

    FengW.YingZ.KeF.Mei-LinX. (2021). Apigenin suppresses TGF-β1-induced cardiac fibroblast differentiation and collagen synthesis through the downregulation of HIF-1α expression by miR-122-5p. Phytomedicine83, 153481. 10.1016/j.phymed.2021.153481

  • 25

    FengY.BaoY.DingJ.LiH.LiuW.WangX.et al (2022). MicroRNA-130a attenuates cardiac fibrosis after myocardial infarction through TGF-β/Smad signaling by directly targeting TGF-β receptor 1. Bioengineered13 (3), 5779–5791. 10.1080/21655979.2022.2033380

  • 26

    FuY.HuX.CaoY.ZhangZ.ZhangN. (2015). Saikosaponin a inhibits lipopolysaccharide-oxidative stress and inflammation in Human umbilical vein endothelial cells via preventing TLR4 translocation into lipid rafts. Free Radic. Biol. Med.89, 777–785. 10.1016/j.freeradbiomed.2015.10.407

  • 27

    GambiniJ.InglésM.OlasoG.Lopez-GruesoR.Bonet-CostaV.Gimeno-MaLLenchL.et al (2015). Properties of resveratrol: In vitro and in vivo studies about metabolism, bioavailability, and biological effects in animal models and humans. Oxid. Med. Cell Longev.2015, 837042. 10.1155/2015/837042

  • 28

    GaoY.LiuY.FuY.WangQ.LiuZ.HuR.et al (2021). The potential regulatory role of hsa_circ_0004104 in the persistency of atrial fibrillation by promoting cardiac fibrosis via TGF-β pathway. BMC Cardiovasc Disord.21 (1), 25. 10.1186/s12872-021-01847-4

  • 29

    GebertL. F. R.MacRaeI. J. (2019). Regulation of microRNA function in animals. Nat. Rev. Mol. Cell Biol.20 (1), 21–37. 10.1038/s41580-018-0045-7

  • 30

    GongK.ChenY. F.LiP.LucasJ. A.HageF. G.YangQ.et al (2011). Transforming growth factor-β inhibits myocardial PPARγ expression in pressure overload-induced cardiac fibrosis and remodeling in mice. J. Hypertens.29 (9), 1810–1819. 10.1097/HJH.0b013e32834a4d03

  • 31

    GonzálezA.SchelbertE. B.DíezJ.ButlerJ. (2018). Myocardial interstitial fibrosis in heart failure: Biological and translational Perspectives. J. Am. Coll. Cardiol.71 (15), 1696–1706. 10.1016/j.jacc.2018.02.021

  • 32

    GuJ.LiuY.WuH.LiH.LiuK. (2019). Huangqi Shengmai Yin protects against radiation-induced cardiac fibrosis injury by regulating the TGF-β1/smads and MMPs. Evid. Based Complement. Altern. Med.2019, 1358469. 10.1155/2019/1358469

  • 33

    GuY.ZhangS.ChenX.LiY.LiuY. (2022). LongShengZhi alleviated cardiac remodeling via upregulation microRNA-150-5p with matrix metalloproteinase 14 as the target. J. Ethnopharmacol.291, 115156. 10.1016/j.jep.2022.115156

  • 34

    GuoF.TangC.HuangB.GuL.ZhouJ.MoZ.et al (2022). LncRNA H19 Drives proliferation of cardiac fibroblasts and collagen production via suppression of the miR-29a-3p/miR-29b-3p-VEGFA/TGF-β Axis. Mol. Cells45 (3), 122–133. 10.14348/molcells.2021.0066

  • 35

    GuoJ. U.AgarwalV.GuoH.BartelD. P. (2014). Expanded identification and characterization of mammalian circular RNAs. Genome Biol.15 (7), 409. 10.1186/s13059-014-0409-z

  • 36

    GuoS.LiP.FuB.ChuoW.GaoK.ZhangW.et al (2016). Systems-biology dissection of mechanisms and chemical basis of herbal formula in treating chronic myocardial ischemia. Pharmacol. Res.114, 196–208. 10.1016/j.phrs.2016.10.026

  • 37

    GuptaS. S.ZeglinskiM. R.RattanS. G.LandryN. M.GhavamiS.WigleJ. T.et al (2016). Inhibition of autophagy inhibits the conversion of cardiac fibroblasts to cardiac myofibroblasts. Oncotarget7 (48), 78516–78531. 10.18632/oncotarget.12392

  • 38

    HachanaS.LarrivéeB. (2022). TGF-Β superfamily signaling in the Eye: Implications for ocular Pathologies. Cells11 (15), 2336. 10.3390/cells11152336

  • 39

    HanX.WangS.YongZ.ZhangX.WangX. (2022). miR-29b ameliorates atrial fibrosis in rats with atrial fibrillation by targeting TGFβRΙ and inhibiting the activation of Smad-2/3 pathway. J. Bioenerg. Biomembr.54 (2), 81–91. 10.1007/s10863-022-09934-7

  • 40

    HeF.ChuJ. F.ChenH. W.LinW.LinS.ChenY. Q.et al (2020). Qingxuan Jiangya decoction prevents Blood pressure elevation and ameliorates vascular structural remodeling via modulating TGF-β 1/smad pathway in spontaneously hypertensive rats. Chin. J. Integr. Med.26 (3), 180–187. 10.1007/s11655-019-2705-7

  • 41

    HuJ. X.ZhengZ. Q.KangT.QianW.HuangS. H.LiB. G. (2022). LncRNA LINC00961 regulates endothelial-mesenchymal transition via the PTEN-PI3K-AKT pathway. Mol. Med. Rep.26 (1), 246. 10.3892/mmr.2022.12762

  • 42

    HuZ. C.ShiF.LiuP.ZhangJ.GuoD.CaoX. L.et al (2017). TIEG1 Represses smad7-mediated activation of TGF-β1/smad signaling in Keloid pathogenesis. J. Invest Dermatol137 (5), 1051–1059. 10.1016/j.jid.2016.12.019

  • 43

    HuangS.ChenB.SuY.AlexL.HumeresC.ShindeA. V.et al (2019). Distinct roles of myofibroblast-specific Smad2 and Smad3 signaling in repair and remodeling of the infarcted heart. J. Mol. Cell Cardiol.132, 84–97. 10.1016/j.yjmcc.2019.05.006

  • 44

    HuangX.LinX.WangL.XieY.QueY.LiS.et al (2022). Substitution of SERCA2 Cys674 aggravates cardiac fibrosis by promoting the transformation of cardiac fibroblasts to cardiac myofibroblasts. Biochem. Pharmacol.203, 115164. 10.1016/j.bcp.2022.115164

  • 45

    HumeresC.ShindeA. V.HannaA.AlexL.HernandezS. C.LiR.et al (2022). Smad7 effects on TGF-β and ErbB2 restrain myofibroblast activation and protect from postinfarction heart failure. J. Clin. Invest132 (3), e146926. 10.1172/JCI146926

  • 46

    JiangY. X.LiW.WangJ.WangG. G. (2020). Cardiac dysfunction is attenuated by ginkgolide B via reducing oxidative stress and fibrosis in diabetic rats. Iran. J. Basic Med. Sci.23 (8), 1078–1084. 10.22038/ijbms.2020.44210.10358

  • 47

    LiuY.ChengL.ZhanH.LiH.LiX.HuangY.et al (2022). The roles of noncoding RNAs in systemic Sclerosis. Front. Immunol.13, 856036. 10.3389/fimmu.2022.856036

  • 48

    JiY.QiuM.ShenY.GaoL.WangY.SunW.et al (2018). MicroRNA-327 regulates cardiac hypertrophy and fibrosis induced by pressure overload. Int. J. Mol. Med.41 (4), 1909–1916. 10.3892/ijmm.2018.3428

  • 49

    JiangL.ChenF. X.ZangS. T.YangQ. F. (2017). Betulinic acid prevents high glucose-induced expression of extracellular matrix protein in cardiac fibroblasts by inhibiting the TGF-β1/Smad signaling pathway. Mol. Med. Rep.16 (5), 6320–6325. 10.3892/mmr.2017.7323

  • 50

    KaartinenV.VonckenJ. W.ShulerC.WarburtonD.BuD.HeisterkampN.et al (1995). Abnormal lung development and cleft palate in mice lacking TGF-beta 3 indicates defects of epithelial-mesenchymal interaction. Nat. Genet.11 (4), 415–421. 10.1038/ng1295-415

  • 51

    KamatoD.BurchM. L.PivaT. J.RezaeiH. B.RostamM. A.XuS.et al (2013). Transforming growth factor-β signalling: Role and consequences of smad linker region phosphorylation. Cell Signal25 (10), 2017–2024. 10.1016/j.cellsig.2013.06.001

  • 52

    KapranovP.St LaurentG.RazT.OzsolakF.ReynoldsC. P.SorensenP. H. B.et al (2010). The majority of total nuclear-encoded non-ribosomal RNA in a human cell is 'dark matter' un-annotated RNA. BMC Biol.8, 149. 10.1186/1741-7007-8-149

  • 53

    KhalilH.KanisicakO.PrasadV.CorrellR. N.FuX.SchipsT.et al (2017). Fibroblast-specific TGF-β-Smad2/3 signaling underlies cardiac fibrosis. J. Clin. Invest127 (10), 3770–3783. 10.1172/JCI94753

  • 54

    KongP.ChristiaP.FrangogiannisN. G. (2014). The pathogenesis of cardiac fibrosis. Cell Mol. Life Sci.71 (4), 549–574. 10.1007/s00018-013-1349-6

  • 55

    LaiY. J.TsaiF. C.ChangG. J.ChangS. H.HuangC. C.ChenW. J.et al (2022). miR-181b targets semaphorin 3A to mediate TGF-β-induced endothelial-mesenchymal transition related to atrial fibrillation. J. Clin. Invest132 (13), e142548. 10.1172/JCI142548

  • 56

    LangM.OuD.LiuZ.LiY.ZhangX.ZhangF. (2021). LncRNA MHRT promotes cardiac fibrosis via miR-3185 pathway following myocardial infarction. Int. Heart J.62 (4), 891–899. 10.1536/ihj.20-298

  • 57

    LeeT. H.YehC. F.LeeY. T.ShihY. C.ChenY. T.HungC. T.et al (2020). Fibroblast-enriched endoplasmic reticulum protein TXNDC5 promotes pulmonary fibrosis by augmenting TGFβ signaling through TGFBR1 stabilization. Nat. Commun.11 (1), 4254. 10.1038/s41467-020-18047-x

  • 58

    LiC.LiJ.XueK.ZhangJ.WangC.ZhangQ.et al (2019). MicroRNA-143-3p promotes human cardiac fibrosis via targeting sprouty3 after myocardial infarction. J. Mol. Cell Cardiol.129, 281–292. 10.1016/j.yjmcc.2019.03.005

  • 59

    LiD.MaoC.ZhouE.YouJ.GaoE.HanZ.et al (2020). MicroRNA-21 mediates a positive feedback on angiotensin II-induced myofibroblast transformation. J. Inflamm. Res.13, 1007–1020. 10.2147/JIR.S285714

  • 60

    LiG.YangJ.ZhangD.WangX.HanJ.GuoX. (2022). Research progress of myocardial fibrosis and atrial fibrillation. Front. Cardiovasc Med.9, 889706. 10.3389/fcvm.2022.889706

  • 61

    LiJ.DaiY.SuZ.WeiG. (2016). MicroRNA-9 inhibits high glucose-induced proliferation, differentiation and collagen accumulation of cardiac fibroblasts by down-regulation of TGFBR2. Biosci. Rep.36 (6), e00417. 10.1042/BSR20160346

  • 62

    LiJ.GeF.WukenS.JiaoS.ChenP.HuangM.et al (2022). Zerumbone, a humulane sesquiterpene from Syringa pinnatifolia, attenuates cardiac fibrosis by inhibiting of the TGF-β1/Smad signaling pathway after myocardial infarction in mice. Phytomedicine100, 154078. 10.1016/j.phymed.2022.154078

  • 63

    LiL.FangH.YuY. H.LiuS. X.YangZ. Q. (2021). Liquiritigenin attenuates isoprenaline-induced myocardial fibrosis in mice through the TGF-β1/Smad2 and AKT/ERK signaling pathways. Mol. Med. Rep.24 (4), 686. 10.3892/mmr.2021.12326

  • 64

    LiP.SongJ.DuH.LuY.DongS.ZhouS.et al (2021). MicroRNA-663 prevents monocrotaline-induced pulmonary arterial hypertension by targeting TGF-β1/smad2/3 signaling. J. Mol. Cell Cardiol.161, 9–22. 10.1016/j.yjmcc.2021.07.010

  • 65

    LiP. F.HeR. H.ShiS. B.WangQ. T.RaoG. T.YangB.et al (2019). Modulation of miR-10a-mediated TGF-β1/Smads signaling affects atrial fibrillation-induced cardiac fibrosis and cardiac fibroblast proliferation. Biosci. Rep.39 (2), BSR20181931. 10.1042/BSR20181931

  • 66

    LiQ.YaoY.ShiS.ZhouM.ZhouY.WangM.et al (2020). Inhibition of miR-21 alleviated cardiac perivascular fibrosis via repressing EndMT in T1DM. J. Cell Mol. Med.24 (1), 910–920. 10.1111/jcmm.14800

  • 67

    LiW.WangY.DengY.NiH.ShenG.LiuX.et al (2020). Epigenetic control of circHNRNPH1 in Postischemic myocardial fibrosis through targeting of TGF-β receptor type I. Mol. Ther. Nucleic Acids25, 93–104. 10.1016/j.omtn.2020.08.008

  • 68

    LiX.YangL.ChenL. L. (2018). The biogenesis, functions, and Challenges of circular RNAs. Mol. Cell71 (3), 428–442. 10.1016/j.molcel.2018.06.034

  • 69

    LiY.LiuP.WeiF. (2022). Long non-coding RNA MBI-52 inhibits the development of liver fibrosis by regulating the microRNA-466g/SMAD4 signaling pathway. Mol. Med. Rep.25 (1), 33. 10.3892/mmr.2021.12549

  • 70

    LiaoY.ChenK.DongX.LiW.LiG.HuangG.et al (2018). Berberine inhibits cardiac remodeling of heart failure after myocardial infarction by reducing myocardial cell apoptosis in rats. Exp. Ther. Med.16 (3), 2499–2505. 10.3892/etm.2018.6438

  • 71

    LinR.Rahtu-KorpelaL.MaggaJ.UlvilaJ.SwanJ.KemppiA.et al (2020). miR-1468-3p promotes Aging-related cardiac fibrosis. Mol. Ther. Nucleic Acids20, 589–605. 10.1016/j.omtn.2020.04.001

  • 72

    LinY. C.WangY. C.LeeY. C.LinH. H.ChangK. L.TaiY. C.et al (2022). CircVIS: A platform for circRNA visual presentation. BMC Genomics22 (5), 921. 10.1186/s12864-022-08650-1

  • 73

    LiuB.ChenM.MengW. (2022). lncRNA Vgll3 regulates the activated proliferation of mouse myocardial fibroblasts through TGF-β3-related pathway. Biomed. Res. Int.2022, 2055738. 10.1155/2022/2055738

  • 74

    LiuL.LuoF.LeiK. (2021). Exosomes containing LINC00636 inhibit MAPK1 through the miR-450a-2-3p overexpression in human Pericardial Fluid and improve cardiac fibrosis in patients with atrial fibrillation. Mediat. Inflamm.2021, 9960241. 10.1155/2021/9960241

  • 75

    LiuM.HonjoM.YamagishiR.IgarashiN.NakamuraN.KuranoM.et al (2022). Fibrotic response of human Trabecular Meshwork cells to transforming growth factor-beta 3 and Autotaxin in Aqueous humor. Biomolecules12 (9), 1231. 10.3390/biom12091231

  • 76

    LiuW.WangY.QiuZ.ZhaoR.LiuZ.ChenW.et al (2020). CircHIPK3 regulates cardiac fibroblast proliferation, migration and phenotypic switching through the miR-152-3p/TGF-β2 axis under hypoxia. PeerJ8, e9796. 10.7717/peerj.9796

  • 77

    LiuX.SongX.LuJ.ChenX.LiangE.LiuX.et al (2016). Neferine inhibits proliferation and collagen synthesis induced by high glucose in cardiac fibroblasts and reduces cardiac fibrosis in diabetic mice. Oncotarget7 (38), 61703–61715. 10.18632/oncotarget.11225

  • 78

    LiuX.XuY.DengY.LiH. (2018). MicroRNA-223 regulates cardiac fibrosis after myocardial infarction by targeting RASA1. Cell Physiol. Biochem.46 (4), 1439–1454. 10.1159/000489185

  • 79

    LiuY.GaoL.ZhaoX.GuoS.LiR.LiangC. (2018). Saikosaponin A protects from pressure overload-induced cardiac fibrosis via inhibiting fibroblast activation or endothelial cell EndMT. Int. J. Biol. Sci.14 (13), 1923–1934. 10.7150/ijbs.27022

  • 80

    LiuY.LiY.LiJ.ZuoX.CaoQ.XieW.et al (2021). Inhibiting miR-1 attenuates pulmonary arterial hypertension in rats. Mol. Med. Rep.23 (4), 283. 10.3892/mmr.2021.11922

  • 81

    LópezB.RavassaS.MorenoM. U.JoseG. S.BeaumontJ.GonzalezA.et al (2021). Diffuse myocardial fibrosis: Mechanisms, diagnosis and therapeutic approaches. Nat. Rev. Cardiol.18 (7), 479–498. 10.1038/s41569-020-00504-1

  • 82

    LovelockJ. D.BakerA. H.GaoF.DongJ. F.BergeronA. L.McPheatW.et al (2005). Heterogeneous effects of tissue inhibitors of matrix metalloproteinases on cardiac fibroblasts. Am. J. Physiol. Heart Circ. Physiol.288 (2), H461–H468. 10.1152/ajpheart.00402.2004

  • 83

    LuY.KanH.WangY.WangD.WangX.GaoJ.et al (2018). Asiatic acid ameliorates hepatic ischemia/reperfusion injury in rats via mitochondria-targeted protective mechanism. Toxicol. Appl. Pharmacol.338, 214–223. 10.1016/j.taap.2017.11.023

  • 84

    LuoB.HeZ.HuangS.WangJ.HanD.XueH.et al (2020). Long non-coding RNA 554 promotes cardiac fibrosis via TGF-β1 pathway in mice following myocardial infarction. Front. Pharmacol.11, 585680. 10.3389/fphar.2020.585680

  • 85

    LuoJ. (2022). TGF-Β as a key modulator of Astrocyte Reactivity: Disease relevance and therapeutic Implications. Biomedicines10 (5), 1206. 10.3390/biomedicines10051206

  • 86

    MaJ.RenM.LiJ.ZhengC.ChenQ.MaS. (2022). Danqi soft caspule prevents atrial fibrillation by ameliorating left atrial remodeling through inhibiting cardiac fibroblasts differentiation and function. Phytomedicine101, 154134. 10.1016/j.phymed.2022.154134

  • 87

    MallikarjunaP.ZhouY.LandströmM. (2022). The Synergistic Cooperation between TGF-β and hypoxia in Cancer and fibrosis. Biomolecules12 (5), 635. 10.3390/biom12050635

  • 88

    McDowellC. M.TebowH. E.WordingerR. J.ClarkA. F. (2013). Smad3 is necessary for transforming growth factor-beta2 induced ocular hypertension in mice. Exp. Eye Res.116, 419–423. 10.1016/j.exer.2013.10.017

  • 89

    MengQ.BhandaryB.BhuiyanM. S.JamesJ.OsinskaH.Valiente-AlandiI.et al (2018). Myofibroblast-specific TGFβ receptor II signaling in the fibrotic response to cardiac Myosin binding protein C-induced cardiomyopathy. Circ. Res.123 (12), 1285–1297. 10.1161/CIRCRESAHA.118.313089

  • 90

    MengS.YangF.WangY.QinY.XianH.CheH.et al (2019). Silymarin ameliorates diabetic cardiomyopathy via inhibiting TGF-β1/Smad signaling. Cell Biol. Int.43 (1), 65–72. 10.1002/cbin.11079

  • 91

    MengX. M.Nikolic-PatersonD. J.LanH. Y. (2016). TGF-Β: The master regulator of fibrosis. Nat. Rev. Nephrol.12 (6), 325–338. 10.1038/nrneph.2016.48

  • 92

    MercerT. R.DingerM. E.MattickJ. S. (2009). Long non-coding RNAs: Insights into functions. Nat. Rev. Genet.10 (3), 155–159. 10.1038/nrg2521

  • 93

    NiH.LiW.ZhugeY.XuS.WangY.ChenY.et al (2019). Inhibition of circHIPK3 prevents angiotensin II-induced cardiac fibrosis by sponging miR-29b-3p. Int. J. Cardiol.292, 188–196. 10.1016/j.ijcard.2019.04.006

  • 94

    NicinL.WagnerJ. U. G.LuxánG.DimmelerS. (2022). Fibroblast-mediated intercellular crosstalk in the healthy and diseased heart. FEBS Lett.596 (5), 638–654. 10.1002/1873-3468.14234

  • 95

    RolN.KurakulaK. B.HappéC.BogaardH. J.GoumansM. J. (2018). TGF-Β and BMPR2 signaling in PAH: Two Black Sheep in one family. Int. J. Mol. Sci.19 (9), 2585. 10.3390/ijms19092585

  • 96

    PanY.ShaoC.ZhangL.HeY.YangJ.FuW.et al (2021). The effect of Guanxin Shutong capsule on alleviating the myocardial fibrosis in heart failure rats. J. Ethnopharmacol.275, 114169. 10.1016/j.jep.2021.114169

  • 97

    PengM.YangM.LuY.LinS.GaoH.XieL.et al (2021). Huoxin Pill inhibits isoproterenol-induced transdifferentiation and collagen synthesis in cardiac fibroblasts through the TGF-β/Smads pathway. J. Ethnopharmacol.275, 114061. 10.1016/j.jep.2021.114061

  • 98

    PiegariE.CozzolinoA.CiuffredaL. P.CappettaD.De AngelisA.UrbanekK.et al (2020). Cardioprotective effects of miR-34a silencing in a rat model of doxorubicin toxicity. Sci. Rep.10 (1), 12250. 10.1038/s41598-020-69038-3

  • 99

    PinhoJ. D.SilvaG. E. B.Teixeira-JúniorA. A. L.RochaT. M. S.BatistaL. L.de SousaA. M.et al (2022). Non-coding RNA in penile Cancer. Front. Oncol.12, 812008. 10.3389/fonc.2022.812008

  • 100

    QiY.WuH.MaiC.LinH.ShenJ.ZhangX.et al (2020). LncRNA-MIAT-mediated miR-214-3p silencing is responsible for IL-17 production and cardiac fibrosis in diabetic cardiomyopathy. Front. Cell Dev. Biol.8, 243. 10.3389/fcell.2020.00243

  • 101

    QiaoP.XuJ.LiuX.LiX. (2021). Tanshinone IIA improves ventricular remodeling following cardiac infarction by regulating miR-205-3p. Dis. Markers2021, 8740831. 10.1155/2021/8740831

  • 102

    QuX.DuY.ShuY.GaoM.SunF.LuoS.et al (2017). MIAT is a pro-fibrotic long non-coding RNA Governing cardiac fibrosis in post-infarct myocardium. Sci. Rep.7, 42657. 10.1038/srep42657

  • 103

    RoncaratiR.Viviani AnselmiC.LosiM. A.PapaL.CavarrettaE.Da Costa MartinsP.et al (2014). Circulating miR-29a, among other up-regulated microRNAs, is the only biomarker for both hypertrophy and fibrosis in patients with hypertrophic cardiomyopathy. J. Am. Coll. Cardiol.63 (9), 920–927. 10.1016/j.jacc.2013.09.041

  • 104

    SanfordL. P.OrmsbyI.Gittenberger-de GrootA. C.SariolaH.FriedmanR.BoivinG. P.et al (1997). TGFbeta2 knockout mice have multiple developmental defects that are non-overlapping with other TGFbeta knockout phenotypes. Development124 (13), 2659–2670. 10.1242/dev.124.13.2659

  • 105

    ShiH.SunL.ZhengD.XuG.ShaoG. (2022). Long noncoding RNA HLA complex group 18 improves the cell proliferation of myocardial fibroblasts by regulating the hsa-microRNA-133a/Epidermal growth factor receptor Axis. Evid. Based Complement. Altern. Med.2022, 2668239. 10.1155/2022/2668239

  • 106

    ShindeA. V.HumeresC.FrangogiannisN. G. (2017). The role of α-smooth muscle actin in fibroblast-mediated matrix contraction and remodeling. Biochim. Biophys. Acta Mol. Basis Dis.1863 (1), 298–309. 10.1016/j.bbadis.2016.11.006

  • 107

    StatelloL.GuoC. J.ChenL. L.HuarteM. (2021). Gene regulation by long non-coding RNAs and its biological functions. Nat. Rev. Mol. Cell Biol.22 (2), 96–118. 10.1038/s41580-020-00315-9

  • 108

    StawowyP.MargetaC.KallischH.SeidahN. G.ChretienM.FleckE.et al (2004). Regulation of matrix metalloproteinase MT1-MMP/MMP-2 in cardiac fibroblasts by TGF-beta1 involves furin-convertase. Cardiovasc Res.63 (1), 87–97. 10.1016/j.cardiores.2004.03.010

  • 109

    SuC.WangQ.LuoH.JiaoW.TangJ.LiL.et al (2020). Si-Miao-Yong-An decoction attenuates cardiac fibrosis via suppressing TGF-β1 pathway and interfering with MMP-TIMPs expression. Biomed. Pharmacother.127, 110132. 10.1016/j.biopha.2020.110132

  • 110

    SunJ.WangZ.ShiH.GuL.WangS.WangH.et al (2020). LncRNA FAF inhibits fibrosis induced by angiotensinogen II via the TGFβ1-P-Smad2/3 signalling by targeting FGF9 in cardiac fibroblasts. Biochem. Biophys. Res. Commun.521 (3), 814–820. 10.1016/j.bbrc.2019.10.175

  • 111

    SunR.WangJ.ZhengY.LiX.XieT.LiR.et al (2017). Traditional Chinese medicine baoxin decoction improves cardiac fibrosis of rats with dilated cardiomyopathy. Exp. Ther. Med.13 (5), 1900–1906. 10.3892/etm.2017.4223

  • 112

    TanZ.JiangX.ZhouW.DengB.CaiM.DengS.et al (2021). Taohong siwu decoction attenuates myocardial fibrosis by inhibiting fibrosis proliferation and collagen deposition via TGFBR1 signaling pathway. J. Ethnopharmacol.270, 113838. 10.1016/j.jep.2021.113838

  • 113

    TangY.HuoX.LiuJ.ZhangM.XieW.ZhengZ.et al (2022). MicroRNA-325-3p targets human epididymis protein 4 to relieve right ventricular fibrosis in rats with pulmonary arterial hypertension. Cardiovasc Ther.2022, 4382999. 10.1155/2022/4382999

  • 114

    TaoH.CaoW.YangJ. J.ShiK. H.ZhouX.LiuL. P.et al (2016). Long noncoding RNA H19 controls DUSP5/ERK1/2 axis in cardiac fibroblast proliferation and fibrosis. Cardiovasc Pathol.25 (5), 381–389. 10.1016/j.carpath.2016.05.005

  • 115

    TaoH.ZhangJ. G.QinR. H.DaiC.ShiP.YangJ. J.et al (2017). LncRNA GAS5 controls cardiac fibroblast activation and fibrosis by targeting miR-21 via PTEN/MMP-2 signaling pathway. Toxicology386, 11–18. 10.1016/j.tox.2017.05.007

  • 116

    TaoJ.WangJ.LiC.WangW.YuH.LiuJ.et al (2019). MiR-216a accelerates proliferation and fibrogenesis via targeting PTEN and SMAD7 in human cardiac fibroblasts. Cardiovasc Diagn Ther.9 (6), 535–544. 10.21037/cdt.2019.11.06

  • 117

    TraversJ. G.KamalF. A.RobbinsJ.YutzeyK. E.BlaxallB. C. (2016). Cardiac fibrosis: The fibroblast Awakens. Circ. Res.118 (6), 1021–1040. 10.1161/CIRCRESAHA.115.306565

  • 118

    TuletaI.FrangogiannisN. G. (2021). Diabetic fibrosis. Biochim. Biophys. Acta Mol. Basis Dis.1867 (4), 166044. 10.1016/j.bbadis.2020.166044

  • 119

    TurnerN. A.BlytheN. M. (2019). Cardiac fibroblast p38 MAPK: A critical regulator of myocardial remodeling. J. Cardiovasc Dev. Dis.6 (3), 27. 10.3390/jcdd6030027

  • 120

    WangH.JiangW.HuY.WanZ.BaiH.YangQ.et al (2021). Quercetin improves atrial fibrillation through inhibiting TGF-β/Smads pathway via promoting MiR-135b expression. Phytomedicine93, 153774. 10.1016/j.phymed.2021.153774

  • 121

    WangH.LianX.GaoW.GuJ.ShiH.MaY.et al (2022). Long noncoding RNA H19 suppresses cardiac hypertrophy through the MicroRNA-145-3p/SMAD4 axis. Bioengineered13 (2), 3826–3839. 10.1080/21655979.2021.2017564

  • 122

    WangJ.LiuX.ZhuangQ.PanR.ZouL.CenZ.et al (2019). Long noncoding RNA homeobox A11 antisense promotes transforming growth factor β1-induced fibrogenesis in cardiac fibroblasts. Mol. Med. Rep.19 (4), 2817–2824. 10.3892/mmr.2019.9891

  • 123

    WangJ.XuN.FengX.HouN.ZhangJ.ChengX.et al (2005). Targeted disruption of Smad4 in cardiomyocytes results in cardiac hypertrophy and heart failure. Circ. Res.97 (8), 821–828. 10.1161/01.RES.0000185833.42544.06

  • 124

    WangL.JiangP.HeY.HuH.GuoY.LiuX.et al (2019). A novel mechanism of Smads/miR-675/TGFβR1 axis modulating the proliferation and remodeling of mouse cardiac fibroblasts. J. Cell Physiol.234 (11), 20275–20285. 10.1002/jcp.28628

  • 125

    WangQ.WeiS.LiL.BuQ.ZhouH.SuW.et al (2021). miR-139-5p sponged by LncRNA NEAT1 regulates liver fibrosis via targeting β-catenin/SOX9/TGF-β1 pathway. Cell Death Discov.7 (1), 243. 10.1038/s41420-021-00632-8

  • 126

    WangQ.ZouY.NowotschinS.KimS. Y.LiQ. V.SohC. L.et al (2017). The p53 family Coordinates Wnt and Nodal Inputs in Mesendodermal differentiation of Embryonic Stem cells. Cell Stem Cell20 (1), 70–86. 10.1016/j.stem.2016.10.002

  • 127

    WangY.FangM. D.WangC. (2020). Inhibitory effect of safflower-lepidium on myocardial fibrosis based on the signal pathway of cardiac fibroblasts microRNA-22/TGFβ1. Liaoning J. Tradit. Chin. Med.47 (12), 171–175+240.

  • 128

    WeiY.WuY.FengK.ZhaoY.TaoR.XuH.et al (2020). Astragaloside IV inhibits cardiac fibrosis via miR-135a-TRPM7-TGF-β/Smads pathway. J. Ethnopharmacol.249, 112404. 10.1016/j.jep.2019.112404

  • 129

    WuG.YuD. L.LiL. (2021). Influence mechanism of myocardial fibrosis and vascular regeneration of Shexiang Tongxin Pills to Syndrome of Qi deficiency and Blood Stasis in ischemic heart Failur. Chin J Exp Tradit Med For27 (01), 141–214.

  • 130

    WuX.ZhouC.DuF.LuY.PengB.ChenL.et al (2013). Ginkgolide B preconditioning on astrocytes promotes neuronal survival in ischemic injury via up-regulating erythropoietin secretion. Neurochem. Int.62 (2), 157–164. 10.1016/j.neuint.2012.11.007

  • 131

    WuX.ZhuJ.WeiY.GuanX.ZhangY.ChenW.et al (2019). MicroRNA-663 participates in myocardial fibrosis through interaction with TGF-β1. Exp. Ther. Med.18 (4), 3172–3176. 10.3892/etm.2019.7902

  • 132

    XiaoH.LiB.YangX.YinQ. (2020). Interference of TGF-β1/Smad7 signal pathway affects myocardial fibrosis in hypertension. Pak J. Pharm. Sci.33 (6), 2625–2631.

  • 133

    XiaoJ.ZhangY.TangY.DaiH.OuYangY.LiC.et al (2021). MiRNA-1202 promotes the TGF-β1-induced proliferation, differentiation and collagen production of cardiac fibroblasts by targeting nNOS. PLoS One16 (8), e0256066. 10.1371/journal.pone.0256066

  • 134

    XiaoY.YeJ.ZhouY.HuangJ.LiuX.HuangB.et al (2018). Baicalin inhibits pressure overload-induced cardiac fibrosis through regulating AMPK/TGF-β/Smads signaling pathway. Arch. Biochem. Biophys.640, 37–46. 10.1016/j.abb.2018.01.006

  • 135

    XuJ.WuH.ChenS.QiB.ZhouG.CaiL.et al (2018). MicroRNA-30c suppresses the pro-fibrogenic effects of cardiac fibroblasts induced by TGF-β1 and prevents atrial fibrosis by targeting TGFβRII. J. Cell Mol. Med.22 (6), 3045–3057. 10.1111/jcmm.13548

  • 136

    XueK.ChenS.ChaiJ.YanW.ZhuX.DaiH.et al (2022). Upregulation of Periostin through CREB participates in myocardial infarction -induced myocardial fibrosis. J. Cardiovasc Pharmacol.79 (5), 687–697. 10.1097/FJC.0000000000001244

  • 137

    YangL.HuJ.HaoH. Z.YinZ.LiuG.ZouX. J. (2015). Sodium tanshinone IIA sulfonate attenuates the transforming growth factor-β1-induced differentiation of atrial fibroblasts into myofibroblasts in vitro. Int. J. Mol. Med.35 (4), 1026–1032. 10.3892/ijmm.2015.2087

  • 138

    YangL.WangB.MaL.FuP. (2022). An Update of long-noncoding RNAs in Acute kidney injury. Front. Physiol.13, 849403. 10.3389/fphys.2022.849403

  • 139

    YangX. X.ZhaoZ. Y. (2022). miR-30a-5p inhibits the proliferation and collagen formation of cardiac fibroblasts in diabetic cardiomyopathy. Can. J. Physiol. Pharmacol.100 (2), 167–175. 10.1139/cjpp-2021-0280

  • 140

    YuG.LuoZ.ZhouY.ZhangL.WuY.DingL.et al (2019). Uncovering the pharmacological mechanism of Carthamus tinctorius L. on cardiovascular disease by a systems pharmacology approach. Biomed. Pharmacother.117, 109094. 10.1016/j.biopha.2019.109094

  • 141

    YuX. Y.SunQ.ZhangY. M.ZouL.ZhaoY. Y. (2022). TGF-β/Smad signaling pathway in Tubulointerstitial fibrosis. Front. Pharmacol.13, 860588. 10.3389/fphar.2022.860588

  • 142

    YuZ.YangL.DengS.LiangM. (2020). Daidzein ameliorates LPS-induced hepatocyte injury by inhibiting inflammation and oxidative stress. Eur. J. Pharmacol.885, 173399. 10.1016/j.ejphar.2020.173399

  • 143

    YuanJ.LiuH.GaoW.ZhangL.YeY.YuanL.et al (2018). MicroRNA-378 suppresses myocardial fibrosis through a paracrine mechanism at the early stage of cardiac hypertrophy following mechanical stress. Theranostics8 (9), 2565–2582. 10.7150/thno.22878

  • 144

    YuanX.PanJ.WenL.GongB.LiJ.GaoH.et al (2019). MiR-144-3p enhances cardiac fibrosis after myocardial infarction by targeting PTEN. Front. Cell Dev. Biol.7, 249. 10.3389/fcell.2019.00249

  • 145

    ZengZ.WangQ.YangX.RenY.JiaoS.ZhuQ.et al (2019). Qishen granule attenuates cardiac fibrosis by regulating TGF-β/Smad3 and GSK-3β pathway. Phytomedicine62, 152949. 10.1016/j.phymed.2019.152949

  • 146

    ZhangF.FuX.KataokaM.LiuN.WangY.GaoF.LiangT.et al (2020). Long noncoding RNA Cfast regulates cardiac fibrosis. Mol. Ther. Nucleic Acids23, 377–392. 10.1016/j.omtn.2020.11.013

  • 147

    ZhangJ.LangY.GuoL.PeiY.HaoS.LiangZ.et al (2018). MicroRNA-323a-3p promotes pressure overload-induced cardiac fibrosis by targeting TIMP3. Cell Physiol. Biochem.50 (6), 2176–2187. 10.1159/000495059

  • 148

    ZhangM.ZhangB.WangX.SongJ.TongM.DongZ.et al (2022). LncRNA CFAR promotes cardiac fibrosis via the miR-449a-5p/LOXL3/mTOR axis. Sci. China Life Sci.10.1007/s11427-021-2132-9

  • 149

    ZhangW.WangQ.FengY.ChenX.YangL.XuM.et al (2020). MicroRNA-26a protects the heart against hypertension-induced myocardial fibrosis. J. Am. Heart Assoc.9 (18), e017970. 10.1161/JAHA.120.017970

  • 150

    ZhangY.CuiL.GuanG.WangJ.QiuC.YangT.et al (2018). Matrine suppresses cardiac fibrosis by inhibiting the TGF-β/Smad pathway in experimental diabetic cardiomyopathy. Mol. Med. Rep.17 (1), 1775–1781. 10.3892/mmr.2017.8054

  • 151

    ZhangY.HuangX. R.WeiL. H.ChungA. C.YuC. M.LanH. Y. (2014). miR-29b as a therapeutic agent for angiotensin II-induced cardiac fibrosis by targeting TGF-β/Smad3 signaling. Mol. Ther.22 (5), 974–985. 10.1038/mt.2014.25

  • 152

    ZhangY.LuY.Ong'achwaM. J.QianY.ChenL.et al (2018). Resveratrol inhibits the TGF-β1-induced proliferation of cardiac fibroblasts and collagen secretion by downregulating miR-17 in rat. Biomed. Res. Int.2018, 8730593. 10.1155/2018/8730593

  • 153

    ZhangY.WangD.WuK.ShaoX.DiaoH.WangZ.et al (2022). The traditional Chinese medicine formula FTZ protects against cardiac fibrosis by suppressing the TGFβ1-smad2/3 pathway. Evid. Based Complement. Altern. Med.2022, 5642307. 10.1155/2022/5642307

  • 154

    ZhangY.WangS. (2022). The possible role of long non-coding RNAs in recurrent miscarriage. Mol. Biol. Rep.49 (10), 9687–9697. 10.1007/s11033-022-07427-9

  • 155

    ZhangY.YaoX. H.WuY.CaoG. K.HanD. (2020). LncRNA NEAT1 regulates pulmonary fibrosis through miR-9-5p and TGF-β signaling pathway. Eur. Rev. Med. Pharmacol. Sci.24 (16), 8483–8492. 10.26355/eurrev_202008_22661

  • 156

    ZhangY.YuanB.XuY.ZhouN.ZhangR.LuL.et al (2022). MiR-208b/miR-21 promotes the progression of cardiac fibrosis through the activation of the TGF-β1/smad-3 signaling pathway: An in vitro and in vivo study. Front. Cardiovasc Med.9, 924629. 10.3389/fcvm.2022.924629

  • 157

    ZhaoK.MaoY.YeX.MaJ.SunL.LiP.et al (2021). MicroRNA-210-5p alleviates cardiac fibrosis via targeting transforming growth factor-beta type I receptor in rats on high sodium chloride (NaCl)-based diet. Eur. J. Pharmacol.912, 174587. 10.1016/j.ejphar.2021.174587

  • 158

    ZhaoL.WangX.ChangQ.XuJ.HuangY.GuoQ.et al (2010). Neferine, a bisbenzylisoquinline alkaloid attenuates bleomycin-induced pulmonary fibrosis. Eur. J. Pharmacol.627 (1-3), 304–312. 10.1016/j.ejphar.2009.11.007

  • 159

    ZhaoN.DuL.MaY.WangY.MaJ.FangZ. (2022). LncRNA NEAT1/microRNA-124 regulates cell viability, inflammation and fibrosis in high-glucose-treated mesangial cells. Exp. Ther. Med.24 (2), 507. 10.3892/etm.2022.11434

  • 160

    ZhengD.ZhangY.HuY.GuanJ.XuL.XiaoW.et al (2019). Long noncoding RNA Crnde attenuates cardiac fibrosis via Smad3-Crnde negative feedback in diabetic cardiomyopathy. FEBS J.286 (9), 1645–1655. 10.1111/febs.14780

  • 161

    ZhengY.LiX. H.LiX. Y. (2020). Effects of berberine on miR-29 b expression in pressure-overloaded hypertrophic myocardium and myocardial fibrosis and its mechanism of actio. J. Nanchang Univ. Med. Sci.60 (03), 31–34.

  • 162

    ZhouB.YuJ. W. (2017). A novel identified circular RNA, circRNA_010567, promotes myocardial fibrosis via suppressing miR-141 by targeting TGF-β1. Biochem. Biophys. Res. Commun.487 (4), 769–775. 10.1016/j.bbrc.2017.04.044

  • 163

    ZhouJ.XuJ.SunS.GuoM.LiP.ChengA. (2021). N-acetylcysteine Slows down cardiac pathological remodeling by inhibiting cardiac fibroblast proliferation and collagen synthesis. Dis. Markers2021, 3625662. 10.1155/2021/3625662

  • 164

    ZhouX.GaoT.JiangX. G.XieM. L.et al (2016). Protective effect of apigenin on bleomycin-induced pulmonary fibrosis in mice by increments of lung antioxidant ability and PPAR gamma expression. J. Funct. Food24, 382–389. 10.1016/j.jff.2016.04.039

  • 165

    ZhuJ. X.LingW.XueC.ZhouZ.ZhangY. S.YanC.et al (2021). Higenamine attenuates cardiac fibroblast abstract and fibrosis via inhibition of TGF-β1/Smad signaling. Eur. J. Pharmacol.900, 174013. 10.1016/j.ejphar.2021.174013

  • 166

    ZhuY.PanW.YangT.MengX.JiangZ.TaoL.et al (2019). Upregulation of circular RNA CircNFIB attenuates cardiac fibrosis by sponging miR-433. Front. Genet.10, 564. 10.3389/fgene.2019.00564

  • 167

    ZhuY.WuF.YangQ.FengH.XuD. (2022). Resveratrol inhibits high glucose-induced H9c2 cardiomyocyte hypertrophy and Damage via RAGE-dependent inhibition of the NF-κB and TGF-β1/smad3 pathways. Evid. Based Complement. Altern. Med.2022, 7781910. 10.1155/2022/7781910

Summary

Keywords

non-coding RNA, myocardial fibrosis, Traditional Chinese Medicine, TGF-β/Smad signaling pathway, mechanism

Citation

Li C, Meng X, Wang L and Dai X (2023) Mechanism of action of non-coding RNAs and traditional Chinese medicine in myocardial fibrosis: Focus on the TGF-β/Smad signaling pathway. Front. Pharmacol. 14:1092148. doi: 10.3389/fphar.2023.1092148

Received

07 November 2022

Accepted

30 January 2023

Published

09 February 2023

Volume

14 - 2023

Edited by

Christina Pagiatakis, Humanitas Research Hospital, Italy

Reviewed by

Yifan Bao, Johnson & Johnson, United States

Xiaoyong Yu, Shaanxi Provincial Hospital of Traditional Chinese Medicine, China

Updates

Copyright

*Correspondence: Xia Dai,

This article was submitted to Cardiovascular and Smooth Muscle Pharmacology, a section of the journal Frontiers in Pharmacology

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
