MINI REVIEW article

Front. Pharmacol., 07 December 2023

Sec. Pharmacology of Anti-Cancer Drugs

Volume 14 - 2023 | https://doi.org/10.3389/fphar.2023.1322937

Therapeutic applications of CRISPR/Cas9 mediated targeted gene editing in acute lymphoblastic leukemia: current perspectives, future challenges, and clinical implications

  • Laboratory of Molecular Pathology of Cancer, Faculty of Health Sciences and Medicine, University of Brasília, Brasília, Brazil

Article metrics

View details

8

Citations

7,5k

Views

3,3k

Downloads

Abstract

Acute Lymphoblastic Leukemia (ALL) is the predominant hematological malignancy in pediatric populations, originating from B- or T-cell precursors within the bone marrow. The disease exhibits a high degree of heterogeneity, both at the molecular level and in terms of clinical presentation. A complex interplay between inherited and acquired genetic alterations contributes to disease pathogenesis, often resulting in the disruption of cellular functions integral to the leukemogenic process. The advent of CRISPR/Cas9 as a gene editing tool has revolutionized biological research, underscoring its potential to modify specific genomic loci implicated in cancer. Enhanced understanding of molecular alterations in ALL has facilitated significant advancements in therapeutic strategies. In this review, we scrutinize the application of CRISPR/Cas9 as a tool for identifying genetic targets to improve therapy, circumvent drug resistance, and facilitate CAR-T cell-based immunotherapy. Additionally, we discuss the challenges and future prospects of CRISPR/Cas9 applications in ALL.

1 Introduction

Acute lymphoblastic leukemia (ALL) is a type of hematological malignancy that affects the lymphoid lineage precursor cells such as B and T cells, leading to an accumulation of lymphoblasts. It is the most common type of cancer in children, but it can also affect adults. ALL requires immediate treatment as its leukemogenesis is rapid and aggressive (Malard and Mohty, 2020). The clinical features of ALL can vary depending on several factors, including the age of the patient, the subtype of ALL and the stage of the disease at time of the diagnostic (Inaba and Mullighan, 2020; Malard and Mohty, 2020). Conventional diagnostics for the subtypes of ALL include immunophenotyping, cytogenetic and molecular analysis (Duffield et al., 2023).

The molecular features of ALL are complex and involve genetic alterations that disrupt normal cellular processes, including differentiation and proliferation. Some of the key molecular features of ALL include: a) Chromosomal abnormalities: the t(9; 22) translocation, which results in the fusion of the BCR and ABL1 genes, commonly known as Philadelphia chromosome-positive (Ph+) ALL. Several fusions affecting the MLL (or KMT2A) gene on chromosome 11q23, which also have important well established clinical implications. Patients harboring this translocation often have a poorer prognosis than those without MLL rearrangements. The translocation t(12; 21) (p13; q22) generates the fusion of ETV6-RUNX1 genes, which also carry significant clinical implications for patients (Bhojwani et al., 2015; Luca, 2021). b) Gene mutations: ALL is also characterized by mutations in genes that regulate cell growth, differentiation, and survival, such as TP53, KRAS, IKZF1 and NOTCH1. These mutations can contribute to disease progression and drug resistance (Inaba and Mullighan, 2020; Malard and Mohty, 2020; Chang et al., 2021). c) Aberrant gene expression resulting from genetic alterations, such as mutations, and epigenetic changes such as DNA methylation, histone modification, and dysregulated expression of non-coding RNAs. These alterations can affect the expression of genes involved in cell cycle regulation, DNA repair, and apoptosis, ultimately leading to uncontrolled cell growth and survival (Fleur-Lominy et al., 2020; Chang et al., 2021). d) Alterations in signaling pathways that regulate cell growth, survival, and differentiation, such as the JAK-STAT pathway, involved in cytokine signaling, which is frequently activated in ALL, leading to increased cell proliferation and survival (Sasaki et al., 2022b). Understanding these features at the molecular level is crucial for the development of targeted therapies that can precisely address the genetic alterations and signaling pathways responsible for driving disease progression.

The clustered regularly interspaced short palindromic repeats (CRISPR)/Cas9 is a technology for precise and efficient genome editing that has changed the field of biomedical research. The technique relies on just two exogenous elements: the Cas9 endonuclease and a single guide RNA (sgRNA), which is a fusion of crRNA and tracrRNA, resulting in a chimeric molecule performing both functions (Jinek et al., 2012; Zhang et al., 2014). CRISPR/Cas9 has significantly broadened the research landscape for comprehending and addressing ALL, as it provides the capability to precisely target genes directly associated with the disease. Here we discuss the current developments on CRISPR/Cas9-based genome editing used for the study and treatment of acute lymphoblastic leukemia and its perspectives. Our focus will encompass three key aspects: 1) Genetic target identification: identifying genes essential for cancer survival holds the potential to pave the way for the development of more effective targeted therapies and, ultimately, a potential cure. 2) Overcome drug resistance: CRISPR/Cas9 has the potential to enhance the effectiveness of existing treatment modalities. 3) Immunotherapy: leveraging CRISPR/Cas9 to modify a patient’s own T lymphocytes for precise targeting of cancer cells (González-Romero et al., 2019).

2 Genome editing in ALL with CRISPR/Cas9 system

Most of the recent studies on acute lymphoblastic leukemia (ALL) using CRISPR/Cas9 technology have focused on knocking out or knocking in genes, or conducting genome-wide screens to identify and validate therapeutic targets (Table 1). For instance, Jaiswal et al. conducted a CRISPR/Cas9 screening on MLL-rearranged B-ALL positive (SEM) and negative (Nalm-6) cell lines to identify dependencies on several genes, including EIF3E, EPRS, and USO1. To validate the screening results, a specific CRISPR/Cas9-mediated knockout of USO1 was generated in MLL-translocated B-ALL cells. The USO1 knockout reduced cell growth, promoted cell death and cell cycle arrest at G0/G1 phase. Further transcriptomic analysis of USO1 knockout cells revealed alterations in pathways related to cellular proliferation, such as mTOR signaling, RNA metabolism, and targets of MYC (Jaiswal et al., 2021). This research led to the identification and validation of a novel target in MLL-rearranged leukemia subtype.

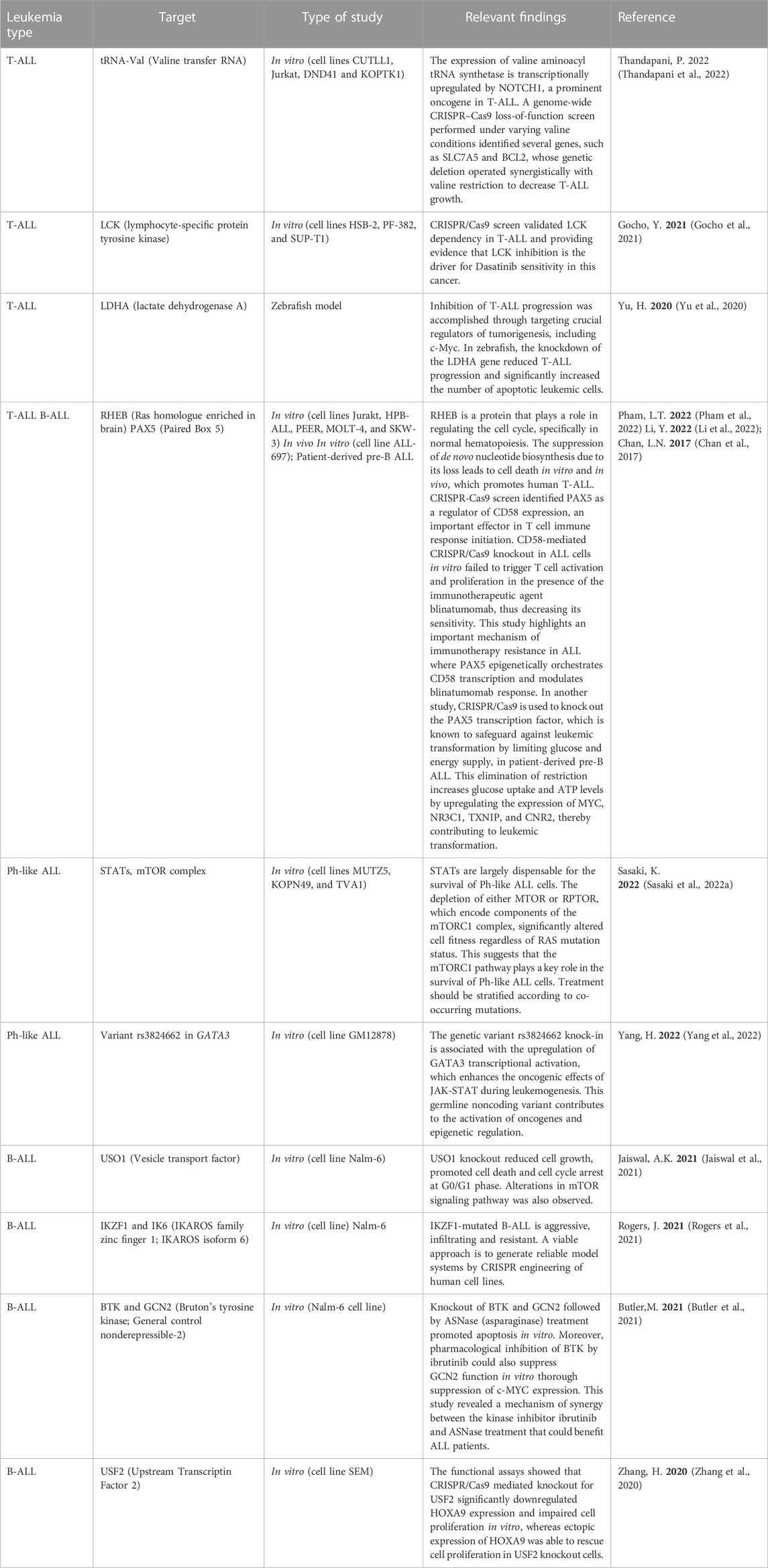

TABLE 1

Leukemia type Target Type of study Relevant findings Reference
T-ALL tRNA-Val (Valine transfer RNA) In vitro (cell lines CUTLL1, Jurkat, DND41 and KOPTK1) The expression of valine aminoacyl tRNA synthetase is transcriptionally upregulated by NOTCH1, a prominent oncogene in T-ALL. A genome-wide CRISPR–Cas9 loss-of-function screen performed under varying valine conditions identified several genes, such as SLC7A5 and BCL2, whose genetic deletion operated synergistically with valine restriction to decrease T-ALL growth. Thandapani, P. 2022 (Thandapani et al., 2022)
T-ALL LCK (lymphocyte-specific protein tyrosine kinase) In vitro (cell lines HSB-2, PF-382, and SUP-T1) CRISPR/Cas9 screen validated LCK dependency in T-ALL and providing evidence that LCK inhibition is the driver for Dasatinib sensitivity in this cancer. Gocho, Y. 2021 (Gocho et al., 2021)
T-ALL LDHA (lactate dehydrogenase A) Zebrafish model Inhibition of T-ALL progression was accomplished through targeting crucial regulators of tumorigenesis, including c-Myc. In zebrafish, the knockdown of the LDHA gene reduced T-ALL progression and significantly increased the number of apoptotic leukemic cells. Yu, H. 2020 (Yu et al., 2020)
T-ALL B-ALL RHEB (Ras homologue enriched in brain) PAX5 (Paired Box 5) In vitro (cell lines Jurakt, HPB-ALL, PEER, MOLT-4, and SKW-3) In vivoIn vitro (cell line ALL-697); Patient-derived pre-B ALL RHEB is a protein that plays a role in regulating the cell cycle, specifically in normal hematopoiesis. The suppression of de novo nucleotide biosynthesis due to its loss leads to cell death in vitro and in vivo, which promotes human T-ALL. CRISPR-Cas9 screen identified PAX5 as a regulator of CD58 expression, an important effector in T cell immune response initiation. CD58-mediated CRISPR/Cas9 knockout in ALL cells in vitro failed to trigger T cell activation and proliferation in the presence of the immunotherapeutic agent blinatumomab, thus decreasing its sensitivity. This study highlights an important mechanism of immunotherapy resistance in ALL where PAX5 epigenetically orchestrates CD58 transcription and modulates blinatumomab response. In another study, CRISPR/Cas9 is used to knock out the PAX5 transcription factor, which is known to safeguard against leukemic transformation by limiting glucose and energy supply, in patient-derived pre-B ALL. This elimination of restriction increases glucose uptake and ATP levels by upregulating the expression of MYC, NR3C1, TXNIP, and CNR2, thereby contributing to leukemic transformation. Pham, L.T. 2022 (Pham et al., 2022) Li, Y. 2022 (Li et al., 2022); Chan, L.N. 2017 (Chan et al., 2017)
Ph-like ALL STATs, mTOR complex In vitro (cell lines MUTZ5, KOPN49, and TVA1) STATs are largely dispensable for the survival of Ph-like ALL cells. The depletion of either MTOR or RPTOR, which encode components of the mTORC1 complex, significantly altered cell fitness regardless of RAS mutation status. This suggests that the mTORC1 pathway plays a key role in the survival of Ph-like ALL cells. Treatment should be stratified according to co-occurring mutations. Sasaki, K.
2022 (Sasaki et al., 2022a)
Ph-like ALL Variant rs3824662 in GATA3 In vitro (cell line GM12878) The genetic variant rs3824662 knock-in is associated with the upregulation of GATA3 transcriptional activation, which enhances the oncogenic effects of JAK-STAT during leukemogenesis. This germline noncoding variant contributes to the activation of oncogenes and epigenetic regulation. Yang, H. 2022 (Yang et al., 2022)
B-ALL USO1 (Vesicle transport factor) In vitro (cell line Nalm-6) USO1 knockout reduced cell growth, promoted cell death and cell cycle arrest at G0/G1 phase. Alterations in mTOR signaling pathway was also observed. Jaiswal, A.K. 2021 (Jaiswal et al., 2021)
B-ALL IKZF1 and IK6 (IKAROS family zinc finger 1; IKAROS isoform 6) In vitro (cell line) Nalm-6 IKZF1-mutated B-ALL is aggressive, infiltrating and resistant. A viable approach is to generate reliable model systems by CRISPR engineering of human cell lines. Rogers, J. 2021 (Rogers et al., 2021)
B-ALL BTK and GCN2 (Bruton’s tyrosine kinase; General control nonderepressible-2) In vitro (Nalm-6 cell line) Knockout of BTK and GCN2 followed by ASNase (asparaginase) treatment promoted apoptosis in vitro. Moreover, pharmacological inhibition of BTK by ibrutinib could also suppress GCN2 function in vitro thorough suppression of c-MYC expression. This study revealed a mechanism of synergy between the kinase inhibitor ibrutinib and ASNase treatment that could benefit ALL patients. Butler,M. 2021 (Butler et al., 2021)
B-ALL USF2 (Upstream Transcriptin Factor 2) In vitro (cell line SEM) The functional assays showed that CRISPR/Cas9 mediated knockout for USF2 significantly downregulated HOXA9 expression and impaired cell proliferation in vitro, whereas ectopic expression of HOXA9 was able to rescue cell proliferation in USF2 knockout cells. Zhang, H. 2020 (Zhang et al., 2020)

Description of the studies using CRISPR/Cas9 in Acute Lymphoblastic Leukemia.

In another study, a genome-wide CRISPR/Cas9 screen identified PAX5 as a regulator of CD58 expression, an important effector in T cell immune response initiation. PAX5 is a transcription factor that plays a crucial role in B cell development and is part of a complex network of transcription factors, including IKZF1, E2A, EBF1, and RUNX1. Furthermore, CD58-mediated CRISPR/Cas9 knockout in ALL cells in vitro failed to trigger T cell activation and proliferation in the presence of the immunotherapeutic agent blinatumomab, thus decreasing its sensitivity (Li et al., 2022). This study highlights an important mechanism of immunotherapy resistance in ALL where PAX5 epigenetically orchestrates CD58 transcription and modulates blinatumomab response.

HOXA9 is a transcription factor overexpressed in MLL rearranged leukemias and is correlated with poor prognosis in ALL patients (Al-Kershi et al., 2019; Zhang et al., 2020). Dysregulated expression of HOXA9 plays an important role in leukemic transformation and leukemic cell proliferation. Using a knock-in strategy and a CRISPR/Cas9 screen to identify transcription factors regulating HOXA9 expression, two novel regulators were proposed: USF2 and DOT1L. Focusing on USF2 candidate, functional assays showed that its CRISPR/Cas9 mediated knockout significantly downregulated HOXA9 expression and impaired cell proliferation in vitro, whereas ectopic expression of HOXA9 was able to rescue cell proliferation in USF2 knockout cells (Zhang et al., 2020).

Another interesting study performed a CRISPR/Cas9 screening targeting protein kinases during asparaginase (ASNase) treatment to identify potential targets of the amino acid response pathway involved in ASNase sensitivity. Among several identified targets, BTK and GCN2 were enriched. Knockout of BTK and GCN2 followed by ASNase treatment promoted apoptosis in vitro. Moreover, the pharmacological inhibition of BTK by ibrutinib could also suppress GCN2 function in vitro thorough suppression of c-MYC expression (Butler et al., 2021). This study revealed a mechanism of synergy between the kinase inhibitor ibrutinib and ASNase treatment that could benefit ALL patients.

Normal cells are dependent on an adequate supply of energy to support their survival, and so are tumor cells. There disorders in abnormal lipid metabolism, amino acid metabolism, mitochondrial biogenesis, and other bioenergy metabolism pathways in cancer cells in addition to glucose metabolism. The disorder and metabolic reprogramming give support to the proliferation, migration, and invasion of cancer cells (Navarro et al., 2022). Therefore, understanding the energy metabolism mechanism might provide new targets in cancer treatment.

The aforementioned PAX5 transcription factor is known to safeguard leukemic transformation by limiting glucose and energy supply. CRISPR/Cas9 mediated knockout of PAX5 abrogates this restriction and increases glucose uptake and ATP levels, through the upregulation of MYC, NR3C1, TXNIP and CNR2 expression, all of them identified as central effectors of energy supply restriction in B cells and regulated by PAX5, and thus contributing to leukemic transformation (Chan et al., 2017).

A CRISPR/Cas9 screening focused on mTOR pathway effectors revealed that RHEB, a protein involved in cell cycle regulation, including normal hematopoiesis, could be a novel target in ALL. RHEB loss suppressed de novo nucleotide biosynthesis, leading to human T-ALL promoted cell death in vitro and in vivo, both in mouse and xenograft models (Pham et al., 2022). In addition, several other studies have used the CRISPR/Cas9 system to identify important genetic vulnerabilities in ALL, as summarized in Table 1.

3 CRISPR/Cas9 system to overcome drug resistance

The primary challenge in cancer treatment today is the ability of cancer cells to develop resistance to chemotherapeutic drugs. This resistance, which can be either inherent or acquired, is primarily driven by the dysregulation of genes related to chemoresistance. As such, understanding the molecular mechanisms that contribute to this resistance and identifying the genes involved are crucial. This knowledge could pave the way for the discovery of new therapeutic targets, the development of novel drugs, and the establishment of more effective combination treatment strategies to overcome this resistance. Cytarabine, also known as cytosine arabinoside (Ara-C) is a key drug used in the treatment of ALL. Ara-C, a deoxyadenosine analog, requires phosphorylation by deoxycytidine kinase (DCK) to transform into its active form, cytosine arabinoside triphosphate (Ara-CTP). An in vitro study demonstrated that higher DCK expression correlates with increased sensitivity to Ara-C. Furthermore, it was observed that DCK knockout via CRISPR/Cas9 induces chemoresistance to Ara-C, in contrast to clofarabine (a second-generation deoxyadenosine analog) (Huang et al., 2018). These findings highlight the role of DCK expression in Ara-C chemoresistance in ALL and suggest that clofarabine could be a more effective treatment option for ALL resistant to cytarabine.

Antimetabolites, such as methotrexate, are well-established in the treatment of ALL. Resistance to this treatment line poses a significant challenge to disease control (Wojtuszkiewicz et al., 2015). Yet, the mechanisms underlying such resistance remain largely unexplored. A study showed that low expression of ARID5B is associated with relapse in ALL patients, and that this could be due to a role of ARID5B in the process of chemotherapeutic resistance. A CRISPR/Cas9 mediated knockdown of ARID5B was achieved using a sgRNA targeting the suppressor protein KRAB to the ARID5B promoter suppressing its transcription. The suppression of ARID5B inhibited ALL cell proliferation, caused partial cell-cycle arrest and led to resistance specific to both antimetabolite drugs 6-mercaptopurine and methotrexate in ALL cells with ARID5B downregulation (Zhao et al., 2022). This data indicates that ARID5B expression could be a molecular biomarker of antimetabolite drug sensitivity in ALL.

ETV6/RUNX1 fusion oncogene commonly found in ALL was also successfully targeted using CRISPR/Cas9. In this case, guide RNA was designed to target the specific ETV6 and RUNX1 fusion region. Subsequent qPCR reported a reduction in the mRNA of ETV6/RUNX1 fusion construct following CRISPR/Cas9–mediated knockout of the fusion region. Moreover, functional studies of the ETV6/RUNX1 knockout cells showed a reduction in proliferative potential and an increased sensibility to treatment (Montaño et al., 2020). Since the tyrosine kinase inhibitors (TKIs) are the most efficient option to treat Ph + leukemia, and the resistances to TKIs are still a problem due to new acquired mutations in the BCR-ABL gene, genome editing could be a tool to overcome this issue. CRISPR/Cas9 was used in both in vitro and in vivo model of Ph + ALL harboring the T315I one-point mutation, with an intron-intron junction targeted strategy. Disruption of the expression of the fusion protein was observed, which resulted in a decrease in viability in vitro, and a progression of leukemia in vitro (Tan et al., 2020).

These studies highlight the importance of CRISPR/Cas9 as a novel tool to explore genetic vulnerabilities to overcome drug resistance in ALL treatment.

4 Clinical implications of CRISPR/Cas9 system

While chemotherapy and/or radiotherapy have traditionally been the standard treatments for Acute Lymphoblastic Leukemia (ALL), immunotherapies have recently emerged as a significant alternative treatment strategy. A prime example of this, is the use of Chimeric Antigen Receptors (CARs). These are proteins that have been genetically engineered to enable T cells (now referred to as CAR-T cells) to recognize a specific antigen present in tumor cells (Sheykhhasan et al., 2021). The CRISPR/Cas9 technology can be utilized to create allogeneic CAR-T cells that do not cause graft-versus-host disease (GVHD). This is achieved by disrupting proteins that are crucial for the recognition of the antigen-major histocompatibility complex (MHC), such as the T-cell receptor (TCR) beta chain and beta-2-microglobulin (B2M) (Dimitri et al., 2022).

The significant impact that CRISPR/Cas9 technology has on current clinical practice is undeniable, including in the creation of CAR-T cells for the treatment of ALL. Numerous clinical trials are currently underway to further explore the potential of these CRISPR/Cas9-generated CAR-T cells in ALL treatment (Table 2).

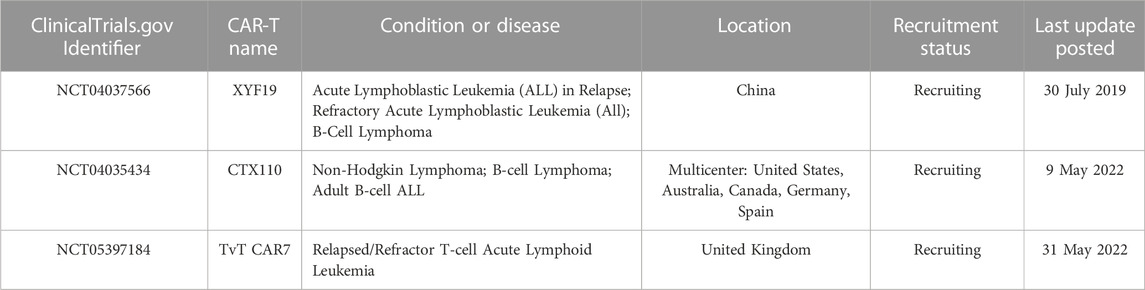

TABLE 2

ClinicalTrials.gov Identifier CAR-T name Condition or disease Location Recruitment status Last update posted
NCT04037566 XYF19 Acute Lymphoblastic Leukemia (ALL) in Relapse; Refractory Acute Lymphoblastic Leukemia (All); B-Cell Lymphoma China Recruiting 30 July 2019
NCT04035434 CTX110 Non-Hodgkin Lymphoma; B-cell Lymphoma; Adult B-cell ALL Multicenter: United States, Australia, Canada, Germany, Spain Recruiting 9 May 2022
NCT05397184 TvT CAR7 Relapsed/Refractor T-cell Acute Lymphoid Leukemia United Kingdom Recruiting 31 May 2022

Ongoing clinical trials with CRISPR/Cas9-engineered CAR-T cells.

A phase 1, open-label, non-randomized clinical trial treated six children with relapsed/refractory CD19-positive B cell acute lymphoblastic leukemia (B-ALL) (NCT04557436). Four of six patients infused with TT52CAR19 T cells exhibited cell expansion, achieved remission, and then proceeded to receive allogeneic stem cell transplantation. Cytokine release syndrome occurred in two patients, transient neurotoxicity occurred in one patient, and one patient developed skin GVHD (Ottaviano et al., 2022).

An open-label, phase I study with a dose-escalation treated six relapsed/refractory B-cell acute lymphoblastic leukemia patients with CTA101 cell (NCT04227015). Patients received infusions at doses of 1×106 CAR + T cells/kg body weight (3 patients) and 3×106 CAR + T cells/kg body weight (3 patients). Cytokine release syndrome occurred in all patients. No dose-limiting toxicity, GVHD, neurotoxicity, or genome editing-associated adverse events were observed. After 28 days of CTA101 infusion, the complete remission (CR) rate was 83.3%. With a median follow-up of 4.3 months, 3 of the 5 patients who achieved complete remission (CR) or CR with incomplete hematologic recovery (CR/CRi) remained minimal residual disease (MRD) negative (Hu et al., 2020).

Both studies provided evidence of the therapeutic feasibility, safety and potential of CRISPR/Cas9-engineered cell therapy in ALL.

5 Challenges and future directions

Translating genome editing technologies to the clinical setting requires two main concerns to be addressed: the safety and efficacy of treatments. The off-target effect remains one of the major obstacles of this technology. The unexpected off-target mutagenesis may cause the ablation of tumor suppressor genes or the activation of oncogenes and its pathways, therefore increasing the clinical risks of CRISPR/Cas9 based therapy (Naeem et al., 2020).

Minimizing and controlling the off-target effects of genome editing has become a critical concern. Among the strategies developed, the use of paired Cas9 nickases induce double-stranded cleavage and require two sgRNAs. This approach significantly increases specificity, as it is highly improbable for an off-target sequence to be complementary to both sgRNAs (Mali et al., 2013; Ran et al., 2013). Furthermore, variants of the commonly used protein, Streptococcus pyogenes Cas9 (SpCas9), such as SpCas9-HF1 (Streptococcus pyogenes Cas9 High Fidelity 1), have been developed. These variants leverage the surplus energy from the DNA/SpCas9 interaction to recognize sequences that are not perfectly complementary to the sgRNA. Additionally, eSpCas9 (enhanced specificity SpCas9) was created based on the identification of specific DNA/SpCas9 interaction regions that preferentially interact with non-specific targets. The molecular composition of the DNA/SpCas9 complex was used in the production of these variants, resulting in a decrease in non-specific bindings with their target DNA site (Slaymaker et al., 2013; Kleinstiver et al., 2016). Future research will be essential for enhancing our existing genetic tools, spanning from in silico analysis to wet lab strategies. This will aim to mitigate off-target effects and boost gene editing efficiency.

Another challenge is the immune response of eukaryotic cells to Cas9, triggered by antibodies against Streptococcus pyogenes and Staphylococcus aureus. This immune response could potentially affect the efficiency of Cas9 activity and should be taken into account when developing personalized immunotherapies. However, this issue could be circumvented by using alternative nucleases such as Cas12 or Cas13, thereby eliminating the need for immunosuppressive medications (Ewaisha and Anderson, 2023).

Furthermore, the evidence demonstrating the substantial clinical potential of utilizing the CRISPR/Cas9 tool in treating ALL and other diseases further confirms the indisputable efficacy of CRISPR/Cas9 with targets already under clinical investigation. For instance, in a phase I study aimed at modifying allogeneic pancreatic endoderm cells using CRISPR/Cas9, research efforts are currently applied in treating type I diabetes, an autoimmune disease (Lim and Kim, 2022; CRISPR Theraputics, 2023). Other phase I clinical trials are ongoing in HIV infection for gene editing of the CCR5 receptor, inhibition of viral replication, and HIV resistance (Li et al., 2015; Xu et al., 2017). Sickle cell disease targets correction of the β-globin subunit gene in hemoglobin via CRISPR/Cas9-based genome editing in Phase I and II of clinical trials, with modified hematopoietic stem cells and modified CD34+ hematopoietic stem cells (Frangoul et al., 2021; Gillmore et al., 2021).

Another application of CRISPR with great potential to reach clinical trials in the future, is the prime editing technique. Prime editing, which has a few advantages over other CRISPR/Cas9-mediated genome-editing methods, has been swiftly implemented in in vivo studies due to its potential to treat a variety of genetic disorders. This method combines a disabled Cas9 protein, capable of nicking DNA, with a modified prime editing guide RNA (pegRNA). The pegRNA not only specifies the location of the edit, but also carries new genetic instructions to be installed at that location (Zhao et al., 2023). Although prime editing has allowed specific gene modification in various cell types (Kim et al., 2021), its low editing efficiency (Ravichandran and Maddalo, 2023a) and the lack of an efficient in vivo delivery system remains crucial challenges for its implementation (Zhao et al., 2023).

Finally, the use of CRISPR has facilitated the identification of critical targets for leukemogenesis that can guide research in the development of new therapeutic approaches (Akram et al., 2022). The CRISPR activation or inhibition systems (CRISPRa/i) have accelerated the discovery of genes linked to cellular reprogramming by rapidly identifying genetic targets (Ravichandran and Maddalo, 2023b). CRISPRa is a modified version of CRISPR that utilizes a catalytically inactive (d) Cas9 fused with a transcriptional effector to activate target gene expression. On the other hand, CRISPRi involves guide RNA and a transcriptional effector arm which, when navigating to a target genome locus, represses gene expression downstream instead of activating it. While these systems have demonstrated their versatility in identifying potential new targets, it is crucial that these targets undergo rigorous validation using orthogonal approaches to be able to reach the clinical stage.

The CRISPR/Cas9 system has already showcased its potential in studying the molecular biology and pathogenesis of genetic aberrations in Acute Lymphoblastic Leukemia (ALL), both in vitro and in vivo. This has enabled a deeper understanding of the disease’s genomics, phenotypes, and therapeutic targets. Consequently, it has broadened the scope for functional genomics studies and fostered the advancement of personalized medicine options for ALL in the near future.

Statements

Author contributions

AA: Data curation, Methodology, Writing–original draft. BS: Investigation, Writing–review and editing. AG: Formal Analysis, Validation, Writing–review and editing. FP-S: Conceptualization, Project administration, Supervision, Writing–review and editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This publication was supported by a grant from the University of Brasilia. FP-S, receives grant from Fundacão de Amparo à Pesquisa do Distrito Federal, FAPDF. Grant numbers 00193-00001029/2021-95 and 00193-00000891/2021-81. And from Conselho Nacional de Desenvolvimento Científico e Tecnológico, CNPq. Grant numbers 440734/2022-3 and 406890/2022-6.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1

    Akram F. Haq I. U. Sahreen S. Nasir N. Naseem W. Imitaz M. et al (2022). CRISPR/Cas9: a revolutionary genome editing tool for human cancers treatment. Technol. Cancer Res. Treat.21, 1533033822113207816. 10.1177/15330338221132078

  • 2

    Al-Kershi S. Bhayadia R. Ng M. Verboon L. Emmrich S. Gack L. et al (2019). The stem cell-specific long noncoding RNA HOXA10-AS in the pathogenesis of KMT2A-rearranged leukemia. Blood Adv.3, 42524263. 10.1182/bloodadvances.2019032029

  • 3

    Bhojwani D. Yang J. Y. Pui C. H. (2015). Biology of childhood acute lymphoblastic leukemia. Pediatr. Clin. North Am.62, 4760. 10.1016/j.pcl.2014.09.004

  • 4

    Butler M. Schenau D. S. I. Yu J. Jenni S. Dobay M. P. Hagelaar R. et al (2021). BTK inhibition sensitizes acute lymphoblastic leukemia to asparaginase by suppressing the amino acid response pathway. Blood138, 23832395. 10.1182/blood.2021011787

  • 5

    Chan L. N. Chen Z. Braas D. Lee J. W. Xiao G. Geng H. et al (2017). Metabolic gatekeeper function of B-lymphoid transcription factors. Nature542, 479483. 10.1038/nature21076

  • 6

    Chang Y. H. Yu C. H. Jou S. T. Lin C. Y. Lin K. H. Lu M. Y. et al (2021). Targeted sequencing to identify genetic alterations and prognostic markers in pediatric T-cell acute lymphoblastic leukemia. Sci. Rep.11, 76910. 10.1038/s41598-020-80613-6

  • 7

    CRISPR Theraputics (2023). CRISPR therapeutics and ViaCyte, inc. Announce first patient dosed in phase 1 clinical trial of novel gene-edited cell replacement therapy for treatment of type 1 diabetes (T1D). [Press Release] Available online: https://crisprtx.com/about-us/press-releases-and-presentations/crispr-therapeutics-and-viacyte-inc-announce-first-patient-dosed-in-phase-1-clinical-trial-of-novel-gene-edited-cell-replacement-therapy-for-treatment-of-type-1-diabetes-t1d (accessed on November 11, 2023).

  • 8

    Dimitri A. Herbst F. Fraietta J. A. (2022). Engineering the next-generation of CAR T-cells with CRISPR-Cas9 gene editing. Mol. Cancer21 (1 21), 7813. 10.1186/s12943-022-01559-z

  • 9

    Duffield A. S. Mullighan C. G. Borowitz M. J. (2023). International Consensus Classification of acute lymphoblastic leukemia/lymphoma. Virchows Arch.482, 1126. 10.1007/s00428-022-03448-8

  • 10

    Ewaisha R. Anderson K. S. (2023). Immunogenicity of CRISPR therapeutics—critical considerations for clinical translation. Front. Bioeng. Biotechnol.11, 1138596. 10.3389/fbioe.2023.1138596

  • 11

    Fleur-Lominy S. S. Evensen N. A. Bhatla T. Sethia G. Narang S. Choi J. H. et al (2020). Evolution of the epigenetic landscape in childhood B Acute lymphoblastic leukemia and its role in drug resistance. Cancer Res.80, 51895202. 10.1158/0008-5472.CAN-20-1145

  • 12

    Frangoul H. Altshuler D. Cappellini M. D. Chen Y. S. Domm J. Eustace B. K. et al (2021). CRISPR-Cas9 gene editing for sickle cell disease and beta-thalassemia. N. Engl. J. Med.384, 252260. 10.1056/NEJMoa2031054

  • 13

    Gillmore J. D. Gane E. Taubel J. Kao J. Fontana M. Maitland M. L. et al (2021). CRISPR-Cas9 in vivo gene editing for transthyretin amyloidosis. N. Engl. J. Med.385, 493502. 10.1056/NEJMoa2107454

  • 14

    Gocho Y. Liu J. Hu J. Yang W. Dharia N. V. Zhang J. et al (2021). Network-based systems pharmacology reveals heterogeneity in LCK and BCL2 signaling and therapeutic sensitivity of T-cell acute lymphoblastic leukemia. Nat. Cancer2, 284299. 10.1038/s43018-020-00167-4

  • 15

    González-Romero E. Martínez-Valente C. García-Ruiz C. Vázquez-Manrique R. P. Cervera J. Sanjuan-Pla A. (2019). CRISPR to fix bad blood: a new tool in basic and clinical hematology. Haematologica104, 881893. (Preprint). 10.3324/haematol.2018.211359

  • 16

    Hu Y. Zhou Y. Zhang M. Ge W. Li Y. Yang L. et al (2020). The safety and efficacy of a CRISPR/Cas9-Engineered universal CAR-T cell product (CTA101) in patients with relapsed/refractory B-cell acute lymphoblastic leukemia. Blood136, 52. 10.1182/blood-2020-142262

  • 17

    Huang M. Inukai T. Miyake K. Tanaka Y. Kagami K. Abe M. et al (2018). Clofarabine exerts antileukemic activity against cytarabine-resistant B-cell precursor acute lymphoblastic leukemia with low deoxycytidine kinase expression. Cancer Med.7, 12971316. 10.1002/cam4.1323

  • 18

    Inaba H. Mullighan C. G. (2020). Pediatric acute lymphoblastic leukemia. Haematologica105, 25242539. 10.3324/haematol.2020.247031

  • 19

    Jaiswal A. K. Truong H. Tran T. M. Lin T. L. Casero D. Alberti M. O. et al (2021). Focused CRISPR-Cas9 genetic screening reveals USO1 as a vulnerability in B-cell acute lymphoblastic leukemia. Sci. Rep.11, 13158. 10.1038/s41598-021-92448-w

  • 20

    Jinek M. Chylinski K. Fonfara I. Hauer M. Doudna J. A. Charpentier E. (2012). A programmable dual RNA-guided DNA endonuclease in adaptive bacterial immunity. Science17, 816821. 10.1126/science.1225829

  • 21

    Kim H. K. Yu G. Park J. Min S. Lee S. Yoon S. et al (2021). Predicting the efficiency of prime editing guide RNAs in human cells. Nat. Biotechnol.39, 198206. 10.1038/s41587-020-0677-y

  • 22

    Kleinstiver B. P. Pattanayak V. Prew M. S. Tsai S. Q. Nguyen N. T. Zheng Z. et al (2016). High-fidelity CRISPR-Cas9 nucleases with no detectable genome-wide off-target effects. Nature529 (7587), 490495. 10.1038/nature16526

  • 23

    Li C. Guan X. Du T. Jin W. Wu B. Liu Y. et al (2015). Inhibition of HIV-1 infection of primary CD4+ T-cells by gene editing of CCR5 using adenovirus-delivered CRISPR/Cas9. J. Gen. Virol.96, 23812393. 10.1099/vir.0.000139

  • 24

    Li Y. Moriyama T. Yoshimura S. Zhao X. Li Z. Yang X. et al (2022). PAX5 epigenetically orchestrates CD58 transcription and modulates blinatumomab response in acute lymphoblastic leukemia. Sci. Adv.8, eadd6403. 10.1126/sciadv.add6403

  • 25

    Lim J. M. Kim H. H. (2022). Basic principles and clinical applications of CRISPR-based genome editing. Yonsei Med. J.63 (2), 105113. 10.3349/ymj.2022.63.2.105

  • 26

    Luca D. C. (2021). Update on lymphoblastic leukemia/lymphoma. Clin. Lab. Med.41, 405416. 10.1016/j.cll.2021.04.003

  • 27

    Malard F. Mohty M. (2020). Acute lymphoblastic leukaemia. Lancet395, 11461162. 10.1016/S0140-6736(19)33018-1

  • 28

    Mali P. Aach J. Stranges P. B. Esvelt K. M. Moosburner M. Kosuri S. et al (2013). Cas9 transcriptional activators for target specificity screening and paired nickases for cooperative genome engineering. Nat. Biotechnol.31 (9), 833838. 10.1038/nbt.2675

  • 29

    Montaño A. Ordonez J. L. Alonso-Pérez V. Hernández-Sánchez J. Santos S. González T. et al (2020). ETV6/RUNX1 fusion gene abrogation decreases the oncogenicity of tumour cells in a preclinical model of acute lymphoblastic leukaemia. Cells9, 215. 10.3390/cells9010215

  • 30

    Naeem M. Majeed S. Hoque M. Z. Ahmad I. (2020). Latest developed strategies to minimize the off-target effects in CRISPR-cas-mediated genome editing. Cells9, 1608. 10.3390/cells9071608

  • 31

    Navarro C. Ortega A. Santeliz R. Garrido B. Chacín M. Galban N. et al (2022). Metabolic reprogramming in cancer cells: emerging molecular mechanisms and novel therapeutic approaches. Pharmaceutics14, 1303. 10.3390/pharmaceutics14061303

  • 32

    Ottaviano G. Georgiadis C. Gkazi S. A. Syed F. Zhan H. Etuk A. et al (2022). Phase 1 clinical trial of CRISPR-engineered CAR19 universal T cells for treatment of children with refractory B cell leukemia. Sci. Transl. Med.14, eabq3010. 10.1126/scitranslmed.abq3010

  • 33

    Petri K. Zhang W. Ma J. Schmidts A. Lee H. Horng J. E. et al (2022). CRISPR prime editing with ribonucleoprotein complexes in zebrafish and primary human cells. Nat. Biotechnol.40, 189193. 10.1038/s41587-021-00901-y

  • 34

    Pham L. T. Peng H. Ueno M. Kohno S. Kasada A. Hosomichi K. et al (2022). RHEB is a potential therapeutic target in T cell acute lymphoblastic leukemia. Biochem. Biophys. Res. Commun.621, 7479. 10.1016/j.bbrc.2022.06.089

  • 35

    Ran F. A. Hsu P. D. Lin C. Y. Gootenberg J. S. Konermann S. Trevino A. E. et al (2013). Double nicking by RNA-guided CRISPR Cas9 for enhanced genome editing specificity. Cell154 (6), 13801389. 10.1016/j.cell.2013.08.021

  • 36

    Ravichandran M. Maddalo D. (2023a). Applications of CRISPR-Cas9 for advancing precision medicine in oncology: from target discovery to disease modeling. Front. Genet.14 (01), 1273994. 10.3389/fgene.2023.1273994

  • 37

    Ravichandran M. Maddalo D. (2023b). Applications of CRISPR-Cas9 for advancing precision medicine in oncology: from target discovery to disease modeling. Front. Genet.14 (01), 1273994. 10.3389/fgene.2023.1273994

  • 38

    Rogers J. H. Gupta R. Reyes J. M. Gundry M. C. Medrano G. Guzman A. et al (2021). Modeling IKZF1 lesions in B-ALL reveals distinct chemosensitivity patterns and potential therapeutic vulnerabilities. Blood Adv.5, 38763890. 10.1182/bloodadvances.2020002408

  • 39

    Sasaki K. Yamauchi T. Semba Y. Nogami J. Imanaga H. Terasaki T. et al (2022a). Genome-wide CRISPR-Cas9 screen identifies rationally designed combination therapies for CRLF2-rearranged Ph-like ALL. Blood139, 748760. 10.1182/blood.2021012976

  • 40

    Sasaki K. Yamauchi Y. Semba Y. Nogami J. Imanaga H. Terasaki T. et al (2022b). Genome-wide CRISPR-Cas9 screen identifies rationally designed combination therapies for CRLF2-rearranged Ph-like ALL. Blood139, 748760. 10.1182/blood.2021012976

  • 41

    Sheykhhasan M. Manoochehri H. Dama P. (2021). Use of CAR T-cell for acute lymphoblastic leukemia (ALL) treatment: a review study. Cancer Gene Ther.29 (8), 10801096. 10.1038/s41417-021-00418-1

  • 42

    Slaymaker I. M. Gao L. Zetsche B. Scott D. A. Yan W. X. Zhang F. (2013). Rationally engineered Cas9 nucleases with improved specificity. Science351 (6268), 8488. 10.1126/science.aad5227

  • 43

    Tan Y. T. Ye L. Xie F. Wang J. Müschen M. Chen S. J. et al (2020). CRISPR/Cas9-mediated gene deletion efficiently retards the progression of philadelphia-positive acute lymphoblastic leukemia in a p210 BCR-ABL1T315I mutation mouse model. Haematologica105, E232E236. 10.3324/haematol.2019.229013

  • 44

    Thandapani P. Kloetgen A. Witkowski M. T. Glytsou C. Lee A. K. Wang E. et al (2022). Valine tRNA levels and availability regulate complex I assembly in leukaemia. Nature601, 428433. 10.1038/s41586-021-04244-1

  • 45

    Wojtuszkiewicz A. Peters G. J. van Woerden N. L. Dubbelman B. Escherich G. Schmiegelow K. et al (2015). Methotrexate resistance in relation to treatment outcome in childhood acute lymphoblastic leukemia. J. Hematol. Oncol.8, 61. 10.1186/s13045-015-0158-9

  • 46

    Xu L. Yang H. Gao Y. Chen Z. Xie L. Liu Y. et al (2017). CRISPR/Cas9-Mediated CCR5 ablation in human hematopoietic stem/progenitor cells confers HIV-1 resistance in vivo. Mol. Ther.25, 17821789. 10.1016/j.ymthe.2017.04.027

  • 47

    Yang H. Zhang H. Luan Y. Liu T. Yang W. Roberts K. G. et al (2022). Noncoding genetic variation in GATA3 increases acute lymphoblastic leukemia risk through local and global changes in chromatin conformation. Nat. Genet.54, 170179. 10.1038/s41588-021-00993-x

  • 48

    Yu H. Yin Y. Yi Y. Cheng Z. Kuang W. Li F. et al (2020). Targeting lactate dehydrogenase A (LDHA) exerts antileukemic effects on T-cell acute lymphoblastic leukemia. Cancer Commun.40, 501517. 10.1002/cac2.12080

  • 49

    Zhang F. Wen Y. Guo X. (2014). CRISPR/Cas9 for genome editing: progress, implications and challenges. Hum. Mol. Genet.23, R40R46. 10.1093/hmg/ddu125

  • 50

    Zhang H. Zhang Y. Zhou X. Wright S. Hyle J. Zhao L. et al (2020). Functional interrogation of HOXA9 regulome in MLLr leukemia via reporter-based CRISPR/Cas9 screen. Elife9, 130. 10.7554/eLife.57858

  • 51

    Zhao X. Qian M. Goodings C. Zhang Y. Yang W. Wang P. et al (2022). Molecular mechanisms of ARID5B-mediated genetic susceptibility to acute lymphoblastic leukemia. J. Natl. Cancer Inst.114 (9), 12871295. 10.1093/jnci/djac101

  • 52

    Zhao Z. Shang P. Mohanraju P. Geijsen N. (2023). Prime editing: advances and therapeutic applications. Trends Biotechnol.41, 10001012. 10.1016/j.tibtech.2023.03.004

Summary

Keywords

CRISPR/Cas9, gene editing, acute lymphoblastic leukemia, therapeutic strategies cancer treatment, current perspectives

Citation

Assis AJB, Santana BLdO, Gualberto ACM and Pittella-Silva F (2023) Therapeutic applications of CRISPR/Cas9 mediated targeted gene editing in acute lymphoblastic leukemia: current perspectives, future challenges, and clinical implications. Front. Pharmacol. 14:1322937. doi: 10.3389/fphar.2023.1322937

Received

17 October 2023

Accepted

23 November 2023

Published

07 December 2023

Volume

14 - 2023

Edited by

Haigang Wu, Henan University, China

Reviewed by

Sreekanth Vedagopuram, Brigham and Women’s Hospital and Harvard Medical School, United States

Elyse Page, South Australian Health and Medical Research Institute (SAHMRI), Australia

Updates

Copyright

*Correspondence: Fabio Pittella-Silva,

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
