Single-qubit multi-party transmission using universal symmetric quantum cloning

Abstract

This study considers the hypothetical quantum network case where Alice wishes to transmit one qubit of information (specifically a pure quantum state) to parties, where is some large number. The remote receivers locally perform single-qubit quantum state tomography on the transmitted qubits in order to compute the quantum state within some error rate (dependent on the tomography technique and the number of transmitted qubits). We show that with the use of an intermediate optimal symmetric universal quantum cloning machine (between Alice and the remote receivers) as a repeater-type node in a hypothetical quantum network, Alice can send significantly fewer qubits compared to direct transmission of the message qubits to each of the remote receivers. This is possible due to two properties of quantum cloning. The first is that single qubit quantum clones retain the same Bloch angle as the initial quantum state. This means that if the mixed state of the quantum clone can be computed to high enough accuracy, the original pure quantum state can be inferred by extrapolating that vector to the surface of the Bloch sphere. The second property is that the state overlap of approximate quantum clones, with respect to the original pure quantum state, quickly converges (specifically for , the limit of the fidelity as M goes to infinity is ). This means that Alice can prepare a constant number of qubits (which are then passed through the quantum cloning machine) in order to achieve a desired error rate if is large enough. Combined, these two properties mean that for a large , Alice can prepare many orders of magnitude fewer qubits in order to achieve the same single qubit transmission accuracy compared to the naive direct qubit transmission approach.

1 Introduction

Unknown quantum information cannot, in general, be cloned; this is a fundamental property of quantum mechanics (Wootters and Zurek, 1982; DGBJ, 1982). However, approximate quantum cloning is possible (Buž ek and Hillery, 1996). This study proposes that universal, symmetric, optimal quantum cloning machines can be used in a repeater-type quantum network in order to transmit single qubits to a large number ( of remote receivers, where each remote receiver applies single-qubit quantum state tomography on the received qubits in order to compute what the mixed-density matrix state of the received quantum clones are, and then extrapolates what the original intended pure quantum state is (with some error rate). The proposed protocol is conceptually outlined in Figure 1. The use of qubits as the unit of transmitted information in this hypothetical protocol is motivated by the security given by the no-cloning theorem itself and thus is used in a standard single qubit quantum key distribution (Wootters and Zurek, 1982; DGBJ, 1982; Bennett and Brassard, 2014; Shor and Preskill, 2000; Renner et al., 2005; Christandl et al., 2004)—in this case, that measuring individual qubits that are being transmitted does not give sufficient information to fully reconstruct the original quantum state. Therefore in this hypothetical scenario, we also imagine that we wish to keep the information contained in the qubits used in this protocol secure as well. These single qubits transmitted in the proposed protocol have the same security inherent in quantum key distribution.

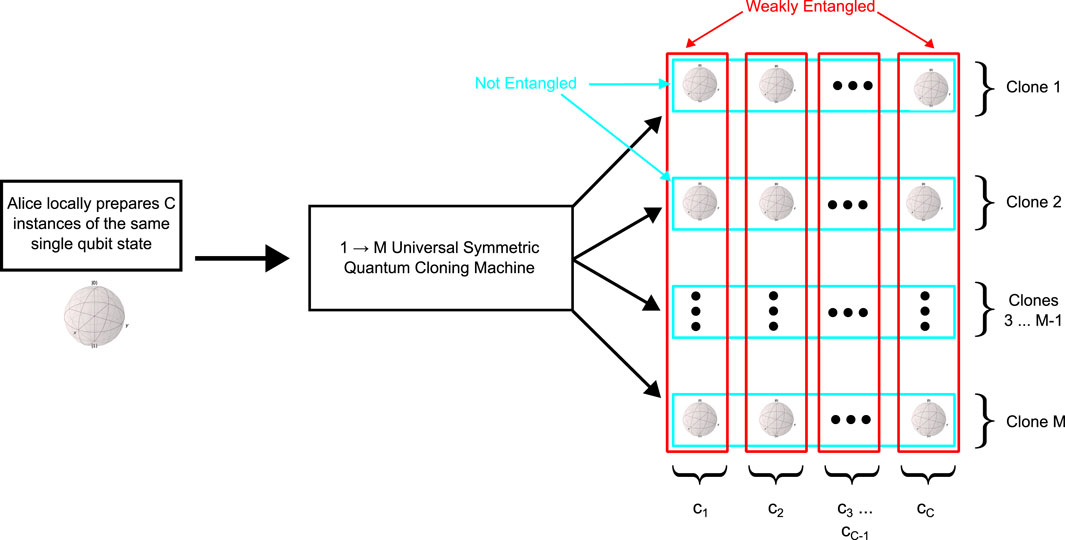

FIGURE 1

Since the initial quantum cloning was proposed (Buž ek and Hillery, 1996), it has been generalized to quantum cloning (Gisin and Massar, 1997). There are many variants of approximate quantum cloning (Scarani et al., 2005; Fan et al., 2014; Murao et al., 1999; Fiurasek et al., 2005; Fan et al., 2003; Bruß et al., 2000; Durt et al., 2005; Fiurášek, 2001; Hardy and Song, 1999; Buzek and Hillery, 1998; Fan et al., 2001; Karimipour et al., 2002; van Loock and Braunstein, 2001; Iblis et al., 2005; Chefles and Barnett, 1999), and there have been numerous experimental demonstrations of variants of quantum cloning (Cummins et al., 2002; Liu et al., 2021; Chen et al., 2011; Nagali et al., 2010; Bouchard et al., 2017; Du et al., 2005; Pelofske, 2024; Pelofske, 2022; Pelofske et al., 2022). The primary characteristics that differentiate quantum cloning variants are as follows. Universal means that the cloning process is input-state-independent, and non-universal means that the cloning process is state-dependent. Symmetric means that all generated clones have the same quality, whereas non-symmetric means that the generated clones can be of different quality (e.g., distinguishable). Optimal quantum cloning means that the process produces clones which are of the highest quality possible within the laws of quantum mechanics; this bound in terms of quantum fidelity is given by Equation 1:

Whereas typically in quantum networks, one of the central goals is to share entanglement using entanglement swapping (Shchukin and van Loock, 2022; Xu et al., 2017; Goebel et al., 2008; Bruschi et al., 2014; Zhao et al., 2010; Sangouard et al., 2008), there are a number of proposed algorithms that encode information into individual qubits, usually in the context of quantum machine learning (Pérez-Salinas, 2020; Thumwanit, 2021; Ambainis, 2009; Tapia et al., 2023). Therefore, it is conceivable that in a hypothetical future large-scale quantum network, one may wish to transmit a single qubit state to a large number of remote parties. We can imagine two potential cases where the proposed method could be used. The first is where the preparation of the single qubit state requires a non-insignificant amount of computing time, and therefore Alice wishes to reduce the total number of preparations (particularly to offload the computing time onto the quantum cloning process). The second is where a quantum cloning machine already has a direct networked connection to the intended recipients, and therefore it is easier for Alice to send qubits through the quantum cloning node in order to distribute the quantum information.

Accurately measuring which quantum state has been prepared, particularly on hardware experiments, is of considerable interest for quantum information processing. In particular, quantum state tomography of a single qubit (Roman, 2016) is the simplest of these types of tasks since there is not an exponential overhead that comes with larger system sizes. Therefore, this study strictly considers the case in which recipients measure the state of single qubits using quantum-state tomography. There are many methods for performing full quantum-state tomography, but in this case we use Pauli basis state tomography in all simulations. Geometrically, the factor by which the Bloch vector of an input message state in the Bloch sphere representation is shrunk when copied by an optimal universal symmetric quantum cloning process is given by

(Scarani et al., 2005; Bruss et al., 1998; Bruß et al., 1998) (for a qubit, e.g., ).

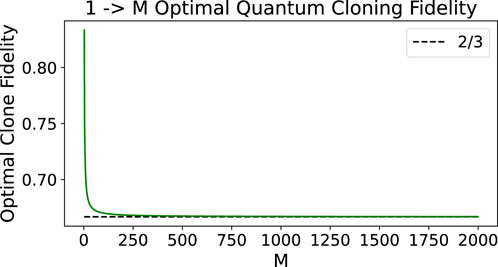

For universal symmetric quantum cloning machines, there is a known optimal bound on the best quantum state fidelity that can be achieved for single-qubit clones. This bound is shown in Equation 1. The primary motivation of this proposed single-qubit distribution methodology is that . This fidelity convergence is plotted in Figure 2. Thus, the single-qubit clone quality is asymptotic, which means in particular that there are not diminishing returns as gets extremely large, in terms of error measures such as the state overlap between any one of the approximate quantum clones and the original message qubit. In this context, the property of quantum cloning machines that gives this asymptotic fidelity quality is that asymptotic quantum cloning (where the number of clones tends to infinity) is the same as direct quantum-state estimation (Bae and Acín, 2006; Yang and Chiribella, 2013). Quantum state estimation is the general task of learning information about a quantum state using measurements (Paris and Rehacek, 2004), and quantum state tomography is a specific type of quantum state estimation.

FIGURE 2

Iqbal (2022) and Iqbal et al. (2023) studied similar concepts of using quantum cloning for qubit transmission but limited the number of clones to four; they did not use single-qubit quantum state tomography (QST) or geometric extrapolation to determine the intended pure quantum state. Wang and Cai (2018); Wang and Cai (2019) similarly studied using many qubit copies to transmit information but only examined making repeated quantum copies of classical bits; they did not extend the number of clones to large .

2 Methods

In order to quantify how close the post-processed quantum clones are to the original pure quantum state, we measure the distance along the surface of the Bloch sphere between the extrapolated single qubit clone vector (since universal quantum cloning only shrinks the Bloch vector by a factor given in Equation 2, and does not change the angle of the vector) and the pure quantum state vector at the point at which they intersect the surface of the Bloch sphere. This error measure thus quantifies the geodesic distance along the Bloch sphere between two Bloch vectors. This measure is 0 when the two states are exactly the same and is a maximum of when the vectors point in opposite directions. The distance between the two points along the surface of the Bloch sphere is computed by , where are the x, y, z coordinates for the intersection point on the surface of the Bloch sphere for the pure quantum state, and are the x, y, z coordinates for the intersection point of the extrapolated vector of the single-qubit clone density matrix. Due to numerical precision error, this term will occasionally be outside of making it undefined for , in which case the computed value is set to or 1, respectively. The implementation of the numerical simulation protocol is specified with the goal of showing how relatively easy this protocol can be implemented conceptually. The difficulty of the proposed protocol is strictly due to the quantum information processing and quantum networking that would be required to actually physically implement it.

The extrapolation procedure we employ is to compute the coordinates of the mixed-state density matrix within the Bloch sphere and then compute the intersection of that Bloch vector with the surface of the Bloch sphere. The extrapolated Bloch vector intersection point with the Bloch sphere can be computed by solving the positive value of in , where , , and are the coordinates of the mixed state Bloch vector. The extrapolated coordinates are then given by , and . This is easily computed over many numerical simulations using “sympy” (Meurer et al., 2017). The error of the extrapolated point can then be measured by the distance along the surface of the Bloch sphere, as described above, or can be measured by converting the coordinates into a density matrix form, and the state overlap with the message state can be measured. The second metric we will use to quantify the error rate of the single-qubit state tomography (both for the standard approach and the proposed quantum cloning approach) is the well-established quantum fidelity (Jozsa, 1994; Müller, 2023) metric, which measures the state overlap between two density matrices (Equation 3). A fidelity of 0 means there is no state overlap, and a fidelity of 1 means that the two states exactly overlap. The error rate will be reported as 1 minus the fidelity—for example, infidelity. The quantum fidelity measure, which is an overlap measure between two density matrices, is given as

The density matrix reconstruction was performed using a slightly modified version of Qiskit Ignis (Contributors, 2023), with the least squares parameter optimization performed using the Python 3 package “cvxopt” (Diamond and Boyd, 2016; Agra et al., 2018) which uses convex optimization (Agrawal et al., 2019; Agrawal and Boyd, 2020a; Agrawal, 2019; Agrawal and Boyd, 2020b) to perform maximum likelihood estimation (Smolin et al., 2012). Conversion formulas between density matrix representations and Bloch sphere coordinates are given in Supplementary Appendix S1. All simulations in this study assume no de-coherence of any of the quantum states during transmission (or any other part of the protocol) and assume in general ideal conditions—for example, we assume no qubit loss during transmission either. The only noise considered is shot noise (e.g., finite sampling effect).

Quantum fidelity is a standard quantum state overlap measure and therefore is most likely to be interpretable. However, the distance along the surface of the Bloch sphere provides a geometrical intuition which is very compatible with the notion of single-qubit quantum cloning, and therefore we report both error measures in this study.

2.1 Clone emulation

Single qubit clones of universal, symmetric, quantum cloning machines have well defined properties—namely, that the clones of quantum state correspond geometrically to the vector of the original state being shrunk by factor (Equation 2).

This means that for the purposes of analyzing unentangled sequences of single-qubit clones (e.g., the unentangled sequences described in Figure 1), the relevant quantum cloning procedure can be emulated by constructing a density matrix that describes the mixed state of the original pure quantum state, shrunk by . Importantly, this involves only a single qubit, and thus classical simulations of the state are extremely rapid and can be executed for any . This procedure is referred to as clone emulation in order to clarify that it does not produce a full set of quantum clones (which themselves form an entangled system) and is a limited but extremely useful tool for analyzing single-qubit quantum cloning in this proposed protocol. It should emphasized, however, that this cloning emulation is only a numerical simulation method that allows us to examine the expected error rates and overhead of this hypothetical networking protocol. If one were to implement this protocol, the full universal quantum cloning machine would need to implement a very large and complex unitary, thus generating weakly entangled clones. Exact statevector simulation of such a quantum cloning unitary for very a large is not feasible because of the exponentially growing computing time and memory cost of a full statevector simulation of quantum states.

In this study, is denoted simultaneously as the number of approximate quantum clones generated by the cloning process and the number of remote clone receivers illustrated in Figure 1. Each of the clones that is produced given an input of a single original pure quantum single-qubit state is thus sent to exactly one (independent) remote receiver which then performs local operations and measurements. Additionally in all simulations, the same original message qubit is repeatedly transmitted to all parties so that a baseline of error rate metrics can be measured as other parameters are changed.

For all numerical simulations, a single qubit state is used since the cloning process is universal (state-independent). For the clone emulation procedure, 10,000 instances (for each number of shots) are executed instead of all instances. This only works because the cloning is symmetric (i.e., all quantum clones are identical) and because the remote receiver measurements are always from separate groups of clones (cyan boxes in Figure 1) and are therefore not entangled. Note that if we were interested in computing the full quantum state of a group of clones (e.g., the red boxes in Figure 1), the computational cost would be immense for a large —in particular, this would require at least qubits with no or very few errors and for a significant number of quantum gates to be executed; see Pelofske (2024), Pelofske (2022), and Pelofske et al. (2022) for detailed circuit descriptions of quantum telecloning circuits, as an example. Alternatively, if the form of the cloning state density matrix was known, then it could be computed and sampled; however, this would require a matrix that has dimensions by . For the scenario in Figure 1, it is not necessary that these full state simulations be performed in order to assess the transmission error rates that each remote receiver would experience. In particular, for universal and symmetric quantum cloning, the clone quality is significantly simplified, as single-qubit state tomography on approximate quantum clones can show what the resulting transmission accuracy would be (after single-qubit quantum state tomography and state reconstruction).

In order to verify that the clone emulation worked as expected, we performed simulations that compared classical simulations of quantum cloning circuits with the single qubit emulation. This comparison was made using parallel single-qubit quantum state tomography run using full statevector simulations of quantum cloning circuits in order to compute (ground-truth) clone quality. The quantum cloning circuits used to simulate this protocol are a variant of quantum cloning known as “quantum telecloning”; they are universal, symmetric, and optimal. The construction of these telecloning circuits is described in Pelofske (2024), Pelofske (2022), and Pelofske et al. (2022). Supplementary Appendix S1 shows an example of one of these circuits, described in the form of an explicit compiled quantum circuit diagram.

3 Results

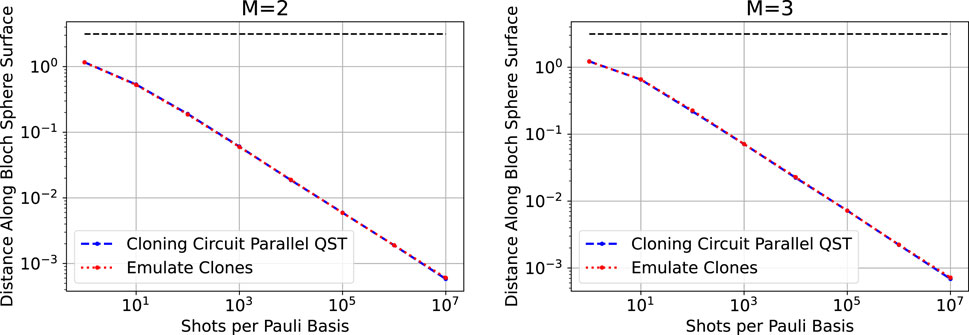

Figure 3 verifies that the clone emulation procedure produces identical results, up to shot noise, compared with the full parallel single-qubit state tomography procedure. The full parallel single-qubit state tomography procedure was performed using the quantum telecloning circuits from Pelofske (2024), Pelofske (2022), and Pelofske et al. (2022).

FIGURE 3

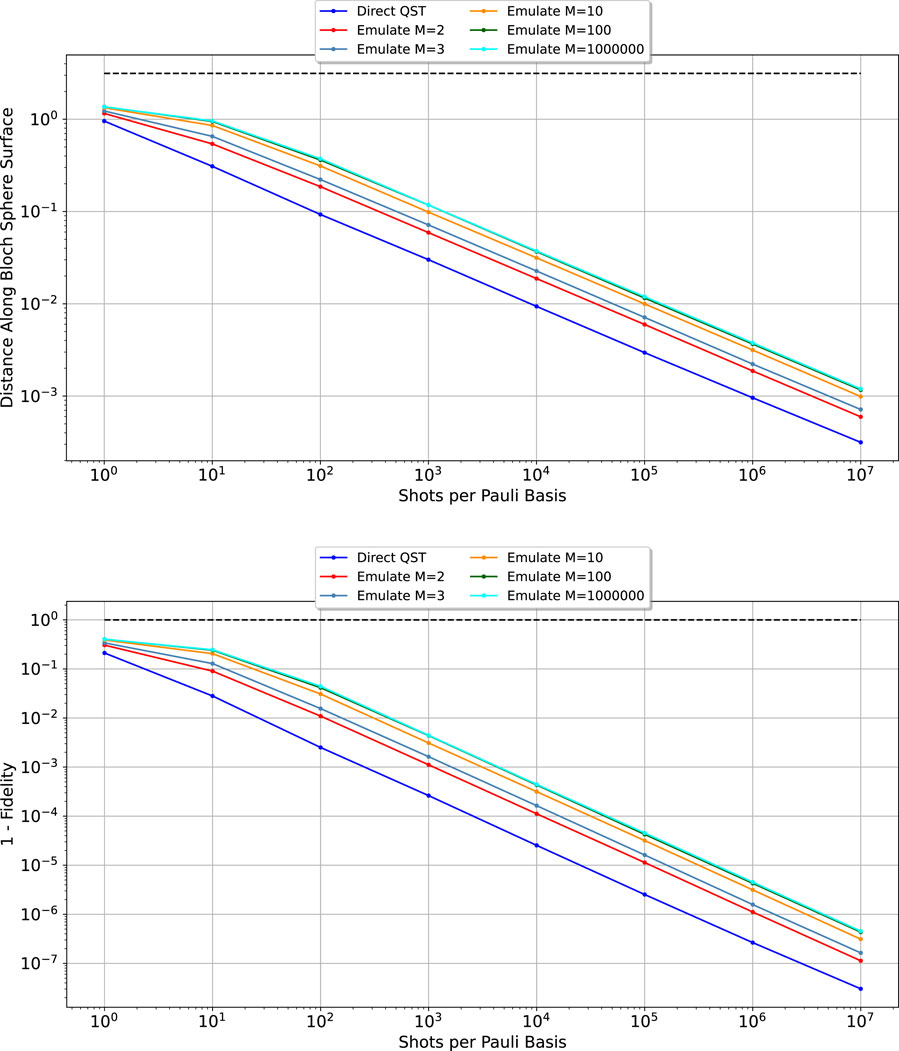

Figure 4 compares direct single-qubit state tomography and extrapolated quantum state reconstruction from the approximate quantum clones. “Direct QST” refers to the procedure where Alice transmits the qubit to each of the recipients, repeated many times (plotted on the x-axis of Figure 4). The metrics used for this comparison are i) distance along the surface of the Bloch sphere (closer to 0 means lower error rate) and ii) (closer to 0 means lower error rate). As expected, because , there is an asymptote of the error rate of the reconstructed quantum states as gets large; and are effectively visually indistinguishable, which makes sense because all of the generated clones at this scale are approaching the same state overlap with the pure quantum state. The data in Figure 4 represent the mean error rate from 1,000 separate executions of quantum state tomography for each point on the x-axis. The emulated quantum clones are generated in batched simulations of 10,000 per parameter.

FIGURE 4

Figure 4 shows that the proposed protocol (Figure 1) provides a significant improvement over direct single-qubit transmission when is large (but when considering only single qubits, and particularly single clones of the original qubit, as expected, direct QST gives the lowest error rate). The tradeoff that this protocol proposes is to sacrifice some error rate in the small regime in order to make the total number of transmitted copies of that original qubit very large, and at very large we obtain a constant error rate (Figure 5). Note that because of the asymptotic clone quality, can be any large finite number. Figure 5 shows this asymptotic clone quality as becomes extremely large for both error metrics for a fixed number of shots. This shows that, for sufficiently large , Alice can use a constant number of qubits (for a desired error rate) in order to transmit those qubits, via a symmetric universal quantum cloning machine, to remote receivers. Figure 4 shows that there is approximately an order of magnitude separation between the limiting behavior of the quantum cloning and the direct qubit transmission. In order to quantify this, we can measure the breakeven point between these two transmission methods.

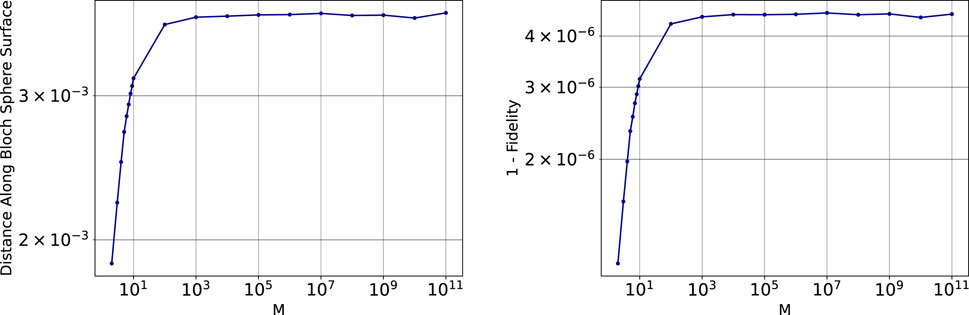

FIGURE 5

The breakeven point is defined as the point where the two methods (the direct single qubit transmission and the proposed quantum cloning protocol) require the same number of message qubits to be prepared by Alice in order for the receiver error rate (for all receivers) to be the same. Figure 6 plots this breakeven point as a function of the error rate. The breakeven point for this range of error rates was computed using an interpolation between the datapoints in Figure 4.

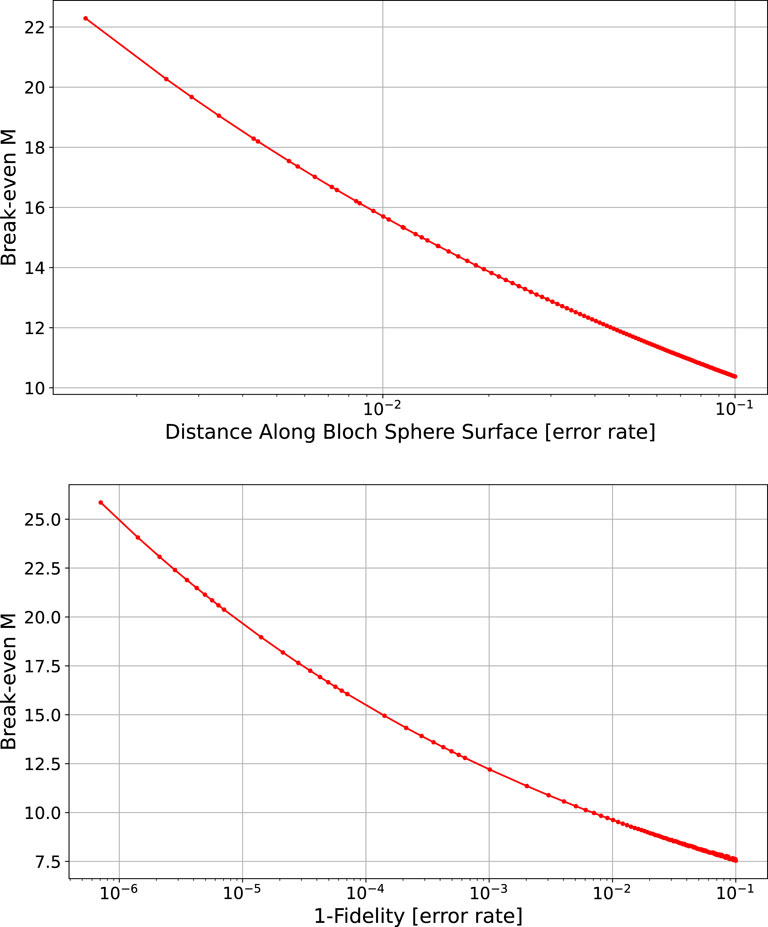

FIGURE 6

For a desired error rate, if is greater than the break-even point in Figure 6, Alice must produce a constant number of message qubits (given by the error-dependent curve, approximated to high accuracy by the curve in Figure 4) to be passed through the quantum cloning machine (Figure 1). In order for the direct single qubit transmission, without quantum cloning, to achieve the same error rate and throughput (e.g., sending the qubits to each of the remote receivers), Alice would need to prepare qubits per Pauli basis (in this case, three) for each sample shown by the x-axis of the blue Direct QST curve in Figure 4. This shows a clear and significant scaling advantage when using quantum cloning to perform this type of single-qubit transmission compared to direct qubit transmission without cloning.

Figure 6 contains three key observations. The first is that the scaling of the breakeven point as a function of is increasing—as the transmission error rate decreases, increases. This increase of is not significant (it reaches 25 in Figure 6), but a thorough analysis of this scaling for substantially smaller error rates is an interesting question for the future. Second, the breakeven point is similar but not identical for the two error metrics. Third, the breakeven point scaling, at least for the tested error rate range, is incredibly favorable to the proposed quantum cloning protocol. Thus, in order for Alice to see a reduction in the number of local qubit preparations, (the number of remote receivers) must be greater than 25. Importantly, as shown by the convergence of the transmission error rates for large in Figure 5, the number of qubits that Alice must prepare locally for any desired error rate (or better) is then constant for any larger value of .

4 Discussion and conclusion

The primary logical next question is the extent to which more general (universal, symmetric) quantum cloning processes could be used in this type of quantum information distribution protocol since typically entangled states contain more interesting algorithmic information that one may wish to distribute over a quantum network. Specifically, the most important question is how the extrapolation procedure can be extended to entangled multi-qubit systems. It would be of interest to determine the extent to which entangled quantum states can be accounted for in this type of quantum cloning extrapolation protocol. This certainly should be possible, although the clear Bloch sphere geometric argument used in this paper would not easily extend to ; most likely, an extrapolation method based purely on the density matrices would be necessary.

The emphasis of this study is to show proof-of-principle for a specific type of quantum networking protocol. Importantly, this type of protocol is far from currently feasible on real quantum computers or quantum networks; this study does not examine real world aspects that would certainly be relevant, such as timing. Quantifying how real world decoherence error rates, both for the transmission and for the preparation of the quantum cloning circuit, impact the reconstruction error is another important future question. Noise, particularly de-coherence, could both shrink the length of the Bloch vector as well as bias its angle. Nevertheless, the implementation shown here uses the real-world characterization protocol of quantum state tomography, thus showing that this could be algorithmically implemented if there was hardware that could perform these operations. It would need to be possible to obtain good low error rate state reconstruction despite very large numbers of clones being generated in total.

Although not investigated here, this proposed protocol could certainly also be applied to message qubits which are mixed states. However, this would cause the cloning fidelity to be even lower than it is when the message qubit is a pure quantum state, thus necessitating more copies to passed through the quantum cloning machine in order to achieve reasonably low error rate single-qubit state tomography for the receivers.
