Abstract
Background:
There is increased interest in using artificial intelligence (AI) to provide participation-focused pediatric re/habilitation. Existing reviews on the use of AI in participation-focused pediatric re/habilitation focus on interventions and do not screen articles based on their definition of participation. AI-based assessments may help reduce provider burden and can support operationalization of the construct under investigation. To extend knowledge of the landscape on AI use in participation-focused pediatric re/habilitation, a scoping review on AI-based participation-focused assessments is needed.
Objective:
To understand how the construct of participation is captured and operationalized in pediatric re/habilitation using AI.
Methods:
We conducted a scoping review of literature published in Pubmed, PsycInfo, ERIC, CINAHL, IEEE Xplore, ACM Digital Library, ProQuest Dissertation and Theses, ACL Anthology, AAAI Digital Library, and Google Scholar. Documents were screened by 2–3 independent researchers following a systematic procedure and using the following inclusion criteria: (1) focuses on capturing participation using AI; (2) includes data on children and/or youth with a congenital or acquired disability; and (3) published in English. Data from included studies were extracted [e.g., demographics, type(s) of AI used], summarized, and sorted into categories of participation-related constructs.
Results:
Twenty one out of 3,406 documents were included. Included assessment approaches mainly captured participation through annotated observations (n = 20; 95%), were administered in person (n = 17; 81%), and applied machine learning (n = 20; 95%) and computer vision (n = 13; 62%). None integrated the child or youth perspective and only one included the caregiver perspective. All assessment approaches captured behavioral involvement, and none captured emotional or cognitive involvement or attendance. Additionally, 24% (n = 5) of the assessment approaches captured participation-related constructs like activity competencies and 57% (n = 12) captured aspects not included in contemporary frameworks of participation.
Conclusions:
Main gaps for future research include lack of: (1) research reporting on common demographic factors and including samples representing the population of children and youth with a congenital or acquired disability; (2) AI-based participation assessment approaches integrating the child or youth perspective; (3) remotely administered AI-based assessment approaches capturing both child or youth attendance and involvement; and (4) AI-based assessment approaches aligning with contemporary definitions of participation.
Introduction
Participation is a key re/habilitation outcome that has been defined by the World Health Organization as the “involvement in life situation” (, p. 9). In pediatric re/habilitation this definition has been further conceptualized by Imms et al. () in the family of Participation-Related Constructs (fPRC) framework. This contemporary framework defines participation as child or youth attendance and involvement in activities, which is related to but distinct from their activity competencies, environment/context, and preferences or sense of self (, ). Attendance is the objective dimension of participation and has been commonly used to quantify participation in pediatric re/habilitation (–). Involvement is considered as more complex (, , ) and has been further grouped by education and pediatric re/habilitation literature into behavioral, cognitive, and emotional involvement (–). Behavioral involvement is considered observable on-task behavior (), whereas cognitive involvement (thoughtfulness and willingness to employ effort for tasks) and emotional involvement (positive and negative feelings when interacting with people or tasks) are non-observable (, ).
Recent literature reviews revealed inconsistent conceptualization of participation in pediatric re/habilitation, hindering interpretability and comparison across studies and practice approaches (, ). For example, participation has often been used interchangeably with activity competence, rendering confusion about these two distinct but related constructs (–). For efficient service provision () to reduce costs and provider and patient burden (), there is need to simplify processes within participation-focused pediatric re/habilitation services without compromising the complexity and the customization of participation-focused services to individual needs.
The application of artificial intelligence (AI), which is considered a top re/habilitation research priority (, ), might be one way to address this need. AI can be defined as systems that think and act rationally by mimicking humans (). Regardless of the type of AI method employed [e.g., machine learning (ML), natural language processing (NLP)] (), AI is commonly used to simplify processes and to customize information to individuals' preferences and needs, which could benefit the healthcare industry (). In pediatric re/habilitation, AI may help to consolidate and analyze information in ways that afford for providers to more efficiently enact the evaluation and goal-setting, intervention, and reevaluation phases of the therapeutic process () to deliver client-centered and participation-focused re/habilitation interventions (, ). In the last decade there has been a vast increase in research on the use of AI in participation-focused pediatric re/habilitation warranting need for summarizing the body of literature in this area of work ().
Recently, our scoping review () on the use of AI in re/habilitation interventions targeting the participation of children and youth with acquired and congenital disabilities included appraisal of: () their type of AI and customization used; () their mode of delivery (i.e. in-person, remote); and () whether goal-setting was addressed. Results revealed 94 studies using AI in participation-focused pediatric re/habilitation interventions. Of these 94 studies, only 7 (8%) applied types of AI other than robotics or virtual reality (VR), only one study (1%) was tailored to patients' individual needs, only 10 (11%) were delivered remotely, and only one (1%) of the studies described individual goal-setting as part of their intervention ().
A main limitation of this scoping review include its exclusive focus on interventions (). Assessments that are conceptually sound play a substantial role in shaping the enactment of quality therapeutic processes (, , , ) and ensuring consistent interpretation of research findings across studies (). Prior systematic reviews revealed few participation assessments that aligned with contemporary definitions of child and youth participation [i.e., children and youth's attendance and their involvement (, )] (, ). Despite increased interest in using AI to capture participation (), none of the included pediatric assessment approaches used AI (, ). The lack of AI to assess for child and youth participation might be due to selection of search terms and differing terminology in pediatric re/habilitation and computer science (e.g., while “measure” is used for clinical assessment approach in pediatric re/habilitation, it is often a data analytic term in computer science). Alternatively, the use of AI to assess children's participation is still in a nascent phase, which could have precluded their inclusion. Additionally, the authors did not examine participation assessments in regards to their focus on types of involvement (i.e., behavioral, cognitive, and emotional) and concluded the need for “further investigation and characterization, both in relation to what constitutes involvement and the best methods of measurement.” (, p. 13). To extend knowledge of the landscape on AI use in participation-focused pediatric re/habilitation, a scoping review on AI-based participation-focused assessments is needed.
Therefore, the purpose of this scoping review was to understand how the construct of participation is captured and operationalized in pediatric re/habilitation using AI, and to what extent it aligns with the contemporary definitions of child and youth participation [i.e., attendance and involvement (, ), as indicated by child or youth behavioral, cognitive, and emotional involvement (–)].
Methods
Study Design
We conducted a scoping review to summarize the breadth of existing evidence on how participation is captured and operationalized in pediatric re/habilitation research using AI-based assessment approaches and to identify gaps for future research (–). In re/habilitation disciplines, assessment is a way to gather clinically relevant information about a patient (). This can be done via different modalities (e.g., observation, interview) and through standardized or non-standardized tools. For this review, assessment is considered an approach and does not necessarily include a standardized tool. We use the PRISMA-ScR checklist () and the Joanna Briggs Institute guidelines by Peter et al. (), encompassing an enhanced version of Arksey and O'Malley's five steps (, , ). A protocol for this scoping review is registered in Open Science Framework ().
Step 1: Identifying the Research Question(s)
How is child or youth participation captured and operationalized in participation-focused pediatric re/habilitation research using AI?
a) What are the demographic characteristics of the targeted population examined in studies using AI to capture participation?
b) What types of AI have been used to assess for child and youth participation in pediatric re/habilitation research?
c) What methods (i.e., reported, observation, estimates), data sources (i.e., child/youth, caregiver, researcher, re/habilitation professional, other type of professional/not specified, facial/skeleton/eye recognition, sensors, Electroencephalogram (EEG), distance estimate, other), and mode of administration (i.e., remotely, in person) have been used to assess for child and youth participation in pediatric re/habilitation?
d) To what extent does participation-focused pediatric re/habilitation research using AI assess for participation in ways that align with the contemporary definition of child and youth participation (, , –)?
e) What are the research gaps in addressing child and youth participation, as aligned with the contemporary definition of child and youth participation, in pediatric re/habilitation research that uses AI?
Step 2: Identifying Relevant Studies
The first author of this review (VK) conducted a systematic literature search in well-established applied health sciences and computer science databases (i.e., Pubmed, PsycInfo, ERIC, CINAHL, IEEE Xplore, ACM Digital Library) with additional searches in ACL Anthology and AAAI Digital Library to retrieve documents published before February 2021. No search limitations were applied, including no publication data limit. We used a search strategy previously published by Kaelin et al. (). For this scoping review, we additionally conducted a search for gray literature in Google Scholar (200 most relevant) () and ProQuest Dissertation and Theses, and we screened the reference lists of included studies (see Appendix 1 for exemplar search history for gray literature search).
Step 3: Study Selection
Documents were included if: (1) the document included a focus on capturing participation using AI; (2) the research paper included data on children and/or youth [aged 0–24 years, as aligned with the definition of children and youth put forth by the United Nations ()] with a congenital or acquired disability (); and (3) the document was published in English. No operational definition of participation was applied, so as to ensure inclusion of a broad scope of documents. The following terms have been used to describe participation in the fPRC (, ) and/or in prior literature reviews on pediatric participation (, , ) and were therefore considered as indicators of participation and included in this review: participation, inclusion, engagement, playfulness, access or attendance to life situation/settings/activities, social interaction, and social engagement. Documents were excluded if: (1) the document did not include a focus on capturing participation in daily activities (e.g., focus was on measuring skill development); (2) there was no use of AI to capture participation; (3) there were no data included of children or youth with a congenital or acquired disability (); (4) the document focused on data of adults (mean age >24 years) (); (5) the document was published in languages other than English; or (6) the document was a textbook review, textbook chapter, literature review, study protocol or demonstration paper, conference or workshop program, or included only an abstract without additional information. To prevent missing relevant documents, the reference lists of excluded literature reviews were screened.
After removal of duplicates from the scientific and gray literature search (n = 1,008), the titles and abstracts of 2,398 documents were screened for inclusion by two researchers independently (VK and MV) (see Figure 1). This resulted in 49 documents that underwent full-text screening by three researchers independently (ZS, JS, and VK) based on the same inclusion and exclusion criteria as for title and abstract screening. Disagreements during title/abstract and full-text screening were resolved through discussion and key informant feedback (MK and NP). In addition, a total of 86 documents were identified through title screening of reference lists in both included documents and excluded literature reviews. After abstract screening of these 86 additional documents, 10 were identified for full-text screening based on the same inclusion and exclusion criteria.

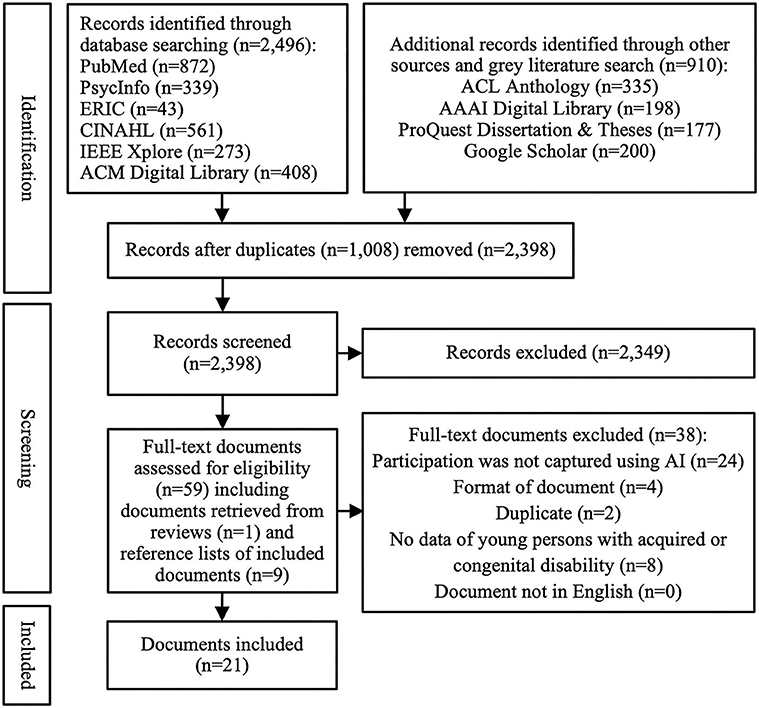

Figure 1
Step 4: Charting the Data
For all included documents, data were extracted by the same three researchers using Microsoft Excel, based on the following categories: Author(s), year, title, sample size, child/youth age, child/youth gender, child/youth acquired or congenital disability, child/youth race and ethnicity [Hispanic, non-Hispanic], family socio-economic status, family income, parental education level, how participation is operationalized, term(s) used to denote participation, whether a definition was provided for participation, participation activity addressed, approach to data collection (i.e., reported, observation, estimates), data source(s) (i.e., child/youth, caregiver, researcher, re/habilitation professional, other type of professional/not specified, facial/skeleton/eye recognition, sensors, EEG, distance estimate, other), type(s) of AI used [i.e., cognitive modeling, computer vision, constraint satisfaction and optimization, game theory, human-agent/computer/robot interaction, human computation and crowdsourcing, knowledge representation and reasoning, ML, NLP, planning/routing/scheduling, robotics, and visualization and VR ()], and mode of administration (i.e., remotely, in person). The selection of demographic categories for extraction was guided by prior research on common predictors of child and youth participation (–). To ensure clarity and relevance of these categories, the data extraction tool was first trialed by three researchers (VK, ZS, and JS) with 5 included documents selected at random.
Step 5: Collating, Summarizing, and Reporting Results
Following data charting, we summarized the included studies according to their publication date, sample size, included child and youth age, gender, acquired or congenital disability, race and ethnicity, and their family's socio-economic status and/or income and their parents' education level. We calculated frequencies for the approach to data collection, data source(s), the type(s) of AI used, mode of administration, and whether a definition for participation was provided. Additionally, the first author (VK) sorted the data in the category of how participation is operationalized according to the fPRC (, ) paired with research on the conceptualization of involvement (–) and as visualized in Figure 2. More specifically, data was mapped to (1) child and youth attendance, (2) their involvement (, ), as indicated by child or youth behavioral, cognitive, and emotional involvement (–), (3) participation-related constructs (i.e., activity competence, sense of self, preferences, environment/context), and 4) a category “other” in situations where data could neither be mapped to participation (i.e., attendance, type of involvement) nor participation-related constructs. For participation assessment approaches that focused on involvement without specifying the type, we assumed a focus on all types of involvement. Uncertainties were discussed with a key informant (MK).
Figure 2
Results
Our scientific and gray literature search revealed 3,406 documents, with 1,008 duplicates, resulting in 2,398 documents that we screened based on their title and abstract (see Figure 1). A total of 2,349 documents were excluded, resulting in 49 documents that underwent full-text screening, and another 10 documents that were identified by screening the reference lists of excluded literature reviews and included studies. While most documents were excluded because they did not use AI to capture participation (n = 24), additional reasons for exclusion were the lack of data on children and/or youth with a congenital or acquired disability (n = 8), document format (i.e., protocol or demonstration papers, only an abstract was available) (n = 4), and duplicates (e.g., a study from a dissertation already included in form of a published article) (n = 2). This resulted in 21 included studies for this scoping review, each representing a different AI-based participation assessment approach.
Demographic Characteristics of the Included Samples
We describe the included studies based on their publication date, included sample size, sampled child and/or youth age, gender, congenital or acquired disability, and race and/or ethnicity [Hispanic, non-Hispanic], as well as the family's socio-economic status or income and the parental education level.
The 21 included studies were published between 2007 and 2020, with most of them (n = 13/21; 62%) published after 2016 (

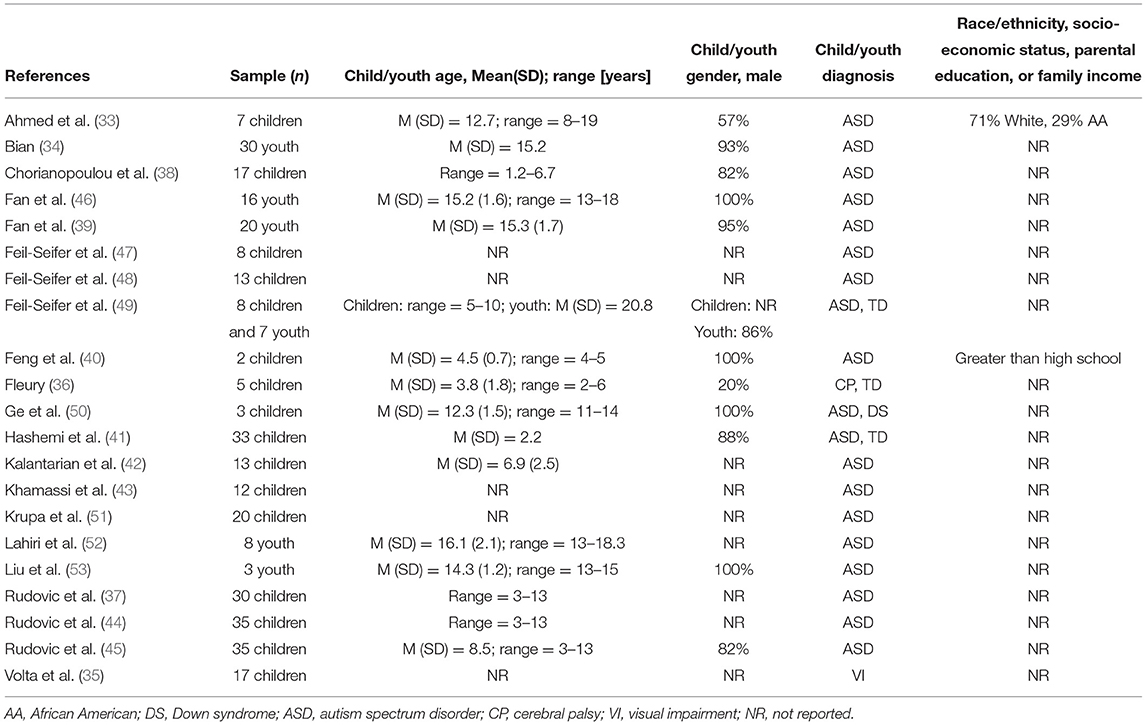

Table 1
| References | Sample (n) | Child/youth age, Mean(SD); range [years] | Child/youth gender, male | Child/youth diagnosis | Race/ethnicity, socio- economic status, parental education, or family income |
|---|---|---|---|---|---|
| Ahmed et al. ( | 7 children | M (SD) = 12.7; range = 8–19 | 57% | ASD | 71% White, 29% AA |
| Bian ( | 30 youth | M (SD) = 15.2 | 93% | ASD | NR |
| Chorianopoulou et al. ( | 17 children | Range = 1.2–6.7 | 82% | ASD | NR |
| Fan et al. (46) | 16 youth | M (SD) = 15.2 (1.6); range = 13–18 | 100% | ASD | NR |
| Fan et al. ( | 20 youth | M (SD) = 15.3 (1.7) | 95% | ASD | NR |
| Feil-Seifer et al. (47) | 8 children | NR | NR | ASD | NR |
| Feil-Seifer et al. (48) | 13 children | NR | NR | ASD | NR |
| Feil-Seifer et al. (49) | 8 children | Children: range = 5–10; youth: M (SD) = 20.8 | Children: NR | ASD, TD | NR |
| and 7 youth | Youth: 86% | ||||
| Feng et al. (40) | 2 children | M (SD) = 4.5 (0.7); range = 4–5 | 100% | ASD | Greater than high school |
| Fleury ( | 5 children | M (SD) = 3.8 (1.8); range = 2–6 | 20% | CP, TD | NR |
| Ge et al. (50) | 3 children | M (SD) = 12.3 (1.5); range = 11–14 | 100% | ASD, DS | NR |
| Hashemi et al. (41) | 33 children | M (SD) = 2.2 | 88% | ASD, TD | NR |
| Kalantarian et al. (42) | 13 children | M (SD) = 6.9 (2.5) | NR | ASD | NR |
| Khamassi et al. (43) | 12 children | NR | NR | ASD | NR |
| Krupa et al. (51) | 20 children | NR | NR | ASD | NR |
| Lahiri et al. (52) | 8 youth | M (SD) = 16.1 (2.1); range = 13–18.3 | NR | ASD | NR |
| Liu et al. (53) | 3 youth | M (SD) = 14.3 (1.2); range = 13–15 | 100% | ASD | NR |
| Rudovic et al. ( | 30 children | Range = 3–13 | NR | ASD | NR |
| Rudovic et al. (44) | 35 children | Range = 3–13 | NR | ASD | NR |
| Rudovic et al. (45) | 35 children | M (SD) = 8.5; range = 3–13 | 82% | ASD | NR |
| Volta et al. ( | 17 children | NR | NR | VI | NR |
Included studies.
AA, African American; DS, Down syndrome; ASD, autism spectrum disorder; CP, cerebral palsy; VI, visual impairment; NR, not reported.
Capturing Participation
We synthesize findings about capturing participation, according to how existing AI-based assessment approaches gathered data, the data source(s) used, and the type(s) of AI used to capture participation.
Of the 21 assessment approaches, 20 (95%) (

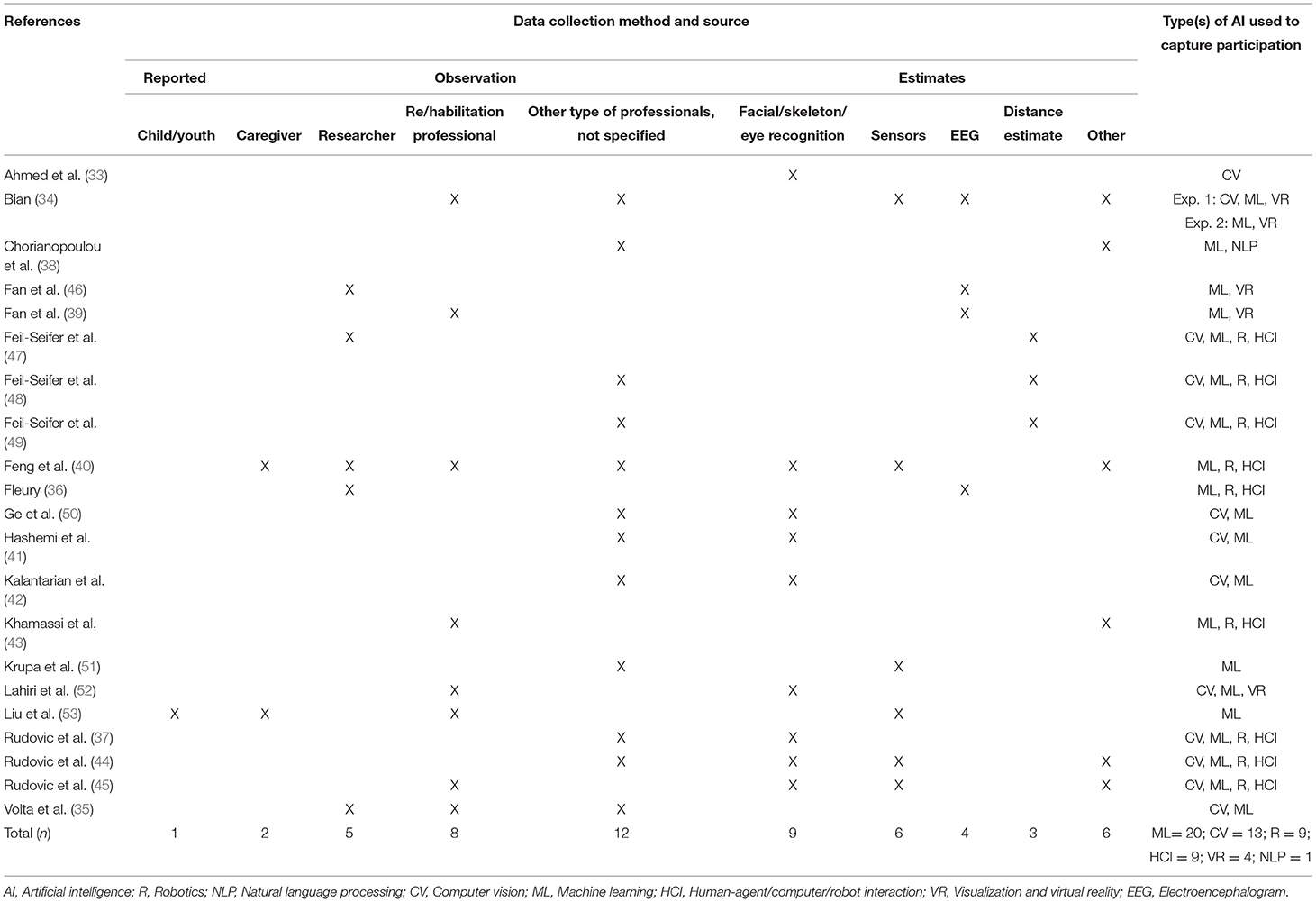

Table 2
| References | Data collection method and source | Type(s) of AI used to | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| capture participation | |||||||||||
| Reported | Observation | Estimates | |||||||||
| Re/habilitation | Other type of professionals, | Facial/skeleton/ | Distance | ||||||||
| Child/youth | Caregiver | Researcher | professional | not specified | eye recognition | Sensors | EEG | estimate | Other | ||
| Ahmed et al. ( | X | CV | |||||||||
| Bian ( | X | X | X | X | X | Exp. 1: CV, ML, VR | |||||
| Exp. 2: ML, VR | |||||||||||
| Chorianopoulou et al. ( | X | X | ML, NLP | ||||||||
| Fan et al. (46) | X | X | ML, VR | ||||||||
| Fan et al. ( | X | X | ML, VR | ||||||||
| Feil-Seifer et al. (47) | X | X | CV, ML, R, HCI | ||||||||
| Feil-Seifer et al. (48) | X | X | CV, ML, R, HCI | ||||||||
| Feil-Seifer et al. (49) | X | X | CV, ML, R, HCI | ||||||||
| Feng et al. (40) | X | X | X | X | X | X | X | ML, R, HCI | |||
| Fleury ( | X | X | ML, R, HCI | ||||||||
| Ge et al. (50) | X | X | CV, ML | ||||||||
| Hashemi et al. (41) | X | X | CV, ML | ||||||||
| Kalantarian et al. (42) | X | X | CV, ML | ||||||||
| Khamassi et al. (43) | X | X | ML, R, HCI | ||||||||
| Krupa et al. (51) | X | X | ML | ||||||||
| Lahiri et al. (52) | X | X | CV, ML, VR | ||||||||
| Liu et al. (53) | X | X | X | X | ML | ||||||
| Rudovic et al. ( | X | X | CV, ML, R, HCI | ||||||||
| Rudovic et al. (44) | X | X | X | X | CV, ML, R, HCI | ||||||
| Rudovic et al. (45) | X | X | X | X | CV, ML, R, HCI | ||||||
| Volta et al. ( | X | X | X | CV, ML | |||||||
| Total (n) | 1 | 2 | 5 | 8 | 12 | 9 | 6 | 4 | 3 | 6 | ML= 20; CV = 13; R = 9; |
| HCI = 9; VR = 4; NLP = 1 | |||||||||||
Data collection, data source, and type(s) of AI used.
AI, Artificial intelligence; R, Robotics; NLP, Natural language processing; CV, Computer vision; ML, Machine learning; HCI, Human-agent/computer/robot interaction; VR, Visualization and virtual reality; EEG, Electroencephalogram.
These annotated observations were paired with data collected from facial, skeleton, or eye recognition tools (n = 9/20; 45%) (
In contrast to the pairing of annotated observation and recognition tools to collect data on child and youth participation, Ahmed et al. (
Of the 21 included participation assessment approaches, 17 (81%) (
Operationalizing Participation
We synthesize findings pertaining to how participation was operationalized per the terms used, and what was intended and actually captured.
None of the included assessment approaches used the term participation. Rather, most of them used the term engagement (n = 17/21; 81%) (
In terms of how participation was intended to be captured, none of the included assessment approaches intended to capture attendance. To assess for involvement, only 1 participation assessment approach (5%) intended to capture both behavioral and emotional involvement (

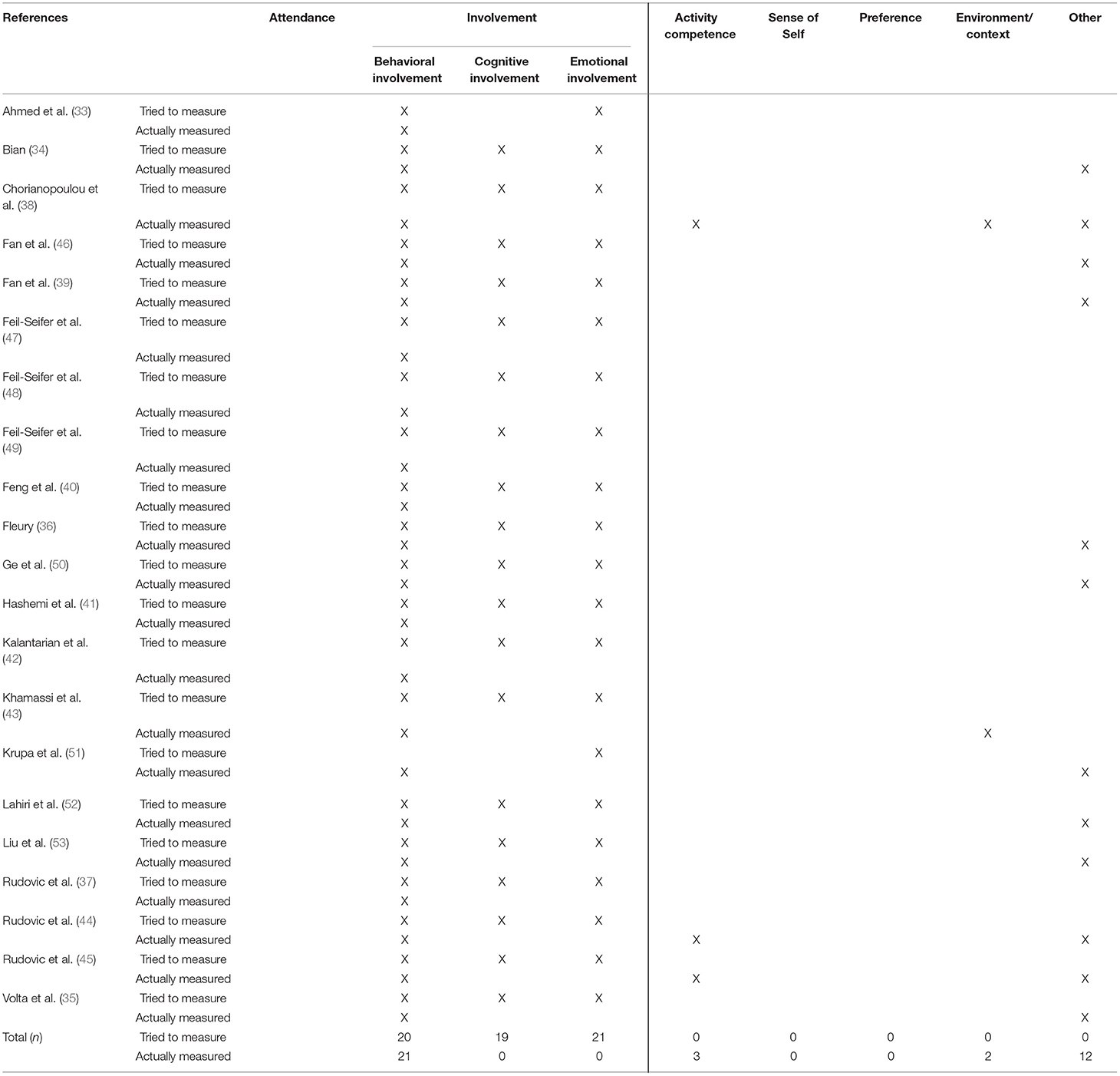

Table 3
| References | Attendance | Involvement | Activity competence | Sense of Self | Preference | Environment/ context | Other | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Behavioral involvement | Cognitive involvement | Emotional involvement | ||||||||
| Ahmed et al. ( | Tried to measure | X | X | |||||||
| Actually measured | X | |||||||||
| Bian ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Chorianopoulou et al. ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | X | X | ||||||
| Fan et al. (46) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Fan et al. ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Feil-Seifer et al. (47) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Feil-Seifer et al. (48) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Feil-Seifer et al. (49) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Feng et al. (40) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Fleury ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Ge et al. (50) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Hashemi et al. (41) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Kalantarian et al. (42) | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Khamassi et al. (43) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Krupa et al. (51) | Tried to measure | X | ||||||||
| Actually measured | X | X | ||||||||
| Lahiri et al. (52) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Liu et al. (53) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Rudovic et al. ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | |||||||||
| Rudovic et al. (44) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | X | |||||||
| Rudovic et al. (45) | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | X | |||||||
| Volta et al. ( | Tried to measure | X | X | X | ||||||
| Actually measured | X | X | ||||||||
| Total (n) | Tried to measure | 20 | 19 | 21 | 0 | 0 | 0 | 0 | 0 | |
| Actually measured | 21 | 0 | 0 | 3 | 0 | 0 | 2 | 12 | ||
Operationalization of participation.
In terms of actual capturing of child and youth participation, all participation assessment approaches captured behavioral involvement. A total of 13 assessment approaches captured aspects not pertaining to participation (
Discussion
Child and youth participation is a multidimensional and complex outcome in pediatric re/habilitation (
Lack of Reported Demographics and Sample Representativeness
Samples of included research were mainly skewed toward greater representation of male participants and children and youth with ASD and lacked reporting on family socio-economic status, family income, parental education, and child or youth race and ethnicity [Hispanic, non-Hispanic]. The concern of skewed data (e.g., oversampling of male participants and select diagnoses) as well as the lack of reporting on demographics in the training sets for applications of AI has been raised in prior literature (
Lack of AI-Based Participation Assessment Approaches Integrating the Child or Youth Perspective
All included AI-based assessment approaches integrated objective (i.e., observable) data to capture participation, with the vast majority using annotated observations. Only one of the 21 included participation assessment approaches integrated proxy-reported (e.g., caregiver-reported) data (40), and none of the included assessment approaches integrated child or youth self-reported data to capture participation. While the dominating focus on objective data is congruent with prior research not involving AI (
The importance of the subjective dimension for participation assessment has been identified in prior research involving children and youth with acquired and congenital disabilities and their caregivers (
Lack of Remotely Administered AI-Based Assessment Approaches Capturing Participation
Few participation assessment approaches were administered remotely and in the natural environment [e.g., a child's home (
This result might be explained by the need for special equipment (e.g., camera equipped rooms) to administer the included AI-based participation-focused assessment approaches and interventions, with children and youth in attendance (
Lack of AI-Based Assessment Approaches Fully Aligned With Contemporary Definitions of Participation
While most included participation assessment approaches intended to capture all three aspects of involvement, none of them actually captured the two non-observable aspects of involvement (i.e., cognitive or emotional involvement). This mismatch between what was intended vs. actually captured might be connected to the lack of subjective data collection in the included participation assessment approaches as previously discussed. Subjective data could complement and/or extend recent efforts to quantify engagement, including behavioral engagement (58, 59).
Assessment approaches included in this scoping review captured aspects of activity competence and environment that were mistakenly labeled as participation or involvement. In addition, this review included a high number of participation assessment approaches that capture aspects that could not be mapped to the fPRC (
Figure 3

Participation encompassing observable and non-observable parts of involvement. Informed by the family of Participation-Related Constructs (fPRC) (
The distinction between observable and non-observable aspects of involvement may also help to emphasize the importance to include subjective data to fully capture participation, which has been identified as a limitation in existing participation assessments with and without the use of AI (
Limitations
The main limitation of this research is the risk of having missed relevant documents. For example, when AI was not mentioned in the title or abstract, that document was likely excluded from our search and/or when applying our selection criteria. Additionally, we did not evaluate the quality of included studies. However, this is not typically done in scoping reviews due to their purpose of providing a map of existing evidence vs. synthesizing the best available evidence (
Conclusions
There is an increasing number of research studies on the use of AI to capture participation involvement, which indicates the promise of AI to capture participation and an opportunity to further investigate the construct of participation, particularly child and youth involvement. Our results show that most of the included assessment approaches captured participation through observation and by applying ML, CV or robotics and HCI. There was a mismatch between what assessment approaches intended to capture and what they actually captured, with a high number of assessments collecting data unrelated to participation, according to contemporary frameworks of child and youth participation (
Funding
This work was conducted in partial fulfillment of the requirements for a Ph.D. in Rehabilitation Sciences and was supported by the University of Illinois at Chicago, through their Dean's Scholar Fellowship (PI: VK) and Chancellor's Undergraduate Research Award (ZS). The contents of this manuscript were developed under a grant from the National Institute on Disability, Independent Living, and Rehabilitation Research (NIDILRR grant number 90SFGE0032-01-00). NIDILRR is a Center within the Administration for Community Living (ACL), Department of Health and Human Services (HHS). The contents of this manuscript do not necessarily represent the policy of NIDILRR, ACL, or HHS, and you should not assume endorsement by the Federal Government.
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.
Author contributions
VK mentored by her committee members (MK, NP, DA, and AB), took the lead in conceptualizing the study, and drafting all sections of the manuscript. MV and VK screened articles based on their title and abstract. ZS, JS, and VK screened articles based on full-text reads and extracted data from included articles and VK synthesized them to gain the results of this research. DA and AB provided feedback on the conceptualization of the study and prior versions of this manuscript. MK and NP co-mentored VK through each step of this work including study conceptualization, systematic literature search, study selection process, data analysis, and write-up of this manuscript. All authors provided editing of the manuscript and read and approved the final version.
Acknowledgments
The authors thank Martha Werler at Boston University (BU) and Amelia Brunskill at the University of Illinois at Chicago (UIC) library for guidance on search strategies and Vivian Villegas from the Children's Participation in Environment Research Lab (CPERL) for critical feedback on prior drafts of this manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fresc.2022.855240/full#supplementary-material
- AI
artificial intelligence
- ASD
autism spectrum disorder
- EEG
electroencephalogram
- fPRC
family of participation-related constructs
- HCI
human-agent/computer/robot interaction
- ML
machine learning
- NLP
natural language processing
- PEM
participation and environment measure
- VR
virtual reality.
Abbreviations
References
1.
The World Health Organization. International Classification of Functioning, Disability, Health: Children & Youth Version: ICF-CY. Geneva: World Health Organization (2007).
2.
ImmsCGranlundMWilsonPHSteenbergenBRosenbaumPLGordonAM. Participation, both a means and an end: a conceptual analysis of processes and outcomes in childhood disability. Dev Med Child Neurol. (2017) 59:16–25. 10.1111/dmcn.13237
3.
ImmsC. The nature of participation. In: ImmsCGreenD editors. Participation - Optimising Outcomes in Childhood-Onset Neurodisability. London: MacKeith Press (2020). p. 5–11.
4.
ImmsCAdairBKeenDUllenhagARosenbaumPGranlundM. ‘Participation': a systematic review of language, definitions, and constructs used in intervention research with children with disabilities. Dev Med Child Neurol. (2015) 58:29–38. 10.1111/dmcn.12932
5.
AdairBUllenhagARosenbaumPGranlundMKeenDImmsC. Measures used to quantify participation in childhood disability and their alignment with the family of participation-related constructs: a systematic review. Dev Med Child Neurol. (2018) 60:1101–16. 10.1111/dmcn.13959
6.
KingGChiarelloLAThompsonLMcLarnonMJWSmartEZivianiJet al. Development of an observational measure of therapy engagement for pediatric rehabilitation. Disabil Rehabil. (2019) 41:86–97. 10.1080/09638288.2017.1375031
7.
KingGCurrieMPetersenP. Child and parent engagement in the mental health intervention process: a motivational framework. Child Adolesc Ment Health. (2014) 19:2–8. 10.1111/camh.12015
8.
FredricksJABlumenfeldPCParisAH. School engagement: potential of the concept, state of the evidence. Rev Educ Res. (2004) 74:59–109. 10.3102/00346543074001059
9.
Eunice Kennedy Shriver National Institute of Child Health Human Development the NIH Medical Rehabilitation Coordinating Committee. National Institutes of Health (NIH) Research Plan on Rehabilitation. (2021). Available online at: https://www.nichd.nih.gov/sites/default/files/2021-11/NIH_Research_Plan_on_Rehabilitation.pdf (accessed January 10, 2022).
10.
BodenheimerTSinskyC. From triple to quadruple aim: care of the patient requires care of the provider. Ann Fam Med. (2014) 12:573–6. 10.1370/afm.1713
11.
Eunice Kennedy Shriver National Institute of Child Health Human Development the NIH Medical Rehabilitation Coordinating Committee. National Institutes of Health (NIH) Research Plan on Rehabilitation: Moving the Field Forward. (2016). Available online at: https://www.nichd.nih.gov/sites/default/files/publications/pubs/Documents/NIH_ResearchPlan_Rehabilitation.pdf (accessed March 20, 2019).
12.
RussellSNorvigP. Artificial Intelligence: A Modern Approach. New York, NY: Pearson (2015).
13.
MccowanAL. Technology in healthcare : how artificial intelligence will revolutionize the profession. Kentucky J Undergrad Scholarsh. (2020) 4:6. Available online at: https://encompass.eku.edu/cgi/viewcontent.cgi?article=1083&context=kjus
14.
FisherAGMarterellaA. Powerful Practice: A Model for Authentic Occupational Therapy. Fort Collins, CO: Three Star Press (2019).
15.
Newman-GriffisDPorcinoJZiriklyAThieuTCamacho MaldonadoJHoP-Set al. Broadening horizons: the case for capturing function and the role of health informatics in its use. BMC Public Health. (2019) 19:1–13. 10.1186/s12889-019-7630-3
16.
Newman-GriffisDCamacho MaldonadoJHoP-SSaccoMJimenez SilvaRPorcinoJet al. Linking free text documentation of functioning and disability to the ICF with natural language processing. Front Rehabil Sci. (2021) 2:1–17. 10.3389/fresc.2021.742702
17.
KaelinVCValizadehMSalgadoZPardeNKhetaniMA. Artificial intelligence in rehabilitation targeting participation of children and youth with disabilities: a scoping review. J Med Internet Res. (2021) 23:e25745. 10.2196/25745
18.
CosterWKhetaniMA. Measuring participation of children with disabilities: issues and challenges. Disabil Rehabil. (2008) 30:639–48. 10.1080/09638280701400375
19.
ReschCVan KruijsbergenMKetelaarMHurksPAdairBImmsCet al. Assessing participation of children with acquired brain injury and cerebral palsy: a systematic review of measurement properties. Dev Med Child Neurol. (2020) 62:434–44. 10.1111/dmcn.14465
20.
MunnZPetersMDJSternCTufanaruCMcArthurAAromatarisE. Systematic review or scoping review? Guidance for authors when choosing between a systematic or scoping review approach. BMC Med Res Methodol. (2018) 18:143. 10.1186/s12874-018-0611-x
21.
PetersMDJGodfreyCMcInerneyPMunnZTriccoACKhalilH. Chapter 11: Scoping reviews. In: AromatarisEMunnZ editors. JBI Manual for Evidence Synthesis, JBI. (2020). Available online at: https://reviewersmanual.joannabriggs.org (accessed January 5, 2022).
22.
TriccoACLillieEZarinWO'BrienKKColquhounHLevacDet al. PRISMA Extension for Scoping Reviews (PRISMA-ScR): checklist and Explanation. Ann Intern Med. (2018) 169:467–73. 10.7326/M18-0850
23.
LawMCMacDermidJ. Evidence-Based Rehabilitation: A Guide to Practice. 3rd ed. New York, NY: Slack Incorporated (2014).
24.
ArkseyHO'MalleyL. Scoping studies: towards a methodological framework. Int J Soc Res Methodol. (2005) 8:19–32. 10.1080/1364557032000119616
25.
LevacDColquhounHO'BrienKK. Scoping studies: advancing the methodology. Implement Sci. (2010) 5:69. 10.1186/1748-5908-5-69
26.
KaelinVCValizadehMSalgadoZSimJGAnabyDBoydADet al. Characterizing Participation in Pediatric Re/Habilitation Research Using Artificial Intelligence: A Scoping Review. (2021). Available online at: https://osf.io/x392z (accessed January 5, 2022).
27.
HaddawayNRCollinsAMCoughlinDKirkS. The role of google scholar in evidence reviews and its applicability to grey literature searching. PLoS ONE. (2015) 10:e0138237. 10.1371/journal.pone.0138237
28.
United, Nations. Youth. Available online at: https://www.un.org/en/global-issues/youth (accessed May 24, 2020).
29.
AdairBUllenhagAKeenDGranlundMImmsC. The effect of interventions aimed at improving participation outcomes for children with disabilities: a systematic review. Dev Med Child Neurol. (2015) 57:1093–104. 10.1111/dmcn.12809
30.
ArakelyanSMaciverDRushRO'hareAForsythK. Family factors associated with participation of children with disabilities: a systematic review. Dev Med Child Neurol. (2019) 61:514–22. 10.1111/dmcn.14133
31.
BultMKVerschurenOJongmansMJLindemanEKetelaarM. What influences participation in leisure activities of children and youth with physical disabilities? A systematic review. Res Dev Disabil. (2011) 32:1521–9. 10.1016/j.ridd.2011.01.045
32.
LawMFinkelmanSHurleyPRosenbaumPKingSKingGAet al. Participation of children with physical disabilities: relationships with diagnosis, physical function, and demographic variables. Scand J Occup Ther. (2004) 11:156–62. 10.1080/11038120410020755
33.
AhmedAAGoodwinMS. Automated detection of facial expressions during computer-assisted instruction in individuals on the autism spectrum. In: Proceedings of the 2017 CHI Conference on Human Factors in Computing Systems. Denver, CO: Association for Computing Machinery (2017). p. 6050–5.
34.
BianD. Physiology-based Intelligent Systems for Individuals with Autism: Novel platforms for autism intervention and early detection [Dissertation]. Vanderbilt University, Nashville, TN (2019).
35.
VoltaENiewiadomskiROlugbadeTGilioCCocchiEBerthouzeNet al. Analysis of cognitive states during bodily exploration of mathematical concepts in visually impaired children. In: Proceeding of the 2019 8th International Conference on Affective Computing and Intelligent Interaction (ACII). Cambridge: IEEE (2019). p. 420–6.
36.
FleuryM. Engagement detection and emotion recognition algorithms as inputs to a reward function for children with and without clinical motor impairments: a pilot investigation. [Dissertation]. University Colorado, Denver, CO (2020).
37.
RudovicOUtsumiYLeeJHernandezJFerrerECSchullerBet al. CultureNet: a deep learning approach for engagement intensity estimation from face images of children with autism. In: Proceeding of the 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Madrid: IEEE. (2018). p. 339–46.
38.
ChorianopoulouATzinisEIosifEPapoulidiAPapailiouCPotamianosA. Engagement detection for children with autism spectrum disorder. In: Proceeding of the 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). New Orleans, LA: IEEE (2017). p. 5055–9.
39.
FanJWadeJWKeyAPWarrenZESarkarN. EEG-based affect and workload recognition in a virtual driving environment for ASD intervention. IEEE Trans Biomed Eng. (2018) 65:43–51. 10.1109/TBME.2017.2693157
40.
FengYJiaQChuMWeiW. Engagement evaluation for autism intervention by robots based on dynamic bayesian network and expert elicitation. IEEE Access. (2017) 5:19494–504. 10.1109/ACCESS.2017.2754291
41.
HashemiJDawsonGCarpenterKLHCampbellKQiuQEspinosaSet al. Computer vision analysis for quantification of autism risk behaviors. IEEE Trans Affect Comput. (2018) 12:215–26. 10.1109/TAFFC.2018.2868196
42.
KalantarianHWashingtonPSchwartzJDanielsJHaberNWallD. A gamified mobile system for crowdsourcing video for autism research. In: Proceedings - 2018 IEEE International Conference on Healthcare Informatics. New York City, NY: IEEE (2018). p. 350–2.
43.
KhamassiMChalvatzakiGTsitsimisTVelentzasGTzafestasC. A framework for robot learning during child-robot interaction with human engagement as reward signal. In: Proceeding of the 2018 27th IEEE International Symposium on Robot and Human Interactive Communication (RO-MAN). Nanjing: IEEE (2018). p. 461–4.
44.
RudovicOZhangMSchullerBPicardRW. Multi-modal active learning from human data: a deep reinforcement learning approach. arXiv. (2019). 10.1145/3340555.3353742
45.
RudovicOLeeJDaiMSchullerBPicardRW. Personalized machine learning for robot perception of affect and engagement in autism therapy. Sci Robot. (2018) 3:eaao6760. 10.1126/scirobotics.aao6760
46.
FanJWadeJWDayiBianKeyAPWarrenZEMionLCet al. A Step towards EEG-based brain computer interface for autism intervention. In: Proceeding of the 2015 37th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC). Milan: IEEE (2015). p. 3767–70.
47.
Feil-SeiferDMataricM. Automated detection and classification of positive vs. negative robot interactions with children with autism using distance-based features. In: Proceedings of the 6th International Conference on Human-Robot Interaction - HRI '11. New York, NY: ACM Press (2011). p. 323–30.
48.
Feil-SeiferDMatarićM. Using proxemics to evaluate human-robot interaction. In: Proceeding of the 5th ACM/IEEE International Conference on Human-Robot Interaction - HRI '10. New York, NY: ACM Press (2010). p. 143.
49.
Feil-SeiferDMataricM. Distance-based computational models for facilitating robot interaction with children. J Human-Robot Interact. (2012) 1:55–77. 10.5898/JHRI.1.1.Feil-Seifer
50.
GeBParkHWHowardAM. Identifying engagement from joint kinematics data for robot therapy prompt interventions for children with autism spectrum disorder. In: Proceeding of the International Conference on Social Robotics. Kansas City, MO: Springer (2016). p. 531–40.
51.
KrupaNAnantharamKSankerMDattaSSagarJV. Recognition of emotions in autistic children using physiological signals. Health Technol. (2016) 6:137–47. 10.1007/s12553-016-0129-3
52.
LahiriUBekeleEDohrmannEWarrenZSarkarN. Design of a virtual reality based adaptive response technology for children with autism. IEEE Trans Neural Syst Rehabil Eng. (2013) 21:55–64. 10.1109/TNSRE.2012.2218618
53.
LiuCConnKSarkarNStoneW. Affect recognition in robot assisted rehabilitation of children with autism spectrum disorder. In: Proceeding of the 2007 IEEE International Conference on Robotics and Automation. Rome: IEEE (2007). p. 1755–60.
54.
RossC. As the FDA Clears a Flood of AI Tools, Missing Data Raise Troubling Questions on Safety Fairness. (2021). Available online at: https://www.statnews.com/2021/02/03/fda-clearances-artificial-intelligence-data/ (accessed November 10, 2021).
55.
Charles Lynn Schusterman Family Foundation. More Than Numbers. A Guide Toward Diversity, Equity, and Inclusion (DEI) in Data Collection. (2020). Available online at: https://cloudspn.tfaforms.net/266232 (accessed January 5, 2022).
56.
KaelinVCWallaceERWerlerMMCollettBRKhetaniMA. Community participation in youth with craniofacial microsomia. Disabil Rehabil. (2020) 44:253–60. 10.1080/09638288.2020.1765031
57.
KaelinVCWallaceERWerlerMMCollettBRRosenbergJKhetaniMA. Caregiver perspectives on school participation among students with craniofacial microsomia. Am J Occup Ther. (2021) 75:7502205100p1. 10.5014/ajot.2021.041277
58.
DelfingDHentrichLChinKFrielKImmsCSantamariaVet al. The role of engagement in upper extremity interventions for children with unilateral spastic cerebral palsy. 75h Annual Meeting of the American Academy for Cerebral Palsy and Developmental Medicine (AACPDM) [Conference Presentation], Virtual Conference. (2021). Available online at: https://www.aacpdm.org/events/2021
59.
DelfingDHentrichLChinKFrielKImmsCSantamariaVet al. Quantifying engagement in a pediatric rehabilitation setting. 75h Annual Meeting of the American Academy for Cerebral Palsy and Developmental Medicine (AACPDM) [Conference Presentation], Virtual Conference. (2021). Available online at: https://www.aacpdm.org/events/2021
60.
BedellGMKhetaniMACousinsMACosterWJLawMC. Parent perspectives to inform development of measures of children's participation and environment. Arch Phys Med Rehabil. (2011) 92:765–73. 10.1016/j.apmr.2010.12.029
61.
KhetaniMACohnESOrsmondGILawMCCosterWJ. Parent perspectives of participation in home and community activities when receiving Part C early intervention services. Topics Early Child Spec Educ. (2013) 32:234–45. 10.1177/0271121411418004
62.
GantschnigBEHemmingssonHLa CourK. Feeling and being involved? Participation experienced by children with disabilities at regular schools in Austria. J Occup Ther Sch Early Interv. (2011) 4:260–75. 10.1080/19411243.2011.633424
63.
CosterWLawMCBedellGM. PEM-CY - Participation and Environment Measure - Children and Youth. Boston, MA: Boston University (2021).
64.
KhetaniMACosterWLawMCBedellGM. Young Children's Participation and Environment Measure. Fort Collins, CO: Colorado State University (copyright to authors) (2013).
65.
ShahinSDiRezzeBAhmedSAnabyD. Development and content validity of the Youth and Young-adult Participation and Environment Measure (Y-PEM). Disabil Rehabil. (2022) 1:1–13. 10.1080/09638288.2022.2030809
66.
Newman-GriffisDFosler-LussierE. Automated coding of under-studied medical concept domains: linking physical activity reports to the International Classification of Functioning, Disability, and Health. Front Digit Heal. (2021) 3:1–19. 10.3389/fdgth.2021.620828
67.
ThieuTMaldonadoJCHoP-SDingMMarrABrandtDet al. A comprehensive study of mobility functioning information in clinical notes: entity hierarchy, corpus annotation, and sequence labeling. Int J Med Inform. (2021) 147:104351. 10.1016/j.ijmedinf.2020.104351
68.
Di MarinoETremblaySKhetaniMAAnabyD. The effect of child, family and environmental factors on the participation of young children with disabilities. Disabil Health J. (2018) 11:36–42. 10.1016/j.dhjo.2017.05.005
69.
AnabyDLawMCosterWBedellGKhetaniMAAveryLet al. The mediating role of the environment in explaining participation of children and youth with and without disabilities across home, school, and community. Arch Phys Med Rehabil. (2014) 95:908–17. 10.1016/j.apmr.2014.01.005
70.
AnabyDHandCBradleyLDirezzeBForhanMDigiacomoAet al. The effect of the environment on participation of children and youth with disabilities: a scoping review. Disabil Rehabil. (2013) 35:1589–98. 10.3109/09638288.2012.748840
71.
AnabyDRLawMFeldmanDMajnemerAAveryL. The effectiveness of the Pathways and Resources for Engagement and Participation (PREP) intervention: improving participation of adolescents with physical disabilities. Dev Med Child Neurol. (2018) 60:513–9. 10.1111/dmcn.13682
72.
HaberfehlnerHGoudriaanMBonouvriéLAJansmaEPHarlaarJVermeulenRJet al. Instrumented assessment of motor function in dyskinetic cerebral palsy: a literature review. Gait Posture. (2019) 73:439–40. 10.1016/j.gaitpost.2019.07.169
73.
ImmsCGreenD. Participation. Optimising Outcomes in Childhood-Onset Neurodisability. London: MacKeith Press (2020).
74.
SteinhardtFDolvaA-SJahnsenRUllenhagA. Exploring two subdimensions of participation, involvement and engagement: a scoping review. Scand J Occup Ther. (2021) 1–23. [Epub ahead of print]. 10.1080/11038128.2021.1950207
Summary
Keywords
involvement, engagement, assessment, measurement, natural language processing, machine learning, computer vision, technology
Citation
Kaelin VC, Valizadeh M, Salgado Z, Sim JG, Anaby D, Boyd AD, Parde N and Khetani MA (2022) Capturing and Operationalizing Participation in Pediatric Re/Habilitation Research Using Artificial Intelligence: A Scoping Review. Front. Rehabilit. Sci. 3:855240. doi: 10.3389/fresc.2022.855240
Received
14 January 2022
Accepted
11 March 2022
Published
14 April 2022
Volume
3 - 2022
Edited by
Denis Newman-Griffis, University of Pittsburgh, United States
Reviewed by
Supawadee Putthinoi, Chiang Mai University, Thailand; Elizabeth Rasch, National Institutes of Health (NIH), United States
Updates

Check for updates
Copyright
© 2022 Kaelin, Valizadeh, Salgado, Sim, Anaby, Boyd, Parde and Khetani.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Mary A. Khetani mkhetani@uic.eduNatalie Parde parde@uic.edu
†These authors have contributed equally to this work and share senior authorship
This article was submitted to Disability, Rehabilitation, and Inclusion, a section of the journal Frontiers in Rehabilitation Sciences
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
