Gustavo Rezende Silva1*
Juliane Päßler2
S. Lizeth Tapia Tarifa2
Einar Broch Johnsen2
Carlos Hernández Corbato1- 1Cognitive Robotics Department, Mechanical Engineering Faculty, TU Delft, Delft, Netherlands
- 2Department of Informatics, University of Oslo, Oslo, Norway
Autonomous robots must operate in diverse environments and handle multiple tasks despite uncertainties. This creates challenges in designing software architectures and task decision-making algorithms, as different contexts may require distinct task logic and architectural configurations. To address this, robotic systems can be designed as self-adaptive systems capable of adapting their task execution and software architecture at runtime based on their context. This paper introduces ROSA, a novel knowledge-based framework for RObot Self-Adaptation, which enables task-and-architecture co-adaptation (TACA) in robotic systems. ROSA achieves this by providing a knowledge model that captures all application-specific knowledge required for adaptation and by reasoning over this knowledge at runtime to determine when and how adaptation should occur. In addition to a conceptual framework, this work provides an open-source ROS 2-based reference implementation of ROSA and evaluates its feasibility and performance in an underwater robotics application. Experimental results highlight ROSA’s advantages in reusability and development effort for designing self-adaptive robotic systems.
1 Introduction
A current challenge in robotics is designing software architectures and task decision-making algorithms that enable robots to autonomously perform multiple tasks in diverse environments while handling internal and environmental uncertainties. This challenge arises because different contexts may demand distinct task logic and architectural configurations. At runtime, certain actions may become unfeasible, requiring the robot to adapt its task execution to ensure mission completion. For example, a robot navigating through an environment might run out of battery during its operation, requiring it to adapt its task execution to include a recharge action. Additionally, actions may require different architectural configurations depending on the context. For example, a navigation action that relies on vision-based localization cannot be executed in environments without lights but could potentially be executed with an alternative architectural configuration that employs a localization strategy based on lidar. This becomes even more challenging when both the robot’s task execution and its architectural configuration need to be adapted. For instance, when a robot runs out of battery while navigating, it must simultaneously adapt its architecture to a configuration that consumes less energy and its task execution to include a recharge action and to navigate along paths that are better suited to the new configuration. To address this challenge, robots can be designed as self-adaptive systems (SASs) with the ability to perform task-and-architecture co-adaptation (TACA) (Cámara et al., 2020), i.e., simultaneously adapt their task execution and software architecture dependently during runtime. This work focuses on proposing a systematic solution for enabling TACA that can be reused with different robotic systems.
A common approach to enable self-adaptation in software systems is to design them as two-layered systems containing a managing and managed subsystem (Weyns, 2020), where the managing subsystem monitors and reconfigures the managed subsystem, and the managed subsystem is responsible for the domain logic. This design facilitates the development and maintenance of the system by creating a clear separation between the adaptation and the domain logic. While several solutions have been proposed for solving either architectural (Alberts et al., 2025) or task adaptation in robotic systems (Carreno et al., 2021; Hamilton et al., 2022), there are some works that partially address TACA (Park et al., 2012; Lotz et al., 2013; Gherardi and Hochgeschwender, 2015; Valner et al., 2022), and there are few works that fully address TACA (Braberman et al., 2017; Cámara et al., 2020). More critically, to the best of our knowledge, the existing solutions for TACA require a significant and complex re-programming of the adaptation logic for each different use case, including the creation of multiple modelsbased on different domain-specific languages (DSLs) (Cámara et al., 2020) or implementing the managing subsystem itself (Braberman et al., 2017), hindering the adoption of SAS methods in robotics.
To address the limitations of SAS methods for TACA, this paper proposes to extend traditional robotics architectures with a novel knowledge-based managing subsystem for RObot Self-Adaptation (ROSA) that promotes reusability, composability, and extensibility. The main novelty of ROSA is its knowledge base (KB) which captures knowledge about the actions the robot can perform, the robot’s architecture, the relationship between both, and their requirements to answer questions such as “What actions can the robot perform in situation X?” and “What is the best configuration available for each action in situation Y?”, for example, “Can the robot perform an inspection action when the battery level is lower than 50%?” or “What is the best software configuration for the inspection action when the visibility is low?” This results in a reusable solution for TACA in which all application-specific aspects of the adaptation logic are captured in its KB.
In addition to a conceptual framework, this work provides a reference implementation of ROSA as an open-source framework that can be reused for research on self-adaptive robotic systems. ROSA is implemented as a ROS 2-based system (Macenski et al., 2022), leveraging TypeDB (Dorn and Pribadi, 2023; 2024) for knowledge representation and reasoning, and behavior trees (BT) (Colledanchise and Ögren, 2018) as well as PDDL-based planners (Ghallab et al., 1998) for task decision-making.
The feasibility of using ROSA for runtime self-adaptation in robotic systems is demonstrated by applying it to the SUAVE exemplar (Silva et al., 2023), and its adaptation performance is evaluated in comparison to other approaches available in the exemplar.
In summary, the main contributions of this paper are:
1. a modular architecture for self-adaptive robotic systems that extends robotics architectures with a managing subsystem and supports reusability, composability, and extensibility;
2. a reusable knowledge model to capture all application-specific aspects of the adaptation logic required for TACA in self-adaptive robotic systems;
3. a reference open-source implementation of the framework that can be reused for self-adaptive systems research; and
4. an experimental evaluation of ROSA based on simulated robotic self-adaptation scenarios.
The remainder of this paper is organized as follows. Section 2 describes the TACA use case used to exemplify and evaluate this work. Section 3 presents related works. Section 4 describes how this work proposes to extend robotics architectures with ROSA. Section 5 details
2 Running example
Throughout this paper, the SUAVE exemplar (Silva et al., 2023) is used as an example to ease the understanding of the proposed solution, and later, it is used to evaluate ROSA.
SUAVE consists of an Autonomous Underwater Vehicle (AUV) used for underwater pipeline inspection. The AUV’s mission consists of performing the following actions in sequence: (A1) searching for the pipeline and (A2) simultaneously following and inspecting the pipeline. When performing its mission, the AUV is subject to two uncertainties: (U1) thruster failures, and (U2) changes in water visibility. These uncertainties are triggers for parameter and structural adaptation. When U1 occurs while performing A1 or A2, the AUV activates a functionality to recover its thrusters. When U2 happens while performing A1, the AUV adapts its search altitude.
To demonstrate TACA, this work extends SUAVE with an (A3) recharge battery action and a (U3) battery level uncertainty. With these extensions, the AUV’s battery level can suddenly drop to a critical level, requiring the AUV to abort the action it is performing (A1 or A2) and perform A3. In this situation, the AUV needs to perform TACA by adapting its task execution and architecture to perform A3. To better evaluate ROSA by serving as a baseline for comparison, this work extends the SUAVE exemplar with a managing subsystem where the adaptation logic is implemented with BTs, and the AUV’s architectural variants as well as the architectural adaptation execution are realized with System Modes (Nordmann et al., 2021)1. Furthermore, this work introduces a new reaction time metric that represents the time a managing system takes to react to uncertainties and adapt the managed subsystem.
3 Related work
This work combines principles from self-adaptive systems and knowledge representation and reasoning to design a reusable framework for developing adaptive robotics architectures. Section 3.1 analyzes existing robotics architectures and describes the architectural patterns from robotics architectures adopted in this work. Section 3.2 reviews related research on self-adaptive robotic systems that leverage knowledge representation techniques to promote reusability, as well as studies that consider the relationship between task execution and architectural adaptation. Additionally, it discusses how these works influenced the design of the proposed framework and highlights its distinctions from existing approaches.
3.1 Robotics architectures
Numerous approaches have been proposed for programming and designing autonomous robot architectures (Kortenkamp et al., 2016). In recent years, two main trends have emerged: component-based frameworks and middlewares–among which ROS (Macenski et al., 2022) stands out due to its widespread adoption in academia and industry–and layered architectures (Barnett et al., 2022). Barnett et al. (2022) reviewed 21 robotics architectures and concluded that most architectures follow a layered pattern, and even those that do not can still have their elements mapped onto a layered architectural structure. Furthermore, they found that all architectures include a bottom functional layer responsible for interacting with the robot’s hardware, an upper task decision layer–whose responsibilities vary across architectures–and an arbitrary number of intermediate layers. This work aims to design a reusable solution for TACA that can be integrated into robotics architectures adhering to these architectural patterns. To achieve this, the proposed solution establishes a clear separation between architectural management and task logic, organizing them into distinct layers, or subsystems, as commonly referred to in the self-adaptive systems community.
The LAAS architecture (Alami et al., 1998) is an example of a three-layered architecture consisting of a functional layer, an executive, and a decision layer. The functional layer contains the robot’s control and perception algorithms. The executive layer receives a task plan from the decision layer and selects functions from the functional layer to realize each action in the task plan. The decision layer includes a planner that generates task plans and a supervisor responsible for monitoring plan execution and triggering replanning when necessary. More recent examples of layered robot architectures include AEROSTACK (Sanchez-Lopez et al., 2016), designed for aerial drone swarms, and SERA (Garcia et al., 2018), which is tailored for decentralized and collaborative robots. These architectures build on the layered model but focus on providing domain-specific solutions.
Cognitive architectures (Kotseruba and Tsotsos, 2018), such as CRAM (Beetz et al., 2010; Kazhoyan et al., 2021), focus on generating intelligent and flexible behavior by integrating cognitive capabilities such as planning, perception, or reasoning. However, being integral solutions, these works provide a blueprint for the complete robot control system and are not intended for reuse and integration with other methods, thus making it difficult to adapt and customize for specific applications.
3.2 Self-adaptive robotic systems
Despite advances in self-adaptive robotic systems, fully addressing task and architectural co-adaptation (TACA) with reusable and scalable solutions remains an open challenge (see Table 1). While some studies explore the relationship between task execution and architectural adaptation, only a few explicitly address TACA—and those that do face limitations in reusability and practical applicability in robotics. This work aims to bridge this gap by introducing a knowledge-based framework that can capture the necessary knowledge to solve TACA across different use cases, can be directly applied to robotic systems, and supports modular modifications for incorporating different adaptation strategies.

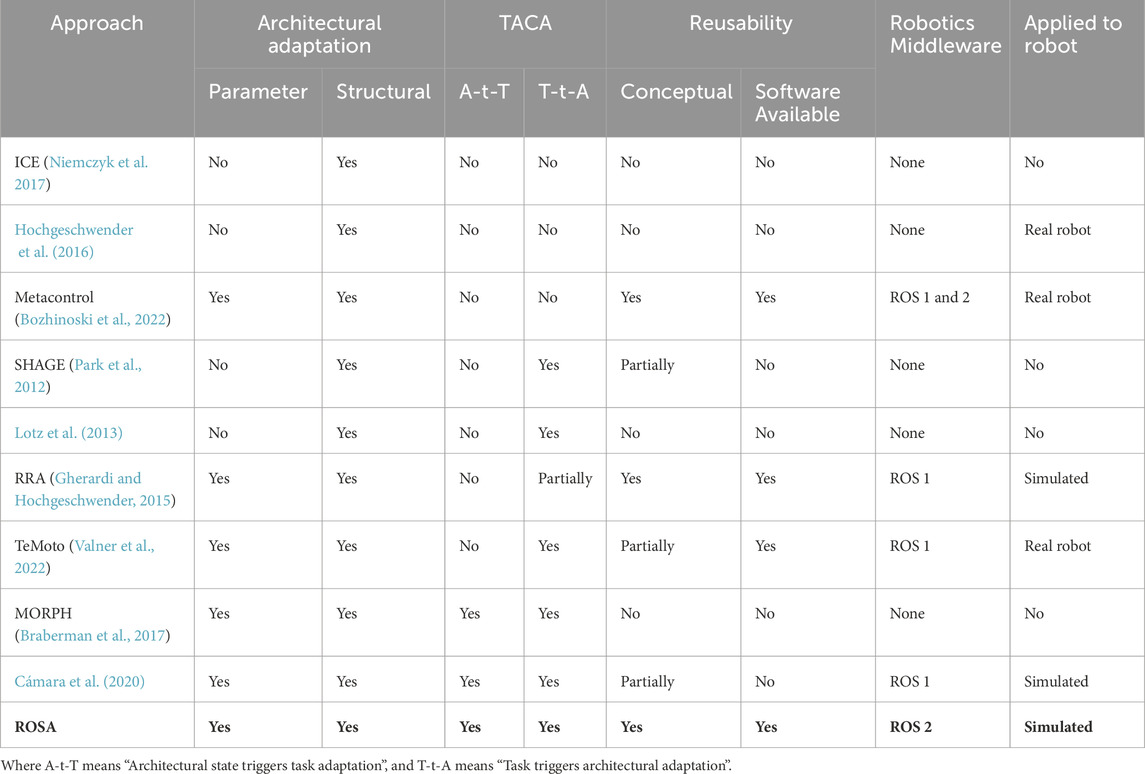

Table 1. Related frameworks for robot self-adaptation.
Alberts et al. (2025) recently conducted a systematic mapping study2 on “robotics software architecture-based self-adaptive systems” (RSASSs), identifying 37 primary studies on RSASSs published since 2011. Among these, Alberts et al. (2025) identified that four studies (Park et al., 2012; Lotz et al., 2013; Gherardi and Hochgeschwender, 2015; Cámara et al., 2020) consider, to varying degrees, the relationship between the tasks a robot performs and architectural adaptation. A non-systematic snowballing of the primary studies identified by Alberts et al. (2025) revealed two additional studies (Braberman et al., 2017; Valner et al., 2022) that also explore this relationship.
In the context of knowledge-based methods, Alberts et al. (2025) identified six studies (Park et al., 2012; Niemczyk and Geihs, 2015; Hochgeschwender et al., 2016; Niemczyk et al., 2017; Bozhinoski and Wijkhuizen, 2021; Silva et al., 2023) that use knowledge representation techniques to capture knowledge required for the adaptation logic. Among these (Bozhinoski and Wijkhuizen, 2021; Silva et al., 2023), do not propose solutions for RSASSs but instead demonstrate the application of Metacontrol (Hernández et al., 2018; Bozhinoski et al., 2022) in different robotics use cases. While these methods do not address TACA, they provide valuable insights for designing knowledge-based approaches to self-adaptation.
Park et al. (2012) introduced the SHAGE framework for task-based and resource-aware architecture adaptation in robotic systems. SHAGE partially solves TACA, as it can adapt the robot’s architecture at runtime to specifically realize each action in its task plan when it needs to be performed. However, SHAGE does not support task execution adaptation based on the robot’s architectural state. SHAGE promotes reusability by leveraging architectural models and knowledge captured with an ontology to reason about adaptation at runtime. However, to the best of our knowledge, there is no implementation of the SHAGE framework that works with common robotic frameworks. Thus, it is not possible to directly reuse SHAGE.
Lotz et al. (2013) proposed a method to model operational and quality variability using two distinct (DSLs) models. Their work provides a high-level discussion on how these models could be used at runtime to enable architectural adaptation based on the actions executed by the robot. An interesting aspect of their approach is the clear separation between functional and non-functional requirements: one model captures the task deliberation logic, functional requirements, and their variation points, while the other focuses on non-functional requirements and their possible variations. While this separation of concerns simplifies the modeling process, combining task deliberation with functional requirements reduces reusability. Any change in the task deliberation logic directly impacts the modeling of functional requirements, making the approach less flexible. Additionally, they do not provide sufficient details on how these models are used at runtime, nor do they present an evaluation to demonstrate the feasibility of their approach.
Gherardi and Hochgeschwender (2015) proposed RRA as a model-based approach for structural, parameter, and connection adaptation in robotic systems. Their method employs six distinct models to capture all the knowledge required for adaptation. These models represent the robot’s architecture and its variability, its functionalities and their variability, the mapping between functions and architecture, the required interfaces (i.e., inputs, outputs, and data types) for the adaptation logic, and the adaptation logic itself. RRA models the dependencies between the tasks a robot can perform and the architectural configurations needed to accomplish them. This is achieved by decomposing each task into multiple functionalities and capturing the available architectural variants for realizing each function. At deployment time, the robot’s operator selects a task, and RRA manages only the functionalities required for that task. Although RRA considers the relationship between tasks and architecture to some extent, it cannot be classified as TACA, as this dependence is only accounted for at deployment time. Architectural adaptation occurs based on the selected task rather than dynamically at runtime in response to the individual actions the robot needs to perform. Moreover, RRA does not adapt the task execution based on the robot’s architectural state.
Valner et al. (2022) proposed the TeMoto as a general solution for robotic systems’ dynamic task and resource management. TeMoto partially solves TACA, as it can adapt the robot’s architecture to realize the actions being performed by the robot. TeMoto does not completely fulfill TACA as it cannot adapt the task execution given the robot’s architectural state. TeMoto provides reusable mechanisms for resource management, but reusability is limited since the adaptation logic must be implemented for all managed resources, and the knowledge about the dependencies between actions and architecture are programmatically included in the actions’ code.
Braberman et al. (2017) proposed MORPH as a reference architecture to enable TACA. They showcased on a conceptual level how MORPH can be applied to enable TACA in an unmanned aerial vehicle (UAV) use case. However, since MORPH is only demonstrated at a conceptual level, it is hard to evaluate the feasibility of applying MORPH to robotic systems at runtime. To the best of our knowledge, there is no framework implementing the complete MORPH architecture. Therefore, it is not possible to directly reuse MORPH.
In the context of TACA, Cámara et al. (2020) developed a method for finding optimal task and reconfiguration plans for an autonomous ground vehicle (AGV) navigating in a graph-like environment. To enable optimal planning within reasonable time limits, their method first reduces the search space by finding all possible reconfiguration plans and then computing the shortest N paths the robot can take to reach its goal. Then, it uses this information along with task-specific models that capture mission quality attributes (e.g., energy consumption, collision probabilities) and a preferred utility to apply model checking and determine an optimal reconfiguration plan for each path. Finally, an optimization function selects the best plan based on a predefined utility function (e.g., minimizing energy consumption, time, or collision probability). Although their approach reduces the planning search space to improve planning time, their experiments show that solving the navigation use case still takes an average of 15.1 s, an impractical duration for robots that frequently need to replan at runtime to handle uncertainties. Additionally, while the approach is model-based, it relies on task-specific model transformations (e.g., converting the map or battery model into PRISM model snippets), which require dedicated implementations for different tasks. This limits the reusability of their approach for different types of tasks, as it requires a considerable amount of development effort.
Hochgeschwender et al. (2016) argue that robots should have access to and exploit software-related knowledge about how they were engineered to support runtime adaptation. They demonstrate how labeled property graphs (LPGs) can be used to persistently store and compose different domain models specified with (DSL) to enable runtime architectural adaptation. Although their approach is interesting, its reusability is limited as it does not define a knowledge model that can be reused for other applications: for each different use case and DSL the roboticist is responsible for creating a translation from the DSL to the corresponding LPG.
Niemczyk and Geihs (2015); Niemczyk et al. (2017) propose ICE as a method for adapting the information processing subsystem in multi-robot systems, specifically by adapting the connections between system components. Their approach uses an ontology to define each component’s required inputs and outputs, along with quality-of-service information for each connection. This ontology is then translated into answer set programming (ASP), and an ASP solver determines an optimal configuration. While they conceptually demonstrate how their method could be applied to robots, they do not demonstrate it with a robotic system. Moreover, their approach focuses solely on structural and connection adaptation to maintain the functionality of the information processing subsystem, without considering other subsystems of the robotic system.
Hernández et al. (2018); Bozhinoski et al. (2022) proposed Metacontrol as a knowledge-based solution for parameter and structural adaptation. Metacontrol leverages the TOMASys (Hernández et al., 2018) ontology to capture the knowledge required for the adaptation logic and to reason at runtime to decide when and how the system should adapt. Similar to RRA, Metacontrol decomposes the system into functionalities, using TOMASys to represent the robot’s functionalities, the architectural variants that implement each functionality, and the non-functional requirements associated with these variants. However, Metacontrol cannot perform TACA as TOMASys does not capture the relationship between the system functionalities and the robot’s actions.
In conclusion, existing works that fully address TACA (Braberman et al., 2017; Cámara et al., 2020) face limitations in reusability and practical applicability in robotics. The authors of MORPH (Braberman et al., 2017) note that no complete system has been developed, and they have not demonstrated its feasibility. While the approach proposed by Cámara et al. (2020) provides the most complete solution to TACA in the literature, it also faces reusability limitations by relying on multiple distinct (DSL) models and requiring task-specific implementations for model transformations. To address these limitations, this work proposes capturing all the knowledge required for adaptation logic in a single knowledge model. This approach requires only one model–conforming to the proposed knowledge model–to be designed for each application. Additionally, an open-source reference implementation of ROSA is provided, enabling researchers to reuse, extend, and build upon the proposed solution.
On the other hand, previous knowledge-based methods for RSASS (Park et al., 2012; Niemczyk and Geihs, 2015; Niemczyk et al., 2017; Hochgeschwender et al., 2016; Hernández et al., 2018; Bozhinoski et al., 2022) do not capture all knowledge required to enable TACA. They either lack the ability to capture the relationship between the robot’s actions and architecture (Hochgeschwender et al., 2016; Hernández et al., 2018; Bozhinoski et al., 2022), or the knowledge required to decide when and how the robotic system should adapt (Park et al., 2012). Although these works do not capture all the knowledge required for TACA, they are able to capture, to varying degrees, knowledge that supports RSASSs. Thus, this work takes inspiration from them to design ROSA’s knowledge model while addressing their limitations. More concretely, ROSA’s knowledge model is designed to capture the relationship between the robot’s actions and architecture and the knowledge required to decide when and how TACA should be performed.
4 Architecture
To enable TACA, this paper proposes to extend traditional robotics architectures with ROSA, using it as a managing subsystem for the robotic subsystem (see Figure 1). This section first describes the assumptions made about the robotics architecture and the requirements to use it alongside ROSA, and then it details

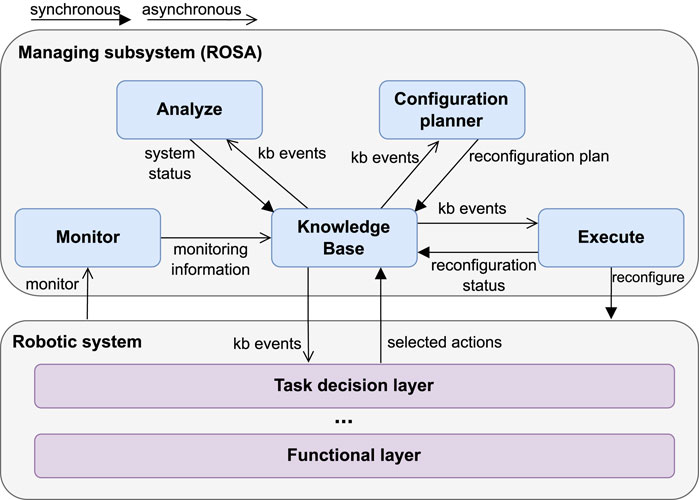

Figure 1. The upper layer depicts
4.1 Robotics architecture
This work assumes that the robotics architecture is layered, containing a bottom functional layer, an upper task decision layer, and an arbitrary number of layers in between, as common in robotics architectures (Barnett et al., 2022). The functional layer is responsible for interacting with the robots’ sensors and actuators, and the task decision layer is responsible for task planning and execution3. To enable TACA with ROSA, the task decision layer shall use the knowledge contained in
4.2 ROSA architecture
To promote reusability, composability, and extensibility, the architecture is designed with the following premises: (1) all knowledge required for the adaptation logic is captured in the central KB, (2) there is no inter-component communication between the MAPE components (Weyns et al., 2013), (3) the MAPE components insert and read data from or to the KB via standardized interfaces, and (4) there is no explicit coordination between the MAPE-K components. Premise 1 promotes reusability by only requiring the modeling of the relevant knowledge for applying ROSA to different applications in a single model. Premises 1 to 4 promote composability and extensibility by allowing the MAPE components to be stateless and self-contained.
5 Knowledge base
To fulfill the architectural premise that all knowledge required for the adaption logic should be captured in a central KB, this work proposes a KB component composed of the knowledge model depicted in Figure 2 and the set of rules depicted in Figure 3, described in Section 5.1 and Section 5.2 respectively.

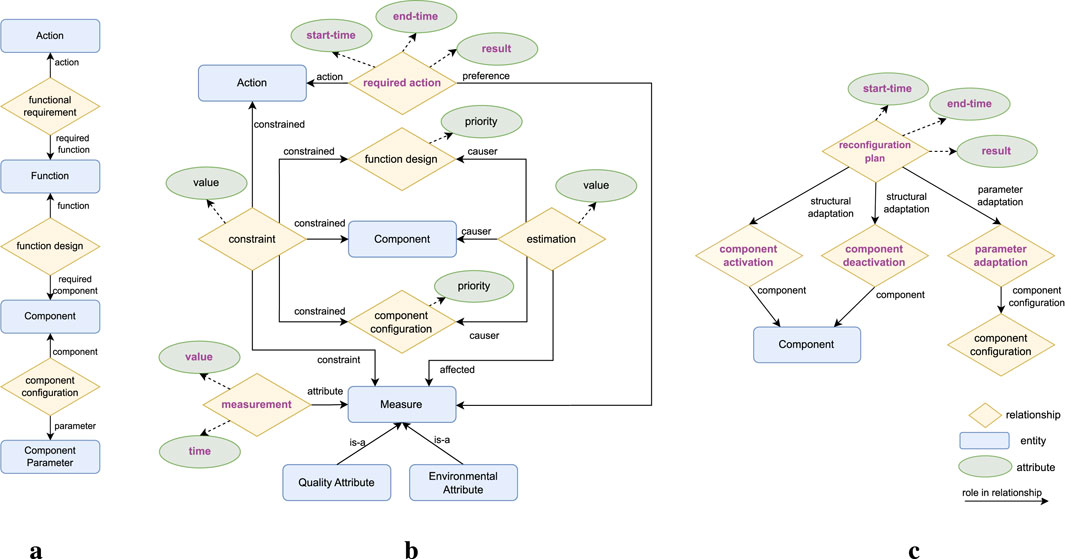

Figure 2.

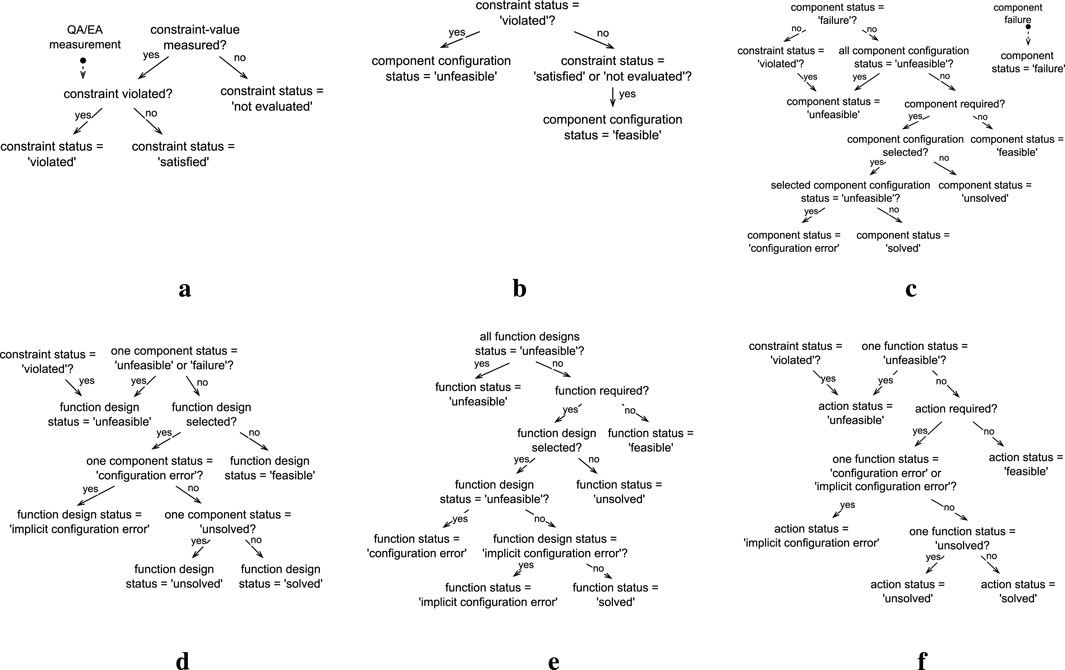

Figure 3. Rules used to infer the status of the elements in the knowledge model, presented as decision diagrams. (a) Constraint status. (b) Component configuration status. (c) Component status. (d) Function design status. (e) Function status. (f) Action status.
The knowledge model is presented as a conceptual data model (CDM) conforming to a particular case of the enhanced entity-relationship (EER) (Thalheim, 1993; Thalheim, 2000) model, an extension of the entity-relationship model (Chen, 1976) that accounts for subclassing and higher-order relationships, i.e., relations between relationships. The EER model captures information as entities, relationships, and attributes. An entity is a “thing’ which can be distinctly identified” (Chen, 1976), a relationship is an association among entities or relationships, and an attribute represents a property of an entity or relationship (Thalheim, 1993; Thalheim, 2000). In addition, entities and relationships play a role in the relationships they are part of, which is identified by the label on the arrows in Figure 2. This CDM was selected since it supports n-ary relationships, many-to-many relationships, higher-order relationships, and attributes for both entities and relationships. Section 6.1 details why these representation capabilities are relevant to the proposed model. The rules are also described at a conceptual level as decision diagrams. Section 6.2 presents the details on how the knowledge model and rules can be implemented and executed and runtime.
5.1 Knowledge model
To enable adaptation, the knowledge model captures what can be adapted with the architectural knowledge depicted in Figure 2a; why to adapt and how to select an adaptation with the adaptation heuristics knowledge depicted in Figure 2b; and how to execute an adaptation with the reconfiguration plan knowledge depicted in Figure 2c. Tables 2–4 define each element in the model alongside examples based on SUAVE to ease its understanding.

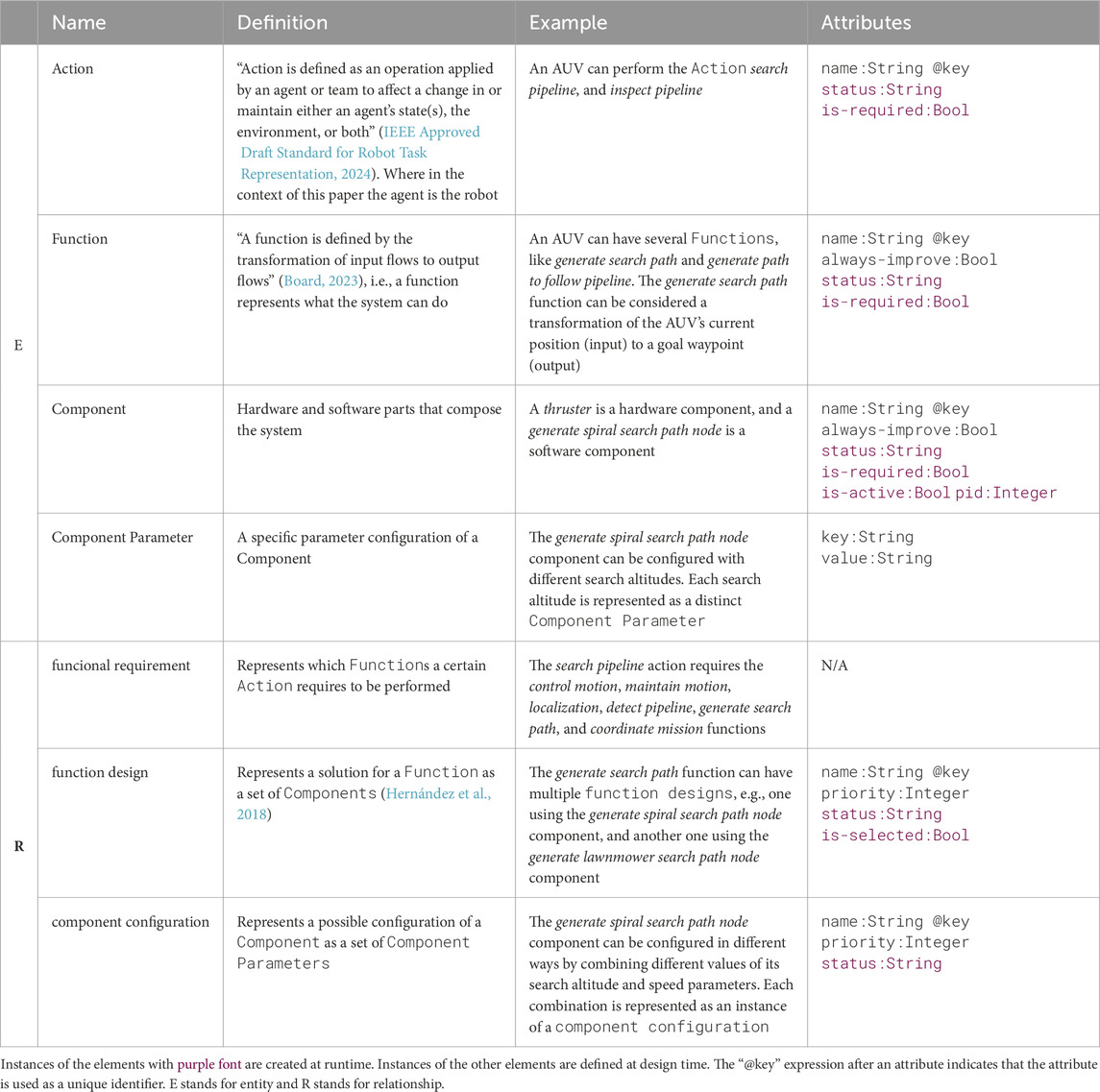

Table 2. The elements of the architectural knowledge.

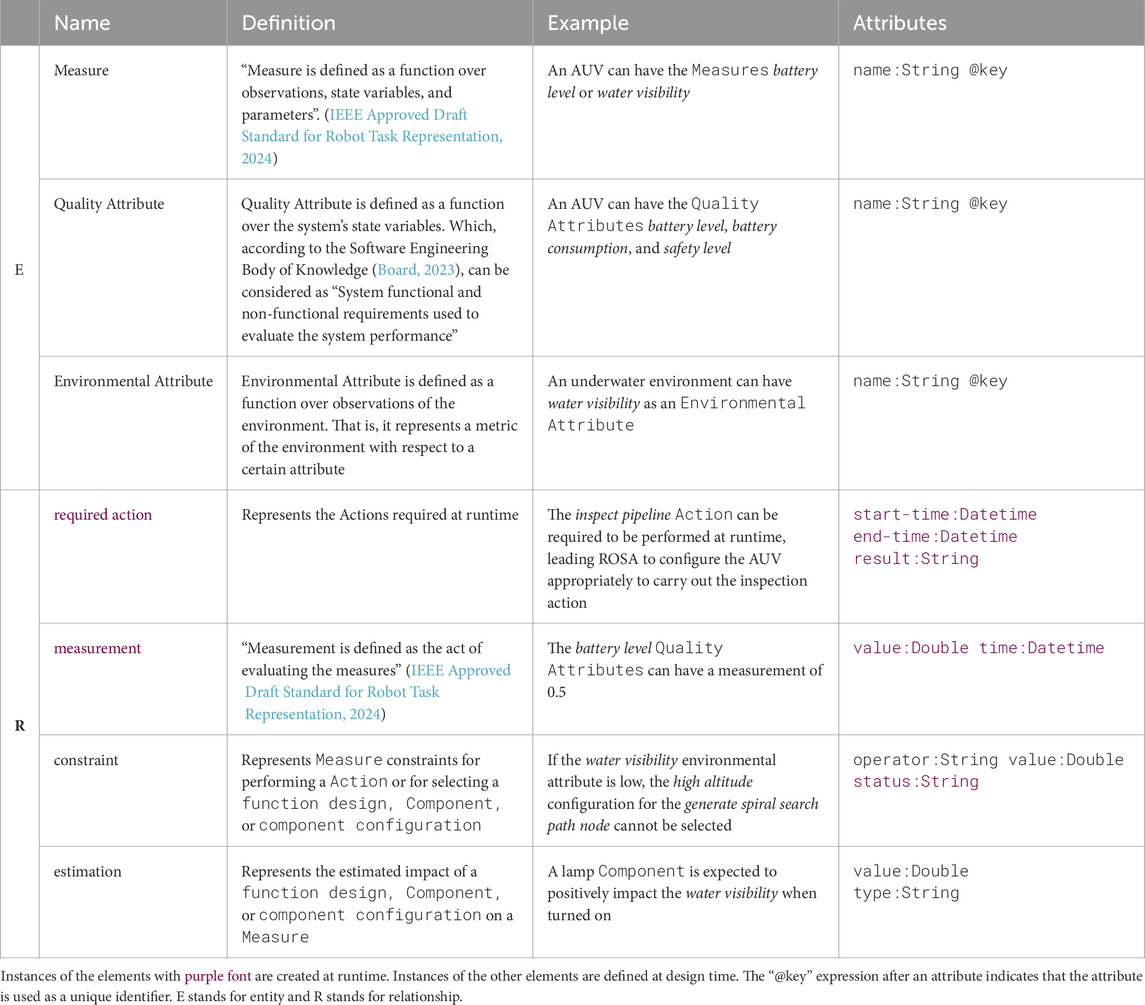

Table 3. The elements of the adaptation heuristic knowledge.

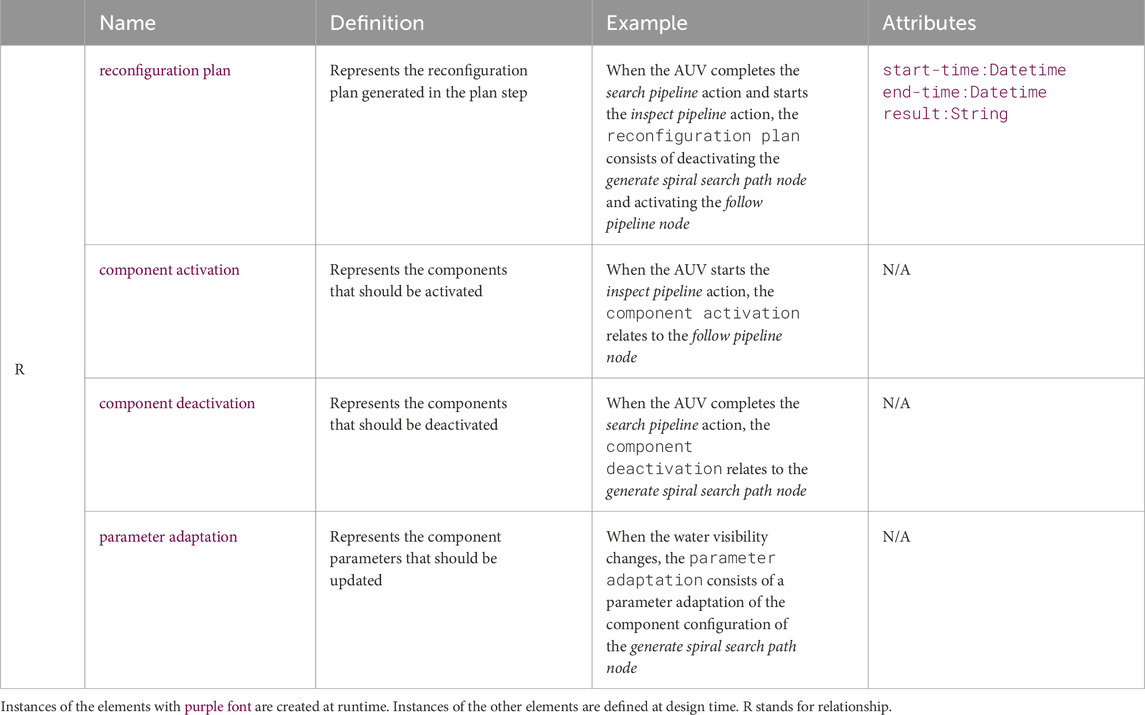

Table 4. The elements of the reconfiguration plan knowledge.
5.1.1 Architectural knowledge
The architectural knowledge (see Table 2) captures what actions the robot can accomplish, the set of functionalities the robot needs to realize an action, the set of components required to realize a functionality, and the possible parameters for a component.
The architectural knowledge enables parameter adaptation by capturing each parameter configuration of a component with a distinct component configuration relationship, relating one Component to a set of Component Parameters. It enables structural adaptation by capturing the different possibilities for solving a system functionality as distinct function design relationships which relate a Function to a set of Components. It enables TACA by indirectly capturing the dependencies between the robot’s actions and architecture with the functional requirement relationship which relates an Action to the Functions it requires.
At runtime, ROSA performs parameter adaptation by switching the selected component configurations. It performs structural adaptation by changing the selected function designs and consequently the active Components. The task decision layer in combination with ROSA performs TACA by selecting suitable function designs and component configurations for each Action the robot needs to perform, and with the task decision layer selecting different Actions to perform according to the feasible configurations.
5.1.2 Adaptation heuristic knowledge
This work considers that the robotic system might need to adapt due to changes in the environment, changes in the system’s quality attributes (QAs) (Board, 2023), component failures, and changes in the robot’s selected actions.
The adaptation heuristic knowledge enables adaptation due to changes in the environment or the system’s QAs with the constraint relationship by capturing constraints on the selection of Actions, Components, function designs, or component configurations in terms of measured values of Measures. It enables adaptation due to component failures by capturing a Component’s status as an attribute and adaptation due to changes in the robot’s task execution by capturing what Actions need to be performed with the required action relationship. At runtime, adaptation is triggered when a measurement violates a constraint, when a component has a failure status, or when required actions change.
To capture the decision criteria on how to select an adaptation, the priority attribute can be used to express the order of priority for selecting each function design or component configuration. For more complex criteria, the estimation relationship can be used to capture the estimated impact of selecting a function design, Component, or component configuration on the measured values of Measures. Furthermore, a required action can relate to a Measure to indicate the preferred estimation when selecting a configuration for that action. At runtime, the configuration planner component exploits this knowledge to decide which configuration to select.
5.1.3 Reconfiguration plan knowledge
The reconfiguration plan knowledge represents which component parameters must be updated (i.e., how to execute parameter adaptation) and which components must be activated and deactivated (i.e., how to execute structural adaptation). The execute component exploits this knowledge at runtime to reconfigure the managed subsystem.
5.2 Rules
To enable ROSA to reason about when the managed subsystem should be adapted and what type of adaptation is needed, the KB contains a set of generic rules that define how the status of the system can be inferred based on monitored information, e.g., how to infer if a constraint is violated and how to propagate a constraint violation. A change in status only occurs when measurements are updated or when a component fails. The complete status inference rules are depicted as decision diagrams in Figure 3.
The status of the required Components, Functions, and Actions indicate when and what type of adaptation is needed. When a Component is “unsolved” or in “configuration error” (see Figure 3c), parameter adaptation is required, i.e., a new component configuration needs to be selected. When a required Function is “unsolved” or in “configuration error” (see Figure 3e), structural adaptation is required, i.e., a new function design needs to be selected. When a required Action is “unfeasible” (see Figure 3f), TACA is needed, i.e., the task decision layer must choose a new action to perform, consequently triggering architectural adaptation.
6 Architecture realization
This section details the proposed reference implementation for ROSA. First, the representation requirements imposed by the proposed knowledge model are analyzed to select a suitable knowledge representation technique. Afterward, the proposed implementation is explained.
6.1 Representation requirements
The proposed knowledge model was presented as a conceptual data model (CDM) in a non-machine-readable format. To transform the knowledge model into a machine-readable format while maintaining its semantics and structure, its representation requirements must be identified and used to select a suitable technology to implement it. The representation requirements imposed by the proposed knowledge model are:
1. n-ary relationships: the knowledge model contains relationships with different arity4, e.g., the constraint relationship has arity 5, and the measurement relationship has arity 1;
2. many-to-many relationships: the knowledge model contains relationships with different cardinalities5, e.g., function design is a 1 Function-to-many Components relationship;
3. higher-order relationships: some relationships relate relationships to relationships, e.g., the constraint relationship;
4. attributes for entities and relationships: both entities and relationships have attributes, e.g., the Action entity and the constraint relationship.
These requirements limit which technology can be used. For example, technologies using graph-based or descriptive logic-based knowledge representation techniques (e.g., OWL (Antoniou and van Harmelen, 2004)) do not satisfy the representation requirements above apart from allowing attributes for entities (part of Requirement 4). Although it is possible to transform the proposed knowledge model into one that can be represented with graph-based or description logic-based approaches by reifying the model (Olivé, 2007), each reification applied to the original model can be considered as an introduction of a semantic disparity between the CDM and the machine-readable model, making it harder to understand and reuse it. Thus, this work does not consider applying reification.
A technology that satisfies all representation requirements is TypeDB (Dorn and Pribadi, 2023; 2024). TypeDB is a polymorphic database based on type theory that implements the polymorphic entity-relation-attribute (PERA) (Dorn and Pribadi, 2024) data model. The PERA model subsumes the CDM used as the meta-model for the proposed ROSA model, allowing it to be implemented without modifications. Furthermore, TypeDB has a reasoning system that is able to reason over rules of the form antecedent
6.2 Implementation
ROSA is implemented as a ROS 2-based system, where the MAPE-K components (depicted in Figure 1) are realized as ROS nodes, and interfaces are implemented using ROS services or topics. The proposed ROSA implementation uses ROS (Robot Operating System) as its robotics framework since ROS is the current de facto standard robotics framework, and it has been designed, among other things, to promote software reusability in the robotics ecosystem (Macenski et al., 2022). In this implementation, ROS handles the communication between system components, schedules callbacks for incoming messages and events, and manages the lifecycle of ROS nodes. The full ROSA implementation is available at https://github.com/kas-lab/rosa6.
6.2.1 Knowledge base and analyze
The KB component consists of the TypeDB implementation of the proposed knowledge model and inference rules, the ROS interfaces for communicating with the MAPE components, and the logic to manage
6.2.1.1 Knowledge model and rules
To exemplify how the knowledge model is implemented, Listing 1 depicts how the functional-requirement relationship and the Action entity are defined with TypeQL (TypeDB’s query language). Line 1 defines the functional-requirement relationship, and lines 2-3 define that it can relate elements that play the role of actions and required-functions. Lines 4-6 define the Action entity and that it has the attributes “action-name” (its unique identifier) and “action-status”. Lines 7-8 define that it can play the action role in a functional-requirement relationship and the constrained role in a constraint relationship.

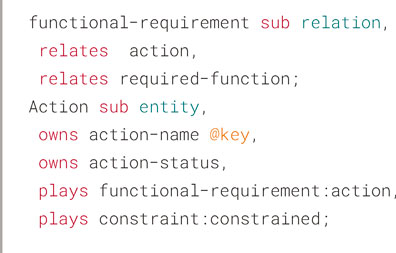

Listing 1. TypeQL query to define functional-requirement and Action.
Listing 2 exemplifies how the inference rules are implemented with TypeQL. The component-status-configuration-error rule defines that a Component has a “configuration error” status when it is required, it does not have an “unfeasible” or “failure” status, and it is in a component-configuration relationship that is selected and has an “unfeasible” status (see Figure 3c).

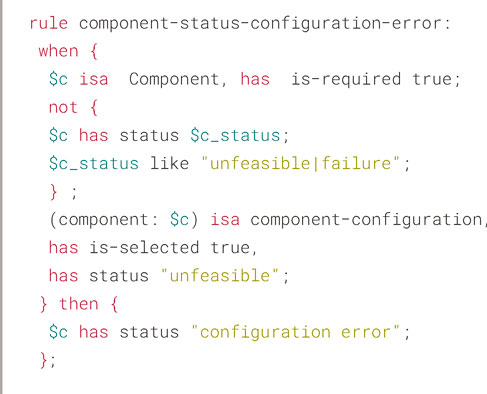

Listing 2. TypeQL rule to infer whether a component is in “configuration error”.
6.2.1.2 Interfaces
The KB component abstracts the details of interacting with TypeDB with the ROS interfaces it implements, enabling the MAPE components to read and write knowledge via the interfaces described in Table 5. When the MAPE components request or send data to the KB component via these interfaces, the KB component queries the TypeDB database to retrieve or write knowledge. For example, when the task decision layer calls the selectable service /action/selectable to retrieve the name of the selectable Actions (i.e., actions that do not have an “unfeasible” status), the KB component performs the TypeQL query depicted in Listing 3 to retrieve the name (unique identifiers) of the selectable Actions. When data is written in the KB, the KB component publishes a message in the /events topic specifying which type of data was written, i.e., “monitoring data”, “action update”, “reconfiguration plan”. Additionally, the KB component provides the /query service, which can be used to perform any TypeDB query to the database. It is not used in ROSA’s runtime workflow, but it enables users to perform custom queries, for example, to retrieve all reconfiguration plans that were executed.

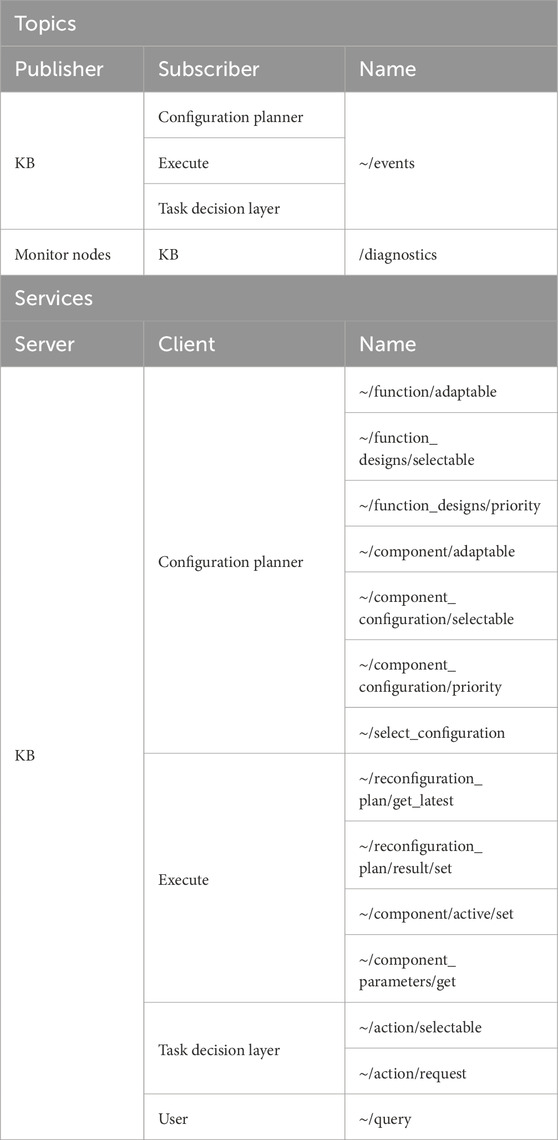

Table 5. ROS interfaces.

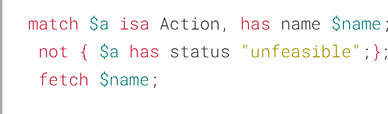

Listing 3. TypeDB query to fetch selectable actions’ names.
6.2.2 Monitor
6.2.3 Configuration planner
The configuration planner component selects the configurations (i.e., function designs or component configuration) with the highest priority. When the configuration planner receives an event message indicating that monitoring data was written in the KB or that there was an update in the required actions, it calls the services “/function/adaptable” and “/component/adaptable” to check which Functions and Components must be adapted. Then, it calls the services “/function/selectable” and “/component/selectable” to check which function designs and component configurations are available for the Functions and Components that need to be adapted. Finally, the configuration planner selects the function designs and component configurations with the highest priority and informs the KB about the newly selected configuration by calling the service “/select_configuration”. When this service is called, the KB component checks the current state of the robot, creates a reconfiguration plan to bring the robot to the goal configuration, and sends an event message in the “/events” topic to inform that there is a new reconfiguration plan available.
6.2.4 Execute
In ROS-based systems, software components are realized either as ROS nodes or as a particular type of ROS nodes called lifecycle nodes. The difference between both is that the latter can be set to different states at runtime, such as active and inactive, and the former cannot. To enable ROSA to leverage ROS 2 mechanisms to adapt the system, the knowledge model was extended to capture knowledge about ROS 2 components as depicted in Figure 4. The execute component performs structural adaptation by starting or killing ROS nodes or switching the state of lifecycle nodes to active or inactive, and it performs parameter adaptation by calling the ROS’s parameter API to change the ROS nodes’ parameters at runtime.

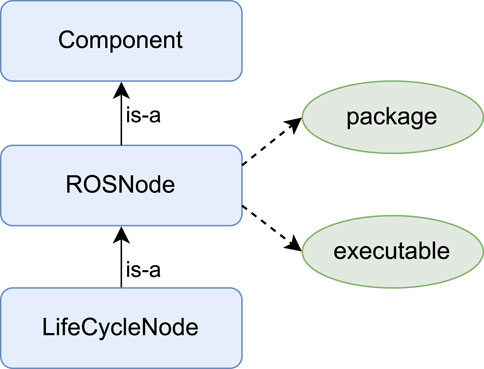

Figure 4. ROS specific knowledge.
When the execute component receives an event message indicating that a new reconfiguration plan was added to the KB, it calls the service “/reconfiguration_plan/get_latest” to get the latest reconfiguration plan. Then, it adapts the robot’s architecture according to the reconfiguration plan. Finally, it calls the services “/reconfiguration_plan/result/set” and “/component/active/set” to update the KB with the result of the reconfiguration plan and which components are active.
6.2.5 Task decision layer
6.2.5.1 Planning
To enable task decision-making and execution with PDDL-based planners in combination with ROSA, the planner and plan executor must consider the runtime feasibility of performing the robot’s actions as inferred by the KB component. This work maps the action status from

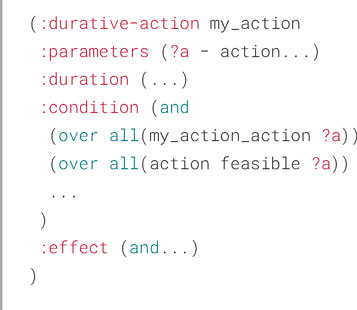

Listing 4. PDDL formulation example for ROSA.
To handle the interaction between PlanSys2 and
6.2.5.2 Behavior trees
To enable task decision-making and execution with BTs in combination with ROSA, the BTs must consider the runtime feasibility of performing the robot’s actions as inferred by the KB component. This work proposes adding before action nodes a condition node that queries the KB to ask whether the following action is feasible. The proposed pattern is depicted in Figure 5, where the action MyAction would only be executed when its status in the KB is not “unfeasible”.

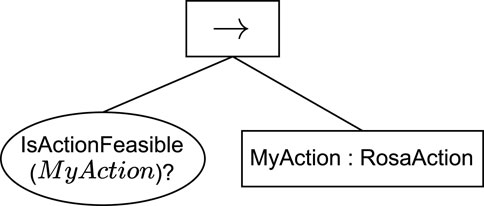

Figure 5. BT pattern for TACA with ROSA. The IsActionFeasible condition node takes the action name as a parameter. The MyAction node derives from the proposed RosaAction node and implements the action execution. The action names in the BT must match the names defined in the KB.
To enable the use of the BehaviorTree.CPP package to implement BTs for ROSA and abstract away the interactions with the KB, this work implements a reusable custom condition node called IsActionFeasible and a custom action node called RosaAction. The condition node queries the KB to check whether an Action is feasible before selecting it to be executed, and the action node queries the KB to request or cancel an Action when the execution of an action starts or finishes, respectively.
7 Evaluation
This section evaluates ROSA to answer the following questions:
7.1 Experimental design
7.1.1 Feasibility
To evaluate the feasibility of applying ROSA at runtime to enable TACA in ROS 2-based robotic systems, it was applied to the SUAVE exemplar described in Section 2. SUAVE was selected since, to the best of our knowledge, it is the only ROS 2-based open-source exemplar for self-adaptive robotic systems.
7.1.2 Performance
To evaluate
7.1.3 Reusability
To evaluate to what extent ROSA’s knowledge model can capture the knowledge required for TACA, it was used to model the TACA scenarios presented by Cámara et al. (2020) and Braberman et al. (2017)10, and we showcase how the captured knowledge can be exploited to enable TACA. The experimental setup for both scenarios is not publicly available. Thus, it was not possible to apply ROSA at runtime to the simulated environments they used.
7.1.4 Development effort
To evaluate the development effort of using ROSA to enable adaptation in robotic systems, we analyze the number of elements contained in the ROSA model created to solve the use cases described in this paper. Furthermore, we compare it to the number of elements modeled with the BT approach to solve the SUAVE use case.
7.1.5 Development effort scalability
To analyze how
The experimental setup for the Feasibility and Performance evaluation is open source and reproducible, it can be found at https://github.com/kas-lab/suave_rosa. The models designed to evaluate Reusability can be found at https://github.com/kas-lab/rosa_examples.
7.2 Feasibility
7.2.1 Experimental setup
To solve the adaptation scenarios of the SUAVE exemplar with ROSA, the model depicted in Figure 6 was created.

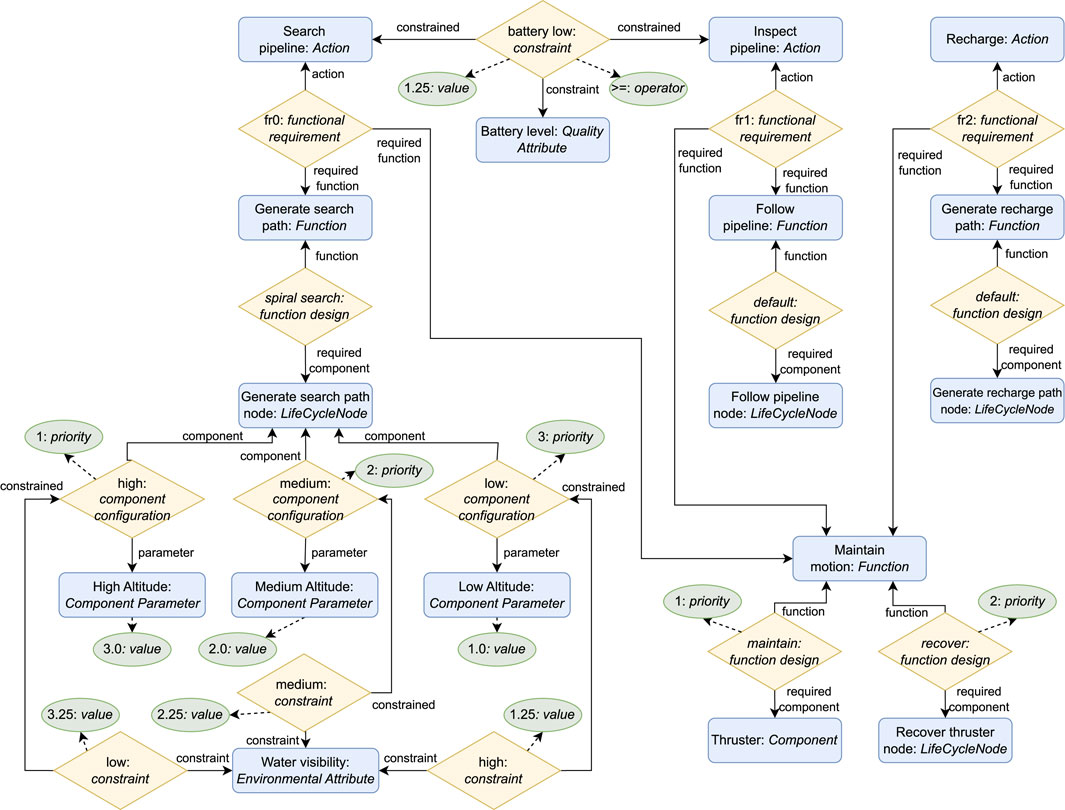

Figure 6. ROSA model for SUAVE.
Thruster failure
Changing water visibility
Critical battery level
Note that extending the solution to solve SUAVE’s extended version only required the inclusion of additional knowledge of the recharge action and the constraint to the search pipeline and inspect pipeline actions. This demonstrates that an existing application modeled with ROSA can easily be extended to solve additional adaptation scenarios.
To apply ROSA in simulation to the SUAVE exemplar, the knowledge model depicted in Figure 6 was implemented with TypeDB (see an example in Listing 5), and the AUV’s mission was implemented with the BT depicted in Figure 7 as well with the PDDL formulation partially shown in Listing 6.

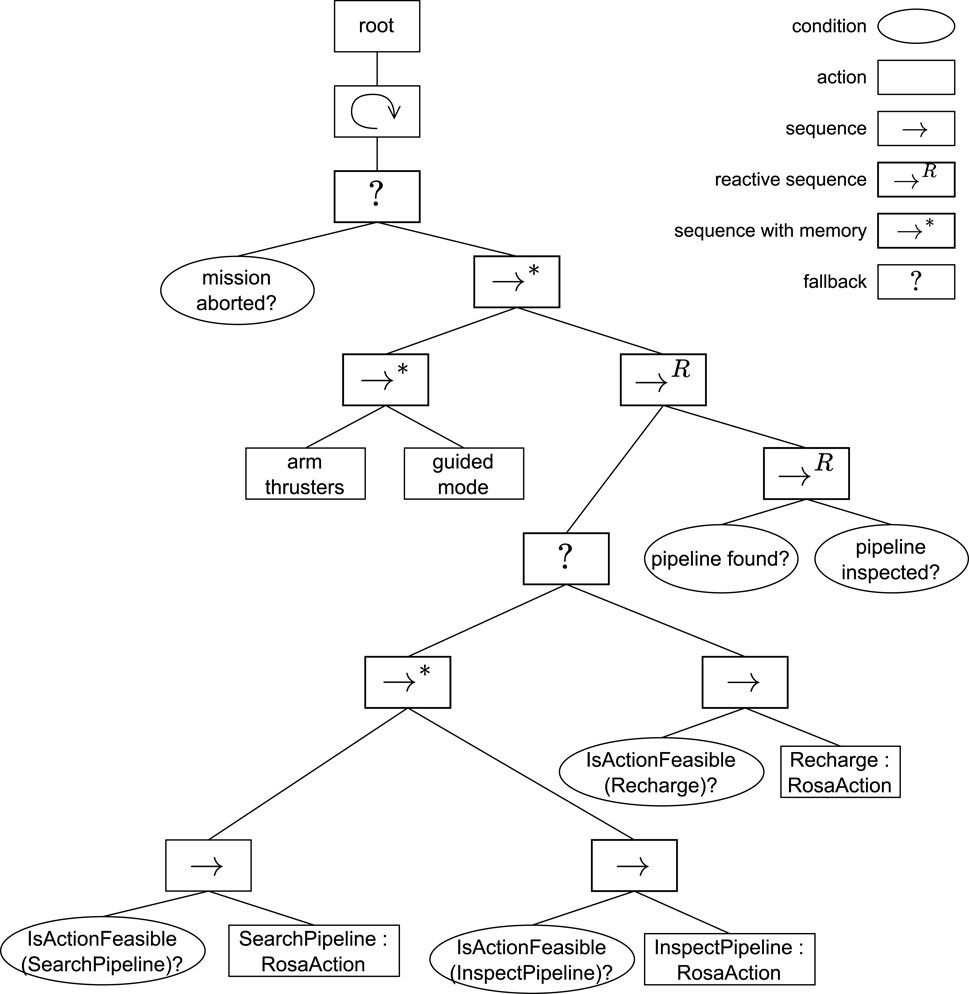

Figure 7. Behavior tree for the extended SUAVE use case.

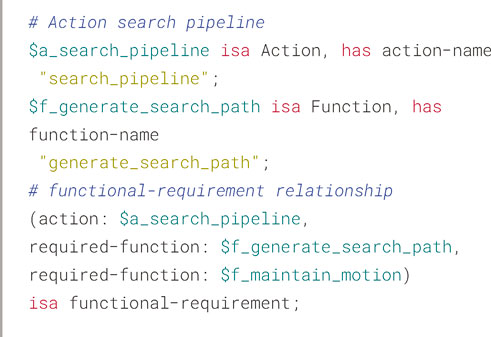

Listing 5. Snippet of SUAVE’s use case implementation in TypeDB.
7.2.2 Result
During the mission execution, the AUV was able to overcome all uncertainties: adapting to thruster failures

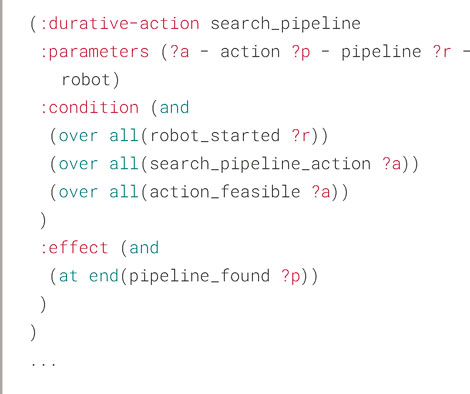

Listing 6. Snippet of the PDDL domain formulation for SUAVE containing the search pipeline action definition.
7.3 Performance
7.3.1 Experimental setup
To evaluate
7.3.2 Results
The results obtained are shown in Table 6. The different managed subsystems had similar performance despite the difference in their reaction time. Furthermore, since the performance with ROSA was better than without a managing subsystem and close to the other managing subsystems, it can be considered as additional evidence of the feasibility of applying it at runtime to enable self-adaptation in robotic systems.

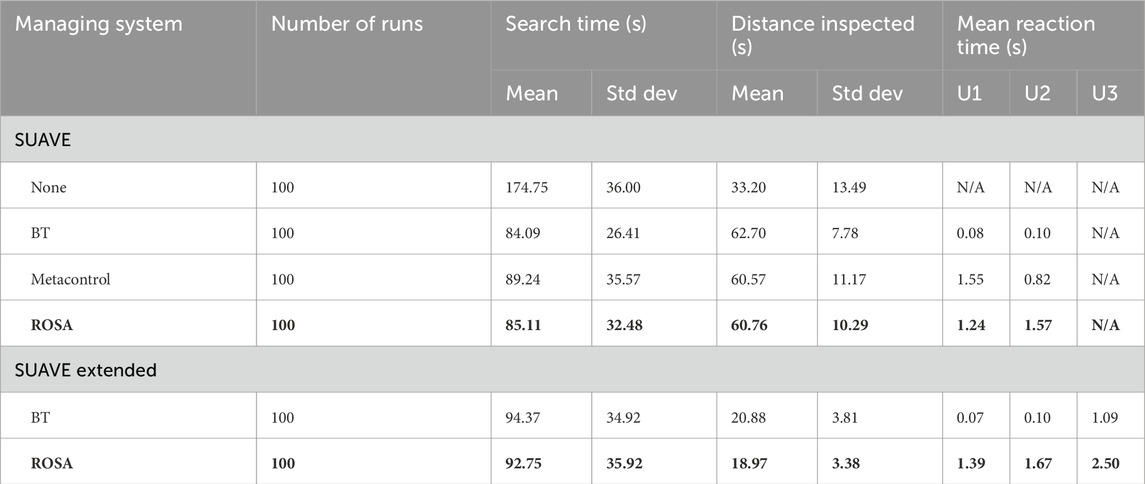

Table 6. Mission results.
7.4 Reusability
7.4.1 Autonomous ground vehicle use case
In this scenario, an AGV has to navigate from an initial to a goal position in a graph-like environment while facing uncertainties such as component failures, corridors with obstacles, and changing light conditions (Cámara et al., 2020).
The AGV has distinct architectural variants available to solve navigation. It has three localization algorithms (AMCL, MRPT, or aruco) and three sensing components (camera, lidar, or Kinect). However, there are some restrictions on how they can be combined. The AMCL and MRPT algorithms can only be combined with lidar or Kinect, and the aruco algorithm can only be combined with a camera. In low-light conditions, the camera can only be used with a lamp. Furthermore, the robot can move at three different speeds. Each configuration has a different energy cost, safety, and accuracy level. This scenario can be solved with ROSA with the knowledge model depicted in Figure 811.

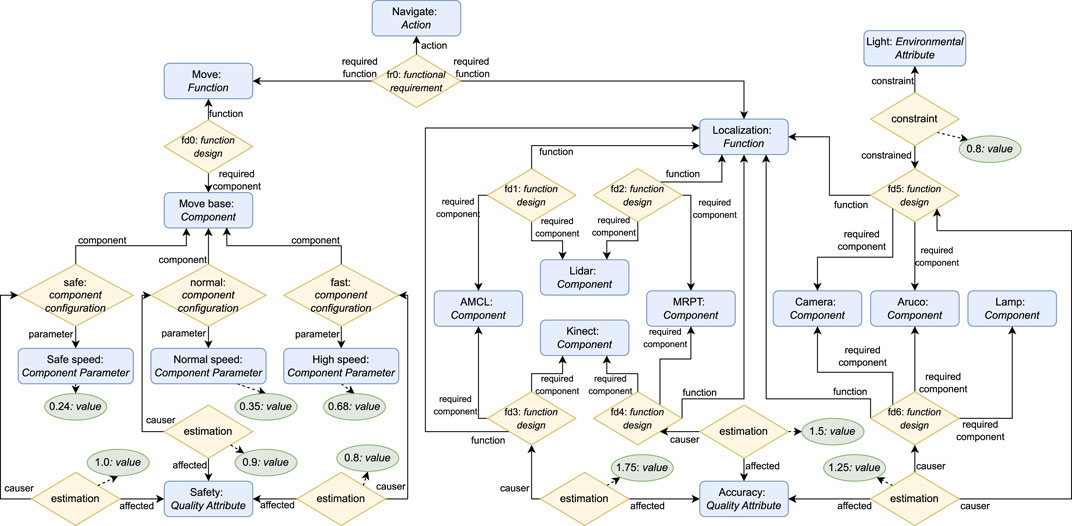

Figure 8. ROSA model for the AGV use case (Cámara et al., 2020).
When navigating, the robot performs adaptation by selecting which corridors it needs to go through given its feasible configurations, and by selecting a suitable architecture configuration for each corridor it goes through. For example, to go from point
7.4.2 Unmanned aerial vehicle use case
In this scenario, a UAV has to search for samples in a predefined area and analyze them (Braberman et al., 2017). To accomplish this mission, the UAV can perform the actions (A1) search for samples, (A2) pick up and analyze samples, (A3) analyze samples on site, (A4) return to base and recharge, and (A5) land and fold gripper. The analyze action A2 performs a better analysis than A3, however, it consumes more battery. Furthermore, action A2 requires a gripper, while A3 requires an infra-red camera. When operating, the UAV might run out of battery, and its gripper might fail.
There are three adaptation scenarios in this use case: (1) if the battery level is insufficient to perform A1, the UAV must perform A4; (2) if the battery level is insufficient to perform A2 but it is still sufficient to perform A3, the UAV must perform A3; (3) if the gripper fails while performing A2, the UAV must perform A3. Before transitioning from A2 to A3, the UAV must first perform A5.
Adaptation scenarios 1 and 2 can be solved with
7.4.3 Results
This evaluation demonstrates that in addition to SUAVE, the knowledge required for the adaptation logic to solve the AGV and UAV use cases can be captured with
7.5 Development effort
7.5.1 Experimental setup
To measure
7.5.2 Results
The overhead for both approaches can be seen in Table 7. Although it is not possible to make a straightforward comparison between the development efforts of both approaches using the observed overheads since the difficulty of modeling an element using the different modeling techniques is subjective, analyzing the reason for the observed overheads provides insights for comparing the development efforts of both approaches.

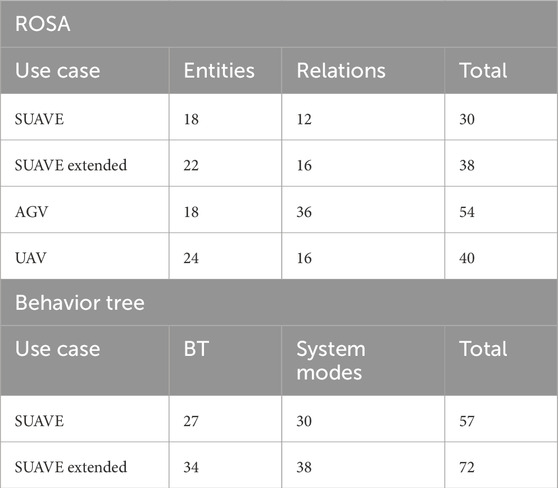

Table 7. Development effort of using ROSA and BTs as managing subsystems.
7.5.2.1 ROSA
In TypeDB, each entity and relationship is inserted in the KB with TypeQL queries such as the ones presented in Listing 5. Thus, the total number of queries that the roboticist must define to solve an adaptation scenario is equal to the sum of the number of entities and relationships contained in the model, with a clear separation between the task and adaptation logic.
7.5.2.2 BT managing system
The BT used to model SUAVE’s task logic without adaptation contains 10 nodes, and the BT used for the extended use case contains 16 nodes. These values were deducted from the development effort metric for the BT managing system since they are independent of the adaptation problem.

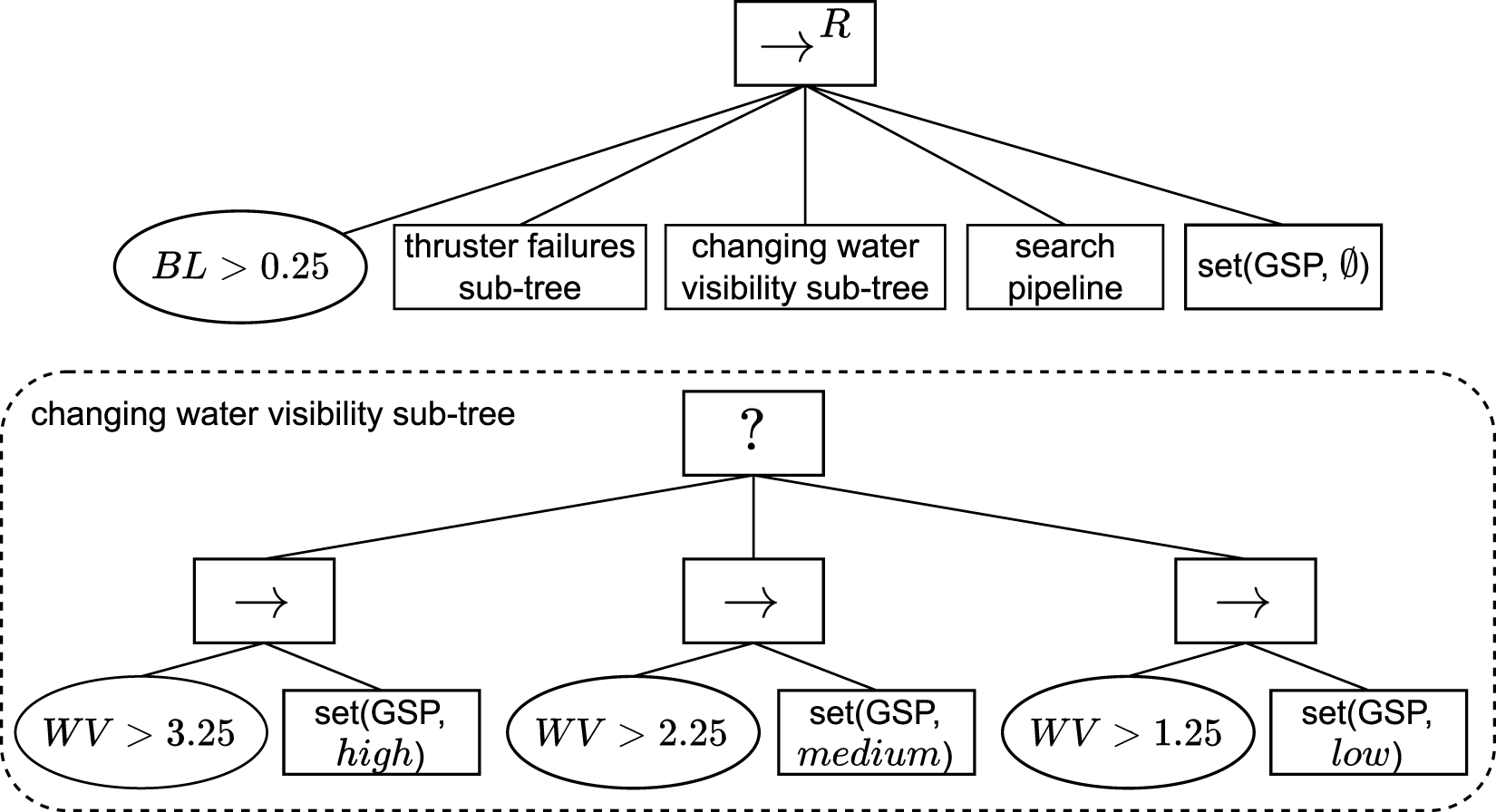

Figure 9 depicts the pattern used to model SUAVE’s search pipeline action and its related adaptations12. As can be seen, there is no separation between the task and adaptation logic, which is the main limitation of using BTs in comparison to using ROSA to model the adaptation logic. The coupling of both logics hinders the reusability of the approach as another system with the same task logic but different adaptation logic, or vice-versa, cannot reuse the existing BTs. In addition, when any changes are made to the task or adaptation problems, it will most likely require changes to parts of the BT that are not necessarily related to the changes introduced. Furthermore, it makes the modeling process more difficult as the roboticist needs to consider both problems simultaneously when modeling the BTs.
Figure 9. Snippet of the BT used to capture SUAVE’s task and adaption logic. WV and BL represent the measured water visibility and battery level, respectively. GSP, MM, and FP represent SUAVE’s generate search path node, maintain motion node, and follow pipeline node, respectively. The set action changes the system’s modes.
7.6 Development effort scalability
7.6.1 Experimental setup
To evaluate how
Assumption 1. Every action requires one function that has only one configuration available consisting of a single component with no parameters.
Assumption 2. Every Component is a ROSNode containing one package and one executable attribute; every ROSNode has one component configuration with one Component Parameter; every function design and component configuration must be related to a constraint and contain a priority attribute; and a single Quality Attribute is defined for the whole system.
7.6.2 Results
Consider a base scenario where the robot has only one action and complies with Assumption 1 and Assumption 2. The ROSA model to solve it contains 10 elements and is depicted in Figure 10a.

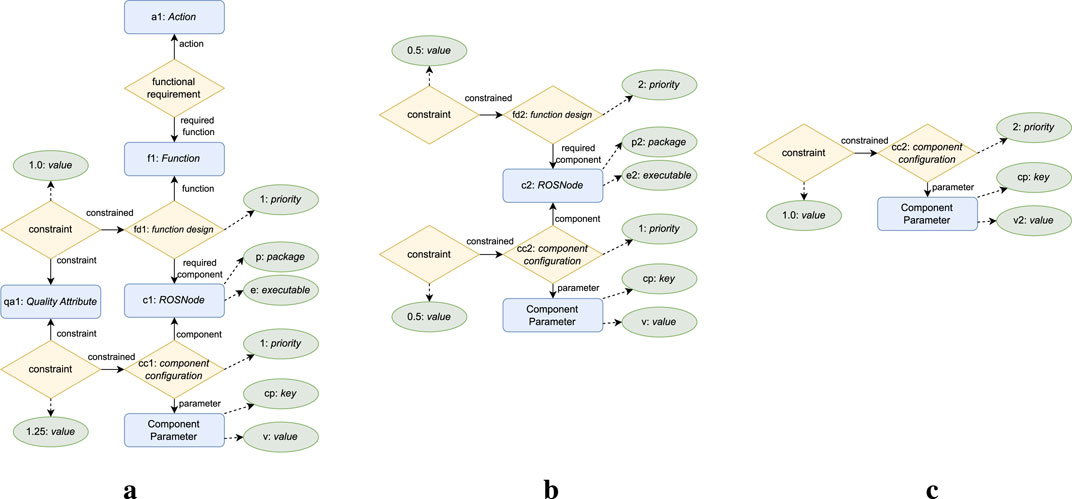

Figure 10. Minimum knowledge required to model adaptation given Assumption 1 and Assumption 2. The name attribute is depicted as name: Entity or name: Relationship inside each diamond and rectangle shape, respectively. (a) Base model. (b) Structural adaptation. (c) Parameter adaptation.
To add structural adaptation to the base scenario (given Assumption 2), it is necessary to add the elements depicted in Figure 10b to the model. This results in a minimum overhead of 6 elements for each structural adaptation. To add parameter adaptation to the base scenario (given Assumption 2), it is necessary to add the elements depicted in Figure 10c to the model. This results in a minimum overhead of 3 elements for each parameter adaptation.
In conclusion, given Assumption 1 and Assumption 2, the total overhead per action can be defined as
8 Conclusions and future work
This work proposed ROSA, a knowledge-based solution for task-and-architecture co-adaptation in robotic systems that promotes reusability, extensibility, and composability. Reusability was achieved by proposing a knowledge model that can capture the knowledge required for TACA and using it at runtime to reason about adaptation. Extensibility and composability were achieved with an architectural design that allows ROSA’s components to be stateless and self-contained. The feasibility of using ROSA in robotic systems at runtime was demonstrated by applying it in simulation to the SUAVE exemplar.
ROSA modular architecture has been designed to provide reuse and extensibility of the framework by future works applying self-adaptation principles in robotics architectures. For example, the current ROSA implementation supports integration with robotics architectures using planning or behavior tree solutions for the task deliberation layer, but it would be interesting to extend it to support other decision-making methods, such as state machines or Markov decision processes.
As a future work, we intend to integrate learning in ROSA. For example, machine learning methods could be explored to update at runtime the Quality Attribute and Environmental Attribute estimations and constraints values. Another possibility is learning that constraints and estimations exist without prior knowledge, i.e., learning that the relationship itself should be modeled.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
GR: Conceptualization, Investigation, Methodology, Software, Writing – original draft, Writing – review and editing. JP: Conceptualization, Writing – review and editing. ST: Conceptualization, Writing – review and editing. EJ: Conceptualization, Writing – review and editing. CH: Conceptualization, Writing – review and editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the European Union’s Horizon 2020 Framework Programme through the MSCA network REMARO (Grant Agreement No 956200).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Footnotes
1The SUAVE exemplar is already configured to use System Modes.
2Alberts et al. (2025) do not claim that the mapping study is a complete overview of the literature but rather a characterization of the field.
3Some architecture have distinct layers for handling task planning and execution, in the context of this work, they can be considered as sub-layers of the task decision layer.
4The number of distinct elements that can be part of a relationship.
5The number of element instances that can be part of a relationship.
6In addition to ROSA, this work provides a generic ROS package to integrate ROS 2 with TypeDB: https://github.com/kas-lab/ros_typedb.
7The /diagnostics topic is a standard topic for publishing system diagnosis information within the ROS ecosystem. See ROS REP 107 for more information.
8https://www.behaviortree.dev/
9Metacontrol is the only managing subsystem packaged with SUAVE. The Metacontrol implementation for this use case is described in detail in the SUAVE paper (Silva et al., 2023).
10To the best of our knowledge, these are the only two scenarios in the literature in which the authors explicitly claim the need for TACA.
11The accuracy estimation for fd1 and fd2 and all energy estimations are omitted from the figure to improve readability.
12The full BT can be found in the SUAVE repository.
References
Alami, R., Chatila, R., Fleury, S., Ghallab, M., and Ingrand, F. (1998). An architecture for autonomy. Int. J. Robotics Res. 17, 315–337. doi:10.1177/.027836499801700402
Alberts, E., Gerostathopoulos, I., Malavolta, I., Hernández Corbato, C., and Lago, P. (2025). Software architecture-based self-adaptation in robotics. J. Syst. Softw. 219, 112258. doi:10.1016/j.jss.2024.112258
Antoniou, G., and van Harmelen, F. (2004). “Web ontology language: OWL,” in Handbook on ontologies. International handbooks on information systems. Editors S. Staab, and R. Studer (Springer), 67–92. doi:10.1007/.978-3-540-24750-0_4
Barnett, W., Cavalcanti, A., and Miyazawa, A. (2022). Architectural modelling for robotics: RoboArch and the CorteX example. Front. Robot. AI 9, 991637. doi:10.3389/frobt.2022.991637
Beetz, M., Mösenlechner, L., and Tenorth, M. (2010). “CRAM — a Cognitive Robot Abstract Machine for everyday manipulation in human environments,” in IEEE/RSJ International Conference on Intelligent Robots and Systems, 1012–1017. doi:10.1109/IROS.2010.5650146
Board, S. E. (2023). “The guide to the systems engineering body of knowledge (SEBoK), v. 2.8,” in BKCASE is managed and maintained by the Stevens Institute of Technology Systems Engineering Research Center, the International Council on Systems Engineering, and the Institute of Electrical and Electronics Engineers Systems Council. Editor R. J. Cloutier (Hoboken, NJ: The Trustees of the Stevens Institute of Technology).
Bozhinoski, D., Oviedo, M. G., Garcia, N. H., Deshpande, H., van der Hoorn, G., Tjerngren, J., et al. (2022). MROS: runtime adaptation for robot control architectures. Adv. Robot. 36, 502–518. doi:10.1080/01691864.2022.2039761
Bozhinoski, D., and Wijkhuizen, J. (2021). “Context-based navigation for ground mobile robot in semi-structured indoor environment,” in 2021 fifth IEEE international conference on robotic computing (IRC), 82–86. doi:10.1109/IRC52146.2021.00019
Braberman, V., D’Ippolito, N., Kramer, J., Sykes, D., and Uchitel, S. (2017). “An Extended Description of MORPH: A Reference Architecture for Configuration and Behaviour Self-Adaptation,” in Software engineering for self-adaptive systems III. Assurances. Editors R. de Lemos, D. Garlan, C. Ghezzi, and H. Giese (Cham: Springer International Publishing, Lecture Notes in Computer Science), 377–408. doi:10.1007/978-3-319-74183-3_13
Cámara, J., Schmerl, B., and Garlan, D. (2020). “Software architecture and task plan co-adaptation for mobile service robots,” in Proceedings 15th International Symposium on Software Engineering for Adaptive and Self-Managing Systems (SEAMS ’20) (New York, NY: Association for computing Machinery), 20, 125–136. doi:10.1145/.3387939.3391591
Carreno, Y., Scharff Willners, J., Petillot, Y. R., and Petrick, R. (2021). “Situation-aware task planning for robust AUV exploration in extreme environments,” in Proceedings IJCAI Workshop on Robust and Reliable Autonomy in the Wild.
Chen, P. P. (1976). The entity-relationship model - toward a unified view of data. ACM Trans. Database Syst. 1, 9–36. doi:10.1145/320434.320440
Colledanchise, M., and Ögren, P. (2018). Behavior trees in robotics and AI: an introduction. (Boca Raton: CRC Press). doi:10.1201/9780429489105
Dorn, C., and Pribadi, H. (2023). “Type theory as a unifying paradigm for modern databases,” in Proceedings 32nd International Conference on Information and Knowledge Management (CIKM 2023). Editors I. Frommholz, F. Hopfgartner, M. Lee, M. Oakes, M. Lalmas, M. Zhanget al. (New York, NY: Association for Computing Machinery), 5238–5239. doi:10.1145/3583780.3615999
Dorn, C., and Pribadi, H. (2024). TypeQL: A Type-Theoretic & Polymorphic Query Language. Proc. ACM Manag. 27. doi:10.1145/3651611
Garcia, S., Menghi, C., Pelliccione, P., Berger, T., and Wohlrab, R. (2018). “An architecture for decentralized, collaborative, and autonomous robots,” in 2018 IEEE International Conference on Software Architecture (ICSA), 75–7509. doi:10.1109/ICSA.2018.00017
Ghallab, M., Howe, A., Knoblock, C., Mcdermott, D., Ram, A., Veloso, M., et al. (1998). PDDL—the planning domain definition language. [Dataset].
Gherardi, L., and Hochgeschwender, N. (2015). RRA: Models and tools for robotics run-time adaptation. IEEE/RSJ International Conference on Intelligent Robots and Systems IROS, 1777–1784. doi:10.1109/IROS.2015.7353608
Hamilton, J., Stefanakos, I., Calinescu, R., and Cámara, J. (2022). “Towards adaptive planning of assistive-care robot tasks,” Proceedings 4th International Workshop on Formal Methods for Autonomous Systems (FMAS 2022), 371 of EPTCS, 175–183. M. Luckcuck and M. Farrell. doi:10.4204/.EPTCS.371.12
Hernández, C., Bermejo-Alonso, J., and Sanz, R. (2018). A self-adaptation framework based on functional knowledge for augmented autonomy in robots. Integr. Computer-Aided Eng. 25, 157–172. doi:10.3233/ica-180565
Hochgeschwender, N., Schneider, S., Voos, H., Bruyninckx, H., and Kraetzschmar, G. K. (2016). “Graph-based software knowledge: storage and semantic querying of domain models for run-time adaptation,” in Proc. Intl. Conf. On simulation, modeling, and programming for autonomous robots (SIMPAR 2016) (IEEE), 83–90. doi:10.1109/SIMPAR.2016.7862379
Kazhoyan, G., Stelter, S., Kenfack, F. K., Koralewski, S., and Beetz, M. (2021). “The robot household marathon experiment,” in 2021 IEEE International Conference on Robotics and Automation (ICRA), 9382–9388. doi:10.1109/.ICRA48506.2021.9560774
Kephart, J. O., and Chess, D. M. (2003). The vision of autonomic computing. Computer 36, 41–50. doi:10.1109/mc.2003.1160055
Kortenkamp, D., Simmons, R., and Brugali, D. (2016). Robotic systems architectures and programming. Cham: Springer International Publishing, 283–306. doi:10.1007/.978-3-319-32552-1_12
Kotseruba, I., and Tsotsos, K. J. (2018). 40 years of cognitive architectures: core cognitive abilities and practical applications. Artif. Intell. Rev. 53, 17–94. doi:10.1007/s10462-018-9646-y
Lotz, A., Inglés-Romero, J. F., Vicente-Chicote, C., and Schlegel, C. (2013). “Managing run-time variability in robotics software by modeling functional and non-functional behavior,” in Enterprise, business-process and information systems modeling. Editors S. Nurcan, H. A. Proper, P. Soffer, J. Krogstie, R. Schmidt, T. Halpinet al. (Berlin, Heidelberg: Springer Berlin Heidelberg), 441–455.
Macenski, S., Foote, T., Gerkey, B., Lalancette, C., and Woodall, W. (2022). Robot operating system 2: design, architecture, and uses in the wild. Sci. Robotics 7, eabm6074. doi:10.1126/scirobotics.abm6074
Martín, F., Clavero, J. G., Matellán, V., and Rodríguez, F. J. (2021). PlanSys2: A planning system framework for ROS2. IEEE/RSJ International Conference on Intelligent Robots and Systems IROS, 9742–9749. doi:10.1109/IROS51168.2021.9636544
Niemczyk, S., and Geihs, K. (2015). “Adaptive run-time models for groups of autonomous robots,” in 2015 IEEE/ACM 10th International Symposium on Software Engineering for Adaptive and Self-Managing Systems, 127–133. doi:10.1109/.SEAMS.2015.21
Niemczyk, S., Opfer, S., Fredivianus, N., and Geihs, K. (2017). “Ice: self-configuration of information processing in heterogeneous agent teams,” in Proceedings of the Symposium on Applied Computing (New York, NY, USA: Association for Computing Machinery, SAC ’17), 417–423. doi:10.1145/.3019612.3019653
Nordmann, A., Lange, R., and Rico, F. M. (2021). “System modes - digestible system (re-)configuration for robotics,” in 2021 IEEE/ACM 3rd international Workshop on Robotics Software Engineering (RoSE), 19–24. doi:10.1109/.RoSE52553.2021.00010
Olivé, A. (2007). Conceptual modeling of information systems. Springer. doi:10.1007/978-3-540-39390-0
Park, Y.-S., Koo, H.-M., and Ko, I.-Y. (2012). A task-based and resource-aware approach to dynamically generate optimal software architecture for intelligent service robots. Softw. Pract. Exp. 42, 519–541. doi:10.1002/spe.1074
Sanchez-Lopez, J. L., Suárez Fernández, R. A., Bavle, H., Sampedro, C., Molina, M., Pestana, J., et al. (2016). “Aerostack: an architecture and open-source software framework for aerial robotics,” in 2016 International Conference on Unmanned Aircraft Systems (ICUAS), 332–341. doi:10.1109/ICUAS.2016.7502591
Silva, G. R., Päßler, J., Zwanepol, J., Alberts, E., Tapia Tarifa, S. L., Gerostathopoulos, I., et al. (2023). “SUAVE: an exemplar for self-adaptive underwater vehicles,” in Proc. 18th IEEE/ACM symposium on software engineering for adaptive and self-managing systems SEAMS 2023 (IEEE), 181–187.
Thalheim, B. (1993). Foundations of entity - relationship modeling. Ann. Math. Artif. Intell. 7, 197–256. doi:10.1007/BF01556354
Valner, R., Vunder, V., Aabloo, A., Pryor, M., and Kruusamäe, K. (2022). TeMoto: a software framework for adaptive and dependable robotic autonomy with dynamic resource management. IEEE Access 10, 51889–51907. doi:10.1109/access.2022.3173647
Weyns, D. (2020). An introduction to self-adaptive systems: a contemporary software engineering perspective. John Wiley and Sons.
Weyns, D., Schmerl, B., Grassi, V., Malek, S., Mirandola, R., Prehofer, C., et al. (2013). “On patterns for decentralized control in self-adaptive systems,” in Software engineering for self-adaptive systems II: international seminar, dagstuhl castle, Germany, october 24-29, 2010 revised selected and invited papers. Editors R. de Lemos, H. Giese, H. A. Müller, and M. Shaw (Berlin, Heidelberg: Springer), 76–107. doi:10.1007/978-3-642-35813-5_4
Keywords: self-adaptation, knowledge representation, underwater vehicle, robotics, self-adaptive robotic system
Citation: Rezende Silva G, Päßler J, Tapia Tarifa SL, Johnsen EB and Hernández Corbato C (2025) ROSA: a knowledge-based solution for robot self-adaptation. Front. Robot. AI 12:1531743. doi: 10.3389/frobt.2025.1531743
Received: 20 November 2024; Accepted: 04 April 2025;
Published: 20 May 2025.
Edited by:
Federico Ciccozzi, Mälardalen University, SwedenReviewed by:
Nico Hochgeschwender, University of Bremen, GermanyDavide Di Ruscio, University of L’Aquila, Italy
Copyright © 2025 Rezende Silva, Päßler, Tapia Tarifa, Johnsen and Hernández Corbato. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Gustavo Rezende Silva , Zy5yZXplbmRlc2lsdmFAdHVkZWxmdC5ubA==
