Original Research ARTICLE

Front. Earth Sci., 23 June 2020 | https://doi.org/10.3389/feart.2020.00183

Legacy Phosphorus After 45 Years With Consistent Cropping Systems and Fertilization Compared to Native Soils

T. Q. Zhang1*, Z. M. Zheng2, Craig F. Drury1, Q. C. Hu1 and C. S. Tan1
  • 1Harrow Research and Development Centre, Agriculture and Agri-Food Canada, Harrow, ON, Canada
  • 2Ottawa Research and Development Centre, Agriculture and Agri-Food Canada, Ottawa, ON, Canada

Agricultural practices affect the status of legacy phosphorus (P) in soils and consequently the P bioavailability and susceptibility of losses to water resources. Previous studies have primarily assessed P status within agroecosystems, and rarely have these results been compared to native conditions. We evaluated the effects of long-term (45 years) consistent cropping [continuous corn (CC), corn-oats-alfalfa-alfalfa rotation (CR), and continuous bluegrass sod (CB)] with and without P fertilization on changes in P fractions of different bioavailability in a Brookston clay loam, as compared to an adjacent forest native soil. Soil P was separated into various inorganic P (Pi) and organic P (Po) fractions using a modified sequential fractionation method. Phosphorus in native soil was predominated by moderately labile Po (NaOH-Po), 44%, followed by moderately stable Pi (HCl-P), 26%. Compared to the native soil, consistent cropping without P fertilization significantly decreased all P fractions except for water-extractable Po, with the largest decrease in labile Pi (water-Pi + NaHCO3-Pi) and moderately labile Po of 65 and 73 mg kg–1, respectively, over 45 years. Consistent cropping with fertilization retained comparable amount of total P in CC and RC, but increased total P in CB, relative to the native soil. Averaged over cropping systems, labile Pi, NaOH-Pi, and HCl-P increased by 129, 74, and 20 mg kg–1, respectively, whereas labile Po and moderately labile Po decreased by 8 and 60 mg kg–1, respectively, compared to the native soil. This study indicates that long-term cropping significantly enhanced the rate of moderately labile Po mineralization, irrespective of fertilization. The increases of total P and Po in the fertilized CB plots suggest that P accumulation in long-term grass fields is a concern as far as potential P contamination in surface waters.

Introduction

Soil P status plays important roles in P bioavailability and mobility from soil to water (Simard et al., 1995; Zheng and Zhang, 2012). Phosphorus accumulates in soil when applied in excess of crop removal (Zhang et al., 2004; Hao et al., 2018). However, P decline in soils under agricultural production has also been observed after long-term cessation of fertilization relative to native soils due to P removal in the harvested crops. Hedley et al. (1982) found that total P in three grassland soil associations of the Canadian prairies after 60 to 70 years of cultivation was 12 to 29% lower than that of the adjacent permanent pastures. For two of the three soil associations, essentially all P losses were accounted for by Po. Bowman et al. (1990) reported that half of total P decline was stemmed from the decrease in Po pool. Tiessen et al. (1982) considered that soil P was primarily lost from Po fraction until this fraction depleted sufficiently to allow dissolution of apatite to occur. A significant relationship between P reduction and soil organic matter loss was observed by Tiessen et al. (1983). The supply of plant availability P was regulated by the rate of mineralization of Po (Cole et al., 1977). Those studies, as well as the ones reported recently (e.g., Tiecher et al., 2018), indicated that the mineralization of Po in cultivated soil plays important roles in both plant available P and P transformation in soil. Hedley et al. (1982) considered that P loss from cultivated soil resulted mainly from crop removal, which would account for the 75% of the decrease in total P loss from soil.

Cropping systems have large impacts on soil P status. Bowman and Halvorson (1997) reported P availability increased significantly in the 0- to 5-cm depth with continuous wheat compared with wheat fallow in central great plain of the United States, and they attributed this increase to the high return of crop residues. Zheng et al. (2003) reported larger pools of labile inorganic P (Pi) and organic P (Po) extractable with NaHCO3 (pH 8.5) and moderately labile Po extractable with NaOH (0.1 M) in 30- to 60-cm soil in a barley-alfalfa-alfalfa rotation compared to monoculture barley. Great root biomass from perennial crops contributed to P accumulation in the soil layer. Although there have been research efforts dedicated to assess P transformations in soils under diverse cropping systems (Zhang and MacKenzie, 1997a, b; Saltali et al., 2007; Takeda et al., 2009; Ahmed et al., 2019), little information is available on comparison of soil P dynamics among cropping systems, especially using native soils as a reference.

The addition of fertilizer P not only supplies an essential nutrient to plants, but it also influences P distribution in pools of various bioavailability and loss susceptibility to water. Increases in labile Pi and moderately labile Pi in fertilized soils have been observed (Wagar et al., 1986; Zhang and MacKenzie, 1997a, b; Zheng et al., 2002; Zhang et al., 2004; von Sperber et al., 2017). It was reported that moderately labile Pi is the primary sink of added fertilizer P and source of labile Pi under long-term cropping practice in a Labarre silty clay (Zheng et al., 2002) and a Chicot sandy clay loam (Zhang et al., 2004). However, changes in moderately stable Pi extractable with 0.1M HCl were not consistent in P fertilized soils. Zhang and MacKenzie (1997a, b) reported moderately stable P remained constant in a Chicot sandy clay loam over the short term, whereas Mckenzie et al. (1992), Richards et al. (1995), and Crews and Brookes (2014) found moderately stable P increased along with addition of fertilizer P in the long-term up to 100 years. Total Po in the fertilized soil remained unchanged (Zhang and MacKenzie, 1997b) for short-term cultivation. On the other hand, Agbenin and Goladi (1998) found the fractions of Po and residual P, predominated by Po, decreased in the P fertilized soil. The change in Po pools depends on the rate of mineralization (Tiecher et al., 2018), which is governed by complex mineralogical, chemical, and biological processes. A path analysis indicated that the role of Po pools was more important than Pi pools for soil P transformation, and labile Po acted as a transitory pool rather than as a sink or source of P in a Labarre silty clay (Zheng et al., 2002) and in a very clayey Oxisol under non-tillage (Tiecher et al., 2018). Soil P dynamics in fertilized soils can be form-interactive and temporally cumulative. There is information shortage on the long-term effect of fertilizer P addition on soil P, which impairs management practices being developed in a crop production that is profitable and at the same time in an environmental-friendly manner. The objective of this study was to assess the P status and P transformation in a Brookston clay loam after 45 years of contrasting (monoculture corn vs. crop rotations) cropping systems with and without P fertilization, relative to the native forest soil.

Materials and Methods

Experiment Design and Plot Management

An experiment was initiated in 1959 at Eugene Whelan Research farm, Woodslee, Ontario, Canada (42°13′ N latitude, 82°44′ W longitude). The mean annual air temperature is 8.7°C, and the mean annual precipitation is 876 mm. The soil was classified as Brookston clay loam (Typic Argiaquoll), consisting of 28% sand, 35% silt, 37% clay, 619 mg kg–1 Al (Mehlich-3 extractable), 310 mg kg–1 Fe (Mehlich-3 extractable) (Wang et al., 2012), and 2.3% organic carbon in the Ap horizon.

Treatments consisted of combinations of three cropping systems and two regimes of fertilization. Cropping systems included conventionally tilled continuous corn (Zea mays L., CC), corn-oats (Avena sativa L.)–1st alfalfa (Medicago sativa L.)–2nd alfalfa rotation (CR), and continuous Kentucky bluegrass sod (Poa pratensis L., CB). Each phase of the corn-oats-alfalfa-alfalfa rotation was presented in each year. However, only the corn phase of the rotation, CC and CB, was selected for this study. The plot size was 76.2 × 12.2 m each. Conventional tillage consisted of a moldboard plowing to 0.18-m depth in the fall and a disking and harrowing in the spring just prior to planting. Conventional tillage was conducted every year for CC plots and in 2 of 4 years for the rotation treatments (i.e., following the second year alfalfa and following the rotation corn harvest). The CB plots were not tilled. Corn was planted at 55,000 seeds ha–1 with 1.0-m row spacing. All fertilized plots received 8-32-16, which provided 16.8 kg N ha–1 as ammonium nitrate (NH4NO3), 67.2 kg P2O5 ha–1 as triple superphosphate, and 36.2 kg K2O ha–1 as potassium chloride (KCl) prior to planting each year. In addition, corn also received 112 kg N ha–1 of side-dressed NH4NO3, applied in bands 15 cm on either side of the row (2- to 5-cm depth) when corn was at six-leaf stage (usually in early–mid June). Herbicides were applied at regionally recommended rates for weed control in corn and oat production.

Corn yields were measured annually by harvesting 33-m lengths of 10 individual rows. Grain moisture content was determined on corn grain subsamples. Alfalfa was cut and baled two to three times a year and removed from the field. Cereal and forage biomasses were estimated, and plant samples collected using the sampling square technique. The plant P removal was the product of dry matter and P concentration in all harvested plant tissues. The harvest index of 0.5 for corn was used to estimate shoot biomass (Bolinder et al., 2007). The shoot–root ratios of 5, 3, 2, and 2 were used to calculate the root and stubble biomass of corn, oats, alfalfa, and bluegrass sod, respectively (Bolinder et al., 1997, 2002). The national average P concentrations were used for the harvested tissues of corn, oats, alfalfa, and sod, and P concentrations in root and stubble biomass were estimated as 0.5% of their concentrations in harvested plant tissues (National Research Council, 1982). The P budget after 45-year cropping practices is shown in Table 1. The soil at adjacent woodlot (native forest) was considered to be native soil. The vegetation species for the woodlot are native grasses and deciduous trees. Not only was the woodlot not fertilized, but it was also not tile drained, whereas all of the field plots were systematically tile drained.

TABLE 1
www.frontiersin.org

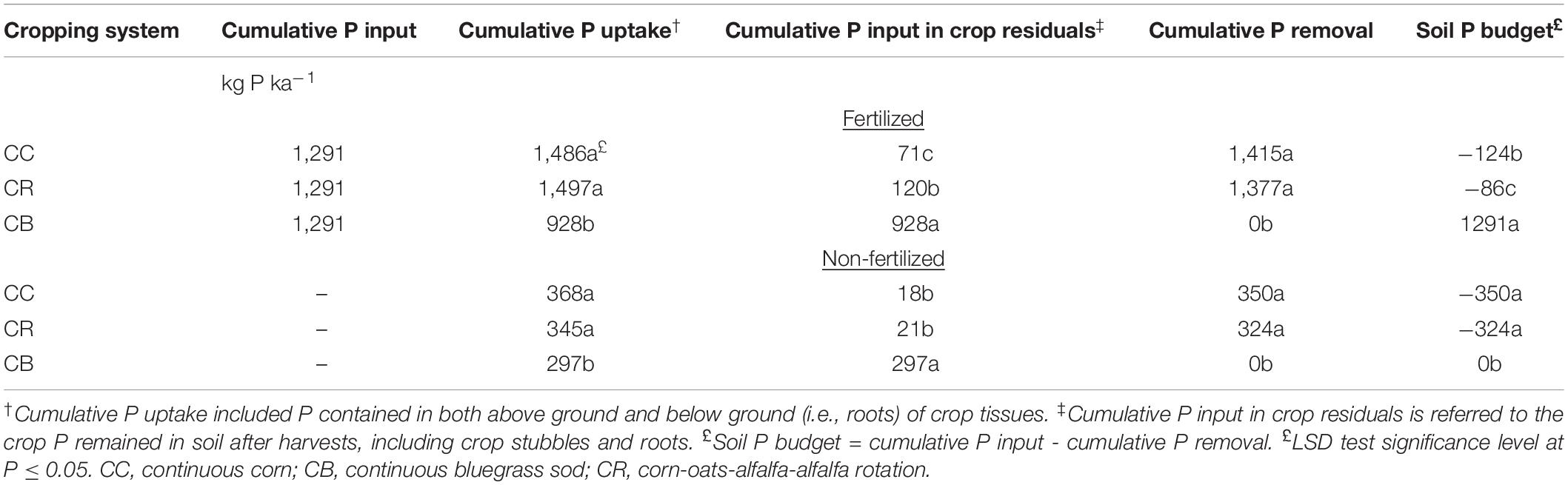

Table 1. Phosphorus budget after 45-year contrasting cropping practices in a Brookston clay loam at Woodslee, ON, Canada.

Soil Sampling and P Fractionation

Soil samples were taken from 0- to 20-cm top layer in May 2003, using a 3.2-cm-diameter auger. Soil samples were air-dried, ground, and passed through a 2-mm sieve. Soil subsamples were further ground and passed through a 100-mesh sieve.

Soil P was fractioned using a modified Hedley (Hedley et al., 1982) sequential extraction procedure (Zhang et al., 2004). In brief, 0.5-g soil was extractable sequentially with 30 mL of deionized water, 0.5 M NaHCO3, the first 0.1 M NaOH, 1.0 M HCl, and the second 0.1 M NaOH by shaking the suspension for 16 h, centrifuging for 10 min at 16,000g, and passing through a 0.45-μm Millipore membrane filter (mixed cellulose ester). An aliquot (10 mL) of the NaHCO3 and NaOH extractants was acidified to precipitate extractable organic matter, and the supernatant was analyzed for Pi. The 2nd NaOH extraction used in this study enabled the extraction of P (either Pi or Po), which is held more strongly at internal surface of soil aggregates (Hedley et al., 1982; Zhang and MacKenzie, 1997b). Another aliquot (10 mL) of the deionized water, NaHCO3, and NaOH extracts was digested in an autoclave (103.4 kPa, 121°C for 1 h) with 10 mL of 9 M H2SO4 and ammonium persulfate [(NH4)2S2O8] (0.5 g) and analyzed for total P (Pt). The difference between Pt and Pi was considered as Po (Tiessen and Moir, 1993). Residual P in soil after sequential extraction was determined using the digestion method with concentrated H2SO4 and H2O2. Phosphorus concentrations were determined colorimetrically using a flow injection autoanalyzer (Quikchem FLA 8000 series; Lachat Instruments, Loveland, CO, United States) with the molybdate–ascorbic acid procedure (Murphy and Riley, 1962). Consequently, soil P was separated into water-extractable Pi and Po (water-Pi and Po), NaHCO3 extractable Pi and Po (NaHCO3-Pi and -Po), NaOH extractable Pi and Po (sum of the first and the second NaOH extractions), acid P (HCl-P), and residue P (Res-P). Both water- and NaHCO3-P were considered as labile P. The NaOH-P was considered as moderately labile P. The HCl-P was referred as moderately stable P. Res-P was considered to be stable P. Soil P was expressed in mg P kg–1 soil. Total extractable Pi or Po was the sum of Pi or Po extractable by water, NaHCO3, NaOH, and HCl reagents. Total P was measured directly by digesting soil subsamples with H2SO4 and H2O2, with P concentrations determined using the same approach as for other samples described above. The differences between the total P and the sum of P factions were within ± 3%.

Statistical Analysis

The statistical analysis of the cropping treatments and the native soil was performed separately for the fertilized and non-fertilized plots using the least significant difference (LSD) t test at a significance level of P ≤ 0.05 (SAS Institute, 1999 Cary, NC, United States, 1999).

Results and Discussion

Phosphorus Budget

The P budget was calculated as the difference between the cumulative fertilizer P inputs and the cumulative P removal by plants using the available data from the establishment of these plots. The P deficits were expectedly observed after 45-year consistent cropping without P fertilization in both CC and CR plots, whereas no changes were anticipated in the CB plots as the grasses were not removed from the plots (Table 1). However, there was a great P surplus in the fertilized CB plots, which was attributed to no P removal, as the grasses were only cut and not removed in addition to the annual inputs of fertilizer P. This treatment simulated a grass buffer strip. A slight P deficit was found in the fertilized CC and CR plots, suggesting an apparent P balance in the two corn plots after 45 years of long-term cropping with annual fertilization.

Total Soil P

Total P content in native soil was 667 mg kg–1 (Figure 1). The Po extractable with 0.1 M NaOH (NaOH-1-Po + NaOH-2-Po) was the dominant P fraction, accounting for 44% of total P, followed by HCl-P 26%. Labile P (water-Pi and -Po + NaHCO3-Pi and -Po) and Res-P accounted for 20% and 16%, respectively. The high proportion of NaOH-Po may have been due to two extractions by 0.1 M NaOH in our study. The small proportion of labile P in our Brookston clay loam was comparable to the native forest Brown Chernozemic at 10% labile P (Schoenau et al., 1989) and permanent Black Chernozemic pasture soil at 12% labile P (Hedley et al., 1982). The content of HCl-P in our native Brookston clay loam was higher than those in native Gleysolic and Gray Luvisolic soils (Schoenau et al., 1989) and lower than those in Chernozemic soils (Hedley et al., 1982; Schoenau et al., 1989). The HCl solution extracts the relatively insoluble apatite-type materials, and HCl-P may show the magnitude of soil weathering. Guo et al. (2000) found higher HCl-P in slightly weathered soil than highly weathered soil. The content of HCl-P in our native Brookston clay loam was much lower than the low weathered Humic Cryaquept in Quebec in which the phyllosilicate mineralogy of clay fraction is dominated by vermiculite, hydrous mica, and feldspars (Zheng et al., 2003).

FIGURE 1
www.frontiersin.org

Figure 1. Total P and standard errors (n = 3) (mg kg–1) in a Brookston clay loam at Woodslee, ON, Canada, after 45-year consistent cropping with and without P fertilization relative to its native forest soil (NS). CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation. Letters in the bars are significant levels (at P ≤ 0.05) with LSD test conducted separately for the fertilized and non-fertilized treatments.

Continuous cropping without P fertilization significantly decreased total soil P content relative to the native soil after 45-2 cropping practices, ranging from an 18% to 30% decrease or 122 to 202 mg P kg–1 soil (Figure 1). The result was coincident with studies reported by Crews and Brookes (2014) that significant soil P depletion occurred over time from 1893 to 2009 with Park Grass perennial hay meadow, by Hedley et al. (1982) that total P in soils after 60 to 70 years cultivation was lower than that of adjacent permanent pasture, and by Bowman et al. (1990) that large declines of P (41%) occurred after 60 years of cultivation. The sequence of total P reduction among our cropping systems followed the following order: CC > CR > CB. The reduction of total P by cultivation was mainly due to P removal by plant (Hedley et al., 1982; Schoenau et al., 1989). Leaving the grass in place (i.e., the grass was consistently cut but not removed) in CB compared to crop removal in CC or CR plots would have reduced the total P loss from soils (Table 1). These results are consistent to the previous study that showed the larger P accumulation in grass field was mainly due to more roots of perennial species compared to annual crops (Zheng et al., 2003). In addition, total P reduction in the cultivated plots relative to the native soil would have also been attributed to soil P losses in tile drainage. An annual P loss of 1.5 kg P ha–1 was observed in tile drainage water (Zhang et al., 2015), which contributes to greater than 70% of soil P loss in the study region (Tan and Zhang, 2011; Zhang et al., 2013).

Application of fertilizer P resulted in a comparable total P in CC and CR plots, but significantly increased total P by 31% in CB relative to native soil (Figure 1). This was in agreement with the calculated P budget (Table 1). The P accumulation in soil with long-term application of fertilizer P has been reported by Mckenzie et al. (1992), Zhang et al. (1995), and Hao et al. (2018). The continuous application of fertilizer P, coupled with no crop removal in the CB plots, contributed to the increase of total P (Table 1 and Figure 1). The large increase in total P of grassland soils may increase the risk of P loss in runoff, leaching, and preferential flow (Zhang et al., 2015, 2017).

Inorganic P

Consistent cropping without P fertilization significantly decreased all fractions of Pi, compared with native soil, by an average of 6, 24, 31, and 21 mg P kg–1 for water-Pi, NaHCO3-Pi, NaOH-Pi, and HCl-P, respectively (Figure 2). This resulted in a decrease in total extractable Pi by an average of 82 mg P kg–1 relative to native soil (Figure 3). Labile Pi (water-Pi + NaHCO3-Pi) significantly decreased by 57 to 67% relative to native soil, which was greater than the 45% decrease reported by Hedley et al. (1982) for a soil after 65 years of cultivation. This decline was attributed to plant uptake of readily available P in the top layers of soil, as evidenced by the larger P removal relative to P input in crop residues including root and stubble biomass (Table 1). Although NaOH-Pi and HCl-P in the non-fertilizer plots remained unchanged over a 5-year period (Zhang and MacKenzie, 1997a), this study showed a significant reduction in the two P pools in soil after 45-year cropping (Figure 2), suggesting moderately labile Pi was desorbed and the moderately stable Pi dissolved to replenish readily labile Pi pool in long-term cultivated soils. This transformation was previously reported by Crews and Brookes (2014) and (Sheklabadi et al., 2015). Few recent studies further concluded that the decline in HCl-P is caused by the conversion from HCl-P to readily available Pi (von Sperber et al., 2017; Tiecher et al., 2018).

FIGURE 2
www.frontiersin.org

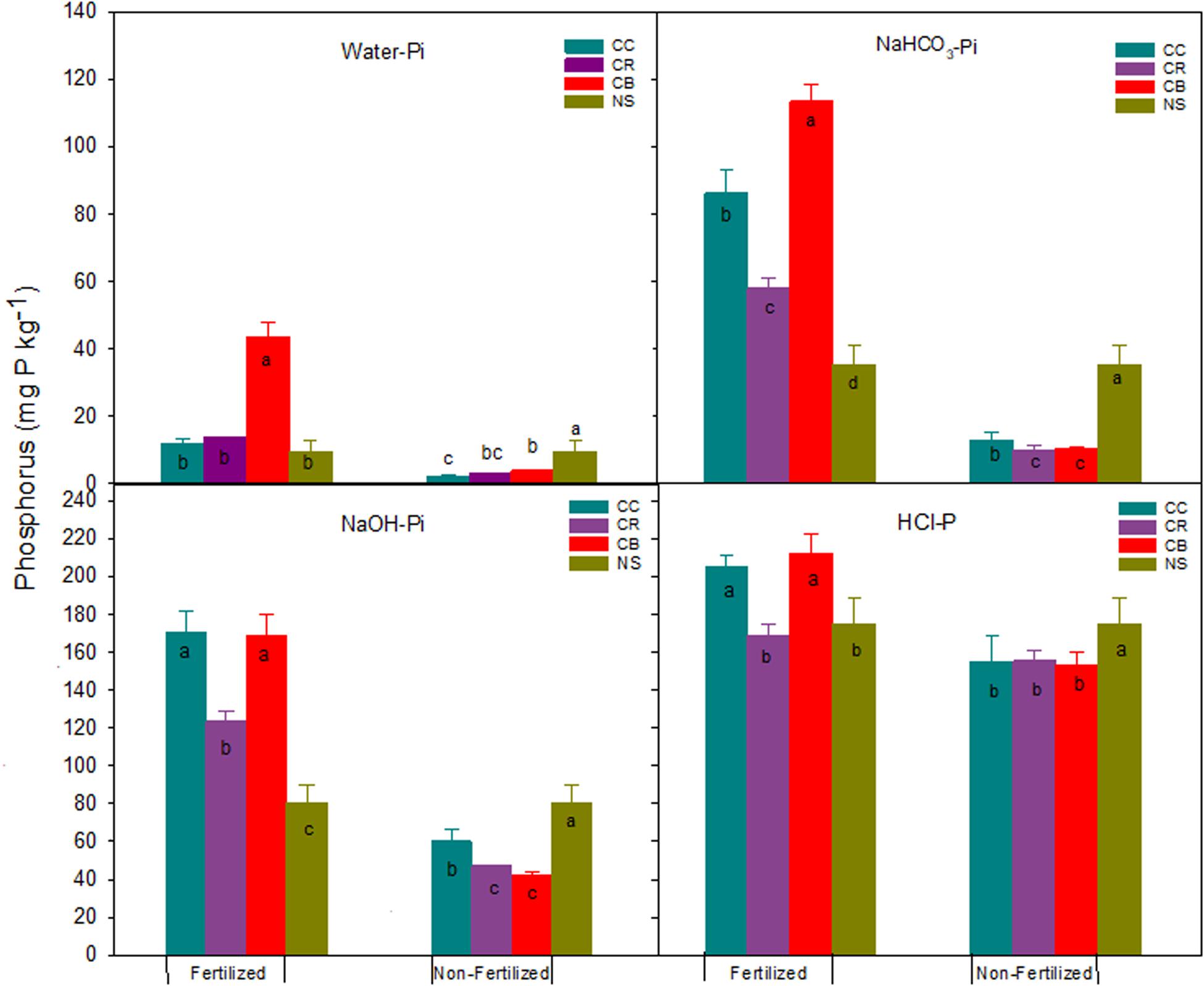

Figure 2. Water-Pi, NaHCO3-Pi, NaOH-Pi, HCl-P, and standard errors (n = 3) (mg kg–1) in a Brookston clay loam at Woodslee, ON, Canada, after 45-year consistent cropping with and without P fertilization relative to its native forest soil (NS). CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation. Letters in or above the bars are significant levels (at P ≤ 0.05) with LSD test conducted separately for the fertilized and non-fertilized treatments.

FIGURE 3
www.frontiersin.org

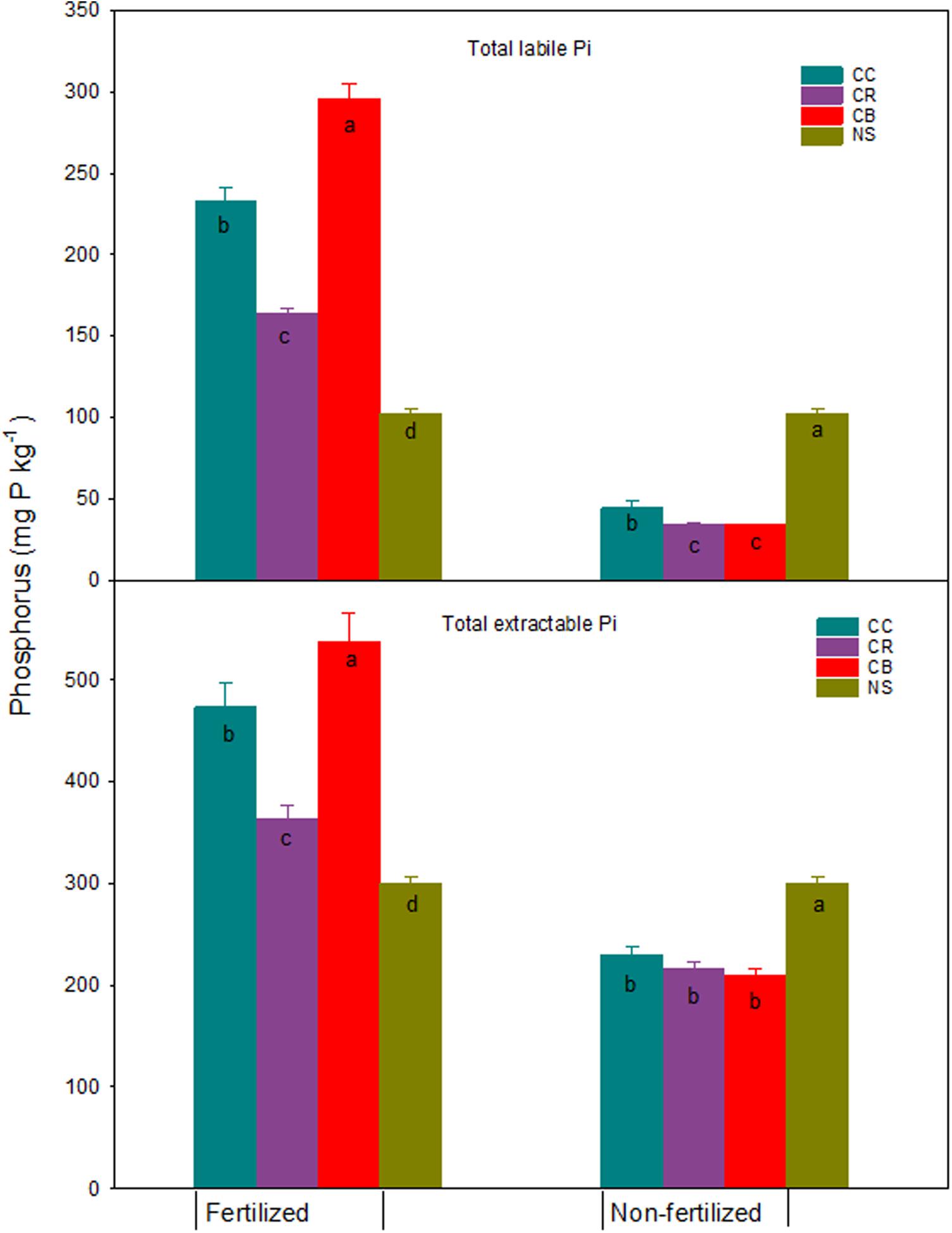

Figure 3. Total extractable Pi and labile Pi and standard errors (n = 3) (mg kg–1) in a Brookston clay loam at Woodslee, ON, Canada, after 45-year consistent cropping with and without P fertilization relative to its native forest soil (NS). CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation. Letters in the bars are significant levels (at P ≤ 0.05) with LSD test conducted separately for the fertilized and non-fertilized treatments.

The decrease in labile NaHCO3-Pi and moderately labile NaOH-Pi in CR and CB plots without P fertilization was significantly larger than in CC plots (Figure 2). The larger decrease of both P pools in CR plots could be explained by more P export of crop removal and resultant P desorption. The mean yield over 45 years in non-fertilized CR plots (3.84 ± 0.21 t ha–1 year–1) was significantly greater than in CC plots (1.24 ± 0.09 t ha–1 year–1). This suggests that there was more available-P removal by crops in the CR treatment (Table 1), resulting in transformation of moderately labile Pi to replenish the lower labile Pi. The readily available P appeared to be in equilibrium with moderately labile NaOH-Pi (Guo et al., 2000; Zhang et al., 2004). The larger decrease in both P fractions in CB plots than in CC plots could be attributed to the stronger immobilization of Pi to Po, as was evidenced by the CB treatment having the highest content of Po among the three cropping systems (Figure 5). The immobilization of Pi to Po in grassland soil was reported previously by Herlihy and McGrath (2007) and Saltali et al. (2007). The HCl-P pool among the three cropping systems was not significantly different (Figure 2).

In P fertilized treatments, the concentrations of all Pi fractions increased except for water-Pi in the CC and CR plots and HCl-P in the CR plots, compared to the native soil (Figure 2). The increases of Pi were, on average, 13, 50, 65, and 34 mg P kg–1 for water-Pi, NaHCO3-Pi, NaOH-Pi, and HCl-P, respectively, and the resultant total extractable Pi significantly increased with added fertilizer P, ranging from 63 to 237 mg P kg–1, as compared to the adjacent native forest soil (Figure 3). The addition of fertilizer P significantly elevated, as expected, the concentration of labile Pi fractions (Wagar et al., 1986; Mckenzie et al., 1992; Zhang and MacKenzie, 1997a). The observations from this study indicated that the addition of fertilizer P encouraged the formation of NaOH-Pi, reinforcing the conjecture that the NaOH-Pi acted as a sink of added Pi under long-term fertilization (Zhang and MacKenzie, 1997b; Zheng et al., 2002; Zhang et al., 2004). Conversely, NaOH-Pi acted as a buffer for the available P in the non-fertilized soils (Zhang and MacKenzie, 1997a; Guo et al., 2000) or in soils that are running low in bioavailable P supply (Zhang et al., 2004). Clearly, the long-term response of P pools was controlled mainly by the dynamics of NaOH-Pi (von Sperber et al., 2017).

The increase in total extractable Pi among cropping systems followed the sequence CB > CC > CR with increases of 237, 173, and 63 mg P kg–1, respectively (Figure 3). The lower total extractable Pi in the fertilized CC and CR plots than in the fertilized CB plots was attributed to the higher biomass yields and the greater removal of available P from soil (Table 1), whereas there was no P removal in the CB plots as they were not harvested. A small increase in total labile Pi (Figure 3) and moderately labile Pi (Figure 2) in CR did not yet result in the concurrent increase of HCl-P (Figure 2), suggesting the transformation from labile and moderately labile Pi pools to relative stable P pool was restricted in the rotation system. However, the concurrent increases of labile Pi, NaOH-Pi, and HCl-P in CB and CC plots relative to native forest soil indicated the greater transformation from labile and moderately labile Pi to HCl-P in these two treatments. This observation confirms the conclusion that P is transformed from readily available P forms to more resistant forms with the consecutive P fertilizer addition in monoculture systems (Zheng et al., 2002). Water-Pi and the resultant total water-P in CB plots were 44 and 46 mg P kg–1, which were significantly greater than in the other plots. It was speculated that the increase in water-P, especially water-Pi, might have resulted from the increase in the degree of soil P saturation, as evidenced by the increase in NaHCO3-Pi, a form of P that is predominately sorbed physically or physicochemically on the soil surface. Water-extractable P has been deemed a soil test indicative of environmental risk of soil P loss (Wang et al., 2010, 2012). Recent studies have found that concentrations of dissolved, bioavailable, and particulate P in runoff increased linearly as water-extractable P increases (Schroeder et al., 2004; Wang et al., 2010, 2012). The high water-Pi in CB plots could result in great potential P losses by runoff and leaching (Zhang et al., 2015).

Organic P

Consistent cropping without fertilization significantly decreased extractable Po fractions except for water-Po, which was significantly increased compared to native soil (Figure 4). The NaOH-Po and NaHCO3-Po decreased, on average, across the three cropping systems, by 58 and 15 mg P kg–1, respectively. Although the proportion of increase was large, the increment of water-Po averaged approximately only 1.1 mg kg–1. Averaged across cropping systems, the decrease of NaOH-Po accounted for 43% and 84% of total P and total extractable Po reductions, respectively (Figures 1, 5). This proportion of decrease was consistent with those reported by Hedley et al. (1982), 68% of total Po loss after 65-years cultivation was attributed to the NaOH-Po decrease. This was confirmed by the result from Zhang and MacKenzie (1997a), who found NaOH-Po decreased by 46 kg P ha–1 in the non-fertilized plots. These studies suggest that NaOH-Po plays an important role as sink or source in P transformation in soils. For cropping systems, the sequence of total extractable Po decrease was CC > CR > CB (Figure 5). The CC and CR cropping practices decreased not only easily mineralized Po (NaHCO3-Po), but also moderately labile NaOH-Po, especially for the portion of extractable P after HCl extraction (NaOH-2-Po) (Zhang and MacKenzie, 1997a). The greater decreases in NaOH-Po in CC and CR plots than in CB plots, compared with native soil (Figure 5), indicate that the rate of Po mineralization was enhanced by agronomic practices such as tillage. Tiecher et al. (2018) assessed linkage between soil P forms in contrasting tillage systems using path analysis and concluded that the organic P pool has a greater direct contribution to buffer resin-P under conventional tillage (94%) than under non-tillage (35%), due to higher mineralization of organic P forms with moderate lability caused by soil disturbance. A small decrease in total extractable Po in CB plots might have partially been due to the tradeoff of more Po being returned to soil in grass residues including shoots, as well as the massive roots (Table 1 and Figure 5).

FIGURE 4
www.frontiersin.org

Figure 4. Water-Po, NaHCO3-Po, NaOH-Po, and standard errors (n = 3) (mg kg–1) in a Brookston clay loam at Woodslee, ON, Canada, after 45-year consistent cropping with and without P fertilization relative to its native forest soil (NS). CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation. Letters in the bars are significant levels (at P ≤ 0.05) with LSD test conducted separately for the fertilized and non-fertilized treatments.

FIGURE 5
www.frontiersin.org

Figure 5. Total extractable Po and labile Po and standard errors (n = 3) (mg kg–1) in a Brookston clay loam at Woodslee, ON, Canada, after 45-year consistent cropping with and without P fertilization relative to its native forest soil (NS). CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation. Letters in the bars are significant levels (at P ≤ 0.05) with LSD test conducted separately for the fertilized and non-fertilized treatments.

In P fertilized plots, a significant decrease in all Po fractions was found in CC and CR plots, except for water-Po in CC and NaHCO3-Po in CR plots where they remained unchanged, relative to the native forest soil (Figure 4). This resulted in a significant decrease in the total extractable Po by 129 and 85 mg P kg–1 in CC and CR plots, respectively, as compared to the native soil (Figure 5). Res-P also decreased by 32 and 18 mg kg–1 in CC and CR plots (data not shown), respectively. Data obtained by Haas et al. (1961) for the soils from 15 dry-land experiment stations in the US Great Plains showed that total P was reduced by an average of 8% by cropping over 30 to 48 years, with most of the loss being Po. In contrast, with increases in NaOH-Po (Figure 4), total extractable Po in CB plots increased by 10 mg P kg–1 relative to native soil, although labile Po, sum of water-Po and NaHCO3-Po, decreased slightly by 8 mg P kg–1 (Figure 5), due to the strong immobilization process in grassland (Herlihy and McGrath, 2007; Saltali et al., 2007).

In general, either soil labile Po or total extractable Po in the fertilized CC and CR treatments decreased, compared to the native soil (Figure 5). While the total labile Po decreased slightly, averaged at 8 mg P kg–1 across three cropping systems, the predominant Po loss was observed in the form of NaOH-Po, with an average of 60 mg kg–1 across CC and CR. This confirms the previous observations reported by Zhang and MacKenzie (1997a). Tran and N’dayegamiye (1995) suggested the decrease of NaOH-Po in P fertilized treatments was probably due to the synergetic effect of N and P on soil Po mineralization. Significant decreases in total extractable Po in the fertilized CC and CR plots imply that fertilizer application alone cannot remedy Po loss by cropping practices, apart from returning more plant residues.

Conclusion

The significant decrease of total P and all P fractions by cropping practices was found in the non-fertilized soil relative to the native forest soil except for water-extractable Po. The labile Pi decrease accounted for the most proportion of total extractable Pi decrease. The moderately labile NaOH-Po was the dominant pool accounting for the loss of Po and total P in the non-fertilized soils. The addition of fertilizer P significantly increased all Pi pools under the three cropping systems, except for water-Pi with CC and CR and HCl-P with CR where no changes were observed. The NaOH-Pi largely increased after 45 years in the fertilized soils, whereas it decreased in the non-fertilized soils. This study revealed that long-term cropping practices significantly enhanced the rate of Po mineralization regardless of whether they were fertilized. Further, NaOH-Pi and -Po played important roles by acting as a sink or source of P in this soil. The return of grass residues in the CB treatment resulted in the increases in total P and total Po in the fertilized plots relative to the native soil, suggesting P accumulation in grass fields is a concern as a risk of P pollution to adjacent fresh waters.

Data Availability Statement

All datasets generated for this study are available upon request.

Author Contributions

TZ proposed and facilitated the study. CD and few previous scientists in Harrow Research and Development Center (formerly Harrow Research Center or Greenhouse and Processing Crops Research Center), AAFC, maintained the long-term plots and provided the yield data. TZ, ZZ, QH, CD, and CT contributed to the preparation of the manuscript. All authors contributed to the manuscript and approved the submitted version.

Funding

Funding for this study was provided by the Agriculture and Agri-Food Canada A-base Research Program.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We are most grateful to M. R. Reeb and B. Hohner for their expert technical assistance.

Abbreviations

CC, continuous corn; CB, continuous bluegrass sod; CR, corn-oats-alfalfa-alfalfa rotation; P, phosphorus; Pi, inorganic P; Po, organic P.
