ORIGINAL RESEARCH article
Age and Paleoenvironmental Significance of the Frazer Beach Member—A New Lithostratigraphic Unit Overlying the End-Permian Extinction Horizon in the Sydney Basin, Australia
- 1Department of Paleobiology, Swedish Museum of Natural History, Stockholm, Sweden
- 2Independent Researcher, Bungendore, NSW, Australia
- 3Isotope Geology Laboratory, Boise State University, Boise, ID, United States
- 4Department of Earth and Atmospheric Sciences, University of Nebraska-Lincoln, Lincoln, NE, United States
- 5School of Earth and Environmental Sciences, The University of Queensland, St. Lucia, QLD, Australia
- 6Bocking Associates, Castle Hill, NSW, Australia
The newly defined Frazer Beach Member of the Moon Island Beach Formation is identified widely across the Sydney Basin in both outcrop and exploration wells. This thin unit was deposited immediately after extinction of the Glossopteris flora (defining the terrestrial end-Permian extinction event). The unit rests conformably on the uppermost Permian coal seam in most places. A distinctive granule-microbreccia bed is locally represented at the base of the member. The unit otherwise consists of dark gray to black siltstone, shale, mudstone and, locally, thin lenses of fine-grained sandstone and tuff. The member represents the topmost unit of the Newcastle Coal Measures and is overlain gradationally by the Dooralong Shale or with a scoured (disconformable) contact by coarse-grained sandstones to conglomerates of the Coal Cliff Sandstone, Munmorah Conglomerate and laterally equivalent units. The member is characterized by a palynological “dead zone” represented by a high proportion of degraded wood fragments, charcoal, amorphous organic matter and fungal spores. Abundant freshwater algal remains and the initial stages of a terrestrial vascular plant recovery flora are represented by low-diversity spore-pollen suites in the upper part of the unit in some areas. These assemblages are referable to the Playfordiaspora crenulata Palynozone interpreted as latest Permian in age on the basis of high precision Chemical Abrasion Isotope Dilution Thermal Ionization Mass Spectrometry (CA-IDTIMS) dating of thin volcanic ash beds within and stratigraphically bracketing the unit. Plant macrofossils recovered from the upper Frazer Beach Member and immediately succeeding strata are dominated by Lepidopteris (Peltaspermaceae) and Voltziopsis (Voltziales) with subsidiary pleuromeian lycopsids, sphenophytes, and ferns. Sparse vertebrate and invertebrate ichnofossils are also represented in the Frazer Beach Member or in beds immediately overlying this unit. The Frazer Beach Member is correlative, in part, with a thin interval of organic-rich mudrocks, commonly known as the “marker mudstone” capping the Permian succession further to the north in the Bowen, Galilee and Cooper basins. The broad geographic distribution of this generally <5-m-thick mudrock unit highlights the development in eastern Gondwana of extensive, short-lived, shallow lacustrine systems with impoverished biotas in alluvial plain settings in the immediate aftermath of the end-Permian biotic crisis.
Coalfield geologists in New South Wales, Australia, have long recognized a unit of dark gray to black shales, mudstones and siltstones, typically <2m thick, capping the uppermost Permian coal seam across the Sydney Basin. Historically, this interval has been termed the Bulli or Vales Point “roof strata” (Diessel et al., 1967), “roof shales” (Townrow, 1967b; White, 1981), “transitional zone/beds” (Hennelly, 1958; Wu et al., 2019), “blacks” (in part: Clark, 1992) or, in a paleontological sense, the “dead zone” (Vajda et al., 2020). Traditionally, the top of the uppermost Permian coal seam has been used to define the boundary between the Newcastle Coal Measures (and Illawarra Coal Measures in southern and western regions of the basin) and the overlying Narrabeen Group (Agnew et al., 1995; Armstrong et al., 1995; Scheibner and Basden, 1998; Creech, 2002; Shi et al., 2010; Pinetown, 2014; Metcalfe et al., 2015; Laurie et al., 2016). Consequently, previous studies have assigned the Vales Point/Bulli “roof strata” to the basal Narrabeen Group. In contrast, Hutton and Bamberry (1999, p. 122) recommended that these carbonaceous mudrocks should be treated as part of the Sydney Subgroup (uppermost Newcastle/Illawarra Coal Measures), but the unit has never been formally defined.
The boundary between the Bulli/Katoomba/Vales Point coal seams and the overlying shale/siltstone interval marks a major change in fossil floras throughout the Sydney Basin and is the terrestrial expression of the end-Permian extinction event (EPE) (Grebe, 1970; Helby, 1973; Retallack, 1977; Fielding et al., 2019; Mays et al., 2020; Vajda et al., 2020). Recently, our team and others have noted that this shale/mudstone/siltstone unit represents a distinctive lacustrine facies association (Facies Association G of Fielding et al., 2020) overprinted by paleosol development (Retallack, 2005), and is characterized by excursions in the values of carbon stable isotopes and chemical index of alteration (CIA) (Williams et al., 2017; Vajda et al., 2020). The unit hosts distinctive vertebrate ichnofossil (Retallack 1996; McLoughlin et al., 2020), and palynofloral assemblages initiating with a post-extinction “dead zone” primarily incorporating coalified wood and charcoal fragments. Higher in this interval, and in overlying units, abundant fungal, algal and sparse fern palynomorphs characterize post-extinction communities of opportunistic plants and the initial stages of a recovery flora (Fielding et al., 2020; Mays et al., 2020; Vajda et al., 2020).
Historically, the EPE and Permian-Triassic boundary (PTB) were assumed to be coincident across the Sydney Basin for mapping purposes and placed at the top of the uppermost Permian coal seam (McElroy, 1969). However, early palynological studies employing floristic correlations with other regions (Evans, 1966; Balme, 1969; Helby, 1970; Helby, 1973; Helby et al., 1987) inferred the PTB to be positioned higher (within the Narrabeen Group) than the major floral turnover (EPE). Some workers have invoked a significant hiatus and an erosional unconformity around the Permian-Triassic transition (base of the Narrabeen Group) in various parts of the basin (Rattigan and McKenzie, 1969; Helby, 1970; Helby, 1973; Herbert, 1997), whereas others argued that the transition is conformable (Dun, 1910). Recent work integrating sedimentology, palynostratigraphy and high-precision CA-IDTIMS dating of zircon crystals from ash beds shows that the transition is generally conformable in the basin’s main depocenters and provides clarity to the positions of the EPE and PTB within the succession (Metcalfe et al., 2015; Fielding et al., 2019; Fielding et al., 2020; Mays et al., 2020; Vajda et al., 2020).
Given that this package of mudrocks is lithologically distinct from the bracketing coal and sandstone units, has a unique fossil content, has a broad geographic distribution, and is positioned in an interval of global interest (between the EPE and PTB horizons), we argue that it deserves recognition as a discrete lithostratigraphic unit. Here we formally describe this unit as the Frazer Beach Member of the Moon Island Beach Formation and raise the Newcastle/Illawarra Coal Measures boundary to the top of this new unit. We document the sedimentary characteristics, fossil biota, depositional setting, regional correlative units and global paleoenvironmental significance of this member.
Material and Methods
Sedimentological features and stratigraphic relationships were compiled by logging numerous outcrop sections and bore cores from sites across the Sydney Basin (see Fielding et al., 2020 for details). Additional data were obtained from various downhole geophysical logs and well completion reports for boreholes distributed widely through the Sydney Basin and contiguous basins to the north (Gunnedah, Bowen, Galilee, and Cooper basins).
Plant macrofossils were studied from beds overlying the Bulli and Vales Point coal seams exposed at various sites around the Sydney Basin (Figure 1D) and now held in the Australian Museum (Sydney: prefixed AMF) and Swedish Museum of Natural History (Stockholm: prefixed S). Specimens were examined and photographed with low-angle light using a Canon Eos 40D camera. Palynoassemblages were studied from several wells and outcrop sections (Figure 1C): Pacific Power Hawkesbury Bunnerong DDH 1 (PHKB-1), central Sydney Basin (lat: 33°58ʹ17.61ʺS, long: 151°13ʹ43.52ʺE); AGL Bootleg DDH 8 (AGLB-8), central Sydney Basin (lat: 34°00ʹ36ʺS, long: 150°44ʹ28ʺE); Coalcliff Colliery DDH 27 (CCC-27), southern Sydney Basin (lat: 34°13ʹ25.28ʺS, long: 150°56ʹ50.67ʺE), Elecom Hawkesbury Lisarow 1 (EHKL-1), northern Sydney Basin (lat: 33°22ʹ38.54ʺS, long: 151°23ʹ0.53ʺE); exposures at Coal Cliff (lat: 34°15ʹ18.9ʺS, long: 150°58ʹ22.2ʺE), southern Sydney Basin, and Snapper Point (lat: 33°11ʹ13.35ʺS, long: 151°37ʹ42.00ʺE) and Frazer Beach (lat: 33°11ʹ37.21ʺS, long: 151°37ʹ22.34ʺE), Munmorah State Conservation Area, northern Sydney Basin. Core samples were obtained for palynology from the W.B. Clarke Geoscience Center drillcore library, Londonderry, New South Wales, Australia. Samples of ∼10–25 g were processed for palynology according to standard procedures at Global Geolab Limited, Canada (see Mays et al., 2020; Vajda et al., 2020 for details). Palynomorphs were imaged using a Zeiss Axioskop 2 Plus transmitted light microscope equipped with a Zeiss AxioCam MRc camera or an Olympus BX51 transmitted light microscope with a Lumenera Infinity 2 digital camera. All palynological slides are housed at the Department of Palaeobiology, Swedish Museum of Natural History.
FIGURE 1. Locality maps. (A), Paleogeographic map showing the position of the Sydney-Gunnedah-Bowen Basin complex in southeastern Gondwana. (B), Map of eastern Australia showing the distribution of Permian–Triassic basins. (C), Map of the Sydney Basin showing key wells mentioned in the text. (D), Map of the Sydney Basin showing key outcrop localities mentioned in the text.
The total organic carbon (TOC) concentration and carbon-isotopic composition of bulk organic matter was determined on splits of samples used for palynological analyses. Samples were initially powdered using a Sibtechnik rock pulverizer, then reacted with 1 N HCl for 24 h to remove inorganic carbon, rinsed three times in Milli Q water, dried at 40°C, and repowdered with an agate mortar and pestle. Powders were analyzed using a Costech Elemental Analyzer connected to a Thermo Finnigan MAT 253 Isotope Ratio Mass Spectrometer at the Keck-NSF Paleoenvironmental and Environmental Laboratory, University of Kansas. Carbon-isotopic compositions of bulk organic matter fractions are reported in permil (‰) relative to VPDB. Analyses of working standards (DORM, ATP) were reproducible to better than ±0.13‰ (1σ SD) for δ13Corg.
The Chemical Index of Alteration (CIA) of Nesbitt and Young (1982) tracks the conversion of feldspars to clays via hydration during the weathering of fine-grained siliciclastics (Sheldon and Tabor, 2009). Whereas fresh crystalline rocks are characterized by relatively low CIA values (45–55), leaching of mobile oxides and concentration of Al2O3 during chemical weathering causes CIA values to approach 100. The CIA is calculated using the following equation:
wherein oxides are in molar units and CaO* represents the CaO in the silicate fraction following the method of McLennan (1993). Elemental concentrations used to calculate the CIA were measured using a Bruker Tracer 5i portable x-ray fluorescence (XRF) analyzer calibrated with a series of mudrock standards including USGS shale standards SBC-1 and SCO-2, a suite of mudrock reference materials characterized by Rowe et al. (2012), and nine in-house reference materials from Permo-Triassic mudrocks in the Pacific Hawkesbury Bunnerong DDH-1 (PHKB1) drill core from the Sydney Basin, NSW described by Fielding et al. (2019). Samples were analyzed four times using a Bruker Tracer 5i in the Sedimentary Geochemistry Laboratory at the University of Nebraska-Lincoln, twice under low-energy and twice under high-energy conditions with different filters, to target a series of overlapping Kα ranges and enable precise analysis of relatively light and heavy elements. The elements Na to Fe on the periodic table were analyzed with no filter at 15 kV and 15 µA and a count time of 30 s. Concentrations of Na and Mg were also measured under a helium flush to negate atmospheric interference. High-energy analyses were undertaken at 50 kV and 35 µA and a count time of 30 s, with a Cu 75 µm:Ti 25 µm:Al 200 µm filter for the elements Ca to Kr and a Cu 100 µm:Ti 25 µm:Al 200 µm filter for Co and higher on the periodic table. The raw count rate per second (rcps) signals lay between 20,000 and 100,000 rcps.
CA-IDTIMS dating of zircons from various tuff and tuffaceous shale beds pertinent to this study was carried out at the Isotope Geology Laboratory, Boise State University, ID, USA. Details of processing methods, U-Pb isotopic data, individual grain ages, and measures of uncertainty were provided by Metcalfe et al. (2015), Fielding et al. (2019), and Fielding et al. (2020).
The Sydney-Gunnedah-Bowen basin complex represents a large Permo-Triassic meridional foreland basin system positioned between the New England Orogen (a continental volcanic arc to the east) and the cratonized lower–middle Paleozoic Lachlan and Thomson orogens (to the west). The basin system developed under a convergent tectonic regime related to subduction of Panthalassan oceanic crust along the southeast margin of Gondwana (Figure 1A). The sedimentary fill of this basin complex shares various depositional features with adjacent epicratonic basins to the west (e.g., the Galilee, Cooper, Pedirka, and Arckaringa basins), and the Tasmania Basin to the south (Figure 1B).
The Sydney Basin spans >60,000 km2 at the southern end of the foreland basin system. It was located at high paleolatitudes during the Permian–Triassic transition: at ∼65–75°S according to (Veevers, 2006) or ∼85–90°S (according to Klootwijk, 2016). The basin hosts >5,000 m of basal Permian to Middle Triassic strata incorporating Cisuralian and Guadalupian glacigene and marine sedimentary rocks from the waning phase of the Late Paleozoic Ice Age, extensive coal-bearing coastal and alluvial plain deposits of the Lopingian, and fully alluvial systems in the Triassic (Tadros, 1995). Sedimentation terminated with the culmination of the Hunter-Bowen Orogeny toward the end of the Ladinian. Extensive tuffs from volcanic eruptions along the New England Fold Belt are incorporated within the Sydney Basin succession and facilitate absolute dating of the strata and calibration of the local palynostratigraphic zonation, which represents the standard reference scheme for eastern Gondwana.
The Singleton Supergroup was formalized by Moffitt (1982). In the Newcastle Coalfield (northeastern Sydney Basin), it is normally employed for the marine and coal-bearing succession (Tomago and Newcastle coal measures) between the underlying Maitland Group and overlying Narrabeen Group (Stephenson and Burch, 2004).
Newcastle Coal Measures (Group Status)
Although upper Permian coal has been mined in the Sydney Basin since the late 1700s, the first comprehensive study of the Newcastle Coal Measures was by David (1907) based on two decades of investigations. Geological studies progressed through the early 20th century with growing exploration for, and exploitation of, Permian bituminous coal, but an integrated lithostratigraphic scheme spanning the entire basin proved difficult to attain. Instead, separate schemes were established in each of the major coal-mining districts. Fairbridge (1953) provided one of the first attempts to categorize the Newcastle Coal Measures in detail and the unit was formally defined by Booker (1960). Key subdivisions of the coal measures were proposed by McKenzie and Britten (1969), modified by the Standing Committee on Coalfield Geology of NSW (1975), and thoroughly revised by Ives et al. (1999) based on a meridional transect of boreholes roughly 5–20 km from the coast through the northern Sydney Basin.
Ives et al. (1999) re-defined the base of the Newcastle Coal Measures as the top of the Waratah Sandstone, constituting a more sharply delimited lithological change than the gradational base of this sandy unit used previously as the floor of the coal measures. Until the 1990s, the top of the Newcastle Coal Measures had been placed at the cap of the Wallarah coal seam (placing the “Cowper tuff,” “Karignan conglomerate” and Vales Point coal seam in the Narrabeen Group). Ives et al. (1999) re-defined the top of the Newcastle Coal Measures to correspond to the top of the uppermost coal seam—in most areas, this is the Vales Point coal seam but, locally, the upper limit is retained at the top of the Wallarah coal seam where the two uppermost seams merge or the Vales Point coal seam, “Karignan conglomerate” and “Cowper tuff” have been removed by erosion or pinch out laterally. They recognized this upper boundary to mark a distinctive lithological transition in that mottled gray-green-red mudrocks, typical of the overlying Narrabeen Group, do not occur below the Vales Point coal seam. They also argued that there is a vertical change in conglomerate texture from loosely packed small- to medium-sized pebbles, to tightly packed small to large pebbles and cobbles above this level, especially in the northern part of the basin. This revised placement of the upper boundary was suggested earlier by Uren (1974). Ives et al. (1999) re-designated all previously established coal formations as informal coal seams and removed formation status for all other small internal units except for the Warners Bay Tuff. They redefined previously established subgroups and recognized them as formations, viz., the Lambton, Adamstown, Boolaroo and Moon Island Beach formations in ascending stratigraphic order (Figures 2A,B). These formations were respectively separated by prominent tuffaceous units, viz., Nobbys Tuff, Warners Bay Tuff, and Awaba Tuff, the first and last of which were raised to formation status. These thick tuffaceous units are distributed extensively in the northern Sydney Basin and represent key time markers across the region. The lithostratigraphic scheme of Ives et al. (1999) is simpler and more consistent than previous frameworks but we note that it reduces some members widely recognized in older studies (e.g., the Karignan Conglomerate and Cowper Tuff members) to informal status. We argue that stratigraphic communication would be facilitated by recognizing such well-categorized units as formal members of the formations established by Ives et al. (1999).

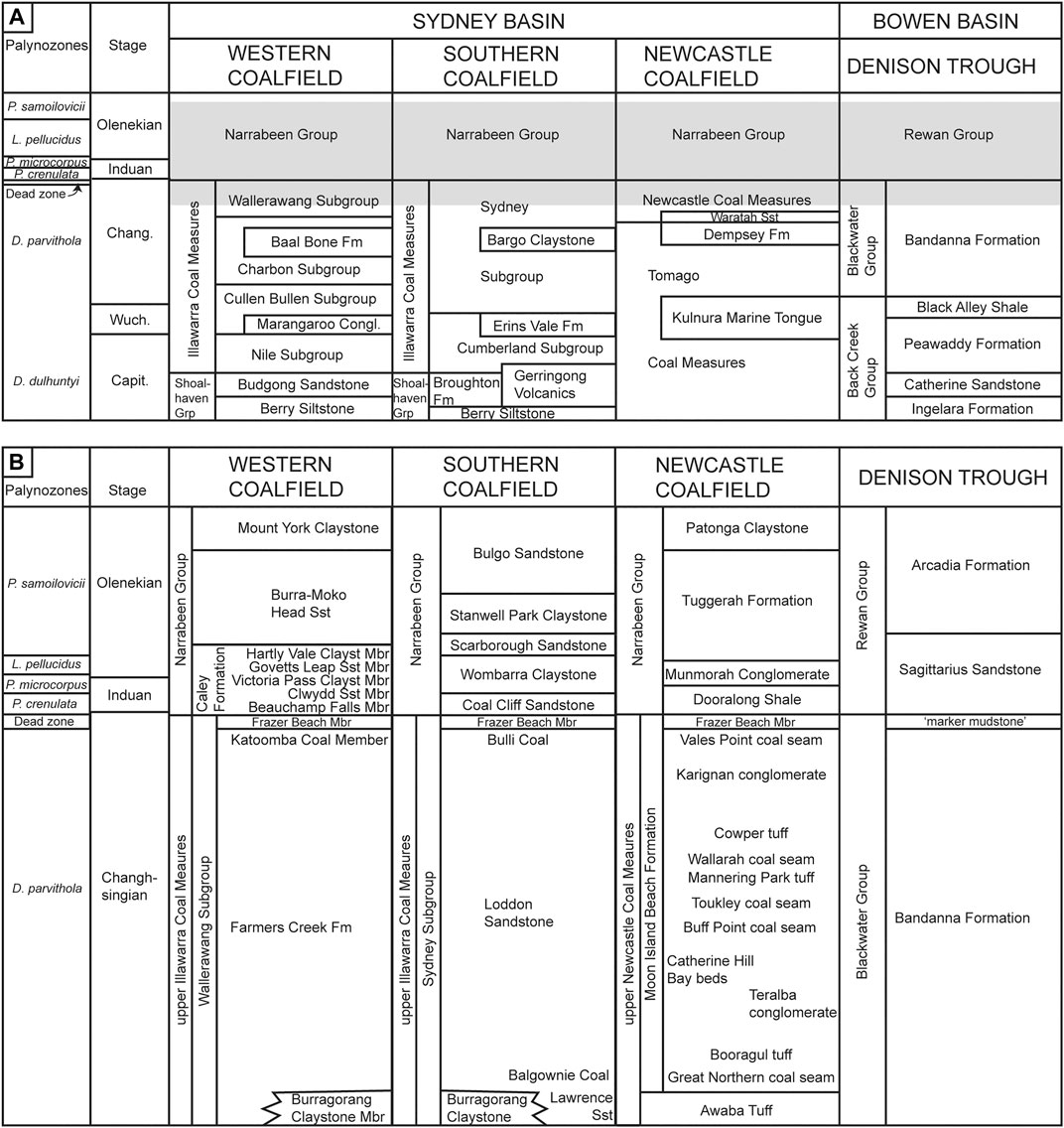

FIGURE 2. Simplified stratigraphic correlation charts for Middle Permian to Lower Triassic strata of the southern, western, and northern (Newcastle Coalfield) parts of the Sydney Basin, and adjacent Bowen Basin. (A), Correlation of major lithostratigraphic units. (B), Correlation of minor formal and informal lithostratigraphic units for the interval marked in gray within panel (A). Precise correlation of uppermost Permian units across the basin complex is currently unresolved. Adapted from Agnew et al. (1995), Armstrong et al. (1995), Yoo et al. (1995) and Ives et al. (1999).
Moon Island Beach Formation
This term was first used by Slansky (1985) and defined by Ives et al. (1999) as a partial replacement of the Moon Island Beach Subgroup of McKenzie and Britten (1969). The type section is defined as the interval from 116.41 to 187.345 m in the Elecom Newvale DDH 63 Well. The formation consists of interbedded sandstone, shale, conglomerate, claystone, and coal, and extends south and west from coastal outcrops near Catherine Hill Bay, Swansea, Belmont North, Awaba, Fassifern, Teralba and along the Sugarloaf Range south from Mount Sugarloaf in the northern Sydney Basin. The base is defined as the top of the Awaba Tuff and the top was originally defined as the top of the Vales Point coal seam or its lateral equivalents. Here we extend the upper boundary of this formation to the top of the newly defined Frazer Beach Member.
Vales Point Coal Seam and Bulli Coal
We discuss these units owing to their intimate depositional relationship with the overlying Frazer Beach Member. The Vales Point coal seam represents an informally defined unit positioned previously at the top of the Newcastle Coal Measures (Figure 2B). It was first referred to in this syntax by Scheibner and Basden (1998), but has also been called the “Vales Point Coal Member” (Bryan et al., 1966), “Vales Point Coal Seam” (McKenzie and Britten, 1969), “Vales Point Coal Seam Member” (Branagan, 1972), “Vales Point Coal” (Foster, 1979) and “Vales Point seam” (Creech, 2002). It merges with the underlying Wallarah coal seam in places where the intervening “Karignan conglomerate” is absent. We retain the Vales Point coal seam under informal nomenclature following Ives et al. (1999) but note that its recognition as a formal member would provide a clearer stratigraphic hierarchy. It consists of banded bituminous coal generally 0.5–1 m thick but locally reaching 5 m thick where it merges with the underlying Wallarah coal seam. The Vales Point coal seam has a dulling-up profile and at some sites contains thin laminae of dark shale. The uppermost few cm are blocky and commonly stained at the top and along joints by iron oxides or sulfates.
In the southern Sydney Basin, the Bulli Coal is stratigraphically equivalent to the Vales Point coal seam (Figure 2B). It is typically represented by 2–3 m of well-banded bituminous coal with sporadic carbonaceous mudstone and sideritic interbeds (Clark, 1992; Armstrong et al., 1995). The uppermost ply of the Bulli Coal is a coaly or highly carbonaceous shale commonly called the “blacks” in local miners' parlance and is indicative of changing depositional environments toward the termination of peat accumulation (Diessel et al., 1967; Clark, 1992). This ply is commonly gradational with the underlying part of the Bulli Coal and is overlain sharply or gradationally by shale (of the Frazer Beach Member) or erosionally by coarse-grained sedimentary rocks (of the Coal Cliff Sandstone). The “blacks” appears to be, in part or in whole, correlative with the basal granulestone/microbreccia bed of the Frazer Beach Member type section.
Frazer Beach Member (New Unit)
In the course of fieldwork in the Sydney Basin, we recognized a distinct, thin, laterally persistent unit of dark mudrocks overlying the Vales Point coal seam but resting below the first major sandstone, conglomerate, or gray-green-red mottled mudrocks typical of the Narrabeen Group. In its organic-rich composition and conformable or gradational base it has stronger developmental affinities to the underlying strata than it does to overlying successions with which it has a locally erosional contact. On this basis, we recognize this distinctive package of strata as a new formal subunit—the Frazer Beach Member (FBM)—of the Moon Island Beach Formation. In doing so, we raise the top of the Moon Island Beach Formation, and by definition, the Newcastle Coal Measures and Singleton Supergroup, to be defined by the base of the first major channel sandstone or its lateral equivalent—variably a massive fine-grained sandstone splay deposit or interval of interlaminated fine-grained sandstones and gray siltstones constituting the base of the Dooralong Shale—of the Narrabeen Group.
This new member has stratigraphic value as a distinctive marker unit blanketing much of the Sydney Basin and is coeval with equivalent facies (informally termed the “marker mudstone”) in sedimentary basins of northeastern Australia. Recognition of the FBM also aids documentation of the biotic and environmental changes expressed between the EPE and PTB in eastern Australia. Formalizing the unit also facilitates communication with geotechnicians, as beds of this member provide roof stability in mining operations exploiting the uppermost Permian coals in the Sydney Basin.
Named after the location of the type section at Frazer Beach, in the Munmorah State Conservation Area, New South Wales, Australia.
Coastal cliff section at 33°11ʹ37.21ʺS, 151°37ʹ22.34ʺE, logged by Fielding et al. (2019 figure 3), Vajda et al. (2020 figure 3), Fielding et al. (2020 figure 10) and illustrated in expanded form here (Figures 3A–C).

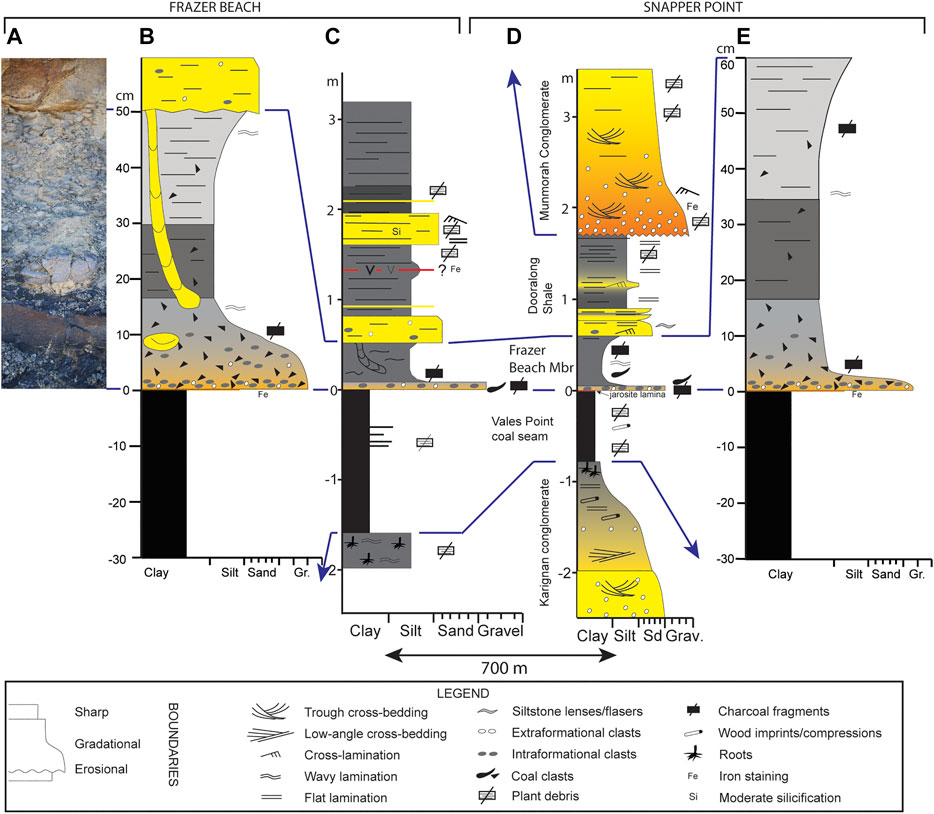

FIGURE 3. Type section of the Frazer Beach Member at Frazer Beach. (A), outcrop photo. (B), Graphic log at the same scale. (C), Graphic log showing relationships to stratigraphically adjacent units. (D), Graphic log of secondary reference section at Snapper Point 700 m to the north of the type section showing relationships to stratigraphically bounding units. (E), Enlargement of graphic log of the Frazer Beach Member at Snapper Point.
Additional Reference Sections
Secondary reference sections are designated in coastal exposures at Snapper Point, 700 m to the north of the type section (Figures 3D,E), and at Coalcliff in the southern Sydney Basin (34°15ʹ18.9ʺS, 150°58ʹ22.2ʺE; Figures 4A,B). In the latter, the FBM rests sharply but conformably on the Bulli Coal and is overlain with an erosional contact by channel sandstones (commonly with a cobble-rich basal lag) of the Coal Cliff Sandstone. A supplementary reference section is represented in the EHKL-1 (Lisarow) well at 647.05–646.0 m, although it is possible that the base of the unit was removed from this core, along with the underlying Vales Point coal seam, for geotechnical analysis.

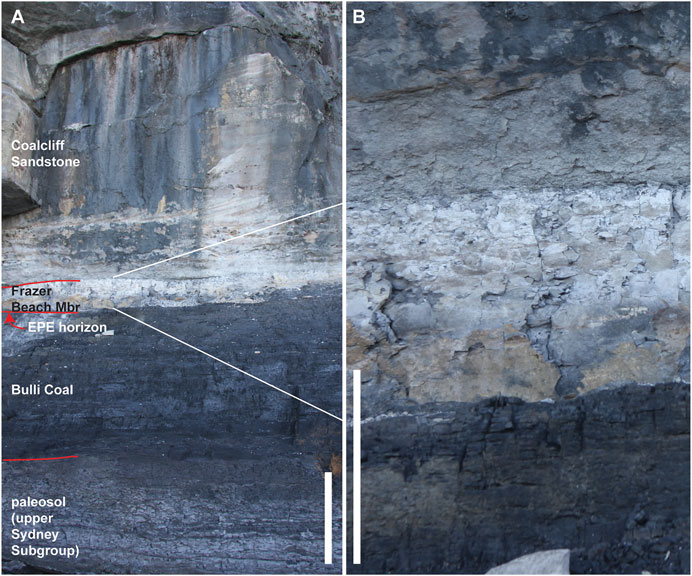

FIGURE 4. Outcrop photos of the secondary reference section of the Frazer Beach Member above the Bulli Coal at Coal Cliff in the southern Sydney Basin. (A), Frazer Beach Member represented as a persistent siltstone band above the Bulli Coal and below the multistorey sandstone packages of the Coal Cliff Sandstone (scale = 1.5 m; EPE = end-Permian extinction horizon). (B), Detail of the Frazer Beach Member and its contacts (scale bar = 50 cm).
In the type section, the FBM is designated the uppermost component of the Moon Island Beach Formation, constituting the uppermost part of the Newcastle Coal Measures, in turn representing the uppermost unit of the Singleton Supergroup. We also recognize the persistence of the FBM into the southern and western Sydney Basin, where it represents the uppermost unit of the Sydney Subgroup, within the Illawarra Coal Measures (Figure 2B).
Lithology and Sedimentary Petrology
The FBM is dominated by shale and siltstone with few other lithologies (Figures 3A–E, 5E,F,I). Locally, a <20-cm-thick discontinuous bed of organic-rich microbreccia or granulestone occurs at the base of the unit. This bed consists of massive or weakly stratified aggregations of silt- to granule-sized siliciclastic grains, organic detritus, and irregular to rounded pebble-sized clasts of probable pumice or reworked clay galls (Figures 6A–F). Becker et al. (2004), (supplementary figure S1) illustrated putative shocked quartz grains, representing c. 1% of the quartz fraction, from the microbreccia bed at Frazer Beach. However, our petrographic investigations of this layer at Frazer Beach, Snapper Point, and a stratigraphically equivalent bed in the GSQ Taroom 10 well in the Bowen Basin, did not yield any convincing examples of quartz grains with intersecting planar deformation features. Charcoal and angular reworked coal fragments are common in this basal bed (Figures 6A,B,F). Overlying this bed, and locally replacing it, is a succession, several decimeters to several meters thick, of medium to dark gray shale and siltstone that locally contains fine charcoal particles, degraded woody debris and fungal remains (Vajda et al., 2020, figures 5E,M). In some outcrops, fissility is poor, and the rocks are better described as mudstones that develop a blocky to conchoidal weathering pattern. The mudrocks typically become paler and may coarsen upward through the unit to include a few laminae of fine-grained sandstones near the top. Where no sharp-based sandstone rests directly upon this unit, the FBM has a gradational upper boundary and coarsens upward over several meters into thinly interbedded siltstone and sandstone (Facies Associations E/F: floodbasin deposits) or thinly bedded fine-grained sandstone (Facies Association D: levee deposits) of the Dooralong Shale Fielding et al. (2020).

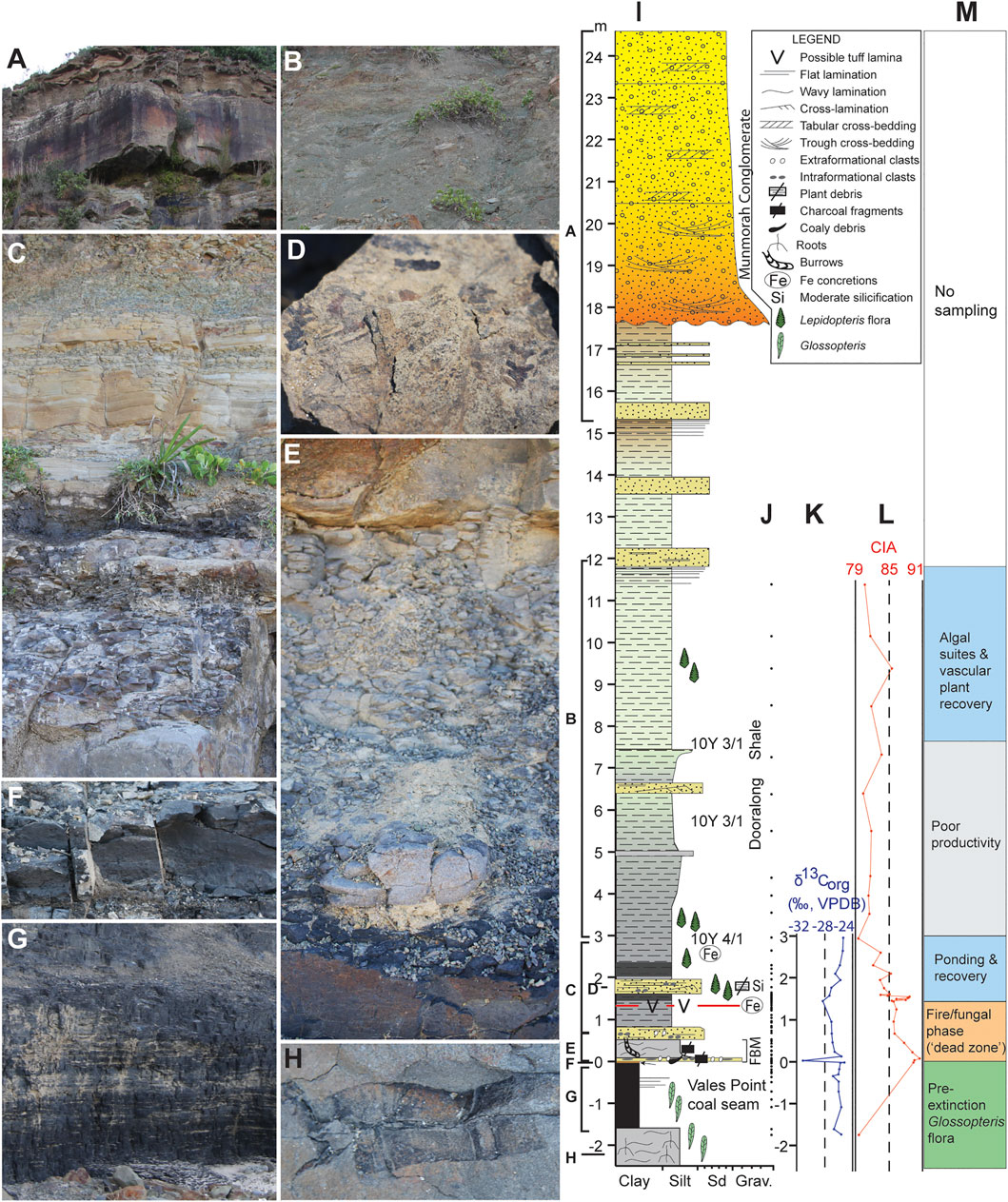

FIGURE 5. Type section of the Frazer Beach Member with representative lithologies of this unit and its bounding strata. (A), Cross-bedded sandstones of the basal Munmorah Conglomerate. (B), Olive green siltstones of the upper Dooralong Shale. (C), Siltstones and thinly laminated fine-grained sandstones of the lower Dooralong Shale. (D), Plant debris dominated by Lepidopteris callipteroides on bedding plane of the lower Dooralong Shale. (E), Siltstones of the Frazer Beach Member (incorporating a sand-filled vertebrate burrow above the basal microbreccia) overlain by basal sandstone of the Dooralong Shale. (F), Basal microbreccia of the Frazer Beach Member. (G), Vales Point coal seam. (H), Vertebraria in paleosol underlying the Vales Point coal seam. (I), Graphic log of coastal cliff (type section) at Frazer Beach. (FBM = Frazer Beach Member) (J), Position of palynological samples studied by Vajda et al. (2020). (K), δ13C values for bulk organic material of the Vales Point coal seam, Frazer Beach Member and lower Dooralong Shale. (L), Chemical Index of Alteration values for the interval from the Vales Point coal seam to upper Dooralong Shale. (M), Dominant characteristics of palynological assemblages from the Vales Point coal seam to upper Dooralong Shale (after Vajda et al., 2020). For scale, the brackets in Section 1 represent the stratigraphic coverage of the photographs in (A–H); the fossil root in (H) is 15 mm wide. Mudrocks are gray colors unless otherwise noted by Munsell codes.
FIGURE 6. Light (brightfield) micrographs of thin sections from the basal organic-rich granulestone/microbreccia of the Frazer Beach Member (Sydney Basin: A–D, F) and an equivalent bed at the base of the “marker mudstone” of the Bowen Basin (E). (A), Lenticular laminae of angular quartz grains, coal particles and clay pellets; type section, Frazer Beach. (B), Enlargement of angular, monocrystalline, quartz grains, elongate coal fragments and angular to rounded clay pellets, type section; Frazer Beach. (C), Organic-rich microbreccia dominated by angular and string-like masses of pumice fragments; Wybung Head. (D), Large pumice clasts (equivalent to the “kaolinite worms” of Diessel et al. (1967) set in an organic-rich matrix; Snapper Point. (E), Normally graded organic-rich sandstone–granulestone incorporating sporadic large pumice clasts at the base of the “marker mudstone” overlying the calcite-veined uppermost Permian coal in GSQ Taroom 10 borehole (212.7 cm depth). (F), Enlargement of angular quartz grains, clay pellets, and cleated coal fragment set in a ferruginous cement; type section; Frazer Beach. Scale bars for (A–E) = 5 mm; (F) = 200 µm.
The dominant sedimentary structures are flat or undulatory laminae. Diessel et al. (1967) noted that some layers are strongly fissile owing to alignment of plant debris and mica grains parallel to bedding. Current ripple cross-lamination with accessory wave-generated and combined-flow ripples are locally developed in the upper part of the unit. Diessel (1992 figure 6.10) illustrated dark siltstone interlaminated with thin sandstones organized into asymmetrical to near-symmetrical ripples of 3–7 mm amplitude and around 44 mm wavelength from beds above the Bulli Coal in the southern Sydney Basin. Large, sand-filled mudcracks are relatively common in this unit in the southern Sydney Basin (Diessel et al., 1967, figure 4; Clark, 1992, figure 23). Synaeresis cracks and a low-diversity suite of bedding-parallel and facies-crossing trace fossils are present in some sections along the basin axis. In a few cores (especially near Wyong), a more diverse trace fossil suite including Diplocraterion and other facies-crossing traces is preserved (Fielding et al., 2020).
Apart from abundant clays, Diessel et al. (1967) noted that the mudrocks contain grains of quartz, feldspars, muscovite, and assorted heavy minerals. They also noted growths of fine siderite, calcite and dolomite crystals through the fabric of some poorly fissile shales. Locally, siderite accumulation is sufficient to form ironstone bands within the shales.
The unit is 50 cm thick in the type section (Figures 3A–C) but varies in thickness elsewhere in the basin (Figure 7). At Coalcliff, southern Sydney Basin, the FBM is 53 cm thick but the top of the unit is erosionally truncated by the Coal Cliff Sandstone. Isopachs of the “upper ply of the Bulli Coal” (Figure 8A) and Bulli Coal “roof shales” (Figure 8B) compiled by Clark (1992) and assigned to the FBM herein indicate thicknesses exceeding 5 m through the central part of the southern Sydney Basin.
FIGURE 7. Map of the Sydney Basin showing the interpreted thickness of the Frazer Beach Member, represented by vertical bars, in selected wells. Those wells without bars lack obvious representation of the Frazer Beach Member owing to erosional removal, faulting, analytical removal of core, non-deposition, or inadequate core data recovery.

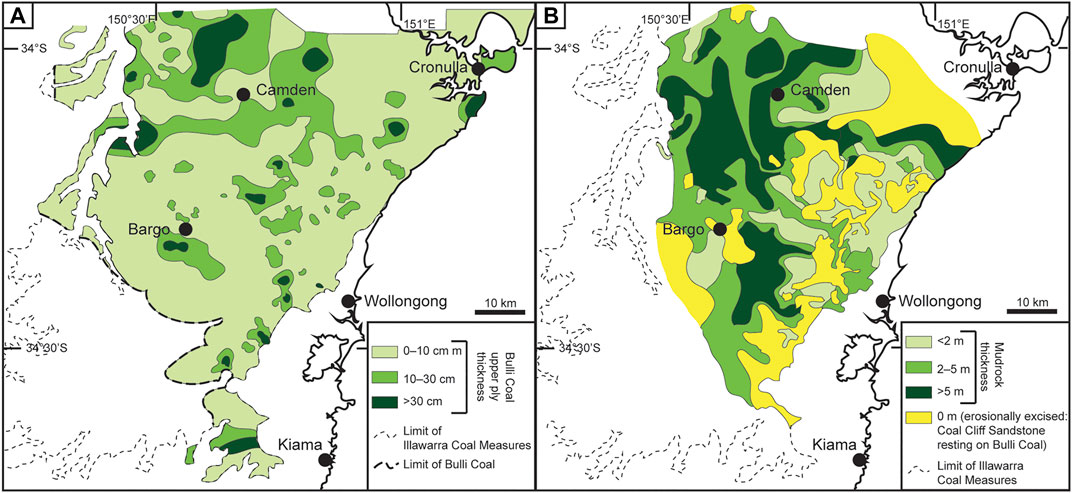

FIGURE 8. Isopach maps showing the distribution of the Frazer Beach Member in the southern Sydney Basin. (A), Isopach map of the basal organic-rich granulestone/microbreccia bed, also previously known as “the blacks” or the “upper transitional ply” of the Bulli Coal. (B), Isopach map of the dominant mudrock component of the Frazer Beach Member. Maps adapted from Clark (1992).
The lower boundary of the unit is defined as the gradational, sharp, or very slightly erosional contact between the Vales Point coal seam and its lateral equivalents (e.g., the Bulli Coal and Katoomba Coal Member) and the gray or black, weakly laminated shales and siltstones or basal granule-textured, dark gray microbeccia bed of the FBM. Vajda et al. (2020) noted prominent, laterally continuous, jarosite staining at the boundary between the underlying coal and the FBM at the type locality and neighboring sections. The lower boundary is commonly not preserved in exploration well cores owing to removal of the lowermost darker beds of the FBM together with the underlying Bulli Coal or Vales Point coal seam for destructive analysis.
In the type section, the top of the FBM is defined by a sharp but conformable contact between medium-gray siltstones and a 30-cm-thick bed of massive fine-grained sandstone interpreted by Fielding et al. (2020) to represent a splay deposit at the base of the Dooralong Shale. In some boreholes (e.g., ELT Dooralong 8: Fielding et al., 2020; figure 14), the FBM has a gradational upper contact, passing upward into interlaminated fine-grained sandstones and medium-gray siltstones representative of the Dooralong Shale. Higher in the succession, the Dooralong Shale typically changes initially to mottled green–gray or blue–gray, then green–red shales and siltstones with increasing proportions of sandy beds near its upper contact with the Munmorah Conglomerate. In southern parts of the basin, the FBM is sharply (locally, erosionally) overlain by coarse-grained cross-bedded sandstones with pebbly lag layers characteristic of fluvial channel deposits (Coal Cliff Sandstone). In coastal exposures near Coalcliff, the upper part of the unit includes at least three discrete Fe-rich concretionary bands, each 1–4 cm thick. Where represented in the west of the basin, the FBM is overlain across an erosional contact by the Caley Formation or stratigraphically higher units.
Gamma Ray Log Signature
The FBM has a distinctive gamma-ray signature in borehole geophysical logs. Gamma-ray values show an initial strong positive inflection following the consistently low values characterizing the underlying Bulli Coal and Vales Point coal seam (Figure 9). This may relate to the presence of tuffaceous material in the basal microbreccia of the FBM (Fielding et al., 2020). Values then decline in a stepwise manner upward through the remainder of the unit. The gamma-ray signal at the top of the FBM is variable. It ranges from a sharp decline to low values (e.g., where the unit is overlain abruptly by the Munmorah Conglomerate), to a more gradual reduction or fluctuating levels (e.g., where the unit is overlain by an interval of intercalated sandstones and siltstones: Figure 9). The succeeding sandstone- and conglomerate-dominated basal Narrabeen Group (Coal Cliff Sandstone and Munmorah Conglomerate) is characterized by consistently low gamma-ray values.

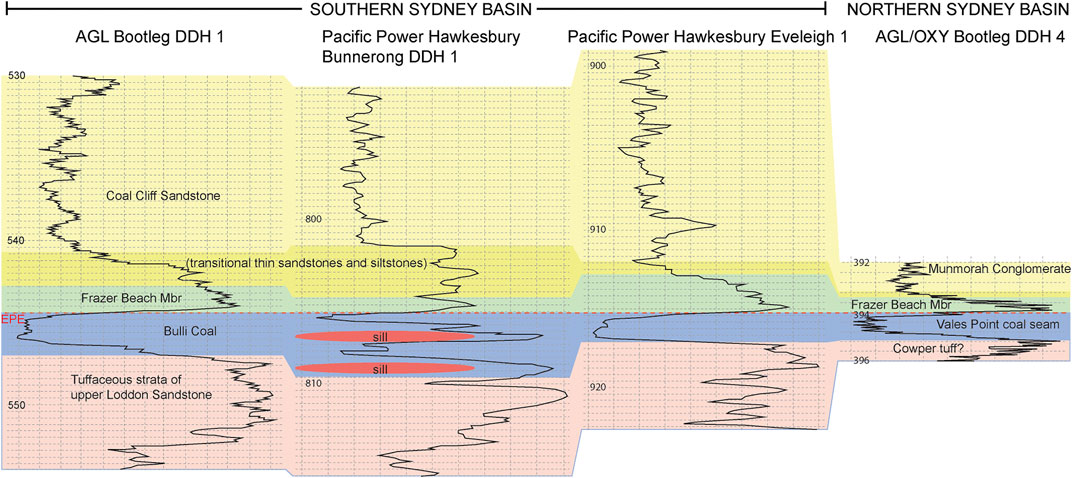

FIGURE 9. Correlation of downhole gamma-ray logs spanning the Frazer Beach Member, uppermost Permian coal seam, and adjacent units between four wells in the Sydney Basin (well locations shown in Figures 1, 7). Data derives from respective unpublished well completion reports held by the W.B. Clarke Geoscience Center drillcore library, Londonderry, New South Wales, Australia. Depths indicated in meters.
Stratigraphic profiles from various sites in the Sydney Basin show that the FBM records a transition in δ13Corg values, from c. –24 to –26‰ in underlying strata (uppermost Permian coal seam and associated strata) to values of c. –25 to –27‰ in overlying Triassic strata (Dooralong Shale and equivalents: Fielding et al., 2019; Vajda et al., 2020; Mays et al., 2020). Based on data from the type locality and nearby Snapper Point, the FBM is characterized by δ 13Corg values averaging c. –26‰ (Figure 5K). However, samples immediately above the EPE horizon reveal excursions to very low values (c. –31‰ at 4 cm above the base of the FBM type section). Low values are also recorded in algae-rich mudrocks of the overlying Dooralong Shale (c. –28‰; Vajda et al., 2020, figure 3; Figure 5K). TOC values decrease upward through the FBM, from c. 6.5–7 wt% in the basal microbreccia to <0.5 wt% in the upper 10 cm. Low TOC levels persist into the overlying Dooralong Shale (Vajda et al., 2020, figure 3). The FBM is characterized by CIA values of 88–89 (Figure 5L). In a stratigraphic context, these results define a prominent short-term excursion to higher CIA values from the generally increasing trend from a long-term average of c. 70 in upper Permian strata to c. 80 in Triassic strata (Fielding et al., 2019).
Distribution and Correlation with Australian Successions
The FBM is well exposed north of Sydney at Frazer Beach (Figures 3A–C, 5A–I) and Snapper Point (Figures 3D,E). The unit is represented extensively in boreholes above the Vales Point coal seam throughout the northern Sydney Basin and is recognized in the southern part of the basin in coastal cliff sections near Bulli and Coalcliff (Figures 4A,B). The unit is widely represented in boreholes through the center of the basin (e.g., in PHKB-1 and AGLB-8). Toward the western margin of the Sydney Basin, the FBM may be locally represented above the Katoomba Coal Member of the coal- and tuff-rich Farmers Creek Formation, Wallerawang Subgroup, Illawarra Coal Measures (Bembrick, 1983). It is possible that the lowermost mudrock interval of the Beauchamp Falls Shale Member (Caley Formation, Narrabeen Group) logged at Browns Gap near Lithgow (Bembrick, 1983) represents a local expression of the FBM. However, in most locations along the cratonic margin of the basin, the FBM and, in some cases, the underlying Katoomba Coal Member, has been removed by erosion resulting in Narrabeen Group sandstones resting with an erosional contact directly on lower beds of the Farmers Creek Formation.
The FBM appears to be absent from most of the contiguous Gunnedah Basin. As the Permian-Triassic succession is traced northwards from the Sydney Basin across the Liverpool Ranges into the Gunnedah Basin, the contact between the Black Jack Formation (Illawarra Coal Measures equivalent) and Digby Formation (basal Narrabeen Group equivalent) becomes progressively more erosional, with a significant proportion of upper Permian strata excised (McMinn, 1993; Xu and Ward, 1993). Similarly, a large proportion of the Lopingian coal measures has been eroded from the nose of the Lochinvar Anticline in the Hunter Valley, northern Sydney Basin (Harrington et al., 1989).
Further north, strata equivalent to the FBM have been recognized within depocenters of the western and northern Bowen Basin and contiguous Galilee Basin (Wheeler et al., 2020). (Metcalfe et al., 2015, figures 12, 17), illustrated a >5-m-thick shale–siltstone interval overlying the Lopingian Bandanna Formation in the Origin Energy Meeleebee-5 well in the southern Bowen Basin (expanded in Figure 10) that hosts a negative δ13C-isotope (δ13Corg) excursion similar to that recorded in the FBM. Various other wells in the Bowen and Galilee basins also intersect a siltstone-dominated interval above the topmost Permian coal that is lithologically and stratigraphically equivalent to the FBM and overlying Dooralong Shale (Figure 10). This interval, informally termed the “marker mudstone,” was initially recognized at the Newlands coal mine in the northern Bowen Basin (Clare, 1985; Michaelsen et al., 2000) as a lacustrine carbonaceous mudstone unit at the interface of the Rangal Coal Measures (Permian) and Rewan Group (predominantly Triassic). There, the unit is 2–22.9 m thick and consists of laminated carbonaceous siltstone with varve-like features, sparse plant fragments, and Botryococcus (green algal) remains (Michaelsen et al., 2000). The unit also contains subordinate sheet-like sandstones identified as crevasse-splay deposits (Michaelsen et al., 2000).
The boundary between the “marker mudstone” and the underlying Newlands Rider 1 seam (Rangal Coal Measures) appears conformable, but is marked by a prominent negative δ13Corg excursion (Hansen et al., 2000; Michaelsen, 2002). In the northern Bowen Basin, the “marker mudstone” is overlain conformably or disconformably by the sandstone- and green–red mudstone-dominated beds of the lower Rewan Group (Michaelsen et al., 2000). At the Isaac Plains coal mine, the “marker mudstone” is separated from the uppermost Permian coal seam (either the Leichhardt Seam or the Philips Rider) by a coarsening upwards shale to sandstone unit. This package of probable Permian strata has a sharp, planar contact with the “marker mudstone.” In the Bowen Basin, the organic-rich microbreccia characterizing the base of the FBM has been detected only in the “marker mudstone” in the GSQ Taroom 10 well, Denison Trough (southwestern Bowen Basin; Figure 6E).
The “marker mudstone” has a sheet-like geometry traceable in mine exposures for over 17 km along strike (Michaelsen et al., 2000). A lithologically similar 2–15-m-thick unit caps the Rangal Coal Measures at Suttor Creek, 17 km south of Newlands (Matheson, 1990). Mapping of the “marker mudstone” in the Bowen Basin suggests it is laterally continuous along the basin’s western margin (Sliwa et al., 2017) but variable (<2 m to >6 m) in thickness. The “marker mudstone” (Figure 10) appears to be a widely distributed, thin, mudrock-dominated unit, the lower part of which is laterally equivalent to the FBM and similar to it in its lacustrine depositional environment. Where the “marker mudstone” is very thick, the upper part, extending into the Playfordiaspora crenulata or Protohaploxypinus microcorpus zones, probably correlates with the Dooralong Shale. Lacustrine conditions developed extensively in the Sydney and Bowen basins following differential compaction of underlying peats (Michaelsen et al., 2000), base-level rise as a result of foreland loading (Sliwa et al., 2017), or a combination of base-level rise and significant disruption to the hydrological cycle as a result of the end-Permian extinction and regional deforestation (Vajda et al., 2020; Wheeler et al., 2020).
In the eastern part of the epicratonic Galilee Basin (GSQ Tambo 1-1A well: Figure 10), Wheeler et al. (2020) recognized a mudrock-dominated interval equated with the “marker mudstone” of the Bowen Basin that yielded palynofloras characterized by a shift from predominantly translucent phytoclasts (in the underlying Bandanna Formation) to opaque phytoclasts. This transition was accompanied by a relative increase in algal (especially Botryococcus and acanthomorph acritarchs) and fungal remains but impoverishment in vascular plant spores and pollen. These authors also recognized a low-magnitude negative δ13Corg excursion within the “marker mudstone”, mirroring the pattern in the FBM of the Sydney Basin. In the northern part of the Galilee Basin (GSQ Muttaburra 1, OEC Glue Pot Creek 1, and CRD Montani 1 wells), the “marker mudstone” appears to have been removed by erosion (Phillips et al., 2017; Phillips et al., 2018).
Westwards, in the contiguous Cooper Basin, Gray (2000) reported a >12-m-thick carbonaceous interval at the base of the mudstone- and siltstone-dominated Callamurra Member—the basal subunit of the Arrabury Formation, which rests on typical upper Permian coal-bearing successions of the Toolachee Formation (Draper, 2002). We suggest that at least part of this basal carbonaceous mudrock unit is coeval with, and depositionally akin to, the FBM.
Spikes in the relative abundance of fungal and/or algal palynomorphs, dispersed charcoal, or other expressions of a palynological “dead zone”, coupled with a negative δ13Corg isotope excursion, in various other sections around the world (Looy et al., 2001; Lindström and McLoughlin, 2007; Vajda and McLoughlin, 2007; Schneebeli-Hermann and Bucher, 2015; Tewari et al., 2015; Vajda et al., 2020) are potentially useful criteria for identifying units correlative with the FBM. Several examples of thin intervals of fine-grained non-marine strata with these paleontological and geochemical features are known from other parts of Gondwana.
The most robust correlations are arguably with successions in the Transantarctic Mountains and Victoria Land, Antarctica. At Mt Crean, Victoria Land, a carbon isotope anomaly and the last occurrences of coal, Glossopteris and Vertebraria occur up to 12 m below the contact between Weller Coal Measures and the overlying Feather Conglomerate (Retallack and Krull, 1999; Retallack et al., 2005). At Graphite Peak, Transantarctic Mountains, the EPE is identified at the contact between the uppermost coal of the Buckley Formation and the overlying greenish-gray siltstones and buff sandstones of the Fremouw Formation. At both localities, the uppermost Permian coal is overlain successively by a microbreccia bed then either laminites or massive claystone reminiscent of the FBM in the Sydney Basin (Retallack, 2005). Elsewhere in the Transantarctic Mountains, e.g., at Collinson Ridge, the identification of Glossopteris several meters above the Buckley–Fremouw Formation contact suggests that this lithostratigraphic boundary and the EPE do not correspond in all places (Collinson et al., 2006). Erosion of the uppermost Permian coal in the Amery Group, Prince Charles Mountains, East Antarctica, may have removed any facies equivalent to the FBM in that region (McLoughlin et al., 1997).
Correlations with the well-studied Karoo Basin succession, South Africa, are hampered by scarce radiogenic-isotope ages and conflicting interpretations concerning the placements of the EPE and PTB (Smith and Ward, 2001; Gastaldo et al., 2005; Ward et al., 2005; Gastaldo et al., 2015; Neveling et al., 2016; Gastaldo et al., 2018; Gastaldo et al., 2020). Although mudrock-dominated intervals rich in fungal/algal fossils and vertebrate burrows are known from close to the EPE in the Karoo Basin (Retallack et al., 2003; Steiner et al., 2003; Gastaldo and Rolerson, 2008), precise correlation with the FBM is confounded by repetition of these mudrock facies through the Karoo Basin Permian-Triassic transition. Further north, laminated lacustrine fish beds (c. 30 m thick) of the middle member of the Majiya Chumvi Formation, Kenya, are bracketed by palynoassemblages that are correlated with the Dulhuntyispora parvithola and Playfordiaspora cancellosa assemblage zones (Hankel, 1992), suggesting deposition coeval with the FBM and Dooralong Shale.
In the Iria rivulet of the Son-Mahanadi Basin complex of central India, a 1.5 m interval of shale and siltstone exposed at the base of the Panchet Formation conformably overlies the Changhsingian coal-bearing Raniganj Formation (Saxena et al., 2018, figure 3). This interval hosts the last convincing examples of Glossopteris, Vertebraria and Schizoneura gondwanensis in this basin, and also contains the lowermost examples of the typical Triassic plant Dicroidium. The presence of Playfordiaspora and high relative abundances of both glossopterid (Striatopodocarpites) and corystosperm (Falcisporites) pollen (Srivastava et al., 1997) suggests that this thin interval delineates the end-Permian floristic turnover and is probably correlative with the FBM.
The laminated mudrocks of the FBM, assigned to facies association G by Fielding et al. (2020), are interpreted to represent the deposits of shallow lakes that developed in the aftermath of the EPE. The fine-grained lithologies, low-energy sedimentary structures, and facies stacking relationships signify deposition under standing-water conditions developed extensively following extinction of the lowland Glossopteris flora, cessation of peat development and continued subsidence of the peat surface (Vajda et al., 2020). The tabular sandstone overlying the FBM in the type section is interpreted to represent a splay deposit from nearby fluvial channels that spread across the shallow floodbasins during a minor flood event.
We find no evidence for marked aridification during deposition of the FBM but periodic desiccation of lake floors is evidenced by the development of large-scale mud cracks in lacustrine facies at Bulli Colliery (Diessel et al., 1967, figure 4) and sporadic tetrapod trackways and burrows in equivalent beds elsewhere in the basin (Harper, 1915; Retallack, 1996; McLoughlin et al., 2020). Isopach maps of the FBM indicate thicknesses of 2–5 m through central parts of the southern Sydney Basin (Figures 8A,B) indicating sediment accumulation in quiet waters over a broad region. Paleo-lake systems persisted during deposition of the Dooralong Shale in the northern Sydney Basin, but incorporated additional splay and levee deposits and are inferred to have experienced salinity or nutrient fluctuations and higher rates of desiccation based on stronger paleosol development (green, brown and red mottling) and variation in fossil algal suites (Retallack, 1999; Vajda et al., 2020).
Grebe (1970) reported abundant algae/acritarchs from the Dooralong Shale, which led subsequent authors to invoke a significant marine or brackish incursion into the Sydney Basin following collapse of the of the last Permian mire ecosystems (Helby, 1973; Bembrick, 1980; Retallack, 1980). Abundant algae have been reported from numerous sections through the upper FBM and lower Dooralong Shale (Hennelly, 1958; Mays et al., 2020; Vajda et al., 2020). However, most of these represent planktonic freshwater algae with affinities to Trebouxiophyceae (Quadrisporites) or Zygnematophyceae (Brazilea, Circulisporites, Peltacystia; Mays et al. (2021) and relate to extensive ponding on alluvial plains in the aftermath of the EPE (Vajda et al., 2020). Abundant leiospherid acritarchs (Leiosphaeridia) have also been reported from these strata (Vajda et al., 2020; Mays et al., 2021), but this group is polyphyletic (Moczydłowska and Willman, 2009) and the Sydney Basin forms are probably affiliated with non-marine Trebouxiophyceae (Mays et al., 2021). Only rare occurrences of coastal ichnofossils in cores near Wyong may indicate brief marine incursions into the basin depocenter (Fielding et al., 2020).
The black to dark gray, organic-rich granulestone–microbreccia bed, variably represented at the base of the FBM, is interpreted to represent primarily debris reworked from underlying strata. Retallack (2005) interpreted this bed to represent redeposited soils of contrasting composition at separate sites. The example at Coalcliff contains abundant coal and wood fragments from the underlying Bulli Coal and was termed a histic pedolith. The equivalent bed at Frazer Beach contains irregular clasts with highly birefringent streaks interpreted as aggregates (peds) from clayey Bt horizons of well-drained soils and was termed a sepic pedolith. Retallack (2005) suggested that such beds were generated by debris flows and mudflows. The microbreccia bed in the southern Sydney Basin documented by Retallack (2005) appears to equate with the upper ply of the Bulli Coal in earlier studies (Diessel et al., 1967). A 1–5-cm-thick claystone parting at the base of this ply was described by Diessel et al. (1967) as a dark brown to black pellet-tonstein containing small clasts of organic-stained allophane, micro- to cryptocrystalline kaolinite aggregates (called “worms”), and charcoal (semifusinite). Fielding et al. (2020) interpreted the high-birefringent pebbles from the microbreccia at Frazer Beach as altered pumice clasts. They considered such beds to be common above seams throughout the Newcastle and Illawarra coal measures, and represented deposits of local erosion potentially triggered by ash showers from distant volcanic eruptions based on texturally similar deposits elsewhere (Jorgensen and Fielding 1996, figure 4; Yago and Fielding 2015, figure 7F). Each interpretation emphasized a brief pulse of erosion at the base of the FBM in the immediate aftermath of peat forest denudation during the EPE.
In the northern Bowen Basin, the coeval “marker mudstone” is also interpreted to have been deposited in large floodbasin lakes based on its sheet-like geometry, predominantly fine-grained lithology, varve-like laminae, sparse Planolites trails, and Botryococcus remains (Michaelsen et al., 2000). Also equivalent to the FBM is the presence of a texturally similar, thin, dark granulestone–microbreccia bed at the base of the “marker mudstone” in GSQ Taroom 10 in the southwestern Bowen Basin (Figure 6E).
We exclude a sharp change in the regional tectonic regime as a primary influence on accumulation of the FBM owing to the distribution of this thin unit and its correlatives over a substantial distance (thousands of km) in various basins of contrasting tectonic and geodynamic context (both foreland and epicratonic basins) in eastern Australia. Moreover, the timeframe for deposition of this unit spans only a few thousand years—an interval that is probably too brief for tectonism to influence sedimentation over such a wide area. Tectonism can influence drainage patterns and sediment sources but our provenance data (palaeocurrents, elemental ratios and sandstone petrography: Vajda et al., 2020; Fielding et al. 2020) show no evidence for a major shift in sediment dispersal through this interval. The number and thickness of tuff beds in the Sydney and Bowen basins, indicative of mountain building in the New England Orogen, wanes through the Permian–Triassic transition suggesting comparatively subdued tectonism through this interval. The inter-regional extent of the FBM suggests its genesis is unrelated to any process confined to individual basins.
The FBM constitutes the roof strata of several coal mines exploiting the uppermost Permian seam—most notably the Bulli Coal in the southern Sydney Basin. Diessel and Moelle (1965) outlined various issues relating to stability of these strata in coal workings. In particular, they noted that rocks of the FBM form a roof of fair stability where: 1) they lack structural disturbance; 2) abrupt facies changes are not represented; 3) a clean parting separates these strata from the underlying coal seam; 4) organic laminae do not form weaknesses in the bed fabric; and 5) the thickness of the lowermost bed exceeds 25 cm.
These stability criteria are not always met in the Sydney Basin mines and roof collapse has commonly been associated with major gas outbursts from the Bulli Coal (Harvey and Singh, 1998). Thin lamination, micaceous and organic partings, and low cohesive strength (especially near structural discontinuities) of the FBM strata pose ongoing challenges for mining operations. Such hazards are highlighted by at least 11 fatalities recorded from individual rock falls from the roof or working face or from collapse of support structures in the Bulli Colliery alone between 1861 and 1987 (Illawarra Coal, 2020).
Age Constraints on the Frazer Beach Member Using CA-IDTIMS
Dating the End-Permian Extinction and Permian-Triassic Boundary
The Permian–Triassic boundary, as defined by the first appearance datum of the conodont Hindeodus parvus from about the middle of bed 27 of the GSSP section at Meishan, China, is dated as 251.902 ± 0.024 Ma (Burgess et al., 2014). This date is a mathematical construct obtained from high-precision CA-IDTIMS analyses of two successive ash beds (beds 25 and 28) in the stratotype section. Bed 25 was dated as 251.941 ± 0.037 Ma and bed 28 as 251.880 ± 0.031 Ma, both from presumed ash-fall zircons (Burgess et al., 2014). The ash beds are separated by the 22 cm spanning beds 26 and 27. The marine extinction interval initiates at bed 25 and persists to bed 28, representing a time duration of 61 ± 46 kyr (Burgess et al., 2014). This represents an average sedimentation rate of 0.36 cm/kyr (with a potential range of 0.21–1.47 cm/kr) at Meishan.
Dating the Sydney Basin Succession
Historically, the default placement of the PTB in the Sydney Basin has been at the top of the uppermost coal seam (Bulli Coal in the south, Katoomba Coal Member in the west, and Vales Point coal seam in the northeast: David, 1950; Hutton and Bamberry 1999; Ives et al., 1999). Radiogenic isotope ages, palynological data, and carbon isotope profiles (Fielding et al., 2019; Fielding et al., 2020; Mays et al., 2020; this study) indicate that the PTB is somewhat higher than the top of the uppermost coal and above the overlying FBM.
Here we summarize recent CA-IDTIMS data from tuffs and ash-bearing siliciclastic beds that constrain the ages of the FBM, the EPE, and the PTB in the Sydney Basin (Table 1; Figure 11). All radiogenic age estimation was undertaken on euhedral zircon crystals to avoid the chances of analyzing reworked examples. Where these crystals derive from discrete tuff layers, the obtained dates are assumed to correspond closely to the depositional age of the beds. Where they derive from grains extracted from fine-grained siliciclastic layers, the obtained dates represent maximum depositional ages. Fifteen samples analyzed by CA-IDTIMS are key to constraining the age of the FBM and the major events around the end of the Permian (Figure 11).

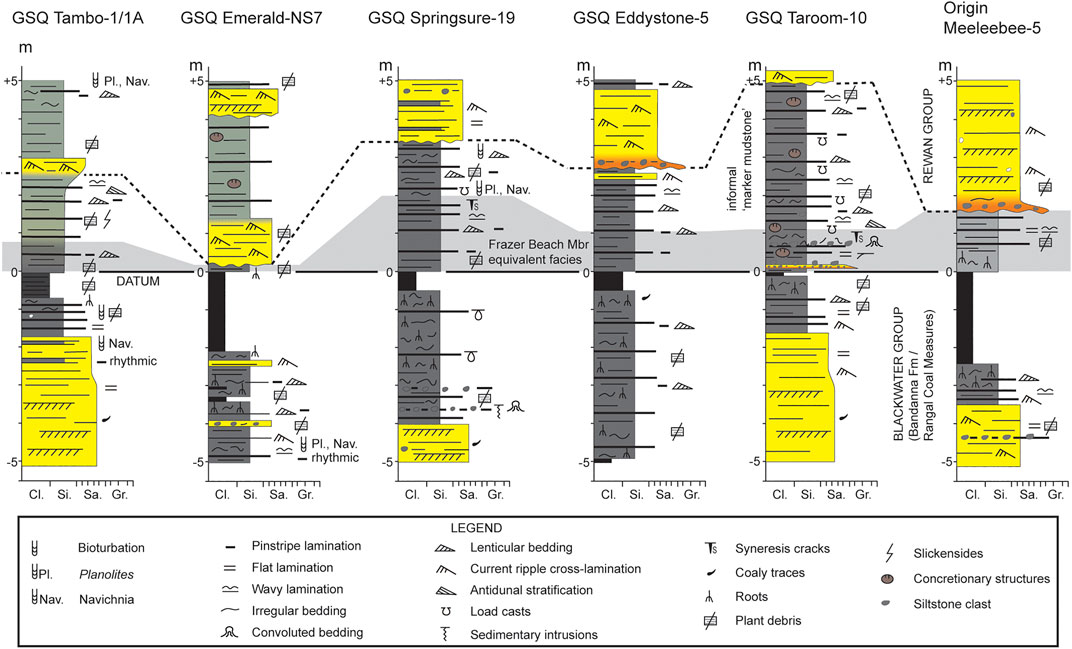

FIGURE 10. Graphic logs of portions of six fully cored stratigraphic wells from the Galilee and Bowen Basin incorporating the “marker mudstone” overlying the uppermost Permian coal. The lower, organic-rich component, lacking complex sedimentary structures and trace fossil assemblages (shaded light gray), is interpreted as stratigraphically equivalent to the Frazer Beach Member of the Sydney Basin.
FIGURE 11. Summary diagram of radiogenic-isotope dating results from CA-IDTIMS analysis zircons from uppermost Permian and lowermost Triassic tuffs in the Sydney Basin.
FIGURE 12. Typical palynofacies from below, within and above the Frazer Beach Member, Sydney Basin; all scale bars = 20 μm. (A), Post-extinction recovery flora of algae and fern spores, 310–320 cm above EPE (basal Coalcliff Sandstone), Coal Cliff. (B), Fungal remains; Snapper Point, 53–56 cm above EPE (upper Frazer Beach Member). (C), Kerogen assemblage rich in bacteria-derived amorphous organic matter; Coal Cliff, 10–20 cm above EPE (middle Frazer Beach Member). (D), Charcoal-dominated assemblage; Frazer Beach (type section), 0–8 cm above EPE (basal Frazer Beach Member). (E), Typical palynoassemblage from uppermost Permian coal dominated by glossopterid pollen; Snapper Point, 4–5 cm below the EPE (Vales Point coal seam).

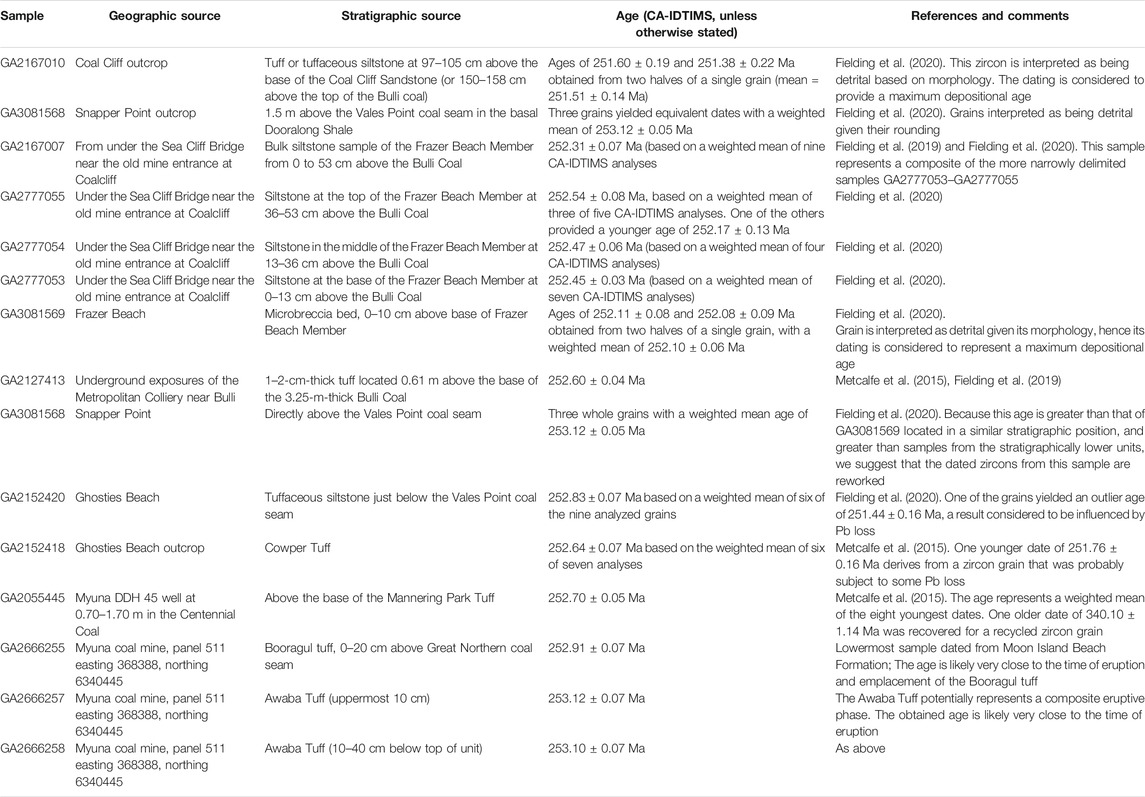

TABLE 1. Summary of key ages from CA-IDTIMS dating of zircon grains obtained from tuffs and ash-bearing siliciclastic beds between the Awaba Tuff and the basal Narrabeen Group in the Sydney Basin, Australia. Details of individual grain ages, U-Pb isotopic data and measures of uncertainty are provided by Metcalfe et al. (2015), Fielding et al. (2019), and Fielding et al. (2020).
The key outcomes of this high-resolution dating are:
(1) Samples GA2666257–258, GA2666255, GA2055445, and GA2152418 yield consistently younger ages with stratigraphic position providing a strong measure of confidence for estimating sedimentation rates through the Changhsingian interval of the northern Sydney Basin (see sedimentation rate calculations of Mays et al., 2020).
(2) Sample GA2055445 (252.70 ± 0.05 Ma) derives from a tuff directly beneath the Wallarah coal—the seam stratigraphically beneath the Vales Point coal. In some places, the Wallarah and Vales Point seams amalgamate Fielding et al. (2020), hence the underlying tuff provides a maximum temporal constraint on the last phase of coal accumulation in the northern Sydney Basin.
(3) Sample GA2152418 (252.64 ± 0.07 Ma) derives from a tuff overlying the Wallarah coal seam and is dated to c. 60 kyrs younger than the preceding sample from below this coal seam. The date confirms a late Changhsingian age for the upper part of the Newcastle Coal Measures and provides a measure of the temporal span of peat accumulation represented by a typical Sydney Basin bituminous coal seam of average thickness.
(4) Samples GA3081568 and GA2152420 from the Moon Island Beach Formation in the northern Sydney Basin yielded ages that are markedly greater than those obtained from underlying samples and probably represent reworked zircon grains.
(5) Sample GA2127413 (252.60 ± 0.04 Ma) from a tuff low within the Bulli Coal and GA3081569 (252.10 ± 0.06 Ma) from the basal FBM provide age constraints on the accumulation of the uppermost Permian coal seam (c. 50,000 years) and suggest that the terrestrial EPE (at the Vales Point coal seam to FBM contact) in eastern Australia is between c. 700 and 200 kyrs older than the PTB based on dating of the GSSP section at Meishan, China.
(6) Zircons from the FBM at Coal Cliff yield dates of 252.31 ± 0.07 Ma to 252.54 ± 0.08 Ma (Figure 11) implying the EPE in that area is >410–640 kyrs earlier than the PTB (depending on the veracity of the CA-IDTIMS dates, i.e., no reworking of grains or Pb loss from the crystals). Given that the succession of dates for samples GA2777053–2777055 is slightly out of geochronological order, some reworking of zircon grains may have occurred in these beds. The younger date of GA3081569 (252.10 ± 0.06 Ma), recovered from the basal microbreccia bed of the FBM in the northern Sydney Basin, is likely to be close to the age of the terrestrial EPE in eastern Australia if there has been no erosional removal of strata at the base of the type section. Collectively, these dates suggest that the terrestrial EPE in eastern Australia occurred at least 160 kyrs before the onset of the tropical marine extinction as dated in the Global Stratotype Section at Meishan (Burgess et al., 2014). No high-resolution dates are yet available for the marine extinction at high southern palaeolatitudes.
(7) Samples GA3081569 (252.10 ± 0.06 Ma) and GA2167010 (251.51 ± 0.14) from the FBM and Coal Cliff Sandstone, respectively, provide dates bracketing the top of the FBM, and also constrain the PTB to a position between the basal FBM and 1 m above the base of the Narrabeen Group.
Palynoflora of the Frazer Beach Member
The uppermost Permian coals of the Sydney Basin host palynofloras dominated by glossopterid pollen and diverse pteridophyte spores (Figure 12E). The contact between the Vales Point coal seam (and equivalent uppermost coals of the Sydney Basin) and the succeeding FBM corresponds to the boundary between the Dulhuntyispora parvithola Zone (Foster, 1982; Mantle et al., 2010; Mays et al., 2020), or the APP5 zone (Price, 1997), and the overlying “dead zone” of Vajda et al. (2020). This boundary corresponds to the extinction of the Glossopteris flora and is the expression of the terrestrial EPE in Gondwana. In the type section, the FBM is entirely within the “dead zone” of Vajda et al. (2020), a 140-cm-thick interval characterized by a depauperate palynoflora. The palynofacies characterizing the lowermost 34 cm of the unit is dominated by charcoal and opaque wood fragments (Figure 12D), with extremely sparse algal microfossils. Above this, the upper portion of the unit expresses an increase in amorphous organic matter (Figure 12C), probably representing enhanced algal and/or bacterial accumulation (Batten, 1996; Pacton et al., 2011), and a marked increase in fungal microfossils (Figure 12B). The first significant recovery of vascular plant spores and pollen is evidenced around 1.5 m above the base of the FBM in the type section (Vajda et al., 2020; Figure 12A).
The palynological record of the FBM in the southern Sydney Basin has a similar signature to the type section. At Coalcliff, the palyno-assemblages equivalent to the “dead zone” observed at Frazer Beach are dominated by high abundances of amorphous organic matter and wood fragments, with a modest up-succession increase in algal and plant microfossil abundance and diversity. They differ only in the absence of fungi. From Appin Bore 4, southern Sydney Basin, Hennelly (1958) reported a palynological “transition interval” characterized by poor palynomorph recovery but relatively high abundances of the alga Quadrisporites horridus (Figure 13C) in the initial 38 cm above the Bulli Coal, which likely corresponds to the FBM.
FIGURE 13. Palynomorphs typical of the Frazer Beach Member and immediately adjacent strata, Sydney Basin, all scale bars = 10 μm, England Finder coordinates in parentheses. (A), Circulisporites parvusde Jersey, 1962, Frazer Beach, 146–150 cm above EPE (basal Dooralong Shale), S200868 (L19/4). (B), Leiosphaeridia sp., Frazer Beach, 144–146 cm above EPE (basal Dooralong Shale), S200870 (W44). (C), Quadrisporites horridusHennelly, 1958 emend. Potonié and Lele, 1961, Frazer Beach, 153–155 cm above EPE (basal Dooralong Shale), S200864 (X32/3). (D,E), Brevitriletes bulliensis (Helby, 1970 ex; de Jersey, 1979) de Jersey and Raine, 1990; (D), Frazer Beach, 148–150 cm above EPE (lower Dooralong Shale), S200868 (M20); (E), PHKB-1, 801.11 m (4 m above EPE; Frazer Beach Member), S014103/2 (S46/3). (F), Krauselisporites sp. Frazer Beach, 153–155 cm above EPE (lower Dooralong Shale), S200864 (M17). (G), Triplexisporites playfordii (de Jersey and Hamilton, 1967) Foster, 1979, PHKB-1, 805.03 m (7 cm above EPE; Frazer Beach Member), S014101/1 (G42). (H), Playfordiaspora crenulata (Wilson) Foster, 1979, Frazer Beach, 153–155 cm above EPE (lower Dooralong Shale), S200864 (Q29). (I), Thymospora ipsviciensis (de Jersey) Jain, 1968, Coalcliff, 40–45 cm above EPE (Frazer Beach Member), S029710/3 (P18/4). (J), Cyclogranisporites gondwanensisBharadwaj and Salujha, 1964, PHKB-1, 805.03 m (7 cm above EPE; Frazer Beach Member), S014101/2 (K17/4). (K), Leiotriletes directusBalme and Hennelly, 1956, PHKB-1, 805.03 m (7 cm above EPE; Frazer Beach Member), S014101/2 (F44). (L), Alisporites (Falcisporites) australisde Jersey, 1962, Frazer Beach, 148–150 cm above EPE (basal Dooralong Shale), S200868 (B/20).
FIGURE 14. Plant macrofossils in historical collections from the shale-dominated interval overlying the Vales Point coal seam and Bulli Coal at various sites within the Sydney Basin (see Table 2 for taxon authors). In the absence of precise stratigraphic sources, these are inferred to derive primarily from the uppermost part of the Frazer Beach Member or lowermost Dooralong Shale/Coal Cliff Sandstone; all of these strata are assigned to the Lepidopteris callipteroides Biozone. (A), Cyclomeia undulata (Pleuromeiales), “roof shales” above Bulli Coal, Bellambi Colliery, AMF58791. (B), Cyclomeia undulata (Pleuromeiales) “roof shales” above Bulli Coal, Bellambi Colliery, AMF60882. (C), Cyclomeia undulata microphyll (Pleuromeiales), “roof shales” above Bulli Coal, South Bulli, AMF63719. (D), Isoetalean or pleuromeian sporophyll, “roof shales” above Bulli Coal, Bellambi Colliery, AMF27421. (E), Cyclomeia sp.?, small pleuromeian leafless rhizomorph with attached roots, “roof shales” above Bulli Coal, Bulli, AMF120062. (F), Schizoneura gondwanensis (Equisetales), 3.05 m above topmost Permian coal, Birthday Shaft, Balmain, AMF8259. (G)Neocalamites sp. (equisetalean axis), “roof shales” above Bulli Coal, South Bulli Colliery, AMF91467. (H)Sphenopteris sp. (Polypodiopsida), “roof shales” above Bulli Coal, Bellambi Colliery, AMF27402. (I)Cladophlebis sp. (Osmundales), “roof shales” above Bulli Coal, Bellambi Colliery, AMF27406. (J)Rochipteris sp.? (Petriellales), “roof shales” above Bulli Coal, Bellambi Colliery, AMF27409a. (K)Peltaspermum sp. (Peltaspermales) or nodal diaphragm (Equisetales), “roof shales” of Bulli Coal, Bellambi Colliery, AMF27425c. (L)Vertebraria australis, (Glossopteridales root), putatively from the “roof shales” of the Bulli Coal, South Bulli Colliery, AMF63722. (M)Lepidopteris callipteroides (Peltaspermales), “roof shales” above Bulli Coal, Bulli Colliery, AMF58520. (N) Portion of Lepidopteris callipteroides pinna (Peltaspermales), sandstone lamina above Bulli Coal, Coal Cliff Beach, AMF51730. (O)Rissikia apiculata (Voltziales), “roof shales” above Bulli Coal, Bellambi Colliery, AMF27415. (P) Isolated bract or seed, “roof shales” of Bulli Coal, South Bulli Colliery, AMF91466. (Q)Voltziopsis africana (Voltziales), “roof shales” of Bulli Coal, South Bulli Colliery, AMF50149. (R)Rissikia apiculata (Voltziales), “roof shales” above Bulli Coal, Bellambi Colliery, AMF27423. Scale bars = 10 mm for all figures except P and K (= 1 mm).
In the southern (Coalcliff, CCC-27) and central (PHKB-1) Sydney Basin, the palynoassemblages from plant-bearing beds of the upper FBM or overlying basal Coal Cliff Sandstone (Facies F of Fielding et al., 2020) are attributable to the Playfordiaspora crenulata Zone (upper Changhsingian–Griesbachian), indicated by the first occurrences of Brevitriletes bulliensis (Figures 13D,E) and/or Triplexisporites playfordii (Figures 13F,G; Hennelly, 1958; Fielding et al., 2020; Mays et al., 2020). From Elecom Newvale DDH 28, northern Sydney Basin, Helby (1970) reported the first basin-wide occurrences of 17 palynomorph taxa in beds c. 33 cm above the top of the Vales Point coal seam, including the P. crenulata Zone index species mentioned above. These beds are probably attributable to the upper FBM or basal Dooralong Shale. The base of this zone is accompanied by increases in freshwater algae (Q. horridus), leiospherid acritarchs (Figures 13A,B) and fern spores (e.g., Brevitriletes, Cyclogranisporites, Leiotriletes, Thymospora; Figures 13H–K). Although the pollen records of the underlying Newcastle Coal Measures are dominated by taeniate bisaccate grains typical of glossopterids (Protohaploxypinus, Striatopodocarpites; Figure 12E), the dominant pollen of the strata succeeding the FBM are non-taeniate bisaccate forms [Alisporites (Falcisporites), Pteruchipollenites; Figure 13L].
Palynoflora of the “Marker Mudstone” (Bowen Basin)
Palynological assemblages from the relatively thick (22.9 m) “marker mudstone” at the Newlands Coal Mine are referable to Price’s (1997) APP6 zone (equivalent to the collective Playfordiaspora crenulata and Protohaploxypinus microcorpus zones) based on the appearance of P. crenulata (Michaelsen, 1999). This unit is also rich in Botryococcus (Trebouxiophyceae) at Newlands (Michaelsen et al., 1999). The APT1 zone (equivalent to the lower Lunatisporites pellucidus Zone) begins immediately above the mudstone.
The “marker mudstone” is much thinner (2–4 m) at the Isaac Plains coal mine than at Newlands but the palynological assemblages are similar (Wheeler, 2020). Samples collected from shale directly overlying the uppermost Permian coal seam, from the more expanded mudrock interval referred to the “marker mudstone”, and from the siltstones of the overlying basal Rewan Group at Isaac Plains all yield taxa typical of the Playfordiaspora crenulata and Protohaploxypinus microcorpus zones (Wheeler, 2020). The most common index taxon is Triplexisporites playfordii; occurrences of Playfordiaspora crenulata are sparse. Other notable taxa typical of the P. crenulata Zone include Thymospora ipsviciensis and Brevitriletes bulliensis. Very rare specimens of Reduviasporonites chalastus are present. Bisaccate pollen grains, such as Alisporites (Falcisporites) australis, are very rare but increase in overlying strata. Protohaploxypinus microcorpus and Lunatisporites pellucidus were not observed. Cavate trilete spores of lycopsids, e.g., Lundbladispora spp., Rewanispora foveolata (an index taxon of the P. microcorpus Zone), and Densoisporites playfordii are common. Other common trilete spores include Calamospora sp., Microbaculispora spp. and Leiotriletes directus. The presence of rare pollen of Permian aspect (e.g., some Protohaploxypinus and Striatopodocarpites species) may indicate limited reworking of grains, or the production of taeniate pollen by some non-glossopterid groups in the post-EPE flora (Mays et al., 2020). Although a palynological “dead zone” was not detected in the Bowen Basin, the “marker mudstone” of that region correlates collectively with the FBM and overlying Dooralong Shale. The abundance of taeniate bisaccate (glossopterid) pollen in palynological samples recovered from the carbonaceous mudstones immediately below the Rewan Group in the Galilee Basin by Wheeler et al. (2020) suggests that this interval is a distal equivalent of the uppermost Permian coal seams rather than a true correlative of the “marker mudstone” (Figure 10). However, the overlying thin transitional interval (between the strongly carbonaceous and greenish siltstones traditionally placed at the base of the Rewan Group) might locally represent the “marker mudstone” (Figure 10). No tuffs have been identified in the “marker mudstone” for absolute age dating.
Macroflora of the Permian-Triassic Transition
Several studies have reported plant macrofossils from shales and siltstones overlying the Vales Point, Bulli and Katoomba seams in various parts of the Sydney Basin. Most have been recovered from coastal exposures and the roof strata of mines in the Bulli district (southern Sydney Basin), coastal outcrops at Frazer Beach (northern Sydney Basin) and cuttings at Coxs Gap railway tunnel (western Sydney Basin; Retallack 1980; Retallack 2002; Vajda et al., 2020). However, in most cases it is unclear whether these fossils derive from the FBM or from fine-grained beds intercalated with the basal sandstones of the overlying Narrabeen Group. Those recorded from the Frazer Beach section (Vajda et al., 2020) derive unequivocally from an interlaminated bed of fine-grained sandstone and siltstone positioned within the lower Dooralong Shale, 1.12–1.44 m above the top of the FBM (= 1.62–1.94 m above the EPE horizon).
Fossil assemblages from the FBM and basal Narrabeen Group characterize a post-extinction flora of modest-diversity (about 16 taxa) representative of the earliest stages of ecosystem recovery. Some of these taxa are defined for specific plant organs (morphotaxa), hence the diversity of reproductively discrete (whole-plant) species represented by plant macrofossils in this unit is substantially lower. A full systematic analysis of this flora is intended for publication elsewhere, but a preliminary list of taxa represented in institutional collections is presented here to illustrate the general composition of the recovery flora, regardless of its precise stratigraphic position (Table 2).
TABLE 2. List of the key taxa represented in the Frazer Beach Member or immediately overlying basal beds of the Narrabeen Group based on historical and recent collections held in the Australian Museum, Sydney, and the Swedish Museum of Natural History, Stockholm.
The flora contains plant groups ranging from small herbaceous forms to woody shrubs or trees. Lepidopteris callipteroides (Peltaspermales) dominates the assemblage, although voltzialean conifer twigs and isolated leaves are also common locally. Most elements of the flora persist higher into the Narrabeen Group and are attributed to the L. callipteroides macrofloral zone—roughly of latest Changhsingian to Smithian age (Retallack, 1977; Retallack, 1980; Retallack, 2002). The leaves (or leaf segments) of most plants are diminutive, and those of the gymnosperms typically bear thick cuticles and/or have strong stomatal protection suggestive of adaptation to inhibition of transpirational water loss. Elements of this fossil flora have been described and illustrated by Townrow (1956), Townrow (1960), Townrow (1966), Townrow (1967a), Townrow (1967b), Retallack (1977), Retallack (1980), Retallack (2002), and White (1981) and interpreted to reflect the establishment of a sclerophyllous vegetation tolerant to seasonal water deficiency (Retallack 2018). A selection of key taxa is illustrated here (Figure 14) to highlight the dominant woody and herbaceous components of the paleoflora. Although several plants were sclerophyllous and adapted to seasonal scarcity of moisture, we do not find evidence of xerophytic plants typical of fully arid conditions. The presence of various free-sporing ferns, sphenophytes and lycopsids suggests at least seasonally moist conditions in the aftermath of the EPE in the Sydney Basin.
The presence of Glossopteris or its associated ovuliferous (Plumsteadia) or root (Vertebraria) organs in siltstones above the Bulli Coal and its lateral equivalents is contentious. Various studies (e.g., Dun, 1911; Stuntz, 1965; Townrow, 1966; Helby 1969; McElroy, 1969) have reported the presence of Glossopteris above the uppermost Permian coal of the Sydney Basin, but concerted searches by Retallack (1980), Vajda et al. (2020), and Mays et al. (2020) failed to find any reliable evidence of this plant group above the uppermost seam. Perhaps the most convincing evidence is the illustration of a ripple-marked laminated slab hosting numerous Glossopteris leaves, possible pleuromeian microphylls and sinuous horizontal invertebrate burrows purported to derive from the roof of the Bulli Coal (Diessel, 1992, figure 6.7). The precise geographic source and stratigraphic position of this slab is unclear and it might represent an intraseam clastic bed high in the Bulli Coal. Much younger records of Glossopteris or its associated organs (e.g., from the Middle Triassic to Cretaceous) of Australia (Feistmantel, 1890; Johnston, 1896; Holmes, 1992) appear to be misidentifications of other plant groups (Gontriglossa and Sagenopteris). A single specimen of Vertebraria australis collected by G. Retallack in 1974 and registered in the Australian Museum collections (AMF63722: Figure 14L) is stated on the label to derive from the “callipteroides Zone” at South Bulli. The precise stratigraphic source of this specimen is uncertain. Similarly, small segmented rootlets reminiscent of V. australis were recorded in PHK Bunnerong‐1 well immediately above the Bulli Seam (Fielding et al., 2019), but the identification remains tentative. Small leaf fragments from Coxs Gap with anastomosing venation reported by Retallack (1980) might be the remains of Rochipteris (Petriellales) foliage rather than Glossopteris. Thus far, the evidence for Glossopteris persisting into the FBM (above the EPE) is equivocal. If this group did persist above our placement of the EPE, it was only for a brief time and in very low numbers. There is no convincing evidence of glossopterids persisting into the Triassic in Australia or elsewhere.
Tracks of three large tetrapod animals are known from an interlaminated shale and ripple-marked sandy siltstone around 25–50 cm above the Bulli Coal in roof shales (here equated to the FBM) of Bellambi Colliery (Harper 1915; Retallack, 1996), Kemira Colliery (Clark, 1992), and Oakdale Colliery (Warren, 1997) all in the Southern Sydney Basin. The tracks vary somewhat in size but are probably conspecific. Individual footprints have digits terminated by claws and were assigned to the ichnotaxon Dicynodontopus bellambiensis (Retallack, 1996). The Bellambi Colliery footprints are around 60–80 mm long, 40–50 mm wide, with an average stride length of 349 mm (Figure 15A), and an external track width of c. 300 mm suggesting a roughly dog-sized, wide-bodied, trackmaker (Retallack, 2005, figure 13). The tracks from Oakdale Colliery are smaller but otherwise similar (Figure 15D). Retallack (1996) inferred that the Sydney Basin tracks were most likely produced by the common Gondwanan dicynodont Lystrosaurus and Warren (1997) concurred that such traces were probably produced by a dicynodont (therapsid) or procolophonid (parareptile). Burrows of a somewhat smaller vertebrate are known from the type section of the FBM in the northern Sydney Basin (Figure 15B). These burrows, assigned to Reniformichnus australis, descend from an overbank sandstone into the silty FBM and, in some cases, penetrate the underlying Vales Point coal seam. There is a continuum (normal distribution) of burrow sizes with maximum widths of 40–150 mm and heights of 11–100 mm (McLoughlin et al., 2020). They typically have a bilobate base, and bear weak bioglyphs on their surface (Figure 15C). The burrows are similar to forms interpreted as small cynodont burrows described by Sidor et al. (2008) from the Lower Triassic of Antarctica, and by Damiani et al. (2003) and Krummeck and Bordy (2018) from coeval strata in the Karoo Basin, South Africa. The Sydney Basin burrows can not be assigned definitively to any tracemaker in the absence of entombed skeletal remains but are inferred to have been produced by a Thrinaxodon-like cynodont—the range of sizes possibly being the result of production by a population of different sexes and age cohorts, together with some post-excavation compression of the burrow forms (McLoughlin et al., 2020). There is no strong evidence in terms of size distribution, shape or excavation traces to segregate these burrows into more than one ichnotaxon.
FIGURE 15. Vertebrate trace fossils from the Frazer Beach Member. (A) Line-drawing of probable lystrosaurid trackway from the “roof shales” above the Bulli Coal, Bellambi Colliery (trackway originally illustrated by Harper (1915), pl. 24, and Retallack (1996, figure 3). Dotted lines indicate the crests of symmetrical ripples on the bedding plane. (B) Probable cynodont burrows filled with sandstone (arrowed) transecting the Frazer Beach Member in the type section. The burrow entrances appear to be positioned at the level of the basal massive splay sandstone bed of the overlying Dooralong Shale. (C) Surface texture of a sand-filled burrow showing weakly defined bioglyphs (excavation marks). (D) Line-drawing of a dicynodont or procolophonid trackway from the “roof shales” of Oakdale Colliery (original illustrated by Warren (1997, figure 8). Dotted lines indicate fractures in the rock. Scale bars = 50 mm for (A, D), 10 mm for (C); hammer in (B) = 28 cm.
Invertebrate trackways, similar to Tasmanadia, consisting of two parallel rows of obliquely transverse markings were reported by Retallack (1996) on the same bedding plane preserving the tetrapod tracks at Bellambi Colliery, and Warren (1997) also reported invertebrate traces associated with the trackway from Oakdale Colliery. Retallack (1996) suggested that the Bellambi invertebrate trackway could have been produced by various insects. Tillyard (1918) described a fragmentary orthopteran forewing (Elcanopsis sydneiensis) from probable correlative shales above the coal seam in the Sydney Harbor Colliery at Balmain. McLoughlin et al. (2020) also reported sparse 1.2-mm-diameter silt-filled invertebrate burrows in a splay sandstone directly overlying the FBM at Frazer Beach, and Diessel (1992), figure 6.7 illustrated sinuous burrows on a bedding plane from laminites above the Bulli Coal in the southern Sydney Basin). Clark (1992) also mentioned the presence of rare burrows of unspecified character in shales overlying the Bulli Coal in the southern Sydney Basin. Bowman (1980) mentioned the occurrence of unionid bivalves in mudrocks above the Bulli Coal but did not illustrate or provide locality details of these specimens. These studies collectively indicate a relatively meagre vertebrate and invertebrate fauna associated with predominantly lacustrine or other floodplain settings during deposition of the FBM. In addition, Mishra et al. (2019) recorded spinose thecamoebid (Amoebozoa) testae from an unspecified position within a section through the uppermost Moon Island Beach Formation at Wybung Head. It is possible that these represent part of the impoverished post-EPE biota of the FBM, but it is more likely that they derive from the underlying Vales Point coal seam.
Regional Depositional Framework and Paleoclimate
The overall depositional environment both before and after accumulation of the FBM in the Sydney Basin was a lowland, probably coastal, alluvial plain crossed by sand- and gravel-bed rivers of varying size and planform. Predominantly southward-directed river systems drained the Bowen-Gunnedah-Sydney basin complex at this time, with significant contributions of sediment derived from the rising New England Orogen to the east, and lesser additions from the stable craton to the west (Ward 1972; Fielding et al., 2001; Fielding et al., 2020). Facies distributions suggest minimal long-term changes in fluvial style, and paleocurrent data indicate little change in the overall dispersal pattern across the EPE in the Sydney Basin (Fielding et al., 2020). The FBM, therefore, represents a temporary disruption of the lowland landscape in response to an ecological perturbation (probably induced by a temperature- and/or moisture-related tipping point) that eliminated deciduous hygrophilous glossopterid forests during the terrestrial EPE. Extensive but ephemeral ponding in the landscape appears to have resulted from the termination of organic accumulation following extinction of the glossopterid-dominated mire forests and the submergence of the abandoned peat surface owing to rising water tables, continued subsidence, compaction, and microbial oxidation of the peat profile, together with temporary retention of coarse clastic sediments in proximal portions of the drainage system.
The latest Permian, glossopterid-dominated, peat-forming vegetation of the Sydney Basin has been interpreted to characterize consistently moist climates under a pronounced photoperiod regime (Holmes, 1995; McLoughlin et al., 2019). Glossopterids were broad-leafed, deciduous, tall trees with aerated root systems especially adapted to growth in waterlogged substrates (McLoughlin, 2011). In contrast, the flora of the post-EPE Lepidopteris callipteroides macrofloral zone (?upper FBM to lower Narrabeen Group) is characterized by gymnosperms with small (generally <2 cm long) leaves or leaf segments, thick cuticles, and strongly protected stomata—all features of sclerophyllous plants typically adapted to warmth and seasonal water shortages. The post-EPE flora also contains an array of opportunistic herbaceous plants (Table 2) with free-sporing life cycles likely tied to episodic water availability. On this basis, we infer at least seasonally intensified moisture deficiency, but not fully arid conditions, affecting the vegetation in the immediate aftermath of the EPE. Post-EPE ponded settings were not sufficiently persistent, or the surviving peltasperm-conifer vegetation was not adequately adapted to the development of complex mire communities, to enable peat accumulation. Paleoclimate simulations adjusted for amplified levels of atmospheric CO2 derived from outgassing associated with Siberian Trap volcanism, coupled with CIA signatures of the sedimentary rocks, indicate increasingly seasonal conditions through the last 0.7–1.3 myrs of the Permian (Fielding et al., 2019; T. Frank, unpublished data). This culminated in a short phase of intense chemical weathering and environmental instability during the EPE and accumulation of the FBM. Up-section increases in the representation of desiccation features, ferruginous concretions, and microspherulitic siderite in paleosols also attest to a long-term drying trend in the Early Triassic, although log impressions up to 20 cm wide in the basal Narrabeen Group indicate conditions remained favorable for forest growth (Retallack, 1999). Paleosol chemistry has been employed to infer mean annual precipitation of 1,000–1,300 mm during deposition of both the latest Permian coal-bearing succession and the FBM, and a reduction to 800–1,200 mm per annum during deposition of the Dooralong Shale (c. 1–11 m above the topmost coal: Retallack, 1999). Collectively, the paleontological, geochemical, and modeling evidence suggests a long-term warming and (at least seasonal) drying trend through the Permian-Triassic transition, punctuated by a pulse of enhanced chemical weathering during deposition of the FBM.
Discussion and Conclusions
The newly defined Frazer Beach Member represents a distinctive, laterally extensive sheet of predominantly lacustrine shales and siltstones that accumulated in the wake of the EPE in the Sydney Basin. It represents a useful marker for lithostratigraphic correlation and accumulated over a few thousand years (Vajda et al., 2020) at the end of the Permian. Equivalent facies are recognizable in adjoining basins to the north, within the informally designated “marker mudstone.” Similar facies are also represented in equivalent stratigraphic positions across Gondwana, e.g., in Antarctica, Africa, and India.
The FBM and its lateral correlatives are characterized by depauperate vertebrate and invertebrate ichnofossil and spore-pollen-algae suites and enrichment in charcoal and fungi typical of a post-extinction “dead zone.” This combination of simple sedimentary features and impoverished fossil biota dominated by fungi and bacterially generated amorphous organic matter is the terrestrial equivalent of anachronistic facies that are commonly recognized in marine strata in the aftermath of major extinction events (Maaleki-Moghadam et al., 2019). Proliferation of fungal/algal remains (some of probable terrestrial origin) and amorphous organic matter is also a feature typical of post-EPE shallow marine palynoassemblages globally (Haig et al., 2015; Spina et al., 2015; Rampino and Eshet, 2018). Accumulation of the FBM occurred after the extinction of glossopterid-dominated arborescent peatland communities. At that time, significant organic accumulation ceased but ongoing compaction of the previously deposited peat and continuing subsidence of the depositional surface provided accommodation space for the development of extensive shallow lacustrine systems on alluvial plains. The cause of glossopterid extinction at the EPE remains unclear but is likely to be related to an environmental tipping point (e.g., excessive heat or seasonal drought) similar to those factors that primarily control the distribution of the dominant plants in modern boreal forests (Churkina and Running, 1998; Gilliam, 2016). The long-term warming and drying trends inferred for the Permian-Triassic transition are punctuated by a brief interval of enhanced chemical weathering during deposition of the FBM. The conditions favoring accumulation of the predominantly fine-grained FBM were short-lived and more typical fluvial systems of the Narrabeen Group and equivalent strata were re-established a few thousand years after the EPE. A sparse and low-diversity recovery flora, dominated by woody sclerophyllous Peltaspermales and Voltziales, and herbaceous Isoetales/Pleuromeiales, sphenophytes and ferns became established around the end of FBM accumulation, but peat-forming ecosystems producing economic quantities of coal did not recover in the region for at least 10 million years (Retallack et al., 1996; Vajda et al., 2020).
Ash beds dated by CA-IDTIMS analyses of zircon crystals now provide the Sydney Basin succession with the best age and stratigraphic constraints on the EPE and PTB in Gondwana. The terrestrial expression of the EPE in the Sydney Basin is dated to c. 252.3–252.1 Ma or roughly 200–400 kyrs before the PTB and c. 160–360 kyrs before the onset of the tropical marine extinction (with the provision that these are maximum depositional ages). This offset in terrestrial vs. marine extinctions is consistent with recent records from South Africa and China (Chu et al., 2020; Gastaldo et al., 2020). The cause(s) behind such a long lag time between the terrestrial and marine extinctions remain uncertain, but may relate to the much earlier response of hygrophilous temperate-zone plant communities to drought or abrupt warming compared to equatorial warm-water oceanic communities that were buffered from such changes. We note that additional high-precision dating of beds within the Vales Point coal seam, FBM, and basal Narrabeen Group might narrow the perceived temporal gap between these events. The pattern of terrestrial extinction and recovery at the EPE has similarities to the end-Cretaceous event in terms of sharp extinction or decline of some major woody plant groups (Vajda and Bercovici, 2014; McLoughlin, 2020), loss of large vertebrates (Huttenlocker, 2014; Botha et al., 2020; Khosla and Lucas, 2020; Smith et al., 2020) and initial re-establishment of pteridophyte-rich plant communities (Vajda and McLoughlin, 2007; Feng et al., 2020). However, the recovery of the biota after the EPE was greatly protracted in comparison to the early Paleocene. The combination of numerous CA-IDTIMS dates and a well-resolved palynostratigraphic zonation makes the Sydney Basin succession the primary reference for the correlation of terrestrial upper Permian–Lower Triassic strata in the Southern Hemisphere and provides the principal framework for understanding the evolution of the southern high-paleolatitude terrestrial biota through Earth’s largest extinction event.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
SM contributed the paleobotany, geophysics, geotechnical discussion and coordinated the study. RN and JC contributed the CA-IDTIMS data and the discussion on geochronological controls on the stratigraphy. VV and CM contributed the palynology of the Sydney Basin succession. CF contributed the sedimentological and petrographic data. TF contributed the geochemical and isotopic data. AW contributed the palynology of the Bowen and Galilee Basin successions. MB contributed borehole data and information on the regional distribution of strata. All authors contributed to the development of the manuscript, the Discussion of the results, and the writing of the text.
Funding from Vetenskapsrådet and the National Science Foundation collectively supported fieldwork in Australia, laboratory analysis of samples and manuscript preparation costs.
Conflict of Interest
Author MB was employed by the geological consultancy company Bocking Associates CBM Pty Ltd.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The handling editor declared a past co-authorship with several of the authors (VV, SM).
The authors acknowledge the support of the Swedish Research Council (VR) grants 2018-04527 to SM, and 2015-4264 and 2019-04061 to VV, and a collaborative research grant from the National Science Foundation (EAR-1636625 to CF and TF). We thank two reviewers for their constructive comments on the manuscript.
