The North American Spring Coldness Response to the Persistent Weak Stratospheric Vortex Induced by Extreme El Niño Events

Introduction

The El Niño-Southern Oscillation (ENSO) has far-reaching impacts globally and provides the most reliable source of seasonal to interannual climate prediction for North America (e.g., Tippett et al., 2012; L’Heureux et al., 2015). Many studies have discussed the impact of ENSO teleconnections on North America during the boreal winter, but it is becoming increasingly apparent that the stratospheric pathway is crucial to predictability on sub-seasonal to seasonal timescales (Butler et al., 2014, 2016; Domeisen et al., 2015), which are characteristically longer (Baldwin and Dunkerton, 2001; Baldwin et al., 2003; Polvani and Waugh, 2004; Gerber et al., 2009; Gerber et al., 2012; Yu et al., 2018a; Yu et al., 2018b), and hence more predictable than the tropospheric pathway (Domeisen et al., 2020a; Domeisen et al., 2020b).

The stratospheric pathway involves coupling between the troposphere and stratosphere; i.e., planetary waves propagate primarily upward and perturb the stratosphere, and surface conditions are thus affected by the stratospheric signal (Butler et al., 2014). Anomalous warming in the equatorial eastern Pacific associated with El Niño (EN) conditions can excite long wave trains with an anomalous Pacific North American (PNA) pattern (Garcia-Herrera et al., 2006) that intensifies the upward propagation of planetary Rossby waves to the stratosphere in the Northern Hemisphere during winter, resulting in a warmer and weaker polar vortex (Manzini et al., 2006; Camp and Tung, 2007; Free and Seidel, 2009; Fletcher and Kushner, 2011; Lan et al., 2012; Ren et al., 2012; Xie et al., 2012; Garfinkel et al., 2013a; Garfinkel et al., 2013b; Fletcher and Cassou, 2015). These EN-related stratospheric anomalies subsequently propagate downward into the troposphere, where they project a negative North Atlantic Oscillation (NAO) phase and an equatorward-shifted jet (Perlwitz and Graf, 1995; Thompson et al., 2002; Brönnimann et al., 2007; Kolstad et al., 2010). This tropospheric circulation change is often associated with mid-latitude cold snaps (Perlwitz and Graf, 1995; Thompson et al., 2002; Kolstad et al., 2010; Yu et al., 2015a; Yu et al., 2015b; Rao et al., 2020; Xie et al., 2020), notably over northern Eurasia (Scaife and Knight, 2008; Chen et al., 2011; Zhang et al., 2016). For North America, however, the influence of the stratospheric EN pathway is less pronounced.

The initial paramount issue for this topic—and the foundation of this study—is the nonlinearity in the tropospheric response to EN diversity. Different EN variants, such as the Eastern Pacific (EP) and Central Pacific (CP) types (Ren and Jin, 2013), have distinct influences on the stratospheric vortex because of their different sea surface temperature (SST) patterns (see Domeisen et al., (2019) for a review). The variance of EN intensity may also lead to differences in its stratospheric pathway. Very strong EN events (“extreme EN” hereinafter) are characterized by exceptional warming in the eastern equatorial Pacific, with the Niño3.4 anomaly reaching 2 K (L’Heureux et al., 2017). Three events in the satellite era are categorized as “extreme” (the 1982/83, 1997/98, and 2015/16 EN events), whereas other Eastern Pacific EN events are “moderate”. Note that only EP EN events are considered in this study, and CP events are excluded, to avoid possible differences induced by EN variants. Recent studies have shown potential nonlinearity in the stratospheric vortex response to extreme and moderate EN events, with the stratospheric response not necessarily being proportional to EN magnitude (Rao and Ren, 2016a, b), whereas other studies support a linear response (Richter et al., 2015; Trascasa-Castro et al., 2019). This discrepancy adds uncertainty to the downward influence of the weak stratospheric vortex associated with EN events.

Another key aspect of study is the seasonality of the EN stratospheric pathway. Most of the above studies have focused on the peak EN season (December–January–February; DJF) when the amplitudes of SST anomalies and teleconnections are at their highest. However, the potential for seasonal predictability over North America is greater during the late winter and spring season, as the SST-forced signals remain strong while background noise is reduced substantially (Kumar and Hoerling, 1998). The time variance of the EN response from early–late winter to early spring is essential for delineating the stratosphere–troposphere coupling (e.g., Manzini et al., 2006; Ineson and Scaife, 2009; Fletcher and Kushner, 2011; Sung et al., 2014; Calvo et al., 2017). When EN amplitude is involved, it has been reported that the anomalous strength of the stratospheric vortex shifts rapidly from positive to negative during December–January in cases of extreme EN (Calvo et al., 2010; Ayarzagüena et al., 2018; Zhou et al., 2018; Hardiman et al., 2019). The influence of stratosphere–troposphere coupling, or the stratospheric pathway, on North American surface climate in spring is thus of great theoretical and practical value, but has not yet received adequate attention.

Following the 2015/16 extreme EN winter, a warmer than average spring was seen in a large portion of the North America, from the Pacific Northwest into the Great Lakes and much of the Northeast. The abnormal warmth in the late winter/early spring period was accompanied by above-normal precipitation across the West. The weakening EN teleconnection in the troposphere, the PNA characterized by height anomalies over the western and eastern United States is expected to play an important role, but whether the stratospheric signal contributes to the reduced coldness is illusive. Zhou et al., (2020) found a persistent downward stratospheric signal throughout the winter–spring season induced by extreme EN, in contrast to moderate EN events and leading to the equatorward shift of the mid-latitude jet and a negative NAO pattern at the surface. Their results indicate that the prolonged stratospheric pathway of extreme EN increases the risk of cold spells over Eurasia in spring, but the impact on North America is unclear. Inspired by this, the aim of the present study was to examine how the weak winter vortex induced by extreme EN is linked to North American coldness in spring. Since the negative NAO response to extreme EN has already been proven, the atmospheric circulation change would be expected to lead to mid-latitude cooling. Here we present evidence from model simulations that highlight a “missing” cooling response in North America (which would be otherwise expected), which is offset by the thermodynamic effect of the advection of warmer air masses.

Methods and Models

The Whole Atmosphere Community Climate Model, version 4 (WACCM4; Marsh et al., 2013) was used; this is the atmospheric component of the coupled-climate-system model—the Community Earth System Model (CESM; Garcia et al., 2007). The standard version has 66 vertical levels extending from ground-level to 4.5 × 10^–6 hPa (160 km geometric altitude), with a vertical resolution of 1.1–1.4 km in the tropical tropopause layer and lower stratosphere (<30 km altitude). All simulations were run with a horizontal resolution of 1.9° × 2.5° (latitude × longitude) and did not include interactive chemistry (Garcia et al., 2007). The fixed greenhouse gas (GHG) values used in the model radiation scheme were based on emission scenario A2 of the Intergovernmental Panel on Climate Change (IPCC; WMO, 2003) for 1980–2015. We used prescribed ozone forcing, with a 12-months seasonal cycle averaged over 1980–2015, from the CMIP5 ensemble mean ozone output. The quasi-biennial oscillation (QBO) forcing time series was determined using a 28-months fixed cycle.

The key to model simulations is to isolate the specific role of the stratospheric pathway. There are two main pathways of EN teleconnections to North America, namely the tropospheric and stratospheric pathways; these are not mutually exclusive, and some studies have suggested interactions between them (Geng et al., 2017). Numerical simulations were therefore used to isolate signals from the stratosphere, as applied with linear models in previous studies (Smith et al., 2010; Simpson et al., 2011). Zhou et al., (2020) addressed this issue using WACCM4, as summarized in Figure 1. Briefly, the prescribed EN–SST forcing in idealized experiments is limited to winter, so that the tropospheric pathway can be ignored ∼2 weeks after the termination of forcing (Jin and Hoskins, 1995), with the lagging response being attributed purely to the stratospheric pathway. We used the same simulations as those of Zhou et al., (2020) to allow comparison. Three experiments with daily outputs were designed, with one being a climatological run using prescribed fixed SSTs of the 12-months seasonal cycle for 1980–2015. The other two have EN–SST-forced SSTs in the tropical Pacific (30°S–30°N, 120–280°E), one with composited extreme EN SSTs and one with moderate EN SSTs, and climatological SSTs elsewhere. In the two sensitivity runs, the forcing was limited to the DJF season in each year. During the rest of the year, climatological SSTs were prescribed globally. The tropospheric pathway was therefore active solely during the DJF season and the following ∼2 weeks; after that, only the lagged EN influence through the stratospheric pathway was possible. The fact that stratospheric pathway was well isolated is carefully checked in multiple methods with dynamical analysis in Zhou et al., (2020), a nudging method applied to the stratosphere (Simpson et al., 2011; Wu and Smith, 2016King et al., 2017) using WACCM4 to better confirm the isolation and contribution of the stratospheric pathway is leaving for a future study. As for Zhou et al., (2020), the seasonal mean was taken for the period 15 March to 15 May to isolate a critical and consistent surface response in the subsequent analysis.

FIGURE 1

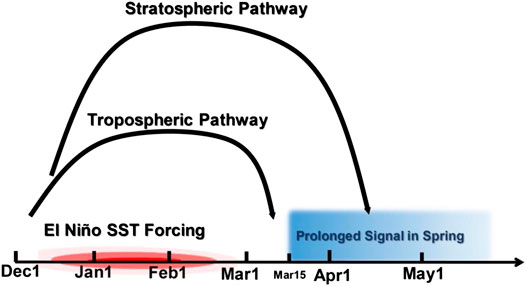

FIGURE 1. Time periods of imposed idealized EN–SST forcing in WACCM4, and active pathways by which EN can influence the Eurasian surface climate. The prolonged tropospheric signal in spring after Mar 15 is attributed solely to the stratospheric pathway, because the tropospheric pathway is negligible around two weeks after the termination of forcing (Dec–Jan–Feb).

Indices for cold extremes of temperature were used here, namely the percentile index, T10, and the absolute index, TN (Zhang et al., 2005; Alexander et al., 2006). T10 is calculated from the 10th percentile of daily temperature variability for the climatological run; i.e., a percentage count of the number of days below the 10th percentile. The advantage for this definition is that it is directly comparable with observational series, which eliminates the structural model uncertainties to a great extent (e.g., Sillmann et al., 2013; King et al., 2017; Zhu et al., 2020). The simulated T10 based on climatological run is ∼10% averaged in North America (20°N–80°N, 170–50°W), being similar with the observational results based on extreme dataset HadEX2 (Donat et al., 2013; Dunn et al., 2020). TN is the seasonal coldest daily temperature, giving absolute extremes (in contrast to T10). TN reveals intensity, while T10 gives a sense of the number of days affected by the circulation regimes (Frich et al., 2002; Alexander et al., 2006). As T10 uses a percentile threshold, the actual temperature threshold varies with the seasonal cycle, so T10 counts unusually cold days relative to the seasonal cycle.

Takaya and Nakamura (2001) proposed the wave-activity flux, which was used to describe the propagation features of quasi-stationary Rossby waves in the extratropics. The formulation of the three-dimensional wave-activity flux can be expressed as follows:

$\mathbf{W}=\frac{p\cos \phi }{2\left|\mathbf{U}\right|}\left[\begin{array}{c}\frac{U}{a^2{\cos }^2\varphi }\left[{\left(\frac{\partial {\psi }^{\prime }}{\partial \lambda }\right)}^2-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial {\lambda }^2}\right]+\frac{V}{a^2\cos \varphi }\left[\frac{\partial {\psi }^{\prime }}{\partial \lambda }\frac{\partial {\psi }^{\prime }}{\partial \varphi }-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial \lambda \partial \varphi }\right]\\ \frac{U}{a^2\cos \varphi }\left[\frac{\partial {\psi }^{\prime }}{\partial \lambda }\frac{\partial {\psi }^{\prime }}{\partial \varphi }-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial \lambda \partial \varphi }\right]+\frac{V}{a^2}\left[{\left(\frac{\partial {\psi }^{\prime }}{\partial \varphi }\right)}^2-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial {\varphi }^2}\right]\\ \frac{f_0^{ 2}}{N^2}\left\{\frac{U}{a\cos \varphi }\left[\frac{\partial {\psi }^{\prime }}{\partial \lambda }\frac{\partial {\psi }^{\prime }}{\partial z}-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial \lambda \partial z}\right]+\frac{V}{a}\left[\frac{\partial {\psi }^{\prime }}{\partial \varphi }\frac{\partial {\psi }^{\prime }}{\partial z}-{\psi }^{\prime }\frac{{\partial }^2{\psi }^{\prime }}{\partial \varphi \partial z}\right]\right\}\end{array}\right]+{\mathbf{C}}_{U}M,$

where $U$ is the background flow ($\mathbf{U}=\mathbf{U}\overrightarrow{i}+\mathbf{V}\overrightarrow{j}$); $C_U$ is the phase speed relative to the background flow (${\mathbf{C}}_U={\mathbf{C}}_{p}U/\left|U\right|$); W is the wave-activity flux parallel to the group speed; $M$ is the wave-activity pseudomomentum; and ${\psi }^{\prime }$ is the quasi-geostrophic perturbation stream function. The primes represent perturbations from the climatological means.

Results

As the persistence of the weak stratospheric vortex with a descending signal in circulation throughout the atmosphere have been established in Zhou et al., (2020), here we focus on the subsequently surface temperature response to the downward propagating signal from the stratosphere in spring. The influence of the EN stratospheric pathway on coldness over North America was investigated by first comparing surface-air temperature (SAT) anomalies during modeled extreme and moderate EN events in spring (Mar 15 to May 15; Figures 2A,B). In the moderate EN case, cold anomalies occur over a large portion of North America, consistent with the surface pattern associated with a negative NAO phase, though the signal is statistically insignificant. However, for extreme EN, significant warm anomalies occur over the northwest from Alaska to Nunavut, accompanied by weak negative temperate anomalies over the Salt Lake area. Abnormal effects on cold extremes during extreme and moderate EN events are shown in Figures 2C–F. The moderate EN has almost no signal in temperature extremes, but during extreme EN the percentage of coldest days decreases, with the coldest day (TN) tending to be warmer. This suggests that spring temperature extremes during extreme EN over North America do not increase as expected in the case of an anomalously weak stratospheric vortex; rather, the risk of coldness over a large portion of North America is likely to be reduced in cases of extreme EN.

FIGURE 2

FIGURE 2. Differences in mean extreme (A and C, E) and moderate (B and D, F) EN events from the 30-years (control run) climatological mean for surface air temperature (SAT; A and B), the temperature of the coldest day in spring (TN; C and D), and the frequency of cold extremes (T10; E and F). TN indicates the response of the seasonal coldest night, and T10 is the change in the 10th percentile. Temperature anomalies in (A and B, C, D) that are significant at the 95% confidence level (Student’s t-test) are stippled.

The probability distribution function (PDF) of daily mean temperatures over North America (20°N–80°N, 170–50°W) in spring, between extreme EN and neutral conditions, is shown in Figure 3 (omitting results for moderate EN for brevity because of the lack of a significant signal in temperature extremes). The PDF for extreme EN narrows and shows a slight shift in mean value to the warmer side. The mean warming is 0.4 K in extreme EN conditions relative to neutral conditions, with the standard deviation decreasing by 0.4 K. All these changes are statistically significant at the 95% confidence level. There is no evidence of cooling or increased variability in SAT during extreme EN over North America; i.e., there is no evidence of increased cold extremes.

FIGURE 3

FIGURE 3. Probability distribution functions (PDFs) of regional mean SAT in North America in spring. Dashed black and solid red lines indicate PDFs for SAT for neutral ENSO and extreme EN events, respectively. The PDF for extreme EN is statistically different to that for neutral ENSO (based on a Kolmogorov-Smirnov test; p < 0.01). Figure for the moderate EN case with no obvious response were omitted.

The question remains as to why extreme EN makes North American spring temperatures warmer and less variable via the stratospheric pathway. The surface temperature is directly linked to tropospheric circulation, and the monthly mean geopotential height at 500 hPa is shown in Figure 4. Sub-seasonal means for Mar 15 to May 15 are considered rather than the daily evolution; in monthly mean fields, the quasi-stationary planetary wave structure becomes prominent, and time averaging causes attenuation of smaller-scale transient waves. A ridge persists along the western coast of North America during these periods, intensified by the positive geopotential-height anomalies over the western US and two anomalous lows at its sides—a stronger low over the North Pacific and a weaker low over the southern US. The southwest wind, conducted by the persisting ridge, brings warm air from the Pacific Ocean to the North American continent in spring. Specifically, the warm advection along the western coast of North America is decomposed into zonal and meridional components, with warm meridional advection as a primary role ($-v\partial T/\partial y$, area-averaged over 30°N–60°N, 120–160°W) being 12.6 × 10^–6°C s⁻¹, and weak zonal advection ($-u\partial T/\partial x$, area-averaged likewise) being −0.5 × 10^–6°C s⁻¹. These results are consistent with the reduction in coldness during spring over North America.

FIGURE 4

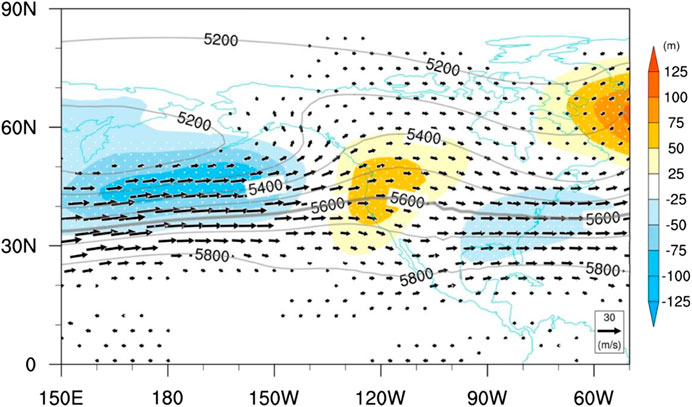

FIGURE 4. Monthly mean wind fields (vector), geopotential height (contours) and the anomaly (color) from spring climatology at 500 hPa, for extreme EN (with 100 m contours). The thicker line indicates 5600 m. Geopotential height anomalies that are significant at the 95% confidence level (Student’s t-test) are stippled. Figure for the moderate EN case with no obvious response were omitted.

We next traced the persisting tropospheric wave pattern to the signal from the stratosphere. Extreme EN drives upward propagation of more planetary Rossby waves into the stratosphere in winter, leading to a weak stratospheric polar vortex with a longer duration till spring (Zhou et al., 2020). The signal propagates downward into the troposphere by the reflection of Rossby waves (Perlwitz and Harnik, 2003). However, recent studies suggest that the reflective mechanism is sensitive to the exact region of upward wave-activity flux and is state-dependent on the strength of the vortex (Kretschmer et al., 2018). Three-dimensional visualization of wave behavior is thus particularly important for understanding the dynamics of the downward stratospheric impact on the troposphere. Height–longitude cross-sections of wave-activity flux and the zonal asymmetric component of geopotential height (Z*, with zonal mean removed) averaged over 30°–60°N during extreme EN events are depicted in Figure 5A, while Figure 5B shows the horizontal wave-activity flux and wave divergence anomalies at 500 hPa for extreme EN. The ridge along the western coast of North America extends into the stratosphere, with its phase tilting slightly eastward with height in the troposphere. The tropospheric trough over the North Pacific also expands into the stratosphere with its phase shifting westward, while the trough over the eastern USA tilts eastward with height (Figure 5A). Westward and eastward tilts of ridge lines with height indicate upward and downward propagation of planetary waves, respectively. This implies that a wave packet that propagates upward to the stratosphere from the North Pacific will reflect to the Western Hemisphere troposphere. From the horizontal view of wave activities, it is clear that there is significant wave convergence over the western coast of North America, supporting the trapping of stationary waves and intensifying the ridge over this region (Figure 5B). In case studies by Kodera et al., (2013), convergence of downward propagation of stratospheric planetary waves, indicating trapped stationary waves in a region, was also noted to favor occurrence of the Pacific blocking. The regional anomalous ridge is maintained through the interaction with transient synoptic eddies (Zhou et al., 2020).

FIGURE 5

FIGURE 5. (A) Height–longitude cross-section of the wave flux (F_x, F_z; vectors) and eddy geopotential height (Z*; color; m) averaged over 30°–60°N during extreme EN. (B) 500-hPa horizontal wave-activity flux (F_x, F_y) (vectors; m² s⁻²) and its divergence (color shading; 10⁻⁵ m² s⁻²) for extreme EN. The wave flux is multiplied by the square root of 1000/pressure (hPa) to better indicate waves in the stratosphere. Figure for the moderate EN case with no obvious response were omitted.

This vertical propagation property can be further confirmed by the linear wave interaction between climatological waves and anomalous Rossby waves in response to extreme EN at different horizontal scales (Charney and Drazin, 1961). Figure 6 shows a longitude–pressure cross-section of the decomposed wave patterns of zonal wavenumber 1 and zonal wavenumber 2. For wavenumber 1, a nodal structure in phase difference exists near the tropopause. Above the tropopause, the wavenumber 1 response exhibits an eastward tilt with height during extreme EN, out of phase with the background stationary wave, indicating a downward reflection of the planetary waves. Below the tropopause, however, the wavenumber 1 response exhibits a westward tilt with height and is in phase with the background stationary wave, indicating upward propagation of the planetary waves. The wavenumber 2 response undergoes destructive interference with the climatological wave throughout the atmosphere, but the magnitude is considerably less than that of the wavenumber 1 pattern. The linear interference of wavenumbers 1 and 2 is consistent with vertical propagation characteristics based on the above three-dimensional wave-activity analysis, with trapping of stationary waves from the polar stratosphere and troposphere. It should be noted, however, that two-dimensional wave-interference analysis—despite being an effective tool for showing the vertical propagation property in a zonally averaged view—cannot indicate regional propagation properties, which are especially important for understanding the regional effects of the downward signal from the stratosphere.

FIGURE 6

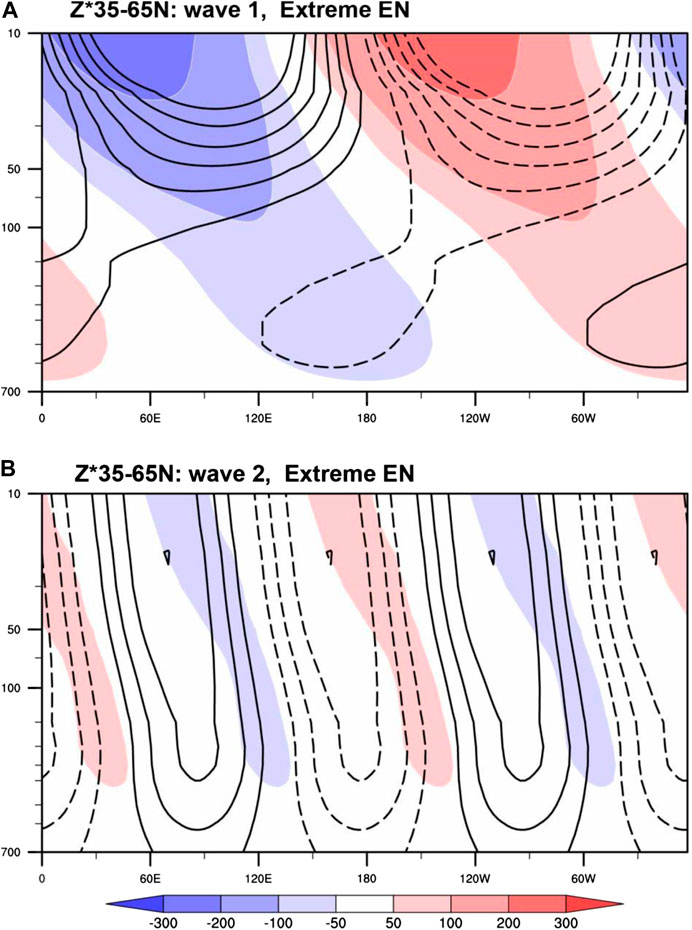

FIGURE 6. Longitude–height cross-section of the zonally asymmetric component of geopotential height anomalies (Z*) associated with stationary waves of (A) wavenumber 1 and (B) wavenumber 2, averaged over 30°–60°N during extreme EN. Contours indicate forced waves derived as sensitivity minus control values (contour intervals are 20 m; negative contours are dashed), and shading indicates the climatological stationary wave field from the control experiment. Figure for the moderate EN case with no obvious response were omitted.

Summary

This study involved idealized experiments with WACCM4 to explore how spring coldness is reduced by the persistent weak vortex induced by extreme El Niño events. The isolated stratospheric signal persisting in spring was shown to reduce the probability of daily cold extremes in North America. Although a weak stratospheric polar vortex is claimed to increase the risk of mid-latitude cold extremes with a negative NAO phase and southward shift of the jet stream, the regional impacts are sensitive to the downward path of planetary waves reflected from the stratosphere, especially in North America. In extreme EN events, a wave packet is propagated upward from the North Pacific to the stratosphere, and reflected back to the Western Hemisphere troposphere. The subsequent trapping of stationary waves from the polar stratosphere and troposphere over North America enhances a ridge over Canada and causes advection of warmer air masses. As a result, fewer, rather than more, cold extremes should be expected in North America during spring.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

QC and XZ initiated the project. XZ conducted analysis and wrote the manuscript. YL, YY, SZ, YZ, and JZ contributed to discussion and revision of the manuscript. All authors read and edited the manuscript.

Funding

Funding for this project was provided by the National Natural Science Foundation of China (41905037, 41805054, 41875108, 41971026, U20A2097), the National Key Research and Development Program on Monitoring, Early Warning and Prevention of Major Natural Disaster (2018YFC1506006), the Second Tibetan Plateau Scientific Expedition and Research (STEP) program (2019QZKK0103), and the Sichuan Science and Technology Program (2020JDJQ0050).

Acknowledgments

We thank Yueyue Yu and two reviewers for their valuable suggestions and comments, which have led to considerable improvements in this work. We acknowledge SST from the United Kingdom Met Office Hadley Center for Climate Prediction and Research, and CESM-WACCM4 from NCAR. The numerical simulation data using CESM-WACCM4 from NCAR employed in this research is available online (https://doi.org/10.6084/m9.figshare.11479113).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest
