Original Research ARTICLE

Front. Energy Res., 24 October 2018 | https://doi.org/10.3389/fenrg.2018.00113

Ternary Blend Solar Cells Based on a Conjugated Polymer With Diketopyrrolopyrrole and Carbazole Units

Yanbin Wang1*, Jinxing Chen1, Hyung Do Kim2, Biaobing Wang1*, Ryo Iriguchi2 and Hideo Ohkita2*
  • 1Jiangsu Key Laboratory of Environmentally Friendly Polymeric Materials, Jiangsu Collaborative Innovation Center of Photovolatic Science and Engineering, School of Materials Science and Engineering, Changzhou University, Changzhou, China
  • 2Department of Polymer Chemistry, Graduate School of Engineering, Kyoto University, Kyoto, Japan

Herein, we have synthesized a low-bandgap polymer (PCDPP4T) consisting of diketopyrrolopyrrole (DPP) and carbazole (Cz) units in the main chain. The absorption coefficient is as high as 1.3 × 105 cm−1 for PCDPP4T, which is slightly higher than 1.0 × 105 cm−1 for the monomer model compound (DPP4T-Cz). For ternary blend solar cells based on poly(3-hexylthiophene) (P3HT), [6,6]-phenyl-C61-butyric acid methyl ester (PCBM), and only 3.4 wt% of PCDPP4T, the photocurrent increased and thus the power conversion efficiency (PCE) was improved by 30% relative to those of P3HT/PCBM binary reference cells. The improved photocurrent was ascribed partly to a complementary absorption of PCDPP4T in the near-infrared (near-IR) region, and partly to an efficient energy transfer from P3HT to PCDPP4T. We also discuss the origin for the improved photocurrent and requirements for further improvements.

Introduction

Polymer solar cells based on donor and acceptor binary blends have been widely studied in the past three decades (Halls et al., 1995; Yu et al., 1995; Shaheen et al., 2001; Padinger et al., 2003; Li et al., 2005, 2016; Kim et al., 2006; Peet et al., 2007; Liang et al., 2010; Dou et al., 2011; Liu et al., 2014; Vohra et al., 2015; Bin et al., 2016). In this period, the efficiency has been steadily improved every year. Currently, more than 13% has been reported (Zhao W. et al., 2017; Sun et al., 2018; Xu et al., 2018; Zhang S. et al., 2018). Nonetheless, it is not enough high compared to that of silicon-based solar cells. This is most probably because the photoactive layer cannot absorb whole of the solar light, which limits the short-circuit current density (JSC) and hence the efficiency as well. To solve this issue, ternary blend solar cells have been proposed. By using three materials with complementary absorption bands, the optical response range can be easily expanded (Peet et al., 2008; Honda et al., 2009, 2010, 2011a; Ameri et al., 2012, 2013; Xu et al., 2013; Yang et al., 2013, 2015, 2017; Wang et al., 2014b,c, 2015a, 2018a,b; Lu et al., 2015a,b, 2016; Savoie et al., 2015; Xu H. et al., 2015; An et al., 2016; Huang et al., 2017; Li et al., 2017, 2018; Xiao et al., 2017; Zhang et al., 2017; Zhao F. et al., 2017; Zhang T. et al., 2018). With this strategy, more than 14% efficiencies have been obtained very recently (Xiao et al., 2017; Li et al., 2018).

Ternary blend polymer solar cells exhibit improved photocurrent generation compared to binary blend counterparts. This is simply due to additional absorption of the third material, which can expand the light-harvesting wavelength range. In some ternary blend polymer solar cells, the photocurrent is improved by the efficient energy transfer (Honda et al., 2009, 2010, 2011a; Xu et al., 2013; Lu et al., 2015a; Wang et al., 2015a, 2018a; Yang et al., 2017; Zhao F. et al., 2017). This is because excitons can be more efficiently harvested to donor/acceptor interfaces through the long-range energy transfer. In particular, this is more effective for highly crystalline polymers such as poly(3-hexylthiophene) (P3HT), because some excitons generated in large crystalline domains cannot arrive at donor/acceptor interfaces before deactivating to the ground state (Menke and Holmes, 2014; Wang et al., 2014a; Xu G. et al., 2015). For example, 10–20% excitons cannot arrive at donor/acceptor interfaces in blends of P3HT and [6,6]-phenyl-C61-butyric acid methyl ester (PCBM). For the efficient energy transfer, it is required that the third material has a complementary absorption with a large absorption coefficient, which should overlap with the fluorescence spectrum of the other donor polymer. As such, it is worthy to develop organic semiconductors with a high optical absorption coefficient.

Herein, we synthesized a low-bandgap polymer, poly[N-9′-ethylhexyl-2,7-carbazole-alt-3,6-bis(bithiophen-5-yl)-2,5 -diethylhexyl-2,5-dihydropyrrolo[3,4-]pyrrole-1,4-dione] (PCDPP4T). This polymer is based on diketopyrrolopyrrole (DPP) and carbazole (Cz) units, which are the same structure as the small conjugated molecule we reported previously: 3,6-bis{5′-(9-(2-ethylhexyl)-9H-carbazol-2-yl)-[2,2′-bithiophen]-5- yl}-2,5-bis(2-ethylhexyl)-pyrrolo[3,4-c]pyrole-1,4-dione (DPP4T-Cz) (Wang et al., 2018b). The absorption coefficient of the polymerized material PCDPP4T was slightly higher than that of DPP4T-Cz quadropolar small molecule. By using PCDPP4T as the third material into binary blends of P3HT and PCBM, the photocurrent was improved not only in the near-IR region but also in the visible region. As a result, the efficiency of ternary blend solar cells based on P3HT, PCBM, and PCDPP4T was increased by 30% compared with P3HT/PCBM binary blend devices. Figure 1 shows the chemical structures of photovoltaic materials used in this study.

FIGURE 1
www.frontiersin.org

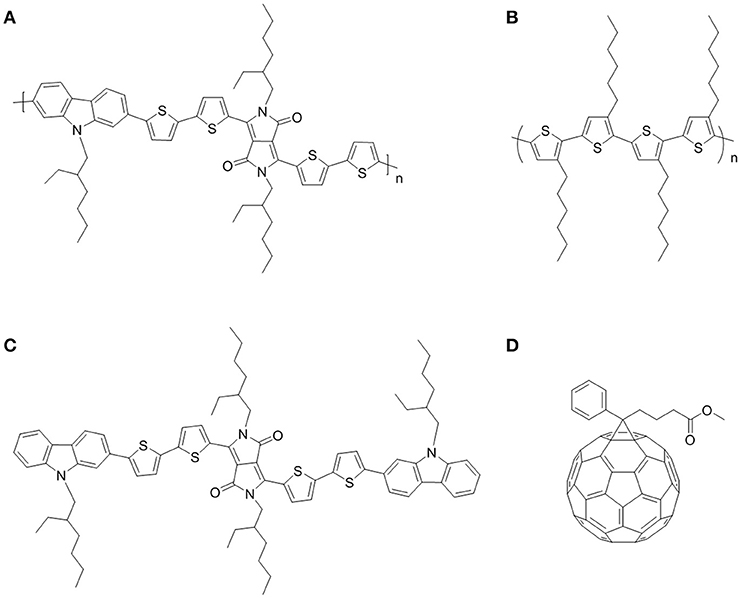

Figure 1. Chemical structures of photovoltaic materials: PCDPP4T (A), P3HT (B), DPP4T-Cz (C), and PCBM (D).

Results and Discussion

Thermal Properties of PCDPP4T

The thermal stability of PCDPP4T was examined by thermogravimetric analysis (TGA) under nitrogen atmosphere. As shown in Figure 2A, PCDPP4T was thermally stable up to around 370 °C, which is an onset temperature of thermal decomposition, and then exhibited 5% weight loss at 430 °C. This thermal stability of PCDPP4T is enough to fabricate various optoelectronic devices. In addition, the phase transition characteristics of PCDPP4T was measured by differential scanning calorimetry (DSC). As shown in Figure 2B, PCDPP4T exhibited a melting peak at 233 °C and a crystalline peak at 183 °C, indicating that PCDPP4T is a crystalline polymer.

FIGURE 2
www.frontiersin.org

Figure 2. Thermogravimetric analysis (A) and differential scanning calorimeter (B) curves of the polymers.

Optoelectronic Properties

As shown in Figure 3A, PCDPP4T exhibits a major absorption peak at around 665 nm with a shoulder at around 625 nm in solution. On the other hand, it exhibits a major absorption peak at around 685 nm in solid films. The absorption coefficient was as high as 1.3 × 105 cm−1 for PCDPP4T films, which is slightly larger than 1.0 × 105 cm−1 for DPP4T-Cz films. This large absorption coefficient is beneficial for energy transfer from wide-bandgap materials such as P3HT. The red-shifted absorption observed for PCDPP4T films indicates that PCDPP4T has longer effective conjugation lengths in solid states than in solutions. Furthermore, the absorption ratio of 0–0 to 0–1 bands was larger in solid films than in solutions. This is in contrast to the decrease in the absorption ratio of 0–0 to 0–1 bands observed for DPP4T-Cz molecules in solid states, suggesting formation of H-aggregates due to intermolecular π-π stacking. In other words, intrachain ordering is improved in PCDPP4T films while intermolecular π-π stacking is enhanced in DPP4T-Cz films.

FIGURE 3
www.frontiersin.org

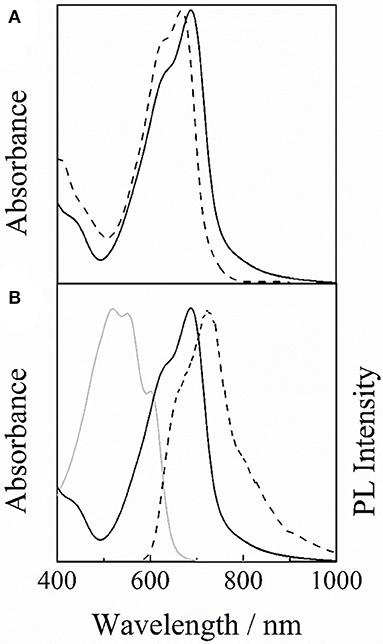

Figure 3. (A) Absorption spectra of PCDPP4T in chloroform solution (broken line) and in solid film on a quartz substrate (solid line). (B) Absorption spectra of P3HT (gray solid line) and PCDPP4T (black solid line), and photoluminescence (PL) spectrum of P3HT (black broken line).

As shown in Figure 3B, PCDPP4T exhibits a large absorption peak at around 685 nm and an absorption valley at around 500 nm while P3HT exhibits a large absorption band at around 550 nm. Because of the complementary relationship between these two absorption spectra, the absorption wavelength range can be extended from 400 to 950 nm by using PCDPP4T and P3HT polymers at the same time. Furthermore, the photoluminescence (PL) spectrum of P3HT has a substantial overlap with the absorption spectrum of PCDPP4T, which would result in the efficient energy transfer from P3HT to PCDPP4T. As reported previously (Wang et al., 2015a,b), this is beneficial for the efficient exciton harvesting to the donor/acceptor interface.

Figure 4 shows the highest occupied molecular orbital (HOMO) levels and the lowest unoccupied molecular orbital (LUMO) levels of the photoactive materials employed in this study. The HOMO level was evaluated by photoelectron yield spectroscopy (PYS) (see the Supporting Information S1) and the LUMO level was estimated from the optical bandgap and the HOMO level, as reported previously (Wang et al., 2014c). As shown in the figure, the HOMO and LUMO levels of PCDPP4T are evaluated to be −5.1 and −3.5 eV, respectively, which are located in between those of P3HT and PCBM. The cascaded energy structure with enough offset energy would be necessary for the efficient charge transfer at the interfaces of P3HT/PCBM, PCDPP4T/PCBM, and P3HT/PCDPP4T.

FIGURE 4
www.frontiersin.org

Figure 4. HOMO and LUMO energy levels of materials employed in this study: P3HT, PCBM, and PCDPP4T.

Energy Transfer and Photoluminescence Quenching

In order to discuss the energy transfer from P3HT to PCDPP4T, we evaluated the Förster radius by the equation 1 with the same parameters as reported previously (Wang et al., 2018b).

R06=9000κ2(ln 10)ηD128π5n4NAfD(ν~)εA(ν~)dν~ν~4    (1)

On the basis of the equation 1, a Förster radius was evaluated to be 4.0 nm for P3HT and PCDPP4T, which is longer than 3.5 nm evaluated for P3HT and DPP4T-Cz. The increased Förster radius, which is due to the increased absorption coefficient of PCDPP4T, would be beneficial for the efficient exciton harvesting by the energy transfer as will be mentioned below.

As shown in Figure 5, the PL intensity from P3HT was completely quenched for the P3HT/PCBM/PCDPP4T ternary blend while the PL intensity was quenched for the P3HT/PCBM binary blend down to ~20% relative to that of a P3HT neat film. This is probably because 20% of P3HT excitons that would be lost in the absence of PCDPP4T are harvested to PCDPP4T domains by the energy transfer and then quenched by the charge transfer to PCBM. Indeed, for a P3HT/PCDPP4T binary blend film, the PL intensity of P3HT decreased obviously and instead the PL intensity of PCDPP4T was observed in the near-IR region even though P3HT was selectively excited. This finding indicates that there is the efficient energy transfer from P3HT to PCDPP4T. In summary, the energy transfer from P3HT to PCDPP4T plays an important role in the exciton harvesting to donor/acceptor interfaces. As a result, the PL quenching efficiency increased from 80% for the P3HT/PCBM binary blend to 100% for the P3HT/PCBM/PCDPP4T ternary blend.

FIGURE 5
www.frontiersin.org

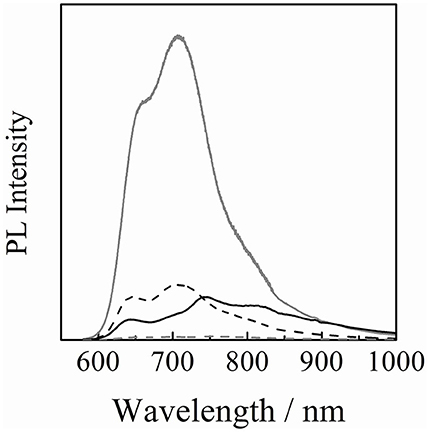

Figure 5. PL spectra of P3HT neat (gray line) and blend films with different compositions: P3HT/PCBM (20 : 20, w/w) (black broken line), P3HT/PCBM/PCDPP4T (20 : 20 : 1.4, w/w/w) (gray broken line), and P3HT/PCDPP4T (3 : 4, w/w) (black solid line) blend films. The PL intensity of P3HT was corrected for variation in the absorption at an excitation wavelength of 500 nm. The PL intensity of PCDPP4T was corrected by subtracting the PL intensity due to the direct excitation of PCDPP4T at 500 nm.

Photovoltaic Properties

Figure 6A shows the JV characteristics of the binary blend and ternary blend solar cells under simulated solar illumination (AM1.5G) with an intensity of 100 mA cm−2. As shown in the figure, the JSC was improved from 9.4 to 11.1 mA cm−2 by loading of only 3.4 wt% of PCDPP4T into P3HT/PCBM binary blends. On the other hand, no distinct change was found for the open-circuit voltage (VOC). This finding indicates that the charge recombination is still dominant between P3HT polarons and PCBM anions in the ternary blend solar cells. This is because most of P3HT domains still contact with PCBM domains at such a small fraction of PCDPP4T. Interestingly, the fill factor (FF) slightly increased from 0.55 for P3HT/PCBM binary blends to 0.59 for P3HT/PCBM/PCDPP4T ternary blends. The improved FF is consistent with the decrease in series resistance (Rs) and the increase in parallel resistance (Rp) with increasing low-bandgap polymer PCDPP4T as shown in Table 1. The decreased Rs is probably ascribed to less charge trap sites due to a reduced intermolecular π-π stacking observed in the absorption spectrum. Such improvements in FF have also been reported for other ternary blend polymer solar cells (Gasparini et al., 2016; Lee et al., 2017; Zhang et al., 2017; Zhao F. et al., 2017; Wang et al., 2018a), suggesting that charge transport might be improved in ternary blends. This is consistent with a slightly improved hole mobility observed for ternary blend films even with a similar surface morphology in comparison with those of binary blend films (see the Supporting Informations S2, S3). As a result, the power conversion efficiency (PCE) was improved from 2.7% for the binary blend solar cell to 3.5% for the ternary blend solar cell. Further addition of PCDPP4T rather decreased the photocurrent and hence degraded the overall PCE as shown in Table 1. This is probably because additional PCDPP4T would be located in P3HT or PCBM domains rather than at the P3HT/PCBM interface where desirable cascaded energy structure can be formed.

FIGURE 6
www.frontiersin.org

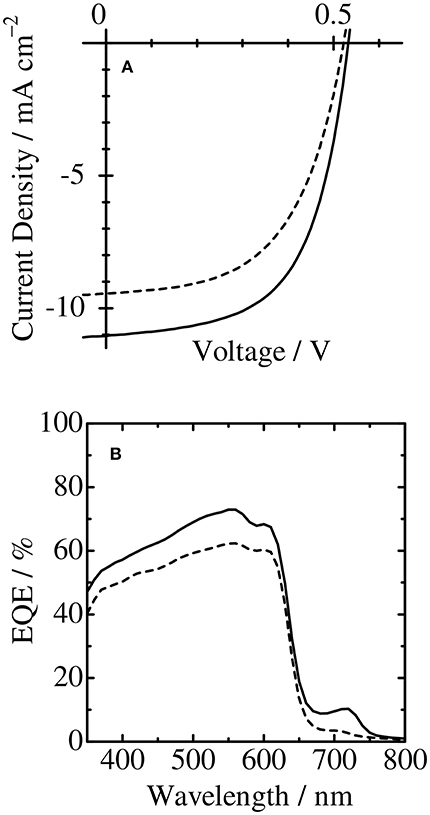

Figure 6. (A) JV characteristics and (B) external quantum efficiency (EQE) of P3HT/PCBM binary blend (broken line) and P3HT/PCBM/PCDPP4T ternary blend (solid line) solar cells under AM1.5G simulated solar illumination.

TABLE 1
www.frontiersin.org

Table 1. Photovoltaic parameters of binary and ternary blend solar cells.

In order to discuss the improved JSC, we measured the external quantum efficiency (EQE) spectra of the binary and ternary blend polymer solar cells. The JSCcalc calculated from the EQE and solar spectra is in good agreement with the JSC directly measured from the J–V curve as shown in Table 1. With the loading of 3.4 wt% PCDPP4T into the binary blend, an additional EQE signal was found in the near-IR region for the ternary blend, which is ascribed to the PCDPP4T absorption. Interestingly, as shown in Figure 6B, the EQE signal due to the P3HT absorption was also enhanced in the visible region at around 550 nm from 62 to 73%, although no difference in the absorption was found between P3HT/PCBM binary and P3HT/PCBM/PCDPP4T ternary blend films. As reported previously, (Honda et al., 2011b; Tamai et al., 2015; Wang et al., 2015b) the increased EQE is mainly because P3HT singlet excitons are more efficiently harvested to an interface of P3HT and PCBM by the energy transfer from P3HT to PCDPP4T followed by charge dissociation. This is consistent with larger PL quenching efficiency observed for the ternary blend as mentioned above. In other words, there are two mechanisms for the increase in the JSC: one is the photocurrent by additional light harvesting at the PCDPP4T absorption band in the near-IR region, and the other is the photocurrent by the efficient exciton harvesting from P3HT to PCDPP4T. The increase in the JSC was estimated to be 0.6 mA cm−2 for the additional light harvesting and 1.1 mA cm−2 for the exciton harvesting due to the energy transfer. In other words, the energy transfer from P3HT to PCDPP4T plays a dominant role in the improvement in the JSC.

Finally, we consider the future direction for highly efficient ternary blend polymer solar cells by comparing P3HT/PCBM/PCDPP4T polymer-based ternary blend solar cells with P3HT/PCBM/DPP4T-Cz small molecule-based ternary blend solar cells reported previously (Wang et al., 2018b). First, the absorption coefficient is improved for the low-bandgap polymer PCDPP4T compared to that of conjugated small molecule DPP4T-Cz. This would be due to the longer effective conjugation in polymer chains. However, the improvement in JSC for polymer-based ternary blends is limited to < 20%, which is less than that observed for small molecule-based ternary blends. In addition, the improvement in VOC for polymer-based ternary blends is also less than that observed for small molecule-based ternary blends. As a result, the overall PCE for polymer-based ternary cells is lower than that for small molecule-based ternary cells. This is probably due to a poor compatibility between P3HT and PCDPP4T because both polymers are crystalline materials. On the other hand, the improvement in FF for polymer-based ternary blends is higher than that observed for small molecule-based ternary blends. This might be due to reduced trap sites in ternary blends. We therefore suggest that low-bandgap amorphous polymers would be more suitable for highly efficient ternary blend polymer solar cells.

Conclusions

We have synthesized a low-bandgap conjugated polymer PCDPP4T incorporating diketopyrrolopyrrole and carbazole unit in the main chain. The absorption coefficient was as high as of the order of 105 cm−1, which is slightly higher than that of DPP4T-Cz monomer unit molecules. The absorption spectrum indicates that intrachain ordering is improved in solid states rather than interchain π-π stacking, which would reduce trap sites and hence result in an efficient charge transport. Because of the large absorption coefficient, the PCE is improved by 30% for ternary solar cells with only 3.4 wt% of PCDPP4T. This is mainly due to the increased photocurrent not only in the near-IR range but also in the visible range. In other words, there are two mechanisms for the photocurrent improvement: one is due to the improved lighting harvesting by PCDPP4T absorption in the near-IR region and the other is due to the improved exciton harvesting by energy transfer from P3HT to PCDPP4T. Further addition of PCDPP4T might disturb blend morphologies and hence degraded photovoltaic performances. We therefore conclude that the compatibility between two donor polymers plays an important role in the photovoltaic performances of ternary blend solar cells. We thus propose that the photovoltaic performances would be further improved by using a combination of a crystalline wide-bandgap polymer and an amorphous low-bandgap polymer with a high absorption coefficient.

Experimental Section

Materials

Poly(3-hexylthiophene) (regioregular P3HT, Mw = 50,000), zinc acetate dehydrate (Zn(CH3COO)2·2H2O), ethanolamine (NH2CH2CH2OH), 2-methoxyethanol (CH3OCH2CH2OH) were purchased from Sigma-Aldrich. A fullerene acceptor was purchased from Frontier Carbon (PCBM, E100H). 2,7-Dibromocarbazole (Cz-2Br), 1-bromo-2-ethylhexane, tri(o-tolyl)phosphine (P(o-tol)3), and tris(dibenzylideneacetone) dipalladium(0) (Pd2(dba)3) were purchased from Tokyo Chemical Industry. All materials were used without further purification.

Synthesis

A low-bandgap polymer PCDPP4T was synthesized as reported previously (Wang et al., 2018b) and the synthetic routes are shown in Scheme 1. A monomer M2 was synthesized from 2,7-dibromocarbazole (Cz-2Br) and 1-bromo-2-ethylhexane through the Hofmann alkylation reaction. The PCDPP4T polymer was prepared from M2 and DPP4T through the Stille coupling reaction. The structures of the monomer and the polymer have been confirmed by 1H NMR.

SCHEME 1
www.frontiersin.org

Scheme 1. Synthetic route of PCDPP4T.

Synthesis of M2

To a solution of 1 g (3.07 mmol) of 2,7-dibromocarbazole (Cz-2Br) in 12 mL of acetone, 368.3 mg (6.14 mmol) of potassium hydroxide powder, 1.2 mL (6.14 mmol) of 2-ethylhexyl bromide, and 0.1 g (0.29 mmol) of tetrabutylammonium hydrogen sulfate as phase-transfer catalyst were added. The mixture was heated to reflux for 24 h, and then extracted with dichloromethane. The organic layer was washed with water and dried over anhydrous magnesium sulfate. The crude product was performed by column chromatography on silica gel with ethyl acetate: petroleum ether (1 : 5, v/v) as an eluent, yielding 1.2 g (88%) of 2,7-dibromo-9-(2-ethylpentyl)-9H-carbazole (M2) as colorless oil. 1H-NMR (400 MHz, CDCl3, δ): 7.94 (2H, d), 7.52 (2H, d), 7.38 (2H, dd), 4.10 (2H, m), 1.51–1.20 (8H, m), 1.01–0.82 (6H, m).

Synthesis of PCDPP4T

First, DPP4T (350 mg, 0.34 mmol), M2 (148 mg, 0.34 mmol), and (P(o-tol)3) (12.4 mg, 0.0406 mmol) were dissolved in 15 mL anhydrous toluene. Then, the solution was purged with argon for 30 min, and Pd2(dba)3 (18.7 mg, 0.0204 mmol) was added. The reaction mixture was heated slowly to reflux for 72 h. After the reaction was completed, 2-bromothiophene (0.15 equiv.) was added to the reaction solution. After 5 h, 2-tributylstannyl thiophene (0.15 equiv.) was added and the reaction continued for another 12 h to complete the end-capping reaction. The reaction solution was cooled to room temperature, and then KF (2.7 g in 5 mL of water) was added and stirred for 6 h to remove the tin impurity. The chloroform solution containing the polymer was precipitated into 300 mL of methanol/water (15 : 1, v/v), and then the crude product was extracted with methanol and hexanes in a Soxhlet apparatus to remove the oligomers and catalyst residues until the extraction solution was colorless. Finally the crude solid was extracted with chloroform. The chloroform fraction was condensed to about 10 mL under reduced pressure and precipitated in 500 mL of methanol/water (15 : 1, v/v), filtered through 0.45 μm Nylon filter and dried under vacuum at 40 °C for 6 h, yielding 283 mg (85%) of PCDPP4T as dark green solid. 1H-NMR (400 MHz, CDCl3, δ): 8.95 (d, 2H), 7.76–7.72 (m, 4H), 7.57–7.52 (m, 4H), 7.32–7.25 (m, 2H), 7.20–7.14 (m,2H), 4.30 (t, 4H), 4.21(m, 2H), 2.03 (m, 3H), 1.80–1.50 (m, 8H), 1.50–1.15 (m, 24H), 1.06–0.80 (m, 10H). The number average molecular weight (Mn): 28 000, polydispersity index (PDI): 4.7.

Materials Characterization

The chemical structure of M2 and PCDPP4T was confirmed by NMR spectra, which was acquired at room temperature with a 400-MHz NMR spectrometer (Bruker, Avance III) in deuterochloroform containing tetramethylsilane as an internal reference. Absorption and PL spectra were measured using a spectrophotometer (Hitachi, U-4100) and a spectrofluorometer (Horiba Jobin Yvon, NanoLog) that was equipped with a calibrated imaging detector (Horiba Jobin Yvon, iHR320), respectively. The ionization potential of the polymers was measured with a PYS (Riken Keiki, AC-3). The samples were fabricated by spin-coating from stock solution onto a cleaned ITO substrate. The threshold energy for the photoelectron emission was estimated on the basis of the cubic root of the photoelectron yield plotted against the incident photon energy. The average molecular weight and polydispersity index (PDI) of PCDPP4T were measured by gel permeation chromatography (GPC) analysis (Waters, 1515) with THF as an eluent and polystyrene as a standard. Thermal stability of the sample was evaluated with Perkin-Elmer TGA 4000. About 5 mg of sample was placed in the pan and heated from 35 to 700 °C at a heating rate of 10 °C min−1 under a nitrogen atmosphere. The phase transition behavior of PCDPP4T was measured by differential scanning calorimetry (Perkin-Elmer DSC 8000) using about 5 mg of sample under a nitrogen atmosphere at a flow rate of 50 mL min−1. The instrument was calibrated for both heat flow and temperature using indium and zinc standards. When tested, samples were heated to 300 °C at a heating rate of 10 °C min−1, and cooled to 40 °C at a cooling rate of 10 °C min−1. The thermogram was recorded from the DSC first heating and cooling round.

Device Fabrication and Characterization

The indium–tin-oxide (ITO)-coated glass substrates were washed by ultrasonication in toluene, acetone, and ethanol for 15 min in sequence, dried with N2, and then cleaned with UV–ozone cleaner for 30 min. A transparent nano-particle ZnO thin film, which was employed as an electron-transporting layer, was spin-coated from a ZnO precursor on the ITO-glass substrate at 800 rpm for 10 s and 3,000 rpm for 60 s in sequence, and then were anneal at 180 °C for 1 h in air, during this process the precursor was converted to solid-state ZnO. The ZnO precursor solution was prepared by dissolving Zn(CH3COO)2·2H2O (1 g) and NH2CH2CH2OH (0.28 g) in CH3OCH2CH2OH (15 mL) under vigorous stirring for one night for the hydrolysis reaction in air. Subsequently, a ternary blend active layer of P3HT/PCBM/PCDPP4T was spin-coated at a spin rate of 600 rpm for 60 s. The ternary blend solution was prepared as follows: P3HT, PCBM, and PCDPP4T were dissolved in o-dichlorobenzene at a concentration ratio of 20 : 20 : 1.4 mg mL−1 ([PCDPP4T] = 3.4 wt%) and then the mixed solution was stirred at 60 °C overnight. Note that the weight fraction of the low-bandgap polymer PCDPP4T was optimized in the range from 2.4 to 4.8 wt%. Finally, a hole collection electrode of 10-nm-thick MoO3 and 100-nm-thick Au was thermally evaporated under vacuum at a pressure of 3 × 10−4 Pa. The effective device area was 0.07 cm2.

JV characteristics were measured with a direct current (DC) voltage and current source/monitor (Keithley, 2611B) in the dark and under the illumination with AM 1.5G simulated solar light with 100 mW cm−2. The light intensity was corrected with a calibrated silicon photodiode reference cell (Bunkoh-Keiki, BS-520). The EQE spectra were measured with a spectral response measurement system (Bunko-Keiki Co., ECT-250D). The power of the incident monochromatic light was kept under 0.05 mW cm−2, which was measured with a calibrated silicon reference cell (Bunkoh-Keiki, BS-520BK).

Author Contributions

YW, BW, HK, and HO designed the research objective. JC and RI conducted field experiments. YW performed statistical analysis and drafted the initial article. YW, HK, and HO contributed section content and edited to subsequent drafts, while all authors reviewed and provided feedstock on the submitted article.

Funding

This work was partly supported by the Natural Science Foundation of Jiangsu Province (BK20160280), Double Plan of Jiangsu Province, and JST ALCA Grant Number JPMJAL1404, Japan.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenrg.2018.00113/full#supplementary-material
