Three-Dimensional Ordered Porous Carbon for Energy Conversion and Storage Applications

Introduction

Developing safe, low-cost and efficient energy storage and conversion devices has become an urgent need, owing to the growing demands of sustainable resources, such as solar and wind power (Cao et al., 2017; Li et al., 2020; Wu M. et al., 2020). Carbon materials exhibit numerous advantages, such as high electrical conductivity, low cost and high specific surface area (Cao et al., 2014; Li et al., 2019; Wu Q. et al., 2020). Carbon materials can be categorized into four types, i.e., zero-dimensional (0D, e.g., C₆₀), one-dimensional (1D, e.g., carbon nanofibers and carbon nanotubes), two-dimensional (2D, e.g., graphene and carbon sheets), and three-dimensional structures (3D, e.g., 3D porous carbon and graphene foam) (Zhang F. et al., 2017). In recent years, 3D carbon materials have demonstrated excellent electrochemical performance in a wide range of applications including energy storage and conversion (Ullah et al., 2019; Ni and Li, 2020).

In a conventional route for preparation of a certain electrode, a slurry composed of active material, conductive agent and binder is normally casted onto a current collector. With increase of the loading mass of active material and the thickness of electrode, its electrical conductivity decreases. Besides, thick electrode leads to high tortuosity, which hinders the penetration of electrolyte and ion transport and results in limited utilization of active materials (Wang et al., 2019; Shi et al., 2020a). It is an effective way to promote the transportation of ions and electrons by fabricating low-tortuosity electrode.

The three-dimensional ordered porous carbon (3D-OPC) possesses low tortuosity and open pores (Qiao et al., 2019; Zhou et al., 2019). When used as an electrode material, it can not only provide fast electron transport path, but also significantly shorten ion diffusion length to achieve fast kinetic performance (Figure 1a). In addition, 3D-OPC effectively suppresses the agglomeration of nanoparticles and maintains a large specific surface area (Zhao et al., 2015). However, the controllable preparation of 3D-OPC is still a challenge. In this review, we summarize the controllable preparation methods for 3D-OPC, and the latest research progress of 3D-OPC in energy storage and conversion applications.

FIGURE 1

Figure 1. (a) Schematic illustration of the different configurations of electrode materials: fabricate electrodes by slurry-casting process (left) and 3D-OPC electrodes (right). (b) Formation mechanism of the vertically aligned film by electrophoresis and freeze-drying (source: Mochizuki et al., 2019). Reproduced by permission of American Chemical Society https://doi.org/10.1021/acsaem.8b01478. (c) Thermal decomposition of C₂H₂ in a sulfate-containing AAO template and the formation of S-CNTs after AAO removal (source: Zhou et al., 2012). Reproduced by permission of Royal Society of Chemistry https://doi.org/10.1039/C2EE22294A. (d) The fabrication process of the CW-CNT@N-C-NiFe electrode (source: Li Y. et al., 2018). Reproduced by permission of WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim https://doi.org/10.1002/aenm.201801289. (e) Photos of the pristine wood, the flexible wood, and the flexible cathode with the CNT coating and Ru (source: Xu et al., 2018). Reproduced by permission of Royal Society of Chemistry https://doi.org/10.1039/C8EE01468J.

Preparation Methods

The methods to prepare 3D-OPC can be divided into template-assisted methods and non-template approaches. Based on the different types of templates, the template-assisted methods include hard-templating method (Masuda and Fukuda, 1995; Li X. et al., 2018), ice-templating method (Roberts et al., 2014; Zhai et al., 2017), soft-templating method (Peng et al., 2019), and self-templating method (Feng and Yin, 2018). However, the soft-templating method normally lack of controllability, which is difficult to form a stable structure with vertical channels. Herein, we focus on the research progress of the other three template-assisted preparation methods for 3D-OPC.

Ice-Templating Synthesis

The ice-templating method is based on the solid phase produced in the process of phase separation, followed by removing solidified solvent with the solid phase frame retained (Shao et al., 2020). The structures produced by ice-templating method can be easily regulated. Moreover, this method is applicable to a wide range of materials, such as polymers, carbon aerogels and so on. According to different precursors, carbon aerogels can be divided into graphene aerogels, carbon nanotube-based aerogels, biomass-derived aerogels and so on (Shahbazi et al., 2020). Graphene oxide (GO) aerogels with good physical and chemistry properties is one of the most widely studied carbon-based aerogels. Wang et al. first proposed a freeze-drying method followed by a reduction process to prepare the reduced graphene oxide (rGO) aerogels (Wang and Ellsworth, 2009). Since then, the graphene aerogels prepared by the ice-templating method have been extensively studied. As a typical example, Zhang et al. added ethanol to the GO suspension, which was then transferred to a polytetrafluoroethylene (PTFE) mold for the subsequent rapid-freeze process in liquid nitrogen (Zhang P. et al., 2017). Finally, a long vertical graphene film was produced by freeze-drying and annealing. Ethanol is used as anti-freeze agent to reduce the freezing point, which has a significant influence on the crystallization behavior of ice. In addition, Wang et al. prepared a GO aerogel with a radially aligned structure by bidirectional freeze-casting method (Wang C. et al., 2018). During the freezing process, ordered porous GO aerogel was formed with a continuous 3D network. To study freezing/assembling mechanism, the authors added different additives, such as ethanol, chitosan or cellulose nanofibers to the aqueous solution of GO. It is revealed that different additives affected the interaction between ice crystals and GO nanosheets, resulting in the ice crystals with different shapes. Furthermore, Mochizuki et al. reported vertical aligned rGO electrodes through electrodeposition of GO to form rGO and subsequent freeze-drying process (Figure 1b; Mochizuki et al., 2019). This method can control the film thickness and pore size to achieve fast charge storage and low resistance. In addition, the pore size can be controlled in the range of 10–100 μm by adjusting the freezing rate.

Hard-Templating Synthesis

The hard template not only has high stability, but also can control morphology and increase specific surface area of catalysts. There are numerous hard templates, such as salt (Zhang et al., 2020), metal (Cao et al., 2011), and silica (Byeon et al., 2020), available to prepare carbon materials. For example, Kim et al. used various-sized silica nanoparticles as template which was subsequently removed by 1M NaOH to obtain mesoporous nitrogen (N)-doped carbon (Byeon et al., 2020). Kyotani et al. (1988) first proposed that carbon materials can be synthesized via hard-templating method in 1988. Further, the next breakthrough was achieved by Kyotani et al. (1995), who synthesized carbon nanotubes with a uniform length and diameter by using anodic aluminum oxide (AAO) as a hard template in 1995. The porous AAO template is a typical hard template with low cost and highly ordered nano-scale array channels. Since then, the preparation of various 3D-OPCs through AAO template had become a research hotspot. Typically, Wang et al. used AAO as a hard template to prepare CNT-coated Sn nanoparticles with almost 100% particle encapsulation and high filling uniformity by a chemical vapor deposition (CVD) process (Wang et al., 2009). Similarly, Zhou et al. prepared a sulfur-doped carbon nanotube cathode (S-CNTs) by using sulfate-containing AAO templates (Figure 1c; Zhou et al., 2012). The specific surface area of S-CNTs with mesoporous structure reached 613 m² g^–1. The authors claimed that the mesoporous structures of S-CNTs can reduce cathode polarization, and promote ion transportation. Moreover, sulfur is confined in the walls of the nanotubes which can restrict the dissolution of formed polysulfides when used as cathode for Li-S battery.

Self-Templated Synthesis

Direct synthesis without additional template can significantly reduce cost in practical applications. Wood is a natural composite material composing vertical channels. After carbonization, its original features of low tortuous, open micro-channels and 3D layered porous structure can be maintained, which is suitable as building block for constructing ultra-thick electrodes. The wood-derived carbon material was first reported as electrode materials for supercapacitors in 2004 (Wu et al., 2004). Since then, the application of wood-derived materials have been further extended to batteries, electrocatalysis and so on. For example, Li et al. pre-carbonized wood slices at 260°C for 6 h in air atmosphere, then carbonized them at 1000°C for 6 h in Ar atmosphere, and finally activated the carbonized slices in CO₂ atmosphere at 800°C (Li et al., 2017). During the process, CO₂ reacted with the amorphous carbon in carbonized wood to produce porous structure. The activated wood has an anisotropic structure and excellent deformation resistance. After that, rGO and S were filled into the microchannels of the carbonized wood to achieve a high sulfur mass load. Furthermore, Wu et al. used H₂ as the reducing gas, ethylene as the carbon source and Ar gas as the carrying gas to in situ grow CNTs in carbonized wood channels by CVD method (Figure 1d; Wu et al., 2019). The specific surface area of the electrode was increased to 537.9 m² g^–1 because of the introduction of CNTs. Then, the authors improved the hydrophilicity of the material after treating them using a mixed solution containing HNO₃ and H₂SO₄, achieving the reduction of contact angle from 144 to 27.1°. Lignin, cellulose and hemicellulose are important components of wood. Xu et al. used sulfites to remove lignin which makes wood rigidity (Xu et al., 2019). Meanwhile, hemicellulose and cellulose could be dissolved by soaking in a basic solution containing sulfites, which made the treated wood more flexible (Figure 1e). Later, the surface of the flexible carbonized wood was coated with ruthenium-decorated CNT network (CNT/Ru) by vacuum-assisted method. Based on the Xu’s research, Chen et al. reported a carbonized sponge with a high compressibility of ∼ 80% and high fatigue resistance (10,000 cycles at 50% strain), which was prepared by a wood template (Chen et al., 2018). In this work, more lignin and hemicellulose inside wood were removed by a treatment of H₂O₂. A subsequent carbonization leads to a sponge with unique lamellar structure.

Applications of Energy Storage and Conversion

Electrocatalysis

Noble metal-based catalysts (e.g., Pt and Ir) are efficient electrocatalysts for oxygen evolution reaction (OER), oxygen reduction reaction (ORR) and hydrogen evolution reaction (HER). However, scarcity and valuableness greatly restrict their commercial applications (Deng et al., 2019; Liu et al., 2019, 2020). Therefore, it is desirable to develop inexpensive and efficient alternatives. Ordered porous carbon with vertical channels is a promising candidate, which has advantages of fast ion diffusion and electron transport.

Recently, 3D wood-based materials have aroused numerous researchers’ interest. Li et al. demonstrated the core-shell nitrogen doped, few-graphene-layer-encapsulated nickel iron alloy nanoparticles (N-C-NiFe) in the carbonized wood with CNTs (N-C-NiFe@CW-CNT) by thermal-pulse method (Li Y. et al., 2018). The N-C-NiFe was anchored on CNTs uniformly (Figures 2a–d). Low-tortuosity microchannels were favor to hydrogen release and electrolyte penetration, therefore, N-C-NiFe@CW-CNT showed good electrochemical performance of HER with a small Tafel slop (52.8 mV dec^–1), low overpotential (179 mV, at 10 mA cm^–2) and good cycling stability (Figure 2e). Inspired by this, Yang et al. designed a CoFeP_x nano-catalyst with thin iron shells in wood wall (CoFeP_x/c-wood) by making use of the steam pressure difference between Fe and Co at high temperature (Yang et al., 2019). The thin iron shell (∼2 nm) as the protective layer of CoFeP_x greatly improved the durability of catalyst without sacrificing the activity of the catalyst due to geometric effects of the thin coating layer. Compared to CoP_x and FeP_x, CoFeP_x showed a better OER electrochemical performance with lowest overpotential (323 mV at 10 mA cm^–2) and Tafel slope (58 mV dec^–1). Besides, CoFeP_x/c-wood possessed excellent cycling stability of 50 h.

FIGURE 2

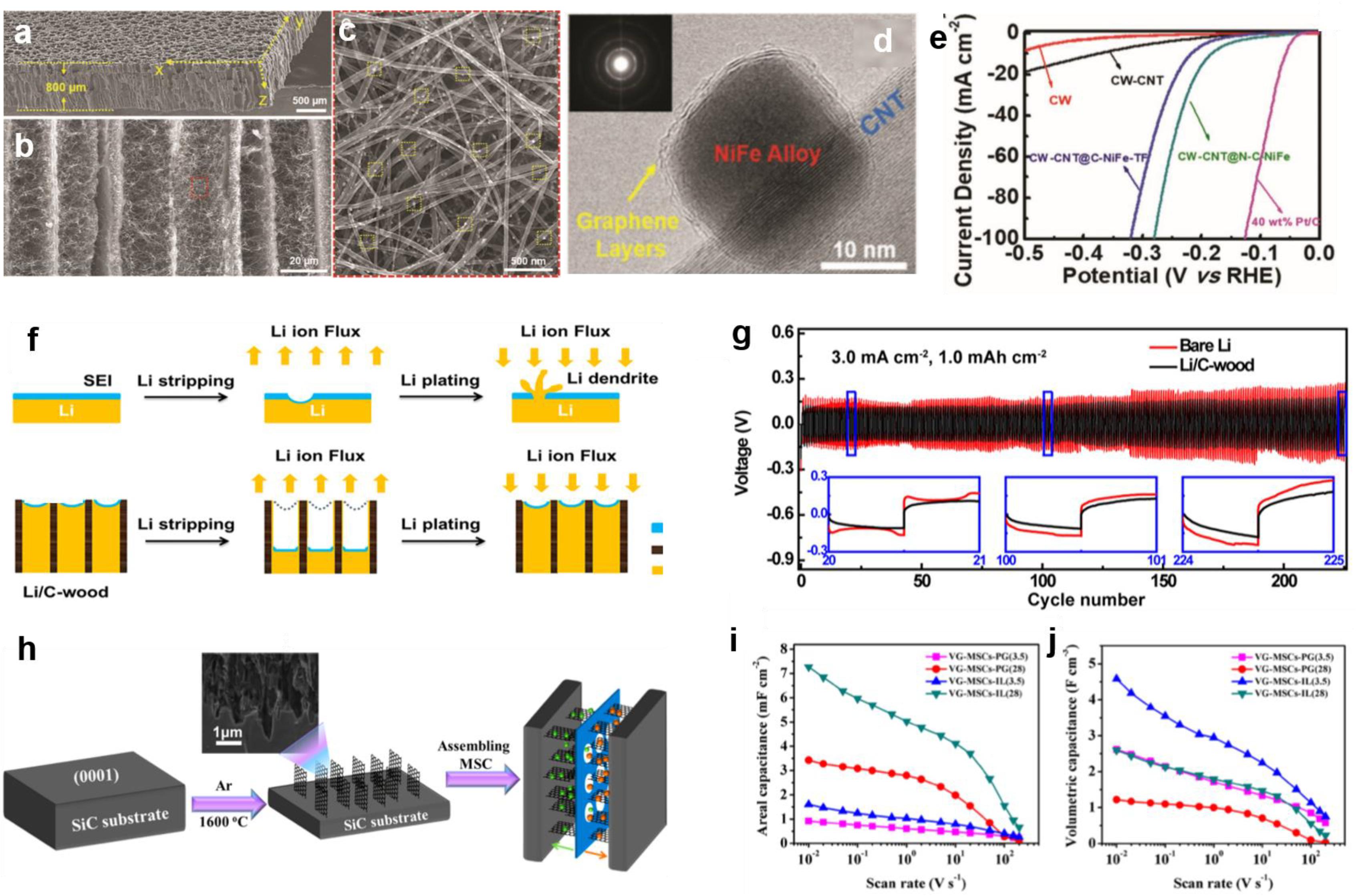

Figure 2. (a–d) Morphology of the CW-CNT@N-C-NiFe. (a–c): SEM images of CW-CNTs@N-C-NiFe (d)TEM image of CW-CNTs@N-C-NiFe, it shows the NiFe alloy nanoparticle which is inset in CNT and encapsulated by the few graphene layers) (e) LSV curves of the CW, CW-CNTs, CW-CNTs@C-NiFe-NF, CW-CNTs@N-C-NiFe, and commercial 40 wt% Pt/C electrodes (source: Li Y. et al., 2018). Reproduced by permission of WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim https://doi.org/10.1002/aenm.201801289. (f) Li stripping/plating of bare Li metal electrodes and Li/c-wood electrodes. (g) Voltage profiles of bare Li metal and Li/c-wood cell at 3 mA⋅cm^{– 2}, Li/c-wood cells exhibited smaller voltage and long-term cycling stability (source: Zhang Y. et al., 2017). Reproduced by permission of American Chemical Society https://doi.org/10.1073/pnas.1618871114. (h) VG films derived from the SiC substrates to form VG-MSCs. (i,j) Areal/volumetric capacitance of different VG-MSCs (PG means using H₂SO₄/PVA as gel electrolyte, IL means using EMIMBF₄ as liquid electrolyte) (source: Zheng et al., 2017). Reproduced by permission of American Chemical Society https://doi.org/10.1021/acsnano.7b00553.

Batteries

Rechargeable batteries, such as lithium-ion batteries (Zhang et al., 2018; Deng et al., 2020a,b; Huang et al., 2020), sodium-ion batteries (Gao et al., 2020; Jin et al., 2020; Shi et al., 2020b,c; Wang et al., 2020) and metal-air batteries (Shi et al., 2019; Wu F. et al., 2020), have been intensively investigated recently. Due to the long cycling life, high voltage and energy density, lithium-ion batteries are widely used in electronic devices and other fields (Yan et al., 2019; Deng et al., 2020b).

Li metal anode undergoes large volume change during Li ion intercalation/deintercalation, which destroys the solid electrolyte interphase (SEI), making fresh Li metal exposed to electrolyte and leads to excessive growth of SEI. Zhang Y. et al. (2017) injected the molten lithium metal into the channels of carbonized wood to form a Li metal/carbonized wood (lithium/c-wood) electrode, in which the ZnO coating made the interface between c-wood and Li more wettable. Moreover, c-wood with 3D porous conductive frame structure is an ideal host for lithium metal, which can adapt to the volume change of lithium metal during the long cycle (Figure 2f). In addition, compared to bare Li metal, Li/c-wood electrodes in symmetrical batteries had a lower overpotential (90 mV at 3 mA cm^–2), better cycling performance (150 h at 3 mA cm^–2) and more stable stripping/plating profiles. Even at a high current density of 3 mA cm^–2, the Li/c-wood electrodes in the commercial electrolyte achieved long-term cyclic stability (Figure 2g). Similarly, Xue et al. (2018) assembled continuous silver nanowires onto an interconnected 3D graphene network (3D Ag-GN) by ice-templating method, and designed a layered 3D porous structure as a host for the lithium metal composite anode. The hierarchical networks not only provided ultrafast electron transport channels and non-nucleation barrier sites to limit lithium deposition, but also had excellent mechanical strength to support lithium deposition. Moreover, 3D Ag-GN could work over 1000 plating/stripping cycles with low overpotential (at 40 mA cm^–2) in a symmetric cell. As the thickness of the electrode increased, the dynamics of ion transport were hindered, and the rate performance of the lithium-ion batteries decreased. Zhang et al. (2019) used magnetite (Fe₃O₄) with high theoretical capacity to produce aligned Fe₃O₄/GO electrodes with fast ion transmission channels by ice-templating method. Besides, they proved that Fe₃O₄/GO had a fast ion transfer kinetics by galvanostatic intermittent titration technique (GITT), electrochemical impedance spectroscopy (EIS), and cyclic voltammetry (CV).

Supercapacitors

Supercapacitors is one of the most promising energy storage devices due to long lifetime, high power density, and fast charge/discharge rates (Xu et al., 2017, 2018). However, traditional supercapacitor electrode materials (e.g., activated carbon, carbonized derived carbon, and carbon nanotubes) normally have a long ion-diffusion path. Moreover, the presence of binder in powder-based electrode materials covers a part of the active sites, which reduces energy density. Electrode with vertical channels can provide fast mass transportation. Zheng et al. (2017) designed vertically aligned graphene (VG) nanocrystals by decomposing SiC matrix at high temperature, which used as electrode materials for micro-supercapacitors (MSCs) (Figure 2h). The VG nanocrystals micro-supercapacitors (VG-MSCs) had high areal and volumetric capacitance, and fast frequency response. More importantly, it showed high power density in gel electrolyte (∼15 W cm^–3) and ionic liquid (∼61 W cm^–3) (Figures 2i,j). In addition, Chen et al. designed an all-wood-structured asymmetric supercapacitor (ASC) using a MnO₂/wood carbon as cathode, an activated wood carbon as anode, and a wood membrane as separator (Chen et al., 2017). Remarkably, a high mass load of active material can be achieved by increasing electrode thickness or extending electrodeposition time of MnO₂. The prepared electrode materials maintained the unique anisotropy structure of the wood and highly exposure active sites, allowing the electrolyte ions to pass directly through the channels, showing high ionic conductivity. The ASC retained ∼0.6 mW h cm^–2 (5.7 W h kg^–1) at a power density of 24440 mW cm^–2 (107.7 W kg^–1), which can light up a light-emitting diode (LED) after pre-charging to 1.8 V. Furthermore, Wang Y. et al. (2018) applied Co(OH)₂@CW as cathode of an all-solid-state asymmetric supercapacitors, which possessed high energy/power density, and maintained 85% capacitance retention after 10000 charge/discharge cycles.

Conclusion

The versatility and availability of the 3D-OPC with high specific surface area, highly ordered channels, low tortuosity and open pores have been demonstrated in various applications in energy storage and conversion. In this review, we outlined the latest development on the rational design and controllable preparation of 3D-OPC and their composites for applications of electrocatalysis, batteries and supercapacitors. The strategies to achieve controllable synthesis of 3D-OPC can be classified as follows. Firstly, a hard template with appropriate size and morphology can be selected to synthesize electrode materials. Secondly, in ice-templated approach, the electrode thickness and pore size can be controlled through modulating the crystallization behavior of ice by adding various additives (e.g., ethanol, chitosan, or cellulose nanofibers), and adjusting the freezing rate, which achieve high conductivity, shorten ion diffusion length and large specific surface area. Thirdly, carbonization temperature and calcination atmosphere control the shrinkage rate as well as the consequent aperture changes of carbonized wood, which play an essential role in the formation of internal pores and surface morphology of samples.

Although the 3D-OPC or their composites with ultrafast electron/ion transport path, abundant active sites, and fast reaction kinetics showed superior electrochemical performance when applied in energy storage devices, it still has several challenges. First, the methods based on hard templates inevitably involve the corrosive solution in post-processing step, which largely increases the cost and is not suitable to industrialization. Second, the controllable growth of active materials on the 3D-OPC is still a challenge, since uneven distribution of reactants in channels normally results in asymmetrical nucleation and growth of active materials. Third, the relation between morphology, pore size, structure of the 3D-OPC and electrochemical performance is vague and imprecise.

In spite of the vast research and progress that were discussed, there are still many opportunities for further advancement of 3D-OPC. First, the influence of the penetrability of vertical channels (the diffusion of adjacent channels) on electrochemical performance could be further studied. Second, the other active materials, such as perovskite, single atom, can be loaded on the 3D-OPC to improve the performance for photocatalysis, electrocatalysis, and so on. Third, it is significant to proceed the computational simulation about the relation between pore size of vertical channels and electrochemical performance. Moreover, there are still some other methods may be explored for preparing 3D-OPC, such as template-free method, biomass-derived method, the assembly of sp²-hybridized carbon. It is also promising to explore the applications of 3D-OPC in gas separation, dye degradation, water purification, and capacitive deionization (CDI). Therefore, tremendous explorations and optimizations of the 3D-OPC and their composites are indispensable in the future work.
