High-entropy spinel-structure oxides as oxygen evolution reaction electrocatalyst

www.frontiersin.orgDavid Stenzel1 www.frontiersin.orgBei Zhou1 www.frontiersin.orgChukwudalu Okafor2 www.frontiersin.orgMohana Veeraju Kante1 www.frontiersin.orgLing Lin1 www.frontiersin.orgGeorgian Melinte1,3 www.frontiersin.orgThomas Bergfeldt4 www.frontiersin.orgMiriam Botros1 www.frontiersin.orgHorst Hahn1,3,5 www.frontiersin.orgBen Breitung1* www.frontiersin.orgSimon Schweidler1*
  • 1Institute of Nanotechnology, Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany
  • 2Department of Materials- and Geosciences, Technical University Darmstadt, Darmstadt, Germany
  • 3Helmholtz Institute Ulm for Electrochemical Energy Storage, Ulm, Germany
  • 4Institute for Applied Materials—Applied Materials Physics, Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany
  • 5Joint Research Laboratory Nanomaterials, Technical University Darmstadt, Darmstadt, Germany

High-entropy oxides are an upcoming research topic due to their broad range of possible crystal structures and applications. In this work, we want to present the change in the catalytic properties when using different elements to create a high-entropy spinel. Therefore, we used the nebulized-spray pyrolysis to synthesize the high-entropy spinel (Mn0.2Fe0.2Ni0.2Mg0.2Zn0.2)3O4 and later on exchanged the Mg or the Zn with elements with multiple possible oxidation states, in our example each with Cr or Co. The phase purity, morphology, microstructure and homogeneity were investigated by XRD, SEM and STEM-EDX. Their electrocatalytic performance and stability was measured via oxygen evolution reaction and cyclic voltammetry and compared to IrO2, used as reference. The best performance of the synthesized materials was achieved by (Mn0.2Fe0.2Ni0.2Mg0.2Cr0.2)3O4.

Introduction

Due to today’s demand for renewable energy sources and generation, many new technologies are becoming the focus of scientific interest. One of these promising technologies is the fuel cell, which uses hydrogen and oxygen to generate electricity and can be used in a variety of applications. However, if fuel cells are to be used on a potentially large scale, the supply of reactants must be ensured. One such option is electrolysis of water, the reverse process of the fuel cell, which uses an applied potential to split water into hydrogen and oxygen. When combined with renewable energy sources, such as coastal wind energy, it offers the possibility of forming large quantities of hydrogen and oxygen directly at energy generation sites. Unfortunately, the water-splitting reactions—2O2- are oxidized to O2 at the anode and 2H+ are reduced to H2 at the cathode—have a large overvoltage that results in wasted energy, since a much higher amount of energy must be expended to split water than would theoretically be necessary. Therefore, catalyst materials that reduce the overvoltage of the water splitting reaction are under intense investigation (Lee et al., 2012; Katsounaros et al., 2014).

Here, we focus on catalysts for the oxygen evolution reaction (OER), the reaction in which oxygen is oxidized at the anode (Gray, 2009; Man et al., 2011; Katsounaros et al., 2014; Cherevko et al., 2016). State-of-the-art catalysts that exhibit excellent OER activity typically include noble metals and their oxides, e.g., Ir, IrO2, Ru, and RuO2. However, the drawbacks of noble metal oxides as OER catalysts are their high cost, scarcity, and poor long-term stability in alkaline electrolytes, which limit their large-scale applications (Lee et al., 2012; Cherevko et al., 2016). Therefore, it is important to develop new cost-effective and durable electrocatalysts with high catalytic activity, therefore much research has been done in this area (Trasatti, 1980; Man et al., 2011). Many different materials, structures, and catalyst types have been tested, metal oxides and sulfides, spinels and perovskites, homogeneous and heterogeneous catalysts, to name a few (Matsumoto and Sato, 1986; Sun and Dai, 2021).

A novel and promising approach to potentially high-performance catalysts is the use of high-entropy materials (HEMs) (Albedwawi et al., 2021; Sun and Dai, 2021). HEMs are a class of materials in which many different elements are incorporated into a single-phase crystal structure and often exhibit unexpected properties due to intrinsic elemental interactions. The original idea behind high-entropy materials was to produce materials with a very high configurational entropy (Sconfig), such that the absolute value of the entropy-dependent second term of the Gibbs-Helmholtz equation (TΔS) increases, potentially stabilizing the crystal structure. These special cases are called entropy-stabilized materials, but they represent only a small fraction of high-entropy materials because the energy conditions are rarely satisfied (Murty et al., 2019; Oses et al., 2020). In general, a material is called HEM, if Sconfig is greater than 1.5R. The absolute value of Sconfig depends solely on the number of different elements and their stoichiometry (Supplementary Equation S1) (Murty et al., 2019). Therefore, it is necessary to incorporate a large number of elements (preferably equimolar) into a single-phase structure, resulting in different interactions between them; these interactions are called cocktail effects and are the basis for the unique properties of HEMs. Depending on the variation of the elements, the cocktail effects and thus the material properties can be tailored, and in some cases even properties that are not expected can be obtained. In the arsenal of material design, property control is fundamental and HEMs provide even more precise control by adding and/or subtracting elements, providing the ability to fine-tune the material (Oses et al., 2020; Ma et al., 2021). Due to the high-entropy configuration, which requires a homogeneous distribution of elements in the crystal structure and also on the surface of the materials, HEMs can behave completely differently in terms of catalytic properties than catalysts with surfaces made of binary materials (Pedersen et al., 2021). This is due to the high sensitivity to the chemical environment of the catalytic reactions that usually take place on the surface of a material. The unique surface of a HEM with atomic-sized catalytic centers and an elemental composition that may stabilize more than one transition state can be seen as the reason for a potential next-generation catalyst that expands the range from homogeneous to heterogeneous to high-entropy catalytic materials.

With HEMs, it is possible to vary the material composition and still maintain functionality. This makes it possible to minimize or avoid the use of rare or expensive elements. In particular, if noble metal catalysts such as RuO2 and IrO2 can be substituted for OER, this allows the development of very low-cost catalysts (Gray, 2009). So far, multiple different high-entropy alloys (HEA) combinations have been used as OER catalysts (Li and Chen, 2021; Li et al., 2021; Wang et al., 2021; You et al., 2022; Zhang et al., 2022). HEA catalysts show superior performance and increased stability compared to conventional binary or ternary alloys. These effects are most probably related to the entropy-driven structure stabilization and the associated effects among the incorporated metals (Ma et al., 2021). The same improvements are to be expected when comparing high-entropy oxides (HEOs), sulfides, etc. to their conventional binary or ternary forms. Several HEM materials have been investigated, e.g., high-entropy perovskites, high-entropy sulfides, and high-entropy spinels. Since they exhibit overpotential in the range of RuO2 and/or IrO2 for OER, further studies are encouraged (Albedwawi et al., 2021; Sun and Dai, 2021).

One of the first attempts to use HEOs as electrocatalysts was carried out by Wang et al. (2019) They used the high entropy spinel (HESp) (CoCuFeMnNi)3O4 for OER and achieved better OER activity than mixed metal oxides with fewer elements. The improved OER performance was attributed to the highly dispersed active sites, fast material diffusion, and excellent conductivity (Wang et al., 2019). Subsequently, various HEOs were used for OER (Jin et al., 2021; Nguyen et al., 2021; Yang et al., 2021).

Using the HESp (Cr0.2Mn0.2Fe0.2Co0.2Ni0.2)3O4 and various medium-entropy spinels, Sun et al. confirmed that the high entropy approach leads to a significant improvement in OER kinetics and higher stability in KOH solution than the comparable medium entropy materials, further validating the theory of Pedersen et al. (Pedersen et al., 2021; Sun et al., 2022). In addition, Einert et al. (2022) show that by changing the porosity of (Cr0.2Mn0.2Fe0.2Co0.2Ni0.2)3O4, the geometric current density can be significantly improved compared to dense samples. This indicates that spinel materials with high entropy are generally suitable as OER catalysts, but can be further optimized.

In this report, we show that one possibility for further optimization is to modify the composition and property changes due to cocktail effects. These changes are investigated by synthesizing several HESps containing cheap and readily available transition metals and comparing their structural and OER properties. For this purpose, the elemental composition of the starting spinel (Mn0.2Fe0.2Ni0.2Mg0.2Zn0.2)3O4 is varied by replacing Mg and/or Zn with Co and/or Cr. The influence of the change is investigated by XRD, SEM, STEM-EDX and the analysis of the OER measurements.

Materials and methods

Synthesis: The HESps containing five transition metals were synthesized by nebulized spray pyrolysis (NSP) (Messing et al., 1993; Sarkar et al., 2017). First, 200 mL of a 0.1 M nitrate salt solution of the respective transition metals (Mn(NO3)2∙6H2O (abcr GmbH, Karlsruhe, Germany, 98%), Fe(NO3)3∙9H2O (abcr GmbH, Karlsruhe, Germany, 98%), Ni(NO3)3∙6H2O (abcr GmbH, Karlsruhe, Germany, 99.9%), Cr(NO3)3∙9H2O (abcr GmbH, Karlsruhe, Germany, 99%), Co(NO3)2∙6H2O (abcr GmbH, Karlsruhe, Germany, 99%), Mg(NO3)3∙6H2O (SigmaAldrich, St. Louis, MO, United States, 99%) and Zn(NO3)2∙6H2O (Riedel-de Haën, Seelze, Germany, 98%) were prepared. Subsequently, each homogenous clear aqueous solution was dispersed into fine droplets by a nebulizer. The resulting mist was passed through a hot-wall reactor at 1050°C using a carrier gas (N2). The formed powder was collected on a filter paper in a heated collector at 120°C to prevent water vapor from condensing on the powders. The compositions can be seen in Table 1.

TABLE 1
www.frontiersin.org

TABLE 1. Overview of the high-entropy spinel (HESp) materials.

Material characterization: X-ray diffraction (XRD) patterns were collected on the as-synthesized powder samples, using a STOE Stadi P diffractometer, equipped with a Ga-jet X-ray source (Ga-Kβ radiation, 1.2079 Å). Patterns were collected between 10° and 90° 2Θ with a step size of 0.03° and a scanning rate of 0.36°/min. Rietveld refinement was performed by using TOPAS Academics V5 software. Scanning electron microscopy (SEM) imaging was done using a LEO-1530 electron microscope (Carl Zeiss AG, Oberkochen, Germany). The particle size distribution was evaluated using the image processing program ImageJ (Schneider et al., 2012). High resolution scanning transmission electron spectroscopy with energy-dispersive X-ray spectroscopy (STEM-EDX) measurements was performed on dry powder of the samples placed directly on the TEM holey carbon membrane without using solvents. Measurements were performed using a Themis300 electron microscope (Thermo Fischer Scientific, Eindhoven, Netherlands) working at 300 kV and equipped with a DCOR probe corrector (CEOS, Heidelberg, Germany) and a Super X EDX detector (Thermo Fischer Scientific, Eindhoven, Netherlands). Velox software was used to quantify the EDX data. The elemental maps are represented as net intensities of the selected energy lines. The elements were determined by optical emission spectrometry (ICP-OES, iCAP 7600DUO from ThermoFisher Scientific, Waltham, MA, United States). About 10 mg of the samples (weighing accuracy ± 0.04 mg) were dissolved in 6 mL hydrochloric acid, 2 ml nitric acid at 353 K for 4 h in a graphite oven (EasyDigest, Analab, Hoenheim, France). The analysis of the elements were accomplished with four different calibration solutions and an internal standard (Sc). The range of the calibration solutions did not exceed a decade. The two or three major wavelength of the elements has been used for calculation. The oxygen content was analyzed with the method of carrier gas hot extraction (CGHE). A commercial oxygen/nitrogen analyzer G8 Galileo (Bruker AXS, Karlsruhe, Germany) was used. The oxygen concentration was calibrated with TiO2 (990001, Lot: 21919, Alpha, Kandel, Germany, 99,995%) and ZrO2 (996001, Lot: 22317, Alpha, Kandel, Germany, 99,978%) and was verified with a NMC532 (LCM52318043, MTI Corp., Richmond, Californian, United States). The calibration range was close to the concentration of the samples. The standards and the samples were weighed in the range from about 2 mg (weighing accuracy ± 0.05 mg) in Sn crucibles (5–12 mm). The package was put into an outgassed (900 A) high temperature graphite crucible with about 150 mg graphite. The measurements take place at about 850 A. The evolving gas CO were swept out by helium as an inert carrier gas and measured by infrared detectors.

Electrochemical characterization: The electrocatalytic OER measurements were performed under ambient conditions with a constant temperature of 30°C using a modulated speed rotator (Equilabrium SAS, Lyon, France) and a biologic VSP potentiostat (BioLogic Sciences Instruments, Seyssinet-Pariset, France). A typical three-electrode system was assembled, using 1M potassium hydroxide (KOH) (reagent grade, Sigma Aldrich, Germany, 90%) solution as electrolyte, a rotating glass carbon electrode (0.196 cm2) as working electrode, a Pt spiral as counter electrode, and an Ag/AgCl electrode as reference electrode. To prepare the working electrode, 10 mg active material, 100 µL Nafion (5 wt% Nafion in water/1-propanol, VWR International GmbH, Bruchsal, Germany), 100 µL ultra-pure water, produced and purified with a Millipore Milli-Q system (Merck KGaA, Darmstadt, Germany), and 1800 µL 2-propanol (VWR, International GmbH, Germany, >99.9%) were mixed by an ultrasonic homogenizer (Scientz-IID, Ningbo Scientz Biotechnology Co., Ltd., Ningbo, Zhejiang, China) in an ice water bath for 30 min. For each measurement 8 µL of the solution was dropped on the working electrode and dried in air at room temperature. Before each measurement, 150 mL of the electrolyte in the electrochemical three electrode cell was saturated with N2 for 30 min. Each measurement consists of two steps: (I) cyclic voltammetry (CV) containing two cycles between −0.8 and 0.3 V versus Ag/AgCl at 50 mV s−1 in N2-saturated electrolyte and (II) after switching the gas flow to O2 and waiting for 30 min to saturate the electrolyte, linear sweep voltammetry (LSV) was performed in the potential range from 0 to 1 V versus Ag/AgCl to measure the OER activity. IrO2 (AlfaAesar, Kandel, Germany, 99%) was measured as reference material. The potential (EAg/AgCl) was calibrated with the reversible hydrogen electrode (RHE) potential ERHE by using the equation ERHE = EAg/AgCl + 0.1919 + 0.059 * pH. Tafel curves were obtained by plotting log I versus overpotential. The catalytic active area was determined by evaluating the second derivative of the curves.

CV measurements were performed to evaluate the long-term stability. One thousand CV cycles were applied to the electrode materials between 0.32 and 0.82 V versus Ag/AgCl at 50 mV s−1 in O2-saturated electrolyte to observe the evolution of the current. Additionally, five hundred CV cycles were applied to the electrode materials between −0.8 and 0.3 V versus Ag/AgCl at 50 mV s−1 in N2-saturated electrolyte to observe the material behavior in this voltage range. Electrochemical impedance spectroscopy (EIS) was measured between 1.4 and 1.8 V RHE versus open-circuit potential (OCP) and between 100 kHz and 100 mHz with AC modulation of 10 mV and 25 points per decade.

Results and discussion

The aim of this research was to investigate the catalytic properties of high-entropy spinels for the OER and to elaborate the role of different elements on the activity. Six different high-entropy compounds were synthesized, namely (MnFeNiMgZn)3O4 (HESp1), (MnFeNiMgCr)3O4 (HESp2), (MnFeNiMgCo)3O4 (HESp3), (MnFeNiCrZn)3O4 (HESp4), (MnFeNiCoZn)3O4 (HESp5) and (MnFeNiCrCo)3O4 (HESp6). Note that the last two elements in the brackets have been changed to produce different compositions, while Mn, Fe, and Ni are included in each material.

Based on Supplementary Equation S1, the Sconfig calculation for all HESp materials gave 1.61R, which makes them HEMs. Another condition is the equimolar ratio of the metal species and their homogeneous distribution, which will be discussed later. The general idea behind high-entropy materials is to produce multicomponent compounds that change their properties with respect to a desired characteristic related to their elemental composition and stoichiometry. By changing the composition or stoichiometry, the properties can be tailored and precisely adjusted. The changes that occur are related to the so-called “cocktail effects,” which are interactions between elements that occur when different elements with different electronic states, electronegativities, ion sizes, preferred structures, oxidation states, etc., are mixed.

In order to evaluate the crystal structure and phase composition of the HESp materials XRD measurements and Rietveld refinement analysis were performed. A comparison of the obtained XRD patterns is displayed in Figure 1A. Figure 1B shows the exemplary Rietveld refinement of HESp1 and HESp6. With the exception of HESp6, which has a pure spinel structure (Fd-3m, ICSD collection code: 12807), all other HESp materials consist of a mixture of a spinel and a rock-salt structure (Fm-3m, ICSD collection code: 9866) (Figure 1 and Figure 2A).

FIGURE 1
www.frontiersin.org

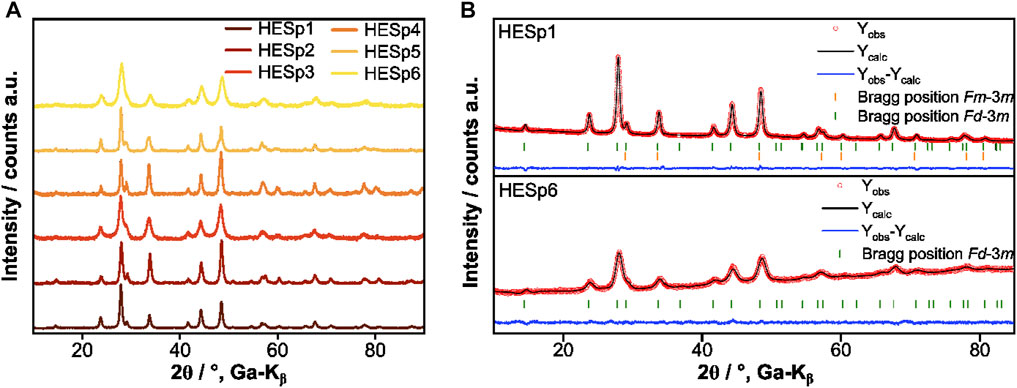

FIGURE 1. (A) Comparison of the normalized XRD patterns of the HESp materials synthesized via NSP. (B) Rietveld refinement of HESp1 and HESp6.

FIGURE 2
www.frontiersin.org

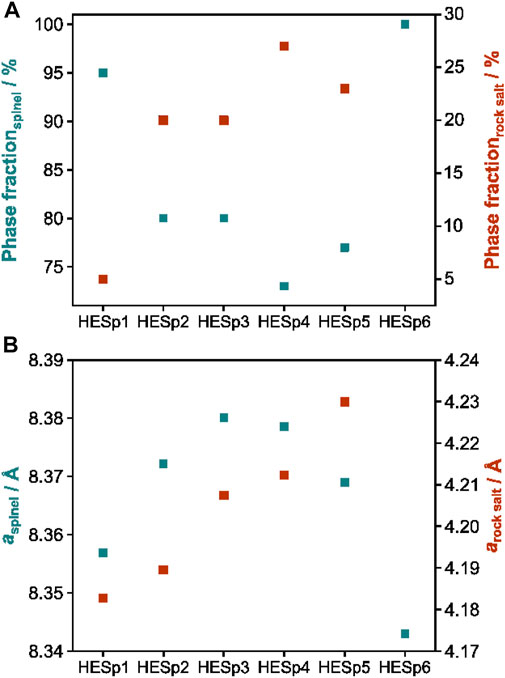

FIGURE 2. (A) Phase fractions and (B) a-axis length of the spinel phase (green) and rock-salt phase (red).

The reason why different compositions have different phases after synthesis could be the following. The enthalpy of mixing indicates the energy required to mix the different elements. Only if the enthalpy of mixing is not too large, a single-phase structure can form. The differences in ionic radius and especially in oxidation state of the different incorporated elements play a crucial role in changing the enthalpy of mixing. If the size differences are too large or if internal redox reactions occur between the ions that make them incompatible for a particular structure, the enthalpy of mixing will be too large to form a stable single-phase compound. In addition, different synthesis methods may result in oxidation of the elements during synthesis, changing the intended average oxidation state during synthesis (e.g., an average oxidation state of 2+ is required to form a stable rock salt compound. If Fe2+ is oxidized to Fe3+ during synthesis, internal charge balance is required to maintain charge neutrality). Matching the synthesis conditions for all samples requires a number of further studies and is not easily achieved with NSP (Stygar et al., 2020). The lattice parameters of all materials can be found in Supplementary Table S1.

First, HESp1, HESp2, and HESp3 will be compared. Using HESp1 [(MnFeNiMgZn)3O4] as a starting material, it can be seen that the lattice parameters of both spinel and rock-salt phases increase when Zn is replaced by Cr or Co. This is remarkable because the ionic radius of Cr (0.615 Å) and Co (0.58 Å) in their 3+ or 2+ states is smaller than the radius of Zn2+ (Dai et al., 2021). Later, in HESp6, when both Cr and Co are incorporated into the spinel instead of Zn and Mg, the opposite trend, a decrease in lattice parameters, was observed. Moreover, for HESp2 and HESp3, the proportion of rock-salt phase increased from approximately 5% (HESp1) to 20% (Figure 2A). A comparable behavior was also observed for HESp4 and HESp5. In both cases, Mg was replaced by either Cr or Co compared to the initial material [HESp1, (MnFeNiMgZn)3O4], resulting in an increase in the lattice parameters. In both cases, the increase in the a-axis was larger than for HESp2 and HESp3, which can be probably attributed to the larger ionic radius of Zn (0.6 Å) compared to Mg (0.57 Å) (Figure 2B). The percentage of rock-salt phases was ∼27 and ∼23% for HESp3 and HESp4, respectively. The only exception was HESp6, which exhibited a single phase spinel structure. The lattice constants of HESp6 are the smallest at ∼8.43 Å and show a different trend from the lattice expansion when Zn is replaced in HESp2 and HESp3, as explained above. The lack of rock-salt structure could be due to the fact that Cr and Co, unlike Zn and Mg, are free to choose their oxidation state and are therefore not subject to any restriction, which may lead to charge balance and thus preferential spinel structure formation. This could also be one of the reasons why all materials containing either Zn or Mg, or both, exhibit an additional rock-salt structure. A similar observation was made by Wang et al. (2020) during the stepwise addition of Li to the spinel-like materials (NiFeMnCrMg)3O4, (NiFeMnZnMg)3O4, and (NiFeMnCrCo)3O4. As the content of monovalent Li+ ions increased, a transformation from the spinel to the rock-salt phase occurred because, above a certain Li content, charge balance by oxidation of the other transition metals was no longer possible, resulting in the formation of a rock-salt structure with a lower O:M ratio to compensate for the lack of positive charges. It can therefore be assumed that similar behavior also occurs in HESp materials. The ionic radii of the divalent and trivalent ions in tetrahedral coordination are Zn2+: 60 p.m., Co2+: 58 p.m., and in octahedral coordination Zn2+: 74 p.m., Co2+: 65–74.5 p.m. (ls-hs), Co3+: 54.5–61 p.m. (ls-hs), Co3+: 54.5–61 p.m. (ls-hs) Cr3+: 61.5 p.m. (Shannon, 1976). In a normal spinel structure AB2O4 the A cations occupy tetrahedral sites while the B cations octahedral sites, in an inverse spinel half of the B cations replace the A cations in tetrahedral positions while the A cations move to octahedral positions. If the high-entropy compounds are normal or inverse spinels, cannot be predicted.

The morphology of the HESp materials prepared with NSP was studied by SEM (Figure 3). They are composed of hollow and filled spheres, and the size of most particles ranges from 0.2 to 1.2 μm. Optical analysis of the size distribution shows that the diameters vary between 100 nm and 2 µm (Supplementary Figure S1) (Schneider et al., 2012). The average particle size of (MnFeNiMgCr)3O4 is about 0.5 µm, and almost 70% of the particles are in the size range between 200 and 600 nm. It can be concluded that only 8.4% of the particles are larger than 1 μm, as shown in the particle size distribution diagram (Supplementary Figure S1).

FIGURE 3
www.frontiersin.org

FIGURE 3. (A–F) Top-view SEM images of HESp1-6 prepared by NSP.

The spheres of the different materials have different surface structures: more or less round, concave, notched, some smooth and some rough. SEM images of HESp samples at a different magnification are shown in Supplementary Figure S2. The particles without Zn have a more compact and round shape (Figures 3B,C,F). This can be attributed to the different solute precipitation rates at the surface and in the center, which are due to the different solubilities of the starting materials and the evaporation rates of the solvents (Messing et al., 1993; Shih et al., 2012). During the cooling stage, the oxide shell with different particle sizes can show different deformation behavior, resulting in smooth or uneven surfaces. In conjunction with the morphology analysis of the other five samples, it can be deduced that all HESp powders with different components are distributed in the same size range (Table 2). SEM images of the reference catalyst IrO2 show micrometer-sized, angular crystals aggregating into clusters (Supplementary Figure S3). ICP measurement were performed to analyze the exact chemical formula (Table 2). All compounds show a nearly equimolar distribution of the elements further confirming their status as HEMs.

TABLE 2
www.frontiersin.org

TABLE 2. Overview of the formula based on ICP and the average particle size of the HESp materials.

STEM-EDX was used to investigate the element distribution. Figure 4 shows that all elements in the exemplary HESp2 are uniformly distributed. No segregation of individual elements was detected, leading to the assumption that a homogeneous distribution of elements also exists within the rock-salt phase detected by XRD. Based on that and the distribution seen in Table 2 the requirements for a high-entropy materials as given in Supplementary Equation S1 are fulfilled.

FIGURE 4
www.frontiersin.org

FIGURE 4. STEM-EDX mapping of HESp2. All elements are distributed uniformly.

The catalytic performance of the materials for the OER reaction was tested by preparing a glassy carbon working electrode covered with a 2-propanol-based solution of the respective catalyst active material and Nafion. Initial CV steps before OER are performed to activate the material. Figure 5A shows the behavior of the synthesized HESps and the reference material IrO2 during OER. All measurements were performed during constant O2 flow and are normalized to the geometric electrode surface. To avoid interference from O2 bubbling, the upper applied potential was fixed at 1.8 V versus RHE. This procedure allows to observe the initial potential of the OER, the overpotential at 10 and 50 mA/cm2, and to compare the reaction kinetics based on the Tafel slope of the curve.

FIGURE 5
www.frontiersin.org

FIGURE 5. (A) LSV curves of the different HESp materials including IrO2 during the OER in O2-saturated 1 M KOH, the dotted lines mark the values for the OER onset (dark blue) and overpotential at 10 mA/cm2 (light blue). (B) Tafel slopes of the different HESp materials. (C) Comparison of the values for OER onset and overpotentials. Missing bars indicate a very large overpotential. (D) Voltammogram of HESp2 during CV after 1, 2, 25, 50, 100, 250, 500, and 1,000 cycles.

The differences in the electrocatalytic potential of all materials can be seen in the differences between the OER onsets at 0.5 mA/cm2 and the overpotentials (Figure 5C). IrO2 as a reference material has a higher value than most HESp materials with an OER onset of 1.51 V vs. RHE. Only HESp4 shows a higher onset of 1.52 V versus RHE. For the calculation of the overpotential, the potential difference between the potential of each HESp material at 10 and 50 mA/cm2 and the equilibrium potential for oxygen reduction at 1.23 V was calculated (Supplementary Table S2) (Kulkarni et al., 2018). All HESp materials showed lower overpotentials at 10 mA/cm2 compared to IrO2. Whereby HESp2 and HESp3 exhibited the lowest overvoltage values at 10 mA/cm2 with approximately 290 and 306 mV. Whereas the values of overpotential at 50 mA/cm2 of HESp1, HESp2, HESp3, and HESp5 are all located close to each other in a range of ∼ 490–540 mV. For HESp4, HESp6, and IrO2 an overpotential could not be detected at 50 mA/cm2. The catalytic activities of the HESp materials and the reference material (IrO2) were determined by the evaluation of the Tafel slope (Figure 5B). The Tafel slopes were obtained from LSV curves collected (Figure 5A). In addition to the smallest onset potentials and overpotentials, HESp1, HESp2, and HESp3 also exhibit the smallest Tafel slopes with 35.5, 46.5, and 45.9 mV dec−1, respectively, which are all lower than IrO2 with 49.5 mV dec−1. Generally, a lower Tafel slope indicates easier acceleration of electron transfer and migration during the catalytic process, allowing the catalyst to produce larger current densities at the same potential.

Compared to literature values, the HESp materials show good performances. Sun et al. and Einert et al. performed OER measurements on similar materials and reported overpotentials of around 320 mV at 10 mA/cm2 and a Tafel slope of 54.5 mV/dec−1 (Sun et al., 2022), (Sun et al., 2018), or for mesoporous materials an overpotential of 350 mV at 10 mA/cm2 and a Tafel slope of 35.0 mV dec−1. The best performing materials with regard to overpotential at 10 mA/cm2 and Tafel slope in this report were HESp2 and HESp1, which reveal an overpotential of 290 mV and a Tafel slope of 46.5 (HESp2) or an overpotential of 346 mV and a Tafel slope of 35.5 mV dec−1, respectively (Einert et al., 2022).

To further asses the electrochemical activity of HESp2, repeated CV measurements in O2 saturated electrolyte were performed in the OER range between 1.3 and 1.8 V vs. RHE. (Figure 5D). This procedure allows to study the aging of the catalyst during long-term CV-tests. 1000 cycles were performed on the material between 1.3 and 1.8 V versus RHE in 1 M KOH at 50 mV s−1 in O2-saturated electrolyte to observe the evolution of the current. From the first cycle up to cycle 100 in Figure 5D, an increase of the final current at 1.8 V vs. RHE is visible with a big step between cycle one and cycle 25, followed by a small step until cycle 50 and a minuscule one until cycle 100. The corresponding values for cycle one, two, 25, 50, and 100 are 3.5, 4.5, 12.1, 13.7, and 14.0 mA cm−2. Up to cycle 1000 the current decreases up to 4.1 mA cm−2, whereas the loose for each cycle get smaller again with increasing cycle number. The increase in the beginning can be associated to the missing activation of the material via CV before starting the CV measurements compared to the LSV measurement (Shinagawa et al., 2017; Liu et al., 2020). The decrease shows signs of material failure due to decomposition processes.

Electrochemical impedance spectroscopy (EIS) was measured between 1.4 and 1.8 V RHE versus open-circuit potential (OCP) and between 100 kHz and 100 mHz with AC modulation of 10 mV and 25 points per decade.

The Nyquist plots of HESp2 and IrO2 measured between 1.4 and 1.8 V RHE and OCP are shown in Supplementary Figure S4. This range was chosen because of the onset of the catalytic reaction (Figure 5D). Both materials show only a semicircle, so it can be confirmed that only one charge transfer driven reaction takes place at some kind of catalytically active surface. The mixture of rock-salt and spinel phases in HESp2 has no significant effect on this reaction. IrO2 exhibits much lower charge transfer resistance compared to HESp2 at any potential (Supplementary Figure S4B). Therefore, a higher catalytic activity of IrO2 compared to HESp2 would be expected due to faster kinetics. However, the opposite was observed. The difference is probably influenced by the differences in morphology. This indicates that the OER performance of the HESp materials might be still underestimated due to the non-optimized surface area and composition. A quantitative comparison of EIS measurements between materials with such different powder morphologies is very difficult.

Looking at the elemental composition of the HESp materials, it can be seen that all Mg-containing materials (HESp1, HESp2, and HESp3) have the best catalytic OER properties. However, by replacing Zn (in HESp1) with Cr (HESp2) or Co (HESp3), the catalytic properties were further improved. Consequently, it can be assumed that Mg has a positive and Zn probably a lesser impact on the OER performance. This assumption is further strengthened by the fact that in the materials in which Mg was exchanged for Cr (HESp4) or Co (HESp5) and the Zn content was maintained, as well as for HESp6 in which both Zn and Mg were exchanged for Cr and Co, all three combinations showed poorer catalytic properties. In the following, the effects of Mg, Cr, and Co on the OER performance are discussed in more detail. First, HESp1, HESp2, and HESp3 are compared, where the addition of Mg improves the OER performance, most probably, by changing the electronic structure and optimizing the arrangement of surface atoms (Li et al., 2020). In addition to the influence of Mg, HESp2 obtains its improved electrocatalytic activity/potential for OER from the addition of Cr (Li et al., 2018; Shao et al., 2019). Dang et al. (2021) formulated that Cr atoms in the host matrix can modulate the electronic structure of the catalyst to achieve the optimal binding energies for oxygen intermediates with an enhanced charge/mass transfer process for the fast kinetics of OER reactions. Co oxides with a spinel structure generally exhibit good OER properties (Bergmann et al., 2015; Chen et al., 2015; Xu et al., 2019). Saddeler et al. describes the effect of adding Co to Fe3O4, which comes into play in HESp3, where Co improves OER reaction kinetics (Saddeler et al., 2021). The difference between HESp2 and HESp3 results from a stronger effect of Cr than of Co. HESp1 with Zn appears to be initially worse than HESp2 and HESp3. However it later reaches comparable values to HESp3. The reason for this, and thus the effect of Zn on our materials, cannot be clearly determined (Petrykin et al., 2011; Liu et al., 2014; Rebekah et al., 2020). Without Mg, the electrocatalytic performance is much lower in HESp4, HESp5, and HESp6. The combination of Co and Zn in HESp5 shows the best potential without Mg, which is due to the structural change of the surface and the higher density of accessible active Co3+ sites due to the incorporation of Zn2+ (Petrykin et al., 2011). HESp5 has comparable results to the ZnxCo3-xO4 spinel, as shown by Liu et al. (2014). HESp6 with Co and Cr gives better results than HESp4 with Cr and Zn. The addition of Co increases the catalytic potential in HESp5 and HESp6 more than Cr in HESp6 and HESp4. Moreover, the electrocatalytic activity of the materials seems to be mainly influenced by the cocktail effect, which is based on the elemental composition rather than the crystal structure. In summary, the improvement of OER activities by the different compositions can be verified by the data available in the literature. The same applies to the influence of particle morphology in Figure 3. In addition, it should be mentioned at this point that the formation of the rock-salt type structure could also have an influence on the OER performance. It could be that catalytic OER is favored when the proportion of rock-salt structure increases, as is the case for HESp1 to HESP2 and HESp3, and that a further increase, as is the case for HESp4 and HESp5, in turn has a negative effect on catalytic activities. Further studies (e.g., DFT) could shed light on this, however, this is out of the scope of this study.

HEMs are considered to be very special catalytic materials. They can be seen as the next step in the chain from homogeneous to heterogeneous to high-entropy catalysts. The unique surface makes high-entropy materials very special because statistically distributed atomic size elements serve as catalytic centers. The diversity of elements might allow different transition states to be stabilized during the catalytic process, and their atomic distribution brings them into very close proximity to each other. Doping a homogenous catalyst could also change the electronic structure, but replacing an element in a high-entropy material would change all of the above effects. Furthermore, cocktail effects even add more complexity by granting each material composition a unique “fingerprint” that has great impact on the materials properties.

Conclusion

Six equiatomic high-entropy spinel materials, some with a high-entropy rock-salt type phase, were synthesized by the nebulized spray pyrolysis technique and investigated for their structural and electrocatalytic properties. All synthesized materials exhibit an average particle size between 0.4 and 0.5 µm, a uniform distribution of elements, and an equimolar ratio. Their electrocatalytic properties were compared with those of IrO2, a commonly used catalytic material. The OER onset, overvoltage and Tafel slope of all synthesized materials give better values than IrO2. (Mn0.2Fe0.2Ni0.2Mg0.2Cr0.2)3O4 obtained the best electrocatalytic properties with an OER onset of 1.44 V, overpotential of 293 mV (at 10 mA/cm2) and Tafel slope of 46.5 mV dec−1, closely followed by (Mn0.2Fe0.2Ni0.2Mg0.2Co0.2)3O4. An improvement in electrocatalytic performance with the addition of Mg is clearly evident. In general, this study shows that the incorporation of the high-entropy concept and thus the cocktail effect is a good way to develop a future-proof OER catalyst material.
