Abstract
This study uses an interdisciplinary approach to investigate variability in fire weather, fire activity and fire management decision spaces in western Canada from three separate perspectives. We used time series analysis to identify periodic and quasi-periodic components of fire weather measures at second, hourly, daily, yearly, and multi-decadal resolution in 3 ecozones. Examples of relationships between scales of fire weather and fire activity were taken from the literature. Through interviews with and observation of Canadian wildland fire management agencies we identified 20 typical decision problems which we mapped to 16 spatio-temporally cohesive decision spaces extending from incident to national levels and immediate to multi-decadal time spans. To connect these domains, we propose that space time cascades of atmospheric kinetic energy are reflected in an inverse cascade of wildfire activity, and shape the spatio-temporal dimensions of decision spaces and the pace of fire management decisions.
“Big whorls have little whorls, which feed on their velocity
And little whorls have lesser whorls, and so on to viscosity”
Lewis Fry Richardson, 1922
Introduction
Much early wildland fire research sought to relate changing daily weather to fire potential in fire danger rating systems to inform prevention and preparedness decisions (Taylor and Alexander, 2006; Hardy and Hardy, 2007). Growing recognition of the role of wildland fire in the Earth System and its ecosystems (Bowman et al., 2009), as well as the increasing socio-economic impacts of fire on many continents has stimulated a burst of new fire science in the past three decades in areas of climate change and Earth system processes, fire physics and behavior (Sullivan, 2017), fire management and analytics (Minas et al., 2012; Taylor et al., 2013; Martell, 2015; Jain et al., 2020), as well as in fire ecology (McLauchlan et al., 2020), and socio-economics. Abatzoglou and Kolden (2013) note that “the host of processes, timescales and sequences of atmospheric forcing that conspire in wildfire occurrence, behavior and growth, varies geographically and remains challenging to integrate in both research studies and operational fire management alongside the increasingly complex human environment.”
Spatio-temporal variability in atmospheric quantities and processes important to fuel moisture, fire ignition and growth (e.g., lightning, solar radiation, temperature, relative humidity, potential evaporation, and wind speed) is a result of interactions between incoming solar radiation, land cover and oceanic and atmospheric circulation. While the mean atmospheric and surface temperature is primarily determined by the balance of incoming and outgoing radiation at the top of the atmosphere, incident solar radiation varies across the Earth’s surface and over time due to daily and annual rotation of the Earth, axial tilt and orbital eccentricity. Spatio temporal differences in radiative heating are further modified by cloud cover and the albedo of the surface (e.g., water, vegetation, rock, snow, and ice). These gradients in surface heating set up horizontal and vertical pressure gradients, and atmospheric circulation. As was noted by Richardson (1922) atmospheric structures occur over a huge range of scales. Atmospheric eddies can have dimensions from a millimeter to thousands of miles and have lifespans seconds to months; climate variability extends further over millions of years (Lovejoy and Schertzer, 2010).
An international conference “Fire Prediction Across Scales” was held at Columbia University (Field et al., 2018) to synthesize research across the topics of fire prediction and fire management and impacts1. The objective of this interdisciplinary paper is to develop a conceptual framework linking fire weather, fire activity and management as a basis for integration, for framing predictive modeling, and to further understanding of whole system dynamics − it is a contribution to the special issue “Climate Land Use and Fire – Can Models Inform Management” arising from the conference.
Our proposition is that atmospheric energy cascades shape the pattern and tempo of fire weather, fire activity and fire management decisions across scales. Drawing on examples from western Canada, we examine fire weather, fire activity and fire management from three separate perspectives. The structure of the paper is as follows: In Section “Temporal Components of Fire Weather Index in Western Canada” we investigate periodic and quasi-periodic components in fire weather through analysis of the power spectra of the Fire Weather Index and the Monthly Drought Code of the Canadian Fire Weather Index System in western Canada. In Section “Fire Activity Across Scales” we review influences of fire weather on fire activity at different scales. We then map the temporal and spatial structure of fire management decision spaces in Canada in Section “Fire Management Decision Spaces.” In Section “Synthesis” we bring these three threads together in new synthesis of atmospheric, fire activity, and fire management decision making scales.
Temporal Components of Fire Weather Index in Western Canada
Spectral, wavelet, and other time series analysis have been used to characterize periodicity in wind speed, temperature, and pressure. Van der Hoven (1957) identified spectral peaks in kinetic energy in a composite series of horizontal wind speed measurements at 100 m above surface at 4 days, 12 h, and 1 min which he attributed to the passage of synoptic fronts, diurnal effects, and turbulence; this has classically been termed the Van der Hoven spectrum. Spectral analysis has also been used to identify ultra-long, long, and short waves with periods of ∼ 25, 10 and 4–6 days, respectively, in 500 hPa wind speeds in the northern Hemisphere (Fraedrich and Böttger, 1978)and in long and short waves in the southern Hemisphere (Fraedrich and Kietzig, 1983). Sources of intraseasonal and annual atmospheric variability include the Madden Julian Oscillation (MJO) and North Atlantic Oscillation (NAO) that primarily influence precipitation and the direction of storm tracks in the Pacific and Atlantic basins, respectively. Modes of low frequency variability associated with coupled atmospheric-oceanic (AO) circulation include the El Nino Southern Oscillation (ENSO), PDO (Pacific Decadal Oscillation), and Atlantic Multi-Decadal Oscillation (AMO) with quasi periods of approximately 2−3, 20, and 60 years, respectively. See Kaplan (2011) for a summary of these and other quasi periodic monthly, annular and multi-decadal anomalies. Very low frequency oscillations in temperature identified in Greenland and Antarctic ice cores extending to 110 kyr BP during the last ice age are attributed to orbital frequencies and ice sheet dynamics (Yiou et al., 1997). Spectral analysis naturally suggested classification of the spatial dimension and frequency of atmospheric features into a scale-based hierarchy (Orlanski, 1975; Fujita, 1981; Table 1); many authors have subsequently adapted or refined Orlanski’s scheme. It is important to notes that atmospheric processes are continuous not discrete, and contemporary interpretations of atmospheric variability (e.g., Lovejoy and Schertzer, 2010) emphasize a continuous energy cascade over scale-bound phenomenological classifications. The atmospheric energy cascade is forward in some parts of the spectrum, and inverse in others and extends from seconds to millennia and centimeters to planetary dimensions. For a detailed survey and discussion of atmospheric space times cascades see Lovejoy and Schertzer (2012).
TABLE 1
| Scale | Wavelength | Period | Examples |
| Microscale | <2 km | <1 h | Gusts |
| Mesoscale | 2−2000 km | 1 h−1 month | Slope winds, sea breezes, thunderstorms, fronts |
| Synoptic | >500 km | <1 month | Cyclones, anticyclones |
| Macroscale/intraseasonal | >2000 | 1 month | Long waves, MJO, monsoons |
| Global | planetary | >1, >10 years | ENSO, PDO |
Some typical scales in meteorology and climatology (after Orlanski, 1975; Stull, 2017).
In this section we use spectral analysis to investigate whether these sources of atmospheric variability as well as daily and annual radiative forcing are apparent in the Fire Weather Index in western Canada. The FWI is an index of fire intensity where increasing values represent increasing intensity. Van Wagner (1987) scaled the standard FWI to fire intensity in red pine stands in ON, Canada:
where I is frontal fire intensity (kWm–1). Fire intensity has been correlated with FWI in other fire behavior field experiments in mature and immature jackpine stands, and jackpine slash in Ontario (Stocks and Walker, 1972; Stocks, 1987, 1989) and in jackpine stands in Alberta (Alexander and De Groot, 1988) shown in Figure 1. While the FWI−fire intensity correlation varies in different fuel complexes, fire intensity varies over 4 orders of magnitude from 10 to >10, 000 kWm–1 in the range of FWI 1-50 in each case. Examples of potential fire behavior and fire suppression implications associated with FWI and corresponding fire intensity values for the standard condition are shown in Table 2. Fire intensity is correlated with biomass consumption in fires and is also a key factor in plant mortality due to lethal heating of cambium and roots or crown scorch (Ryan and Reinhardt, 1988; Alexander et al., 2019). While more complex and accurate models are used to predict fire spread and intensity in particular fuel complexes in operational practice (e.g., Forestry Canada Fire Danger Group, 1992; Andrews, 2014), the FWI is used in many fire climate research studies (e.g., Barbero et al., 2020 this issue) because it is a simple but robust indicator of fire activity. FWI is widely used as a danger index globally (Taylor and Alexander, 2006; Field, 2020) and is correlated with fire activity in many regions (Abatzoglou et al., 2018).
FIGURE 1
TABLE 2
| FWI | Intensity (kW/m) | Potential fire behavior | Fire suppression implications |
| <3 | <10 | Firebrands and fires tend to self-extinguish | No control problems |
| 3−9 | 10−100 | Fires continue to smolder | On-going mop up |
| 9−17.5 | 100−500 | Surface fire with flame heights < 1.0 m | Limit of control with hand tools |
| 17.5−28.5 | 500−2000 | Moderately vigorous surface fires with both high and low flames. Ladder fuels consumed. Isolated torching | Heavy equipment, helicopters with buckets, skimmers and retardant aircraft likely to be effective |
| 29−36 | 2000−4000 | Highly vigorous surface fire. Passive crowning in conifer forests | Control at fires head may fail. Suppression on flanks |
| 36−48.5 | 4000−10 000 | Extremely vigorous surface fire in open fuels. Active crown fires with continuous spread in conifer forests | Suppression on fires flanks or indirect attack |
| >48.5 | >10 000 | Conflagrations. Towering convection columns. Fire whirls. Medium to long range spotting | Suppression should not be attempted until burning conditions ameliorate |
Nominal frontal fire intensities, potential fire behavior and suppression implications (after Taylor and Alexander, 2017) for the Van Wagner (1987) FWI – Intensity scaling function.
Study Area and Data Compilation
The study area encompasses the Pacific Maritime, Montane Cordillera, and Boreal Plain ecozones in western Canada (Wiken, 1986) which have a combined area of 1.38 million km2. These ecozones have distinct a spring and summer fire season (approximately May to October) which is separated by winter periods during or after which the moisture content of the surface organic layer is very high or fully saturated due to over winter precipitation as rain or snow, effectively limiting ignitions to near zero. Summer fire weather in western Canada is strongly affected by mid-tropospheric ridges and troughs, particularly the North Pacific High and Aleutian Low (Nadeem et al., 2019) which punctuate the predominant westerly zonal flow. Longer term weather, climate and fire activity in the region are influenced by ENSO and PDO (Meyn et al., 2010). We examined temporal periodicity in two fire weather quantities in the 3 ecozones from observations at 1 Hz to monthly resolution over observational periods from hours to a century.
We obtained fire weather and climate observations at four different sampling frequencies from stations at 3 sites in each of three ecozones that were co-located as closely as possible (Figure 2). The Pacific Maritime sites have Cfb and Csb Koppen-Geiger climates (temperate oceanic and warm summer mediterranean), the Montane Cordillera sites have Dfb and Dfc climates (warm summer humid continental and cool continental subarctic) and the Boreal Plain sites have a Dfb climate (Anonymous, 1958). Details on the location, weather observations and period of record for the 9 sites are in Table 3.
FIGURE 2
TABLE 3
| Ecozone | |||
| Pacific Maritime | Montane Cordillera | Boreal Plain | |
| Monthly maximum temperature and total precipitation | |||
| Station no./name | 1−Saanichton CDA | 4−Prince George / Prince George A | 7−Lost River/Nipawin A/Nipawin |
| Climate | Csb | Dfb | Dfb |
| Latitude °N | 48.6217 | 53.8333/53.8889 | 53.2833/53.3333 |
| Longitude°W | −123.4189 | −122.8000/−122.6789 | −104.3333/−104.0000 |
| Elevation (m) | 61 | 570/670 | 375/372 |
| Sample period (by station) | 1914−2019 | 1912−1945/1946−2019 | 1918−1994/1995−2019 |
| Daily 12:00 temperature, relative humidity, 10 min average wind speed, 24 h precipitation – Hourly temperature, relative humidity, wind speed, precipitation | |||
| Station no./name | 2−Menzies Camp | 5−Bear Lake | 8−Fort La Corne |
| Climate | Cfb | Dfc | Dfb |
| Latitude °N | 50.04863 | 54.50922 | 53.2483 |
| Longitude °W | −125.789 | −122.691 | −104.842 |
| Elevation (m) | 438 | 739 | 474 |
| Sample period (daily/hourly) | April-October 1970−2014/1992−2014 | April-October 1980−2014/1989−2014 | April-October 1989−2015/1989−2015 |
| Horizontal wind speed at 20Hz averaged to 1 s | |||
| Station no./name | 3−DF-49 | 6−MPB-03 | 9−OBS |
| Climate | Cfb | Dfc | Dfb |
| Latitude °N | 49.8673 | 54.47333 | 53.9872 |
| Longitude °W | −125.3336 | −122.7133 | −105.1178 |
| Elevation (m) | 300 | 710 | 629 |
| Sample period | July 15–Aug 15, 2009 | July 15–Aug 15, 2009 | May 1–30, 2011 |
Station locations and sample periods for monthly, daily, hourly, and 1 s weather/climate observations in three ecozones in western Canada.
Stations numbers correspond to Figure 2.
Weather observations were used to calculate the 6 inter-related codes and indexes of the Canadian Fire Weather Index System (Figure 3), namely the Fine Fuel Moisture Code, Duff Moisture Code, DC, Initial Spread Index, Buildup Index, and Fire Weather Index (Van Wagner, 1975) – the FFMC, DMC, DC, ISI, BUI, and FWI, respectively. The FFMC, DMC, and DC are indicators of the moisture content of 3 surface organic layers (needle litter and fine branch wood, 5−10 cm organic layers, and deep organic layers, respectively) with nominal time lags (time to lose 2/3 moisture under standard drying conditions) of 18 h, 15 and 53 days, respectively. With respect to the DC for example, gravimetric moisture contents sampled at 3 locations in western Canada were in the range 213−335% at DC 100 and 80−130% at DC 400 (Lawson and Dalrymple, 1996; Figure 4). The ISI combines fine fuel moisture and wind speed into an index of fire spread potential, the BUI represents organic layer fuel availability, and the FWI reflects potential fire intensity. For additional interpretive information on the FWI System the reader is referred to Wotton (2009).
FIGURE 3
FIGURE 4
Monthly Climate
Monthly observations of the average maximum daily temperature and total precipitation were obtained from Meteorological Service of Canada stations with an approximately 100 year record (Table 3). The Saanichton CDA station has a continuous 100 year record at the same location. However, we had to combine observations from 2 to 3 nearby stations to make up a 100 year record for the Prince George and Lost River/Nipawin sites, respectively. Combining observations from nearby stations in a long term record many be more acceptable where the focus is on periodicity, rather long term trends (which are removed in the analysis). These data were used to calculate the Monthly Drought Code (MDC) for May−October. The MDC is an approximation of the average monthly Drought Code that can be estimated from monthly climate data (Girardin and Wotton, 2009). It was not possible to calculate the other daily FWI System values over a century because they require measures of daily noon or maximum/minimum relative humidity and wind speed that are rarely available for a continuous period at locations in Canada prior to the mid1900s.
Daily and Hourly Weather
Daily observations of temperature, relative humidity (RH), average wind speed over 10 min, and total 24 h precipitation at 12:00 LST and hourly observations of the same quantities (excepting total precipitation at 1 h intervals) were obtained from remote automatic fire weather stations operated by the BC Wildfire Service and Saskatchewan Environment for the 2 locations in BC and 1 location in Saskatchewan, respectively. It should be noted that remote automatic fire weather stations are often not operated over the winter months because they are not equipped with instrumentation to measure precipitation as snow. The 12:00 daily observations were used to calculate the daily FFMC, DMC, DC, ISI, BUI, and FWI values. Days outside the fire season with no observations were filled with zeroes (for FWI). The hourly temperature, RH, and wind speed observations were used to calculate FFMCh (hourly FFMC; Van Wagner, 1977a) for the May−September fire season only. The moisture content of fine fuels represented by the FFMC is responsive to changes in temperature, RH, and wind speed at this scale. Hourly wind speed was used with FFMCh to calculate ISIh and FWIh (hourly ISI and FWI, respectively).
High Frequency Wind Speed Observations
One month samples of wind speed measured at 20 Hz using sonic anemometers and averaged to 1 Hz were obtained from two flux tower sites (DF-49 and OBS) that are part of the FluxNet Canada network and an associated site (MPB-03; Brown et al., 2012) in the 3 ecozones. Wind speed is only one of a number of meteorological quantities sampled at the flux towers in addition to CO2 flux; sampling methods are described in Fluxnet Canada Team (2016). The 1 s wind speed measures were combined with FFMCh and daily BUI values from the hourly fire weather station at each location to estimate FWIs (1 s FWI) using the following algorithm:
- (1)
FFMCs (1 s FFMC) was estimated using a linear interpolation to 1 s between successive FFMCh values;
- (2)
FFMCs was used with the observed 1 Hz wind speed to calculate ISIs (1 s ISI) using the standard ISI equation (Van Wagner, 1987);
- (3)
BUIs (1 s BUI) was estimated using a linear interpolation between the daily (12 pm) BUI values;
- (4)
BUIs and ISIs were then used to calculate FWIs using the standard FWI equation (Van Wagner, 1987).
FFMCs and BUIs are likely not physically meaningful quantities because changes in surface fuel moisture are not measurable at a 1 s scale but were calculated so that ISIs and FWIs would have a smoother response from hour to hour within and between successive days. However, we assume that fire spread and fire intensity potential, as represented by ISI and FWI, change with instantaneous changes in wind speed because in situ fire spread is observed to respond rapidly to changes in wind speed in field (Taylor et al., 2004) and laboratory fires (Albini, 1982).
Spectral Analysis
Because the focus of our paper was to develop illustrative examples rather than rigorous analysis of spectral properties we used relatively simple and well-known time series methods. Spectral analysis was used to test for the presence of signals of different frequency in the MDC and FWI time series data using the fast Fourier transformation incorporated in the SAS Spectra Procedure (Brocklebank et al., 2018). The data are centred around the mean (anomalies) before analysis. Fisher’s Kappa statistic was used to test the hypothesis that variation in the time series is white noise. We used spectral analysis to test for energetic peaks in the MDC and FWI time series at 5 time scales and observational periods:
- (T1)
Annual values of the July MDC over approximately 100 years to test for ultra-low frequency peaks.
- (T2)
Daily FWI values for 25−40 year periods (including zeroes in the winter months) to test for low frequency, annual or seasonal peaks.
- (T3)
Daily FWI values for May-September in each of 10 years (2000−2009) to test for medium frequency peaks within the fire season.
- (T4)
Hourly FWI values (June-August) in each of 10 years (2000−2009) to test for daily and other cycles in the summer portion of the fire season.
- (T5)
Instantaneous (1 s) FWI for 1 h during the peak burning time (18:00) on 10 days to test for micro-scale energetic peaks.
Spectral peaks were identified visually in plots of the Power Spectral Density (PSD) against the period for tests where the hypothesis of white noise was rejected. The PSD is the Fourier transform of the autocorrelation function; PSD assigns units of spectral power per unit frequency, indicating how much of the signal is at a particular frequency ω (plotted as a period, the inverse of ω for convenience).
In total we examined the spectral characteristics of approximately 100 fire weather time series from 5 periods at 4 temporal resolutions in 3 ecozones in western Canada (T1−T5 in Section “Temporal Components of Fire Weather Index in Western Canada”). Examples of the fire weather time series and corresponding spectral densities from the Montane Cordillera (Prince George, Bear Lake and MPB sites) are shown in Figure 5. The estimated spectral peaks are summarized Table 4, and are described briefly as follows:

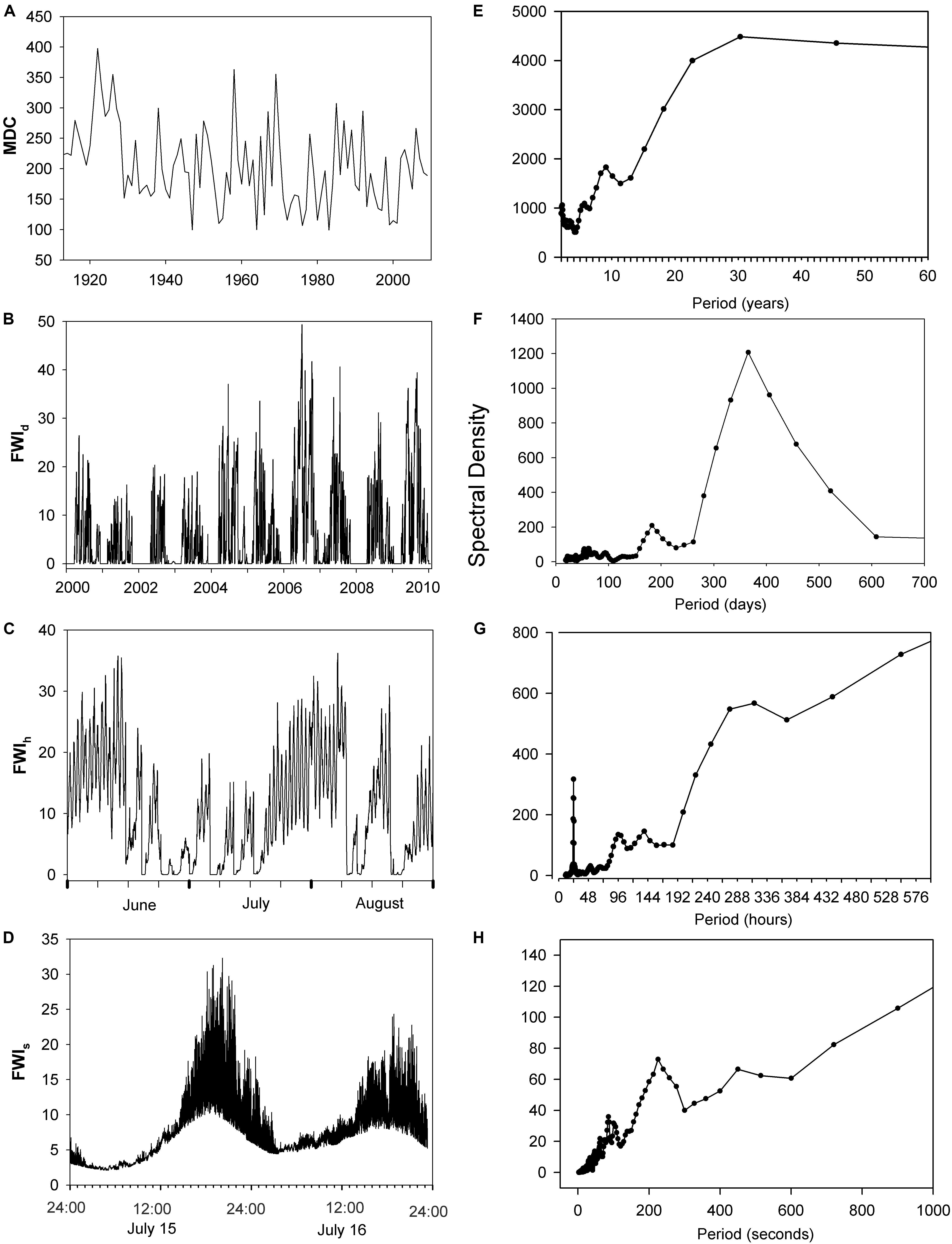

FIGURE 5
TABLE 4
| Pacific Maritime | Montane Cordillera | Boreal Plain | |||
| Sample Period yy:mm:dd (n) | Spectral Peaks | Sample Period yy:mm:dd (n) | Spectral Peaks | Sample Period yy:mm:dd (n) | Spectral Peaks |
| T1 MDC (July by year) | |||||
| 1918−2018 (100) | 3.4, 9 | 1917−2019 | 3.5, 9, 26 | 1911−2019 | NS |
| T2 Daily FWI | |||||
| 1980−2009 (9000) | 365 | 1980−2009 (9000) | 180, 360 | 1980−2009 (9000) | 360 |
| T3 Daily FWI (May−September, n = 160) | |||||
| 2000 | 10, 23 | 2000 | 10,23 | 2000 | 6, 15 |
| 2001 | 5 | 2001 | 6,22 | 2001 | 6, 12 |
| 2002 | 10 | 2002 | 12 | 2002 | 5 |
| 2003 | 9 | 2003 | 4, 11 | 2003 | 12 |
| 2004 | 9 | 2004 | 8, 30 | 2004 | 9, 14 |
| 2005 | 9, 17 | 2005 | 4, 12 | 2005 | 7, 12 |
| 2006 | 11 | 2006 | 6 | 2006 | 7, 23 |
| 2007 | 8, 23 | 2007 | 8, 22 | 2007 | 5, 10 |
| 2008 | 13 | 2008 | 12 | 2008 | 13 |
| 2009 | 13 | 2009 | 6, 12 | 2009 | 11, 18 |
| T4 Hourly FWI (June−August, n = 2200) | |||||
| 2000 | 24,120,320 | 2000 | 24,50,70,150,230 | 1990 | 24,48,90,140 |
| 2001 | 24 | 2001 | 24,70,130 | 1991 | 24,90,300 |
| 2002 | 24 | 2002 | 24,130,360 | 1992 | 24,80,160 |
| 2003 | 24,90,140 | 2003 | 24,100 | 1993 | 24,120,260 |
| 2004 | 24,120,220 | 2004 | 24,90 | 1994 | 24,70,170,390 |
| 2005 | 24,240 | 2005 | 24,70,90,280 | 1995 | 24,160 |
| 2006 | 24,80,120 | 2006 | 24 | 1996 | 24,80, 120 |
| 2007 | 24, 120 | 2007 | 24,170 | 1997 | 24,80,200 |
| 2008 | 24,320 | 2008 | 24,300 | 1998 | 24,70,100,130 |
| 2009 | 24, 250 | 2009 | 24,130 | 1999 | 24,70,90,130 |
| T5 Instant FWI (18:00−19:00 at 1 Hz, n = 3600) | |||||
| 2009:07:15 | 100, 130, 170,400 | 2009:07:15 | 170, 270 | 2011:5:15 | 160,270 |
| 2009:07:16 | 60,140,300 | 2009:07:16 | 100 | 2011:5:16 | 100 |
| 2009:07:17 | 80,160,240,500 | 2009:07:20 | 120, 180 | 2011:5:17 | 120,180 |
| 2009:07:18 | 70,140,400 | 2009:07:21 | 140, 270 | 2011:5:18 | 70,140,270 |
| 2009:07:19 | 70, 240,550 | 2009:07:23 | 90, 180, 240 | 2011:5:19 | 90,160,220 |
| 2009:07:20 | 80,120 180,300 | 2009:07:24 | 80, 140, 260,540 | 2011:5:20 | 70,140,260 |
| 2009:07:21 | 120, 150 | 2009:07:25 | 80, 120, 340 | 2011:5:21 | 70,140,340 |
| 2009:07:22 | 140,300 | 2009:07:26 | 100, 280 | 2011:5:22 | 100,170 |
| 2009:07:23 | 70, 180,250 | 2009:07:27 | 100, 180,240,600 | 2011:5:23 | 160,250 |
| 2009:07:24 | 60,110,170230 | 2011:5:24: | 100,160,230 | ||
Estimated spectral peaks (periods) in the Fire Weather Index (FWI) and the Monthly Drought Code (MDC) in 96 time series at annual, daily, and hourly resolution in 3 ecozones in western Canada.
- (T1)
In the analysis of 3 July MDC time series extending over approximately 100 years, the white noise hypothesis was rejected (p > 0.01) for the Saanichton and Prince George stations. Spectral peaks of 3.5 and 9 years were observed at both locations, as well as a 26 year peak at Prince George (Montane Cordillera ecozone). The white noise hypothesis was not rejected for the Lost River/Nipawin (Boreal Plains ecozone) dataset, which was a composite of 3 nearby stations.
- (T2)
The hypothesis of white noise in 3 multi-decadal series of daily FWI was rejected at all locations (p > 0.001). Not surprisingly, we observed very strong spectral peaks at 365 and 180 days corresponding to the annual cycle and the approximate fire season length in western Canada.
- (T3)
In our analysis of 30 series of daily FWI data for May September for 10 individual years, the white noise is rejected at all locations in all years (p > 0.001). Spectral peaks were observed in the order of 4 to 23 days, with the highest frequencies at 6 and 9, 12, and 12 days in the Pacific Maritime, Montane Cordillera, and Boreal Plains ecozones, respectively.
- (T4)
The hypothesis of white noise in the 39 time series of hourly FWI from June to August for 10 individual years was rejected at all locations in all years (p > 0.001). There were very strong 24 h (diurnal or daily) peaks in the FWI values. Peaks were also observed in the 48−390 h range (2−16 days). Excluding the 24 h peaks, the median of the observed peaks was 140, 130, and 120 h, in the Pacific Maritime, Montane Cordillera, and Boreal Plains ecozones, respectively (5.8, 5.4, and 5 days).
- (T5)
Our analysis of 1 s FWI data was restricted to 1 h periods around the peak burning period (18:00−19:00) on each of 10 rain free days. The hypothesis of white noise is rejected in all of these time series at each location (p > 0.001). Spectral peaks were observed from 60 to 600 s, with median values of 155, 180, and 160 s in the Pacific Maritime, Montane Cordillera, and Boreal Plains ecozones, respectively (2.6, 3, and 2.7 min).
Summary
The fire weather time series we examined exhibit, not surprisingly, very strong spectral peaks in Fire Weather Index values at annual and daily scales at all locations in the Pacific Maritime, Montane Cordillera, and Boreal Plains ecozones. We also observed quasi-periodic spectral peaks in fire weather measures at other scales, varying in strength and period length with location, time of year or time of day, and length of sampling period. The median spectral peaks in each ecozone were approximately 3 min consistent with turbulence in the late afternoon; spectral peaks were much stronger during the peak afternoon burning period that overnight. Spectral peaks in the order of 4−14 days were observed in June−August daily FWI values, consistent with the influence of blocking high pressure ridges and troughs that are characteristic of western Canadian fire seasons. The period lengths varied by year, possibly due to the frequency and persistence of blocking ridges, but this requires further investigation. Longer > 20 day periods are in the same order as the MJO. There has been very little investigation of this mode of variability in the context of fire weather and so this connection is speculative, although Li et al. (2018) suggest that the MJO has a strong role in summer precipitation anomalies in western Canada. Spectral peaks were also observed in the Monthly Drought Code in the Montane Cordillera (Prince George) and Pacific Maritime (Saanichton) ecozones at 3.5 and 9-years, and at 26 years in the Montane Cordillera. From this limited information we do not speculate on casual connections with climate oscillations – analysis of other fire weather measures, stations and cross-spectral analysis with ENSO and PDO indices would be interesting. We did not observe mesoscale influences of slope winds or sea breezes for the study locations in this broad scale analysis; it is possible that sea breezes might be observed in the DF-49 data with more detailed analysis of wind direction.
The significance of the spectral peaks is that they are connected to the predictability of the fire weather measures at these scales (Palmer and Hagedorn, 2006; Krishnamurthy, 2019) and the utility of forecasts to fire management. For example, Corringham et al. (2008) examined opportunities to use monthly climate information in an annual fire management decision calendar.
It is clear that variation in annual, seasonal, and daily fire weather measures due to astronomical influences on radiation forcing is highly predictable. Although synoptic scale spectral peaks in fire weather measures are weaker, predictions at that scale have useful skill (e.g., Jones et al., 2010). Indeed, it is the extremes that are important to fire activity. While variability at turbulent scales may be important to firefighter safety at critical fire behavior thresholds (where there is a non-linear response between wind speed and fire spread) it is unlikely to be predictable by numerical methods but could perhaps be represented statistically. The predictive skill of low frequency variability is likely insufficient to inform seasonal fire management decision making (where the cost of being wrong is high) but it is important to understand the effect of low frequency variability on long term fire activity and resource requirements.
Our purpose in using spectral analysis in this study was to develop an illustrative example; more rigorous spatio-temporal analyses are needed to characterize spatial-temporal patterns in the FWI as well as other meteorological measures, their spectral power, connections with fire activity and possible teleconnections between low frequency MDC and climate oscillations. For example, Magnussen and Taylor (2012b) examined correlation in peaks in weekly fire occurrences and area burned in each response center and province across Canada to estimate the likelihood of simultaneous peaks in fire activity in different regions. Applying clustering analysis to >20 year time series of daily FWI observations from 169 weather stations station across BC, Hrdlickova et al. (2008) found 7 spatio-temporal clusters of stations; these clusters represent regions of similar fire weather that can inform forecasting and preparedness planning.
Fire Activity Across Scales
Wildland fires can be ignited in a few organic fuel particles by a lighting strike or from a variety of human causes (e.g., spark, glowing cigarette, friction, and electric arc) and will continue to spread between fuel particles as long as sufficient heat continues to be produced from their combustion to heat adjacent particles to ignition temperature (Sullivan, 2017). As a fire continues to spread and grow from a point source, it encounters and is influenced by variation in fuels, topography, and weather. Among these factors, weather is the most temporally variable “top down” driver of wildfire activity across scales, influencing the number of ignitions, fire spread and intensity, fire size and, area burned, and fire frequency from minutes to centuries. It is important to note that of the fire processes and the fire regime characteristics shown in Figure 6, only ignition is independent - fire spread and intensity, fire size and duration, area burned, and fire frequency measures are conditional on or a compound of lower level processes (Taylor et al., 2013). In the following section we briefly examine weather and climate influences on fire activity at some of these scales.
FIGURE 6
Weather and Climate Influences
Turbulence
Albini (1982) observed rapid response of fire spread to non-steady wind in laboratory fires. There are few quantitative studies of fire behavior at fine scales in nature. In a series of nine intensively studied crown fires in the International Crown Fire Experiment, Taylor et al. (2004) observed substantial variation in fire spread in situ in the order of minutes that was also expressed in changes from passive to active crown fire behavior that they attributed to variation in wind speed around the threshold for crown fire initiation (Van Wagner, 1977b). They suggested that the phenomena of intermediate crown fire is due in part to turbulent gusts at the scale of 10 s meters and minutes. Fine scale variability in crown scorch and bark char height observed following surface fires that is due to varying fire intensity may be partly attributed to turbulence.
Diurnal Variability
The moisture content of live and dead shrub and tree foliage (Pook and Gill, 1993; Page et al., 2013) and forest floor litter (Beck and Armitage, 2001) typically decreases from a pre-dawn maxima to a late-afternoon minima. This follows from a similar diurnal trend in decreasing relative humidity during the day (Feidas et al., 2002) and an inverse diurnal trend in temperature, wind speed, and vapor pressure deficit (Beck and Trevitt, 1989; Barthelmie et al., 1996). Diurnal variation in fine fuel moisture is reflected in the probability of fire ignition over the day in field experiments (Beall, 1934) and in the number of fires reported over a 24 h period (Magnussen and Taylor, 2012a) which typically peak in late afternoon. Fire spread and intensity can vary greatly over the diurnal cycle (Beck et al., 2002) although direct measures of fire behavior and growth over a full daily cycle are scarce. However, diurnal variation in smoke emissions and fire radiative power is well documented through remote sensing methods (e.g., Prins et al., 1998; Giglio, 2007; Roberts et al., 2009; Andela et al., 2015).
Meso-scale turbulence resulting from convective heating producing thunderstorms or upslope or onshore winds in the day and down slope and offshore winds in the evening can result in strong increases in wind speed with shifting direction. Downbursts from a thunderstorm (in part produced by the heat of the fire) channeled by topography contributed to rapid downslope spread of the Dude Fire and the entrapment and loss of 6 firefighters (Goens and Andrews, 1998).
Synoptic scale variability in the number of fire occurrences2 per day across British Columbia (Magnussen and Taylor, 2012a; Nadeem et al., 2019) and the daily number of active fires in the western United States (Freeborn et al., 2015) are strongly related to day to day variation in fuel moisture and fire danger measures. Synoptic level influences on daily burned area are evident in data on daily FWI and daily MODIS hotspot detects in (Field, 2020) data characterizing a fire complex of over 1000 km2 which burned over a period of 2 months in the record breaking 2017 fire season in British Columbia. Blocking ridges resulting in extended rain-free drying periods have been connected to increases in area burned (Skinner et al., 2000, 2002; Macias Fauria and Johnson, 2007) while upper ridge breakdowns are associated with increases in lightning fires (Macias Fauria and Johnson, 2006) and extreme fire behavior (Nimchuk, 1983) in western North America.
Intraseasonal Variability
Lightning intensity in the western United States has been linked to the intra-annual Madden Julian cycle (Abatzoglou and Brown, 2009). The moisture content of live and dead foliage varies seasonally (Blackmarr and Flanner, 1968; Gary, 1971); fuel ignitability (Beall, 1934) and increased fire spread rates are associated with plant senescence and decreasing fuel moisture (Cruz et al., 2015).
Annual Variability
Abatzoglou and Kolden (2013) found that annual area burned was significantly correlated with monthly values of several indicators of drought including the Energy Release Component and Buildup Index of the United States National Fire Danger Rating System, and the DMC and DC of the FWI System in predominantly temperate forests in the western United States. At a global scale, annual area burned was correlated with FWI and Cumulative Water Deficit during the fire season, particularly in mesic forested regions; burned area was more strongly correlated with precipitation in the previous 14−25 months in non-forested regions (Abatzoglou et al., 2018). Yang et al. (2014) note that monthly area burned peaks in January and February in equatorial latitudes moving toward May-August at mid-high northern latitudes and to December-January at southern mid- high latitudes.
Inter-annual and decadal scale variation in fire occurrence has been associated with the PDO (Hessl et al., 2004) and annual area burned with ENSO − PDO interrelationships in northwestern North America Meyn et al. (2010); Mason et al. (2017) have also connected ENSO to fire potential in the continental United States. Lagged effects on ENSO on fire in the southern hemisphere are attributed in part to the effects of variable precipitation on grass fuel production (Harris et al., 2008). Chen et al. (2017) provide a comprehensive review of teleconnections between ENSO and fire activity in different tropical regions. Regional anomalies in fire activity in response to ENSO vary from month to month, beginning in January/February in equatorial latitudes and migrating poleward through the year, and are mediated by differences in vegetation. In Canada, the AMO was also positively correlated with national annual time series of very large (≥10 000 ha), wildfire-related evacuations, and fire suppression expenditures (Beverly et al., 2011).
Centennial to millennial scale variation in fire activity has been attributed to various factors, including effects of climate on vegetation and fuel availability. For example, millenial scale variation in fire during the last glacial interval is attributed to Dansgaard–Oeschger events (Daniau et al., 2007) and other climatic events like the Younger Dryas (Marlon et al., 2009). Daniau et al. (2013) also observed orbital scale variation in fire in southern Africa associated with Milankovitch cycles and grassland dynamics. In the present interglacial period, variations in seasonal and latitudinal insolation, extent of the northern hemisphere ice sheet and southern hemisphere ice caps, sea surface temperatures, atmospheric concentrations of CO2 and dust, clouds, and human actions have variously influenced global-regional atmospheric circulation, vegetation and wildfire occurrence (Power et al., 2008). For example, in Europe, North Atlantic ice rafting events or Bond cold cycles may have had a climatic pacing influence on fire activity with a periodicity of ∼1500 years in the last glacial-interglacial transition and during the Holocene (Turner et al., 2008; Florescu et al., 2019).
Geographical Variation
The scales of atmospheric influence on fire activity outlined above are likely most applicable to mid to high latitudes that are characterized by complex low and high pressure systems that migrate under the influence of generally westerly winds in the troposphere (Barry and Chorley, 2009), leading to substantial synoptic scale variation in temperature, precipitation, humidity and wind speed in the fire season. In the southern hemisphere, Reeder et al. (2015) show seasonal patterns in mean Rossby wave breaking frequency at mid to high latitudes associated with anticyclones. The pattern proceeds easterly affecting different continental land masses differently in the austral spring, summer and fall. In southern Australia, anticyclones in austral summer result in a very dry northerly or northwesterly flow of air from the interior of the continent that are followed by cold fronts with strong southerlies or southwesterly winds; most severe fires in southern Australia have be affected by cold fronts (Reeder et al., 2015). Fire activity in Southern South America is related to the latitudinal position and intensity of the South Pacific High (SPH) that blocks southern south westerly winds and zonal flow of precipitation; the SPH shifts poleward in summer and is influenced at the interannual scale primarily by the pattern of the Antarctic Oscillation and secondarily by ENSO variability (Holz et al., 2012).
There is much less intra annual variation in temperature in the tropics at the surface and between air masses. Tropical weather is dominated by convective features of different scales such as cyclones and the InterTropical convergence zone of easterly flow; variation in precipitation and wind speed are likely more significant to fire activity. Although synoptic scale weather occurs in the tropics (Laing and Evans, 2015) many authors have highlighted the effect of ENSO on annual fire activity. Chen et al. (2017) provide a comprehensive review of teleconnections between ENSO and fire activity in different tropical regions. Regional anomalies in fire activity in response to ENSO vary from month to month, beginning in January/February in equatorial latitudes and migrating poleward through the year, and are mediated by differences in vegetation.
The relative contribution of subhourly to interannual scales of atmospheric variability to variation in fire weather and fire activity in different regions of the world would be an interesting area for further investigation. For example, in the United States, Mason et al. (2017) found that anomalies in the Buildup Index (BI) attributable to a modulated annual cycle (MAC) were largest in the western United States and in Florida, while BI anomalies attributable to ENSO were largest in the northwest and southeast United States Anomalies attributed to the MAC were approximately double those attributable to El Nino.
At a global scale, the asynchrony in monthly area burned peaks in northern mid and high latitudes and southern high latitudes (Yang et al., 2014) has allowed for increased sharing of fire management resources north-south and south-north in extreme fire years.
Ecological Impacts of Fire
Variation in fire activity may have second order ecological impacts across scales through “bottom up” interactions between fire, ecological features and processes and feedbacks (Heyerdahl et al., 2001; Holling, 2001). Varying weather, terrain, and vegetation results in varying fire behavior and severity within individual fire events (Catchpole, 2002; Hammill and Bradstock, 2009; Povak et al., 2020). Subhourly, diurnal, and synoptic scale variation in fire weather (including shifting wind direction) within the duration of an individual fire contributes to variation in fire intensity and spread direction within fires at spatial scales from meters to kilometers. Variation in fire intensity influences variability in fire-induced plant mortality (Etchells et al., 2020), post-fire residual stand structure, residual woody debris and surface organic matter (Miyanishi and Johnson, 2002), while variation in spread direction and intensity influence the prevalence of unburned patches within large fires (Andison and McCleary, 2014), and the fractal and fuzzy nature of fire perimeters (McAlpine and Wotton, 1993). The number of fire spread events and the time to extinguishment that influence fire size (Wang et al., 2020) are likely influenced by the occurrence of strong winds and fire ending precipitation events (Wiitala and Carlton, 1994) at meso to synoptic scales. Variation in the pattern of fire severity and fire size further influences the recruitment of plants (Etchells et al., 2020) and the diversity of post-fire insect, bird (Sitters et al., 2015) and other small animal communities (Banks et al., 2011). Seasonal variation in fire weather influences the size and severity of fires in a landscape (Perrakis and Agee, 2006; Russell-Smith and Edwards, 2006); interannual variation in burned area, primarily due to weather (Abatzoglou and Kolden, 2013) influences the species composition and age structure of vegetation in the landscape (Andison, 1998), which in turn influences populations of many species, including large browsing animals such as elk (White et al., 1998). Millenial scale variation in climate and fire activity may also have affected the prevalence of grasses or woody trees in savanna biomes (Bond et al., 2003).
Fire Management Decision Spaces
Wildfire managers have the challenging job of preventing, preparing for, detecting, prioritizing and responding to fires threatening values in a dynamic environment where fire occurrence and/or fire behavior are stochastic processes, varying from minute-to-minute, hour-to-hour, day-to-day, week-to-week, and year- to-year with considerable uncertainty. Decisions taken range from individual incident to national level actions, where options are often constrained by limited access to fire locations, information, and resources, and where there may be multiple and conflicting demands and objectives. Systematic fire suppression began in North America in the late 1800s; wildfire management agencies in North America (and elsewhere) have subsequently developed organizational structures to acquire, position, allocate, and deploy resources to manage fires in this highly dynamic environment. Fire management decision making thus encompasses strategic, operational and tactical components (Taylor et al., 2013; Martell, 2015) including:
- (1)
Setting strategic objectives and policies, and determining the long-term requirements for resources (personnel and equipment) and where they should be based.
- (2)
Operational decisions through the fire season regarding the state of preparedness or organizational readiness, and the allocation of resources to particular geographic regions or fire incidents depending on the current and expected fire load and priorities.
- (3)
Tactical decisions regarding the deployment of resources to, and utilization of resources on managing active fires.
In this section we investigate, present, and discuss an analysis of fire management decision spaces in Canada and their relationship to temporal and spatial scales of fire weather and activity.
Survey Methods
During 2010 we carried out a set of structured interviews with approximately 20 staff of the 12 Canadian provincial and territorial wildfire management agencies, Parks Canada, and the Canadian Interagency Forest Fire Centre regarding fire management planning and decision making processes that were used in each agency. This was done to inform the development of a national resource forecasting system (Taylor et al., 2011). Our objective was to describe the decision spaces comprising preparedness and response functions, in order to define a structure for the forecasting model. A decision space is circumscribed by the range of options or choices and the range authority or responsibility that an agent has to make decisions about, or influence a range of functions and resources (Bossert, 1998; Klein et al., 2009). These interviews and a subsequent literature review3 led to describing a number of types of decisions and mapping the fire management decision spaces in a spatio-temporal framework. The conceptual model was further refined through a number of presentations to the fire management agencies regarding the resource forecasting model, discussions with senior fire managers and researchers about decision making processes4 and our experience with providing fire forecasting and planning support to the BC Wildfire Service in several wildfire seasons over the past decade.
Results
In Canada, fire management is decentralized among 13 autonomous provincial and territorial agencies that have the primary responsibility for natural resource management in the Canadian federation, with only one federal agency, Parks Canada, managing fire in national parks. Decision making authority flows from legislation; in the province of British Columbia for example, the Wildfire Act provides direction. Supply chains are organized in order that appropriate resources (fire crews, aircraft and other equipment) based at hundreds of locations, can be dispatched from about 50 response centers to approximately 7500 fires annually across an area of about 10,000,000 km2 of managed forest as required to meet objectives. Our survey identified about 20 broad types of plans and decisions (Table A1) which were mapped to 16 decision spaces within 4−5 administrative levels from the national to incident level with a geographic span of 10,000,000−0.01 km2 and 6 time spans from decades to minutes that comprise the decision hierarchy. The influential variables and range of options or range of functions in a decision space have a similar spatio-temporal resolution, and the decisions associated with any particular space are compatible with the decisions taken in adjacent levels (Martell, 2001). The decision types listed in Appendix A1, and the spaces mapped as an N2 chart in Figure 7 are typical of the fire agencies in the Canadian provinces of British Columbia, Ontario and Quebec. These are briefly summarize in the following paragraphs, where the number and letters correspond to the grid location in Figure 7.
FIGURE 7
- (1)
National. In Canada, the Canadian Interagency Forest Fire Centre (CIFFC) and Parks Canada are the only fire agencies with a national geographic scope, (where CIFFC has a similar function to NIFC in the United States). An inter-agency Mutual Aid and Resource Sharing Agreement guides CIFFC activities; these include: (A) establishing exchange standards and other protocols; (B) coordinating national training courses on an annual basis, and most importantly, (C) coordinating the voluntary exchange of resources between Canadian agencies (and exchanges between Canada and other countries) when one or more of the 13 are experiencing a high fire load and requirement for resources, and one or more agencies have low fire activity and excess resource capacity. High fire load may include large and prolonged incidents which de facto require national level resources. The duration of resource exchanges varies for aircraft, personnel, and equipment; personnel exchanges typically extend over 18 days. Resource exchanges depend on the expected fire load (number of new and active fires of varying complexity) and a relatively low likelihood of the co-occurrence of peaks in fire activity between two or more agencies (Magnussen and Taylor, 2012b) in a planning period, stemming from spatio-temporal separation in peak fire weather at a national scale.
- (2)
Provincial. As noted earlier, the primary authority for wildfire management in Canada stems from provincial legislation. Provincial/territorial decision making typically includes (A) setting strategic direction, permanent staffing, multi-year contracting for services such as airtankers, purchasing equipment and/or aircraft, and base location to meet level of protection objectives, which may include a target annual area burned limit (B) annual budgeting, seasonal staffing and training, seasonal contracting for services, and resource basing depending on the annual expectation of the number of fires of different complexity (C) importing or exporting of resources from/to other jurisdictions during the fire season, depending on the expected fire load (number of new and active fires of varying complexity) in a (typically 14 day) planning period. (D) in large provinces, reallocation of resources between regional response centers depending on the current and expected fire load in a planning period, including to high priority fires (E) daily prepositioning of provincially managed resources such as aircraft, depending on the expected number of new fire starts exceeding ground resources that day (F) dispatching provincially managed resources such as aircraft to new fires in real-time, depending on their expected near term fire growth and values at risk.
- (3)
Response center. In larger provinces in Canada (Ontario, British Columbia, Quebec) resources are allocated at a regional scale from facilities which we refer to here as response centers. Decisions at this level typically include (C) medium and short term contracting for resources depending on the expected load of fires of different complexity over approximately 3−30 planning periods (D) 1−3 day preparedness levels, and prepositioning of resources depending in part on the expected number, intensity and location of new fire starts (E) daily routing of detection aircraft, depending on the expected number, severity and location of new fire starts, and allocating resources to active fires depending on their complexity, expected growth and priority, (F) dispatching initial attack resources, depending on the expected near term growth of new fire starts and values at risk.
- (4)
Operating Base. Initial attack and sustained action crews are typically based at a number of locations within a response center. Decisions at this level include (D/E) establishing preparedness levels, opening temporary sub-bases, and scheduling crew availability, depending in part on the expected number, intensity and location of new fire starts.
- (5)
Incident (Fire). As in many other nations, Canada uses the Incident Command System, where (E) daily tactical objectives and resource deployment decisions are communicated in an Incident Action Plan, with reference to expected fire behavior and growth in the present and immediately following operational periods (typically a day). Decisions regarding (F) deployment and utilization of resources and plans for entrapment avoidance that are made throughout the day or operational period at the Division, Sector, Task Force, or Crew levels (depending on the complexity of the fire) are responsive to the immediate and expected weather and fire behavior conditions during the day. Actions such as a tactical withdrawl depend on changes in the immediate and expected fire intensity and spread over a period of minutes to hour.
Summary
Our analysis of decision making in the fire management supply chain (Martell, 2015) led to the mapping of sixteen decision or situation spaces, where the decisions in each space have quite clear temporal and spatial scope. We recognize that this hierarchical model is a simplification - while the flow of resources in the fire management supply chain is a forward cascade, information flow between organizational levels is more dynamic. However, the fire management hierarchical framework is nearly decomposable (Simon, 1974) into tractable spaces to address with particular decision problems. Rothermel (1980); Andrews (2006) also provided spatio-temporal frameworks for the development of fire management decision support systems; our model has a similar structure but is more granular and emphasizes decision making within the fire season.
Fire management agencies are fast-response organizations (Faraj and Xiao, 2006) that operate in conditions requiring rapid decision making, where the annual and daily fire load, and individual fire activity is highly dependent on forcing by climate and weather. Minas et al. (2012) observed that wildfire management is a kind of “hyper project” (Simpson, 2006), a special class of operations where a set of tasks and resource requirements interact with a dynamic, external pacing function – fire weather and fire activity. Decision or situation spaces are strongly connected to three elements of situational awareness (Endsley, 1988) − “the perception of the elements in the environment within a volume of time and space, the comprehension of their meaning and the projection of their status in the near future.” The depth and scope of SA is an important factor in decision-making in a dynamic environment. SA is at the nexus of fire management decision spaces and fire weather scales. Similar to the treatment of climate and weather as “top down” controls on fire regimes (Gill and Taylor, 2009), weather and climate are top down controls on fire management, representing a pacing function that influences the tempo of fire activity and decision making. Fire management decision spaces are shaped in part, by the predictability of temporal and spatial fire weather patterns, and the uncertainty of associated fire activity at these scales. It is noteworthy that as the time scale decreases on critical days, fire activity can increase sharply in a hours or minutes in response to rapid changes in weather, the time for decision making is compressed and weather and predictive models have limited utility; quick intuitive judgements may supersede slower rational thought processes (Alexander et al., 2015). In this study we did not examine the factors influencing the geographic span of decision spaces which, in addition to patterns of weather and fire occurrence, many include historical factors (e.g., national, provincial boundaries) travel time and coverage concerns for operating bases, settlement patterns and values.
Synthesis
This special issue of Frontiers In Environmental Science addressed the question “Climate, Land Use and Fire – Can Models Inform Management?” Our study emphasizes the importance of scale in fire science and modeling. To paraphrase Levin (1992), scale unifies fire physics and fire ecology, and connects basic and applied research.
“Applied challenges …require the interfacing of phenomena that occur on very different scales of space, time, and … organization. Furthermore, there is no single natural scale at which … phenomena should be studied; systems generally show characteristic variability on a range of spatial, temporal, and organizational scales” (Levin, 1992).
The purpose of this paper was to develop a conceptual framework demonstrating that atmospheric, wildfire, and fire management process are complex interacting physical, ecological and socio-economic systems connected by scale. We propose that the cascade of kinetic energy through atmospheric scales that is expressed in part in fire weather conditions, is reflected in an inverse cascade of chemical energy released through fire processes, and further shapes a forward cascade of fire management activities and resources (Figure 8). Climate and weather are a pacing function on fire activity and management across all scales.
FIGURE 8
Turner et al. (1989) outlined a four step procedure to make predictions across scales (1) identify the spatial and temporal scales of the process (2) understand how the factors controlling the process vary with scale (3) develop methods to translate predictions from one scale to the other, and (4) test predictions across multiple scales. This paper is an early exploration of the first two steps in this sequence that may help frame models that inform fire management. Further work is needed to bridge scales for particular management questions. For example, the impact of climate change on fire activity is the most important challenge for fire managers in this century. The net gain in energy represented by climate forcing will influence atmospheric processes and fire activity at a number of scales. Macias Fauria et al. (2011) suggest that predicting climate change effects on wildfires requires understanding and unification of climate and the underlying fire behavior processes across scales. While there has been a significant effort to understand the effects of climate change on fire weather (Fargeon et al., 2020) and broad scale measures of fire activity such as annual area burned (Flannigan et al., 2005), relatively few fire-climate change studies are linked to fire management decision making (Wotton et al., 2017). Methods are needed to translate climate projections to fire management decision scales.
Statements
Data availability statement
The datasets generated for this study are available on request to the corresponding author.
Author contributions
SWT conceived the study, carried out the analysis, and wrote the manuscript.
Acknowledgments
Thanks are extended to Z. Nemic for retrieving archival flux tower data, and to the BC Wildfire Service and Saskatchewan Environment for fire weather data, to M. Alexander for pointing to the references for Figure 4, and to two reviewers who greatly improved the manuscript. K. Omendje assisted with data preparation. Discussions with R. McAlpine and C. McFayden helped to refine the map of decision spaces.
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Footnotes
1.^http://extremeweather.columbia.edu/events/past-events/2017-conference-on-fire-prediction-across-scales/, accessed 01.06.20.
2.^We distinguish the process of ignition of a small number of fuel particles resulting in an individual fire, from the occurrence of a number or population of fires in a broader geographic area.
3.^Taylor et al. (2011). Review and discussion of fire management resource demand and capacity planning models. Unpublished file report.
4.^R. McAlpine and C. McFayden, Ontario Ministry of Natural Resources, Personal communications.
References
1
AbatzoglouJ. T.BrownT. J. (2009). Influence of the Madden–Julian oscillation on summertime cloud-to-ground lightning activity over the continental United States.Mon. Weather Rev.1373596–3601. 10.1175/2009mwr3019.1
2
AbatzoglouJ. T.KoldenC. A. (2013). Relationships between climate and macroscale area burned in the western United States.Int. J. Wildland Fire221003–1020. 10.1071/wf13019
3
AbatzoglouJ. T.WilliamsA.BoschettiL.ZubkovaM.KoldenC. A. (2018). Global patterns of interannual climate-fire relationships.Glob. Change Biol.245164–5175. 10.1111/gcb.14405
4
AlbiniF. A. (1982). Response of free-burning fires to nonsteady wind.Combust. Sci. Technol.29225–241. 10.1080/00102208208923599
5
AlexanderM. E.CruzM. G.TaylorS. W. (2019). “Crown scorch height,” in Encyclopedia of Wildfires and Wildland-Urban Interface (WUI) Fires, ed.ManzelloS. L. (Berlin: Springer International Publishing).
6
AlexanderM. E.De GrootW. J. (1988). Fire Behavior in Jack Pine Stands: As Related to the Canadian Forest Fire Weather Index (FWI) System.Edmonton, AB: Northern Forestry Centre.
7
AlexanderM. E.TaylorS. W.PageW. G. (2015). “Wildland firefighter safety and fire behavior prediction on the fireline,” in Proceedings of the 13th Annual Wildland Fire Safety Summit & 4th Human Dimensions of Wildland Fire Conference April 20-24, 2015, Boise, ID.
8
AndelaN.KaiserJ. W.van der WerfG. R.WoosterM. J. (2015). New fire diurnal cycle characterizations to improve fire radiative energy assessments made from low-Earth orbit satellites sampling.Atmos. Chem. Phys.158831–8846. 10.5194/acp-15-8831-2015
9
AndisonD. W. (1998). Temporal patterns of age-class distributions on foothills landscapes in Alberta.Ecography21543–550. 10.1111/j.1600-0587.1998.tb00446.x
10
AndisonD. W.McClearyK. (2014). Detecting regional differences in within-wildfire burn patterns in western boreal Canada.For. Chron.9059–69. 10.5558/tfc2014-011
11
AndrewsP. L. (2006). “A temporal and spatial framework for development and application of wildland fire decision support systems,” in Proceedings of the Vth International Conference on Forest Fire Research,Figueira da Foz.
12
AndrewsP. L. (2014). Current status and future needs of the BehavePlus Fire Modeling System.Int. J. Wildland Fire2321–33. 10.1071/wf12167
13
Anonymous (1958). Areas of Climatic Regions and their Distribution by Provinces and Territories (map). Atlas of Canada, 3rd Edn. (Ottawa: Department of Mines and Technical Surveys).
14
BanksS. C.DujardinM.McburneyL.BlairD.BarkerM.LindenmayerD. B. (2011). Starting points for small mammal population recovery after wildfire: recolonisation or residual populations?Oikos12026–37. 10.1111/j.1600-0706.2010.18765.x
15
BarberoR.AbatzoglouJ. T.PimontF.RuffaultJ.CurtT. (2020). Attributing increases in fire weather to anthropogenic climate change over France.Front. Earth Sci.8:104. 10.3389/feart.2020.00104
16
BarryR. G.ChorleyR. J. (2009). Atmosphere, Weather and Climate.London: Routledge.
17
BarthelmieR. J.BrankoG.PryorS. C. (1996). Observations and simulations of diurnal cycles of near-surface wind speed‘s over land and sea.J. Geophys. Res. Atmos.10121327–21337. 10.1029/96jd01520
18
BeallH. W. (1934). Diurnal and seasonal fluctuation of fire hazard in pine forests.For. Chron.10209–225. 10.5558/tfc10209-4
19
BeckJ. A.AlexanderM. E.HarveyS. D.BeaverA. K. (2002). Forecasting diurnal variations in fire intensity to enhance wildland firefighter safety.Int. J. Wildland Fire11173–182. 10.1071/wf02002
20
BeckJ. A.ArmitageO. B. (2001). “Diurnal fine fuel moisture characteristics at a northern latitude,” in Proceedings of the 22nd Tall Timbers Fire Ecology Conference: Fire in Temperate, Boreal, and Montane Ecosystems, Kananaskis, AB, 15–18.
21
BeckJ. A.TrevittA. C. F. (1989). Forecasting diurnal variations in meteorological parameters for predicting fire behaviour.Can. J. For. Res.19791–797. 10.1139/x89-120
22
BeverlyJ. L.FlanniganM. D.StocksB. J.BothwellP. (2011). The association between Northern Hemisphere climate patterns and interannual variability in Canadian wildfire activity.Can. J. For. Res.412193–2201. 10.1139/x11-131
23
BlackmarrW. H.FlannerW. B. (1968). Seasonal and Diurnal Variation in Moisture Content of Six Species of Pocosin Shrubs.Washington, DC:US Department of Agriculture.
24
BondW. J.MidgleyG. F.WoodwardF. I. (2003). The importance of low atmospheric CO2 and fire in promoting the spread of grasslands and savannas.Glob. Change Biol.9973–982. 10.1046/j.1365-2486.2003.00577.x
25
BossertT. (1998). Analyzing the decentralization of health systems in developing countries: decision space, innovation and performance.Soc. Sci. Med.471513–1527. 10.1016/s0277-9536(98)00234-2
26
BowmanD. M.BalchJ. K.ArtaxoP.BondW. J.JeanM. C.MarkA. C.et al (2009). Fire in the earth system.Science324481–484.
27
BrocklebankJ. C.DickeyD. A.ChoiB. (2018). SAS for Forecasting Time Series.Cary, NC: SAS institute.
28
BrownM.BlackT. A.NesicZ.FoordV. N.FredeenA. L.SpittlehouseD. L.et al (2012). The carbon balance of two lodgepole pine stands recovering from mountain pine beetle attack in British Columbia.Agric. For. Meteorol.15382–93. 10.1016/j.agrformet.2011.07.010
29
CatchpoleW. (2002). “Fire properties and burn patterns in heterogeneous landscapes,” in Flammable Australia: The Fire Regimes and Biodiversity of a Continent, edsBradstockR. A.WilliamsJ. E.GillA. M. (Cambridge: Cambridge University Press), 49–76.
30
ChenY.MortonD. C.AndelaN.Van Der WerfG. R.GiglioL.RandersonJ. T. (2017). A pan-tropical cascade of fire driven by El Niño/Southern Oscillation.Nat. Clim. Change7906–911. 10.1038/s41558-017-0014-8
31
CIFFC Glossary Task Team and Training Working Group (2017). Canadian Wildland Fire Management Glossary Canadian Interagency Forest Fire Centre.Winnipeg: CIFFC.
32
CorringhamT. W.WesterlingA. L.MorehouseB. J. (2008). Exploring use of climate information in wildland fire management: a decision calendar study.J. For.10671–77.
33
CruzM. G.GouldJ. S.KidnieS.BessellR.NicholsD.SlijepcevicA. (2015). Effects of curing on grassfires: II. Effect of grass senescence on the rate of fire spread.Int. J. Wildland Fire24838–848. 10.1071/wf14146
34
DaniauA.-L.Sánchez GoñiM. F.MartinezP.UrregoD. H.Bout-RoumazeillesV.DespratS.et al (2013). Orbital-scale climate forcing of grassland burning in southern Africa.Proc. Natl. Acad. Sci. U.S.A.1105069–5073. 10.1073/pnas.1214292110
35
DaniauA. L.Sánchez-GoñiM. F.BeaufortL.Laggoun-DéfargeF.LoutreM. F.DupratJ. (2007). Dansgaard–Oeschger climatic variability revealed by fire emissions in southwestern Iberia.Quat. Sci. Rev.261369–1383. 10.1016/j.quascirev.2007.02.005
36
DonovanG. (2006). Determining the optimal mix of federal and contract fire crews: a case study from the Pacific Northwest.Ecol. Model.194372–378. 10.1016/j.ecolmodel.2005.10.043
37
EndsleyM. R. (1988). “Design and evaluation for situation awareness enhancement,” in Proceedings of the Human Factors Society 32nd Annual Meeting, Santa Monica, CA.
38
EtchellsH.O’DonnellA. J.McCawW. L.GriersonP. F. (2020). Fire severity impacts on tree mortality and post-fire recruitment in tall eucalypt forests of southwest Australia.For. Ecol. Manage.459:117850. 10.1016/j.foreco.2019.117850
39
FarajS.XiaoY. (2006). Coordination in fast-response organizations.Manage. Sci.521155–1169. 10.1287/mnsc.1060.0526
40
FargeonH.PimontF.Martin-StPaulN.CaceresM.RuffaultJ.BarberoR.et al (2020). Projections of fire danger under climate change over France: where do the greatest uncertainties lie?Clim. Change160479–493. 10.1007/s10584-019-02629-w
41
FeidasH.CartalisC.LagouvardosC. (2002). Temporal simulation of diurnal temperature and relative humidity evolution at a forested mountainous site in Attica, Greece.Int. J. Wildland Fire1195–106. 10.1071/wf02019
42
FieldR. D. (2020). Evaluation of Global Fire Weather Database reanalysis and short-term forecast products.Nat. Hazards Earth Syst. Sci.201123–1147. 10.5194/nhess-20-1123-2020
43
FieldR. D.FernandesK.GloverK. C.HansenW. D.RabinowiczJ.WilliamsA. P. (2018). Understanding the roles of fuels, climate and people in predicting fire: taking the long view.Pages Mag.26:41. 10.22498/pages.26.1.41
44
FlanniganM. D.LoganK. A.AmiroB. D.SkinnerW. R.StocksB. J. (2005). Future area burned in Canada.Clim. Change721–16. 10.1007/s10584-005-5935-y
45
FlorescuG.BrownK. J.CarterV. A.KunešP.VeskiS.FeurdeanA. (2019). Holocene rapid climate changes and ice-rafting debris events reflected in high-resolution European charcoal records.Quat. Sci. Rev.222:105877. 10.1016/j.quascirev.2019.105877
46
Fluxnet Canada Team (2016). FLUXNET Canada Research Network - Canadian Carbon Program Data Collection, 1993-2014.Oak Ridge, TN: ORNL DAAC.
47
Forestry Canada Fire Danger Group (1992). Development and structure of the Canadian Forest Fire Behavior Prediction System. Technical Report ST-X-3. Ottawa: Forestry Canada.
48
FraedrichK.BöttgerH. (1978). A wavenumber-frequency analysis of the 500 mb geopotential at 50 N.J. Atmos. Sci.35745–750. 10.1175/1520-0469(1978)035<0745:AWFAOT>2.0.CO;2
49
FraedrichK.KietzigE. (1983). Statistical analysis and wavenumber-frequency spectra of the 500 mb geopotential along 50 S.J. Atmos. Sci.401037–1045. 10.1175/1520-0469(1983)040<1037:SAAWFS>2.0.CO;2
50
FreebornP. H.CochraneM. A.JollyW. M. (2015). Relationships between fire danger and the daily number and daily growth of active incidents burning in the northern Rocky Mountains, USA.Int. J. Wildland Fire24900–910. 10.1071/wf14152
51
FujitaT. T. (1981). Tornadoes and downbursts in the context of generalized planetary scales.J. Atmos. Sci.381511–1534. 10.1175/1520-0469(1981)038<1511:taditc>2.0.co;2
52
GaryH. L. (1971). Seasonal and diurnal changes in moisture contents and water deficits of Engelmann spruce needles.Bot. Gaz.132327–332. 10.1086/336598
53
GiglioL. (2007). Characterization of the tropical diurnal fire cycle using VIRS and MODIS observations.Remote Sens. Environ.108407–421. 10.1016/j.rse.2006.11.018
54
GillL.TaylorA. H. (2009). Top-down and bottom-up controls on fire regimes along an elevational gradient on the east slope of the Sierra Nevada, California, USA.Fire Ecol.557–75. 10.4996/fireecology.0503057
55
GirardinM. P.WottonB. M. (2009). Summer moisture and wildfire risks across Canada.J. Appl. Meteorol. Climatol.48517–533. 10.1175/2008jamc1996.1
56
GoensD. W.AndrewsP. L. (1998). “Weather and fire behavior factors related to the 1990 Dude Fire near Payson, AZ,” in Proceedings, 2nd Symposium on Fire and Forest Meteorology, Boston, MA, 153–158.
57
HammillK. A.BradstockR. A. (2009). Spatial patterns of fire behaviour in relation to weather, terrain and vegetation.Proc. R. Soc. Queensland115129–135.
58
HardyC. C.HardyC. E. (2007). Fire danger rating in the United States of America: an evolution since 1916.Int. J. Wildland Fire16217–231. 10.1071/wf06076
59
HarrisS.TapperN.PackhamD.OrloveB. (2008). The relationship between the monsoonal summer rain and dry-season fire activity of northern Australia.Int. J. Wildland Fire17674–684. 10.1071/wf06160
60
HesslA. E.McKenzieD.SchellhaasR. (2004). Drought and Pacific Decadal Oscillation linked to fire occurrence in the inland Pacific Northwest.Ecol. Appl.14425–442. 10.1890/03-5019
61
HeyerdahlE. K.BrubakerL. B.AgeemJ. K. (2001). Spatial controls of historical fire regimes: a multiscale example from the interior west, USA.Ecology82660–678. 10.1890/0012-9658(2001)082[0660:scohfr]2.0.co;2
62
HollingC. S. (2001). Understanding the complexity of economic, ecological, and social systems.Ecosystems4390–405. 10.1007/s10021-001-0101-5
63
HolzA.KitzbergerT.ParitsisJ.VeblenT. T. (2012). Ecological and climatic controls of modern wildfire activity patterns across southwestern South America.Ecosphere31–25.
64
HrdlickovaZ.EsterbyS.TaylorS. W. (2008). “Classification of regions with respect to fire risk,” in Proceedings of the 19th Annual Conference of the International Environmetrics Society, Kelowna. 10.1201/b16199-2
65
IslamK. M. S. (1998). Spatial Dynamic Queueing Models for the Daily Deployment of Airtankers for Forest Fire Control. Ph.D. dissertation, University of Toronto, Toronto.
66
JainP.CooganS. C.SubramanianS. G.CrowleyM.TaylorS.FlanniganM. D. (2020). A review of machine learning applications in wildfire science and management.Environ. Rev. arXiv preprintarXiv:2003.00646. 10.1139/er-2020-0019
67
JonesC.FujiokaF.CarvalhoL. M. (2010). Forecast skill of synoptic conditions associated with Santa Ana winds in Southern California.Mon. Weather Rev.1382253–2280.
68
KaplanA. (2011). Sidebar 1.1: Patterns and Indices of Climate Variability,” in BlundenJ.ArndtD. S.BaringerM. O.State of the Climate in 2010” (2011). Publications, Agencies and Staff of the U.S. Department of Commerce. 51. Available online at: http://digitalcommons.unl.edu/usdeptcommercepub/516(accessed September 15, 2020).
69
KleinG. L.PfaffM. S.DruryJ. L. (2009). “Supporting a robust decision space,” in Proceedings of the 2009 AAAI Spring Symposium: Technosocial Predictive Analytics, Stanford, CA, 66–71.
70
KrishnamurthyV. (2019). Predictability of weather and climate.Earth Space Sci.61043–1056.
71
LaingA.EvansJ. L. (2015). Introduction to Tropical Meteorology, 2nd Edn. Boulder, CO: University Corporation for Atmospheric Research.
72
LawsonB. D.DalrympleG. N. (1996). Ground-Truthing the Drought Code: Field Verification of Overwinter Recharge of Forest Floor Moisture. FRDA Report 268. Victoria: Canadian Forest Service.
73
LevinS. A. (1992). The problem of pattern and scale in ecology: the Robert H. MacArthur award lecture.Ecology731943–1967. 10.2307/1941447
74
LiZ.LiY.BonsalB.MansonA. H.ScaffL. (2018). Combined impacts of ENSO and MJO on the 2015 growing season drought on the Canadian Prairies.Hydrol. Earth Syst. Sci.225057–5067. 10.5194/hess-22-5057-2018
75
LovejoyS.SchertzerD. (2010). Towards a new synthesis for atmospheric dynamics: space–time cascades.Atmos. Res.961–52. 10.1016/j.atmosres.2010.01.004
76
LovejoyS.SchertzerD. (2012). Low frequency weather and the emergence of the climate. Extreme events and natural hazards: the complexity perspective.Geophys. Monogr. Ser.196231–254. 10.1029/2011gm001087
77
Macias FauriaM.JohnsonE. A. (2006). Large-scale climatic patterns control large lightning fire occurrence in Canada and Alaska forest regions.J. Geophys. Res.111:G04008.
78
Macias FauriaM.JohnsonE. A. (2007). Climate and wildfires in the North American boreal forest.Philos. Trans. R. Soc. Lond. B Biol. Sci.3632317–2329.
79
Macias FauriaM.MichaletzS. T.JohnsonE. A. (2011). Predicting climate change effects on wildfires requires linking processes across scales.Wiley Interdiscip. Rev. Clim. Change299–112. 10.1002/wcc.92
80
MacLellanJ. I.MartellD. L. (1996). Basing airtankers for forest fire control in Ontario.Oper. Res.44662–838.
81
MagnussenS.TaylorS. W. (2012a). Prediction of daily lightning- and human-caused fires in British Columbia.Int. J. Wildland Fire21342–356. 10.1071/wf11088
82
MagnussenS.TaylorS. W. (2012b). Inter-and intra-annual profiles of fire regimes in the managed forests of Canada and implications for resource sharing.Int. J. Wildland Fire21328–341. 10.1071/wf11026
83
MarlonJ. R.BartleinP. J.WalshM. K.HarrisonS. P.BrownK. J.EdwardsM. E.et al (2009). Wildfire responses to abrupt climate change in North America.Proc. Natl. Acad. Sci. U.S.A.1062519–2524.
84
MartellD. L. (2015). A review of recent forest and wildland fire management decision support systems research. Curr. For. Rep. 1, 128–137.
85
MartellD. L. (2001). “Forest fire management,” in Handbook of Operations Research in Natural Resources. International Series in Operations Research amp; Mana, Vol. 99edsWeintraubA.RomeroC.BjørndalT.EpsteinR.MirandaJ. (Boston, MA: Springer), 527–583. 10.1016/b978-012386660-8/50017-9
86
MasonS. A.HamlingtonP. E.HamlingtonB. D.JollyW.HoffmanC. M. (2017). Effects of climate oscillations on wildland fire potential in the continental United States.Geophys. Res. Let.447002–7010. 10.1002/2017gl074111
87
McAlpineR. S.WottonB. M. (1993). The use of fractal dimension to improve wildland fire perimeter predictions.Can. J. For. Res.231073–1077. 10.1139/x93-137
88
McLauchlanK. K.HigueraP. E.MieselJ.RogersB. M.JenniferS.AlanJ. T.et al (2020). Fire as a fundamental ecological process: research advances and frontiers.J. Ecol.1082047–2069.
89
MeynA.TaylorS. W.FlanniganM. D.ThonickeK.CramerW. (2010). Relationship between fire, climate oscillations, and drought in British Columbia, Canada, 1920–2000.Glob. Change Biol.16977–989. 10.1111/j.1365-2486.2009.02061.x
90
MinasJ.HearneJ.HandmerJ. (2012). A review of operations research methods applicable to wildfire management.Int. J. Wildland Fire21189–196. 10.1071/wf10129
91
MiyanishiK.JohnsonE. A. (2002). Process and patterns of duff consumption in the mixedwood boreal forest.Can. J. For. Res.321285–1295. 10.1139/x02-051
92
NadeemK.TaylorS. W.WoolfordD. G.DeanC. B. (2019). Mesoscale spatiotemporal predictive models of daily human-and lightning-caused wildland fire occurrence in British Columbia.Int. J. Wildland Fire.2911–27. 10.1071/wf19058
93
National Wildfire Coordinating Group [NWCG] (2019). NWCG Glossary of Wildland Fire (online). Available online at: https://www.nwcg.gov/glossary/a-z(accessed December 15, 2019).
94
NimchukN. (1983). Wildfire Behavior Associated with Upper Ridge Breakdown.Edmonton, AB: Alberta Energy and Natural Resources.
95
OrlanskiI. (1975). A rational subdivision of scales for atmospheric processes.Bull. Am. Met. Soc.56527–530.
96
PageW. G.JenkinsM. J.AlexanderM. E. (2013). Foliar moisture content variations in lodgepole pine over the diurnal cycle during the red stage of mountain pine beetle attack.Environ. Model. Softw.4998–102. 10.1016/j.envsoft.2013.08.001
97
PalmerT.HagedornR. (eds) (2006). Predictability of Weather and Climate.Cambridge: Cambridge University Press.
98
PerrakisD. D. B.AgeeJ. K. (2006). Seasonal fire effects on mixed-conifer forest structure and ponderosa pine resin properties.Can. J. For. Res.36238–254. 10.1139/x05-212
99
PookE. W.GillA. M. (1993). Variation of live and dead fine fuel moisture in Pinus radiata plantations of the Australian-Capital-Territory.Int. J. Wildland Fire3155–168. 10.1071/wf9930155
100
PovakN. A.KaneV. R.CollinsB. M.LydersenJ. M.KaneJ. T. (2020). Multi-scaled drivers of severity patterns vary across land ownerships for the 2013 Rim Fire, California.Landsc. Ecol.35293–318. 10.1007/s10980-019-00947-z
101
PowerM. J.MarlonJ.OrtizN.BartleinP.HarrisonS. P.MayleF. E.et al (2008). Changes in fire regimes since the Last Glacial Maximum: an assessment based on a global synthesis and analysis of charcoal data.Clim. Dyn.30887–907.
102
PrinsE. M.FeltzJ. M.MenzelW. P.WardD. E. (1998). An overview of GOES-8 diurnal fire and smoke results for SCAR-B and 1995 fire season in South America.J. Geophys. Res.10331821–31835. 10.1029/98jd01720
103
ReederM. J.SpenglerT.MusgraveR. (2015). Rossby waves, extreme fronts, and wildfires in southeastern Australia.Geophys. Res. Letters422015–2023. 10.1002/2015gl063125
104
RichardsonL. F. (1922). Weather Prediction by Numerical Processes.Cambridge: Cambridge University Press.
105
RobertsG.WoosterM. J.LagoudakisE. (2009). Annual and diurnal African biomass burning temporal dynamics.Biogeosciences6849–866. 10.5194/bg-6-849-2009
106
RothermelR. C. (1980). “Fire behavior systems for fire management,” in Proceedings of the Sixth Conference on Fire and Forest Meteorology, Seattle, WA, 58–64.
107
Russell-SmithJ.EdwardsA. C. (2006). Seasonality and fire severity in savanna landscapes of monsoonal Northern Australia.Int. J. Wildland Fire15541–550. 10.1071/wf05111
108
RyanK. C.ReinhardtE. D. (1988). Predicting post-fire mortality of seven western conifers.Can. J. For. Res.181291–1297. 10.1139/x88-199
109
SimardA. J. (1991). Fire severity, changing scales, and how things hang together.Int. J. Wildland Fire123–34. 10.1071/wf9910023
110
SimonH. A. (1974). “The organization of complex systems,” in Hierarchy Theory: The Challenge of Complex Systems, ed.PatteeH. H. (New York, NY: Braziller).
111
SimpsonN. (2006). Modeling of residential structure fire response: exploring the hyper-project.J. Oper. Manage.24530–541. 10.1016/j.jom.2005.11.010
112
SittersH.Di StefanoJ.ChristieF. J.SunnucksP.YorkA. (2015). Bird diversity increases after patchy prescribed fire: implications from a before-after control-impact study.Int. J. Wildland Fire24690–701. 10.1071/WF14123
113
SkinnerW. R.FlanniganM. D.StocksB. J.MartellD. L.WottonB. M.ToddJ. B.et al (2002). A 500 hPa synoptic wildland fire climatology for large Canadian forest fires, 1959–1996.Theor. Appl. Climatol.71157–169. 10.1007/s007040200002
114
SkinnerW. R.StocksB. J.MartellD. L.BonsalB.ShabbarA. (2000). “The relationship between area burned by wildland fire in Canada and circulation anomalies in the mid-troposphere,” in Biomass Burning and Its Inter-Relationships with the Climate System, edsInnesJ. L.BenistonM.VerstraeteM. M. (Dordrecht: Springer), 101–125. 10.1007/0-306-47959-1_7
115
StocksB. J. (1987). Fire behavior in immature jack pine.Can. J. For. Res.1780–86. 10.1139/x87-014
116
StocksB. J. (1989). Fire behavior in mature jack pine.Can. J. For. Res.19783–790. 10.1139/x89-119
117
StocksB. J.WalkerJ. D. (1972). Fire Behavior and Fuel Consumption in Jack Pine Slash in Ontario.Marie, ON: Great Lakes Forestry Centre Arboretum.
118
StullR. (2017). Practical Meteorology: An Algebra-Based Survey of Atmospheric Science. University of Vancouver, BC. Available online at: https://www.eoas.ubc.ca/books/Practical_Meteorology/(accessed September 15, 2020).
119
SullivanA. L. (2017). Inside the inferno: fundamental processes of wildland fire behaviour. Part 2. Heat transfer and interactions.Curr. For. Rep.3150–171. 10.1007/s40725-017-0058-z
120
TaylorS. W.AlexanderM. E. (2006). Science, technology, and human factors in fire danger rating: the Canadian experience.Int. J. Wildland Fire15121–135.
121
TaylorS. W.AlexanderM. E. (2017). Field guide to the Canadian Forest Fire Behavior Prediction System, 3rd EDn.Special Report, NO. 11.Edmonton, Alberta: Canadian Forest Service, Northern Forestry Centre.
122
TaylorS. W.McAplineR. S.MagnussenS. (2011). “Projecting national resource demand to support resource sharing,” in Proceedings of the 5th International Wildland Fire Conference, Sun City.
123
TaylorS. W.WoolfordD. G.DeanC. B.MartellD. L. (2013). Wildfire prediction to inform management: statistical science challenges.Stat. Sci.28586–615. 10.1214/13-sts451
124
TaylorS. W.WottonB. M.AlexanderM. E.DalrympleG. N. (2004). Variation in wind and crown fire behaviour in a northern jack pine black spruce forest.Can. J. For. Res.341561–1576. 10.1139/x04-116
125
TurnerM. G.DaleV. H.GardnerR. H. (1989). Predicting across scales: theory development and testing.Landsc. Ecol.3245–252. 10.1007/bf00131542
126
TurnerR.RobertsN.JonesM. D. (2008). Climatic pacing of Mediterranean fire histories from lake sedimentary microcharcoal.Glob. Planet. Change63317–324. 10.1016/j.gloplacha.2008.07.002
127
Van der HovenI. (1957). Power spectrum of horizontal wind speed in the frequency range from 0.0007 to 900 cycles per hour.J. Meteorol.14160–164. 10.1175/1520-0469(1957)014<0160:psohws>2.0.co;2
128
Van WagnerC. E. (1977a). A Method of Computing Fine Fuel Moisture Content throughout the Diurnal Cycle. Inf. Rep. PS-X-69. Chalk River, ON: Canadian Forestry Service.
129
Van WagnerC. E. (1977b). Conditions for the start and spread of crown fire.Can. J. For. Res.723–34. 10.1139/x77-004
130
Van WagnerC. E. (1987). Development and structure of the Canadian Forest Fire Weather Index System. For. Tech. Rep. 35. Ottawa: Canadian Forestry Service.
131
WangX. K.StudensK.ParisienM. A.TaylorS. W.CandauJ. N.BoulangerY.et al (2020). Projected changes in fire size from daily spread potential in Canada over the 21st century.Environ. Res. Lett.10.1088/1748-9326/aba101. [Epub ahead of print].
132
WhiteC. A.OlmstedC. E.KayC. E. (1998). Elk, aspen and fire in the Rocky Mountain national parks of North America.Wildlife Soc. Bull.26449–462.
133
WiitalaM. R.CarltonD. W. (1994). “Assessing long-term fire movement risk in wilderness fire management,” in Proceedings of the 12th International Conference on Fire and Forest Meteorology, Jekyll Island.
134
WikenE. B. (1986). ‘Terrestrial Ecozones of Canada’.Ottawa: Environment Canada.
135
WottonB. M. (2009). Interpreting and using outputs from the Canadian Forest Fire Danger Rating System in research applications.Environ. Ecol. Stat.16107–131. 10.1007/s10651-007-0084-2
136
WottonB. M.FlanniganM. D.MarshallG. A. (2017). Potential climate change impacts on fire intensity and key wildfire suppression thresholds in Canada.Environ. Res. Lett.12:095003. 10.1088/1748-9326/aa7e6e
137
YangJ.TianH.TaoB.RenW.KushJ.LiuY.et al (2014). Spatial and temporal patterns of global burned area in response to anthropogenic and environmental factors: reconstructing global fire history for the 20th and early 21st centuries.J. Geophys. Res.119249–263. 10.1002/2013jg002532
138
YiouR.FuhrerK.MeekerL. D.JouzelJ.JohnsenS.MayewskiP. A. (1997). Paleoclimatic variability inferred from the spectral analysis of Greenland and Antarctic ice core data.J. Geophys. Res.10226441–26454. 10.1029/97jc00158
Appendix
TABLE A1
| Decision type | Description and fire behavior dependency | Typical spatial level | Typical time span |
| Level of protection | Determining activities and resource requirements and activities required to meet strategic objectives, including area burned objectives. | Provincial | Multi-year |
| Capital acquisition | Procurement of fixed assets: aircraft, base facilities, equipment, depending on the long term expectation of number and location of fires of different complexity. | Provincial | Multi-year |
| Staffing | Recruiting the appropriate number of permanent and seasonal staff with the appropriate knowledge, skills and abilities carry out the job functions required to achieve the strategic and operational objectives, depending on the long term expectation of the number of fires of different complexity. | Provincial | Multi-year/Annual |
| Base location | Permanent facility at which aircraft and fire crews are stationed during the fire season for deployment to operations, depending on the long term expectation of the number and location of fires of different complexity. | Provincial | Multi-year |
| Program budgeting | Budgetary authority to fund capital, fixed preparedness and (variable) response resources to achieve strategic objectives depending on the annual expectation of the number of incidents of different complexity. | Provincial | Annual |
| Training | Imparting the knowledge, skills, and competencies needed to carryout various wildfire job functions (after CIFFC Glossary Task Team and Training Working Group, 2017), including training in potential fire behavior in a region. | National Provincial | Annual |
| Home basing | Allocation of airtankers and fire crews among potential home-bases such that their average annual ferrying cost/time to meet daily deployment requirements is minimized (after MacLellan and Martell, 1996) depending on the expected number and location of daily fire starts exceeding ground resources. | Provincial | Annual |
| Contracting | Multi-year contracting for services such as aircraft; seasonal contracting for resources such as helicopters, mobile aviation fuel services; short term contracting for helicopters, Type 3 firefighters, heavy equipment, logistical support (e.g., Donovan, 2006) depending on the expected fire load. | Provincial Response Center | Multi-year, annual <30 days |
| Resource sharing | Exchanging (importing and exporting) resources to other provincial or national jurisdictions through mutual aid agreements, depending on the expected fire load (number of new and active fires of varying complexity) Resources are described by kind and type and may be used in operational support or supervisory capacities at an incident (adapted from National Wildfire Coordinating Group [NWCG], 2019). | National Provincial | +14 days 14 days |
| Preparedness level | Increments of planning and organizational readiness dictated by the expected number, intensity and location of new fire starts, and resource availability (National Wildfire Coordinating Group [NWCG], 2019). | Response Center Operating Base | 1−3 days |
| Resource repositioning | Repositioning resources available for assignment to incidents (e.g., helicopters and initial attack crews, or sustained action crews) between operating bases or subbases depending on the expected number and severity of new fire ignitions in the planning period in order to minimize response time. | Provincial/Response Center | 1−14 days |
| Day basing aircraft | Deployment of airtankers to tanker bases overnight or early in the morning to satisfy anticipated number of new fire starts exceeding ground resources based on the weather, ignitions, and fire behavior forecast for the following day, and values at risk (after Islam, 1998). | Provincial | Daily |
| Resource allocation | Allocation of resources of different types (e.g., sustained action fire crews, helicopters) required to contain fires depending on the expected number, size, complexity of new and active fires in the planning period, and their stage of control, and priority. | Provincial Response Center | 1−14 days |
| Detection routing | Determining flight plans for discovering and locating wildfires from aircraft depending on anticipated number and location of new ignitions, fire behavior and values at risk. | Response Center | Daily |
| Dispatch | The implementation of a command decision to move a resource or resources to an assigned operational mission (National Wildfire Coordinating Group [NWCG], 2019) depending on the expected near term fire growth and values at risk. | Response Center | Hourly |
| Incident Action Plan | An oral or written plan containing general objectives reflecting the overall strategy for managing an incident. It may include the identification of operational resources and assignment and provide direction for management of the incident during one or more operational periods (National Wildfire Coordinating Group [NWCG], 2019). Includes an assessment of expected fire behavior (spread, intensity) in the present and near term burning periods (1−3 days). | Incident | Daily |
| Resource deployment and utilization | Decisions regarding the transport, placement, organization and tasking of different types of resources (including tactics) to protect life and property or to contain fire perimeter growth using direct or indirect attack methods depending on the stage of control, complexity of the fire, and the expected fire behavior in the burning period. | Incident | Daily to Hourly |
| Scouting/Reconnaissance | Observing and assessing immediate and expected fire behavior in the burning period, values-at-risk, suppression activity, and other critical factors to facilitate decisions on strategy and tactics needed for fire suppression as per Table 2. | Incident | Daily |
| Entrapment avoidance | A process used to improve the safety of personnel on the fireline, which emphasizes tools and tactics available to prevent being trapped in a burn over situation. This process includes appropriate decision making through risk management, application of LCES, use of pre-established trigger points, and recognition of suitable escape routes and safety zones (National Wildfire Coordinating Group [NWCG], 2019). The safety plan is informed by the expected fire behavior in burning period. | Incident | Immediate |
| Tactical withdrawal | Withdrawal of personnel threatened by an active fire front to a safety zone depending on the immediate fire intensity and spread. | Incident | Immediate |
Examples of some types of fire management decisions in Canada and links to fire activity.
Summary
Keywords
fire weather, fire management, decision making, spectral analysis, scale
Citation
Taylor SW (2020) Atmospheric Cascades Shape Wildfire Activity and Fire Management Decision Spaces Across Scales − A Conceptual Framework for Fire Prediction. Front. Environ. Sci. 8:527278. doi: 10.3389/fenvs.2020.527278
Received
15 January 2020
Accepted
28 August 2020
Published
30 October 2020
Volume
8 - 2020
Edited by
Gitta Lasslop, Senckenberg Biodiversity and Climate Research Centre, Germany
Reviewed by
Nicholas McCarthy, Colorado State University, United States; Owen Francis Price, University of Wollongong, Australia
Updates
Copyright
© 2020 Taylor.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: S. W. Taylor, steve.taylor@canada.ca
This article was submitted to Interdisciplinary Climate Studies, a section of the journal Frontiers in Environmental Science
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
