ORIGINAL RESEARCH article
Historical Landscape Use of Migratory Caribou: New Insights From Old Antlers
- 1Department of Geology, University of Cincinnati, Cincinnati, OH, United States
- 2Department of Anthropology, University of Cincinnati, Cincinnati, OH, United States
- 3Department of Earth and Environmental Sciences, University of Ottawa, Ottawa, ON, Canada
- 4Arctic National Wildlife Refuge, U.S. Fish and Wildlife Service, Fairbanks, AK, United States
- 5Department of Biological Sciences, Wright State University, Dayton, OH, United States
- 6Department of Geosciences, University of Alaska Fairbanks and University of Alaska Museum, Fairbanks, AK, United States
Accumulations of shed caribou antlers (Rangifer tarandus) are valuable resources for expanding the temporal scope with which we evaluate seasonal landscape use of herds. Female caribou shed their antlers within days of giving birth, thus marking calving ground locations. Antler geochemistry (87Sr/86Sr) reflects the isotopic signature of regions used during antler growth, thereby providing data on a second component of seasonal landscape use. Here, we evaluate shed caribou antlers from the Coastal Plain of the Arctic National Wildlife Refuge, Alaska. The Central and Eastern regions of the Coastal Plain are calving grounds for the Porcupine Caribou Herd, while the Western Coastal Plain supports calving by the Central Arctic Herd. We found that antler 87Sr/86Sr from the Central and Eastern Coastal Plain were isotopically indistinguishable, while antler 87Sr/86Sr from the Western Coastal Plain was significantly smaller. For each region, we compared isotopic data for “recent” antlers, which overlap the bulk of standardized state and federal caribou monitoring (early 1980s and younger), with “historical” antlers shed in years predating these records (from the 1300s to the 1970s). For Porcupine Herd females calving in the Arctic Refuge, comparisons of antler 87Sr/86Sr through time indicate that summer ranges have been consistent since at least the 1960s. However, changes between historical and recent antler 87Sr/86Sr for the Central Arctic Herd indicate a shift in summer landscape use after the late 1970s. The timing of this shift is coincident with multiple factors including increased infrastructural development in their range related to hydrocarbon extraction. Accumulations of shed caribou antlers and their isotope geochemistry extend modern datasets by decades to centuries and provide valuable baseline data for evaluating potential anthropogenic and other influences on caribou migration and landscape use.
Seasonal landscape use is a core component of animal ecology and population biology and is influenced by a variety of factors including population size, climate, and anthropogenic impacts (Fryxell and Sinclair, 1988; Dingle, 2006; Avgar et al., 2014). Many of these drivers operate on decadal timescales or longer, but datasets rarely have the temporal depth to capture their underlying long-term variability, trends, or oscillations (Vors and Boyce, 2009; Magurran et al., 2010; Mihoub et al., 2017). Additionally, the scale of ecological changes due to natural and anthropogenic influences is often masked because wildlife monitoring programs generally start after populations had been subjected to significant perturbations (Terry, 2009; Tomasovych and Kidwell, 2017). The need for datasets that extend beyond the temporal restrictions of available biomonitoring data is particularly critical for species living in regions with high rates of climate-related environmental change (e.g., the Arctic) or dependent on ecological strategies, such as migration, that are particularly threatened by anthropogenic impacts (Berger, 2004; Festa-Bianchet et al., 2011; Tucker et al., 2018). While historical ecology remains mostly lost to time, an increasing number of ecological proxies can help quantify the magnitude and directions of otherwise cryptic biological changes, including aspects of landscape use and migration (Morneau and Payette, 1998, 2000; Zalatan et al., 2006; Kidwell, 2007; Froyd and Willis, 2008; Behrensmeyer and Miller, 2012; Kidwell and Tomasovych, 2013; Miller et al., 2013; Dietl et al., 2015; Barnosky et al., 2017; Grace et al., 2019).
Bones are one such proxy, as they can persist on landscape surfaces for decades, centuries, or longer and can faithfully record data on their source populations (Behrensmeyer, 1978; Andrews, 1995; Sutcliffe and Blake, 2000; Western and Behrensmeyer, 2009; Miller, 2011; Behrensmeyer and Miller, 2012; Miller et al., 2013). In addition to data on species presence and relative abundances through time, some skeletal materials are capable of recording patterns of seasonal landscape use. Antlers of deer (Cervidae) are grown and shed following seasonal schedules (Espmark, 1971; Bergerud, 1976; Hall, 2005). After decades, shed antlers can accumulate into measurable densities on landscape surfaces (e.g., 102-103 antlers/km2), with regions of relatively high or low antler densities faithfully recording the herd's patterns of seasonal landscape use (Miller and Barry, 1992; Miller, 2012; Miller et al., 2013).
Caribou (Rangifer tarandus) are unique among cervids in that both females and males can annually grow and shed antlers (Espmark, 1971; Bergerud, 1976). Differences in antler size and morphology enable sex determination (Høymork and Reimers, 1999; Miller et al., 2013), opening opportunities to evaluate patterns of sex-specific landscape use. In caribou, timing of antler shedding depends on maturity, sex, and other hormonal drivers. Mature males, for example, shed antlers shortly after fall mating, while immature males may keep them until spring (Bergerud, 1976; Blake et al., 1998). Females that do not become pregnant either shed their antlers following the fall mating season or keep them until early spring (several weeks or more before pregnant caribou give birth; Espmark, 1971; Bubenik et al., 1997). Notably, pregnant female caribou retain their antlers until the spring calving season and only shed them within a few days before or after giving birth (Espmark, 1971; Bergerud, 1976; Whitten, 1995). The calving period is highly conserved annually, with peak calving date for individual herds varying on the scale of days (Griffith et al., 2002). Tens-of-thousands of pregnant females may visit calving grounds each year, resulting in large accumulations of shed female antlers (102-103 antlers/km2) that can be used as a geographic proxy for mapping both recent and historical calving grounds (Miller et al., 2013).
While locations of shed antlers document landscape use during the shedding period, antler isotope geochemistry can provide complementary ecological information on landscape use during antler growth. Strontium isotope ratios (87Sr/86Sr) of bone, tooth, hair, and antlers are a broadly used tool in forensic science, ecology, archeology, and paleoecology to help track the geographic origins of biological tissues (reviewed by Bentley, 2006; Hobson et al., 2009; Makarewicz and Sealy, 2015; Crowley et al., 2017). This is possible because bioavailable 87Sr/86Sr varies across landscapes primarily in response to changes in surface geology (Capo et al., 1998; Crowley et al., 2017; Bataille et al., 2020). As strontium ions can replace calcium during the formation of biological tissues, 87Sr/86Sr can be sequestered in bones, teeth, and other calcium-rich structures (Koch et al., 1995; Capo et al., 1998; Hobson et al., 2009). Developing tissue can record the isotopic signatures of the strontium source because this replacement occurs with negligible, and correctable, fractionation (Flockhart et al., 2015; Lewis et al., 2017). By first establishing how strontium isotope ratios change across space, the 87Sr/86Sr in biological materials (modern and fossil) can provide geographic context to specimens including deciphering patterns of landscape use and migration (Hoppe and Koch, 2007; Britton et al., 2009; Gigleux et al., 2017; Widga et al., 2017; Bataille et al., 2018, 2020).
In this study, we tested the capacity of antler 87Sr/86Sr to discriminate between two caribou herds (Porcupine and Central Arctic) that calve on different regions of the Coastal Plain within the Arctic National Wildlife Refuge, Alaska (USA, Figure 1). Alaskan caribou calve primarily in early June (Cameron et al., 2002; Griffith et al., 2002; Nicholson et al., 2016), and subsequent re-growth of female antlers occurs following calving and during the summer (Bergerud, 1976; Bubenik et al., 1997). Thus, antler 87Sr/86Sr should primarily reflect bioavailable 87Sr/86Sr from a caribou's post-calving spring and summer ranges. Based on mapped geological differences between summer ranges of the Porcupine and Central Arctic Herds (Figure 1; Wilson et al., 2015), we predict that antlers collected from the Central and Eastern Coastal Plain (calving grounds of the Porcupine Herd) will be isotopically distinct from antlers collected from the Western Coastal Plain (Central Arctic Herd calving grounds).

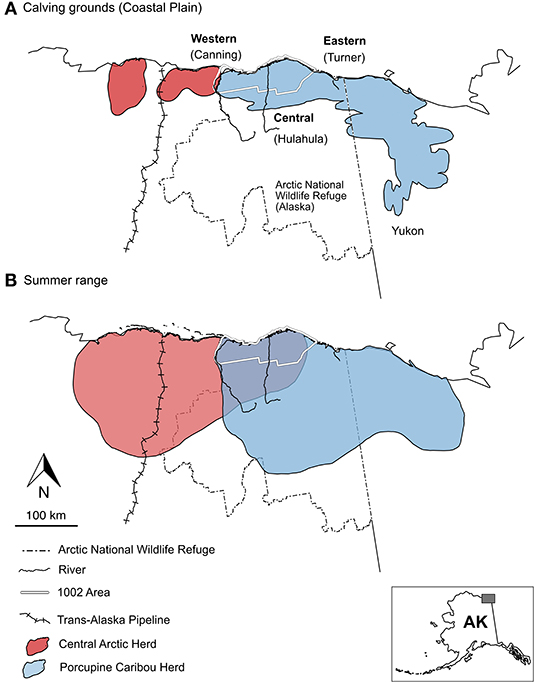

Figure 1. Seasonal ranges for caribou of the Arctic National Wildlife Refuge, AK. Ranges of the Central Arctic (red) and Porcupine Herds (blue) are distinct during (A) calving periods, but there is greater spatial overlap across their (B) summer ranges. Antler surveys were conducted along the Coastal Plain calving grounds, accessed by major river systems; Canning River (Western Coastal Plain), Hulahula River (Central Coastal Plain), and Turner River (Eastern Coastal Plain). The Trans-Alaska Pipeline (cross-hatched line) was completed in 1977. Herd range boundaries from Trammell et al. (2015).
We also used antler 87Sr/86Sr to test for changes in summer landscape use for the Porcupine and Central Arctic Herds. Because bone weathering is slow in arctic settings (Meldgaard, 1986; Sutcliffe and Blake, 2000), it is likely that some antlers lying on the calving grounds were shed hundreds of years ago. We used antler weathering characteristics and radiocarbon dating to identify antlers from different time periods and test for changes in landscape use (87Sr/86Sr) through time. Since surveys of the Central Arctic Herd began in the 1970s, there have been dramatic increases in petroleum-related infrastructure in portions of their calving, summer, and winter ranges (Fancy, 1983; Fancy et al., 1989; Cameron et al., 1992; Nicholson et al., 2016) as well as dramatic changes in herd size (Lenart, 2015; Curl, 2020; Johnson et al., 2020). Both of these factors could have impacted patterns of seasonal landscape use (Bergerud, 1996; Boertje and Gardner, 2000; Hinkes et al., 2005; Vistnes and Nellemann, 2008; Nicholson et al., 2016). Across a similar time period, the Porcupine Herd experienced relatively limited anthropogenic development of their range and comparatively less dramatic changes in population size (Griffith et al., 2002; Caikoski, 2020). We therefore expect that landscape use of the Porcupine Herd has been more consistent through time.
Materials and Methods
The Caribou Study System
The Arctic National Wildlife Refuge (Arctic Refuge) is ideally suited to evaluate the geographic and seasonal data recorded in antlers of migratory caribou. The Coastal Plain of the Arctic Refuge is a broad, flat, tussock-tundra-rich landscape used as a caribou calving ground by the Porcupine Herd and the Central Arctic Herd (Figure 1; Cameron et al., 2002; Griffith et al., 2002; Jorgenson et al., 2002; Jorgenson and Walker, 2018). Most calving activity in the Arctic Refuge is by Porcupine Herd females, which generally enter the Coastal Plain from the east and south (Fancy et al., 1989; Griffith et al., 2002). Caribou that calve along the western margin of the Arctic Refuge's Coastal Plain are mostly from the Central Arctic Herd, whose calving grounds are predominately west of the Arctic Refuge (Figure 1; Fancy et al., 1989; Cameron et al., 2002; Nicholson et al., 2016; Prichard et al., 2020). While geographically separated during calving, the current ranges of the Porcupine and Central Arctic Herds partially overlap during summers (on the Coastal Plain) and winters (generally south of the Brooke Range; Lenart, 2015; Nicholson et al., 2016; Prichard et al., 2020). Yet even with this overlap, the overall geology of summer ranges is distinct, which is important for differentiating herds using antler 87Sr/86Sr. The summer ranges of both herds overlay unconsolidated Quaternary sediments, but the range of the Porcupine Herd extends east and south into regions dominated by metasediments, mafic rocks, and Neoproterozoic siliciclastic rocks (Wilson et al., 2015; Colpron et al., 2016), while the range of the Central Arctic Herd extends west into areas richer in Mesozoic carbonates as well as Mesozoic and Cenozoic siliciclastic rocks (Wilson et al., 2015).
The Central Arctic and Porcupine Herds have been studied for decades by state, territorial, and federal offices of the US and Canada (Russell et al., 1993, 2005; Cameron et al., 2002; Griffith et al., 2002; Russell and Gunn, 2019; Caikoski, 2020). The long history of evaluation is due, in part, to Alaska's rich oil reserves and mandates to consider the consequences of petroleum development on caribou ecology and herd sizes across Alaska (USA-Canada, 1987; Whitten, 1994; Griffith et al., 2002; Cameron et al., 2005; Russell and Gunn, 2019). Within the Arctic Refuge, significant work has focused on a region of the Coastal Plain referred to as the “1002 Area” (Figure 1), which includes the majority of the Porcupine Herd's Alaskan Coastal Plain calving grounds (Griffith et al., 2002; Caikoski, 2020). In 1980, the United States Congress excluded this region from many long-term protections bestowed on most wildlife refuge lands and it was established as a region for possible hydrocarbon development (Udall, 1980). Lease sales for hydrocarbon development were mandated by the U.S. Congress in 2017 (Brady, 2017). In this context, many management questions related to the Arctic Refuge's Coastal Plain have focused on assessing the potential ecological consequences of developing the 1002 Area (Cameron and Whitten, 1980; Cameron et al., 1992, 2005; Griffith et al., 2002; Arthur and Del Vecchio, 2009; Pearce et al., 2018; Russell and Gunn, 2019). Thus, a pertinent question for this study is whether antler records provide new information on how caribou use this region.
The size and location of caribou ranges are determined by endogenous and exogenous drivers, including herd size and anthropogenic stressors (Skoog, 1968; Russell et al., 1993; Bergerud, 1996; Cameron et al., 2005; Hinkes et al., 2005). Human infrastructural developments can produce clear and sustained impacts on caribou landscape use (Vistnes and Nellemann, 2008; Johnson and Russell, 2014). This is most clearly seen as avoidance of developed areas such as tourist lodging and infrastructure supporting petroleum exploration (Klein, 1971; Helle and Särkelä, 1993; Vors et al., 2010; Wilson et al., 2016). Roads, particularly when they run perpendicular to the direction of migration, can also represent significant barriers to caribou movement and delay the arrival of females to calving grounds (Bolger et al., 2008; Wilson et al., 2016). Caribou may also shift or functionally abandon portions of seasonal ranges due to development (Cameron et al., 1992, 2005; Joly et al., 2006). Population size and climate also impact caribou landscape use, but do so more cyclically. For example, caribou populations can fluctuate decadally by tens- to hundreds-of-thousands of individuals (Vors and Boyce, 2009), often influenced by hemispheric climate cycles (Griffith et al., 2002; Joly et al., 2011). Large changes in population can lead to changes in overall geographic range and even influence whether caribou undergo annual migrations at all or become more sedentary (Bergerud, 1996; Baltensperger and Joly, 2019).
The Central Arctic Herd was first identified in 1975, but the herd's range has been subjected to petroleum development since the 1960s (Bergerud, 1996; Hinkes et al., 2005). This development includes the Trans-Alaska Pipeline (completed in 1977), and scores of subsequent drill sites and roadways connecting oil fields across calving and summer ranges (Figure 1; Fancy et al., 1989; Arthur and Del Vecchio, 2009). There has been widespread interest in evaluating herd impacts from economic development, including changes in landscape use in response to oil fields and other developments, and reduced body weight for calves in closer proximity to roads and drilling operations (Dau and Cameron, 1986; Cameron et al., 1992; Lawhead and Prichard, 2003; Arthur and Del Vecchio, 2009; Nicholson et al., 2016). The population of the Central Arctic Herd has also changed dramatically across the available timeseries, increasing from ca. 5,000–6,000 to 28,000 individuals during the 1970s and 1990s, before increasing again to 68,000 in 2010 and subsequently falling to 23,000 in 2016 (Cameron and Whitten, 1979; Whitten and Cameron, 1983; Cameron et al., 2005; Lenart, 2015; Curl, 2020; Johnson et al., 2020). In 2019, the herd was estimated at 30,000 individuals (Curl, 2020). The Central Arctic Herd calving grounds are concentrated in two core regions on the Coastal Plain, one of which overlaps the western margin of the Arctic Refuge. The summer range of the herd incorporates a broad section of the Coastal Plain and Brooks Range foothills within the Arctic Refuge and extends to the west (Figure 1; Cameron et al., 2002; Nicholson et al., 2016).
The Porcupine Herd has been monitored since the 1960s and 1970s, with particular emphasis on population size, patterns of landscape use, the geographic covariates of calf survivorship, and other core components of population biology (Skoog, 1968; Whitten et al., 1984, 1992; Fancy et al., 1989; Fancy and Whitten, 1991; Bergerud, 1996; Griffith et al., 2002; PCMB, 2016). Population estimates show that the Porcupine Herd increased from 100,000 to 178,000 individuals between the 1970s and 1989, before falling to 123,000 in 2001 (Caikoski, 2020). The herd then increased from 168,000 to 218,000 between 2010 and 2017 (Caikoski, 2020). Unlike the Central Arctic Herd, the annual range of the Porcupine Herd has been subjected to less infrastructural and economic activity (Fancy et al., 1989; Griffith et al., 2002; PCMB, 2016). For both herds, data on seasonal landscape use and migration have become more robust with increased numbers of radio-collared (and now GPS-collared) caribou and the standardization of survey and data processing protocols starting in the 1980s (Griffith et al., 2002; Caikoski, 2020). The calving grounds of the Porcupine Herd encompass nearly the entire Coastal Plain of the Arctic Refuge and extend into Yukon, Canada. The summer range extends from the Coastal Plain to the Brooks Range in both Alaska and Yukon (Figure 1; Fancy et al., 1989; Russell et al., 1993; Griffith et al., 2002).
Specimen Collection and Selection
Antlers for this study were selected from collections for a larger study on arctic bone weathering and caribou landscape use (e.g., Miller et al., 2013). Shed caribou antlers were collected from tundra surfaces along the Arctic Refuge Coastal Plain in the summers of 2010–2012, 2014, and 2015 (Figure 1). We used major river systems to collect antlers from three regions of the Coastal Plain: Western (Canning River), Central (Hulahula and Jago Rivers), and Eastern (Turner and Kongakut Rivers). From west to east, this sampling extends across 100 km. The river systems extend northward from the Brooks Range to the Arctic Ocean, and thus provide opportunities to sample across the width of the Coastal Plain (ca. 10–70 km; Figure 1).
Antlers were collected by walking across tundra surfaces using standardized surveys of well-drained tundra habitats rich in the low-growing evergreen flowering plant, Dryas (Dryas river terraces, sensu Jorgenson et al., 2002; Jorgenson and Walker, 2018). Dryas terraces are generally found within a few kilometers of river channels. Survey sites were accessed by fixed-wing aircraft or by rafting down rivers to survey locations. On Dryas terraces, the ground is not visually obstructed by tussocks, willows, or other vegetation that would hamper antler observation; this makes antlers highly visible and readily sampled (Miller et al., 2013). Surveys and collections were done with permission from, and in collaboration with, the Arctic National Wildlife Refuge (United States Fish and Wildlife Service).
While distinguishing female antlers from much larger and more palmated adult male antlers is straightforward, differentiating antlers of adult females from similarly sized and shaped young males requires careful evaluation (Høymork and Reimers, 1999; Miller et al., 2013). To categorize antlers by sex, we used museum reference collections and measurements of the major and minor axis of the roughly elliptical pedicle attachment surface (Miller et al., 2013). For each specimen, calculations provide a mean probability and 95% confidence interval that the antler is female (Miller et al., 2013). Female antlers dominate our dataset (n = 57), but to provide preliminary 87Sr/86Sr comparisons between the sexes, we also included a small number of males from the Central and Eastern Coastal Plain (n = 7). One antler could not be confidently assigned to either sex and is excluded from comparisons between males and females.
Shed antlers can be identified by the presence of an exposed antler-skull attachment surface. All but two antlers reported here were shed. The first exception (T01-20-14 09) is the proximal portion of a female antler that is still attached to a fragment of the cranium. This specimen shows clear bone resorption along the antler attachment surface, which we interpret as strong evidence that shedding was underway and that this individual died during the calving season. The second antler (ANWR-120) is a male that includes a section of the antler pedicle and is also interpreted as a mortality. Both specimens were included because they are heavily weathered and likely predate available biomonitoring data by at least several decades. While some antlers were partially obscured in tundra or moss, all were at least partially exposed. One antler (T01-14-12 14) was found fully exposed, but almost entirely covered in root etching and was likely previously buried. This specimen was also included for its likely antiquity.
To test for change in seasonal landscape use through time, we selected antlers from our collection that spanned a potentially wide range of ages; methods for discriminating antler age categories are described below (“dating antlers”). Antlers were categorized as “recent” or “historical” depending on whether they were shed in years that overlapped the best-available caribou management records and/or following infrastructure development on herd ranges. This distinction is separately evaluated for the Porcupine and Central Arctic Herds due to their different management histories. For antlers from the Central and Eastern Coastal Plain (calving grounds of the Porcupine Herd), the dividing date between historical and recent was 1983. This division corresponds to standardization of calving surveys for the Porcupine Herd and when the numbers of radio-collared females began to substantially increase (Griffith et al., 2002). For antlers from the Western Coastal Plain (calving grounds of the Central Arctic Herd), the dividing date between historical and recent was 1980 to coincide with the completion of many infrastructural development projects and the onset of several others (Fancy et al., 1989; Cameron et al., 1992). Results were consistent when using the same cutoff for both regions (i.e., 1980 or 1983). We selected equivalent samples of “recent” (n = 34) and “historical” (n = 31) antlers from each of the three regions of the Coastal Plain (nmedian = 10; nrange = [9, 13], female only: nmedian = 10, nrange = [8, 10]).
To assign antlers as either historical or recent, we estimated growth year using a combination of antler weathering analysis and Accelerator Mass Spectrometry (AMS) radiocarbon dating. Historical antlers were first identified by their advanced weathering and confirmed by AMS dates. To identify recent antlers without needing to directly date all specimens, we calibrated the progression of early weathering using a second series of AMS dates.
Bones in many environments progress beyond initial stages of weathering (weathering stages 0 and 1; sensu Behrensmeyer, 1978) within a few years (Behrensmeyer, 1978; Miller, 2009). However, bone weathering rates are dramatically slowed in arctic settings (results below; Meldgaard, 1986; Sutcliffe and Blake, 2000). By observing antler weathering patterns, it became apparent that the progressive loss of original bone textures was a potential indicator of initial weathering duration. We defined original bone textures as smooth, unmodified bone surfaces that may or may not maintain a glossy shine. The simplicity of the definition means antler surfaces can be readily assessed as original or modified. This definition is also non-ambiguous and highly restrictive as to which surfaces are considered original. Small cracks, slight roughening of external cortical surfaces, and other subtle, yet easily identified deviations from original bone textures are all recognized as modifications.
To evaluate initial weathering, we visually and tactilely assessed the coverage of preserved original bone texture for all antlers and scored them using four categories (Figure 2): 0 = more than two-thirds original bone texture preserved, 1 = between one- and two-thirds preserved, 2 = less than one-third preserved, and 3 = no original bone texture remaining. We also recorded whether lichens were present or absent. Because lichens lead to pocked bone surfaces (Hospitaleche et al., 2011), antler surfaces covered in lichens were scored as 3. For each antler, we separately evaluated skyward and ground-facing sides, because these surfaces can experience different weathering microhabitats (Behrensmeyer, 1978; Andrews and Whybrow, 2005). To standardize our assessments, we focused on the proximal portion of the main beam (Figure 3, shaded area of antler schematic). This region has fairly even thickness of dense cortical bone, which is important for consistently estimating bone weathering duration (Behrensmeyer, 1978). Focusing on this anatomical region is also appropriate because it must be at least partially preserved to identify the antler as shed. After evaluating original bone texture, we added scores from the skyward and groundward sides into a Composite Score of bone texture, ranging from 0 (supermajority of all original bone texture preserved) to 6 (no original bone texture preserved).

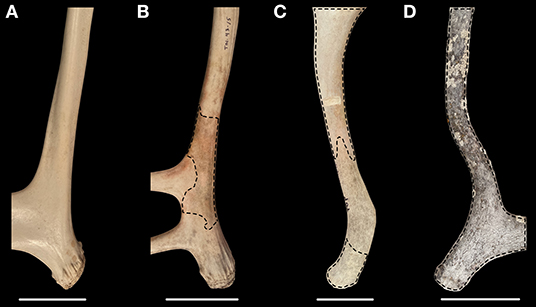

Figure 2. Examples of antlers in the four weathering categories of original bone texture. (A) Bone texture score 0: preservation of more than two-thirds of original bone texture. (B) Score 1: between one- and two-thirds original bone texture preserved. (C) Score 2: less than one-third original bone texture preserved. (D) Score 3: no original bone texture preserved. Dashed lines outline regions of modified bone. In (C), unmodified bone is difficult to visually differentiate due to discoloration, but these areas are smooth to the touch. Region sampled for 87Sr/86Sr is visible as a light colored area in the upper half of (C). After evaluating the skyward and groundward sides of each antler, scores are added to create a Composite Score of bone texture ranging from 0 (supermajority of original bone texture preserved) to 6 (no original bone texture preserved). Scale bars are 5 cm. Photographed specimens are (A) ANWR-133, (B) T01-43-15 01, (C) T01-16-12 12, and (D) T01-32-14 15.
Figure 3. Composite Scores of original bone texture calibrated to weathering duration. Weathering durations are calculated as the antler collection date minus the calibrated AMS date. Composite Scores range from 0 (super-majority of original bone textures preserved) to 6 (no original bone textures preserved). Composite Scores focus on the preservation of original surface textures of antlers. Composite Scores 0–5 characterize antlers in Weathering Stages 0 and 1 (Behrensmeyer, 1978). Antlers were evaluated along the proximal portion of the main beam (shaded area of antler schematic). Lichen presence or absence (squares or circles) is also indicated.
To calibrate Composite Scores of bone texture to weathering duration, we AMS dated antlers with Scores of 3 (n = 3), 4 (n = 1), 5 (n = 2), and 6 (n = 29; includes all antlers previously identified as “historical”). Antlers with no or limited signs of weathering (Composite Scores 0–2) were not dated to maximize dates nearest the temporal divisions between “recent” and “historical.” Further, progressions of bone weathering observed elsewhere instill confidence that antlers with no or minimal weathering have experienced the shortest weathering durations and are confidently “recent” (Behrensmeyer, 1978; Andrews and Whybrow, 2005; Miller, 2009; Western and Behrensmeyer, 2009).
For AMS dating, antlers were sampled from the proximal portion of the main beam. This region has dense cortical bone, which is resistant to contamination. Antlers were cut using a low-speed Dremel with a diamond wheel. Samples were cut into small chips and sent to the Keck-Carbon Cycle AMS Facility at the University of California, Irvine or the Center for Accelerator Mass Spectrometry at the Lawrence Livermore National Lab for chemical pretreatment and AMS dating. Collagen was prepared using standard treatments for demineralization and humic acid removal (Beaumont et al., 2010; Crowley et al., 2010), ultra-filtered, and lyophilized. For the 29 samples sent to the Keck-Carbon Cycle AMS Facility (Supplementary Table 1), lipids were removed by sonicating antler chips in a 2:1 chloroform/methanol solution for 30 min prior to demineralization. This was repeated with a fresh chloroform/methanol solution until the solution was no longer cloudy. Samples were then sonicated for 30 min in methanol, and 30 min in Milli-Q water. The sonicator bath was cooled to keep the temperature below 60°C. Of the six antlers dated at Lawrence Livermore, we only removed lipids from one (T03-02-11 28) by repeatedly sonicating in petroleum ether for 15 min until fat bubbles were no longer visible, and then rinsing with ultrapure water. There was no difference in δ13C values for antlers with (n = 30) or without (n = 5) lipid removal (Wilcoxon U = 78, p = 0.81), suggesting this should be of negligible concern for date corrections.
Radiocarbon dates were calibrated to calendar years using IntCal13 or BombNH13, depending on whether the antlers were grown before or after atmospheric nuclear weapons testing in the 1950s and 1960s (Hua et al., 2013; Reimer et al., 2013). We used the clam package in R to convert conventional 14C dates into calendar years from which we report all date ranges and associated posterior probabilities within the 95% confidence interval of the calibrated date (Blaauw, 2019). From those probability distributions, we categorized antlers as “recent” (post 1980 or 1983 depending on location) or “historical” (pre 1980 or 1983) based on the age with the highest probability. While dating errors can be as small as a few years for antlers grown after the 1950s, dating uncertainties are greater for antlers grown prior to the 1950s (Uno et al., 2013). For these older antlers, we summarized their ages by calculating the weighted-mean of the age probability distribution, the 1-sigma variance around the mean, and the range of the 95% confidence interval (Telford et al., 2004; Blaauw, 2010).
Because of the swift spike and subsequent protracted decay of atmospheric radiocarbon produced by nuclear weapons testing in the 1950's, antlers grown after weapons testing can often be calibrated to two different sets of years (e.g., the 1960s and the 1980s; Reimer et al., 2004). Furthermore, even if antlers were grown during the earlier period of the post-bomb era (e.g., 1960s), the quick initial pulse of radiocarbon relative to slow subsequent decay can mean that antler radiocarbon may have more expansive overlap with later parts of the calibration curve (e.g., 1980s). Ultimately, this means that the most supported calibrated date may not always correctly identify whether an antler was grown in historical or recent times. Fortunately, antler weathering features can add meaningful independent data with which to evaluate the AMS calibration. When antler weathering was inconsistent with the most supported age-range of a bifurcated set of dates, we used weathering to inform which date range should be used.
Strontium Isotope (87Sr/86Sr) Preparation and Analysis
Antler samples were prepared for 87Sr/86Sr analysis following estalished protocols (Crowley and Wheatley, 2014; Baumann and Crowley, 2015; Crowley et al., 2018). Ca. 20 mg of powder was milled from each antler using a low-speed Dremel with a burr attachment. We focused on a region of dense cortical bone roughly 15 cm from the base of the antler pedicle attachment and removed exterior bone surfaces in order to exclude weathered bone or other surface contaminants. Samples were soaked in 30% hydrogen peroxide (H2O2) at room temperature for 72 h and then rinsed five times with ultrapure water. Samples were agitated frequently, and H2O2 was refreshed after roughly 40 h. Samples were then reacted with 1M acetic acid (CH3COOH) buffered with calcium acetate (Ca(C2H3O2)2) at 4°C for 24 h, rinsed five times with ultrapure water, and freeze dried.
Three to 5 mg of each pretreated sample were sent to the Multicollector ICPMS Laboratory at the University of Illinois, Urbana-Champaign for strontium extraction and analysis. Samples were dissolved in 3M nitric acid (H2NO3) and filtered through Eichrom Sr-specific resin, followed by sequential rinsing with 0.05, 3, and 8M H2NO3 to isolate strontium. Strontium was eluted from the resin with 3 mL of ultrapure water and 1 mL of 0.05 M H2NO3 into 4 mL autosampler vials. Samples were analyzed on a Nu Plasma high-resolution multi-collector inductively-coupled plasma mass spectrometer. Data were corrected for drift using the international standard NBS 987 while two internal laboratory references (“Coral” and “E&A”) were used to monitor accuracy and precision.
To test if antler accumulations faithfully differentiate the Porcupine and Central Arctic Herds, we compared female antler 87Sr/86Sr from the Western, Central, and Eastern Coastal Plain using Levene tests for homogeneity of variance and pairwise Mann-Whitney U-tests with a Bonferroni correction. Comparisons were evaluated separately for historical and recent female antlers. To test for changes in female antler 87Sr/86Sr through time, we used Mann-Whitney U and Levene tests to compare recent and historical antlers from the same Coastal Plain region. We also tested whether male and female antler 87Sr/86Sr provides similar spatial information (Mann Whitney-U). To make our Bonferroni corrections more intuitive, our reported p-values have been multiplied by the number of comparisons; thus our target alpha value remains 0.05. This is equivalent to adjusting the target alpha level itself by dividing by the number of comparisons. We used non-parametric tests in all analyses because the 87Sr/86Sr data deviate from normality (Sokal and Rohlf, 2011).
To estimate bioavailable 87Sr/86Sr on the Coastal Plain and surrounding regions, we used a modeled 87Sr/86Sr isoscape (Bataille et al., 2020). This model combines a global compilation of bioavailable 87Sr/86Sr in local plants, soils and animals, as well as geoenvironmental maps into a machine-learning regression to predict bioavailable 87Sr/86Sr at the global scale (1 km resolution). The model should work well for our purposes because the training data included soil, plant, and animal samples from Alaska. We used the latitude and longitude of each collected antler to extract the expected bioavailable 87Sr/86Sr at each collection site. To assess where antlers were grown, we applied a continuous-surface assignment framework available in the assignR package in R (Ma et al., 2020). This method compares the observed 87Sr/86Sr values (x*) with those predicted by the isoscape. We used the function assignR to calculate the likelihood (z*) that any given cell of the isoscape (c) represents a potential origin for an antler [f (z*|c)] using a normal probability density function:
where μc and σ represents the mean and uncertainty at each pixel of the isoscape. We started by calculating probability surfaces for each female antler. We then summarized probabilities for each herd by summing the probability maps and dividing by the number of antlers sampled. These summary maps represent the average probabilities for each pixel. Map probabilities range from 0.0 (extremely low probability) to 1.0 (very high probability). Given this framework, we used female antler 87Sr/86Sr from the Western Coastal Plain to estimate regions of possible summer landscape use for the Central Arctic Herd and female antler 87Sr/86Sr from the Central and Eastern Coastal Plain to estimate regions of possible summer landscape use for the Porcupine Herd. All analyses were scripted in R version 3.4.1 (R Core Team, 2017).
Antler Weathering and Radiocarbon Dating
Composite Scores of original bone texture for all antlers and AMS dating results are available in Supplementary Tables 1, 2. As a reminder, our antler weathering analysis focused on the progressive loss of original bone textures, which only evaluates initial patterns of weathering. Antlers with Composite Scores 0–5 generally corresponded to antlers in the earliest weathering stages (WS 0–1; Behrensmeyer, 1978). Antlers that have lost all original bone textures (Composite Score 6) may be in any of the more advanced weathering stages (WS 2–5).
Weathering durations overlap for antlers that have lost most or all of their original bone texture (Composite Scores 5 and 6, Figure 3). Such antlers have been weathering for at least 32 years. Antlers with modestly better preservation (Composite Scores 3 and 4) have overlapping and tightly clustered weathering durations between 21 and 25 years. There is no overlap between Composite Score 3–4 antlers and those showing more advanced weathering (Composite Scores 5–6). We also found that lichens colonize antlers by the time antlers weather to Composite Score 3 (ca. 20 years; Figure 3, squares), after which they are a constant presence on subaerially exposed antlers.
All undated antlers had Composite Scores between 0 and 3 (Figure 3); the majority of which (21 of 30) exhibited only minimal weathering (Composite Scores 0–1). Clear distinction in weathering duration between more-weathered (Composite Scores 5–6) and less-weathered antlers (Composite Scores 4 and less) indicates that undated antlers have all been weathering for less than ~25 years. We thus conclude that antlers with Composite Scores 0–4, including all undated specimens, came from generations of caribou that overlap available management records, and are thus considered “recent” (Figure 3).
Two antlers had calibrated radiocarbon dates for which the most supported date range was inconsistent with antler weathering. These were T01-16-12 06 (Western Coastal Plain) and T01-42-15 78 (Eastern Coastal Plain). Both antlers have lost all original bone texture (Composite Score 6). T01-16-12 06 has substantial bone surface cracking and flaking (akin to a shallowly developed Weathering Stage 2, Behrensmeyer, 1978). The calibrated age range for T01-16-12 06, which was collected in 2012, included dates in both the 1960s and 1980s (Table 1). Higher posterior probability support for candidate ages between 1984 and 1988 indicated ca. 24–28 years of weathering. However, our weathering calibration indicates that antlers would likely still have some preserved original bone textures after this weathering duration, or display weathering features more consistent with their recent loss. Thus, the highly weathered surfaces of T01-16-12 06 indicate it is an historical antler from ca. 1960. Antler T01-42-15 78 was collected in 2015 and has a similarly structured calibrated date showing support for either ca. 1960 or ca. 1986 (Table 1). However, T01-42-15 78 is more weathered than T01-16-12 06 (advanced form of Behrensmeyer's Weathering Stage 2; Behrensmeyer, 1978), including widening longitudinal cracks. Again, the highly weathered surfaces of T01-42-15 78 are inconsistent with other antlers dating to the 1980s and early 1990s (Figure 3). Thus, we determined T01-42-15 78 is an historical antler from the late 1950s to early 1960s.

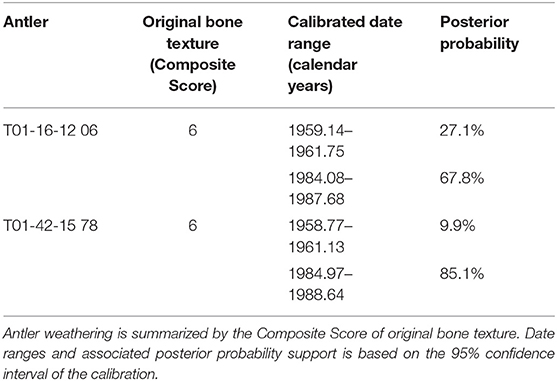

Table 1. Antlers with conflicts between weathering features and most-supported ranges of post-bomb (BombNH13) calibrated AMS dates.
Radiocarbon dates revealed that six antlers were shed prior to the 1900s. Each region of the Coastal Plain included at least one antler over 100 years old (Figure 4). Among these antlers, the oldest is ca. 700 years old (T03-02-11 28, Supplementary Tables 1, 2) and shows no indication of previous burial. Only one of the antlers with a calibrated date prior to the 1900s exhibited taphonomic indications of previous burial (T01-14-12 14, Supplementary Tables 1, 2).

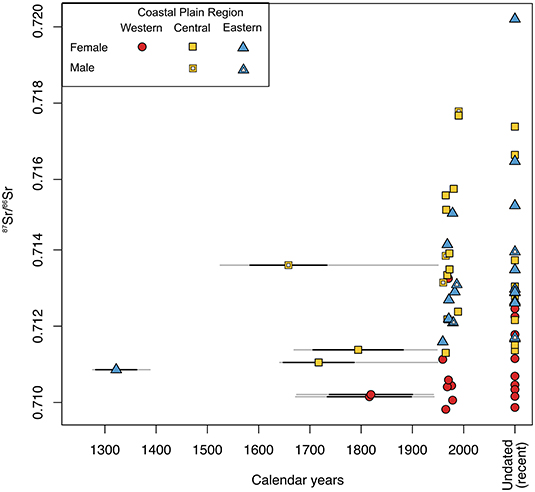

Figure 4. Timeseries of 87Sr/86Sr for female and male caribou antlers from the Western, Central, and Eastern Coastal Plain. Antler ages (calendar years) are calibrated AMS dates. For antlers shed prior to the 1950s, calibrated radiocarbon ages are illustrated as the weighted mean (points), total age range (gray horizontal lines), and 1-sigma around the mean (black horizontal lines) of the 95% confidence interval. For antlers shed after the 1950s, calibrated dates are summarized as the year with the highest posterior probability of the calibration (points); dating errors for these antlers are too small to be shown but are available in Supplementary Table 2.
Antler 87Sr/86Sr Across Space and Time
For both the Western and Central Coastal Plain, female antler 87Sr/86Sr (median and variance) differed significantly from bioavailable 87Sr/86Sr at the sites of antler collection (Figure 5, Table 2). For the Eastern Coastal Plain, antler and bioavailable 87Sr/86Sr had similar medians, but the variance of antler 87Sr/86Sr was significantly larger (Table 4). Overall, bioavailable 87Sr/86Sr increased across the study area from west to east (Figure 5). While antler 87Sr/86Sr also increased between the Western (n = 19) and Central Coastal Plain (n = 20; U = 41, p << 0.01), there was no change in antler 87Sr/86Sr between the Central and Eastern Coastal Plain (n = 20, U = 173, p = 0.85; Figure 5).

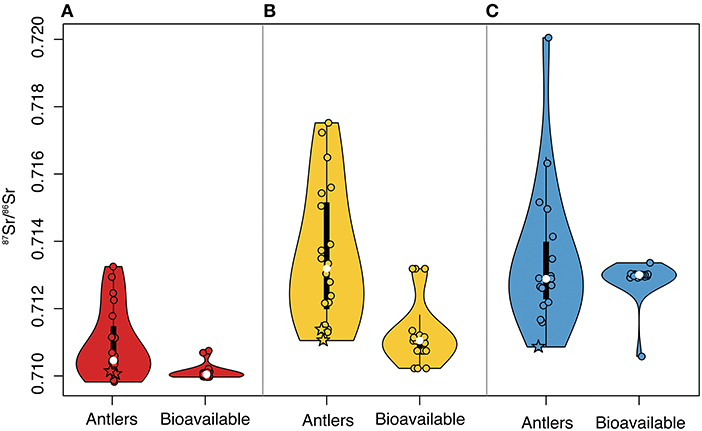

Figure 5. Violin plots showing distributions of female antler 87Sr/86Sr and estimated bioavailable 87Sr/86Sr of each antler location for the (A) Western, (B) Central, and (C) Eastern Coastal Plain. Plots illustrate kernel density estimates (violin boundaries), interquartile range (thick vertical bars), 1.5 times the interquartile range (thin vertical line), and median (white point). Antler and bioavailable 87Sr/86Sr (points) are offset to aid visibility. Stars identify 87Sr/86Sr for antlers grown prior to 1900 CE.

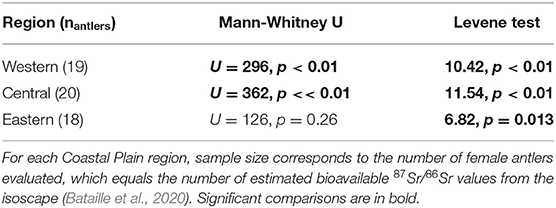

Table 2. Mann-Whitney U and Levene tests between female antler 87Sr/86Sr and bioavailable 87Sr/86Sr at collection sites.
Comparing recent female antlers among regions, we found that antler 87Sr/86Sr was indistinguishable between the Central and Eastern Coastal Plain (Porcupine Caribou calving grounds; Figure 6, Table 3A). However, antlers from both regions had significantly larger 87Sr/86Sr than the Western Coastal Plain (Central Arctic calving ground). This pattern was repeated for historical antlers; Central and Eastern Coastal Plain antlers were statistically indistinguishable, but Western Coastal Plain antlers had significantly smaller 87Sr/86Sr (Table 3B).

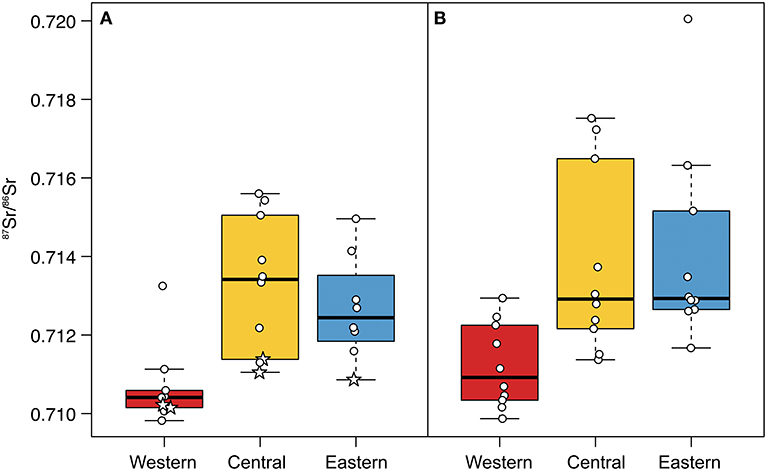

Figure 6. Distributions of 87Sr/86Sr for (A) historical and (B) recent female antlers from the Western, Central, and Eastern Coastal Plain. Stars identify 87Sr/86Sr for antlers grown prior to 1900 CE. Boxplots illustrate the interquartile range (box), 1.5 times the interquartile range (dashed whiskers), and median (thick black bar). Points (female antler 87Sr/86Sr) are offset to aid visibility.

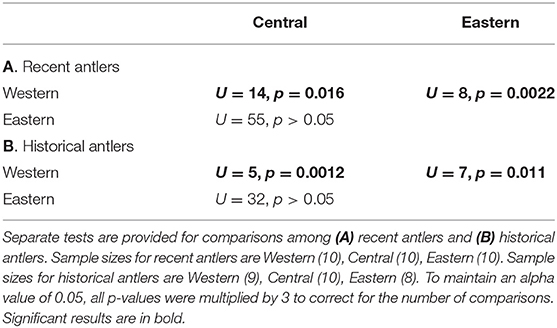

Table 3. Pairwise Mann-Whitney U-tests among female antler 87Sr/86Sr in the Western, Central, and Eastern Coastal Plain.
Comparing female antlers through time in each region, we found no differences between historical and recent antler 87Sr/86Sr in either the Central or Eastern Coastal Plain (Table 4). However, comparisons between historical and recent antlers from the Western Coastal Plain revealed multiple differences (Table 4). First, the distribution of 87Sr/86Sr for nearly all historical Western Coastal Plain antlers was more constrained than all other datasets (Figure 6). The one antler outside of this cluster (T01-18-12 05, grown ca. 1970; Supplementary Tables 1, 2) had a strontium isotope ratio more than six times the interquartile range larger than the median and was beyond the 95th percentile of the dataset, both satisfying common thresholds for identifying outliers (Gotelli and Ellison, 2004). Further, 87Sr/86Sr for this outlier exceeds that for any other antler from the Western Coastal Plain (historical or recent) and is close to the median for historical female antler 87Sr/86Sr for the Central Coastal Plain. Based on these characteristics, it is possible that this antler came from a rare Porcupine Herd female calving on the Western Coastal Plain. After removing this outlier, we find that recent antlers from the Western Coastal Plain have significantly larger variance and marginally larger 87Sr/86Sr compared to historical antlers (Table 4). Increased variance of recent antlers persists after the analysis is limited to antlers grown after 1900 CE, which approximately equalizes the temporal extents of the datasets (Table 4).

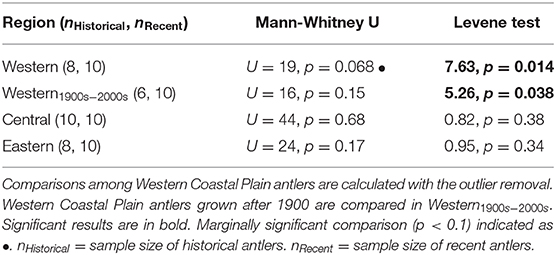

Table 4. Mann-Whitney U and Levene tests between historical and recent female antlers from the Western, Central, and Eastern Coastal Plain.
Differences between historical and recent antler 87Sr/86Sr from the Western Coastal Plain (Central Arctic Herd) correspond to shifts in modeled landscape use (Figures 7A,C). Modeled landscape use for recent antlers (Figure 7A) overlaps the documented summer range of the Central Arctic Herd (Figure 7A dashed line; Arthur and Del Vecchio, 2009; Nicholson et al., 2016). Strong correspondence between antler 87Sr/86Sr and biomonitoring records suggests the method is appropriate for extrapolating beyond known management conditions. Historical reconstructions show that regions of possible landscape use are more uniform (probabilities closer to 1.0) and concentrated within a smaller geographic region of the current summer range (Figure 7C). Data for historical antlers from the Central Arctic Herd also indicate that areas used today as calving grounds had previously been likely regions of summer range. We also found support for more focused historical use of the Arctic Refuge's 1002 Area during summer months (Figure 7C).

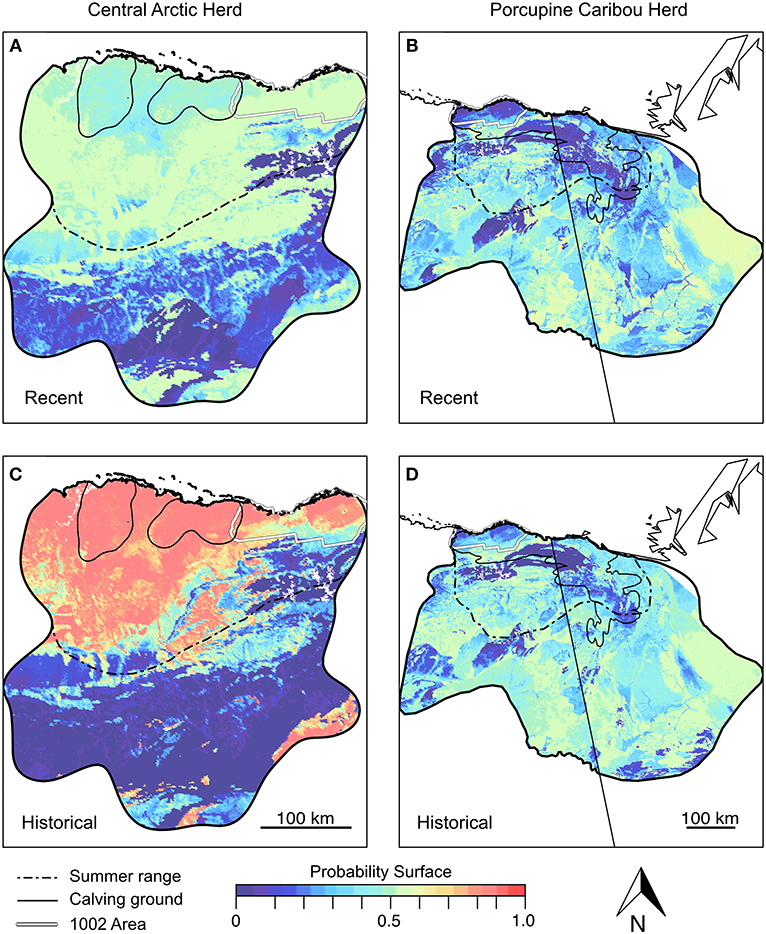

Figure 7. Modeled Coastal Plain landscape use calculated from female antler 87Sr/86Sr. Recent (A,B) and historical (C,D) landscape use is estimated separately for the Central Arctic (A,C) and Porcupine Caribou Herds (B,D). Historical landscape use for the Central Arctic Herd is estimated after removing the outlier. The Porcupine Herd is modeled by pooling female antlers from the Central and Eastern Coastal Plain. Sample sizes for calculations in panels (A–D) are n = 10, 20, 8, and 18, respectively. Outlines of modern summer ranges (dashed) and calving grounds (solid lines) are provided for reference within the annual range of each herd (black outline of probability surface). Herd range boundaries from Trammell et al. (2015).
For the Porcupine Herd, modeled areas of potential landscape use (Figures 7B,D) are less focused than the Central Arctic Herd; a pattern that holds for both historical and recent periods. Modeled landscape use based on recent antlers overlaps the documented summer range of the Porcupine Herd (Figure 7B, dashed line), though probability surfaces also show support outside of the Porcupine Herd's summer range.
Antlers from the Central and Eastern Coastal Plain that were grown prior to 1900 CE (“antique” antlers) generally have small 87Sr/86Sr, and in some cases the smallest 87Sr/86Sr for their respective regions (Figure 4). This is not universal, however, as the oldest Western Coastal Plain antlers do not have unusually small 87Sr/86Sr compared to historical antlers younger than 1900 CE (Figure 4). Further, the single antique male antler from the Central Coastal Plain (Figure 4, open square, 87Sr/86Sr = 0.71360) has larger 87Sr/86Sr than antique females from the same region (mean femaleantique 87Sr/86Sr = 0.71122) but is consistent with the mean for Central Coastal Plain historical antlers grown after 1900 CE (male-only = 0.71349, female + male = 0.71373; female-only = 0.71379). Thus, 87Sr/86Sr is not explicitly linked to time.
Male and female antlers from the Central and Eastern Coastal Plain show broad overlap in 87Sr/86Sr (Figure 4). After pooling all female (n = 38) and male antlers (n = 7), we do not find evidence for isotopic distinction between sexes (U = 117, p = 0.63).
Expanding Ecological Timeseries
Our results demonstrate that antlers on the Arctic Refuge Coastal Plain can predate management records by centuries. Because slow weathering processes enable long-term survival of bone (Meldgaard, 1986; Sutcliffe and Blake, 2000), antlers lying on tundra surfaces can dramatically extend the temporal window with which we assess caribou landscape use. The simple presence of shed female antlers from hundreds of years ago lying on the same landscapes as antlers of caribou that recently gave birth provides the first physical evidence of the longstanding use of the Arctic Refuge Coastal Plain as a calving ground. This finding is consistent with accounts of caribou herd behaviors in the 1800s and traditional ecological knowledge of the Gwich'in (Burch, 2012; Benson, 2019). Furthermore, because antlers are still being deposited on arctic landscapes, antler surveys simultaneously yield data on contemporary and distantly historical populations, contributing unique data for evaluating ecological responses to long-term environmental changes (Mihoub at al., 2017) for a highly mobile and long-lived mammal at increasing risk due to climate change and anthropogenic disturbance (Festa-Bianchet et al., 2011; Tucker et al., 2018).
Slow bone weathering on the Coastal Plain is likely caused by multiple factors, with below-freezing mean annual temperatures likely being of central importance (Fiorillo, 1995; Douglas et al., 2002; Todisco and Monchot, 2008; Miller, 2011; Pokines et al., 2016). Additionally, while summers bring 24-h sun and prolonged exposure to ultraviolet (UV) radiation, UV intensity is low at arctic latitudes and Coastal Plain summers are often cloudy or blanketed in dense fog for weeks at a time (U.S. Fish Wildlife Service, 2015; Miller, personal obs.). Bone weathering rates may also be slowed through limited summer rainfall, and reduced wet-dry cycles (shrinkage-expansion) that damage bone, particularly on well-drained Dryas terraces (Behrensmeyer, 1978; U.S. Fish Wildlife Service, 2015; Pokines et al., 2018). Under such conditions, it is perhaps unsurprising that antlers are well-preserved for extended durations, including maintaining original bone texture for decades. Similar or more extreme conditions in the Canadian High Arctic and Greenland support the persistence of unburied antlers on landscape surfaces for millennia (Meldgaard, 1986; Sutcliffe and Blake, 2000). This is in stark contrast to tropical settings, where bones of large mammals are unlikely to persist beyond several decades (Behrensmeyer, 1978; Tappen, 1994), or temperate settings where bones may only survive on landscape surfaces for up to two centuries (Miller, 2011). The need for historical references is particularly acute in arctic populations, as these ecosystems have already been and will continue to be subjected to some of the most extreme environmental perturbations due to global warming (ACIA, 2004; Graversen et al., 2008; IPCC, 2014). Unfortunately, data access and integration from arctic ecosystems are often hampered by challenges in consistently accessing remote areas as well as changes in survey methodologies (but see Magurran et al., 2010). Even under such constraints, bones, teeth, and antlers lying on landscape surfaces can faithfully record diverse aspects of community ecology and seasonal landscape use and allow us to reclaim components of lost ecological history (Behrensmeyer et al., 1979; Western and Behrensmeyer, 2009; Miller, 2011, 2012; Miller et al., 2013, 2014).
Antler 87Sr/86Sr vs. Bioavailable 87Sr/86Sr
Mismatch between female antler 87Sr/86Sr and bioavailable 87Sr/86Sr across the Coastal Plain indicated that antlers were not grown locally (Figure 5, Table 2). As both herds are migratory, this was an expected finding and is consistent with previous work showing that differences between skeletal materials and local bioavailable 87Sr/86Sr can identify mobile individuals (e.g., Hoppe et al., 1999; Hoppe and Koch, 2007; Baumann and Crowley, 2015). We also showed that broad spatial sampling (here, across 100 km) and evaluating multiple summary statistics (e.g., median and variance) can be important for evaluating differences between focal specimens and regional changes in bioavailable 87Sr/86Sr. For example, median values of antler and bioavailable 87Sr/86Sr on the Eastern Coastal Plain were not statistically different, though antler 87Sr/86Sr had larger variance (Figure 5, Table 2). Antler 87Sr/86Sr also did not follow the west-to-east gradient of increasing bioavailable 87Sr/86Sr across the study area, further indicating antlers were not grown where they were shed.
Antler 87Sr/86Sr Can Differentiate Caribou Populations
Shed female antlers track two components of seasonal landscape use: ranges used during antler growth (antler 87Sr/86Sr) and the subsequent spring calving ground (shed antler locations). Herd-specific patterns of landscape use by the Central Arctic Herd (Western Coastal Plain) and Porcupine Herd (Central and Eastern Coastal Plain) can be differentiated using 87Sr/86Sr of female antlers lying on tundra surfaces. When multiple herds are contributing antlers to a region, differentiating herd-specific inputs is an important step before using spatial variability in antler densities (antlers/km2) to evaluate preferences in landscape use (Miller and Barry, 1992; Miller, 2012; Miller et al., 2013). While the discriminatory power of this method relies on the variability and distinctiveness of bioavailable 87Sr/86Sr among herd ranges (Beard and Johnson, 2000; Britton et al., 2011; Crowley et al., 2017), differences in 87Sr/86Sr between antlers on Central Arctic and Porcupine Herd calving grounds indicate that even herds with partially overlapping ranges (Figure 1) can be distinguished when geologic conditions are favorable.
Landscape Use Through Time: The Porcupine Caribou Herd
Antler 87Sr/86Sr indicates that for caribou calving on the Central and Eastern Coastal Plain, overall patterns of landscape use during the previous summer have been consistent since at least the 1960s (Figures 6, 7). These data augment biomonitoring records that also suggest large-scale continuity in seasonal calving and summer ranges (Russell et al., 1993; Griffith et al., 2002; McFarland et al., 2017).
Herd size is an important contributor to changes in caribou landscape use, including shifts in the fidelity of seasonal ranges, migratory distances, and the tendency of individuals to migrate or remain more sedentary (Skoog, 1968; Fancy et al., 1989; Schaefer and Mahoney, 2003, 2013; Hinkes et al., 2005; Couturier et al., 2010; Taillon et al., 2012; Peters et al., 2017; Joly et al., 2019). Climate cycles such as the Pacific Decadal Oscillation and the North Atlantic Oscillation can also influence landscape ecology and population size (Griffith et al., 2002; Joly et al., 2011). Yet, even amidst changes in climate and herd size, we find continuity between shed Porcupine Herd antler locations (calving grounds) and their antler geochemistry (summer landscape use). An important component of this consistency may be the relatively small extent of anthropogenic development across the Porcupine Herd range, permitting populations to fluidly adapt their landscape use to changes in climate and population size. Expanded sampling of antler 87Sr/86Sr from calving areas in the Arctic Refuge and neighboring Yukon will provide important tests for how ubiquitous this stability is between summer and calving ranges. If infrastructural development increases in Porcupine Herd ranges, it will be important to track the degree to which the links between calving grounds and summering areas stay within the range of multidecadal variability established here.
While antler 87Sr/86Sr for the Central and Eastern Coastal Plain portrays a degree of ecological consistency across relatively recent history, antique antlers (grown prior to 1900 CE) from this region have comparatively small 87Sr/86Sr (Figures 4, 6 stars). Our small datasets preclude a full evaluation, but there are two potential reasons why antique Central and Eastern Coastal Plain antlers could have small 87Sr/86Sr: (1) diagenetic alternation, or (2) different patterns of landscape use during the Little Ice Age (1250 to as late as 1900 CE; Solomina et al., 2015; Gaglioti et al., 2019).
Overall excellent preservation of antlers suggests that subtle differences in antique antler 87Sr/86Sr of the Central and Eastern Coastal Plain most likely reflect changes in landscape use. Antlers have generally undergone limited taphonomic modification, the most obvious of which includes gnawing, UV-exposure, freeze-thaw, and root etching (one buried specimen). Cutting the specimens for AMS dating also revealed that weathering features are generally limited to a thin patina near the surface without penetrating deeply into the antler. Consistent with well-preserved bone, antlers do not show steady shifts in 87Sr/86Sr with time, which would be expected for early diagenetic obfuscation of primary isotope values. For example, after over 50 years of weathering, there is no change in median 87Sr/86Sr between recent and historical antlers on the Central and Eastern Coastal Plain (Figure 6). If alteration was driving antique antler 87Sr/86Sr, we would also expect to see similar values for similarly aged antlers. Instead, similarly-aged antique antlers from the Central Coastal Plain have highly variable 87Sr/86Sr (Figure 4, yellow squares). Additionally, 87Sr/86Sr for the oldest Eastern Coastal Plain antler (T03-02-11 28; Figure 5C), is smaller than bioavailable 87Sr/86Sr. Thus, even after hundreds of years of weathering, we do not see strong evidence that antique antler 87Sr/86Sr was altered. Strontium ratios of antique antlers from the Western Coastal Plain (Central Arctic Herd, discussed more below) are also not abnormally small relative to more recently shed antlers in that region (Figures 4, 6). In the absence of a clear diagenetic explanation, the alternative explanation is that smaller 87Sr/86Sr of antique female antlers from the Central and Eastern Coastal Plain reflect a shift in summer landscape use for caribou calving in these regions during the Little Ice Age. Robustly evaluating this hypothesis will require larger sample sizes of antique antlers, but our results provide a first glimpse into possible differences in caribou landscape use during a time when northeastern Alaska was significantly cooler and perhaps drier (Sikorski et al., 2009).
Landscape Use Through Time: The Central Arctic Herd
The Western Coastal Plain offers an excellent opportunity to sample antlers from Central Arctic Herd calving grounds while minimizing the distance to Porcupine Herd calving grounds. This close proximity makes comparing Western Coastal Plain antlers with antlers from the Central and Eastern Coastal Plain a strong test of whether antler 87Sr/86Sr can differentiate herd identity. At the same time, because the Western Coastal Plain is only one edge of the Central Arctic Herd calving grounds, sampling antler 87Sr/86Sr across the remainder of their calving grounds will be important for assessing the full scope of changes in summer landscape use through time.
For antlers collected along the Western Coastal Plain, those shed in the 1980s and more recently show a shift in median 87Sr/86Sr and greater variability than historical antlers. These changes manifest as greater overlap in recent 87Sr/86Sr between Western Coastal Plain antlers (n = 4 of 10) and those of the Central and Eastern Coastal Plain (Figure 6). There are two plausible explanations for these changes: (1) increased calving by the Porcupine Herd on the Western Coastal Plain; and (2) shifts in landscape use by the Central Arctic Herd.
The first possibility seems unlikely because the Porcupine Herd rarely calve near the Western Coastal Plain and there is no spatial overlap between our antler surveys and known Porcupine Herd calving areas. While the Porcupine Herd calved nearest our antler surveys in the early 1990s (Griffith et al., 2002; McFarland et al., 2017), antlers from this time-period are not well-represented in our dataset. Antlers were surveyed on the Western Coastal Plain in 2012, so antlers shed in the mid-1990s would mostly likely have original bone texture with Composite Scores of 3 or 4 (Figure 3). Instead, the majority of recent antlers from the Western Coastal Plain (n = 6 of 10) are nearly pristine (Composite Score 0), including half the Western Coastal Plain 87Sr/86Sr values (2 of 4) that overlap recent Central and Eastern Coastal Plain antlers. While Composite Score 0 has not been calibrated to weathering duration, comparisons to bone weathering observed elsewhere (Miller, 2011) suggest that these antlers were likely shed in the preceding decade. Thus, it is unlikely that the shift in Western Coastal Plain antler 87Sr/86Sr between historical and recent times was driven by antlers from Porcupine Herd females.
We consider the second possibility as the most probable scenario: differences in historical and recent antler 87Sr/86Sr from the Western Coastal Plain are best explained as a shift in summer landscape use by the Central Arctic Herd after the 1970s. Comparisons of modeled recent and historical summer landscape use (Figures 7A,C) indicate that range shifts were non-trivial. Historical summer landscape use (Figure 7C) was more consistent among individuals (probabilities closer to 1.0) with increased summer activity in what is currently spring calving grounds of the Central Arctic Herd. Reconstructions also indicate more concentrated summer use in the northeast and northwest portions of the Arctic Refuge's 1002 Area. While our dataset does not have the temporal resolution to pinpoint the onset of changes, the observed isotopic shifts roughly coincide with three factors known to alter patterns of landscape use in caribou: (1) population growth, (2) climate change, and (3) increased anthropogenic disturbances to their summer and calving ranges.
Since modern biomonitoring surveys were initiated in the 1970s, the Central Arctic Herd experienced some of the largest proportional population swings of any of Alaska's northern caribou herds, including an over 10-fold increase in population size between 1978 and 2010 (Cameron et al., 2005; Lenart, 2015). Most “recent” antlers come from this period of dramatic population increase, though some minimally weathered antlers (Composite Score 0) may come from the initial period of population reduction following 2010. It is possible that increased variance of 87Sr/86Sr in recent antlers and the marginal shift toward larger 87Sr/86Sr (Table 4) is a reflection of changes in landscape use associated with population expansion (Boertje and Gardner, 2000; Bergerud et al., 2008; Nicholson et al., 2016). However, similarity in antler 87Sr/86Sr across the historical antler timeseries is intriguing as it includes two antlers from the 1800s that may also have come from larger populations. Knowledge of caribou populations from this time are limited, but reports from travelers in northeast Alaska indicate that the historical equivalent of the Central Arctic Herd had population highs ca. 1840 and between the 1880s and 1890s (Burch, 2012). Uncertainties in calibrated AMS dates are high for the two antique antlers (T01-14-12 14, T01-16-12 10), but the most supported date ranges overlap these periods of past population highs (1832–1893 and 1833–1891, respectively; Supplementary Table 2). Thus, through time, relationships between antler 87Sr/86Sr and herd size may be complex and should be explored with a more complete timeseries.
Environmental and ecological changes due to global climate change are particularly acute in the arctic, where surface temperature anomalies have been consistently increasing since the 1980s or earlier (ACIA, 2004; Graversen et al., 2008; IPCC, 2014). Climate can influence ungulate population size and landscape ecology (Post and Stenseth, 1998; Joly et al., 2011) and is an obvious candidate driver of recent shifts in Central Arctic Herd antler 87Sr/86Sr. However, antler 87Sr/86Sr of the Porcupine Herd showed no response across the same interval, even though landscapes of the Arctic Coastal Plain and the Porcupine Herd itself are known to respond strongly to climate and environmental change (Griffith et al., 2002; Joly et al., 2011). While testing the role of climate in structuring recent shifts in Central Arctic Herd landscape use requires further exploration, the lack of response by the Porcupine Herd to recent warming is noteworthy and suggests other factors may be contributing to the shift in Central Arctic Herd landscape use.
Increased human developments during the 1970s and 1980s are a likely alternative driver of shifts in summer landscape use for the Central Arctic Herd. Infrastructural development supporting oil exploration and recovery has been occurring in Central Arctic Herd ranges since the 1960s. However, the scale and scope of development increased in the mid 1970s and 1980s, including oil field expansion, construction of the Trans-Alaska Pipeline, and road networks built through portions of the Central Arctic Herd's calving, summer, and winter ranges (Fancy, 1983; Arthur and Del Vecchio, 2009; Nicholson et al., 2016). There are known behavioral responses to infrastructure, including avoidance of pipelines and roads by pregnant females and reduced calf birth weight in areas with more intense anthropogenic impacts and barriers (Cameron and Whitten, 1980; Cameron et al., 2002, 2005; Arthur and Del Vecchio, 2009; Nicholson et al., 2016). Multiple anthropogenic disturbances to movement and habitat access can also compound into regional-scale impacts on caribou landscape use (Johnson and Russell, 2014; Johnson et al., 2020). Thus, a shift between historical and recent Central Arctic Herd summer range is not surprising. An important future area of research will be to test this shift in preferred summer landscapes using an expanded sampling of antlers across the herd's calving grounds. Of particular interest is to compare modeled summer landscape use between the two epicenters of Central Arctic Herd calving (Figure 1). If anthropogenic pressures are driving changes in summer landscape use of the Central Arctic Herd, one would expect greater differences between historical and recent shifts for caribou calving within the western calving ground, which has undergone more intense development. Antler data could also test the longevity of the two calving centers, and if calving was more geographically continuous prior to major development projects. A combined approach linking Traditional Ecological Knowledge of caribou with antler proxy studies could be a valuable strategy for synthesizing available information on historical patterns of seasonal landscape use.
Future Directions for Modeling Bioavailable 87Sr/86Sr
When working across the spatial scales of caribou ranges, translating changes in antler 87Sr/86Sr through time into estimated shifts in landscape use requires a modeled 87Sr/86Sr isoscape. An important assumption in using such a model is that caribou diet echoes local bioavailable 87Sr/86Sr (as defined by exchangeable 87Sr/86Sr in soils that are incorporated into local plants). While this is a reasonable assumption for most consumers, caribou are somewhat unusual in their consumption of lichens, which incorporate the bulk of their nutrients from atmospheric sources (Nash, 2008). Consequently, caribou 87Sr/86Sr may be influenced by atmospherically available 87Sr/86Sr more than many mammals. However, while caribou consume large amounts of lichens during fall and winter, summer diets (coincident with the bulk of antler growth) are dominated by herbaceous browse that more likely reflects modeled bioavailable 87Sr/86Sr (Thompson and McCourt, 1981; Boertje, 1984). Another possible caveat is that while the model used to estimate bioavailable 87Sr/86Sr includes soil and plant data from Alaska, it does not incorporate samples from our exact study area. We do not think this is a large issue. The isoscape, which is intended for global applications, is generally accurate even in regions distant from directly sampled points, and this is particularly true for North America and Europe (Bataille et al., 2020). Nevertheless, future work will focus on sampling plants, soils, lichens, and small mammals from the Coastal Plain to develop a more nuanced 87Sr/86Sr isoscape for the Arctic Refuge and surrounding regions.
Place-Based Baselines of Ecological Variability From Bones on the Landscape
Today, naturally continuous landscapes are divided by invisible boundaries controlled by different countries, government entities, and private landowners, each with differing management mandates and stakeholder interests. Because of these divisions, many conservation and management questions focus on specific regions. The Arctic Refuge is no exception, where the 1002 Area is the focus of many management questions and ecological studies (Cameron and Whitten, 1980; Cameron et al., 1992, 2005; Arthur and Del Vecchio, 2009; Pearce et al., 2018; Russell and Gunn, 2019). Yet, particularly for highly mobile species, it can be challenging to discriminate the ecological “value” of one area relative to another, or the overall breadth of habitats and geographies needed to maintain a population or species. Bone surveys provide data that are inherently local. For caribou and other highly mobile taxa, bone geochemistry may also identify regions of additional ecological significance. Perhaps most importantly, beyond a snapshot of current ecological conditions, surveys of skeletal materials can establish biological variability through time and highlight when populations and communities have shifted beyond decadal-, centennial-, or even millennial-scale baselines (Terry, 2009; Rowe and Terry, 2014; Kidwell, 2015; Tomasovych and Kidwell, 2017). Slow bone weathering rates in Arctic settings may produce particularly time-rich datasets, but bones and their spatiotemporal records are ubiquitous in a wide variety of climatic settings and habitats (Behrensmeyer et al., 1979; Tappen, 1995; Andrews and Armour-Chelu, 1998; Andrews and Whybrow, 2005; Western and Behrensmeyer, 2009; Miller, 2011). Where gaps in historical ecological knowledge persist, those landscapes may be covered in skeletal data that are both spatially explicit and time-rich.
Accumulations of shed caribou antlers lying on calving grounds of the Arctic National Wildlife Refuge, Alaska, provide data on seasonal landscape use that complement more traditional wildlife surveys. Shed female antlers also extend our records of seasonal landscape use and caribou activity on Arctic Refuge calving grounds by over 700 years. Our findings support that antler 87Sr/86Sr can discriminate caribou herds and establish historical contexts for modern patterns of seasonal landscape use. Female antler 87Sr/86Sr from the Arctic Refuge's Central and Eastern Coastal Plain (a calving ground of the Porcupine Herd) has been consistent since the 1960s, indicating continuity in patterns of summer landscape use (when females grow antlers). Conversely, antler 87Sr/86Sr from the Western Coastal Plain (a calving ground of the Central Arctic Herd) reveals meaningful shifts in caribou landscape use after the 1970s, a time of significant changes in herd size, climate, and infrastructural development within the herd's calving and summer ranges. The decadal-to-centennial-scale perspectives provided by accumulations of shed antlers and their isotope geochemistry provide important baselines for evaluating variability in caribou migration and landscape use prior to the initiation of traditional biomonitoring efforts. The long-term perspectives available from antlers are likely ubiquitous on arctic caribou calving grounds and can be acquired from relatively limited sampling. Emerging toolkits for decoding the records preserved in accumulations of antlers and other bones are producing historical ecological data that were once considered lost to time.
Data Availability Statement
The original contributions presented in the study are included in the Supplementary Materials. Further inquiries can be directed to the corresponding author.
Ethical review and approval was not required for this study because no living animals were used.
JM designed the project, conducted fieldwork, analyzed data, and wrote the manuscript. BC and AK prepared specimens for isotope analysis. CB analyzed the combined surface probabilities. EW conducted fieldwork. MG wrote part of the manuscript. VB contributed to the analytical framework. PD provided logistical and field support in Alaska. All authors contributed to and edited the manuscript.
This research was supported by the U.S. Fish and Wildlife Service (Arctic National Wildlife Refuge), the National Geographic Society (grant 9133-12 to JM), a Christine Stevens Wildlife Award from the Wildlife Society (to JM), and the University of Cincinnati.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We are grateful to the many people who helped make this work possible, including Dave Payer, Steve Arthur, and Greta Burkart. We are indebted to pilots Hollis Twitchell, Dave Sowards, and Roger Kaye who always got us home safely, even when the weather had other plans. We thank Lucinda Lawson for helpful discussions related to this work and our two reviewers for comments that improved the manuscript.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fevo.2020.590837/full#supplementary-material
