ORIGINAL RESEARCH article

Front. For. Glob. Change, 12 April 2021 | https://doi.org/10.3389/ffgc.2021.658491

Overstory Longleaf Pines and Hardwoods Create Diverse Patterns of Energy Release and Fire Effects During Prescribed Fire

  • 1The Jones Center at Ichauway, Newton, GA, United States
  • 2Southern Research Station, United States Forest Service (USDA), Athens, GA, United States

Litter from pine trees in open woodlands is an important fuel for surface fires, but litter from hardwood species may quell fire behavior. Lower intensity fires favor hardwood over longleaf pine regeneration, and while overstory hardwoods are important sources of food and shelter for many wildlife species, too many could result in canopy closure and a loss of ground layer diversity. Although some researchers have found synergies in fire effects when leaves of different species are combined, field tests of effects of tree guild diversity on fire behavior are lacking from the literature. We used neighborhood modeling to understand how diverse overstory trees in longleaf pine forests affect fire radiative energy density (FRED), and to determine the effect on top-kill of shrub-form hardwood trees. We measured the effects of three guilds of overstory trees (longleaf pine, upland oaks, and mesic oaks) on FRED, and related FRED to post-fire damage in four guilds of understory hardwoods (sandhill oaks, upland oaks, mesic oaks, and fleshy-fruited hardwoods). We found that FRED increased 33–56% near overstory longleaf pine but decreased 23–37% near overstory mesic oaks. Additive models of FRED performed well and no synergies or antagonisms were present. Seventy percent of stems of understory hardwoods survived fire with energy release typical of dormant-season fires in canopy gaps and near overstory mesic oaks. We also found that among understory trees >2 m tall, upland and sandhill oaks were more likely than mesic oaks or fleshy-fruited hardwoods to avoid top-kill. We conclude that neighborhood models provide a method to predict longleaf pine forest structure and composition that allows for the ecological benefits of overstory hardwoods while maintaining ground-layer diversity. To maintain hardwood control, fire practitioners may need to select fire weather conditions to increase fire behavior especially during dormant-season burns.

Introduction

Frequent fire maintains the open canopy structure of longleaf pine (Pinus palustris Mill.) woodlands in part by preventing hardwood trees, which are often abundant in the understory, from growing to fire-resistant size (Provencher et al., 2001; Whelan et al., 2018). Reduced fire frequency and intensity may reduce aboveground stem mortality (top-kill) of understory hardwood trees, resulting in development of a dense hardwood-dominated midstory (Glitzenstein et al., 1995; Hiers et al., 2007). Dense midstory or overstory tree canopies reduce light availability at the ground, and result in a loss of floristic diversity, which can be exceptionally high in frequently burned longleaf pine woodlands (Kirkman et al., 2001). Overstory trees provide fuel for fire, and the burning characteristics of their litter vary by species (Fonda, 2001; Kane et al., 2008; Kreye et al., 2018). Nevertheless, few studies link the spatial arrangement of overstory trees with energy release during fire (O’Brien et al., 2008, 2016).

Trees have traits that both influence and are influenced by fire regimes (Cavender-Bares et al., 2004; Varner et al., 2016), mediated primarily by leaf litter deposition. Overstory trees may create fire regimes to which they are well-adapted by depositing litter that alters fire behavior (Mitchell et al., 2009). Flame residence time increases with proximity to longleaf pine (Bigelow and Whelan, 2019), and longleaf pine needles are high in terpenes, which increase burn time (Ormeño et al., 2009). Leaves of hardwood trees common to longleaf pine woodlands burn with varying intensity (Kane et al., 2008). Hardwoods adapted to drier soils and high frequency fire (hereafter upland hardwoods) often have large leaves that burn more intensely than leaves of hardwoods adapted to mesic soils and lower fire frequency (hereafter mesic hardwoods). The flammability of leaves of some xeric hardwoods has been observed to be equivalent in many measures to those of longleaf pine (Kane et al., 2008). Larger leaves tend to curl when they dry creating a well-aerated fuel bed that burns, while smaller leaves tend to create a moist, dense fuel-bed which restricts air circulation and impedes the flow of oxygen during fire (Varner et al., 2016). Differences in canopy-derived surface fuels may lead to higher energy release near longleaf pines and upland hardwoods, and lower energy release near mesic hardwoods (Williamson and Black, 1981). The resulting fire effects may tend to create positive feedbacks whereby trees create conditions that favor their own species (Gagnon et al., 2010).

Non-additivity in the effects of mixing fuels on fire metrics occurs when fire properties in mixture deviate from those expected based on component species when burnt alone. Over the past decade a number of researchers have tested for non-additive effects of multi-species fuel mixtures on fire behavior metrics. There have been many findings of non-additive effects on metrics such as spread rate, flame height, and flame duration (de Magalhães and Schwilk, 2012; Blauw et al., 2015; Della Rocca et al., 2018; Zhao et al., 2019; Gormley et al., 2020), but investigations/findings of non-additivity with regard to fundamental physical factors that cause fire effects (e.g., heat energy release) have been fewer (de Magalhães and Schwilk, 2012; Della Rocca et al., 2018). Non-additivity can be important in forest ecosystem science because when it occurs, area-based rates of an ecosystem process (e.g., nutrient cycling, energy release from fire) will not simply equal the mean value predicted from all species present but will be influenced by spatial arrangement of overlapping circles of influence of neighboring trees (Canham and Uriarte, 2006; Bigelow and Canham, 2017). Individual longleaf pine trees’ effects on prescribed fire air temperatures and residence time have been modeled as circles of influence (Bigelow and Whelan, 2019). Nevertheless, the effect of co-occurring hardwoods (e.g., suite of oaks) has not been modeled, and the interaction with longleaf pine is of interest because of the importance of prescribed fire for hardwood control via top-kill.

Prescribed fire science has progressed in recent decades so that the use of instruments such as thermocouples for measuring fire properties is commonplace (Loudermilk et al., 2017). Nevertheless, the use of air temperature as a measurement of fire behavior and a predictor of fire effects has been criticized as limited, because heat energy rather than temperature produces fire effects (Johnson and Miyanishi, 2001). Fire radiant energy density (FRED) measurement cannot be carried out with readily available commercial sensors, but measurements with custom made sensors are increasingly common (Kremens et al., 2012; Ottmar and Restaino, 2014; Dickinson and Kremens, 2015). Radiant energy release during fire is related to both fuel consumption and to fire effects on surrounding vegetation (woody stems).

Although the contribution of ground-layer fuels to fire behavior is well understood, few have linked fire behavior with the composition and spacing of overstory trees (Williamson and Black, 1981; O’Brien et al., 2008). Neighborhood theory, in which fine-scale spatial interactions regulate the demography of component tree species (Pacala et al., 1996), is a developing paradigm for understanding forest dynamics but has been little-used for studies of fire (Bigelow and Whelan, 2019). Analysis of how overstory trees affect any process on the ground requires a functional form describing a tree’s influence on that process (Canham and Uriarte, 2006). The functional form of a tree’s influence usually reflects both the effect of tree size and how that effect changes with distance. Neighborhood methods commonly use mapped stands to estimate parameters based on size and distance of trees within a specified radius at points where a process has been measured: the best fit of model to data is provided by the most likely parameters (Burnham and Anderson, 2002). Neighborhood analysis has been used in studies of overstory tree effects on nutrient cycling (Bigelow and Canham, 2015), seed dispersal (Ribbens et al., 1994), and leaf dispersal (Ferrari and Sugita, 1996); fire behavior represents a novel application (Bigelow and Whelan, 2019).

Differences in fire behavior due to overstory tree neighborhood could result in competitive advantages for some hardwood species (Thaxton and Platt, 2006). Hardwood stems are killed during prescribed fire if the cambium is heated to the point of cell death (ca. 60°C), and resistance to cambial damage has been linked to bark thickness (Bova and Dickinson, 2005). Hardwoods adapted to drier conditions and higher fire frequency tend to have thicker bark and are more fire resistant than hardwoods adapted to more mesic soils and lower fire frequency (Hammond et al., 2015). Overstory trees may create fire regimes to which they are better adapted by depositing litter that alters fire frequency and behavior (Mitchell et al., 2009). Neighborhood analysis provides the opportunity to infer fire behavior from the spatial distribution and composition of overstory trees.

We wished to know how overstory trees affect fire behavior, and how changes in fire behavior affect understory hardwoods. We address the following hypotheses: (1) energy release will increase with proximity to longleaf pine and upland oak species and will decrease with proximity to mesic oak species, (2) intermingling of different tree guilds will have non-additive effects on energy release, and (3) shrub-form hardwoods of upland and xeric habitats will be more resistant to top-kill than hardwoods of mesic habitats at any level of energy release during prescribed fire. A better understanding of these uncertainties will provide a means to predict fire behavior and understory hardwood control in proximity to overstory trees in longleaf pine woodlands.

Materials and Methods

Study Site

The study was done at The Jones Center at Ichauway in Baker County, GA, United States (31° 14′ 00 N, 84° 28′ 00 W, mean elevation 50 m) within the Gulf Coastal Plain physiographic province. The study site is within the Dougherty Plain physiographic district, which is a karst landscape characterized by Ocala Limestone overlain by weakly dissected alluvial deposits (Hodler and Schretter, 1986). Most of the longleaf pine woodland at the study site occurs on well-drained loamy sand over sandy loam soils classified as Psammentic Kandiudults or Grossarenic Kandiudults (Goebel et al., 1997). Typical soil water holding capacity in the upper 300 cm of soil is 28 cm per meter of soil. The regional climate is humid subtropical. The site receives an average of 1360 mm of precipitation annually, and mean temperatures range from 3 to 18°C in the winter and from 20 to 33°C in the summer (NCEI, 2010).

The study site is dominated by open canopy second-growth longleaf pine woodland. Overstory trees were established early in the twentieth century following the cessation of commercial forest activity (Pederson et al., 2008). Since that time, the site has been managed for bobwhite quail (Colinus virginianus virginianus L.) with prescribed fire on a 2–3 year interval as the primary land management tool. Periodic individual-tree selection harvests have been conducted to improve habitat and forest health (McIntyre et al., 2008). Mean basal area in upland areas is 13 m2 ha–1 (Holland et al., 2019). Relative proportion of basal area is 75% longleaf pine, 12% upland oak (e.g., southern red oak and post oak; Table 1), and 9% mesic oak (e.g., live oak, laurel oak, and water oak). Hardwood trees <2 m in height are common in the understory at an estimated density of 1000–2000 ha–1 (Whelan et al., 2018). Legacy of soil disturbance, primarily subsistence agriculture, has produced variable ground cover; wiregrass (Aristida stricta Michx.) with a variety of warm season bunchgrasses and forbs dominates on soils that did not have a history of soil disturbance, and wiregrass is reduced or absent on soils that have a history of disturbance. Typical ground cover standing crop one growing season after dormant-season prescribed fire is 0.1 kg m–2 (Kirkman et al., 2016).

TABLE 1
www.frontiersin.org

Table 1. Tree species common to longleaf pine woodlands in SW Georgia, United States.

Experimental Design and Measurement of Fire Temperature

We collected data on temperature, radiant heat, forest structure, and fuels during fires in three successive years (2017–2019; Years 1–3). Data collection in Years 1 and 3 was focused on investigating the effects of three guilds of trees on spatially explicit patterns of FRED (hypotheses 1 and 2), but because radiometers were unavailable in Year 1, we predicted FRED in Year 1 by developing a relationship between air temperature and FRED using data from Years 2 to 3. Data collection in Year 2 was focused on understory hardwood fire effects, and we used those data to investigate the relationship between FRED and understory hardwood damage (hypothesis 3). Air temperatures during fire were measured with thermocouples 0.5 m above ground following Bigelow and Whelan (2019). Radiant energy was measured with custom-built radiometers supported on aluminum poles 5.5 m above ground. A 0.5 m cross arm supported the nadir-facing radiometer and data logger. Radiometers consisted of mid-wave (3–5 μm, Dexter Research MW) and long-wave (6.5–20 μm, Dexter Research LWPSiL2) infrared radiation sensors. Blackbody calibration of the ratio of output voltages of the two sensors allows for the estimation of the emissivity-area, and subsequently for an estimate of the fire radiative flux density for the area within the field of view that is radiating above background (pre-fire) levels (Kremens et al., 2012; Dickinson et al., 2016). The angle of view of the radiometer was 52° which resulted in a ca. 23 m2 field of view at ground level. Voltages were logged at 1 Hz and were used to calculate fire radiative flux density which was summed to give an estimate of the total radiant energy emitted during the fire, FRED.

Data were collected during prescribed fires in Years 1–3 (Table 2). Fires were ignited with electric pump-driven drip torches mounted on all-terrain vehicles: backing fires were ignited on the downwind side of each burn unit, then some combination of flanking fires, strip head-fires, and spot fires were ignited to meet the primary burn objective of understory hardwood control. Fuel moisture and weather data were obtained from equipment <1 km from study sites and were recorded on a 15 min interval (Georgia Automated Environmental Monitoring Network, Newton, GA, United States)1. We recorded air temperature and heating duration during five fires in January and February in Year 1 (162 plots); and air temperature, heating duration, and FRED during seven fires in April and May in Year 2 (42 plots), and four fires in April in Year 3 (36 plots).

TABLE 2
www.frontiersin.org

Table 2. Average fire weather during experimental prescribed fires (2017–2019) in longleaf pine woodlands in southwest Georgia, United States.

Data collection in Years 1 and 3 was oriented around individual hardwood trees in a matrix of longleaf pine. Prior to each fire in Year 1, two hardwood trees in each of three size classes and two guilds (upland oak and mesic oak; Table 1) were selected as target trees (18 trees total) and three sample points were distributed around each target tree. One of three sample points was established along each of the azimuths of 0°, 120°, and 240° from each target tree at distances varying from 1 to 20 m based on the size of the target tree. Distances were 1, 3, and 8 m from 6 to 14 cm diameter at breast height (dbh) target trees; 2, 6, and 12 m from 15 to 29 cm dbh target trees; and 3, 10, and 20 m from target trees ≥30 cm dbh. Distances from target trees were systematically varied by azimuth so that there were similar numbers of samples at each azimuth and distance combination. A single thermocouple was positioned at each sample point. In Year 3, we selected one tree from each of three guilds regardless of size class, and established three thermocouple sample points using the same azimuth and distance methods as in Year 1. In addition to the thermocouple, a radiometer was centered over the sample point.

Sample plots in Year 2 were positioned along a gradient of overstory density. We classified each grid cell as having low, medium, or high overstory abundance index (OAI; Palik et al., 2003). Sample plots were positioned at the centers of randomly selected OAI grid cells, and were equally distributed across OAI classes. Each plot had three thermocouples and a radiometer. Thermocouples were placed within 1 m of the 23 m2 radiometer field of view and separated radially by 120°.

In all years, we measured dbh, and mapped the location of all trees >10 cm dbh within 20 m of thermocouples or radiometers. Tree dbh and location were obtained with a GPS receiver (A101 Smart Antenna, Hemisphere GNSS, Scottsdale, AZ, United States) and the Postex DME system with DPII calipers (Haglöf Sweden AB, Långsele, Västernorrland, Sweden). To assess how groundcover structure and composition affect fire behavior, we estimated wiregrass cover and fuel height within 1 m of each thermocouple. We visually estimated the proportion of the total area covered by wiregrass to the nearest 10%. We also visually estimated the height below which 90% of fuels were located to the nearest decimeter.

Analysis of Overstory Tree Neighborhood Effects on FRED

One goal of the study was to explore the relationship between FRED and size, spacing, and composition of overstory trees. We chose FRED as the response variable because it is an effective common currency for fire studies which reflects biomass combusted (Wooster et al., 2005; Kremens et al., 2012), and we hypothesized that the effects of overstory trees on FRED would be mediated by their litter contributions to surface fuels. In Years 2 and 3, ≤2 days prior to prescribed burns, we clipped and collected all fuels from 1 m2 sample plots within 2 m of each radiometer field of view. Fuels were sorted into five classes in Year 2: wiregrass, other forbs and grasses, live woody plants <2.54 cm basal diameter, 10 h fuels (dead, woody material 0.6–2.5 cm thick), and litter. In Year 3, litter was further sorted into pine needles, oak leaves, and older, partially decomposed litter for a total of seven classes. Fuel samples were dried at 70°C for ≥48 h and weighed. We calculated the amount of energy in each fuel type using relationships for southeastern pine woodland fuels (Reid and Robertson, 2012). In cases where our fuel types did not directly match fuel types found in Reid and Robertson (2012), we calculated fuel energy using their reported gross energy content for the most similar fuel type. In Year 2, we assumed that the litter would be dominated by pine needles, and calculated fuel energy using gross energy content of pine needle litter. In Year 3, we used gross energy content of fine litter to calculate energy in older partially decomposed litter. In both years, energy content in wiregrass and other forbs and grasses was calculated using gross energy content of live herbaceous fuels. We used multiple linear regression and relative importance analysis to investigate the relationships between FRED and energy in each fuel type. Relative importance analysis calculates the contribution of each explanatory variable to multiple R2 (Grömping, 2006). Fire radiative energy density was the total infrared radiation emitted during prescribed fire at each sample plot and was calculated from 1-Hz radiative power (MW) measurements summed over the total time of the fire.

Because we were unable to deploy radiometers in all plots, we developed relationships between temperature during fire and radiant energy, and used those relationships to predict FRED from thermocouple data in sample plots where no radiation data were taken. We used data from thermocouple and radiometer pairs in Years 2 and 3 to model linear relationships between temperature and time over 40°C and FRED. We calculated a synthetic variable from thermocouple temperature and fire duration by summing numbers of degrees over 40°C at each second (TSUM) during prescribed fires. We modeled FRED as a linear function of TSUM.

We used maximum likelihood estimation to evaluate the effects of tree guilds, distance from tree, and tree size on energy release during fire (Canham and Uriarte, 2006). We modeled the effects of overstory tree distance with a negative exponential function Eq. (1) which produces a rapid decline in the effect of a tree with small increases in distance away from the trunk and is commonly used in neighborhood analyses (Canham et al., 2004). We also evaluated a competing function, the Holling type III, which has a sigmoidal form which produces a less steep decline near the trunk Eq. (2). Tree size was expressed as dbh. Based on burning characteristics of their leaf litter, trees were classified into three guilds: longleaf pine, upland oak, and mesic oak (Fonda, 2001; Kane et al., 2008; Table 1). We incorporated the effects of trees ≤20 m from the center of each sample plot on FRED. In the base model we summed the effects of different guilds, and assumed the effect of each guild of tree was additive (i.e., there was no antagonistic or synergistic interactive effect of mixtures of tree guilds). The negative exponential function was expressed as

F R E D = A s + i = 1 n j = 1 k α i d b h j 2 e - β x j , (1)

where A is a constant that is estimated for different burn seasons, n is the number of guilds, k is the number of trees ≤20 m of the sample point, α is a coefficient that determines the sign and magnitude of the effect, and β affects how quickly the effect diminishes with distance x. The variables dbh and x are the dbh of the tree and its distance from the measurement device at the center of a sample plot. The Holling type III function was expressed as,

F R E D = A s + i = 1 n j = 1 k α i d b h j 2 x j - 2 β + x j - 2 , (2)

where α and β coefficients are defined as in Eq. (1). We adapted the Holling type III function to fit the pattern of decreasing FRED with distance from a tree by taking the reciprocal of the squared distance. The total effect of tree neighborhood on FRED was the sum of the effects of each tree guild.

To evaluate the possibility of non-additive interactions among tree guilds, we introduced models with antagonistic or synergistic terms (Finzi and Canham, 1998; Bigelow and Canham, 2017). The antagonistic term accounts for the effect of antagonism among tree guilds on the additive term (Holling type III or negative exponential). For each pair of tree guilds:

F R E D = α h v h + α l v l - [ ( α h - α l ) v h v l α 3 + v l ] , (3)

where αh and αl are defined as in Eq. (1) and (2) with subscripts corresponding to guilds with higher (more positive) and lower effects on FRED, vh and vl are the sums of the effects of size and distance of neighboring trees in each group [i.e., the elements of Eq. (1) and (2) that follow α], and α3 expresses the magnitude of the antagonistic effect between guild pairs. The total antagonistic term is the sum of antagonism between each pair of tree guilds. The antagonistic term is subtracted from the additive term to give the total effect of tree neighborhood on FRED. The synergistic effect:

F R E D = α h v h + α l v l + [ ( α h - α l ) v h v l α 3 + v h ] , (4)

was modeled in the same way as Eq. (3) except the third term was positive, and vl in the denominator was substituted for vh.

Model selection was based on information theory; the best of a series of models of increasing complexity was selected based on Akaike’s Information Criterion, corrected for small sample size (Burnham and Anderson, 2002). Error was modeled with a Gamma probability density function because of high variance compared to the mean and because data distributions were right-skewed (Bolker, 2008). The simplest, one-parameter model had no explanatory variables and was equivalent to mean FRED. More complex models allowed for differences in FRED due to the seasonal timing of fire, with different intercept parameters for Years 1 and 3 (dormant- and growing-season, respectively). Further models included variables for the effects of fuel moisture, wiregrass cover within 1 m of plot center, and height of herbaceous fuels within 1 m of plot center, as well as their interactive effects with seasonal timing of fire. We did not attempt to analyze all possible main effects and interactions, but instead used a small set of candidate models based on our understanding of the relevant ecological processes (Burnham and Anderson, 2002). Maximum likelihood estimates of model parameters were obtained using simulated annealing, a global optimization algorithm. Simulated annealing searches defined parameter ranges to find model parameters that provide the best fit to observations. We searched ranges from −1 to 1 for the α parameter, and from 1 to 50 for the β parameter. A uniform number of iterations, 104, was used for all model runs. Model adequacy was addressed in part by examination of residuals with respect to day, year, and x, y burn unit location. Analyses were done in R statistical software using the “Likelihood” package (Murphy, 2015; R Core Team, 2020).

FRED as Predictor of Hardwood Top-Kill

Because control of shrub-form hardwoods is a common objective for prescribed fire in longleaf woodlands, we investigated how FRED affected post-fire fate of four guilds of shrub-form hardwood trees common in the understory of longleaf pine woodlands. We expanded guild definitions beyond the categories used for overstory trees to fleshy-fruited hardwoods, mesic oaks, upland oaks, and sandhill oaks, because understory hardwood species richness was higher than in the overstory. We measured height and basal diameter of shrub-form hardwoods within the field of view of each radiometer. Our goal was to get measurements on one shrub-form tree from each guild at each radiometer, but where that was not feasible we took measurements of trees from each guild that was represented. Two to three weeks post-fire, we inspected each tree and assigned a fate. Post-fire fates in order of increasing severity were as follow: no visible damage (“green”); all leaves scorched, but new growth in the crown (“crown sprouts”); all leaves scorched with new stems sprouting at or below ground line (“top-kill”); or all leaves scorched with no new growth (“dead”). We also sought to understand how bark thickness might confer fire resistance to shrub-form hardwood tree stems, so following inspection, we cut each stem at 10 cm height and measured bark thickness under a dissecting microscope.

We used proportional-odds models in R statistical software with the “ordinal” package to identify factors that influenced shrub-form hardwood post-fire fate (Christensen, 2015; R Core Team, 2020). Proportional-odds models fit series of logistic regressions to thresholds that correspond to ordinal levels of a response, and estimate the proportions of data above and below each threshold. We included FRED, shrub-form hardwood tree height, and guild as explanatory variables for models of shrub-form hardwood post-fire fate. Shrub-form tree stem radius at 10 cm height and bark thickness were excluded as explanatory variables because of high correlation (r2 > 70%) with shrub-form tree height. To visualize the effects of significant explanatory variables and interactions on shrub-form hardwood post-fire fate, we calculated post-fire fate probabilities at three levels of FRED that spanned the range of predicted effects of different overstory tree guilds and fire seasons.

Results

Prediction of FRED and Relationship to Fuel Energy

The synthetic variable TSUM accounted for 36% of the variation in FRED (p < 0.001). The linear regression was FRED = 0.27 + 7.1 × 10–5⋅ TSUM. We used this relationship to predict FRED for thermocouples that were not co-located with radiometers, and subsequent analyses using FRED either as a predictor or response variable were done with measured and predicted FRED. We measured FRED with radiometers at 29 sample points and predicted FRED for 193 sample points. Mean FRED during experimental, dormant-season prescribed fires in Year 1 calculated from the linear relationship between TSUM and FRED was 0.79 MJ m–2 (standard deviation 0.43 MJ m–2), and mean FRED during experimental, growing-season prescribed fires in Year 3 measured directly by radiometers was 1.25 MJ m–2 (0.90 MJ m–2).

Mean fuel load across sample plots in Years 2 and 3 was 6.1 (standard deviation 2.2) Mg ha–1. In Year 2, FRED accounted for 42% of the variation in total fuel energy (Table 3). That relationship was worse in Year 3 when virtually none of the variation in total fuel energy was explained by FRED (adjusted R2 = −0.01). When the data from Year 2 and 3 were combined, the interactive effect of total fuel energy by year accounted for 32% of variation in FRED. Analysis of different fuel types revealed that litter made the highest energy contribution to FRED, but that relationship was weaker in Year 3 than in Year 2 (multiple R2 0.13 and 0.53, respectively, Table 4). The overall relationship between fuel energy and FRED was also weaker in 2019 than in 2018 (multiple R2 0.33 and 0.62, respectively).

TABLE 3
www.frontiersin.org

Table 3. Results of linear regressions predicting total energy in fuels (KJ m–2) as a function of FRED during prescribed fire in longleaf pine woodlands in southwest Georgia, United States.

TABLE 4
www.frontiersin.org

Table 4. Relative importance (non-normalized contribution to multiple-r2 in linear regression) of energy in surface fuel types in 1 m2 plots as predictors of FRED in prescribed fires in longleaf pine woodlands in southwest Georgia, United States (relative importance ≥0.10 indicated by bold font).

Neighborhood Models of FRED

Neighborhood analysis of prescribed fire data revealed that overstory tree guild, and interactive effects of fuel moisture with season of burn, and wiregrass with season of burn were important predictors of FRED. Height of herbaceous fuel did not have an effect, and there was little evidence of antagonism or synergism among tree guilds (Table 5). Estimation of intercepts by season of burn decreased AICc by 19 units compared to the intercept-only model and accounted for an additional 11% of the variation in FRED. The negative exponential and the Holling type III functions fit the data similarly, both accounting for an additional 6% of the variation in FRED and decreasing AICc by 22 units. The best fits for both model functions included separate intercepts by season of burn, α parameters estimated by guild, and a single β parameter (Figure 1 and Tables 5, 6). The inclusion of the interactive effect of fuel moisture and season of burn decreased AICc by 19 and accounted for an additional 8% of the variation in FRED, and the addition of the interactive effect of wiregrass cover with season of burn decreased AICc by 6 and accounted for an additional 6% of the variation in FRED. Neither the interaction between height of herbaceous fuel and season of burn nor the simple effect of height of herbaceous fuel reduced AICc. Inclusion of antagonistic or synergistic terms to negative exponential and Holling type III models increased AIC from 1 to 3 units and did not account for any additional variation in FRED, therefore we did not consider antagonistic or synergistic effects further. The best models fit were negative exponential and Holling type III functions with tree guilds treated as additive effects. These models accounted for 32% and 31% of the variation in FRED and were separated by only 0.28 AIC units; we consider these model fits to be equivalent. Examination of model residuals did not show a pattern with respect to plot latitude and longitude, but revealed a pattern by burn date. We found significantly higher, positive residuals on January 31 in Year 1, and March 28 in Year 3.

TABLE 5
www.frontiersin.org

Table 5. Comparison of neighborhood models for prediction of FRED during experimental prescribed fires in longleaf pine woodlands in southwest Georgia, United States (bold font indicates AIC-best model).

FIGURE 1
www.frontiersin.org

Figure 1. Neighborhood models [Holling type III (left panel) and negative exponential (right panel)] illustrating effect of distance from tree (two guilds and three DBH sizes) on predicted FRED from prescribed fires in longleaf pine woodlands in southwest Georgia, United States (shaded area indicates 2 AIC unit support interval). Vertical lines represent the distance at which the effect of a tree was half its maximum. Guild abbreviations are LP, longleaf pine; MO, mesic oaks.

TABLE 6
www.frontiersin.org

Table 6. Parameter estimates (±2 AICc unit support limits) for negative exponential and Holling type III models of the effects of the proximity of three guilds of trees on FRED during prescribed fires in longleaf pine woodlands in southwest Georgia, United States.

The best models predicted ambient FRED (i.e., at the distance where overstory effects reduce to 0) with average fuel moisture, wiregrass cover, and ambient temperature to be 0.59 MJ m–2 (±2 AICc support interval 0.44–0.76 MJ m–2) when burns were conducted in the dormant-season, and 0.92 MJ m–2 (0.65–1.21 MJ m–2) when burns were conducted during the growing season. The effects of wiregrass cover and fuel moisture content varied by season of burn. During dormant-season fires, wiregrass cover and fuel moisture content were positively correlated with FRED, but during growing-season fires, wiregrass cover and fuel moisture content were negatively correlated with FRED (Table 7). The effect of overstory on FRED did not vary by fire season, having the same effect relative to ambient FRED during dormant- and growing-season fires (Years 1 and 3, respectively; Table 5). Predicted FRED increased with proximity to longleaf pine and upland oaks but decreased with proximity to mesic oaks (Figure 1). The negative exponential function predicted a larger maximum effect of a tree than the Holling type III function, but the overall pattern of decrease in FRED with distance was similar. For instance, average FRED for prescribed fires in Years 1 and 3 was 0.79 MJ m–2. FRED at the base of a 55 cm DBH longleaf pine, upland oak, or mesic oak predicted by the negative exponential function was 1.18, 0.92, and 0.51 MJ m–2, respectively, and was 1.08, 0.87, and 0.58 MJ m–2, respectively, when predicted with the Holling type III function. At 10 m, predictions for a 55 cm DBH longleaf pine, upland oak, and mesic oak from the negative exponential function were 0.87, 0.81, and 0.73 MJ m–2, and were 0.86, 0.82, and 0.72 MJ m–2 from the Holling type III function. The effects for smaller diameter trees followed the same patterns as 55 cm DBH trees but were smaller in magnitude.

TABLE 7
www.frontiersin.org

Table 7. Effects of wiregrass cover and fuel moisture content by season of burn (Year 1 = dormant, Year 3 = growing) on FRED during experimental burns in longleaf pine forests in southwest Georgia, United States.

Shrub-Form Hardwood Post-fire Fate

Proportional odds models indicated that FRED and shrub-form tree height by guild had significant effects on shrub-form hardwood post-fire fate (Table 8). The inclusion of FRED resulted in the largest difference attributable to a single explanatory variable, decreasing AICc by 46.35 from the mean model. Inclusion of shrub-form tree height and guild decreased AICc by an additional 22.73 and 9.48 units, respectively. The best model included FRED and an interaction between shrub-form hardwood tree guild and height, decreasing AICc an additional 12.05 units.

TABLE 8
www.frontiersin.org

Table 8. Comparison of proportional odds models for fate of shrub-form hardwood trees following experimental prescribed fire in longleaf pine woodlands in southwest Georgia, United States (bold font indicates AIC-best model).

As FRED increased, a larger proportion of shrub-form hardwood trees was top-killed or killed completely, and this was true regardless of guild (Figure 2). We predicted probability of shrub-form hardwood fate at four levels of FRED that correspond to a range of predicted influence of overstory trees and fire-season on FRED. At the first level, during dormant-season fire with the influence of a 55 cm DBH mesic oak within 1 m, predicted FRED was 0.35 MJ m–2, and the probability of shrub-form hardwood top-kill or death was 0.41. At the second level, mean FRED during growing-season fires was 0.79 MJ m–2, and the probability of top-kill or death was 0.67. At the third level, mean growing-season FRED was 1.25 MJ m–2, and the probability of top-kill or death was 0.87. Finally, during dormant- or growing-season fire with continuous longleaf pine canopy, predicted FRED was 2.5 MJ m–2, and shrub-form hardwood top-kill or death probability was 0.995.

FIGURE 2
www.frontiersin.org

Figure 2. Predicted probability (narrow vertical lines indicate 95% confidence limits) of four possible fates of shrub-form hardwood trees at five levels of FRED that span a range of fire intensity from experimental prescribed fires in longleaf pine woodlands in southwest Georgia, United States. Probabilities are averaged over all guilds, and probabilities of each fate at each level of FRED sum to 1. Post-fire fates are “Green,” functional green leaves remaining in crown; “C. sprt,” complete scorch with new sprouts from the crown; “Top-kill,” complete scorch with new sprouts from the base; “Dead,” complete scorch with no new sprouts.

The effect of shrub-form tree height on post-fire fate interacted with guild; as height increased, shrub-form trees were less likely to suffer top-kill or death (Figure 3). That effect was stronger for upland and sandhill oaks than for fleshy-fruited hardwoods and mesic oaks. When FRED was 0.35 MJ m–2, the most common fate for 0.5 m tall shrub form hardwoods regardless of guild was top-kill. For 2 m tall hardwoods, the probability that upland and sandhill oaks would survive fire with functional leaves or with new leaves sprouted from buds in the crown was 0.86 and 0.92, but with fleshy-fruited hardwoods and mesic oaks those probabilities were reduced to 0.62 and 0.35, respectively.

FIGURE 3
www.frontiersin.org

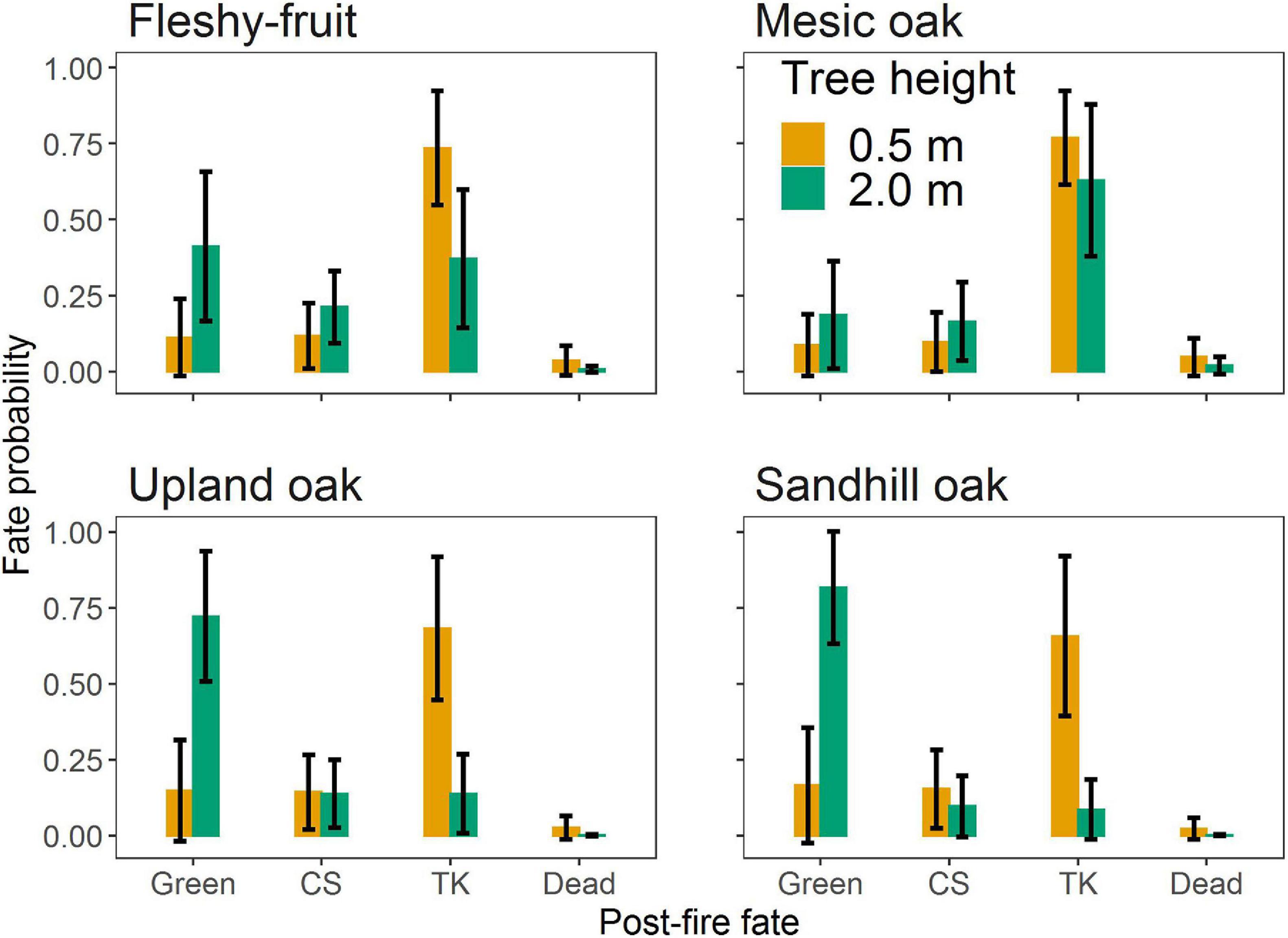

Figure 3. Predicted probability (narrow bars indicate 95% confidence limits) of post-prescribed-fire fate of shrub-form hardwood trees 0.5 and 2.0 m in height in longleaf pine woodlands in southwest Georgia, United States. Probabilities were calculated based on a low FRED (0.35 MJ m–2). See Figure 2 for fate definitions.

Discussion

Our study extended a novel application of maximum likelihood neighborhood models of prescribed fire behavior (Bigelow and Whelan, 2019), to a multiple-guild scenario in which non-additive effects were tested for. Positive non-additive effects of species mixtures have been widely reported based on laboratory analyses (de Magalhães and Schwilk, 2012; Blauw et al., 2015; Della Rocca et al., 2018; Zhao et al., 2019; Gormley et al., 2020), but our in situ, field-based analyses provided no evidence for non-additive mixture effects on modeled FRED. Incorporating hardwoods (upland oaks vs. mesic habitat oaks of longleaf pine woodland) showed that neighborhood models of FRED work well for these guilds, and that mesic oaks have a negative influence on FRED. The range of energy release values predicted from our models in mapped stands was sufficient to generate variation in top-kill mortality and hardwood species composition and regeneration based on our study of modeled FRED and top-kill.

Several factors may have limited the explanatory power of our neighborhood analysis of FRED, which had maximum R2 of 0.32. Fuel moisture is a critically important variable governing fire behavior (Loudermilk et al., 2017), and we used a bulk moisture content rather than measuring moisture content of fuel types that dry at different rates and have different effects on fire behavior (e.g., wiregrass, herbaceous species, hardwood leaves, and longleaf pine needles; Nelson and Hiers, 2008; Kirkman and Giencke, 2017). Unburned fuels in radiometer footprints were not accounted for. Energy in unburned fuel cannot be measured by radiometers, and likely increased variability in estimates of the effect of canopy-derived litter on FRED. This was especially evident in sample plots burned on March 28 in Year 3 following Hurricane Michael in October, 2018 (Andrew Whelan, personal observation). Abundant coarse woody debris resulted in uneven burn patterns because crews could not ignite fires inside burn units, which led to areas of unburned fuel (Scott Smith, personal communication). Increased fuel variation coupled with spatial separation of clip plots and radiometer plots likely contributed to high model residuals and low predicted FRED in plots burned on March 28 in Year 3. Likelihood models of overstory tree effects assume a consistent groundcover fuelbed to which overstory tree effects are added. Large branches and tree crowns blown down during high wind events are large deposits of litter and coarse woody fuels that are not accounted for by our model. Wind speed during prescribed fires may have contributed to high model residuals in plots burned on January 31 in Year 1. Wind speeds during that prescribed fire were higher than during any other prescribed fire in this study. Higher winds likely created higher fireline intensity, and our model did not incorporate wind-driven effects on fire behavior. Additional variation accounted for by these variables would improve predictions of FRED.

We compared fuel loads and FRED from the present study with those from an earlier series of prescribed fire experiments in longleaf pine woodlands (Table 9; Ottmar and Restaino, 2014). There were some differences in the relative contributions of herbaceous, shrub, and litter components compared to those from the earlier study, but total fuel loads and FRED were similar [previous study 7.71 (5.06) Mg/ha–1 (SD), and present study 7.63 (3.24) Mg/ha–1]. Differences are likely related to forest structure. Half of the prescribed fires in forested areas in the earlier experiments were conducted in longleaf pine sandhills, which typically feature sparser groundcover and a better-developed, xeric-oak-dominated midstory than upland longleaf pine woodlands (Rodgers and Provencher, 1999). Similar total fuel loads and mean FRED from the two studies indicate that fuelbeds common to diverse types of longleaf pine woodlands may burn with similar intensity.

TABLE 9
www.frontiersin.org

Table 9. Comparison of fuel loads and FRED between RxCADRE study in sandhill longleaf woodland (Ottmar and Restaino, 2014) and the current study in upland longleaf woodland (means and standard deviations).

Overstory effects must be considered in context with the fire environment including fire weather and fuel moisture. Fire season, fuel moisture, and wiregrass cover explained substantial variation in FRED in the present study, and their combustion represents a baseline of fire behavior upon which the effects of overstory litter deposition act. Higher FRED during growing-season fire may be indirectly due to higher ambient temperatures which could increase vapor pressure deficit and the drying power of the air, leading to lower fuel moisture. Lower fuel moisture means less energy required to heat fuels to ignition during growing-season fire, which might leave more energy to be emitted as radiant energy (Mcallister and Weise, 2017). Apparently contradictory results of positive relationships of wiregrass and fuel moisture with FRED in Year 1 (dormant season), but negative relationships in Year 3 (growing season) may be partially explained by how prescribed fires are conducted in relation to wiregrass abundance. Fire practitioners are keenly aware of wiregrass’ burning characteristics. Wiregrass burns intensely and has been linked with increased flame length and maximum air temperature during fire, but its most crucial burning characteristic may be the wide range of fuel moisture under which it burns (Fill et al., 2016; Bigelow and Whelan, 2019). During the growing season, the risk of crown scorch is higher, and areas with high wiregrass cover are therefore often burned at relatively high fuel moisture (Mark Melvin, personal communication), but less caution is used for wiregrass cover during the dormant-season when the risk of crown scorch is lower.

Feedbacks to FRED

Overstory tree species can modify their surrounding environments to favor their own regeneration (Canham et al., 1994), and they influence fire in longleaf pine woodlands (Platt et al., 2016). Tree species with traits that protect them from frequent fire tend to also produce litter that promotes frequent fire (Schwilk, 2003; Varner et al., 2016). Increased FRED with proximity to longleaf pine and upland oak species, and decreased FRED with proximity to mesic oak species, clearly illustrates this relationship. These patterns are consistent with patterns of exponential decrease of overstory litter deposition from a variety of conifer and broadleaf species (Ferrari and Sugita, 1996). Ambiguity as to which functional form, negative exponential or Holling type III, better fit the FRED data may be related to leaf dispersal characteristics. Similar work showing a pattern of maximum leaf deposition at the trunks of trees with smaller leaves, but maximum leaf deposition from 4 to 11 m away from larger-leaved trees, suggests that the negative exponential function may be a better fit to longleaf pine and mesic oaks, and the Holling type III may be a better fit to upland oaks (Bigelow and Canham, 2015).

The sign and magnitude of the overstory effect on FRED reflects the burning characteristics of litter from different overstory guilds: longleaf pine litter burns more intensely than upland oak litter, which in turn burns more intensely than mesic oak litter (Fonda, 2001; Kane et al., 2008). The burning properties of different guilds of overstory-derived litter may not be the only mode of influence. In fire-regulated woodlands, crown structure and leaf morphology can affect fuel bed composition and moisture content (Babl et al., 2020). Longleaf pine leaf area is lower than a wide variety of oak species common in longleaf pine woodlands (Teske and Thistle, 2004; Addington et al., 2006). Reduced light transmission through oak canopies may have contributed to lower FRED by reducing understory growth, and would likely have a strong, negative effect on wiregrass cover (a C4 species). As discussed previously, this could result in the loss of a fuel structure that burns well. As a fire-regulated ecosystem, changes in fire behavior in longleaf pine woodlands could have strong effects on overstory structure and composition.

Non-additive Effects

Although non-additivity has been found in multi-species fuel mixtures on fire behavior metrics such as spread rate, flame height, and flame duration (de Magalhães and Schwilk, 2012; Blauw et al., 2015; Della Rocca et al., 2018; Zhao et al., 2019; Gormley et al., 2020), these non-additive effects may not constitute true interactions in the sense that one species directly enhances or inhibits the other (i.e., a complementarity effect). van Altena et al. (2012) conjecture that the characteristics of one species overrides those of the others, a phenomenon they call enhanced dominance. Research into non-additivity with regard to fundamental physical factors that cause fire effects (e.g., heat energy release) has largely not found non-additivity; effects can be predicted from the respective mass of the component species (de Magalhães and Schwilk, 2012; Della Rocca et al., 2018). Our findings of absence of non-additive effects were consistent with these findings. Our methods differed from the studies above in that we did not create or measure fuel mixes directly, instead we used tree neighborhood as an indirect measure of tree effect on fuel-beds in situ. This method, although less certain with respect to fuel-bed mass and composition, offers the advantage of incorporating indirect effects of trees on fuel beds and fire conditions via differing radiation transmission through their crowns (Canham et al., 1994; Babl et al., 2020), and competition against ground-cover and understory plants.

Overstory-derived litter is only one component of natural fuel configurations that are compositionally and structurally complex. In longleaf pine woodlands, xeric and upland oak litter, longleaf pine litter, and wiregrass have all been shown to burn intensely (e.g., long flame length and burn time; Varner et al., 2015), and mixtures of both longleaf pine and hardwood litter with wiregrass have been found to increase duration of flaming and smoldering (Fill et al., 2016). Although it has been postulated that wiregrass and longleaf pine needle litter create a fuel structure that burns exceptionally well (Hendricks et al., 2002), research suggests that no synergy occurs (Bigelow and Whelan, 2019). A more thorough investigation of effects of different components of the fuel load would refine our understanding of how fuel composition and structure affect fire intensity.

Shrub-Form Hardwoods

Shrub-form hardwoods in longleaf pine woodlands are regulated by fire and are influenced by patterns of fire intensity (Glitzenstein et al., 1995; Whelan et al., 2018). The factors we have identified that influence FRED implicitly affect shrub-form hardwood demographics, because higher energy release during fire causes more damage to shrub-form hardwoods. Season of fire had a striking effect on FRED, consistent with the well-established phenomenon of increased top-kill and death following growing-season burns (Boyer, 1993; Glitzenstein et al., 1995). Similarly, it has long been understood that drier fuels burn more intensely, and despite inconsistent results on the effect of fuel moisture on FRED, fires burning in fuels with lower fuel moisture content should burn more intensely and are likely to cause more damage to shrub-form hardwoods (Loudermilk et al., 2017). Though the effect of wiregrass cover on FRED within season was not significant, wiregrass has been shown to negatively affect understory hardwood trees in longleaf pine woodlands; that effect may be due to a combination of fire effects and competition. Fill et al. (2017) found that 20 years after wiregrass planting, the occurrence of understory hardwood stems in a longleaf pine forest in South Carolina was substantially reduced, but because the sample stands had not been regularly burned, they were uncertain of how much of the reduction was related to fire effects versus competition. Overstory tree neighborhood affects shrub-form hardwoods through its effects on fire intensity as well. Recruitment of shrub-form hardwoods into larger size classes in longleaf pine canopy openings is well documented (Jack et al., 2006; Bigelow and Whelan, 2019). Like wiregrass, the effect of longleaf pine overstory on shrub-form hardwoods is mediated by both fire and competition (Pecot et al., 2007), but the abundance of shrub-form hardwoods under unbroken longleaf pine canopy suggests the overriding factor is fire (Williamson and Black, 1981; Platt et al., 2016).

One goal of prescribed fire in longleaf pine woodlands is to prevent shrub-form hardwoods from creating a closed mid- or overstory canopy by top-killing or completely killing them. Shrub-form hardwoods can persist in a cycle of top-kill and regrowth over multiple prescribed fires (Grady and Hoffmann, 2012). While larger shrub-form hardwoods are more resistant to fire damage and more likely to grow into the overstory, the factors that govern the size attained by a shrub-form hardwood during a fire-free interval may not be. Growing-season fire has often been observed to provide more effective hardwood control than dormant season fire; one proposed mechanism is that carbohydrate reserves may be depleted by leaf expansion, leaving insufficient reserves if leaves must be replaced shortly thereafter (Boyer, 1993; Glitzenstein et al., 1995; Robertson and Hmielowski, 2014). Another study found no difference in hardwood survival with respect to growing season fire (Whelan et al., 2018), and there was no support for the carbohydrate depletion hypothesis in a study in which reserves were assayed (Ruswick et al., 2021). Authors of the latter study emphasize that fire heat determines fire effects, suggesting that seasonal effects on fire heat release (related to, e.g., fuel moisture content and fuel loads) rather than plant physiological and phenological state have been responsible for seasonal variation in efficacy of prescribed fire control of hardwoods. The increasing application of fire heat measurement equipment should allow progress on this front of prescribed fire research in the coming years.

Increased post-fire survival with green leaves or new leaves sprouted from the crown for upland and sandhill oaks illustrates differences in fire adaptive traits. Upland and sandhill oaks in the understory typically have thicker bark than fleshy-fruited trees and mesic oaks of similar height, which confers greater protection against heat-caused cambial death and girdling (Cavender-Bares et al., 2004; Graves et al., 2014; Hammond et al., 2015). This results in a higher probability of upland and sandhill oaks growing into the mid- and overstory, but those guilds may have little negative impact on fire intensity. We found almost no net effect of upland oaks on FRED, even though litter from both upland and sandhill oaks species has been shown to burn at high intensity (Kane et al., 2008; Varner et al., 2015).

Management Considerations

The results of this research could be used to predict fire intensity and probability of shrub-form hardwood top-kill based on the spatial arrangement and composition of overstory trees, and a few simple fire weather and fuelbed metrics. To illustrate how models of the effects of the size, species composition, and arrangement of overstory trees could be used to predict FRED and hardwood topkill, we created a contour map of predicted FRED for a dormant-season prescribed fire in a stem-mapped longleaf pine woodland. The Holling type III function with the appropriate parameters for each guild was used to predict FRED for each tree within 20 m of the center of 1 m × 1 m grid cells. Total predicted FRED for each cell was the sum of the effects of each tree in the 20 m radius neighborhood and simple effects of average wiregrass cover and fuel moisture (Figure 4). The resulting map provides predictions of hot and cool spots within the burn area and could be used, for example, to narrow locations to search for crown scorch after fire or to monitor for poor hardwood control.

FIGURE 4
www.frontiersin.org

Figure 4. Predicted FRED during dormant-season prescribed fire (top panel) based on DBH, location, and guild of overstory trees (bottom panel). The lowest AICc model was used for predictions of overstory tree effects (see Tables 5, 6). Symbol size reflects DBH. Abbreviations for tree guilds are: LP, longleaf pine; UO, upland oak; and MO, mesic oak.

Longleaf pine tree spatial arrangement can be manipulated for a wide variety of goals, from high density stands for pine straw and timber production to low density woodlands for wildlife (e.g., red-cockaded woodpecker). High-density production forests may warrant little or no prescribed fire, but frequent burning is necessary to maintain the structure, productivity, and biodiversity desirable in more open, natural stands. Maintenance of natural longleaf pine stands with fire is largely concerned with preventing shrub-form hardwoods from growing large and creating a closed canopy. Open canopy structure is accompanied by increased spatial and compositional heterogeneity, which complicates the application of prescribed fire for hardwood control. Natural, uneven-aged longleaf pine stands can be thought of as a matrix of longleaf pine trees with frequent, variously sized gaps. These gaps may be empty or occupied by different tree species; mesic oaks further suppress fire energy in gaps, and upland oaks have little effect on fire energy. Areas of low fire energy are places where hardwood control is more likely to fail, and identification of these areas prior to prescribed burning could yield crucial information that affects burn planning.

Prescribed fires during the dormant-season were of lower average intensity than growing-season fires, but higher fire intensity during the dormant-season is possible. Lower fuel moisture and relative humidity and higher temperatures increase fire intensity, and selecting fire weather during the dormant-season based on these factors can help ensure fire intensity that is high enough for effective control of shrub-form hardwoods. If hardwood control is the primary management goal, prescribed fires should be conducted under conditions conducive to high energy release.

Conclusion

Prescribed fire science has evolved rapidly in recent decades, progressing from field measurements of fire involving, e.g., temperature-sensitive paints, to flame temperatures with thermocouples, to measurements of heat energy. Our research represents an advance in pairing measured and predicted heat energy with neighborhood theory and methods. This procedure allowed us to parse out the contribution of individual trees, and interactions among tree guilds, to radiant energy release. The use of heat release, radiant energy, as a common currency in prescribed fires allows linkage to fire prediction models and mechanistic, heat-transfer models of cambial mortality for fire effects. We found no non-linear surprises in the interaction among different tree guilds in their effects on heat release in a longleaf woodland prescribed fire. Nevertheless, neighborhood models clearly depicted the differing spatial influence of tree guilds on heat release: positive for longleaf pine, neutral for upland oaks, and negative for mesic oaks. Our models of heat release effects on topkill showed the feedbacks to survival of regenerating individuals of these guilds, paving the way for mechanistic modeling of heat transfer and cambial mortality that can enter into an understanding of community dynamics in these managed natural systems.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

JO’B, SB, and AW conceived and planned the experiments and contributed to the interpretation of the results. SB and AW carried out the experiments and analyzed the data. AW took the lead in writing the manuscript. All authors provided critical feedback and helped shape the research, analysis, and manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer AH declared a past co-authorship with one of the authors JO’B to the handling editor.

Funding and Acknowledgments

Anna Rollosson, Emily Laske, and Khalil Carson assisted with field work and data management. Jones Center resource managers Scott Smith and Jimmy Atkinson coordinated and supervised experimental fires, and we thank them and fire educator Mark Melvin for sharing their insights into prescribed burning with us. Our research benefited from experimental infrastructure designed by Bob Mitchell (deceased) and established and maintained by Steve Jack.

Footnotes

  1. ^ http://www.georgiaweather.net/
