Abstract
Topical drug delivery is widely used in various diseases because of the advantages of not passing through the gastrointestinal tract, avoiding gastrointestinal irritation and hepatic first-pass effect, and reaching the lesion directly to reduce unnecessary adverse reactions. The skin helps the organism to defend itself against a huge majority of external aggressions and is one of the most important lines of defense of the body. However, the skin’s strong barrier ability is also a huge obstacle to the effectiveness of topical medications. Allowing the bioactive, composition in a drug to pass through the stratum corneum barrier as needed to reach the target site is the most essential need for the bioactive, composition to exert its therapeutic effect. The state of the skin barrier, the choice of delivery system for the bioactive, composition, and individualized disease detection and dosing planning influence the effectiveness of topical medications. Nowadays, enhancing transdermal absorption of topically applied drugs is the hottest research area. However, enhancing transdermal absorption of drugs is not the first choice to improve the effectiveness of all drugs. Excessive transdermal absorption enhances topical drug accumulation at non-target sites and the occurrence of adverse reactions. This paper introduces topical drug delivery strategies to improve drug effectiveness from three perspectives: skin barrier, drug delivery system and individualized drug delivery, describes the current status and shortcomings of topical drug research, and provides new directions and ideas for topical drug research.
1 Introduction
Topical drugs have a long history. Thousands of years ago, ointments and salves made from animal, mineral, or plant extracts were commonly used in Egyptians, Chinese and Babylonians to cure a wide range of ailments (Lima et al., 2021; Metwaly et al., 2021; Roberts et al., 2021). Before 2000 BC, emplastra appeared in China, which maybe the original transdermal patch (Pastore et al., 2015). Many topical drugs are so effective that they are now widely used in many countries, and are also the source of discovery of some very effective monomers. However, there are some topical drugs that seem somewhat incomprehensible nowadays. For example, Kahun gynecological papyrus records that a substance (possibly crocodile excrement) is treated with honey or kefir and injected into the vagina for contraception (Metwaly et al., 2021). During the period of using natural drugs to treat diseases, external medication is one of the most important means of treating diseases. Surviving frescoes and books attest to this (Pastore et al., 2015; Chen, 2016; Zheng and Zheng, 2017). In terms of enhancing the effectiveness of topical drugs, many attempts have been made and many useful results have been achieved. Ancient Egyptians added essential oils to perfumes or ointments to increase the transdermal absorption efficiency of the active ingredients (Elshafie and Camale, 2017); Chinese used wine to soak their medicines to realize the enrichment of the active ingredients and to increase the transdermal absorption efficiency of the active ingredients (Zhu, 2007); and Chinese also heated up topical medicines added with iron sand to be used after application, which is a kind of topical drug formulation design to enhance the therapeutic efficacy of the medicines by heating (Zhu, 2007). In 1860, German chemist Niemann extracted an alkaloid from coca leaves and named it as cocaine. This is the first small molecule topical drug that is generally recognized. In 1884, cocaine was first officially used as a local anesthetic in clinical practice (Grzybowski, 2008). Since then, small molecule drugs have become the overlord of topical drugs to replace natural medicines (Figure 1).
FIGURE 1
With the continuous development of science and technology and people’s deepening of disease understanding, peptides, proteins, nucleic acids, cells and bacteria are gradually used as drugs. The ultimate goal of all topical medication is to reach the target site in vivo with enough dose without side effects. According to the different target sites, topical medication can be divided into four types: 1) Drugs that do not want to be absorbed (e.g., sunscreen, heavy metals); 2) Drugs that reach the skin tissue and do not want to spread (e.g., drugs for the treatment of skin diseases); 3) Drugs that reach deeper tissues (e.g., anesthetics, drugs for treating muscle or joint diseases); 4) Drugs that cross the skin into blood vessels and are transported to other tissues or organs (e.g., insulin). In this paper, diseases are divided into three categories according to different target sites of disease (Table 1).
TABLE 1
| Target site | Disease |
|---|---|
| Skin | Skin Photoaging, Wrinkles, Skin pores are enlarged openings, Pigmentation diseases, Melasma, Congenital giant nevi, Pathogenesis of Port-Wine Stains, Hand Eczema, Atopic Dermatitis, psoriasis, Ichthyosis, Inflammation of actinic keratoses, Seborrheic keratoses, Localized scleroderma, Dermatitis linearis, Phytophotodermatitis, Contact Hypersensitivity Reactions, Acute generalized exanthematous pustulosis, Seborrheic dermatitis, Radiodermatitis, Hidradenitis Suppurativa, Cutaneous leishmaniasis, Pittosporum folliculitis, Acne Vulgaris, Rosacea, Cutaneous warts, Molluscum contagiosum, Human monkeypox virus, Dermatophytomas, Nonmelanoma skin cancers, Melanoma, Vitiligo, Bullous pemphigoid, Uberous Sclerosis Complex, Hyperhidrosis, Lupus erythematosus, Female exual function, Severe phimosis, Cold injuries, Burns, Scarring, Triae cutis distensae, Calcinosis cutis, Buruli ulcer, Peyronie’s disease, Vulvar Paget’s disease, Clitoral Keratin Pearls, Bowen’s disease, Pyoderma gangrenosum, Hypergranulation, Androgenic Alopecia |
| Subcutaneous tissue | Anaesthesia, Wound Healing, Pain, Chronic pruritus, Painful diabetic peripheral neuropathy, Treatment of chemotherapy-induced peripheral neuropathy, Acute soft tissues injuries, Psoriatic arthritis of the temporomandibular joint, Rheumatoid arthritis, Erectile dysfunction, Postoperative seroma, Surgical site infections, Diabetic foot infections, Diabetic foot ulcers, Hronic venous ulcerations, Idiopathic granulomatous mastitis, Varicose Ulcers, Erosive pustular dermatosis, Early breast cancer, Mycosis Fungoides-Type Cutaneous T-Cell Lymphoma, Facial angiofibromas, Muscle function, Microcystic lymphatic malformation, Minimal Bruising, Osteoarthritis, Recurrent lymphangiopathy of the external urethra, Blood loss in patients undergoing prosthetic knee surgery, Gorlin-Goltz syndrome |
| Other tissues and organs | Slimming, Chronic Constipation, Cognitive impairment, Insomnia symptoms, Depression, Osteoporotic, Sjögren’s Syndrome, Graft-versus-host disease, Diabetes |
Classification of diseases at different target sites for topical drugs.
2 Properties and functions of four different skin barriers
Recently, our view of the skin has evolved from a mere physical barrier to an organic organ made up of microbial, chemical, physical and immune barriers (Eyerich et al., 2018). Microbial, physical, chemical and immune barriers work synergistically together to maintain homeostasis in the body (Figure 2).

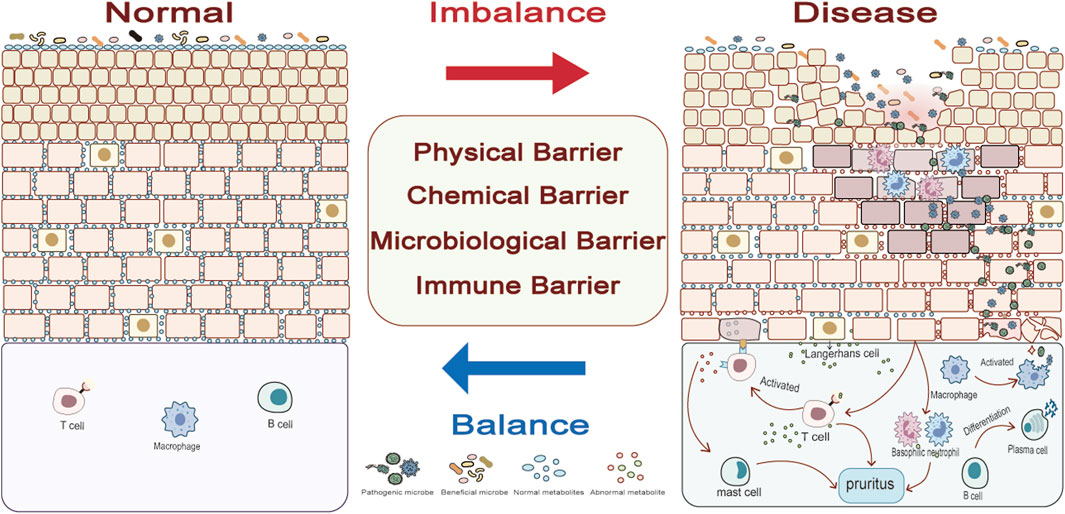

FIGURE 2
The microbial barrier consists of bacteria, archaea, fungi and viruses which inhabit the surface of the skin and mucous membranes. The microbial barrier can maintain and enhance the skin barrier function through a variety of mechanisms such as competing for nutrients, secreting metabolites, and interfering with the quorum sensing system, inhibiting conditional pathogenic bacterial infection (Uberoi et al., 2021), regulating immunity (Dhariwala and Scharschmidt, 2021), and promoting cell and tissue regeneration (Wang et al., 2023). For example, Staphylococcus epidermidis can affect immune cells in a number of ways thereby promoting neonatal skin barrier development (Severn and Horswill, 2023), enhancing innate immunity and inhibiting invasion by pathogenic bacteria (Gallo, 2015). Balancing the microbial barrier is key to maintaining healthy skin. Not only can increased abundance of pathogenic bacteria cause or exacerbate disease, but also can non-pathogenic bacteria (Severn and Horswill, 2023). And pathogenic bacteria are not entirely harmful. Under homeostatic conditions, the immune response induced by Staphylococcus aureus colonization of skin tissue can promote the growth of damaged nerve axons and local nerve regeneration (Enamorado et al., 2023).
The physical barrier is made up of the cells that make up the structure of the skin and is divided into epidermis, dermis and subcutaneous tissue. They balance body temperature and moisture, protect the body from ultraviolet exposure, transmit sensations and maintain good health (Eyerich et al., 2018). The stratum corneum is the outermost layer of the epidermis, with a thickness of about 10–20 μm, high density, low water content, low surface area of solute transport, and inactive metabolism, which is figuratively likened to a “brick wall structure” (Yang et al., 2017). The epidermis is mainly composed of keratinocytes with different degrees of differentiation. The keratinocytes move upwards from the basal layer, the degree of differentiation increases, the cells continue to age until they die, and the dead cells eventually accumulate in the outermost layer to form the stratum corneum (Peskoller et al., 2022). The dermis is located below the epidermis, and the basal layer is connected to the dermis layer by means of a basement membrane, which is mainly composed of fibroblasts and plays a supporting role in the epidermis (Ogawa, 2017). Cushioning the epidermis and dermis are layers of subcutaneous tissue and fat that protect the body from damage, provide flexibility and strength, act as a barrier to infection, and act as heat insulation and shock absorption (Singh and Singh, 1993). There are also skin appendages such as hair follicles, sebaceous glands, sweat glands, and nails on the surface of the skin, many of which are directly connected to the dermis and are an important way for drugs, especially macromolecular drugs, to enter the blood. Hair follicles are highly conserved sensory organs that are important reservoirs of keratinocytes and melanocytes in the skin, and hair follicles are also implicated in immune response to pathogens, thermoregulation, sebum production, angiogenesis, neurogenesis and wound healing (Ji et al., 2021). Sebaceous gland is a component of the sebaceous gland unit of the hair follicle, which secretes sebum, and its state is related to hair follicle morphogenesis (Zouboulis et al., 2022). The human body has about 20,000 to 40,000 sweat glands, which are divided into apocrine sweat glands and eccrine sweat glands according to anatomical structure and location (Sato et al., 1989). The end of the exocrine sweat duct is on the surface of the skin, and the end of the apocrine sweat duct is in the hair follicle.
The chemical barrier consists of metabolites from skin cells and microorganisms, and the chemical composition of the barrier varies from site to site, but they all play an important role in maintaining the balance of the skin barrier. The epidermis contains ceramides, free fatty acids, cholesterol, cholesterol sulphates, cholesterol esters and other lipids that are important for maintaining the barrier function of the skin (Starr et al., 2022). The research shows that the skin barrier function is significantly reduced after stratum corneum lipid extraction (Sweeney and Downing, 1970). The main components in sebum are mainly composed of glycerol ester, free fatty acid, cholesterol, Cholesteryl ester, wax ester and marlene. They are skin lubricants and stratum corneum plasticizing lipids, which can maintain the acidic condition of the outer surface of the skin and enhance the skin barrier function, and also play a central role in the composition and functional regulation of the skin microbiome (Qiu et al., 2022; Yin et al., 2023). Dysregulation of sebum secretion is an crucial cause or exacerbation of inflammatory skin disease (Shi et al., 2015). Amino acids, sodium pyrrolidone carboxylate, lactate, urea and other composition with moisturizing functions produced by the disintegration of keratinocytes are called natural moisturizing factors. Natural moisturizing factors are mainly distributed in the stratum corneum, which can regulate the hydration function of keratinocytes, maintain normal skin permeability, and reduce percutaneous water loss of the skin (Mojumdar et al., 2017). The metabolites of microorganisms mainly play a regulatory role. For example, sphingomyelinase can increase ceramide content in the stratum corneum, reduce skin dehydration, and enhance skin barrier integrity (Zheng et al., 2022). Short-chain fatty acids can regulate inflammation and promote wound healing (Stacy and Belkaid, 2019). Sweat glands producing hypotonic solutions can regulation and skin hydration (Roberts et al., 2021). These hypotonic solutions, together with other substances on the surface of the skin, constitute hundreds of components of sweat, and these components can reflect the state of the body (Yang et al., 2023). There is growing evidence that sweat can become a new type of substance to be tested, which can be used to detect diseases or special conditions such as alcohol or drug use.
The immune barrier is an inflammation immune regulatory system composed of various immune cells and inflammatory molecules in the skin. Under normal circumstances, only a small percentage of immune cells reside between the skin tissues. These immune cells residing among skin tissues can respond immediately when the skin is attacked by external forces, such as Langerhans cell and memory cells, which maintain skin stability by secreting antibodies, splitting cells, phagocytosis of pathogens and other means (Kabashima et al., 2019). Microorganisms are an important source for the immune barrier to respond appropriately to stimuli. The moist is an excellent place for microorganisms to communicate with the immune system (Chen et al., 2018). The skin is composed of microorganisms, cells, and the chemicals they secrete. It is an organic whole, and changes in every link can cause skin diseases. The cross-era development of biotechnology has focused research on the single-cell level, and breakthroughs in the analysis of very small samples of nucleic acids, proteins, small molecule compounds and other components have allowed us to deepen our understanding of the occurrence and development of diseases. Cell activity in disease states is summarized here, as detailed in Table 2. Understanding the dynamic changes of different cells in the occurrence and development of diseases is conducive to patients to choose more suitable drugs in different disease states, and improve effectiveness, increase the cure rate of patients, and reduce the pain of patients by actively avoiding drugs with poor effects, or through some measures to improve the efficiency of drugs reaching the target site.
TABLE 2
| Target cells | Brief introduction | Disease | Function | Ref |
|---|---|---|---|---|
| Keratinocytes | Keratinocytes are the main cell types in the living cortex, the vast majority of the living cortex undergoes complete renewal approximately every 28 days, but only 15 percent of cells are continuously involved in this process | Psoriasis | 1. Excessive proliferation and abnormal differentiation cause infiltration of a variety of inflammatory cells | Wickett and Visscher. (2006), Proksch et al. (2008), Baroni et al. (2012), Thyssen et al. (2013), Chieosilapatham et al. (2021), Flori et al. (2022), Zhou et al. (2022) |
| 2. Releases its own nucleotides and antimicrobial peptides, activating plasmacyte-like dendritic cells | ||||
| 3. Together with fibroblasts and endothelial cells, tissue remodeling occurs through the activation and proliferation of endothelial cells and the deposition of extracellular matrix | ||||
| Atopic dermatitis | Cytokines such as TSLP, interleukin-25, and interleukin-33 are released, and dendritic cells, mast cells, basophils, and T cells are activated to produce or aggravate inflammatory dermal infiltration and itching | |||
| Ichthyosis | Loss of filagin gene function leads to cytoskeletal disorders, altered lamellar cargo loading, and impaired lamellar maturation, resulting in dryness, hyperkeratosis, excessive desquamation, keratosis pilaris, and palmar and plantar hyperlinearity | |||
| Chloasma | Overexpression of paracrine melanin-producing factor | |||
| Melanocytes | Melanocyte originate from pigment particles (particles containing melanin produced by the Neural crest are called melanosomes), which have an important function of protecting the skin from ultraviolet radiation and giving color to the skin, hair and eyes | Alopecia areata | Under external stimuli, apoptotic melanocytes debris induce an immune response and cause alopecia areata | Jimbow et al. (1986), Barrera et al., 1995, Xie et al. (2022), Oliveira et al. (2022), Yi et al. (2023) |
| Melanoma | 1. Melanoma cells amplify CD4 Treg mainly through major histocompatibility complex-II, thereby promoting immune erosion and accelerating immune progress. 2. Sirtuin7 of Melanoma cells is activated by unsaturated polyester resins, which promotes cell survival and immune escape and accelerates the progress of Melanoma | |||
| Sebaceous cells | Sebocytes are located in a unique “small resistance site” within the dermis and play an important role in preserving and balancing the symbiotic environment of lipids, cytokines, and resident bacteria of the sebaceous unit of hair follicles | Chloasma | Cytokines (pro-melanogenic factorsα-melanocyte-stimulating hormone, Human Endothelin-1; the stromal sustaining factors Stemcellfactor and Basic Fibroblast Growth Factor) and release of lipid molecules, Promotes melanin production and intensifies pro-inflammatory cytokines-mediated inflammatory responses | Zouboulis et al. (2022), Flori et al. (2022) |
| Fibroblasts | Fibroblasts are synthetic and remodeling extracellular matrices in embryonic and adult organs and are the main cellular responsible for tissue and organ types of fibrosis, skin scarring, atherosclerosis, systemic sclerosis, and the formation of atherosclerotic plaques following vascular damage. In the dermis, fibroblasts are its main cell type. According to their spatial location, they can be divided into many subtypes. For example, fibroblast-like fibroblasts in the dermis layer adjacent to the basement membrane and epidermis, reticular fibroblasts located in the lower reticular dermis. Different subtypes also have different functions. Fibroblasts have a tendency to fibrosis and can regulate the growth and differentiation of epidermal keratinocytes. Reticulofibroblasts secrete most of the fine extracellular matrix in the dermis, responsible for the first wave of dermal repair after full-thickness wounds. Dermal fibroblasts, located in the dermis and connective tissue sheaths, have the ability to regulate the signaling required for hair follicle morphogenesis and hair growth coordination | Keloids | Caused by fibroblast hyperplasia and abnormal accumulation of extracellular matrix such as collagen | Rinkevich et al. (2015), Ghetti et al. (2018), Kim et al. (2019), Alicea et al. (2020), Hughes et al. (2020), Deng et al. (2021), Tsou et al. (2021), O’Neill et al. (2022), Gur et al. (2022), Flori et al. (2022), Xu et al. (2022) |
| Chloasma | Overexpression of paracrine melanin-producing factor in fibroblasts, especially aged fibroblasts | |||
| Systemic sclerosis | 1. Quiescent fibroblasts are converted into myofibroblasts, which promotes the expression of α-smooth muscle actin, the secretion of matrix proteins, and the increase of stress fibers | |||
| 2. The decrease in the number and dysfunction of fibroblasts associated with Scleroderma cause fibrosis, vascular pathology, inflammationetc. | ||||
| Inflammatory skin diseases | Reduced expression of latent transforming growth factor beta binding protein 4, IGFBP5, and TCF4 in fibroblasts in inflammatory skin diseases | |||
| Psoriasis | C-C chemokine ligand 19, TNF superfamily member 13b and Chemokine Ligand 12 expression were elevated | |||
| Acne | Fibroblasts can undergo local proliferation and differentiation into a pre-adipocyte’s lineage, secreting the antimicrobial peptide cathelicidin, which inhibits bacterial growth. At the same time, the large amount of oil produced during this reaction can promote the growth of bacteria | |||
| Melanoma | Lipids secreted by aging skin fibroblasts enhance melanoma resistance to targeted drugs | |||
| Vitiligo | Dermal fibroblasts recruit more CD8+ T cells in response to interferon γ secreted by cytotoxic CD8+ T cells and secrete the chemokines Chemokine ligand 9 and Recombinant Human C-X-C Motif Chemokine 10, further expanding the progression of vitiligo | |||
| Merkel’s cell | Merkle cells are closely related to nerve endings and function as sensory receptors in the nervous system | alloknesis | The epidermal Piezo2 channel-Merkle cell signaling regulates the transition from touch to pruritus and participates in the exodus neuromechanoreceptors that stimulate the process of conduction from the skin to the spinal cord | Wickett and Visscher. (2006), Feng et al. (2018) |
| Neutrophils | Neutrophils are the most abundant immune cells in humans and are key players in the acute immune response with a short half-life. Normally, neutrophils are released from the bone marrow into the bloodstream and circulate in the body for less than a day. It plays a central role in the body’s defense against the onset and continuation of external microbial and systemic autoimmune diseases, such as dysregulation of neutrophil activation that can lead to tissue damage during various diseases | Atopic dermatitis | 1. Basophils accumulate at the site of the lesion | Byrd et al. (2019), Lopez-Sanz et al. (2021), Wang et al. (2021), Dudeck et al. (2021), Shibuya et al. (2021), Wigerblad and Kaplan (2023) |
| 2. Basophil secretionIL33, IL4, TSLP, IL31 and other cytokines cause itching | ||||
| Allergic inflammation | Basophils cause dysregulated Th2 immune response | |||
| Hidradenitis suppurativa | 1. Neutrophil infiltration, enhancing spontaneous extracellular traps | |||
| 2. Promote B cell activation and autoantibody secretion, causing immune dysregulation and leading to inflammation | ||||
| Monocyte | Monocytes originate from progenitor cells in the bone marrow and are transported through the bloodstream to peripheral tissues. Regulated by local growth factors, pro-inflammatory cytokines, and microbial products, they differentiate into macrophages or dendritic cell populations. Monocytes contribute greatly to the effective control and elimination of viral, bacterial, fungal and protozoan infections, but also promote the development of inflammatory and degenerative diseases | Wound | Monocytes act as rheostats during wound repair by regulating leptin levels and vascular reconstruction | Shi and Pamer. (2011), Lum et al. (2022), Kratofil et al. (2022) |
| Bacterial infections | Monocytes are transformed into macrophages, which regulate the expansion of subcutaneous adipocytes and the production of the adipokine hormone leptin for several weeks after infection | |||
| Monkeypox | Infection of Monocyte will accelerate the systemic infection of Monkeypox virus | |||
| Congenital lymphocytes | Innate lymphoid cells are a heterogeneous group of immune cells characterized by lymphoid morphology and cytokine profiles, similar to T cells but not expressing antigen receptors, which play an important role in innate immunity. Innate lymphoid cells are a heterogeneous group of immune cells characterized by lymphoid morphology and cytokine profiles, similar to T cells, but do not express antigen receptors, and play an important role in innate immunity. According to cytokines, transcription factors and functions, it is divided into three groups, the first group is composed of ILC1 and natural killer; The second group consisted of ILC2; The third group consists of ILC3 and Long-Term immunosuppression | Psoriasis | ILC3 specifically produces the associated cytokines IL-17: and IL-22 in response to IL-23 signaling, leading to skin inflammation | Kobayashi et al. (2020), Bielecki et al. (2021), Yu et al. (2022) |
| Mast cell | Mast cells are innate immune cells that end-differentiate and reside within vascular tissue and often play a key role in the initiation and continuation of allergic inflammation, often through IgE-mediated mechanisms. As sentinels of local tissues, mast cells play a vital role in the host’s defense against certain parasites, bacteria, and toxins. Enclosed inside mast cells is a dense set of secretory granules containing soluble mediators, including vasoactive amines and proteases. And, activated mast cells exhibit a remarkable ability to synthesize and release multiple chemokines, cytokines, lipid-derived mediators, and antimicrobial peptides | Chloasma | Mast cells increase significantly | Lopez-Sanz et al. (2021), Wang et al. (2021), Falduto et al. (2021), Dudeck et al. (2021), Shibuya et al. (2021), Flori et al. (2022) |
| Atopic dermatitis | 1. Aggregation at the site of the lesion | |||
| 2. Secretion of IL33, IL4, TSLP, IL31 and other cytokines causes itching | ||||
| Inflammation | Mast cell-derived TNF activates endothelial cells within blood vessels. Neutrophils circulating in the blood are directly activated in order to migrate to inflamed tissues | |||
| Allergic inflammation | Causes dysregulation of the Th2 immune response | |||
| Dendritic cells | Dendritic cells, a class of bone marrow-derived cells found in blood, epithelial, and lymphoid tissue, are key players in mediating immune responses and inducing immune tolerance. Dendritic cells have molecular sensors and antigen processing mechanisms that can recognize pathogens, integrate chemical information, and guide immune responses, including multiple subtypes such as plasma celloid dendritic cells, CD14 dendritic cells+, Langerhans cells, and inflammatory dendritic cells [76]. Among them, Langerhans cells are the epitome of dendritic cells of migrating tissues, which not only participate in antigen presentation, but also play an important role in controlling the proliferation of keratinocytes, and are essential for the epidermal immune barrier | Cutaneous lupus | 1. Secretion of pro-inflammatory cytokines, chemokines, and co-stimulatory molecules continuously activates innate and adaptive immune responses | Potten and Allen. (1976), Pieri et al. (2001), Cumberbatch et al. (2003), Luessi et al. (2016), Macri et al. (2018), Liu et al. (2020), Hughes et al. (2020), Karnell et al. (2021), Tsou et al. (2021), Liu et al. (2021), Lum et al. (2022) |
| Systemic sclerosis | 1.Plasmacytic-like dendritic cells produce interferon to promote the occurrence of disease | |||
| 2. Upregulate the interaction of CCL5-CCR3, TNFSF9-TNFRSF9, XCL2-XCR1 and other receptors/ligands | ||||
| Inflammatory skin diseases | 1. Recombinant Interleukin 1 Receptor Type I, Recombinant Interleukin 1 Receptor Type II and C-C chemokine receptor type 7, as well as Fc receptor expression | |||
| 2. Recruitment and polarization of T cells | ||||
| Psoriasis | LC2 is elevated in skin lesions of psoriasis, expressing immunomodulatory markers | |||
| Monkeypox | Dendritic cell macrophage infection will accelerate the systemic infection of Monkeypox virus | |||
| Innate lymphoid cells | Intrinsic lymphoid cells are a population of immune cells that do not express rearranged antigen receptors and are mainly enriched on the barrier surface, mainly by producing cytokines to coordinate immune response, promote barrier integrity and maintain tissue homeostasis. According to the expression of lineage-specific transcription factors, native lymphoid cells can be divided into ILC1, ILC2 and ILC3, and natural killer cells belong to ILC1 | leprosy | Increased expression of IDO1, STAT1, HCAR3, and MHC class I molecules | Hughes et al. (2020), Zhou et al. (2022) |
| Macrophage | Macrophages are highly plastic cells with a variety of functions, including tissue development and homeostasis, removal of cellular debris, elimination of pathogens, and regulation of inflammatory responses. Macrophage activation states are generally simplified into two categories: M1 classically activated macrophages and M2 replacement activated macrophages | Inflammatory skin disease | Expression of CD163, STAB1 and CEPP increased | Hughes et al. (2020), Anderson et al. (2021), Lum et al. (2022), Do et al. (2022) |
| Acne | Increased macrophage triggering receptor expressed on myeloid cells 2 subsets adjacent to hair follicles and sebaceous glands | |||
| Monkeypox | Infection with macrophages accelerates systemic infection with monkeypox virus | |||
| T cells | T cells are key players in maintaining immune homeostasis. After exposure to the pathogen, T lymphocytes migrate to the barrier site, providing local immunity and long-term protection to the body. After the pathogen disappears, the human barrier tissue still contains tissue resident Memory T cell, which show different tissue site specificity of residence, homing and function from circulating Memory T cell | Atopic dermatitis | 1. Regulatory T cell dysfunction imbalance, antigen processing and presentation, apoptosis and other immune responses and the number of various types of T cells increased significantly at the lesion site | Gaydosik et al. (2021), Wang et al. (2021), Tsou et al. (2021), Huang et al. (2021), Wegrzyn et al. (2022), Zhang et al. (2022), Lum et al. (2022), Oliveira et al. (2022), Humeau et al. (2022), Xu et al. (2022), Liu et al. (2022), Poon et al. (2023), Hasegawa et al. (2023) |
| 2. Th2 cells secrete IL33, IL4, TSLP, IL31 and other cytokines to cause itching | ||||
| Senescence | Cytotoxic CD4+ T cells can help fight aging by clearing senescent cells | |||
| Systemic sclerosis | 1. Increased subsets of profibrotic T cells | |||
| 2. Th17 and Th22 cell drives involve inflammatory responses in fibroblasts and endothelial cells | ||||
| 3. CD4+ T cells decreased methylation of CD40L and CD11a, and CD70 demethylation and corresponding expression were enhanced, which promoted the occurrence of inflammatory response and induced T cells to migrate to fibrosis | ||||
| Rheumatoid arthritis | When chronic inflammation occurs, abnormal CpG methylation occurs in the cis-regulatory region of the gene, resulting in the loss of regulatory T cell function, further causing abnormal regulation of effector T cells, aggravating the disease | |||
| Tumor | CD4 T cells can promote or suppress the antitumor response by recognizing antigens presented by human leukocyte antigen class II molecules | |||
| Melanoma | CD8-CCR7 and CD8-NR4A1 are involved in the positive regulation of lymphocyte activation, cell response to heat, and cell response to tumor necrosis factor | |||
| Hair loss | Regulatory T cells can sense changes in glucocorticoid levels at the hair loss site, release TGF-β3, activate the proliferation of hair follicle stem cells, and the hair follicle enters the growth phase from the telogen phase | |||
| Vitiligo | Autoimmune CD8+ T cells attack epidermal melanocytes, causing depigmentated patches of skin | |||
| Monkeypox | 1. T follicular helper cells enhance the recall and differentiation of memory B cells into antibody-secreting cells | |||
| 2. Cytolytic T cells help kill infected macrophages to prevent the spread of the virus | ||||
| 3. CD8 T cells have been shown to eradicate virus-infected monocytes | ||||
| B cells | B cells have the unique ability to produce antibodies against multiple targets, providing protection against infection while also contributing to pathogenesis in an immunodysregulated environment. In addition to this, subsets of B cell functional specialization also promote immune responses through antigen presentation and cytokine production | Hidradenitis suppurativa | B cell dysregulation, such as elevated plasma cells and immunoglobulin G, promotes immune dysregulation and leads to inflammation | Byrd et al. (2019), Glass et al. (2020), Lum et al. (2022) |
| Monkeypox | 1. B cell infection will accelerate the systemic infection of Monkeypox virus | |||
| 2. Vaccinia immunoglobulin secreted by B cells can significantly inhibit further infection with monkeypox virus |
The role of different cells in skin diseases.
3 Drug delivery systems and factors affecting transdermal drug absorption
Drug delivery system refers to a technological system that comprehensively regulates the distribution of drugs in an organism in terms of space, time and dose (Baryakova et al., 2023). Ideally, the drug delivery system should allow accumulation of the bioactive composition in the target site at the appropriate dose without overpenetration resulting in the drug reaching the circulation at a toxic dose or accumulating in tissues at non-target sites causing adverse effects (Peralta et al., 2018). Physicochemical properties of drug bioactive composition, excipients and additives, such as molecular weight, partition coefficient, polarity, surface charge and degree of hydrogen bonding, affect the absorption efficiency of drug bioactive composition (Mohammed et al., 2022). Selection of appropriate dosage forms, carriers, additives, and some smart response elements can improve the problems of poor stability, low solubility, and inability to accumulate at the target site of the drug bioactive composition (Figure 3). Garg et al. have given a very detailed account of the commonly used topical dosage forms and additives in their article. So this paper do not cover these two aspects (Garg et al., 2015).

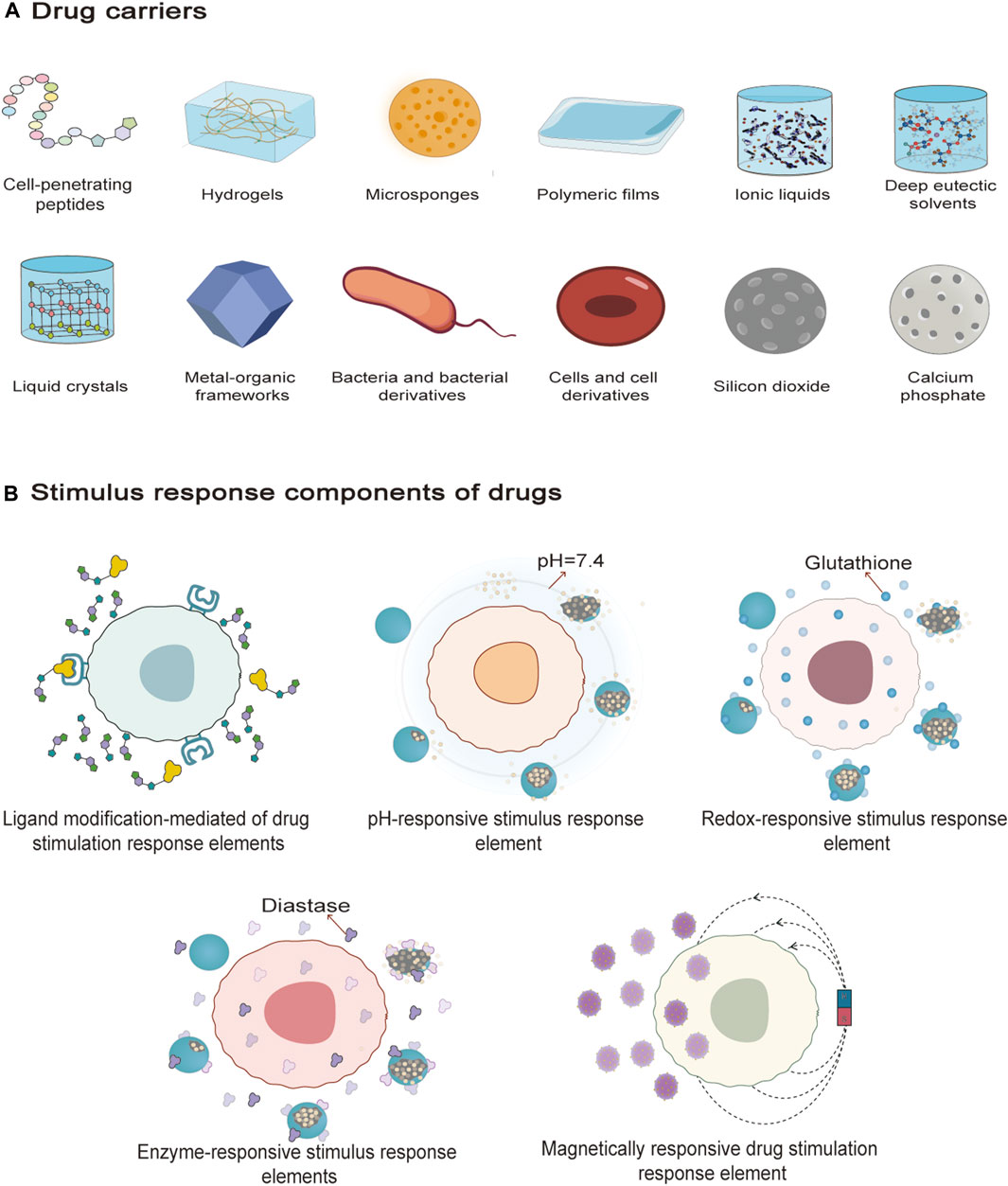

FIGURE 3
3.1 Drug carriers
When the bioactive composition of a drug is poorly stabilized, low solubility, dose-limiting side effects, a narrow therapeutic window or short half-life that makes it difficult to maintain the proper concentration of the drug over a period of time, the choice of the right drug delivery system is an important way to address these issues. Ramanunny et al. described 16 drug delivery systems (Ramanunny et al., 2021). This paper builds on them with a further account of 16 drug carriers (Table 3).
TABLE 3
| Drug carriers | Advantages | Disadvantages | Applications | Ref |
|---|---|---|---|---|
| Cell-penetrating Peptides | Cell-penetrating peptides are highly permeable, low cytotoxic and non-immunoreactive | Cell-penetrating peptides are less stable, less specific and the drug has to cross the cytosol to act | Cell-penetrating peptides can be used as drug carriers for skin cancer and inflammatory skin diseases and as cosmetic carriers | Menegatti et al. (2016), Gan et al. (2018), Ruseska and Zimmer (2020) |
| Hydrogels | Hydrogels has a high drug loading capacity for sustained drug release | The disadvantages of hydrogels are related to the materials and production methods, such as hyaluronic acid material made of hydrogel mechanical strength is weak, low degradation rate; physical cross-linking method of hydrogel is susceptible to interference by external factors | Hydrogels are used as carriers for glucose, adriamycin, hyaluronic acid derivatives, dexamethasone and other drugs | Fonder et al. (2007), Narayanaswamy and Torchilin (2019), Patel et al. (2024) |
| Microsponges | Microsponges have high drug loading capacity, high biosafety, long residence time in the skin, reduced number of administration times, improved bioavailability of bioactive ingredients and facilitated transdermal absorption | Poor homogeneity, reproducibility, and transdermal ability of the microsponge | Microsponges can be used as carriers for topical sunscreens, RNA drugs, dermatological drugs, gene therapy, bone repair, and bioimaging | Grabow and Jaeger. (2012), Shopsowitz et al. (2014), Junqueira and Bruschi, (2018), Choi et al. (2019), Bhuptani and Patravale, (2019), Mahant et al. (2020); Zhang et al. (2021) |
| Polymeric films | Polymer films are small in diameter, highly porous and amorphous, and can act as a physical barrier by attaching to tissue or mucous membranes, providing physical support for the tissue, and delivering a quantitative, sustained release of drug to the tissue or mucous membrane | Adhesion of the polymer film to the skin or mucous membranes may cause discomfort, and the adhesive in the polymer film may cause allergies | Polymeric films can be used as an alternative to occlusive ointments and gauze as carriers for topical medications such as propranolol and betamethasone | Frederiksen et al. (2015), Hissae Yassue-Cordeiro et al. (2019), Padula et al. (2019), Thakkar et al. (2019), Liu et al. (2022), Riccio et al. (2022) |
| Ionic Liquids | Ionic liquids are safe, less irritating and promote transdermal absorption of topical drugs | The variety of ionic liquids is limited, there are fewer biosafety studies, and the aggregation properties of liquid formulations need to be studied in depth | Ionic liquids can be used as skin penetration enhancers, drug carriers, as dermatomimetic smart ionic gels with good antimicrobial effects, and have the potential to be used as RNA stabilisers | Mazid et al. (2014), Zakrewsky et al. (2014), Monti et al. (2017), Qian et al. (2017), Li et al. (2020), Correia et al. (2021), Zhang et al. (2023) |
| Deep Eutectic Solvents | Deep eutectic solvents have low toxicity and modulate the solubility, permeability and absorption of biologically active pharmaceutical ingredients | Deep eutectic solvents are less well studied with unclear principles and safety | Deep eutectic solvents can be used as stabilisers for protein components and to modify the properties of some carriers | Xin et al. (2017), Trombino et al. (2022), Ge et al. (2023) |
| Liquid Crystals | Liquid crystals offer improved drug loading, stability and controlled drug release as well as high bioadhesion and biocompatibility | Liquid crystal production and testing costs are high, and the crystal shape is susceptible to environmental influences | Liquid crystals can be made into breathable, shrinkable haemostatic patches | Wu et al. (2021), Chavda et al. (2023) |
| Metal-organic Frameworks | Metal-organic frameworks have controlled surface chemistry, high specific surface area, high porosity and reversible structural flexibility, high cellular uptake and good biocompatibility | Many metal ions are biotoxic | Metal-organic frameworks can be used as carriers for photodynamic therapy photosensitisers, anticancer drugs, antimicrobials, gaseous drugs and deep tissue imaging | Sun et al. (2020), Zhang et al. (2020), Luo et al. (2021), Cheng et al. (2022), Huang et al. (2022), Liu et al. (2022), Pan et al. (2022) |
| Bacteria | Bacteria have the ability to preferentially colonise and immunologically activate tumours | Bacterial production at scale, maintenance of bacterial viability during delivery, precise control of bacterial colonisation, dosimetry and biosafety are still major challenges | Bacteria can be used as carriers for tumour-targeting drugs, RNA vaccines, drugs to treat skin-based diseases | Gurbatri et al. (2020), Li et al. (2021), Pei et al. (2022), Liu et al. (2023), Lloren et al. (2023) |
| Bacterial Ghosts | Bacterial ghosts have bioadhesive properties and are also capable of stimulating an innate immune response without posing any threat of infection | The weak transdermal ability of bacterial ghosts often needs to be used in conjunction with microneedling and other means | Bacterial ghosts have important applications in adjuvants, vaccines and targeted drug carriers | Kudela et al. (2010), Hjelm et al. (2015), Michalek et al. (2017), Li et al. (2021), Shen et al. (2022) |
| Bacterial Extracellular Vesicles | Bacterial extracellular vesicles activate innate immunity | Methods for isolating and purifying bacterial extracellular vesicles have not been standardised and storage conditions for bacterial extracellular vesicles are harsh | Bacterial extracellular vesicles can directly treat dermatological diseases as well as serve as carriers for the delivery of RNA drugs, oncology drugs, macromolecular drugs, and drugs for the treatment of bacterial infections | Gurung et al. (2011), Jun et al. (2017), Huang et al. (2020), Li et al. (2022), Liu et al. (2023), Liu et al. (2023) |
| Cells | Cells are characterized by good biocompatibility, biodegradability and long half-life, which can solve the problems of premature clearance, toxicity and immunogenicity of synthetic nanocarriers | Cells are costly and ethically questionable to use | Cells are used directly as drugs to treat diseases and also as carriers for nanomedicines, targeted drugs for brain tumours, bone marrow-targeted drugs | Choi et al. (2021), Li et al. (2022), Chang et al. (2023) |
| Extracellular Vesicles | Extracellular vesicles are small, biocompatible, biodegradable, have a long half-life time, are very easily absorbed into the skin, and can solve the problems of premature clearance, toxicity and immunogenicity of synthetic nanocarriers without ethical issues | Extracellular vesicles are difficult to store and difficult to produce industrially | Extracellular vesicles can be used to directly treat a variety of diseases also as drug carriers for the delivery of RNA drugs, hyaluronic acid | Ma et al. (2021), Bui et al. (2022), Oh et al. (2022), Ma et al. (2023), You et al. (2023) |
| Cell Membrane | Cell membranes are biocompatible, biodegradable, have a long half-life, are easy to prepare, and can solve the problems of premature clearance, toxicity and immunogenicity of synthetic nanocarriers without ethical issues | Cell membranes are costly to produce and difficult to store | Cell membranes can be used as carriers for gene therapy, other nanomedicines and targeted drugs | Gao et al. (2020), Cao et al. (2022), Chen et al. (2022) |
| Silicon Dioxide | Silicon dioxide has a high specific surface area, good pore size tunability, and can be loaded with multiple active ingredients simultaneously to prolong administration time and reduce concentration | Silicon dioxide cytotoxicity, genotoxicity, in vivo metabolic pathway and other studies are less, need to follow up in-depth research | Silicon dioxide can be used as vectors for RNA drugs | Shen et al. (2014), Mora-Raimundo et al. (2021), Zhou et al. (2022) |
| Calcium Carbonate | Calcium carbonate can be loaded with a variety of drugs at the same time, and the calcium ions produced by decomposition under characteristically acidic conditions can regulate a wide range of physiological activities | Calcium carbonate is less researched, and there is a lack of clarity on a variety of issues such as the stability of the product being made and storage conditions | Calcium carbonate is used as a drug to activate channels associated with calcium ions and can be used as carriers for pH responsive components, a variety of drugs and photosensitizers | Zhu et al. (2020), Shen et al. (2022), Xu et al. (2022) |
Advantages, disadvantages and applications of drug carriers.
3.1.1 Cell-penetrating peptides
Cell-penetrating peptides, also known as protein translocation structural domains, membrane translocation sequences, or trojan peptides, are small molecules of 6–30 amino acid residues that are able to penetrate biological barriers and cell membranes to enter the cell in a noninvasive manner (Silva et al., 2019). In 1988, Frankel et al. found that the tat protein of human immunodeficiency virus I was taken up into the nucleus by cells grown in tissue cultures (Frankel and Pabo, 1988). Since then, people have begun to take notice of cell-penetrating peptides. Over the course of more than 30 years, the family of cell-penetrating peptides has grown, with more than 100 cell-penetrating peptides described in articles by Milletti alone (Milletti, 2012). Cell-penetrating peptides are classified in a variety of ways. According to their physicochemical properties, cell-penetrating peptides can be simply divided into three categories: cationic, amphipathic and hydrophobic (Raucher and Ryu, 2015). The lack of cell type specificity of cell-penetrating peptides is one of the main reasons preventing their widespread use (Bode Lowik, 2017). The mechanism by which cell-penetrating peptides enter the cell has been the subject of extensive academic interest, but the pathways involved in the process has not been fully elucidated. The mechanisms of cell-penetrating peptide entry into cells identified so far are direct translocation and endocytosis (Guidotti et al., 2017). Cell-penetrating peptide-drug couplers play an important role in the delivery of a wide range of drugs.
3.1.2 Polymer drug delivery systems
Polymers play an important role in drug delivery due to their numerous types, unique three-dimensional structure, high drug loading capacity, and stable physicochemical properties. Polymers have evolved over the past few decades and have appeared in various forms such as hydrogels, polymeric films, and polymeric micelles. Polymers can be categorized into natural and synthetic polymers according to their origin. Natural polymers such as DNA, RNA, and peptides are widely used in bioengineering and drug delivery due to their unique properties (e.g., encodable, biodegradable). With the development of technology, advances in polymer modification techniques and the emergence of 3D printing technology, synthetic polymer carriers are becoming more versatile and powerful.
3.1.2.1 Hydrogels
Hydrogels are highly porous crosslinked three-dimensional hydrophilic polymer networks of drug carriers that can swell by absorbing large amounts of water (Jindal et al., 2022). The presence of hydrophilic groups such as -CONH2, CONH-, -OH, -COOH, -SO3H, etc., is the main reason why hydrogels can absorb water and swell. In addition to their shared properties, hydrogels have individualized advantages based on their specific material. For example, chitosan and chitin have antimicrobial properties in their own right. So the antimicrobial capacity of gels based on them is further enhanced (Li et al., 2018). Guanine phosphate can stimulate innate immunity by binding to Toll-like receptor 9, and recognition of DNA hydrogels containing unmethylated cytosine-phosphate-guanine dinucleotides further enhances organismal immunity (Nishikawa et al., 2014). Biomaterials such as DNA and proteins, because of their encodable properties and similarity to the organism’s microenvironment, can cause some programmed changes in the gel, such as the spontaneous formation of artificial protein scaffolds (Sun et al., 2014). In addition, hydrogel materials can be further enhanced by adding functional groups or incorporating some functional materials to further enhance certain properties. Zhou et al. used a biomimetic mineral plastic of calcium carbonate and polyacrylic acid to give the gel optical properties (Zhou et al., 2020). Haraguchi et al. interwoven polymer and clay into a network to create a hydrogel that can repair itself after damage (Haraguchi et al., 2011). The incorporation of high aspect ratio nanoparticles into suitable gel materials can produce shear-thinning hydrogels, and they can protect cells from high shear forces, leading to a wide range of applications in cartilage tissue regeneration and cell delivery for 3D bioprinting (Thakur et al., 2016).
3.1.2.2 Microsponges
Microsponges are a new type of drug delivery vehicle of porous polymer microspheres developed in recent years, usually consisting of crosslinked polymers with adsorbent capacity and containing a very large number of porous microspheres ranging from 5 to 300 μm inside, which can adsorb and encapsulate a large number of bioactive composition (Rahman et al., 2022; Tiwari et al., 2022). The microsponges ensure that the drug is localized on the skin surface and within the epidermis and does not diffuse in large quantities to non-diseased areas, preventing toxic effects caused by excessive accumulation of bioactive composition in the epidermis and dermis (Grabow and Jaeger, 2012). Green et al. used bionic microsponges to generate aggregates of inorganic particles that can provide surfaces and structures for cell attachment, organization and promote matrix synthesis (Green et al., 2020).
3.1.2.3 Polymeric films
Polymer films, which are films made from polymer fibers, have great potential as topical drug carriers. Electrospinning is the fabrication of organized filaments of polymer nanofiber solutions under strong electric field forces, and the resulting fibers have finer diameters (0.1–100 nm) and larger surface areas than those obtained by conventional spinning methods (Bhardwaj and Kundu, 2010). The throughput of nanofibers has become a serious bottleneck limiting their application (Bhardwaj and Kundu, 2010). 3D printing is the latest technology for manufacturing polymeric films. 3D printing is a technology that uses virtual computer-aided design models to create physical objects by depositing successive layers (Economidou et al., 2018). By 3D printing, it is possible to create polymer films with different porosity, mechanical properties and drug loading to meet the needs of topical drug delivery in different situations. The need for materials with low viscosity, droplet size, lack of precision in positioning, high cost and long production time are factors that limit the widespread use of 3D printing technology for polymer films (Riccio et al., 2022).
3.1.3 Ionic liquids
Ionic liquids are a new type of carrier, and everyone does not define it exactly the same way. Lei et al. considered ionic liquids to be compounds composed entirely of ions with melting points below 100°C (Lei et al., 2017). Gomes et al. considered ionic liquids as salts formed from organic cations and organic or inorganic anions (Gomes et al., 2021). Unlike conventional salts, it has unique physical and chemical properties. Although the definitions of ionic liquids are not identical, there is no doubt that ionic liquids are liquid salts at ambient temperature. Based on their chemical structure and properties, ionic liquids can be categorized into three groups: water- and air-sensitive ionic liquids, water- and air-insensitive ionic liquids, and biodegradable ionic liquids (Egorova et al., 2017). There are three applications of ionic liquids in increasing transdermal absorption of drugs: 1) Ionic liquids can be used as skin penetration enhancers for pharmaceutical formulations or in combination with other drug carriers. For example, the combination of ionic liquids and gels to form ionic liquid gels has been shown to be very effective in the treatment of infections and haemostasis (Luo et al., 2022; Gao et al., 2023). The mechanism by which ionic liquids promote transdermal absorption of drugs is not well understood, but may be negatively correlated with ionic interactions (Tanner et al., 2019). 2) The ionic liquid binds to the drug to form a drug-ionic liquid coupling. The essence of this approach is to convert the drug into a liquid salt so that the drug is characterized by the high stability and solubility of a liquid salt. Moshikur et al. combined 12 hydrophilic drugs with oil-soluble ionic liquids, which significantly increased the transdermal absorption of the drugs and significantly increased the elimination half-life and plasma concentration (Md Moshikur et al., 2022). 3) The ionic liquids are constructed by physical or chemical cross-linking to form new drug delivery systems poly-ionic liquids, such as poly-ionic liquid hydrogels.
3.1.4 Deep eutectic solvents
Deep eutectic solvents are novel liquids made by mixing high melting point salts and molecular hydrogen bond donors, which can significantly change the melting point, solubility and biostability of drugs (McDonald et al., 2018). Deep eutectic solvents are usually composed of two or three inexpensive and safe components, which are capable of joining with each other through hydrogen bonding interactions to form low eutectic mixtures, and deep eutectic solvents with a high melting point are also chosen for some thermally unstable drugs to enhance the thermal stability of the drug (Zhang et al., 2012; Kumar and Nanda, 2018). However, how deep eutectic solvents promote transdermal drug absorption has been inconclusive. Boscariol et al. found that choline geranate deep eutectic solvent may have contributed to the penetration of bioactive molecules through the openings by sliding around the fatty compounds that make up the interstitial space between keratinocytes and by creating small transient openings in the cell membrane (Boscariol et al., 2021). However, the resulting small transient openings in the cell membrane did not cause damage to the skin tissue structure. In addition to this deep eutectic solvents can be involved in the stimulation of important components of the response element for precise drug delivery (Shi et al., 2022). Perhaps 1 day we will be able to use deep eutectic solvents to better achieve precise localization and dose control of transdermal drug absorption.
3.1.5 Liquid crystals
Liquid crystals are a state of matter between a solid and a liquid, having both fluidity like a liquid and an orderly arrangement of crystals (Dierking and Al-Zagana, 2017). In 1957, Brown and Shaw described the physical properties of liquid crystals in their book (Mitov, 2017). Liquid crystals can be classified into a number of categories based on the conditions under which the liquid crystal state is maintained. The most commonly used classification of liquid crystals is the division of liquid crystals into thermotropic liquid crystals, which maintain the liquid crystal state within a certain temperature range; and lyotropic liquid crystals, which maintain the liquid crystal phase state under specific concentration conditions. The difficulty in realizing thermotropic liquid crystals at ambient temperature is the reason why almost no thermotropic liquid crystals are used in drug delivery systems. However, it has recently been found that thermotropic liquid crystals can alter the spontaneous water flux at the liquid crystal phase and interface by changing the type and concentration of the added electrolyte, further reorienting the liquid crystals at the aqueous interface and thus releasing the substances stored in the liquid crystals (Ramezani-Dakhel et al., 2017). In this way, thermotropic liquid crystals have the possibility and potential to become drug delivery systems that can precisely control drug release. The liquid crystallinity of lyotropic liquid crystal is a function of concentration and is mostly composed of amphiphilic molecules, the most common types being cubic, hexagonal and layered intermediate phases (Chavda et al., 2022). Many lyotropic liquid crystals have a lipid structure with similarities to the stratum corneum and strong bioadhesive properties, giving them an important place in transdermal drug delivery systems (Lotfy et al., 2022).
3.1.6 Metal-organic frameworks
Metal-organic frameworks are a class of highly ordered crystalline porous coordination polymers formed by the coordination of metal (transition metal or lanthanide metal) ions and organic ligands (carboxylates, azides, and phosphonates) that adsorb functional molecules on external surfaces or in open channels and trap these molecules in the backbone (Sun et al., 2020; Cheng et al., 2022). Metal-organic frameworks are produced by hot-melt, microwave-assisted synthesis, ultrasonic-assisted synthesis, etc. The metal-organic frameworks synthesised by different methods affect their crystal structure, size, porosity and other properties. Metal-organic frameworks can be used in conjunction with the formation of nanomaterials containing the active ingredient of a drug or with stimulus-responsive elements for the fine delivery of localised drugs (Zhao et al., 2019; Pan et al., 2022).
3.1.7 Bacteria and bacterial derivatives
Bacteria and bacterial derivatives, including bacterial ghosts and extracellular vesicles, are very promising bio-nanomaterials. Drug delivery platforms of bacteria and their derivatives retain some of the autonomous and dynamic functions of bacteria, such as colonization and targeting of human tissues, tissue penetration ability and enhanced activation of the body’s immune response (Chen et al., 2021). Compared with chemically synthesized drug carriers (nanoparticles and liposomes, etc.), drug carriers composed of natural biomaterials have both active and passive targeting properties (Cao and Liu, 2020). Endowed by means of engineering, bacteria and their derivatives can also be endowed with additional functions (Li et al., 2021).
3.1.7.1 Bacteria
Bacteria are closely associated with human health and disease development, playing a key role in preventing and maintaining atherosclerosis, fighting skin cancer, promoting skin wound healing and hair follicle rejuvenation, and neurological disorders including depression (Gilbert et al., 2013; Li et al., 2016; Naktsuji et al., 2018; Wang et al., 2021; Qiao et al., 2022). There are two common bacterial drug carriers (Li et al., 2021). One is the integration of disease-treating genes into the bacterial chromosome by means such as CRISPR-Cas9, which is developed into a living biopharmaceutical, allowing the drug to be continuously produced as the bacteria metabolize. The other is to load the drug into the living bacterial body to release the drug with bacterial lysis. Vishnu et al. studied and developed a non-pathogenic, therapeutic delivery system for Salmonella strains that can efficiently deliver bioactive proteins into cells by utilizing genetic circuits to control protein synthesis, invasion into the cell and release of protein drugs. And it can deliver drugs directly to cancer cells specifically without affecting healthy cells (Raman et al., 2021). The combination of the bacterial carrier effect with its own effects such as enhancing the immune response will certainly lead to better therapeutic results. In the future, the bacterial drug delivery system may be able to deliver drugs as precisely as an intelligent robot.
3.1.7.2 Bacterial ghosts
Bacterial ghosts are produced by the release of bacterial cytoplasmic contents through channels in the cell envelope, mainly from Gram-negative bacteria. The high number of cell wall layers, strong mechanical properties, the presence of more toxic exotoxins and the absence of a relatively simple protein secretion mechanism and high transporter capacity may be the reasons why Gram-positive bacteria are generally not used as delivery vectors but as vaccines (Hjelm et al., 2015; Wu et al., 2017). There are two methods of creating bacterial ghosts, the chemical-based “sponge-like” method and the genetically-engineered method, which is prepared by cleavage of gene E. The method is based on the use of chemical reagents. The “sponge-like” method refers to the use of chemicals to create pores through the bacterial cell wall, followed by centrifugation to remove the cell contents (Chen et al., 2021). The genetic engineering method utilizes the cleavage protein E produced by the cleavage gene E to cause the formation of transmembrane tunnels connecting the inner and outer membranes near the bacterial division site, flowing out of the cytoplasm and producing bacterial ghosts with surface structures identical to those on the surface of living cells (Ma et al., 2021). Beyond that, some bacterial ghosts have the ability to target infected macrophages (Xie et al., 2020). Combining bacterial ghosts with micro needling or subcutaneous injections would have great potential for application in bacterial infections of the skin or deep tissues.
3.1.7.3 Bacterial extracellular vesicles
Bacterial extracellular vesicles are spherical membrane particles with diameters of 20–400 nm secreted by commensal or pathogenic bacteria, which can be categorized into cytoplasmic membrane vesicles and outer membrane vesicles according to the type of bacteria secreted (Liu et al., 2022). Cytoplasmic membrane vesicles are derived from the cytoplasmic membrane of Gram-positive bacteria carrying material from the cytoplasm. Outer membrane vesicles are derived from the outer membrane of Gram-negative bacteria carrying material from periplasmic and cytoplasmic components (Toyofuku et al., 2019). Bacterial extracellular vesicles are the language of communication between bacteria and hosts, and can be used to regulate a variety of biological functions including biofilm formation, alteration of small intestinal epithelial permeability (Fizanne et al., 2023), increase in host angiogenesis and osteogenesis (Chen et al., 2022), inhibition of host viral infections and host collaboration in viral clearance (Ñahui Palomino et al., 2019; Bhar et al., 2022), induction of host resistance to other bacteria (Zhou et al., 2023), and host immunomodulation (Xie et al., 2022). Bacterial extracellular vesicles can release the contents of bacterial extracellular vesicles into host cells through three ways: endocytosis, internalization of bacterial extracellular vesicles through lipid rafts, and direct membrane fusion (Ñahui Palomino et al., 2021). Endocytosis is considered to be the main route of entry of bacterial extracellular vesicles into eukaryotic cells.
3.1.8 Cells and cell derivatives
Cells and cell derivatives, including cell membranes and cell vesicles, are drug delivery systems that modify drugs to the surface of cell membranes, encase them inside the living cell membranes, or integrate them onto cellular nucleic acids. When modified cells are delivered into a patient, such as by integrating gene fragments onto nucleic acids or wrapping around the inside of cells, they can become a kind of “living drug”, constantly producing drugs as cells metabolize or releasing a certain number of drugs as special events occur. Differences in the composition of their membranes, types of receptors, etc., of cells and cell derivatives of different origins have the ability of active/passive targeting to specific tissues. Some cells and cell derivatives also have the ability to activate the immune system, which can assist drugs to better treat diseases. Cells and cell derivatives have a wide scope for development in precision therapy and as controlled targeted drug carriers.
3.1.8.1 Cells
A cellular drug carrier is one that utilizes an intact cell or a denucleated cell as a carrier. In contrast to being intact, denuded cells not only do not proliferate or permanently engraft in the host, they also retain organelles to produce energy and proteins. Desmoplastic cells adhere to target cells or tissues through integrin-regulated adhesion and their functional properties are highly similar to those of extracellular vesicles (Wang et al., 2022). Red blood cells are unique in that they are whole cells and do not possess a nucleus of their own, allowing them to be transported to tissues through the bloodstream. Mesenchymal stem cell, with their intrinsic disease-targeting and paracrine capabilities, have gained a great deal of attention as therapeutic vectors. The short lifespan of neutrophils means that drugs can enter the bone marrow as senescent neutrophils return to the bone marrow. In addition, cells such as hematopoietic stem cells, platelets, natural killer cells, macrophages, dendritic cells, T-lymphocytes and tumor cells have also been used as drug delivery vehicles. The combination of these cells with topical implantation techniques or microneedling could have a promising future in the topical treatment of diseases of the skin and subcutaneous tissues.
3.1.8.2 Extracellular vesicles
Extracellular vesicles are nanoparticles encapsulated by lipid membranes secreted by cells, and are widely distributed in various body fluids, tissue fluids and cell culture supernatants (Hallal et al., 2022). Extracellular vesicles are both a means of disposing of harmful or unwanted intracellular components and are capable of long-range intercellular communication in vivo surface proteins, encapsulated cargo molecules (e.g., biologically bioactive molecules such as proteins, lipids, nucleic acids and sugars) (Shao et al., 2018; Buzas, 2023). Depending on the source, particle size, structure and function, extracellular vesicles can be categorized into various types such as exosomes, microvesicles, apoptotic bodies and oncosomes. The first extracellular vesicles identified were those loaded with transferrin receptors, which were excreted by reticulocytes via exosomes (Harding et al., 1984). With the exploration of extracellular vesicles, the therapeutic potential of extracellular vesicles in various diseases continues to be discovered.
3.1.8.3 Cell membrane
Cell membrane is a drug carrier in which the cell membrane of a certain cell is wrapped around the outer layer of the drug. Erythrocytes, leukocytes, platelets, cancer cells, macrophages, mesenchymal stromal cells, and exosomes have been used as cell membrane drug carriers. They closely resemble cell membrane components in vivo and carry a large number of surface molecules, possessing similar functions to cells and exosomes. Different types of cell membranes also possess their individualized functions. For example, drugs encapsulated in natural erythrocyte membranes inhibit drug uptake by the reticuloendothelial system (Rao et al., 2016). The membranes of macrophages, leukocytes and monocytes have a high affinity for inflamed and tumor-bearing regions, easily pass biological barriers, and can migrate transendothelially (Narain et al., 2017). The cell membranes of platelets have subendothelial adhesion properties as well as the ability to interact with pathogens (Kunde and Wairkar, 2021). Human keratinocyte membranes can achieve precise targeted release of drugs in the skin, which has a broad application prospect in dermatological treatment and functional cosmetic delivery (Jing et al., 2021).
3.1.9 Inorganic drug carriers
Drug carriers made from organic materials can easily dissolve and encapsulate poorly water-soluble drugs into their hydrophobic cores, but are also physicochemically and chemically unstable, making them susceptible to accidental drug leakage. Drug carriers made from inorganic materials such as mesoporous silica nanoparticles, carbon nanomaterials and gold nanoparticles are highly physicochemically and biochemically stable, less expensive to manufacture, and can provide sufficient attachment sites for a variety of organic components. Many inorganic drug carriers can also be prepared in a variety of sizes, structures and geometries. Compared to some highly biocompatible organic carriers, inorganic carriers are less able to cross the skin barrier, but the high drug loading capacity can be used as a strategy to control the retention and release of therapeutic candidates.
3.1.9.1 Silicon dioxide
Silicon dioxide drug carriers are drug carriers made of silicon dioxide, first synthesised in the 1990s, and are available in spherical, rod and flake shapes (Vallet-Regí et al., 2022). A type of silica porous microspheres with pore sizes ranging from 2 to 50 nm has occupied an important position in the family of silica drug carriers since its discovery, which is mesoporous silica (Vallet-Regí et al., 2022). In addition to this, many researchers have structurally modified mesoporous silica to give mesoporous silica a richer and more personalized advantage. For example, Xu et al. utilized a chiral amide gel-directed synthesis method that could give mesoporous silica significant chiral activity (Xu et al., 2023). Shiekh et al. modified mesoporous silica with hexamethylsilazane, which avoided agglomeration and was more conducive to targeted delivery (Shiekh et al., 2022). Difficulty in entering the bloodstream through the human stratum corneum even with the addition of chemical penetrating agents is the main obstacle that restricts the use of mesoporous silica drug carriers for some topical drugs. However, Zhao et al. utilized the drag effect of low eutectic solvents to enable mesoporous silica drug carriers to effectively penetrate the entire skin (Zhao et al., 2022).
3.1.9.2 Calcium carbonate
Calcium carbonate is one of the most widespread minerals found in nature and is also widely found in living organisms as a structural support. Calcium carbonate exists in various forms, such as amorphous and crystalline. There are six known crystalline forms of calcium carbonate, namely, calcite, aragonite, spherulite, calcium carbonate monohydrate, calcium carbonate hexahydrate, and calcium carbonate hemihydrate. The Ca2+- CO32- reaction system is the most commonly used way to synthesize calcium carbonate. Calcium carbonate with different sizes, morphologies and crystalline forms can be obtained by changing the reaction conditions (Niu et al., 2022). Surface modification is the main method to expand the application of calcium carbonate in drug carriers. Calcium carbonate was further engineered into porous, hollow or core-shell organic-inorganic nanocomposites by organic modification or inorganic modification, followed by template-induced biomineralization and layer-by-layer assembly of the resulting CaCO3 (Niu et al., 2022). Dong et al. utilized hollow calcium carbonate-polydopamine composite nanomaterials to fabricate a photosensitizer-loaded drug carrier that could significantly reduce phototoxicity and thus effectively minimize skin damage during in vivo antitumor photodynamic therapy (Dong et al., 2018).
3.2 Drug-smart response element
Drug-smart response elements are elements that can be targeted for delivery to a focal site after receiving a specific external or internal stimulus. In contrast to conventional drugs, stimuli-responsive elements can use a variety of principles to respond to subtle changes in the body’s environment, thereby delivering the drug precisely to the target site, which can reduce unwanted toxic side effects of the drug at non-target sites without increasing the concentration of the drug (Table 4).

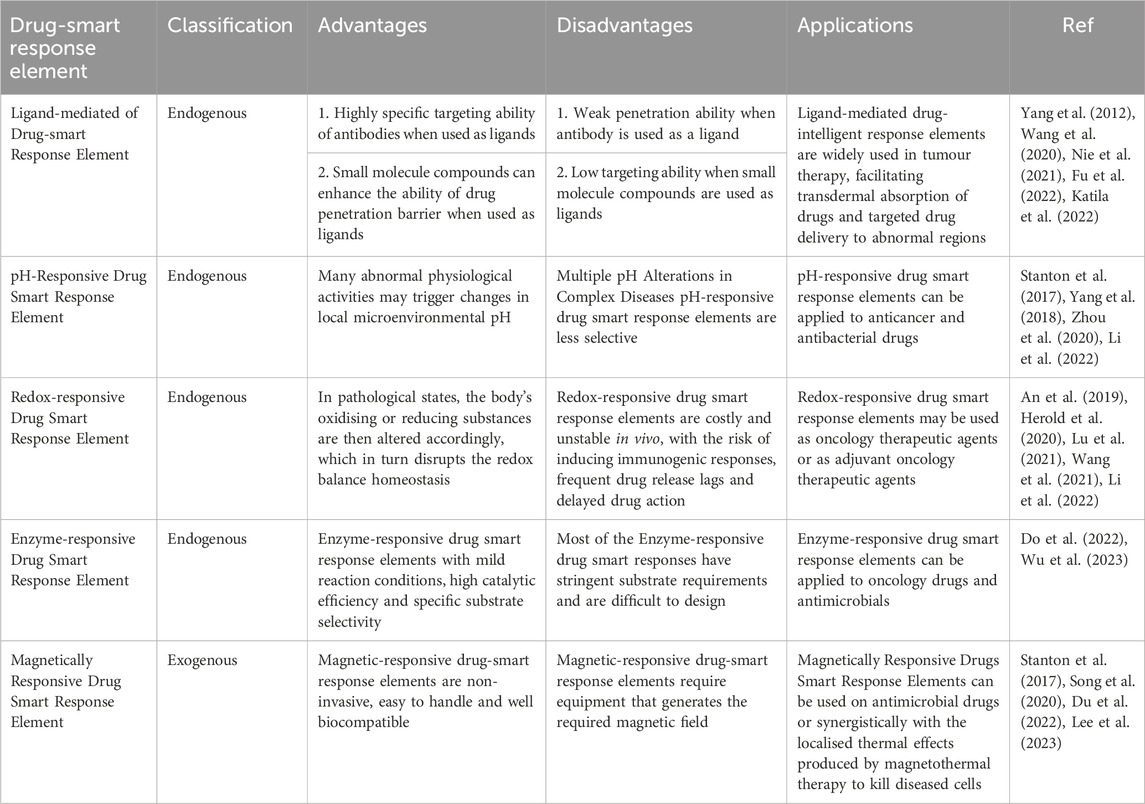

TABLE 4
| Drug-smart response element | Classification | Advantages | Disadvantages | Applications | Ref |
|---|---|---|---|---|---|
| Ligand-mediated of Drug-smart Response Element | Endogenous | 1. Highly specific targeting ability of antibodies when used as ligands | 1. Weak penetration ability when antibody is used as a ligand | Ligand-mediated drug-intelligent response elements are widely used in tumour therapy, facilitating transdermal absorption of drugs and targeted drug delivery to abnormal regions | Yang et al. (2012), Wang et al. (2020), Nie et al. (2021), Fu et al. (2022), Katila et al. (2022) |
| 2. Small molecule compounds can enhance the ability of drug penetration barrier when used as ligands | 2. Low targeting ability when small molecule compounds are used as ligands | ||||
| pH-Responsive Drug Smart Response Element | Endogenous | Many abnormal physiological activities may trigger changes in local microenvironmental pH | Multiple pH Alterations in Complex Diseases pH-responsive drug smart response elements are less selective | pH-responsive drug smart response elements can be applied to anticancer and antibacterial drugs | Stanton et al. (2017), Yang et al. (2018), Zhou et al. (2020), Li et al. (2022) |
| Redox-responsive Drug Smart Response Element | Endogenous | In pathological states, the body’s oxidising or reducing substances are then altered accordingly, which in turn disrupts the redox balance homeostasis | Redox-responsive drug smart response elements are costly and unstable in vivo, with the risk of inducing immunogenic responses, frequent drug release lags and delayed drug action | Redox-responsive drug smart response elements may be used as oncology therapeutic agents or as adjuvant oncology therapeutic agents | An et al. (2019), Herold et al. (2020), Lu et al. (2021), Wang et al. (2021), Li et al. (2022) |
| Enzyme-responsive Drug Smart Response Element | Endogenous | Enzyme-responsive drug smart response elements with mild reaction conditions, high catalytic efficiency and specific substrate selectivity | Most of the Enzyme-responsive drug smart responses have stringent substrate requirements and are difficult to design | Enzyme-responsive drug smart response elements can be applied to oncology drugs and antimicrobials | Do et al. (2022), Wu et al. (2023) |
| Magnetically Responsive Drug Smart Response Element | Exogenous | Magnetic-responsive drug-smart response elements are non-invasive, easy to handle and well biocompatible | Magnetic-responsive drug-smart response elements require equipment that generates the required magnetic field | Magnetically Responsive Drugs Smart Response Elements can be used on antimicrobial drugs or synergistically with the localised thermal effects produced by magnetothermal therapy to kill diseased cells | Stanton et al. (2017), Song et al. (2020), Du et al. (2022), Lee et al. (2023) |
Classification, advantages, disadvantages and applications of drug-smart response elements.
3.2.1 Ligand-mediated of drug-smart response element
Chemical modification has been an important way to improve the performance of drugs or carriers. Ligand-drug couplings are one such chemical modification method that has received widespread attention, first appearing in the 1870s (Chau et al., 2019). Small molecules have since been used as ligands, but antibodies as ligands have been the most dominant research direction. Currently, antibody couplings are developing rapidly. In addition to enhancing the targeting ability of drugs, antibody couplers can also activate the body’s immune response and regulate cell behaviour (Qian et al., 2021; Liu et al., 2023). The choice of antibodies is not limited to proteins with direct potency similar to those in the human body, but also includes bacterial surface proteins with indirect potency (Lahav-Mankovski et al., 2020). Some researchers have found that further modification of bacterial antibodies can give bacteria programmable properties to more finely regulate the organism by inducing cellular functions in a manner similar to cell surface protein responses. However, antibody couplings have a poor ability to penetrate barriers, and intravenous injection is the predominant route of administration. The application of microneedling and embedding technologies may be an important step in further expanding the application of ligand-mediated drug smart response elements.
3.2.2 pH-responsive drug smart response element
pH-Responsive drug smart response element is a drug delivery system that combines a pH-responsive structure, such as a 3+ carboxylic acid ligand, through surface adsorption, surface modification and mixing (Guillen et al., 2022; Tian et al., 2022). The most commonly used design is the modification of the carboxyl group of a protein with a stilbene analogue, which binds to the biologically active ingredient of a target drug having p-dimethylaminobenzaldehyde or to a drug carrier (Herold et al., 2020). pH-responsive drug smart response elements allow for the slow, sustained release of drugs from the smart response element at varying rates depending on the acidification conditions of the human environment, and have great potential for the long-term sustained release of drugs. In vivo pH-responsive drug smart response elements have major limitations. However, pH-responsive drug smart response elements have great applications in skin bacterial infections and trauma (Xie et al., 2023).
3.2.3 Redox-responsive drug smart response element
Redox-responsive drug-smart response elements typically contain disulfide and diselenide bonds that load the active pharmaceutical ingredient in a covalent or non-covalent manner and release the active pharmaceutical ingredient in response to oxidative stimulation (Li et al., 2022). The most commonly recognized substrates are reactive oxygen species and glutathione. The very slow kinetics of the classical “thiol-disulfide bond exchange reaction” is a major drawback of redox-responsive drug-smart response elements. Relief through the addition of core gating molecules can improve the accuracy of drug release and enable more precise disease targeting (Li et al., 2022). Because bacteria contain high concentrations of glutathione, the redox-responsive drug smart response element is likely to clear the bacteria (Wu et al., 2023). The skin is more prone to artificially modulate drugs, and redox-responsive drug-smart response elements have great potential for skin or mucosal antimicrobials.
3.2.4 Enzyme-responsive drug smart response element
The design principle of enzyme-responsive drug smart response elements is to utilize specific interactions between enzymes and substrates to prepare drug-smart response elements that can be specifically degraded by specific enzymes (Zhou et al., 2022). Precise localisation of enzyme-drug smart response elements could control the drug release dose according to disease severity and greatly reduce cytotoxicity (Zuo et al., 2020; Chen et al., 2021). In addition to this, enzyme-drug smart response elements have some personalized advantages. Self-assembled peptide thioesters consisting of aminoethyl thioesters as substrates for thioesterases can act on the Golgi apparatus of target cells in a timely and efficient manner via an enzymatic reaction, leading to cell death through a variety of pathways (Tan et al., 2022). Enzyme-responsive drug smart response elements can deliver live drugs such as cells and bacteria. Yang et al. solved the problems of low cell survival and severe immune rejection by utilizing matrix metalloproteinase-7-responsive nanoshells to encapsulate HeLa cells and human mesenchymal stem cells (Yang et al., 2019).
3.2.5 Magnetically responsive drug smart response element
Magnetic nanoparticles are 10–100 nanoparticles represented by iron, cobalt, nickel or metal oxides with inherent magnetic properties are the main source of magnetically responsive targeted drug delivery systems (Shi et al., 2022). Superparamagnetic magnetic hematite (γ-Fe2O3) or magnetite (Fe3O4) are commonly used magnetic nanoparticles in magnetically responsive drug smart response elements. Micro-robotics is the most ideal development direction for magnetically responsive drug smart response elements. An ideal micro-robotic drug smart response element should fulfill four core requirements: 1) high loading capacity, 2) protection of the drug from the external environment, 3) controllable propulsion mechanism, and 4) on-demand drug release (Song et al., 2022). However, achieving the above conditions using magnetically responsive elements is a long way from controlling the micro-robot to deliver the drug to the specified location.
3.3 Factors affecting transdermal drug absorption
Permeation of drugs through biological or synthetic membranes occurs through three main modes of transport: passive, active or facile. Transdermal absorption in humans or animals is the passive diffusion of drugs from carriers or excipients on skin surface tissues to reach the systemic circulation (Schaefer et al., 2013). The physiologic structures involved in the transdermal absorption of topical medications are the stratum corneum, hair follicles, sebaceous glands, and sweat duct orifices. The pathways of topical drug penetration through the stratum corneum can be categorized into three: 1) Intercellular pathway: chemicals bypass the keratinocytes and penetrate into the subcutis through the intercellular matrix that is continuously distributed between the keratinocytes (Barbero and Frasch, 2006). This is the main route for bioactive composition in drugs with very small molecular weights to enter the skin. The bioactive components of drugs that enter the skin via the intercellular route are of low molecular weight and have a certain degree of lipid- and water-solubility (David, 2014). 2) Transcellular entry: the chemical enters the target site either directly through keratinocytes and mesenchyme or through efflux and uptake transporters using transporters (Haque and Talukder, 2018; Bajza et al., 2020). The bioactive composition with smaller molecular weights directly pass through the cell membrane, while the components with larger molecular weights interact with transport proteins and pass through the cell membrane through efflux and uptake transporters (Idson, 1975). 3) The transdermal route by which chemicals enter the dermis directly through skin appendages such as hair follicles, sebaceous glands and sweat duct orifices is also known as the bypass route. In most cases, drug bioactive composition with large molecular weights or peculiar structures have difficulty in passing through the thicker lipid-rich stratum corneum and enter the skin mainly via the bypass route (Stoughton, 1965). The total area of the skin appendages is relatively small, but it has a significant impact on the skin permeability of drug bioactive composition (Marwah et al., 2016). The bypass pathway is an important reason why topical drugs resemble slow-release drugs. The storage of drugs in the skin appendages and the extremely thin stratum corneum of the skin appendages allow large molecular weight drug bioactive composition to cross the skin slowly at a constant rate for a certain period of time to reach the target site (Scheuplein and Blank, 1971; Ishii et al., 2010).
The nature of drug absorption on the skin is a passive diffusion process from the outer part of the skin, where the concentration is high, to the inner regions of the skin, where the concentration is low. In principle, all three pathways follow Fick’s law of diffusion, which states that the flux or motion of a molecule diffusing across a membrane is proportional to the difference in concentration of that molecule on either side of the membrane (Idson, 1975). The formula based on Fick’s first law of diffusion indicates that the maximum flux of a drug is proportional to the difference in skin concentration and inversely proportional to the thickness of the stratum corneum. Fick’s second law of diffusion suggests that the relationship between diffusion distance and the duration until an isopore (an area of the same drug concentration) is reached is not linear, but increases disproportionately with increasing diffusion distance (Wohlrab and Eichner, 2023). However, the efficacy of some drugs decreases significantly with increasing drug concentration (Hemmati et al., 2011), indicating that in addition, there are other important factors that similarly influence drug penetration and absorption. The integrity and properties of the membrane (skin) as the main body for the penetration of the bioactive composition of the drug have a great influence on the penetration of the drug (Gattu and Maibach, 2011). Lipid-water partition coefficients, solubility, melting point, molecular size and shape are widely recognized as important physicochemical factors that influence skin penetration and absorption of drug bioactive composition by their own properties. The strength of the effect of different factors on the penetration of bioactive composition of drugs is closely related to the structural composition of the skin and the prevailing skin condition (Lien and Tong, 1973; Michaels et al., 1975; Roberts et al., 1977). Magnusson et al. found that epidermal permeability coefficient and solute octanol-water partition coefficient were the key factors in the permeation efficiency of pharmaceutical bioactive composition (Magnusson et al., 2004). Molecular weight is an important factor in determining the maximum permeation flux of a pharmaceutical bioactive compound. The permeation of pharmaceutical bioactive compounds is also related to the specific surface area of the particles, the diffusion coefficient of the solute, the thickness of the boundary layer and the solubility of the solute (Sandri et al., 2014). The rate of permeation of a solute from an aqueous solution depends on the efficiency of partitioning and diffusion. The efficiency of solute partitioning in solution is related to the octanol-water partition coefficient. The efficiency of solute partitioning in solution is related to solute size and hydrogen bonding (Zhang et al., 2009). Passive diffusion of drugs through the skin is influenced by the physicochemical properties of the drug bioactive composition and by individualized differences in the structure and physiological state of the skin. However, not all drug bioactive composition penetrates at a higher rate in damaged skin than in normal skin. For example, nicotine transmits at a higher rate through normal healthy skin than through skin previously damaged by corrosive or destructive chemicals or physical agents (e.g., heat and cold) (Macht, 1938). Hydration not only plays an important role in skin barrier function, but also plays a major role in promoting the absorption of drug bioactive composition. Hydration of the stratum corneum can lead to profound changes in skin barrier properties. In its normal state, the stratum corneum contains 15%–20% water, and stratum corneum water can increase to about 400% after over-soaking (Dawber, 1980). Upon absorption by keratinocytes, water alters the position and stability of the disulfide bonds in keratin peptides, causing changes in the spatial orientation of the protein (Walters, 2002). The change in the spatial orientation of the proteins gives more space to the water molecules, allowing the water content of the keratinocytes to increase further. When the keratinocytes themselves swell, the denseness of the structure decreases, the cellular gap between the keratinocytes widens, and the permeability of the skin increases. The hydration of the skin can change the physicochemical properties of the bioactive composition of the drug and increase the diffusion coefficient of the bioactive composition of the drug. As the water content of the keratinocytes increases, the bioactive composition of the drug are more likely to combine with water to form hydrated molecules (Scheuplein et al., 1969; Wiedmann, 1988). In addition to this, pH and temperature also affect the transdermal absorption of drugs. pH is not absolute in its effect on the transdermal absorption of the bioactive composition of a drug. For example, the transdermal absorption dose of indomethacin increases as the pH of the skin surface decreases, a pattern that is not necessarily true for other pharmaceutical bioactive composition (Chiang et al., 1991). Alteration of pH affects the ionization of drug bioactive composition may be the main reason why pH affects the transdermal absorption of drug bioactive composition. Unlike pH, an increase in temperature generally increases the transdermal absorption of drug bioactive composition. Temperature increases skin blood flow at the site of heat application mainly by promoting skin vasodilation, which significantly increases the rate of transdermal absorption of drugs and the dose of transdermal absorption (Barkve et al., 1986; Hao et al., 2016).
4 Individualized drug use that affects the effectiveness of individualized dosing
The effect of the same drug on different individuals can vary greatly. The main reasons for this difference are family heredity, disease, age, weight and the concurrent use of other drugs. Personalized medicine refers to the formulation of a more reasonable treatment plan with full consideration of each patient’s individual situation. Thus, improving the efficacy of drugs, reducing the side effects of drugs in a more economical way achieve better therapeutic effect.
4.1 Pharmacogenomics affecting the effectiveness of individualized dosing
As everyone knows genetic sequence varies from person to person by only one in a thousand. Deletion, insertion, duplication and inversion are the four genetic structural variants that are always present. Metabolic enzyme, transporter, receptor and other genes encoding metabolic enzyme regulate the absorption, distribution, metabolism and excretion of substances in the human body. This makes the same concentration of the drug have different therapeutic effects and adverse effects on people with different genotypes. Large studies have shown that adverse drug reactions occurring in hospitals are one of the leading causes of death among American hospital patients (Roden et al., 2019). 97%–98% have at least one functional drug-related gene variant (Schärfe et al., 2017). These studies have shown that exploring human drug-related genes is particularly important for individualising medication and improving drug efficacy, hence the emergence of pharmacogenomics. Metoprolol is an important drug in the treatment of various cardiovascular diseases, thyroid crisis and localised choroidal haemangiomas (Zamir et al., 2022). The metabolism of the polymorphic enzyme CYP2D6 is the main reason that affects the metabolic rate of Metoprolol in vivo. In one study, the genotypes of patients were 30% extensive metabolizers, 55% intermediate metabolizers, and 13% weak metabolizers (Anstensrud et al., 2020). If the same drug dose is used in people with the CYP2D6 weak metabolism genotype, the risk of adverse reactions during Metoprolol treatment is 5 times higher than in people with the non-weak metabolism genotype (Bijl et al., 2009). Adjusting Metoprolol dosage according to genotype significantly reduces the probability and severity of adverse reactions in patients. More and more genotypic and phenotypic information related to the pharmacogenome is being discovered and many very useful databases have been established. As of April 2021, PharmGKB contains 715 drugs 1761 genes, 227 diseases, 165 clinical guidelines, and 784 drug labels (Gong et al., 2021). In PharmGKB, we have access to genotypic and phenotypic information related to the pharmacogenome. It includes drug dosing guidelines, drug labelling annotations, clinical and variant annotations, summary of drug-centred pathways, pharmacodynamic genes and the relationship between genes, drugs and disease. Approximately 4/5 patients may carry a variant that is a target for commonly prescribed drugs and may also have a functional impact, a variant that may alter drug efficacy (Schärfe et al., 2017). The correct use of gene sequencing tools and pharmacogenomics-related databases can effectively guide patients in the rational use of medication, improve drug effectiveness and reduce adverse drug reactions.
4.2 Microbiomes influencing the effectiveness of individualized dosing
The human organism contains hundreds of microorganisms with different biochemical functions that are relevant to human life. In recent decades, researchers have discovered that microorganisms also play a role in drug metabolism and efficacy. Zimmermann et al. analyzed 76 bacterial species, metabolizing 271 oral drugs in vitro and found that at least one strain was able to metabolize 2/3 of the drug (Zimmermann et al., 2019). Chemical modification of microorganisms is an important cause of altered drug efficacy. 5-aminosalicylic acid has a significant inhibitory effect on intestinal wall inflammation (Tavares Junior et al., 2022). With increased use, resistance develops in most patients. Anaerobic faecal culture experiments have shown that up to one-third of 5-aminosalicylic acid is metabolised by microorganisms to a form that lacks anti-inflammatory activity, N-acetyl-5-aminosalicylic acid (Dull et al., 1987). Mehta et al. identified 12 previously uncharacterized enzyme genes associated with 5-aminosalicylic acid inactivation and found that an increase in the number of these enzyme genes correlated with steroid use (Mehta et al., 2023). Metabolites of microorganisms can also affect the efficacy of drugs. Koh et al. found higher levels of imidazolepropionic acid, a metabolite of the gut flora, in patients who were not well treated with metformin (Koh et al., 2020). Further studies showed that imidazole propionate inhibited metformin-induced adenosine 5′-monophosphate-activated protein kinase activation via p38g and Akt, whereas pirfenidone blocked p38γ activation by imidazole propionate and restored the hypoglycaemic effect of metformin inhibited by imidazole propionate. Metabolism of drugs by microorganisms is the source of some adverse drug reactions. Clonazepam is an antiepilepsy and anxiolytic drug, and the breakdown product of this drug, vinylpyrimidine bromide, is severely toxic. Zimmermann et al. found that the serum level of bromoacetyluracil was five times higher in normal mice than in germ-free mice after the use of clonazepam (Zimmermann et al., 2019). The microbiome is relatively new and many of the current studies do not directly benefit patients, but there is no doubt that microbial metabolism has a huge impact on drug metabolism and efficacy. Moreover, the current microbiome research mainly focuses on the intestinal flora, and the research on skin microorganisms is relatively backward, which is not conducive to the research on the individualization of topical medications. Analyzing the reasons why drugs are metabolized by microorganisms can link individual differences in the microbiome to individual differences in drug metabolism, which can be targeted to accurately guide patients in the rational use of medication by restoring the efficacy of the drug or reducing the adverse effects of the drug.
4.3 Artificial intelligence modelling of the effectiveness of individualized dosing
Over the past decade, artificial intelligence (AI) has undergone a revolution that is bound to transform economics, society and science, solving many seemingly intractable problems (Richards et al., 2022). In the field of pharmaceuticals, AI has achieved excellent results in data processing, drug discovery (Schneider et al., 2020), image processing (Bera et al., 2021), and chemical structure analysis (Bojar and Lisacek, 2022). However, due to reasons such as medical datasets being difficult to access and the medical field being too large and complex. AI has not really made a real difference in the medical field. As it stands, assisting in disease identification and classification is one of the most promising aspects of AI. Accurate disease delineation and documentation can assist us in identifying and addressing more subtypes of disease further enabling individualized drug delivery. In this context, Acosta proposed a multimodal medical AI model that processes multiple types of information (Acosta et al., 2022). In this model, the AI model is able to make good use of data from both clinical and non-clinical databases, thus truly enabling AI to diagnose and treat diseases. Moor proposed another new paradigm of medical AI (Moor et al., 2023), known as the model of holistic medical AI. This model labelled data, flexibly interpreting data from different combinations of medical patterns and producing expressive outputs through self-supervision of large, diverse datasets. The models of omnipotent medical AI have the ability to customize queries to interact with the model compared to multimodal medical AI models, flexible combinations of different data modalities can be received and results output, allowing inference using undirected tasks. Multimodal medical AI models and all-round medical AI models require a diverse and specialized large database, which is very difficult and requires a very large financial investment. The processing of high-throughput data and the high accuracy requirements of models are also important issues that cannot be ignored in both types of modelling. AI is generally superior to individual physicians in data processing, and it can perform more complex information processing, find new subtypes of disease, and discover links between an individual’s characteristics and medication use, leading to better and more precise selection of medication types and dosages for an individual, and thus improving medication efficacy.
5 Conclusion and outlook
More than half of the world’s population uses at least one drug per day, and as the global burden of disease continues to grow, the demand for drugs will continue to increase (Baryakova et al., 2023). Patient compliance is an important factor in disease treatment. Statistically, poor adherence leads to 10% of hospitalizations, resulting in $100 - $300 billion in avoidable healthcare costs and causing approximately 125,000 U.S. patient deaths annually (Baryakova et al., 2023). Oral medication is the most common and highest patient compliance route of medication use. However, most oral medications are not specific and may cause side effects. Metabolism in the gastrointestinal tract and liver can further reduce the dose of bioactive ingredients reaching the target site. Topical administration is a promising and effective method of drug delivery. Topical medication is a highly compliant mode of administration, is not metabolised in the gastrointestinal tract and has a high specificity for skin tissues.
Dermatological diseases are the greatest advantage of topical medication. Topical drugs can quickly reach the target site of skin diseases, shorten the time for the drug to produce therapeutic effects, and avoid the adverse effects of drug hoarding in other tissues. The skin is a complex and sophisticated tissue composed of microorganisms that inhabit the surface layer, cells that make up the structure of the skin, immune cells and their metabolites that are involved in innate immunity, adaptive immunity, and that help to protect the organism against external aggressions, guaranteeing the organism’s ability to survive in a harsh and dry external environment. The effectiveness of topical treatments is influenced by a number of factors. The transport of the bioactive composition of a topical drug from the skin to the target site is a key step in the efficacy of topical drugs. Regardless of the target site of the disease, the bioactive composition of topical drugs needs to cross the stratum corneum barrier. Dermatological diseases in which the bioactive composition crosses the stratum corneum barrier and reaches the target site directly to take effect. In subcutaneous tissue diseases, the bioactive composition has to be further diffused and cleared by metabolism and dermal circulation to reach deeper tissues. In diseases of other tissues and organs, bioactive composition also needs to be transported through the bloodstream to reach the target site. Enabling drug penetration through the skin is a major concern for topical drug delivery. The state of the skin barrier, the physicochemical properties of the bioactive composition, the excipients and additives of the agent, the drug delivery system and external means of altering the efficiency of transdermal absorption, such as heat and iontophoresis, all affect the efficiency and dose of the bioactive composition in reaching the target site, and thus the effectiveness of the bioactive composition. Undeniably, the question of how to enhance the transdermal absorption of drugs into the skin is a very important one. The advent of drugs of enormous size, such as proteins, nucleic acids and bacteria, has led to a demand for methods to increase the transdermal absorption of drugs. However, enhancing transdermal absorption of drugs is not the first option to improve the effectiveness of all drugs. Drugs with small molecule compounds as the main bioactive composition are still the most commonly used topical drugs in the clinic. Small molecule actives usually have a very good ability to penetrate the skin. Excessive promotion of transdermal absorption of drugs containing small molecules of biologically active ingredients results in most of the biologically active ingredient entering the bloodstream, while less of the drug is available at the target site of the skin, thus reducing the efficacy of the treatment. If the frequency of use of small molecules is increased, there is a high likelihood of causing adverse reactions in other tissues. Thus, it appears that small molecule topical drugs have a greater need to limit the rate of transdermal absorption. Mineral-based materials, such as apatite, diamond and montmorillonite clay, are currently important in limiting the transdermal penetration of bioactive composition of drugs and maintaining local action (Choimet et al., 2020; Shapira et al., 2022; Wang and Phillips, 2022). However, there are fewer studies of mineral-based materials in topical drug delivery systems, and the mechanism of action is unclear. Research on mineral-based materials as topical drug carriers is a blue ocean and more researchers need to participate in it.
Topical pharmaceutical preparations are emerging as an attractive alternative and a rapidly growing market. A variety of factors can influence the final efficacy. No one topical drug or topical drug delivery system is right for everyone. Individualized medication is an important way to improve the effectiveness of drug use. Individualized precision medication administration also achieves optimal outcomes for patients in a more cost-effective manner and reduces unnecessary capital expenditure. However, the complexity of influencing factors and mechanisms of action yet to be fully explored limit the practical application of precise individual administration of topical drugs. Continuing developments in pharmacogenomics, microbiomics and artificial intelligence modelling are continuing to fill the gaps in theoretical research. However, there is still a long way to go for the application of precise individual medication, and it still requires the continuous joint efforts of all parties.
Statements
Author contributions
LZ: Writing–original draft. JC: Writing–original draft. BB: Writing–original draft. GS: Writing–original draft. JZ: Writing–review and editing. HY: Writing–review and editing. SH: Writing–review and editing. ZW: Conceptualization, Supervision, Writing–review and editing. GL: Conceptualization, Supervision, Writing–review and editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. The authors gratefully acknowledge the financial support from Sichuan Provincial Drug Administration Chinese Medicine (Ethnomedicine) Standard Enhancement Project (Second) (No. 510201201904914).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Glossary
| CD8+ | cluster of differentiation 8+ |
| CD4 | cluster of differentiation 4 |
| CD14 | cluster of differentiation 14 |
| Th17 | T helper 17 |
| Th22 | T helper 22 |
| IL33 | interleukin-33 |
| IL4 | interleukin-4 |
| IL31 | interleukin-31 |
| Th2 | T helper 2 cell |
| ILC3 | Group 3 innate lymphoid cell |
| IL-17 | interleukin-17 |
| IL-22 | interleukin-22 |
| IL-23 | interleukin-23 |
| ILC2 | innate lymphoid cell 2 |
| TNF | tumour necrosis factor |
| TSLP | thymic stromal lymphopoietin |
| ILC1 | innate lymphoid cell 1 |
| CCL5-CCR3 | C-C motif chemokine ligand 5- C-C chemokine receptor 3 |
| TNFSF9-TNFRSF9 | Recombinant Tumor Necrosis Factor Ligand Superfamily, Member 9-Recombinant Tumor Necrosis Factor Receptor Superfamily, Member 9 |
| XCL2-XCR1 | Recombinant Chemokine C-Motif Ligand 2-Recombinant Chemokine C-Motif Receptor 1 |
| IDO1 | indoleamine2,3-dioxygenase1 |
| STAT1 | Recombinant Signal Transducer and Activator Of Transcription |
| HCAR3 | hydroxycarboxylic acid receptor 3 |
| MHC | major histocompatibility complex |
| CD163 | cluster of differentiation 163 |
| STAB1 | stabilin 1 |
| CEPP | cyclophosphamide-Etoposide-Procarbazine-Prednisone |
| CD40L | cluster of differentiation4L |
| CD11a | cluster of differentiation11a |
| CD70 | cluster of differentiation70 |
| CpG | cytosine-phosphoric-guanine |
| CD8-CCR7 | cluster of differentiation8- C C chemokine receptor type 7 |
| CD8-NR4A1 | cluster of differentiation 8- Human Nuclear receptor 4A1 |
| TGF-β3 | transforming growth factor beta receptor 3 |
| CYP2D6 | cytochrome P450 2D6 |
| PharmGKB | Pharmacogenetics and Pharmacogenomics Knowledge Base |
| siRNA | short interfering RNA |
| mRNA | messenger RNA |
| MSC | mesenchymal stem cells |
| TNB | 5-thio-2-nitrobenzoic acid |
References
1
AcostaJ. N.FalconeG. J.RajpurkarP.TopolE. J. (2022). Multimodal biomedical AI. Nat. Med.28 (9), 1773–1784. 10.1038/s41591-022-01981-2
2
AliceaG. M.RebeccaV. W.GoldmanA. R.FaneM. E.DouglassS. M.BeheraR.et al (2020). Changes in aged fibroblast lipid metabolism induce age-dependent melanoma cell resistance to targeted therapy via the fatty acid transporter FATP2. Cancer Discov.10 (9), 1282–1295. 10.1158/2159-8290.cd-20-0329
3
AnY.ZhuJ.LiuF.DengJ.MengX.LiuG.et al (2019). Boosting the ferroptotic antitumor efficacy via site-specific amplification of tailored lipid peroxidation. ACS Appl. Mater. interfaces11 (33), 29655–29666. 10.1021/acsami.9b10954
4
AndersonN. R.MinutoloN. G.GillS.KlichinskyM. (2021). Macrophage-based approaches for cancer immunotherapy. Cancer Res.81 (5), 1201–1208. 10.1158/0008-5472.CAN-20-2990
5
AnstensrudA. K.MoldenE.HaugH. J.QaziR.MuriqH.FosshaugL. E.et al (2020). Impact of genotype-predicted CYP2D6 metabolism on clinical effects and tolerability of metoprolol in patients after myocardial infarction – a prospective observational study. Eur. J. Clin. Pharmacol.76 (5), 673–683. 10.1007/s00228-020-02832-0
6
BajzaÁ.KocsisD.BerezvaiO.LakiA. J.LukácsB.ImreT.et al (2020). Verification of P-glycoprotein function at the dermal barrier in diffusion cells and dynamic "Skin-On-A-Chip" microfluidic device. Pharmaceutics12 (9), 804. 10.3390/pharmaceutics12090804
7
BarberoA. M.FraschH. F. (2006). Transcellular route of diffusion through stratum corneum: results from finite element models. J. Pharm. Sci.95 (10), 2186–2194. 10.1002/jps.20695
8
BarkveT. F.Langseth-ManriqueK.BredesenJ. E.GjesdalK. (1986). Increased uptake of transdermal glyceryl trinitrate during physical exercise and during high ambient temperature. Am. heart J.112 (3), 537–541. 10.1016/0002-8703(86)90518-1
9
BaroniA.BuomminoE.De GregorioV.RuoccoE.RuoccoV.WolfR. (2012). Structure and function of the epidermis related to barrier properties. Clin. dermatology30 (3), 257–262. 10.1016/j.clindermatol.2011.08.007
10
BarreraJ. B.GijsenH.GonzálezA.De GrootA.ProtaG.WijnbergJ.et al (1995). The chemistry of melanins and melanogenesis. Fortschritte der chemie organischer naturstoffe/progress Chem. Org. Nat. Prod.64, 93–148. 10.1007/978-3-7091-9337-2_2
11
BaryakovaT. H.PogostinB. H.LangerR.McHughK. J. (2023). Overcoming barriers to patient adherence: the case for developing innovative drug delivery systems. Nat. Rev. Drug Discov.22 (5), 387–409. 10.1038/s41573-023-00670-0
12
BeraK.BramanN.GuptaA.VelchetiV.MadabhushiA. (2021). Predicting cancer outcomes with radiomics and artificial intelligence in radiology. Nat. Rev. Clin. Oncol.19 (2), 132–146. 10.1038/s41571-021-00560-7
13
BharS.ZhaoG.BartelJ. D.StercheleH.Del MazoA.EmersonL. E.et al (2022a). Bacterial extracellular vesicles control murine norovirus infection through modulation of antiviral immune responses. Front. Immunol.13, 909949. 10.3389/fimmu.2022.909949
14
BhardwajN.KunduS. C. (2010). Electrospinning: a fascinating fiber fabrication technique. Biotechnol. Adv.28 (3), 325–347. 10.1016/j.biotechadv.2010.01.004
15
BhuptaniR. S.PatravaleV. B. (2019). Starch microsponges for enhanced retention and efficacy of topical sunscreen. Mater. Sci. Eng. C, Mater. Biol. Appl.104, 109882. 10.1016/j.msec.2019.109882
16
BieleckiP.RiesenfeldS. J.HütterJ. C.Torlai TrigliaE.KowalczykM. S.Ricardo-GonzalezR. R.et al (2021a). Skin-resident innate lymphoid cells converge on a pathogenic effector state. Nature592 (7852), 128–132. 10.1038/s41586-021-03188-w
17
BijlM. J.VisserL. E.van SchaikR. H.KorsJ. A.WittemanJ. C.HofmanA.et al (2009). Genetic variation in the CYP2D6 gene is associated with a lower heart rate and blood pressure in beta-blocker users. Clin. Pharmacol. Ther.85 (1), 45–50. 10.1038/clpt.2008.172
18
BodeS. A.LöwikD. W. P. M. (2017). Constrained cell penetrating peptides. Drug Discov. today. Technol.26, 33–42. 10.1016/j.ddtec.2017.11.005
19
BojarD.LisacekF. (2022). Glycoinformatics in the artificial intelligence era. Chem. Rev.122 (20), 15971–15988. 10.1021/acs.chemrev.2c00110
20
BoscariolR.CaetanoÉ. A.SilvaE. C.OliveiraT. J.Rosa-CastroR. M.VilaM. M. D. C.et al (2021). Performance of choline geranate deep eutectic solvent as transdermal permeation enhancer: an in vitro skin histological study. Pharmaceutics13 (4), 540. 10.3390/pharmaceutics13040540
21
BuiV. D.SonS.XavierW.NguyenV. Q.JungJ. M.LeeJ.et al (2022). Dissolving microneedles for long-term storage and transdermal delivery of extracellular vesicles. Biomaterials287, 121644. 10.1016/j.biomaterials.2022.121644
22
BuzasE. I. (2023). The roles of extracellular vesicles in the immune system. Nat. Rev. Immunol.23 (4), 236–250. 10.1038/s41577-022-00763-8
23
ByrdA. S.Carmona-RiveraC.O'NeilL. J.CarlucciP. M.CisarC.RosenbergA. Z.et al (2019). Neutrophil extracellular traps, B cells, and type I interferons contribute to immune dysregulation in hidradenitis suppurativa. Sci. Transl. Med.11 (508), eaav5908. 10.1126/scitranslmed.aav5908
24
CaoH.GaoY.JiaH.ZhangL.LiuJ.MuG.et al (2022a). Macrophage-membrane-Camouflaged nonviral gene vectors for the treatment of multidrug-resistant bacterial sepsis. Nano Lett.22 (19), 7882–7891. 10.1021/acs.nanolett.2c02560
25
CaoZ.LiuJ. (2020). Bacteria and bacterial derivatives as drug carriers for cancer therapy. J. Control. release official J. Control. Release Soc.326, 396–407. 10.1016/j.jconrel.2020.07.009
26
ChangY.CaiX.SyahirahR.YaoY.XuY.JinG.et al (2023). CAR-neutrophil mediated delivery of tumor-microenvironment responsive nanodrugs for glioblastoma chemo-immunotherapy. Nat. Commun.14 (1), 2266. 10.1038/s41467-023-37872-4
27
ChauC. H.SteegP. S.FiggW. D. (2019). Antibody-drug conjugates for cancer. Lancet (London, Engl.394 (10200), 793–804. 10.1016/s0140-6736(19)31774-x
28
ChavdaV. P.DawreS.PandyaA.VoraL. K.ModhD. H.ShahV.et al (2022). Lyotropic liquid crystals for parenteral drug delivery. J. Control. release official J. Control. Release Soc.349, 533–549. 10.1016/j.jconrel.2022.06.062
29
ChavdaV. P.DyawanapellyS.DawreS.Ferreira-FariaI.BezbaruahR.Rani GogoiN.et al (2023). Lyotropic liquid crystalline phases: drug delivery and biomedical applications. Int. J. Pharm.647, 123546. 10.1016/j.ijpharm.2023.123546
30
ChenC. Y.RaoS. S.YueT.TanY. J.YinH.ChenL. J.et al (2022a). Glucocorticoid-induced loss of beneficial gut bacterial extracellular vesicles is associated with the pathogenesis of osteonecrosis. Sci. Adv.8 (15), eabg8335. 10.1126/sciadv.abg8335
31
ChenH.JiH.KongX.LeiP.YangQ.WuW.et al (2021b). Bacterial ghosts-based vaccine and drug delivery systems. Pharmaceutics13 (11), 1892. 10.3390/pharmaceutics13111892
32
ChenL.YanD.WuN.YaoQ.SunH.PangY.et al (2021a). Injectable bio-responsive hydrogel for therapy of inflammation related eyelid diseases. Bioact. Mater.6 (10), 3062–3073. 10.1016/j.bioactmat.2021.02.040
33
ChenL.ZhouZ.HuC.MaitzM. F.YangL.LuoR.et al (2022b). Platelet membrane-coated nanocarriers targeting plaques to deliver anti-CD47 antibody for atherosclerotic therapy. Res. Wash. D.C.)2022, 9845459. 10.34133/2022/9845459
34
ChenS. (2016). The external treatment theory and Application about "Yellow Emperor's Inner Canon" bachelor's degree. China: Liaoning University of Traditional Chinese Medicine.
35
ChenY. E.FischbachM. A.BelkaidY. (2018). Skin microbiota-host interactions. Nature553 (7689), 427–436. 10.1038/nature25177
36
ChengR.JiangL.GaoH.LiuZ.MäkiläE.WangS.et al (2022). A pH-responsive cluster metal-organic framework nanoparticle for enhanced tumor accumulation and antitumor effect. Adv. Mater. Deerf. Beach, Fla.)34 (42), e2203915. 10.1002/adma.202203915
37
ChiangC. H.LaiJ. S.YangK. H. (1991). The effects of pH and chemical enhancers on the percutaneous absorption of indomethacin. Drug Dev. industrial Pharm.17, 91–111. 10.3109/03639049109043812
38
ChieosilapathamP.KiatsurayanonC.UmeharaY.Trujillo-PaezJ. V.PengG.YueH.et al (2021). Keratinocytes: innate immune cells in atopic dermatitis. Clin. Exp. Immunol.204 (3), 296–309. 10.1111/cei.13575
39
ChoiD.KimH.KimD.HeoJ.LeeH.LeeJ. B.et al (2019). Self-assembled DNA hollow spheres from microsponges. Biofabrication11 (2), 025016. 10.1088/1758-5090/ab0abb
40
ChoiY. R.CollinsK. H.SpringerL. E.PferdehirtL.RossA. K.WuC. L.et al (2021). A genome-engineered bioartificial implant for autoregulated anticytokine drug delivery. Sci. Adv.7 (36), eabj1414. 10.1126/sciadv.abj1414
41
ChoimetM.TourretteA.MarsanO.RassuG.DrouetC. (2020). Bio-inspired apatite particles limit skin penetration of drugs for dermatology applications. Acta Biomater.111, 418–428. 10.1016/j.actbio.2020.05.010
42
CorreiaD. M.FernandesL. C.FernandesM. M.HermenegildoB.MeiraR. M.RibeiroC.et al (2021). Ionic liquid-based materials for biomedical applications. Nanomater. (Basel, Switz.11 (9), 2401. 10.3390/nano11092401
43
CumberbatchM.DearmanR. J.GriffithsC. E.KimberI. (2003). Epidermal Langerhans cell migration and sensitisation to chemical allergens. APMIS acta pathologica, Microbiol. Immunol. Scand.111 (7-8), 797–804. 10.1034/j.1600-0463.2003.11107811.x
44
DavidD. D. (2014). Prodrug strategies for enhancing the percutaneous absorption of drugs. Mol. (Basel, Switz.19 (12), 20780–20807. 10.3390/molecules191220780
45
DawberR. P. (1980). The ultrastructure and growth of human nails. Archives Dermatological Res.269 (2), 197–204. 10.1007/bf00406540
46
DengC. C.HuY. F.ZhuD. H.ChengQ.GuJ. J.FengQ. L.et al (2021). Single-cell RNA-seq reveals fibroblast heterogeneity and increased mesenchymal fibroblasts in human fibrotic skin diseases. Nat. Commun.12 (1), 3709. 10.1038/s41467-021-24110-y
47
DhariwalaM. O.ScharschmidtT. C. (2021). Baby's skin bacteria: first impressions are long-lasting. Trends Immunol.42 (12), 1088–1099. 10.1016/j.it.2021.10.005
48
DierkingI.Al-ZanganaS. (2017). Lyotropic liquid crystal phases from anisotropic nanomaterials. Nanomater. (Basel, Switz.7 (10), 305. 10.3390/nano7100305
49
DoT. C.LauJ. W.SunC.LiuS.KhaK. T.LimS. T.et al (2022). Hypoxia deactivates epigenetic feedbacks via enzyme-derived clicking proteolysis-targeting chimeras. Sci. Adv.8 (50), eabq2216. 10.1126/sciadv.abq2216
50
DoT. H.MaF.AndradeP. R.TelesR.de Andrade SilvaB. J.HuC.et al (2022). TREM2 macrophages induced by human lipids drive inflammation in acne lesions. Sci. Immunol.7 (73), eabo2787. 10.1126/sciimmunol.abo2787
51
DongZ.FengL.HaoY.ChenM.GaoM.ChaoY.et al (2018). Synthesis of hollow biomineralized CaCO 3 -polydopamine nanoparticles for multimodal imaging-guided cancer photodynamic therapy with reduced skin photosensitivity. J. Am. Chem. Soc.140 (6), 2165–2178. 10.1021/jacs.7b11036
52
DuH.YaoC. Y.PengH.JangB.LiS. X.YaoJ. L.et al (2022). Applications of transition metal-doped iron-based nanoparticles in biomedicine. Chin. J. Appl. Chem.39 (3), 1016. 10.19894/j.issn.1000-0518.210394
53
DudeckJ.KotrbaJ.ImmlerR.HoffmannA.VossM.AlexakiV. I.et al (2021). Directional mast cell degranulation of tumor necrosis factor into blood vessels primes neutrophil extravasation. Immunity54 (3), 468–483.e5. 10.1016/j.immuni.2020.12.017
54
DullB. J.SalataK.GoldmanP. (1987). Role of the intestinal flora in the acetylation of sulfasalazine metabolites. Biochem. Pharmacol.36 (21), 3772–3774. 10.1016/0006-2952(87)90034-7
55
EconomidouS. N.LamprouD. A.DouroumisD. (2018). 3D printing applications for transdermal drug delivery. Int. J. Pharm.544 (2), 415–424. 10.1016/j.ijpharm.2018.01.031
56
EgorovaK. S.GordeevE. G.AnanikovV. P. (2017). Biological activity of ionic liquids and their application in pharmaceutics and medicine. Chem. Rev.117 (10), 7132–7189. 10.1021/acs.chemrev.6b00562
57
ElshafieH. S.CameleI. (2017). An overview of the biological effects of some mediterranean essential oils on human health. BioMed Res. Int.2017, 9268468. 10.1155/2017/9268468
58
EnamoradoM.KulalertW.HanS. J.RaoI.DelaleuJ.LinkV. M.et al (2023). Immunity to the microbiota promotes sensory neuron regeneration. Cell186 (3), 607–620.e17. 10.1016/j.cell.2022.12.037
59
EyerichS.EyerichK.Traidl-HoffmannC.BiedermannT. (2018). Cutaneous barriers and skin immunity: differentiating A connected network. Trends Immunol.39 (4), 315–327. 10.1016/j.it.2018.02.004
60
FaldutoG. H.PfeifferA.LukerA.MetcalfeD. D.OliveraA. (2021). Emerging mechanisms contributing to mast cell-mediated pathophysiology with therapeutic implications. Pharmacol. Ther.220, 107718. 10.1016/j.pharmthera.2020.107718
61
FengJ.LuoJ.YangP.DuJ.KimB. S.HuH. (2018). Piezo2 channel-Merkel cell signaling modulates the conversion of touch to itch. Sci. (New York, N.Y.).360 (6388), 530–533. 10.1126/science.aar5703
62
FizanneL.VillardA.BenabbouN.RecoquillonS.SoletiR.DelageE.et al (2023). Faeces-derived extracellular vesicles participate in the onset of barrier dysfunction leading to liver diseases. J. Extracell. vesicles12 (2), e12303. 10.1002/jev2.12303
63
FloriE.MastrofrancescoA.MoscaS.OttavianiM.BrigantiS.CardinaliG.et al (2022). Sebocytes contribute to melasma onset. iScience25 (3), 103871. 10.1016/j.isci.2022.103871
64
FonderM. A.MamelakA. J.LazarusG. S.ChanmugamA. (2007). Occlusive wound dressings in emergency medicine and acute care. Emerg. Med. Clin. N. Am.25 (1), 235–242. 10.1016/j.emc.2007.01.012
65
FrankelA. D.PaboC. O. (1988). Cellular uptake of the tat protein from human immunodeficiency virus. Cell55 (6), 1189–1193. 10.1016/0092-8674(88)90263-2
66
FrederiksenK.GuyR. H.PeterssonK. (2015). Formulation considerations in the design of topical, polymeric film-forming systems for sustained drug delivery to the skin. Eur. J. Pharm. Biopharm.91, 9–15. 10.1016/j.ejpb.2015.01.002
67
FuZ.LiS.HanS.ShiC.ZhangY. (2022a). Antibody drug conjugate: the "biological missile" for targeted cancer therapy. Signal Transduct. Target. Ther.7 (1), 93. 10.1038/s41392-022-00947-7
68
GalloR. L. (2015). S. epidermidis influence on host immunity: more than skin deep. Cell host microbe17 (2), 143–144. 10.1016/j.chom.2015.01.012
69
GanB. K.YongC. Y.HoK. L.OmarA. R.AlitheenN. B.TanW. S. (2018). Targeted delivery of cell penetrating peptide virus-like nanoparticles to skin cancer cells. Sci. Rep.8 (1), 8499. 10.1038/s41598-018-26749-y
70
GaoJ.WangS.DongX.LeanseL. G.DaiT.WangZ. (2020). Co-delivery of resolvin D1 and antibiotics with nanovesicles to lungs resolves inflammation and clears bacteria in mice. Commun. Biol.3 (1), 680. 10.1038/s42003-020-01410-5
71
GaoY.ZhangW.LiL.WangZ.ShuY.WangJ. (2023). Ionic liquid-based gels for biomedical applications. Chem. Eng. J.452, 139248. 10.1016/j.cej.2022.139248
72
GargT.RathG.GoyalA. K. (2015). Comprehensive review on additives of topical dosage forms for drug delivery. Drug Deliv.22 (8), 969–987. 10.3109/10717544.2013.879355
73
GattuS.MaibachH. I. (2011). Modest but increased penetration through damaged skin: an overview of the in vivo human model. Skin Pharmacol. physiology24 (1), 2–9. 10.1159/000314995
74
GaydosikA. M.TabibT.DomsicR.KhannaD.LafyatisR.FuschiottiP. (2021). Single-cell transcriptome analysis identifies skin-specific T-cell responses in systemic sclerosis. Ann. rheumatic Dis.80 (11), 1453–1460. 10.1136/annrheumdis-2021-220209
75
GeG.MandalK.HaghniazR.LiM.XiaoX.CarlsonL.et al (2023). Deep eutectic solvents-based ionogels with ultrafast gelation and high adhesion in harsh environments. Adv. Funct. Mater.33 (9), 2207388. 10.1002/adfm.202207388
76
GhettiM.TopouziH.TheocharidisG.PapaV.WilliamsG.BondioliE.et al (2018). Subpopulations of dermal skin fibroblasts secrete distinct extracellular matrix: implications for using skin substitutes in the clinic. Br. J. dermatology179 (2), 381–393. 10.1111/bjd.16255
77
GilbertJ. A.Krajmalnik-BrownR.PorazinskaD. L.WeissS. J.KnightR. (2013). Toward effective probiotics for autism and other neurodevelopmental disorders. Cell155 (7), 1446–1448. 10.1016/j.cell.2013.11.035
78
GlassD. R.TsaiA. G.OliveriaJ. P.HartmannF. J.KimmeyS. C.CalderonA. A.et al (2020). An integrated multi-omic single-cell atlas of human B cell identity. Immunity53 (1), 217–232. 10.1016/j.immuni.2020.06.013
79
GomesA.AguiarL.FerrazR.TeixeiraC.GomesP. (2021). The emerging role of ionic liquid-based approaches for enhanced skin permeation of bioactive molecules: a snapshot of the past couple of years. Int. J. Mol. Sci.22 (21), 11991. 10.3390/ijms222111991
80
GongL.Whirl-CarrilloM.KleinT. E. (2021). PharmGKB, an integrated resource of pharmacogenomic knowledge. Curr. Protoc.1 (8), e226. 10.1002/cpz1.226
81
GrabowW. W.JaegerL. (2012). siRNA delivery: loaded-up microsponges. Nat. Mater.11 (4), 268–269. 10.1038/nmat3286
82
GreenD. W.StamboulisA.Ben-NissanB. (2020). Specifiable biomimetic microsponges for timed release of crystal entrapped biomolecules useful in bone repair. J. Mater. Chem. B8 (32), 7143–7148. 10.1039/d0tb01491e
83
GrzybowskiA. (2008). Cocaine and the eye: a historical overview. Ophthalmol. J. Int. d'ophtalmologie. Int. J. Ophthalmol. Zeitschrift fur Augenheilkunde.222 (5), 296–301. 10.1159/000140625
84
GuidottiG.BrambillaL.RossiD. (2017). Cell-penetrating peptides: from basic research to clinics. Trends Pharmacol. Sci.38 (4), 406–424. 10.1016/j.tips.2017.01.003
85
GuillenS. G.Parres-GoldJ.RuizA.LucsikE.DaoB.HangT. K. L.et al (2022). pH-responsive metal-organic framework thin film for drug delivery. Langmuir ACS J. surfaces colloids38 (51), 16014–16023. 10.1021/acs.langmuir.2c02497
86
GurC.WangS. Y.ShebanF.ZadaM.LiB.KharoufF.et al (2022). LGR5 expressing skin fibroblasts define a major cellular hub perturbed in scleroderma. Cell185 (8), 1373–1388. 10.1016/j.cell.2022.03.011
87
GurbatriC. R.LiaI.VincentR.CokerC.CastroS.TreutingP. M.et al (2020). Engineered probiotics for local tumor delivery of checkpoint blockade nanobodies. Sci. Transl. Med.12 (530), eaax0876. 10.1126/scitranslmed.aax0876
88
GurungM.MoonD. C.ChoiC. W.LeeJ. H.BaeY. C.KimJ.et al (2011). Staphylococcus aureus produces membrane-derived vesicles that induce host cell death. PloS one6 (11), e27958. 10.1371/journal.pone.0027958
89
HallalS.TűzesiÁ.GrauG. E.BucklandM. E.AlexanderK. L. (2022). Understanding the extracellular vesicle surface for clinical molecular biology. J. Extracell. vesicles11 (10), e12260. 10.1002/jev2.12260
90
HaoJ.GhoshP.LiS. K.NewmanB.KastingG. B.RaneyS. G. (2016). Heat effects on drug delivery across human skin. Expert Opin. drug Deliv.13 (5), 755–768. 10.1517/17425247.2016.1136286
91
HaqueT.TalukderM. M. U. (2018). Chemical enhancer: a simplistic way to modulate barrier function of the stratum corneum. Adv. Pharm. Bull.8 (2), 169–179. 10.15171/apb.2018.021
92
HaraguchiK.UyamaK.TanimotoH. (2011). Self‐healing in nanocomposite hydrogels. Macromol. rapid Commun.32 (16), 1253–1258. 10.1002/marc.201100248
93
HardingC.HeuserJ.StahlP. (1984). Endocytosis and intracellular processing of transferrin and colloidal gold-transferrin in rat reticulocytes: demonstration of a pathway for receptor shedding. Eur. J. Cell Biol.35 (2), 256–263.
94
HasegawaT.OkaT.SonH. G.Oliver-GarcíaV. S.AzinM.EisenhaureT. M.et al (2023). Cytotoxic CD4 + T cells eliminate senescent cells by targeting cytomegalovirus antigen. Cell186 (7), 1417–1431. 10.1016/j.cell.2023.02.033
95
HemmatiA. A.AghelN.RashidiI.Gholampur-AghdamiA. (2011). Topical grape (Vitis vinifera) seed extract promotes repair of full thickness wound in rabbit. Int. wound J.8 (5), 514–520. 10.1111/j.1742-481x.2011.00833.x
96
HeroldH. M.DöblA.WohlrabS.HumenikM.ScheibelT. (2020). Designed spider silk-based drug carrier for redox- or pH-triggered drug release. Biomacromolecules21 (12), 4904–4912. 10.1021/acs.biomac.0c01138
97
Hissae Yassue-CordeiroP.ZandonaiC. H.Pereira GenesiB.Santos LopesP.Sanchez-LopezE.GarciaM. L.et al (2019). Development of chitosan/silver sulfadiazine/zeolite composite films for wound dressing. Dress. Pharm.11 (10), 535. 10.3390/pharmaceutics11100535
98
HjelmA.SöderströmB.VikströmD.JongW. S.LuirinkJ.de GierJ. W. (2015). Autotransporter-based antigen display in bacterial ghosts. Appl. Environ. Microbiol.81 (2), 726–735. 10.1128/aem.02733-14
99
HuangK.WangJ.ZhangQ.YuanK.YangY.LiF.et al (2022). Sub 150 nm nanoscale gallium based metal–organic frameworks armored antibiotics as super penetrating bombs for eradicating persistent bacteria. Adv. Funct. Mater.32 (43), 2204906. 10.1002/adfm.202204906
100
HuangW.ZhangQ.LiW.YuanM.ZhouJ.HuaL.et al (2020). Development of novel nanoantibiotics using an outer membrane vesicle-based drug efflux mechanism. J. Control. release official J. Control. Release Soc.317, 1–22. 10.1016/j.jconrel.2019.11.017
101
HuangY. S.TsengW. Y.ClanchyF. I. L.ToppingL. M.OgbechiJ.McNameeK.et al (2021). Pharmacological modulation of T cell immunity results in long-term remission of autoimmune arthritis. Proc. Natl. Acad. Sci. U. S. A.118 (19), e2100939118. 10.1073/pnas.2100939118
102
HughesT. K.WadsworthM. H. 2nd.GierahnT. M.DoT.WeissD.AndradeP. R.et al (2020). Second-strand synthesis-based massively parallel scRNA-seq reveals cellular states and molecular features of human inflammatory skin pathologies. Immunity53 (4), 878–894. 10.1016/j.immuni.2020.09.015
103
HumeauM.BonifaceK.BodetC. (2022). Cytokine-mediated crosstalk between keratinocytes and T cells in atopic dermatitis. Front. Immunol.13, 801579. 10.3389/fimmu.2022.801579
104
IdsonB. (1975). Percutaneous absorption. J. Pharm. Sci.64, 901–924. 10.1002/jps.2600640604
105
IshiiH.TodoH.SugibayashiK. (2010). Effect of thermodynamic activity on skin permeation and skin concentration of triamcinolone acetonide. Chem. Pharm. Bull.58 (4), 556–561. 10.1248/cpb.58.556
106
JiS.ZhuZ.SunX.FuX. (2021). Functional hair follicle regeneration: an updated review. Signal Transduct. Target. Ther.6 (1), 66. 10.1038/s41392-020-00441-y
107
JimbowK.FitzpatrickT. B.QuevedoW. C.Jr (1986). Formation, chemical composition and function of melanin pigments. Biol. Integument, 278–292. 10.1007/978-3-662-00989-5_16
108
JindalS.AwasthiR.GoyalK.KulkarniG. T. (2022). Hydrogels for localized drug delivery: a special emphasis on dermatologic applications. Dermatol. Ther.35 (11), e15830. 10.1111/dth.15830
109
JingQ.RuanH.LiJ.WangZ.PeiL.HuH.et al (2021). Keratinocyte membrane-mediated nanodelivery system with dissolving microneedles for targeted therapy of skin diseases. Biomaterials278, 121142. 10.1016/j.biomaterials.2021.121142
110
JunS. H.LeeJ. H.KimS. I.ChoiC. W.ParkT. I.JungH. R.et al (2017). Staphylococcus aureus-derived membrane vesicles exacerbate skin inflammation in atopic dermatitis. Clin. Exp. allergy J. Br. Soc. Allergy Clin. Immunol.47 (1), 85–96. 10.1111/cea.12851
111
JunqueiraM. V.BruschiM. L. (2018). A review about the drug delivery from microsponges. AAPS PharmSciTech19 (4), 1501–1511. 10.1208/s12249-018-0976-5
112
KabashimaK.HondaT.GinhouxF.EgawaG. (2019). The immunological anatomy of the skin. Nat. Rev. Immunol.19 (1), 19–30. 10.1038/s41577-018-0084-5
113
KarnellJ. L.WuY.MitterederN.SmithM. A.GunsiorM.YanL.et al (2021). Depleting plasmacytoid dendritic cells reduces local type I interferon responses and disease activity in patients with cutaneous lupus. Sci. Transl. Med.13 (595), eabf8442. 10.1126/scitranslmed.abf8442
114
KatilaN.DuwaR.BhurtelS.KhanalS.MaharjanS.JeongJ. H.et al (2022). Enhancement of blood-brain barrier penetration and the neuroprotective effect of resveratrol. J. Control. release official J. Control. Release Soc.346, 1–19. 10.1016/j.jconrel.2022.04.003
115
KimM.KimS. M.KwonS.ParkT. J.KangH. Y. (2019a). Senescent fibroblasts in melasma pathophysiology. Exp. Dermatol.28 (6), 719–722. 10.1111/exd.13814
116
KobayashiT.Ricardo-GonzalezR. R.MoroK. (2020). Skin-Resident innate lymphoid cells - cutaneous innate guardians and regulators. Trends Immunol.41 (2), 100–112. 10.1016/j.it.2019.12.004
117
KohA.Mannerås-HolmL.YunnN. O.NilssonP. M.RyuS. H.MolinaroA.et al (2020). Microbial imidazole propionate affects responses to metformin through p38γ-dependent inhibitory AMPK phosphorylation. Cell Metab.32 (4), 643–653. 10.1016/j.cmet.2020.07.012
118
KratofilR. M.ShimH. B.ShimR.LeeW. Y.LabitE.SinhaS.et al (2022). A monocyte-leptin-angiogenesis pathway critical for repair post-infection. Nature609 (7925), 166–173. 10.1038/s41586-022-05044-x
119
KudelaP.KollerV. J.LubitzW. (2010). Bacterial ghosts (BGs)--advanced antigen and drug delivery system. Vaccine28 (36), 5760–5767. 10.1016/j.vaccine.2010.06.087
120
KumarS.NandaA. (2018). Approaches to design of pharmaceutical cocrystals: a review. Mol. Cryst. Liq. Cryst.667, 54–77. 10.1080/15421406.2019.1577462
121
KundeS. S.WairkarS. (2021). Platelet membrane camouflaged nanoparticles: biomimetic architecture for targeted therapy. Int. J. Pharm.598, 120395. 10.1016/j.ijpharm.2021.120395
122
Lahav-MankovskiN.PrasadP. K.Oppenheimer-LowN.RavivG.DadoshT.UngerT.et al (2020). Decorating bacteria with self-assembled synthetic receptors. Nat. Commun.11 (1), 1299. 10.1038/s41467-020-14336-7
123
LeeY. W.KimJ. K.BozuyukU.DoganN. O.KhanM. T. A.ShivaA.et al (2023). Multifunctional 3D-printed pollen grain-inspired hydrogel microrobots for on-demand anchoring and cargo delivery. Adv. Mater. Deerf. Beach, Fla.)35 (10), e2209812. 10.1002/adma.202209812
124
LeiZ.ChenB.KooY. M.MacFarlaneD. R. (2017). Introduction: ionic liquids. Chem. Rev.117 (10), 6633–6635. 10.1021/acs.chemrev.7b00246
125
LiJ.DingY.ChengQ.GaoC.WeiJ.WangZ.et al (2022a). Supramolecular erythrocytes-hitchhiking drug delivery system for specific therapy of acute pneumonia. J. Control. release official J. Control. Release Soc.350, 777–786. 10.1016/j.jconrel.2022.08.029
126
LiJ.LinS.VanhoutteP. M.WooC. W.XuA. (2016). Akkermansia muciniphila protects against atherosclerosis by preventing metabolic endotoxemia-induced inflammation in apoe-/- mice. Circulation133 (24), 2434–2446. 10.1161/circulationaha.115.019645
127
LiS.DongS.XuW.TuS.YanL.ZhaoC.et al (2018). Antibacterial hydrogels. Adv. Sci. (Weinheim, Baden-Wurttemberg, Ger.5 (5), 1700527. 10.1002/advs.201700527
128
LiT.WangY.LiS.LiuX.SunJ. (2020). Mechanically robust, elastic, and healable ionogels for highly sensitive ultra-durable ionic skins. Adv. Mater. Deerf. Beach, Fla.)32 (32), e2002706. 10.1002/adma.202002706
129
LiY.FengS.DaiP.LiuF.ShangY.YangQ.et al (2022b). Tailored Trojan horse nanocarriers for enhanced redox-responsive drug delivery. J. Control. release official J. Control. Release Soc.342, 201–209. 10.1016/j.jconrel.2022.01.006
130
LiY.HuD.PanM.QuY.ChuB.LiaoJ.et al (2022d). Near-infrared light and redox dual-activatable nanosystems for synergistically cascaded cancer phototherapy with reduced skin photosensitization. Biomaterials288, 121700. 10.1016/j.biomaterials.2022.121700
131
LiY.MaX.YueY.ZhangK.ChengK.FengQ.et al (2022c). Rapid surface display of mRNA antigens by bacteria-derived outer membrane vesicles for a personalized tumor vaccine. Adv. Mater. Deerf. Beach, Fla.)34 (20), e2109984. 10.1002/adma.202109984
132
LiZ.WangY.LiuJ.RawdingP.BuJ.HongS.et al (2021). Chemically and biologically engineered bacteria‐based delivery systems for emerging diagnosis and advanced therapy. Adv. Mater.33 (38), 2102580. 10.1002/adma.202102580
133
LiZ.WangY.LiuJ.RawdingP.BuJ.HongS.et al (2021). Chemically and biologically engineered bacteria-based delivery systems for emerging diagnosis and advanced therapy. Adv. Mater. Deerf. Beach, Fla.)33 (38), e2102580. 10.1002/adma.202102580
134
LiZ.ZhuY.MatsonJ. B. (2022e). pH-responsive self-assembling peptide-based biomaterials: designs and applications. ACS Appl. bio Mater.5 (10), 4635–4651. Online ahead of print. 10.1021/acsabm.2c00188
135
LienE.TongG. (1973). Physicochemical properties and percutaneous absorption of drugs. J. Soc. Cosmet. Chem.24, 371–384.
136
LimaW. G.BritoJ. C. M.da Cruz NizerW. S. (2021). Bee products as a source of promising therapeutic and chemoprophylaxis strategies against COVID-19 (SARS-CoV-2). Phytotherapy Res. PTR35 (2), 743–750. 10.1002/ptr.6872
137
LiuH.JiangW.YangZ.ChenX.YuD. G.ShaoJ. (2022b). Hybrid films prepared from a combination of electrospinning and casting for offering a dual-phase drug release. Polymers14 (11), 2132. 10.3390/polym14112132
138
LiuH.ZhangH.HanY.HuY.GengZ.SuJ. (2022a). Bacterial extracellular vesicles-based therapeutic strategies for bone and soft tissue tumors therapy. Theranostics12 (15), 6576–6594. 10.7150/thno.78034
139
LiuH.ZhangH.WangS.CuiJ.WengW.LiuX.et al (2023c). Bone-targeted bioengineered bacterial extracellular vesicles delivering siRNA to ameliorate osteoporosis. Compos. Part B Eng.255, 110610. 10.1016/j.compositesb.2023.110610
140
LiuJ.YuanY.ChengY.FuD.ChenZ.WangY.et al (2022c). Copper-based metal-organic framework overcomes cancer chemoresistance through systemically disrupting dynamically balanced cellular redox homeostasis. J. Am. Chem. Soc.144 (11), 4799–4809. 10.1021/jacs.1c11856
141
LiuQ.ZabaL. C.SatpathyA. T.LongmireM.ZhangW.LiK.et al (2020). Chromatin accessibility landscapes of skin cells in systemic sclerosis nominate dendritic cells in disease pathogenesis. Nat. Commun.11 (1), 5843. 10.1038/s41467-020-19702-z
142
LiuX.QinY.DongL.HanZ.LiuT.TangY.et al (2023a). Living symbiotic bacteria-involved skin dressing to combat indigenous pathogens for microbiome-based biotherapy toward atopic dermatitis. Bioact. Mater.21, 253–266. 10.1016/j.bioactmat.2022.08.019
143
LiuX.ZhuR.LuoY.WangS.ZhaoY.QiuZ.et al (2021). Distinct human Langerhans cell subsets orchestrate reciprocal functions and require different developmental regulation. Immunity54 (10), 2305–2320. 10.1016/j.immuni.2021.08.012
144
LiuX. Z.WenZ. J.LiY. M.SunW. R.HuX. Q.ZhuJ. Z.et al (2023d). Bioengineered bacterial membrane vesicles with multifunctional nanoparticles as a versatile platform for cancer immunotherapy. ACS Appl. Mater. interfaces15 (3), 3744–3759. 10.1021/acsami.2c18244
145
LiuY.ZhangM.WangX.YangF.CaoZ.WangL.et al (2023b). Dressing bacteria with a hybrid immunoactive nanosurface to elicit dual anticancer and antiviral immunity. Adv. Mater. Deerf. Beach, Fla.35 (11). 10.1002/adma.202210949
146
LiuZ.HuX.LiangY.YuJ.LiH.ShokhirevM. N.et al (2022d). Glucocorticoid signaling and regulatory T cells cooperate to maintain the hair-follicle stem-cell niche. Nat. Immunol.23 (7), 1086–1097. 10.1038/s41590-022-01244-9
147
LlorenK. K. S.JawalagattiV.HewawadugeC.ChandranS.ParkJ. Y.LeeJ. H. (2023). Salmonella-mediated oral delivery of multiple-target vaccine constructs with conserved and variable regions of SARS-CoV-2 protect against the Delta and Omicron variants in hamster. Microbes Infect.25 (5), 105101. 10.1016/j.micinf.2023.105101
148
López-SanzC.Jimenéz-SaizR.EhlersA. M. (2021). Local inflammation enables a basophil-neuronal circuITCH in atopic dermatitis. Allergy77 (2), 708–710. 10.1111/all.15026
149
LotfyN. M.AhmedM. A.El HoffyN. M.BendasE. R.MorsiN. M. (2022). Development and optimization of amphiphilic self-assembly into nanostructured liquid crystals for transdermal delivery of an antidiabetic SGLT2 inhibitor. Drug Deliv.29 (1), 3340–3357. 10.1080/10717544.2022.2144546
150
LuH.XuS.GuoZ.ZhaoM.LiuZ. (2021). Redox-responsive molecularly imprinted nanoparticles for targeted intracellular delivery of protein toward cancer therapy. ACS Nano15 (11), 18214–18225. 10.1021/acsnano.1c07166
151
LuessiF.ZippF.WitschE. (2016). Dendritic cells as therapeutic targets in neuroinflammation. Cell. Mol. life Sci. CMLS73 (13), 2425–2450. 10.1007/s00018-016-2170-9
152
LumF. M.Torres-RuestaA.TayM. Z.LinR. T. P.LyeD. C.RéniaL.et al (2022). Monkeypox: disease epidemiology, host immunity and clinical interventions. Nat. Rev. Immunol.22 (10), 597–613. 10.1038/s41577-022-00775-4
153
LuoT.NashG. T.XuZ.JiangX.LiuJ.LinW. (2021). Nanoscale metal-organic framework confines zinc-phthalocyanine photosensitizers for enhanced photodynamic therapy. J. Am. Chem. Soc.143 (34), 13519–13524. 10.1021/jacs.1c07379
154
LuoZ.LiW.YanJ.SunJ. (2022). Roles of ionic liquids in adjusting nature of ionogels: a mini review. Adv. Funct. Mater.32 (32), 2203988. 10.1002/adfm.202203988
155
LuoZ.LuY.ShiY.JiangM.ShanX.LiX.et al (2023). Neutrophil hitchhiking for drug delivery to the bone marrow. Nat. Nanotechnol.18 (6), 647–656. 10.1038/s41565-023-01374-7
156
MaL.ChenC.LiuD.HuangZ.LiJ.LiuH.et al (2023). Apoptotic extracellular vesicles are metabolized regulators nurturing the skin and hair. Bioact. Mater.19, 626–641. 10.1016/j.bioactmat.2022.04.022
157
MaQ.FanQ.HanX.DongZ.XuJ.BaiJ.et al (2021b). Platelet-derived extracellular vesicles to target plaque inflammation for effective anti-atherosclerotic therapy. J. Control. release official J. Control. Release Soc.329, 445–453. 10.1016/j.jconrel.2020.11.064
158
MaY.CuiL.WangM.SunQ.LiuK.WangJ. (2021a). A novel and efficient high-yield method for preparing bacterial ghosts. Toxins13 (6), 420. 10.3390/toxins13060420
159
MachtD. I. (1938). The absorption of drugs and poisons through the skin and mucous membranes. J. Am. Med. Assoc.110 (6), 409–414. 10.1001/JAMA.1938.02790060001001
160
MacriC.PangE. S.PattonT.O'KeeffeM. (2018). Dendritic cell subsets. Seminars Cell and Dev. Biol.84, 11–21. 10.1016/j.semcdb.2017.12.009
161
MagnussonB. M.AnissimovY. G.CrossS. E.RobertsM. S. (2004). Molecular size as the main determinant of solute maximum flux across the skin. J. Investigative Dermatology122 (4), 993–999. 10.1111/j.0022-202X.2004.22413.x
162
MahantS.KumarS.NandaS.RaoR. (2020). Microsponges for dermatological applications: perspectives and challenges. Asian J. Pharm. Sci.15 (3), 273–291. 10.1016/j.ajps.2019.05.004
163
MarwahH.GargT.GoyalA. K.RathG. (2016). Permeation enhancer strategies in transdermal drug delivery. Drug Deliv.23 (2), 564–578. 10.3109/10717544.2014.935532
164
MazidR. R.DivisekeraU.YangW.RanganathanV.MacFarlaneD. R.Cortez-JugoC.et al (2014). Biological stability and activity of siRNA in ionic liquids. Chem. Commun. Camb. Engl.50 (88), 13457–13460. 10.1039/c4cc05086j
165
McDonaldS.MurphyT.ImbertiS.WarrG. G.AtkinR. (2018). Amphiphilically nanostructured deep eutectic solvents. J. Phys. Chem. Lett.9 (14), 3922–3927. 10.1021/acs.jpclett.8b01720
166
Md MoshikurR.ShimulI. M.UddinS.WakabayashiR.MoniruzzamanM.GotoM. (2022). Transformation of hydrophilic drug into oil-miscible ionic liquids for transdermal drug delivery. ACS Appl. Mater. interfaces14 (50), 55332–55341. 10.1021/acsami.2c15636
167
MehtaR. S.MayersJ. R.ZhangY.BhosleA.GlasserN. R.NguyenL. H.et al (2023). Gut microbial metabolism of 5-ASA diminishes its clinical efficacy in inflammatory bowel disease. Nat. Med.29 (3), 700–709. 10.1038/s41591-023-02217-7
168
MenegattiS.ZakrewskyM.KumarS.De OliveiraJ. S.MuraskiJ. A.MitragotriS. (2016). De novo design of skin-penetrating peptides for enhanced transdermal delivery of peptide drugs. Adv. Healthc. Mater.5 (5), 602–609. 10.1002/adhm.201500634
169
MetwalyA. M.GhoneimM. M.EissaI. H.ElsehemyI. A.MostafaA. E.HegazyM. M.et al (2021). Traditional ancient Egyptian medicine: a review. Saudi J. Biol. Sci.28 (10), 5823–5832. 10.1016/j.sjbs.2021.06.044
170
MichaelsA. S.ChandrasekaranS. K.ShawJ. E. (1975). Drug permeation through human skin: theory and in vitro experimental measurement. AIChE J.21 (5), 985–996. 10.1002/aic.690210522
171
MichalekJ.HezovaR.Turanek-KnötigovaP.GabkovaJ.StriogaM.LubitzW.et al (2017). Oncolysate-loaded Escherichia coli bacterial ghosts enhance the stimulatory capacity of human dendritic cells. CII66 (2), 149–159. 10.1007/s00262-016-1932-4
172
MillettiF. (2012). Cell-penetrating peptides: classes, origin, and current landscape. Drug Discov. today17 (15-16), 850–860. 10.1016/j.drudis.2012.03.002
173
MitovM. (2017). Cholesteric liquid crystals in living matter. Soft matter13 (23), 4176–4209. 10.1039/c7sm00384f
174
MohammedY.HolmesA.KwokP. C. L.KumeriaT.NamjoshiS.ImranM.et al (2022). Advances and future perspectives in epithelial drug delivery. Adv. drug Deliv. Rev.186, 114293. 10.1016/j.addr.2022.114293
175
MojumdarE. H.PhamQ. D.TopgaardD.SparrE. (2017). Skin hydration: interplay between molecular dynamics, structure and water uptake in the stratum corneum. Sci. Rep.7 (1), 15712. 10.1038/s41598-017-15921-5
176
MontiD.EgizianoE.BurgalassiS.ChetoniP.ChiappeC.SanzoneA.et al (2017). Ionic liquids as potential enhancers for transdermal drug delivery. Int. J. Pharm.516 (1-2), 45–51. 10.1016/j.ijpharm.2016.11.020
177
MoorM.BanerjeeO.AbadZ. S. H.KrumholzH. M.LeskovecJ.TopolE. J.et al (2023). Foundation models for generalist medical artificial intelligence. Nature616 (7956), 259–265. 10.1038/s41586-023-05881-4
178
Mora-RaimundoP.LozanoD.BenitoM.MuleroF.ManzanoM.Vallet-RegíM. (2021). Osteoporosis remission and new bone formation with mesoporous silica nanoparticles. Adv. Sci. (Weinheim, Baden-Wurttemberg, Ger.8 (16), e2101107. 10.1002/advs.202101107
179
Ñahui PalominoR. A.VanpouilleC.CostantiniP. E.MargolisL. (2021). Microbiota-host communications: bacterial extracellular vesicles as a common language. PLoS Pathog.17 (5), e1009508. 10.1371/journal.ppat.1009508
180
Ñahui PalominoR. A.VanpouilleC.LaghiL.ParolinC.MelikovK.BacklundP.et al (2019). Extracellular vesicles from symbiotic vaginal lactobacilli inhibit HIV-1 infection of human tissues. Nat. Commun.10 (1), 5656. 10.1038/s41467-019-13468-9
181
NakatsujiT.ChenT. H.ButcherA. M.TrzossL. L.NamS. J.ShirakawaK. T.et al (2018). A commensal strain of Staphylococcus epidermidis protects against skin neoplasia. Sci. Adv.4 (2), eaao4502. 10.1126/sciadv.aao4502
182
NarainA.AsawaS.ChhabriaV.Patil-SenY. (2017). Cell membrane coated nanoparticles: next-generation therapeutics. Nanomedicine Lond. Engl.12 (21), 2677–2692. 10.2217/nnm-2017-0225
183
NarayanaswamyR.TorchilinV. P. (2019). Hydrogels and their applications in targeted drug delivery. Mol. (Basel, Switz.24 (3), 603. 10.3390/molecules24030603
184
NieW.YuT.LiuX.WangB.LiT.WuY.et al (2021). Non-viral vector mediated CKb11 with folic acid modification regulates macrophage polarization and DC maturation to elicit immune response against cancer. Bioact. Mater.6 (11), 3678–3691. 10.1016/j.bioactmat.2021.03.031
185
NishikawaM.OgawaK.UmekiY.MohriK.KawasakiY.WatanabeH.et al (2014). Injectable, self-gelling, biodegradable, and immunomodulatory DNA hydrogel for antigen delivery. J. Control. release official J. Control. Release Soc.180, 25–32. 10.1016/j.jconrel.2014.02.001
186
NiuY. Q.LiuJ. H.AymonierC.FermaniS.KraljD.FaliniG.et al (2022). Calcium carbonate: controlled synthesis, surface functionalization, and nanostructured materials. Chem. Soc. Rev.51 (18), 7883–7943. 10.1039/d1cs00519g
187
OgawaR. (2017). Keloid and hypertrophic scars are the result of chronic inflammation in the reticular dermis. Int. J. Mol. Sci.18 (3), 606. 10.3390/ijms18030606
188
OhS. J.LeeE. N.ParkJ. H.LeeJ. K.ChoG. J.ParkI. H.et al (2022). Anti-viral activities of umbilical cord mesenchymal stem cell-derived small extracellular vesicles against human respiratory viruses. Front. Cell. Infect. Microbiol.12, 850744. 10.3389/fcimb.2022.850744
189
OliveiraG.StromhaugK.CieriN.IorgulescuJ. B.KlaegerS.WolffJ. O.et al (2022). Landscape of helper and regulatory antitumour CD4 + T cells in melanoma. Nature605 (7910), 532–538. 10.1038/s41586-022-04682-5
190
O'NeillA. M.LigginsM. C.SeidmanJ. S.DoT. H.LiF.CavagneroK. J.et al (2022). Antimicrobial production by perifollicular dermal preadipocytes is essential to the pathophysiology of acne. Sci. Transl. Med.14 (632), eabh1478. 10.1126/scitranslmed.abh1478
191
PadulaC.NicoliS.PescinaS.SantiP. (2019). Thin polymeric films for the topical delivery of propranolol. Colloids surfaces. B, Biointerfaces.174, 582–586. 10.1016/j.colsurfb.2018.11.022
192
PanW. L.TanY.MengW.HuangN. H.ZhaoY. B.YuZ. Q.et al (2022). Microenvironment-driven sequential ferroptosis, photodynamic therapy, and chemotherapy for targeted breast cancer therapy by a cancer-cell-membrane-coated nanoscale metal-organic framework. Biomaterials283, 121449. 10.1016/j.biomaterials.2022.121449
193
PastoreM. N.KaliaY. N.HorstmannM.RobertsM. S. (2015). Transdermal patches: history, development and pharmacology. Br. J. Pharmacol.172 (9), 2179–2209. 10.1111/bph.13059
194
PatelD. K.JungE.PriyaS.WonS. Y.HanS. S. (2024). Recent advances in biopolymer-based hydrogels and their potential biomedical applications. Carbohydr. Polym.323, 121408. 10.1016/j.carbpol.2023.121408
195
PeiP.ZhangY.JiangY.ShenW.ChenH.YangS.et al (2022). Pleiotropic immunomodulatory functions of radioactive inactivated bacterial vectors for enhanced cancer radio-immunotherapy. ACS Nano16 (7), 11325–11337. 10.1021/acsnano.2c04982
196
PeraltaM. F.GuzmánM. L.PérezA. P.ApezteguiaG. A.FórmicaM. L.RomeroE. L.et al (2018). Liposomes can both enhance or reduce drugs penetration through the skin. Sci. Rep.8 (1), 13253. 10.1038/s41598-018-31693-y
197
PeskollerM.BhosaleA.GöbelK.LöhrJ.MiceliS.PerotS.et al (2022). How to build and regenerate a functional skin barrier: the adhesive and cell shaping travels of a keratinocyte. J. investigative dermatology142 (4), 1020–1025. 10.1016/j.jid.2021.12.034
198
PieriL.DomeniciL.RomagnoliP. (2001). Langerhans cells differentiation: a three-act play. Italian J. Anat. embryology = Archivio italiano di anatomia ed embriologia106 (1), 47–69.
199
PoonM. M. L.CaronD. P.WangZ.WellsS. B.ChenD.MengW.et al (2023). Tissue adaptation and clonal segregation of human memory T cells in barrier sites. Nat. Immunol.24 (2), 309–319. 10.1038/s41590-022-01395-9
200
PottenC. S.AllenT. D. (1976). A model implicating the Langerhans cell in keratinocyte proliferation control. Differ. Res. Biol. Divers.5 (1), 43–47. 10.1111/j.1432-0436.1976.tb00890.x
201
ProkschE.BrandnerJ. M.JensenJ. M. (2008). The skin: an indispensable barrier. Exp. Dermatol.17 (12), 1063–1072. 10.1111/j.1600-0625.2008.00786.x
202
QianR. C.ZhouZ. R.GuoW.WuY.YangZ.LuY. (2021). Cell surface engineering using DNAzymes: metal ion mediated control of cell-cell interactions. J. Am. Chem. Soc.143 (15), 5737–5744. 10.1021/jacs.1c00060
203
QianW.TexterJ.YanF. (2017). Frontiers in poly(ionic liquid)s: syntheses and applications. Chem. Soc. Rev.46 (4), 1124–1159. 10.1039/c6cs00620e
204
QiaoS.LiuC.SunL.WangT.DaiH.WangK.et al (2022). Gut Parabacteroides merdae protects against cardiovascular damage by enhancing branched-chain amino acid catabolism. Nat. Metab.4 (10), 1271–1286. 10.1038/s42255-022-00649-y
205
QiuZ.ZhuZ.LiuX.ChenB.YinH.GuC.et al (2022). A dysregulated sebum-microbial metabolite-IL-33 axis initiates skin inflammation in atopic dermatitis. J. Exp. Med.219 (10), e20212397. 10.1084/jem.20212397
206
RahmanM.AlmalkiW. H.PandaS. K.DasA. K.AlghamdiS.SoniK.et al (2022). Therapeutic application of microsponges-based drug delivery systems. Curr. Pharm. Des.28 (8), 595–608. 10.2174/1381612828666220118121536
207
RamanV.Van DesselN.HallC. L.WetherbyV. E.WhitneyS. A.KoleweE. L.et al (2021). Intracellular delivery of protein drugs with an autonomously lysing bacterial system reduces tumor growth and metastases. Nat. Commun.12 (1), 6116. 10.1038/s41467-021-26367-9
208
RamanunnyA. K.WadhwaS.GulatiM.SinghS. K.KapoorB.DurejaH.et al (2021). Nanocarriers for treatment of dermatological diseases: principle, perspective and practices. Eur. J. Pharmacol.890, 173691. 10.1016/j.ejphar.2020.173691
209
Ramezani-DakhelH.SadatiM.ZhangR.RahimiM.KurtenbachK.RouxB.et al (2017). Water flux induced reorientation of liquid crystals. ACS central Sci.3 (12), 1345–1349. 10.1021/acscentsci.7b00495
210
RaoL.XuJ. H.CaiB.LiuH.LiM.JiaY.et al (2016). Synthetic nanoparticles camouflaged with biomimetic erythrocyte membranes for reduced reticuloendothelial system uptake. Nanotechnology27 (8), 085106. 10.1088/0957-4484/27/8/085106
211
RaucherD.RyuJ. S. (2015). Cell-penetrating peptides: strategies for anticancer treatment. Trends Mol. Med.21 (9), 560–570. 10.1016/j.molmed.2015.06.005
212
RiccioB. V. F.SilvestreA. L. P.MeneguinA. B.RibeiroT. C.KlosowskiA. B.FerrariP. C.et al (2022). Exploiting polymeric films as a multipurpose drug delivery system: a review. AAPS PharmSciTech23 (7), 269. 10.1208/s12249-022-02414-6
213
RichardsB.TsaoD.ZadorA. (2022). The application of artificial intelligence to biology and neuroscience. Cell185 (15), 2640–2643. 10.1016/j.cell.2022.06.047
214
RinkevichY.WalmsleyG. G.HuM. S.MaanZ. N.NewmanA. M.DrukkerM.et al (2015). Skin fibrosis. Identification and isolation of a dermal lineage with intrinsic fibrogenic potential. Sci. (New York, N.Y.).348 (6232), aaa2151. 10.1126/science.aaa2151
215
RobertsM.AndersonR.SwarbrickJ. (1977). Permeability of human epidermis to phenolic compounds. J. Pharm. Pharmacol.29 (11), 677–683. 10.1111/j.2042-7158.1977.tb11434.x
216
RobertsM. S.CheruvuH. S.MangionS. E.AlinaghiA.BensonH. A. E.MohammedY.et al (2021). Topical drug delivery: history, percutaneous absorption, and product development. Adv. drug Deliv. Rev.177, 113929. 10.1016/j.addr.2021.113929
217
RodenD. M.McLeodH. L.RellingM. V.WilliamsM. S.MensahG. A.PetersonJ. F.et al (2019). Pharmacogenomics. Lancet.394 (10197), 521–532. 10.1016/s0140-6736(19)31276-0
218
RuseskaI.ZimmerA. (2020). Internalization mechanisms of cell-penetrating peptides. Beilstein J. Nanotechnol.11, 101–123. 10.3762/bjnano.11.10
219
SandriG.BonferoniM. C.FerrariF.RossiS.CaramellaC. M. (2014). The role of particle size in drug release and absorption. Part. Prod. Tailoring Prop. Optim. Perform.2014, 323–341. 10.1007/978-3-319-00714-4_11
220
SatoK.KangW. H.SagaK.SatoK. T. (1989). Biology of sweat glands and their disorders. I. Normal sweat gland function. J. Am. Acad. Dermatology20 (4), 537–563. 10.1016/s0190-9622(89)70063-3
221
SchaeferH.SchallaW.ZeschA.StüttgenG. (2013). Skin permeability. Berlin, Germany: Springer Science and Business Media.
222
SchärfeC. P. I.TremmelR.SchwabM.KohlbacherO.MarksD. S. (2017). Genetic variation in human drug-related genes. Genome Med.9 (1), 117. 10.1186/s13073-017-0502-5
223
ScheupleinR. J.BlankI. H. (1971). Permeability of the skin. Physiol. Rev.51 (4), 702–747. 10.1152/physrev.1971.51.4.702
224
ScheupleinR. J.BlankI. H.BraunerG.MacfarlaneD. J. (1969). Percutaneous absorption of steroids. J. Investigative Dermatology52 (1), 63–70. 10.1038/jid.1969.9
225
SchneiderP.WaltersW. P.PlowrightA. T.SierokaN.ListgartenJ.GoodnowR. A.Jr.et al (2020). Rethinking drug design in the artificial intelligence era. Nat. Rev. Drug Discov.19 (5), 353–364. 10.1038/s41573-019-0050-3
226
SevernM. M.HorswillA. R. (2023). Staphylococcus epidermidis and its dual lifestyle in skin health and infection. Nat. Rev. Microbiol.21 (2), 97–111. 10.1038/s41579-022-00780-3
227
ShaoH.ImH.CastroC. M.BreakefieldX.WeisslederR.LeeH. (2018). New technologies for analysis of extracellular vesicles. Chem. Rev.118 (4), 1917–1950. 10.1021/acs.chemrev.7b00534
228
ShapiraC.ItshakD.DuadiH.HarelY.AtkinsA.LipovskyA.et al (2022). Noninvasive nanodiamond skin permeation profiling using a phase analysis method: ex vivo experiments. ACS Nano16 (10), 15760–15769. 10.1021/acsnano.2c03613
229
ShenD.YangJ.LiX.ZhouL.ZhangR.LiW.et al (2014). Biphase stratification approach to three-dimensional dendritic biodegradable mesoporous silica nanospheres. Nano Lett.14 (2), 923–932. 10.1021/nl404316v
230
ShenH.AggarwalN.WunK. S.LeeY. S.HwangI. Y.ChangM. W. (2022b). Engineered microbial systems for advanced drug delivery. Adv. drug Deliv. Rev.187, 114364. 10.1016/j.addr.2022.114364
231
ShenJ.LiaoX.WuW.FengT.KargesJ.LinM.et al (2022a). A pH-responsive iridium (iii) two-photon photosensitizer loaded CaCO 3 nanoplatform for combined Ca 2+ overload and photodynamic therapy. Inorg. Chem. Front.9, 4171–4183. 10.1039/d2qi00951j
232
ShiC.PamerE. G. (2011). Monocyte recruitment during infection and inflammation. Nat. Rev. Immunol.11 (11), 762–774. 10.1038/nri3070
233
ShiR.ZhouF.ChenY.LiuZ.LiuS.MuT. (2022a). Magnetic deep eutectic solvents: formation and properties. Phys. Chem. Chem. Phys. PCCP24 (34), 20073–20081. 10.1039/d2cp01592g
234
ShiV. Y.LeoM.HassounL.ChahalD. S.MaibachH. I.SivamaniR. K. (2015). Role of sebaceous glands in inflammatory dermatoses. J. Am. Acad. Dermatology73 (5), 856–863. 10.1016/j.jaad.2015.08.015
235
ShiZ.ZhaoY.LiuS.WangY.YuQ. (2022b). Size-dependent impact of magnetic nanoparticles on growth and sporulation of Aspergillus Niger. Mol. (Basel, Switz.27 (18), 5840. 10.3390/molecules27185840
236
ShibuyaR.IshidaY.HanakawaS.KataokaT. R.TakeuchiY.MurataT.et al (2021). CCL2‒CCR2 signaling in the skin drives surfactant-induced irritant contact dermatitis through IL-1β‒mediated neutrophil accumulation. J. investigative dermatology142 (3), 571–582. 10.1016/j.jid.2021.07.182
237
ShiekhA.MushtaqA.JabeenU.BashirF.ZahraM.BehlilF.et al (2022). Surface modification of mesoporous silica nanoparticles with hexamethyl disilazane as smart carriers for tocopherol acetate. Nano Biomed. Eng.14 (3), 216–224. 10.5101/nbe.v14i3.p216-224
238
ShopsowitzK. E.RohY. H.DengZ. J.MortonS. W.HammondP. T. (2014). RNAi-microsponges form through self-assembly of the organic and inorganic products of transcription. Small (Weinheim der Bergstrasse, Ger.10 (8), 1623–1633. 10.1002/smll.201302676
239
SilvaS.AlmeidaA. J.ValeN. (2019). Combination of cell-penetrating peptides with nanoparticles for therapeutic application: a review. Biomolecules9 (1), 22. 10.3390/biom9010022
240
SinghS.SinghJ. (1993). Transdermal drug delivery by passive diffusion and iontophoresis: a review. Med. Res. Rev.13 (5), 569–621. 10.1002/med.2610130504
241
SongX.SunR.WangR.ZhouK.XieR.LinJ.et al (2022). Puffball-Inspired microrobotic systems with robust payload, strong protection, and targeted locomotion for on-demand drug delivery. Adv. Mater. Deerf. Beach, Fla.)34 (43), e2204791. 10.1002/adma.202204791
242
SongY.LiD.LuY.JiangK.YangY.XuY.et al (2020). Ferrimagnetic mPEG-b -PHEP copolymer micelles loaded with iron oxide nanocubes and emodin for enhanced magnetic hyperthermia-chemotherapy. Natl. Sci. Rev.7 (4), 723–736. 10.1093/nsr/nwz201
243
StacyA.BelkaidY. (2019). Microbial guardians of skin health. Sci. (New York, N.Y.) .363 (6424), 227–228. 10.1126/science.aat4326
244
StantonM. M.ParkB. W.VilelaD.BenteK.FaivreD.SittiM.et al (2017). Magnetotactic bacteria powered biohybrids target E. coli biofilms. ACS Nano11 (10), 9968–9978. 10.1021/acsnano.7b04128
245
StarrN. J.KhanM. H.EdneyM. K.TrindadeG. F.KernS.PirklA.et al (2022). Elucidating the molecular landscape of the stratum corneum. Proc. Natl. Acad. Sci. U. S. A.119 (12), e2114380119. 10.1073/pnas.2114380119
246
StoughtonR. B. (1965). Dimethylsulfoxide (DMSO) induction of a steroid reservoir in human skin. Archives dermatology91, 657–660. 10.1001/archderm.1965.01600120089022
247
SunF.ZhangW. B.MahdaviA.ArnoldF. H.TirrellD. A. (2014). Synthesis of bioactive protein hydrogels by genetically encoded SpyTag-SpyCatcher chemistry. Proc. Natl. Acad. Sci. U. S. A.111 (31), 11269–11274. 10.1073/pnas.1401291111
248
SunY.ZhengL.YangY.QianX.FuT.LiX.et al (2020). Metal-organic framework nanocarriers for drug delivery in biomedical applications. Nano-micro Lett.12 (1), 103. 10.1007/s40820-020-00423-3
249
SweeneyT. M.DowningD. T. (1970). The role of lipids in the epidermal barrier to water diffusion. J. Investigative Dermatology55 (2), 135–140. 10.1111/1523-1747.ep12291678
250
TanW.ZhangQ.Quiñones-FríasM. C.HsuA. Y.ZhangY.RodalA.et al (2022). Enzyme-responsive peptide thioesters for targeting Golgi apparatus. J. Am. Chem. Soc.144 (15), 6709–6713. 10.1021/jacs.2c02238
251
TannerE. E. L.CurreriA. M.BalkaranJ. P. R.Selig-WoberN. C.YangA. B.KendigC.et al (2019). Design principles of ionic liquids for transdermal drug delivery. Adv. Mater. Deerf. Beach, Fla31 (27), e1901103. 10.1002/adma.201901103
252
Tavares JuniorA. G.de AraújoJ. T. C.MeneguinA. B.ChorilliM. (2022). Characteristics, properties and analytical/bioanalytical methods of 5-aminosalicylic acid: a review. Crit. Rev. Anal. Chem.52 (5), 1000–1014. 10.1080/10408347.2020.1848516
253
ThakkarS.MoreN.SharmaD.KapusettiG.KaliaK.MisraM. (2019). Fast dissolving electrospun polymeric films of anti-diabetic drug repaglinide: formulation and evaluation. Drug Dev. industrial Pharm.45 (12), 1921–1930. 10.1080/03639045.2019.1680994
254
ThyssenJ. P.Godoy-GijonE.EliasP. M. (2013). Ichthyosis vulgaris: the filaggrin mutation disease. Br. J. dermatology168 (6), 1155–1166. 10.1111/bjd.12219
255
TianX.YangR.ChenT.CaoY.DengH.ZhangM.et al (2022). Removal of both anionic and cationic dyes from wastewater using pH-responsive adsorbents of L-lysine molecular-grafted cellulose porous foams. J. Hazard. Mater.426, 128121. 10.1016/j.jhazmat.2021.128121
256
TiwariA.TiwariV.PalariaB.KumarM.KaushikD. (2022). Microsponges: a breakthrough tool in pharmaceutical research. Future J. Pharm. Sci.8 (31), 31–25. 10.1186/s43094-022-00421-9
257
ToyofukuM.NomuraN.EberlL. (2019b). Types and origins of bacterial membrane vesicles. Nat. Rev. Microbiol.17 (1), 13–24. 10.1038/s41579-018-0112-2
258
ThakurA.JaiswalM. K.PeakC. W.CarrowJ. K.GentryJ.Dolatshahi-PirouzA.et al (2016). Injectable shear-thinning nanoengineered hydrogels for stem cell delivery. Nanoscale8 (24), 12362–12372. 10.1039/c6nr02299e
259
TrombinoS.SicilianoC.ProcopioD.CurcioF.LaganàA. S.Di GioiaM. L.et al (2022). Deep eutectic solvents for improving the solubilization and delivery of dapsone. Pharmaceutics14 (2), 333. 10.3390/pharmaceutics14020333
260
TsouP. S.VargaJ.O'ReillyS. (2021). Advances in epigenetics in systemic sclerosis: molecular mechanisms and therapeutic potential. Nat. Rev. Rheumatol.17 (10), 596–607. 10.1038/s41584-021-00683-2
261
UberoiA.Bartow-McKenneyC.ZhengQ.FlowersL.CampbellA.KnightS. A. B.et al (2021). Commensal microbiota regulates skin barrier function and repair via signaling through the aryl hydrocarbon receptor. Cell host microbe29 (8), 1235–1248.e8. 10.1016/j.chom.2021.05.011
262
Vallet-RegíM.SchüthF.LozanoD.ColillaM.ManzanoM. (2022). Engineering mesoporous silica nanoparticles for drug delivery: where are we after two decades?Chem. Soc. Rev.51 (13), 5365–5451. 10.1039/d1cs00659b
263
WaltersK. A. (2002). Dermatological and transdermal formulations. United States: CRC Press.
264
WangF.TrierA. M.LiF.KimS.ChenZ.ChaiJ. N.et al (2021a). A basophil-neuronal axis promotes itch. Cell184 (2), 422–440.e17. 10.1016/j.cell.2020.12.033
265
WangG.SwerenE.AndrewsW.LiY.ChenJ.XueY.et al (2023). Commensal microbiome promotes hair follicle regeneration by inducing keratinocyte HIF-1α signaling and glutamine metabolism. Sci. Adv.9 (1), eabo7555. 10.1126/sciadv.abo7555
266
WangG.SwerenE.LiuH.WierE.AlphonseM. P.ChenR.et al (2021b). Bacteria induce skin regeneration via IL-1β signaling. Cell host microbe29 (5), 777–791.e6. 10.1016/j.chom.2021.03.003
267
WangH.AlarcónC. N.LiuB.WatsonF.SearlesS.LeeC. K.et al (2022). Genetically engineered and enucleated human mesenchymal stromal cells for the targeted delivery of therapeutics to diseased tissue. Nat. Biomed. Eng.6 (7), 882–897. 10.1038/s41551-021-00815-9
268
WangM.PhillipsT. D. (2022). Inclusion of montmorillonite clays in environmental barrier formulations to reduce skin exposure to water-soluble chemicals from polluted water. ACS Appl. Mater. Interfaces14, 23232–23244. 10.1021/acsami.2c04676
269
WangY.LiS.WangX.ChenQ.HeZ.LuoC.et al (2021c). Smart transformable nanomedicines for cancer therapy. Biomaterials271, 120737. 10.1016/j.biomaterials.2021.120737
270
WangZ.WangF.ZhongJ.ZhuT.ZhengY.ZhaoT.et al (2020). Using apelin-based synthetic Notch receptors to detect angiogenesis and treat solid tumors. Nat. Commun.11 (1), 2163. 10.1038/s41467-020-15729-4
271
WegrzynA. S.KedzierskaA. E.ObojskiA. (2022). Identification and classification of distinct surface markers of T regulatory cells. Front. Immunol.13, 1055805. 10.3389/fimmu.2022.1055805
272
WickettR. R.VisscherM. O. (2006). Structure and function of the epidermal barrier. Am. J. Infect. control34 (10), S98–S110. 10.1016/j.ajic.2006.05.295
273
WiedmannT. S. (1988). Influence of hydration on epidermal tissue. J. Pharm. Sci.77 (12), 1037–1041. 10.1002/jps.2600771210
274
WigerbladG.KaplanM. J. (2023). Neutrophil extracellular traps in systemic autoimmune and autoinflammatory diseases. Nat. Rev. Immunol.23 (5), 274–288. 10.1038/s41577-022-00787-0
275
WohlrabJ.EichnerA. (2023). Supersaturation as a galenic concept for improving the cutaneous bioavailability of drugs in topical therapy. Dermatology Ther.13 (2), 391–398. 10.1007/s13555-022-00873-0
276
WuJ.LiuY.HanH.SongZ. (2023). Recent advances in endogenous and exogenous stimuli-responsive nanoplatforms for bacterial infection treatment. Biomed. Eng. Commun.2 (1), 2–23. 10.53388/bmec2023002
277
WuJ.YaoS.ZhangH.ManW.BaiZ.ZhangF.et al (2021). Liquid crystal elastomer metamaterials with giant biaxial thermal shrinkage for enhancing skin regeneration. Adv. Mater. Deerf. Beach, Fla33 (45), e2106175. 10.1002/adma.202106175
278
WuX.JuX.DuL.YuanJ.WangL.HeR.et al (2017). Production of bacterial ghosts from gram-positive pathogen Listeria monocytogenes. Foodborne pathogens Dis.14 (1), 1–7. 10.1089/fpd.2016.2184
279
XieB.SunJ.SongX. (2022a). Hair follicle melanocytes initiate autoimmunity in alopecia areata: a trigger point. Clin. Rev. allergy and Immunol.63 (3), 417–430. 10.1007/s12016-022-08954-w
280
XieJ.LiQ.HaesebrouckF.Van HoeckeL.VandenbrouckeR. E. (2022b). The tremendous biomedical potential of bacterial extracellular vesicles. Trends Biotechnol.40 (10), 1173–1194. 10.1016/j.tibtech.2022.03.005
281
XieS.LiS.ZhangZ.ChenM.RanP.LiX. (2020). Bacterial ghosts for targeting delivery and subsequent responsive release of ciprofloxacin to destruct intracellular bacteria. Chem. Eng. J.399, 125700. 10.1016/j.cej.2020.125700
282
XieX.LeiH.FanD. (2023). Antibacterial hydrogel with pH-responsive microcarriers of slow-release VEGF for bacterial infected wounds repair. J. Mater. Sci. Technol.144, 198–212. 10.1016/j.jmst.2022.09.062
283
XinR.QiS.ZengC.KhanF. I.YangB.WangY. (2017). A functional natural deep eutectic solvent based on trehalose: structural and physicochemical properties. Food Chem.217, 560–567. 10.1016/j.foodchem.2016.09.012
284
XuL.GuoM.HungC. T.ShiX. L.YuanY.ZhangX.et al (2023). Chiral skeletons of mesoporous silica nanospheres to mitigate alzheimer's β-amyloid aggregation. J. Am. Chem. Soc.145 (14), 7810–7819. 10.1021/jacs.2c12214
285
XuM.ZhangJ.MuY.FodaM. F.HanH. (2022a). Activation of TRPV1 by capsaicin-loaded CaCO 3 nanoparticle for tumor-specific therapy. Biomaterials284, 121520. 10.1016/j.biomaterials.2022.121520
286
XuZ.ChenD.HuY.JiangK.HuangH.DuY.et al (2022b). Anatomically distinct fibroblast subsets determine skin autoimmune patterns. Nature601 (7891), 118–124. 10.1038/s41586-021-04221-8
287
YangD. S.GhaffariR.RogersJ. A. (2023). Sweat as a diagnostic biofluid. Sci. (New York, N.Y.).379 (6634), 760–761. 10.1126/science.abq5916
288
YangJ.YangY.KawazoeN.ChenG. (2019). Encapsulation of individual living cells with enzyme responsive polymer nanoshell. Biomaterials197, 317–326. 10.1016/j.biomaterials.2019.01.029
289
YangJ. A.KimE. S.KwonJ. H.KimH.ShinJ. H.YunS. H.et al (2012). Transdermal delivery of hyaluronic acid -- human growth hormone conjugate. Biomaterials33 (25), 5947–5954. 10.1016/j.biomaterials.2012.05.003
290
YangR.WeiT.GoldbergH.WangW.CullionK.KohaneD. S. (2017). Getting drugs across biological barriers. Adv. Mater. Deerf. Beach, Fla.)29 (37), 10. 10.1002/adma.201606596
291
YangY.XuL.ZhuW.FengL.LiuJ.ChenQ.et al (2018). One-pot synthesis of pH-responsive charge-switchable PEGylated nanoscale coordination polymers for improved cancer therapy. Biomaterials156, 121–133. 10.1016/j.biomaterials.2017.11.038
292
YiX.WangH.YangY.WangH.ZhangH.GuoS.et al (2023). SIRT7 orchestrates melanoma progression by simultaneously promoting cell survival and immune evasion via UPR activation. Signal Transduct. Target. Ther.8 (1), 107. 10.1038/s41392-023-01314-w
293
YinH.QiuZ.ZhuR.WangS.GuC.YaoX.et al (2023). Dysregulated lipidome of sebum in patients with atopic dermatitis. Allergy78 (6), 1524–1537. 10.1111/all.15569
294
YouY.TianY.YangZ.ShiJ.KwakK. J.TongY.et al (2023). Intradermally delivered mRNA-encapsulating extracellular vesicles for collagen-replacement therapy. Nat. Biomed. Eng.7 (7), 887–900. 10.1038/s41551-022-00989-w
295
YuH.JacquelotN.BelzG. T. (2022). Metabolic features of innate lymphoid cells. J. Exp. Med.219 (11), e20221140. 10.1084/jem.20221140
296
ZakrewskyM.LovejoyK. S.KernT. L.MillerT. E.LeV.NagyA.et al (2014). Ionic liquids as a class of materials for transdermal delivery and pathogen neutralization. Proc. Natl. Acad. Sci. U. S. A.111 (37), 13313–13318. 10.1073/pnas.1403995111
297
ZamirA.HussainI.Ur RehmanA.AshrafW.ImranI.SaeedH.et al (2022). Clinical pharmacokinetics of metoprolol: a systematic review. Clin. Pharmacokinet.61 (8), 1095–1114. 10.1007/s40262-022-01145-y
298
ZhangC.ShenH.YangT.LiT.LiuX.WangJ.et al (2022). A single-cell analysis reveals tumor heterogeneity and immune environment of acral melanoma. Nat. Commun.13 (1), 7250. 10.1038/s41467-022-34877-3
299
ZhangH.JinY.ChiC.HanG.JiangW.WangZ.et al (2021). Sponge particulates for biomedical applications: biofunctionalization, multi-drug shielding, and theranostic applications. Biomaterials273, 120824. 10.1016/j.biomaterials.2021.120824
300
ZhangP.LiY.TangY.ShenH.LiJ.YiZ.et al (2020). Copper-based metal-organic framework as a controllable nitric oxide-releasing vehicle for enhanced diabetic wound healing. ACS Appl. Mater. interfaces12 (16), 18319–18331. 10.1021/acsami.0c01792
301
ZhangQ.GriceJ. E.LiP.JeppsO. G.WangG. J.RobertsM. S. (2009). Skin solubility determines maximum transepidermal flux for similar size molecules. Pharm. Res.26 (8), 1974–1985. 10.1007/s11095-009-9912-4
302
ZhangQ.VigierK. D. O.RoyerS.JérômeF. (2012). Deep eutectic solvents: syntheses, properties and applications. Chem. Soc. Rev.41 (21), 7108–7146. 10.1039/c2cs35178a
303
ZhangW.GaoY.XueR.NguyenW.ChenW.WangJ.et al (2023). Liquid formulations based on ionic liquids in biomedicine. Mater. Today Phys.30 (3), 100925. 10.1016/j.mtphys.2022.100925
304
ZhaoH.ShuG.ZhuJ.FuY.GuZ.YangD. (2019). Persistent luminescent metal-organic frameworks with long-lasting near infrared emission for tumor site activated imaging and drug delivery. Biomaterials217, 119332. 10.1016/j.biomaterials.2019.119332
305
ZhaoZ.LiM.ZhengL.YangY.CuiX.XuT.et al (2022). Noninvasive transdermal delivery of mesoporous silica nanoparticles using deep eutectic solvent. J. Control. release official J. Control. Release Soc.343, 43–56. 10.1016/j.jconrel.2022.01.019
306
ZhengH. L.ZhangY. C. (2017). Elementary analysis on external treatment in Li Yue pian wen. J. Clin. Acupunct. Moxibustion33 (5), 78–80.
307
ZhengY.HuntR. L.VillaruzA. E.FisherE. L.LiuR.LiuQ.et al (2022). Commensal Staphylococcus epidermidis contributes to skin barrier homeostasis by generating protective ceramides. Cell host microbe30 (3), 301–313.e9. 10.1016/j.chom.2022.01.004
308
ZhouH.TanX.ChenG.LiuX.FengA.LiuZ.et al (2023). Extracellular vesicles of commensal skin microbiota alleviate cutaneous inflammation in atopic dermatitis mouse model by Re-establishing skin homeostasis. J. investigative dermatology. 10.1016/j.jid.2023.02.023
309
ZhouJ.LinZ.PennaM.PanS.JuY.LiS.et al (2020b). Particle engineering enabled by polyphenol-mediated supramolecular networks. Nat. Commun.11 (1), 4804. 10.1038/s41467-020-18589-0
310
ZhouJ.ShiD.ChenM. (2020a). Bio-inspired mineral fluorescent hydrogels cross-linked by amorphous rare earth carbonates. Chem. Commun. Camb. Engl.56 (88), 13646–13648. 10.1039/d0cc06223e
311
ZhouL.LinQ.SonnenbergG. F. (2022b). Metabolic control of innate lymphoid cells in health and disease. Nat. Metab.4 (12), 1650–1659. 10.1038/s42255-022-00685-8
312
ZhouQ.SiZ.WangK.LiK.HongW.ZhangY.et al (2022a). Enzyme-triggered smart antimicrobial drug release systems against bacterial infections. J. Control. release official J. Control. Release Soc.352, 507–526. 10.1016/j.jconrel.2022.10.038
313
ZhouS.ZhongQ.WangY.HuP.ZhongW.HuangC. B.et al (2022c). Chemically engineered mesoporous silica nanoparticles-based intelligent delivery systems for theranostic applications in multiple cancerous/non-cancerous diseases. Coord. Chem. Rev.452, 214309. 10.1016/j.ccr.2021.214309
314
ZhouX.ChenY.CuiL.ShiY.GuoC. (2022d). Advances in the pathogenesis of psoriasis: from keratinocyte perspective. Cell death Dis.13 (1), 81. 10.1038/s41419-022-04523-3
315
ZhuL. (2007). Examination and interpretation of the formulas for fifty-two diseases. J. Chin. Med. Mater., 1613–1615. 10.3321/j.issn:1001-4454.2007.12.044
316
ZhuY.YangZ.DongZ.GongY.HaoY.TianL.et al (2020). CaCO 3 -assisted preparation of pH-responsive immune-modulating nanoparticles for augmented chemo-immunotherapy. Nano-micro Lett.13 (1), 29. 10.1007/s40820-020-00549-4
317
ZimmermannM.Zimmermann-KogadeevaM.WegmannR.GoodmanA. L. (2019a). Mapping human microbiome drug metabolism by gut bacteria and their genes. Nature570 (7762), 462–467. 10.1038/s41586-019-1291-3
318
ZimmermannM.Zimmermann-KogadeevaM.WegmannR.GoodmanA. L. (2019b). Separating host and microbiome contributions to drug pharmacokinetics and toxicity. Science363 (6427), eaat9931. 10.1126/science.aat9931
319
ZouboulisC. C.CoenyeT.HeL.KabashimaK.KobayashiT.NiemannC.et al (2022). Sebaceous immunobiology - skin homeostasis, pathophysiology, coordination of innate immunity and inflammatory response and disease associations. Front. Immunol.13, 1029818. 10.3389/fimmu.2022.1029818
320
ZuoY. M.YanX.XueJ.GuoL. Y.FangW. W.SunT. C.et al (2020). Enzyme-responsive Ag nanoparticle assemblies in targeting antibacterial against methicillin-resistant Staphylococcus aureus. ACS Appl. Mater. interfaces12 (4), 4333–4342. 10.1021/acsami.9b22001
Summary
Keywords
topical drug, drug effectiveness, skin barriers, individualized dosing, drug delivery
Citation
Zhao L, Chen J, Bai B, Song G, Zhang J, Yu H, Huang S, Wang Z and Lu G (2024) Topical drug delivery strategies for enhancing drug effectiveness by skin barriers, drug delivery systems and individualized dosing. Front. Pharmacol. 14:1333986. doi: 10.3389/fphar.2023.1333986
Received
06 November 2023
Accepted
27 December 2023
Published
16 January 2024
Volume
14 - 2023
Edited by
Junmin Zhang, Lanzhou University, China
Reviewed by
Zili Xie, Icahn School of Medicine at Mount Sinai, United States
Franciska Erdő, Pázmány Péter Catholic University, Hungary
Updates
Copyright
© 2024 Zhao, Chen, Bai, Song, Zhang, Yu, Huang, Wang and Lu.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Zhang Wang, wangzhangcqcd@cdutcm.edu.cn; Guanghua Lu, lugh@cdutcm.edu.cn
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
