ORIGINAL RESEARCH article
Possible influence of natural events on heavy metals exposure from shellfish consumption: a case study in the north-east of Italy
- 1Department of Food Safety, Istituto Zooprofilattico Sperimentale delle Venezie, Legnaro, Italy
- 2Laboratory of Epidemiology of Water Environment, Istituto Zooprofilattico Sperimentale delle Venezie, Legnaro, Italy
- 3GIS Unit, Istituto Zooprofilattico Sperimentale delle Venezie, Legnaro, Italy
- 4Laboratory of Chemistry, Istituto Zooprofilattico Sperimentale delle Venezie, Legnaro, Italy
The objective of this study was the estimation of the exposure over time to heavy metals (cadmium, mercury, and lead) due to shellfish consumption in the Veneto Region, Italy. Shellfish consumption was investigated by a food frequency consumption survey. Altogether, 1949 households, stratified into the five most populated areas of the Veneto Region, were involved in the study. Exposure estimation to heavy metals was carried out taking into account the level of metal measured in samples of Manila clams (Ruditapes philippinarum) and grooved carpet shell (Ruditapes decussatus), collected in the frame of the monitoring activities of mollusk production areas of Veneto Region, between January 2007 and December 2012. A general high contribution of the considered shellfish to the Tolerable Weekly Intake was noticed in the case of cadmium, especially in 2011, when a considerable increase in cadmium intake was estimated. This was probably due to a heavy rainfall event that triggered catastrophic flooding with high impact on shellfish capture areas in November 2010. The results strongly emphasize the importance of dealing with food safety in a holistic way, taking into account the potential impact of extraordinary natural events on food chain contamination, in order to identify food hazards at an early stage, before developing into a real risk for consumers.
Seafood has been acknowledged as an integral component of a well balanced diet, providing a healthy source of energy, high quality proteins, and a wide range of other important nutrients (1, 2). In contrast to the potential health benefits of dietary seafood intake, the chemical pollutants contained in these products have emerged as an issue of concern, particularly for frequent consumers (3–6).
In this regard, heavy metal contamination is recognized as a public health hazard because of the widespread diffusion of these compounds in the environment, including the marine ecosystem (7). Heavy metals can be accumulated by marine organisms due to their presence in water and sediments or in the marine food chain (8, 9). Thus, diets containing seafood represent the main route of exposure to these elements in the general human population (3).
Heavy metals in aquatic systems can be naturally produced by leaching from soil/rock to water, which usually produces low levels, causing no serious deleterious effects on human health (10). However, the pollution of marine environments is mainly due to the development of human activities that result in direct or indirect chemical release into the aquatic environment. In particular, it depends on the contaminant loads carried into the sea by rivers and other watercourse basins, which drain areas of intense urbanization, and on the direct input of municipal and industrial waste (11).
Some heavy metals may transform into persistent metallic compounds with high toxicity (12), which can be bioaccumulated in organisms, concentrating in the food chain, and thus threatening human health (12). The toxicity of mercury, for example, is proportional to its degree of organization, which makes it more available for biota (13). In this context, biomonitoring based on sampling and analysis of seafood can provide direct evidence of alterations occurring in the ecosystem due to environmental pollution (12).
Delivered contaminant loads can display a temporal variability on the overall pollutant transfers to marine environments (14, 15) due to specific and time limited catastrophic events such as calamitous flooding (16). In these cases, significant concerns exist regarding the potential toxic hazards for food safety, due to the increase of chemical contaminants levels in the marine environment with a consequent enhancement of pollutant accumulation in seafood (17).
Measured concentrations of total heavy metals generally correlate with amounts of suspended particulate matter, due to the preferred association of metals with fine materials suspended in the water column (18). Thus, the load of heavy metals increases in relation to both discharge and suspended sediment transport.
A number of studies have demonstrated the role of flood events in the delivery of chemical contaminants to the Venice lagoon from rivers (18–21). For some streams, the response in terms of transport is strong, particularly for suspended particulate matter and total heavy metals, and it has been estimated that one single day of flood can equal the monthly load in normal flow conditions (18). Moreover, the short time period that characterizes the load delivery in floods could lead to potentially harmful effects in the receiving lagoon ecosystem.
A global-scale monitoring program based on the “sentinel organism concept” has been outlined that is capable of detecting trends in concentrations of several marine contaminants. Marine shellfish, being filter-feeding organisms known to accumulate heavy metals, have proven to be ideal candidates (12, 22). Several attributes make shellfish superior to other organisms for environmental monitoring, including their wide geographical distribution and abundance in stable populations, their sedentary habits, tolerance to environmental fluctuations, and to various environmental contaminants, their very low-level metabolism of organic contaminants, plus their being reasonably long-lived and of suitable size (12).
The purpose of this study was to estimate the exposure over time to heavy metals due to shellfish consumption in the Veneto Region. The possible concerns for food safety are discussed in the light of a recent catastrophic flooding event that involved the north-east of Italy at the end of 2010.
Materials and Methods
Shellfish Consumption Survey
Between December 2010 and May 2012, a food consumption survey was conducted on 1949 households stratified into the five most populated areas of the Veneto Region (north-east of Italy) corresponding to the provinces of Treviso, Padua, Verona, Vicenza, and Venice. One healthy individual aged between 14 and 92 years, per household, voluntarily participated in the food consumption survey; a total of 1355 females and 594 males responded in the study.
The questionnaire was divided into two main sections (23), and is available on request to the authors. In the first part, information on respondents’ characteristics (age, gender, involvement in food purchasing, and cooking) was collected; in the second part (17 items), called “nutritional safety,” information was collected on the consumption frequency of a number of food items, among which were shellfish and fish. Participants were asked to answer the questions according to their specific habits and to specify the size of their shellfish servings by comparison with images of three different serving sizes. Participants filled in the questionnaire autonomously, and self-reported responses were later entered into an electronic database (Access 2009, Microsoft Corporation, Redmond, WA, USA). Each entry was validated comparing the original questionnaires and the database records. Categorical data were summarized as counts with percentages and continuous data as averages with their relative standard deviation (SD). The study was conducted according to the guidelines laid down in the Declaration of Helsinki; written informed consent was obtained from all participants.
The exposure estimation over time was carried out taking into account the concentration of cadmium (Cd) measured in samples of Manila clams (Ruditapes philippinarum) and grooved carpet shell (Ruditapes decussatus) reared in the Venice lagoon and coastal areas of the Veneto Region, North-eastern Italy. These two species were chosen as representative of the lagoon’s shellfish production and as significant in local dietary habits. Moreover, the Veneto region is the primary national producer of Manila clams and Italy is the leading European producer of this species.
Shellfish sampling was performed between January 2007 and December 2012 in the framework of the classification and monitoring activities of mollusk production areas of Veneto region (North-Eastern Mediterranean Italian coast, Adriatic Sea), in order to determine levels of cadmium, mercury, and lead (Cd, Hg, and Pb), as previously reported (24).
The number of shellfish samples analyzed from 2007 to 2012 in order to check Cd, Hg, and Pb contamination levels are described in Table 2.
Cd and Pb concentrations were determined by means of Electrothermal Atomic Absorption Spectrometry (ETAAS) using an M6 mkII Atomic Absorption Spectrometer (Thermo Electron, Cambridge, UK) with D2 and Zeeman background correction, equipped with a GF95 Graphite Furnace atomizer (Table 1). For Hg determination, a Thermal Decomposition Amalgamation and Atomic Absorption Spectrophotometry (TDA AAS) direct analyzer FKV AMA254 (Altec Ltd., Prague, CZ) was employed.
Analytical methods details were previously described (24).
Metal concentrations were expressed in milligrams per kilogram of fresh weight of shellfish (mg/kg).
The Estimated Weekly Intake (EWI) was determined based on the average concentration of metal in shellfish tissue and the average weekly shellfish consumption rate, as declared by survey respondents.
The EWI for adults was calculated as follows:
where Cm is the average metal concentration in shellfish expressed as milligrams per kilogram of fresh weight, IRw represents the weekly average consumption of shellfish estimated as 150 g based on the dietary intake survey, and BW is the body weight of a hypothetical adult of 70 kg (25).
The health risk of Cd ingestion via consumption of shellfish was assessed based on the target hazard quotient (THQ). The THQ is a ratio of determined dose of a pollutant to a reference dose level. If the ratio is <1, the exposed population is unlikely to experience obvious adverse effects. The method of estimating risk using THQ was provided in the US EPA Region III risk based concentration table (26) and it is described by the following equation:
where THQ is target hazard quotient; EFr is exposure frequency (365 days/year); ED is the exposure duration; FI is shellfish ingestion (21.43 g/person/day); MC is Cd average concentration in shellfish; RfD is the Cd oral reference dose (0.001 lg/g/day) (27, 28); BW is the average body weight for an adult male (70 kg); and AT is the averaging time for non-carcinogens (365 days/year × number of exposure years).
In this study, the risk was estimated for the intake of only one toxicant (Cd) via one food item (shellfish). Thus the equation was simplified as follows:
Shellfish Sampling Area Mapping
Shellfish production areas were used to locate the analyzed shellfish. Cd concentration averages were calculated for each year (2007–2012) and for each monitoring area in order to obtain six maps representing the yearly Cd spatial distribution (data not shown).
In order to compare Cd values observed, the irregularly shaped monitoring areas were rasterized with a cell size of 140 m × 140 m. The cell size corresponded to 1/4 of the smallest monitoring area surface (29).
Map algebra was applied to calculate the raster map of the difference between the average of Cd values for the six monitored years and the average values in the year 2011 (Figure 3).
The analysis was carried out using ESRI ArcInfo GIS software (Environmental Systems Resource Institute, ESRI® ArcMapTM 10.0, Redlands, CA, USA)
Cd, Hg, and Pb Levels in Shellfish
Cd, Hg, and Pb concentrations in the shellfish, expressed as milligrams of element per kilogram of fresh weight (mg/kg), are summarized in Table 2 where the descriptive statistics for annual means are reported.

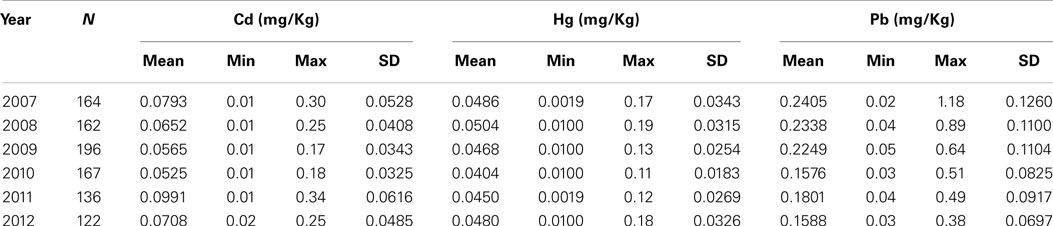

Table 2. Cd, Hg, and Pb concentrations expressed as milligrams of element per kilogram of fresh weight (mg/kg).
Heavy metal concentrations were largely below the maximum levels established by Regulation EC/1881/2006 (1, 0.5, and 1.5 mg/kg for Cd, Hg, and Pd, respectively) (30, 31). Moreover, among the three heavy metals, Pb clearly accumulated to the highest level in the shellfish (Table 2).
In addition, shellfish harvested in 2011 had higher average levels of Cd compared with those harvested in the other investigated years (Table 2). Similarly, during 2011, shellfish contained greater amounts of Pb than during the previous year (0.1801 and 0.1576 mg/kg in 2011 and 2010, respectively). On the contrary, mean annual Hg levels in the shellfish did not significantly vary.
Figure 1 describes the concentrations of heavy metals in shellfish, measured monthly over time. Despite Pb and Hg levels being unstable over time and clearly undergoing seasonal variations, the range of these differences was constant over the investigated years. On the contrary, Cd levels severely increased between January and May 2011 (Figure 1).
Estimates of Cd Intake due to Shellfish Consumption
In the current study, as Cd levels in the shellfish had shown such an anomalous increase during early 2011 (see Cd, Hg, and Pb Levels in Shellfish), the exposition analyses were focused on determining the potential amounts of this heavy metal ingested by consumers, and the causes of that increase.
A food consumption survey was conducted to estimate the relative contribution of shellfish to the weekly Cd intake via food.
Demographic characteristics of the respondents are described in Table 3. More than half of the respondents were females (69.5); the median number of family members was 3.83. Respondents were subdivided into the following four age groups: group 1, from 10 to 18 years (N = 734), group 2, from 19 to 40 years (N = 248), group 3, from 41 to 65 years (N = 586), and group 4, from 66 to 94 years (N = 381).
As shown in Figure 2, the majority of respondents belonging to each age group consumed less than one serving of shellfish per week and the average size of the consumed shellfish servings was estimated to be 150 g, based on the respondents’ replies.

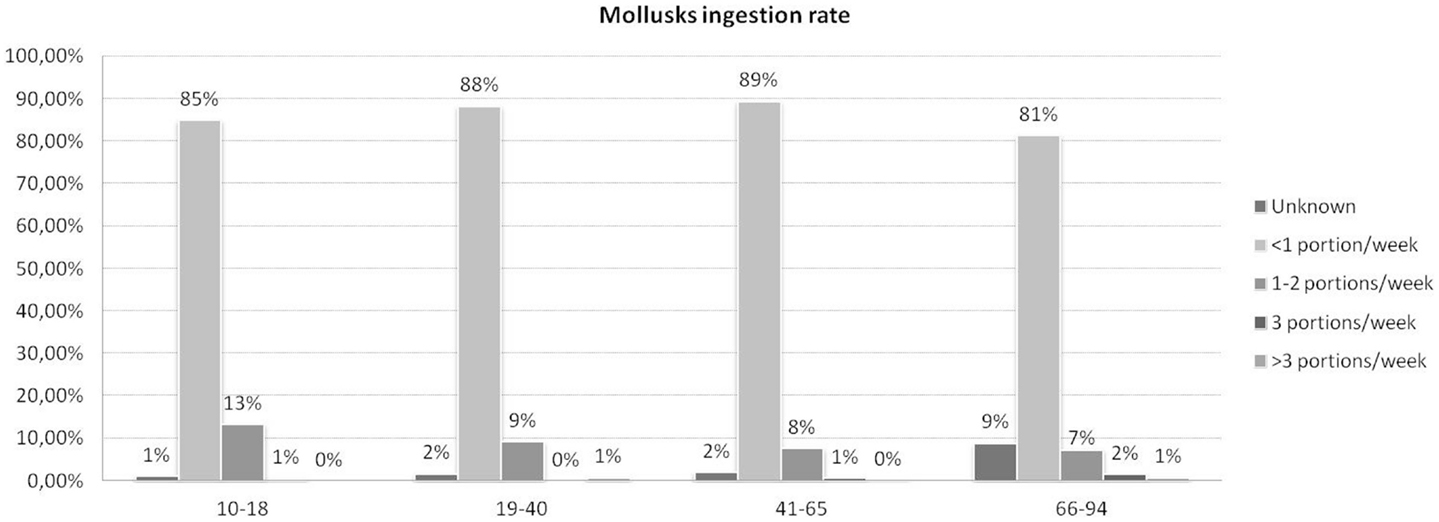

Figure 2. Shellfish weekly consumption rates in the four indicated age groups (10–18; 19–40; 41–65; and 66–94).
The EWI of Cd for an average person weighing 70 kg is reported in Table 4, taking into consideration the mean Cd concentrations determined in this study and shellfish consumption rates reported by respondents in the survey. The calculated intakes were further compared with the corresponding tolerable weekly intake (TWI), estimated to be 2.5 μg/kg of body weight (32). Even though the EWI values for Cd due to shellfish consumption were always below the TWI, and therefore the THQ levels remained below the risk value of 1, shellfish generally display a high contribution to the TWI for Cd. Indeed, as shown in Table 4, a dramatic increase of Cd intake due to shellfish consumption was estimated in 2011, compared with the previous year.
Table 4. Estimated weekly intake (EWI) and tolerable weekly intake (TWI) for Cd expressed as microgram per kilogram of body weight.
Shellfish Sampling Area Mapping
In order to identify the main areas of shellfish bioaccumulation of Cd, raster maps of the yearly spatial distribution and of the difference between the average value for the six monitored years and the average values recorded in 2011 (Figure 3), were analyzed.

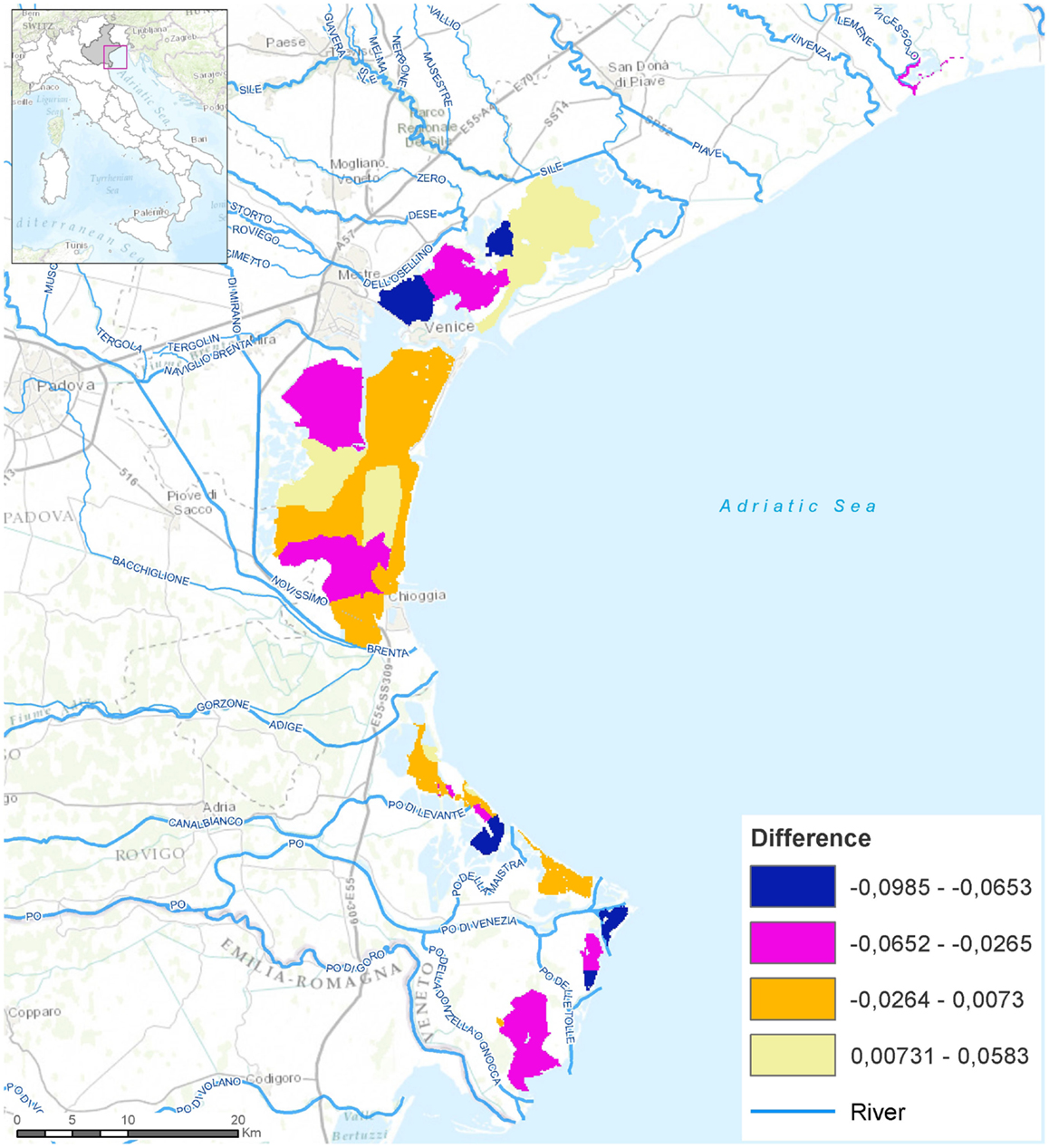

Figure 3. Difference between the average of cadmium values for the 2007–2012 years and the year 2011.
The maps were portrayed according to the ESRI Natural Breaks classification method (33). In this classification method, data distribution is explicitly considered, within-class variance is minimized and between-class variance is maximized (34, 35).
Classes of negative values suggest that the average Cd levels in shellfish for the year 2011 were higher than the average values detected during the other 5 years.
As shown in Figure 3, the main areas where Cd was found to accumulate in shellfish were the north and the far south lagoon basins.
The aim of this study was the assessment of heavy metal exposure over time due to shellfish consumption in the Veneto Region focusing on three heavy metals (cadmium, mercury, and lead), as requested by the European Union regulation for hazardous metals (30).
Intake data were obtained from a food consumption survey that involved different areas spanning the Veneto Region, while shellfish contamination data were obtained via the classification and monitoring activities of mollusk production areas of Veneto region.
Nonetheless, in order to have a homogeneous sample size among years and species, and due to the shellfish consumption habits of the Veneto population, only Manila clams (Ruditapes philippinarum) and grooved carpet shell (Ruditapes decussatus) metal contamination data were included in the study.
Results obtained from heavy metal contamination monitoring activity show that among the three studied heavy metals, Pb accumulated to the highest levels in the investigated shellfish.
Generally, only low levels of all three heavy metals were detected in the shellfish. However, a significant difference in the heavy metal concentrations over time was noticed, especially in the case of Cd, which underwent a rapid increase in early 2011. This observation caused us to evaluate the impact of the rise of Cd concentration in the selected shellfish on consumers’ exposure.
The potential health risk to the local population from Cd intake via consumption of shellfish was assessed by comparing the EWI with the TWI and by estimating the THQ.
Results show that shellfish substantially contributed to the TWI for Cd, particularly during 2011, even though the EWI values were below the TWI in each of the sampled years and the THQ never reached the value 1. However, the two investigated shellfish species are not the only potential source of dietary Cd, since this metal can be ingested via many other food items comprising the diet of the target population (data not shown).
We speculate that a heavy rainfall event that triggered catastrophic flooding in the days leading up to November 3, 2010, with abundant rainfall affecting large areas of the Veneto Region, was likely to have been responsible for the increased Cd levels detected in early 2011.
The principal rivers involved in the flood event were the Bacchiglione river (140 sq km flooded containing a total of 380 Municipalities), and the Brenta river, two of the local tributaries of the southern basin of Venice lagoon, while an impact on the river basins of upper Piave, Sile, the drainage basin in the lagoon and the river Po also occurred. The contaminants accumulated in the sediment might have been mobilized by the effect of biological and physical mechanisms, including the hydrodynamics of the water exchange between the lagoon and the Adriatic Sea (20) and which then led to Cd accumulation in shellfish captured in the areas where these rivers flow, as indicated in Figure 3.
Regarding the northern part of the lagoon where high levels of Cd accumulation were found (Figure 3), apart from the input of the Piave and Sile rivers, other contaminated sources could have contributed to the increase of Cd load in 2011, such as discharge from surrounding heavily industrialized areas, pollution produced by the city of Venice and wastewater treatment plants (20).
Contaminant fate analyses, though, suggests that such contamination routes could not reach the far southern basin (data not shown). Here, Cd (and indeed, likely other heavy metal) loadings mostly originate from local tributaries (20) including the Bacchiglione river. Thus, only a small fraction of contaminants from the dominant loading sources in the central basin reach the inlet, through which most water export to the Adriatic Sea occurs. Naturally, this limits seaward transfer of the contaminants, trapping most of them in the sediment of the Venice lagoon (20), and making them available to be funneled into the human food chain via harvested shellfish consumption.
Moreover, according to the 2011 report on the environmental pollution in the Venetian Lagoon basin, published by the Agency for Water Control of the Veneto Region (36) a strict dependence of water quality delivered to the Venice lagoon from precipitation, in terms of presence of pollutants such as heavy metals, was detected.
In fact, the analytical determinations carried out on samples of first flushings from tanks proved the high level of pollution of the water drained off in the Venetian Lagoon during the spring and autumn months, when intense rainfalls occur.
Furthermore, the report strongly emphasized the critical contribution posed by the ring road surrounding the Venice area to heavy metal concentration in the drainage water, confirming the significant influence of road runoff to heavy metal flow into natural water bodies.
The observations made so far strongly emphasize the importance of approaching food safety in a holistic way, taking into account the potential impact of extraordinary natural events on food chain contamination.
An important objective is to provide for the activation of emergency monitoring able to identify potential increases in food hazards at an early stage and enabling hazard analysis to be conducted on time, before a real risk for consumers develops. A case in point is highlighted by the results of the current study, indicating that flood events on land could result in increased heavy metal contamination in edible mollusks at sea, potentially producing increased lead-on risks for heavy metal bioaccumulation in shellfish consumers.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
3. Olmedo P, Hernández AF, Plat A, Femia P, Navas-Acien A, Gil F. Determination of essential elements (copper, manganese, selenium and zinc) in fish and shellfish samples. Risk and nutritional assessment and mercury-selenium balance. Food Chem Toxicol (2013) 62:299–307. doi:10.1016/j.fct.2013.08.076
7. Lozano G, Herraiz E, Hardisson A, Gutiérrez AJ, González-Weller D, Rubio C. Heavy and trace metal concentrations in three rockpool shrimp species (Palaemon elegans, Palaemon adspersus and Palaemon serratus) from Tenerife (Canary Islands). Environ Monit Assess (2010) 68:451–60. doi:10.1007/s10661-009-1126-z
9. Ciszewski D, Aleksander-Kwaterczak U, Pociecha A, Szarek-Gwiazda E, Waloszek A, Wilk-Wozniak E. Small effects of a large sediment contamination with heavy metals on aquatic organisms in the vicinity of an abandoned lead and zinc mine. Environ Monit Assess (2013) 185:9825–42. doi:10.1007/s10661-013-3295-z
10. Kadirvelu K, Thamaraiselvi K, Namasivayam C. Removal of heavy metals from industrial wastewaters by adsorption onto activated carbon prepared from an agricultural solid waste. Bioresour Technol (2011) 76:63–5. doi:10.1016/S0960-8524(00)00072-9
11. Gavilán JF, Barra R, Fossi MC, Casini S, Salinas G, Parra O, et al. Biochemical biomarkers in fish at the mouth of different fluvial systems draining to the Pacific Ocean in the Biobio region (South Central Chile). Bull Environ Contam Toxicol (2011) 66:476–83. doi:10.1007/s001280031
13. EFSA Panel on Contaminants in the Food Chain (CONTAM). Scientific opinion on the risk for public health related to the presence of mercury and methylmercury in food. EFSA J (2012) 10(12):2985. doi:10.2903/j.efsa.2012.2985
14. Jarsjö J, Destouni G, Persson K, Prieto C. Solute Transport in Coupled Inland-Coastal Water Systems. General Conceptualization and Application to Forsmark. Swedish Nuclear Fuel and Waste Management Company Report R-07-65. Stockholm: Swedish Nuclear Fuel and Waste Management Co (2007).
16. Rotkin-Ellman M, Solomon G, Gonzalez CR, Agwaramgbo L, Mielke HW. Arsenic contamination in New Orleans soil: temporal changes associated with flooding. Environ Res (2010) 110:19–25. doi:10.1016/j.envres.2009.09.004
17. Rotkin-Ellman M, Wong KK, Solomon GM. Seafood contamination after the BP Gulf oil spill and risks to vulnerable populations: a critique of the FDA risk assessment. Environ Health Perspect (2012) 120:157–61. doi:10.1289/ehp.1103695
19. Micheletti C, Critto A, Marcomini A. Assessment of ecological risk from bioaccumulation of PCDD/Fs and dioxin-like PCBs in a coastal lagoon. Environ Int (2007) 33:45–55. doi:10.1016/j.envint.2006.06.023
20. Sommerfreund JK, Gandhi N, Diamond ML, Mugnai C, Frignani M, Capodaglio G, et al. Contaminant fate and transport in the Venice Lagoon: results from a multi-segment multimedia model. Ecotoxicol Environ Saf (2010) 73:222–30. doi:10.1016/j.ecoenv.2009.11.005
21. Zonta R, Collavini F, Zaggia L, Zuliani A. The effect of floods on the transport of suspended sediments and contaminants: a case study from the estuary of the Dese River (Venice Lagoon, Italy). Environ Int (2005) 31:948–58. doi:10.1016/j.envint.2005.05.005
24. Bille L, Binato G, Cappa V, Toson M, Dalla Pozza M, Arcangeli G, et al. Lead, mercury and cadmium levels in edible marine molluscs and echinoderms from the Veneto region (north-western Adriatic Sea – Italy). Food Control (2015) 50:362–70. doi:10.1016/j.foodcont.2014.09.018
25. Copat C, Maggiore R, Arena G, Lanzafame S, Fallico R, Sciacca S, et al. Heavy metals concentrations in fish and shellfish from eastern Mediterranean Sea: consumption advisories. J Environ Monit (2012) 14:187–92. doi:10.1016/j.fct.2012.11.038
30. Council of the European Union. Commission regulation 2006/1881/EC of 19, 2006. Setting maximum levels for certain contaminants in foodstuffs. Off J Eur Commun (2006) L364:5–24. doi:10.1080/19440049.2013.775605
31. Council of the European Union. Commission Regulation 2014/488/EC of 12, May 2014. Amending Regulation (EC) No 1881/2006 as regards maximum levels of cadmium in foodstuffs. Official Journal of the European Union (2014). L 138/75. Available from: https://www.fsai.ie/uploadedFiles/Reg488_2014.pdf
33. ESRI. ESRI Support – GIS Dictionary > Natural Breaks Classification. (2014). Available from: http://help.arcgis.com/en/arcgisdesktop/10.0/help/index.html#//00s50000001r000000
35. HHS CDC NCHHSTP DHAP. Cartographic Guidelines for Public Health. (2012). Available from: http://www.cdc.gov/dhdsp/maps/gisx/resources/cartographic_guidelines.pdf
36. Ministero delle Infrastrutture e dei Trasporti – Magistrato alle Acque di Venezia, Quadro di riferimento conoscitivo relativo al territorio dei comuni della gronda lagunare per l’applicazione delle Linee Guida ai sensi della L. 192/2004. (2011).
Keywords: cadmium, shellfish, food safety, flooding, exposure
Citation: Losasso C, Bille L, Patuzzi I, Lorenzetto M, Binato G, Dalla Pozza M, Ferrè N and Ricci A (2015) Possible influence of natural events on heavy metals exposure from shellfish consumption: a case study in the north-east of Italy. Front. Public Health 3:21. doi: 10.3389/fpubh.2015.00021
Received: 05 November 2014; Accepted: 19 January 2015;
Published online: 04 February 2015.
Edited by:Antarpreet Jutla, West Virginia University, USA
Reviewed by:Devendra P. Saroj, University of Surrey, UK
M. Jahangir Alam, University of Houston College of Pharmacy, USA
Yongxuan Gao, Natural Heritage Institute, USA
Copyright: © 2015 Losasso, Bille, Patuzzi, Lorenzetto, Binato, Dalla Pozza, Ferrè and Ricci. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Antonia Ricci, Department of Food Safety, Istituto Zooprofilattico Sperimentale delle Venezie, Viale dell’Università 10, Legnaro 35020, Italy e-mail: firstname.lastname@example.org
†Carmen Losasso and Laura Bille have contributed equally to this work.
