An Overview of Heart Rate Variability Metrics and Norms
- 1Center for Applied Psychophysiology, Truman State University, Kirksville, MO, United States
- 2William Jennings Bryan Dorn VA Medical Center (VHA), Columbia, SC, United States
Healthy biological systems exhibit complex patterns of variability that can be described by mathematical chaos. Heart rate variability (HRV) consists of changes in the time intervals between consecutive heartbeats called interbeat intervals (IBIs). A healthy heart is not a metronome. The oscillations of a healthy heart are complex and constantly changing, which allow the cardiovascular system to rapidly adjust to sudden physical and psychological challenges to homeostasis. This article briefly reviews current perspectives on the mechanisms that generate 24 h, short-term (~5 min), and ultra-short-term (<5 min) HRV, the importance of HRV, and its implications for health and performance. The authors provide an overview of widely-used HRV time-domain, frequency-domain, and non-linear metrics. Time-domain indices quantify the amount of HRV observed during monitoring periods that may range from ~2 min to 24 h. Frequency-domain values calculate the absolute or relative amount of signal energy within component bands. Non-linear measurements quantify the unpredictability and complexity of a series of IBIs. The authors survey published normative values for clinical, healthy, and optimal performance populations. They stress the importance of measurement context, including recording period length, subject age, and sex, on baseline HRV values. They caution that 24 h, short-term, and ultra-short-term normative values are not interchangeable. They encourage professionals to supplement published norms with findings from their own specialized populations. Finally, the authors provide an overview of HRV assessment strategies for clinical and optimal performance interventions.
Heart Rate Variability
Heart rate is the number of heartbeats per minute. Heart rate variability (HRV) is the fluctuation in the time intervals between adjacent heartbeats (1). HRV indexes neurocardiac function and is generated by heart-brain interactions and dynamic non-linear autonomic nervous system (ANS) processes. HRV is an emergent property of interdependent regulatory systems which operate on different time scales to help us adapt to environmental and psychological challenges. HRV reflects regulation of autonomic balance, blood pressure (BP), gas exchange, gut, heart, and vascular tone, which refers to the diameter of the blood vessels that regulate BP, and possibly facial muscles (2).
A healthy heart is not a metronome. The oscillations of a healthy heart are complex and non-linear. A healthy heart’s beat-to-beat fluctuations are best described by mathematical chaos (3). The variability of non-linear systems provides the flexibility to rapidly cope with an uncertain and changing environment (4). While healthy biological systems exhibit spatial and temporal complexity, disease can involve either a loss or increase of complexity (5).
Higher HRV is not always better since pathological conditions can produce HRV. When cardiac conduction abnormalities elevate HRV measurements, this is strongly linked to increased risk of mortality (particularly among the elderly). Close examination of electrocardiogram (ECG) morphology can reveal whether elevated HRV values are due to problems like atrial fibrillation (6).
An optimal level of HRV is associated with health and self-regulatory capacity, and adaptability or resilience. Higher levels of resting vagally-mediated HRV are linked to performance of executive functions like attention and emotional processing by the prefrontal cortex (1). Afferent information processing by the intrinsic cardiac nervous system can modulate frontocortical activity and impact higher-level functions (7).
A Brief Overview of HRV Metrics
We can describe 24 h, short-term (ST, ~5 min) or brief, and ultra-short-term (UST, <5 min) HRV using time-domain, frequency-domain, and non-linear measurements. Since longer recording epochs better represent processes with slower fluctuations (e.g., circadian rhythms) and the cardiovascular system’s response to a wider range of environment stimuli and workloads, short-term and ultra-short-term values are not interchangeable with 24 h values.
Time-domain indices of HRV quantify the amount of variability in measurements of the interbeat interval (IBI), which is the time period between successive heartbeats (see Table 1). These values may be expressed in original units or as the natural logarithm (Ln) of original units to achieve a more normal distribution (8).
Frequency-domain measurements estimate the distribution of absolute or relative power into four frequency bands. The Task Force of the European Society of Cardiology and the North American Society of Pacing and Electrophysiology (1996) divided heart rate (HR) oscillations into ultra-low-frequency (ULF), very-low-frequency (VLF), low-frequency (LF), and high-frequency (HF) bands (see Table 2).
Power is the signal energy found within a frequency band. Frequency-domain measurements can be expressed in absolute or relative power. Absolute power is calculated as ms squared divided by cycles per second (ms2/Hz). Relative power is estimated as the percentage of total HRV power or in normal units (nu), which divides the absolute power for a specific frequency band by the summed absolute power of the LF and HF bands. This allows us to directly compare the frequency-domain measurements of two clients despite wide variation in specific band power and total power among healthy, age-matched individuals (9).
The ULF band (≤0.003 Hz) indexes fluctuations in IBIs with a period from 5 min to 24 h and is measured using 24 h recordings (10). The VLF band (0.0033–0.04 Hz) is comprised of rhythms with periods between 25 and 300 s. The LF band (0.04–0.15 Hz) is comprised of rhythms with periods between 7 and 25 s and is affected by breathing from ~3 to 9 bpm. Within a 5 min sample, there are 12–45 complete periods of oscillation (9). The HF or respiratory band (0.15–0.40 Hz) is influenced by breathing from 9 to 24 bpm (11). The ratio of LF to HF power (LF/HF ratio) may estimate the ratio between sympathetic nervous system (SNS) and parasympathetic nervous system (PNS) activity under controlled conditions. Total power is the sum of the energy in the ULF, VLF, LF, and HF bands for 24 h and the VLF, LF, and HF bands for short-term recordings (12).
Sources of HRV
This section explores the sources of short-term and 24 h HRV measurements. The authors will not separately discuss ultra-short-term HRV measurements since they are controversial proxies for short-term HRV values and there is an absence of research concerning their physiological origin.
Two distinct but overlapping processes generate short-term HRV measurements. The first source is a complex and dynamic relationship between the sympathetic and parasympathetic branches. The second source includes the regulatory mechanisms that control HR via respiratory sinus arrhythmia (RSA), the baroreceptor reflex (negative-feedback control of BP), and rhythmic changes in vascular tone (2). RSA refers to the respiration-driven speeding and slowing of the heart via the vagus nerve (14).
Dynamic Autonomic Relationship
In a healthy human heart, there is a dynamic relationship between the PNS and SNS. PNS control predominates at rest, resulting in an average HR of 75 bpm. The PNS can slow the heart to 20 or 30 bpm, or briefly stop it (15). This illustrates the response called accentuated antagonism (16).
Parasympathetic nerves exert their effects more rapidly (<1 s) than sympathetic nerves (>5 s) (17). Since these divisions can produce contradictory actions, like speeding and slowing the heart, their effect on an organ depends on their current balance of activity. While the SNS can suppress PNS activity, it can also increase PNS reactivity (18). Parasympathetic rebound may occur following high levels of stress, resulting in increased nighttime gastric activity (19) and asthma symptoms (20).
The relationship between the PNS and SNS branches is complex (both linear and non-linear) and should not be described as a “zero sum” system illustrated by a teeter-totter. Increased PNS activity may be associated with a decrease, increase, or no change in SNS activity. For example, immediately following aerobic exercise, HR recovery involves PNS reactivation while SNS activity remains elevated (21, 22).
Likewise, teaching clients to breathe slowly when they experience high levels of SNS activity can engage both branches and increase RSA. This is analogous to a Formula 1® driver speeding through a turn while gently applying the left foot to the brake, a maneuver called “left-foot braking.” The complex relationship between SNS and PNS nerve activity means that the ratio between LF and HF power will not always index autonomic balance (21).
The autonomic, cardiovascular, central nervous, endocrine, and respiratory systems, and baroreceptors and chemoreceptors influence HRV over a short time period and contribute to the very-low to high frequencies of the HRV spectrum (12). Baroreceptors, which are BP sensors located in the aortic arch and internal carotid arteries, contribute to short-term HRV (23). When you inhale, HR increases. BP rises about 4–5 s later. Baroreceptors detect this rise and fire more rapidly. When you exhale, HR decreases. BP falls 4–5 s later (24, 25). The baroreflex makes this acceleration and deceleration of the heart, called RSA, possible (14).
The baroreflex links HR, BP, and vascular tone. Oscillation in one cardiovascular function causes identical oscillations in the others (26). Baroreceptor firing due to BP changes activates mechanisms that change HR and vascular tone. Rising BP triggers decreases in HR and vascular tone, while falling BP causes increases in both.
Circadian rhythms, core body temperature, metabolism, the sleep cycle, and the renin–angiotensin system contribute to 24 h HRV recordings, which represent the “gold standard” for clinical HRV assessment (12). These recordings achieve greater predictive power than short-term measurements (10, 27–29). Although we calculate 24 h and short-term HRV measurements using the same mathematical formulas, they cannot substitute for each other and their physiological meaning can profoundly differ (9).
Heart rate variability time-domain indices quantify the amount of HRV observed during monitoring periods that may range from <1 min to >24 h. These metrics include the SDNN, SDRR, SDANN, SDNN Index, RMSSD, NN50, pNN50, HR Max − HR Min, the HRV triangular index (HTI), and the Triangular Interpolation of the NN Interval Histogram (TINN, see Table 1). Where appropriate, the authors reported accepted minimum short-term and proposed ultra-short-term measurement periods.
The standard deviation of the IBI of normal sinus beats (SDNN) is measured in ms. "Normal" means that abnormal beats, like ectopic beats (heartbeats that originate outside the right atrium’s sinoatrial node), have been removed. While the conventional short-term recording standard is 5 min (11), researchers have proposed ultra-short-term recording periods from 60 s (30) to 240 s (31). The related standard deviation of successive RR interval differences (SDSD) only represents short-term variability (9).
Both SNS and PNS activity contribute to SDNN and it is highly correlated with ULF, VLF and LF band power, and total power (32). This relationship depends on the measurement conditions. When these bands have greater power than the HF band, they contribute more to SDNN.
In short-term resting recordings, the primary source of the variation is parasympathetically-mediated RSA, especially with slow, paced breathing (PB) protocols (12). In 24 h recordings, LF band power makes a significant contribution to SDNN (9). The SDNN is more accurate when calculated over 24 h than during the shorter periods monitored during biofeedback sessions. Longer recording periods provide data about cardiac reactions to a greater range of environmental stimulation. In addition to cardiorespiratory regulation, extended measurement periods can index the heart’s response to changing workloads, anticipatory central nervous activity involving classical conditioning, and circadian processes, including sleep-wake cycles. Twenty-four-hour recordings reveal the SNS contribution to HRV (33).
The SDNN is the "gold standard" for medical stratification of cardiac risk when recorded over a 24 h period (11). SDNN values predict both morbidity and mortality. Based on 24 h monitoring, patients with SDNN values below 50 ms are classified as unhealthy, 50–100 ms have compromised health, and above 100 ms are healthy (34). Heart attack survivors, whose 24 h measurements placed them in a higher category, had a greater probability of living during a 31-month mean follow-up period. For example, patients with SDNN values over 100 ms had a 5.3 times lower risk of mortality at follow-up than those with values under 50 ms (34). Does this mean that training patients to increase SDNN to a higher category could reduce their risk of mortality?
The standard deviation of the IBIs for all sinus beats (SDRR), including abnormal or false beats, is measured in ms. As with the SDNN, the SDRR measures how these intervals vary over time and is more accurate when calculated over 24 h because this longer period better represents slower processes and the cardiovascular system’s response to more diverse environmental stimuli and workloads. Abnormal beats may reflect cardiac dysfunction or noise that masquerades as HRV.
The standard deviation of the average normal-to-normal (NN) intervals for each of the 5 min segments during a 24 h recording (SDANN) is measured and reported in ms like the SDNN. This refers to IBIs calculated after artifacting the data. SDANN is not a surrogate for SDNN since it is calculated using 5 min segments instead of an entire 24 h time series (9) and it does not provide additional useful information (12).
SDNN Index (SDNNI)
The SDNNI is the mean of the standard deviations of all the NN intervals for each 5 min segment of a 24-h HRV recording. Therefore, this measurement only estimates variability due to the factors affecting HRV within a 5-min period. It is calculated by first dividing the 24 h record into 288 5 min segments and then calculating the standard deviation of all NN intervals contained within each segment. The SDNNI is the average of these 288 values. The SDNNI primarily reflects autonomic influence on HRV. The SDNNI correlates with VLF power over a 24-h period (12).
The number of adjacent NN intervals that differ from each other by more than 50 ms (NN50) requires a 2 min epoch.
The percentage of adjacent NN intervals that differ from each other by more than 50 ms (pNN50) also requires a 2-min epoch. Researchers have proposed ultra-short-term periods of 60 s (31). The pNN50 is closely correlated with PNS activity (32). It is correlated with the RMSSD and HF power. However, the RMSSD typically provides a better assessment of RSA (especially in older subjects) and most researchers prefer it to the pNN50 (35). This may be a more reliable index than short-term SDNN measurements for the brief samples used in biofeedback.
The root mean square of successive differences between normal heartbeats (RMSSD) is obtained by first calculating each successive time difference between heartbeats in ms. Then, each of the values is squared and the result is averaged before the square root of the total is obtained. While the conventional minimum recording is 5 min, researchers have proposed ultra-short-term periods of 10 s (30), 30 s (31), and 60 s (36).
The RMSSD reflects the beat-to-beat variance in HR and is the primary time-domain measure used to estimate the vagally mediated changes reflected in HRV (12). The RMSSD is identical to the non-linear metric SD1, which reflects short-term HRV (37). Twenty-four-hour RMSSD measurements are strongly correlated with pNN50 and HF power (27). Minimum HR is more strongly correlated with LnSDANN than LnRMSSD (Ln means the natural logarithm). Maximum HR is weakly and inconsistently correlated with these time-domain measures (38).
While the RMSSD is correlated with HF power (10), the influence of respiration rate on this index is uncertain (39, 40). The RMSSD is less affected by respiration than is RSA across several tasks (41). The RMSSD is more influenced by the PNS than SDNN. Lower RMSSD values are correlated with higher scores on a risk inventory of sudden unexplained death in epilepsy (42).
NN50, pNN50, and RMSSD are calculated using the differences between successive NN intervals. Since their computation depends on NN interval differences, they primarily index HF HR oscillations, are largely unaffected by trends in an extended time series, and are strongly correlated (9).
HR Max − HR Min
The average difference between the highest and lowest HRs during each respiratory cycle (HR Max − HR Min) is especially sensitive to the effects of respiration rate, independent of vagus nerve traffic. At least a 2-min sample is required to calculate HR Max − HR Min. Instead of directly indexing vagal tone, it reflects RSA. Since longer exhalations allow greater acetylcholine metabolism, slower respiration rates can produce higher RSA amplitudes that are not mediated by changes in vagal firing.
HRV Triangular Index
The HTI is a geometric measure based on 24 h recordings which calculates the integral of the density of the RR interval histogram divided by its height (11). A 5-min epoch is conventionally used to represent this metric (43). HTI and RMSSD can jointly distinguish between normal heart rhythms and arrhythmias. When HTI ≤ 20.42 and RMSSD ≤ 0.068, the heart rhythm is normal. When HTI > 20.42, the pattern is arrhythmic (43).
Triangular Interpolation of the NN Interval Histogram
Analogous to the electroencephalogram, we can use Fast Fourier Transformation (FFT) or autoregressive (AR) modeling to separate HRV into its component ULF, VLF, LF, and HF rhythms that operate within different frequency ranges. This is analogous to a prism that refracts light into its component wavelengths (11).
The ultra-low-frequency (ULF) band (≤0.003 Hz) requires a recording period of at least 24 h (12) and is highly correlated with the SDANN time-domain index (44). While there is no consensus regarding the mechanisms that generate ULF power, very slow-acting biological processes are implicated. Circadian rhythms may be the primary driver of this rhythm (12). Core body temperature, metabolism, and the renin–angiotensin system operate over a long time period and may also contribute to these frequencies (11, 45). There is disagreement about the contribution by the PNS and SNS to this band. Different psychiatric disorders show distinct circadian patterns in 24 h HRs, particularly during sleep (46, 47).
The VLF band (0.0033–0.04 Hz) requires a recording period of at least 5 min, but may be best monitored over 24 h. Within a 5-min sample, there are about 0–12 complete periods of oscillation (9). While all low values on all 24 h clinical HRV measurements predict greater risk of adverse outcomes, VLF power is more strongly associated with all-cause mortality than LF or HF power (48–51). The VLF rhythm may be fundamental to health (12).
Low VLF power has been shown to be associated with arrhythmic death (44) and PTSD (52). Low power in this band has been associated with high inflammation in several studies (53, 54). Finally, low VLF power has been correlated with low levels of testosterone, while other biochemical markers, such as those mediated by the hypothalamic–pituitary–adrenal axis (e.g., cortisol), have not (55).
Very-low-frequency power is strongly correlated with the SDNNI time-domain measure, which averages 5 min standard deviations for all NN intervals over a 24-h period. There is uncertainty regarding the physiological mechanisms responsible for activity within this band (10). The heart’s intrinsic nervous system appears to contribute to the VLF rhythm and the SNS influences the amplitude and frequency of its oscillations (12).
Very-low-frequency power may also be generated by physical activity (56), thermoregulatory, renin–angiotensin, and endothelial influences on the heart (57, 58). PNS activity may contribute to VLF power since parasympathetic blockade almost completely abolishes it (59). In contrast, sympathetic blockade does not affect VLF power and VLF activity is seen in tetraplegics, whose SNS innervation of the heart and lungs is disrupted (11, 60).
Based on work by Armour (61) and Kember et al. (62, 63), the VLF rhythm appears to be generated by the stimulation of afferent sensory neurons in the heart. This, in turn, activates various levels of the feedback and feed-forward loops in the heart’s intrinsic cardiac nervous system, as well as between the heart, the extrinsic cardiac ganglia, and spinal column. This experimental evidence suggests that the heart intrinsically generates the VLF rhythm and efferent SNS activity due to physical activity and stress responses modulates its amplitude and frequency.
The LF band (0.04–0.15 Hz) is typically recorded over a minimum 2 min period (12). This region was previously called the baroreceptor range because it mainly reflects baroreceptor activity during resting conditions (1). LF power may be produced by both the PNS and SNS, and BP regulation via baroreceptors (11, 57, 64, 65), primarily by the PNS (66), or by baroreflex activity alone (67). The SNS does not appear to produce rhythms much above 0.1 Hz, while the parasympathetic system can be observed to affect heart rhythms down to 0.05 Hz (20 s rhythm). In resting conditions, the LF band reflects baroreflex activity and not cardiac sympathetic innervation (12).
During periods of slow respiration rates, vagal activity can easily generate oscillations in the heart rhythms that cross over into the LF band (68–70). Therefore, respiratory-related efferent vagally mediated influences are particularly present in the LF band when respiration rates are below 8.5 bpm or 7 s periods (70, 71) or when one sighs or takes a deep breath.
The HF or respiratory band (0.15–0.40 Hz) is conventionally recorded over a minimum 1 min period. For infants and children, who breathe faster than adults, the resting range can be adjusted to 0.24–1.04 Hz (72). The HF band reflects parasympathetic activity and is called the respiratory band because it corresponds to the HR variations related to the respiratory cycle. These phasic HR changes are known as RSA and may not be a pure index of cardiac vagal control (73).
Heart rate accelerates during inspiration and slows during expiration. During inhalation, the cardiovascular center inhibits vagal outflow resulting in speeding the HR. Conversely, during exhalation, it restores vagal outflow resulting in slowing the HR via the release of acetylcholine (74). Total vagal blockage virtually eliminates HF oscillations and reduces power in the LF range (12).
High-frequency power is highly correlated with the pNN50 and RMSSD time-domain measures (10). HF band power may increase at night and decrease during the day (1). Lower HF power is correlated with stress, panic, anxiety, or worry. The modulation of vagal tone helps maintain the dynamic autonomic regulation important for cardiovascular health. Deficient vagal inhibition is implicated in increased morbidity (75).
HF Power and RSA do not Represent Vagal Tone
In healthy individuals, RSA can be increased by slow, deep breathing. Respiration rate changes can produce large-scale shifts in RSA magnitude without affecting vagal tone, which is mean HR change across conditions (e.g., rest to exercise) (76). Grossman (76) proposed an experiment. If you slow your breathing to 6 bpm, you should observe increased HR fluctuations compared with 15 bpm. During this time, mean HR should not appreciably change because vagal tone did not change.
While HF power indexes vagal modulation of HR, it does not represent vagal tone. If shifts in HF power mirrored shifts in vagal tone, they should produce corresponding changes in average HR. But, breathing at different rates within the 9–24 bpm range, which changes HF power, does not change mean HR. RSA and vagal tone are dissociated during large-scale changes in SNS activity, chemical blockade of the SA node, and when intense vagal efferent traffic dramatically slows HR during inhalation and exhalation (73). Shifts in respiration rate and volume can markedly change HRV indices (HF power, RSA, pNN50, RMSSD) without actually affecting vagal tone.
LnHF can Estimate Vagal Tone under Controlled Conditions
The natural logarithm (Ln) is the logarithm to the base e of a numeric value. Under controlled conditions while breathing at normal rates, we can use LnHF power to estimate vagal tone (77).
The ratio of LF to HF power (LF/HF ratio) was originally based on 24 h recordings, during which both PNS and SNS activity contribute to LF power, and PNS activity primarily contributes to HF power. The intent was to estimate the ratio between SNS and PNS activity (12).
The assumptions underlying the LF/HF ratio is that LF power may be generated by the SNS while HF power is produced by the PNS. In this model, a low LF/HF ratio reflects parasympathetic dominance. This is seen when we conserve energy and engage in tend-and-befriend behaviors. In contrast, a high LF/HF ratio indicates sympathetic dominance, which occurs when we engage in fight-or-flight behaviors or parasympathetic withdrawal.
Billman (21) challenged the belief that the LF/HF ratio measures “sympatho-vagal balance” (78, 79). First, LF power is not a pure index of SNS drive. Half of the variability in this frequency band is due to the PNS and a smaller proportion is produced by unspecified factors. Second, PNS and SNS interactions are complex, non-linear, and frequently non-reciprocal. Third, confounding by respiration mechanics and resting HR creates uncertainty regarding PNS and SNS contributions to the LF/HF ratio during the measurement period.
Shaffer et al. (12) warned that the LF/HF ratio is controversial because different processes appear to generate 24 h and 5 min values, and these values correlate poorly. Furthermore, the SNS contribution to LF power varies profoundly with testing conditions. For example, when LF is calculated while sitting upright during resting conditions, the primary contributors are PNS activity and baroreflex activity—not SNS activity (63, 80). Therefore, interpretation of 5 min resting baseline LF/HF ratios depends on specific measurement conditions.
From Schrödinger’s (81) perspective, life is aperiodic (e.g., oscillations occur without a fixed period) and operates between randomness and periodicity. Twenty-four-hour ECG monitoring yields a time series of R–R intervals (time period between successive heartbeats). Non-linearity means that a relationship between variables cannot be plotted as a straight line. Non-linear measurements index the unpredictability of a time series, which results from the complexity of the mechanisms that regulate HRV. Non-linear indices correlate with specific frequency- and time-domain measurements when they are generated by the same processes. While stressors and disorders like diabetes can depress some non-linear measurements, elevated values do not always signal health. For example, in postmyocardial infarction (post-MI) patients, increased non-linear HRV is an independent risk factor for mortality (82). This section reviews S, SD1, SD2, SD1/SD2, approximate entropy (ApEn), sample entropy (SampEn), detrended fluctuation analysis (DFA) α1 and DFA α2, and D2 non-linear measures (see Table 3).
A Poincaré plot (return map) is graphed by plotting every R–R interval against the prior interval, creating a scatter plot. Poincaré plot analysis allows researchers to visually search for patterns buried within a time series (a sequence of values from successive measurements). Unlike frequency-domain measurements, Poincaré plot analysis is insensitive to changes in trends in the R–R intervals (83).
S, SD1, SD2, and SD1/SD2
We can analyze a Poincaré plot by fitting an ellipse (curve which resembles a squashed circle) to the plotted points. After fitting the ellipse, we can derive three non-linear measurements, S, SD1, and SD2. The area of the ellipse which represents total HRV (S) correlates with baroreflex sensitivity (BRS), LF and HF power, and RMSSD.
The standard deviation (hence SD) of the distance of each point from the y = x axis (SD1), specifies the ellipse’s width. SD1 measures short-term HRV in ms and correlates with baroreflex sensitivity (BRS), which is the change in IBI duration per unit change in BP, and HF power. The RMSSD is identical to the non-linear metric SD1, which reflects short-term HRV (37). SD1 predicts diastolic BP, HR Max − HR Min, RMSSD, pNN50, SDNN, and power in the LF and HF bands, and total power during 5 min recordings (84, 85).
The standard deviation of each point from the y = x + average R–R interval (SD2) specifies the ellipse’s length. SD2 measures short- and long-term HRV in ms and correlates with LF power and BRS (86–89). The ratio of SD1/SD2, which measures the unpredictability of the RR time series, is used to measure autonomic balance when the monitoring period is sufficiently long and there is sympathetic activation. SD1/SD2 is correlated with the LF/HF ratio (83, 90).
Approximate entropy measures the regularity and complexity of a time series. ApEn was designed for brief time series in which some noise may be present and makes no assumptions regarding underlying system dynamics (9). Applied to HRV data, large ApEn values indicate low predictability of fluctuations in successive RR intervals (91). Small ApEn values mean that the signal is regular and predictable (8).
Sample entropy was designed to provide a less biased and more reliable measure of signal regularity and complexity (92). SampEn values are interpreted and used like ApEn and may be calculated from a much shorter time series of fewer than 200 values (9).
Detrended Fluctuation Analysis
Detrended fluctuation analysis extracts the correlations between successive RR intervals over different time scales. This analysis results in slope α1, which describes brief fluctuations, and slope α2, which describes long-term fluctuations. The short-term correlations extracted using DFA reflect the baroreceptor reflex, while long-term correlations reflect the regulatory mechanisms that limit fluctuation of the beat cycle. DFA is designed to analyze a time series that spans several hours of data (9).
Correlation Dimension (CD, D2)
The CD (D2) estimates the minimum number of variables required to construct a model of system dynamics. The more variables required to predict the time series, the greater its complexity. An attractor is a set of values toward which a variable in a dynamic system converges over time. CD measures a system’s attractor dimension, which can be an integer or fractal (9).
Context is Crucial When Interpreting HRV Measurements
Awareness of the context of recording and subject variables can aid interpretation of both 24 h and short-term HRV measurements. Important contextual factors include recording period length, detection or recording method, sampling frequency, removal of artifacts, respiration, and whether or not there is PB. Important subject variables are age, sex, HR, and health status. In addition, influences of position, movement, recency of physical activity, tasks, demand characteristics, and relationship variables can all affect measurements subtly or even greatly by changing ANS activation, breathing mechanics, and emotions.
The length of the recording period significantly affects both HRV time-domain and frequency-domain measurements (93). Since longer recordings are associated with increased HRV, it is inappropriate to compare metrics like SDNN when they are calculated from epochs of different length (11, 94). Generally, resting values obtained from short-term monitoring periods correlate poorly with 24 h indices and their physiological meanings may differ (9).
Electrocardiogram and PPG methods yielded discrepancies of less than 6% for most HRV measures and 29.9% for pNN50 in one study (95).
While a minimum sampling frequency of 500 Hz may be required to detect the R-spike fiducial point of the ECG when RSA amplitude is low, a sampling rate of 125 Hz (93) or 200 Hz (9) may be sufficient when RSA amplitude is normal. Very low RR interval variability, which characterizes some heart failure patients, requires higher sampling rates for adequate temporal resolution (9). Lower sampling rates may threaten the validity of HRV frequency-domain and non-linear indices (96).
Removal of Artifacts
Visual inspection of the raw BVP or ECG signal can help detect artifacts (e.g., missed or spurious beats). Artifacts can significantly distort both time- and frequency-domain measurements (97). Artifacts increase power in all frequency bands. Missed beats produce greater increases than extra beats since deviation from a missed beat equals the mean heart period versus half the mean heart period for extra beats. The bias introduced by even a single artifact can easily eclipse the 0.5–1.0 Ln effect sizes typically found in psychophysiological research (98). When artifacts are present, researchers can select an artifact-free epoch or manually edit the affected RR intervals (99). When a clean segment is shorter than the recommended length for calculating power within a frequency band, values should be valid as long as it contains at least six full periods of oscillations. For example, estimation of LF power requires at least 2.5 min of clean data (9).
Researchers can replace technical artifacts like missed beats through interpolation based on QRS intervals that precede and follow the contaminated segment. Data analysis software like Kubios (8) can help visualize the raw signal and preserve the original record length and synchrony with other physiological signals (e.g., respiration). The editing of ectopic beats and arrhythmias can be challenging because the resulting changes in stroke volume and cardiac output can affect 10–30 beats instead of the two RR intervals that bracket the abnormal heartbeat (9).
Greater tidal volumes and lower respiration rates increase RSA (12, 100). Increasing respiration depth raised HR Max − HR Min and did not reduce time-domain, frequency-domain, or non-linear HRV measures (101, 102). Increasing or decreasing respiration rate from a client’s resonance frequency, the breathing rate that best stimulates the cardiovascular system, may lower short-term time-domain measurements and LF band power, while raising or lowering HF power, respectively.
The effect of inhalation-to-exhalation (I/E) ratio on HRV time- and frequency-domain measurements remains unclear. Lin et al. (103) reported that breathing at 5.5 bpm with a 5:5 I/E ratio resulted in higher LF power than with a 4:6 ratio. However, the authors failed to confirm that their subjects actually breathed at the required rates and ratios. Zerr et al. (84, 85) studied different I/E ratios (1:2 and 1:1) at 6 bpm and performed manipulation checks on respiration rate and I/E ratio. They found that HRV time- or frequency-domain values were comparable when healthy undergraduates breathed 6 bpm at 1:2 or 1:1 I/E ratios. A replication study by Meehan et al. (101, 102) also found that HRV time- and frequency-domain values were comparable when healthy undergraduates breathed at 6 bpm at 1:2 or 1:1 I/E ratios.
Values obtained during normal breathing and PB can vary significantly (17).
Heart rate variability time-domain measurements decline with age (17, 104–106). Bonnemeier et al. (104) obtained 24 h recordings from 166 healthy volunteers (85 men and 81 women) ages 20–70. They found the most dramatic HRV parameter decrease between the second and third decades. Almeida-Santos et al. (106) obtained 24 h ECG recordings of 1,743 subjects 40–100 years of age. They found a linear decline in SDNN, SDANN, and SDNN index. However, they discovered a U-shaped pattern for RMSSD and pNN50 with aging, decreasing from 40 to 60 and then increasing after age 70.
A meta-analysis of 296,247 healthy participants examined 50 HRV measures (107). Women had higher mean HR (smaller RR intervals) and lower SDNN and SDNN index values, especially in 24 h studies, compared to men. They showed lower total, VLF, and LF power, but greater HF power. While women showed relative vagal dominance, despite higher mean HR, men showed relative SNS dominance, despite their lower HR.
Faster HRs reduce the time between successive beats and the opportunity for the IBIs to vary. This lowers HRV. Conversely, slower HRs increase the time between adjacent heartbeats and the chance for IBIs to vary. This raises HRV. This phenomenon is called cycle length dependence (1). Resting HRs that exceed 90 bpm are associated with elevated risk of mortality (108).
Time-domain measurements rise with increased aerobic fitness (109, 110). In general, HRV time-domain measurements decline with decreased health (111, 112). Autonomic cardiac dysregulation is a critical process that underlies the manifestation and perpetuation of symptoms broad spectrum symptoms of poor health. HRV has been shown to be useful in predicting morbidities from common mental (e.g., stress, depression, anxiety, PTSD) and physical disorders (e.g., inflammation, chronic pain, diabetes, concussion, asthma, insomnia, fatigue), all of which increase sympathetic output and create a self-perpetuating cycle that produces autonomic imbalance and greater allostatic load (113–121). Thus, ANS dysfunction is a systemic common denominator of poor health and associated with acute and chronic illness and a risk factor for such serious health issues as cancer survivorship, cardiovascular disease and myocardial infarction, stroke, and overall mortality (49, 75, 122–125).
Ultra-Short-Term (UST) Measurement Norms
Ultra-short-term HRV measurements are based on less than 5 min of data (Table 4). Four studies reviewed in this section (31, 126–128) measured HRV during resting baselines while sitting upright or lying supine. One study (30) monitored subjects during resting baseline and Stroop test conditions.
The use of ultra-short-term recording to estimate HRV status is important because of its obvious efficiency in both clinical and research settings. However, many of the reviewed ultra-short-term studies (30, 31, 126, 130) suffered from serious methodological limitations. Since only one of the studies (128) specified their minimum criterion for acceptable concurrent validity (e.g., r = 0.9), we cannot know the percentage of variability in 5 min values for which their ultra-short-term measurements accounted. Since correlation between measurements doesn’t ensure agreement, the authors recommend that investigators utilize the more rigorous Bland-Altman Limits of Agreement (LoA) method (131, 132) like Munoz et al. (129). This procedure calculates the 95% limits of agreement between two methods of measurement for repeated measures.
Review of this emerging literature suggests that differences in contextual factors such as recording method (BVP vs. ECG), age, health, measurement condition, artifacting procedures, and the concurrent-validity criteria used may have greater impact on ultra-short-term measurements than on longer recordings. Nonetheless, for healthy individuals, resting baselines as short as 1 min may be sufficient to measure HR, SDNN, and RMSSD as long as professionals carefully remove artifacts. The standardization of ultra-short-term measurement protocols and establishment of normative values for healthy non-athlete, optimal performance, and clinical populations remain important challenges to their use in place of conventional 5 min and 24 h values.
McNames and Aboy (130) compared 10 s to 10 min resting ECG recordings compared to 5 min recordings using archival data from PhysioNet. The strongest correlations were achieved with HF ms2, SDSD, and RMSSD. Salahuddin et al. (30) obtained 5 min of resting ECG data from 24 healthy students and noted that valid estimation of values from ultra-short-term recordings required differing lengths for different HRV variables: mean HR and RMSSD required 10 s; PNN50, HF (ms2 and nu), LF/HF, and LF nu required 20 s; LF ms2 required 30 s; VLF ms2 required 50 s; SDNN; the coefficient of variance required 60 s; HRV Index and TINN required 90 s; and the Stress Index required 100 s.
Similarly, Baek et al. (31) estimated 5 min resting PPG HRV values from 467 healthy volunteers with ultra-short-term recordings. HR required 10 s, HF ms2 required 20 s, RMSSD required 30 s, pNN50 required 60 s, LF (ms2 and nu), HF nu, and LF/HF ms2 required 90 s, SDNN required 240 s, and VLF ms2 required 270 s. These minimum periods also differed by age group.
When Nussinovitch et al. (126) compared 10 s and 1 min resting ECG recordings with 5 min recordings from 70 healthy volunteers, ultra-short-term RMSSD measurements achieved acceptable correlations, but SDNN did not achieve acceptable correlations with the longer short-term recordings.
Munoz et al. (129) measured SDNN and RMSSD in 3,387 adults and analyzed data using Pearson’s correlation coefficients, the Bland-Altman LoA method, and Cohen’s d. At 120 s, recordings achieved nearly perfect agreement with 240–300 s values (r = 0.956, bias = 0.406 for SDNN and 0.986, bias = 0.014 for RMSSD).
Shaffer et al. (128) recorded 5 min of resting ECG data from 38 healthy undergraduates and manually artifacted the IBIs. They correlated 10, 20, 30, 60, 90, 120, 180, and 240 s HRV metrics with 5 min metrics. The authors selected a conservative criterion of r = 0.90 to ensure that ultra-short-term values would account for at least 81% of the variability in 5 min values. A 10 s segment estimated mean HR. A 60 s segment measured SDNN, RMSSD, NN50, and pNN50. A 90 s segment calculated TINN, LF ms2, SD1, and SD2. A 120 s segment approximated HTI and DFA ɑ1. A 180 s segment computed LF nu, HF ms2, HF nu, LF/HF ms2, SampEn, DFA ɑ2, and DET. A 240 s segment assessed ShanEn. No UST measurement successfully estimated CD.
Short-Term Measurement Norms
Short-term measurement norms are based on ~5 min of HRV data (Table 5). Because of their relative ease of recording, short-term measurements have been widely used and studied for many years, and appear to be the most commonly found source of published HRV data (11, 60). Short-term values are only appropriate when clients breathe at normal rates (~11–20 bpm). During resonance frequency biofeedback, the only relevant metrics are LF ms2 or peak frequency since breathing from 4.5 to 7.5 bpm concentrates HR oscillations around 0.1 Hz in the LF band.
Berkoff et al. (133) reported short-term norms from 145 elite track-and-field athletes (87 men and 58 women), 18–33 years, who were measured before the 2004 USA Olympic Trials. The investigators monitored the athletes in the supine position for 2.5 min using ECG after up to 5 min of rest to stabilize HR. These authors used the Fast Fourier transformation (FFT) method to perform power spectral analysis. They reported mean and standard deviation values by sex for the time-domain measures of SDNN, RMSSD, and pNN50 and the frequency-domain measures of LF (ms2 and nu), HF (ms2 and nu), LF/HF (LF/HF and LF/HF nu), and total power. Female athletes showed greater values for pNN50 and HF nu than male athletes. Male athletes showed greater values for LF nu and LF/HF ratio than female athletes. Type of sport (distance runners, field athletes, power athletes, sprinters, and strength athletes) did not affect HRV measures.
Normative data from short-term HRV studies published after the Task Force Report (11) were reviewed by Nunan et al. (17) (Table 6). The 44 selected studies meeting their criteria involved 21,438 healthy adult participants. This analysis included three large populations with a minimum age of 40 (135–137) which may explain their comparatively lower HRV values. The authors reported HRV values according to whether breathing was free or paced, sex, and spectral power analysis, autoregressive (AR) or FFT. They reported mean absolute and mean log-transformed values for mean RR, SDNN, RMSSD, LF (ms2 and nu), HF (ms2 and nu), and the LF/HF ratio. The selected studies showed greater agreement on time-domain measures (SDNN had the lowest coefficient of variation) than did frequency-domain measures (HF ms2 and log-transformed HF showed the largest variation). The FFT method resulted in lower LF power, greater HF power (ms2 and log-transformed), and greater LF/HF ratio than the AR method. PB resulted in higher values on all HRV indices except LF ms2, which was greatest during free breathing.

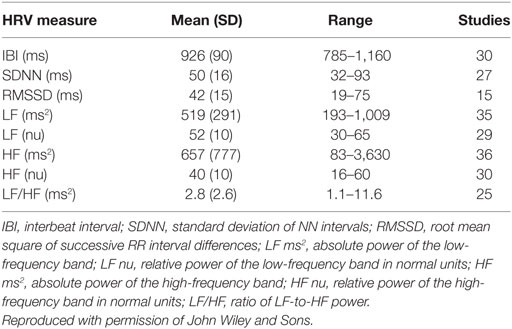

Table 6. Nunan et al. (17) short-term norms.
More recently, Abhishekh et al. (105) studied 189 healthy participants (114 men and 75 women) who ranged from 16 to 60 years of age. They analyzed 5 min artifact-free supine ECG recordings obtained while participants breathed between 12 and 15 bpm. They reported SDNN and RMSSD time-domain measures, and LF (ms2 and nu), HF (ms2 and nu), the LF/HF ratio, and total power frequency-domain measures. The authors found a negative correlation of RMSSD, SDNN, and total power with age. While HF nu was negatively correlated with age, LF/HF ratio was positively correlated. These correlations suggested that sympathetic tone increases with age.
Seppälä et al. (134) monitored 465 prepubertal children (239 boys and 226 girls) 6–8 years of age. They obtained 1 and 5 min resting ECG recordings. They performed power spectral analysis using the FFT method. They reported mean RR interval and HR, SDNN, RMSSD, pNN50, HTI, and TINN HRV time-domain measures, LF (peak, ms2, and %), HF (peak, ms2, and %), LF/HF ms2, and SD1, SD2, SD1/SD2, SampEn, D2, and DFA (α1 and α2) non-linear measures. The authors reported 1 and 5 min reference values for these parameters for the 5th, 25th, 50th, 75th, and 95th percentiles and concluded that the same values could be used for both boys and girls since there were no gender differences. They argued that HRV parameters that reflect parasympathetic HR modulation (RMSSD, pNN50, HF ms2, and SD1) could be reliably measured using 1 min recordings. However, HTI, TINN, LF ms2, SD2, and relative LF and HF power, and SD1/SD2, require 5 min recordings due to the longer rhythms that comprise LF-band activity.
Twenty-Four Hour Measurement Norms
Twenty-four-hour norms are obtained using ambulatory HRV monitoring (Table 7). The technology for recording and interpreting long-term “naturalistic” HR adjustments is rapidly advancing and the subject of another article in this issue (138). In the classic paper on the subject, The Task Force Report (11) reported 24 h norms for 144 healthy subjects that included cutoffs for moderately depressed and highly depressed HRV and for increased risk of mortality. The authors reported 24 h time-domain measures of SDNN, SDANN, RMSSD, and the HRV HTI, and supine 5 min frequency-domain measures for LF power (LF ms2 and nu), HF power (HF ms2 and nu), LF/HF power, and total power (ms2).
Umetani et al. (32) published 24 h norms for 260 healthy participants (112 men and 148 women) who ranged from 10 to 99 years old. The authors reported means, standard deviations, and 95% confidence intervals for 24 h HRV time-domain measures of SDNN, SDANN, SDNN index, RMSSD, and pNN50, and HR by decade. They analyzed the relationship between each HRV time-domain measure with HR and age, compared HR and HRV measures between decades and two-decade spans. They reported that several HRV time-domain indices declined with age. After age 65, subjects fell below cutoffs for increased threat of mortality. Before age 30, female subjects had lower HRV measurements than their male counterparts. This gender difference vanished after 50 years of age.
Beckers et al. (4) obtained 24 h ECG recordings of 276 healthy participants (141 men and 135 women) 18–71 years of age. They performed power spectral analysis using the FFT method and divided the 24 h recordings into daytime and nighttime. The authors reported day and night time-domain measures, SDNN, RMSSD, and pNN50, frequency-domain measures, total power (ms2), LF (ms2 and %), HF (ms2 and %), and LF/HF ratio, and non-linear measures, 1/frequency slope (1/f), fractal dimension (FD), DFA α1 and α2, CD, % of CD difference, S value, and Lyapunov exponent. Both linear and non-linear metrics decreased with age. The authors found that non-linear values were higher at night, did not differ by sex, and decreased with age.
Bonnemeier et al. (139) recorded 24 h ECG for 166 healthy volunteers (85 men and 81 women) aged 20–70. They obtained hourly and 24 h RMSSD, SDNN. SDNNI, SDANN, NN50, and HTI values. All 24 h HRV values declined with age. The attenuation of HRV parameters with age mainly occurred during nighttime. The largest decrease occurred during the second and third decades. Following this drop, the decline was gradual. SDNNI, NN50, and RMMSD correlated most strongly with aging. Mean 24 h RR interval, SDNN, SDNNI (SD for all 5 min intervals) and SDANN were significantly higher in men. Gender differences diminished with age.
Aeschbacher et al. (140) recorded 24 h ambulatory ECGs and assessed the lifestyles of 2,079 subjects (972 men and 1,107) aged 25–41. They obtained HR, SDNN, and LF and HF power. SDNN was 160 ± 40 (men) and 147 ± 36 (women). LF power was 1,337 ms2 (men) and 884 ms2 (women). HF power was 289 ms2 (men) and 274 ms2 (women). The authors reported that only a minority of their sample had healthy lifestyles and that lifestyle scores were associated with 24 h SDNN values.
Almeida-Santos et al. (106) obtained 22–24 h ambulatory ECGs from 1,743 participants (616 men and 1,127 women) aged 40–100. While their sample included comorbidities like dyslipidemia and hypertension, they were capable of performing the activities of daily living. The authors calculated HRV time-domain measures of SDNN, SDANN, SDNNI, RMSSD, and pNN50. HRV linearly declined with age. SDNN, SDANN, SDNNI, RMSSD, and PNN50 were higher in men than women. RMSSD and pNN50 showed a U-shaped pattern with aging, decreasing from 40 to 60 and then increasing from 70. The authors concluded that global autonomic regulation decreases linearly with aging and is lower in men, diabetics, and obese individuals.
Assessment in Clinical and Optimal Performance Interventions
The selection of HRV time-domain, frequency-domain, and non-linear measurements and norms to assess progress in clinical and optimal performance interventions should be informed by peer-reviewed studies. Professionals training specialized populations (e.g., chronic pain patients) might supplement published norms for the general population with values from their own clients. The rigorous data reporting guidelines proposed by Laborde et al. (93) could guide their efforts to publish their norms to remedy gaps in the literature. The metrics most strongly correlated with clinical improvement and athlete performance gains in these reports could be incorporated in pretreatment/posttreatment, within-session, and across-session assessment. While a full treatment of HRV variables in relation to the HRV biofeedback intervention is beyond the scope of this article, we will briefly touch on the issues that seem to us to be the key ones (141).
In addition to the primary literature, the Association for Applied Psychophysiology and Biofeedback has published two references that identify metrics associated with clinical and optimal performance outcomes, Evidence-Based Practice in Biofeedback and Neurofeedback (3rd ed.) and Foundations of Heart Rate Variability Biofeedback: A Book of Readings (142, 143). Further, readers might consult Gevirtz, Lehrer, and Schwartz’s excellent chapter on Cardiorespiratory Biofeedback in Schwartz and Andrasik’s (Eds.) Biofeedback: A Practitioner’s Guide (4th ed.).
Twenty-four-hour HRV monitoring before and after a series of HRV biofeedback training sessions provides the most valid measurements of ULF, VLF, total power, and LF/HF-domain indices (12). Moreover, 24 h time-domain measurements like SDNN achieve prognostic power that ultra-short-term and short-term measurements cannot. Successful HRV biofeedback should result in increased power in all individual frequency bands, total power, and LF/HF ratio, and relevant time-domain and non-linear values.
Where 24 h HRV assessment is not feasible, short-term (~5 min) resting measurements without feedback or pacing, and while breathing at normal rates can help evaluate physiological change. Successful HRV biofeedback should increase LnHF (which may index vagal tone under controlled conditions), RSA, and possibly LF and total power, and relevant time-domain and non-linear values. Autonomic (finger temperature and skin conductance/potential) and respiratory (end-tidal CO2 and respiration depth, rate, and rhythmicity) indices can complement HRV measurements. Successful HRV biofeedback may increase finger temperature, decrease skin conductance/potential, increase end-tidal CO2 to between 35 and 45 torr, increase respiration depth, slow respiration rate below 16 bpm, and increase rhythmicity in respirometer and HR waveforms (144).
Within- and Across-Session Assessment
Short-term resting HRV, autonomic, and respiratory measurements without feedback or pacing, and while breathing at normal rates can be obtained during pre- and posttraining baselines for within-session assessment or across the pretraining baselines of successive sessions. For both within- and across-session assessment, successful HRV biofeedback training should result in the same pattern of physiological change as described the previous section on short-term resting pretreatment/posttreatment assessment. While increased VLF power in 24 h HRV assessment is consistent with improved health, this change during short-term assessment may indicate training difficulty, vagal withdrawal, due to excessive effort (56). Where short-term assessment does not involve physical exercise or stress trials, the LF/HF ratio may not index of autonomic balance since there will be no significant SNS activation to measure (12).
Assessment during HRV Biofeedback Trials
During HRV biofeedback training, adults may be instructed to engage in paced abdominal breathing between 4.5 and 7.5 bpm guided by a real-time display of instantaneous HR and respiration. As clients’ breathing approaches their resonance frequency, the rate that most strongly stimulates their baroreceptor reflex, RSA will increase (141). Since respiration rate helps to determine the peak HRV frequency (the frequency with the highest amplitude), successful training should produce a lower peak frequency and greater LF power than a resting baseline obtained when clients breathe from 12 to 15 bpm. PB at 6 bpm should result in a spectral peak at 0.1 Hz, while breathing at 7.5 bpm should create a peak at 0.125 Hz. Both 6 and 7.5 bpm rates will also increase power in the LF, which ranges from 0.04 to 0.15 Hz.
Autonomic efferent neurons and circulating hormones modulate SA node initiation of heartbeats. The interdependent regulatory systems that generate the complex variability of a healthy heart operate over different time scales to achieve homeostasis and optimal performance. Circadian oscillations in circadian variations in core body temperature, metabolism, sleep–wake cycles, and the renin–angiotensin system contribute to 24 h HRV measurements. The complex dynamic relationship between the sympathetic and parasympathetic branches, and homeostatic regulation of HR via respiration and the baroreceptor reflex are responsible for short-term and ultra-short-term HRV measurements. Since slower regulatory mechanisms contribute to HRV metrics recorded over longer measurement periods, 24 h, short-term, and ultra-short-term values are not interchangeable.
Clinicians and researchers measure HRV using time-domain, frequency-domain, and non-linear indices. Time-domain values measure how much HRV was observed during the monitoring period. Recording period length strongly influences time-domain values. Shorter epochs are associated with smaller values and poorly estimate 24 h values (17). For example, where 24 h SDNN values predict future heart attack risk, 5 min SDNN values do not (12).
Frequency-domain values calculate absolute or relative signal power within the ULF, VLF, LF, and HF bands. Recording period length limits HRV frequency-band measurement. Minimum recommended periods include: ULF (24 h), VLF (5 min, 24 h preferred), LF (2 min), and HF (1 min). Again, short-term epochs (~5 min) lack the prognostic power of 24 h measurements for morbidity and mortality.
Non-linear indices measure the unpredictability and complexity of a series of IBIs. The relationship between non-linear measurements and illness is complex. While stressors and disease lower some non-linear indices, in cases like myocardial infarction, higher non-linear HRV predicts a greater risk of mortality.
The expanding literature on ultra-short-term, short-term, and 24 h HRV norms requires careful interpretation. Due to the lack of standardization of ultra-short-term measurement protocols, concurrent validity criteria, and normative values for healthy non-athlete, optimal performance, and clinical populations, clinicians should not use ultra-short-term interchangeably with 5 min and 24 h values.
Short-term measurement norms can contribute to assessment before, during, and after HRV biofeedback training for both clinical and optimal performance. Since short-term measurement norm studies vary in detection method (ECG or PPG), frequency-band cutoffs, power spectral analysis method (AR or FFT), position (sitting upright or lying supine), respiration rate, and breathing pacing (paced or free breathing) and subject sex, age, and aerobic fitness, the selection of appropriate norms is crucial. Likewise, 24 h HRV norms can guide HRV biofeedback training for clinical and optimal performance. As with short-term measurement norms, frequency-band cutoffs, power spectral analysis method (AR or FFT), and subject sex, age, and aerobic fitness can help to determine the selection of reference values.
The selection of HRV time-domain, frequency-domain, and non-linear metrics to assess progress in clinical and optimal performance interventions can be guided by peer-reviewed studies and supplemented by values from specialized populations. The HRV metrics most strongly correlated with clinical improvement and athlete performance gains in these reports might be incorporated in pretreatment/posttreatment, within-session, and across-session assessment. Finally, LF-band power and RSA will increase during successful HRV biofeedback trials due to PB in the 4.5–7.5 bpm range.
