Policy and Practice Reviews ARTICLE

Front. Public Health, 07 February 2020 |

Review of Evidence for Using Chest X-Rays for Active Tuberculosis Screening in Long-Term Care in Canada

Mariana Herrera Diaz1,2, Margaret Haworth-Brockman3,4 and Yoav Keynan3,4,5*
  • 1Grupo de Investigación en Salud Pública, Universidad Pontificia Bolivariana, Medellín, Colombia
  • 2Facultad Nacional de Salud Pública, Universidad de Antioquia, Medellín, Colombia
  • 3National Collaborating Centre for Infectious Diseases, Winnipeg, MB, Canada
  • 4Department of Community Health Sciences, University of Manitoba, Winnipeg, MB, Canada
  • 5Department of Internal Medicine, Medical Microbiology & Infectious Diseases, University of Manitoba, Winnipeg, MB, Canada

Background: People living in long-term care facilities (LTCF) are at high risk to develop active tuberculosis primarily as a result of reactivation of a latent TB infection, or endemic transmission between residents. Current national guidelines in Canada are to use a posterior-anterior and lateral chest X-ray to screen for TB for those over 65 years old, upon admission to a LTCF.

Objective: To assess the available evidence for cost benefits of universal chest X-ray screening for new LTCF residents.

Methodology: We conducted a search for all articles published until September 2018, in PubMed and WorlCat databases, in English, using a combination of key words: chest X-ray, chest radiography or CXR, long-term care, elderly, screening, and tuberculosis. We also reviewed publicly available guidelines for screening new residents to LTCF from across Canada. We report on a qualitative synthesis of the evidence in the documents retrieved.

Results: The final review yielded four cost-effectiveness studies (2 of 4 conducted in countries with low incidence), one systematic review, one recommendation/editorial, and one cohort study. We found that in a tuberculosis low-incidence country the CXR cost per identified case was $672,298 CAD. Enacting a more targeted screening program, perhaps one that tests only those who previously had TB, or other high-risk medical conditions may enhance the cost-effectiveness.

Recommendations: We suggest reviewing the screening policy for active TB in people entering LTCF, which is based on a CXR. The results indicate that a targeted search for active TB in people with symptoms or other high-risk medical conditions may be more cost-effective.


According to the World Health Organization, 9.0–11.1 million people developed tuberculosis (TB) disease in 2017 globally (1). Canada is a low-incidence country, with an incidence rate of 4.9 cases per 100,000 population (1, 2). In 2017, as in previous years, the largest percentage of reported cases in Canada was seen in young adults (aged 25–34 years). However, the highest incidence rate was observed among people aged >75 years, higher than in any other age group at 10.0 per 100,000 population (2). Of active TB diagnoses, 71.8% of cases (n = 1,290) were among foreign-born individuals, and 17.4% of cases (n = 313) were Canadian-born Indigenous persons (2).

People living in long-term care facilities (LTCF) are considered to have an elevated risk of developing active tuberculosis as a result of (i) reactivation of a latent TB infection (LTBI); (ii) biological (compromised nutrition and immune status, underlying comorbidities, medications-conditions that increase in prevalence with aging) and socioeconomic (poverty, living conditions, and access to health care) factors; and (iii) the close living quarters associated with such facilities (35). The Canadian Tuberculosis Standards, 7th Edition (2014) includes as LTCF the follow settings: homes for the aged, nursing homes, chronic care facilities, hospices, retirement homes, designated assisted living centers, and any other collective living center (6). Because of the highly communicable potential of the TB bacterium M. tuberculosis, transmission between residents and from residents to staff remains a concern in such facilities (3).

According to the Canadian Tuberculosis Standards 7th Edition, all new residents entering a LTCF should undergo a history and physical examination by a physician or nurse practitioner to screen for TB within 90 days prior to admission, or within 14 days after admission (6). Active TB screening is conducted using a posterior-anterior and lateral chest X-ray (CXR) upon admission for those over 65 years old, and a baseline two-step TST upon admission for LTBI for identified populations ≤ 65 years old. Verma et al. commented that the implementation of screening LTCF residents varies between provinces (7).


The objective of this review was to assess the available evidence for the benefits of the current policies of screening new residents of LTCF using chest X-rays upon admission, and whether such benefits outweigh the risks and/or costs.


Eligibility Criteria

One author (MH) conducted a search and studies were selected according to the following criteria: any article published up to September 2018 in PubMed and WorldCat databases, in English, Spanish or Portuguese. There was no restriction in the countries related to the prevalence of active TB, sex of participants or strategies to compare. We excluded any paper where the X-ray was not included as an evaluated strategy, and studies done in settings other than LTCFs.

Searching Strategies

We used a combination of keywords: chest X-ray, chest radiography, CXR, screening, long-term care, tuberculosis, and elderly. The searches were conducted in September 2018 and all articles published before that were reviewed. The searches were replicated independently by a second author (MH-B) to ensure no studies were missed. One additional paper was retrieved in the repeated search.

Study Selection, Data Collection

Once the articles were identified in the search strategies, we proceeded with the elimination of duplicate items and reading abstracts. Publications selected and related to active TB screening in people who enter or reside in LTCF were read and relevant data were extracted to an Excel worksheet: author(s), article name, year of publication, country and incidence level, study type, sample size and methodology, overview of findings, results and relevance to research question.

With the intention of determining which people are the most important to prioritize for screening, we expanded the search to look for articles that refer to risk populations for active TB among those over 65 years of age. In addition, we conducted an on-line search of websites for the Canadian provinces and territories to determine any available information on current TB screening requirements for LTCF residents. We report on a qualitative synthesis of the collected information.

Ethics approval was not required for this review.


Table 1 summarizes the results of our on-line search of provincial and territorial requirements or guidelines for chest X-rays to screen for TB in LTCF residents. As the table illustrates, definitions of LTCF vary somewhat, as do priority populations and the timing and methods for TB screening for new residents.

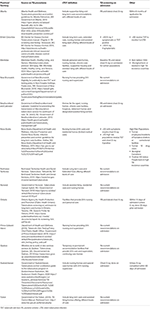

Table 1. Current Canadian recommendations for chest X-rays upon admission to long-term care facilities, by province and territory.

We found 870 papers in our searches, of which 25 were related to our objective, and only seven studies were relevant (see Figure 1). Of the seven, we found four cost-effectiveness studies (2 of 4 conducted in countries with low incidence) (710), one systematic review (11), one retrospective cohort study (12), and one summary of evidence and recommendations (4). The most important results are summarized below and Table 2 shows the detailed information for each study.


Figure 1. Flow diagram showing the results of searches and articles reviewed. Adapted from PRISMA, Available online at:


Table 2. Characteristics and main results of manuscripts that considered chest X-rays for active TB case finding, by study type and year of publication.

Cost-Effectiveness of Screening Using CXR to Find Active TB Cases

A 2013 cost-effectiveness study by Verma et al. (7) compared three approaches: no screening, LTBI screening with a baseline two-step TST, and screening for active TB with a chest radiograph. Using a simulation model with real data in Alberta, Canada, the authors found the cost for chest X-rays (CXR) per identified case to be $672,298 CAD. It took 1,266 screenings using CXR to avert one active case, which the authors considered to be “quite high” (7). Their results showed that identification and treatment of latent tuberculosis infection (LTBI) cost $109,913 per case averted but concluded that neither approach is cost-effective. The authors performed a sensitivity analysis and identified that LTBI reactivation has the greatest impact on cost effectiveness of screening, however there is no existing estimate of annual risk for reactivation among the elderly.

Li et al. used a Markov model to assess costs of four different screening strategies for a simulated population of over 65 years old in 2018 (8). Using their pre-determined cost-effectiveness threshold of $50,000 US per QALY gained, screening for TB using CXR was 1.3% effective (with no screening being 0), considerably less cost-effective than screening for LTBI.

Kowada ran a similar modeling experiment in 2016 (also with a threshold for cost-effectiveness of $50,000 per QALY gained) for a hypothetical population of 84 years-old LTCF residents in Japan with previous BCG vaccination. Of seven possible screening strategies, using CXR alone was found to be the least cost-effective means to find new TB cases (9). Also in Japan, Kowada et al. (10) modeled a hypothetical cohort of immunocompetent and 65 years-old people using three different strategies. Their results showed that no TB screening is the most cost-saving strategy, but the QFT is the most cost-effective, assuming high TB/LTBI prevalence (10).

Assessment of CXR and Other Methods to Screen for TB in LTCF

The single systematic review we retrieved found no consensus on the definition and interpretation of “abnormal chest radiograph consistent with prior TB,” nor on the importance of different sized non-calcified fibrotic lesions (11). Picazzo et al. found that a normal CXR is a frequent occurrence for patients presenting with symptomatic or culture-positive TB (11). For example, in a retrospective cohort study, Marciniuk et al. found that 25/518 (4.8%) of persons screened having culture-positive TB had normal CXRs; 23 of these 25 had symptoms indicative of TB, while contact tracing was used to diagnose the remaining two (12) [and as cited in Piccazzo et al. (11)]. Conversely, in another study that looked at the utility of CXR for diagnosing TB, 159/2,686 CXR exams (6.1%) were determined to have atypical results, yet none of these cases had active TB (13). Picazzo et al. concluded that CXR has good sensitivity but poor specificity for diagnosis of pulmonary TB (11).

When comparing the modeling results for four possible screening strategies, Li et al. found that the most cost-effective strategy was LTBI/TB screening, providing the highest Life Years (LYs) and QALYs gained (8). Results from Kowada's modeling were similar, finding that the most cost-effective TB screening practice was QuantiFERON ($ 50,000 US/QALY), while TST (tuberculin skin test) followed by QFT was best for residents considered to be higher risk of TB reactivation due to comorbidities, such as HIV infection, diabetes mellitus and chronic kidney disease (9).

In their 2004 position paper, Thrupp et al. recommended that newly admitted patients undergo TST unless there is a record of a previous positive result. They recommend CXR and clinical diagnosis for those with a positive TST result, and a second step of a two-step test if initial TST results are negative. The authors recommended repeat TSTs for employees and LTCF residents if new symptoms consistent with TB are observed or if other residents develop TB disease or TST conversions (4).

Specific Considerations on the Risk of TB for Elderly Women and Men

Several papers point out that co-morbidities that are prevalent in aging populations may further increase the risk of developing active TB disease, including diabetes mellitus and chronic obstructive pulmonary disease (COPD) (4, 14, 15). Canadian data show that ~25% of residents in LTCF have type 2 diabetes and that the number of residents with type 1 diabetes is unknown (16). In 2012–2013, 15% of seniors between the ages of 65 and 69 were living with COPD; among seniors aged 85 years and older, 26% were living with COPD (17). In addition, older patients are more frequently treated with medication that may suppress protective immunity. The most common example of this is corticosteroids in elderly women and men with COPD. Amongst immunosuppressive therapies, anti-TNF therapy particularly increases the risk of active TB (14, 18).

In countries with low TB incidence, migrants from countries with moderate or high TB incidence can be considered a high-risk group (7). In the United States in persons >65 years, the rate ratio of TB incidence comparing foreign-born to US-born persons, was 5.1 (CI95% 5.0–5.2) between 1903 and 2008 (18). A longitudinal study of the incidence of active TB in immigrants arriving between 1975 and 2007 in Victoria State, Australia, found that the risk of active TB was age dependent, with a bimodal peak in incidence among 20–24 years old and 70–74 years old. Region of origin is an important predictor of TB risk; in this study the rates of TB incidence on arrival were similar to the reported incidence rates in the countries of origin (19).

People residing in LTCF may have higher rates of TB than other older adults because they are at risk due to both a predisposition to reactivation of LTBI as well as an increased risk of cross-infection from an index case within the care home environment (4, 20). Careful evaluation of de novo infection and reactivation of LTBI may help to stratify risk in patients and target care to those at the highest risk of developing active TB (14), but this requires further exploration.

Discussion and Conclusions

The findings of this literature search show limited evidence supporting the recommendations for chest X-ray screening. Only one cost effectiveness study was done using Canadian data, and CXR was not found to be cost-effective for active TB screening (7). Three other cost-effectiveness studies determined that CXR was less cost-effective compared with other methods of TB screening (8, 9). Diagnosing and treating LTBI was found to be a more efficient strategy than active case-finding to mitigate TB in LTCF (8).

Recently, Ontario completed a technical report assessing active TB screening at entry to LTCF. The report identified that a very small proportion of LTCF residents in Ontario develop pulmonary TB (incidence rate of 4.6/100,000 per year, 2006–2015), and that LTCF contributes few pulmonary TB cases in Ontario (1.0% on average per year using data from 2006 to 2015) (21). Based on the results and in light of the goal of minimizing case rates and the spread of disease, it appears that a broad screening for every individual above the age of 65 is of low yield and is associated with significant cost. An option of a more targeted screening program, perhaps narrowing the scope of screening for active TB to those with prior TB, known TB exposure, a TST or IGRAs positive, or other high-risk medical conditions can enhance the screening cost-effectiveness (4, 7). There is support in the literature to give consideration to whether residents may be high risk if they have come to a low-incidence country like Canada from countries with high or moderate TB prevalence (14, 18, 19). However, we found no papers that discussed elderly Indigenous women and men who live in LTCF, nor any discussions of the aging populations in Indigenous communities, the care they may need, nor considerations for any heightened risk of re-acquiring or acquiring pulmonary TB. Hochberg and Horsburgh's review of US data suggests that older men, “people of color (including “Native American and Alaska Native),” and those who live in LTCF are at greater risk for active TB, but they do not contextualize their findings with preceding living conditions for those persons, such as life experiences of oppression, racism or poverty (18). Any new explorations of appropriate screening and care for elderly First Nations, Inuit, or Metis women and men in LTCF should be situated in the history of poor health care services and structural and systemic processes that have contributed to exposure to active TB and LTBI (22).

The major limitation of this assessment is the lack of data on elderly TB patients from all provinces and territories, as the prevalence and incidence varies (Manitoba has higher prevalence and incidence of active TB compared to Nova Scotia and Alberta, for example), hence applicability of the analysis is limited. In addition we did not conduct a cost-effectiveness analysis, nor is such analysis available for provinces other than Alberta.

As Canada's populations age, there is on-going need for training for physicians, nurses and other health care workers on TB natural history, disease progression, consideration of TB in the presence of respiratory symptoms in older women and men (4) and culturally appropriate prevention and responses (22). In addition, education for residents and their contacts about TB signs and symptoms is needed (7, 23). In the case of LTCF, these contacts can include staff, patients, family members, volunteers, and visitors (4, 5). A targeted approach for identifying sub-populations of LCTF residents with higher risk for active TB due to epidemiological considerations or the presence of specific co-morbidities, may improve the cost effectiveness of screening.

Author Contributions

YK and MH-B: substantial contributions to the conception or design of the work. MH and MH-B: acquisition of data. MH, YK, and MH-B: analysis and interpretation of data, drafting the article and revising it critically for important intellectual content, and final approval of the version to be published.


MH was recipient of ELAP, Emerging Leaders of Americas Scholarship, 2018. NCCID is funded by the Public Health Agency of Canada. The views expressed herein do not necessarily represent the views of the Agency.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


1. World Health Organization. Global Tuberculosis Report: Executive Summary. Geneva: World Health Organization (2018).

2. LaFreniere M, Hussain H, He N, McGuire M. Tuberculosis in Canada: 2017. Can Commun Dis Rep. (2019) 45:68–74. doi: 10.14745/ccdr.v45i23a04

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Rajagopalan S. Tuberculosis in older adults. Clin Geriatr Med. (2016) 32:479–91. doi: 10.1016/j.cger.2016.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Thrupp L, Bradley S, Smith P, Simor A, Gantz N, Crossley K, et al. Tuberculosis prevention and control in long-term–care facilities for older adults. Infect Control Hosp Epidemiol. (2004) 25:1097–108. doi: 10.1086/502350

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Matthews ML. Tuberculosis Education Program for Long Term Care Homes. Thunder Bay, ON: Lakehead University (2009).

Google Scholar

6. Ogunremi T, Menzies D, Embil J. Chapter 15–prevention and control of tuberculosis in health care and other settings. In: Canadian Tuberculosis Standards. 7th ed. Ottawa, ON: Public Health Agency of Canada (2014) p. 1–49.

7. Verma G, Chuck AW, Jacobs P. Tuberculosis screening for long-term care: a cost-effectiveness analysis. Int J Tuberc Lung Dis. (2013) 17:1170–7. doi: 10.5588/ijtld.12.0934

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Li J, Yip BHK, Leung C, Chung W, Kwok KO, Chan EYY. Screening for latent and active tuberculosis infection in the elderly at admission to residential care homes: a cost-effectiveness analysis in an intermediate disease burden area. PLoS ONE. (2018) 13:e0189531. doi: 10.1371/journal.pone.0189531

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Kowada A. Cost-effectiveness of interferon-gamma release assays for tuberculosis screening in nursing homes. Epidemiol Infect. (2016) 144:3215–25. doi: 10.1017/S0950268816001382

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Kowada A, Deshpande GA, Takahashi O, Shimbo T, Fukui T. Cost effectiveness of interferon-gamma release assay versus Chest X-ray for tuberculosis screening of BCG-vaccinated elderly populations. Mol Diagn Ther. (2010) 14:229–36. doi: 10.1007/BF03256378

CrossRef Full Text | Google Scholar

11. Piccazzo R, Paparo F, Garlaschi G. Diagnostic accuracy of chest radiography for the diagnosis of tuberculosis (TB) and its role in the detection of latent TB infection: a systematic review. J Rheumatol Suppl. (2014) 91:32–40. doi: 10.3899/jrheum.140100

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Marciniuk DD, McNab BD, Martin WT, Hoeppner VH. Detection of pulmonary tuberculosis in patients with a normal chest radiograph. Chest. (1999) 115:445–52. doi: 10.1378/chest.115.2.445

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Eisenberg RL, Pollock NR. Low yield of chest radiography in a large tuberculosis screening program. Radiology. (2010) 256:998–1004. doi: 10.1148/radiol.10100485

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Byng-Maddick R, Noursadeghi M. Does tuberculosis threaten our ageing populations? BMC Infect Dis. (2016) 16:119. doi: 10.1186/s12879-016-1451-0

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Winston CA, Stone ND. Detect to prevent: evaluating testing and treatment practices for latent tuberculosis infection in long-term care facilities. J Am Geriatr Soc. (2017) 65:1139–40. doi: 10.1111/jgs.14752

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Meneilly GS, Knip A, Miller DB, Sherifali D, Tessier D, Zahedi A. Diabetes in older people. Can J Diabetes. (2018) 42:S283–S295. doi: 10.1016/j.jcjd.2017.10.021

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Public Health Agency of Canada. Chronic Obstructive Pulmonary Disease (COPD) in Canada. Data Blog-Public Health Infobase (2018). Available online at: (accessed March 03, 2018).

Google Scholar

18. Hochberg NS, Horsburgh CR Jr. Prevention of tuberculosis in older adults in the united states: obstacles and opportunities. Clin Infect Dis. (2013) 56:1240–7. doi: 10.1093/cid/cit027

PubMed Abstract | CrossRef Full Text | Google Scholar

19. McBryde ES, Denholm JT. Risk of active tuberculosis in immigrants: effects of age, region of origin and time since arrival in a low-exposure setting. Med J Aust. (2012) 197:458–61. doi: 10.5694/mja12.10035

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Stead WW, Lofgren JP, Warren E, Thomas C. Tuberculosis as an endemic and nosocomial infection among the elderly in nursing homes. N Engl J Med. (1985) 312:1483–7. doi: 10.1056/NEJM198506063122304

CrossRef Full Text | Google Scholar

21. Cadieux G, Fung C, Fitzgerald-Husek A, Marchand-Austin A, Jamieson F, Saunders A, et al. Tuberculosis Screening on Admission to Long-Term Care Homes in Ontario. Toronto, ON: Public Health Ontario (2019).

22. Halseth R, Odulaja O. Addressing the Challenge of Latent Tuberculosis Infections among Indigenous Peoples of Canada. Prince George, BC: National Collaborating Centre for Aboriginal Health (2018).

23. Hoeppner VH, Ring ED. Tuberculosis in chronic care homes. Can Fam Phys. National Collaborating Centre for Aboriginal Health (1987) 33:1231–5.

PubMed Abstract | Google Scholar
