^{1}Department of Earth, Ocean, and Atmospheric Sciences, University of British Columbia, Vancouver, BC, Canada^{2}Natural Resources and Environmental Studies Institute and Geography Program, University of Northern British Columbia, Prince George, BC, Canada

In the majority of glacier surface energy balance studies, parameterization rather than direct measurement is used to estimate one or more of the individual heat fluxes, with others, such as the rain and ground heat fluxes, often deemed negligible. Turbulent fluxes of sensible and latent heat are commonly parameterized using the bulk aerodynamic technique. This method was developed for horizontal, uniform surfaces rather than sloped, inhomogeneous glacier terrain, and significant uncertainty remains regarding the selection of appropriate roughness length values, and the validity of the atmospheric stability functions employed. A customized weather station, designed to measure all relevant heat fluxes, was installed on an alpine glacier over the 2014 melt season. Eddy covariance techniques were used to observe the turbulent heat fluxes, and to calculate site-specific roughness values. The obtained dataset was used to drive a point ablation model, and to evaluate the most commonly used bulk methods and roughness length schemes in the literature. Modeled ablation showed good agreement with observed rates at seasonal, daily, and sub-daily timescales, effectively closing the surface energy balance, and giving a high level of confidence in the flux observation method. Net radiation was the dominant contributor to melt energy over the season (65.2%), followed by the sensible heat flux (29.7%), while the rain heat flux was observed to be a significant contributor on daily timescales during periods of persistent heavy rain (up to 20% day^{−1}). Momentum roughness lengths observed for the study surface (snow: 10^{−3.8} m; ice: 10^{−2.2} m) showed general agreement with previous findings, while the scalar values (temperature: 10^{−4.6} m; water vapor: 10^{−6} m) differed significantly from those for momentum, disagreeing with the assumption of equal roughness lengths. Of the three bulk method stability schemes tested, the functions based on the Monin-Obukhov length returned mean daily flux values closest to those observed, but displayed poor performance on sub-daily timescales, and periods of substantial flux overestimation.

## Introduction

The observed large-scale retreat of mountain glaciers is a primary indicator of current climate change, and the loss of mass from these systems may have significant future impacts on sea level rise, freshwater supply, hydroelectric power production, and aquatic habitats (IPCC, 2013). In Western Canada, glaciers are projected to lose 70 ± 10% of their volume by the end of this century, relative to 2005 (Clarke et al., 2015). Enhanced understanding of the processes taking place at the ice—atmosphere boundary, and the role of these processes in glacier melt, is vital for improving both long-term predictions of glacier mass balance, and short-term modeling of meltwater runoff. Utilizing a surface energy balance (SEB) model can reduce the reliance on local, empirically-derived melt relationships used in other modeling techniques (e.g., temperature index models) which can vary spatially and temporally, requiring calibration for each glacier, and limiting transferability. However, *in situ* measurements of the complete SEB are rare on glacier surfaces, necessitating the use of parameterization methods for one or more of the energy fluxes in the majority of studies. Following radiation, the turbulent fluxes of sensible and latent heat (*Q*_{H} and *Q*_{L}) are generally assumed to be the next largest contributors to surface melt energy, and in some cases, can dominate the budget on daily and seasonal timescales (e.g., Anderson et al., 2010). Direct observations of *Q*_{H} and *Q*_{L} are scarce on glacier surfaces, however. The parameterization methods commonly used to estimate these fluxes contain substantial uncertainties, with a lack of observed data to evaluate their performance.

A small number of glacier SEB studies have attempted to measure *Q*_{H} and *Q*_{L} directly using the eddy covariance (EC) technique (e.g., Munro, 1989; Cullen et al., 2007; Litt et al., 2015). The installation and power requirements of this technique, along with difficulties in fulfilling the necessary measurement assumptions (outlined in Section SEB Background) have limited the use of EC systems in glacial settings, and the length of useable datasets where measurements exist. As a result of these challenges, *Q*_{H} and *Q*_{L} have been parameterized in the vast majority of SEB studies, utilizing the bulk aerodynamic method (e.g., Hay and Fitzharris, 1988; Arnold et al., 2006; Anderson et al., 2010; Van As, 2011). One of the largest sources of uncertainty in using the bulk method arises from the selection of appropriate values for the roughness lengths of momentum (*z*_{0v}), temperature (*z*_{0t}), and water vapor (*z*_{0q}). Where observations of *z*_{0v} exist, differences of several orders of magnitude across a range of glacier surfaces have been identified (Brock et al., 2006). However, the majority of SEB studies do not have access to site-specific *z*_{0v} observations, and instead select values from existing studies on surfaces deemed to have similar characteristics to the glacier of interest (Mölg and Hardy, 2004; Gillet and Cullen, 2011; Giesen et al., 2014). *z*_{0v} is often assumed to remain constant with time, with some studies implementing different values for when the surface is snow or ice covered. A range of methods have been used for expressing the relationship between *z*_{0v}, and the scalar roughness values of *z*_{0t} and *z*_{0q}, including the assumption that the three roughness lengths are equal (e.g., Gillet and Cullen, 2011; Dadic et al., 2013). It would be expected, however, that *z*_{0v} be different, and potentially considerably larger than *z*_{0t} and *z*_{0q}, as the surface properties governing momentum and scalar transport (form drag and molecular diffusion, respectively) have different spatial scales (Beljaars and Holtslag, 1991). To account for this, some studies implement a ratio of *z*_{0v}/10 or *z*_{0v}/100 to express *z*_{0t} and *z*_{0q} (e.g., Hock and Holmgren, 2005). The surface renewal model proposed by Andreas (1987) for determining *z*_{0t} and *z*_{0q} over snow and sea ice (from a given *z*_{0v} value) is also commonly implemented in glaciology studies (e.g., Giesen et al., 2014).

The bulk method assumes a logarithmic wind speed profile with height; an assumption only valid in statically neutral surface layers (Stull, 1988). Some studies attempt to account for the effects of varying atmospheric stability by introducing corrections, such as those based on the bulk Richardson number *Ri*_{b} (e.g., Sicart et al., 2005), and the Monin-Obukhov length *L* (e.g., Van den Broeke et al., 2005). These empirically-derived stability functions were developed over horizontal, homogeneous terrain, often cropland or forestry, and uncertainty remains regarding the validity of these corrections over inhomogeneous, sloped glacier surfaces. In particular, the assumptions of the Monin-Obukhov similarity theory (e.g., constant flux layer, stationarity, negligible advection) may not hold during strongly stable atmospheric conditions over glaciers, when the development of density driven, downslope “katabatic” winds is common. Wind speed profiles with a maximum close to the surface can exist in these conditions, resulting in steep eddy diffusivity gradients, and a suppressed constant flux layer, decoupling the fluxes calculated at measurement height from the true surface values (Denby and Greuell, 2000; Grisogono and Oerlemans, 2001).

In summary, glacier SEB models generally rely on some form of parameterization to close the energy budget, due to an absence of observed values for fluxes of interest. This lack of direct measurement, however, particularly in the case of the turbulent heat fluxes, has limited the opportunities to evaluate the employed parameterization techniques, and to better understand the underlying atmospheric—glacial processes. To address these issues, the initial goal of this study is to obtain an accurate, season-long dataset of the complete SEB on a sloped glacier surface. Direct observations of each flux, including those of the turbulent heat fluxes obtained through EC methods, will be used to drive a point SEB ablation model, and to assess the relative contribution of each flux to melt energy on the study glacier i.e., the energy partitioning. The performance of the SEB model in simulating observed surface ablation will indicate the ability of the employed measurement and data processing techniques to successfully capture glacier SEB. With confidence achieved in the reliability of the observed data, the performance of commonly used bulk method parameterizations of the turbulent heat fluxes will be evaluated through comparison with EC observations. This will include a comparison of commonly assumed roughness length schemes with EC-derived values for the study site. The overall impact of the choice of turbulent flux parameterization on SEB model performance will then be assessed.

## SEB Background

SEB models attempt to account for all the energy terms contributing to mass changes at the glacier surface; a goal referred to as “closing” the energy budget. These terms include the four radiation fluxes of incoming shortwave (*S*_{i}), reflected shortwave (*S*_{r}), incoming longwave (*L*_{i}), and outgoing longwave (*L*_{o}), the four often combined into the net radiation flux (*Q*_{N}), the turbulent fluxes of sensible and latent heat, the heat flux due to rain (*Q*_{R}), and the ground heat flux due to temperature gradients in the ice (*Q*_{G}). SEB models utilize measurements or estimates of the above fluxes, in order to determine the energy available for melting, *Q*_{M} (Cullen et al., 2007; Giesen et al., 2014):

with *Q*_{R} and *Q*_{G} often deemed negligible in studies on mid-latitude glaciers (Sicart et al., 2005; Andreassen et al., 2008; Gillet and Cullen, 2011). For the direct measurement of *Q*_{H} and *Q*_{L}, the EC technique correlates high frequency measurements of the turbulent components of vertical wind speed (*w*) with those of potential temperature (θ) and specific humidity (*q*), to determine the magnitude and direction of the fluxes:

where the prime denotes the turbulent component, the overbar denotes a mean value (generally averaged over 30 min), ρ_{a} is air density (calculated from observed atmospheric pressure), *c*_{p} is the specific heat capacity of air (1,005 J kg^{−1} K^{−1}), and *L*_{v} is the latent heat of vaporization (2.514 MJ kg^{−1}), substituted with the latent heat of sublimation (*L*_{s} = 2.848 MJ kg^{−1}) if surface temperature is below 0°C. A range of assumptions are generally required to be satisfied in order for EC measurements to be considered valid (Burba, 2013), including: (i) observations are taken within the constant flux layer where fluxes are representative of the surface of interest; (ii) the footprint (upwind source area for the turbulence observed at the sensor) is homogeneous and representative of the study site; (iii) turbulence is fully developed and stationary with minimum flow divergence/convergence; and (iv) the sensor installation itself is not disrupting air flow (Lee et al., 2004; Aubinet et al., 2012).

For parameterizing *Q*_{H} and *Q*_{L}, the bulk aerodynamic method employs an integrated form of the gradient transport or “K-closure” theory equation for turbulent flux (Stull, 1988). The unknown terms in Equations (2) and (3) i.e., $\overline{{w}^{\prime}{\theta}^{\prime}}$ and $\overline{{w}^{\prime}{q}^{\prime}}$, are described using mean values of wind speed (*u*), and the finite differences in mean values of potential temperature and specific humidity between the surface (*s*), and a single measurement height (*z*):

The bulk transfer coefficient (*C*_{θ/q}) represents the eddy diffusivity for θ or *q* through the surface layer. It is derived from the logarithmic wind speed profile equation, and is a function of measurement height and the roughness length values for momentum (*z*_{0v}), temperature (*z*_{0t}), and water vapor (*z*_{0q}). As mentioned, a range of functions have been applied to *C*_{θ/q} to account for the effects of atmospheric stability on the turbulent transfer of momentum and scalars (detailed in Section Bulk Method Evaluation).

## Data and Methods

### Station Design

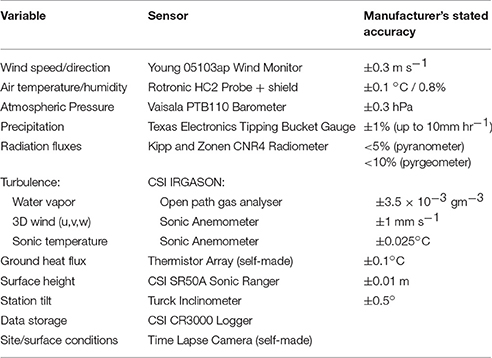

A customized automatic weather station (AWS) was developed for use in this project. The station housed a suite of meteorological sensors (Table 1), including a four component radiometer to measure each of the radiation fluxes, and a tipping bucket rain gauge to observe precipitation (and calculate *Q*_{R}). The temperature profile of the surface layer of ice was measured for the calculation of *Q*_{G} using two thermistor arrays drilled into an initial depth of 4 m, with thermistor spacing of 0.25 m in the upper 1 m, and 1 m in the lower 3 m. A sonic ranger was used to observe changes in surface height due to ablation or snowfall. To directly measure the turbulent heat fluxes, the EC method was employed. A combined sensor, comprising a sonic anemometer and an open path infrared gas analyser was selected for this campaign. With this design, the anemometer and analyser components instantaneously measure the same sample volume, minimizing temporal and spatial errors due to the physical separation of the sensors. The sampling frequency of the EC measurements was 20 Hz, with the values averaged over 30 min blocks when calculating the magnitude and direction of the turbulent fluxes.

In the atmospheric surface layer, significant gradients with height of temperature, humidity, and wind speed are typical. Therefore, it is important that meteorological sensors are maintained at a constant height above the surface if comparable measurements over time are required. The EC sensors are particularly sensitive to height changes, as increasing the height of the EC sensor may change the footprint from which the turbulence observed by the sensor is received (Burba, 2013). The sensor will also be at an increased risk of being positioned above the surface layer during strongly stable conditions, meaning that the sensor would no longer be observing eddies with characteristics of the glacier surface fluxes (Aubinet, 2008). To avoid these errors, the main meteorological sensors (including the EC system) were installed on a custom-built four-legged “quadpod,” which sits on the surface of the glacier (rather than being drilled in place), and lowers with the surface during the melt season (Figure 1). This ensured that the sensors maintained a constant height above the surface (wind monitor height *z*_{u}: 2.7 m, EC and temperature/humidity sensors height *z*: 2.0 m; radiometer height: 1.6 m). In order to monitor and correct for any tilting of the station that may occur over the season, an inclinometer was fitted to the quadpod to record its tilt angle in the x and y planes. The sonic ranger, along with the rain gauge, was mounted on a separate mast that was drilled into the ice, so that relative changes in glacier surface height could be measured. Observations were saved in 1 min averages (1 min totals for rainfall; 30 min samples for ice thermistors), while the eddy covariance data was stored in raw (20 Hz) format. A time lapse camera was also installed onsite, recording eight images per day of the surface and atmospheric conditions, and the general position and order of the AWS.

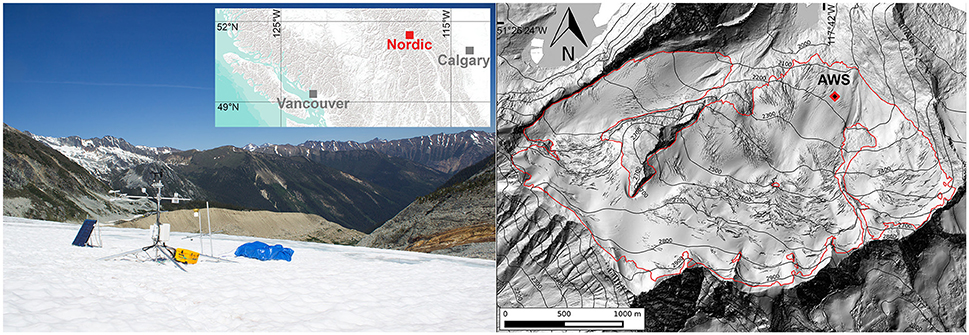

**Figure 1.** Installed AWS (as viewed by the time lapse camera), and its location on Nordic Glacier (red outline over LiDAR imagery) in the Purcell Mountains, BC, Canada, during the 2014 melt season.

### Field Campaign

The described AWS was deployed during the summer of 2014 on Nordic Glacier (51°26′N, 117°42′W) in the Purcell Mountains in eastern British Columbia (BC), Canada. Nordic is a small (~5 km^{2}), north-facing glacier, with an elevation range from 2,000 to 2,900 m a.s.l. (meters above sea level), approximately (Figure 1). The glacier is within the basin of the Columbia River; an important aquatic environment, and water source for irrigation and hydroelectric power production in BC, and the United States (Columbia Basin Trust, 2017). Previous studies within this basin indicate that glacier runoff may contribute up to a third of total streamflow during summer months (Jost et al., 2012). The AWS was installed in the ablation zone of the glacier (2,200 m a.s.l.) from July 11th to August 28th 2014, with the first and last days of measurements excluded from the study, to avoid contamination of the data due to installation activity. The study period therefore runs for 47 days from 00:00 on July 12th, day of year (DOY) 193, to 23:30 on August 27th (DOY 239). The station site was selected in the area with the lowest surface slope angle (8°), and with the most uniform upwind footprint, to help minimize the corrections required when processing the radiation and EC data. The station was orientated so that the radiometer was located on the south side of the structure, in order to avoid shadowing of the sensor. The main axis of the EC instrument was positioned to point upslope into the direction of the prevailing wind (downslope flow), to minimize flow distortion due to air flow through the station structure. The AWS performed reliably over the study period, with the quadpod remaining stable throughout (tilting < 2°), the power system maintaining an adequate supply, and the data from all sensors (including the camera) being consistently logged without any evident systematic errors. One of the main concerns prior to deployment, was the reliability of an unattended EC system in a harsh environment for an extended period of time. Calibration of the sensor before and after deployment showed negligible drift in its measurements over the season, while the signal strength of the gas analyser (excluding rain events) decreased from 99 to 97%, staying well above the manufacturer recommended quality cut off point of 70% (Campbell Scientific Inc., 2013).

### AWS Data Treatment

#### Eddy Covariance Data

The EC data underwent a series of preprocessing steps prior to retrieving the 30 min turbulent fluxes of sensible and latent heat. Relative to the air flow on a glacier, the sonic anemometer cannot be leveled perfectly i.e., its vertical (*z*) axis will not be perpendicular to the mean flow. The vertical wind component (*w*) as measured by the sensor will thus be contaminated by contributions from the horizontal (*u* and *v*) components. To correct for this, the sonic anemometer data must undergo coordinate rotation. For the complex, sloping terrain of a mountain glacier, where the mean vertical wind (*w*) may be non-zero, the double rotation method may not be suitable, and therefore, a planar fit method has been implemented for this study (Wilczak et al., 2001). Long term measurements of *u*, *v*, and *w* are used to construct a hypothetical plane to which the *w* axis is set perpendicular. The features and slope of a glacier surface can change over a melt season, however, meaning this hypothetical plane may not be valid over an entire period. In this study, the planar fit calculations were performed in 1 week blocks (seven times in total), to account for the ongoing evolution of the surface. As the gas analyser component of the open path EC system measures the molar/mass density (g m^{−3}) of water vapor in the sample space, variations in air density due to changes in temperature will cause fluctuations in the water vapor density measurements which are independent of changes in the turbulent fluxes. The widely used Webb-Pearman-Leuning correction (Webb et al., 1980) has been implemented to account for these fluctuations. Additional preprocessing steps were taken to correct for potential high and low frequency flux loss using methods following Ibrom et al. (2007) and Moncrieff et al. (2004), respectively.

The open path gas analyser can be susceptible to spurious readings during precipitation events due to the build-up of droplets or snowflakes on the sensor windows, leading to inaccurate *Q*_{L} observations. The EC *Q*_{L} values from periods with observed precipitation and the following 90 min (309 values; 13.7%) were therefore removed from the dataset (Figure 2B). This period length was selected based on testing of the sensor prior to deployment, which showed approximately a 90 min recovery period after rainfall for the windows to dry and the signal strength to normalize. Both fluxes were also subjected to a test of stationarity (Foken, 2008). *Q*_{H} and *Q*_{L} were found to be non-stationary for 15.4 and 24.5% of the observation period, respectively (Figures 2A,B). For assessing the performance of the bulk aerodynamic method, and for the calculation of roughness lengths, rain affected and non-stationary periods were excluded from the analysis. For the calculation of SEB and modeled ablation, rainfall and non-stationary gaps in the EC data were infilled using an optimized bulk method; the details of which are described in Section Roughness Lengths. While there is uncertainty regarding the validity of the bulk method during non-stationary conditions, it was selected as the best available approach in this study, and returned a more realistic range of flux values than the EC data during these conditions (Figures 2A,B).

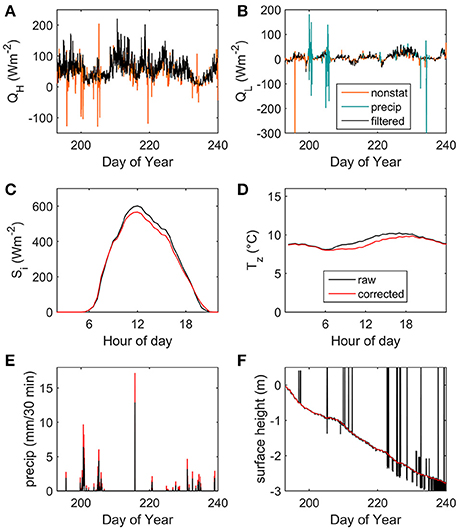

**Figure 2. (A)** Sensible and **(B)** latent heat fluxes with periods of non-stationary turbulence (orange) identified through the methods of Foken (2008), and periods of precipitation and the subsequent 90 min (teal), when the gas analyser windows may have been partially obscured. Also shown are the raw and corrected observation data for **(C)** the mean daily cycle (over 47 days) of incoming shortwave radiation, **(D)** the mean daily trend of near-surface air temperature, **(E)** 30 min precipitation, and **(F)** 30 min surface height.

#### Radiation Measurements

Observations of *S*_{i} are susceptible to errors at high solar zenith angles (*Z*_{s}) near sunrise and sunset, due to the poor cosine response of the sensor, particularly if the instrument is not level in the horizontal. In a number of studies (e.g., Andreassen et al., 2008), a 24 h running mean value for albedo (α) is calculated from the 30 min *S*_{i} and *S*_{r} data, and used to generate a new parameterized dataset for *S*_{i}. This correction method, however, does not account for sub-daily variations that can occur in α, due to snowfall, snow aging and removal, changing water content of the surface, and cloud amount. To allow for these variations, the *S*_{i} values in this study have only been corrected during periods when the sun is low in the sky. Based on the performance statistics provided by the radiometer manufacturer, a threshold value of *Z*_{s} > 65° was selected (Kipp and Zonen, 2009). A daily mean albedo value (α_{d}) is calculated from the observed *S*_{i} and *S*_{r} data when *Z*_{s} < 65°, and used to calculate *S*_{i} when *Z*_{s} > 65° (*S*_{i} = *S*_{r}/α_{d}). Observed *S*_{i} values are used for the remainder of the time.

When installed, the radiometer was leveled in the horizontal plane. The surface over which it is positioned, however, is sloped at an angle of 8°, and therefore, the intensity of the radiation exchange at this surface will be different from that recorded at the radiometer, and needs to be corrected for (Van den Broeke et al., 2004). As *L*_{i}, *L*_{o}, and *S*_{r} are assumed isotropic, only *S*_{i} is considered susceptible to this slope effect, and specifically, its direct component (*D*). As only global radiation (*G*) is measured by the radiometer (i.e., *S*_{i} = *G*), *S*_{i} is separated into its direct and diffuse (*d*) components following the methods of Hock and Holmgren (2005). The diffuse component is assumed to increase with cloudiness, which is estimated using the ratio (*x*) of *S*_{i} to the top of the atmosphere radiation (*I*_{TOA}):

Here, the empirical relationships derived in the above study (Equation 7) are assumed to be transferable to the Nordic site. A geometric correction is then applied to *D*, before it is recombined with the diffuse component to determine *S*_{i} at the surface (Jonsell et al., 2003):

where *D*_{s} is the direct *S*_{i} component at the slope, Ω is the solar azimuth angle, β is the slope angle relative to the radiometer, and θ is the slope azimuth angle. β is updated every 30 min to account for any tilting of the radiometer from horizontal, as recorded by the inclinometer (< 2° over the study). The combined effect of the cosine response and slope corrections on the observed *S*_{i} (Figure 2C) resulted in a mean reduction of 4.1% in the energy of the flux over the season, and a maximum 30 min reduction of 7% (66.2 Wm^{−2}).

The largest possible magnitude of *L*_{o} emitted by a melting snow/ice surface (at 273.15 K) is approximately 316 Wm^{−2}, and can be calculated using the Stefan-Boltzmann constant, σ (5.67 × 10^{−8} Wm^{−2} K^{−4}):

where ε is longwave emissivity (0.98), and *T*_{s} is the surface temperature (Park et al., 2010). This method accounts for the effect of emissivity and reflected *L*_{i} on the *L*_{o} value observed by the sensor. The observed *L*_{o} dataset was found to regularly exceed these calculated maximums (+10.1 Wm^{−2} or +3%, on average). This may have been due in part to the sensor receiving additional longwave radiation emitted by the station structure when warmed above 0°C. To correct for this, observed *L*_{o} values in excess of this threshold were lowered to the calculated maximum. An independent surface temperature measurement would be a useful addition to the system in future deployments.

#### Air Temperature Correction

The air temperature and humidity probe was housed in a naturally ventilated radiation screen, rather than in a mechanically aspirated screen, due to power constraints. As a result, the data may suffer from errors due to radiative heating of the sensor during periods of strong solar radiation (WMO, 1983; Hock and Schroff, 2004; Obleitner, 2004; Fitzpatrick, 2007). To account for this, a correction was implemented using the sonic temperature from the sonic anemometer, which is assumed less susceptible to radiation error. The sonic temperature (*T*_{sonic}) was converted to air temperature (*T*_{sa}) using the method of Kaimal and Gaynor (1991):

where *e* is vapor pressure, and *p* is atmospheric pressure. *T*_{sa} and *e* were calculated iteratively to account for the initial uncorrected air temperature value used to calculate *e*. The values of *T*_{sa} were then compared with the air temperature observations from the sensor in the screen (*T*_{z}), during nighttime periods (no solar radiation) with wind speeds above 3 m s^{−1} when the screen is well ventilated (Harrison, 2010), to obtain the mean bias between the sensors (−0.17°C). This bias was removed from *T*_{sa} to obtain *T*_{sa_unbiased}, which in turn was subtracted from *T*_{z} to calculate differences from measured air temperature (*T* = *T*_{z} − *T*_{sa_unbiased}). The variation of *T* with *S*_{i} was examined, and found to be well represented by a 2nd order polynomial ($T=-5.5x1{0}^{-7}{{S}_{i}}^{2}+0.0017{S}_{i}-0.052$; *r*^{2} = 0.76). This empirical fit was employed to estimate the correction required for radiation error in *T*_{z} for a given *S*_{i} magnitude, resulting in a mean temperature reduction of 0.3°C and a maximum reduction of 1.1°C (Figure 2D) for a 30 min average. Adding wind speed to this regression analysis was tested, but was found not to improve the goodness of fit.

#### Rainfall Undercatch

Studies on tipping bucket rain gauges have observed extensive underestimation of rainfall amounts (of up to 50%), primarily due to acceleration of airflow over the top of the gauge, with other error sources including splashing, and the finite time required for the buckets to reset in between tips during heavy rain (e.g., Devine and Mekis, 2008; Duchon and Biddle, 2010). An empirical correction was applied to the Nordic data to account for wind effects, following the work on a similar gauge by Mekonnen et al. (2015). The correction factor, *w*_{r}, accounts for the effects of wind speed at gauge height, *u*_{g}, and precipitation intensity, *I*_{p} (mm/h), on the observations:

where

and *z*_{g} is the height of the rain gauge, which is continuously updated from its initial installed height using the surface height data from the sonic ranger (as the gauge was mounted on a fixed mast rather than the quadpod). Using this correction, the undercatch for the Nordic precipitation data was estimated to be 40.4%, on average (Figure 2E).

#### Surface Height Measurements

Surface height datasets obtained from sonic rangers are characteristically noisy, and require processing prior to use. The raw data were first corrected for the effect of air temperature variation on the speed of sound, following manufacturer guidelines (Campbell Scientific Inc., 2014). A low pass filter was applied to remove a series of unrealistic spikes in surface height change with rates above 0.04 m min^{−1}, and to replace them with values from the previous minute. The surface height values were then passed through a 24 h moving average filter, chosen to optimize the retrieval of a smooth dataset that still displays sub-diurnal fluctuations (Figure 2F).

#### Rain Heat Flux

*Q*_{R} was calculated by first cross-examining the data obtained from the rain gauge with *T*_{z}, and determining whether the precipitation was rain or snow, based on a threshold near-surface air temperature (in this case, 1°C). The energy received from rain events in Wm^{−2} was then calculated following Hay and Fitzharris (1988):

where ρ_{w} is the density of water (1,000 kg m^{−3}), *c*_{w} is the specific heat capacity of water (4,180 J kg^{−1} K^{−1}), *R* is the rainfall rate, and *T*_{r} is the rain temperature which is assumed to be in equilibrium with *T*_{z}, and *T*_{s} is surface temperature. Apart from one brief period of snowfall on July 24th (DOY 205), all precipitation events during the study were deemed to have been rainfall. The utilized threshold air temperature for the occurrence or absence of snowfall was verified by examining the albedo values and camera images from these periods.

#### Ground Heat Flux

*Q*_{G} is estimated from the ice thermistor data, using the methods outlined in Konzelmann and Braithwaite (1995). Half-hourly flux profiles of the upper layer of the glacier were constructed using the following equation:

where *H*(*z*_{ice}) is the heat flux at the depth of each thermistor (start of season depths for *z*_{ice} = 0.25–4 m), K is the thermal conductivity of ice (2.1 W m^{−1} K^{−1}), and Δ*T*_{i} and Δ*z*_{ice} are the differences in ice temperature and depth between *z*_{ice} and the surface. The magnitude of *Q*_{G} at the surface for each 30 min period was then estimated by fitting a linear regression to the flux profile, and taking the regressed value for *H*(0). With no significant sub-daily trends in the observed data, and to allow for the slow response time of the ice thermistors, daily averages for *Q*_{G} were used in the SEB equation. The changing depths of the thermistors over the season (*z*_{ice}) were estimated from the initial depths of their installation and the surface height data from the sonic ranger. Data from thermistors that come within 0.5 m of the surface were excluded, to minimize the influence of radiative heating of the cables.

#### Error Analysis

Following the above processing and correction steps, the random error in the values for each of the eight fluxes was estimated. Standard error propagation methods were implemented to calculate the uncertainty in *Q*_{R} and *Q*_{G} from the sensor accuracies (Table 1) and uncertainties in the variables in Equations (13) and (14) (e.g., *R*, *T*_{s}, *T*_{i}, *z*_{ice}). For *Q*_{R}, the assumption made in Equation (13) that *T*_{r} is in equilibrium with *T*_{z} may not hold true where strong near-surface gradients in air temperature exist. Therefore, an assumed uncertainty of ±2°C was assigned to *T*_{r} for the error propagation calculations. The random error in the EC-observed turbulent fluxes due to sampling errors was estimated following the methods of Finkelstein and Sims (2001). Where *Q*_{H} and *Q*_{L} values have been replaced by bulk estimated fluxes due to periods of precipitation or non-stationary turbulence, error propagation has been applied to Equations (4) and (5). As stated in Section Eddy Covariance Data, there may be additional unquantified uncertainty here due to the application of the bulk method during non-stationary conditions. Uncertainty values for the shortwave and longwave radiation fluxes, as provided by the sensor manufacturer (Kipp and Zonen, 2009), are listed as being <5% and <10%, respectively, for daily totals. To refine these values for the measurements in this study, the uncertainty in the shortwave fluxes was estimated from the deviations of the raw *S*_{i} and *S*_{o} measurements from 0 Wm^{−2} at night, and for the longwave fluxes from the deviations of the *L*_{o} measurements from the values expected for a melting surface (Litt et al., 2015). The smoothed surface height dataset also contains uncertainty due to the choice of length of moving average filter used (Section Surface Height Measurements). A range of time lengths were tested for the filter window (3–48 h), and the maximum and minimum height values for each period were used to determine the uncertainty range on the 24 h filtered data.

### SEB Model

In the first stage of the model, the observed energy fluxes are converted into 30 min averages and summed to obtain averages of *Q*_{M} in Wm^{−2} (Equation 1). The general convention in glacier SEB studies is that fluxes resulting in a gain in energy of the surface have a positive sign. The maximum temperature a snow/ice surface can be warmed to is 0°C. When the glacier surface is at this temperature, any positive energy available in the *Q*_{M} term is used by the model to generate melting (Hock, 2005):

where *M* is the average melt per second (for a given 30 min average of *Q*_{M}) in m of water equivalent (m w.e. s^{−1}), and *L*_{f} is the latent heat of fusion (0.334 MJ kg^{−1}). The unit of m w.e. expresses the thickness of the layer melted (per m^{2} of area) when the snow/ice is converted to water. The surface temperature of the glacier is estimated in the model using the observed (corrected) longwave radiation data (Equation 9). Sublimation (in m w.e. s^{−1}) is also accounted for in the model. A negative/positive value for *Q*_{L} (i.e., a loss/gain of latent heat energy) indicates mass loss/gain through sublimation/resublimation and can be accounted for as follows:

where |*Q*_{L}| denotes the absolute value. The values for melt and sublimation, converted from averages to 30 min totals, are summed together to calculate surface ablation (*a*). The performance of the SEB model is evaluated by comparing the values it generates with the data observed by the sonic ranger. Modeled ablation is converted into surface height changes (*z*_{gM}) by multiplying the half hourly ablation totals by the ratio of the snow or ice density (ρ_{s/i}) to ρ_{w}:

A thin layer of packed snow covered the site surface for the first 3 days of observations, and a constant value of 400 kg m^{−3} was used for ρ_{s}. For the remaining period, the ice surface was assumed to have a constant density of 900 kg m^{−3} (Arnold et al., 2006; Gillet and Cullen, 2011; Van As, 2011). These surface height values can then be compared directly with the smoothed values from the sonic ranger. Accumulation due to snowfall and deposition is also added to the modeled surface height, so as to more accurately follow the observed values. During the single, brief period of snowfall (0.001 m w.e. approx.), a density of 80 kg m^{−3} was assumed for the fresh snow; a low density value to account for the thin and incomplete coverage of snowfall over the study site.

### Bulk Method Evaluation

The performances of bulk method parameterizations of the turbulent heat fluxes (Equations 4 and 5) were evaluated through comparisons with the observed fluxes from the EC system. Three of the bulk transfer coefficient forms most commonly used in glacier studies have been tested here. The first form assumes neutral atmospheric stability (excludes a stability function), and a logarithmic wind speed profile (e.g., Conway and Cullen, 2013):

where *k* is the von Kármán constant (0.4). The second form includes a function for stability based on the bulk Richardson number, *R*_{ib} (Webb, 1970; Brock et al., 2010):

where

$\varphi ={(1-{5R}_{ib})}^{2}$ for stable conditions (positive *R*_{ib}), and $\varphi ={{(}1-{16R}_{ib})}^{0.75}$ for unstable conditions (negative *R*_{ib}), and *g* is acceleration due to gravity (9.81 ms^{−2}). The third form uses stability functions based on the similarity theory of Monin and Obukhov (1954), and is arguably the most frequently used stability scheme in glacier SEB models (Arnold et al., 2006; Giesen et al., 2014):

where ${\psi}_{m}\left(\frac{{z}_{u}}{L}\right)$ and ${\psi}_{h}\left(\frac{z}{L}\right)$ are the vertically integrated stability functions for momentum and heat, with the stability function for water vapor, ${\psi}_{e}\left(\frac{z}{L}\right)$, assumed equal to ${\psi}_{h}\left(\frac{z}{L}\right)$. *L* is the Obukhov length:

where *u*_{*} is the friction velocity (a function of shear or the vertical flux of horizontal momentum). Conceptually, *L* can be thought of as the height above the surface where buoyant forces equal shear forces in the production of turbulence (Stull, 1988). As *L* contains *Q*_{H}, an iterative scheme is used when solving Equations (4) and (22), following Munro (1989). The parameter $\frac{{z}_{u}}{L}$ is used to determine stability conditions, with $\frac{{z}_{u}}{L}$ < 0 implying unstable, $\frac{{z}_{u}}{L}$ > 0 implying stable, and $\frac{{z}_{u}}{L}$ = 0 implying neutral. In this study, the functions proposed by Beljaars and Holtslag (1991) have been used in Equation (21) for stable conditions:

with *a* = 1, *b* = 0.667, *c* = 5, and *d* = 0.35. For unstable conditions, the methods of Dyer (1974) have been implemented:

where $y={\left(1-16\frac{{z}_{u}}{L}\right)}^{\frac{1}{4}}$ for Equation (25), and $y={\left(1-16\frac{z}{L}\right)}^{\frac{1}{4}}$ for Equation (26).

#### Roughness Lengths

The roughness length values for the Nordic Glacier site were calculated directly from EC-observed data for wind speed, air temperature, specific humidity, friction velocity, Monin-Obukhov length, and the surface layer scales for temperature and specific humidity (*u*_{ec}, *T*_{ec}, *q*_{ec}, *u*_{*ec}, *L*_{ec}, θ_{*ec}, and *q*_{*ec}, respectively) (Conway and Cullen, 2013):

*q*_{s} is determined from the surface vapor pressure (*e*_{s}) which is assumed to be at saturation at *T*_{s} (*q*_{s} = 0.622*e*_{s}/*p*). A series of filters were applied to the 30 min data to identify periods optimal for calculating accurate roughness length values, representative of conditions on the glacier, and with minimum scatter. Wind direction is an important filter, and data were used when the wind was blowing from within a 90° window around the main axis of the EC sensor (which pointed to 225°), to minimize flow distortion due to air flow through the station structure. Minimum values for wind speed (3 m s^{−1}) and *u*_{*ec} (0.1 m s^{−1}) were also implemented to avoid large errors in *z*_{0v}. As previously described, precipitation can affect the data observed from the gas analyser. Measurements of *u*_{*ec} also displayed spiking during rainfall, and so periods of precipitation were excluded from roughness length calculations. Sufficient near surface gradients in temperature and vapor pressure are necessary to determine *z*_{0t} and *z*_{0q}. Therefore, filters for minimum differences in measurement and surface height values of air temperature (>1°C) and vapor pressure (>66 Pa) were applied (Calanca, 2001; Conway and Cullen, 2013). The mean free path length for molecules at the average pressure and temperature at the station was calculated to be approximately 1 × 10^{−7} m, and this value was used as a minimum physically plausible value for scalar roughness lengths (Li et al., 2016). As was carried out during pre-processing of the EC fluxes, turbulence for each 30 min period had to pass a test of stationarity (Foken, 2008) to be used for roughness length calculation. Due to the uncertainty regarding how valid the applied stability functions are for a glacier surface, a filter to only use data from near-neutral stability conditions ($-0.1<\frac{z}{{L}_{ec}}<0.2$), when these functions are negligible, has been applied (Smeets and van den Broeke, 2008; Conway and Cullen, 2013).

In addition to implementing the EC-derived roughness values calculated above, the bulk transfer coefficients were also evaluated using a number of the most commonly used “assumed” roughness length schemes from previous glacier studies, where site-specific measurements of roughness length are generally unavailable. Two sets of values for *z*_{0t} and *z*_{0q} were estimated by assuming both an equal and a 1/100 relation to *z*_{0v}, where *z*_{0v} is assumed to be 10^{−3} m for ice, and 10^{−4} m for snow (Mölg and Hardy, 2004; Hock and Holmgren, 2005). A third set of values for *z*_{0t} and *z*_{0q} was calculated using these assumed *z*_{0v} values and the surface renewal theory methods outlined by Andreas (1987), where the ratio of the scalar (*z*_{0s}) and momentum roughness lengths are expressed as a function of the roughness Reynolds number *R*_{*}:

where ν is the kinematic viscosity of air (1.5 × 10^{−5} m^{2} s^{−1}). The values of the empirical coefficients (*b*_{0}, *b*_{1}, and *b*_{2}) change for smooth (*R*_{*} ≤ 0.135), transitional (0.135 < *R*_{*} < 2.5), and rough (*R*_{*} ≥ 2.5) flow regimes. For infilling the gaps in the EC-observed flux data due to precipitation and non-stationary turbulence (Section Eddy Covariance Data), an additional set of effective roughness length values were also calculated, which were tuned to return the observed turbulent flux values when implemented with *C*_{log}. Daily averages of these roughness values were used in Equation (18) to estimate the missing flux data.

## Results

### Meteorological and Flux Observations

The meteorological conditions remained mild throughout the study period (Figure 3), with a mean *T*_{z} of 8.9°C and consistently positive air temperatures (max: 16.1°C; min: 0.6°C). Cloud coverage was generally low, as verified by camera imagery, resulting in high net shortwave radiation fluxes over the season (mean: 130.6 Wm^{−2}) and low net longwave values (mean: −9.2 Wm^{−2}). The surface temperature *T*_{s}, was estimated to be at melting point for >99% of the study period, with the temperature below 0°C for a total of 5 h (min: −0.3°C). Precipitation was confined to three frontal systems and sporadic convective showers (total: 293.7 mm), with a trace amount of snowfall on July 24th (DOY 205). The mean *Q*_{R} value was 1.7 Wm^{−2} over the entire period, with a maximum 30 min average of 339.2 Wm^{−2} during an individual event with a 34 mm/h rainfall rate (DOY 215). Winds were generally light and steady, with a mean of 3.5 m s^{−1} and a maximum 30 min average of 7.2 m s^{−1}. The mean wind direction was 204°, which accords with the downslope air flow on the glacier. The wind remained within ±45° of this direction for 91% of the observation period, and within ±90°For 97% of the period, with no evident diurnal cycle. The positioning of the EC sensor within the prevaling wind window (main axis: 225°) ensured that, for the vast majority of observations, air flow was sampled by the EC system prior to being distorted by the station. *Q*_{H} remained positive for the entire observation period, with a mean value of 59.4 Wm^{−2}. *Q*_{L} fluctuated about zero, with a mean value of 9.0 Wm^{−2}. The ice thermistors recorded a small temperature gradient in the near-surface ice layer (~0.9°C over 4 m). As the thermistor cables gradually melted out over the season, the depth range of ice temperature measurements reduced. From the available data, little change is observed in the temperature profile over time, with a slight warming trend commencing a few days after the removal of the snow layer (DOY 196). With such a small temperature gradient, *Q*_{G} remained small, with a mean value of -0.7 Wm^{−2}.

**Figure 3.** Thirty minute meteorological data and surface energy fluxes for July 12th–August 28th (DOY 193–240) 2014 on Nordic Glacier; **(A)** pressure and precipitation, **(B)** 2 m air and surface temperature, **(C)** 2 m vapor pressure, **(D)** wind speed and direction, **(E)** incoming and reflected shortwave, **(F)** incoming and outgoing longwave, **(G)** sensible and latent heat fluxes, **(H)** rain heat flux, and **(I)** ice temperature profile and ground heat flux.

Error analysis performed on each of the observed fluxes returned daily average error values substantially smaller than the fluxes themselves (Table 2). The obtained mean uncertainties for shortwave and longwave fluxes of 1.9 and 3.3% are in line with those estimated in previous studies using similar sensors (Van den Broeke et al., 2004). It should be noted that there remains unquantified uncertainty in *S*_{i} and *Q*_{R} due to the previously described empirical corrections applied to the data. The combined effect of the errors in each flux were propagated to obtain the error in *Q*_{M} (mean relative error: ±9.9%). The uncertainity in the surface height data due to the required smoothing was calculated to be ±0.001 m (±71.4%) and ±0.008 m (±13.8%) for mean 30 min and daily values, respectively.

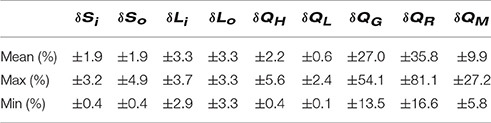

**Table 2.** Range of the daily average error values (% of mean fluxes) calculated for the eight observed fluxes and *Q*_{M}.

### Ablation Modeling and Surface Energy Balance Partitioning

The ablation values obtained from the SEB model show good agreement with those recorded by the sonic ranger (Figure 4). Both modeled and observed data returned a net surface ablation of 2.74 m over the 47 days. Examining model performance in estimating 30 min changes in surface height, the model showed a correlation (*r*) of 0.75 with the ranger data, and a root-mean-square error (RMSE) of 0.001 m/30 min. On a daily time scale, model performance was considerably improved (*r*: 0.86; RMSE: 0.02 m/day). Net radiation (*Q*_{N}) was the largest contributor to the melt energy, providing 65.2% over the study period (Figure 5A), with the longwave fluxes effecting a net loss of energy from the surface (−7.6% of *Q*_{N}), as shown in Figure 5B. *Q*_{H} was the second largest contributor with 29.7%, followed by *Q*_{L} with 4.5%. Due to the low magnitude and frequency of negative *Q*_{L} fluxes, little sublimation was observed during the season (0.1% of total ablation), while total resublimation (during positive *Q*_{L} periods) was estimated at 0.014 m w.e. Providing just 0.9% of the total melt energy, *Q*_{R} was observed to be the smallest positive contributor over the season, while *Q*_{G} was found to be a small surface energy sink (−0.4%). The day with the greatest observed ablation (in terms of m w.e) was July 29th (DOY 210), with 0.1 m w.e. of loss. This corresponds with the day of maximum net energy received at the surface, with a mean flux value of 288.8 Wm^{−2} observed (55% above the average daily value for the study).

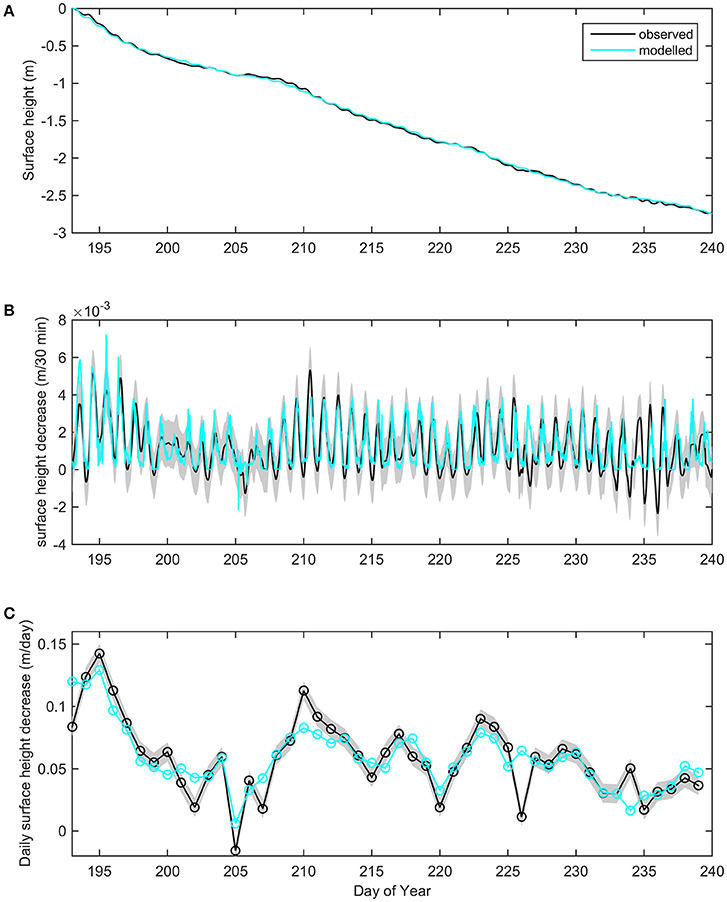

**Figure 4.** Observed (black) and modeled (cyan) surface height changes due to ablation/accumulation on Nordic Glacier, summer 2014; **(A)** surface height trend over the season, **(B)** 30 min rate of surface height change, and **(C)** daily rate of surface height change (midnight to midnight). The gray shading represents the uncertainty in the observed surface height values arising from the choice of moving average filter length when processing the sonic ranger data.

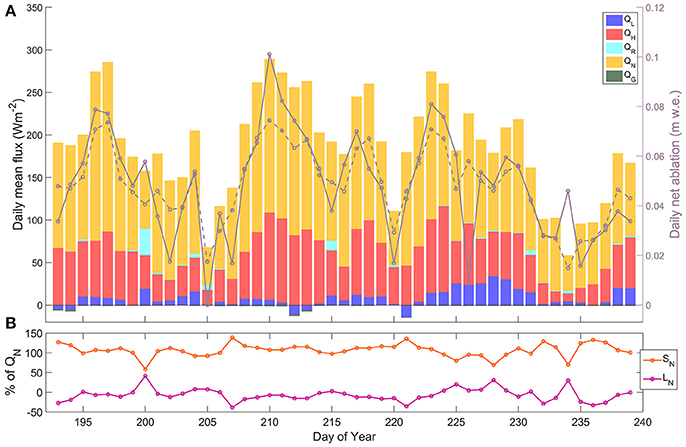

**Figure 5. (A)** Daily mean energy fluxes, and the daily net observed and modeled ablation (solid and dashed gray lines, respectively), and **(B)** percentage contribution of net shortwave and longwave radiation (*S*_{N} and *L*_{N}) to daily *Q*_{N}.

### Roughness Length Values

As previously described (Equations 27–29), the EC data obtained on Nordic Glacier were used to calculate a dataset of site-specific roughness length values (*ec*_*z*). Atmospheric conditions were predominately stable over the glacier (89% of study, as determined by $\frac{z}{{L}_{ec}}$) with few periods of neutral stability. As a result, application of the stability filter (along with the other filters described in Section Roughness Lengths) returned 69, 56, and 11 30-min periods for *z*_{0v}, *z*_{0t} and *z*_{0q}, respectively, when the values were deemed representative of the study surface. The mean log values of the roughness lengths (± 1 standard deviation) for these periods were 10^{−2.3 ± 0.9} m, 10^{−4.6 ± 1.1} m, and 10^{−6.0 ± 0.8} m, respectively. In Figure 6, the *ec*_*z* values are compared with those estimated from the most commonly used roughness length schemes from existing glacier SEB studies: “equal” (*z*_{0v} = *z*_{0t} = *z*_{0q}); “1/100” (*z*_{0v}/100 = *z*_{0t} = *z*_{0q}); the Andreas (1987) surface renewal method for *z*_{0t} (mean: 10^{−3.4} m) and *z*_{0q} (mean: 10^{−3.2} m). For each of these three methods, *z*_{0v} is assumed to be 10^{−3} m for ice and 10^{−4} m for snow cover (as discussed in Section Roughness Lengths). Based on camera and albedo observations, the surface was assumed to transition from snow-covered to ice-covered after the first 4 days (DOY 197). Separating the EC-derived *z*_{0v} values into periods with a snow or ice surface produced mean values of 10^{−3.8 ± 1.7} m and 10^{−2.2 ± 0.7} m, respectively.

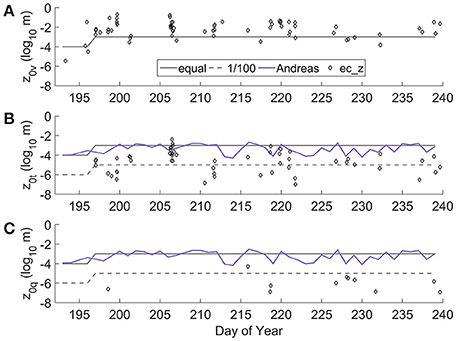

**Figure 6.** Thirty minute EC-derived roughness length values for **(A)** momentum, **(B)** temperature, and **(C)** water vapor, compared with commonly assumed roughness length schemes from the literature. For the assumed schemes, *z*_{0v} is 10^{−3} m for ice, and 10^{−4} m for snow (surface of the turbulence footprint area transitioned from snow to ice on DOY 197).

### Bulk Method Evaluation

Three forms of the bulk transfer coefficient (Equations 18–26), and the previously discussed range of observed and assumed roughness length values, were implemented to obtain 12 sets of bulk-estimated turbulent heat fluxes (see Table 3 and Figure 7). Where the *ec*_*z* data were used, the means of the available roughness length values were implemented (separating *z*_{0v} for snow and ice). Evaluating the bulk estimates of the fluxes against the EC observations was only carried out for periods with ideal EC measurement conditions, namely those that passed the filters used when calculating the roughness lengths (Section Roughness Lengths), excluding the stability filter. Therefore, 691 and 380 periods (31 and 17% of study period) were useable for *Q*_{H} and *Q*_{L} comparisons, respectively. The flux values returned by each bulk method varied greatly depending on the paired roughness scheme. For the *ec*_*z* values, *C*_{log} and *C*_{MO} show significant correlation with the EC-observed fluxes, in particular, for *Q*_{L} (*r* = 0.89, *p* < 0.01). Weaker correlation exists between *C*_{bR} and the observed fluxes, particularly for *Q*_{H}, in addition to substantial underestimation of *Q*_{H} and *Q*_{L} (MBE: −29.1% and −25.5%). Conversely, *C*_{log} and *C*_{MO}, substantially overestimate both fluxes. For the range of assumed roughness schemes, *C*_{log}, when coupled with the 1/100 roughness scheme, produces flux values closest to those observed.

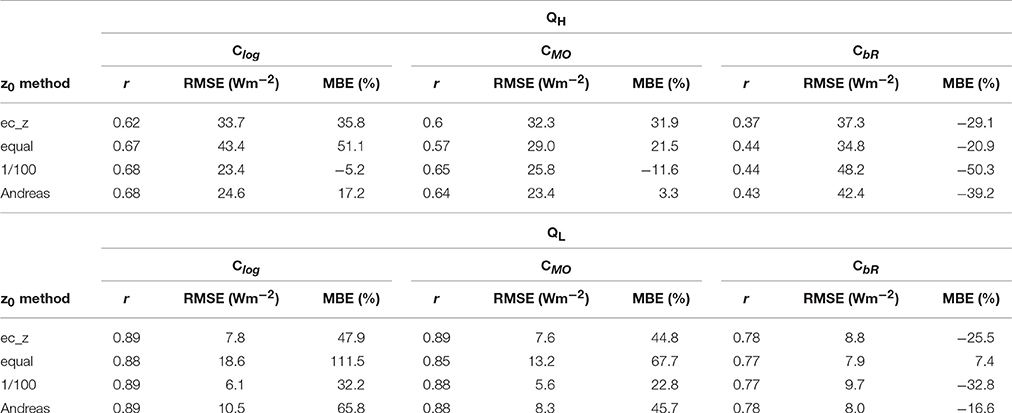

**Table 3.** Performance of the tested bulk methods in modeling the EC-observed turbulent fluxes of sensible and latent heat.

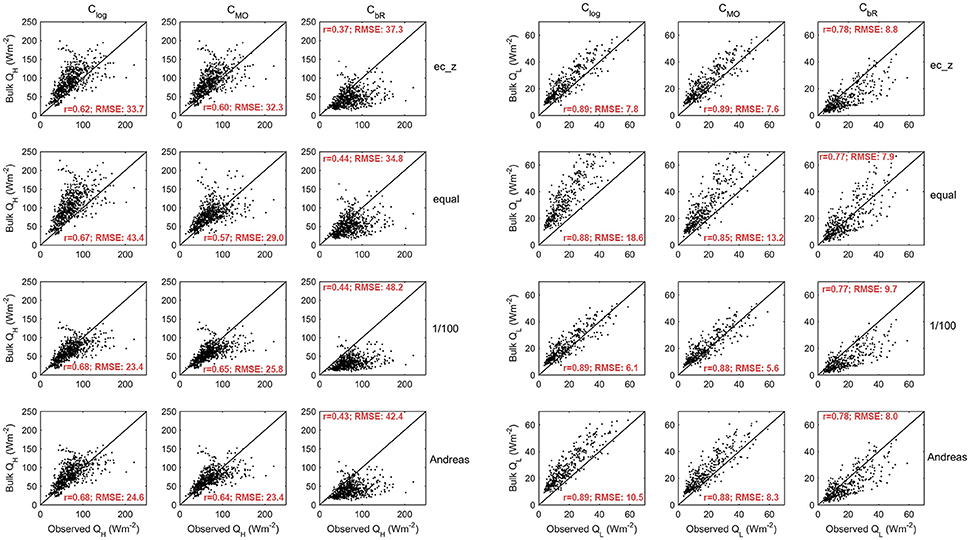

**Figure 7.** Performance of the tested bulk methods in modeling the EC-observed turbulent fluxes of sensible and latent heat.

## Discussion

### Energy Balance Observation and Closure

The strong performance of the model in replicating the recorded ablation rates gives a high level of confidence in the successful capture and closure of the SEB by the employed observation and correction methods. The trend of the modeled surface height over the 47 days (Figure 4A) shows no systematic bias to under or over-estimate when compared with the observed values, resulting in matching net values at the end of the study (−2.74 m). While good performance is also noted in the daily and 30 min ablation estimates, there are a number of pronounced periods where modeled values substantially differ from observations. Examining the daily timescale (Figure 4C), the days with the largest model differences are DOY 193 (+0.036 m), DOY 210 (−0.03 m), DOY 226 (+0.053 m), and DOY 234 (−0.034 m). In most cases, however, these differences can be attributed to observation error. Accidental compression of the snow underneath the sonic ranger during installation prior to DOY 193 resulted in a higher snow density and smaller observed height changes, while a review of camera imagery detected a clear tilting of the sonic ranger mast on both DOY 226 and 234, with the mast tilting forward and upslope on DOY 226 (sensor closer to the surface) and backward and downslope on DOY 234 (sensor further from the surface). DOY 210 was the day with the largest observed ablation and mean surface energy flux (288.8 Wm^{−2}), but recorded 30% more ablation than DOY 197, which received just 1% less energy (285.5 Wm^{−2}). Camera footage from DOY 210 may indicate the enhancement of a small meltwater stream within the footprint of the sonic ranger, which may have increased mass removal during this period, but the camera angle prevents definitive confirmation of this. Evaluating the SEB model performance with confirmed ranger error days removed (DOY 193, 226, 234) results in a marked improvement with *r*: 0.95 and RMSE: 0.01 m/day.

The SEB model offers good performance at 30 min resolution (*r*: 0.78; RMSE: 0.001 m/30 min, with aforementioned error days removed). The most prominent anomaly in the comparison between observed and modeled data at this timescale is the increase in surface height frequently observed by the ranger during night hours (negative values in Figure 4B). With only one period of trace snowfall during the study, accumulation does not account for these increases (mean increase of 0.003 m/night). A possible explanation for this behavior is the settling of the ranger mast into the warm surface ice; a signal that only becomes visible in the height data in the evening when surface ablation is reduced. With reduced heat and meltwater input into the borehole as the night progresses, this process slows, and at dawn, its signal is once again masked by ablation. This may also explain why the anomaly appears to be strongest in the later stages of the season (maximum increase of 0.03 m/night), when the base of the mast is closer to the surface, and more exposed to surface heat and under greater tilt leverage. An array of sonic rangers around the observation site would be a useful addition to future studies by providing additional data sources when sensor tilting or noise are obscuring the surface height signal from one. It would also help to constrain the likely range of ablation values at the glacier site where substantial variation in ablation can exist over small spatial scales.

In general, the partitioning of the observed SEB is in line with the values determined in existing studies on other mid-latitude glaciers (e.g., Hock and Holmgren, 1996; Greuell and Smeets, 2001). *Q*_{N} dominated melt energy, with its magnitude and variability primarily influenced by the net shortwave radiation (*S*_{N}), as shown in Figure 5B. Low cloud amount (reduced *L*_{i} fluxes) and a steadily melting surface (large magnitude *L*_{o} fluxes) resulted in a negative net longwave radiation flux (*L*_{N}), on average. The relatively large energy contribution provided by *Q*_{H} was maintained by the strong and consistently positive temperature gradients between the air and surface, and persistent downslope winds. *Q*_{R} provided a negligible contribution (<1%) to the total melt energy over the recorded period. However, over daily and sub-daily timescales, *Q*_{R} was observed to have a considerable influence on SEB and ablation during heavy rainfall. On July 19th (DOY 200), persistent heavy rain (daily total: 109.8 mm) resulted in a relatively large *Q*_{R} contribution of 20.1% to the daily energy flux (Figure 5A). There are previously mentioned uncertainties in the *Q*_{R} values arising from the observed rainfall rates, and the assumption made in Equation (13) that drop temperature is in equilibrium with air temperature. However, the general findings from this study show that, on daily and sub-daily timescales, *Q*_{R} has the potential to be a significant flux during extreme rain events; a phenomenon projected to become more frequent in a warmer climate (IPCC, 2013). Despite extensive cloud cover on DOY 200, daily ablation (0.058 m w.e.) was above the seasonal average (0.049 m w.e./day), with the non-radiative fluxes dominating *Q*_{M} (57.6%), highlighting the importance of accurate observation or estimation of non-radiative fluxes on glaciers (Fausto et al., 2016).

### Bulk Method Evaluation

The initial step in evaluating the bulk method and its uncertainties was to compare roughness lengths calculated from the observed EC data with those commonly assumed for glacier surfaces. Despite extensive filtering, the scatter of the EC-derived roughness values was large over time (Figure 6) due to a dependence on a range of mean and turbulent variables in their calculation, as noted in previous studies (Andreas et al., 2010). The mean *z*_{0v} value from *ec*_*z* over the first 4 day period (10^{−3.8} m) was found to be 1.6 orders of magnitude smaller than for the remaining 41 days (10^{−2.2} m). The area upwind from the station (i.e., turbulent flux footprint area) was predominately snow covered during this initial period, and may have presented a smoother surface to the flow than the subsequent ice surface. This observed value for snow is similar to the assumed *z*_{0v} of 10^{−4} m, but there is close to an order of magnitude difference between the observed and assumed (10^{−3} m) values for the ice surface. A *z*_{0v} value of 10^{−2.2} m is in the upper range of existing observations on glacier ice (Brock et al., 2006), and in line with measurements over rough, heavily gullied ice surfaces (Smeets et al., 1999). This relatively large roughness value may indicate the influence of the meltwater-enhanced channel network observed to develop on the surface of Nordic glacier during the study.

Rather than being equal to *z*_{0v}, the observed scalar roughness lengths were found to be several orders of magnitude smaller, as has been noted in previous studies (Beljaars and Holtslag, 1991; Smeets et al., 1998). The assumption that the scalar values are equal to each other was not observed at this site, with mean *z*_{0q} (10^{−6.0 ± 0.8} m) 1.4 orders of magnitude smaller than mean *z*_{0t} (10^{−4.6 ± 1.1} m). However, only 11 data points were available for *z*_{0q} after filtering, and there was substantial variability and overlapping of both sets of scalar values (Figure 8A). Substituting the *ec*_*z* values for *z*_{0v} into the tested roughness length schemes, the equal method overestimates both of the scalar roughness lengths, in some cases, by up to 4 orders of magnitude. The 1/100 method gives a reasonable mean value for *z*_{0t} while overestimating *z*_{0q}. The observed data for *z*_{0t}/*z*_{0v} show general agreement with the curve of the Andreas (1987) model (Figure 8B), but with a tendency for *z*_{0t} to be underestimated by the model (mean: 10^{−5.3} m). The Andreas model was developed over snow and sea ice, which normally present a smoother surface to the flow than glacier ice. Smeets and van den Broeke (2008) proposed an adaption to this model for rougher ice surfaces (*z*_{0v} > 10^{−3} m). This scheme was also applied to the observed *z*_{0v} data, resulting in a calculated mean scalar roughness length value of 10^{−3.2} m. Therefore, the observed *z*_{0t} values for this study lie mostly between both schemes. *z*_{0q} is overestimated by both methods, but shows best agreement with the Andreas model, with a modeled mean value of 10^{−4.9} m (Figure 8C). Relations between mean meteorological variables (e.g., air temperature, relative humidity) and the scalar roughness lengths have been proposed in previous studies (Calanca, 2001; Park et al., 2010). However, such relationships were not evident in this data set. For the roughness length results in general, the limited number of data points available for analysis due to the persistent stable atmospheric conditions makes it difficult to draw definitive conclusions. An expanded study over more than one location, and with a greater number of measurements during neutral conditions, would be beneficial.

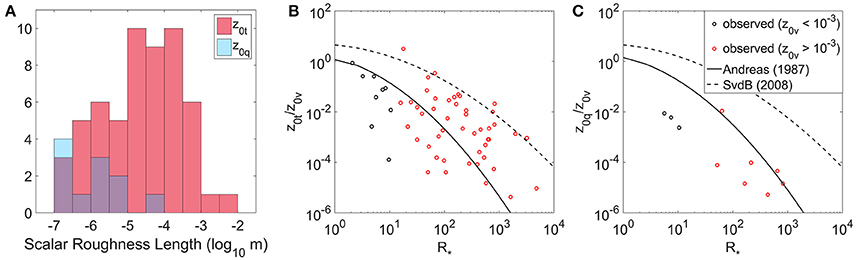

**Figure 8. (A)** Distribution of the EC-derived scalar roughness length values (overlapping regions in purple), and the relationships between the roughness Reynolds number and the **(B)** *z*_{0t}/*z*_{0v} and **(C)** *z*_{0q}/*z*_{0v} ratios, as proposed by Andreas (1987), and Smeets and van den Broeke (SvdB) (2008), and as observed in this study (during near-neutral conditions).

Assuming the *ec*_*z* values to be representative of the glacier surface, applying these roughness lengths to the three tested bulk transfer coefficients allows for an assessment of the performance of each stability scheme in returning flux values similar to those observed (Table 3). With no stability functions, *C*_{log} does not account for the suppression of turbulence that would theoretically be expected in the predominately stable surface layer at the site. The iterative scheme used to determine *L* for the *C*_{MO} method (Equation 22) was found to overestimate when compared with EC-derived values of *L*_{ec} (Figure 9B). As a result, stability is underestimated, and the suppression applied by the stability functions is insufficient. Similar overestimation of *L* has been observed in a recent comparison on a glacier surface by Radić et al. (2017). For daily mean fluxes (with only ideal EC measurement periods included), the performance of *C*_{MO} is significantly improved, with correlation values for *Q*_{H} and *Q*_{L} of 0.88 and 0.95, respectively (Figure 10). As mentioned, there was substantial observed variability around the mean *ec*_*z* values used in the bulk calculations. To test the sensitivity of the modeled fluxes to this variability, Monte Carlo analysis was applied to the utilized roughness lengths. For each 30 min *C*_{MO} flux calculation, 10,000 runs were performed where each of the three roughness lengths were selected at random from normally distributed populations with the means and standard deviations of the corresponding *ec*_*z* values. The standard deviation of the daily means from these runs are presented as error bars on the modeled flux values in Figure 10. Allowing for this sensitivity to roughness length input, periods of flux overestimation remain, being most pronounced during days with combined conditions of strong stability, large near-surface air temperature gradients, and relatively strong downslope winds, indicative of katabatic flow. Throughout the study period, the strengthening of the near-surface temperature gradient was observed to correspond with a strengthening of the downslope airflow that dominated the observed wind direction (Figure 9A). The possible development during very stable conditions of a low-level wind maximum near measurement height may have decoupled turbulence generation from the surface, and invalidated the assumptions of Monin-Obukhov similarity theory, such as a constant flux layer related to near surface gradients (Van der Avoird and Duynkerke, 1999; Denby and Greuell, 2000; Grisogono and Oerlemans, 2001; Parmhed et al., 2004). Simultaneous wind and momentum flux profile measurements at the study site would be required to confirm the presence and height of a low-level wind maximum, and to identify it as the cause of the error postulated above.

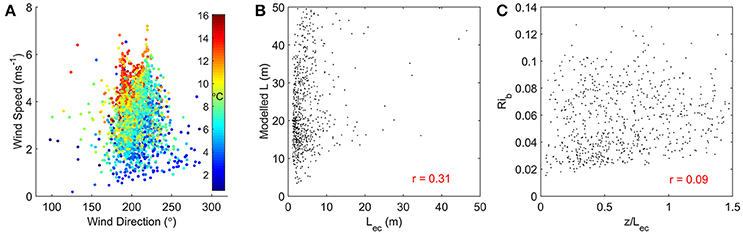

**Figure 9. (A)** Relationship between observed 30 min wind direction, wind speed, and 2 m air temperature, **(B)** observed vs. modeled Obukhov length values, and **(C)** observed stability parameter values vs. the calculated bulk Richardson number. Only values from periods with “ideal” EC conditions are displayed here.

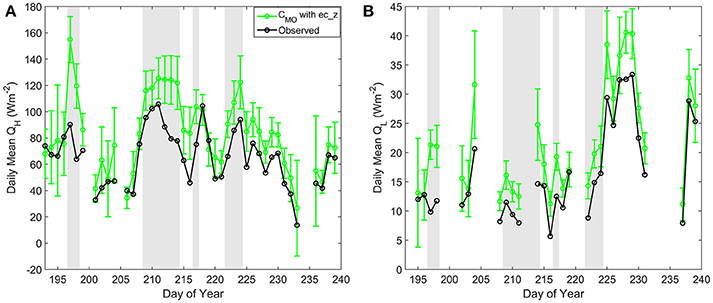

**Figure 10.** Daily means of observed turbulent heat fluxes (black) and *C*_{MO} modeled fluxes using *ec*_*z* roughness lengths (green), for **(A)** *Q*_{H}, and **(B)** *Q*_{L}. Periods with suspected low-level katabatic wind maximums are shaded gray. Daily means only include the 30 min periods which pass the filters for ideal EC measurement conditions. Error bars on the modeled fluxes represent the standard deviation of the daily means from the Monte Carlo sensitivity analysis.

As the majority of studies on glaciers do not have access to direct observations of turbulence or roughness lengths, the performances of the bulk methods were also evaluated using existing assumed roughness values and schemes. As noted, the combination of *C*_{log} and the 1/100 roughness scheme provides the best performing assumed bulk method. *C*_{log} may have been expected to overestimate the fluxes in the predominately stable atmospheric conditions during the study. However, implementing a roughness scheme with a mean *z*_{0v} substantially smaller than the actual value determined for the surface reduces the magnitude of the fluxes calculated by this method. The small underestimation of *Q*_{H} can be attributed to implementing a slightly smaller mean *z*_{0t} than was observed, and conversely for *Q*_{L}, with a slightly larger mean *z*_{0q}. *C*_{bR} displays the poorest performance of all bulk methods; its stability function excessively suppressing both fluxes, and yielding low correlation values, particularly for *Q*_{H}. *Q*_{L} is well modeled by *C*_{bR} when coupled with the equal roughness scheme; the excessive suppression being balanced by a large *z*_{0q} value. While showing general agreement that conditions were predominately stable (Figure 9C), the bulk Richardson number (mean = 0.06 ± 0.02) does not correlate with the observed stability parameter $\frac{z}{{L}_{ec}}$ from the EC data (*r* = 0.09). *C*_{MO} returns better performance than *C*_{bR}. *Q*_{H} is relatively well modeled when coupled with the Andreas roughness model; the small assumed *z*_{0v} compensated by an overestimated *z*_{0t}, and insufficient turbulence suppression by *C*_{MO}. A similar situation using the 1/100 method results in a well modeled *Q*_{L} by *C*_{MO}.

### Effect of Parameterization on SEB Closure

The implementation of direct observations for all eight fluxes in the melt model returned results that effectively closed the SEB of the study site. However, as complete flux observations on glacier surfaces are rarely available, the effects of simplifying and parameterizing aspects of the SEB are also considered. Some of the most basic assumptions and values used in SEB studies, namely, negligible *Q*_{R} and *Q*_{G}, and constant *T*_{s} (0°C) and *L*_{o} (315.6 Wm^{−2}, with unity emissivity), were applied to the model, and found to have little effect on performance when applied individually or in combination (*r* = 0.94; RMSE = 0.01 m/day, for daily surface height change). This result is specific to this field study, and may differ significantly if applied to sites other than continental, temperate glaciers. It should also be noted that due to the discussed adjustments made to the *L*_{o} data, the assumption of constant *T*_{s} has already been partially applied to the model. The impact of parameterizing the turbulent heat fluxes was also assessed, and the choice of bulk method used was found to have a major influence on closure performance. Figure 11A displays the daily deviation from *Q*_{M} (obtained through the fully observed SEB) for simplified SEB models with a range of previously discussed bulk methods implemented (in addition to the basic assumptions above). The returned daily model values can vary by ±40%, depending on the scheme utilized, resulting in differences of up to ±0.5 m from the sonic ranger observed (or full SEB modeled) cumulative surface melt over the study period (Figure 11B).

**Figure 11. (A)** Deviation from daily *Q*_{M} for a range of simplified SEB models with varying turbulence parameterizations (stability and roughness scheme identified), and **(B)** the cumulative effect of these deviations on modeled surface height over the study period. Each of the simplified models also assumes negligible *Q*_{R} and *Q*_{G}, and constant *T*_{s} and *L*_{o}.

## Conclusions

A method to observe the complete surface energy balance of a glacier has been employed in this study to investigate the ablation characteristics of a mid-latitude, alpine glacier. Direct observations of *S*_{i}, *S*_{r}, *L*_{i}, *L*_{o}, *Q*_{H}, *Q*_{L}, *Q*_{R}, and *Q*_{G} were implemented in an SEB model to produce half-hourly estimates of surface ablation, which were then compared with the observed ablation values over a 47 day period. In addition, the *Q*_{H} and *Q*_{L} observations, obtained using eddy covariance measurements, were used to evaluate the performance of a range of bulk method parameterization techniques commonly used in glacier SEB studies, where direct measurement of the turbulent fluxes is rare.

In general, the modeled ablation values showed excellent agreement with the observed data, accurately estimating the total surface height loss over the period (2.74 m), and providing good performance at daily (*r*: 0.95; RMSE: 0.01 m/day) and 30 min (*r*: 0.78; RMSE: 0.001 m/30 min) timescales. The observation system effectively captured and closed the surface energy balance of the glacier, and maintained continuous operation throughout the study period, indicating it to be a useful system for investigating glacier-atmosphere interactions. The SEB partitioning of Nordic Glacier was found to be similar to other mid-latitude glaciers, with net radiation dominating *Q*_{M} (65.2%). *Q*_{H} was also observed to be an important contributor to melt energy (29.7%), underlining the need to accurately account for the turbulent heat fluxes. At daily and sub-daily timescales, *Q*_{R} was observed to be a substantial energy source during heavy rain events (up to 20% of daily melt energy).

EC-derived measurements of *z*_{0v} obtained for the study site showed general agreement with previously observed values on glaciers, with a distinct difference in mean *z*_{0v} between periods with a snow (10^{−3.8 ± 1.7} m) and ice (10^{−2.2 ± 0.7} m) covered surface. The *z*_{0v} value for ice is close to an order of magnitude larger than that commonly used in the literature for similar surfaces (10^{−3} m). This gives emphasis to the importance of site-specific values, particularly when the impact of roughness length selection on the magnitude of the calculated fluxes, as observed in this study, is considered. The observed mean scalar roughness length values of *z*_{0t} (10^{−4.6 ± 1.1} m) and *z*_{0q} (10^{−6.0 ± 0.8} m) differ by several orders of magnitude from *z*_{0v}, disagreeing with the common assumption of equal momentum and scalar roughness lengths. Values for *z*_{0t} showed reasonable agreement with the *z*_{0v}/100 ratio and the surface renewal models of Andreas (1987) and Smeets and van den Broeke (2008).

Three of the stability schemes most commonly used in the bulk method were evaluated in this study through comparison of the parameterized fluxes with the EC-observed values. When implemented with the roughness length values calculated for the study surface (*ec*_*z*), each of the tested methods either over- or underestimated the turbulent fluxes for the stable atmospheric conditions on the glacier. The *C*_{MO} method returned the strongest performance overall, showing significant correlation with the observed fluxes over daily time scales, but a tendency to underestimate stability and the required turbulence suppression. Flux overestimation was most pronounced during days with a suspected low-level wind maximum near measurement height, when the associated decoupling of turbulence generation from the surface may have invalidated Monin-Obukhov similarity theory. Utilizing a range of unobserved, assumed roughness length values with the above stability schemes led, in a few cases, to a balancing of errors; the inaccuracies in the roughness values counteracting the deficiencies in the stability functions. As a result, relatively good performance in modeling the turbulent fluxes was achieved using ice and snow *z*_{0v} values from the literature (10^{−3} m and 10^{−4} m), and a bulk method that assumes neutral conditions (*C*_{log}) and a 1/100 roughness length ratio. However, the above technique is not firmly based on the physical characteristics of the study surface and boundary layer, and its transferability to other glaciers and seasons remains uncertain. As observed in this study, the choice of bulk method can dramatically influence the performance of an SEB model (±40% of daily *Q*_{M}), and a systematic approach for selecting the most accurate method for given conditions on a glacier requires further development.
