- 1Natural Gas Research Institute of Shaanxi Yanchang Petroleum Group Co., Ltd., Xi’an, China
- 2Oil and Gas Technology Research Institute, PetroChina Changqing Oilfield Company, Xi’an, Shaanxi, China
- 3Research Institute of Shaanxi Yanchang Petroleum Group Co., Ltd., Xi’an, China
The evaluation of the pore structure in dolomite, particularly with regard to pore heterogeneity, geometry, and connectivity, is crucial for oil and gas field production and reservoir prediction. The subsalt dolomite reservoir in the Ordovician strata of the Ordos Basin has shown promising exploration results and is anticipated to have a high hydrocarbon potential. However, there has been limited research on the pore structure and primary controlling factors of the Ordovician Majiagou reservoir in the south-central Ordos Basin. Therefore, we conducted a comprehensive analysis of the pore structure and fractal characteristics using routine petrophysical measurements, thin-section analysis, and high-pressure mercury injection (HPMI) data. We also discussed the relationship between fractal dimension, reservoir physical properties, and pore structure, along with exploring the origin of potentially prolific reservoirs. Our observations from the thin section identified four main pore types: intercrystalline pores, intercrystalline dissolved pores, dissolved pores, and micro-fractures. The data from HPMI revealed that the average pore–throat radii range from 0.009 μm to 0.015 μm with porosity ranging from 0.4% to 5.26%, and permeability ranging from 0.011 mD to 0.059 mD. They were further categorized into three reservoir types: dissolved pore type, intra-crystalline (dissolved) pore type, and micro-porous type. The fractal dimension was calculated based on HPMI data, and the reservoir’s fractal characteristics were divided into two segments. The dissolved pore type was identified as the potentially prolific reservoir due to its larger pore size and volume, moderate permeability, and homogeneity on pore structure. Additionally, the fractal dimension is negatively correlated with porosity and permeability and positively correlated with sorting coefficient and skewness, suggesting that fractal dimensions are valuable for evaluating reservoir quality and quantitatively characterizing pore networks.
1 Introduction
With the improvement of exploration and development technology, the carbonate rock associations are considered potentially significant contributors to the global crude oil supply (Luo et al., 2008; Ma et al., 2017; Yang et al., 2018). The oil and gas reserves in these types of rocks are widespread in China, including the Cambrian–Ordovician system in the Tarim Basin, the Paleozoic and Triassic system in the Sichuan Basin, and the Lower Ordovician series in the Ordos Basin, which have become an important part of increasing oil and gas storage and production (Lai et al., 2019; Zhao et al., 2012). However, carbonate reservoirs have strong heterogeneity and complex pore structure, making the exploitation and prediction of prolific reservoirs difficult.
Currently, researchers have utilized a variety of advanced methodologies such as petrographic observation, scanning electron microscopy (SEM), transmission electron microscopy (TEM), field emission scanning electron microscopy (FE-SEM), X-ray computed (micro) tomography, nuclear magnetic resonance (NMR), high-pressure mercury injection (HPMI), and incremental pressure mercury injection (IPMI) to characterize pore types, pore geometry, pore connectivity, pore size distribution, and pore volume on carbonate reservoirs (Gane et al., 2004; Sok et al., 2010; Jouini et al., 2011; Gundogar et al., 2016; Oyewole et al., 2016; Tan et al., 2020; Wang et al., 2020; Zhang et al., 2022). Additionally, they have investigated the relationship between carbonate reservoir and structure, sedimentation process, and rock mineral composition (Wei et al., 2017; Zhang et al., 2018). In recent years, several studies have proposed that high fractal dimension is associated with highly heterogeneous pore networks (Mastalerz et al., 2012; Melnichenko et al., 2012; Pan et al., 2016; Mendhe et al., 2017). Consequently, fractal dimensions can be employed to assess the pore heterogeneity of carbonate reservoirs to provide valuable insights into fluid flow properties and exploitation (Hulea and Nicholls, 2012; Menke et al., 2017).
However, limited research has been conducted on the heterogeneity characteristics of carbonate reservoirs in the Ordovician Majiagou Formation in the middle-southern region of the Ordos Basin. Therefore, this study aims to analyze the pore structure and fractal characteristics of carbonate reservoirs through cast thin-section analysis, routine petrophysical measurement, and HPMI analysis. Furthermore, an examination of different lithofacies is conducted to further analyze the factors influencing carbonate reservoir heterogeneity. These studies are essential for understanding the primary control factors of the development of reservoirs and may provide valuable support for gas exploration.
2 Geological background
The Ordos Basin is located on the western edge of North China, which is divided into six tectonic units, namely, the Yimeng Uplift in the north, the Jinxi flexure fold zone in the east, the Weibei Uplift in the south, the Tianhuan depression and the Xiyuan obduction zone in the west, and the Yishan Slope in the center (Figure 1A; Tu et al., 2016; Yang et al., 2022). The Lower Paleozoic natural gas production layer primarily lies at the top of the Ordovician weathering crust and the subsalt dolomite reservoir beneath the thick gypsum salt rock (Xiong et al., 2020; Meng et al., 2023). The Majiagou Formation was formed in the late Ordovician and is subdivided into O1m1 to O1m6. The lithology of the Majiagou Formation alternates between carbonate rocks and gypsum salt rock, among which the evaporite rocks in O1m1, O1m3, and O1m5 are limited to terrace-phase deposition in the sea-retreating cyclic platform, and the lithology is mainly salt rock, hard gypsum rocks, and thin layers of gypsum dolomite, muddy dolomite, and limestone (Xiong et al., 2020; Wang et al., 2022). On the other hand, O1m2, O1m4, and O1m6, deposited during the carbonate platform phase of the marine erosion cyclone, mainly consist of limestone and dolomite. The O1m5 Formation is

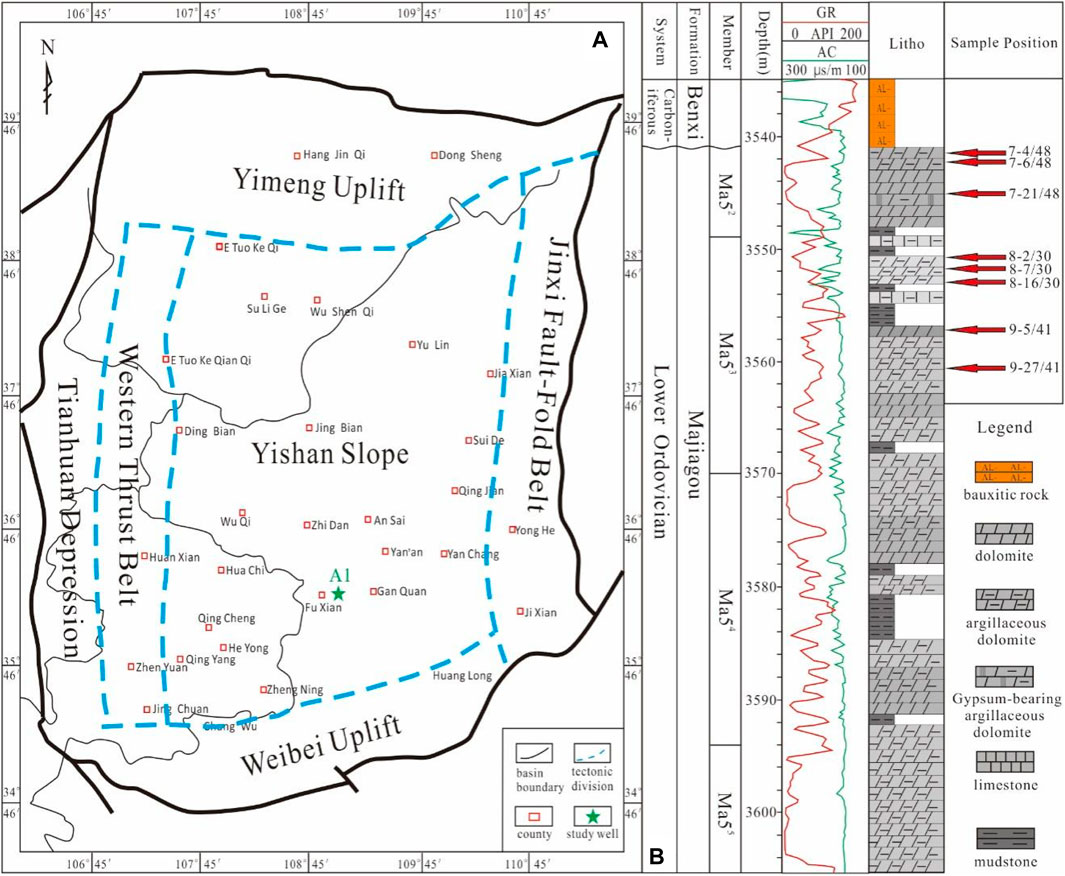

Figure 1. (A) Structural characteristics and the location of core well in the Ordos Basin and (B) the column of lithology characteristics and the sampling location.
Here, the study area is located in the south of the Yishan Slope of the Ordos Basin (Figure 1A), and we focus on
3 Experiments and methods
3.1 Samples
The research samples were taken from the continuous core profile of the
3.2 Petrographic observation
A total of 39 thin plates were polished for petrographic observation, of which eight thin sections were made from the core sample of well A1, and the 31 other thin sections were collected in the Natural Gas Research Institute of Shaanxi Yanchang Petroleum Group Co., LTD. The data images were collected by Xi’an Alberta Environmental Analysis and Testing Company. According to the Chinese Petroleum and Natural Gas Industry Standard SY/T 5368-2016, the mineral composition, particle type and content, and reservoir space classification were identified using a 59XC-PC polarizing microscope.
3.3 Petrophysical property tests
Petrophysical property tests of eight core samples were conducted, including the contents of porosity and permeability. The experiment was conducted at Xi’an Alberta Environmental Analysis and Testing Laboratory. The KX-07D gas porosity tester and the DX-07G gas permeability tester were used to collect porosity and permeability data and test procedures according to the Chinese Industry Standard GB/T 29,172-2012. In addition, we collected 31 porosity and permeability data from the natural gas research institute, Shaanxi Yanchang Petroleum Group Corporation.
3.4 High-pressure mercury injection
Pore structures and pore-size distributions of dolomite core samples were characterized via the HPMI technique. In the experiment, the Micromeritics AutoPore IV 9505 pore analyzer was used, and the maximum mercury injection capillary pressure was approximately 117 Mpa. Figure 5A presents mercury injection capillary pressure curves of all the core samples. Mercury is non-wetting on rock surfaces and has a high surface tension with air. With the mercury injection pressure increasing, non-wetting mercury enters the small pores of the core samples, and the pore radius can be calculated from the Eq. 1 in Washburn (1921):
where

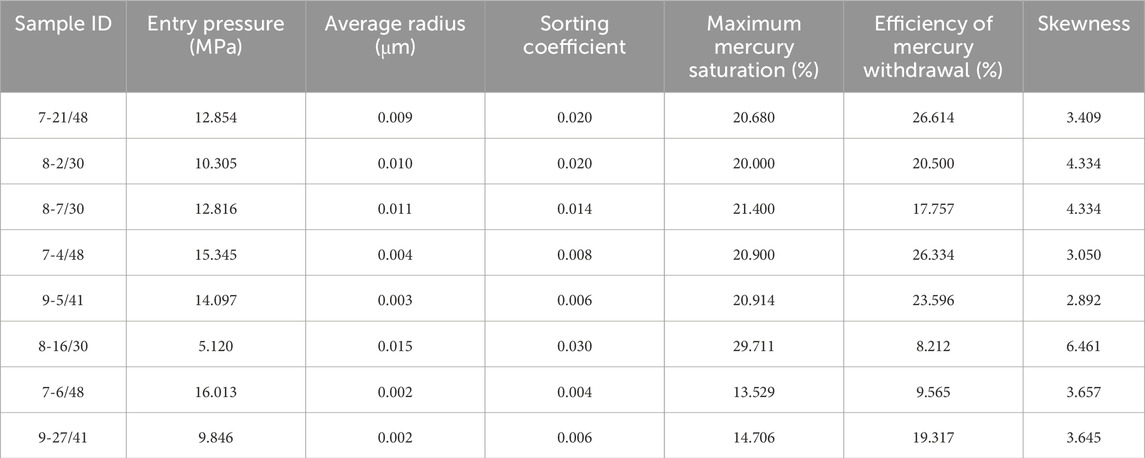

Table 1. Parameters of the pore–throat structure of the studied samples derived from HPMI experiments.
According to the theory of fractal geometry, the fractal dimension via HPMI from Eq. 2, and it can be expressed by the log-log coordinate (Qu et al., 2022).
where D is the fractal dimension; SHg is the mercury saturation; and Pc is the capillary pressure (Mpa). The fractal dimension was calculated from Eq. 3.
The closer the value of D is to 2, the more regular the pore shape, whereas values of D closer to 3 account for a more complex pore structure (Wu et al., 2019).
If the weights of pore throats in different scales are
By weighting the fractal dimensions of pore throats in different scales, the total fractal dimensions (D) of the entire pore space can be calculated from Eq. 5 as follows (Qi et al., 2020):
4 Results
4.1 Petrophysical properties
Petrophysical properties, including porosity and permeability, are important parameters for evaluating reservoir characteristics (Henares et al., 2016; Zhang et al., 2018). The porosity and permeability of 39 samples vary widely across the study area. The porosity results range from 0.4% to 5.26%, with an average of 1.63% (Figure 2A). The permeability results range from 0.011 mD to 0.059 mD, with an average of 0.03 mD (Figure 2B). The result shows that these carbonate rocks of the study area are quite tight (porosity <5%, permeability <1mD). This is supported by the cast thin-section analysis, which is presented in the following section. In addition, there are relatively positive relationships between porosity and permeability (Figure 2C), reflecting that the carbonate reservoir is primarily pore-type and has moderate connectivity of the pore structure (Lai et al., 2019).

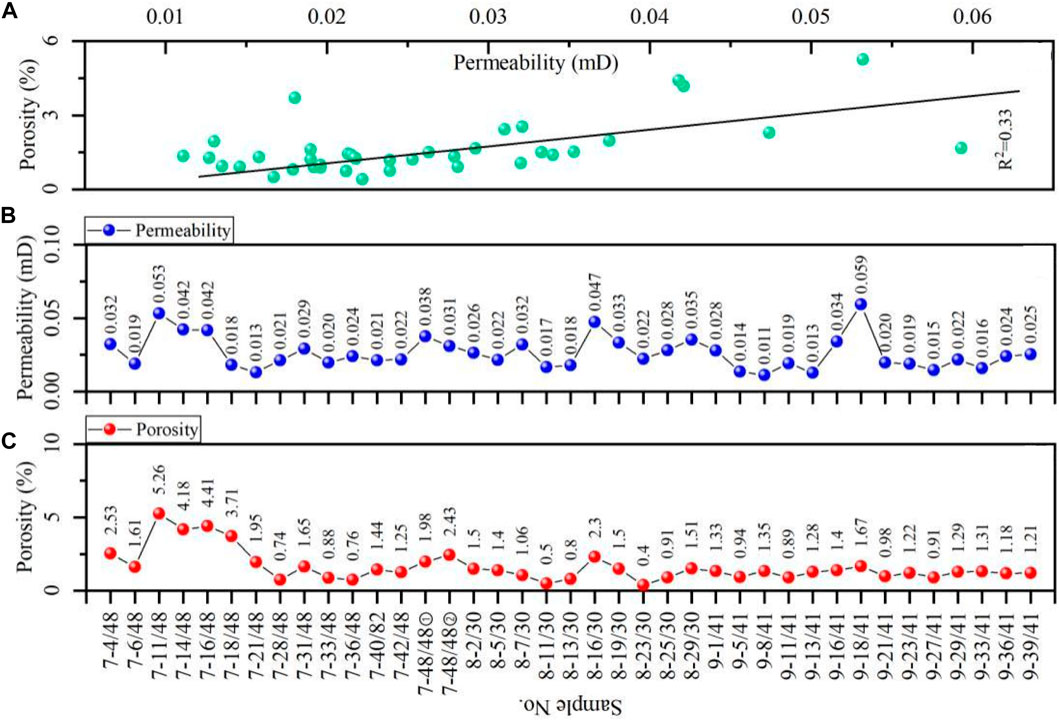

Figure 2. Petrophysical properties of the dolomite reservoir in the study area: (A) porosity results; (B) permeability results; (C) the correlation between porosity and permeability.
4.2 Petrology and reservoir space from the cast thin section
Considering the particle size characteristics, combined with observations and statistics of casting thin sections, the carbonate rock in the study area varies from argillaceous dolomite to fine silty crystalline dolomite to crystalline dolomite, according to Lai et al.’s (2013a) classification scheme.
Argillaceous dolomite is a dark gray, massive dolomite with predominantly 5 μm–20 μm-sized crystals, occasionally exhibiting horizontal bedding and micro-fracture (Figure 3A). The mineral composition consists mainly of micrite dolomite and argillaceous material, with the localized presence of gypsum (Figure 3B). Gypsum content is <10%, with the presence of a small amount of fine-grained quartz particles. Fine silty crystalline dolomite primarily ranges in size from 20 μm to 40 μm, displaying numerous micro-fractures approximately 20–200 μm wide. These micro-fractures are filled with sparry calcite (Figure 3C) or organic matter (Figure 3D) and exhibit some dissolution pores. Crystalline dolomite is a light brown crystalline dolomite comprising a mosaic of dolosparite crystals. It features a medium-coarse-grained, secondary, crystalline texture (Figure 3E), with crystal sizes ranging from 50 μm to 200 μm in size, and intergranular pore and intergranular dissolution pore can be observed as well (Figure 3F).
Figure 3. Petrologic characteristics of dolomite reservoirs for the Majiagou Formation: (A) argillaceous dolomite, 3,541.7 m; (B) gypsum-bearing argillaceous dolomite, 3,545.7 m; (C) fine silty crystalline dolomite, calcite filling, 3,553.9 m; (D) fine silty crystalline dolomite, organic matter filling, 3,550.3 m; (E) crystalline dolomite, 3,560.8 m; and (F) crystalline dolomite with interpores developed, 3,563.3 m.
Observations of cast thin sections show that different degrees of dolomitization and karst transformation constitute the reservoir space of the Majiagou Formation, which is mainly composed of intra-crystalline pores (Figures 4A, B), intra-crystalline dissolved pores (Figure 4C), dissolved pores (Figures 4D–F), and micro-fractures (Figures 4G, H); the pores are partially filled with calcite (Figure 4I), and the primary pores are rare. The reservoir space varies from petrological characteristics. In contrast, few dissolution pores are observed in the argillaceous dolomite, indicating that lithology is the material basis for penecontemporaneous karstification. The dissolution capacity is determined by the clay content and structural composition. Generally, carbonate reservoirs with high clay content are not easy to be dissolved (Fu et al., 2012; Chen et al., 2016).

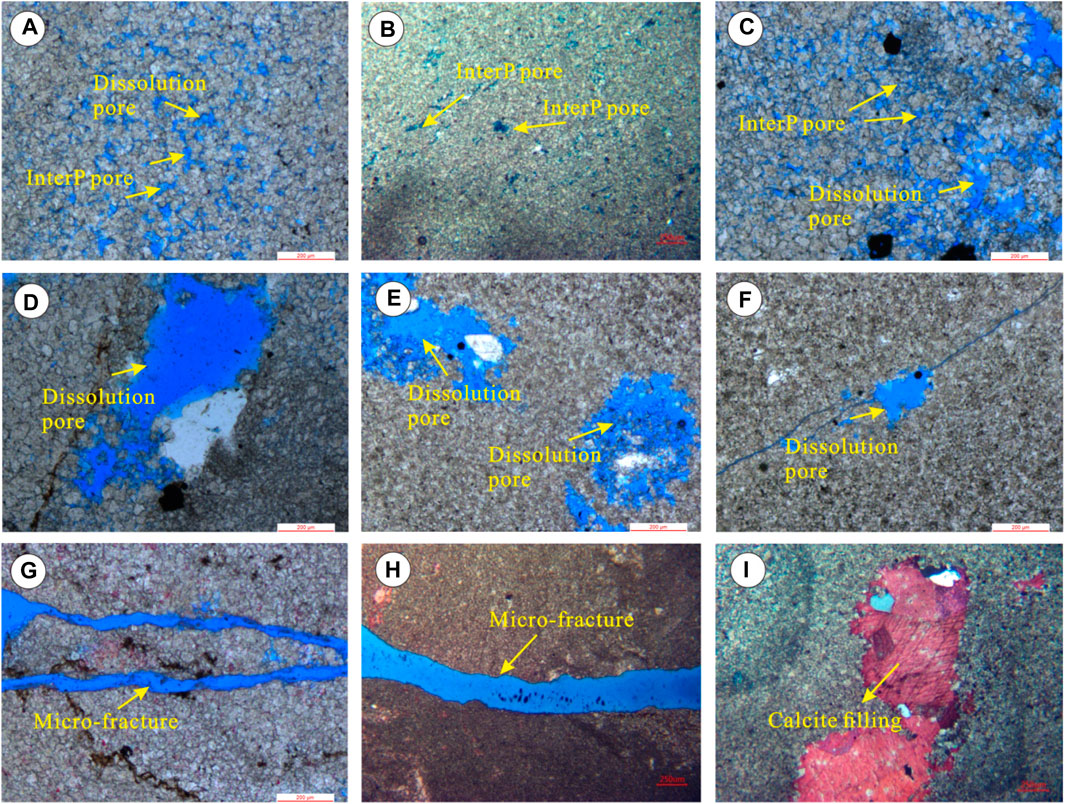

Figure 4. Pore characteristics of the dolomite reservoir in the study area: (A) interP pore and dissolution pore in crystalline dolomite, 3,563.3 m; (B) interP pore, 3,545.8 m; (C) interP pore and dissolution pore, 3,560.8 m; (D) dissolution pore, 3,559.7 m; (E) dissolution pore, 3,560.3 m; (F) dissolution pore and micro-fracture, 3,587.3 m; (G) micro-fracture in fine silty crystalline dolomite, 3,552.6 m; (H) micro-fracture in argillaceous dolomite, 3,541.7 m; and (I) dissolution pore is filled by calcite, 3,543.6 m.
4.3 High-pressure mercury injection
HPMI tests are commonly used to study microscopic pore structures. Valuable information related to the microscopic pore structure of the reservoir can be obtained from HPMI curves, including pore type, pore–throat-size distribution, pore volume, average pore–throat radius, sorting coefficient, skewness, and withdraw efficiency (Chalmers G. R. L. et al., 2012; Clarkson and Williams-Kovacs, 2013; Juri et al., 2016; Lai et al., 2018).
According to Table 1, the displacement pressure for the reservoir, derived from the HPMI results, generally ranges from 5.12 to 15.15.35MPa, with an average of 12.05 MPa. The average pore–throat radius ranges from 0.002 μm to 0.015 μm, with an average of 0.007 μm. The sorting coefficient ranges from 0.004 to 0.03, with an average of 0.007, and the skewness ranges from 2.89 to 6.46. The maximum mercury saturation ranges from 13.53% to 29.71%, and the efficiency of mercury withdrawal ranges from 8.21% to 26.61%, with an average of 18.98%. The above characteristics reflect a complex and heterogeneous pore structure in the formation. In addition, mercury intrusion and extrusion curves are relatively isolated, and the mercury extrusion efficiency is low, which indicates considerable differences in the pore and throat sizes.
The HPMI curves varied by pore structure characteristics (Luo et al., 2008; Jiang et al., 2016). On the whole, the capillary curves lack an apparent horizontal stage in mercury intrusion (Figure 5), indicating general storage and permeability capacity (Piechaczek and Pusz, 2015; Mendhe et al., 2017). In detail, three types of HPMI curves could be identified based on the characteristics of the mercury intrusion curves. As shown in Figure 5A, type Ⅰ and type Ⅲ are represented by red and green solid dots, respectively, and smaller pore throats dominate the pore networks, making it difficult for mercury to pass through the pores, which have a markedly steep and almost horizontal stage in a mercury intrusion process. However, the mercury saturation of type Ⅲ is less than that of type Ⅰ, indicating the small pore volume and pore size. These blue series solid dots represent type Ⅱ, which exhibit a relatively horizontal stage, with a gentle slope in the intermediate stage of the mercury intrusion process. This indicates that the micro-fractures developed with relatively better permeability.

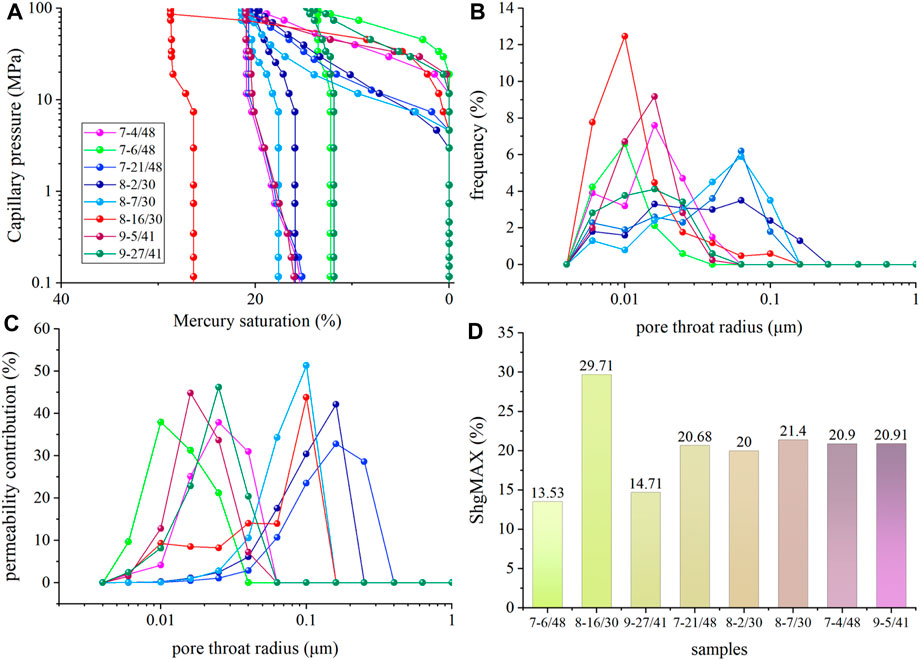

Figure 5. (A) Capillary pressure curves, (B) pore-size distribution, (C) permeability contribution curve, and (D) histogram of maximum mercury injection obtained by performing the HPMI experiments. Red, blue, and green series solid dots represent type Ⅰ, type Ⅱ, and type Ⅲ, respectively.
The pore–throat size is considered one of the most crucial parameters in controlling the reservoir quality. The pore–throat size distribution and permeability contribution curves shown in Figure 5B, C are obtained from the HPMI test. Generally, the pore–throat size distribution of each sample exhibits a unimodal pattern, with pore–throat radii predominately ranging from 0.006 μm to 0.02 μm and 0.04 μm–0.15 μm. Additionally, the type Ⅰ pores are numerous but small, type Ⅱ pores are few but large, and type Ⅲ pores are both few and small in size. The permeability contribution curve also demonstrates a unimodal distribution, with similar maximum permeability contributions for different reservoir types, as depicted in Figure 5C. The permeability values for type Ⅰ, type Ⅱ, and type Ⅲ are 2.3%–46.19%, 1.06%–51.29%, and 1.5%–44.83%, respectively, with average values of approximately 19.47%, 20.53%, and 19.36%. Notably, the difference lies in that the permeability is primarily provided by the small pores of type Ⅰ and type Ⅲ, while it is mainly contributed by the large pores of type Ⅱ. In addition, maximum mercury saturation serves as an important parameter reflecting pore connectivity. The results indicate that the maximum mercury saturation value is low for type Ⅲ, while the values of type Ⅰ and type Ⅱ are similar (Figure 5D). In summary, type Ⅰ exhibits more pore throats and rather good permeability contribution compared to type Ⅱ and type Ⅲ.
4.4 Fractal characteristics
The fractal dimension (D) deduced from fractal theory can quantitatively evaluate pore surface roughness and structural irregularity, which is an important parameter for reservoir heterogeneity evaluation (Piechaczek and Pusz, 2015; Jiang et al., 2016; Norbisrath et al., 2016; Mendhe et al., 2017). It is consensus that using HPMI data is an effective method to compute fractal dimensions of various reservoirs (e.g., Angulo et al., 1992; Li and Horne, 2006; Li, 2010). Therefore, we use the basis of HPMI data to calculate fractal dimensions of pores in carbonate reservoirs.

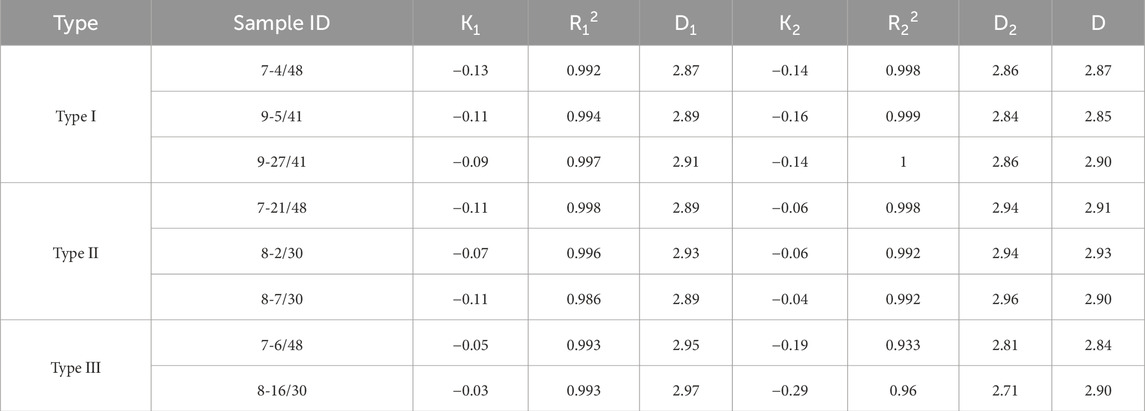

As shown in Figure 6, all the linear models demonstrate a strong fit with coefficients (R2) ranging from 0.96 to 0.998 (Table 2), indicating that these carbonate samples exhibit fractal characteristics and can be effectively described by using fractal geometry theory. The calculations reveal that a larger fractal dimension corresponds to stronger reservoir heterogeneity, aligning with previous research findings (Jiang et al., 2016; Lai et al., 2019). The plot of fractal characteristics for all samples can be segmented into two parts. Here, we calculated D1 and D2 for each segment and also computed weighted D for each sample by using formula 4 and formula 5. The result shows that the values of D1 range from 2.87 to 2.97, with an average of 2.91, and the values of D2 range from 2.71 to 2.96, with an average of 2.86, indicating strong heterogeneity in large pores. In addition, the fractal characteristics vary depending on the types of reservoirs. The average values of D in type Ⅰ, type Ⅱ, and type Ⅲ are 2.87, 2.92, and 2.82, respectively. As shown in Figures 6A–C, the slope for the small pore–throats is slightly steeper than that for the large pore–throats in type Ⅰ reservoir, and the average fractal dimension of D1 and D2 is 2.89 and 2.86, respectively. There is little difference between D1 and D2, indicating the homogeneity of pores is almost the same for different pore sizes. The average fractal dimensions of D1 and D2 in type Ⅱ are 2.90 and 2.94, respectively (Figures 6D–F), and the average dimensions of D1 and D2 in type Ⅲ are 2.87 and 2.71, respectively, (Figures 6G, H). The fractal dimension of type Ⅱ is generally larger than that of type Ⅲ, and the heterogeneity of larger pores in type Ⅱ is stronger than that of small pores, while it is opposite in type Ⅲ. It was observed that compared with the three types mentioned above, the value of fractal dimension in type Ⅰ is low, and it exhibits nearly uniform heterogeneity across different pore sizes, which contributes significantly toward storage capacity and permeability.
5 Discussion
5.1 Relationship between fractal dimension, porosity, and permeability
Porosity and permeability are considered the two most important parameters for evaluating reservoir properties. As shown in Figure 7A, porosity demonstrates a week negative correlation with fractal dimension, with a coefficient of 0.22. Permeability reflects the ability of rock to allow fluid to flow through its pores and exhibits a relatively weak positive relationship with fractal dimension, having a coefficient of 0.28 (Figure 7B). A higher fractal dimension implies a transformation of pore morphology from regular to complex and the pore surface from smooth to rough, resulting in reduced porosity and permeability (He et al., 2016; Li et al., 2017). However, the positive relationship between permeability and fractal dimension is uncommon, necessitating further classification analysis.

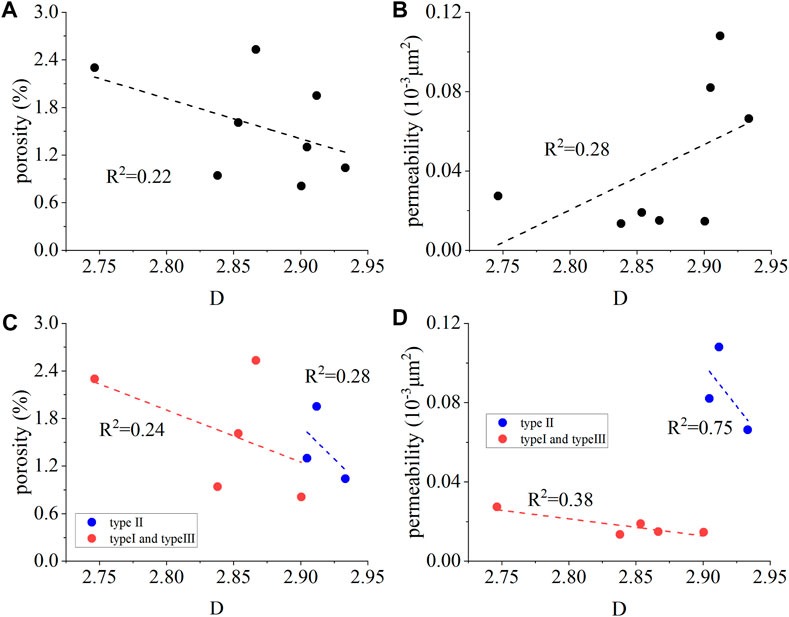

Additionally, the correlation between porosity and permeability with fractal dimension in different reservoir types is examined. The samples were divided into two parts based on the comparison of D1 and D2 values: D1 is larger than D2 in type Ⅰ and type Ⅲ reservoirs, while D1 is smaller than D2 in type Ⅱ reservoirs. The results indicate a negative correlation between porosity (Figure 7C) and permeability (Figure 7D) with fractal dimension with different reservoir types, aligning with the general consensus (Chalmers G. R. et al., 2012; Amosu et al., 2018). In tight reservoirs containing numerous pores with small size, irregularly distributed small pores with high fractal dimensions may inhibit the development of larger pores, leading to reduced porosity (Shao et al., 2017). Small-sized pores exhibit strong heterogeneity in type Ⅱ reservoirs; therefore, despite having large values of porosity and permeability, the reservoir quality remains poor.
5.2 Relationship between the fractal dimension and pore structure parameters
A series of plots were produced to investigate the relationships between pore structure parameters (i.e., entry pressure, average pore throat radius, sorting coefficient, mercury withdraw efficiency, maximum mercury saturation, and skewness) and fractal dimension, as shown in Figure 8. There are outliers (solid blue dots), which are different from other samples as they have a large number of micropores. Beyond that, other samples have considerable correlation with fractal dimensions, which provides a source of evidence for reservoir evaluation analysis. As shown in Figure 8A, the entry pressure indicates the pore size (Chen et al., 2018); there is negative relationship between entry pressure and fractal dimension, that is, the smaller the pore size, the lower the heterogeneity. This is because the pores with the smaller size in the reservoir are mostly intercrystalline pores with good homogeneity (Figure 4A), while the large pores are mostly dissolution pores with irregular shapes and strong heterogeneity (Figure 4E). The average pore–throat radius shows a moderate positive correlation with fractal dimensions (Figure 8B). This may be attributed to the development of dissolution pores or micro-fractures with large pore sizes and strong heterogeneity (Figure 4G). Additionally, Figure 8C illustrates a positive correlation between the sorting coefficient and fractal dimension, with a coefficient of 0.72. It indicates that as the sorting coefficient increases, the fractal dimension increases and the pore structure becomes more complex, enhancing the heterogeneity of the pore structure. Figure 8D shows a very slightly positive relationship between the efficiency of mercury withdrawal and fractal dimension, which indicates a considerable number of micropores generated in the strong heterogeneous samples. This is because due to the complexity of the reservoir, although the sample with a large pore volume mainly develops macropores, the value of the micropore volume is also very considerable. Maximum mercury saturation reflects pore connectivity. In general, the maximum mercury saturation increases with the increase in the pore volume (Zhang et al., 2018), but the strong heterogeneity of large pores generated, which reduces the connectivity to some extent (Figure 8E). Skewness is a pore structure parameter that reflects the distribution of pore–throat sizes. The moderately positive correlation between the skewness value and the fractal dimension suggests that large pore–throats are predominant in the pore networks (Figure 8F), which results in a high fractal dimension. In general, the fractal dimensions demonstrate relatively strong correlations with pore structure parameters, making it a valuable metric for quantitatively characterizing carbonate properties and complexity of pore networks.

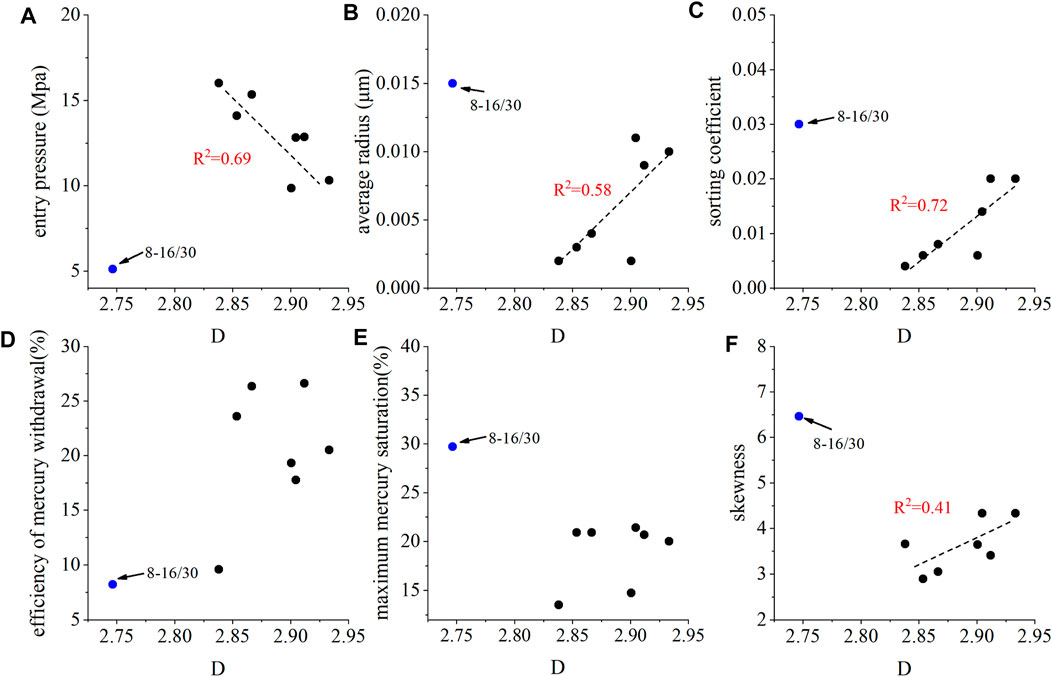

Figure 8. Relationships of fractal dimension with (A) entry pressure, (B) average pore–throat radius, (C) sorting coefficient, (D) efficiency of mercury withdrawal, (E) maximum mercury saturation, and (F) skewness.
5.3 Relationship between diagenesis and the pore structure
The formation in the study area is dominated by karst dolostone (Yang et al., 2022), and the XRD results show that the mineral component content of different samples is similar, that is, the dolomite content ranges from 93% to 89%, with an average content of 91.4% (Wu et al., 2023), so it is not appropriate to divide lithofacies based on the mineral composition content. Diagenetic facies are a comprehensive characterization of diagenesis, reservoir physical properties, types, and advantages, which is widely used to classify carbonate reservoirs (Lai et al., 2013a; Lai et al., 2013b; Zhang et al., 2010; Zou et al., 2008). Reservoir classification based on diagenetic facies requires a large number of thin-section observations, which is qualitative analysis, and the results are affected by human factors. However, due to the number of samples, the classification method based on diagenetic facies is not applicable. In addition, the pores are formed by different types of diagenesis, and the sizes of different types of pores are different (Wang et al., 2023). Furthermore, the thin section, petrophysical property, and HPMI can be qualitatively and quantitatively characterized, making them suitable for the classification of carbonate reservoirs in the study area. Therefore, we establish pore structure facies using the capillary pressure curves, pore-size distribution, reservoir permeability contribution, and fractal dimension from mercury injection experiments, and consider diagenesis from casting thin section observations to illustrate the effect of diagenesis on different types of pore structures.
5.3.1 Micro-porous facies
The limited number of intercrystalline pores is a result of dolomitization, calcite cementation, and dissolution in the micro-porous facies (Figure 9E). The low mercury saturation (Figure 9A) and some dissolved pores can be observed in the cast thin section (Figure 9D). These facies exhibit poor reservoir property, with small pore–throat sizes (dominated by pore throat between 0.007 μm and 0.01 μm), contributing to its low permeability capacity, mainly provided by small channels connecting intercrystalline pores (Figure 9B). Furthermore, the fractal plot of this type of reservoir is divided into two segments, where D1 is larger than D2 (Figure 9C), indicating strong heterogeneity with larger pore sizes. Overall, the micro-porous facies exhibits low porosity properties and poor permeability.

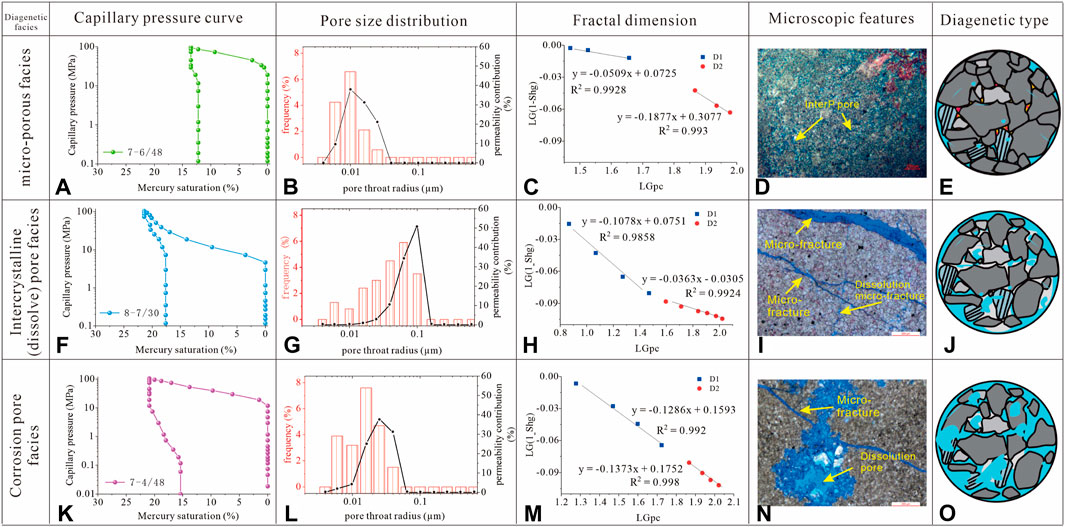

Figure 9. The characteristics of micro-porous facies are (A) low mercury saturation, (B) small pore size, (C) D1 is larger than D2, (D) interP pores developed with (E) compaction. The Intra-crystalline (dissolved) pore facies with (F) high mercury saturation, (G) big pore size, (H) D1 smaller than D2, and (I) dissolved pores and micro-fracture developed when (J) dissolution. Corrosion pore facies have (K) high mercury saturation, (L) relatively big pore size, (M) relatively strong heterogeneity, (N) dissolved pores, intra-crystalline pores, and few micro-fractures developed through (O) penecontemporaneous karstification.
5.3.2 Intra-crystalline (dissolved) pore facies
These facies are characterized by intra-crystalline pores (Figure 4B), dissolved pores, and micro-fractures (Figure 9I; Figure 4I). Micro-fractures are effective channels for fluid flow in reservoirs, promoting the dissolution of soluble components during fluid passage, which is beneficial for improving reservoir permeability. However, the analysis of the capillary pressure curve and deduced data (Figure 9F) indicates a relatively small pore number and pore size with the diameter between 0.04 μm and 0.08 μm, resulting in a relatively weak storage capacity (Figure 9g). Additionally, the fractal plot of this reservoir type exhibits two segments, with D1 smaller than D2 (Figure 9H), indicating the strong heterogeneity in small pore-size distribution. Generally, micro-fractures are prevalent in the facies, leading to unevenly distributed pores due to calcite cementation, which contributes to permeability but limits storage capacity.
5.3.3 Corrosion pore facies
The corrosion facies exhibits dissolved pores, intra-crystalline pores, and few micro-fractures (Figure 9N). Penecontemporaneous karstification transforms intergranular pores into dissolution pores, which is evident in the core observation as pinhole shapes (Figure 9O) (Xiong et al., 2020). Furthermore, dolomite can be dissolved by hydrogen sulfide produced through sulfate thermochemical reduction under weakly acidic conditions (Yu et al., 2012; Zou et al., 2008), resulting in common dissolution pores in fine silty crystalline dolomite and crystalline dolomite, but rarely in argillaceous dolomite. The reservoir’s pore–throat radius mainly ranges from 0.01 μm to 0.03 μm, with the main permeability contribution coming from pore sizes of 0.02 μm–0.04 μm (Figure 9L). Additionally, the homogeneity of the pore structure across different pore sizes is better-illustrated (Figure 9M), along with high petrophysical properties indicating its potential prolific reservoirs.
6 Conclusion
In this study, we used various experimental methods and fractal theory to investigate the pore structure, fractal characteristics, and main controlling factors of the Majiagou Formation in the Ordos Basin. The key conclusions are summarized as follows:
(1) The dolomite reservoir of the Majiagou Formation in the Ordos Basin exhibits a development of argillaceous dolomite, fine silty crystalline dolomite, and crystalline dolomite with intra-crystalline pores, intra-crystalline dissolved pores, dissolved pores, and micro-fractures predominating.
(2) Based on the analysis of HPMI curves and petrophysical measurements, the reservoir was classified into three types: dissolved pore type, micro-fracture (intra-crystalline) pore type, and micro-porous type. The micro-porous type exhibits a small number of intra-crystalline pores with small pore–throat sizes. In contrast, the micro-fracture pore type displays developed micro-fractures and large pores but with a limited number of pores, indicating the good permeability but the poor storage capacity. The dissolved pore type is characterized by a significant quantity of dissolved pores along with few microfractures, resulting in a large pore volume and relatively better permeability.
(3) Fractal dimension analysis derived from the HPMI data reveals reservoir heterogeneity that can be segmented into two section categories varying across different types. Larger fractal dimensions observed for larger pores in the micro-porous type indicate the complex pore structure. The weighted average fractal dimensions in the micro-fracture (intra-crystalline) pore type and micro-porous type are 2.92 and 2.87, respectively, while it is 2.82 in the dissolved pore type. A lower value of the fractal dimension indicates a less heterogeneity of pore structure, which may have implications for the fluid flow and storage within the rock formation.
(4) The quantitative characterization of the pore structure in dolomite reservoirs is greatly facilitated by the measurement of fractal dimension, which exhibits positive correlations with porosity, permeability, and the pore structure parameter. Furthermore, the dissolved pore type, characterized by a large pore size and homogeneity structure, resulting from penecontemporaneous dolomitization and leaching due to meteoric freshwater ingress, is identified as a potentially prolific reservoir.
