Axisymmetric consolidation behavior of multilayered unsaturated soils with transversely isotropic permeability

Abstract

Time-dependent consolidation behavior of unsaturated soils is a vital problem in the geotechnical engineering. With the aid of the Fredlund consolidation theory, this work further assumes the total stress of soils skeleton freely change, and extends the Fredlund consolidation theory to a Biot-type theory, establishing the fully-coupled equation model of multilayered unsaturated poroelastic media with transversely isotropic permeability. To convert the partial differential governing equation into ordinary differential equations, the integration transform technology is applied. Subsequently, the precise integration method is used to acquire the time-dependent consolidation solution of multilayered unsaturated media with transversely isotropic permeability in the transformed domain, which is further solved in the actual domain by the inverse Hankel transform. A verification examples is provided to compare the present results with the existing work in the literature, showing a great coincidence and proving the feasibility of the present solution. Finally, numerous numerical examples are presented to investigate the evolution of excess pore pressure and settlement under quasi-static loads, revealing the consolidation behavior of unsaturated soils. The results demonstrates that the ramping time, stratification, permeability, depth and have a significant effect on the consolidation behavior.

1 Introduction

Consolidation theory remains a key topic in geotechnical engineering. Originating from Biot’s work (Biot, 1941; Biot, 1955), which rigorously integrated pore pressure and settlement, lots of researchers (McNamee and Gibson, 1960; Schiffman and Fungaroli, 1965; Gibson et al., 1970; Booker and Randolph, 1984; Yue et al., 1994; Wang et al., 2023a; Wang et al., 2023b; Chen et al., 2005; Singh et al., 2007; Ai and Wang, 2008; Cai and Geng, 2009) have explored this complex issue. Their investigations typically assume geomaterial behaves as either an elastic half-space or a finite soil layer. In fact, natural geotechnical materials exhibit pronounced stratification due to prolonged and complex deposition processes, profoundly influencing their consolidation characteristics (Pan, 1989; Yue, 1996; Pan, 1997; Yue and Yin, 1998). Consequently, considering the layered characteristic in the consolidation analysis is quite significant. Booker and Small (Booker and Small, 1982; Booker and Small, 1987) firstly employed the finite layer method to explore the mechanical-hydraulic behavior of layered soils. Moreover, other researchers addressed this issue using the boundary element method (Aramaki, 1985; Dargush and Banerjee, 1991) and the transfer matrix method (Wang and Fang, 2001), the analytical layer-element method (Ai et al., 2011). In particularly, the analytical layer-element method only has the decaying exponential functions thin its stiffness matrix, mitigating the instability and the exponential overflow problem in the transfer matrix method. However, many existing studies fail to accurately model the comprehensive three-dimensional conditions that involve both vertical and tangential loads. Therefore, it is essential to expand this research to include three-dimensional scenarios for a more generalized understanding of consolidation problems. Vardoulakis and Harnpattanapanich (Vardoulakis and Harnpattanapanich, 1986; Harnpattanapanich and Vardoulakis, 1987) examined settlement along depth under external loads, while Senjuntichai and Rajapakse (Senjuntichai and Rajapakse, 1995) addressed the three-dimensional consolidation response of soil, providing precise solutions. Additionally, Pan (1999) derived fundamental solutions for layered poroelastic systems, and Ai and his colleagues (Ai et al., 2010; Ai and Zeng, 2012) explored non-axisymmetric consolidation solutions.

The above works assumes that the soil as the saturated medium. In fact, most of the soils on the earth are located in arid and semi-arid unsaturated zones, and the subgrade filler of railways and airport runways is also mostly unsaturated soil. Therefore, studying the consolidation characteristics of unsaturated soil under external loads is of great engineering significance. Early studies were limited to specific types of unsaturated soils, in which bubbles existed in a closed form in the liquid, ignoring the free flow effect of the two-phase fluid in the soil. To solve this problem, there are many works (Barden, 1965; Fredlund and Rahardjo, 1993; Loret and Khalili, 2000; Cao et al., 2024a; Cao et al., 2024b; Cao et al., 2023). Among them, Fredlund and Rahardjo (Fredlund and Rahardjo, 1993) used dual stress-strain state variables to define the contribution of the net stress and the matrix suction respectively, and then constructed the two-phase flow equation of unsaturated soils. Dakshanamurthy et al. (1984), Dakshanamurthy and Fredlund (1980) further proposed 2D and 3D consolidation models for unsaturated soils based on the assumption that the total stress of the soil skeleton remain unchanged.

Building on the governing equations for unsaturated soil consolidation, many investigators apply numerical or semi-analytical methods to study consolidation behavior. Ausilio and Conte (Ausilio et al., 2002) connected the displacement rate to the average degree of consolidation, utilizing Fourier transform to examine consolidation in unsaturated soils under both water-air coupled and uncoupled conditions. Qin and her cooperators (Qin et al., 2010; Wang et al., 2017a; Wang et al., 2017b) used analytical methods and combined different boundary conditions to study the one-dimensional unsaturated soil consolidation theory. Shan et al. (2012) used the transfer matrix method to discuss the distribution of pore water and air pressure of layered one-dimensional unsaturated soils. Ho et al. (2014) derived the governing equations of the one-dimensional consolidation model of unsaturated soil under single-sided and double-sided permeable boundaries, and proposed a theoretical solution method combining the eigenfunction method and Laplace transform. Based on previous work (Ho et al., 2014; Ho et al., 2015), Ho et al. (2016) further derived the uncoupled axisymmetric mathematical consolidation modelling of unsaturated soil. Huang and Li (2018) developed a plane strain consolidation model under bidirectional continuous permeable boundary conditions, solving it using Fourier transform and the method of separation of variables. Moradi et al. (2019) proposed a 1D multi-layer analytical model for unsaturated consolidation under partially permeable boundaries and time-varying loads, employing the differential quadrature method for the layered unsaturated soil system. Other researchers have also explored soil consolidation issues by incorporating non-ideal permeable boundaries. Tian et al. (2020) studied a 1D consolidation model of saturated soils under multi-stage loading conditions based on continuous drainage boundary conditions. Zong et al. (2020) pointed out that even if the external load is q₀, the pore pressure at the initial moment is smaller than q₀, based on a one-dimensional single-layer soil nonlinear consolidation model considering a continuous permeable boundary. Wang et al. (2019) utilized the eigenfunction method expansion and integration transform method to solve the 2D settlement-pore pressure distribution of unsaturated soil introducing the lateral semi-permeable drainage boundary (LSDB). Building upon a semi-permeable boundary (Wang et al., 2017a; Wang et al., 2017b), Wang et al. (2017c) also investigated the impact of time-varying loads on consolidation behaviors Niu et al. (2021) introduced a 1D consolidation model for unsaturated soils incorporating dynamic loaded scenarios. The partial differential equations (PDEs) were theoretically resolved via the eigenfunction expansion technique. Liu et al. (2022) explored the impact of exponential time-varying loads on consolidation characteristics, comparing these effects with those of constant loads.

In summary, current solutions for unsaturated consolidation problems predominantly focus on one-dimensional loading conditions, with limited research on two- or three-dimensional scenarios. It is particularly noteworthy that the above studies are all based on the assumption that the total stress remains unchanged during the consolidation process, so they can be regarded as a Terzaghi-type consolidation theory, that is, a non-coupled theory. In comparison, there are few studies based on the fully coupled consolidation theory (i.e., Biot-type consolidation theory) in which the total stress changes during the consolidation process. In addition, the stratification and transverse isotropy of permeability characteristics formed by natural soil deposition are often ignored in previous studies. Therefore, this paper utilizes Fredlund’s dual stress variable consolidation theory to investigate the fully coupled consolidation of layered unsaturated soil under variable loads, examining the influence of ramping time, the transverse isotropy of the permeability, the volume variation coefficient of pore water regarding net stress, depth and stratification on the time-dependent settlement, pore water pressure and pore air pressure distribution. Compared with the existing research, the innovation of this work can be drawn as follows: (1) A fully-coupled Fredlund consolidation model is proposed in this work, while the other work is limited to the non-coupled model based on the excessive assumption. (2) The transverse isotropy of permeability of soils is considered in the work, which is not included in the previous work. (3) The precise integration method is utilized to deal with these partial differential equations of the mathematical model, showing a great stability and robustness.

2 Methodology

2.1 Governing equations

In elasticity theory, the equilibrium differential equation ignoring body forces is:where , , are the normal stress in direction, is the shear stress in the r-z plane.

Based on Fredlund’s dual stress variable theory (Fredlund and Rahardjo, 1993), the linear elastic constitutive equation of unsaturated soils is given:where the volume stress is , and are the displacement in direction; the matric suction is ; and are the excess pore water and air pressure; , represents the coefficient of volume change of the soil skeleton regarding the net stress ; denotes the volume variation coefficient of the soil skeleton regarding the matric suction ; and denote the elastic modulus regarding the net stress and the matric suction ; is Poisson ratio.

It is assumed that two-phase flow in unsaturated soil is continuous. By introducing Darcy law and the constitutive relationship of pore water in Fredlund theory (Fredlund and Rahardjo, 1993), the seepage continuity equation of pore water with transversely isotropic permeability can be obtained as follows:in which and are the volume variation coefficient of the pore water regarding the net stress and the matric suction ; and are the permeability coefficient and the specific gravity。

Similarly, with the aid of Boyle law (Fredlund and Rahardjo, 1993) and the constitutive equation of the skeleton, the seepage continuity equation of the pore air with transversely isotropic permeability can also be obtained:where and are the volume variation coefficients of pore air regarding the net stress and the matrix suction (there is an intrinsic relationship and ); denotes the permeability coefficient of pore air; and represents the porosity and is the saturation degree; for ideal air, air density , where the average molar mass of the atmosphere is ; air constant ; is the absolute temperature; represents the absolute air pressure. Given that the excess pore air pressure usually dissipates rapidly in the early stage of consolidation, its magnitude can be ignored compared to the atmospheric pressure, so we use instantaneous air pressure and atmospheric pressure to describe absolute air pressure (Qin et al., 2010), i.e., .

Finally, the total volume flow rate of pore water and the total mass flow rate of pore air along the depth direction from time 0 to time t are defined as:

Equations 1–5 constitute the mathematical governing equations of the fully-coupled consolidation for unsaturated soils. It is found that these equations are the partial differential equations (PDEs), hard to solve directly. Therefore, the Laplace-Hankel transform and the corresponding inverse transform in Equation 6 are introduced to simplify these PDEs into ordinary differential equations (ODEs) for solution:in which, denotes the corresponding function of in the Laplace-Hankel domain; denotes the Laplace parameter regarding time ; is the Hankel transform parameter regarding coordinate r; is the m-order Bessel function.

2.2 Ordinary differential governing equations

In the Laplace transform domain, applying the 0th and 1st order Hankel transforms to Equations 2d, 2c respectively, we can obtain:

Similarly, applying Laplace and 0th-order Hankel transforms to Equations 5a, 5b, we can obtain:

Substituting Equations 2a, 7b into Equation 1a and applying Laplace and first-order Hankel transforms, we obtain:

Based on Equation 1b, the following equation in the Laplace and 0th-order Hankel domains can be acquired:

In the Laplace and 0th-order Hankel transform domains, the water seepage continuity Equation 3 and Equations 7b, 7c are integrated to obtain:

In the Laplace and 0th-order Hankel transform domains, the air flow continuity Equation 4 and Equations 7b, 7c are integrated to obtain:where , , , , , , , , , .

In Equations 7a–7h, the superscripts “0”and “1”represent that the variables have been processed by 0th-order or 1st-order Hankel transform.

Combination of the above equations leads to the following matrix expression:in which, the generalized stress vector is ; the generalized displacement vector is ; and the coefficient matrices are given as follows:

In terms of the time-varying loads (ramping loads and exponential loads) selected in this paper, the initial load magnitudes are all 0. Therefore, it can be assumed that the instantaneous generalized state vectors , when applied by the external load.

2.3 Solution to the governing equation

In the context of the two-point boundary value problem, the Precise integration method (PIM) introduced by Zhong (1994) stands out as an efficient and highly accurate technique widely utilized in various fields such as wave propagation, quasi-static analysis, and dynamic interaction studies. This section adopts the PIM for discretizing the ODE matrix along the depth dimension. In terms of a layered unsaturated soil with a depth L, the initial step of PIM is to dividing the model into 2^N micro layers, the length of each micro layers is L/2^N. Notably, within any adjacent micro layers, there exist four generalized state vectors, denoted as .

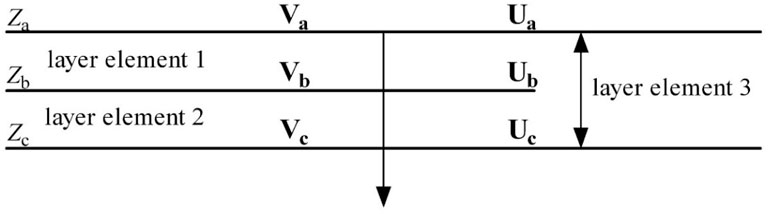

In terms of adjacent micro layers given in Figure 1, four generalized state vectors between the upper and lower surface are established, respectively, i.e., found in micro layer 1 and found in micro layer 2. The continuity condition at the depth leads to . Thus, there is indeed six generalized state vectors in the adjacent micro layers, i.e., . The inherent relationship of the two micro layers has been given in Equations 9 and 10 (Ye et al., 2023):

FIGURE 1

In terms of the layer element 1:

Analogously, for the layer element 2:where , , , (i =1, 2) are four dimensional relational matrices. With the aid of Talor expansion, the series expression regarding the thickness can be achieved. In order to enhance computational efficiency while maintaining accuracy, higher-order terms beyond the fourth order are truncated. This approach optimizes the balance between computational complexity and numerical fidelity, and the we can have:where is an identity matrix, and are defined as:

Subsequently, we merge the adjacent micro layers into a new micro layer, termed as micro layer 3. The following expression is defined as follows:in which

Thus far, we have derived the expression for the state vector of the newly formed micro layer as given in Equations 11–14. It is important to note that the system was initially divided into 2^N micro layers. Consequently, each application of the merging operation to adjacent micro layers reduces the total count by half, resulting in 2^N−1 remaining micro layers, each sharing identical expressions. The discretized micro layers can be recombined into a new layer block, and the corresponding generalized state vector can also be obtained similarly.

Following these operations, the generalized state vectors of the layer blocks are determined using specified in Equation 8. Under external loading, the entire system is partitioned into three-layer blocks defined by loading plane and calculation plane . Detailed procedures are elaborated in references (Ye et al., 2023). Upon incorporating boundary conditions, solutions for the unsaturated consolidation are obtained. Notably, the unsaturated medium model features a permeable top boundary for pore water and pore air, while the bottom is impermeable to both. Thus, we have and . In terms of the external load, we define the ramping loads and exponential loads as follows:

The ramping loads in the physical domain and transformed domain are given in Equation 15:

The exponential loads in the physical domain and transformed domain are given in Equation 16:

It is noteworthy that the solution obtained is situated in the transformed domain, while the actual solution in the physical domain still requires implementation through numerical inversion. The Laplace inverse transform adopts the Stehfest method (Stehfest, 1970), and its specific expression is given in Equation 17:in which, the precision control variable N is set to 12.

Using the Hankel inverse transform, every two adjacent zeros of the Bessel function are grouped into sections, reducing the semi-infinite integral to 64 segments. Each segment is then evaluated using the 32-point Gauss-Legendre integration method, as detailed in reference (Ye et al., 2023). Following the numerical Laplace-Hankel inverse transformation, we can obtain the solution for the fully coupled consolidation of unsaturated soils under time-varying loads in the real domain.

2.4 Verification

In view of the lack of fully coupled consolidation solution of axisymmetric unsaturated soil under variable load at present, this paper compares it with the consolidation solution of saturated soil under construction load in reference (Geng and Cai, 2009), and the results are shown in Figures 2, 3. By comparison, it can be seen that solution in this work is in good coincidence with solution in reference (Geng and Cai, 2009) in both settlement and pore pressure.

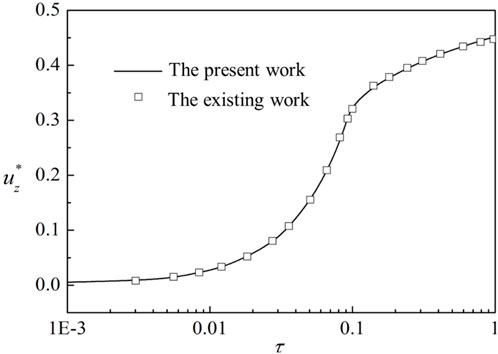

FIGURE 2

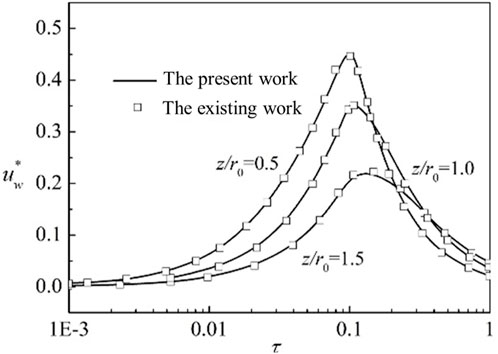

FIGURE 3

3 Parametric analyses

3.1 The ramping time

The subsequent analysis presents a series of numerical examples to examine the influence of ramping time , the transverse isotropy of the permeability, the volume variation coefficient of pore water regarding the net stress , and stratification on the flow-deformation characteristics of unsaturated soils through numerical examples. The calculation model is an unsaturated medium with the finite thickness 100 m. The surface of the medium is applied by a uniform vertical circular ramping load with a diameter of and strength of . The main parameters defining the original case are: porosity n=0.5, saturation degree Poisson’s ratio , , , , , , . The dimensionless parameters of settlement and time are and , respectively, while the dimensionless parameters of excess pore water and air pressure are and , respectively, and the dimensionless construction time is . In the following work, the calculation point of settlement is the origin, that is, r = 0, z = 0, and the calculation point of excess pore water and air pressure is r = 0, z = 0.5.

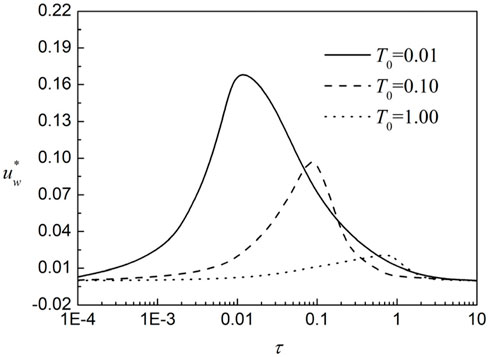

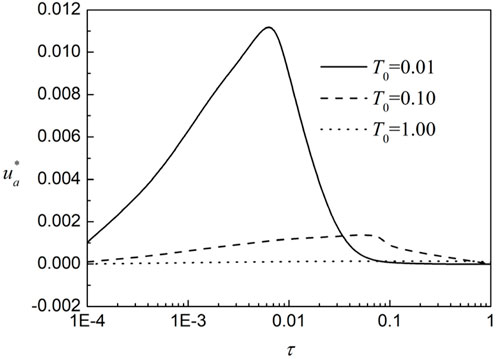

The influence of ramping time on the time-varying properties of unsaturated soil consolidation is discussed in the following. As can be seen from Figure 4: for different ramp times T₀, the final consolidation settlement is the same. Hence, the final settlement is not related to the ramp times. In the logarithmic coordinate system, most of the consolidation settlement occurs in the three sections of =0.001–0.01, 0.01–0.1, and 0.1-1, respectively. The less construction time T₀, the earlier time of the main settlement. For examples, the main settlement of the case appears when =0.001–0.01. When the dimensionless time is , the settlement is basically stable, that is, most of the consolidation settlement is completed before the end of construction. Figure 5 depicts the varying law curve of excess pore water pressure over time under different load construction times T₀. It is shown in Figure 5, as the ramp time T₀ increases, the peak pore water pressure becomes lower and lower, and appears later and later. This is because the loading process is quite slow, and the pore pressure has been roughly dissipated when the construction is completed. Also, the peak excess pore water pressure is always found around the dimensionless construction time T₀. In terms of the pore air pressure dissipation curve in Figure 6, there is a significant value difference between it and the water pressure dissipation curve. The reason is that the air pressure dissipates very quickly, and most of the air has been completely discharged as the load increases. In addition, when , the pore air pressure throughout the consolidation process is basically 0, so it is necessary to consider its existence only when the construction process is quite quick.

FIGURE 4

FIGURE 5

FIGURE 6

3.2 The transverse isotropy of the permeability

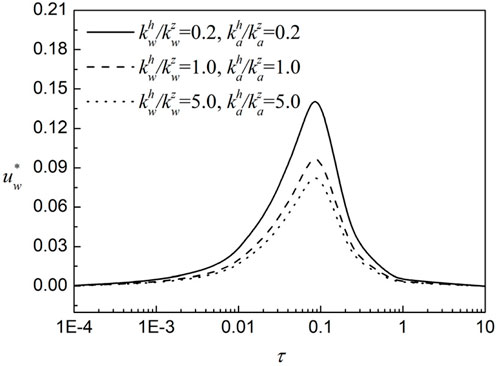

To investigate the influence of the transverse isotropy of the permeability on the flow-deformation behavior, four transverse isotropy coefficient cases are provided in this section, when and remain unchanged. Figures 7–9 show the variation of the settlement, the excess pore water and air pressure against the normalized time t. It is found from Figure 5 that the variation cure of case and is the earliest case to start the settlement and the earliest case to reach the final settlement. The larger the transverse isotropy coefficient and , the faster the consolidation is completed. Meanwhile, the value of the final settlement is the same. In terms of the excess pore pressure, whether for the water pressure or the air pressure, the peak value decreases with increasing transversely isotropic coefficient. The reason is attributed to that the higher horizontal permeability of soils determines a smoother and more convenient drainage channel. The excess pore pressure of soils with a higher horizontal permeability is easier to dissipate under the external load. Hence, it is quite important to introduce the influence of the transversely isotropic permeability on the consolidation behavior of soils.

FIGURE 7

FIGURE 8

FIGURE 9

3.3 The volume variation coefficient of pore water regarding the net stress

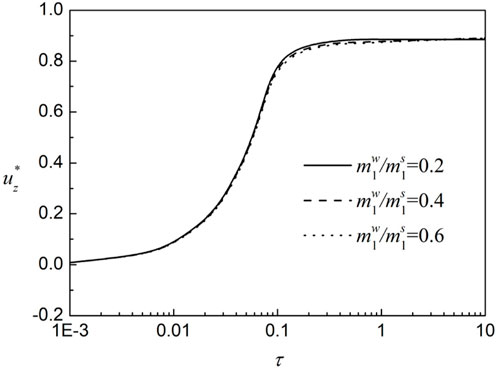

In order to discuss the effect of the volume variation coefficient of pore water regarding the net stress on the consolidation characteristics of unsaturated soil, the designed case is , T₀=0.1, and the calculation results are shown in Figures 10–12. It is found in Figure 10 that the settlement in the unsaturated consolidation process is not greatly affected by . The reason is that is defined in the constitutive equation of pore water to describe the volume change of pore water under net stress. In comparison, the volume change of pore water is negligible compared with the soil skeleton deformation. Hence, the influence of on the settlement of soils is negligible. Figure 11 depicts the pore water pressure dissipation curve regarding time , and found that the change of will not affect the time when the peak value appears. Meanwhile, curves of three cases reach the peak value at almost the same time . The larger the volume variation coefficient of pore water regarding the net stress , the greater the excess pore water pressure generated thereby. It is noteworthy that the time of three cases when the excess pore water pressure appears and dissipates are basically consistent. Figure 12 shows the variation of the excess pore air pressure against time . Relatively speaking, since the external load is borne more by the water in the unsaturated soils, the pore air pressure decreases with the increase of , as shown in Figure 12. Similarly, the time of three cases that the excess pore air pressure reaches the peak remains basically consistent, which is occurred before T₀.

FIGURE 10

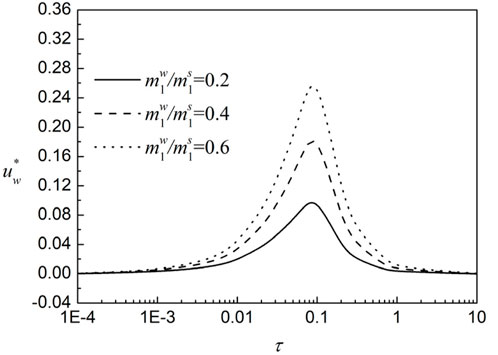

FIGURE 11

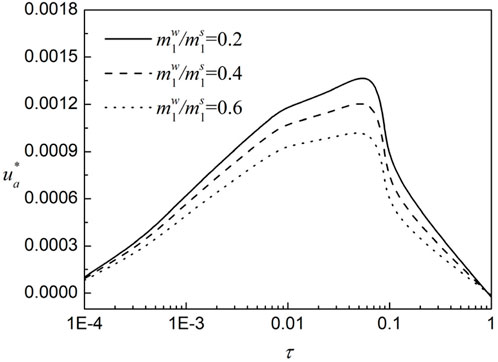

FIGURE 12

3.4 Calculation depth

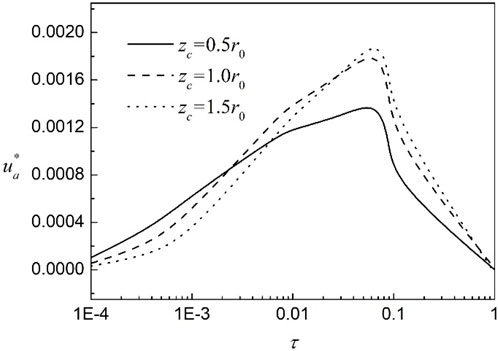

The displacement and pore pressure shows a different trend along the depth. To describe the displacement development trend along the depth direction and the dissipation law of excess pore pressure and excess air pressure with time, the effect of calculation depth is discussed in this section. It can be seen from Figure 13 that the main development time of consolidation settlement is concentrated in this stage under the action of construction grading load, and after dimensionless time , the settlement is basically stable, that is to say, most of the consolidation settlement will be completed before the end of construction. It is found that along the depth direction, the deeper the calculation point, the less the settlement. Meanwhile, when the construction load reaches the peak, the consolidation settlement basically does not develop. The peak value of pore water pressure also decreases with the increase of depth, and the peak value becomes later and later as shown in Figure 14. On the whole, they all rise to the peak with the increase of construction load, and then because the upper limit of load has been reached, the pore water pressure in the soil gradually dissipates completely with time. However, for the pore air pressure shown in Figure 15, there is a significant difference with the pore water pressure in magnitude. The reason is that compared with the pore water pressure, the air pressure dissipates quickly, and most of the air pressure caused by it has dissipated with the continuous increase of load. The closer to the surface, the smaller the peak pressure.

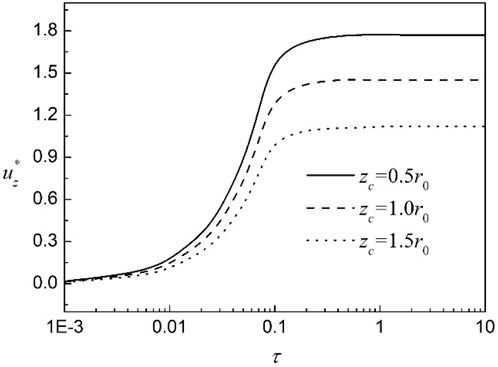

FIGURE 13

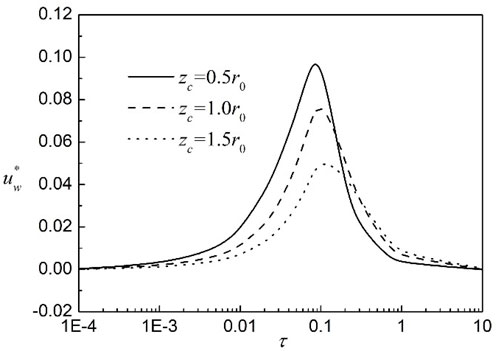

FIGURE 14

3.5 Stratification

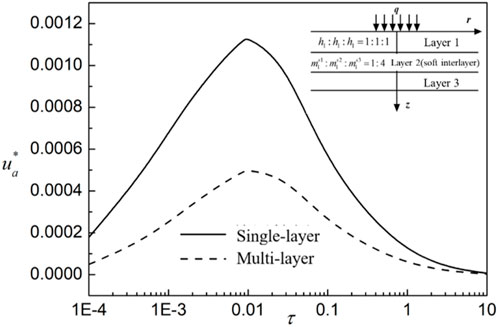

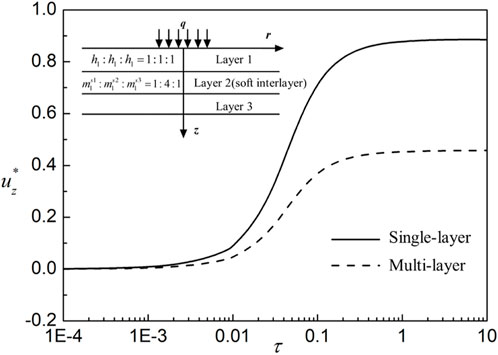

To illustrate the feasibility of the present solution to multilayered media, we constructed a multilayered soil with a soft interlayer (Case1) and compared it with a single-layer soil (Case 2) in which soil parameters, including modulus, permeability, and so on, were calculated by the weighted average method based on the parameters and thickness of layers in Case 1. The specific settlement, excess pore water and air pressure are shown in Figures 16–18. Parameters of the soil layer in Case 2 are the same as those in the original case except that the saturation is 0.73. Case 1 is a three-layer soil with a soft interlayer. The thickness ratio of each layer is 1:1:1, the ratio of the volume variation coefficient of the soil skeleton regarding the net stress (from top to bottom) is , and the saturation is 0.55, 0.78 and 0.86, respectively. The rest of the proportional relationship remains unchanged with reference to the that of Section 3.2. Meanwhile, the weighted average of the soil parameters of each layer in Case 1 regarding the layer thickness is exactly the single-layer soil parameters in Case 2. From the results, it is found that Case 1 with a soft interlayer is quite different from Case 2 in terms of settlement, pore water pressure and pore air pressure. Although there is a soft interlayer inside the case 1, soil properties of layers 1 and 3 in Case 2 are obviously weaker than those in Case 1. The reason is that the weighted average of the multi-layer soil parameters is consistent with that of the single-layer soil. The mechanics and permeability properties of the surface soil directly affect the evolution of the settlement and pore pressure dissipation within the soil. Therefore, the final steady-state settlement and peak excess pore pressure of Case 2 are significantly greater than those of Case 1. In fact, the settlement-pore pressure evolution law of the actual engineering must be combined with the soil layer parameter analysis obtained from the geology survey report. The results of this example are only to show the complexity of the flow-deformation consolidation law for layered unsaturated soils and prove the feasibility of the solution to the stratification in this work.

FIGURE 15

FIGURE 16

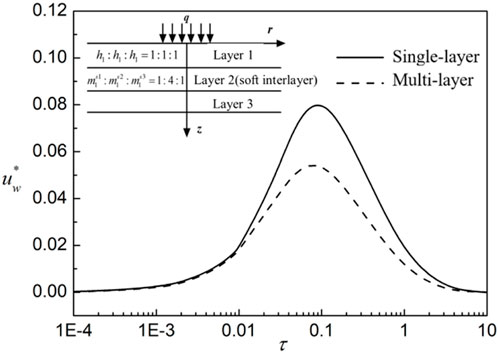

FIGURE 17

FIGURE 18

4 Conclusion

In the future work, we can further extend the axisymmetric condition to a three-dimensional condition. Meanwhile, the transverse isotropy of soil skeleton can also be considered in the future work to establish a more generalized consolidation model of unsaturated soils. Thea time-dependent soil-structure interaction investigation can also be considered based on the proposed model, which is meaningful for the long-time settlement prediction and control of underground structures in unsaturated soils, such as piles, plate and beam.
