Microstructure characterization of tight reservoirs using micro-CT and FIB-SEM imaging technology
Provisionally accepted
Wei Liu1
Lin Shang1Guangliang Gao1Dan Li1Miao Wang1Wenshuang Geng1Qian Jia1Guodong Zhang1Pengfei Hao2Licai Peng2
Haixiang Zhang2*- 1Jidong Oilfield Exploration and Development Research Institute, Tangshan, China
- 2Tsinghua University, Beijing, Beijing, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

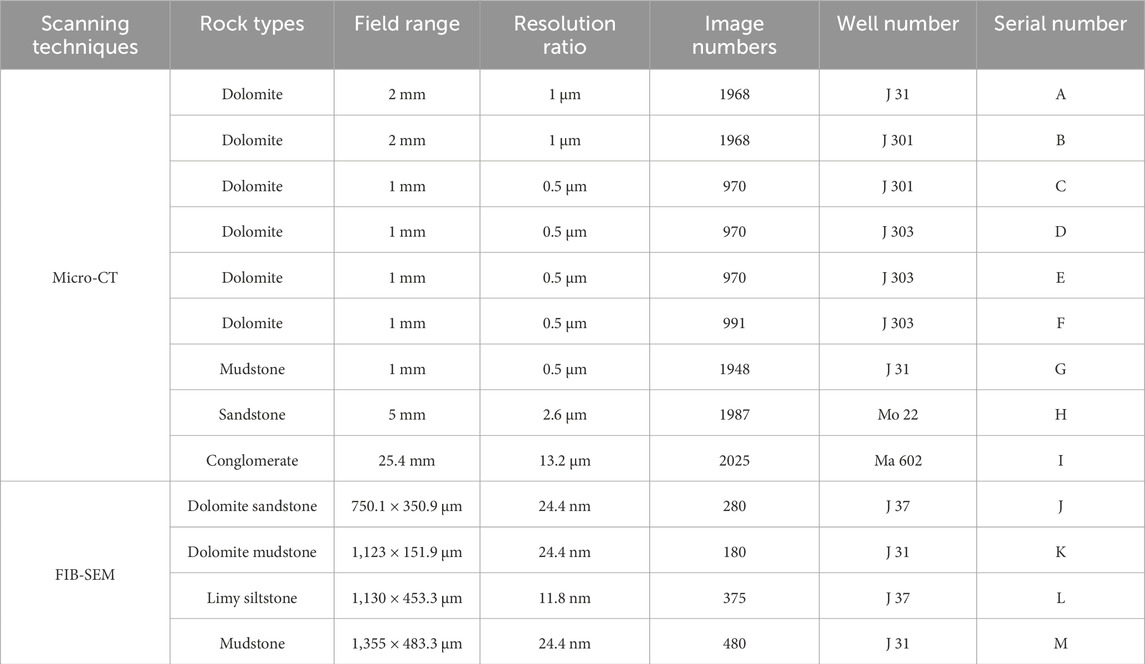

This study presents a comprehensive investigation into the intricate microstructural characteristics of tight reservoir rocks, utilizing advanced micro-CT scanning and FIB-SEM technologies. Micro-CT scanning technology was employed to obtain clear micro-pore structures and pore-throat size distribution patterns of four typical lithologies: dolomite, sandstone, mudstone, and conglomerate. Our findings reveal that the average pore-throat dimensions in tight reservoirs are confined to several micrometers, markedly diminutive by 1-2 orders of magnitude compared to their conventional counterparts. The FIB-SEM was used to obtain the distribution patterns of nanoand micrometer-scale pore-throats in tight cores. Nano-scale pores with equivalent diameters below 200nm accounted for 20% of the total pore area, contributing minimally to storage space and permeability, while the main storage space and flow channels were concentrated in micrometerscale pore-throats. Three-dimensional micro-CT scanning provides a comprehensive and intuitive digital rock structure for establishing permeability models, while nano-scale two-dimensional scanning yields finer microscopic pore-throat structures and size distribution patterns. The combination of both methods leads to measurement results closer to reality. Conclusively, we propose a mathematical formulation for predicting the absolute permeability of tight reservoirs, predicated on micro-scan data. This formulation is distinguished by its generality, computational simplicity, and its potential to furnish essential data for the design of reservoir development strategies.
Keywords: Microstructure characterization, Tight reservoirs, micro-CT, FIB-SEM, Permeability
