Xiaoneng Luo
Suping Peng1- 1State Key Laboratory of Coal Resources and Safe Mining, China University of Mining and Technology, Beijing, China
- 2Beijing Research Institute of Uranium Geology, China National Nuclear Corporation (CNNC), Beijing, China
This study aims to analyze the provenance of Middle Jurassic Zhiluo Formation sandstones exposed by drilling in the northern Ordos Basin (Bayingqinggeli area) and reconstruct the tectonic setting, paleoclimate, and paleoweathering conditions of their source rocks through integrated petrographic and geochemical analyses (major, trace, and rare earth elements). Comprehensive evaluation of mineral assemblages and geochemical signatures reveals that the detrital components of the studied sandstones were predominantly derived from multiple recycled felsic (granitic) igneous sources, with subordinate contributions from intermediate igneous (granodioritic), metamorphic (gneissic), and mafic igneous (andesitic) provenances. Diagnostic elemental ratios including La/Sc, Th/Sc, and Co/Th demonstrate a principal derivation from felsic lithologies (granites and gneisses) coupled with recycled quartzose sedimentary sources. Chondritenormalized REE patterns exhibit light REE (LREE) enrichment, flat heavy REE (HREE) distributions, and pronounced negative Eu/Eu* anomalies, showing close affinity to Upper Continental Crust (UCC) characteristics dominated by felsic lithologies. Geochemical proxies and trace element ratios (e.g., Th/U, Th/Sc) indicate that the source area underwent moderate to intense chemical weathering, primarily under arid climatic conditions with intermittent episodes of warm, semi-humid to humid paleoenvironments. The integrated dataset further suggests a complex exhumation history involving cratonic basement uplift and reactivation of Paleozoic orogenic belts during the Mesozoic era.
1 Introduction
The mineralogical and chemical composition of clastic sedimentary rocks is significantly shaped by a multitude of factors, such as weathering processes, modes of transportation, paleoclimatic conditions, tectonic environments, and the diagenetic alterations of the parent rocks (McLennan and Taylor, 1980; Pettijohn et al., 1987; McLennan et al., 1993; Cox et al., 1995). Modal analysis of detrital framework grains in clastic sedimentary rocks has been employed to ascertain their provenance (Basu et al., 1975; Dickinson and Suczek, 1979; Dickinson et al., 1983; Critelli et al., 2003). and tectonic provenance (Dickinson, 1970; Basu et al., 1975; Dickinson et al., 1983). Furthermore, the concentrations of major, trace, and rare earth elements in clastic sedimentary rocks can be utilized as proxies to infer the provenance (Taylor and McLennan, 1985; Roser and Korsch, 1988; Cullers, 2000; Augustsson et al., 2023), and to reconstruct the tectonic setting (Dickinson and Suczek, 1979; Bhatia, 1983; Bhatia and Crook, 1986; Kroonenberg, 1994; Verma and Armstrong-Altrin, 2013; Verma and Armstrong-Altrin, 2016), paleoclimate (Nesbitt and Young, 1982), and paleo-weathering (McLennan et al., 1993; Cox et al., 1995; Fedo et al., 1995; Nesbitt and Young, 1982; Ivanova et al., 2015) in the source area (rocks). Such studies have been widely proved and applied by many authors (e.g., Wanas and Abdel-Maguid, 2006; Zaid, 2012; Armstrong-Altrin et al., 2015; Armstrong-Altrin et al., 2017; Löwen et al., 2018; Alqahtani and Khalil, 2019; Alqahtani and Khalil, 2021; Sallam and Wanas, 2019; Moghaddam et al., 2020; Ma et al., 2021; Wanas and Assal, 2021; Augustsson et al., 2023; Quasim et al., 2023).
Sandstone-type uranium deposits in sedimentary basins are a prominent category of uranium resources with important implications for national energy security. The sedimentary paleogeographic context of basin development is a major controlling factor in the enrichment of sandstone-type uranium deposits. The accumulation of structural changes over time frequently serves as a pathway for the movement of uranium-containing oxidising fluids. As a result, paleoenvironmental reconstruction and provenance analysis are critical components in the discovery, delineation, exploration, and assessment of the potential for uranium reservoirs in uranium-rich basins. This research area is not only a topical and Frontier subject in sedimentary basin studies, but it also addresses a critical geological issue that limits the successful exploitation of sandstone-type uranium deposits.
In recent years, numerous academics have worked extensively on the provenance of the Jurassic Zhiluo Formation in the northern Ordos Basin. Previous research has used petrological, geochemical, U-Pb zircon dating, and heavy mineral analysis approaches to answer the provenance problem of the Zhiluo Formation in the basin’s northern region. However, the controversy over the Jurassic in the northern Ordos Basin mainly lies in the unclear relationship between provenance and uranium source. Is uranium source from a uranium rich rock mass in the erosion source area? Alternatively, is it the activation and migration of uranium in the rock of the target layer itself? Or is this due to the influx of deep high-uranium fluids? Therefore, it is necessary to conduct in-depth research on Jurassic provenance in this area and explore the development of the prototype basin. Provenance is the link between the sedimentary basins and orogenic belts. Conducting provenance analysis on sedimentary basins helps to understand their sedimentary filling and structural evolution and is an important means of reconstructing paleogeographic environments and restoring the interaction between basin mountain systems. At present, there are relatively few systematic source analyses of the Jurassic system in the northern Ordos Basin, and the source analysis methods are relatively single, lacking a comprehensive regional systematic source study that combines multiple methods. The geochemical characteristics of sediments are controlled by the composition of the source rocks and influenced by chemical weathering processes. The climatic conditions of the source area determine the intensity of chemical weathering. Therefore, the geochemical characteristics of sedimentary rocks can serve as indicators of source rock features, geochemical weathering processes, and palaeoclimatic reconstruction. Despite the aforementioned results, there has been no previous discussion of the sources of clastic rocks in the Zhiluo Formation, palaeo-tectonic setting, palaeoclimate, palaeo-weathering, or paleogeography of their source rocks. This research seeks to elucidate the origin of the sandstones from the Zhiluo Formation while also redefining the tectonic context, paleoclimate, and paleo-weathering conditions of their source rocks. To fulfil these objectives, a comprehensive mineralogical–geochemical study was conducted on the sandstones of the Zhiluo Formation.
2 Geological setting
Ordos Basin is the second largest basin in China, neighbouring Wolf Mountain and Daqing Mountain in the north; Luliang Mountain in the east; Weibei in the south; and Helan Mountain in the west. The basin belongs to the North China Craton, located in the western part of the North China Craton, which is a multi-overlapping basin within the unstable Craton, formed by the intersection, superposition and composite of the three major tectonic domains of the Paleo-Asia, Tethys and the Pacific Rim under the action of the Paleo-Asian, Tethys and Pacific Rim tectonic domains since it has been accepted for deposition in the Middle and Late Proterozoic era on the basis of the North China Craton. The basin is surrounded by orogenic belts, from north to south for the Tianshan-Xingmeng fold belt, the Alashan Massif, the corridor transition zone and the Qilian-Qinling fold belt. Since the development stage of the sedimentary cover, the formation and evolution of the basin is obviously influenced and controlled by the three major tectonic domains of the Paleo-Asian Ocean, the Tethys Ocean and the coastal Pacific Ocean. The basin is surrounded by strong activity, with intensive folding and fracture traces, and relatively stable magmatic activities, with the main forms of uplift, depression, and broad and slow folding.
Since the Mesozoic, the Ordos Basin can be divided into six tertiary tectonic units, namely, the Yimeng uplift, the Yishan slope, the Tianhuan syncline, the western margin retrograde zone, the west Jin flexure zone, and the north Weibei uplift, among which the three tectonic units of the Yimeng uplift, the Yishan slope, and the Tianhuan syncline are close to the environment of the working area of uranium mineralisation. The Yishan slope is the main tectonic unit of the Ordos Basin, occupying most of the basin. The uranium mineralisation zone in the northern part of the Ordos Basin is located in the Dongsheng-Jingbian monocline of the Yimeng uplift and the Yishan slope, both of which have a direct influence on the Mesozoic sedimentation and uranium mineralisation.
The cover layers developed in the basin include Mesozoic Triassic (T), Jurassic (J), Lower Cretaceous (K1), and Cenozoic Paleoproterozoic (E), Neoproterozoic (N), and Quaternary (Q), and there is a big difference of development of the various strata horizontally and vertically, among which the Triassic, the Jurassic, and the Lower Cretaceous are the main depositional strata in the basin. The Jurassic is exposed in a north-south belt in the eastern part of the basin, and dips under the Lower Cretaceous to the west and south-west, which is an important coal-bearing stratum in the basin, and is also the main target stratum for searching for uranium ore. The Lower Cretaceous is widely distributed in the northern part of the basin, and it is the main target layer for finding uranium ore in the western part of the basin. The Palaeoproterozoic and Neoproterozoic systems are sporadically exposed, while the Quaternary system is widely distributed in the central and southern parts of the basin.
3 Sampling and methodology
3.1 Sample collection and processing
This study was conducted using a combination of field observations and laboratory methodologies. In this study, samples were collected from two boreholes of the Bayingqinggeli uranium deposit, with a total of 27 samples collected, including green and gray medium coarse sandstones, for whole-rock geochemical analysis. Detailed sampling locations are shown in Figure 1. To ensure that the samples could represent the geochemical characteristics of the formation itself, suitable fresh samples were collected based on core observations, avoiding possible influencing factors such as weathering, alteration, and recycling. Indoor, take an appropriate amount of the collected sample and grind it to 200 mesh, send it to the laboratory for analysis, and complete the processing in a pollution-free environment. Composition analyses of the main, trace, and rare earth elements were conducted at the Analysis and Testing Research Center of the Beijing Research Institute of Uranium Geology.

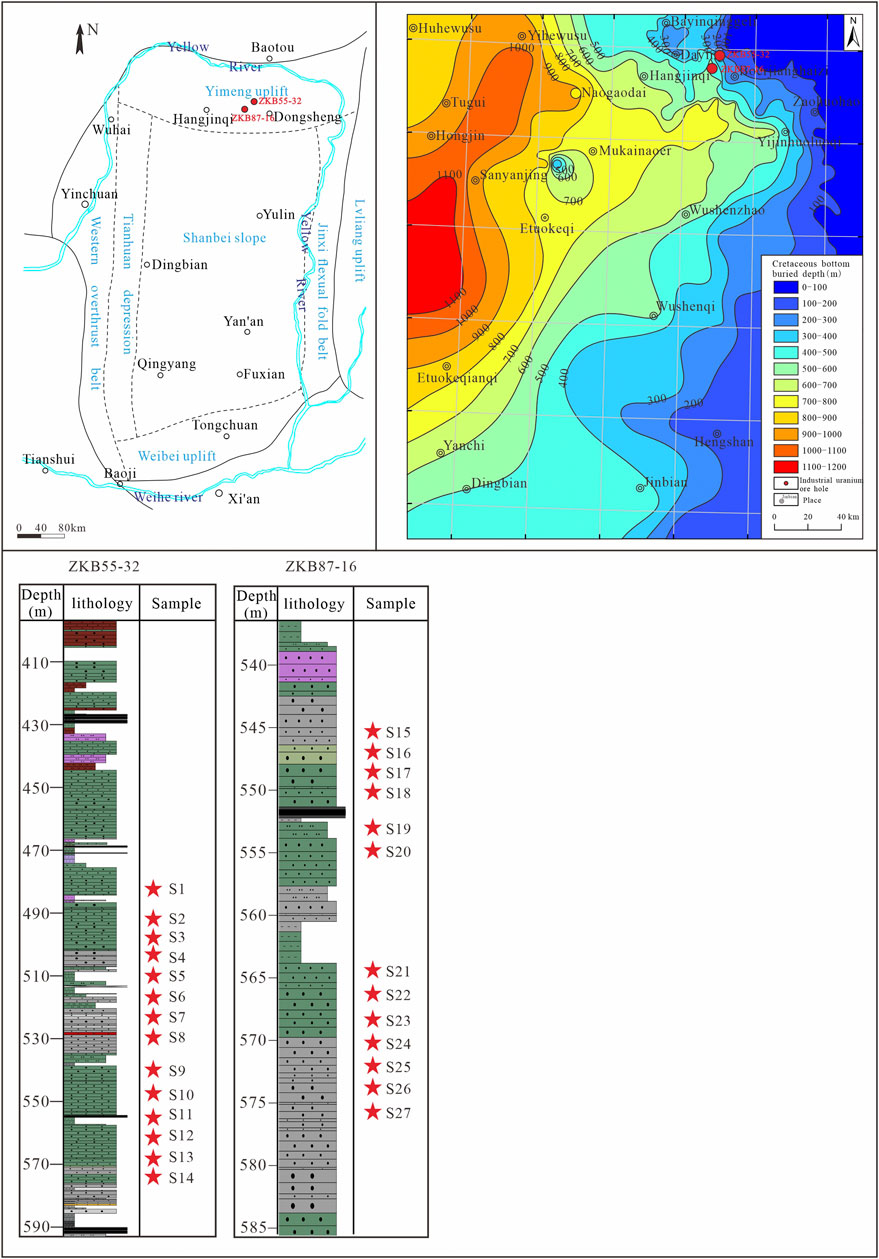

Figure 1. Geological map and sampling location map of the northern Ordos Basin.
3.2 Methods of analysis
Major element concentrations were obtained using an X-ray fluorescence spectrometer (AB-104 L, PW2404) as subsequent analytical procedures: First, each powdered sample weighed 0.4 g and was equably stirred in Ni-pots with anhydrous Li2B4O7 and dissolved with NH4Br liquid of 120 mg/mL and a suitable oxidant; second, the Ni-pots were placed on the CLAISSIE sampling machine for liquation according to the procedure presented. Afterwards, the high-temperature melts were placed in moulds and finally encased in plastic bags for preservation in desiccators. The X-ray data were converted into concentrations using a computer program based on the matrix correction method. The accuracy was estimated to be <2% for all the major element oxides.
Trace element concentrations, including REEs, were measured by an ELEMENT XR ICP-MS using the following procedure. First, powders were weighed (25 mg) and placed in high pressure-resistant beaker, with a 1:1 mixture of HF-HNO3 and heated for 24 h at 80°C to be evaporated. Second, 1.5 mL HNO3, 1.5 mL HF, and 0.5 mL HClO4 were added, respectively, after solutions were evaporated to nearly dry, and the beakers with solutions were capped for digestion within a high-temperature oven at 180°C for at least 48 h until the samples were completely dissolved. Finally, the solutions were diluted with 1% HNO3 to 50 mL for determination. The accuracy was estimated to be 5% for all trace elements.
3.3 Geochemical indices
Eu/Eu* was calculated as equal to (Eu)cn/[(Sm)cn × (Gd)cn] ×0.5 (McLennan, 1989), and Ce/Ce* was calculated as equal to (Cecn)/[(Lacn + Prcn)] ×0.5. Here, cn refers to the chondrite-normalised values of the element (Taylor and McLennan, 1985). Chemical weathering indices encompass several key metrics, including the Chemical Index of Alteration (CIA), the Chemical Index of Weathering (CIW), the Plagioclase Index of Alteration (PIA), and the Index of Compositional Variability (ICV). These indices are essential for assessing the degree of chemical weathering and the alteration of mineral compositions in geological studies (Table 1). In this research, all weathering indices, including CIA, PIA, ICV, and CIW, were utilized due to their significance in evaluating palaeo-weathering within the source area and elucidating the compositional variations of the examined sandstones. Specifically, CIA, PIA, and CIW values of 60, 60–80, and greater than 80 indicate low to moderate and strong weathering intensities, respectively (Nesbitt and Young, 1982; Fedo et al., 1995). The ICV values provide valuable insights into the compositional variations of source rocks resulting from chemical weathering. Specifically, an ICV value greater than 1 indicates the presence of minerals such as feldspars, amphiboles, and pyroxenes, which are indicative of chemical weathering processes. Conversely, an ICV value less than 1 suggests the dominance of alteration products, including kaolinite, illite, and muscovite, within the source rocks (Cox et al., 1995; Cullers, 2000). The UCC-normalised diagram of trace elements was constructed according to Rudnick and Gao (2003). The chondrite normalisation values of RRE were obtained from Taylor and McLennan (1985), and the average PAAS normalisation values were obtained from McLennan (1989). The discriminant functions of Roser and Korsch (1988) were applied to discriminate the provenance of sandstones, whereas the discriminant functions (based on major elements) of Bhatia (1983), Roser and Korsch (1986), and Bhatia and Crook (1986) were used to infer the tectonic setting. In addition, the new discriminant functions of Verma and Armstrong-Altrin (2013), Analyses of major oxides in high- and low-silica sandstones and shales have been utilized to differentiate among three primary tectonic environments: island or continental arc, continental rift, and collision zones. The newly developed discriminant functions hold significant importance for their application to the analyzed sandstones and shales, particularly due to their effectiveness in addressing chemical alterations associated with weathering, recycling, and diagenesis (Verma and Armstrong-Altrin, 2013). Samples with elevated levels of carbonate and/or iron cement were omitted from the analysis, as the presence of CaO and/or iron cement may lead to erroneous interpretations concerning provenance and tectonic context (Cullers, 2000).

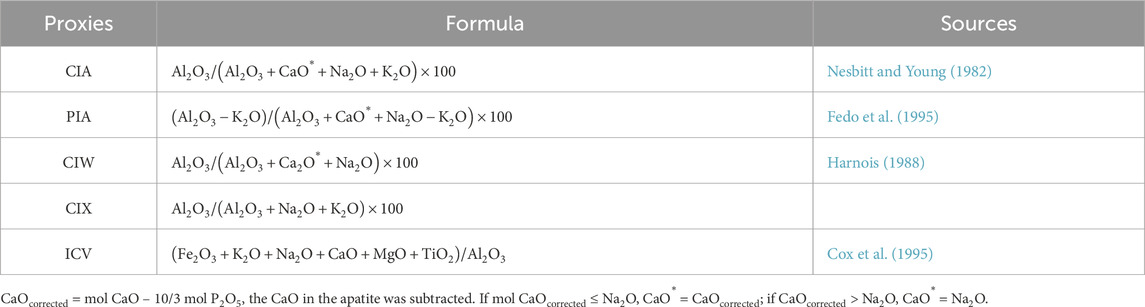

Table 1. Summary of published weathering indices considered in this study.
4 Results
4.1 Petrological characteristics
Observation of field outcrops and drill core samples shows that the sandstone of the Zhiluo Formation in the Bayinqinggeli area of the northern Ordos Basin is generally gray green to green in color, with strong vertical heterogeneity (Figure 2), indicating frequent changes in sedimentary environment. Microscopic thin section identification shows that the core samples of boreholes 55-32 and 87-16 are mainly composed of quartz, feldspar, carbonate minerals (mainly calcite), and clay minerals, with a small amount of pyrite (Figure 2).
Figure 2. Microscopic photo of Zhiluo Formation sandstone in Bayinqinggeli area, northern Ordos Basin.
4.2 Geochemistry
The results of major (oxides), trace, and rare earth elements, and loss of ignition (LOI) of the studied sandstone samples are listed in Tables 2–4.

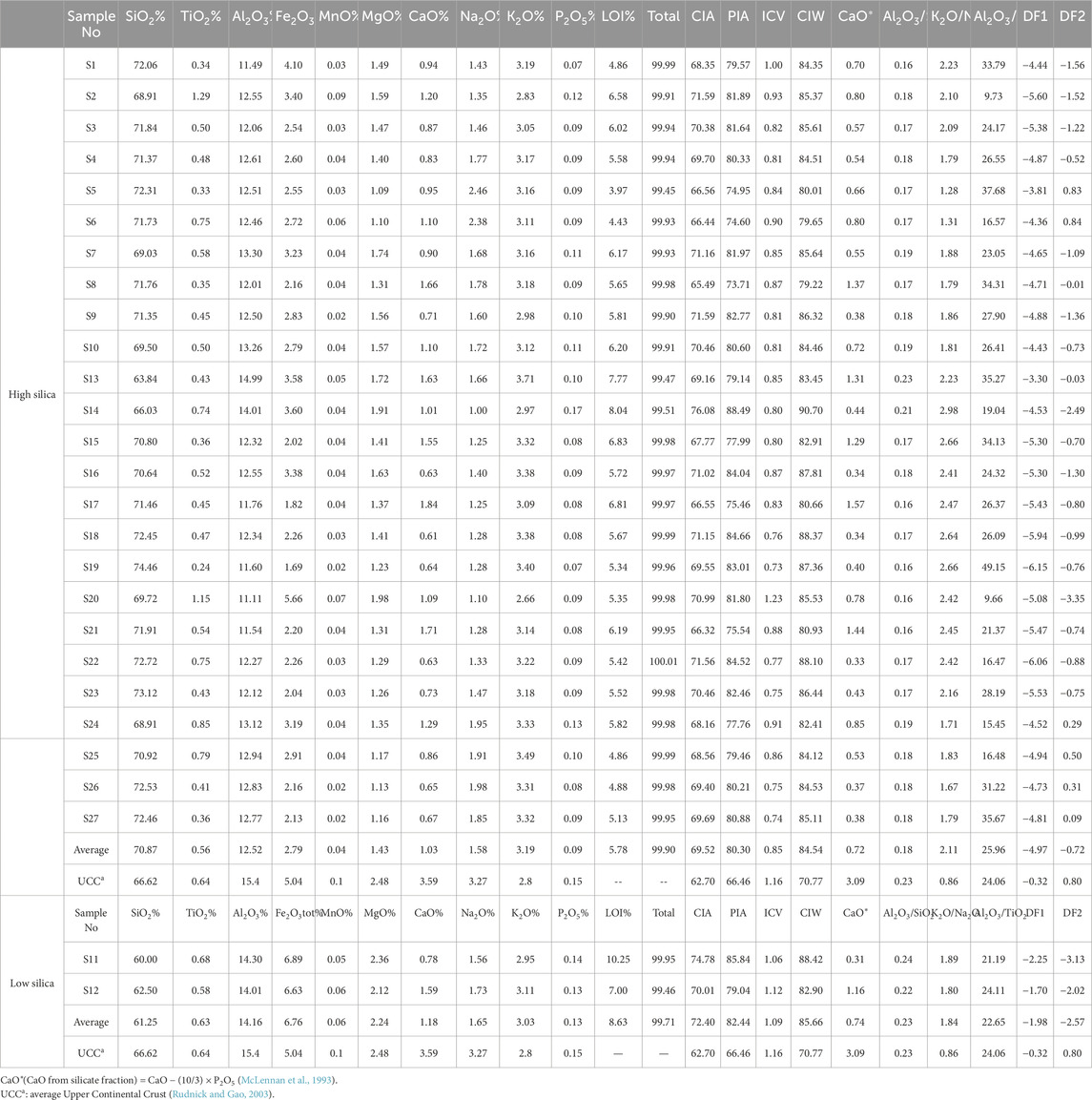

Table 2. Major element concentrations (wt%), CIA, CIW, and ratio values of the investigated siliciclastic samples.

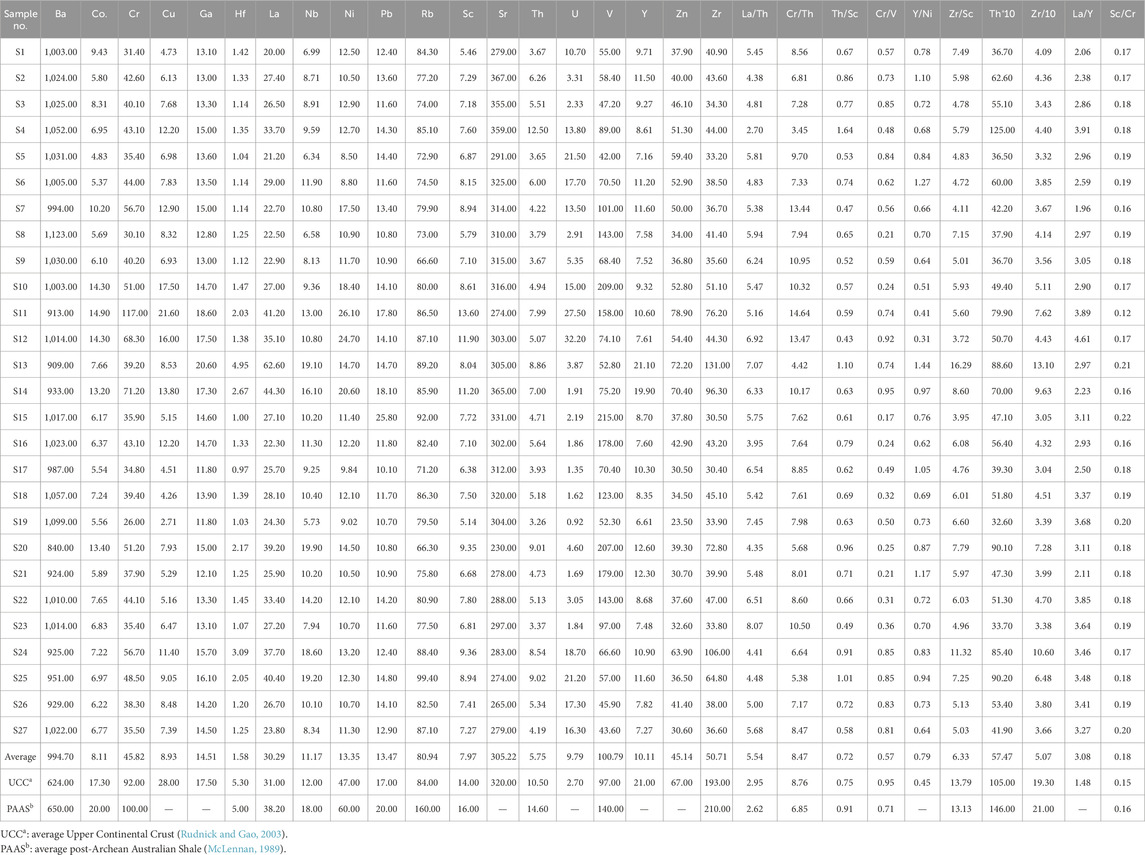

Table 3. Concentrations of selected trace elements (ppm) and ratios of the analysed samples.

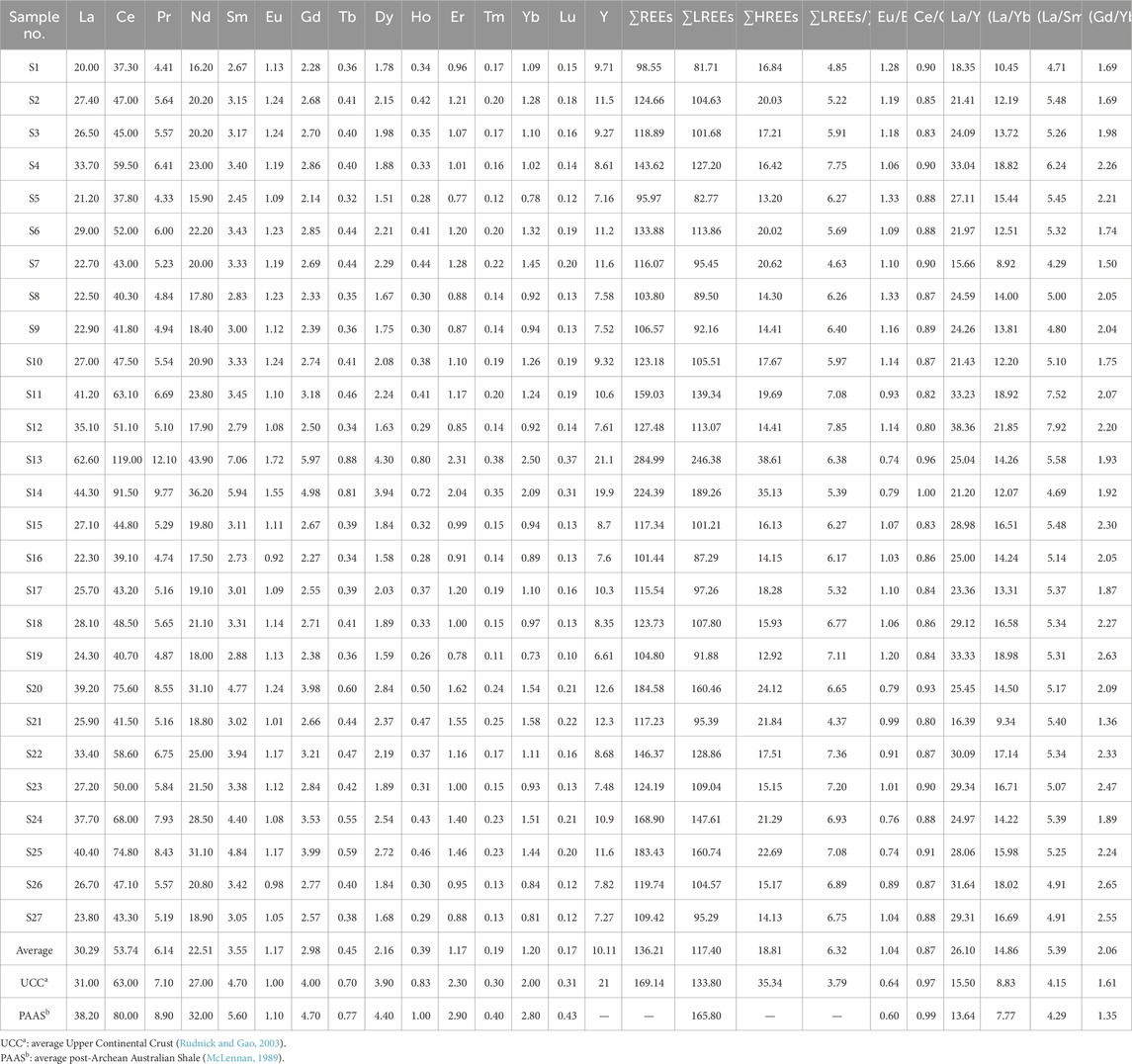

Table 4. Rare earth element concentrations (ppm) and ratios of analysed samples.
4.2.1 Major oxides geochemistry
The main elemental analyses of the Bayinqinggeli samples in the Ordos Basin are presented in Table 2. The major element concentrations of the 55-32 core and the 87-16 core are expressed as weight percentages of oxides The major element oxides SiO2 and Al2O3 constitute the dominant oxides, with contents ranging from 60 to 72.31 wt% and 11.49–14.99 wt% in the 55–32 core and from 68.91 to 74.46 wt% and 11.11–13.12 wt% in the 87–16 core. The concentrations of Fe2O3, MgO and CaO in the 55–32 core vary between 2.16 and 6.89 wt%, 1.09–2.36 wt% and 0.708–1.66 wt%, respectively. In the 87-16 core, they range from 1.69 to 5.66 wt%, 1.08–1.98 wt% and 0.614–1.84 wt%, respectively. The concentrations of Na2O and K2O in the 55–32 core vary between 0.996–2.46wt% and 2.83–3.71 wt%, respectively. In the 87–16 core, they range from 1.1 to 1.98 wt% and 2.66–3.49 wt%, respectively. P2O5, TiO2, and MnO were available in low concentrations of less than 2%.
The CIA values of the sandstone samples from boreholes to 55–32 and 87–16 (ranging from 65.49 to 76.08) were higher than those of PAAS (70) and UCC (52). Similarly, the PIA values of the studied sandstone (ranging from 73.71 to 88.49) were higher than those of PAAS (79) and UCC (53). Except for samples S6 and S8, whose CIW is below 80, the CIW of all the other samples is between 80 and 90, which is higher than those of PAAS (82) and UCC (58). According to the classification scheme of Sprague et al. (2009), the chemical classification of the samples from wells to 55–32 and 87–16 can be divided into claystone and siltstone (Figure 3a), which is consistent with the petrological classification (see Section 3.1). Correspondingly, the classification system of Herron (1988) shows that all samples can be classified as feldspathic sandstones and feldspathic heterosandstones, and most of the samples plot as feldspathic sandstones (Figure 3b).

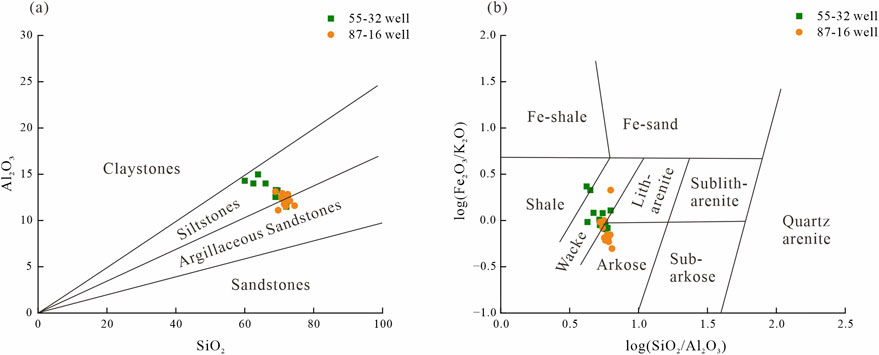

Figure 3. (a) Chemical classification of the sampled sedimentary rocks according to Sprague et al. (2009) and (b) according to Herron (1988).
4.2.2 Trace elements geochemistry
Concentrations of trace elements and their ratios (La/Th, La/Y, Y/Ni, Cr/V, Cr/Th, Th/Sc, Th/U, Sc/Cr, Zr/Sc, Th*10, Zr/10) for samples from Bayinqinggeli in the Ordos Basin are shown in Table 3. The trace elements were standardised by UCC (Figure 4). As shown in Table 3, Ba (content between 909 and 1,123 μg/g, average 1,004.21 ug/g) and U (content between 1.91 and 32.2 ug/g, average 12.26 ug/g) in sandstone drilled from 55-32 well and Ba (content between 840 and 1,099 μg/g, average 984.46 ug/g) and U (0.923∼21.2 ug/g, average 7.12 ug/g) in sandstone drilled from 87-16 well, are enriched relative to UCC and higher than PAAS. Hf (1.04∼4.95 ug/g, average 1.67 ug/g), Sc (5.46∼13.6 ug/g, average 8.41 ug/g), Cr (30.1∼117 ug/g, average 50.74 ug/g), Cu (4.73∼21.6 ug/g, average 10.79 ug/g), Ni (8.5∼26.1 ug/g, average 15.04 ug/g), Zn (34∼78.9 ug/g, average 52.65 ug/g), Th (3.65∼12.5 ug/g, average 5.94 ug/g), Zr (33.2∼131 ug/g, average 53.36 ug/g) in the sandstone from 55-32 well, lower than the content of PAAS and UCC. Hf (0.974∼3.09 ug/g, average 1.481 ug/g), Sc (5.14∼9.36 ug/g, average 7.49 ug/g), Cr (26∼56.7 ug/g, average 40.52 ug/g), Cu (2.71∼12.2 ug/g, average 6.92 ug/g), Ni (9.02∼14.5 ug/g, average 11.53 ug/g), Zn (23.5∼63.9 ug/g, average 37.06 ug/g), Th (3.26∼9.02 ug/g, average 5.54 ug/g), Zr (30.4∼106 ug/g, average 47.85 ug/g) in the sandstone from 87-16 well, lower than the content of PAAS and UCC. The Rb content (between 66.6 and 89.2 ug/g, with an average of 79.73 ug/g) and V content (between 42 and 209 ug/g, with an average of 88.83 ug/g) in the sandstone from 55-32 well, are similar to UCC content but lower than PAAS content. The Rb (between 66.3 and 99.4 ug/g, with an average of 82.25 ug/g) and V (between 43.6 and 215 ug/g, with an average of 113.68 ug/g) contents in the sandstone from 87-16 well, are similar to UCC content but lower than PAAS content. The Sr content in the sandstone of borehole 55-32 (274–367 μg/g, with an average of 319.86 ug/g) is similar to that of UCC and higher than that of PAAS. The Sr content in the sandstone from 87-16 well (between 230 and 331 μg/g, with an average of 289.46 ug/g) was similar to that of UCC and higher than that of PAAS.

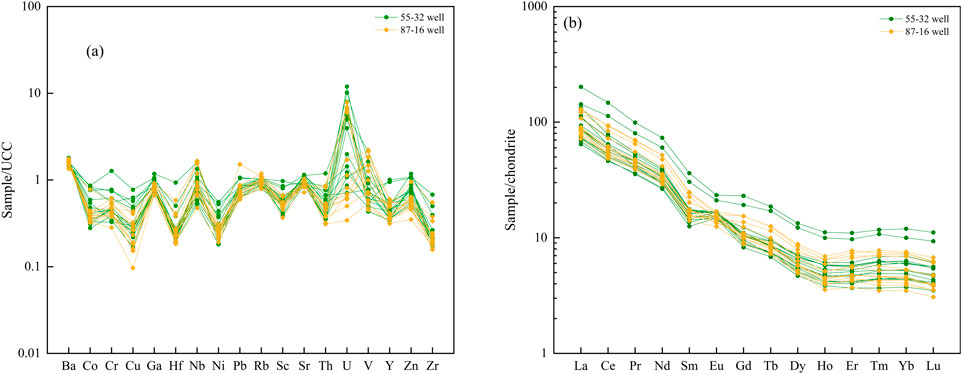

Figure 4. (a) Trace element variation diagram for all samples normalised to UCC (Rudnick and Gao, 2003). (b) Rare earth elements of all samples normalised to chondrite composition (Taylor and McLennan, 1985).
4.2.3 Rare earth elements geochemistry
The rare earth element contents of the Bayinqinggeli samples from the Ordos Basin are listed in Table 4. The standardised pattern map of homogeneous globular meteorites (Figure 4) suggests that these sandstones may share the same source, and the model exhibits a slight positive Eu anomaly. Total rare earth elements (∑REE) in the sandstones of borehole 55-32 range from 95.97 to 284.99 ug/g, with an average value of 140.08ug/g, which is significantly lower than that of UCC and PAAS. total rare earth elements (∑REE) in the sandstones of borehole 87-16 range from 101.44 to 184.58 ug/g with an average of 132.05 ug/g, also significantly lower than the UCC and PAAS. In addition, the rare earth ligand pattern maps also indicate that the light rare earth elements (LREE, 55-32 samples ranged from 81.71 to 246.38 ug/g with an average of 120.18 ug/g. 87–16 samples ranged from 87.29 to 160.74 ug/g with an average of 114.42 ug/g.) and heavy rare earth elements (HREE, 55-32 samples ranged from 13.2 38.61 ug/g with an average of 19.89 ug/g.) indicated significant fractionation. Samples 87-16 range from 12.92 24.12ug/g, with an average of 17.64 ug/g.) was also characterised by significant fractionation. LREE/HREE (samples 55-32 range from 4.63 to 7.85, with an average of 6.12. Samples 87-16 range from4.37∼7.36 with an average of 6.53), with fractionation factors higher than those of UCC and PAAS.
4.2.4 Geochemical weathering indices
The geochemical weathering index encompasses several key metrics, including the Alteration Chemical Index (CIA) developed by Nesbitt and Young (1982), the Alteration Plagioclase Index (PIA) introduced by Fedo et al. (1995), the Weathering Chemical Index (CIW) established by Harnois (1988), and the Composition Variation Index (ICV) proposed by Cox et al. (1995). These indices were derived from the primary oxide values present in the analyzed sediment, as detailed in the Methods section. The calculated values for CIA, PIA, CIW, and ICV are presented in Table 2.
5 Discussion
The contents of major element oxides, trace elements, and rare earth elements in clastic sedimentary rocks provide valuable information for understanding paleoenvironmental conditions during deposition. This method has been widely used to infer the depositional conditions of sedimentary formations (Moradi et al., 2016; Xie et al., 2018; Wei and Algeo, 2020; Fathy et al., 2021; Hussain et al., 2021; Yan et al., 2021; Al-Juboury et al., 2021; Omietimi, 2022; Tang et al., 2023; Zhang et al., 2023; Xiao et al., 2023; Yang et al., 2023; Qureshi et al., 2023). In this study, major element oxides, trace element and rare earth element compositions were used to assess palaeo-weathering and climate variability, palaeo-temperature, palaeo-productivity, salinity, hydro-energetic conditions and palaeo-oxidation levels in the Ordos Basin.
5.1 Provenance
5.1.1 Provenance from major elements
The elemental geochemistry, encompassing major, trace, and rare earth elements, of clastic sedimentary rocks has been utilized to deduce their provenance (McLennan et al., 1993; Roser and Korsch, 1986; Augustsson et al., 2023). Certain oxides, such as aluminum oxide (Al2O3) and titanium dioxide (TiO2), along with trace elements including scandium (Sc), nickel (Ni), lanthanum (La), cobalt (Co.), chromium (Cr), vanadium (V), niobium (Nb), hafnium (Hf), yttrium (Y), zirconium (Zr), and thorium (Th), exhibit low mobility or immobility throughout the processes of transportation, weathering, and diagenesis of their parent rocks (Hayashi et al., 1997; Cullers, 2000; Augustsson et al., 2023). The analysis of major, trace, and rare earth elements facilitated the identification of the source rock types present in the studied sandstones. This topic can be elaborated upon as follows:
The major oxides are insufficient for accurately determining the provenance of siliciclastic rocks, as many of these oxides are subject to mobility due to weathering and diagenetic processes (Augustsson et al., 2023). Research indicates that the ratios of K2O/Na2O and Al2O3/TiO2 serve as effective provenance indicators for terrestrial deposits (Hayashi et al., 1997; Roser and Korsch, 1986; Roser and Korsch, 1988; Hayashi et al., 1997; Augustsson et al., 2023). Hayashi et al. (1997) asserted that aluminum (Al) and titanium (Ti) are typically compatible and exhibit immobility during both pre-depositional and post-depositional processes. Augustsson et al. (2023) demonstrated that K2O/Na2O ratios are effective indicators for identifying the source rocks of sediments in arid climatic conditions and terrestrial depositional environments, as opposed to humid and marine settings. The ineffectiveness of K2O/Na2O as an indicator for sediments formed in terrestrial depositional environments characterized by humid climates may be attributed to the extensive weathering of K2O/Na2O under such climatic conditions (Augustsson et al., 2023). According to Hayashi et al. (1997), the Al2O3/TiO2 ratios serve as indicators of the source rock type, with values between 3 and 8 suggesting mafic igneous origins, while ratios from 8 to 21 are indicative of intermediate igneous source rocks. Conversely, ratios ranging from 21 to 70 are associated with felsic igneous source rocks. In the analysis of the sandstone from the 55-32 well, the Al2O3/TiO2 ratio was observed to range from 9.73 to 37.68, whereas the ratio for the sandstone from the 87-16 well varied from 9.66 to 49.15. These findings align closely with the characteristics of felsic and intermediate igneous provenances, as noted by Hayashi et al. (1997).
Roser and Korsch’s (1988) discriminant function plots for the major oxides indicate that quartzose sedimentary provenance and felsic igneous rocks are the main sources of the studied sandstones (Figure 5a). In addition, plotting the bivariate diagrams (TiO2 versus Al2O3 and TiO2 versus Zr) of Hayashi et al. (1997) documented the felsic and intermediate igneous provenance for the studied sandstones (Figures 5b, c). The plot of Le Bas et al. (1986) for Al2O3/TiO2 versus SiO2 reflects a felsic source with a small contribution from an intermediate igneous source (Figure 5d). Therefore, the major element study shows that the sandstone of the Zhiluo Formation is a feldspathic source rock formed by geological processes.
Figure 5. Provenance discriminant function diagrams using major elements (a) (after Roser and Korsch, 1988) and (b, c) Al2O3 versus TiO2 and Zr (ppm) versus TiO2 (wt%) (after Hayashi et al., 1997), and (d) Al2O3/TiO2 versus SiO2 (after Le Bas et al., 1986).
Figure 6. (a–d) Plot provenance determination of the analysed sandstone samples on the Ni–V–Th*10 ternary diagram after Bracciali et al. (2007), the Ni/TiO2 bivariate diagram of Floyd and Leveridge (1987), the Th/Co. versus La/Sc diagram of Cullers (2000), and the Th/Sc versus Zr/Sc diagram of McLennan et al. (1993).
5.1.2 Provenance from trace elements
The use of trace elements, including titanium (Ti), thorium (Th), scandium (Sc), niobium (Nb), yttrium (Y), hafnium (Hf), and zirconium (Zr), is essential for determining the provenance of clastic sedimentary rocks. Their natural compatibility and stability during recycling and diagenesis processes greatly enhance their value as dependable indicators for inferring the origins of these geological formations (Floyd and Leveridge, 1987; McLennan et al., 1993; Cullers, 2000; Totten et al., 2000; Hiscott, 1984; Bracciali et al., 2007; Augustsson et al., 2023).
In the sandstones of the 55–32 well, a notable depletion was observed in the contents of Sc, Co., Ni, Cu, La, Ga, and Zn, with average values of 8.41, 9.07, 15.04, 10.95, 31.15, 15.07, and 52.65 ppm, respectively (refer to Table 3). Similarly, the 87-16 well sandstones exhibited a depletion in these trace elements, with average values of 7.49, 7.06, 11.53, 6.92, 29.37, 13.91, and 37.06 ppm (also see Table 3). The normalized pattern of these trace elements was analyzed in relation to the Upper Continental Crust (UCC) (Taylor and McLennan, 1985). The analysis indicated that the examined sandstones exhibited a slight enrichment in barium (Ba), rubidium (Rb), vanadium (V), and uranium (U), while showing a depletion in cobalt (Co.), chromium (Cr), copper (Cu), nickel (Ni), yttrium (Y), and zirconium (Zr) when compared to the upper continental crust (UCC) (Figure 4). The other trace elements found in the examined sandstones closely resembled the normalization values (Figure 4). The data suggest that the studied sandstones originate from a felsic igneous source (McLennan et al., 1993; Löwen et al., 2018). The trace element values of the analyzed sandstones are presented in bivariate diagrams, including Hf versus La/Th (Floyd and Leveridge, 1987), Co./Th versus La/Sc (McLennan et al., 1993), Th/Sc versus Cr/Th (Totten et al., 2000), and Cr/V versus Y/Ni (McLennan et al., 1993), labeled as diagrams a, b, c, and d, respectively. Also, presentation of the studied samples on the Ni–V–Th*10 ternary diagram of Bracciali et al. (2007) (Figure 6a) and Ni versus TiO2 and Th/CO versus La/Sc binary diagrams (Figures 6b, c) showed that the studied samples approached the felsic field rather than the mafic field.
The findings suggest a significant contribution from a felsic igneous source, with only a minor input from a mafic igneous source in the analyzed samples. The low Cr/V ratios, when compared to the Y/Ni ratios (as shown in Table 3), indicate a felsic origin for the sediments under study, effectively ruling out the likelihood of contributions from mafic or ultramafic sources (McLennan et al., 1993).
5.1.3 Provenance from rare earth elements
Due to their limited mobility and significant stability throughout weathering, transportation, and diagenetic processes of the parent rocks (Taylor and McLennan, 1985), rare earth elements (REEs) serve as valuable indicators for identifying the type of parent rocks from which clastic rocks originate. The distribution pattern of rare earth elements (REEs) and europium anomalies in clastic sediments offers compelling evidence for determining the composition of source rocks (Taylor and McLennan, 1985; Cullers, 1994; Rudnick and Gao, 2003; Armstrong-Altrin et al., 2015), the high ratios of light rare earth elements (LREE) to heavy rare earth elements (HREE) and the presence of negative europium (Eu) anomalies in clastic rocks suggest a felsic source. In contrast, the lower LREE/HREE ratios and the absence of Eu anomalies in clastic rocks indicate a mafic source (Cullers, 1994). Utilizing the REE values identified in the analyzed sandstones is essential for determining their source rocks.
In these sandstones, the elevated levels of LREE (55–32 well, average 120.18; 87-16 well, average 114.42) compared to the HREEs (averages of 19.89 and 17.64) as shown in Table 4, indicate a felsic igneous source (Cullers, 1994). The elevated average ratios of (La/Yb) cn, recorded at 14.23 and 15.55, alongside the lower averages of (Gd/Yb) cn, which are 1.93 and 2.21, in the analyzed rocks (refer to Table 4), imply a granitic origin for the source rocks (Rudnick and Gao, 2003). The sandstone samples examined exhibit higher LREE/HREE values, ranging from 4.37 to 7.85, with an average of 6.32, and display negative Eu anomalies between 0.92 and 1.72, averaging at 1.17. Conversely, a subset of these samples shows lower LREE/HREE values, between 2.40 and 2.90, accompanied by minimal negative Eu anomalies ranging from 0.30 to 4.02 (see Table 4). The presence of higher LREE/HREE ratios coupled with negative Eu anomalies further supports the conclusion of a granitic source for the Upper Continental Crust (UCC) (Taylor and McLennan, 1985; Rudnick and Gao, 2003). Conversely, the lower LREE/HREE values, along with the presence of minimal negative anomalies, suggest that mafic source rocks significantly contribute to the composition of the studied sandstones (Cullers, 1994). The observed relative enrichment of light rare earth elements (REE) and a low Eu/Eu* ratio (average of 1.04) as indicated in Table 4 suggest that the studied sandstones originate from a granitic source associated with the Upper Continental Crust (UCC) (Amedjoe et al., 2018) (Figure 7).

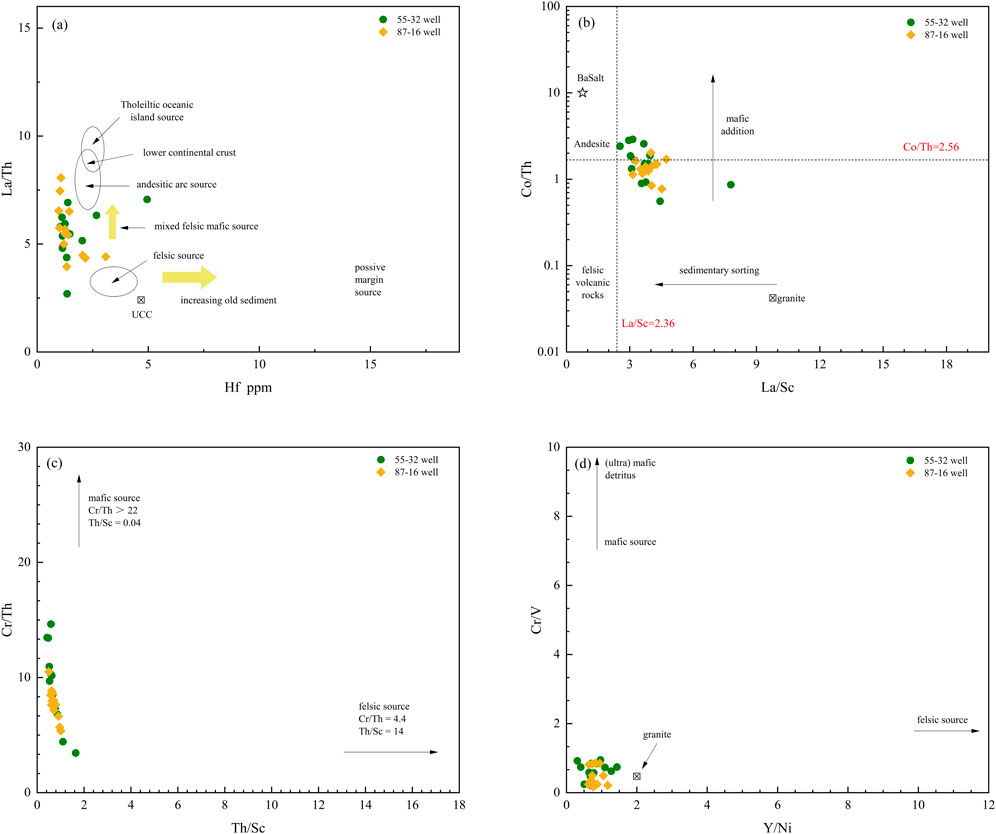

Figure 7. (a–d) Bivariate plots of provenance-diagrams using trace elements of the studied sandstones (after Floyd and Leveridge, 1987; McLennan et al., 1993; Totten et al., 2000; McLennan et al., 1993, respectively).
In conclusion, the analysis of major, trace, and rare earth elements suggests that the detrital sources of the studied sandstone are diverse. This mixed source comprises fragments of felsic, medium, and mafic igneous rocks. The Changying igneous rocks are likely derived from granite and volcanic formations, specifically rhyolite. The moderate igneous contribution can be attributed to a combination of intrusive rocks, such as granodiorite, and extrusive rocks like andesite. Furthermore, the provenance of mafic igneous rocks in this study may be linked to volcanic rocks, particularly basalt, found in the northern region of the Ordos Basin. Additionally, the sedimentary origin of quartzite may be associated with multi-cyclic acidic rocks, including granite.
5.2 Tectonic setting of the source area
The original mineralogy and geochemistry of clastic sedimentary rocks can undergo changes due to diagenesis (Pettijohn et al., 1987). Additionally, the heavy mineral assemblage (Nechaev, V.P., 1993) and elemental geochemistry, including major, trace, and rare earth elements (Bhatia, 1983; Roser and Korsch, 1986; Verma and Armstrong-Altrin, 2013), have been extensively utilized to infer the tectonic setting of their source areas. This topic will be further explored in the following discussion.
5.2.1 Tectonic setting from major elements
Numerous prior studies have demonstrated that the primary components of siliciclastic sedimentary rocks can effectively differentiate the tectonic settings of their source rocks (Bhatia, 1983; Roser and Korsch, 1986; Verma and Armstrong-Altrin, 2013; Verma and Armstrong-Altrin, 2016). The representation of the discriminant functions of major oxides from the analyzed sandstones in the diagrams by Bhatia (1983), Roser and Korsch (1986), and Kroonenberg (1994) indicates a passive continental margin setting for their source rocks (Figures 8a–c). Furthermore, the application of the new discriminant function diagrams by Verma and Armstrong-Altrin (2016) reinforces this conclusion of a passive margin setting (Figures 9a, b).

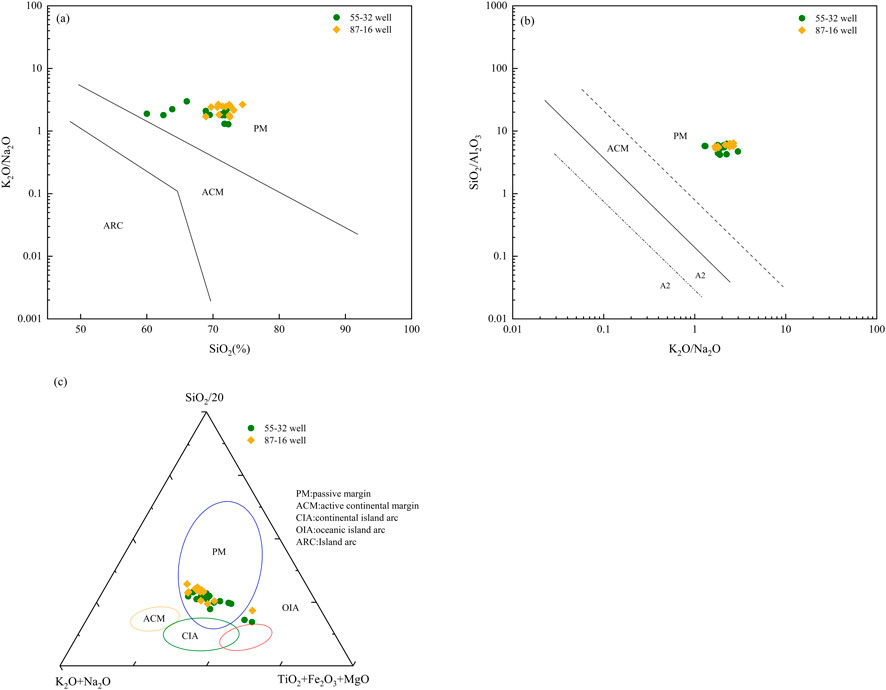

Figure 8. Plots of major elements of the studied sandstones on the tectonic discrimination diagrams of (a, b) Roser and Korsch (1986), (c) Kroonenberg (1994). Note: PM = passive margin; ACM = active continental margin; CA = continental island-arc.

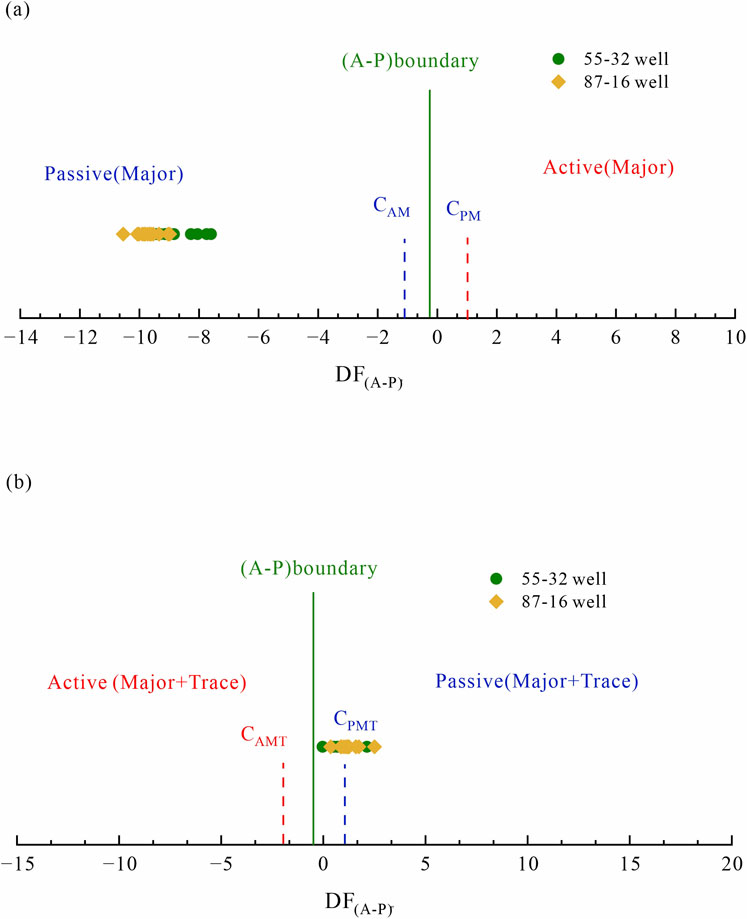

Figure 9. Tectonic setting of the studied sandstones using diagrams of Verma and Armstrong-Altrin (2016) for (a) major elements, (b) combined major and trace elements.

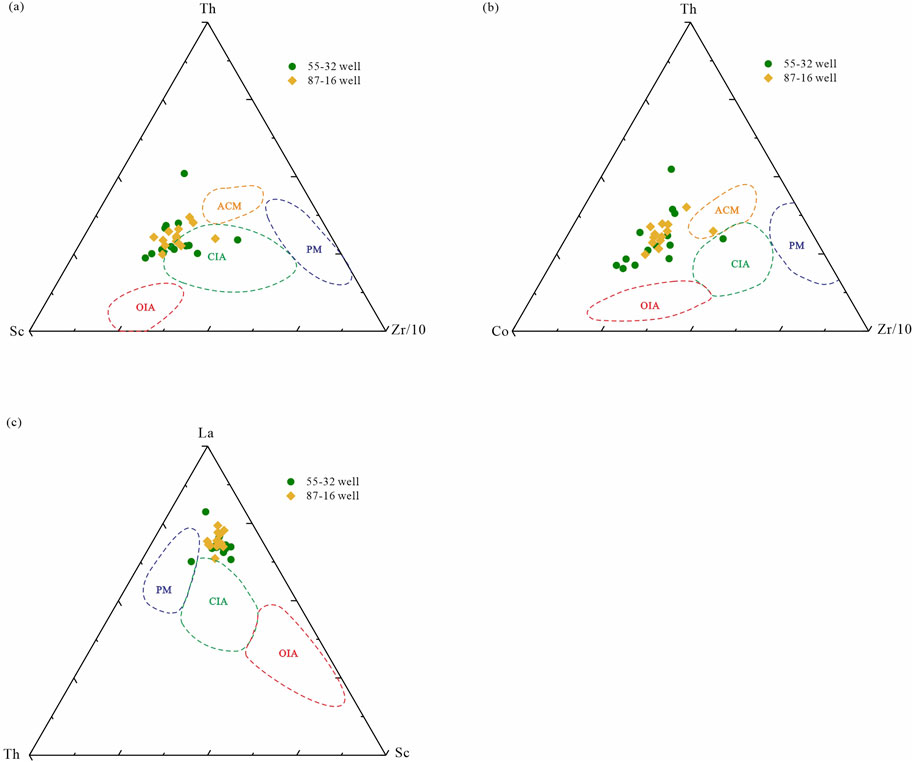

Figure 10. Plots of trace elements of the studied sandstones on the tectonic discrimination diagrams of Bhatia and Crook (1986) for: (a) Th–Sc–Zr/10 ternary diagram, (b) Th–Co–Zr/10 ternary diagram, and (c) La–Th–Sc ternary diagram. Notice, PM = passive margin, ACM = active continental margin, CIA = continental island-arc.
5.2.2 Tectonic setting from trace and rare earth elements
The stability of trace and rare earth elements during the weathering and diagenesis of the parent rock (Taylor and McLennan, 1985) is crucial. Additionally, the presence of these elements in clastic sedimentary rocks significantly influences the identification of the tectonic settings of the source rocks (Bhatia and Crook, 1986; McLennan et al., 1993; McLennan, 2001). The analysis of trace element values from the studied rocks, as illustrated in the diagrams by Bhatia and Crook (1986), indicates that the samples predominantly align with or are situated near the continental island-arc field (Figures 10a–c). The analyzed sandstones originated from weathered rocks in a continental island-arc environment. Additionally, the striking similarities in the rare earth element (REE) distribution between the studied samples and the average normalization of those from the Upper Continental Crust (UCC) and Post-Archean Australian Shale (PAAS), along with the presence of negative europium anomalies (Figure 4b), indicate that their source rocks were likely derived from a passive continental margin setting (Taylor and McLennan, 1985; McLennan, 1989). The analysis indicates a significant enrichment of light rare earth elements (REEs), with an average concentration of 117 μg/g. Additionally, the low Eu/Eu* ratio, which is less than 0.94, along with the nearly flat chondrite-normalized patterns of heavy REEs, suggests that the studied sandstones originate from a granitic source within the Upper Continental Crust (UCC) (Amedjoe et al., 2018).
5.3 Source area-paleoweathering
Chemical weathering induces alterations in the mineralogical and chemical compositions of the parent rocks (Pettijohn et al., 1987). Consequently, an examination of the mineralogical and chemical characteristics of clastic sedimentary rocks can provide valuable insights into the impact of chemical weathering on their source areas.
The significant reduction of CaO, Na2O, and K2O (the alkaline elements) in the analyzed samples, in comparison to the Upper Continental Crust (UCC) values (refer to Table 2), can be attributed to the enhanced mobility of these elements during moderate to intense chemical weathering (Gaillardet et al., 1999). The elevated SiO2/Al2O3 ratios presented in Table 2 suggest a significant level of chemical maturity and indicate that the studied sediments have undergone multiple cycles of recycling (Roser and Korsch, 1986). The geochemical indices, including CIA, CIW, PIA, and ICV, indicate that the CIA values of the studied samples range from 65.48% to 76.07%, with an average of 69.73%. This suggests a moderate to high degree of chemical weathering affecting their source rocks (Nesbitt and Young, 1982). The values of the CIW, which range from 79.22% to 90.70%, indicate significant alteration of feldspars in the granitic igneous rocks, as shown in Table 2 (Fedo et al., 1995). The values of the PIA for the studied samples, which range from 73.71% to 88.49% (as shown in Table 2), indicate a significant alteration of plagioclase and K-feldspar in the source rocks (Harnois, 1988). The values of the ICV for the studied samples are predominantly less than 1, with the exception of three samples (refer to Table 2). This indicates that the source rocks have undergone significant chemical weathering (Cox et al., 1995; Cullers, 2000). The analysis of the studied sandstones indicates that the intensive chemical weathering and recycling of their source rocks is supported by a comparison of the CIA values with A–CN–K, as illustrated in the diagram by Long et al. (2012) (Figure 11a) and ternary diagram of Al2O3, Ti2O and Zr in the studied sandstones (Figure 11b) of Garcia et al. (1991). This intensive chemical weathering is also documented using the binary diagram of CIA versus ICV of Nesbitt and Young (1982) (Figure 11c). The analysis of trace elements provides insights into the intensity of chemical weathering on source rocks. The low average Th/Sc ratio of 0.72, coupled with a high Th/U ratio of 1.47 (as shown in Table 3), indicates that the source rocks have undergone significant chemical weathering (McLennan et al., 1993). The analyzed sandstones exhibit elevated Th/U ratios, averaging 1.47, which suggests a dominance of oxidizing conditions during chemical weathering, as noted by Taylor and McLennan (1985). When the Th and U data from these sandstones are plotted on the binary diagram (Th/U versus Th) presented by McLennan et al. (1993), it highlights the significant impact of intense chemical weathering and recycling on the source rocks.

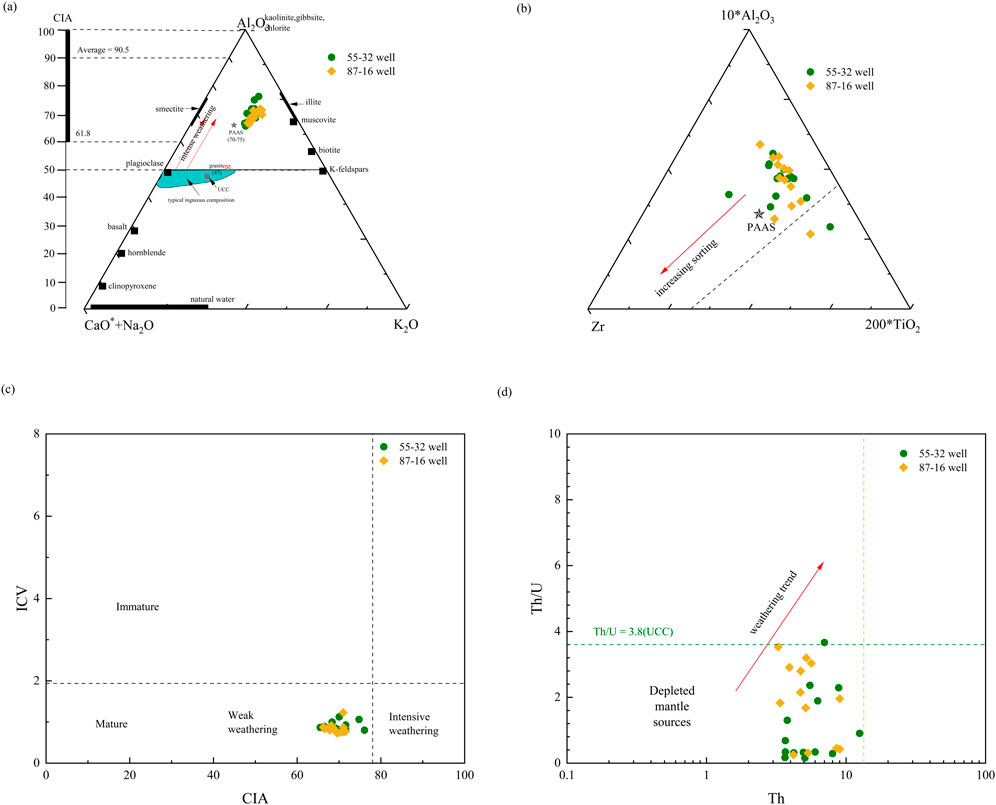

Figure 11. Diagrams showing the paleoweathering intensity on the source rocks of the studied sandstones. These diagrams are (a) Al2O3–(CaO* + Na2O)–K2O ternary diagram of Nesbitt and Young (1982). Red arrow indicates predicted ideal weathering trend (Nesbitt and Young, 1984). The red arrow indicates diagenetic K-metasomatism trend (Fedo et al., 1995). The average composition of UCC and PAAS are from Taylor and McLennan (1985), (b) Al2O3–Zr–TiO2 ternary diagram (after Garcia et al., 1991), (c) ICV versus CIA bivariate diagram (after McLennan et al., 1993) and (d) Th versus Th/U bivariate diagram (after McLennan et al., 1993).
5.4 Paleoclimate analysis
5.4.1 Paleosalinity
Paleosalinity offers insights into ancient sedimentary environments by distinguishing different types of sedimentary water and indicating the water depth at the time of sediment deposition (Yang et al., 2023). Geochemical analyses can effectively evaluate the paleosalinity of sedimentary deposits found in freshwater, brackish, and deep marine environments (Omietimi et al., 2022; Zhang et al., 2023; Yang et al., 2023; Qureshi et al., 2023). Insights into paleosalinity conditions can be derived by examining the proportions of magnesium (Mg), aluminum (Al), calcium (Ca), and sodium (Na). The ratios of strontium to barium (Sr/Ba), 100 times the ratio of magnesium to aluminum (100*Mg/Al), and calcium to aluminum (Ca/Al) have proven to be valuable tools for comprehending variations in paleosalinity levels within sedimentary rock formations (Wei and Algeo, 2020; Chen et al., 2021; Wang et al., 2021; Yan et al., 2021; Omietimi, 2022). The correlation between strontium enrichment and rising paleo-water salinity is significant, as salinity levels typically increase with depth (Omietimi et al., 2022). Elevated Sr/Ba values may suggest increased depths and higher salinity levels in saltwater environments (Qureshi et al., 2023). Sr/Ba ratios exceeding 0.5 suggest that deposition occurs in a marine environment, while ratios between 0.2 and 0.5 indicate deposition in brackish water (Wei and Algeo, 2020; Omietimi et al., 2022). Values below 0.2 are indicative of terrestrial deposition. A low 100*Mg/Al ratio (less than 1.0) suggests that the deposition occurred in a freshwater paleosedimentary environment, free from seawater influence. Ratios ranging from 1 to 10 imply a brackish environment, while values exceeding 10.0 indicate marine conditions. Additionally, elevated Ca/Al ratios may signify marine or evaporite influences, whereas lower ratios are suggestive of terrestrial (freshwater) conditions.
Paleosalinity significantly affects organism growth and the accumulation and preservation of organic material. This relationship is particularly crucial for the paleoproductivity of both cores. In the Zhiluo Formation 55-32 core, the Sr/Ba ratios range from 0.28 to 0.39, averaging 0.32, which suggests a brackish depositional environment. Similarly, the 87-16 core, also indicative of a brackish environment, exhibits Sr/Ba levels between 0.27 and 0.33, with an average of 0.29 (Figure 12a).

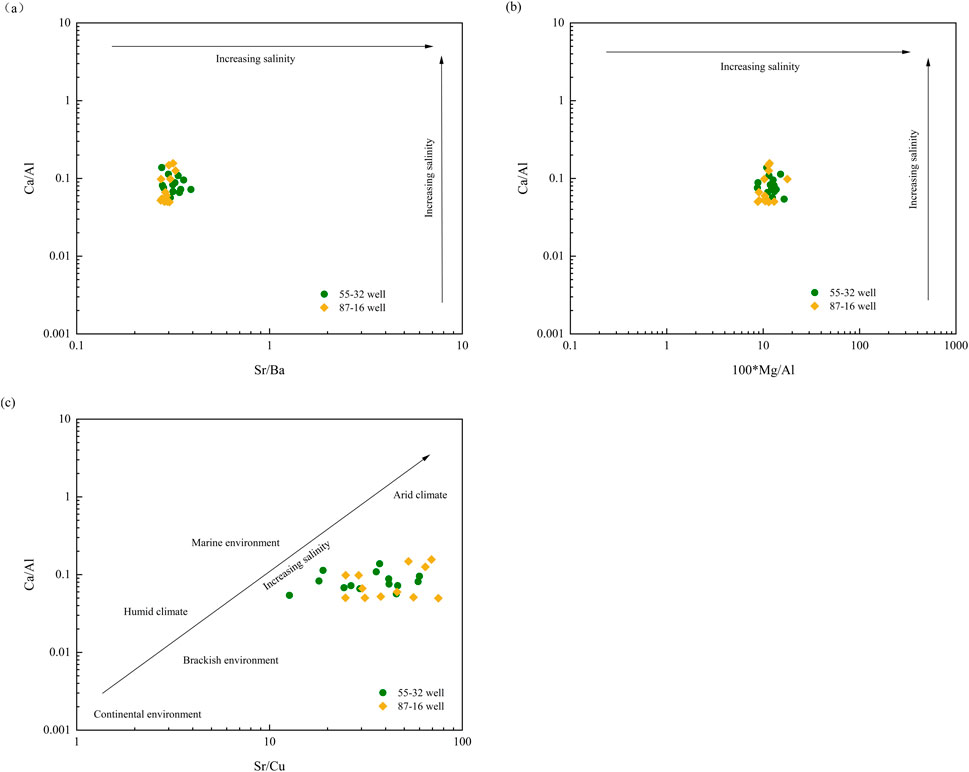

Figure 12. Diagrams showing the salinity conditions within the study area. (a) Plot of Sr/Ba vs Ca/Al showing the paleosalinity of the Araromi Formation; (b) crossplot of 100*Mg/Al vs Ca/Al indicating salinity conditions; (c) Sr/Cu vs Ca/Al plot showing the relationship between climate and salinity levels.
The 100*Mg/Al values in the 55-32 core range from 8.71 to 16.5, with an average of 12.25, while the Ca/Al concentrations vary between 0.05 and 0.14, averaging 0.08. These findings indicate that the deposition of the Zhiluo Formation occurred in a brackish to marine environment. Similarly, the 87-16 core exhibits comparable 100*Mg/Al concentrations, ranging from 8.81 to 17.82, with an average of 11.19, and Ca/Al ratios from 0.05 to 0.16, averaging 0.08. This also suggests the presence of brackish to marine conditions (Figure 12b). Climate factors, including chemical alterations and paleosalinity, significantly influence environmental conditions in sedimentary environments (Yan et al., 2021; Yang et al., 2023). A cross-plot analysis was conducted to explore the relationship between climate indicators and salinity proxies. This analysis reveals how climate variations impact salinity levels (Figure 12c). Our research revealed a decrease in salinity levels during predominantly arid conditions (Figure 12c).
5.4.2 Palaeoredox conditions
Geochemical proxies for trace elements such as U/Th, Ni/Co., and V/Cr have demonstrated their effectiveness in assessing the paleoredox conditions of sedimentary rocks. These proxies offer valuable insights into the nature of sediment deposition, indicating whether it took place under oxic or anoxic conditions (Bai et al., 2015; Xie et al., 2018; Liang et al., 2020; Yan et al., 2021; Qureshi et al., 2023). The U/Th ratio was utilized to assess the redox conditions of the Zhiluo Formation based on subsurface data obtained from both cores. A ratio exceeding 1.25 signifies an anoxic environment, whereas a ratio ranging from 0.75 to 1.25 indicates a transition from suboxic to dysoxic conditions (Bai et al., 2015; Liang et al., 2020). Conversely, a ratio below 0.75 signifies an oxic environment (Bai et al., 2015). Oxic conditions are indicated by a Ni/Co. ratio of less than 5, while sub-oxic to anoxic environments are typically observed when the ratio exceeds 5 (Qureshi et al., 2023). The V/Cr ratio serves as an important indicator of environmental conditions. A ratio exceeding 4.0 indicates an anoxic environment, while a ratio ranging from 2.0 to 4.0 suggests a transition from suboxic to dysoxic conditions. Conversely, values falling below 2.0 are indicative of an oxic environment.
The average U/Th ratios of 2.34 and 1.19 for the 55–32 and 87–16 cores, respectively, indicate low paleo-oxygenation levels, suggesting that deposition primarily occurred in an anoxic to suboxic environment. A few samples from the 87-16 core exhibited oxic conditions. Similarly, the mean Ni/Co. and V/Cr ratios were lower than the UCC concentrations, further indicating reduced oxygen levels during deposition.
The index yield provides insights into the prevailing redox conditions during sediment deposition. The ash yield index varies from 0.05 to 0.14, indicating weak reducing conditions, whereas a range of 0.23–1.23 suggests a more significantly reducing aquatic environment (He et al., 2022). In the sandstone of the Zhiluo Formation, the ash yield index values exhibit a range from 0.11 to 1.37, with an average of 0.08 for the 55-32 core. This data indicates a weak reducing water environment prevailing during both deposition and diagenesis. Similarly, the samples from the 87-16 core demonstrate ash yield index values between 0.04 and 0.14, with a mean of 0.06, further suggesting comparable weak reducing conditions during the deposition phase.
5.4.3 Paleoweathering and paleoclimatology
Chemical weathering of clastic rocks serves as a valuable method for monitoring paleoclimatic variations throughout the process of sediment deposition (Nesbitt and Young, 1982; Chukwuma et al., 2022; Omietimi et al., 2022; Tang et al., 2023; Qureshi et al., 2023). The indicators demonstrate the overall variations in weathering intensity within the source region, which frequently shifts between arid-cold and humid-warm climatic conditions (Perri and Ohta, 2014; Krzeszowska, 2019; Bokanda et al., 2021; Tang et al., 2023; Zhang et al., 2023). The CIA serves as a dependable proxy indicator for climatic conditions, as it quantifies the ratio of alumina to labile oxides, which directly reflects the degree of chemical weathering (Chukwuma et al., 2022). Intense chemical weathering, characterized by CIA values ranging from 85 to 100, is typically associated with hot and humid climates that promote significant rainfall (Omietimi et al., 2022). A CIA value between 65 and 85 indicates a warm, humid environment typical of moderate chemical weathering. In contrast, a CIA value below 65 suggests low chemical weathering, which is commonly linked to arid conditions with reduced precipitation (Hu et al., 2016; Ngueutchoua et al., 2019).
The analysis of the samples from the 55-32 core indicates a moderate degree of chemical weathering, with Chemical Index of Alteration (CIA) values ranging from 65.49 to 76.08, and an average of 70.12. Similarly, the samples from the 87-16 core exhibit a comparable moderate degree of chemical weathering, with CIA values fluctuating between 66.32 and 71.56, averaging 69.32. These CIA values imply a period characterized by warm and humid climatic conditions during the sedimentation of the Middle Jurassic Zhiluo Formation. To illustrate the impact of climatic variation on the weathering processes and geochemical maturity of clastic rocks, a cross-graph depicting the Index of Compositional Variability (ICV) against the Chemical Index of Alteration (CIA) was employed (Figure 11c). The data suggest a direct correlation between climate and geochemical maturity, as well as paleoweathering processes. A humid climate is associated with the development of mature clastic rocks and heightened chemical weathering. Conversely, sedimentary rocks characterized by low chemical weathering and geochemical immaturity are typically found in arid and elevated temperature environments (Figure 11c).
To gain a thorough understanding of the Middle Jurassic paleoclimate along the northern margin of the Ordos Basin, it is essential to go beyond conventional parameters and incorporate a variety of geochemical indicators. In addition to traditional data sources, several supplementary geochemical markers of climate change were utilized to enhance our comprehension of the region’s paleoclimate. Previous studies have demonstrated that analyzing the relative concentrations and distributions of trace elements in mudrocks can effectively reconstruct the paleoclimatic conditions present during their deposition.
In sedimentary research, the ratios of Ga/Rb, Th/U, Sr/Cu, Rb/Sr, and SiO2/Al2O3 in fine-grained sedimentary rocks are widely recognized as dependable indicators for assessing paleoclimatic conditions (Xie et al., 2018; Baioumy et al., 2021; Hussain et al., 2021; Al-Juboury et al., 2021; Omietimi et al., 2022; Fathy et al., 2023). Trace elements such as gallium (Ga), rubidium (Rb), strontium (Sr), and thorium (Th), along with major oxides like manganese (Mn), aluminum (Al), magnesium (Mg), and calcium (Ca), exhibit sensitivity to variations in paleoclimatic conditions (Moradi et al., 2016; Xie et al., 2018; Omietimi et al., 2022). Gallium (Ga) is primarily linked to the fine-grained aluminosilicate fraction and is found in higher concentrations within clastic rocks associated with kaolinite. This suggests the presence of warm and humid climatic conditions (Xie et al., 2018; Hussain et al., 2021). Rubidium (Rb) is often linked to illite, suggesting a reduced level of chemical weathering that aligns with arid and cold climatic conditions (Xie et al., 2018). The Ga/Rb ratio in clastic rocks generally declines as conditions transition to colder and drier climates (Fathy et al., 2023).
The ratios of Sr/Cu and Ga/Rb exhibit significant positive correlations in siliciclastic rocks. In warm and humid climates, these deposits tend to display elevated Ga/Rb ratios alongside reduced Sr/Cu ratios (Xie et al., 2018). The Sr/Cu ratio serves as a dependable indicator of paleoclimatic conditions. Elevated Sr/Cu ratios typically imply an arid climate, while ratios below 5.0 suggest a warm and humid environment. Ratios ranging from 5.0 to 10.0 indicate semi-arid to semi-humid conditions, whereas values exceeding 10.0 point to an arid climate (Xie et al., 2018; Omietimi et al., 2022). Moreover, strong chemical weathering, which is mostly caused by uranium (U) oxidation, raises the Th/U ratios (McLennan et al., 1993). U4+ easily oxidized to U6+ during weathering during Th and U fractionation. The Th/U ratios rise as a result of the repeated cycles of weathering and re-deposition, making them useful markers of these intricate geological processes (Taylor and McLennan, 1985). Low chemical weathering in arid conditions is indicated by a Th/U ratio less than 3. On the other hand, high Th/U values signify a warm, humid climate (Moradi et al., 2016; Shen et al., 2015). Climate differences have an impact on the Rb/Sr ratio; high ratios imply dry, cold circumstances, whereas low ratios indicate warm conditions (Bai et al., 2015). Furthermore, SiO2/Al2O3 ratios have been successful in describing chemical changes and paleoclimate conditions (Xu et al., 2022). Moreover, owing to the responsive nature of major oxide contents (such as SiO2, Al2O3, K2O, and Na2O) to climate changes, low SiO2/Al2O3 ratios serve as indicators of warm and humid climates (Moradi et al., 2016; Xu et al., 2022). In this study, climate indicators such as Ga/Rb, Th/U, Sr/Cu, Rb/Sr and SiO2/Al2O3 ratios, were utilised to reconstruct the paleoclimate evolution during the Middle Jurassic in the Ordos Basin.
Figure 13 a illustrates that the Ga/Rb amounts for the Middle Jurassic Zhiluo Formation samples from the 55-32 core range from 0.16 to 0.23 (average 0.19), while those for the 87-16 core samples range from 0.15 to 0.23 (average 0.17). The 87-16 core has a Sr/Cu ratio of 24.75–112.18 (average 49.58) and the 55-32 core has a ratio of 12.69–59.87 (average 35.47). The samples’ Ga/Rb and Sr/Cu ratios point to an arid environment in the Ordos Basin when the Middle Jurassic Zhiluo Formation was being deposited. Furthermore, the cross-plot of Sr/Cu vs Th/U ratios also supports arid climatic conditions (Figure 13b). Also, the cross-plot of CIA vs Th/U ratios provides further evidence that supports the arid climate (Figure 13c).

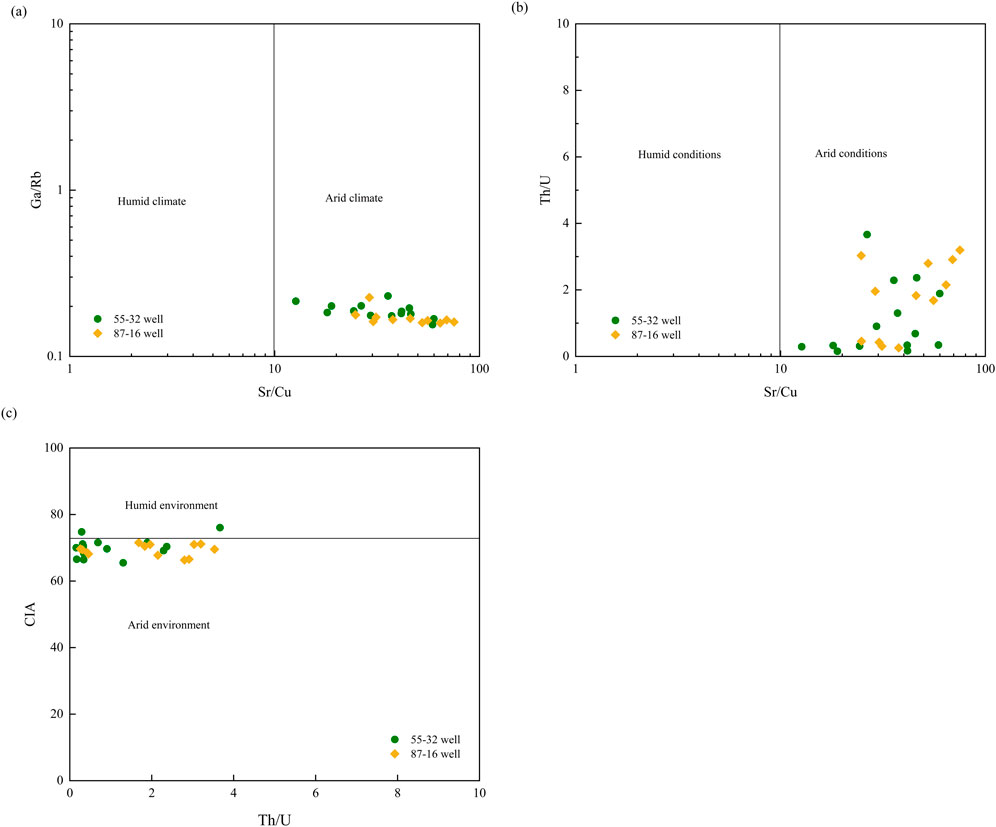

Figure 13. Climate interpretation of the Zhiluo Formation from elemant data. (a) Sr/Cu vs Ga/Rb; (b) Sr/Cu vs Th/U; (c) Thu/U vs CIA.
5.5 Sedimentary recycling
The Zhiluo Formation’s high concentration of feldspar and rock pieces, low roundness, and poor sorting all point to the sandstones’ immaturity. The recycling and maturity of sediments are assessed using the index of compositional variability (ICV). The ICV index is calculated as follows (the oxides are calculated by percentages): ICV = (TFe2O3 + K2O+ Na2O+ CaO + TiO2)/Al2O3 (Cox et al., 1995).
A low ICV value corresponds to a high clay mineral content (Cox et al., 1995). The ICV value is greater than 1 for the first-cycle products in the tectonically active region. With ICV values less than 0.84, the rocks rich in alteration minerals (kaolinite, muscovite, and illite) underwent severe weathering and several sedimentary cycles and were typically deposited in tectonically calm areas (Cox et al., 1995). The PAAS (0.80) is much lower than the ICV of the Zhiluo Formation in the 55-32 and 87-16 wells, which range from 0.80 to 1.12 (mean, 0.89) and 0.73 to 1.23 (mean, 0.84). The Zhiluo Formation is first-cycle and compositionally immature, according to these values.
Th and Sc are chemically stable during deposition, and no fractionation occurs (Mclennan and Taylor, 1991). The Zr/Sc ratio can reveal recycled sediments, while the Th/Sc ratio shows the compositional diversity of igneous rocks (Taylor and McLennan, 1985). The diagram of Th/Sc versus Zr/Sc can reflect the sedimentary cycle effectively (McLennan et al., 1993; Asiedu et al., 2000). As zircon is enriched during the transit and sedimentation processes, the Zr/Sc ratio progressively rises (Asiedu et al., 2000). Therefore, the degree of zircon enrichment can be ascertained by the Zr/Sc ratio. Parallel to Trend 1, the Zr/Sc ratio of the sandstones of the Zhiluo Formation has a positive correlation with Th/Sc (Figure 6d). This demonstrated that there was no Zr enrichment and that the sandstones were immature since their Zr concentration was lower than that of the higher crust. As a result, the sandstones of the Zhiluo Formation might be first-cycle and have come from a volcanic source region where tectonics is active.
6 Uranium mineralization
The overall structural environment during the sedimentation period of the Zhiluo Formation was stable. The overall structure is loose sandstone, mainly composed of medium to fine-grained sandstone, with low compositional maturity, poor cementation, good porosity and connectivity, and large-scale lateral connectivity. The top and bottom mudstone aquitards are stable. These features are beneficial for the transportation of uranium and oxygen containing water and the formation of uranium ore bodies. In addition, due to the abundant uranium supply in the parent rock and erosion source area, a certain degree of uranium pre enrichment occurred during the sedimentation of the Zhiluo Formation sand body. Clay minerals and organic sedimentary debris in sandstone adsorb and fix a large amount of uranium before enrichment or early mineralization. In complex geological historical processes such as sedimentation, uranium containing fluids undergo complex adsorption reduction deposition processes with changes in physical and chemical conditions. According to previous research, firstly, the Zhiluo Formation sandstone will undergo a weak reducing water environment, during which the reducing conditions are weak, tectonic activity is not developed, and the overall climate conditions are arid, but it will experience a warm and humid climate period. During the transition of arid, semi-arid, and warm humid climates in ancient times, the strata were rich in organic carbon. When the uranyl complex ions in the geological fluids rich in the strata released uranium near certain geochemical barriers, they were adsorbed by good adsorbents such as pyrite, organic matter, and other clay minerals. In a slightly salty reducing environment, U6+combined with Si4+and Ti4+to form coffinite and uranium titanium oxide.
7 Conclusion
This study demonstrates how the lithofacies and geochemical characteristics of sandstone can successfully identify its evidence, as well as how to decipher the tectonic background, paleoclimate, and paleoweathering of its source area (rock). The integration of mineral lineages and geochemical data of the studied sandstone indicates that the detrital particles of sandstone mainly come from multiple recycled felsic (granite) igneous source rocks, followed by intermediate igneous rocks (granodiorite), metamorphic rocks (gneiss), and mafic igneous rocks (andesite). Based on the resulting lithofacies, block rock geochemistry, and characteristic ratios of La/Sc, Th/Sc, and Co./Th, the Bayinqinggeli sandstone is derived from felsic lithology (granite and gneiss) and regenerated quartz sediment sources. The standardized REE distribution pattern of chondrite meteorites in Bayinqinggelli sandstone shows enriched LREE and flat HREE, with negative Eu/Eu * anomalies, similar to UCC characterized by felsic rocks. In terms of paleoweathering and paleoclimate in the source area, geochemical indicators and ratios of trace elements such as Th/U and Th/Sc indicate that the source area has undergone moderate to severe chemical weathering, mainly occurring under arid climatic conditions, but also experiencing warm, semi humid to humid climatic conditions.
