Molecular phylogeny and taxonomic review of Premnobiini Browne, 1962 (Coleoptera: Curculionidae: Scolytinae)

Cognato, Anthony  I

doi:10.3389/fevo.2013.00001

ORIGINAL RESEARCH article

Front. Ecol. Evol., 29 November 2013

Sec. Phylogenetics, Phylogenomics, and Systematics

Volume 1 - 2013 | https://doi.org/10.3389/fevo.2013.00001

Molecular phylogeny and taxonomic review of Premnobiini Browne, 1962 (Coleoptera: Curculionidae: Scolytinae)

AI
Anthony I. Cognato ^*

Department of Entomology, Michigan State University East Lansing, MI, USA

Abstract

The taxonomy of Premnobiini is reviewed in the context of a molecular phylogeny including species of Ipini, Dryocoeotini, and Xyleborini. DNA data from COI, 16S, 28S, and CAD (~2640 characters) were generated for 79 species. Parsimony and Bayesian methods, using multiple sequence alignment methods and partitioning regimes, were used to reconstruct the phylogeny. The resulting topologies are generally congruent. Ipini is monophyletic along with all genera except Acathotomicus. Premnobiini is nested within Ipini and consists of two clades, which associate with the type species of Premnobius and Premnophilus, and with morphological diagnostic characters. The following taxonomic changes are made based on the recovered relationships. Premnophilus is resurrected as a valid genus and Premnobiini is considered a sub-tribe of Ipini.

Introduction

Premnobiini Browne (1962) consists of Premnobius Eichhoff (1879) and its 26 species that are endemic to sub-Saharan Africa; two of which are considered adventive to the Neotropics (Wood, 1982; Wood and Bright, 1992; Bright and Skidmore, 1997). Premnobius species are xylomycetophagus and are incestuous inbreeders, similar to Xyleborini (LeConte, 1876; Browne, 1961). This similarity in biology and gross morphology sparked debate on its taxonomic placement. Eichhoff (1878) originally suggested its affinity to Xyleborus Eichhoff (1864), however, subsequent researchers suggested alternative relationships with genera in the Corthylini, Dryocoeotini, and Xyloterini (Hagedorn, 1910; Hopkins, 1915). Schedl (1957) returned Premnobius to the Xyleborini and synonymized the genus with Xyleborus. Based on detailed examination of morphology and biology, Browne (1961) removed Premnobius from Xyleborus and described an additional closely related genus, Premnophilus Browne (1962). However, the tribal placement of Premnobius and Premnophilus remained uncertain despite the fact that Browne (1961) presented definitive morphological and behavioral evidence that these genera were unrelated to the Xyleborini. He suggested a new tribe, Premnobiini, for the genera and hypothesized its relationship between Ipini and Xyloterini. However, he postulated that these genera were Ipini, which converged to a xylomycetophagus habit (Browne, 1962). Premnophilus was soon synonymized with Premnobius because the morphological variation of its antennal club was considered within the range of variation observed for Xyleborus species (Schedl, 1964; Wood and Bright, 1992). Premnobiini was later formally established (Nobuchi, 1969), however, Wood (1982) did not recognize Premnobiini and placed Premnobius in Xyleborini stating that it represented the most primitive genus of the tribe. Phylogenetic studies including Premnobius cavipennis (Eichhoff, 1878) and various amount of molecular and morphological data demonstrated monophyly of Premnobius with Ipini genera (Normark et al., 1999; Farrell et al., 2001). Although no nomenclatural changes were made in these studies, subsequent researchers (Beaver, 2005; Bright and Torres, 2006; Alonso-Zarazaga and Lyal, 2009) recognized Premnobiini based on data from previous studies (Browne, 1961, 1962; Nobuchi, 1969; Normark et al., 1999). The most comprehensive phylogenetic analysis of scolytines placed Premnobius (two species) sister to Acanthotomicus and monophyletic with ten other Ipini species thus rendering Ipini paraphyletic (Jordal et al., 2011; Jordal and Cognato, 2012). The Premnobiini + Ipini clade was sister to the Xyleborini + Dryocoetini clade which both had 100% posterior probabilities and demonstrated, once again, the distant relation between Premnobiini and Xyleborini (Jordal and Cognato, 2012).

The previous phylogenetic studies did not address taxonomic or nomenclatural issues suggested by the resulting phylogenies (Normark et al., 1999; Farrell et al., 2001; Jordal et al., 2011; Jordal and Cognato, 2012). This study provides a more detailed phylogenetic analysis designed to address the tribal and generic status of Premnobiini and Premnophilus, respectively. Phylogenies reconstructed with molecular data for 79 species representing Dryocoetini (2 spp.), Premnobiini (15 spp.), Ipini (59 spp. including all genera), and Xyleborini (3 spp.) support the monophyly of Premnophilus and the inclusion of Premnobiini within Ipini. Taxonomic and nomenclatural changes concerning the Premnobiini are made based on these results.

Materials and methods

Taxa and DNA sequencing

DNA data for mtDNA cytochrome oxidase I (COI), mtDNA ribosomal 16S, nuclear ribosomal 28S (D2 and D3 regions), and nuclear protein coding gene CAD were generated for 22 species of Premnobiini and Acanthotomicus. The inclusion of existing data (Cognato and Sun, 2007; Jordal and Cognato, 2012) and the generation of CAD data created a data set of 79 species, which represented all Ipini genera and outgroup Dryocoetini and Xyleborini species (Table 1). Beetle specimens were collected over 20 years from various countries by AIC and his collaborators (Table 1). DNA was extracted from frozen and pinned specimens following the Qiagen (Hilden, Germany) tissue extraction protocol using Qiagen blood and tissue kits. Tissue was digested from the head and pronotum. These parts were recovered at the end of the extraction procedure. The head and pronotum and the remaining body were pinned and vouchered at the A.J. Cook Arthropod Research Collection, Michigan State University. Using the purified DNA, partial gene regions of COI, 16S, 28S, CAD were amplified using the primers and protocol listed in Table 2. Unincorporated nucleotides, primers and taq remaining in the PCR reactions were neutralized with ExoSAP-IT (USB Corp., Cleveland, OH) following the manufacturer protocols. Both strands of the clean PCR products were directly sequenced using BigDye Terminator v.1.1 (Applied Biosystems, Foster City, CA, USA) cycle sequencing kit and visualized on an ABI 3730 (Applied Biosystems) at the Research Technology Support Facility at Michigan State University. The DNA sequences were compiled and edited with Sequencher (GeneCodes, Ann Arbor, MI, USA) and archived at Genbank (Table 1).

Table 1

Species	DNA extraction codes	Collection locations	Genbank COI #	Genbank 16S #	Genbank 28S #	Genebank CAD #
Acanthotomicus bicornatus	Acabic	Ghana: Bia	KF862791	KF862713	KF862745	KF862827
Acanthotomicus fortis	Aca.for1	Panama: BCI	KF862792	KF862714	KF862746	KF862828
Acanthotomicus kepongi	Akeg1	Thailand	KF862793	KF862715	EU090306	KF862829
Acanthotomicus mimicus	Aca.mim1	Panama: BCI	KF862794	KF862716	KF862747	KF862830
Acanthotomicus sp. 1	SCI15A	Sarawak	KF862798	N/A	KF862751	KF862834
Acanthotomicus sp. 2	AcaspB	Ghana: Anakasa	KF862796	N/A	KF862749	KF862832
Acanthotomicus sp. 3	AcaspTH32	Thailand: Phu Khieo	KF862797	KF862718	KF862750	KF862833
Acanthotomicus sp. 4	Pre.sp1	Cameroon: SW Province	KF862806	KF862724	KF862760	KF862842
Acanthotomicus spinosus	Acaspi	Thailand: Nam Nao NP	KF862795	KF862717	KF862748	KF862831
Ips acuminatus	Ac1	Czech Republic: Moravia	AF113325	KF862744	EU090296	KF862875
Ips avulsus	Av5	USA: Louisiana	AF113330	AF397472	EU090297	KF862876
Ips bonanseai	Bon3	Mexico: Nuevo Leon	AF113333	AF397473	EU090313	KF862877
Ips calligraphus	Ca2	USA: New York	AF113335	AF397475	EU090319	KF862878
Ips cembrae	Ce3	Czech Republic: Moravia	AF113337	AF397476	EU090320	KF862879
Ips duplicatus	Du1	Czech Republic: Moravia	AF113345	N/A	KF862790	N/A
Ips emarginatus	Em1	USA: California	AF113347	AF397480	EU090325	KF862880
Ips grandicollis	Gr2	USA: New York	AF113349	AF397481	EU090323	KF862881
Ips hoppingi	Ho5	USA: Arizona	AF113354	AF397484	EU090321	KF862882
Ips knausi	Knu1	USA: Colorado	AF113357	AF397485	EU090327	N/A
Ips lecontei	Le3	USA: Arizona	AF113361	AF397486	EU090324	KF862883
Ips pilifrons	Pil3	USA: Colorado	AF113374	AF397493	EU090311	KF862884
Ips plastographus	Pl4	USA: California	AF113378	AF397492	N/A	KF862885
Ips sexdentatus	Sex2	Czech Republic: Moravia	AF113380	AF397496	EU090314	N/A
Ips typographus	Ty1	Czech Republic: Moravia	AF113385	AF397499	EU090310	KF862886
Ips woodi	Wo3	USA: California	AF113389	AF397500	EU090322	KF862887
Orthotomicus caelatus	Ort1	USA: New York	AF113390	AF397501	EU090317	KF862868
Orthotomicus chaokhao	Osp1	Thailand: Chiangmai	KF862825	N/A	KF862786	KF862870
Orthotomicus erosus	Oer1	Greece: Athens	U82236	AF397502	EU090302	KF862865
Orthotomicus proximus	Opro	Russia: St. Petersburg Region	N/A	N/A	KF862784	N/A
Orthotomicus laricis	Olar1	Romania: Retezat	AF113392	N/A	KF862783	N/A
Orthotomicus laricis	Ort.gol1	Russia: Primorsky	KF862823	KF862741	KF862782	KF862866
Orthotomicus latidens	Lat3	USA: Washington	AF113359	AF397503	EU090300	KF862872
Orthotomicus longicollis	Olon1	Ukraine: Crimea	N/A	N/A	EU090301	KF862867
Orthotomicus mannsfeldi	Ma1	Austria: Vienna	AF113363	AF397504	EU090312	KF862873
Orthotomicus nobilis	Nob1	Canary Islands: Tenerife	AF113366	AF397505	KF862788	N/A
Orthotomicus spinifer	Sp1	USA: California	AF113381	AF397506	KF862789	KF862874
Orthotomicus suturalis	Osut1/Osut2	Russia	KF862826	KF862743	KF862787	KF862871
Orthotomicus suturalis	Osta1	China: Sichuan	KF862824	KF862742	KF862785	KF862869
Pityogenes bidentatus	P.bd1	Russia: St. Petersburg Region	KF862815	KF862734	KF862776	KF862858
Pityogenes bistridentatus	P.bs1	Ukraine: Crimea	KF862816	KF862735	EU090304	KF862859
Pityogenes calcaratus	PiCa2	Greece: Attica	AF113394	N/A	KF862777	KF862860
Pityogenes carinulatus	Pito1	USA: New Mexico	AF113393	N/A	N/A	KF862857
Pityogenes chalcographus	P.ch1	Russia: St. Petersburg Region	KF862814	N/A	KF862775	N/A
Pityogenes fossifrons	P.fos1	USA: Washington	KF862817	KF862736	N/A	KF862861
Pityogenes irkutensis	Pir1	Russia: Moscow Region	KF862818	KF862737	EU090305	KF862862
Pityogenes knechteli	P.kne1	USA: Califorina	KF862819	KF862738	KF862778	KF862863
Pityogenes plagiatus	P.pla1	Canada: Ontario	N/A	N/A	KF862780	N/A
Pityogenes porifrons	Ppor1	Cyprus	KF862821	N/A	EU090307	KF862864
Pityogenes quadridens	P.qua1	Russia: St. Petersburg Region	KF862822	KF862740	KF862781	N/A
Pityokteines curvidens	P.cur4	Crotia: Litoric	N/A	KF862730	KF862771	KF862854
Pityokteines lasiocarpi	Pit.las1	USA: Washington	KF862812	KF862731	KF862772	N/A
Pityokteines marketae	P.mar2	Turkey: Mersin	KF862820	KF862739	KF862779	N/A
Pityokteines minutus	Pit.min1	USA: Oregon	KF862813	KF862732	KF862773	KF862855
Pityokteines vorontzowi	P.vor1	Crotia: Litoric	EF534718	KF862733	KF862774	KF862856
Pityokteines sparsus	Pk1	Canada: Quebec	AF113396	N/A	KF862770	KF862853
Premnobius adjunctus	Preadj1	Cameroon: SW Province	KF862799	N/A	KF862752	KF862835
Premnobius ambitiosus	Pre.amb1	Cameroon: SW Province	KF862800	KF862719	KF862753	N/A
Premnobius cavipennis	Precav1	Ghana: Bokuro-Abaa	KF862801	N/A	KF862754	KF862836
Premnobius cavipennis	Precav3	Brazil: Bahia	KF862802	KF862720	KF862755	KF862837
Premnobius corthyloides	Precor1	Ghana: Bokuro-Abaa	KF862803	KF862721	KF862756	KF862838
Premnobius orientalis	Preori1	Tanzania: Udzungwa	KF862805	N/A	KF862758	KF862840
Premnobius quadrispinosus (Premnophilus)	Pre.qua1	Cameroon: SW Province	N/A	KF862723	KF862759	KF862841
Premnobius sp. 2 (Premnophilus)	PreX20	Ghana: Anakasa	KF862809	N/A	KF862766	KF862847
Premnobius sp. 3	PreX22	Ghana: Anakasa	KF862810	KF862728	KF862767	KF862848
Premnobius sp. 4	Prex29	Ghana: Bia	KF862811	KF862729	KF862768	KF862849
Premnobius sp. 5 (Premnophilus)	Predor1	Ghana: Anakasa	KF862804	KF862722	KF862757	KF862839
Premnobius sp. 6 (Premnophilus)	Preunk1	Guyana: Iwokrama	N/A	N/A	KF862764	KF862846
Premnobius sp. 7 (Premnophilus)	PreX16	Ghana: Bokuro-Abaa	KF862808	KF862727	KF862765	N/A
Premnobius sp. 8	Pre.sp2	Tanzania: Udzungwa	N/A	N/A	KF862761	KF862843
Premnobius sp. 9	Pre.sp3	Madagascar: Ranomafara	N/A	KF862725	KF862762	KF862844
Premnobius sp. 10	Pre.sp4	Sierra Leone: Tiwai Isl.	KF862807	KF862726	KF862763	KF862845
Pseudips concinnus	CoCi3	USA: Washington	AF113340	AF397511	EU090316	KF862850
Pseudips mexicanus	Mx1	USA: California	AF113364	AF397512	EU090299	KF862851
Pseudips orientalis	Psori3	China: Qinghai	GU811707	N/A	KF862769	KF862852
OUTGROUPS
Dryocoetes autographus	DrDry01	N/A	JX263816	N/A	HQ883565	HQ883791
Thamnurgus cylindricus	DrCyr03	N/A	JX263813	N/A	JX263707	JX264025
Anisandrus dispar	XyXyl02	N/A	HQ883695	N/A	HQ883606	HQ883840
Cnestus bimaculatus	Cnebim	N/A	N/A	N/A	GU808579	GU808619
Xyleborus affinis	Xylaff	N/A	N/A	N/A	GU808581	GU808621

Specimens included in current analyses with associated geographic localities and Genbank accession numbers.

N/A= not available do to PCR or sequencing issues.

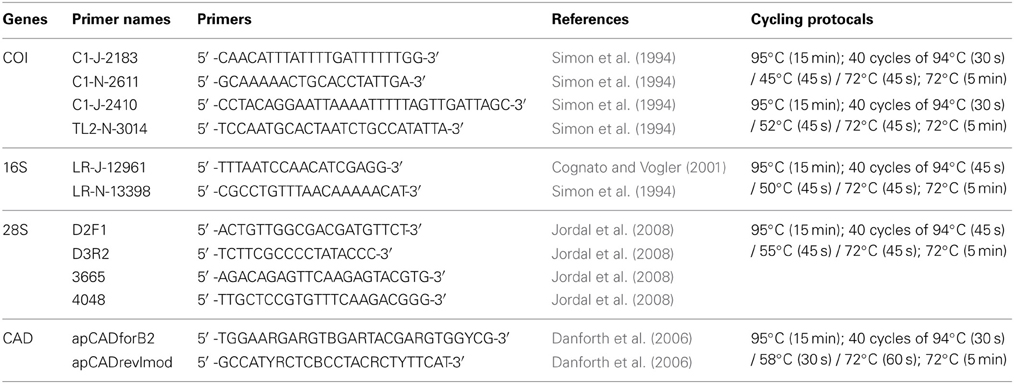

Table 2

Genes	Primer names	Primers	References	Cycling protocals
COI	C1-J-2183	5′ -CAACATTTATTTTGATTTTTTGG-3′	Simon et al. (1994)	95°C (15 min); 40 cycles of 94°C (30 s)
	C1-N-2611	5′ -GCAAAAACTGCACCTATTGA-3′	Simon et al. (1994)	/ 45°C (45 s) / 72°C (45 s); 72°C (5 min)
	C1-J-2410	5′ -CCTACAGGAATTAAAATTTTTAGTTGATTAGC-3′	Simon et al. (1994)	95°C (15 min); 40 cycles of 94°C (30 s)
	TL2-N-3014	5′ -TCCAATGCACTAATCTGCCATATTA-3′	Simon et al. (1994)	/ 52°C (45 s) / 72°C (45 s); 72°C (5 min)
16S	LR-J-12961	5′ -TTTAATCCAACATCGAGG-3′	Cognato and Vogler (2001)	95°C (15 min); 40 cycles of 94°C (45 s)
	LR-N-13398	5′ -CGCCTGTTTAACAAAAACAT-3′	Simon et al. (1994)	/ 50°C (45 s) / 72°C (45 s); 72°C (5 min)
28S	D2F1	5′ -ACTGTTGGCGACGATGTTCT-3′	Jordal et al. (2008)	95°C (15 min); 40 cycles of 94°C (45 s)
	D3R2	5′ -TCTTCGCCCCTATACCC-3′	Jordal et al. (2008)	/ 55°C (45 s) / 72°C (45 s); 72°C (5 min)
	3665	5′ -AGACAGAGTTCAAGAGTACGTG-3′	Jordal et al. (2008)
	4048	5′ -TTGCTCCGTGTTTCAAGACGGG-3′	Jordal et al. (2008)
CAD	apCADforB2	5′ -TGGAARGARGTBGARTACGARGTGGYCG-3′	Danforth et al. (2006)	95°C (15 min); 40 cycles of 94°C (30 s)
	apCADrevlmod	5′ -GCCATYRCTCBCCTACRCTYTTCAT-3′	Danforth et al. (2006)	/ 58°C (30 s) / 72°C (60 s); 72°C (5 min)

PCR primers and cycling regimes.

DNA sequence alignment and phylogenetic analyses

Protein coding genes were aligned without the aid of software computation given that insertion/deletions and introns were not observed. Ribosomal DNA sequences varied in their length. These sequences were manually aligned based on previous published alignments (Cognato and Vogler, 2001; Jordal et al., 2008) and using the alignment software, MUSCLE, with default parameters (Edgar, 2004). These data sets were treated separately in subsequent phylogenetic analyses.

Parsimony and maximum likelihood optimality criteria were used to reconstruct phylogenies. Parsimony analyses using PAUP^* 4.0 b10 PPC (Swofford, 2002) consisted a heuristic search with 500 stepwise random addition replicates keeping only 500 suboptimal trees per replicate and the default settings with the manually and MUSCLE aligned data sets. These analyses were repeated while treating gap positions as 5th characters states. Bootstrap values were calculated with 500 pseudoreplicates for the four data treatments. Partition Bremer support was calculated with TreeRot v.2 (Sorenson, 1999). For the manually and MUSCLE aligned data sets, maximum likelihoods were estimated via Bayesian analysis using Mr. Bayes 3.2.2 (Ronquist et al., 2012). These analyses consisted of two simultaneous runs of four Metropolis-Coupled Markov chain Monte Carlo searches (one cold, three heated). Each search comprised 10 million generations which was sampled every 100th iteration. The data were partitioned by codon positions and ribosomal genes and each partition was allowed to independently evolve under a general time reversible (GTR + I + Γ) model. All parameters reached stability within 10 million generations and the split distribution between runs did not vary much (mean standard deviation between runs = 0.002). Bayesian posterior probabilities of clades were calculated by a majority-rule consensus of those trees after the burn-in (for both runs 75000 trees).

Results and discussion

Phylogenetic analyses

The combination of analyses and alignments resulted in tree topologies that differed by various sub-clades but were generally similar (e.g., Figures 1–3). For example, Ipini including Premnobiini was monophyletic and the clade consisting of Ips, Orthotomicus, Pityogenes, and Pityokteines was found in the majority of analyses (Table 3). Treating gapped positions as 5th character states in the parsimony analyses resulted in trees with many non-monophyletic genera. The monophyly of these genera is not suspect given the many morphological diagnostic and synapomorphic characters recognized for each genus (e.g., Hopping, 1963; Wood, 1986; Cognato, 2000). Given the lack of taxonomic congruence, the analyses that treated gapped positions as 5th character states were not given further consideration.

Figure 1

Figure 2

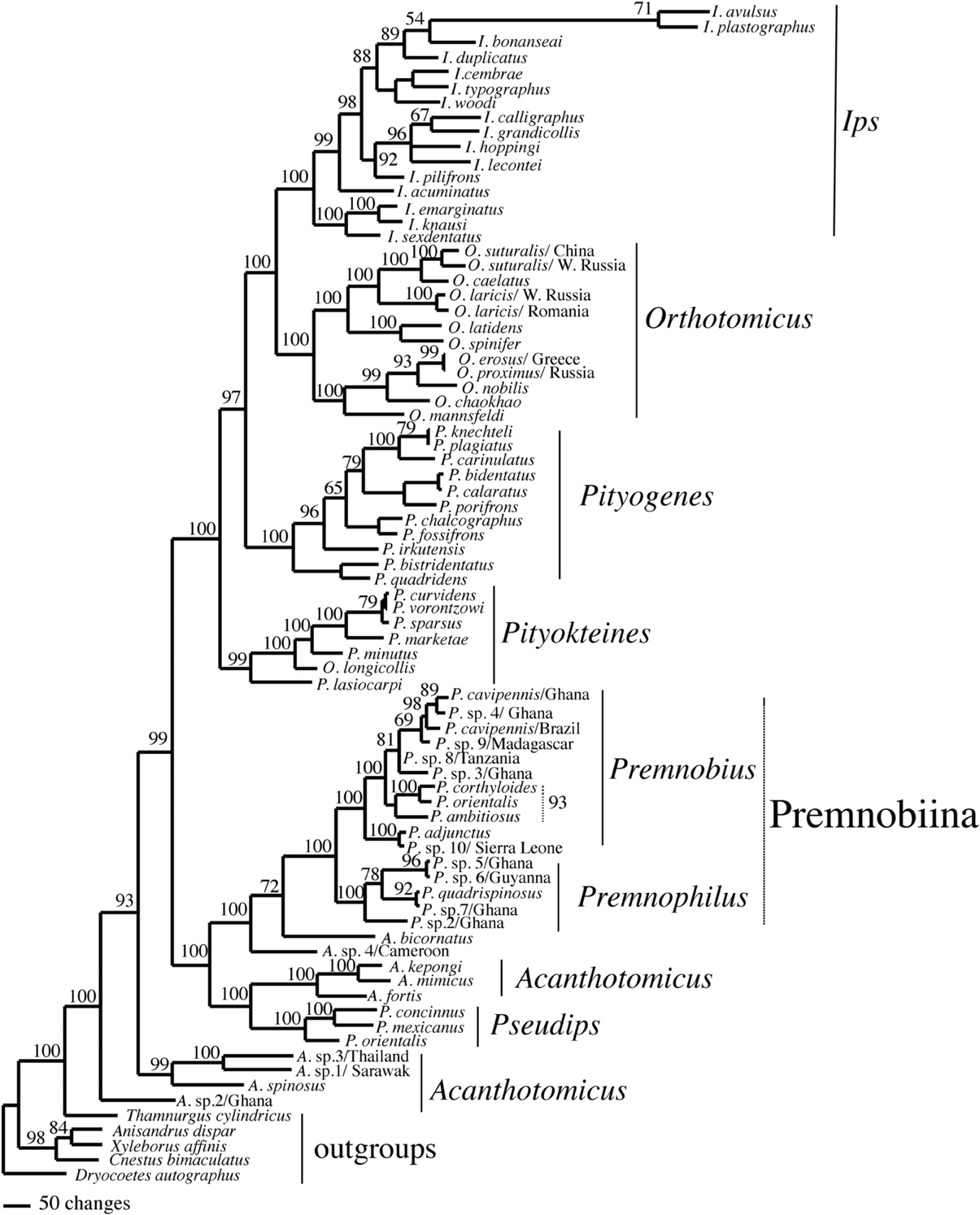

Figure 3

Table 3

Clades	Parsimony		Parsimony		Bayesian	Bayesian
	Muscle alignment		Manual alignment		Muscle alignment	Manual alignment
	Gaps missing	Gaps fifth state	Gaps missing	Gaps fifth state
Acanthotomicus	NM	NM	NM	NM	NM	NM
Ips	99	NM	99	NM	100	100
Orthotomicus	70	NM	57	NM	100	100
Pityogenes	100	78	99	NM	100	100
Pityokeines	98	NM	99	NM	100	100
Premnobius	100	NM	100	NM	100	100
Premnophilus	100	NM	89	NM	100	100
Pseudips	100	86	100	100	100	100
Ips + Orthotomicus	>50	NM	NM	NM	100	NM
Pityokteines + O. longicollis	94	NM	93	NM	100	100
(Pityokteines + O. longicollis) P. lasicarpi)	56	NM	>50	NM	99	100
Pityokteines + Pityogenes	NM	NM	>50	NM	NM	98
(Ips, Orthotomicus, Pityokteines, Pityogenes)	88	NM	94	NM	100	100
Pseudips + Acanthotomicus, in part	NM	NM	NM	NM	100	100
Premnobius + Premnophilus, i.e., Premnobiina	100	97	100	96	100	100
Premnobiina + Acanthotomicus, in part	59	68	61	93	100	96

Summary of phylogenetic analyses.

Numbers, bootstrap or posterior probabilities; NM, not monophyletic in the strict consensus of mpts.

The alignments affected the distribution of branch support among the data partitions. For the manual alignment 16S exhibited two-three times more support than the other data sets (Table 4). Data interaction changed for the MUSCLE alignment. CAD and 28S exhibited two-six times more support than COI and 16S and support from 16S decreased by a third (Table 5). Also the MUSCLE alignment supported three times more clades as compared to the manual alignment (Tables 4 and 5). Changes in support given different alignments have been observed in other studies (e.g., Cognato and Vogler, 2001; Damgaard et al., 2004). An increase in support values was interpreted as increased concordance of data interaction (Cognato and Vogler, 2001). Thus, the parsimony and Bayesian phylogenies (Figures 2, 3) based on the MUSCLE aligned data with gap positions scored as missing were considered as better hypotheses as compared to the trees found with the manually aligned data.

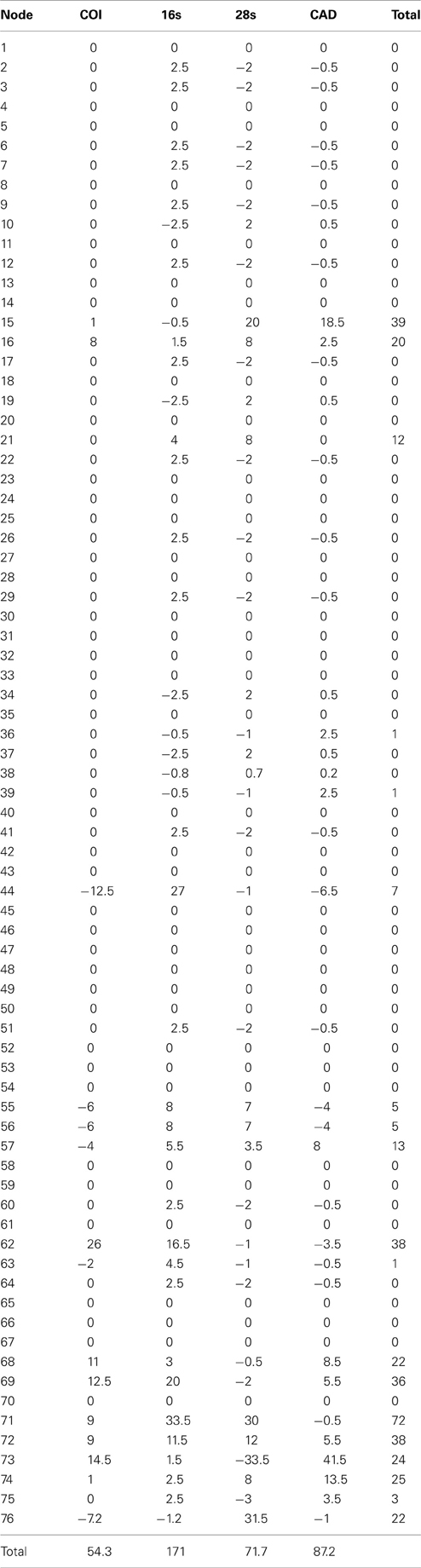

Table 4

Node	COI	16s	28s	CAD	Total
1	0	0	0	0	0
2	0	2.5	−2	−0.5	0
3	0	2.5	−2	−0.5	0
4	0	0	0	0	0
5	0	0	0	0	0
6	0	2.5	−2	−0.5	0
7	0	2.5	−2	−0.5	0
8	0	0	0	0	0
9	0	2.5	−2	−0.5	0
10	0	−2.5	2	0.5	0
11	0	0	0	0	0
12	0	2.5	−2	−0.5	0
13	0	0	0	0	0
14	0	0	0	0	0
15	1	−0.5	20	18.5	39
16	8	1.5	8	2.5	20
17	0	2.5	−2	−0.5	0
18	0	0	0	0	0
19	0	−2.5	2	0.5	0
20	0	0	0	0	0
21	0	4	8	0	12
22	0	2.5	−2	−0.5	0
23	0	0	0	0	0
24	0	0	0	0	0
25	0	0	0	0	0
26	0	2.5	−2	−0.5	0
27	0	0	0	0	0
28	0	0	0	0	0
29	0	2.5	−2	−0.5	0
30	0	0	0	0	0
31	0	0	0	0	0
32	0	0	0	0	0
33	0	0	0	0	0
34	0	−2.5	2	0.5	0
35	0	0	0	0	0
36	0	−0.5	−1	2.5	1
37	0	−2.5	2	0.5	0
38	0	−0.8	0.7	0.2	0
39	0	−0.5	−1	2.5	1
40	0	0	0	0	0
41	0	2.5	−2	−0.5	0
42	0	0	0	0	0
43	0	0	0	0	0
44	−12.5	27	−1	−6.5	7
45	0	0	0	0	0
46	0	0	0	0	0
47	0	0	0	0	0
48	0	0	0	0	0
49	0	0	0	0	0
50	0	0	0	0	0
51	0	2.5	−2	−0.5	0
52	0	0	0	0	0
53	0	0	0	0	0
54	0	0	0	0	0
55	−6	8	7	−4	5
56	−6	8	7	−4	5
57	−4	5.5	3.5	8	13
58	0	0	0	0	0
59	0	0	0	0	0
60	0	2.5	−2	−0.5	0
61	0	0	0	0	0
62	26	16.5	−1	−3.5	38
63	−2	4.5	−1	−0.5	1
64	0	2.5	−2	−0.5	0
65	0	0	0	0	0
66	0	0	0	0	0
67	0	0	0	0	0
68	11	3	−0.5	8.5	22
69	12.5	20	−2	5.5	36
70	0	0	0	0	0
71	9	33.5	30	−0.5	72
72	9	11.5	12	5.5	38
73	14.5	1.5	−33.5	41.5	24
74	1	2.5	8	13.5	25
75	0	2.5	−3	3.5	3
76	−7.2	−1.2	31.5	−1	22
Total	54.3	171	71.7	87.2

Partition bremer support for 1 of 87 most parsimonius trees reconstructed with the manually aligned data (Figure 1).

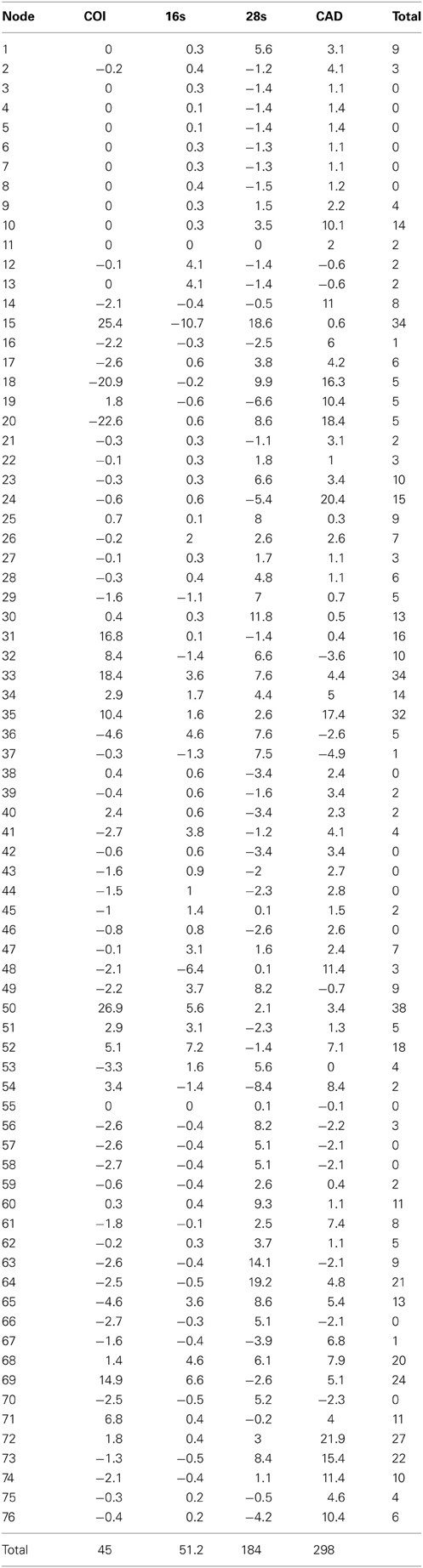

Table 5

Node	COI	16s	28s	CAD	Total
1	0	0.3	5.6	3.1	9
2	−0.2	0.4	−1.2	4.1	3
3	0	0.3	−1.4	1.1	0
4	0	0.1	−1.4	1.4	0
5	0	0.1	−1.4	1.4	0
6	0	0.3	−1.3	1.1	0
7	0	0.3	−1.3	1.1	0
8	0	0.4	−1.5	1.2	0
9	0	0.3	1.5	2.2	4
10	0	0.3	3.5	10.1	14
11	0	0	0	2	2
12	−0.1	4.1	−1.4	−0.6	2
13	0	4.1	−1.4	−0.6	2
14	−2.1	−0.4	−0.5	11	8
15	25.4	−10.7	18.6	0.6	34
16	−2.2	−0.3	−2.5	6	1
17	−2.6	0.6	3.8	4.2	6
18	−20.9	−0.2	9.9	16.3	5
19	1.8	−0.6	−6.6	10.4	5
20	−22.6	0.6	8.6	18.4	5
21	−0.3	0.3	−1.1	3.1	2
22	−0.1	0.3	1.8	1	3
23	−0.3	0.3	6.6	3.4	10
24	−0.6	0.6	−5.4	20.4	15
25	0.7	0.1	8	0.3	9
26	−0.2	2	2.6	2.6	7
27	−0.1	0.3	1.7	1.1	3
28	−0.3	0.4	4.8	1.1	6
29	−1.6	−1.1	7	0.7	5
30	0.4	0.3	11.8	0.5	13
31	16.8	0.1	−1.4	0.4	16
32	8.4	−1.4	6.6	−3.6	10
33	18.4	3.6	7.6	4.4	34
34	2.9	1.7	4.4	5	14
35	10.4	1.6	2.6	17.4	32
36	−4.6	4.6	7.6	−2.6	5
37	−0.3	−1.3	7.5	−4.9	1
38	0.4	0.6	−3.4	2.4	0
39	−0.4	0.6	−1.6	3.4	2
40	2.4	0.6	−3.4	2.3	2
41	−2.7	3.8	−1.2	4.1	4
42	−0.6	0.6	−3.4	3.4	0
43	−1.6	0.9	−2	2.7	0
44	−1.5	1	−2.3	2.8	0
45	−1	1.4	0.1	1.5	2
46	−0.8	0.8	−2.6	2.6	0
47	−0.1	3.1	1.6	2.4	7
48	−2.1	−6.4	0.1	11.4	3
49	−2.2	3.7	8.2	−0.7	9
50	26.9	5.6	2.1	3.4	38
51	2.9	3.1	−2.3	1.3	5
52	5.1	7.2	−1.4	7.1	18
53	−3.3	1.6	5.6	0	4
54	3.4	−1.4	−8.4	8.4	2
55	0	0	0.1	−0.1	0
56	−2.6	−0.4	8.2	−2.2	3
57	−2.6	−0.4	5.1	−2.1	0
58	−2.7	−0.4	5.1	−2.1	0
59	−0.6	−0.4	2.6	0.4	2
60	0.3	0.4	9.3	1.1	11
61	−1.8	−0.1	2.5	7.4	8
62	−0.2	0.3	3.7	1.1	5
63	−2.6	−0.4	14.1	−2.1	9
64	−2.5	−0.5	19.2	4.8	21
65	−4.6	3.6	8.6	5.4	13
66	−2.7	−0.3	5.1	−2.1	0
67	−1.6	−0.4	−3.9	6.8	1
68	1.4	4.6	6.1	7.9	20
69	14.9	6.6	−2.6	5.1	24
70	−2.5	−0.5	5.2	−2.3	0
71	6.8	0.4	−0.2	4	11
72	1.8	0.4	3	21.9	27
73	−1.3	−0.5	8.4	15.4	22
74	−2.1	−0.4	1.1	11.4	10
75	−0.3	0.2	−0.5	4.6	4
76	−0.4	0.2	−4.2	10.4	6
Total	45	51.2	184	298

Partition bremer support for 1 of 756 most parsimonius trees reconstructed with the MUSCLE aligned data (Figure 2).

Both analyses mostly recovered consistent results with all genera (except Acanthotomicus) and Premnobiina as monophyletic. However, the relationships of these genera differed between the analyses. Acanthotomicus, in part, or Pseudips was sister to the other Ipini genera, however, there was no to little support for this position of the latter genus (Figure 1). The position of Pseudips imbedded within Acathotomicus agreed with previous phylogenies that demonstrated that Pseudips was not monophyletic with Ips (Cognato, 2000) or other Holarctic Ipini genera (Jordal and Cognato, 2012). This result also supported the validity of Pseudips as distinct from Orthotomicus (Wood, 2007; Alonso-Zarazaga and Lyal, 2009; Knížek, 2011).

Acanthotomicus was polyphyletic (Figures 1–3) and confirmed similar results of a study which included fewer Acanthotomicus specimens (Jordal and Cognato, 2012). Clades did not associate with geographic region because several clades comprised a mixture of species from Asia, Africa and/or South America (Figures 1–3). This was not expected because the pantropical distribution of the genus predicts that genetic isolation would associate with geographic distance (Avise, 2000). Although there is a gestalt to their appearance which suggests monophyly of the genus, groups of species differ in details of antennal and elytral morphology. For example, a pattern of morphological concordance was present, for a clade including A. spinosus, A. sp. 1/Sarawak, and A. sp. 3/Thailand (Figure 3) which have long spines on their elytral declivity. Additional patterns may emerge with the inclusion of the ~90% remaining Acanthotomicus species in future phylogenetic analyses which will provide better hypotheses of interspecific and intergeneric relationships of Acanthotomicus. However, it appears unlikely that a monophyletic Acanthotomicus will be resolved, given the high support for these phylogenies (Figure 3) and others (Jordal and Cognato, 2012) thus a thorough revision of the genus will be necessary.

The remaining Holarctic genera, Ips, Orthotomicus, Pityogenes, and Pityokteines, were monophyletic, except for one Orthotomicus species included in Pityokteines, but the relationships among the genera varied and were not well-supported (Table 3, Figures 1, 2). Details of the species relationships for each genus will be the subject of future studies. However, two conspicuous results will be discussed. First, O. longicollis (Gyllenhal, 1827) was monophyletic with Pityokteines (Figures 1–3) as previously observed within a 28S based phylogeny (Jordal et al., 2008). This species has an obliquely truncated antennal club with inconspicuous sutures similar to the antennal club of Pityokteines. The generic placement of O. longicollis in Pityokteines appears appropriate but additional nucleotide data is needed to confirm this relationship. Second, Pityokteines lasiocarpi (Swaine, 1916), which was once considered a monotypic genus, Orthotomides Wood (1951), was sister to the Pityokteines species including O. longicollis (Figures 1–3). Although the structure of the antennae of P. lasisocarpi is not typical of Pityokteines, there is currently little reason for the resurrection of Orthotomides.

The clade including Premnobius and Premnophilus was well-supported (Table 3, Figures 1–3). This clade was sister to either of two African Acanthotomicus species and well-imbedded amongst other Ipini genera. Given this phylogenetic position, the tribal status of this clade is unjustified; see below. Premnophilus was reciprocally monophyletic with Premnobius and included P. quadrispinosus (Schedl, 1938) and three unidentified species (likely undescribed). Given a well-supported clade and morphological diagnostic characters, Premnophilus is recognized as distinct from Premnobius; see below. Premnobius was also well-supported (Figures 1–3) and include species that were characterized by a carinate lateral eytral margin. These species resembled P. cavipennis and differed by minor morphological differences of the elytral declivity (clade 9, Figure 2). One species rendered P. cavipennis paraphyletic, which suggests the need of a revision. Terminal branch lengths of unidentified species were similar in length to terminal branch lengths of known species (e.g., P. sp. 3/Ghana and P. ambitiosus) (Figure 3). If branch lengths along with minor morphological differences are taken as a proxy for species delimitation, then a greater Premnobius species diversity awaits discovery.

Taxonomy

Premnophilus browne, genus bona (Figures 4, 5)

Premnophilus (Browne, 1962): 79. Type species: Xyleborus joveri (Schedl, 1951)= Premnobius quadrispinosus (Schedl, 1938); original designation.

Figure 4

Figure 5

Diagnosis

Browne (1962) thoroughly described and illustrated the genus. To emphasize, Premnophilus differs from Premnobius by the obliquely truncated antennal club without obvious sutures. The anterior edge of the first corneous segment is sinuous. In Premnobius the antennal club is flat with two procurved sutures and the anterior edge of the first corneous segment is procurved. Also, the lateral edge of the eytral declivity for Premnophilus is rounded as compared to the acute lateral edge of the eytral declivity for Premnobius.

Included species

I have observed specimens of the listed species. Two or three likely undescribed species (e.g., P. sp. 5/Ghana, P. sp. 6/Guyana, Figure 1) also belong to Premnophilus. A revision of this genus will occur in a subsequent publication (Cognato, in prep.). Complete references are given in Wood and Bright (1992).

Premnophilus quadrispinosus (schedl), new combination

Premnobius quadrispinosus Schedl, 1938: 461.

Xyleborus joveri Schedl, 1951: 41–42.

Premnophilus perspinidens (schedl), new combination

Xyleborus perspinidens Schedl, 1957: 107.

Premnobiina, status novo

Included genera.

Premnobius Eichhoff, 1879.

Premnophilus Browne, 1962.

As indicated in the results, Premnobius and Premnophilus are monophyletic and sister to Acanthotomicus, in part (Figures 1–3). Consideration of these genera as a tribe renders Ipini paraphyletic. To remedy this issue, Premnobiini is recognized as a sub-tribe of Ipini. Alternatively, clades of Acanthotomicus and Pseudips could be recognized as tribes to preserve the monophyly of Ipini and the tribal status of Premnobiini. However, this action is not advisable because of the limited sample of Acanthotomicus species included in these analyses.

Conflict of interest statement

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Statements

Acknowledgments

I thank Sarah M. Smith, Bjarte H. Jordal, and the Review Editors for helpful discussion of this topic and for review of previous manuscripts. I appreciate the collecting efforts of Jiri Hulcr, Bjarte H. Jordal, and Sarah M. Smith, which helped make this study possible. This study was supported in part by the Norwegian Research Council (214232) and the University of Bergen, Norway (F20) awarded to Bjarte H. Jordal. and NSF-PEET (DEB 0328920) awarded to Anthony I. Cognato.

Conflict of interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1
Alonso-ZarazagaM.LyalC. H. C. (2009). A catalogue of family and genus group names in scolytinae and platypodinae with nomenclatural remarks (Coleoptera: Curculionidae). Zootaxa, 2258, 1–134.
- Google Scholar
2
AviseJ. C. (2000). Phylogeography: The History and Formation of Species. Cambridge, MA: Harvard University Press.
- Google Scholar
3
BeaverR. A. (2005). A remarkable new species of Cyclorhipidion Hagedorn, and new records of bark and ambrosia beetles from Gabon (Coleoptera: Curculionidae, Scolytinae and Platypodinae). Entomol. Mon. Mag. 141, 113–119.
- Google Scholar
4
BrightD. E.SkidmoreR. E. (1997). A Catalog of Scolytidae and Platypodidae (Coleoptera), Supplement 1 (1990–1994). Ottawa, ON: NRC Research Press, 1–368.
- Google Scholar
5
BrightD. E.TorresJ. A. (2006). Studies on West Indian Scolytidae (Coleoptera) 4. A review of the Scolytidae of Puerto Rico, U.S.A. with descriptions of one new genus, fourteen new species and notes on new synonymy (Coleoptera: Scolytidae). Koleopterologische Rundschau76, 389–428.
- Google Scholar
6
BrowneF. G. (1961). The generic characters, habits and taxonomic status of Premnobius Eichhoff (Coleoptera, Scolytidae). Fourth WATBRU Rep. 1961, 45–51.
- Google Scholar
7
BrowneF. G. (1962). Two new genera of the Scolytidae (Coleoptera). Fifth WATBRU Rep. 1962, 75–80.
- Google Scholar
8
CognatoA. I. (2000). Phylogenetic analysis reveals new genus of Ipini bark beetle (Scolytidae). Ann. Entomol. Soc. Am. 93, 362–366. 10.1603/0013-8746(2000)093[0362:PARNGO]2.0.CO;2
- CrossRef
- Google Scholar
9
CognatoA. I.SunJ. H. (2007). DNA based cladograms augment the discovery of a new Ips species from China (Coleoptera: Curculionidae:Scolytinae). Cladistics23, 539–551. 10.1111/j.1096-0031.2007.00159.x
- CrossRef
- Google Scholar
10
CognatoA. I.VoglerA. P. (2001). Exploring data interaction and nucleotide alignment in a multiple gene analysis of Ips (Coleoptera: Scolytinae). Syst. Biol. 50, 758–780. 10.1080/106351501753462803
11
DamgaardJ.AndersenN.MeierM. R. (2004). Combining molecular and morphological analyses of water strider phylogeny (Hemiptera-Heteroptera, Gerromorpha): effects of alignment and taxon sampling. Syst. Entomol. 30, 289–30910.1111/j.1365-3113.2004.00275.x
- CrossRef
- Google Scholar
12
DanforthB. N.FangJ.SipesS. (2006). Analysis of family-level relationships in bees (Hymenoptera: Apiformes) using 28S and two previously unexplored nuclear genes: CAD and RNA polymerase II. Mol. Phylogenet. Evol. 39, 358–372. 10.1016/j.ympev.2005.09.022
13
EdgarR. C. (2004). MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 32, 1792–1797. 10.1093/nar/gkh340
14
EichhoffW. J. (1864). Uber die Mundtheile und die Fuhlerbildung der europaischen Xylophagi sens strict. Berliner Entomol. Zeits. 8, 17–46. 10.1002/mmnd.18640080103
- CrossRef
- Google Scholar
15
EichhoffW. J. (1878). Ratio, descriptio, emendatio eorum Tomicinorum qui sunt in Dr. medic. Chapuisi et autoris ipsius collectionilbus et quos praeterea recognovit. Mémoires de la Société Royale des Sciences de Liège, 81, 1–531.
- Google Scholar
16
EichhoffW. J. (1879). Zur Entwicklungsgeschichte der Borkenkafer. Stettiner Entomogische Zeitung40, 501–506.
- Pubmed Abstract
- Google Scholar
17
FarrellB. D.SequeiraA. S.O'MearaB. C.NormarkB. B.ChungJ. H.JordalB. H. (2001). The evolution of agriculture in beetles (Curculionidae: Scolytinae and Platypodinae). Evolution55, 2011–2027. 10.1111/j.0014-3820.2001.tb01318.x
18
GyllenhalL. (1827). Insecta Svecica descripta a Leonardo Gyllenhal. Clasis I Coleoptera sive Eleuterata. Tomi 1, Pars IV. Lipsiae: Friedericum Fleischer. 761.
- Google Scholar
19
HagedornJ. M. (1910). Ipidae. Pars 4, in Coleopterorum Catalogus, ed SchenklingS. (Berlin: W. Junk), 134.
- Google Scholar
20
HopkinsA. D. (1915). Contributions toward a monograph of the scolytid beetles, Part II Preliminary classification of the superfamily Scolytoidea. US Depart. Agric. Tech. Bull. 17, 165–232.
- Google Scholar
21
HoppingG. R. (1963). Generic characters in the tribe Ipini (Coleoptera: Scolytidae), with a new species, a new combination, and new synonymy. Can. Entomol. 95, 61–68. 10.4039/Ent9561-1
- CrossRef
- Google Scholar
22
JordalB.GillespieJ. J.CognatoA. I. (2008). Secondary structure alignment and direct optimization of 28SrDNA sequences provide limited phylogenetic resolution in bark and ambrosia beetles (Curculionidae: Scolytinae). Zool. Scr. 37, 43–56. 10.1111/j.1463-6409.2007.00306.x
- CrossRef
- Google Scholar
23
JordalB. H.CognatoA. I. (2012). Molecular phylogeny of bark beetles reveals multiple origins of fungus farming during periods of global warming. BMC Evol. 12:133. 10.1186/1471-2148-12-133
24
JordalB. H.SequeiraA.CognatoA. I. (2011). The age and phylogeny of wood boring weevils and the origin of subsociality. Mol. Phylogenet. Evol. 59, 708–724. 10.1016/j.ympev.2011.03.016
25
KnížekM. (2011). Scolytinae, in Catalogue of Palaearctic Coleoptera, Vol. 7, eds LöblI.SmetanaA. (Stenstrup: Apollo Books), 204–250.
- Google Scholar
26
LeConteJ. L. (1876). Family IX. Scolytidae, in The Rhynchophora of America North of Mexico. eds LeConteJ. L.HornG. H., (Philadelphia, PA: American Philosophical Society), 341–391, Appendix: p. 426.
- Google Scholar
27
NobuchiA. (1969). A comparative morphological study of the proventriculus in the adult of the superfamily Scolytoidea (Coleoptera). Gov. For. Exp. Station Bull. (Tokyo)224, 39–110.
- Google Scholar
28
NormarkB. B.JordalB. H.FarrellB. D. (1999). Origin of a haplodiploid beetle lineage. Proc. R. Soc. B266, 2253–2259. 10.1098/rspb.1999.0916
- CrossRef
- Google Scholar
29
RonquistF.TeslenkoM.van der MarkP.AyresD. L.DarlingA.HöhnaS.et al. (2012). MrBayes 3.2: efficient bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 61, 539–542. 10.1093/sysbio/sys029
30
SchedlK. E. (1938). Scolytidae und platypodidae 41 beitrag. Mitt. Zool. Mus. Berl. 23, 459–464.
- Google Scholar
31
SchedlK. E. (1951). Fauna aethiopica, VI 117 contribution. Rev. Franc. d'Ent. 18, 40–42.
- Google Scholar
32
SchedlK. E. (1957). Scolytoidea nouveaux du Congo Belge, II Mission R Mayne – K E Schedl 1952. Ann. Mus. Congo Belge Tervuren (Belgique) Sci. Zool. 56, 1–1162.
- Google Scholar
33
SchedlK. E. (1964). West African bark and timber beetles, I. Reichenbachia Mus. Tierkd. Dresden4, 39–52.
- Google Scholar
34
SimonC.FratiF.BeckenbachA.CrespiB.LiuH.FlookP. (1994). Evolution, weighting, and phylogenetic utility of mitochondrial gene sequences and a compilation of conserved polymerase chain reaction primers. Ann. Entomol. Soc. Am. 87, 651–701.
- Google Scholar
35
SorensonM. D. (1999). TreeRot, Version 2. Boston, MA: Boston University.
- Google Scholar
36
SwaineJ. M. (1916). New species of the family Ipidae, pt. III. Can. Entomol. 48, 181–192. 10.4039/Ent48181-6
- CrossRef
- Google Scholar
37
SwoffordD. (2002). PAUP^*. Phylogenetic Analysis Using Parsimony (^*and other methods) Version 4. Sunderland, MA: Sinauer Associates.
- Google Scholar
38
WoodS. L. (1951). Two new species and a new genus of Scolytidae (Coleoptera) from Utah. Kansas Entomol. Soc. J. 24, 31–32.
- Pubmed Abstract
- Google Scholar
39
WoodS. L. (1982). The bark and ambrosia beetles of North America (Coleoptera: Scolytidae), A Taxonomic Monograph. Great Basin Nat. Mem. 6, 1–1359.
- Google Scholar
40
WoodS. L. (1986). A reclassification of the genera of Scolytidae (Coleoptera). Great Basin Nat. Mem. 10, 1–126.
- Google Scholar
41
WoodS. L. (2007). Bark and Ambrosia Beetles of South America (Coleoptera, Scolytidae). M. L. Bean Life Science Museum. Provo, UT: Brigham Young University.
- Google Scholar
42
WoodS. L.BrightD. E. (1992). A catalog of Scolytidae and Platypodidae (Coleoptera), Part 2: taxonomic index. Great Basin Nat. Mem. 13, 1–1553.
- Google Scholar

Summary

Keywords

Ipini, systematics, taxonomy, nomenclature, COI, 16S, 28S, CAD

Citation

Cognato AI (2013) Molecular phylogeny and taxonomic review of Premnobiini Browne, 1962 (Coleoptera: Curculionidae: Scolytinae). Front. Ecol. Evol. 1:1. doi: 10.3389/fevo.2013.00001

Received

29 October 2013

Accepted

17 November 2013

Published

29 November 2013

Volume

1 - 2013

Edited by

Alejandro P. Rooney, U.S. Department of Agriculture, USA

Reviewed by

Bjarte H. Jordal, University of Bergen, Norway; Jiri Hulcr, University of Florida, USA

This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Anthony I. Cognato, Department of Entomology, Michigan State University, 288 Farm Lane Road, East Lansing, MI 48824, USA e-mail: cognato@msu.edu

This article was submitted to Phylogenetics, Phylogenomics, and Systematics, a section of the journal Frontiers in Ecology and Evolution.

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Phylogenetics, Phylogenomics, and Systematics

ORIGINAL RESEARCH article

Molecular phylogeny and taxonomic review of Premnobiini Browne, 1962 (Coleoptera: Curculionidae: Scolytinae)

Abstract

Introduction
