Contribution to a standardized economic and ecological assessment methodology for e-fuel production in Germany

Abstract

Techno-economic and ecological analysis of synthetic fuel production requires a consistent set of assumptions to ensure comparability. The proposed methodology was developed to assess any e-fuel production globally under various local conditions. It includes standards concerning the methodology and cost calculations for individual process stages, along with electricity, H₂, heat, and CO₂ supply. With the presented approach, net production costs, production efficiencies, and the global warming potential can be compared. In this work, the basic assumptions for e-fuel-production in Germany are shared and illustrated with a simplified example.

1 Introduction

The transport sector worldwide still does not meet international obligations to become climate neutral. One of the countries lagging behind its set goals is Germany. In 2021, the German transport sector contributed 19.4% of country’s greenhouse gas (GHG) emissions (German Environment Agency, 2022). In order to reach the maximum target of 85 Mt CO₂ equivalents by 2030, emissions need to be reduced by approximately 79 Mt CO₂ equivalents compared to 2020. Moreover, other European countries also have a long way to go to achieve net zero emissions in the transport sector, as depicted in Figure 1.

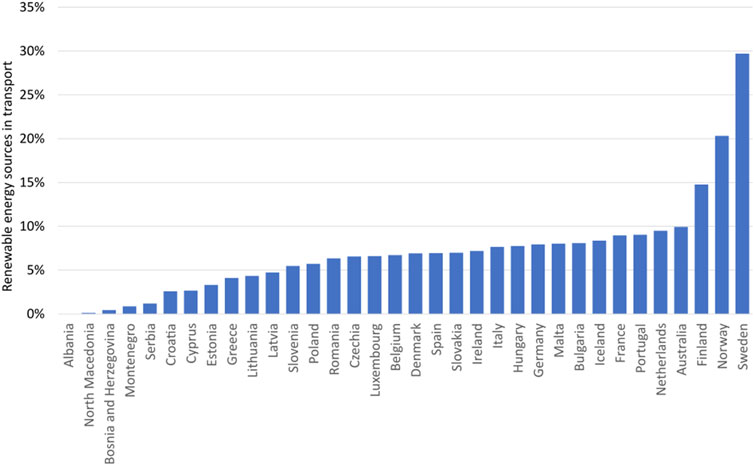

FIGURE 1

Eurostat, 2019)).

In order to explore pathways for the de-fossilization of the transport sector at both national and global levels, the German Federal Ministry for Economic Affairs and Climate Action (BMWK) launched the initiative “Energy Transition in the Transport Sector: Sector Coupling through the Use of E-Fuels (EiV) in 2017, with a total funding of 99 M€ and 16 projects (BMWK, 2017). Since each project started with its own goals to address a certain part of the transport sector, there was no guarantee that their analysis—concerning costs for environmental impacts—would be comparable. To identify the most promising pathways for the short, mid, and long term, these pathways needed to be assessed technically, economically, and ecologically. In this study, a standardized methodology and a framework of basic assumptions, based on previous work (Albrecht et al., 2017), were developed. This was carried out by the authors within the additional project “Accompanying Research on the EiV” (BEniVer) (Energiesystem-Forschung, 2021).

A comparable analysis of power-to-x (PtX) production routes is only possible if the underlying assumptions and methodologies are consistent and clearly reported. However, due to different levels of detail and differing assumptions, this is often not the case, as illustrated by the following examples.

In the absence of all technical information, the reproduction of results is limited. In Gorre et al. (2020), information on the catalyst used for methanation is missing. Furthermore, the compressors are only defined by their share of total energy consumption. The target purity of the product is not reported, as is also the case in Moioli and Schildhauer (2022) for their methanol synthesis. Tremel et al. (2015) provided neither a flow diagram nor simulation data. Furthermore, information on the thermodynamic model used, the purity of the product, and the reactor model is missing. Adnan and Kibria (2020) also did not specify product purity. Even though many economic values in Gorre et al. (2019) are listed in a very good manner, failing to mention the product’s purity and assuming that both different electrolysis technologies and different methanation processes have only “minor technological differences” makes their technical insights questionable.

Incomparable approaches and assumptions in economic analysis prevent results from being comparable beyond a given publication. Even though there are good examples of economic analysis, such as for Parigi et al. (2019), Dahiru et al. (2022) stated in their review on techno-economic analysis (TEA) of power-to-X production: “[…] there is not yet any globally accepted method for TEA due to lack of consistency and comparability between different studies.” For instance, Adnan and Kibria (2020) did not report hydrogen costs, annual operating time, or base year for the synthetic methanol production. Schemme et al. (2020) performed an analysis with a consistent system boundary and the same assumptions for internal comparability. However, e.g., the data for the CO₂ costs and the amount of energy required to extract the CO₂ were taken from different sources and are, therefore, inherently inconsistent. Furthermore, key factors underlying the TEA, such as Lang factor, are missing. Peters et al. (2019) provided no information on plant operating time or capital costs.

Even in ecological analysis, data are often neither collected uniformly nor based on the same assumption. In a meta-study of various publications on the life cycle assessment (LCA) of synthetic fuels, Kigle stated, “Despite the large number of publications and normalized LCA standards, comparison of results between different fuels across different studies proves difficult” (translated) (Kigle et al., 2019, p. 7). The GHG emissions for methane fuel, for example, range from just under 200 g CO₂-equivalent km^-1 (CO_2-eq. km^-1) in Wettstein et al. (2018) to 650 g CO_2-eq. km^-1 in Reiter and Lindorfer (2015). A significant influencing factor is the GHG intensity of the electricity supply and the associated share of the synthetic fuels. Wettstein et al. (2018) considered a photovoltaic (PV) plant as the power source, while Reiter and Lindorfer (2015) assumed the electricity mix. The choice of the system boundary and the functional unit to which the results refer also influences their comparability, as does the process to which any captured CO₂ is attributed (Kigle et al., 2019). The publication of the methodology guideline for LCA of e-fuels was already a step further (Pichlmaier et al., 2021). In addition, Müller et al. (2020) provided a good overview of LCA guidelines. However, an LCA can still be carried out following the standards and yet remain incomparable if the basic assumptions are not defined identically and the methodology is not standardized.

In order to address the issue of non-comparability, a comprehensive summary of the necessary criteria for TEA and LCA was presented by Langhorst et al. (2022). They require that “the target audience for the study shall be stated,” which seems to imply different qualities of scientific work are acceptable for different audiences. This should not be the case. Due to their focus on using LCA definitions to TEA, the definitions for economic analysis are, sometimes, not sufficient. For instance, in order to define the products, they require stating the intended application. This is not necessary for the calculation of costs and environmental impacts of the production. Even if the intention is to use the application of the product to define its quality, they do not specify the extent to which the application should be described. If, for instance, methanol as fuel for cars is the stated application, it could be used either in an internal combustion engine or in a methanol fuel cell, and the permissible water content could differ significantly between these cases. Similarly, they state that the functional unit of the product should be defined but do not indicate the required level of detail for that definition. For instance, if the functional unit is 1 kg of synthetic natural gas for heating, neither the composition nor the lower heating value is still defined. Natural gas has a lower heating value of 10.42 kWh m⁻³ or 8.87 kWh m⁻³ for natural gas L or H, repective (AG Erdgastechnik, 2019), and for the american market, 10.18 kWh m⁻³ (The Engineering ToolBox, 2003). Even if the functional unit is defined, the results are not comparable unless a standard is established. A more robust approach would be to define the product by its composition (including pressure and temperature). They also omit net production costs (NPCs) as an economic result, focusing instead solely on “profitability,” which highly relies on unknown future market conditions. No one knows what future tax policies will look like or whether demand for one product will exceed demand for another. Currently, there is no established market for renewable fuels. Furthermore, they do not define the methodology of cost calculation. If several analyses are carried out based on their guidelines, different methodologies of cost calculation could be selected. These methodologies can significantly differ, for instance, in the choice of surcharge factors. Without a standardized calculation methodology, the results are not comparable. Finally, their framework allows for varying quality in both input data and analysis. Studies based on different standards are not comparable.

The same applies to Michailos et al. (2018) and Zimmermann et al. (2020) since both are based on Langhorst et al. (2022).

To perform a TEA and LCA of renewable fuels, the balance limit, assumptions, and assessment methodologies must be standardized and consistent. In this work, we provide a defined methodology for TEA and LCA that is specific enough to allow for comparable results yet flexible enough to asses various production paths and scenarios. The aim is to facilitate comparability among various studies on PtX production in a fair and unbiased manner. In Table 1, a set of all necessary assumptions for a single methodology of TEA and LCA is presented, with example values for German production in 2018. Forecasted values for the years 2030 and 2045 are also included. The methodology can be applied to any other location, plant size, operating hours, or manufacturing process by adjusting a few input parameters (see Table 1 and Section 4.5) and is, therefore, generally valid not only for e-fuels but also for PtX processes worldwide (see also Garche (2024)).

For explanatory purposes, an oversimplified example process is presented at the end of this publication. A realistic analysis of the given process using the methodology presented in this study can be found in Rahmat et al. (2023).

Even though the energy transition includes production, logistics, retrofitting, acceptance, and utilization, only production is considered in this study. Other aspects are planned to be published by the project BEniVer.

2 Methodology

The following section describes the methodology that can be used for the standardized technical, economic, and ecological analysis of PtX products. Figure 2 shows the general production pathway of PtX products with easily comparable balance limits.

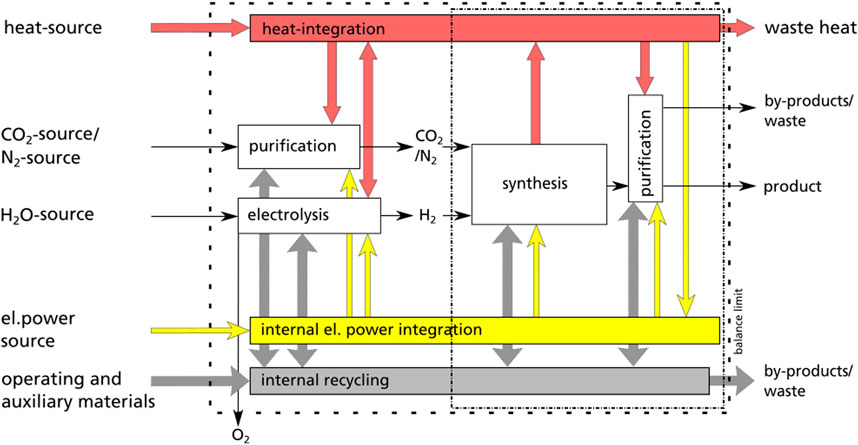

FIGURE 2

The process starts with the supply of H₂, which is usually produced using electricity. Since electricity usually constitutes the highest share of NPCs, establishing a valid base for the electricity price is crucial. In Section 3.2, the cost data and the environmental impact of the electricity are listed. For more details, see SI chapter 3. H₂ is itself a PtX product. To improve storage capability and/or to enable desired applications, another reaction partner can be added to hydrogen in a synthesis process. These could include, for instance, CO₂ or N₂, both of which must be purified beforehand. After synthesis, further purification of the product might be necessary. Within a PtX plant, heat, electrical power, and materials should be integrated to improve efficiency. Depending on the location of the PtX plant, it might even be possible to use waste heat locally, e.g., for district heating.

There are two preferable balance limits: either electrolysis and CO₂/N₂ purification are included within the boundary, allowing the entire PtX route to be compared, or—if the focus of comparison is the synthesis processes itself—CO₂/N₂ and H₂ can be treated as educts, leaving their production and purification outside the balance limit. In order to compare this approach, the costs and environmental impacts of the respective streams must be set equal. For the case of H₂ and CO₂, see Sections 3.3, 3.4, respectively.

To analyze a PtX process from both a techno-economic and a techno-ecological perspective, the procedure presented schematically in Figure 3 can be carried out.

FIGURE 3

Albrecht et al., 2017).

In the first step, the technical basis of the process is defined to enable the setup of a detailed process simulation. Whenever possible, this step should be carried out with the participation of industry partners since they possess detailed knowledge of the process. Further information can be collected through literature research. In the second step, a detailed process simulation is created in order to identify existing dependencies in the production process and estimate the minimum equipment requirement. The simulation is optimally validated together with industrial partners. In the third step, the calculation of the cost data and environmental impact and the analysis of technical key performance indicators (TKPIs) are carried out. This step is executed on the basis of the technical analysis, literature data, databases, and generally accepted calculation methods. In the fourth step, key parameters are analyzed, and in the fifth step, the results can be communicated back to project partners in order to further optimize the process, if possible.

2.1 Technical analysis

A validated process model is the basis for all further analysis, not only for PtX processes. Experimentally derived performance maps of reactors and other equipment should be included in a rigorous process flow diagram (PFD) simulation. Commercial software packages like Aspen Plus® provide chemical component properties and thermodynamic methods to calculate their interactions. The user has to assemble and interlink all required units, define the operating points, and set specifications to achieve an overall system performance at the end. For transparency and reproducibility, it is viable to share all necessary data. A good example can be found in Parigi et al. (2019).

In the technical analysis of a PtX-process, the necessary equipment and its specifications—such as sizes, pressures, temperatures, flow rates, efficiencies, exchange rates, energy losses, kinetic models, catalyst degradation, and achievable temperatures—have to be defined. Some of these parameters might also be technical results, which must be shared transparently. All simplifications and all assumptions should be communicated. For the comparison of technical results, TKPIs are used. For a carbon-based PtX process, the energetic efficiency η_e and carbon efficiencies Y_C (and Z_C) should be calculated as described in the following equations.

Energetic efficiency, η_e, of the fuel production process is calculated as shown in Equation 1:

Here, is the mass flow of the product, and LHV_Prod is the lower heating value of the product. They are divided by the mass flows of the educts multiplied with their lower heating values, LHV_Educ, and the sum of electrical power inputs . In case of the electrolysis being inside the balance limit (as shown in Figure 4), equals 0, and the efficiency is called the “power-to-fuel” efficiency η_PtF, as provided in Equation 2. This efficiency is useful in comparing different PtX processes concerning the use of “precious” electricity.

FIGURE 4

Since there are various electrolysis systems with system-specific efficiencies, using η_PtF for comparison can be misleading if PtX processes use different electrolysis systems. By excluding the electrolysis from the efficiency, the remaining PtX process can be compared. In addition, if hydrogen were supplied from a source other than an electrolyzer, this balance limit could be used. In a minimal-example in Section 4, the corresponding balance limit is depicted in Figure 4. In this case, the efficiency is called “hydrogen-to fuel-efficiency” , which is provided in Equation 3.

The carbon yield, Y_C, is obtained using Equation 4 as follows:

Here, is the carbon mole flow in the products, excluding waste, and is the carbon mole flow in the reactant. If there is a reaction with several products, e.g., Fischer–Tropsch pathway, the carbon efficiency to each product, Z_C, can be calculated using the following equation (Equation 5).

Here, is the carbon mole flow of the target product.

Heat integration potentials are further determined in the technical analysis. This is crucial in order to achieve high efficiencies. A widely used method is the PINCH-analysis, as explained by Linnhoff and Lenz (1987).

The underlying heat transfer coefficients of the heat exchangers are listed in Section 2.2 of the supporting information (SI) and other technical parameters. Depending on the localization of a PtX plant, it could be possible to sell heat in the form of steam. For this case, assumed pressure levels for a German plant are listed in the SI Section 1.4. Only if the balance limit and other technical assumptions are disclosed completely can technical results, such as energetic efficiencies and carbon yields, be compared.

2.2 Economic analysis

Chemical engineering cost estimation is a well-known procedure for standard large-scale chemical plants (Peters et al., 2004). In PtX-processes, it is often applied to small-scale decentralized plants because of high costs and low availability of renewable power and electrolyzers. This is only partially correct as the error bar of that estimation increases largely toward small-scale demo units, and the results are harder to compare. The main results of the economic analysis are capital expenditures (CAPEX), operating expenses (OPEX), and NPCs.

Depending on the available information, an economic analysis can be performed according to different levels of detail and, thus, estimation accuracy. Using the factor method and parameter models presented in this study, it is possible to achieve the estimation accuracy of a feasibility study (Christensen et al., 2005). For higher estimation classes, more extensive, cost-intensive, site-specific, non-generalizable, and significantly longer planning efforts would need to be carried out. However, since “semi-detailed costs” are used for major components, an estimation accuracy of CAPEX between 3 and 4 can be achieved, approximately ±30% (Christensen et al., 2005). For more detailed information on the accuracy of cost estimations, refer to Adelung (2022).

From the process parameters determined in the technical analysis, the CAPEX and OPEX are calculated. The CAPEX is reflected in the annual capital costs (ACCs). In order to calculate the ACC, individual equipment items (pumps, heat exchangers, etc.) need to be calculated using the equipment cost (EC_i) function (6) for the respective years with the given physical characteristics (Albrecht et al., 2017).

Here, is the cost function of the individual pieces of equipment with defining properties. are the respective input variables, such as pressure, temperature, and throughput. The inflation adjustment can be determined using the chemical engineering plant cost index (CEPCI), where the current CEPCI is divided by the CEPCI_ref of the reference year. Pressure and material factors F_pre,i and F_mat,i are used to adjust the previously calculated results to certain pressure levels or materials used. For further information, see SI chapter 1. Knowing the individual EC_i, fixed capital investment (FCI) can be determined using Equation 7.

A proposal for standard empirical factors is provided in the SI in Supplementary Table S1. To calculate the total capital investment (TCI), Equation 8 is used.

With the given values and the interest rate (IR), the annual capital cost (ACC) can be calculated according to Equation 9.

Here, y is the plant operation time in years, and IR is the interest rate. For further information on production costs and cash flows during construction, see also Giglio et al. (2015). A subsequent sensitivity analysis allows the influence of different process parameters and input data on production costs to be investigated.

With the plant operating time and the annual production quantities, the NPCs can then be calculated according to Equation 10.

Here, t_labor is the sum of man-hours, and c_labor is the mean hourly labor costs. The product is referred to as operating labor (OL). In order to normalize the costs of the product, several bases can be used: volume, energy, or mass flow of the product, among others. The following reference quantities are proposed: €_year/L, €_year/MJ_LHV, or €_year/kg. To account for inflation, the year should always be specified. Furthermore, it is important to state the concentration of the target product within the presentation of the results or in the assumptions.

2.3 Ecological analysis

More detailed information on the methodology and data used in this study for LCAs of PtX products can be found in the methodology guide for LCAs of e-fuels (Pichlmaier et al., 2021).

3 Assumptions

For comparable results, balance limits and other assumptions must be identical. The assumptions in this study are partly standard approaches and partly assumptions that have been proven valuable in projects with several project partners (e.g., BEniVer). Set example values, like year, size, interest rate, and lifetime, are exchangeable. It is important for comparison that they are defined equally for all analyzed processes.

3.1 Comparability and completeness

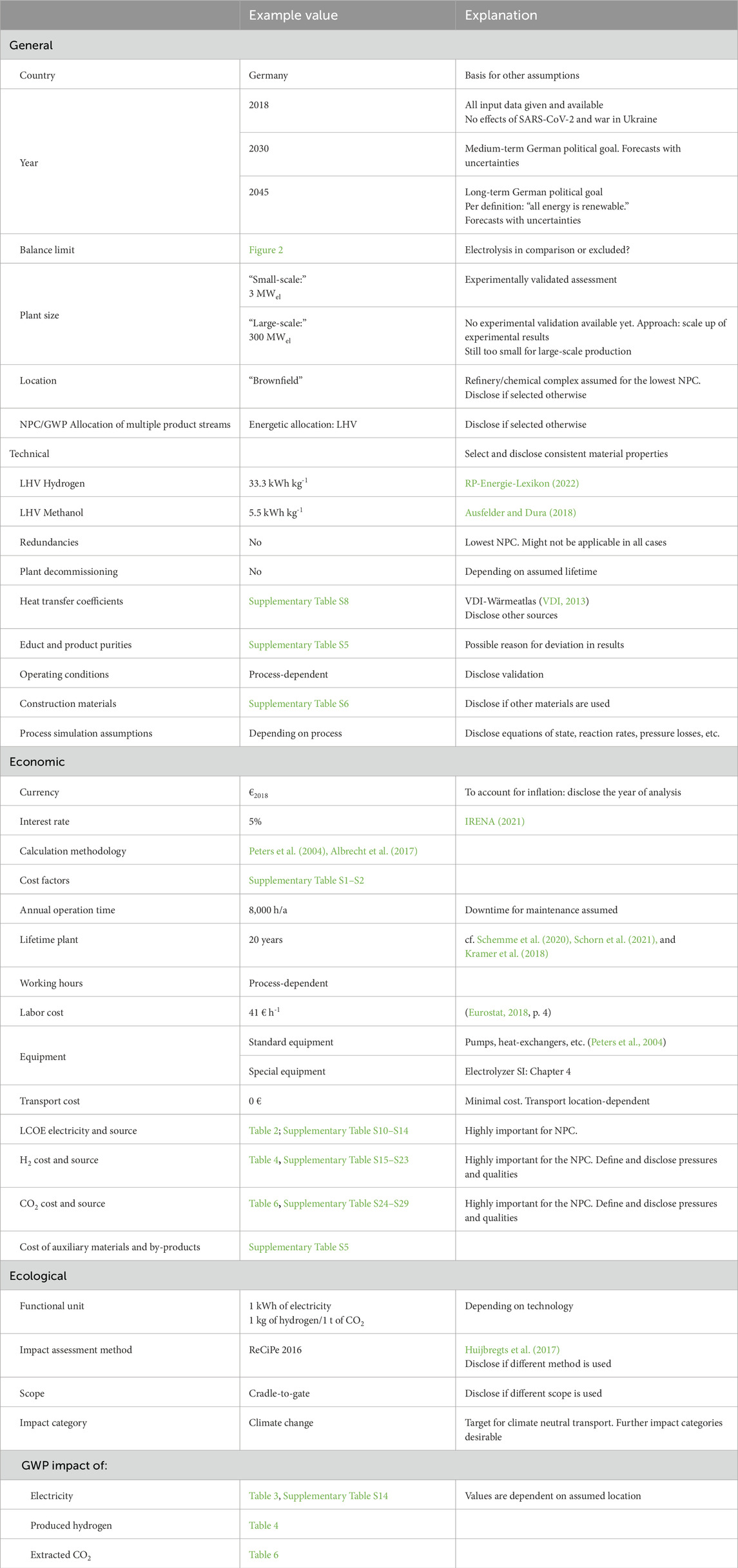

For assessment of PtX processes, a list of necessary assumptions is presented in Table 1 in column one. If any of this information is missing from an assessment, the results are not comparable. The second column includes example values, which have been set within BEniVer. These could be used for comparison with the results of the BEniVer project. In the third column, explanations and further information (sources) are given. As an example of how to use the methodology and assumptions, a simplified case is included in Section 4. A comprehensive study using the methodology presented in this study, along with the example values and additional input values, was performed by Rahmat et al. (2023) .

To account for changes due to technological progress, the following approach is proposed: The plant is designed for a total nominal capacity of 3 MW_el or 300 MW_el in 2018. In the following years, the plant is operated with the same material flows, but different efficiencies are assumed, resulting in decreased input power, while the product flow remains the same. This approach allows simulations to be easily adapted to other years.

3.2 Power supply

Electricity represents the most important energetic input to a PtX process. Depending on the electricity source, electricity costs, availability, and environmental impact have to be considered. Detailed explanation and presentation of the underlying data can be found in the SI in chapter 3.

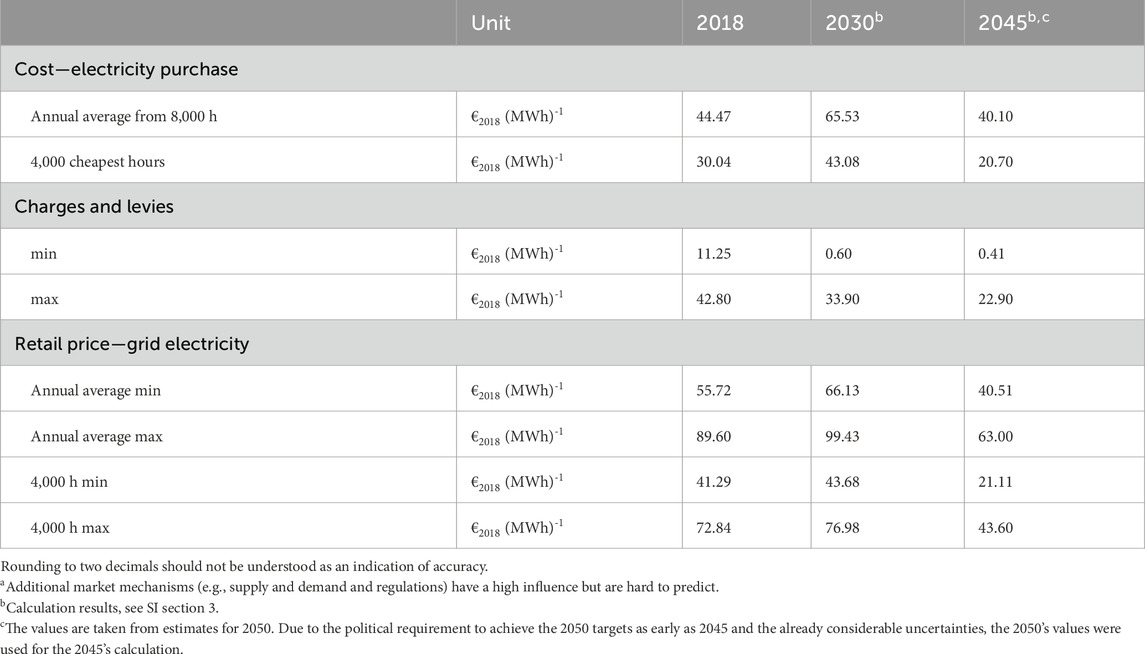

Levelized cost of electricity (LCOE) is calculated according to Equation 11 (IRENA, 2020):

Here, l_t represents the CAPEX of the power plant in year t, M_t represents the operating and maintenance costs in year t, F_t represents the fuel expenses in the year t, and E_t represents the full-load hours in year t. r represents the imputed interest rate, and n represents the depreciation period or the life of the system. Using the assumptions defined in Supplementary Table S11 and the minimum and maximum rates for taxes and levies, the following possible retail prices for grid electricity were calculated.

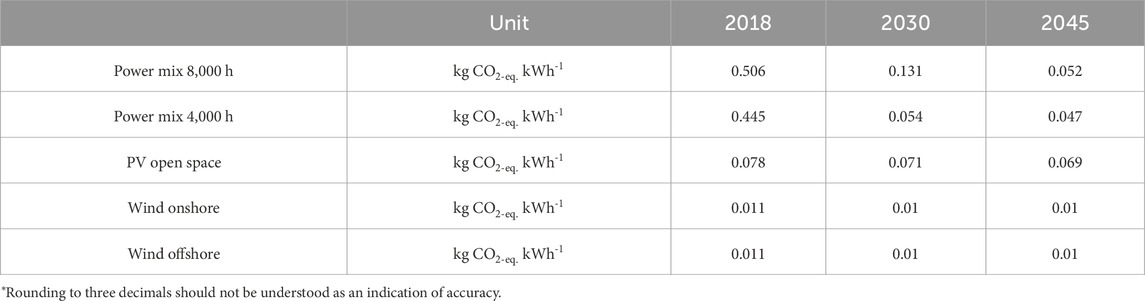

At present, the German grid mix is not 100% renewable; therefore, PtX products based on that are not “green” per se. For more in-depth information and data for 100% renewable sources, see SI section 3. GHG emissions from electricity production are determined using LCA, including the upstream chain of energy sources (e.g., coal) and plant construction (e.g., coal power plant and wind turbine) and disposal. Based on the composition of the respective electricity mix and year, the share of each technology is calculated using the appropriate emission factor from the LCA database ecoinvent® (Wernet et al., 2016). The exact allocation is explained in Section 3.5 of the SI. For renewable technologies, emission factors from ecoinvent® are also used.

3.3 Hydrogen supply

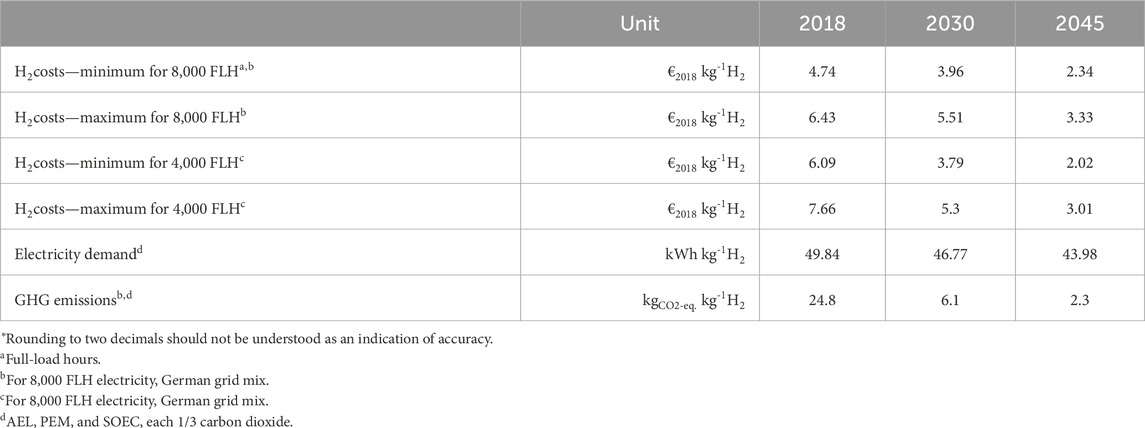

In the case of electrolysis being outside the balance limit, example cost and environmental impact data for German production are presented below. Considered electrolysis technologies are alkaline electrolysis (AEL), proton exchange membrane electrolysis (PEM), and high-temperature solid oxide electrolyzer cell (SOEC). The AEL and PEM processes can produce pure oxygen, which can potentially be sold. In this work, it is proposed that this is feasible at a scale of approximately 300 MW_el, and thus, the revenue is deducted from the H₂ costs. Based on the technical and economic parameters of the electrolysis and the electricity costs from Section 3.2, an individual TEA has been calculated for each electrolyzer according to the methodology from Section 2.2. The economic values include capital expenditures for the entire system, the stack’s share of capital expenditures, and specific maintenance costs. The individual results of the respective types of electrolysis are listed in the SI section 4. Individual LCA for each process has also been carried out using the methodology described in Section 2.3.

For the GHG emissions, energy and material flows from the technical analysis and the plant construction are considered. The material input of plant construction is based on the following studies: AEL (Liebich et al., 2020), PEM (Bareiß et al., 2019), and SOEC (Wulf and Kaltschmitt, 2018). Considering the stack and plant lifetime, the plant construction is normalized to kg of hydrogen produced. Furthermore, the purchased electrical energy, water consumption, and consumption of other operating materials, such as potassium hydroxide, are considered for the operating phase. The energy and material flows in the operating phase were linked to datasets from the ecoinvent® database and calculated using LCA software.

For generalized German hydrogen production, it is still unknown which technology will capture which market share as each technology has its advantages and disadvantages. Therefore, generic values have been defined and proposed, assuming that AEL, PEM and SOEC each take up one-third. Table 4 provides the costs for large-scale generic production of hydrogen at a specified transfer pressure of 50 bar and a temperature of 50 °C, along with the energetic and ecologic values.

Anion exchange membrane (AEM) electrolysis is not considered in this study since the technology was only available at the beginning of EiV in the “single-digit kW range” (Sunfire GmbH, 2023). Equivalent results can be calculated in the same manner as described for the other electrolysis technologies.

3.4 Carbon supply

Considered CO₂ sources are direct air capture (DAC) and extraction from point sources. The compositions of point sources are listed in Supplementary Table S24 in SI. Within BEniVer, the following CO₂ sources were assumed to exist until 2045: cement plant, combined gas and steam (GS) plant, and waste-to-energy plant (MVA). Based on the technical and economic parameters of the DAC and the process simulations of an ethanolamine (MEA)-scrubber, an individual TEA is performed for each CO₂ supply option. The results are presented in the SI section 5. In order to make different approaches more comparable, “generic CO₂” is proposed in addition to data for specific CO₂ sources. Due to a lack of informed data, educated estimates of the contributions of CO₂ sources to the average German CO₂ mix are shown in Table 5.

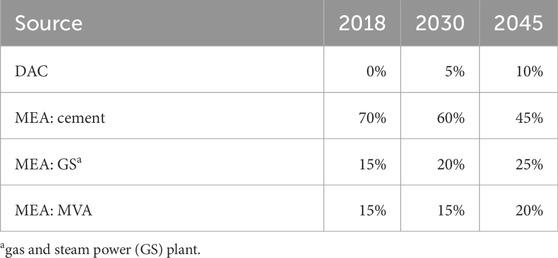

Table 6 provides the resulting costs for a large-scale generic supply of carbon dioxide at transfer conditions of 3 bar and 35 °C, along with the energy and environmental impacts.

The ecological impact considers the energy and material flows determined in the TEA, such as raw materials, auxiliaries, and plant construction. Material data from the following sources are used for the ecological balance of plant construction. For DAC, data from Lozanovski (2019) were applied. For the selection of background processes from ecoinvent®, the process designations from the appendix of Liebich et al. (2020) were used. For flue gas scrubbing with MEA, the data from Liebich et al. (2020) were used. Considering the plant lifetime, the plant construction was related to one ton of CO₂. In the operation phase, the purchased electrical energy, water consumption, and consumption of other operating materials, such as cooling water and MEA, were considered.

Captured CO₂ enters the life cycle assessment as negative emissions. Captured CO₂ can be attributed either to the supply side, if it is captured from air, to process-related emissions, or to the fuel itself (Ausfelder and Dura, 2018). Since this has not yet been decided in regulations, the results are shown in Supplementary Table S29 in SI. The resulting values are depicted in Table 6 in case it is allocated to energy and material flows.

4 Result

To illustrate the application of the methodology and proposed assumptions, a simplified and idealized example of methanol synthesis is presented. In this section, the application of the presented methodology can be observed. Furthermore, the presented cost data (H₂, CO₂, and electricity) for German production are integrated to facilitate understanding of their use. In contrast to realistic plants, no recycle streams are included, no catalyst is considered, and reaction kinetics are omitted. All these effects are neglected, resulting in an idealized outcome. However, for a basic understanding of the methodology, this example is sufficient. For deeper insights into the methanol synthesis, see, for example, Rahmat et al. (2023).

4.1 Assumption example process

For the stoichiometric direct conversion of CO₂ and H₂ to methanol, the chemical sum equation is defined as shown in Equation 12:

For simplicity, the chemical equilibrium is not considered, but a theoretical 100% yield in an artificial super reactor is assumed. CO₂ and H₂ with min costs for 8,000 FLH (see Tables 4,6) are mixed stoichiometrically and compressed to 40 bar using a compressor. Then, the reaction with an assumed 100% conversion rate takes place with no by-products but water. In the next step, a 100% separation of water and methanol is assumed. It is known to the authors that the separation of the product in reality would take place in a two- to three-stage rectification, where product losses occur. In this study, for simplification, no energy or material losses are assumed, nor are costs and revenues for heat, water, by-products, and waste. In order to present the methodology for calculating equipment cost, the cost calculation of one compressor is shown in Table 8. All other equipment costs for synthesis or purification are calculated similarly for a valid process model but are not necessary for the presentation of the methodology here and are therefore assumed to be 0.

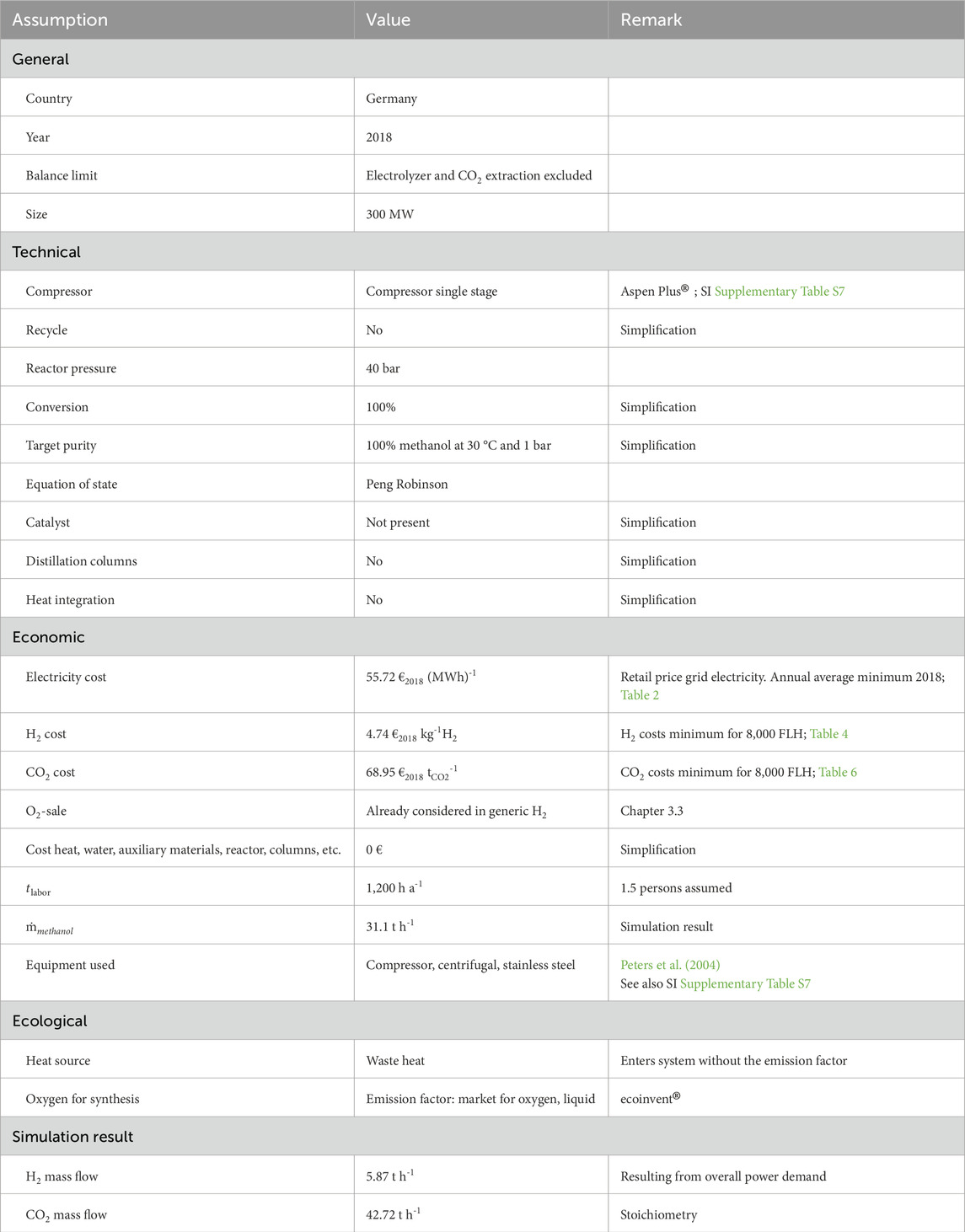

Furthermore, the following values were assumed.

If one of these values is missing or if the main input values are defined differently, a comparable analysis cannot be achieved. For instance, if the hydrogen source is defined differently, it will have an influence on the technology (depending on the quality of H₂), costs, and GWP. Different target purities of methanol have a significant influence on the technology and energy demand. In this study, an oversimplified example has been selected. In reality, several distillation columns would be needed.

4.2 Technical analysis

Using Equation 13, the values given in Table 7, and the simulation, the energy efficiency η_PtF is 57%.

In the literature, η_PtF efficiencies range from 40% (Adnan and Kibria, 2020) to 56% (Andersson et al., 2014). With a generic hydrogen source for 2018, 66.8% of the electrical energy is converted into the LHV of hydrogen. Other losses occur in CO₂ purification due to compression and the exothermic reaction, as also indicated in Figure 4. Excluding the electrolysis process, the calculated hydrogen-to-fuel efficiency as shown in Equation 14 is 88%, which is in the range of literature data, which is between 82% (Rahmat et al., 2023) and 88% (Schemme et al., 2020).

Since no heat and no electricity are included in the equation, mostly the product losses are indicated in this efficiency. For full conversion, the carbon yields, as described in Equations 15,16, are equal to 100% since no purge is included. Thus, no carbon loss occurs.

In a real process, by-products would form. Unreacted educts would also have to be recycled. To prevent inert gases from accumulating in a recycle, a purge stream had to be included. Both effects result in a lower carbon efficiency as 73% in Schemme et al. (2020) and up to 96% in Rahmat et al. (2023).

4.3 Economic analysis

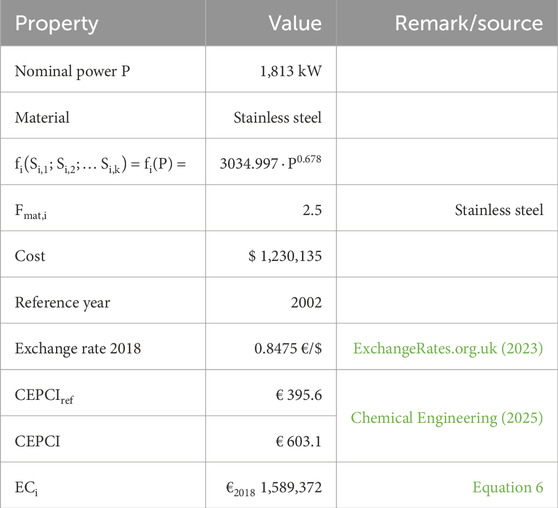

For Equation 6, the following information is needed, as listed in Table 8.

With the resulting ECi and the factors provided in the SI in Supplementary Table S1, the FCI can be calculated as shown in Table 9.

With the given values, the TCI (Equation 16) can be calculated as follows:

With an assumed interest rate of 5%, see Table 1, and Equation 9 the ACC equals 0.7 M€₂₀₁₈ a⁻¹. Given the values of Table 7, the OL results 0.49 M€₂₀₁₈ a⁻¹. In Table 10 the intermediate and the main result of the OPEX_ind calculation is shown.

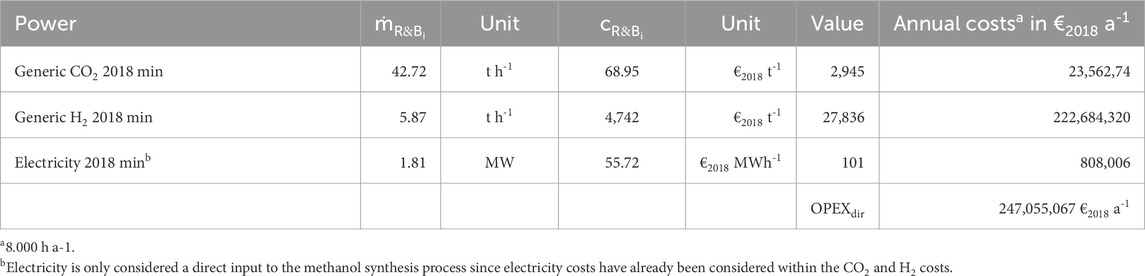

Given the flows over the balance limit (Table 7) and the exemplary cost data for German production in 2018, the OPEX_dir results are shown in Table 11.

Using Equation 9 and the intermediate results, the NPC can be calculated as shown in Equation 17:

The calculated NPC could be compared to other production processes that use the same input parameters and methodology.

Additionally, calculations of net present values could be carried out. These, however, have the disadvantage of adding high uncertainties since future market prices of the products are not known.

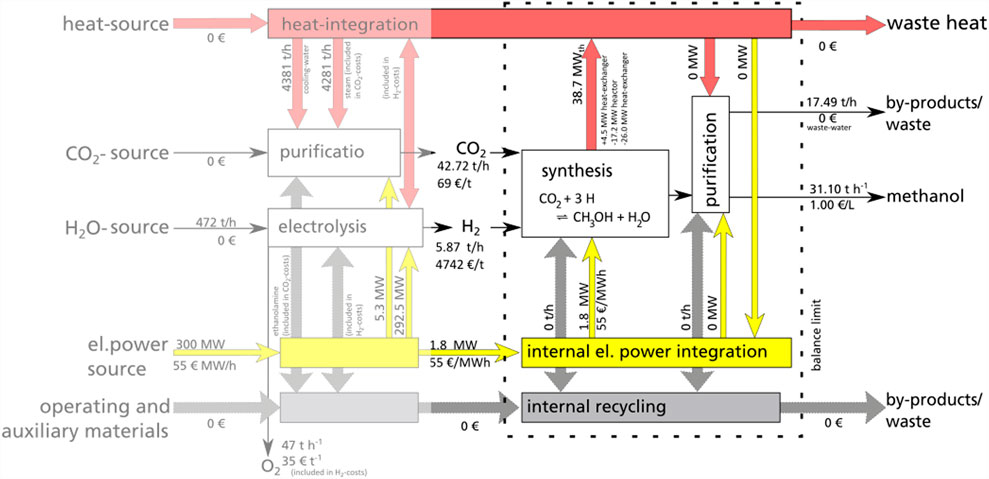

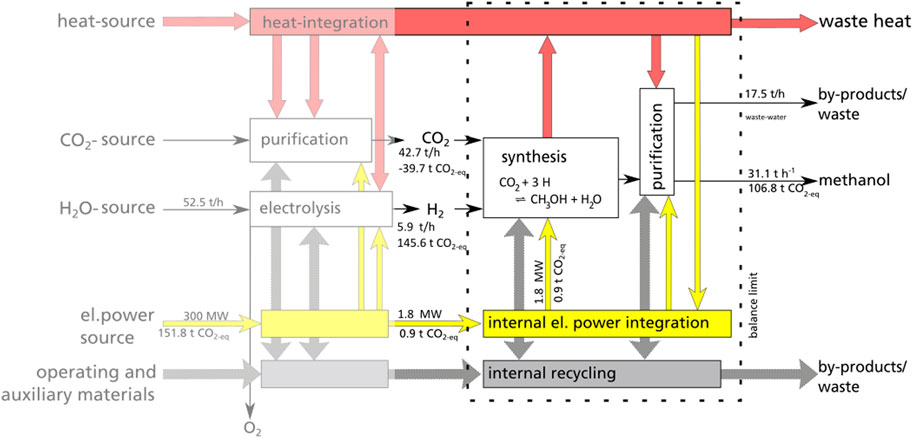

An overview of the flows and resulting costs is depicted in Figure 4.

These results are only for illustrative purposes. What can be observed is that each of the costs for the input flows have to be set uniformly, as well as the calculation methodology, in order to make different process analyses comparable. A TEA of power-to-methanol based on rigorous process simulation and two reaction kinetic approaches carried out with BEniVer assumptions by Rahmat et al. (2023) resulted in a slightly higher NPC between 1.13 € kg^-1 and 1.48 € kg^-1.

The TEA is independent of the target audience and the intended application (see comments on Langhorst et al. (2022) in the introduction).

4.4 Ecological analysis

For a comprehensive LCA, each material used for construction or within the process has to be assessed. Since a lifetime of 20 years, no by-products, no catalyst, and only one compressor are assumed, its influence on the environmental impact of the production is negligible for this minimal example. Therefore, a simplified LCA is conducted. Since a separate LCA for H₂, CO₂, and electricity has already been performed for German production, mass and energy flows from the technical analysis of the example process are used and connected with their CO_2-eq. footprint as shown in Figure 5. The underlying relative CO_2-eq. footprints for the streams are already presented in Table 3,4,6 and SI in Supplementary Table S23,S29. The resulting total GHG emissions are calculated to deliver the functional unit, which in this case, is a mass flow of 31.1 t h^-1.

FIGURE 5

The main influence on the overall GHG emissions is to be observed in the H₂ production. Since German grid electricity in 2018 is selected, it has a high share of non-renewable energy, which is reflected in the high CO_2-eq. allocated to H_2. The share of renewable energy is expected to increase in the future (see Supplementary Table S13 of SI). 100% renewable electricity for a German production facility currently comes with the drawback of reduced full-load hours, which would have to be assessed in more detail, including storage. For more information, see Raab et al. (2022), Ibáñez-Rioja et al. (2023). The assumed negative CO_2-eq. of the 2018 generic German CO₂ source can be achieved if it is allocated to the fuel. Currently, the regulations do not define where CO₂ has to be allocated to. The exemplary results presented in this study excluded materials such as steel, catalysts, and concrete in the LCA. These would increase the environmental impacts. Unless all material and energy streams are produced carbon-neutral, the product will always have a GWP greater than 0, but it might still be lower than that of fossil products. Additionally, transportation of the final product would also have to be assessed. A comparison of how close the simplified example is to more realistic processes is difficult since the main assumptions (CO₂ and H₂ source) are selected differently. Further impact categories might even be higher. For further information on LCA of PtX production and other impact categories, see Pichlmaier et al. (2021) and Weyand et al. (2023).

The LCA is independent of the target audience and the intended application (see comments on Langhorst et al. (2022) in the introduction) but highly dependent on the setting of input parameters and the calculation methodology.

4.5 Adaption to other conditions

The analysis can be adapted to other conditions, such as country and prices, by changing the input parameters required in Table 1. For the first analysis, a sensitivity study can be carried out as shown in Figure 6 for the example process for ±80% of variance.

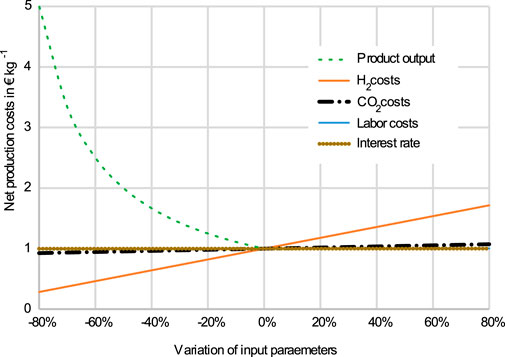

FIGURE 6

It can be observed that the product output has the highest influence on the NPC. So, if the plant runs with less FLH, the cost of the product would increase. However, this still might be necessary if fluctuating renewable energy has to be used. However, the electricity price for renewable energy and, therefore, the H₂ price could be lower. For other countries, the H₂ or CO₂ sources could vary, as well as labor costs and interest rates. For a thorough analysis, all these parameters would be changed and an analysis carried out, but the sensitivity study provides first insights into the magnitude of influence on the result. An equal analysis could be carried out for the LCA.

For comparing other products or production processes, another synthesis would have to be defined, which is state of the art. All economic and ecological input values, such as year and H₂-source lifetime, would have to be set equally. The subsequent analysis would follow the same steps as defined in this work.

If “greenfield” is selected instead of “brownfield,” additional information would be needed. These include preparation of the land, foundations, roads, sewage treatment, electricity connection, steam generation, safety equipment, car parks, ecological compensation areas, additional storage, fees, and taxes. For all of these data, costs had to be defined and included into CAPEX- and OPEX-calculations (see also Peters et al. (2004)).

5 Summary and outlook

This publication addresses the problem of non-comparable analysis results of the PtX production pathway in the current literature by sharing a compact list of minimal required data, which are needed for a TEA and LCA (see Table 1). Its completeness and consistency provide the basis for standardized assessment. This represents a significant improvement in the current status of assessment comparability, as stressed in the introduction. For instance, in contrast to Langhorst et al. (2022), this study includes a definition of how the product is specified and a definition of the calculation methodology, and additional uncertainties are reduced by calculating the NPC instead of the net present value. A methodology for TEA and basic information for an LCA concerning the GWP were presented, based on DIN ISO 14040 (DIN, 2020) and 14044 (DIN, 2018). Furthermore, an easy-to-handle set of data and assumptions, used in the EiV-project (BMWK, 2017), was shared. It represents a defined set-point from which all processes can be compared, if intended. If an analysis is carried out at another set-point, the values for this new set-point would have to be presented completely. Table 1 helps ensure that no value is overlooked. Using the new set-point, a new comparable analysis could be carried out.

Within the presented dataset, estimated forecasts are presented. These have been calculated carefully, but technology and cost estimations for 2030 and 2045 are subject to great uncertainty. Current crises highlight the volatility of energy prices and commodity markets. Nevertheless, processes can be compared based on identical assumption, and their potential contribution to the climate change mitigation efforts in the transport sector, locally or worldwide, can be quantified.

Finally, a minimized example has been presented for explanatory purposes, knowing that the result is an oversimplification.

As an impact category example of the LCA, the GWP was selected since this is the main target parameter for decarbonizing the transport sector. A standardized assumption of the GWP for electricity, H₂ and CO₂ also enables better comparability. The analysis of further impact categories is necessary for real pathway assessment. Unfortunately, not all underlying data of the LCA could be shared due to the terms of use of the ecoinvent® database.

Adjustments, such as plant dimensions, synergies through suitable site selection, influences of individual process stages on the overall result, and other basic assumptions, can be addressed via sensitivity studies using the methodology presented (see chapter 4.5). This work presents a step toward a comprehensive comparison of all options for de-fossilization of the transport sector in Germany. However, this still requires an evaluation of the use and other aspects such as logistics, further environmental impact categories, infrastructure, taxation or subsidies, the application in the means of transport, and regulatory framework conditions.

In order to achieve climate goals, multi-megawatt scale plants are required to produce alternative fuels if current demand remains. However, neither renewable electricity volumes nor electrolyzer capacities are currently available at a refinery scale, so plants were considered at the scale of available demonstration plants and initial commercial scale.

The authors hope that this publication contributes to a more transparent comparison of PtX processes and thus facilitates the search for the best-suited solutions for the transition to greener alternatives.
