Susanne Claudia Möckel1,2*
Theresa Bonatotzky2Egill Erlendsson2,3Ivan Rodrigo Casasola Álvarez2Utra Mankasingh1Guðrún Gísladóttir2,3†- 1Faculty of Environmental and Forest Sciences, Agricultural University of Iceland, Reykjavík, Iceland
- 2Institute of Life and Environmental Sciences, University of Iceland, Reykjavík, Iceland
- 3Institute of Earth Sciences, University of Iceland, Reykjavík, Iceland
Increasing energy demand propels the construction of river dams and reservoirs for hydropower, raising concerns about environmental and societal ramifications. Ecological effects like river fragmentation, habitat loss, biodiversity decline, and disruptions of biogeochemical cycles have been addressed for several decades. The impact of water impoundment on submerged soils, particularly carbon stocks, is of growing interest. Studies reveal both increases and decreases of carbon stocks in submerged soils, depending on factors such as substrate resilience, water level fluctuations, soil type and submergence duration. This study examines the effects of 24 years of water impoundment on properties of organic and mineral constituents in Andosols under the Blöndulón hydroelectric reservoir in Iceland´s highlands. Submerged soils show higher carbon stocks than reference soils but are depleted in pedogenic minerals ferrihydrite and allophane. Unlike reference soils, where carbon declines with depth, submerged soils display rather uniform carbon distribution. This is likely due to movement of organic material from upper to lower horizons, and carbon additions from decaying vegetation in the years after the impoundment. Importantly, the apparent carbon enrichment of the submerged soils raises concerns about its long-term stability. The depletion of pedogenic minerals ferrihydrite and allophane may render the carbon sensitive to oxidation in the coming decades, particularly when soils are exposed during water level fluctuations. In short, the carbon enrichment of the drowned soils may not be permanent. Assessments of the consequences of water level fluctuations or potential future dam removal need to take the vulnerability of the exposed soils into account and consider the risk of increased carbon emissions from these soils.
1 Introduction
Advances towards reaching Sustainable Development Goal 7 (access to affordable, reliable, sustainable and modern energy for all) have been offset by population growth and economic growth. As of 2021, about 675 million people still lacked access to electricity (United Nations, 2023), particularly in least developed countries. This adds significant momentum to the construction of river dams and artificial water reservoirs for the production of hydropower (Scheffran et al., 2020; Zarfl et al., 2015). In Iceland, the increasing electricity demand of recent decades has been mainly driven by the heavy industries, which accounted for 78% of electricity consumption in 2021, with the aluminum industry accounting for the greatest share (Orkustofnun, 2022a). In 2021, the share of hydropower in the county´s primary energy use was 20.5% (Orkustofnun, 2023), while hydroelectricity comprised 70% of the electricity produced (Orkustofnun, 2022b).
Although hydropower is often considered a renewable source of sustainable and clean energy, concerns about its environmental and societal ramifications are growing (Voegeli and Finger, 2021; Mulligan et al., 2020). While often regarded as a low- or even no-carbon source of energy (De Souza, 1996), emerging research has highlighted that the flooding of terrestrial ecosystems by hydropower reservoirs disrupts biogeochemical cycles, potentially enhancing greenhouse gas (GHG) emissions in the form of CO2 and CH4 from hydroelectric reservoirs (e.g., Félix-Faure et al., 2019b; Félix-Faure et al., 2019a; Oelbermann and Schiff, 2010; Oelbermann and Schiff, 2008; Wang et al., 2024). Emissions are largely driven by the increased vulnerability of soil organic C to mineralization upon artificial water impoundment and by the decomposition of inundated vegetation (Oelbermann and Schiff, 2010; Huttunen et al., 2002; Oelbermann and Schiff, 2008). Variability in emission rates is great, though. A recent review of GHG emissions from hydropower schemes (Wang et al., 2024) revealed higher emissions per unit area from small than large hydropower reservoirs in most climatic zones, not least in boreal areas. A range of other factors, such as temperature, the response of different microbial communities to disturbance (Unger et al., 2009), availability of nutrients and alternative electron acceptors (Zhang et al., 2021), water residence time, reservoir depth, magnitude of water level drawdowns, fluctuations in redox potential (Wang et al., 2024), and soil type also play a role.
Loss of C from submerged soils can be substantial, but the fate of soils and the stability of their C stocks upon reservoir flooding, appears to be driven by a combination of soil internal and external factors. A study in France revealed a soil loss of about 40 cm, or, in other words, the loss of the O and A horizons of Podzols in the annual drawdown zone of a reservoir after about 80 years of flooding (Félix-Faure et al., 2019b). Permanently flooded parts of the area also lost a substantial part of the O horizon. Such loss of organic surface horizons naturally translates into significant losses of C. Studying Cambisols after about 80 years of water impoundment, Félix-Faure et al. (2019a) showed a loss of about 50% of the original soil C, indicating significant mineralization rates even under permanent submersion. Oxygen saturation of the water may play a role here. Some parts of reservoirs, particularly those close to the main inlet and where the water depth is shallow, can be oxic for a major part of the year. A decrease in C concentration is not observed in all studies on artificially submerged soils. Oelbermann and Schiff (2010) found increases in C concentrations after 5 years of episodic flooding in the Experimental Lakes Area in Ontario, Canada, along with a redistribution of C from surface layers, decaying plant biomass, and more organic soil horizons, into deeper soil layers. The substantial difference in submergence time between the studies of Félix-Faure et al. (2019b) (approximately 80 years) and Oelbermann and Schiff (2010) (5 years) likely explains the contradictory results of soil C loss versus C gain. Importantly, C of recently flooded soil might be particularly sensitive to oxidation due to high sources of labile soil organic matter (SOM) and nutrient release from the inundated terrestrial vegetation (Huttunen et al., 2002; Oelbermann and Schiff, 2008). Moreover, hydropower reservoirs not only influence the drowned soils, but also soils in the shoreline and near environment of the reservoir. Shore erosion is a known problem around artificial reservoirs. Vilmundardóttir et al. (2010) described significant erosion and redeposition of Andosols at the shoreline of the Blöndulón reservoir in North Iceland, governed by a combination of substrate resilience, wind strength and direction, fetch length and resulting wave power, and water level. Eroding soil material along the shoreline, and soil material and sediments from the annual drawdown zone can then be driven by wind and form advancing sand fronts (Vilmundardóttir et al., 2010). These move over vegetated areas, thereby suffocating and uprooting vegetation, leaving barren areas (Arnalds, 2015).
To elucidate the implications of submergence on C in drowned soils, an understanding of the mechanisms of C stabilization in the affected soils is required. Accumulation and stabilization mechanisms of soil organic C differ substantially between soil groups, e.g., due to external factors such as climate, but also due to distinct physicochemical soil properties derived from pedogenesis; steering, amongst others, aggregate formation and the availability of reactive mineral surfaces, and active metal ions (Kögel-Knabner and Amelung, 2021). Andosols, soils which predominantly form from volcanic ejecta such as those in Iceland, are known for their exceptionally high C storage capabilities (Wada, 1985; Takahashi and Dahlgren, 2016), due to the following stabilization mechanisms: The weathering of the volcanic parent material leads to abundant precipitation of aluminium (Al), iron (Fe) and silicon (Si), which favors the formation of highly active nanocrystalline minerals like the aluminosilicate allophane and the Fe-hydroxide ferrihydrite (Bonatotzky et al., 2021; Hewitt et al., 2021; Shoji et al., 1993; Wada, 1989; Kögel-Knabner and Amelung, 2021). Through the formation of organo-mineral complexes facilitated by their reactive surfaces, these clay-sized mineral constituents play a strong role in C accumulation in Andosols (Kögel-Knabner et al., 2008; Kleber et al., 2005; Rasmussen et al., 2018). Also, complexation of metal ions, particularly Al but also Fe, with humus plays an important role, particularly in non-allophanic Andosols (Inagaki et al., 2020), as well as physical protection within micropores (Asano and Wagai, 2014).
Long-term flooding as a strong form of environmental disturbance could lead to the destabilization of pedogenic minerals, metal-humus complexes, and soil aggregates, and eventually render the C of the drowned soils more sensitive to loss. Under reducing conditions, iron oxides like ferrihydrite become unstable due to the reduction of Fe(III) to more soluble Fe(II). The resulting decrease in Fe(III)-bearing iron oxide content (Félix-Faure et al., 2019b) can cause the loss of C once stabilized in Fe(III)-organic complexes (Knorr, 2013; Chen et al., 2020; Inagaki et al., 2020). Reduction of Fe and the loss of Fe minerals from submerged soils is, e.g., demonstrated by Banach et al. (2009), who describe increased mobilization of Fe(II) after only few weeks of inundation in a mesocosm experiment. A study on soil water quality of the Nam Theun 2 Reservoir in Laos by Chanudet et al. (2016) showed an over threefold increase in dissolved iron concentrations downstream during the first 5 years of impoundment. Contrary to Fe, Al is not redox active in soils (Strawn et al., 2015). Hence, aluminosilicates such as allophane, and Al-humus complexes might retain their C stabilizing role under reducing conditions (Inagaki et al., 2020). However, allophane also contributes to C stabilization through the formation of silt sized aggregates and microcompartments in which SOM can become trapped (Filimonova et al., 2016). Aggregate stability of Andosols is generally known to be high (Candan and Broquen, 2009; Buytaert et al., 2006), but strong environmental disturbance, like decades of flooding and frequent water level fluctuations, as in the annual drawdown zone of reservoirs, could lead to the destruction of soil aggregates (Zhu et al., 2022).
The aim of this research was to shed light on the influence of artificial flooding by hydropower reservoirs on properties of organic and mineral soil constituents in Andosols and to evaluate the potential consequences for the C balance of the submerged soils. The following research objectives were at the core of the study:
1. To compare properties of organic and mineral soil constituents of submerged soils with those of non-flooded reference soils in the vicinity of the reservoir.
2. To compare C stocks of submerged soils with those of non-flooded reference soils in the vicinity of the reservoir.
3. To reveal implications of potential changes in soil properties after several decades of flooding for the C balance of the submerged soils, particularly when they are subject to water level changes.
2 Research setting
The study area is located at the margin of the highlands in northern Iceland, around the Blöndulón hydroelectric storage reservoir (Figure 1). The hydroelectric power station Blöndustöð started operations in 1991, with the damming of the glacial river Blanda and flooding of the surrounding areas. The overfall of Blöndulón reservoir is at 478 m above sea level (a.s.l.), and the reservoir covers an area of approximately 57 km2 when the water table is at overfall height. The water level undergoes annual fluctuations; the level is lowest in spring, primarily March and April, while maximum water level heights are common in late summer and early fall (August–October, Figure 2). The climate in the area is rather dry. Mean annual precipitation is around 400 mm, with highest precipitation in July, August, and September (Figure 3C). Mean annual temperature is around 0.7°C, with highest mean temperature in July (8.7°C, Figure 3B) and lowest mean temperature in February (−5°C). The predominant wind direction in the area is SSE, and the mean wind speed is 7.6 m s-1 (Figure 3A). While there were barren stretches along ridges and riverbeds, the area was comparatively well vegetated prior to the artificial flooding. The vegetation was dominated by Racomitrium heath communities, dwarf shrub heaths, grasslands, bogs, and fens (Agricultural Research Institute, 1970). Soil erosion had been an ongoing challenge in the area since long before the formation of the reservoir (Arnalds et al., 2001; Kaldal and Víkingsson, 1982). Following the Icelandic Soil Classification and the Icelandic soil map (Arnalds and Óskarsson, 2009), the soils in the area are dominated by Histic and Gleyic Andosols in wetlands, and Brown Andosols in vegetated drylands, whereas Cambic Vitrisols and Arenic Vitrisols occur in unvegetated patches. The soil depth in the reservoir was around 0.5–1 m in vegetated drylands, whereas 2–3 m were common in wetlands prior to the flooding (Kaldal and Víkingsson, 1982; Kristinsson and Hallgrímsson, 1978).

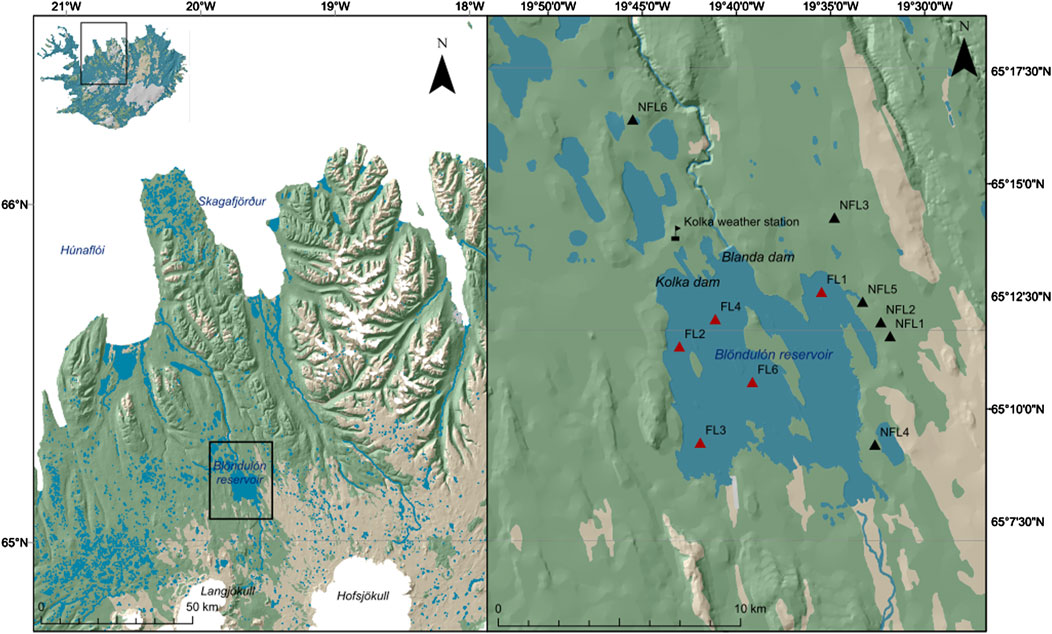

Figure 1. The maps show the research area. Sample sites within the reservoir (FL) are shown by red triangles, reference sites around the reservoir (NFL) are shown by black triangles.

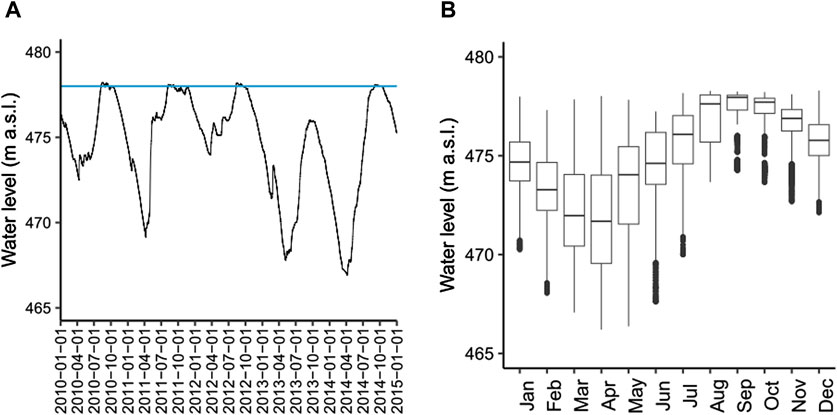

Figure 2. (A) Water level fluctuations in Blöndulón hydroelectric reservoir between January 2010 and January 2015, the overfall height at 478 m is indicated as a blue horizontal line. (B) Monthly distribution of water level in Blöndulón hydroelectric reservoir in the years 1991–2024. Data from Landsvirkjun (2024).

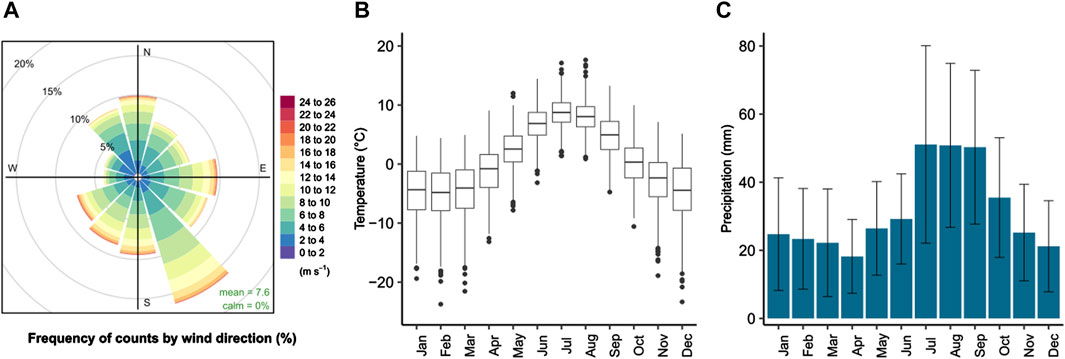

Figure 3. The windrose in (A) shows main wind direction and wind speeds in the area, (B) shows monthly temperature ranges between 1994 and 2023, (C) shows monthly precipitation.
3 Methods
3.1 Soil sampling and site descriptions
The sampling sites were selected to cover the main soil types in the area. Six locations under the reservoir representing the dominant ecosystem types (and hence soil types) were chosen based on vegetation maps made prior to the reservoir by the ARI (Agricultural Research Institute, 1970). Sampling of flooded soils was conducted in winter 2015. From each of the six sites, nine replicate cores over 30 cm deep were retrieved by coring. The coring took place on ice during winter, using a Bolivia-adapted Livingstone piston corer, and polycarbonate tubes with 7 cm inner diameter and length to retrieve 150 cm long soil/sediment cores (e.g., Wright, 1967). About 25 cm wide holes were made through the ice at each sampling location using an ice drill, water depth measured and the polycarbonate tubes pushed into the soil. When the tubes were pulled out, the piston created vacuum within the tubes to prevent movement and mixing of material within them. Upon retrieval, each tube was labelled and sealed, then stored at 4°C until laboratory processing began. In the laboratory, the cores were split lengthwise into two equal halves. One-half was sealed and archived, the other used for analyses. Sediments deposited on the surface of the flooded soils were separated from the upper horizon of the submerged soils, based on color, texture and structure. Then, the upper 30 cm of the soil within each core were divided into intervals of 0–5 cm, 5–10 cm, 10–20 cm and 20–30 cm, air-dried and sieved (<2 mm), and the three replicate samples of each depth interval were pooled.
Of the six flooded sites, samples from five sites were used in this study (sites FL1, 2, 3, 4 and 6). Samples from site FL5 were discarded as they only contained water-sediment slurry without recognizable soil. Three of the flooded sites were poorly drained areas prior to the reservoir (FL1, FL2, FL6; Table 1). Site FL1 was likely a Carex nigra bog (U5), FL2 either a Carex rostrata fen (V2) or an Eriophorum angustifolium fen (V3) or a mix of both, and site FL6 likely constituted a Salix phylicifolia–Carex bigelowii–bog (U11). The two remaining sites were freely drained ecosystems. Site FL3 probably constituted Empetrum nigrum–Salix dominated freely drained land (B3), while site FL4 likely represented Kobresia myosuroides–dwarf shrubs freely drained land (E2).

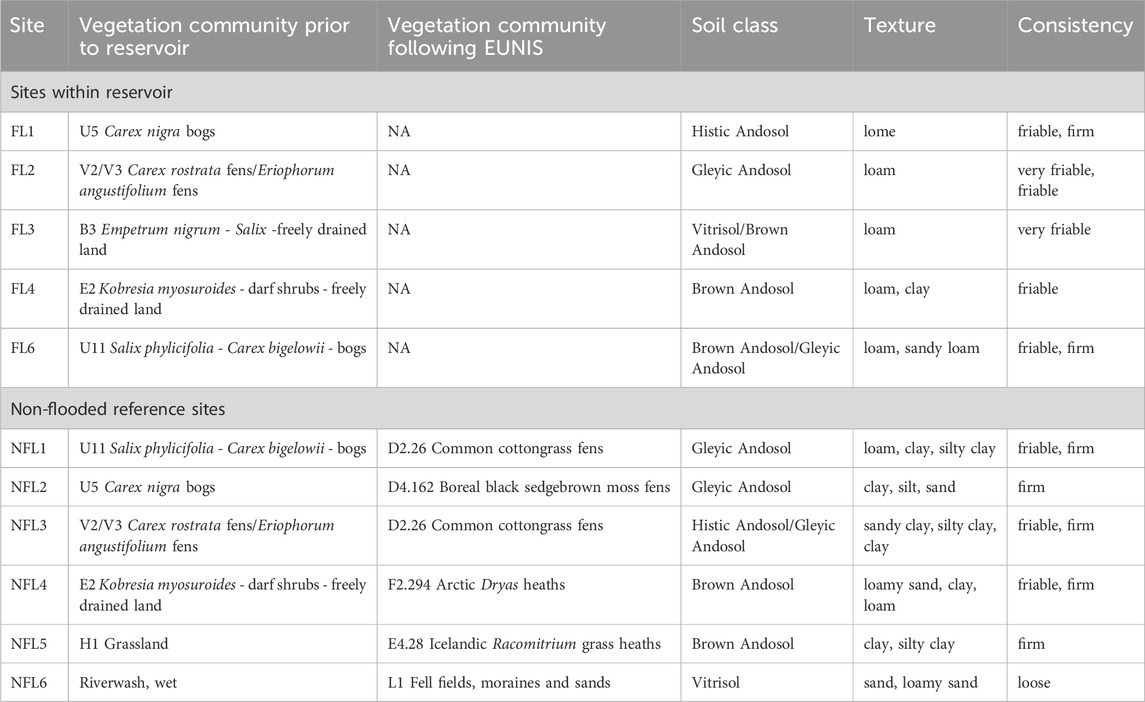

Table 1. Vegetation communities at our sites prior to reservoir flooding (Agricultural Research Institute, 1970) and according to EUNIS (European Environment Agency, 2019), soil classes according to the Icelandic Soil Classification and Icelandic Soil Map (Arnalds and Óskarsson, 2009; Arnalds, 2015), and soil texture and consistency as key morphological properties. Soil texture and consistency varies with depth, when there is more than one textural class or type of consistency.
Based on the ARI vegetation maps, six reference sites in the vicinity of the reservoir, with vegetation communities similar to the flooded sites, were selected. Reference soils were sampled from three poorly drained sites marked U11, U5, and V2/V3 on the ARI maps (sites NFL1, NFL2, NFL3, respectively), and from a freely drained E2 dryland (site NFL4). The sites indicated as B3 freely drained drylands in the vicinity of the reservoir were unsuitable as reference sites, as many of them were actually mires. Therefore, we decided to collect a reference sample from a grassland (H1; site NFL5). Additionally, we collected young gravelly soils from a riverwash (NFL6). This was decided due to conspicuously low C contents at site FL3, which may indicate that site FL3 was either wrongly marked as B3 on the old vegetation map or very degraded (Arnalds et al., 2001; Kaldal and Víkingsson, 1982).
At each reference site, systematic vegetation description was conducted at nine quadrats (0.25 m2) along three parallel transects from the margin to the center (resulting in three quadrats each at the margin, at the center, and between the margin and the center of each site) following the Relevé Method by Braun-Blanquet (Mueller-Dombois and Ellenberg, 1974). Plant species were identified using Kristinsson (2010). Soil samples were taken from the rooting zone (top 30 cm; see Iversen et al., 2015) at the three plots of one transect at each site, subdivided into four intervals: 0–5 cm, 5–10 cm, 10–20 cm and 20–30 cm. For the determination of dry bulk density (DBD) and field water content, samples of a predefined volume were taken from each layer. One soil core was retrieved from each site for soil morphological descriptions. All soil samples were subsequently stored at 4°C until further processing. Sampling of reference soils and vegetation analysis took place in June and August 2018, respectively.
According to our own vegetation descriptions at the reference sites, and following the European Nature Information System EUNIS (European Environment Agency, 2019), NFL1 and NFL2 are similar to D2.26 Common cotton-grass fens, NFL2 is similar to D4.162 Boreal black sedge-brown moss fens, Site NFL4 is somewhat similar to F2.294 Arctic Dryas heaths, and NFL5 to E4.28 Icelandic Racomitrium grass heaths.
3.2 Soil morphology, physical soil properties and pH
Soil texture and consistency were described in the laboratory following Schoeneberger et al. (2012). The DBD was determined by drying soil samples of known volume at 105°C for 24 h and calculating the mass-to-volume ratio of the fine earth fraction (<2 mm). Field water content was calculated based on the mass loss during drying at 105°C for 24 h. Content of SOM and inorganic material (IOM) was determined by loss on ignition at 550°C (Heiri et al., 2001). Soil acidity was measured in deionized water using a soil to water ratio of 1:5 (Blakemore et al., 1987; Rayment and Lyons, 2011).
3.3 Total C and N, δ13C and δ15N
Values of δ13C and δ15N and total C (%C) and nitrogen (%N) were determined on a Thermo Delta V isotope ratio mass spectrometer (IRMS) interfaced to a NC2500 elemental analyzer at the Cornell Isotope Laboratory in the USA. δ13C values are expressed relative to the Vienna Pee-Dee Belemnite standard and reported in delta notation (‰), while δ15N values are expressed relative to the atmospheric N standard and reported in delta notation (‰). Due to the absence of carbonate minerals in Icelandic soils (Vilmundardóttir et al., 2014), we assumed soil organic C to be equivalent to %C. This assumption was confirmed by determining soil inorganic C in a selected subset of samples. As a proxy for decomposition (e.g., Malmer and Holm, 1984; Kuhry and Vitt, 1996) we calculated the molar C/N ratio. Based on DBD and %C, we calculated the C density (kg m-3) and C stocks (kg m-2) for each depth interval.
3.4 Permanganate oxidizable carbon
Two fractions of permanganate oxidizable C were determined using two concentrations of KMnO4 solution and different reaction times. Both methods are based on the assumption that 1 mM of KMnO4 oxidizes 9 mg of C (Tirol-Padre and Ladha, 2004; Weil et al., 2003).
To estimate the biologically active soil organic C pool, soil organic C oxidized by a 0.02 M KMnO4 solution was determined following Weil et al. (2003). Briefly, between 0.5 and 2.5 g of soil (depending on C content) was mixed with 20 mL of 0.02 M KMnO4 in 50 mL centrifuge tubes. The tubes were shaken for exactly 2 min (200 rpm) and centrifuged for 9 min at 5,000 rpm. Then, 0.5 mL of the supernatant were diluted to 50 mL with deionized water, and sample absorbance was read at 550 nm using a Genesys10S UV-vis spectrophotometer, Thermo Scientific, USA. Absorbance values were compared with a standard curve derived from known KMnO4 concentrations. The C fraction extracted by 0.02 M KMnO4 is hereafter called POX02-C.
The fraction of organic C suggested to represent a slower pool of C (Tirol-Padre and Ladha, 2004), was determined by oxidizing organic C for 24 h using 33 mM KMnO4. Samples of soil containing 15 mg C were mixed with 25 mL of 33 mM KMnO4 solution in centrifuge tubes and shaken for 24 h, at 12 rpm. After centrifugation for 5 min at 2000 rpm, 2 mL of the supernatant were diluted to 50 mL with deionized water and the absorbance at 565 nm recorded (Genesys10S UV-vis spectrophotometer, Thermo Scientific, USA). Blank samples, containing no soil were analyzed in each run. The concentration of KMnO4 solution mixed with soils and of the blanks was calculated from a standard calibration curve, for which the range for the standards was chosen to adequately cover the sample range. The C fraction extracted by 33 mM KMnO4 is hereafter called POX33-C.
3.5 Microbial biomass carbon
Microbial biomass C (MBC) was determined by chloroform fumigation based on Vance et al. (1987). Four replicates of each soil sample (<2 mm, air-dried) were rewetted to field-moisture content and incubated for 12 days at 25°C. Additionally, four replicates of a combusted soil sample (with no C) were incubated as a matrix blank. The use of a matrix blank is important to subtract any potential chloroform-derived C, which may be adsorbed to pedogenic minerals after fumigation (Alessi et al., 2011). After day 12, two replicate soil samples and two matrix blank samples were chloroform fumigated under vacuum at 25°C for 48 h. After fumigation, samples were mixed with 0.5 M K2SO4 (1:4 ratio of soil to K2SO4), shaken for 30 min at 120 rpm, and filtered (Whatman No. 42). The two non-fumigated replicate soil samples were also extracted with K2SO4. The extracts from all samples were analyzed for total organic carbon (TOC) and total nitrogen (TN). Microbial biomass C was calculated as blank corrected difference in TOC between the fumigated and the non-fumigated samples, divided by a conversion factor k = 0.45 (Vance et al., 1987). The TOC of the non-fumigated soils extracted with 0.5M K2SO4 was considered to be a measure of the labile C pool of the soils (Guicharnaud et al., 2010). This C fraction is hereafter called K2SO4-C.
3.6 Amorphous Al and Fe phases, and Al and Fe in organic complexes
Selective dissolution of Al, Fe and Si with ammonium oxalate (0.2 M, pH 3.0), was carried out following Soil Survey Staff (2014; method 4G2). The Al, Fe and Si thus extracted (Alo, Feo, Sio) are indicative of the active forms of Al and Fe of organic complexes (Al/Fe-humus complexes), nanocrystalline hydrous oxides of Fe and Al, and aluminosilicates like allophane (Nanzyo et al., 1993; Wada, 1989). Sodium pyrophosphate was used to extract the part of active Fe and Al (Fep, Alp), which is associated with organic compounds (Al/Fe-humus complexes; Soil Survey Staff, 2014; method 4G3). The sum of Alo + ½Feo was calculated as a diagnostic criterion of andic soil properties (≥2%; IUSS Working Group Wrb, 2022). Ferrihydrite was estimated as %ferrihydrite = %Feo x 1.7 (Childs, 1985). Allophane or allophane-like constituents were estimated by the equation proposed by Mizota and van Reeuwijk (1989), based on Parfitt and Wilson (1985).
3.7 Statistics
The distribution and means of %C, C densities, C stocks, C/N ratios, pH, DBD, POX33-C, POX02-C, MBC, K2SO4-C, and allophane and ferrihydrite as a ratio of C (allophane/carbon, ferrihydrite/carbon) in flooded soils and references soils were illustrated by boxplots. To determine if there were statistically significant differences between group means, an unpaired t-test was performed for normally distributed variables, while a Wilcoxon rank sum test was performed for non-normally distributed variables.
The variation in organo-mineral composition between the soils as reflected by POX33-C, POX02-C, MBC, K2SO4-C, allophane and ferrihydrite was visualized by ordination. The six variables were normalized to C content and treated as one multivariate compositional data set (van den Boogaart and Tolosana-Delgado, 2013). After detection of several multivariate outliers (R package robCompositions function out CoDa; Filzmoser et al., 2018; Templ et al., 2011) and replacement of rounded zeros (Martín-Fernández et al., 2012) using the function impRZilr (method “MM”), robust principal component analysis for compositional data was performed (R package robCompositions, function pcaCoDa). The PCA was conducted on isometric logratio coordinates (ilr), and the loadings and scores were back-transformed into centered logratio (clr) space to facilitate graphical illustration and interpretation of the results. Several external variables, which shed better light on the physicochemical properties of the soils were also included in the PCA, namely, Box-Cox transformed C/N ratios, log-transformed DBD, and pH. The external variables were centered and scaled prior to analysis.
After PCA, we investigated possible predictors of variations in POX33-C, which had a) high loadings in the first two dimensions of the PCA and b) represented the greatest share of total carbon content. We performed multivariate beta regression (R package betareg, function betareg; Cribari-Neto and Zeileis, 2010) with POX33-C, expressed as a proportion of total C content, as a continuous response variable bounded by 0 and 1. Variables which showed high loadings in the PCA were selected as predictors, namely, allophane and ferrihydrite (as a ratio of total carbon content), pH and C/N ratios. Predictors with a highly right-skewed distribution (allophane and ferrihydrite) were log-transformed. Several models with different combinations of linear predictors were applied. Aikaike Information Criterion (AIC) was used to select the best-fit model.
4 Results
4.1 Soil characteristics
Soil characteristics for the non-flooded reference sites and the flooded sites are provided in Table 2 and Table 3 respectively. The dominant soil textural class at the flooded sites was loam, whereas the consistency of most flooded soil samples was friable to very friable. Some samples showed firm consistency (0–5 cm at FL1 and 10–20 cm and 20–30 cm at FL6). The soil texture of the reference soils was dominated by sand at NFL6 and silty clay at NFL5. At NFL1-4, the texture was more variable across depth increments. NFL1 comprised generally fine textured soils (loam, clay and silty clay). NFL2 showed more variable texture ranging from clay to silt and sand. NFL3 was dominated by clay textural classes, including sandy and silty clay. NFL4 was comprised of loamy sand, clay and loam. The dominant consistency of the reference soils was friable and firm at sites NFL1, NFL3 and NFL4, firm at sites NFL2 and 5 and loose at NFL6.

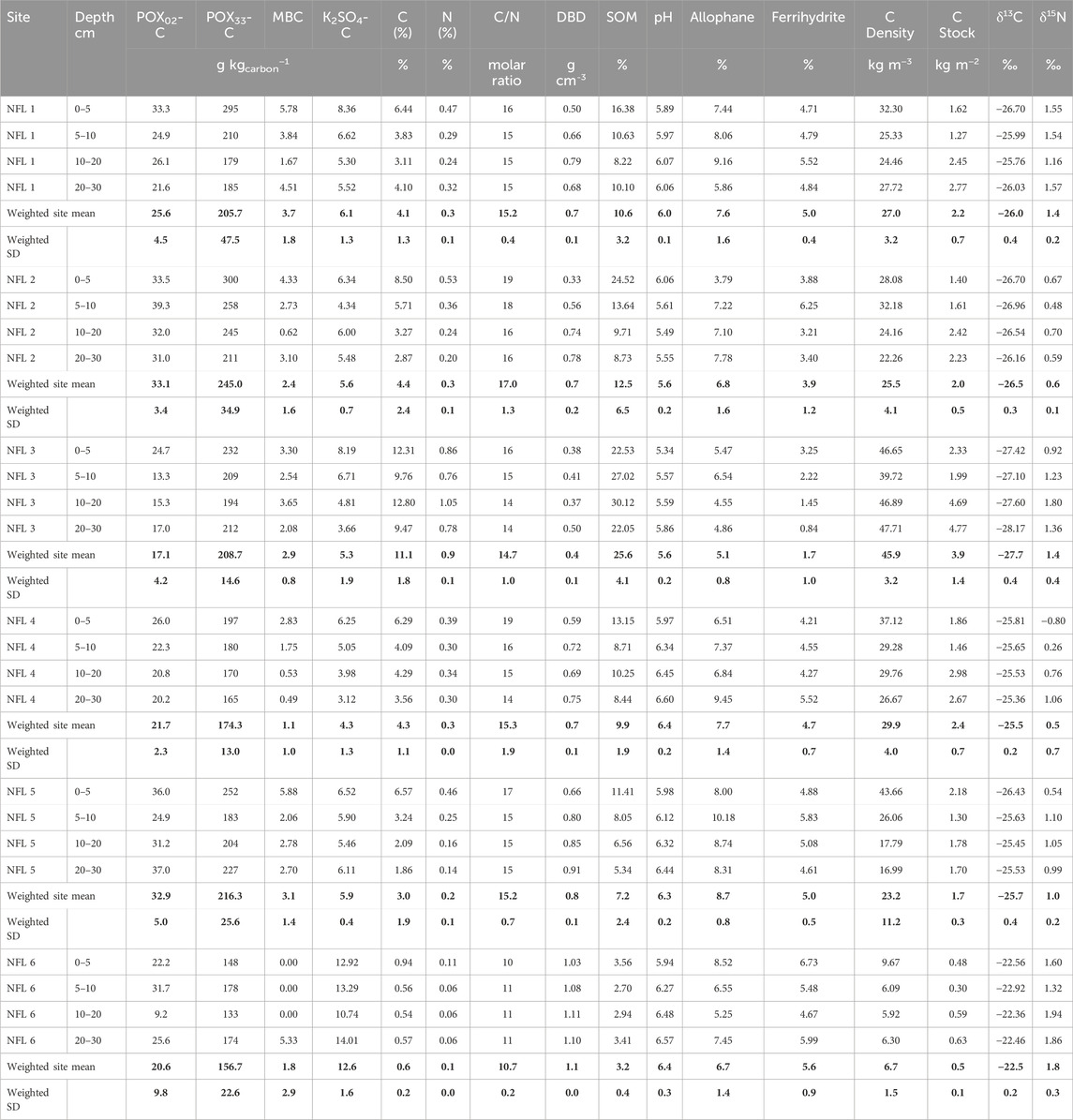

Table 2. Soil properties of non-flooded reference soils. Site means and standard deviations (SD) for each variable and site are included in bold (weighted according to thickness of depth interval of each observation).

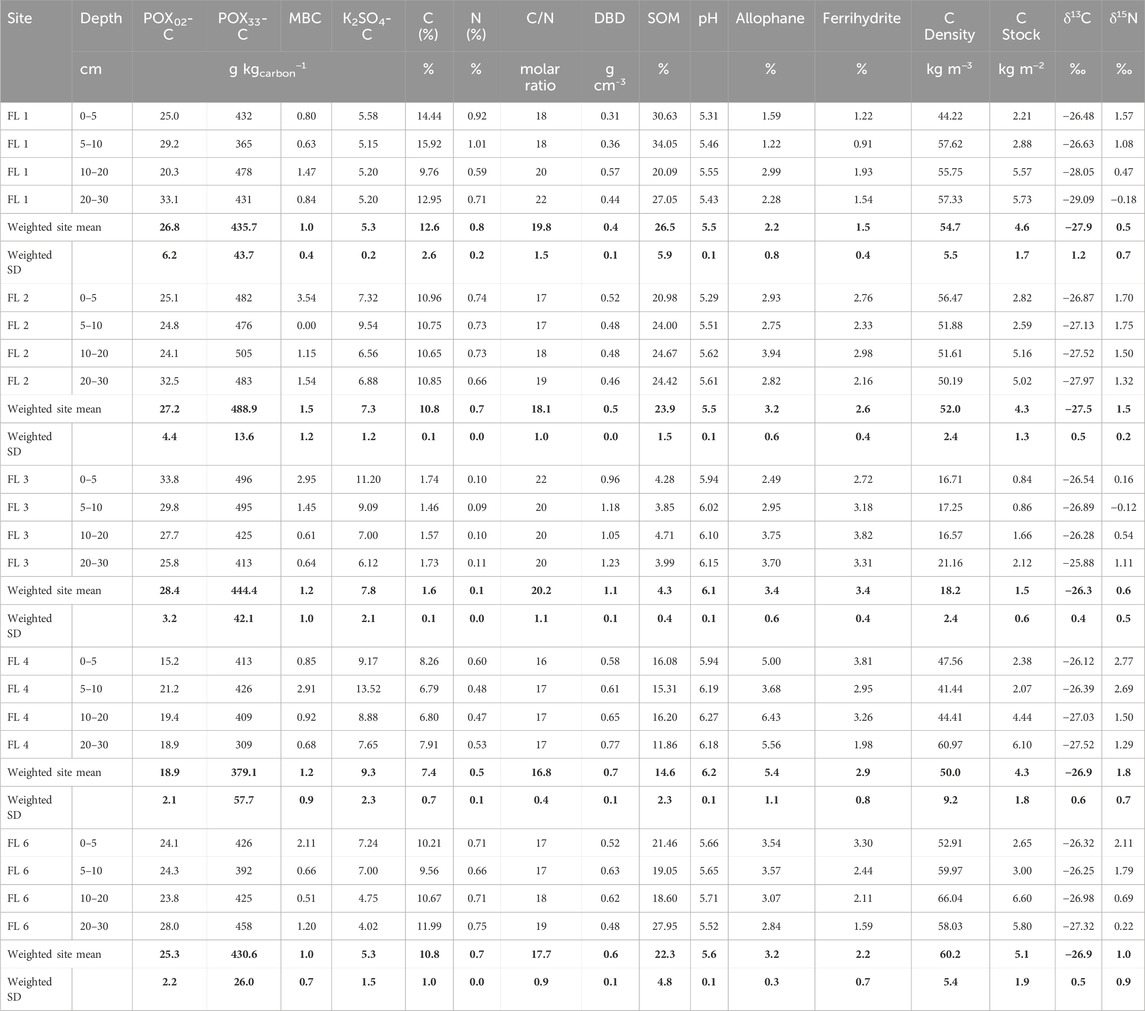

Table 3. Soil properties of flooded soils within the reservoir. Site means and standard deviations (SD) for each variable and site are included in bold (weighted according to thickness of depth interval of each observation).
Carbon content at the flooded sites was highest at FL1 (x̄ = 12.6%), FL2 (x̄ = 10.8%) and FL6 (x̄ = 10.8%), which comprised poorly drained land before flooding. At the same time, these sites revealed low DBD (x̄ = 0.4 g cm-3, 0.5 g cm-3 and 0.6 g cm-3, respectively) and low pH values (x̄ = 5.5, 5.5 and 5.6, respectively). The freely drained sites, FL3 and FL4, showed more variable soil characteristics, with C contents of x̄ = 1.6% and 7.4%, respectively, DBD of x̄ = 1.1 g cm-3 and 0.7 g cm-3, respectively and pH of x̄ = 6.1 and 6.2, respectively. Following the Icelandic Soil Classification, soil classes at the flooded sites included Histic Andosols (12%–20% C; FL1) and Gleyic Andosols (<12% C, FL2 and FL6) in poorly drained land, and Brown Andosols (<12% C; FL4) and Vitrisols (<1.5% C; FL3) in freely drained land (Tables 1, 3; Arnalds, 2015; Arnalds and Óskarsson, 2009).
At the reference sites, the C content was highest at the poorly drained site, NFL 3 (x̄ = 11.1%) while DBD was lowest (x̄ = 0.4 g cm-3). The other two poorly drained sites, NFL1 and NFL2, showed considerably lower C contents (x̄ = 4.1% and 4.4%) and higher DBD (x̄ = 0.7 g cm-3 at both sites). The pH values at the poorly drained sites were x̄ = 5.6 at NFL2 and NFL3, and 6 at NFL1. The riverwash site, NFL6, showed the lowest C contents of all sites (x̄ = 0.6%), and comparatively high DBD (x̄ = 1.1) and pH (x̄ = 6.4). The freely drained vegetated sites, NFL4 and NFL5, showed intermediate C contents (x̄ = 4.3% and 3.0%), DBD (x̄ = 0.7 g cm-3 and 0.8 g cm-3) and pH (x̄ = 6.4 and 6.3). Following the Icelandic Soil Classification, soils at the poorly drained reference sites NFL1-3 were classified as Histic and Gleyic Andosols, Brown Andosols at freely drained sites NFL4 and NFL5, and Vitrisols at the riverwash site, NFL6 (Tables 1, 2; Arnalds, 2015; Arnalds and Óskarsson, 2009).
4.2 Carbon and mineral soil characteristics of flooded compared to reference soils
There are clear differences in soil properties between flooded and reference soils (Figure 4; Tables 2, 3). Relative C content (%C), C densities, C stocks, C/N ratios and POX33-C were significantly higher in the flooded soils than the reference soils. For example, average C content in the flooded soils was 8.66% compared to 4.59% in the reference soils. C density averaged 47.0 kg m-3 in the flooded soils, while it was 26.4 kg m-3 in the reference soils. POX33-C averaged 436 g kgcarbon−1 in the drowned soils, but 201 g kgcarbon−1 in the reference soils.

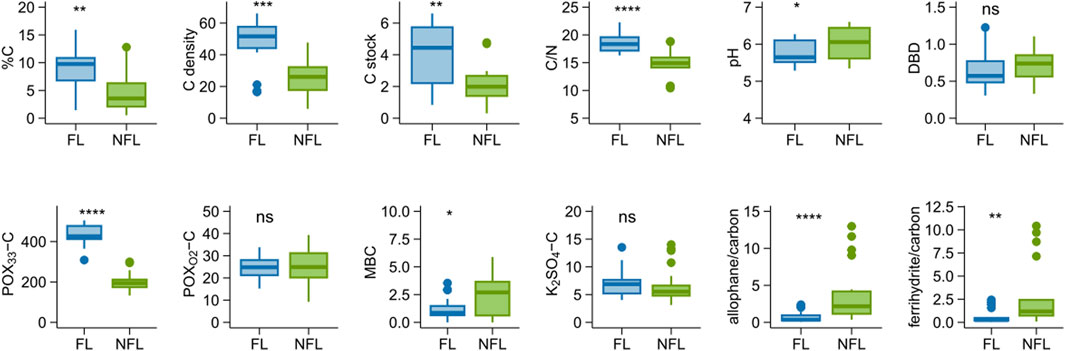

Figure 4. Boxplots comparing distribution and means of selected variables of flooded soils (FL) and not flooded reference soils (NFL). Statistical significance is indicated by the following symbols: ns: p > 0.05, *: p≤0.05, **: p≤0.01, ***: p≤0.001, ****: p≤0.0001. Observations are weighted according to thickness of depth interval.
Ferrihydrite and allophane as a ratio of C (ferrihydrite/carbon, allophane/carbon), MBC and pH were significantly lower in the soils from the reservoir than the reference soils (Figure 4). For instance, ferrihydrite/carbon was on average 2.47 in the reference soils, but only 0.61 in the drowned soils. Allophane/carbon averaged 3.49 in the reference soils and 0.72 in the flooded soils. pH was 5.77 in average in the flooded soils, compared to 6.06 in the reference soils. There was no significant difference between POX02-C, K2SO4-C and DBD between the flooded soils and the reference soils.
At most reference sites, %C and C density decreased with depth, while in the flooded soils, these values were either stable or slightly increased with depth (Table 2; Table 3). Overall, δ13C and δ15N values showed little variation with depth. In the reference soils, δ13C ranged from approximately −22.5‰ to −28‰, and δ15N values ranged from approximately 2‰ to −0.8‰. In the flooded soils, δ13C ranged from approximately −26‰ to −29‰, and δ15N values ranged from approximately 2.8‰ to −0.2‰.
Variable loadings in the PCA (Table 4) showed that pH, allophane, ferrihydrite, C/N ratios and POX33-C contributed most strongly to PC1, while MBC and POX33-C were the main contributors to PC2. The PCA biplot (Figure 5) illustrates a rather clear division between flooded and reference soil samples. Again, variables associated with organic soil phases, particularly POX33-C were more important in the flooded soils, whereas mineral phases such as allophane and ferrihydrite were more dominant in the reference soils.

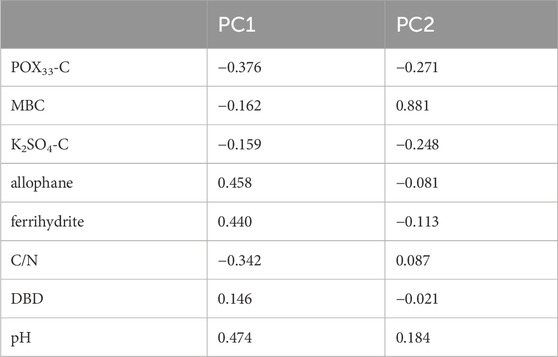

Table 4. Loadings show contributions of the different variables to PC1 and PC2. Values of pH, allophane, ferrihydrite, C/N ratios and POX33-C contribute strongly to PC1, MBC and POX33-C contribute strongest to PC2.

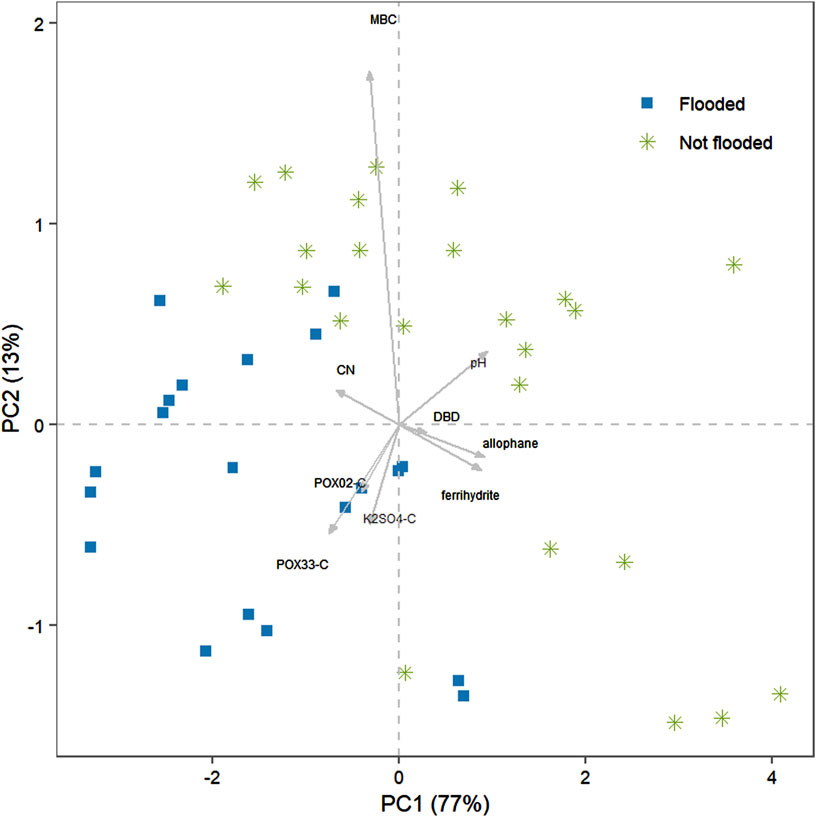

Figure 5. Biplot of robust PCA showing variation in organo-mineral composition of the soils, including three external variables (Box-Cox transformed C/N ratios, log transformed DBD, and pH). Variable loadings were multiplied by 2 for better visualization.
Beta regression model coefficients (Table 5) for the model (POX33-C)I = ß1[log(allophane)] + ß2[log(ferrihydrite)] + ß3(C/N) + ß4(pH) + εi indicate a significant negative effect of log(allophane) and significant positive effects of log(ferrihydrite) and C/N ratios on POX33-C. The effect of the pH on POX33-C was not significant. The pseudo r2 was 0.72, suggesting that about 70% of variance in POX33-C was explained by the linear combination of these four predictors.

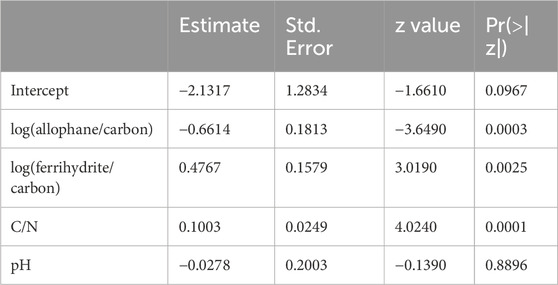

Table 5. Beta regression model coefficients (mean model with logit link) for the model (POX33-C)I = ß1[log(allophane/carbon)] + ß2[log(ferrihydrite/carbon)] + ß3(C/N) + ß4(pH) + εi. In the model, POX33-C was used as a proportion of total carbon, allophane and ferrihydrite were used as a ratio to total carbon. Pseudo r2 = 0.72.
5 Discussion
5.1 C stocks and C densities in flooded compared to reference soils
The flooding for 24 years has altered the C budget of the soils. C stocks, C density and %C were significantly higher in the drowned soils than in the reference soils (Figure 4; Tables 2, 3). These increases in our soils are consistent with previous research following considerably shorter periods of episodic flooding (5 years; Oelbermann and Schiff, 2010), but contradict results of studies on soils submerged for about 8 decades (Félix-Faure et al., 2019a; Félix-Faure et al., 2019b). The %C distribution with depth was rather uniform in our reservoir soils in contrast to the declining trends in the reference soils (Tables 2, 3). Significantly higher C/N ratios in the flooded soils compared to the reference soils suggest vertical movement of organic material from upper, more organic-rich horizons to deeper layers, as well as incorporation of organic material from decaying vegetation submerged during reservoir formation (Oelbermann and Schiff, 2010; Félix-Faure et al., 2019b). Vertical redistribution of colloidal and dissolved organic carbon is also a known process in soils of natural floodplains (Suchara et al., 2021). Additionally, the O horizons of wetland soils and the upper organic-rich horizons in Brown Andosols likely provided some protection against erosion of the submerged soils.
Contrary to Oelbermann and Schiff (2010), we did not observe enrichment of δ13C and δ15N with depth in the flooded soils, nor an overall enrichment of δ13C and δ15N in flooded soils compared to the reference soils. These either uniform or declining patterns of δ13C and δ15N with depth may indicate restricted biological activity and reduced decomposition rates following flooding (Alewell et al., 2011; Krüger et al., 2014), potentially facilitating high C stocks. Alternatively, preferential conservation of certain organic compounds under anaerobic conditions could explain the observed patterns. For instance, decomposition of 13C- and 15N-depleted recalcitrant compounds such as lignin (Benner et al., 1987; Feyissa et al., 2020) by white rot fungi is suppressed in the absence of oxygen (Félix-Faure et al., 2019b). Importantly, interpretation of δ13C and δ15N patterns in soils affected by frequent additions of aeolian material of volcanic origin, such as in Iceland, is challenging (Möckel et al., 2024) and still not fully understood. Nutrients and elements that serve as alternative electron acceptors, such as sulphate and Fe are derived from the weathering of tephra, reworked volcanic material and deposited as aerosols during volcanic eruptions (Klaes et al., 2023; Broder et al., 2012; Rose et al., 2004). They exert a strong influence on element cycling and decomposition trajectories, likely affecting isotopic fractionation processes under both aerobic and anaerobic conditions (Möckel et al., 2024). Further research is needed to better understand the influence of volcanic ejecta on element cycling and on the depth patterns of δ13C and δ15N values in volcanic soils.
5.2 Properties of organic and mineral soil constituents in flooded compared to reference soils
Content of POX33-C was considerably higher in the flooded soils than in the reference soils (Figure 4; Tables 2 and 3), which may be partly explained by a lower content of mineral phases in the flooded compared to the reference soils. This could render the C of the flooded soils less protected by mineral soil colloids and, hence, more sensitive to oxidation. Our findings of a negative influence of allophane/carbon content on POX33-C (p = 0.0003; Table 5) are consistent with Tirol-Padre and Ladha (2004), who observed no significant correlation between clay/carbon alone and POX33-C alone, but a negative correlation between silt/carbon and (silt + clay)/carbon and POX33-C. While allophane is a clay-sized mineral, it forms silt-sized aggregates, facilitating C stabilization in two ways: through organo-mineral associations and by the entrapment of SOM within microcompartments that form alongside the silt-sized soil aggregates.
The positive relationship between the ferrihydrite/carbon and POX33-C (p = 0.003; Table 5) is surprising. We would have expected a negative relationship between this clay-sized mineral and the C oxidizable by 33 mM KMnO4. One possible explanation may be the nature of the C stabilized by clay-sized minerals, as pedogenic minerals are known to form preferential bonds with certain C groups. Also, previous studies (e.g., Skjemstad et al., 2006, and references therein) have demonstrated that certain C compounds, namely, aromatic and phenolic structures, are particularly sensitive to oxidation by KMnO4. Interestingly, research in Icelandic Histosol with andic and vitric soil properties indicates a preferential stabilization of phenolic and aromatic C by allophane (Möckel et al., 2021; Möckel et al., 2023). Filimonova et al. (2016) also found enrichment of aromatic C in ferrihydrite associated C, but research in Iceland suggests a preferential stabilization of labile C groups such as O/N-alkyl C by ferrihydrite (Möckel et al., 2021; Möckel et al., 2023). Perhaps allophane has a stronger stabilizing effect on C groups that are more prone to oxidation by KMnO4 than ferrihydrite in our soils. Consequently, only the loss of allophane from the flooded soils may contribute to the higher POX33-C values. Ferrihydrite may generally not play as strong a role for C stabilization as allophane in our soils, similar to previous studies (e.g., Basile-Doelsch et al., 2007), which report approximately a 3.5-fold higher capacity for SOM stabilization by imogolite-type minerals than by Fe oxides. Nonetheless, it remains surprising that ferrihydrite/carbon and POX33-C show a positive relationship in the beta regression (p = 0.003; Table 5) rather than a weak negative or a non-significant association. Without further in-depth studies, we can only hypothesize about the causes. Our results may simply reflect an artefact of the relatively small sample size. Additionally, the effect of changes in clay-sized soil mineral phases may be blurred or overridden by differences in C composition between flooded and reference soils due to inputs of C to the reservoir soils from drowned vegetation. As discussed above, C derived from drowned terrestrial vegetation likely led to an increase in C/N ratios of the soils (Félix-Faure et al., 2019b), and simultaneously increased the pool of POX33-C. This is supported by the positive relationship between C/N ratios and POX33-C (p = 0.0001; Table 5), and supports the argument by Tirol-Padre and Ladha (2004) that changes in management practices may alter the pool of C oxidizable by 33 mM KMnO4.
The pH of the soils, which was significantly lower in the reservoir than in the reference soils (Figure 4; Tables 2, 3) showed no significant effect on POX33-C (Table 5, p = 0.8896). Though indirect, the influence of pH on C stocks is nonetheless important. The pH of a soil reflects its general chemical condition and controls many soil properties and processes, that influence SOM dynamics (Rasmussen et al., 2018) – including the surface charge and reactivity of minerals, the formation of organo-mineral complexes, and microbial activity. For example, formation of allophane is inhibited at pH < 5, and Neculman et al. (2013) reported that allophane complexation occurs predominantly at pH > 6. Therefore, the significantly lower pH in the flooded soils likely reduces the capacity of allophane to form stable bonds with SOM. Lower pH in the drowned soil could also affect SOM decomposition by influencing decomposer communities, such as microbial composition and activity. Overall, microbial decomposer activity is favoured by a pH range of approximately 5–7 (Wang and Kuzyakov, 2024).
5.3 Long-term implications of changes in soil properties for the carbon balance of submerged soils
Recently, a nexus approach to address challenges such as secure access to resources like water, food and energy, or to ensure peace has gained attention. The nexus approach emphasizes the interrelations between different natural resources and their connection to socioeconomic challenges (Lal et al., 2017; Lal, 2015). As explained by Hatfield et al. (2017) and Lal et al. (2017) soils are often a neglected link of this approach. They argue that soils should be at the center of the interrelation between water, food and energy. While they explain well why soil health and soil functioning is key to energy security, potential ramifications of energy production for soil resources are not discussed.
Our study adds to the emerging body of research addressing the consequences of hydroelectric infrastructure such as reservoir flooding on soils. The inundation of the Blöndulón reservoir area caused profound changes in the physicochemical properties of the drowned soils. Relative C contents, C stocks and C density were significantly higher compared to the reference soils (Figure 4; Tables 2, 3), likely due to C inputs from the drowned terrestrial vegetation. Conceivably, this imposes a high risk of elevated C losses in the coming decades as the increased C levels appear to be less protected by mineral phases and more sensitive to oxidation than C in the reference soils. Under continued inundation by the hydropower reservoir, C loss may occur both in form of CO2 and CH4 due to mineralization (Huttunen et al., 2002; Wang et al., 2024), as well as through erosion. High energy waves and waves during low water levels can erode sediments and submerged soils in the nearshore environment (Vilmundardóttir et al., 2010), and in the annual drawdown zone (Félix-Faure et al., 2019a; Félix-Faure et al., 2019b). When strong dry winds that are-common in Iceland (Figure 2A) coincide with exposure of the reservoir soils, wind erosion becomes likely (Vilmundardóttir et al., 2010). Similarly, long-term exposure of the submerged soils, e.g., following dam removal, could render the C of the drowned soils vulnerable to losses via mineralization and, in the absence of a protective vegetation cover, to losses by erosion (Foley et al., 2017). Therefore, future dam removal, which may be driven by concerns about safety or economic reasons when dams age, or by a call for environmental reconstruction (Vahedifard et al., 2021), must consider the vulnerability of the exposed soils. Dam removal should go hand in hand with interventive measures to prevent detrimental side effects, such as soil loss from the impoundment area and sandification of surrounding land. Finally, more research is needed on the environmental impacts of reservoir impoundments in Iceland - a country which increasingly relies on hydropower. Future studies should focus on GHG emissions from hydroelectric reservoirs and the long-term fate of the C stored in flooded lands.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
SM: Conceptualization, Formal Analysis, Investigation, Methodology, Supervision, Visualization, Writing – original draft, Writing – review and editing. TB: Conceptualization, Investigation, Methodology, Supervision, Writing – review and editing. EE: Conceptualization, Methodology, Project administration, Supervision, Writing – review and editing. IÁ: Investigation, Methodology, Writing – review and editing. UM: Investigation, Methodology, Writing – review and editing. GG: Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing – original draft.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This research was funded by Landsvirkjun, the national power company of Iceland.
Acknowledgments
We would like to thank Þorsteinn Jónsson, Höskuldur Þorbjarnarson, and Sigrún Dögg Eddudóttir for assistance with field work. The Blönduvirkjun hydropower plant kindly hosted us during fieldwork.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
